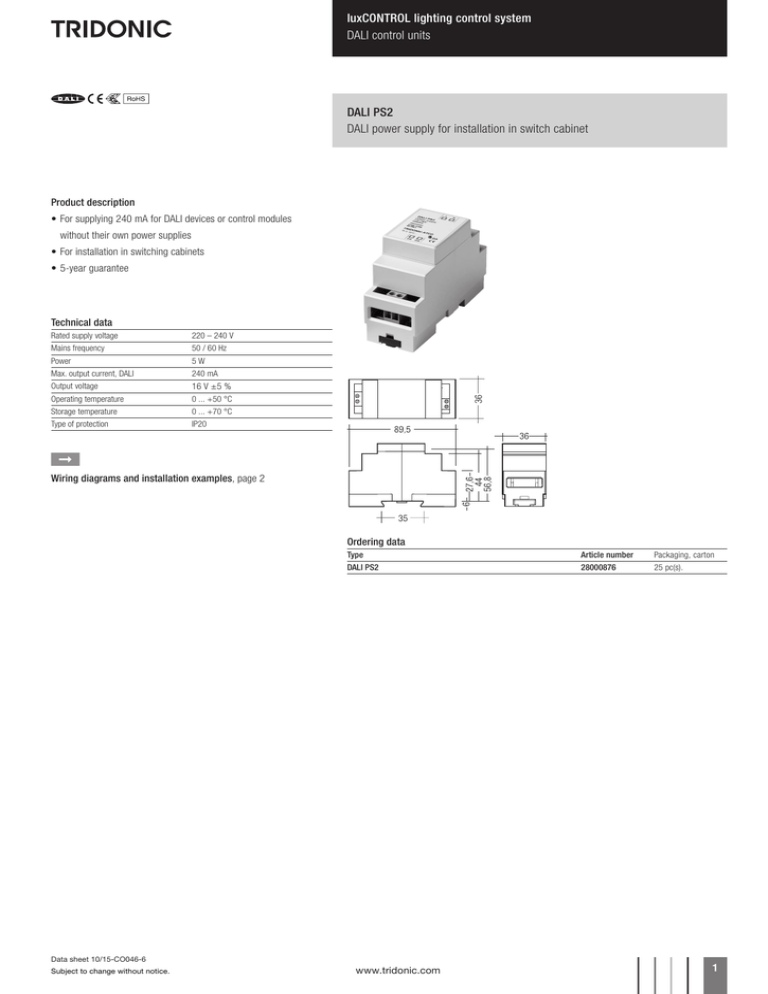

luxCONTROL lighting control system
DALI control units
DALI PS2
DALI power supply for installation in switch cabinet
Product description
•For supplying 240 mA for DALI devices or control modules
without their own power supplies
•For installation in switching cabinets
•5-year guarantee
Technical data
Rated supply voltage
220 – 240 V
Mains frequency
50 / 60 Hz
Power
5W
Max. output current, DALI
240 mA
Output voltage
16 V ±5 %
Operating temperature
0 ... +50 °C
Storage temperature
0 ... +70 °C
Type of protection
IP20
È
Wiring diagrams and installation examples, page 2
Ordering data
Type
Article number
Packaging, carton
DALI PS2
28000876
25 pc(s).
Data sheet 10/15-CO046-6
Subject to change without notice.
www.tridonic.com
1
luxCONTROL lighting control system
DALI control units
Installation
• DALI signals are not SELV. Therefore the same
procedures should be applied as working with
mains voltage
• Individual DALI circuits must not exceed 240 mA
• The maximum cable length of the DALI signal
wires must not exceed 300 m or drop more than
2 V on the signal line voltage
Standards
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 61347-2-11
EN 62386-101
Wiring type and cross section
The wiring can be solid wire, stranded wire or stranded wire with end sleeve with a cross-section of
0.25 mm² to 2.5 mm².
N
wire preparation:
0.25 – 2.5 mm²
Glow-wire test
according to EN 60598-1 passed.
DALI standard
DALI PS2 is designed to supply control gear with
DALI standard IEC 60929 (DALI V0) and
IEC 62386 (DALI V1).
L
28000876
9 mm
DALI
circuit diagramm
L
N
DALI
PS2
PCA EXCEL one4all
PCA EXCEL one4all
DALI
DALI
GC
DALI
GC
DALI
SC
DALI
USB
tc control point
tc: max. 80 °C
12 mm
tc
15 mm
tc
Data sheet 10/15-CO046-6
Subject to change without notice.
www.tridonic.com
2
