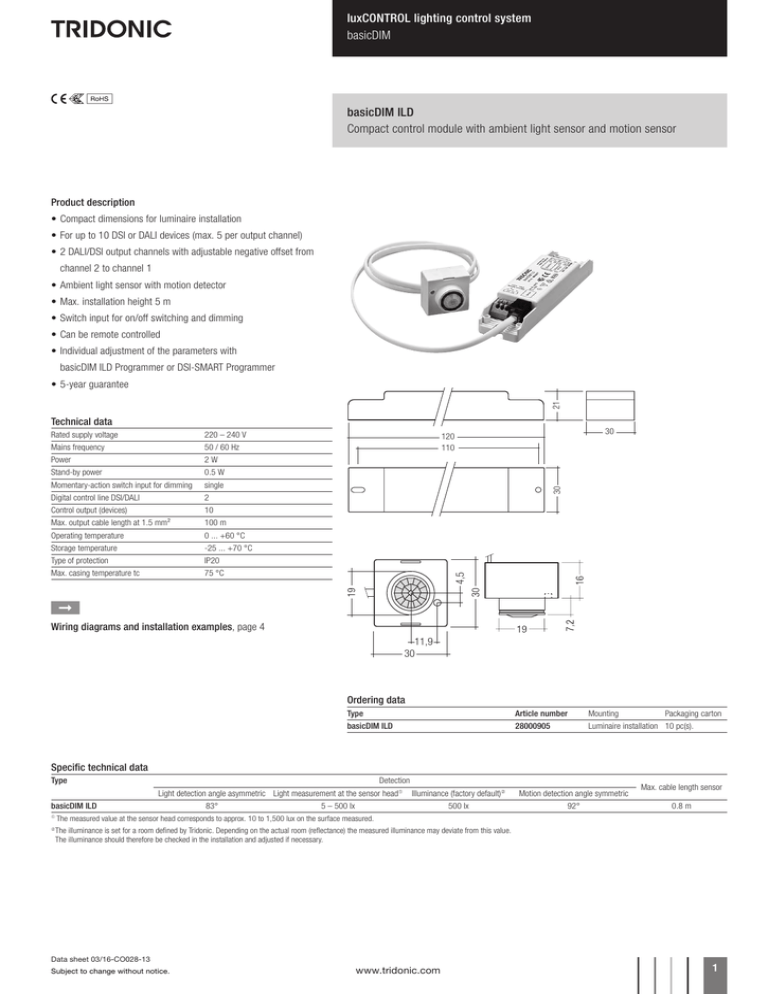

basicDIM ILD en
luxCONTROL lighting control system
basicDIM
basicDIM ILD
Compact control module with ambient light sensor and motion sensor
Product description
•Compact dimensions for luminaire installation
•For up to 10 DSI or DALI devices (max. 5 per output channel)
•2 DALI/DSI output channels with adjustable negative offset from
channel 2 to channel 1
•Ambient light sensor with motion detector
•Max. installation height 5 m
•Switch input for on/off switching and dimming
•Can be remote controlled
•Individual adjustment of the parameters with
basicDIM ILD Programmer or DSI-SMART Programmer
21
•5-year guarantee
Technical data
Mains frequency
50 / 60 Hz
Power
2W
Stand-by power
0.5 W
Momentary-action switch input for dimming
single
Digital control line DSI/DALI
2
Control output (devices)
10
Max. output cable length at 1.5 mm²
100 m
Operating temperature
0 ... +60 °C
Storage temperature
-25 ... +70 °C
Type of protection
IP20
Max. casing temperature tc
75 °C
30
120
110
30
220 – 240 V
4,5
Rated supply voltage
È
Wiring diagrams and installation examples, page 4
11,9
30
Ordering data
Type
Article number
Mounting
basicDIM ILD
28000905
Luminaire installation 10 pc(s).
Packaging carton
Specific technical data
Type
Detection
Light detection angle asymmetric Light measurement at the sensor head1
basicDIM ILD
83°
Illuminance (factory default)2
Motion detection angle symmetric
500 lx
92°
5 – 500 lx
1
The measured value at the sensor head corresponds to approx. 10 to 1,500 lux on the surface measured.
2
The illuminance is set for a room defined by Tridonic. Depending on the actual room (reflectance) the measured illuminance may deviate from this value.
The illuminance should therefore be checked in the installation and adjusted if necessary.
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
Max. cable length sensor
0.8 m
1
ACCESSORIES
luxCONTROL lighting control system
basicDIM
REMOTECONTROL IR6
Product description
•Optional infra-red remote control
•Switching on and off (On/Off button)
•Dimming (Up/Down button)
•Activation of automatic lighting control
•Setting the threshold control point (Set button)
ACCESSORIES
Ordering data
Type
Article number
Dimensions L x W x H Packaging carton
REMOTECONTROL IR6
28000647
86.5 x 40.5 x 7.2 mm 500 pc(s).
basicDIM ILD Programmer
Product description
•Optional infra-red programming unit for basicDIM ILD
•Setting of predefined discrete parameter values
•Programmable functions such as light level, time delay,
P.I.R., bright-out, power up
Ordering data
Type
Article number
Packaging carton
Weight per pc.
basicDIM ILD Programmer
28000257
1 pc(s).
0.3 kg
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
2
ACCESSORIES
luxCONTROL lighting control system
basicDIM
DSI SMART Programmer
Product description
•Optional infra-red programming unit for DSI-SMART PTM
or basicDIM ILD
•Settings can be read and modified
•Programmable functions such as light level, time delay,
P.I.R., bright-out, power up
Ordering data
Article number
Packaging carton
Weight per pc.
DSI-SMART Programmer1
28000843
1 pc(s).
0.35 kg
At version 2.30 for basicDIM ILD.
basicDIM ILD Sensor Cover Frame
6,7
Product description
•Cover frame for attaching the sensor
directly to the luminaire casing
7,8
ACCESSORIES
1
Type
Ø25,4
1,6
21,4
23,4
11,8
Ordering data
Type
Article number Packaging bag
Packaging carton
Weight per pc.
basicDIM Mounting Ring
86459426
200 pc(s).
0.001 kg
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
50 pc(s).
3
ACCESSORIES
luxCONTROL lighting control system
basicDIM
Accessories for smartDIM Sensor, basicDIM ILD
Product description
•Optional for increasing the detection range
of the motion sensor for smartDIM Sensor 1 or basicDIM ILD
Ordering data
Type
Article number
Packaging carton
Weight per pc.
smartDIM Mirror
28000851
50 pc(s).
0.002 kg
Packaging: 1 pc(s)./carton
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
4
luxCONTROL lighting control system
basicDIM
Standards
EN 55015
EN 61000-3-2
EN 61347-1
EN 61347-2-11
EN 61547
EN 62386-101
basicDIM ILD
The basic DIM ILD provides the basis for an easy-to-use and cost-effective
lighting system with motion detection.
When the sensor detects movement it triggers a individual adjustable motion
detection profile in the control unit.
As the amount of natural ambient light changes the illuminance from the
artificial lighting system is adjusted.
The connected luminaires can be switched on and off via momentary-action
switch or remote control possible.
IR is always active.
Glow-wire test
according to EN 61347-1 passed.
DALI standard
The basicDIM ILD is designed to control control gear
with DALI standard IEC 60929 (DALI V0) and
IEC 62386 (DALI V1).
Installation
•Don‘t use the basicDIM ILD without the sensor.
•DSI/DALI is not SELV. The installation instructions for mains voltage
therefore apply.
•The maximum cable length between the external switch and
basicDIM ILD is 100 m.
•The cable between the luminaire installation sensor and the base
module must not be extended.
•A synchronous operation of DALI and DSI ballasts at the same
control gear is not possible.
•The maximum cable length of the DSI / DALI control signal
(for a cable cross-section of 1,5 m2) must not be exceeded.
•Any number of push to make switches may be connected in parallel
to the inputs.
•Do not connect standard switches to the input.
•Please ensure that the detection range of the sensor lies in the
lighting area of the controlled luminaires.
•Please ensure that the detection ranges of the sensors do not
overlap. This may have influence to the lighting control.
•
•
•
•
Heaters, fans, printers and copiers located in the detection zone may
cause incorrect presence detection.
To avoid false readings, the sensor should be installed so there is
no direct light from the lamp in the detection zone.
To avoid false measurements caused by the light from other
luminaires we recommend that the sensor should be located centrally
in the luminaire.
Sensor wires must be routed separately from the lamp wires and mains
cables otherwise the lighting control system may malfunction.
If separate routing is not possible (for reasons of space) shielded lamp
wires and mains cables must be used.
Mounting with cover frame in luminair housing:
basicDIM Mounting Ring (art.no. 28001025)
Size of the sheet: 0.8 – 1.2 mm
1.9 +0.20
-0.00
Ø 21.8 +0.20
-0.00
11.9 +0.10
-0.10
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
5
luxCONTROL lighting control system
basicDIM
Switch
basicDIM ILD has an input terminal for an external switch. Any number of switches can be connected in parallel to the terminal.
Short press (> 50–600 ms):
ON/OFF
Long press (> 600 ms):
Dim up/down
A change in the light value deactivates lighting regulation only temporarily. As soon as the luminaire has been automatically switched on again (motion detection) or manually switched off and on again, regulation is activated again.
2 x short press:
The overwritten setpoint light value is stored (luminaire acknowledges by flashing twice)
Function is lockable via the DSI programmer
Cable types and cable cross-sections
Solid wire with a cable cross-section of 0.5 mm² to 1.5 mm².
DSI/DALI interface
The interface selection DSI or DALI is made by the DSI SMART Programmer.
wire preparation:
0.5 – 1.5 mm²
8 – 9 mm
Wiring diagram basicDIM ILD
L
N
2
3
4
PCA
6 DA
7 DA
L
N
T
Sensor
basicDIM ILD
CH1
D1
D2
D1
CH2
D2
2
3
4
PCA
6 DA
7 DA
basicDIM ILD Sensor
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
6
luxCONTROL lighting control system
basicDIM
Motion detector
Ambient light control
Motion detection
Light level recognition area
Detection area:
46°
Scope:
2.5 m presence detection
5 m motion detection
92°
h
d
h
a
b
x
1.5 m
0.8 m
2.1 m
1.5 m
2.0 m
1.1 m
2.9 m
2.0 m
2.5 m
1.3 m
3.6 m
2.5 m
3.0 m
1.6 m
4.3 m
3.0 m
h*
d
3.5 m
1.9 m
5.0 m
3.5 m
1.50 m
3.10 m
4.0 m
2.1 m
5.7 m
4.0 m
2.00 m
4.10 m
4.5 m
2.4 m
6.4 m
4.5 m
2.50 m
5.20 m
5.0 m
2.7 m
7.1 m
5.0 m
3.00 m
6.20 m
3.50 m
7.20 m
4.00 m
8.30 m
4.50 m
9.30 m
5.00 m
10.40 m
28°
55°
h
1 m = 1.094 yd
a
b
x
* The recommended maximum
room height for office applications is 3 m and for corridor
applications for example 4 m.
x
Calculation of the diameter:
d = 2 × tan(0,5 × a) × h
Active
The light is switched on or off automatically depending on
whether or not there is a person in the room.
Manual-off delay
If the system is switched off manually via the switch or remote control the
motion sensor is deactivated. At the end of a 10 minutes delay if motion has not
been detected the motion sensor is activated again. If the sensor detects motion
during the “Manual Off” delay, the time will be reset to the start.
Off Only
The motion detector only switches the connected lighting
off. The luminaires are switched on manually via the
connected external switch or infra-red control.
The following operating modes can be set for lighting control via the DSI-Smart
Programmer:
The following operating modes can be set for the motion detector via the basicDIM ILD Programmer or DSI-Smart Programmer:
Never Off
If it has not detected any movement the sensor dims to the
“second light value” parameter and remains at this value
Inactive
The motion sensor is deactivated. The light must be
switched on or off manually.
Second light value
On the basicDIM ILD you can set whether the light is to be switched off after the
switch-off delay or dimmed to the second light value. The light value and the
dwell time (how long the value is held) can be set via the “when vacant” and
“sec. level” parameters.
Channel 2
Channel 1
40 %
70 %
Constant light control is active.
Inactive
Constant light control is deactivated. The lighting is switched
on at 100%.
The value is set with the “light-level” parameter. If the value is set to “max” then
lighting control is deactivated. For all other values lighting control is active.
Switch-off delay
This is the time after which the lighting is switched off if no movement is
detected. It can be set via the “time delay” parameter.
Offset
The light level of channel 2 is less then the light level of channel 1.
The difference can be set with the parameter „Offset Value“
via basicDIM ILD Programmer or DSI-SMART Programmer.
Active
Setpoint adjustment
• DSI-SMART Controller: Pressing the Set button stores the current light value as a new setpoint.
• basicDIM ILD Programmer or DSI-SMART Programmer:
Via the “light-level” parameter
• External switch: Briefly pressing the switch twice stores the current light value as a new setpoint. (Function is lockable via the
basicDIM ILD Programmer or DSI Programmer)
Bright-out
If the nominal illuminance (e.g. 500 lux) is exceeded for 10 minutes by more
than 150 % (e.g. 750 lux), the lighting is switched off even if motion is detected.
The lighting is switched on again when the measured light value falls below the
setpoint.
The bright-out function is displayed by a green status indication LED at the
sensor.
This function can be deactivated via the basicDIM ILD Programmer or
DSI-SMART Programmer.
500 LUX
Artificial light
Natural light
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
7
luxCONTROL lighting control system
basicDIM
User-definable parameters
basicDIM ILD have the following user-definable parameters (since DSI-SMART Programmer version 2.30):
The values in parentheses are the factory default settings.
The adjustable values for the basicDIM ILD Programmer is available in a separately documentation on www.tridonic.com.
Parameter
Range
(Factory setting)
light-level
1 – 100/max
(70)
time delay
30 s – 60 min/con
(20 min)
Delay time after the last detected movement
The following values can be set:
30 seconds, 1, 2, 3, 5, 10, 15, 20, 30, 45 and 60 minutes and “continuous” (no switch-off)
if vacant
off
30 s – 60 min/con
(off)
The “off” setting switches the luminaire off after the delay time has elapsed.
If a time value is set, the luminaire dims to the “sec. level” parameter and only switches off after the previously set
time has elapsed. The following values can be set:
off, 30 seconds, 1, 2, 3, 5, 10, 15, 20, 30, 45 and 60 minutes and “continuous” (“never OFF” function)
sec. level
1 – 100 %
(1 %)
P.I.R
Description
Selectable lighting control set point, 1 – 100 increments.
“max” also makes it possible to set the control gear to full power. (DSI 255)
“man” indicates whether the adjustment value was overwritten by the SET function of the SMART Controller.
Second light level to which luminaire dims after the delay time has elapsed.
(in conjunction with the “if vacant” parameter)
active/inactive/off only With the “active” setting, the lighting is automatically switched on or off depending whether a person is present.
(active)
With the “inactive” setting, the basicDIM ILD/DSI-SMART (PTM) can, in combination with continuous “time delay”, only
be used for lighting control.
With the “off only” setting, the lighting has to be switched on manually (momentary-action switch, remote control) but
is switched off by the presence detector.
bright-out
yes/no
(yes)
With the “yes” setting, the lighting switches off as soon as the light level exceeds 150 % of the set point for longer
than 10 minutes, for instance, if the room is adequately illuminated by sunlight. If the actual value falls below 100 %
of the set point, the lighting switches back on again.
With the “no” setting, the lighting remains switched on (at the minimum dimming level) even if the room is adequately
illuminated by sunlight and no artificial lighting is required.
Power up
on/off
(on)
With the “on” setting, the luminaire switches on after a mains break.
With the “off” setting, the luminaire does not switch on after a mains break. The presence detector becomes active
again after 15 seconds.
hold
overwrite
on/off
(off)
If the light level is manually dimmed via a momentary-action switch or remote control, lighting control stops. The
previously set dimming level retains its fixed value as long as lighting control is not activated by manual intervention
(momentary-action switch or remote control). If there is no movement in the room in this state and the “time delay”
has elapsed, the control unit stores the fixed dimming level.
With the “off” setting, lighting control is restarted each time movement is detected.
With the “on” setting, the control unit switches the luminaires back to the fixed dimming level each time movement is
detected and lighting control remains stopped. With this setting, lighting control can be activated again via the remote
control (Automatic button).
If lighting control was active before repeated detection or if the lighting was switched off manually, the luminaires and
lighting control are switched on after movement is detected in order to prevent people having to enter a dark room.
PTM Set
on/off
(on)
With the “on” setting, it is possible to save the currently set light level as a lighting control set point by pressing the
momentary-action switch twice shortly.
With the “off” setting, this function is disabled.
DALIorDSI
DSI/DALI
(DSI)
Offset Mode
fixed/converging
(converging)
Offset Value
0 to -70 %
(-30 %)
With the “DSI” setting, DSI interface mode is enabled.
With the “DALI” setting, DALI interface mode in which DALI broadcast commands are sent is enabled.
This parameter specifies how the adjustable “Offset Value” of the basicDIM ILD behaves from channel 2 to channel 1
over the dimming range.
With the “fixed” setting, the previously set “Offset Value” remains the same across the dimming range. (e.g. with an
“Offset Value” of -30 %, channel 2 remains at 70 % when channel 1 has reached 100 %).
With the “converging” setting, the previously set “Offset Value” remains the same up to a specific dimming level and
decreases the closer one gets to 100%. (e.g., with an “Offset Value” of -30 %, the dimming level of channel 2 is 40 %
and that of channel 1 is 70 %. but both channels simultaneously change to a dimming level of 100 % if the lighting is
dimmed up).
Adjustable brightness difference between channel 2 and channel 1 of the basicDIM ILD.
The following values can be set:
0 %, -10 %, -20 %, -30 %, -40 %, -50 %, -60 % and -70 %
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
8
luxCONTROL lighting control system
basicDIM
Default Parameter Motion Detector
Parameter
Alight-level
1 time delay
B sec. level
2 if vacant
Data sheet 03/16-CO028-13
Subject to change without notice.
www.tridonic.com
9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
