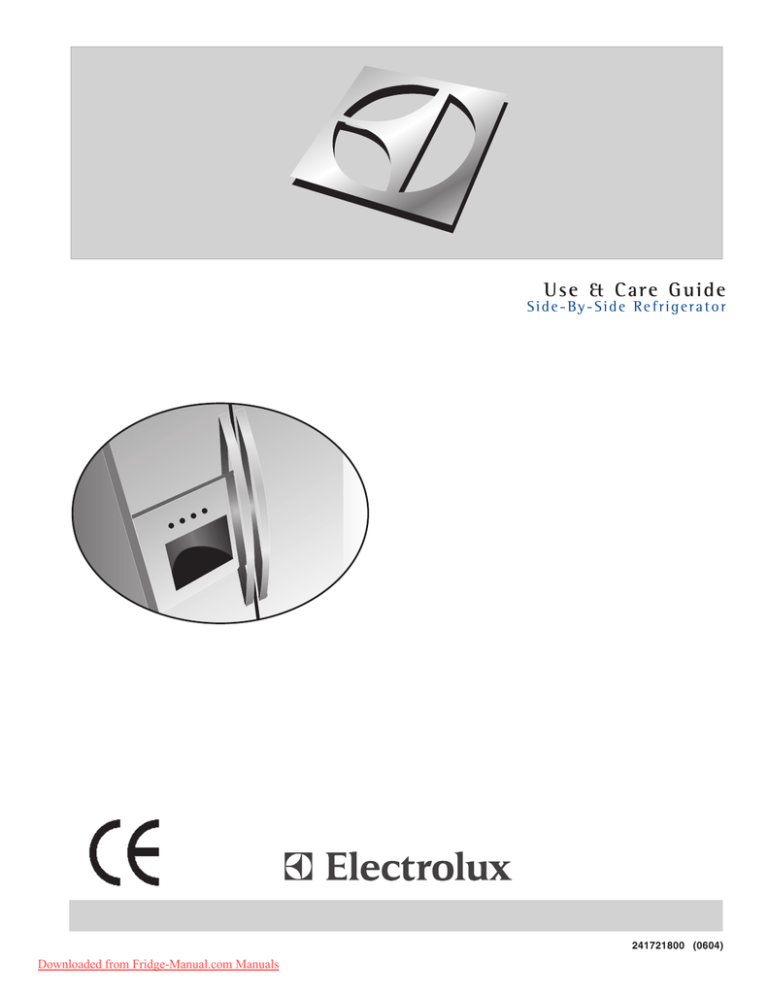

Use & Care Guide

S i d e - B y - S i d e R e f r i g e r a t o r

Downloaded from Fridge-Manual.com Manuals

241721800 (0604)

Welcome & Congratulations

PLEASE READ ANS SAVE THIS GUIDE

Thank you for choosing Electrolux. This Use & Care

Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new refrigerator.

We view your purchase as the beginning of a relationship.

To ensure our ability to continue serving you, please use this page to record key product information.

MAKE A RECORD FOR QUICK REFERENCE

________________________________________________

Purchase Date

________________________________________________

Electrolux Model Number

________________________________________________

Electrolux Serial Number (see picture for location)

TABLE OF CONTENTS

Welcome & Congratulations ................................. 2

Important Safety ..................................................... 3

Installation ........................................................ 4 - 5

Door Removal Instructions ................................... 6

Features at a Glance .............................................. 7

Temperature Controls ....................................... 8 - 9

Looking Inside .............................................. 10 - 12

Automatic Ice & Water Dispenser ................. 13 - 17

Storing Food & Saving Energy ........................... 18

Normal Operating Sounds & Sights ................... 19

Care & Cleaning ............................................ 20 - 21

Solutions To Common Problems ................ 22 - 25

Please attach sales receipt here for future reference.

NOTE

Registering your product with Electrolux enhances our ability to serve you. You can register by dropping your

Product Registration Card in the mail.


2

©2005 Electrolux Home Products, Inc.

All rights reserved. Printed in the USA

Important Safety Instructions

Please read all instructions before using this refrigerator.

FOR YOUR SAFETY

• Do not store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.

• Do not operate the refrigerator in the presence of explosive fumes.

• Avoid contact with any moving parts of automatic ice maker.

• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

CHILD SAFETY

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play with. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

PROPER DISPOSAL OF YOUR REFRIGERATOR

OR FREEZER

Risk of child entrapment

Child entrapment and suffocation are not problems of the past.

Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator/ freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb inside.

• Have refrigerant removed by a qualified service technician.

These guidelines must be followed to ensure that safety mechanisms in this refrigerator will operate properly.

ELECTRICAL INFORMATION

• The refrigerator must be plugged into its own dedicated 220 Volt, 50 Hz., AC only electric outlet.

The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

• If the power cord is damaged, it should be replaced by the manufacturer, service technician or a qualified person to prevent any risk.

• Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.

• Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

• Performance may be affected if the voltage varies by

10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

• Avoid connecting refrigerator to a Ground Fault Interruptor

(GFI) circuit.

3


IMPORTANT: Pressing the On/Off button on the control panel (at the top of the fresh food compartment) disables your refrigerator’s cooling system but does not disconnect power to lights and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the wall outlet.

Installation

This Owner’s Guide provides specific operating instructions for your model. Use the refrigerator only as instructed in this

Use & Care Manual. Before starting the refrigerator, follow these important first steps.

LOCATION

• Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher or other heat sources.

• The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker.

INSTALLATION

Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of your refrigerator. Sufficient air circulation is essential for the proper operation of your refrigerator.

Installation Clearances

• Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top --------------- 10 mm (3/8”)

Back ------------------------ 25 mm (1”)

DOOR OPENING

NOTE: If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of drawers and freezer baskets, the refrigerator should be in a position where both the refrigerator and freezer doors can be fully opened.

TOE GRILLE INSTALLATION / REMOVAL

To Remove Toe Grille:

1.

Open freezer and fresh food compartment doors.

2.

Working from left side of toe grille, slip your fingers between top of toe grille and cabinet. Gently pull forward until first set of tabs are free. Slide your hand down past the free tabs and pull forward again until the second set of tabs are free. Continue this process until all tabs are free and the toe grille can be removed. (See graphic at top of page in right column.)

To Install Toe Grille:

1.

Open freezer and fresh food compartment doors.

2.

Line up toe grille at base of refrigerator, making sure the four bottom tabs are resting through holes at base of cabinet.

3.

Starting from left side of toe grille, press in on first top tab using your thumb and push toe grille forward until it snaps in place. Continue this process until all tabs aresnapped in place and toe grille is secured to refrigerator.

LEVELING

All four corners of your refrigerator must rest firmly on a solid floor.

Your refrigerator is equipped with adjustable front rollers to help level your unit. To ensure proper door seal and assist door closing, the refrigerator should be tilted 1/4” (6 mm), front to back.

To Level Your Refrigerator:

1.

Remove toe grille. (See “To Remove Toe Grille” .)

2.

Use flat-blade screwdriver or 3/8” socket wrench to adjust front rollers.

NOTE: The refrigerator doors are designed to shut by themselves within a 20 degree opening.

3.

Check both doors to be sure seals touch cabinet on all four sides.

4


Installation - Connecting Ice Maker To Water Supply

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

To Avoid Property Damage:

• Copper tubing is recommended for the water supply line. Water supply tubing made of ¼” plastic is not recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible for any damage if plastic tubing is used for supply line.

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

IMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need

• Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips TM screwdriver

• Access to a household cold water line with water pressure between 1.4 - 6.9 bars.

• A water supply line made of ¼ inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.

• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

NOTE: Water line kit number 5303917950, available from your appliance dealer at additional cost, contains 25 feet (7.6

meters) of ¼ inch OD copper tubing, a saddle type shutoff valve (nonpiercing), (2) ¼ inch brass compression nuts, (2) ferrules/sleeves, and instructions for installing a water supply line.

To Connect Water Supply Line To Ice Maker Inlet Valve

1.

Disconnect refrigerator from electric power source.

2.

Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shut off valve.

3.

Unscrew plastic cap from water valve inlet and discard cap.

4.

Slide brass compression nut, then ferrule (sleeve) onto water supply line, as shown.

5.

Push water supply line into water valve inlet as far as it will go (¼ inch).

Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

6.

With steel clamp and screw, secure water supply line to rear panel of refrigerator as shown.

7.

Coil excess water supply line (about 2½ turns) behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface.

8.

Turn ON water supply at shutoff valve and tighten any connections that leak.

9.

Reconnect refrigerator to electrical power source.

10. Make sure ice maker power switch is turned On (See page 14 for location of power switch).

IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing ice. Air in new plumbing lines may cause ice maker to cycle two or three times before making a full tray of ice. New plumbing may cause ice to be discolored or have poor flavor. Discard ice made during the first 24 hours.

5


Door Removal Instructions

DOOR REMOVAL INSTRUCTIONS:

If it is necessary to move the refrigerator through narrow doorways, follow these steps to remove the doors.

IMPORTANT: Before you begin, remove electrical power cord from wall outlet. Remove any food from door shelves.

1.

Disconnect electrical supply.

2.

Open both doors, then remove toe grille (see page 4 to learn how).

3.

Close doors.

To Remove Refrigerator Door:

1.

Remove top hinge cover screw on refrigerator door and remove cover.

2.

Trace around hinge with soft lead pencil. This will make it easier to realign doors when they are replaced.

3.

Remove top hinge and lift refrigerator door off bottom hinge pin. Set door aside.

4.

Remove bottom hinge, if necessary.

5.

Reverse this procedure to reinstall refrigerator door.

To Remove Freezer Door:

1.

Disconnect water line coming from lower hinge of freezer door at connection located under front of freezer: Press outer ring against face of fitting, then pull to remove tube.

2.

Remove top hinge cover screw on freezer door and remove cover.

3.

Disconnect wiring harness connector plug at top hinge: place your thumbs on flat sides of each connector and bend both parts back and forth, then with firm grasp, pull both pieces apart.

4.

Trace around hinge with soft lead pencil. This will make it easier to realign doors when they are replaced.

5.

Remove top hinge, allowing wiring harness to pull through hinge and lift freezer door off of bottom hinge pin. Lay door down flat to avoid kinking water line.

6.

Remove bottom hinge, if necessary.

7.

Reverse this procedure to reinstall freezer door.

When both doors have been reinstalled, connect water line by inserting tube and pushing until mark touches face of fitting, replace toe grille and plug in electrical power cord.


6

Features At A Glance

Features may vary according to model


7

Temperature Controls

COOL DOWN PERIOD

To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 6 hours before loading it with food.

REFRIGERATOR & FREEZER CONTROLS

NOTE: When changing control settings, wait 24 hours before making additional adjustments.

After 24 hours, adjust the controls as needed. Make your adjustments small and gradual; allowing time for temperatures to change and stabilize.

Refer to the adjacent guidelines for temperature settings.

The range of possible settings is 1 through 9, with 9 being the coldest.

Both the Freezer and Fresh Food compartments are preset at the factory to 5, the midpoint temperature setting.

To adjust the temperature to a higher or lower setting, press the Warmer or

Colder button closest to the display. The first time you press the button, the display shows the last setting you entered. Each press of the button after that increments the setting by one.

Temperature Adjustment Guide

If Fresh Food compartment is too warm

If Fresh Food compartment is too cold

The display shows your new setting momentarily, then changes back to the current temperature.

If Freezer compartment is too warm

Adjust Fresh Food control one number higher by pressing the Colder button.

Adjust Fresh Food control one number lower by pressing the Warmer button.

Adjust Freezer control one number higher by pressing the Colder button.

If Freezer compartment is too cold

Adjust Freezer control one number lower by pressing the Warmer button.

IF THE TEMPERATURE

DISPLAYS FLASH...

If ever you see both temperature displays continously flashing, it may indicate that the control system has detetcted a performance problem. Call your Frigidaire service representative, who can interpret the flashing message.

To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air vents with food items.


8

OTHER CONTROL FEATURES

Temperature Controls

NOTE: Each time you make settings on the control panel, a single audible tone acknowledges your input.

Cooling System On/Off Button

TURNING THE COOLING SYSTEM ON AND OFF

You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel.

To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and hold it for three seconds.

Once you disable the cooling system, all refrigeration to the freezer and fresh food compartments stops.

To turn the cooling system back on, you must again press and hold the On/Off button for three more seconds.

IMPORTANT: Pressing the On/Off button on the control panel disables your refrigerator’s cooling system but does not disconnect power to lights and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the wall outlet.


9

Looking Inside

ICE CREAM SHELF

(SOME MODELS)

This shelf attaches to the top of the ice dispenser container. It allows storage of both round and rectangular cartons of your favorite ice cream.

Ice Cream Shelf

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

CANTILEVER SHELF ADJUSTMENT

Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Cantilever shelves are supported at the back of the refrigerator.

To adjust cantilever shelves:

1 Lift front edge up.

2 Pull shelf out.

Replace the shelf by inserting the hooks at rear of the shelf into the wall bracket. Lower the shelf into the desired slots and lock into position.

* SpillSafe TM glass shelves (some models) catch and hold accidental spills.

In some models, the * SpillSafe TM shelves slide out for easy access to food and for fast cleaning. The shelves slide out independently of their mounting brackets. Just pull the front of the shelf forward. Shelves can be extended as far as the stopper will allow but are not removable from their mounting brackets.

2

Cantilever Glass Shelf

1

1

2

Cantilever Sliding Glass Shelf


10

Looking Inside

(continued)

DOOR STORAGE

Door bins and shelves are provided for convenient storage of jars, bottles, and cans. Frequently used items can be quickly selected.

Some models have door bins that can accommodate gallonsized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity.

The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter.

TALL BOTTLE RETAINER

(SOME MODELS)

The Tall Bottle Retainer keeps tall containers in the bin from falling forward when opening or closing the refrigerator door.

To install, hold the retainer at the top, and slide it over the outside wall of the bin, as shown in the diagram.

Tall Bottle Retainer

ADJUSTABLE DOOR BINS

Some models have adjustable door bins that can be moved to suit individual needs.

To move door bins

1.

Lift bin straight up.

2.

Remove bin.

3.

Place bin in desired position.

4.

Lower bin onto supports until locked in place.

SPECIAL ITEM RACK

(SOME MODELS)

The innovative design of the Special Item Rack allows you to store a six-pack of 12 ounce drink cans, a bottle of wine, a two-liter soft drink bottle, or a carton of eggs. The Special

Item Rack mounts on the left side of your refrigerator. To install, just slide the Special Item Rack onto any shelf as shown in the drawing.

Special Item Rack

Adjustable Door Bin


11

Looking Inside -

Special Storage Areas

CRISPERS

(SOME MODELS)

The crispers, located under the bottom refrigerator shelf, are designed for storing fruits, vegetables, and other fresh produce. Wash items in clear water and remove excess water before placing them in the crispers. Items with strong odors or high moisture content should be wrapped before storing.

MEAT KEEPER

Some models are equipped with a Meat Keeper. Meat Keeper temperatures can be adjusted by sliding the Meat Keeper

Temperature Control in either direction. Use this pan for short term storage of bulk meat items. If meats are to be kept longer than one or two days, they should be frozen. The

Meat Keeper is fixed and cannot be moved up or down. If fruits or vegetables are to be stored in the Meat Keeper, set the Meat Keeper Temperature Control to a warmer setting to prevent freezing.

Crisper Drawer

HUMIDITY CONTROL

(SOME MODELS)

The Humidity Control, present on some models with crisper drawers, allows you to adjust the humidity within the crisper.

This can extend the life of fresh vegetables that keep best in high humidity.

NOTE: Leafy vegetables keep best when stored with the Humidity Control set on Higher Humidity, or in a drawer without a Humidity Control. This keeps incoming air to a minimum and maintains maximum moisture content.

Meat Keeper with Temperature Control

WINE RACK

(SOME MODELS)

The wine rack stores bottles of wine, or single two-liter plastic bottles of juice or soda pop. To install, slide the Wine Rack onto the shelf with the curve facing in. To remove, slide the

Wine Rack out. Install on either side of shelf.

Crisper Humidity Control

Wine Rack


12

Automatic Ice and Water Dispenser

AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS

1 2 3 4

5 6

Features may vary according to model.

C r u s h e d P r e s s g l a s s t h e a g a i

C r u n s t I s h

C e

E d d i

T o u c s p e n h s i

P n a g d 1 p a d d l e t o

5 g e t a s c r u s h e d f a r u p i c a s e .

p o

A s r e d s i b l e i n d i c a t o r t o c a t c h w i ll a ll a p p e a r i c e .

a b o v e t h e T o u c h P a d .

P r e s s

C u b e d P r e s s t h e C u b e d T o u c h P a d a g a i n s t I C E

2 d i s p e n s i n g p a d d l e

5 t o g e t c u b e d i c e .

A a s f a r u p a s p o s s r e d i n d i c a t o r w i ll a p p e a r a b o v e t h e T o u c h P a d .

P r e s s g l a s s i b l e t o c a t c h a ll i c e .

L i g h t

O n

P r e s s t h e L i g h t O n T o u c h P a d 3 t o t u r n o n d i s p e n s e r il g h t .

A r e d i n d i c a t o r w i ll a p p e a r a b o v e t h e T o u c h P a d .

L i g

O f f h t P r e s s t h e L i g h t O f f T o u c h P a d

4 t o t u r n o f f d i s p e n s e r il g h t .

A r e d i n d i c a t o r w i ll a p p e a r a b o v e t h e T o u c h P a d .

W A T E R T o w a t o p e r a t e e r , p u ll t t h e h e w a t g l a s s e r d i s a w a y p e n s e r , f r o m t h e p r e s s a d i s p e n g l a s s i n g s a g a i n p a d d l e s t c r u s h e d i c e o r c u b e s b e f o r e d i s p e n s i n g w a t e r .

A d r i p t r t

6 a h e y l

.

W A T E R o

D i s p e c a t e d n s a d t e i t s d p h e w e n a t s e b a i n r s g i s e p n o f a d o t t d l c h e e o l d

6 d .

i s

F p e

.

o

T r o c s o n s e r t o c p l d e r a t d w i s a p t c h e s e e n r , s s a i n d m a g d ll s p e x i ll s c e s a s n i d c a e i ll o w n s t h i t h e m s t o a r e a e v a p o r a b e c a u s e t t e .

h e

T h r e i s i s d r i n o p t r a y d r a i n .

i s r e m o v a b l e a n d d i s h w a s h e r s a f e .

D o n o t p o u r w a t e r a n d


13


ICE AND WATER DISPENSER FEATURES

The ice and water dispenser conveniently dispenses chilled water, and ice cubes or crushed ice, depending on the model.

To operate the ice dispenser, select the ice option desired using the touchpad. Press a glass against the dispensing paddle as far up as possible to catch all ice. To stop dispensing ice, pull glass away from dispensing paddle. Do not remove the glass until the ice has completely dispensed. (Complete instructions for the dispenser operation are attached to the inside of the freezer door.)

How the Water Dispenser Works

The water tank, located behind the refrigerator compartment, automatically fills as water is dispensed. For proper dispenser operation, the recommended supply water pressure should fall between 30 psi and 100 psi.

Water pressure must not exceed 100 lbs. Excessive pressure may cause water filter to malfunction.

After the refrigerator is connected to the water supply, fill the water tank by drawing one glass of water. It may take about

1½ minutes after activating the dispenser paddle before water begins to fill this first glass. Continue flushing the system for 3 minutes to rid the tank and plumbing connections of any impurities. The water dispenser has a built in shutoff device that will stop the water flow after 3 minutes of continuous use. Simply release the dispenser paddle to reset the shutoff mechanism.

Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

How the Ice Dispenser Works

The ice maker and container are located in the top of the freezer compartment. After the refrigerator is installed properly and has cooled for several hours, the ice maker can begin making ice within 24 hours. Air in new plumbing lines may cause the ice maker to cycle two or three times before making a full tray of ice. Ice production is controlled by the ice maker’s On/Off power switch. Press the switch to the “O” position to turn it Off and press it to the “I” position to turn it On. With no usage it will take approximately 2 days to fill the ice container. The ice maker also has a built-in wire signal arm,which automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

Because of new plumbing connections, the first production of ice cubes may be discolored or have an odd flavor. These should be discarded until the cubes made are free of discoloration and taste.

ICE DISPENSER TIPS

• Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the ice maker’s On/Off power switch is turned On (set to the “I” position). The ice maker will then produce more ice.

• Occasionally shake the ice container to keep ice separated.

• Keep the ice maker’s On/Off power switch turned Off (set to the “O” position) until the refrigerator is connected to the water supply or whenever the water supply is turned off.

IMPORTANT: The ice maker is turned On at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, turn the On/Off switch to the Off ( “O” ) position. Otherwise, the ice maker’s valve may be noisy when it attempts to operate without water.

If the dispensing paddle is pushed for more than 4 minutes, the dispenser motor may overload and stop. The overload protector will reset automatically after 3 or 4 minutes.

• If a large quantity of ice is needed at one time, it is best to remove cubes directly from the ice container.

• The following sounds are normal when the ice maker is operating:

• Motor running • Ice loosening from tray

• Ice dropping into ice container • Running water

• Water valve opening or closing

• Turn Off the ice maker when cleaning the freezer and during vacations.

• If the ice maker will be turned off for a long period of time, you should also turn off the water supply valve.

14



Do not use the ice chute as a handle when removing or replacing the ice storage bin.

Surfaces there may be sharp.

CLEANING THE ICE DISPENSER

Clean the dispenser and ice container at regular intervals, particularly before you take a vacation or move, or if the ice dispenser sticks.

1.

Turn off ice production by pressing the ice maker’s On/Off switch.

2.

Remove ice container by lifting up and out. Empty and carefully clean the container with mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners. Allow ice container to dry completely before replacing in the freezer.

3.

Remove ice chips and clean the shelf and chute that supports the ice container.

4.

Replace the ice container. Press the ice maker’s On/Off switch to resume ice production.

Do not put fingers up ice chute. Surfaces there may be sharp.

IMPORTANT: When removing or replacing the ice bin, do not rotate the auger in the ice bin. If the auger is accidentally turned, you must realign the auger by turning it in 90° turns until the ice bin fits into place with the drive mechanism.

Remove and empty the ice storage bin if:

1.

An extended power failure (one hour or longer) causes ice cubes in the ice storage bin to melt and freeze together and jam the dispenser mechanism.

2.

The ice dispenser is not used frequently. Ice cubes will freeze together in the bin and jam the dispenser mechanism. Remove the ice storage bin and shake to loosen the cubes.

NEVER use an ice pick or similar sharp instrument to break up the ice.

This could damage the ice storage bin and dispenser mechanism.


15


PureSource TM Ice and Water Filter (some models)

NOTE: If you purchased a refrigerator with a PureSource TM Ice and Water filter, please read the following use and care information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in the upper right back corner of the fresh food compartment.

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section to properly fill the system with water.

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every

6 - 9 months normally will ensure the highest possible water quality. The Filter

Status light will turn red after 400 gallons of water has flowed through the ice and water dispenser (some models). Also, if the filter has been in a refrigerator that has not been in use for awhile (during moving for example), change the filter before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

Order new filter cartridges through the dealer where you bought the refrigerator or contact the Electrolux Customer Care

Center . It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for the RG-

100 PureSource™ replacement cartridge.

The PureSource™ NGRG-

2000 Ice and Water Filter

System with the RG-100 cartridge is tested and certified by NSF International, the nationally recognized and respected, not for profit, certification organization for public health safety. The PureSource™ system is tested and certified to ANSI/NSF

Standard 42. See performance data sheet for specifications. This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after traveling through the filtration system.

• Rated Capacity - 1514 liters

• Rated service flow - 1.9 liters per minute

• Maximum Rated Pressure - 6.9 bars

• Maximum Operating Temp. - 37.8° C

1.

Open freezer door and leave open until filter change is complete.

2.

Turn the ice maker’s power switch to the Off (“O”) position (See illustration on page 14).

3.

Hold filter cup firmly, and unscrew towards left (Some water could leak out as you remove cup. This is normal.). Filter cartridge should come down with cup. If cartridge remains in housing, pull down gently, while twisting filter back and forth.

4.

Rinse out cup under running water.

5.

The large o-ring that seals the filter system sets in the o-ring groove down inside the cup. Should the o-ring fall out during filter cartridge replacement, simply place it back in the groove prior to screwing the cup back in place. If the o-ring becomes damaged, you will need to order one from the Customer Care Center.

6.

Discard old filter cartridge.

7.

Remove new filter cartridge from packaging and place in cup. The end with the small o-ring should be up, out of the cup.

8.

Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall

Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is completely tightened with PureSource™ logo facing outward. Do Not

Tighten Past Stop.

9.

Turn the ice maker’s power switch to the On (“I”) position.

10. Check for leaks. Open refrigerator door. Wipe any water droplets from the filter cup. Fill a glass with water. If there is a leak, unscrew filter cup, and reinsert the filter cartridge. Check placement of large O-ring. Reinstall filter cup, making certain it is tightened completely.

11. To condition filter system and purge air from water line, fill a glass with water. Continue flushing the system for approximately 3 minutes to assure that the purest water possible is stored in the water tank.

IMPORTANT: Resetting The Filter Status Light (some models)

After replacing the filter cartridge, it will be necessary to press the Filter

Status reset button located on the ice and water dispenser. This will reset the Filter Status light. Push the reset button until the green, red and amber lights flash (10-15 seconds). Please refer to the complete dispenser operating instructions attached to the inside of the freezer door.

On models without a Filter Status reset button, there is a set of

Reminder Stickers included in the envelope that the Use & Care Manual came in. Choose a dated sticker that indicates 6 - 9 months (depending on your water quality and usage) from the date of installation. Place the sticker on the front of the filter cup to remind you when it is time to change the filter.

16



PureSource2

TM

Ice and Water Front Filter (some models)

NOTE: If you purchased a refrigerator with a PureSource2 TM Ice and Water front filter, please read the following

use and care information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in the upper right front corner of the fresh food compartment.

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter.

The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser

Works section to properly fill the system with water.

Order new filter cartridges through the dealer where you bought the refrigerator or contact the Electrolux Customer Care

Center . It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for the FC-100

PureSource2™ replacement cartridge.

The PureSource2 TM Ice and

Water Filter System NGFC

2000 with the PureSource2 TM cartridge FC 100 is tested and certified by NSF International, the nationally recognized and respected, not for profit, certification organization for public health safety. The PureSource2 TM

Filter system is tested and certified to ANSI/

NSF Standards 42 and 53. See performance data sheet for specifications.

This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after traveling through the filtration system.

• Rated Capacity - 1514 liters

• Rated service flow - 1.9 liters per minute

• Maximum Rated Pressure - 6.9 bars

• Maximum Operating Temp. - 37.8° C

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every

6 - 9 months normally will ensure the highest possible water quality. The Filter

Status light will turn red after approximately 400 gallons of water has flowed through the ice and water dispenser. Also, if the filter has been in a refrigerator that has not been in use for awhile (during moving for example), change the filter before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed and bypass installed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

1.

Turn the ice maker’s power switch to the Off (“O”) position (See illustration on page 14).

2.

Push the Filter Release Button, located to the right of the filter cartridge, to release the filter from the housing. To minimize the possibility of the filter falling out of the housing during removal, it would be best to hold the filter as it moves out toward you.

NOTE: A small amount of water may be released during this operation.

You should have a paper towel or dish cloth handy to wipe up any water that may drip out of the filter or housing. Two small holes near the back of the housing have been added for any excess water to escape. It would be best to clear away any food near this area on the top shelf in advance of removing the filter.

3.

Pull the old filter cartridge straight out of the housing.

4.

Discard the old filter.

5.

Remove the new filter cartridge from the packaging and insert into the filter housing the same way the old one came out.

6.

When the cartridge is almost in, you will feel it stop against the clip assembly in the back of the housing. The clip assembly holds the filter cartridge firmly in place. At this point, you will need to push firmly until the cartridge snaps fully in place. When completely in place, the front of the filter cartridge will be flush with the front of the housing.

7.

Turn the ice maker’s power switch to the On (“I”) position.

8.

Fill a glass with water. As you are doing this, check for leaks at the filter housing. There will be noticeable spurts and sputters as the system pushes the air out through the system and out the dispenser nozzle. This is normal.

9.

After you have run one glass of water, continue to flush the system for approximately 3 minutes to assure that the purest water possible is stored in the water storage tank.

IMPORTANT: Resetting The Filter Status Light (some models)

After replacing the filter cartridge, it will be necessary to press the Filter

Reset button located on the ice and water dispenser. This will reset the

Filter Status light. Push the reset button until the green, red and amber lights flash (10-15 seconds). Please refer to the complete dispenser operating instructions attached to the inside of the freezer door.

17


Food Storage & Energy Saving Ideas

FOOD STORAGE IDEAS

Fresh Food Storage

• The fresh food compartment should be kept between 1.1° C and 4.4° C with an optimum temperature of 2.8° C.

• Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling.

Fruits and Vegetables

• Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.

Meat

• Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not occur.

Frozen Food Storage

• The freezer compartment should be kept at -18° C or lower.

• A freezer operates most efficiently when it is at least 2/3 full.

Packaging Foods for Freezing

• To minimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers.

Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor (freezer burn).

• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

• Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

• Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are best stored in the freezer interior where the temperature varies less.

ENERGY SAVING IDEAS

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers. Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher.

If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.

• Level the refrigerator so that the doors close tightly.

• Refer to this Use & Care Manual for the suggested temperature control settings.

• Do not overcrowd the refrigerator or block cold air vents. Doing so causes the refrigerator to run longer and use more energy.

• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.

• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.


18

Normal Operating Sounds & Sights

UNDERSTANDING THE SOUNDS YOU MAY HEAR

Your new high-efficiency refrigerator may make unfamiliar sounds. Most often, these are all normal sounds that soon become familiar to you. They indicate your refrigerator is operating as designed. Hard surfaces, such as vinyl or wood floors, walls, and kitchen cabinets may make sounds more noticeable. The following list describes some of the most common sounds you may hear, and what is causing them.

NOTE: Rigid foam insulation is very energy efficient, but is not a sound insulator.

A. Evaporator

The flow of refrigerant through the evaporator may create a boiling or gurgling sound.

B. Evaporator Fan

You may hear air being forced through the refrigerator by the evaporator fan.

C. Defrost Heater

During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.

IMPORTANT: During the automatic defrost cycle, you may notice a red glow in the vents on the back wall of your freezer compartment. This is normal during the defrost cycle.

D. Automatic Ice Maker

If your refrigerator is equipped with an automatic ice maker, you will hear ice cubes falling into the ice bin.

E. Cold Control & Automatic Defrost Control

May create minimal mechanical sounds.

F. Condenser Fan

You may hear air being forced through the condenser by the condenser fan.

G. Compressor

Modern, high-efficiency compressors operate much faster than older models. The compressor may have a high-pitched hum or pulsating sound.

H. Water Valve

If your refrigerator is equipped with an automatic ice maker, you will hear a buzzing sound as the water valve opens to fill the ice maker during each cycle.

IMPORTANT: Your ice maker is turned On at the factory so it can work as soon as you install your refrigerator.

To ensure proper function of your ice maker, connect a water supply immediately or turn the On/Off switch to the Off ( “O” ) position.

I. Drain Pan

(not removable)

You may hear water running into the drain pan during the defrost cycle.

J. Condenser

May create minimal sounds from forced air.

K. Motorized Damper

May produce a light humming or clicking during operation.

19


Care & Cleaning

Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before cleaning.

•

• When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this may damage the floor. Be careful not to move the refrigerator beyond the plumbing connections.

Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

•

•

NOTES:

If you set your temperature controls to turn off cooling, power to lights and other electrical components continues until you unplug the power cord from the wall outlet.

Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild detergent, or, touch the glue residue with the sticky side of tape you have already removed. Do not remove the serial plate.

Care & Cleaning Chart

Part

Interior/Door

Liner

Cleaning Agents

• Soap and water

• Baking soda and water

Door Gaskets • Soap and water

Drawers/Bins

• Soap and water

Tips and Precautions

Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring excess water out of sponge or cloth before

cleaning around controls, light bulb or any electrical part.

Wipe gaskets with a clean soft cloth.

Do not wash any removable items (bins, drawers, etc.) in dishwasher.

Glass

Shelves

Toe Grille

Exterior and

Handles

Exterior and

Handles

(Stainless

Steel Models

Only)

• Soap and water

• Glass cleaner

• Mild liquid sprays

• Soap and water

• Mild liquid sprays

• Vacuum attachment

• Soap and water

• Non Abrasive Glass

Cleaner

• Soap and water

• Ammonia

• Stainless Steel

Cleaners

Allow glass to warm to room temperature before immersing in warm water.

Vacuum dust from front of toe grille. Remove toe grille (See illustration on page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and dry.

Do not use commercial household cleaners, ammonia, or alcohol to clean handles. Use a soft cloth to clean smooth handles. Do

Not use a dry cloth to clean smooth doors.

Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth.

Wipe stubborn spots with an ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer's instruction.

NOTE: Always, clean, wipe and dry with the grain to prevent

cross-grain scratching. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.

20


Care & Cleaning

(continued)

Wear gloves when replacing light bulbs to avoid getting cut.

REPLACING LIGHT BULBS

1.

Unplug refrigerator.

2.

Wear gloves as protection against possible broken glass and heat.

3.

Remove light cover, if necessary.

4.

Unscrew and replace old bulb with an appliance bulb of the same type and wattage.

5.

Replace light cover, if necessary.

6.

Remember to plug the refrigerator back in.

Refrigerator Light Replacement or

Crisper Light Replacement (Models may vary) Freezer Light Replacement

Short

Vacations

Long

Vacations

Moving

Vacation and Moving Tips

• Leave refrigerator operating during vacations of 3 weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will only be gone for a few days.

• Remove all food and ice if you will be gone one month or more.

• Turn the cooling system off ( see page 8 for On/Off button position) and disconnect power.

• Turn off automatic ice maker and turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.

• Remove all food and ice.

• If using handcart, load from side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

IMPORTANT: If the refrigerator is going to be stored or moved in freezing temperatures, the water in the ice and water system must be drained completely. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.

21


Before You Call

PROBLEM CAUSE CORRECTION

RUNNING OF REFRIGERATOR

Compressor does not run.

•

Cooling system is turned Off.

•

Refrigerator is in defrost cycle.

•

Plug at wall outlet is disconnected.

•

House fuse blown or tripped circuit breaker.

•

Power outage.

Refrigerator runs too

much or too long.

Compressor goes off and

on frequently.

Digital temperature displays are flashing.

•

Room or outside weather is hot.

•

Refrigerator has recently been disconnected for a period of time.

•

Automatic ice maker is operating.

•

Doors are opened too frequently or too long.

•

Refrigerator/freezer door may be slightly open.

•

Freezer control is set too cold

(control found in refrigerator section).

•

Refrigerator/freezer gasket is dirty, worn, cracked, or poorly fitted.

•

Electronic control system keeps the refrigerator at a constant temperature.

•

Electronic control system has detected a performance problem.

•

Turn cooling system On. See Temperature Controls section.

•

This is normal for a fully automatic defrost refrigerator.

The defrost cycle occurs periodically, lasting about 30 minutes.

•

Ensure plug is tightly pushed into outlet.

•

Check/replace fuse with a 15 amp time-delay fuse.

Reset circuit breaker.

•

Check house lights. Call local Electric Company.

•

It’s normal for the refrigerator to work longer under these conditions.

•

It takes 8-12 hours for the refrigerator to cool down completely.

•

Ice maker operation causes refrigerator to run slightly more.

•

Warm air entering the refrigerator causes it to run more. Open doors less often.

•

Ensure refrigerator is level. Keep food and containers from blocking door. See PROBLEM section

OPENING/CLOSING OF DOORS/DRAWERS.

•

Set refrigerator control to warmer setting until refrigerator temperature is satisfactory. Allow 24 hours for temperature to stabilize.

•

Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.

•

This is normal. Refrigerator goes on and off to keep temperature constant.

•

Call your Frigidaire service representative, who can interpret any messages or number codes flashing on the digital displays.

TEMPERATURES ARE TOO COLD

Freezer temperature too cold. Refrigerator temperature is satisfactory.

•

Freezer control is set too cold.

•

Set freezer control to a warmer setting. Allow 24 hours for temperature to stabilize.

Refrigerator temperature too cold. Freezer temperature is satisfactory.

•

Refrigerator control is set too cold.

•

Set refrigerator control to a warmer setting. Allow 24 hours for temperature to stabilize.

Food stored in drawers freezes.

Food stored in Meat

Keeper freezes (some models).

•

Refrigerator control is set too cold.

•

Meat Keeper Temperature

Control set too cold.

•

See solution above.

•

Adjust Meat Keeper Temperature Control to a lower setting. (Meat should be stored at a temperature just below the freezing point for maximum fresh storage time. It is normal for ice crystals to form due to the moisture content of meat.)

22


Before You Call

(continued)

PROBLEM CAUSE

TEMPERATURES ARE TOO WARM

Freezer/Refrigerator temperature is too warm.

•

Doors are opened too frequently or too long.

•

Door is slightly open.

Freezer temperature is too warm. Refrigerator

temperature is satisfactory.

•

Freezer control is set too warm.

CORRECTION

•

Warm air enters the refrigerator whenever the door is opened. Open the door less often.

•

See PROBLEM section OPENING/CLOSING OF

DOORS/DRAWERS.

•

Set freezer control to a colder setting. Allow 24 hours for temperature to stabilize.

•

Refrigerator control is set too warm.

•

Set refrigerator control to a colder setting. Allow 24 hours for temperature to stabilize.

Refrigerator temperature is too warm. Freezer

temperature is satisfactory.

Temperature in the Meat

Keeper is too warm (some models).

•

Meat Keeper Temperature

Control is set too warm.

•

Adjust Meat Keeper Temperature Control to a colder setting.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects on inside of refrigerator walls.

Water collects on bottom side of drawer cover.

•

Weather is hot and humid.

•

Door is slightly open.

•

Door is opened too often or too long.

•

Open containers.

•

Vegetables contain and give off moisture.

Water collects in bottom of drawer.

•

Washed vegetables and fruit drain while in the drawer.

•

The rate of frost buildup and internal sweating increases.

•


DOORS/DRAWERS.

•

Open door less often.

•

Keep containers covered.

•

It is not unusual to have moisture on the bottom side of the cover.

•

Move humidity control (some models) to lower setting.

•

Dry items before putting them in the drawer. Water collecting in bottom of drawer is normal.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture collects on outside of refrigerator or between doors.

•

Weather is humid.

•

Door is slightly open, causing cold air from inside refrigerator to meet warm air from outside.

AUTOMATIC ICE MAKER

Ice maker is not making any ice.

•

Ice maker power switch is Off.

•

Household water line valve is not open.

•

Freezer is not cold enough.

•

Saddle valve on cold water pipe is clogged or restricted by foreign material.

•

Check to see if the water dispenser is dispensing water.

•

Water filter is not completely seated (models with filter beside temperature control panel).

•

This is normal in humid weather. When humidity is lower, the moisture should disappear.

•


DOORS/DRAWERS.

•

Turn power switch to On (“I”) position.

•

Turn on household water line valve.

•

See PROBLEM section TEMPERATURES ARE TOO

WARM.

•

Turn off household water line valve. Remove valve.

Ensure that valve is not a self-piercing saddle valve.

Clean valve. Replace valve if necessary.

•

If not, the ice & water filter cartridge is clogged or restricted by foreign material, and must be replaced.

•

Push firmly until the water filter snaps into place.

23


Before You Call ( continued)

PROBLEM CAUSE CORRECTION

AUTOMATIC ICE MAKER (CONTINUED)

Ice maker is not making enough ice.

Ice maker will not stop making ice.

Ice maker is not separating

the ice cubes.

•

Ice maker is producing less ice than you expect.

•

Freezer is not cold enough.

•

Household water line valve is not completely open.

•

Check to see if water dispenser is dispensing slower than normal.

•

Ice maker wire signal arm is being held down by some item in the freezer.

•

Ice cubes are not being used frequently enough.

•

Ice cubes are hollow or smaller than normal.

Ice has bad odor and taste.

•

Ice has picked up odor or flavor from strong food stored in refrigerator or freezer.

•

Water running to ice maker has poor taste or odor.

•

Ice not used frequently enough.

•

Ice maker should produce approximately 1.8 – 2.2 kg of ice every 24 hours. Extra Ice should produce up to

2.7 kg of ice every 24 hours.

•

See PROBLEM section TEMPERATURES ARE TOO

WARM.

•

Turn on household water line valve.

•

If it is, replace the ice & water filter cartridge.

•

Move item and release wire signal arm. Remove any ice cubes that are frozen together over the wire signal arm.

•

Remove and shake ice container to separate cubes.

•

The ice & water filter cartridge may be clogged.

Replace filter cartridge.

•

Cover foods tightly. Discard stale ice. Ice maker will produce fresh supply.

•

Add filter to water supply line. Consult a water purifying company.

•

Discard stale ice.

ICE DISPENSER

Dispenser will not dispense ice.

Ice dispenser is jammed.

•

Ice storage container is empty.

•

Freezer temperature is set too warm.

•


•

Freezer door is not closed.

•

Ice dispensing arm has been held in for more than 4-5 minutes.

•

Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.

•

Ice cubes are jammed between ice maker and back of ice container.

•

Ice cubes are frozen together.

•

Ice cubes are hollow or smaller than normal.

•

When the first supply of ice is dropped into the container, the dispenser should operate.

•

Turn freezer control to a higher setting so that ice cubes will be made. When first supply of ice is made, dispenser should operate.

•

Open household water line valve. Allow sufficient time for the ice to be made. When ice is made, the dispenser should operate.

•

Ensure freezer door is closed.

•

Motor is overloaded. Motor overload protector will reset in approximately 3 minutes. Ice can then be dispensed.

•

Remove ice container, thaw, and empty the contents.

Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate.

•

Remove ice cubes that are jamming the dispenser.

•

Use the dispenser often so that cubes do not freeze together.

•

The ice & water filter cartridge could be clogged.

Replace the filter cartridge. Dispensing system operates best at 1.4 – 6.9 bars water pressure. Well water pressures should fall within this range.

24


Before You Call (continued)

PROBLEM CAUSE

WATER DISPENSER

Dispenser will not dispense water.

Water has an odd taste and/or odor.

Water pressure is

extremely low.

•

•

•


Freezer door is not closed.

Ice & water filter cartridge is clogged.

•

Front filter not fully installed, if equipped

•

Water has been in the tank for a period of time.

•

Unit not properly connected to cold water line.

•

Tubing used in the household water supply and installation may affect water taste and odor.

•

Water has a high mineral content.

•

Cut-off and cut-on pressures are too low (well systems

• only).

Reverse osmosis system is in regenerative phase.

ODORS IN REFRIGERATOR

Interior is dirty.

•

Interior needs to be cleaned.

•

Food with strong odors is in refrigerator.

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will not close.

•

Door was closed too hard, causing other door to open slightly.

•

Refrigerator is not level. It rocks on the floor when moved slightly.

•

Refrigerator is touching a wall or cabinet.

Drawers are difficult to move.

•

•

Food is touching shelf on top of drawer.

Track that drawers slide on is dirty.

CORRECTION

•

•

Open household water line valve. See PROBLEM section ICE MAKER IS NOT MAKING ANY ICE.

•

Ensure that freezer door is closed.

•

Replace filter cartridge.

Push filter in until you hear a “click”. Filter should be flush with cabinet.

•

Draw and discard 10 – 12 glasses of water to freshen the supply and completely rinse out the tank.

•

Connect unit to cold water line that supplies water to the kitchen faucet.

•

For best results, use copper tubing for water connections.

•

Contact water treatment plant for help.

•

Have someone turn up the cut-off and cut-on pressure on the water pump system (well systems only).

•

It is normal for a reverse osmosis system to be below

1.4 bar during the regenerative phase.

•

See Care & Cleaning Chart in Care and Cleaning section.

•

Cover food tightly.

•

•

•

Close both doors gently.

•

Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.

•

Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.

Keep less food in drawer.

Clean drawer, rollers, and track. See

Chart in Care and Cleaning section.

Care & Cleaning

LIGHT BULB IS NOT ON

Light bulb is not on.

•

Light bulb is burned out.

•

Light switch is stuck.

•

No electric current is reaching refrigerator.

•

Control system has disabled lights because magnet switch trigger has been removed.

•

Control system has disabled lights because one or both doors were left open too long.

•

See Replacing Light Bulbs in Care and Cleaning section.

•

Release light switch located inside freezer compartment.

•

See PROBLEM section RUNNING OF

•

REFRIGERATOR.

Reinstall magnet behind dairy compartment in fresh food door.

•

Close and reopen door(s) to enable lights.

25
