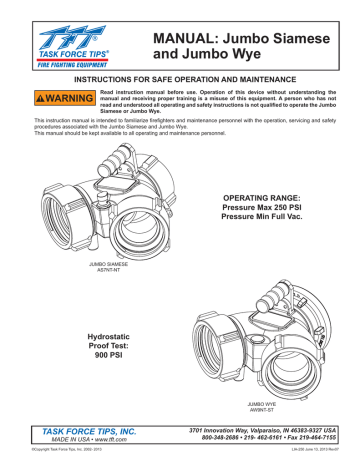

MANUAL: Jumbo Siamese
and Jumbo Wye
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this device without understanding the
manual and receiving proper training is a misuse of this equipment. A person who has not
read and understood all operating and safety instructions is not qualified to operate the Jumbo
Siamese or Jumbo Wye.
This instruction manual is intended to familiarize firefighters and maintenance personnel with the operation, servicing and safety
procedures associated with the Jumbo Siamese and Jumbo Wye.
This manual should be kept available to all operating and maintenance personnel.
OPERATING RANGE:
Pressure Max 250 PSI
Pressure Min Full Vac.
JUMBO SIAMESE
AS7NT-NT
Hydrostatic
Proof Test:
900 PSI
JUMBO WYE
AW9NT-ST
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2002- 2013
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIA-250 June 13, 2013 Rev07
DANGER
TABLE OF CONTENTS
1.0
2.0
3.0
4.0
5.0
6.0
7.0
MEANING OF SIGNAL WORDS
1.1 SAFETY
GENERAL INFORMATION
2.1
CORROSION
2.2
USE WITH SALT WATER
INSTALLATION
USE
DRAWINGS AND PARTS LISTS
MAINTENANCE
WARRANTY
PERSONAL RESPONSIBILITY CODE
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefighting and Emergency Response are inherently dangerous activities
requiring proper training in their hazards and the use of extreme caution
at all times.
2. It is your responsibility to read and understand any user’s instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions, and
care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the manufacturer’s
instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
1.0 MEANING OF SAFETY WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular
hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
NOTICE
NOTICE is used to address practices not related to personal injury.
©Copyright Task Force Tips, Inc. 2002- 2013
2
LIA-250 June 13, 2013 Rev07
1.1 SAFETY
WARNING
This equipment is intended for use by trained personnel for firefighting. Its use for other purposes
may involve hazards not addressed by this manual. Seek appropriate guidance and training to
reduce risk of injury.
WARNING
Burst hoses and fittings can result in injury or death. Maximum operating pressure of TFT’s
Jumbo Siamese and Jumbo Wye is 250 psi (17 bar). Do not exceed 250 PSI on either side of the
appliance.
Per NFPA 1962 3 ½ to 5 inch (90-127 mm) hose marked SUPPLY HOSE shall not exceed 185 PSI (13
bar).
Per NFPA 1962 6 inch (152 mm) hose marked SUPPLY HOSE shall not exceed 135 psi (9 bar).
CAUTION
CAUTION
Any alterations to the Jumbo Siamese, the Jumbo Wye and its markings could diminish safety
and constitutes a misuse of this product.
Use with salt water is permissible provided the Jumbo Siamese or Jumbo Wye is thoroughly
cleaned with fresh water after each use. The service life of the Jumbo Siamese or Jumbo Wye
may be shortened due to the effects of corrosion and is not covered under warranty.
2.0 GENERAL INFORMATION
The Jumbo Siamese and Jumbo Wye are intended for use in a hose line, on a fire hydrant, or an intake or discharge manifold of a
fire truck.
Clapper
Assembly
Handle
Side B
Coupling
Handle
Side B
Coupling
Serial
Number
Side A
Coupling
Serial
Number
Side A
Coupling
Jumbo Siamese
Jumbo Wye
2.1 CORROSION
The aluminum castings are hardcoat anodized, and TFT powdercoat finished inside and out for maximum corrosion protection.
Hose couplings are attached using polymer bearing rings which provides electrical isolation to help prevent galvanic corrosion. The
effects of corrosion can be minimized by good maintenance practices. See Section 7.0 for maintenance.
2.2 USE WITH SALT WATER
Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service life of the valve
may be shortened due to the effects of corrosion and is not covered under warranty.
©Copyright Task Force Tips, Inc. 2002- 2013
3
LIA-250 June 13, 2013 Rev07
3.0 INSTALLATION
Make connections to fire hose or fittings on each side of the Jumbo Siamese or Jumbo Wye.
WARNING
CAUTION
CAUTION
CAUTION
Kinks in supply hose may reduce water flow and cause injury or death to persons dependant on
water flow. When this valve is used on a hydrant or fire truck it is recommended that it be used
with an elbow to minimize risk of hoseline kinks.
Jumbo Siamese and Jumbo Wye’s must be properly connected. Mismatched or damaged
connectors may cause leaking or uncoupling under pressure and could cause injury.
Dissimilar metals coupled together can cause galvanic corrosion that can result in the inability
to unscrew the threads or complete loss of thread engagement over time. Per NFPA 1962, if
dissimilar metals are left coupled together an anti-corrosive lubricant should be applied to the
threads. Also the coupling should be disconnected and inspected at least monthly.
Male fire hose threads are sharp and can cause injury. Be careful when around male hose threads.
4.0 USE
The couplings of Siamese and Wye models swivel to help prevent hose kinks, and make hose connection easier. Male hose thread
inlets are locked so that they will not rotate.
The Jumbo Wye fitting can be used to join the flow of two water sources together into one, or in the opposite direction to split one
water source into two. The flow direction in our out of any opening is possible.
The Jumbo Siamese valve can only flow water in one direction ONLY.
Water entering from either one or both Side A will exit through the single Side B discharge outlet. A swinging clapper assembly
prevents backflow through either leg of the Side A openings. An indicating pointer shows the position of the clapper.
CAUTION
Jumbo Siamese will not flow water from Side B to both Side A openings. Do not attempt to flow
water in one Side A opening and out of the other Side A opening. This valve contains a swinging
clapper assembly that will prevent backflow through one leg of the Side A openings.
©Copyright Task Force Tips, Inc. 2002- 2013
4
LIA-250 June 13, 2013 Rev07
5.0 DRAWING AND PARTS LIST
16
13
15
12
14
11
10
1
2
7
3
8
9
9
8
17
6
4
5
Table 1: Jumbo Siamese Parts List
#
PART DESCRIPTION
1
2
3
TOMBSTONE
1
X365
4
PEG
1
X362
5
WYE BODY 5.0”
1
A5710
6
SIAMESE NAME LABEL
1
A1304
7
3/8 –16 HEX JAM NUT
1
VT37-16NT
8
WASHER
2
A5752
9
GASKET
2
A5762
10
5/32 X 7/8 SPIROL PIN
3
V1900
11
CLAPPER 4”
1
A5720
12
PIVOT PIN
1
A5732
13
O-RING-012 3/8 ID 1/16 C/S
1
VO-012
14
O-RING-119 15/16 ID 3/32 C/S
1
VO-119
15
PIVOT CAP
1
G191
16
LOCATOR
1
A5774
17
3/8 – 16 X 1 HEX HEAD BOLT
1
VT37-16HX1.0
1
A1304/A1305
18
©Copyright Task Force Tips, Inc. 2002- 2013
QTY
PART NUMBER
3/8 – 16 X 5/8 SOCKET HEAD CAP SCREW
2
VT37-16SH625
3/8 – 16 X 7/8 SOCKET HEAD CAP SCREW
1
VT37-16SH875
SIAMESE/WYE NAME LABEL
5
LIA-250 June 13, 2013 Rev07
5.0 DRAWING AND PARTS LIST
2
3
4
6
7
1
8
5
Table 2: Jumbo Wye Parts List
#
PART DESCRIPTION
1
3/8 – 16 X 5/8 SOCKET HEAD CAP SCREW
QTY
2
3/8 – 16 X 7/8 SOCKET HEAD CAP SCREW
3
TOMBSTONE
4
PEG
1
1
PART #
#
PART DESCRIPTION
VT37-16SH625
5
WYE BODY 5.0”
1
VT37-16SH875
6
WYE NAME LABEL
1
A1305
1
X365
7
TOP CAP
1
G190
X362
8
O-RING-119 15/16 ID 3/32 C/S
1
VO-119
2
5
2
7
6
QTY
PART #
1
A5710
8
3
4
Table 3: Storz Coupling Parts List
#
PART DESCRIPTION
QTY
PART #
#
PART DESCRIPTION
QTY
PART #
1
PLASTIC STRIP 4.25” (FOR 4 INCH STORZ)
1
A1292
6
SPRING TORSION
1
A4230
PLASTIC STRIP 5.25”
1
A1291
7
4” STORZ FITTING (USES A4730 ADAPTER)
1
A4124
CUP SEAL 4.25 X 3.75 X ¼ (FOR 4 INCH
STORZ)
1
A1297
5” STORZ FITTING
1
A4125
6” STORZ FITTING
1
A4126
CUP SEAL 5.25 X 4.75 X ¼
1
A1296
4” STORZ GASKET PRESSURE ONLY
1
A4215
3
BALL 7/16” STAINLESS (FOR LOCKED OUT
COUPLINGS)
1
VB.437
4” STORZ GASKET PRESSURE/VACUUM
1
A4216
4
PORT PLUG
1
A1299
5” STORZ GASKET PRESSURE ONLY
1
A4220
5
LOCKING LEVER
1
A4171
5” STORZ GASKET PRESSURE/VACUUM
1
A4221
6” STORZ GASKET PRESSURE/VACUUM
1
A4226
2
©Copyright Task Force Tips, Inc. 2002- 2013
8
6
LIA-250 June 13, 2013 Rev07
5.0 DRAWING AND PARTS LIST
1
4
3
2
5
Table 4: Male Thread Spout Parts List
#
Part Description
Qty
Part #
1
PLASTIC STRIP 5.25"
1
A1291
2
CUP SEAL 5.25 X 4.750 X 1/4
1
A1296
3
BALL 7/16" STAINLESS
1
VB.437
4
LABEL; PORT COVER
1
A1298
5
4.0” NH MALE SPOUT
1
A4620N
4.5” NH MALE SPOUT
1
A4625N
5.0” NH MALE SPOUT
1
A4630N
6.0” NH MALE SPOUT
1
A4635N
1
5
2
6
4
3
Table 5: Female Thread Coupling Parts List
#
Part Description
1
PLASTIC STRIP 5.25"
Qty
Part #
1
A1291
PLASTIC STRIP 7.00" (FOR 6.0” FEMALE THREADED COUPLINGS)
1
A1290
2
CUP SEAL 5.25 (FOR 4.0” THRU 5.0” COUPLING ONLY)
1
A1296
3
BALL 7/16” STAINLESS (FOR LOCKED OUT COUPLINGS)
1
VB.437
4
PORT PLUG
1
A1299
5
6
4.0” NH FEMALE
1
A4660N
4.5" NH FEMALE
1
A4665N
5.0" NH FEMALE
1
A4670N
6.0" NH FEMALE (USES A4745 ADAPTER)
1
A1266NX
4.0" HOSE COUPLING GASKET
1
V3198
4.5" HOSE COUPLING GASKET
1
V3220
5.0" HOSE COUPLING GASKET
1
V3210
6.0" HOSE COUPLING GASKET
1
V3240
©Copyright Task Force Tips, Inc. 2002- 2013
7
LIA-250 June 13, 2013 Rev07
6.0 MAINTENANCE
The Jumbo Siamese and Jumbo Wye should be cleaned and visually inspected inside and out at least once per month. Moving
parts such as clapper and couplings should be checked for smooth and free operation and greased as needed. A silicone based
grease such as Dow Corning 44 will exclude moisture and retard the effects of corrosion. Any scrapes that expose bare aluminum
should be touched up with enamel paint such as Rust-Oleum to inhibit corrosion. Replace any missing or damaged parts before
returning the appliance to service.
CAUTION
CAUTION
Dissimilar metals coupled together can cause galvanic corrosion that can result in the
inability to unscrew the threads of complete loss of thread engagement over time. Per NFPA
1962 (1998 edition), if dissimilar metals are left coupled together an anti-corrosive lubricant
should be applied to the threads. Also the coupling should be disconnected and inspected at
least quarterly.
Any alterations to the Jumbo Siamese or the Jumbo Wye and its markings could diminish
safety and constitutes a misuse of this product.
7.0 WARRANTY
Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 (“TFT”) warrants to the original purchaser of its Jumbo
Siamese or Jumbo Wye (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in
material and workmanship during the five (5) year period from the date of purchase.
TFT’s obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by
TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the
equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana 46383-9327, within a reasonable time after discovery of the defect.
TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a
reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to
refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited
warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is
an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental
damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is
agreed and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to
provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone
else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT
ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR
PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2002- 2013
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIA-250 June 13, 2013 Rev07
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
