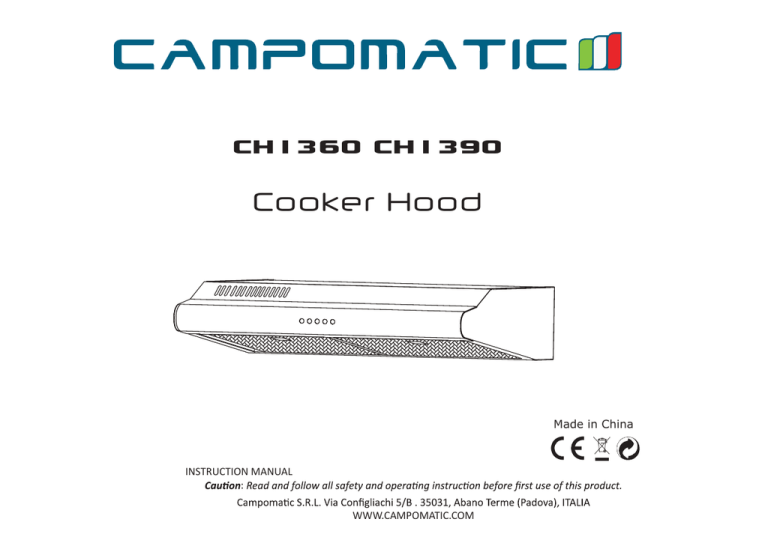

Campomatic CH1360 Instruction manual
CH1360 CH1390
Cooker Hood
Made in China
INSTRUCTION MANUAL
:
WWW.CAMPOMATIC.COM
Infor mation and advice
Specifications: 220-240V
~
50Hz 320W
In certain circumstances electrical appliance may be a danger
hazard.
A) There shall be adequate ventilation of the room when the
cooker hood is used at the same time as appliances
burning gas or other fuels.
B)Do not check the status of the filters while the cooker hood
is operating.
C)Do not touch the light bulb within half an hour after appliance
use.
D)Do not flambe under the cooker hood.
E)Avoid opening gasometer when there is no pan on the stove ,
as it is damaging for the filters and a fire hazard
F)Constantly check food frying to avoid that the overheated
oil may become a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.
H ) If the supply cord is damaged, it must be replaced by the
manufacturer,its service agent or similarly qualified
persons in order to avoid a hazard.
Know your cooker hood
Please read these instructions before using your cooker hood
Information
Congratulations on the
purchase of our Cooker hood,
which is designed to include
many superior features that
permit you the fullest expression
of your living.
Before installing and/or using
the cooker hood carefully read
all the instructions.
1.Air duct assembly
3.Filter assembly
2.Main body
Also included:
*Damper flap
*User instructions
Selection of Venting Direction
Fully convertible for vertical, horizontal or ductless operation.
c
Du
tl e
C
ss
Information
The air must not
be discharged into
a flue that is used
for exhausting
fumes from
appliances
burning gas or
other fuels.
Regulations
concerning the
discharge of air
have to be
fulfilled.
l
ca e
rti rg
Ve c h a
dis
A
B
Horizontal
discharge
1
A
B
2
A
B
3
Vertical discharge
Vertical isWe
therecommend
most common.
that after
If you select
this venting
direction,
installation
the bottom
of you only need
to open the
knockout
A.Remove
the
theducting
hood should
be no
less
ducting knockout
by inserting
a Flat head
than 650mm
and no more
screwdriver
oneabove
end and
thanunder
750mm
theprying it up. Then
snip or break
theheating
attanchment
points by tin snips.
stove's
elements
You mustand
make
sure that the ducting knockout B is
burners.
not removed.
Horizontal discharge
recommend
thatisafter
AssumingWe
that
the range hood
located against an
installation
the
bottom of
outside wall,
horizontal
discharge
is preferred
be no less such as, wall
provided the
thathood
there should
are no obstructions
than 650mm
and
more to make.
joists, or where
openings
areno
difficult
than
750mm
the you only need to
If you select
this
ventingabove
direction,
heating elements
open the stove's
ducting knockout
B.
and
burners.
Same with
removing
the ducting knockout A, you must
make sure that the ducting knockout A is not removed.
Information
Sufficient air
is needed for
proper
combustion
and
exhausting
of gases
through the
flue
(chimney) of
fuel burning
equipment to
prevent back
drafting.
Du
e
c tl
ss
C
4
Knob
Ductless
In a ductless installation the air is re-circulated
back into the kitchen. If you do not anticipate
heavy cooking this method will be preferred.
It will not be necessary to remove any duct
knockouts, you only need chose knockout C. You
should use filters to help remove cooking odors.
These filter must be washed and replaced at
regular intervals.
After selecting venting direction and completing
installation, you can turn the knob to achieve
ductless or duct.Open the filter, then you can see
the knob.
5
6
7
The knob arrowhead as per FIG. 7, then it is duct.
The knob arrowhead as per FIG. 6, then it is
ductless.
Information
Ductless
fans must
always be
vented to
the
outdoors.
Installation
≥650mm
Ensure the power has been turned off before beginning this installation.
8
To install this hood you will require two
assistants.
You will need the following tools and
material to complete this installation:
* Drill * Flat head screwdriver * Phillips
head screwdriver or cordless drill and
Phillips head bit * Tin snips * 3/8″nut driver
or ratchet with extension* measuring
tape*hand saw or jig saw* electrical
tape*duct tape
1. Remove the range hood from the carton.
2. Lay the hood upside down on a table
covered with cardboard or paper to prevent
scratching of the table or hood.
3. Hood installation should be within 0.8m
radius range.
4. We recommend that after installation the
bottom of the hood should be no less than
650mm and no more than 750mm above
the stove's heating elements and burners.
Information
Installation
work and
electrical
wiring must
be done by
qualified
person(s) in
accordance
with all
applicable
codes and
standards,
including firerated
construction.
Security
hole
Key hole
9
2. Hang the hood and let it's 4
key holes aim at screws, the 4
screws should be in the narrow
parts of key holes. Screws
should be fasten firmly, make
sure that the installation
between the hood and cabinet is
enough fasten.
1. According to the figure, make sure
the position of hood in the cabinet.
The wood strips should be line up with
the 4 keyholes slots on the top of the
range hood. On the cabinet, install 4
screws (supplied) according to the
relative position of 4 key holes on the
bottom of hood. The extent of
screwing should be convenience to
the next installation.
3. Install screws in the security
holes, in case of front and back
moving of hood, so that the using is
safer.
Information
When
cutting or
drilling
into wall
or ceiling,
do not
damage
electrical
wiring or
other
hidden
utilities.
Information
Security
hole
10
If the installation surface in cabinet don't adapt to install the cooker hood,
then as per FIG. 5, fix the position of cooker hood on the wall. On the wall,
install 2 screws (supplied) according to the relative position of 2 key holes
on the back of hood. The extent of screwing should be convenience to the
next installation. Also install screws in the security holes, in case of front
and back moving of hood, so that the using is safer.
The cooker hood
must not be
installed and
connected to
flues where other
appliances are
installed and
which run off
other energy
supplied
different to
electricity (water
heaters boiler
cookers
(range/agas)
etc.).
Hood Using Method
Turn the hood ON when cooking at high heat or when cooking flaming foods.
1.
2.
Adjust the knob to be right position.
Insert the power plug firmly.
Information
11
Model 1:
0
1
2
3
Model 2:
12
E14 40W x 2max
13
Press the the switch of light to be on, the bulbs
light on. Otherwise the bulbs don't work. When
press the push button “1”or “ ”: on, the motor
runs at low speed. When press the push button
“2” or “ ” on, the motor runs at middle speed.
When press the push button “3” or “ ” on, the
motor runs at high speed. When press the push
button “0” or “ ” on, the motor stops running.
Replacing Bulb : Removing the bulb that need
to be replaced, then reinstall the new bulb. The
power of bulb must not be more than 40W.
Clean
ventilating
fans
frequently.
Grease
should not
be allowed
to
accumulate
on fan or
filter.
Cleaning Instructions
Disconnect range hood from power supply before cleaning or servicing.
1.
Cleaning the surface of hood frequently. Use mild soap or
detergent to clean the hood.
2.
Do not use harsh alkalis or abrasives.
3.
Avoid the use of scouring powers or dishwasher
compounds.
4.
Grease filter may be washed using mild soap or detergent.
(heavy grease build-up may not be cleaned easily and the
filter may require replacement)
5.
Charcoal filters cannot be cleaned and must be replaced
regularly.
Information
When
cleaning,
water must
not inter
into motor,
control
switch etc.
electrical
parts.
Information
14
·It is recommendable to clean the metallic filter every three
months by carrying out the following instructions:
- Remove the metallic filter from the cooker hood and wash it
in a solution of water and neutral liquid detergent, leaving to
soak
- Rinse thoroughly with warm water and leave to dry.
- The metallic filter may also be washed in the dishwasher.
The metallic filter may alter in color after several washes.
This is not cause for customer complaint nor replacement of
metallic filter.
There is a
fire risk if
cleaning is
not carried
out in
accordance
with the
instructions.
Cor rect Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
The manufacturer shall decline all responsibility if the foregoing
recommendations and instruction regarding installation, maintenance and use are
not observed and respected when using the cooker hood.
