AirTies AP-400 User manual

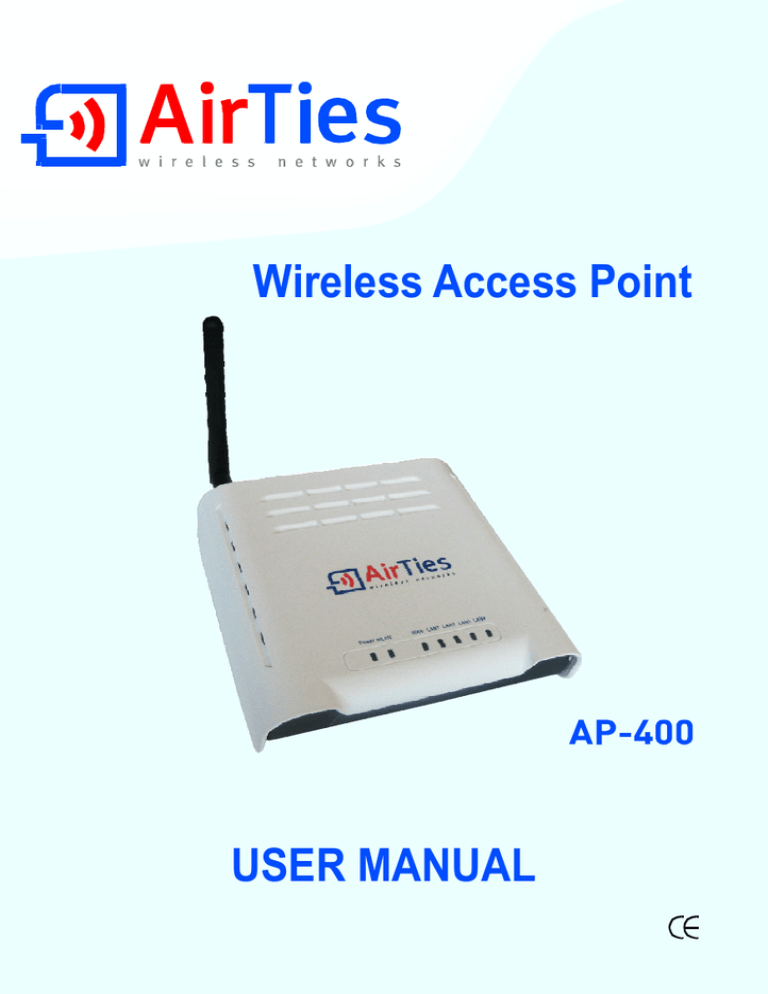

Wireless Access Point
USER MANUAL
This manual has been prepared by AirTies Wireless Networks Corporation. All rights reserved.
Manual Overview
This manual guides you through the steps necessary for setting up and configuring the
AirTies AP-400 54Mbps 802.11g Wireless Access Point/Repeater/Bridge. Please read this
manual carefully before beginning the installation process.
The Warranty does not cover failure or damage as a result of not following the instructions
in the manual. AirTies will not be held responsible in such circumstances.
The User Manual is an important resource you can refer to for safe and proper use of
your device. Please retain it for future reference.
Safety and Maintenance
• In order to prevent damage to your device, be sure to keep it in its original box during
• The device must be used solely with its original power adapter. Please note that the
adapter is 220V only. Do not use with 110V AC.
• Do not insert a PSTN (phone) plug into the LAN port.
• If you encounter any problems, do not open or disassemble the device. Instead, call
AirTies Technical Support.
• In order to prevent electric shock, do not operate the device in wet or damp areas.
• In the event of a gas leak, do not use the device. Do not turn the device on or off.
Do not plug or unplug the power cord.
• Avoid using the device in dusty environments. If dust buildup should occur, use a dry
cloth to remove the dust.
• To clean the exterior of the device use a dry cloth. Do not attempt to clean the interior.
There are no user serviceable components inside.
• For information regarding the installation and configuration of the device consult the
remainder of this manual.
AirTies AP-400 User Manual
1
Table of Contents
Manual Overview.......................................................................................................................1
Safety and Maintenance.............................................................................................................1
1. Introduction...............................................................................................................................3
1.1 Main Features..........................................................................................................................4
1.2. Minimum System Requirements...........................................................................................4
1.3. Package Contents...................................................................................................................4
1.4. Top View................................................................................................................................5
2.Easy Setup.................................................................................................................................5
3. Preparing for Installation...................................................................................................................6
3.1. Assigning a local IP address to a computer that is running WindowsXP.............................................6
3.2. Assigning a local IP address to a computer that is running Windows2000...............................8
4. Advanced Setup........................................................................................................................................9
4.1. IP Settings.......................................................................................................................................9
4.2. Wireless.......................................................................................................................................10
4.2.1. Wireless Settings................................................................................................................10
4.3. Setting the Operation Mode................................................................................................................11
4.3.1. Configuring the AP-400 as an Access Point.......................................................................11
4.3.2.Configuring the AP-400 as a Repeater.........................................................................................12
4.3.3.Configuring the AP-400 as a Bridge.......................................................................................14
4.4. Wireless Security Settings...................................................................................................16
4.4.1.WPA Security Settings...............................................................................................................16
4.4.2. WPA2 Security Settings...............................................................................................................17
4.4.3.WEP Security Settings...............................................................................................................17
4.5.Access Control......................................................................................................................18
4.6. Management.........................................................................................................................19
4.7.Tools.....................................................................................................................................19
4.8.Reset.......................................................................................................................................20
5.Technical Specifications..............................................................................................................21
6. Physical Specifications...............................................................................................................21
2
AirTies AP-400 User Manual
1.
Introduction
The AirTies AP-400 is an IEEE 802.11b/g compliant, 54 Mbps wireless communication device
that can be used as a Wireless Access Point, Repeater, Bridge or a 4-port Switch.
You can connect the AirTies AP-400 to a wired modem or router through one of the
Ethernet ports to setup a wireless local network and enable your wireless computers to
access the Internet.
As a repeater, the AP-400 makes it possible to extend the coverage area of a wireless
network. AirTies Mesh Technology is used for this purpose.
The AirTies Mesh Technology resolves problems such as loss of wireless signal or limited
coverage area often encountered in multiple-story or reinforced concrete buildings. To
extend your wireless coverage, all you need to do is to add new AP-400 devices to your
wireless network and set them to function as repeaters. Computers on the network
connect to the AP-400 with the strongest signal, and reach the router or the wired network
through the AirTies Mesh Network.
Used as a switch, it lets you attach four PCs or any devices with an ethernet interface
(such as network printers or gaming consoles) directly. You can daisy-chain out to more
hubs and switches as your network grows.
The AP-400, used as a bridge, enables devices without wireless capability but with an
Ethernet interface (such as printers and desktop computers) to be included in a wireless
network.
Access Point
Bridge
Access Point and Bridge
Repeater
Repeater
AirTies AP-400 User Manual
3
1.1.
Main Features
• IEEE 802.11b/g compliant, 54Mbps Wireless Access Point, Repeater, Bridge
• Fully compatible with widely used Centrino laptops and 802.11b/g wireless devices
• AirTies Mesh Technology support to extend wireless coverage area across very wide
areas or concrete buildings where signal strength problems are common
• Used as a "Wireless Bridge", ability to include wired devices with an Ethernet interface
in the wireless network
• Wireless operating ranges of up to 400 meters outdoors and 100 meters indoors
• Advanced wireless security with support for WPA2, WPA,WEP, and 802.1x standards
• High performance through the use of the latest chip technologies
• With "Auto MDI/MDIX", it automatically detects straight and cross Ethernet cables
• Easy to use Web-based user interface
• Automatic local IP address assignment by the DHCP server
• Firmware updates through the web interface
• 24x7 technical support by the highly trained AirTies Technical Support backed up by
the AirTies R&D team
1.2.
Minimum System Requirements
• In order to configure the AirTies AP-400, you will need a PC that runs any version
Windows, UNIX, Linux, or MAC operating systems and has an Ethernet card or a
wireless network adapter
• The AP-400 does not need to be connected to a PC during normal operation.
1.3.
•
•
•
•
Package Contents
AP-400 54Mbps 802.11g Wireless Access Point / Repeater / Bridge
Ethernet Cable
Power Adapter
User Manual
4
AirTies AP-400 User Manual
of
1.4.
Top View
P ow er WL AN
LED
Light
WAN L AN1 L AN2 LAN3 LAN4
State
Green
AP-400 is powered on.
Off
AP-400 is off.
Green
Wireless network is set up and active
Green flashing
Data exchange over the Wireless LAN
Off
Wireless network not active
LAN1 -
Green
There is a device connected to the corresponding LAN port
LAN4
Green flashing
Da ta e xchange ov er the co rresponding LAN port
Off
No c on n ec t io n o n t h e c o r re sp o nd i ng LAN po r t
Po w e r
WLAN
2.
Easy Setup
The AirTies AP-400 is setup to function as an Access Point as the factory default. To make
your router wireless and setup your wireless network
• Plug in your AP-400.
WAN
L A N1
LA N 2
L AN3
L AN4
P ow er
•Connect the Ethernet port of your router or switch to one of the Ethernet ports (LAN1LAN4) of the AP-400.
AirTies AP-400 User Manual
5
• For each wireless PC (running Windows) that you would like to connect to the AP-400,
go to Start-Settings-Network Connections-Wireless Network Connection-View Wireless
Networks and connect to the wireless network named AIRTIES_AP-400.
3.
Preparing for Installation
The AirTies AP-400's DHCP feature is not enabled by default and thus it cannot assign an
IP address to the PC connected to it. You will need to assign an IP address to the PC
manually. It is recommended that the installation settings of the AP-400 be done from
a PC that is directly, not wirelessly, connected to it.
Assigning a local IP address to a computer that is
running WindowsXP
3.1.
Double-click on the "Local Area Connection" icon on the bottom
right corner of the WindowsXP desktop. This will bring up the "Local
Area Connection Status" window.
Click "Properties" to go to the "Local Area Connection Properties" window.
AirTies AP-400 User Manual
6
Select "Internet Protocol (TCP/IP)" and click "Properties".
In the "Internet Protocol (TCP/IP) Properties" window, enter 192.168.2.10 in the "IP Address"
field and 255.255.255.0 in the "Subnet Mask" field. The IP address of the AP-400 is 192.168.2.254.
Therefore, the IP address of the computer should be in the 192.168.2.x range.
Click "OK" to save the values you have entered.
7
AirTies AP-400 User Manual
Assigning a local IP address to a computer that is running
Windows2000
3.2
Right-click on the "Network Neighborhood" icon on your desktop and select "Properties".
In the window that appears, rightclick on the "Local Area Connection"
icon and select "Properties". This will
bring up the "Local Area Connection
Properties" window.
Click "Internet Protocol (TCP/IP) then click
"Properties".
In the "Internet Protocol (TCP/IP) Properties"
window, enter 192.168.2.10 in the "IP Address"
field and 255.255.255.0 in the "Subnet Mask" field.
The IP address of the AP-400 is 192.168.2.254.
Therefore, the IP address of the computer should
be in the 192.168.2.x range.
Click "OK" to save the values you have entered.
AirTies AP-400 User Manual
8
4.
Advanced Setup
To configure the installation settings of your AirTies AP-400, open a web browser (e.g.
Internet Explorer, Mozilla Firefox, Netscape). In the Address field enter 192.168.2.254, the
default IP address of the device, and press Enter. This will launch the web interface of
your AirTies AP-400.
You will be prompted for a password to login. There is no password set by default. Initially,
leave this field blank and continue by clicking "Submit".
In the screen that appears, the "Welcome" screen, a summary of the current network
and device settings are displayed.
4.1.
IP Settings
You can change the IP address, the subnet mask and the gateway address of the AP400 by going to the" IP Settings" submenu under the "LAN" menu of the web interface.
You can get these values from your network administrator.
Note: If you change the IP address of the AP-400, you must use the new address to
connect to the AP-400's web interface.
9
AirTies AP-400 User Manual
4.2.
Wireless
Clicking on the "WIRELESS " menu on the left menu bar of the AP-400 web interface
displays all the wireless devices connected to the AP-400. You can block a device's
access to the AP-400 by checking the "Block" box to the left of the MAC address of the
device. When all your modifications are done, click "Save".
4.2.1.
Wireless Settings
To configure your wireless network, go to "Wireless Settings" under the "WIRELESS " menu
of the AP-400 web interface. In this window, you can configure your wireless network.
• Wireless Network Name (SSID) : In this field, you can assign a name to your wireless
network and enable/disable the broadcasting of this name by the AP-400.
• Channel : Enter the broadcast channel number (frequency) in this field.
• Data Rate : You can adjust the wireless data rate of the AP-400. It is recommended
that you leave this field as "Auto".
• Mod e : Se l ec t the w i rel e ss mo d e th e AP -4 00 w il l b e o p era ti ng i n.
• Wireless Transmit Power : You can set the Transmit Power of the AP-400. The lower the
transmit power, the smaller your wireless range will be.
Click "Save" when you are done.
AirTies AP-400 User Manual
10
4.3.
Setting the Operation Mode
The AP-400 can operate as either an Access Point, a Repeater, or a Bridge : it can
operate as either an access point or a repeater or a bridge.
To set the Operation mode, go to the "Operation Mode" submenu under the "WIRELESS"
menu. The "Operation Mode Selection" window will appear.
In this window, select the mode that you want your AP-400 to operate in and click "Save".
4.3.1.
Configuring the AP-400 as an Access Point
The AP-400 operates as an Access Point by default unless a different mode is selected.
Connect the AP-400 to an ADSL router, cable modem or local area network via its
Ethernet port.
The diagram below is an example where the AP-400 is being used as an access point
device.
First verify that your computer has an IEEE 802.11b or 802.11g compatible Wireless
Access Card installed. If not, first install a Wireless Access Card on your computer.
After making the hardware connections of your AP-400 as explained in the previous
section, power it on.
On the wireless computer(s) that will be connected to the AP-400, start the utility
program for the Wireless Access Card (e.g. "Intel Proset" or "Wireless Network Connection"
for Windows). Look for wireless networks in range in the "View Wireless Networks" window.
Connect to the wireless network with the name (SSID) "AIRTIES_AP-400", the default
SSID of the wireless network set up by the AP-400. If you have assigned a different SSID
to y our wi re le ss net wo rk duri ng c o nfig urati o n, c onn ect to tha t one .
11
AirTies AP-400 User Manual
On a computer running Windows XP, double-clicking on the wireless network icon on
the bottom right corner of the desktop will open the "Wireless Network Connection Status"
window. You will see the following screen when you click on "View Wireless Networks".
Double-click on the "AIRTIES_AP-400" network to connect to it.
4.3.2.
Configuring the AP-400 as a Repeater
To use the AP-400 as a repeater, go to "Operation Mode" under the "WIRELESS" menu
and select "Repeater" as the Operation mode.The following diagram is an example of
AP-400's use as a repeater.
AP-400
INTERNET
WUS-300
AP-400
Phone Line/ DSL
RT-211
PCC-2
PCC-3
WUS-300
AirTies AP-400 User Manual
12
Using more than one AP-400’s in Repeater mode, and making use of AirTies Mesh
Te c hn ol o g y ® , y o u ca n e xte n d a n d st ren gt he n y o ur w i rel e ss ne tw o rk .
AirTies Mesh Technology® helps resolve problems such as weak or lost signal, and limited
signal range that is commonly seen in concrete buildings.
The Mesh Network consists of a wireless AirTies router and multiple AirTies AP-400 devices.
The AP-400’s set to function as repeaters communicate with each other and the wireless
AirTies router via the Mesh protocol.
The wireless computers connect to the AP-400 closest to them automatically. They reach
the AirTies router via the other AP-400’s in between. In this manner, wireless coverage
area can be expanded significantly.
When you select Repeater as the "Operation Mode", the "Repeater Settings" page will
come up. From then on, this title will also appear under the "Wireless Settings" menu of
the web user interface.
In the "Repeater Settings" page, you will find a list of available access points and repeaters
the AP-400 can connect to.
Check the box to the left of the access point / repeater you would like the AP-400 to
connect to. The access point will appear in the list below, titled "Access Points to Connect
to". Click "Save" to complete the Repeater Settings
Important: The repeaters and the access point must all be operating on the same channel
to form a Mesh Network. They should also have a transmit power of at least -70dBm. (In
the above example, -49dBm satisfies this requirement).
You need to configure the access point that will form a Mesh Network with the AP-400
the same way as the AP-400. For example, to setup a Mesh Network between an RT-211
and an AP-400, the Mesh settings should be done the same way on both devices. The
screenshot below shows the RT-211 Mesh setup screen.
13
AirTies AP-400 User Manual
In this window, after you check the "Activate Bridge/Repeater Connections" box, check
the box to the left of the AP-400 that you have already configured and click "Save".
The RT-211 and the AP-400 will now recognize each other. At the point where the wireless
signal from the RT-211 weakens, the AP-400 will boost the signal and extend the coverage
area.
Note: You can only use WEP encryption in a wireless network with a MESH structure. You
can find more information about WEP encryption settings in the Wireless Security section
of this manual.
4.3.3.
Configuring the AP-400 as a Bridge
You can include a wired device (e.g. printer) in your wireless network by connecting the
device to one of the LAN ports of an AP-400 operating in Bridge mode. The diagram
below is an example of the AP-400’s use as a bridge (connected to a printer).
AirTies AP-400 User Manual
14
To set the bridge mode, go to "Operation Mode" under the "WIRELESS" menu of the web
interface. Select Bridge in the "Operation Mode" field and click "save"
Note: The AP-400 does not do wireless broadcast in Bridge mode. To configure and
operate the AP-400 in Bridge mode, you need to be directly connected to the AP-400.
When you select Bridge as the "Operation Mode", the "Access Point List" page will come
up. At the same time, "Access Point List" will appear under the "Wireless Settings" menu
of the web interface.
In this window, you will see a list of all the available wireless access points that the AP400 Bridge can connect to. Check the box next to the access point you would like to
connect to and click "Save".
15
AirTies AP-400 User Manual
4.4.
Wireless Security Settings
It is not necessary to configure wireless security to enable wireless communication.
However, due to growing importance of data security, it is recommended that you
choose one of the security protocols described below that fits your needs.
Wi-Fi Protected Access (WPA), WPA2, and Wired Equivalent Privacy (WEP) are wireless
encryption protocols that can be used to encrypt the data traffic between the wireless
computer and the AP-400.
MAC Address Filtering allows you to control which network cards can connect to the
AirTies AP-400. For your wireless network security, it is recommended that both MAC
address filtering and one of WPA, WPA2 or WEP wireless encryption protocols be activated.
4.4.1
WPA Security Settings
WPA (Wi-Fi Protected Access) is one of the most advanced wireless encryption standards
today and provides you with the highest level of data protection. All AirTies wireless
products and the newly introduced 802.11g wireless communication devices support
WPA. If you would like to use WPA in your wireless network, all the wireless adapters in
your network should support WPA.
To enable WPA encryption:
1. Go to "Wireless Security" under the "WIRELESS" menu of the Web interface of your router.
2. Click on the "WPA" button in the "Select Wireless Security Level" section of the "Wireless
Security" screen.
3. Click on the "PSK key" button and enter a network key that is 8 to 63 characters long
(use a combination of letters and digits) in the "Passphrase" field. Make sure you choose
a key that is not easy to guess. Click "Save".
4.You must activate WPA and set the same network key in all the devices that will
communicate with your AirTies AP-400.
AirTies AP-400 User Manual
16
4.4.2
WPA2 Security Settings
WPA2, defined by the IEEE 802.11i standard, is one of the latest wireless encryption
methods. If you would like to use WPA2 in your wireless network, all the wireless adapters
in your network should support WPA2. For Centrino platform computers, it is necessary
to download the WPA2 updates for the Microsoft XP operating system to be able to use
WPA2 ( www.microsoft.com ).
To enable WPA2 encryption:
1. Go to "Wireless Security" under the "WIRELESS" menu of the Web interface of your
router.
2. Click on the "WPA" button in the "Select Wireless Security Level" section of the "Wireless
Security" screen.
3. Click on the "WPA2" and "PSK Key" buttons and enter a network key that is 8 to 63
characters long (use a combination of letters and digits) in the "Passphrase" field.
Make sure yo u cho ose a key that is not easy to guess. Click "Save".
4. You must activate WPA2 and set the same network key in all the devices that will
communicate with your AirTies AP-400.
WEP Security Settings
4.4.3
The AirTies AP-400 supports WEP (Wired Equivalent Privacy) encryption in addition to the
WPA encryption standards. If any of the devices in your wireless network does not support
WPA, it is recommended that you choose WEP encryption.
To enable WEP encryption:
1. Go to "Wireless Security" under the "WIRELESS" menu of the Web interface of your
router.
2. Click on the "WEP" button in the "Select Wireless Security Level" section of the "Wireless
Security" screen.
3. Three levels of WEP encryption exists. 64-bit encryption uses a key of 10 hexadecimal
digits (A-F and 0-9). 128-bit encryption uses 26 digits, and 256-bit encryption uses 58
digits. A key with more digits is more secure. After selecting the key length, enter the
appropriate number of hexadecimal digits, any combination of (0-9, A-F), for the key.
17
AirTies AP-400 User Manual
4. You must activate WEP and set the same network key in all the devices that will
communicate with your AirTies AP-400.
4.5.
Access Control
To enable Access Control, go to "Access Control" under the "WIRELESS" menu of the AP400 web interface. In the window that appears, you can enter the MAC addresses of
the devices that are permitted to access the AP-400. No device other than those
permitted can connect to the AP-400.
To add a new user, enter the MAC Address of the device in the "Allowed Clients List" field
and click "Add". The MAC addresses that you enter will be added to the "Allowed Clients
List".
• Click the "Start" button on the lower left corner of your Windows desktop.
• Click "Run". Type cmd in the window that opens and click OK.
• Enter ipconfig /all in the command line.
The "Physical Address" displayed under the
"Wireless Network Connection" is your
computer's MAC address.
AirTies AP-400 User Manual
18
4.6.
Management
The default password for accessing the web-based user interface of the AP-400 is blank.
It is recommended that you set a password to block unauthorized access to the web
interface.
Enter the current password in the "Current Password" field. (Leave this field blank for the
first use.) Then enter your new password in the "New Password" and "Confirm New
Password" fields. Click "Save".
4.7.
Tools
The AP-400 Web interface provides advanced management tools for: Restart, Reset to
factory settings and Firmware update. Go to "TOOLS" menu of the web interface.
In this page y ou can restart your device or reset it to factory defaults.
• The "Restart" button lets you turn your device off and then on remotely.
• The "Restore Factory Defaults" button allows you to set your device back to factory
defaults remotely. This will clear all the current settings on your device.
• During either operation, the connection to the router will be lost. You can reconnect
after the router comes back up.
Occasionally, a new firmware is published by AirTies to make use of new technologies
and fulfill customer needs. It is recommended that you use the most recent version of
the firmware for your device in order to take advantage of most recent technologies
and increase the performance of your device.
You can see the version of the firmware that is currently on your AP-400 on the "Welcome"
screen that appears as soon as you login to the Web interface.
To update the firmware, go to "Firmware Update" under the "TOOLS" menu. Click "Browse"
and locate the most recent firmware file on your computer in the pop-up window that
appears. (You can download the most recent firmware file from the AirTies website
www.airties.com). Then click "Update".
After the firmware is successfully installed, the system will automatically be restarted. For
this reason, your connection to the device will be lost and you will need to reconnect
to make the installation settings.
19
AirTies AP-301 Kullanım Kılavuzu
4.8
Reset
To reset the AP-400 to the default factory settings, while the device is on, press and hold
the reset button at the bottom of the device with the tip of a pencil or similar pointed
object for 5 seconds.
Note: When you reset the AP-400, all your custom settings such as passwords and IP
addresses will be erased.
AirTies AP-400 User Manual
20
Technical Specifications
5.
• Ports: 5 Ethernet ports (10/100; auto MDI/MDIX), 9V power in, detachable antenna
(with RSMA connector)
• Wireless transmit power: 20dBm EIRP
• Wireless security: WPA (802.1x, TKIP, PSK), WPA2 (IEEE802.11i, AES, CCMP), WEP (64/128
bit), MAC filtering, SSID hiding
• Wireless standards: Compliant with IEEE 802.11b/g, 802.11d, 802.11e and 802.11i
• LEDs: Power, WLAN, WAN, 4 LAN
• Wireless data rates: 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54Mbps (auto speed adjustment)
• Frequency range: From ETSI 2400MHz to 2483.5MHz (13 channels, 3 not overlapping)
• Power: External 9V power adapter
• Mounting: wall or desktop
• Reset button to return the device to default factory settings
6.
Physical Specifications
• Dimensions: 12 x 12 x 3 cm special design
• Weight: 150 g
• Power: 9Volt
• Operating Temperature: 0°C - 40°C
• Storage Temperature: -25°C - 75°C
21
AirTies AP-400 User Manual
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
