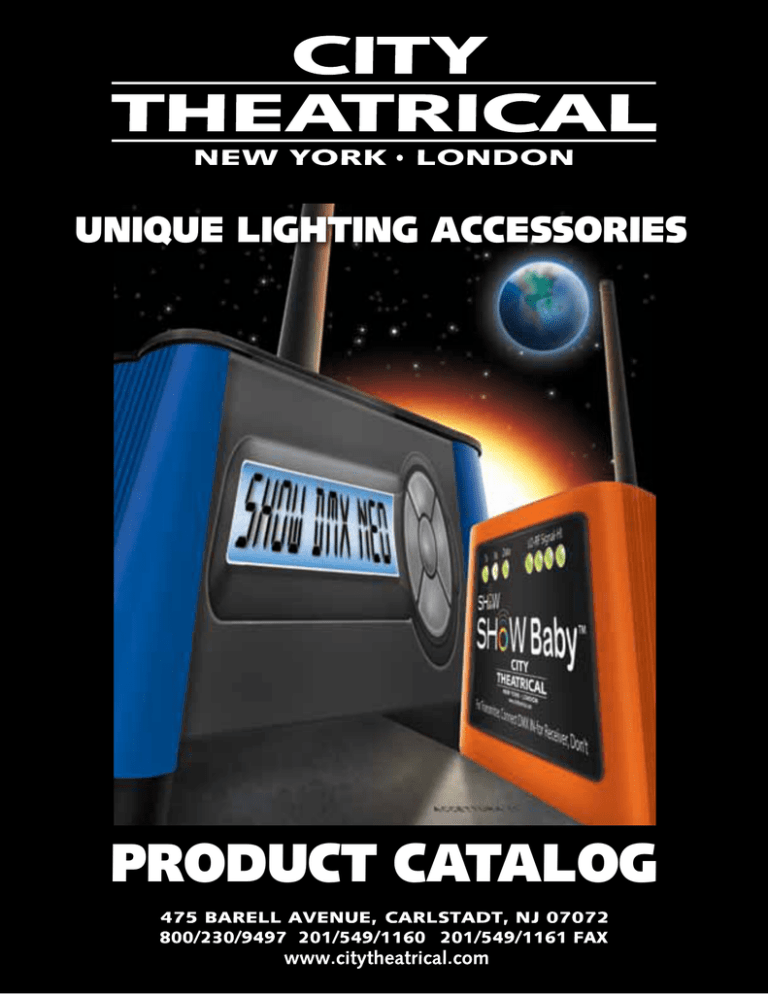

UNIQUE LIGHTING ACCESSORIES
PRODUCT CATALOG
City Theatrical specializes in lighting accessories, those special
products that make hanging and operating your show easier or
more artistic. Our products range from the simple to the
complex but all of them help you accomplish your lighting
needs in some important way, and many of them are available
exclusively from us.
Our culture is to Invent, Manufacture, and Customize. That
sums up what we do every day at City Theatrical. We create new
things, make them in our beautiful factory, and customize them
to suit your unique needs.
Thank you for your continued support.
Your business means everything to us.
Invent,
Sincerely yours,
Gary Fails,
For 25 years, we havePresident
been inventing
products to help you light your shows.
Manufacture,
We manufacture our products
in our own factory.
& Customize
We’ll customize our products
to fit your unique needs.
Thanks!
City Theatrical would like to thank the following designers and inventors for allowing us to
manufacture or distribute products created from their ideas. We salute them for their creativity.
Jules Fisher for the Beambender™ • Jules Fisher, Peggy Eisenhauer and Vivien Leone for moving light accessories •
Ken Billington for Swivel Yokes • John McKernon for Lightwright™ • Paul Palazzo and Event Systems for EFX Plus2™ •
Chris Lewton and Allen Lee Hughes for Drop-in Boomerang • LeMark for Blacktak™ and Whitetak™ • Terry Richardson for
the Follow Spot Handle • Future Light Inc. for the C-Clip Truss Protector™ • Lori Friedlander for the Image Multiplexer™ •
Jauchem & Meeh for Breakaways • Eric Bovie for Manual Color Changers • Mike Baldassari for Stackers,™ and other good
ideas • Noele Stollmack for many good ideas • Ken Posner for Follow Spot Yoke • Martin Chisnall for many good ideas •
Alan Crawshaw for hanging hardware and many other good ideas • White Light Ltd. for VSFX3 and DMX Snow Machine
• Philip Nye for many projects and good ideas
©2011 City Theatrical, Inc.
General Contents
SHoW DMX Neo™............................ 4
SHoW DMX SHoW Baby™................. 9
Lightwright™ Software..................... 10
Vectorworks®................................. 11
Philips/Color Kinetics®..................... 12
MasterBlast™................................. 15
VSFX3™........................................ 16
EFX Plus 2™.................................. 18
AutoYoke®....................................... 20
Fog Machines................................. 22
Lighting Accessories........................ 24
Index
10" BOOM BASE . . . . . . . . . . . . . . . .
ADAPTER . . . . . . . . . . . . . . . . . . . . . .
AQUAFOG 3300™ . . . . . . . . . . . . . . .
AUTOYOKE® . . . . . . . . . . . . . . . . . . .
BARNDOOR . . . . . . . . . . . . . . . . . . . .
BEAM BENDER . . . . . . . . . . . . . . . . .
BLACKTAK™ LIGHT MASK FOIL . . . . . .
BREAKAWAYS . . . . . . . . . . . . . . . . . .
BOOMERANG HANDLE . . . . . . . . . . . .
C-CLIP TRUSS PROTECTOR™ . . . . . . .
CABLE HOOK . . . . . . . . . . . . . . . . . . .
CANDLE LITE UNLIMITED™
FLICKER CANDLES . . . . . . . . . . . . . . .
CEILING PORT . . . . . . . . . . . . . . . . . .
COLOR EXTENDERS . . . . . . . . . . . . . .
COLOR FRAMES . . . . . . . . . . . . . . . . .
CONCENTRIC RING . . . . . . . . . . . . . . .
DMX IRIS . . . . . . . . . . . . . . . . . . . . . .
DMX SNOW MACHINE . . . . . . . . . . . .
39
31
22
20
29
30
35
39
36
31
39
35
33
28
32
30
24
24
DONUTS . . . . . . . . . . . . . . . . . . . . . . 33
DROP-IN BOOMERANG . . . . . . . . . . . . 36
DROP-IN IRISES . . . . . . . . . . . . . . . . . 33
EFX PLUS 2™ . . . . . . . . . . . . . . . . . . 18
EGG CRATE LOUVER . . . . . . . . . . . . . . 29
EIGHT UNIVERSE MAIN /BACK-UP
SWITCH . . . . . . . . . . . . . . . . . . . . . . 25
FOG MACHINES . . . . . . . . . . . . . . . 22-23
FOLLOW SPOT ACCESSORIES . . . . . . . 36
HALF TOP HATS . . . . . . . . . . . . . . . . . 27
HOLDERS FOR METAL GOBOS . . . . . . . 34
HOLDERS FOR GLASS GOBOS . . . . . . . 34
IMAGE MULTIPLEXER™ . . . . . . . . . . . 30
LIGHTWRIGHT 5™ SOFTWARE . . . . . 10
MAINFRAMES® . . . . . . . . . . . . . . . . . 32
MARTIN ACCESSORIES . . . . . . . . . . . . 28
MASTERBLAST™ . . . . . . . . . . . . . . . . 15
MOVING LIGHT ACCESSORIES . . . . . . . 28
MOVING LIGHT HANGERS . . . . . . . . . . 37
PHILIPS/COLOR KINETICS . . . . . . . . 12-14
PROJECTOR DOWSER . . . . . . . . . . . . 24
SAFER SIDEARMS . . . . . . . . . . . . . . . 37
SHoW DMX NEO . . . . . . . . . . . . . . . . 4-8
SHoW DMX SHoW BABY . . . . . . . . . . . 9
SOURCE FOUR® PAR CROSS
BAFFLE TOP HAT . . . . . . . . . . . . . . . . 29
SS6000™ DRY ICE FOGGER . . . . . . . . 23
STACKERS™ TAPERED TOP HATS . . . . 26
SWITCHBOXES . . . . . . . . . . . . . . . . . 25
TOP HATS . . . . . . . . . . . . . . . . . . . . . 27
TUBULAR RIPPLE PROJECTOR . . . . . . 25
TRACK TAMERS™ . . . . . . . . . . . . . . . 38
VARI-LITE ACCESSORIES . . . . . . . . . . . 28
VECTORWORKS® . . . . . . . . . . . . . . . 11
VERTICAL EXTENSION TUBES . . . . . . . 38
VSFX3™ . . . . . . . . . . . . . . . . . . . . . . 16
WHITETAK™ LIGHT MASK FOIL . . . . . . 35
Warranty
City Theatrical, Inc. warrants to the original purchaser that the equipment offered will be free from defects in workmanship and material for a period of one
year from date of purchase. During the warranty period, units will be repaired or replaced at the option of City Theatrical, Inc.
The warranty does not extend to any parts of the unit that have been subjected to misuse or accident. Neither does the warranty cover any product that
has been modified or repaired at other than an authorized repair station. The warranty will not apply if procedures described in any Operations Manual are
not followed.
This warranty does not include shipping to or from City Theatrical Ltd. Unless otherwise stipulated by law, all warranties, expressed or implied, are limited
to the period of this warranty.
Customers requiring repair of their equipment should obtain an RMA# from City Theatrical. Equipment should be suitably packaged, including a note with
the owner’s name and address and a description of the reason for return. Ship package prepaid and insured. City Theatrical cannot be responsible for loss
or damage in shipment.
UNLESS EXCLUSIONS ARE SPECIFICALLY FORBIDDEN BY LAW, CITY THEATRICAL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING FROM THE USE OR FAILURE OF THIS PRODUCT, INCLUDING INJURY TO PERSONS OR PROPERTY.
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
2
3
SHoW DMX NEO
SHoW DMX NEO
Neo™
Lighting professionals trust SHoW DMX®
Three broadcast formats to suit your needs
SHoW DMX Neo Mode, SHoW DMX Neo Adaptive Mode, SHoW DMX Classic Mode
High Data Fidelity
SHoW DMX’s utilizes a unique patent pending Synchronized Hopping method that
has never been surpassed in data fidelity.
Ultra Fast Throughput
SHoW DMX Neo’s latency is 7ms or less. That’s a full 88% faster than our original
SHoW DMX systems
The SHoW DMX Three Channel 10A Dimmer provides three independently controllable 10A 9-12V DMX/RDM DC dimmers in a
single compact package with a total capacity of 30 amps. With its four different output configurations, the SHoW DMX Three
Channel 10A Dimmer can be used as three individual 10A DC dimmers for incandescent loads, as three individual linear curve
dimmers, as three individual non-dims, or as three individual LED dimmers. Additionally, any two outputs are usable as 15A
dimmers, or any single output is usable as a 30A dimmer. In LED mode, the units are perfect for controlling low voltage LED RGB
tape, or other types of RGB LEDs.
• User-selectable output formats
• Built-in level test and bump buttons
• RDM access to DMX address, configuration,
battery voltage and other functions
• Mounting/hanging bracket included
Three Channel Dimmer
Cat. #5620
Single Channel Dimmer is also available.
Cat. #5520
Adaptive Hopping Mode
In Neo Adaptive Mode, the system will automatically broadcast only on open channels,
neither causing interference, nor interfering with other sources.
Outdoor Use Transceiver
Plays Well with Others
SHoW DMX Neo is the only wireless DMX system that gives full control to the user.
You can insure the fidelity of your show while creating the smallest wireless DMX
footprint and respecting the broadcast needs of others.
The SHoW DMX Neo Outdoor Use Transceiver provides a compact and economical solution with unparalleled flexibility and
configurability when a permanent outdoor use wireless DMX distribution system is needed. The SHoW DMX Neo Outdoor Use
Transceiver can be quickly and easily configured in the field at installation as a transmitter or receiver. Then the system’s quick
and comprehensive RDM proxy and responder functions can be used to monitor and adjust all SHoW DMX Neo units in the
system directly from the control position, without accessing or opening the boxes after installation.
SHoW DMX Neo
Transceiver
Cat. #5701
Transceiver and Receiver
SHoW DMX Neo is the newest generation of wireless DMX.
SHoW DMX Neo combines high data fidelity, advanced
user configuration to minimize its broadcast footprint,
blazing fast speed with 7ms or less latency, and industry
leading RDM capability.
Nearly every production on Broadway and London’s West
End that uses wireless DMX uses SHoW DMX, as well as
many of the world’s largest music tours. When their show
depends on it, lighting professionals choose City Theatrical
and SHoW DMX.
Transceiver
Dimmer
• Patented 2.4 GHz FHSS radio transceiver,
optimized for broadcasting DMX.
• Three broadcast settings: SHoW DMX Neo
Mode, SHoW DMX Neo Adaptive Mode, SHoW
DMX Classic Mode (which is compatible with all
SHoW DMX legacy products)
• Can be configured as either a Transceiver or a
Receiver
• RDM: Monitor and change your system with any
RDM controller
• Ethernet Gateway features include dual Ethernet
ports, support of multiple Ethernet protocols
including Art-Net, sACN, and KiNet
• USB port for easy firmware updates
Receiver
• All SHoW DMX Neo wireless DMX features
• All SHoW DMX Classic wireless DMX features,
configurable to work with all existing SHoW DMX
systems
• Fast and reliable wireless RDM proxy and
responder functions
• Universal mains (100-240VAC 50/60 Hz) or
12VDC CL 2 power (using adapter or batteries)
• USB port for easy firmware updates
SHoW DMX Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending.
• NEMA 4X/IP66 Stainless Steel Enclosures with all required
liquid tight cable entries
• Delivered ready for contractor installation
• FCC, IC and CE compliant
• ETL Listed
• A complete range of high gain outdoor antennas
and extension cabling is available
SHoW DMX Neo
Outdoor Transciever
Cat. #5708
OEM
The SHoW DMX Neo Radio Module for OEM applications provides a simple and low cost way for manufacturers to add high quality
wireless DMX to their products with a single miniature printed circuit board. This very small PCBA incorporates all of its
configuration and control functions as well as its RF DMX hardware and firmware and requires very little external hardware,
software, or space for direct integration in a Host product. All SHoW DMX Neo configuration is done with RDM commands, and
the external connection, power, and DMX I/O hardware requirements are minimal. City Theatrical offers complete application
materials as well as development hardware kits and reference designs to support your application development.
• Small footprint: 1.65”x 2.71”x 0.25” / 42mm x 69mm x 6.5 mm
• RDM Configurable
• City Theatrical engineering services are available to guide you
The 5706 SHoW DMX Neo OEM Receiver is a miniature Wireless DMX Receiver PCBA for use in custom designs such as set
pieces, props and costumes, and will support all of the key operating features of the SHoW DMX Neo Receiver. All settings are
also configurable via RDM commands from a separate
Call us for complete
RDM controller
OEM ordering
information.
SHoW DMX Neo
OEM Receiver
Cat. #5706
(for props and costumes)
SHoW DMX Neo
Radio Module for OEM
Cat. #5792
(for direct integration
by manufacturers)
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
4
5
SHoW DMX Neo
New Features of SHoW DMX Neo Include:
Three User Selectable Broadcast Modes
In SHoW DMX Neo Mode, CTI’s proprietary system synchronizes the FHSS
(Frequency Hopping Spread Spectrum) hopping period so that every DMX
data packet is transmitted completely during a single hop. In SHoW DMX Neo
Adaptive Mode, the system will automatically adapt away from interference with no user intervention necessary.
In SHoW DMX Classic Mode the system is exactly compatible with all existing older SHoW DMX systems.
Adjustable Output Power
The SHoW DMX Neo Transceiver has adjustable broadcast power from 1-72mW ETSI. This allows the user to adjust the
output power to meet the application requirement. The option of adjustable output power allows users to select only the
power needed and to respect the wireless needs of their colleagues on their production, and other wireless users in the
area. This philosophy is diametrically opposed to some other manufacturers who sell powerful radios with only one output
setting designed to overpower all radio users in the area.
Adjustable Hopping Patterns, Including Full Bandwidth Hopping and Limited Bandwidth Hopping
SHoW DMX Neo and Classic Modes offer more than one kind of user selectable FHSS hopping mode. In full bandwidth
hopping mode, the system will continuously and pseudo-randomly hop between slots across the full 2.4GHz spectrum.
This mode is available at any output power setting, and is quite typical of all FHSS radios. In the Limited Bandwidth Hopping mode, the 2.4GHz band is divided into sub-bands. Each sub-band occupies approximately 40% of the full band, with
one positioned at the low end, one in the center, and one at the high end of the full band. This allows the SHoW DMX Neo
Transceiver to be set to hop and broadcast in a different area of the spectrum to minimize or eliminate interference with
WiFi or other channel specific or limited bandwidth equipment.
Limited Burst DMX Output
When SHoW DMX Neo or Classic Modes are selected, users may utilize Limited Burst mode to select for broadcast any
contiguous group of 30 or more DMX slots in multiples of 32 slots. These may be assigned to any starting address that
will accommodate the packet size. This will reduce the amount of radio energy that is broadcast, thereby reducing the
potential for interference with other systems. For instance, if a show needs only 128 slots of wireless DMX, the
system can be set to broadcast only 128 slots, causing the radio to go silent 75% of the time (1-128/512) =.75). If only
64 slots are used, the radio will be silent 87% of the time. This silent time reduces overall radio spectrum activity and
increases the chances of all other radio signals in the vicinity to be broadcast successfully.
SHoW DMX Neo Adaptive Mode
In SHoW DMX Neo Adaptive Mode, Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels with interference, replacing them in the hop sequence with alternate channels. If users choose not to use manual
settings, they can choose this setting instead.
SHoW DMX Neo
Specifications
SHoW
DMX Neo
Transceiver
SHoW DMX
SHoW Baby
SHoW DMX
Neo
OEM
Receiver
SHoW DMX
Neo
Receiver
SHoW DMX
Dimmer
SHoW DMX
Neo
Radio
Module
SHoW DMX
Neo
Outdoor Use
Transceiver
Model
Number
5701
5702
5706
5711
5620
5792
7400-5708
Broadcast
Power
1mW ETSI
14mW ETSI
28mW ETSI
72mW ETSI
1mW ETSI
14mW ETSI
28mW ETSI
72mW ETSI
1mW ETSI
14mW ETSI
28mW ETSI
72mW ETSI
1mW ETSI
14mW ETSI
28mW ETSI
72mW ETSI
1mW ETSI
14mW ETSI
28mW ETSI
72mW ETSI
SHoW DMX
Neo
Broadcast
Modes
Adaptive Neo Full
Bandwidth
Neo Full Bandwidth
Neo Limited
Bandwidth WiFi
1-6
Neo Limited
Bandwidth WiFi
4-9
Neo Limited
Bandwidth WiFi
7-11
Adaptive Neo Full
Bandwidth
Neo Full
Bandwidth
Neo Limited
Bandwidth WiFi
1-6
Neo Limited
Bandwidth WiFi
4-9
Neo Limited
Bandwidth WiFi
7-11
Adaptive Neo Full
Bandwidth
Neo Full
Bandwidth
Neo Limited
Bandwidth WiFi
1-6
Neo Limited
Bandwidth WiFi
4-9
Neo Limited
Bandwidth WiFi
7-11
Adaptive Neo Full
Bandwidth
Neo Full
Bandwidth
Neo Limited
Bandwidth WiFi
1-6
Neo Limited
Bandwidth WiFi
4-9
Neo Limited
Bandwidth WiFi
7-11
Adaptive Neo
Full Bandwidth
Neo Full
Bandwidth
Neo Limited
Bandwidth WiFi
1-6
Neo Limited
Bandwidth WiFi
4-9
Neo Limited
Bandwidth WiFi
7-11
Full Bandwidth
Limited
Bandwidth WiFi
1-6
Limited
Bandwidth WiFi
4-9
Limited
Bandwidth WiFi
7-11
Full Bandwidth
Limited
Bandwidth WiFi
1-6
Limited
Bandwidth WiFi
4-9
Limited
Bandwidth WiFi
7-11
Full (512 Slots)
Limited, Classic
Mode (30-480
Slots) Limited, Neo & Neo
Adaptive Modes
(51-467 Slots)
Full (512 Slots)
Limited, Classic
Mode (30-480
Slots) Limited,
Neo & Neo Adaptive Modes (51467 Slots)
MODEL
RDM
The SHoW DMX Neo system uses RDM communications for all remote device control and configuration, or for any
inter-device communication required. This provides an easily understood method for managing requirements such as Receiver strength and Dimmer address setting. RDM commands may be issued from an upstream RDM controller such as
a console or from the Transmitter.
RDM features include:
1. RDM Control : SHoW DMX Neo can be controlled by any RDM controller.
2. RDM Proxy Functions: Transmitters and Receivers act together as an RDM proxy system, providing a bidirectional
half-duplex RDM link between the controller and any RDM device being controlled via the SHoW DMX system.
4. RDM Discovery/Unique Device IDs: Each unit is programmed with a unique RDM device ID that will identify the unit,
permitting RDM discovery, as well as communication with and control of each specific device.
5. Receiver Received Signal Strength: System remotely polls each Receiver for its received signal strength via
standard RDM.
6. RDM Responder Features: SHoW DMX Dimmers have appropriate RDM features such as discovery, DMX
addressing, battery power status, etc.
Ethernet Gateway Features
The SHoW DMX Neo has advanced built-in Ethernet Gateway features including dual Ethernet ports and support of
multiple show control protocols including sACN, Art-Net and KiNet.
Adaptive Neo
Full Bandwidth
SHoW DMX
Classic
Broadcast
Modes
Full Bandwidth
Limited Bandwidth
WiFi 1-6
Limited Bandwidth
WiFi 4-9
Limited Bandwidth
WiFi 7-11
DMX Burst
Modes
Full (512 Slots)
Limited, Classic
Mode (30-480
Slots) Limited, Neo
& Neo Adaptive
Modes (51-467
Slots)
Full (512 Slots)
Hopping
Patterns
16
1
16
SHoW IDs
132
1
Radio
Transceiver
CTI 5792
RF
Sensitivity
N/A
N/A
N/A
N/A
Full Bandwidth
Limited
Bandwidth WiFi
1-6
Limited
Bandwidth WiFi
4-9
Limited
Bandwidth WiFi
7-11
N/A
N/A
Full (512 Slots)
Limited, Classic
Mode (30-480
Slots) Limited,
Neo & Neo Adaptive Modes (51467 Slots)
Full (512 Slots)
Limited, Neo &
Neo Adaptive
Modes (51-467
Slots)
16
N/A
16
16
132
132
N/A
132
68
CTI 5792
CTI 5792
CTI 5792
N/A
N/A
CTI 5792
-95dBm
-95dBm
-95dBm
-95dBm
N/A
-95dBm
-95dBm
RDM
Features
RDM Proxy
RDM
Responder
RDM Proxy
RDM
Responder
RDM Proxy
RDM
Responder
RDM Proxy
RDM
Responder
RDM
Responder
RDM Proxy
RDM
Responder
RDM Proxy
RDM
Responder
Compliance
Certifications
FCC, IC, CE
FCC, IC, CE
FCC, IC, CE
FCC, IC, CE, ETL
Listed
CE, ETL Listed
FCC, IC, CE
FCC, IC, CE
Power
9-24VDC 500mA
12VDC 200mA
9-12VDC
500mA
9.24VDC
250mA,
100-240VAC
50/60Hz 3W
9-12VDC 30A
Max
5VDC 125mA
100-240VAC
50/60Hz 3W
Dimensions
6.25”W
x 2.375”H
x 5.125”D
3.625”W
x1.8”H
x 3”D
2”W
x 2.75”H
x .50”D
6.25”W
x 2.375”H
x 5.125”D
6.25”W
x 2.375”H
x 5.125”D
1.65”W
x 2.71”H
x 0.25”D
7.625”W
x 7”H
x 4”D
Weight
2Lbs
6.4oz
2oz
2Lbs
2Lbs
1oz
5Lbs
Simple Default Plug and Play Mode
The SHoW DMX Neo system has a sophisticated user interface allowing complete control of a number of settings, but in
its default mode, SHoW DMX Neo is completely plug and play. In its factory mode, or by resetting factory defaults,
Transmitter and Receiver will wake up in contact with each other and no other settings are needed unless the user
chooses to make them. With all its sophistication, the SHoW DMX Neo system is also one of the simplest systems
available.
72mW ETSI
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
6
7
SHoW DMX NEO
SHoW DMX SHoW BABY
Ordering
Name
Cat. #
SHoW DMX NEO TRANSCEIVER
5701
SHoW DMX NEO RECEIVER
5711
SHoW DMX PERSONAL DIMMER
5616
SHoW DMX THREE Channel 10A Dimmer
5620
WDS 15A DIMMER
5520
SHoW DMX MOUNTING PLATE
™
Baby
The ultimate simplicity of plug and play with
the power of SHoW DMX Neo™ Technology
5602
SHW DMX NEO OUTDOOR TRANSCEIVER
7400-5708
SHoW DMX NEO OEM RECEIVER
5706
SHoW DMX POWER SUPPLY FOR TRANSCEIVER
5627
Name
Transceiver
8.35in
212.2mm
Standard CTI 7"
Omnidirectional
Antenna
LCD Display
DMX/RDM Input
DMX/RDM Output
Dual Ethernet Port
USB Port
Control Button Pad
DMX Termination Switch
12VDC Power Input
2.26in
57.5mm
6.24in
158.4mm
5701 SHoW DMX Neo Transceiver
Front View
5701 SHoW DMX Neo Transceiver
Rear View
Dimmer
DMX Termination Switch
3x2 45A Anderson PowerPole
For Dimmer Outputs
1x2 45A Anderson PowerPole
For DCV Input
LCD Display
Control Button Pad
5PXLRF For DMX/RDM
Pass Thru
5PXLRM For DMX/RDM
Input
2.32in
58.9mm
6.24in
158.4mm
5620 SHoW DMX 3 Channel Dimmer
Front View
5620 SHoW DMX 3 Channel Dimmer
Rear View
Receiver
8.31in
211.2mm
Standard CTI 7"
Omnidirectional
Antenna
LCD Display
USB Port
Control Button Pad
DMX/RDM Output
5630
ANTENNA, 2dBi INDOOR OMNI
5730
ANTENNA, 5dBi OUTDOOR OMNI
5732
ANTENNA, 8dBi PANEL (INCLUDES INDOOR MOUNT)
5632
OUTDOOR MOUNTING BRACKET FOR #5632 8dBi PANEL
ANTENNAS
5670
ANTENNA, 10dBI YAGI (INCLUDES OUTDOOR MOUNT)
5634
ANTENNA, 14dBi YAGI (INCLUDES OUTDOOR MOUNT)
5636
ANTENNA SPLITTER
5637
ANTENNA ADAPTER CABLE
5638
GENDER CHANGER FOR 5637 ANTENNA SPLITTER
5639
SHoW DMX ANTENNA CABLE
5631
SHoW DMX 12V 12AH RECHARGEABLE BATTERY
WITH CONNECTORS
5635
SHoW DMX 12V 5A AUTOCHARGER 115v-230v WITH
CONNECTORS
5640
DMX CABLE, 18”
5644
ETHERNET CABLE, 10’
5646
ETHERNET CROSSOVER CABLE, 10’
5647
TWOFER, BATTERY TO RECEIVER AND DIMMER
5650
WIRE, TWO CONDUCTOR, 10’, 12 GA, WITH
ANDERSON CONNECTORS 5652
WIRE, TWO CONDUCTOR, 25’, 12 GA, WITH
ANDERSON CONNECTORS
5654
TWOFER, 18” W/ANDERSON CONNECTORS
5656
ANDERSON CONNECTOR, RED
5660
ANDERSON CONNECTOR, BLACK
5661
ANDERSON CONNECTOR, YELLOW
5662
ANDERSON CONNECTOR, BLUE
5663
ANDERSON CONNECTOR, ORANGE
5664
SHoW DMX NEO RADIO MODULE FOR OEM
5792
DUAL RACKMOUNT PANEL FOR SHoW DMX
TRANSMITTER-RECEIVER
5665
12VDC Power Input
(for Battery Power)
Mains Power Input
2.26in
57.4mm
6.24in
158.4mm
5711 SHoW DMX Neo Receiver
Front View
Cat. #
ANTENNA, 7" 5dBi OMNI
SHoW DMX SHoW Baby is incredibly easy to use and incredibly affordable, while still
offering the quality and advanced features of SHoW DMX Neo technology. SHoW DMX
SHoW Baby is perfect for the venue or performance where a full featured SHoW DMX
system is not required.
The SHoW DMX SHoW Baby represents a breakthrough in plug-and-play
wireless DMX and RDM transmission - a single unit that can be used either as
a wireless DMX transmitter or receiver. Set-up couldn’t be simpler with SHoW
DMX SHoW Baby’s instant plug-and-play configuration: For a Transmitter,
connect DMX IN, for a Receiver, don’t.
When a DMX cable is plugged to the SHoW DMX SHoW Baby’s DMX Input,
the SHoW DMX SHoW Baby senses the connection and configures itself as a
transmitter. If no cable is connected to the DMX Input, the SHoW Baby
configures itself as a receiver.
All you need now to set up a SHoW DMX wireless DMX system is two
SHoW DMX SHoW Baby units and two minutes!
The SHoW DMX SHoW Baby
features include:
SHoW DMX SHoW Baby
Transceiver
Cat. #5702
Power Input
Status LEDs
Antenna
116.07mm
4.570in
DMX IN
Connect for
Transmitter
DMX OUT
5702 SHoW DMX SHoW Baby,
Rear View
91.70mm
3.610in
5702 SHoW DMX SHoW Baby,
Front View
• SHoW DMX Neo 2.4GHz Frequency Hopping Spread
Spectrum (FHSS) Radio
• DMX Synchronized Hopping1
• Instant plug-and-play configuration: For a Transmitter,
connect DMX IN, for a Receiver, don’t!
• Preset SHoW ID, so all SHoW DMX SHoW Baby units
always work together the first time
• Wirelessly broadcast and receive a full Universe
(512 slots) of DMX
• Ultralow 7ms max latency
• Advanced high speed RDM proxy and responder
functions
• 72mW ETSI broadcast power2
• Included pipe mount bracket for installation with
C-clamp, hook clamp, or similar hanging hardware
• Included CL2 power supply with international connector
kit
• Included 2dBi Omni-directional Antenna
• Neutrik® 5P XLR Connectors for DMX IN and DMX OUT
• Lost Data Replacement
• Supports reduced DMX slot frames for higher refresh
rates
• FCC, IC and CE Certified
• A wide range of accessory antennas available
SHoW DMX Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending.
5711 SHoW DMX Neo Receiver
Rear View
1 Patent Pending
2 When used with CTI # 5630 5dBi Antenna
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
8
9
Lightwright™
Vectorworks®
The quintessential tool for tracking
all aspects of selecting and arranging,
numbering and comparing, assigning
and footnoting lighting paperwork.
Lightwright just keeps getting better
and better!
Lightwright, written by professional designer
John McKernon, has been used on over
90% of all Broadway shows over the last 10
years! Lightwright was named as one of the
“Products that Changed our World” by Lighting
Dimensions Magazine.
Lightwright 5
and Vectorworks now
talk to each other.
Vectorworks Spotlight
Features Lightwright/Vectorworks Data
Exchange, a new and easy way to share
data with Vectorworks Spotlight!
• Template pictures
• New standard colors choose list and color
swatches on the worksheet
• Live instrument and accessory counts
• Automatic dimmer load balancing
• More than one show file can be open at a
time
• 18 flexible user-definable columns
Cat.#
3890
INSTITUTIONAL LIGHTWRIGHT 5
3891
PERSONAL UPGRADE FROM LW4 TO LW5
3892
INSTITUTIONAL UPGRADE FROM LW4 TO LW5
3893
design (CAD) software program
STUDENT LIGHTWRIGHT 5
3894
that is used for drafting, technical
STUDENT LW4 OR LW5 TO PERSONAL LW5 UPGRADE
3895
REPLACEMENT LIGHTWRIGHT 5 CD
3896
Vectorworks is a computer-aided
LIGHTING
DIMENSIONS
INTERNATIONAL
System Requirements
For complete licensing terms, including rules and
restrictions that vary depending on the type of
license, go to www.citytheatrical.com/lightwright.
htm before finalising your purchase.
Upgrades must be in the same name and serial
number as the original buyer.
MAJOR NEW FEATURES
Lightwright/Vectorworks Data Exchange, a new and easy way to share data
with Vectorworks 2009 • Worksheet Reconciliation compares and synchronizes
show files • Share files and worknotes via network and built-in email •
Completely rethought and enhanced worknotes • Global Search across all
worksheet columns • Complete history of all changes, with flexible rollback
options • Wheel design window for moving lights • Color scroll design
window • Template pictures • New Standard Colors choose list and color
swatches on the worksheet • Live instrument and accessory counts • Automatic
dimmer load balancing • More than one show file can be open at a time •
18 flexible user-definable columns
5
INSTALLATION INSTRUCTIONS
drawing and 3D modeling.
Vectorworks offers 2D, 3D,
production management, and
presentation capabilities for all
phases of the design process.
Before you can begin using Lightwright™, you must register
with John McKernon Software and obtain an Approval Code that
Microsoft Windows®
OSX
10.4 (Tiger) or later, Intel or
will enable•
theMac
software
to run.
PowerPC Macintosh
• Microsoft Windows 2000/XP Service
To request •
an approval
code, drive
follow (for
the installation from CD only)
Pack 3/Vista or later
A CD-ROM
instructions
the README
file. You
• A CD-ROM drive (for installation from CD only)
•in1GB
of physical
RAM, 2GB or more strongly will receive your
approval
code
via
email
recommended
• 1GB of physical RAM, 2GB or more
within two business days of submitting
strongly recommended
• A color monitor with at least 1024x768
your request.
• A color monitor with at least 1024x768
resolution, either thousands or millions of colors
resolution, 256 colors or better
• A hard
drive with
Until you receive
your approval
code,at least 120 MB of available disk
Lightwright
runspace
in Demo mode,
• A hard drive with at least 120 MB of available
will
where it is •
limited
to a maximum
disk space
Internet
connection required for installation
rows.
• Internet connection required for installationof 75 worksheet
and
use of some features
and use of some features Apple Macintosh®
Vectorworks Spotlight 2012 7NN-P1-NEW-SXXZ-BE
Second or more copies in the same order
7NN-P2-NEW-SXXZ-BE
Vectorworks Spotlight 2012 (Upgrade)
7NN-P1-UPG-SXXZ-BE
Second or more copies in the same order (Upgrade)
7NN-P2-UPG-SXXZ-BE
Vectorworks Spotlight 2012 & Renderworks 7NN-P1-NEW-SRXZ-BE
Second or more copies in the same order
7NN-P2-NEW-SRXZ-BE
Vectorworks Spotlight 2012 & Renderworks (Upgrade)
7NN-P1-UPG-SRXZ-BE
Second or more copies in the same order (Upgrade)
7NN-P2-UPG-SRXZ-BE
(contains Spotlight, Architect, Landmark,
and Machine Design)
Co
in
nt
do
OS ws bot ains
X & h
Ve M
rs ac
io in
ns to
sh
Name
PERSONAL LIGHTWRIGHT 5
Cat.#
Vectorworks Designer
W
Other new features:
• Worksheet reconciliation
compares and synchronizes show files
• Share files and worknotes via
network and built-in email
• Completely rethought and enhanced worknotes
• Global search across all worksheet columns
• Complete history of all changes, with flexible
rollback options
• Wheel design window for moving lights
• Color scroll design window
Bi-directional data exchange means you
can make changes in Lightwright 5
and your Vectorworks light plot is
automatically updated; Make changes
in your light plot, and your Lightwright 5
paperwork is automatically updated.
Your job just got easier!
Vectorworks Designer 2012 7NN-P1-NEW-CXXZ-BE
Second or more copies in the same order
7NN-P2-NEW-CXXZ-BE
Vectorworks Designer 2012 (Upgrade)
7NN-P1-UPG-CXXZ-BE
Second or more copies in the same order (Upgrade)
7NN-P2-UPG-CXXZ-BE
Vectorworks Designer 2012 & Renderworks 7NN-P1-NEW-CRXZ-BE
Second or more copies in the same order
7NN-P2-NEW-CRXZ-BE
Vectorworks Designer 2012 & Renderworks (Upgrade)
7NN-P1-UPG-CRXZ-BE
Second or more copies in the same order (Upgrade)
7NN-P2-UPG-CRXZ-BE
Educational Vectorworks Designer
(contains Spotlight, Architect, Landmark, and Machine Design,
with Renderworks) Lab license and network dongle required. Paperwork has no watermark.
7NN-E2-NEW-CRXT-BC
Educational Vectorworks Designer
(contains Spotlight, Architect, Landmark, and Machine Design,
with Renderworks) Teacher or student copy. With watermark and
dongle. 7NN-E2-NEW-CRXS-BB
Educational Vectorworks Designer
(contains Spotlight, Architect, Landmark, and Machine Design,
with Renderworks) Teacher or student copy. With watermark, no
dongle, must have internet connection to validate license, and then
once every 30 days thereafter.
7NN-E2-NEW-CRXS-BE
Dongles
Vectorworks sales
are US only.
Single seat dongle
PCS-PCX-DON-PRO
Up to10 seat dongle
PCS-PCX-DON-N10
Up to 50 seat dongle
PCS-PCX-DON-N50
1. Insert the CD into your drive.
2. Double-click the README file
3. Follow the on-screen instructions
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
10
11
Philips
Philips
City Theatrical has teamed up with Philips Color Kinetics to design and develop a complete line of power
supplies for Color Kinetics professional lighting products and a complete line of beam control accessories
for Color Kinetics fixtures.
LED Power/Data Supplies
TM
• For up to 12 Philips Color
• Select the starting DMX
Kinetics ColorBlast 12,
address of each output
ColorBlast 12 TR,
• Control by DMX512, RDM,
ColorBlast 12TRX and iWhite
streaming DMX and RDM over
Blast 12 lighting fixtures
ACN, Art-NET, KiNET,
• Select the footprint for each
or internal MasterBlast
output, from two to 10 slots per
stand alone routines
output
• Ethernet pass through
• SHoW DMX® Neo receiver
built in
• Built in rack mount
/pipe mount ears
• USB port
• Enhanced Mini-Zapi
LED Power/Data Supplies
15 3/4”
(400mm)
8”
(203mm)
5 3/16”
(132mm)
Cat. #
PDS-750 TRX™
6500 Neo
PDS-375 TRX™
6550 Neo
PDS-375 TR™
6250
Neo™
19”
(483mm)
All PDS-750 TRX and PDS-375 TRX units
contain SHoW DMX Neo receivers.
PDS-375 TRX™
• No fan in standard
operating mode
• A rugged touring style
power/data supply of
smaller capacity than
the PDS-750 TRX
• For up to six ColorBlast
12, ColorBlast 12 TR,
ColorBlast 12 TRX or iW
Blast 12, or 12
ColorBlast 6
• Select the footprint for
each output, from two
to 10 slots per output
• Select the starting
DMX address of each
output
• Control by DMX512,
RDM, streaming DMX
and RDM over ACN,
Art-NET, KiNET or
internal MasterBlast
stand alone routines
• Ethernet pass through
• SHoW DMX® Neo
receiver built in
• Built in rack mount
/pipe mount ears
• USB port
• Enhanced Mini-Zapi
• Carry handle/C-clamp
Mount
Top Hats
Accessory
Holders
Control light spill
and decrease
viewing angle to
lens
A place to
mount a range
of accessories
Accessory Holders
Cat. #
COLORBLAZE 72, W
120-000001-00
COLORBLAST 12, W
120-000005-03
COLORBLAZE 72, B
120-000001-01
COLORBLAST 12, B
120-000005-04
PRO-SERIES COLORBLAZE 72, W
120-000001-02
COLORBLAST 6, W
120-000006-03
PRO-SERIES COLORBLAZE 72, B
120-000001-03
COLORBLAST 6, B
120-000006-04
COLORBLAZE 48, W
120-000002-00
COLORREACH TR TOP HAT
120-000090-00
COLORBLAZE 48, B
120-000002-01
PRO-SERIES COLORBLAZE 48, W
120-000002-02
PRO-SERIES COLORBLAZE 48, B
120-000002-03
COLORBLAST 12, W
120-000003-03
COLORBLAST 12, B
120-000003-04
COLORBLAST 6, W
120-000004-03
COLORBLAST 6, B
120-000004-04
COLORBLAST 12 POWERCORE ACCESSORY
HOLDER, W
6223W
COLORBLAST 12 POWERCORE ACCESSORY
HOLDER, B
6223
COLORBLAST 12 POWERCORE ACCESSORY
HOLDER (SIDE LOAD), W
6224W
COLORBLAST 12 POWERCORE ACCESSORY
HOLDER (SIDE LOAD), B
6224
Top Hats
Cat. #
Half Top Hats
Control light spill
Half Top Hats
Cat. #
COLORBLAST 12, W
120-000009-03
COLORBLAST 12, B
120-000009-04
COLORBLAST 6, W
120-000010-03
COLORBLAST 6, B
120-000010-04
COLORREACH TR HALF TOP HAT
120-000093-00
Egg Crate
Louvers
Barndoors
Control light spill
and provide 45˚
of cut off
Adjustable
beam control
9 3/4”
(248 mm)
Barndoors
12.5”
(318 mm)
5 1/4”
(133mm)
PDS-375 TR™
12 3/4”
6 1/8”
5”
6 1/8”
• A budget power/data supply
• For up to six ColorBlast 12 or ColorBlast 12 TR,
12 ColorBlast 6
• Industry standard four pin
XLR connectors
• Built-in mini-Zapi function
• Stand alone modes
• DMX pass through mode
• Carry handle/C-clamp mount
Cat. #
COLORBLAST 12, W
120-000019-03
COLORBLAST 12, B
120-000019-04
COLORBLAST 6, W
120-000020-03
COLORBLAST 6, B
120-000020-04
COLORCAST 14 BEAM SHAPER, W
(EACH REQUIRES ACCESSORY HOLDER)
120-000039-00
COLORCAST 14 BEAM SHAPER, B
(EACH REQUIRES ACCESSORY HOLDER)
120-000039-01
BLAST 12 TR, W
6340W
BLAST 12 TR, B
6340
COLORREACH TR BARNDOOR
Egg Crate Louvers
Cat. #
COLORBLAST 12, W
120-000015-03
COLORBLAST 12, B
120-000015-04
COLORBLAST 6, W
120-000016-03
COLORBLAST 6, B
120-000016-04
BLAST 12 TR, W
6346W
BLAST 12 TR, B
6346
COLORREACH TR EGG CRATE LOUVER
120-000091-00
120-000094-00
W=White, B=Black
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
12
13
MasterBlast™
Philips
Polycarbonate
Holographic Lenses
Polycarbonate Holographic Lenses1
BLAST 12 TR 10 DEGREE LENS
6310
Unbreakable polycarbonate
utilizing a holographic method of
creating various beamspreads on
a thin surface
BLAST 12 TR 20 DEGREE LENS
6311
BLAST 12 TR 30 DEGREE LENS
6312
BLAST 12 TR 40 DEGREE LENS
6313
BLAST 12 TR 60 DEGREE LENS
6314
BLAST 12 TR 30 DEGREE X 1 DEGREE LENS
6315
BLAST 12 TR 30 DEGREE X 5 DEGREE LENS
6316
BLAST 12 TR 40 DEGREE X .2 DEGREE LENS
6317
BLAST 12 TR 60 DEGREE X 10 DEGREE LENS
6318
LENS ADAPTER (TO ALLOW POLYCARBONATE LENSES TO fit 120000003-04 Accessory Holder)
6319
BLAST 12 TR SYMMETRIC LENS KIT (FIVE LENSES TOTAL)
6320
BLAST 12 TR ASYMMETRIC LENS KIT (FOUR LENSES TOTAL)
6321
Available for MasterBlast and iW
Blast
Glass Spread Lenses
Provide a wider beamspread
Cat. #
Glass Spread Lenses
Cat. #
COLORBLAZE 72, 36/50 DEGREE HORIZONTAL (SET OF 4)2
COLORBLAZE 72, 40 DEGREE VERTICAL/HORIZONTAL (SET OF 4)
120-000023-00
120-000023-01
2
COLORBLAZE 48, 36/50 DEGREE HORIZONTAL (SET OF 3)
120-000024-00
3
COLORBLAZE 48, 40 DEGREE VERTICAL/HORIZONTAL (SET OF 3)
Sizes of Lenses
12 3/16” x 4 7/8” (309mm x 124mm)
The MasterBlast is a battery operated LED
lighting fixture with built-in SHoW DMX®
(wireless DMX). Every MasterBlast is
selectable to be either a transmitter or
receiver, so one MasterBlast can serve as
both a lighting console and wireless
transmitter, sending out a show of built-in
routines to many other MasterBlasts.
120-000024-01
3
COLORBLAST 12, 36/50 DEGREE HORIZONTAL
120-000025-00
COLORBLAST 12, 40 DEGREE VERTICAL/HORIZONTAL4
120-000025-01
COLORBLAST 6, 36/50 DEGREE HORIZONTAL5
120-000026-00
COLORBLAST 6, 40 DEGREE VERTICAL/HORIZONTAL5
120-000026-01
4
1
(except Lens Adaptor which adapts polycarbonate
lenses and will fit 120-000003-04 Accessory Holder)
6 5/8” x 17” (168mm x 432mm)
2
6 5/8” x 14” (168mm x 355mm)
3
12 1/2” x 5 1/4” (317mm x 133mm)
4
COLORCAST 14, 30 DEGREE LENS
120-00040-00
(Does not fit Blast 12 TR)
6 1/4” x 5 1/4” (159mm x 133mm)
5
Diffusion Frame
A metal frame to allow insertion
of diffusion material to increase
beamspread
Mounting Base
for 5/8” Pin
Replaces the standard
mounting foot on the
ColorBlast to allow
mounting on a
Film/video stand.
iW Controller
A manual two channel
controller for the iW
Blast to allow control
of intensity and color
temperature. 100/240
VAC input. Four pin
XLR output to lighting
fixture. Lighting stand
mount included.
Diffusion Frame
Cat. #
COLORBLAZE 72, W (SET OF 3)
120-000030-00
COLORBLAZE 72, B (SET OF 3)
120-000030-01
COLORBLAZE 48, W (SET OF 2)
120-000031-00
COLORBLAZE 48, B (SET OF 2)
120-000031-01
COLORBLAST 12, W
120-000032-03
COLORBLAST 12, B
120-000032-04
COLORBLAST 6, W
120-000033-03
COLORBLAST 6, B
120-000033-04
Replacement Parts
Cat. #
GLASS ADHESIVE FOR COLOR KINETICS REPLACEMENT GLASS
6205
REPLACEMENT GLASS FOR COLORBLAST 12, FROSTED,
12 1/4” x 5” (311mm x 127mm)
6210
REPLACEMENT GLASS FOR COLORBLAST 12, CLEAR,
12 1/4” x 5” (311mm x 127mm)
6212
REPLACEMENT GLASS FOR COLORBLAST 6, FROSTED, 6” x 5”
(153mm x 127mm)
6214
REPLACEMENT GLASS FOR COLORBLAST 6, CLEAR, 6” x 5”
(153mm x 127mm)
6216
OTHER ACCESSORIES
Cat. #
MOUNTING BASE FOR 5/8” PIN
6335
CONTROLLER
6350
W=White, B=Black
The MasterBlast utilizes City Theatrical’s interchangeable polycarbonate
holographic lenses in nine different symmetrical and asymmetrical
beamspreads, and is compatible with the full line of City Theatrical
power/data supplies for Color Kinetics. Besides 14 or more hours of
battery life when using a rolling color change, a battery that
recharges in two hours, a very bright 50W color changing Philips Color
Kinetics LED fixture, and a very user friendly user interface, the
MasterBlast is significant for what it DOESN’T require;
•No power distribution
Name
(in fact no power needed at all)
MasterBlast Kit
•No generator
MasterBlast Kit Without Fixture
•No feeder cables
MasterBlast Kit (CE)
•No power cables
MasterBlast Kit Without Fixture (CE)
•No data cables
•No lighting console
Replacement Parts and Accessories
•No wireless DMX transmitter
MasterBlast Controller
•No plugging strips
MasterBlast Controller (CE)
•No UPS
ColorBlast 12 TR Fixture (Sold only as part of a kit)
•No floor stands
SHoW DMX 12V 5A Autocharger 115V-230V with
•No gels
Connectors
•No color scrollers
Twofer, 18” with Anderson Connectors
•Only minutes of setup and
Battery Base 12/24V
take down time, instead of hours
Battery Base Series 24V Cable
•Little or no crew instead of
BLAST 12 TR SYMMETRIC POLYCARBONATE HOLOGRAPHIC LENS
KIT
several crew members
BLAST 12 TR ASYMMETRIC POLYCARBONATE HOLOGRAPHIC LENS
•Little truck space instead of a lot
KIT
INDIVIDUAL POLYCARBONATE HOLOGRAPHIC LENSES AND
ADAPTER
Cat. #
6400
6401
6402
6403
Cat. #
6410
6411
6430
5640
5656
6280
6282
6320
6321
SEE
p.14
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
14
15
VSFX3
VSFX3
™
Perfectly smooth, perfectly quiet...
Can large format scenic
projection compete with
digital projectors and
moving lights?
We say yes!
Shows like the Broadway and West End
productions of Mary Poppins, The Woman in
White, Dirty Dancing, Oklahoma, and The Lord
of the Rings have all utilized VSFX technology
to create visual images that were important to
the productions.
The VSFX3 system combines a large
format (18”) disk with a bright light source,
smooth slow speed, silent operation, and
interchangeable lenses to produce stunning
visual effects such as several types of clouds,
flames, water, rain and snow.
FRONT
SIDE
BACK
19 1/2”
(489 mm)
...perfectly beautiful effects.
Features
•Very slow (.02 RPM), very smooth,
silent operation for perfect clouds or
water
•Fast (3 RPM) operation for flames
and other effects
•Large format (18”) glass disk rotates
in either direction
•Silent operation, no fans
•DMX control of speed and direction
•Stand alone mode allows local control
of speed and direction
•Compatible with Juliat 325 LFX and
ETC Source 4 Par MCM 575w (each
fixture requires its own adaptor plate)
•Rotatable housing to align effects
either vertically or horizontally
•Three different interchangeable
lenses sizes: 6.5 cm (2.5”), 10 cm
(4”) or 15 cm (6”)
•Art glass slot
•Dual front color runners allow color
filters or masking shutters to be
installed with lens
•VSFX3 is compatible with older VSFX
disks
Name
Cat. #
VSFX3 DRIVE UNIT WITH 8 3/16”
5400-1
Fleecy Clouds
5404
Rain
5407
5400-2
MOUNTING PLATE
4 7/8”
(124 mm)
7 1/4”
(184 mm)
5 3/8”
(136 mm)
15 cm Lens
#5403
S4 Par
Light Baffle
#5420
Lens Adaptor for S4 Lens
#5416 (S4 Lens not included)
6.5 cm Lens
#5401
10 cm Lens
#5402
Storm Cloud
5405
ThunderCloud
5406
MOUNTING PLATE
VSFX3 DRIVE UNIT WITH 7 1/2”
18 5/8”
(473 mm)
VSFX3
™
VSFX3
Adjustable Mask
#5413
City Theatrical developed the VSFX3 in partnership with White Light Ltd. The VSFX3 is a new version of the White Light VSFX
system and it is compatible with the accessories for all previous versions of the VSFX and the Patt 252 effects.
VSFX3 6.5CM LENS
5401
VSFX3 10CM LENS
5402
VSFX3 15CM LENS
5403
FLEECY CLOUDS
5404
STORM CLOUD
5405
THUNDER CLOUD
5406
RAIN
5407
SNOW
5408
SMOKE W/ BREAK UP*
5409
FLAME W/ BREAK UP*
5410
RUNNING WATER W/ BREAK UP*
5411
VAPOR TRAIL W/ BREAK UP*
5412
ADJUSTABLE MASK
5413
S4 PAR ADAPTER PLATE
5414
JULIAT ADAPTER PLATE
5415
LENS ADAPTER FOR S4 LENS
5416
LONG LENS SUPPORT
5417
Color FRAME
5418
S4 PAR LIGHT BAFFLE
5420
ART GLASS
5421
Flame w/Break-up
5410
* Includes
art glass
Snow
5408
Running Water w/Break-up*
5411
Smoke w/Break-up*
5409
Vapor Trail w/Break-up*
5412
Log on to:
www.citytheatrical.com for
user manuals and design ideas
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
16
17
EFX Plus2
Effect Disks
Only one effects projector gives you the combination
of two disks with independently controlled speed and
direction: the EFX Plus2.
• Attaches to any Source Four® ellipsoidal
• Large format pattern disks rotate in either same or
opposing directions
• Lightweight; only 8 lbs (3.63 kg)
• Maintains use of template slot and shutters
• Art glass slot
• Does not require any additional ventilation or
space to use
• Comes complete with modified barrel
• Two planes of linear motion
• Variable speed control
• DMX controllable using only two slots
• Maintains use of barrel rotation
• RPM Range: PN5200 0-0.7 RPM for clouds
or water and slow effects
• RPM Ranges: PN5202 3-12 RPM for faster Name
S4 0.7 RPM (115V)
special effects
•Large format 14”(35.56 cm) effect disks
•May be used in varied combinations for striking
effects
•Custom patterns available
Digital Numbers
5216
Digital Boxes
5217
Medium Clouds
5219
Mesh Puffy Clouds
5220
Non-Mesh Puffy Clouds
5221
Medium Dot Breakup
5224
Water
5225
Sparse Dots
5226
LIGHTING
DIMENSIONS
INTERNATIONAL
Best Scenic Effect
Cat. #
5200
S4 0.7 RPM (230V)
5201
S4 12 RPM (115V)
5202
S4 12 RPM (230V)
5203
Linear Clouds
5222
Fine Snow
5223
All Include modified barrel.
EFX Plus2 Art Glass
Florentine 5251
Cracked Ice 5252
Cina 5253 Wheat 5254Oceanic 5255
Wavy 5256
Waffle 5257
5263
Box 5258
Linear 5259 Monet 5260
Reed
Hammered 5262
Driving Rain
5227
Lobster Scope
5228
Sparse Flames
5232
Waves
5233
•16 stock glass patterns
•Create unique effects
•Mount inside EFX Plus2
housing
Noise 5265
Husk 5266
Snow 5280
Rain 5281
Realistic Snow
5237
Flicker Wheel
5229
Thick Water
5230
Rectangle Breakup
5234
Droplet Rain
5235
Flames
5231
Stylistic Snow
5236
Log on to:
www.citytheatrical.com
for user manuals and design ideas
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
18
19
AutoYoke®
AutoYoke®
Professional quality automated lighting that’s smooth, quiet, reliable,
and affordable.
Lighting designers asked us to develop a quiet, reliable,
tungsten source moving light, and we did: the AutoYoke®.
With the AutoYoke, your Source Fours® or Strand SLs™
can become full-featured, professional quality moving lights,
with DMX control of pan and tilt and the ability to drive
most popular color scrollers. The addition of DMX controlled AutoIris and AutoFocus allows you to change the
size of the beam and to sharpen or soften the focus. The
AutoYoke for Source Four PARNel features motorized
beamspread to control the width of the beam of light.
•
•
•
•
•
•
•
•
•
•
•
Creates a low-cost incandescent moving light
Designed for theatrical applications
8 or 16 bit DMX control
Accuracy of movement is less than 0.1˚
Lightweight
No cooling fans
User-selectable travel limits and invert feature on all
AutoYoke attributes
Supports Wybron Forerunner™, IT™,
Coloram II™, CXI, ChromaQ Broadway™,
SpectraQ™, and Rainbow Pro Series™
Color Scrollers via AutoYoke power supply
Operates with all 14˚ - 50˚ Source Four and
Strand SL Series ellipsoidals
Operates with 5˚ and 10˚ ellipsoidals with some limitations
Optional AutoIris and AutoFocus available
Awards
Lighting Accessory
of the Year
Specifications
AutoYoke for Ellipsoidal
Dimensions
AutoYoke
for PARNel
10”
(254mm)
21 1/4”
(536mm)
RANGE
Pan Range:
360˚
360˚
Tilt Range:
270˚
270˚
5 3/8”
(136mm)
27”
(686mm)
SPEED
Cat. #5000
Pan Speed (360˚) 7.5 seconds
4.0 seconds
Tilt Speed (270˚)
4.0 seconds
3.0 seconds
Voltage:
100-240 VAC
100-240 VAC
(autosensing)(autosensing)
Current:
1.3A @50/60Hz 1.3A @50/60Hz
Wattage:
40W
40W
PROTOCOL
USITT DMX 512
USITT DMX 512
Required slots:
7 Slots
7 Slots
(16 Bit)
24”
(610mm)
28 1/4”
(718mm)
14 1/4”
(362mm)
5 Slots
5 Slots
(8 Bit)
(8 Bit)
6 1/2” 6 1/4”
(165mm) (158mm)
SCROLLER
AutoYoke for Ellipsoidal
10”
(254mm)
20 7/8”
(530mm)
5 3/8”
(136mm)
(16 Bit)
21 1/4”
(536mm)
31 1/2”
(800mm)
ELECTRICAL
25”
(635mm)
32 1/4”
(819mm) 29 1/4”
(743mm)
22”
(558mm)
24 1/8”
(613mm)
21 1/2”
(546mm)
34 3/8” 31 3/8”
(873mm) (797mm)
10 1/2”
(227mm)
8 3/8”
(213mm)
Cat. #5060
Name
We like to customize!
City Theatrical’s engineers have a great deal of
experience customizing AutoYokes to suit the
needs of special lighting projects. Past projects
include mounting strobes, mirrors, lasers,
projectors and a wide variety of lighting fixtures
on the basic AutoYoke. Call us for a consultation
and a quote on your next project.
Custom AutoYoke with Mirror
AutoYoke for PARNel
SCROLLER
AutoYokes have played an important part in hundreds of
Broadway shows and tours over the last ten years, as well
as being permanent house equipment in many of the world’s
premier opera houses, theatres, and colleges.
EDDY
5000
Autoyoke for S4 Ellipsoidal (CE Version)
5001
Autoyoke for Strand SL Ellipsoidal
5005
Autoyoke for Strand SL Ellipsoidal (CE Version)
5006
autoiris for S4 Ellipsoidal
5010
autoiris for Strand SL Ellipsoidal
5015
autofocus for S4 Ellipsoidal
5020
autofocus for Strand SL Ellipsoidal
5025
AutoYoke for s4 PARNel (includes fixture)
5060
15" (380mm) AutoYoke Scroller Cable for Wybron
5035
Forerunner & IT, ChromaQ, or Rainbow Pro
Custom AutoYoke with
Wybron Beam Projector
Lens tube in
11 1/4”(286mm)
Lens tube out
Cat. #
Autoyoke for S4 Ellipsoidal
15" (380mm) AutoYoke Scroller Cable for Wybron
9 1/8” (232mm)
5036
Coloram II or CXI (reversed polarity)
AutoYoke "A" Size Template Holder
5040
AutoYoke "B" Size Template Holder
5041
Log on to:
www.citytheatrical.com
for user manuals, sample
personalities for lighting
consoles, and detailed
product specifications.
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
20
21
Aquafog 3300™
SS6000™ Dry Ice Fogger
There is simply no substitute for real dry ice fog.
Nothing else is as thick, and hugs the ground as
tightly as real dry ice fog from City Theatrical.
Our SS6000™ produces mountains of thick fog for the largest
productions. A stainless steel tank and brass fittings ensure
years of reliable performance.
• Extra large capacity dry ice fog machine holds over 50 gallons (197
litres) of water and 150 lbs (68 kg) of dry ice
• Rugged construction features a 16-gauge (1.5mm) stainless steel
tank, all brass plumbing, and an integral dolly
with large casters
• Electrical system features circuit breakers,
indicator lights for water temperature and heating element
status, low water cutout, and an adjustable temperature
regulating circuit
• Award winning, lightweight, portable dry ice
fog machine holds 28 gallons (106 litres)
of water and 75 lbs (34 kg) of dry ice.
• Non-corroding thermoplastic tank features
an extra large access lid for easy loading
with integral casters for transport.
• Electrical system features circuit breakers,
indicator lights for water temperature and
heating element status, low-water cutout
protection and an adjustable sensing circuit
to maintain temperature over extended use
periods.
Specifications
Tank
Specifications
Tank
Material:
.062” (1.5mm) stainless steel, TIG welded,
black texture paint
Dimensions:
24” x 23” x 42” (610mm x 585mm x 1066mm)(tank only)
24 1/2” x 33” (OD of dolly) x 55” (622mm x 838mm x
1397mm) (floor to tank top)
Material:
High temperature plastic polymer
Water capacity:
52 gallons (197 litres)
Dimensions:
21 1/2” x 31” x 38” (including casters) Ice capacity:
150 lbs (68kg)
Casters:
5” (127mm) swivel
Hose vent:
6” (152mm) PVC pipe flange (6.625” (168mm) ID, Fill Door:
16” x 10” (406mm x 254mm) fully gasketed
Weight empty:
330 lbs (149 kg)
Shipping weight:
360 lbs (163 kg)
Weight fully loaded:
910 lbs (412 kg)
(546mm x 787mm x 965mm)
Water capacity:
28 gallons (106 litres)
Ice capacity:
75 lbs (34 kg)
Casters:
3 1/2” (88.9mm) swivel front, 8” (203mm) fixed rear
Hose vent:
4” (101.6mm) molded into tank
Fill Door:
20” x 30” (508mm x 762mm)
Weight empty:
115 lbs (52kg)
Shipping weight:
140 lbs (59kg)
Weight fully loaded:
455 lbs (208.19kg)
38”
(965mm)
31”
(787mm)
21 1/2”
(546mm)
7” (178mm) OD)
Plumbing
Plumbing
Pump:
Stainless steel 10GPM (37.85 litres/min.)
Fittings:
All stainless, brass or high temperature plastic
Electrical
Fog Accessories
Pump:
Stainless steel 19GPM
Material:
All 1 1/4” brass pipe, fittings and valves
Electrical
A variety of accessories are available to extend
the effectiveness of your fog installation.
Heating elements:
240V 3000 watt, two per tank
Access:
Screw-in, easily accessible through lower
electrical box, spare element built-in
230V
Thermostat:
Adjustable automatic control
230V 3000 watt (two) screw in
Over temperature:
195˚F (89˚C)
Thermostat:
Adjustable automatic control (100˚F-160˚F) Low water cutout:
Turns off heaters when water is low
(38˚C-71˚C)
Blower:
120V, 465 CFM- fused 10A
Overtemperature:
175˚F (79˚C) cutout, manual reset
Circuit breakers-Type:
220V 20A
Low water cutout:
Turns off heaters when water is low
Fuses:
10A for pump and fan circuits
Blower:
240 CFM axial (6.799 CMM)
Connectors:
Two L620 twistlocks feed heating elements; one each 2PG
Circuit breakers (Type):
20 amp on heating element
2 amp (lighted) on fan & pump
Voltage:
Heating elements:
Name
Aquafog 3300 230v
Cat. #
3303
3301 / 3101
3311 / 3111
Name
4” (101mm) Hose (per 25’)
7” (177mm) Hose (per 25’or
7.6m)
3312 / 3112
Cat. #
55”
1397mm
24 1/2”
622mm
33”
838mm
for fan and pump
3301
3101
4” (101mm) Coupling
3311
Name
6” (152mm) Coupling
3111
SS6000 Dry Ice Fogger
4” (101mm) Wye
3312
6” (152mm) Wye
3112
Cat. #
3100
The SS6000 is also available with 230v pump and
blower. Call for information.
Log on to:
www.citytheatrical.com
more dry ice fog
information and FAQ
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
22
23
Eight Universe DMX Main/Backup Switch
DMX Iris
•
•
•
•
•
• Based on the proven and reliable AutoYoke® Iris
• Plugs into a 24VDC power supply (such as Forerunner™
or ChromaQ™) with a four pin cable
• Units can daisy chain to scrollers or to other DMX Irises
Used on large productions to switch to a back-up console
Entirely mechanical switches, no electronics
One U Rack mount standard
One multi-layer PCBA
Aircraft grade custom-made switch
Name
Name
Cat. #
DMX Iris for Source Four* (POWER SUPPLY NOT INCLUDED)
2192
DMX Iris for Strand SL (POWER SUPPLY NOT INCLUDED)
2196
Power Supply for up to 2 irises or
Cat. #
EIGHT UNIVERSE DMX MAIN/BACKUP SWITCH
5300
2199
projector dowsers
Six & Twelve Way Switch Boxes
* Not for Source Four Zoom
Projector Dowser
• Used to give entrance cues to actors or fly cues on the
pin rail
• Electricians can also use them to turn effects on and off
• Both boxes feature two recessed 2PG inputs, and either
six or twelve flush mount female 2PG
outputs
• Changes “video black” to complete blackout
• DMX (or local) controlled
• Fits most video projectors
• Mounting Plate (included) allows a variety of
mounting options
Name
4.5”
(114mm)
14” (355mm)
4160
Power supply for up to 2 irises or projector
drowsers
2199
Name
4.5”
(114mm)
Cat. #
Projector Dowser (POWER SUPPLY NOT INCLUDED)
7”
(178mm)
7.5”
(190mm)
7”
(178mm)
Cat. #
six way switch box
4100
twelve way switch box
4110
Tubular Ripple Projector
DMX Snow Machine
• Creates the effect of sunlight reflecting off of
rippling water
• Can be placed at the base of a drop or piece
of scenery
• Uses two 1000 watt FFT tubular bulbs (included)
shining through a perforated rotating cylinder
• Two 4” (101mm) fans provide cooling
•
•
•
•
Designed and built for Broadway’s Billy Elliot
DMX control of snow fall
Variable speed
Hangs on one or two clamps, allowing
center pivot
• Quiet operation
• Designed and manufactured in partnership
with White Light Ltd.
Name
DMX SNOW MACHINE
Cat. #
1600
Name
Tubular Ripple Projector
(110V Only)
6 1/2”
(165mm)
27” (686mm)
9”
(228mm)
Cat. #
4150
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
24
25
Standard Top Hats
Stackers™ Tapered Top Hats
• Black flocked interior is standard for maximum reduction of glare and spill. Available in
white – see p.26 note.
• Call for details and pricing of custom parts, finishes, and colors
• We can add safety cables for you – call for information
Stackers’ patent pending design allows them to stack neatly on
the shelf, but a ridge on the top hat prevents sticking no
matter how much pressure is applied. All Stackers feature
black flocked interiors to reduce light bounce and round
frames to allow rotation of half top hats to the most
advantageous angle.
• Tapered so they stack, but they don’t stick together
• Lightweight aluminium construction
• Black flocked interior
• Saves space in storage and transport
• Patent Pending
• We can add safety cables for you – call for information
Name
A
B
C
D
Cat. #
6 1/4” FULL TOP HAT
6 1/4”
5”
5”
5 3/8”
2840
6 1/4” SHORT FULL TOP HAT
6 1/4”
5 1/8”
3”
5 3/8”
2842
7 1/2” FULL TOP HAT
7 1/2”
6”
6”
6 3/4”
2850
7 1/2” SHORT FULL TOP HAT
7 1/2”
6 3/8”
3”
6 3/4”
2852
10” FULL TOP HAT
10”
8”
8”
8 7/8”
2860
10” SHORT FULL TOP HAT
10”
8 1/2”
4”
8 7/8”
2862
12” FULL TOP HAT
12”
10”
10”
10 3/4”
2870
12” SHORT FULL TOP HAT
12”
10 3/8”
5”
10 3/4”
2872
14” FULL TOP HAT
14”
12”
12”
13 3/8”
2880
14” SHORT FULL TOP HAT
14”
12 3/4”
6”
13 3/8”
2882
Stackers Tapered Half Top Hats
™
Name
A
B
C
D
Cat. #
6 1/4” HALF TOP HAT
6 1/4”
5”
5”
5 3/8”
2841
6 1/4” SHORT HALF TOP HAT
6 1/4”
5 1/8”
3”
5 3/8”
2843
7 1/2” HALF TOP HAT
7 1/2”
6”
6”
6 3/4”
2851
7 1/2” SHORT HALF TOP HAT
7 1/2”
6 3/8”
3”
6 3/4”
2853
10” HALF TOP HAT
10”
8”
8”
8 7/8”
2861
10” SHORT HALF TOP HAT
10”
8 1/2”
4”
8 7/8”
2863
12” HALF TOP HAT
12”
10”
10”
10 3/4”
2871
12” SHORT HALF TOP HAT
12”
10 3/8”
5”
10 3/4”
2873
14” HALF TOP HAT
14”
12”
12”
13 3/8”
2881
14” SHORT HALF TOP HAT
14”
12 3/4”
6”
13 3/8”
2883
B
D
A
A
B
C
D
Cat. #
2 7/8”
2 7/8”
2”
2”
2455
PAR 20
3 1/4”
3 1/4”
2 1/2”
2 1/2”
2456
3” Fresnel
3 3/4”
3 3/4”
3”
3”
2457
3 1/2”Ellipsoidal
4 1/8”
4 1/8”
3 1/2”
3 1/2”
2454
S4, SL, SH, PC*
6 1/4”
6 1/4”
5”
5”
2450
Short S4, SL, SH, PC*
6 1/4”
6 1/4”
3”
5”
2440
6” Ellipsoidal
7 1/2”
7 1/2”
6”
6”
2400
S4 PAR**
7 1/2”
7 1/2”
6”
6 3/4”
2480
Short S4 PAR**
7 1/2”
7 1/2”
3”
6 3/4”
2481
S4 PAR Round Frame**
7 1/2”
7 1/2”
6”
6 3/4”
2490
Short S4 PAR Round Frame**
7 1/2”
7 1/2”
3”
6 3/4”
2491
PAR 64 (Altman and L&E)
10”
10”
8”
8”
2453
D-60
8 7/8”
8 7/8”
6”
8”
2580
SHORT D-60
8 7/8”
8 7/8”
3”
8”
2581
Short PAR 64 (Altman and L&E)
10”
10”
3”
8”
2445
S4 10˚, SL 10˚
12”
12”
10”
10”
2452
SHORT S4 10˚, SL 10˚
12”
12”
5”
10”
2448
S4 5˚
14”
14”
12”
12”
2451
SL 5˚
16”
16”
14”
14”
2458
125mm
125mm
125mm
100mm
100mm
2402
185mm
185mm
185mm
150mm
150mm
2404
245MM
245MM
245MM
2O5MM
2O5MM
2406
SELADOR 11”
10 5/8”
5 1/16”
4 3/4”
2550
Standard Half Top Hats
Available in white
inside and outside
(no flocking) at no
additional charge.
Add a “W” to the
Cat.# when ordering.
Also available in white
outside, black inside,
and white outside and
flocked inside. Call for
pricing.
B
D
D
B
A
Note: Stackers do not fit Strand SL.
C
Name
PAR 16
A
C
C
Name
A
B
C
D
Cat. #
Par 16
2 7/8”
2 7/8”
2”
2”
2465
Par 20
3 1/4”
3 1/4”
2 1/2”
2 1/2”
2466
3” Fresnel
3 3/4”
3 3/4”
3”
3”
2467
31/2” Ellipsoidal
4 1/8”
4 1/8”
3 1/2”
3 1/2”
2464
S4, SL, SH, PC*
6 1/4”
6 1/4”
5”
5”
2460
Short S4, SL, SH, PC*
6 1/4”
6 1/4”
3”
5”
2441
6” Ellipsoidal
7 1/2”
7 1/2”
6”
6”
2420
S4 PAR**
7 1/2”
7 1/2”
6”
6 3/4”
2482
S4 PAR Round Frame**
7 1/2”
7 1/2”
6”
6 3/4”
2492
D-60
8 7/8”
8 7/8”
6”
8”
2582
PAR 64 (Altman and L&E)
10”
10”
8”
8”
2463
S4 10˚, SL 10˚
12”
12”
10”
10”
2462
S4 5˚
14”
14”
12”
12”
2461
SL 5˚
16”
16”
14”
14”
2468
125mm
125mm
125mm
100mm
100mm
2442
185mm
185mm
185mm
150mm
150mm
2444
245mm
245mm
245mm
205mm
205mm
2446
* Source Four, Strand SL, Shakespeare and Pacific ellipsoidals (19-50˚)
** These accessories can also be used with S4 PARNel, S4 Zoom fixtures, S4 14˚ and ETC D-40.
Note: We do not recommend the use of 5” long accessories in 50˚ lens tubes. We do not recommend
the use of any accessories in 70˚ or 90˚ lens tubes. Extreme loss of light will occur.
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
26
27
Barndoor
Color Extenders
• Saves both time and aggravation by
preventing gel burnout
• Gel materials are placed in slot at front
of unit, forward of the fixture’s focal plane.
D
A
C
• For use with Source Four® PAR and PARNel fixtures
• Full 6 3/4” center hole
• Extra large aluminium leaves for controlling
light spill
• PN 2488 has built-in 2” color extender
• Round rear frame for easy rotation
Name
A
B
C
D
Cat. #
6 1/4”
6 1/4”
5”
5”
2470
Short S4, SL, SH, PC*
6 1/4”
6 1/4”
3”
5”
2471
6” Ellipsoidal
7 1/2”
7 1/2”
6”
6”
2410
Short 6” Ellipsoidal
7 1/2”
7 1/2”
3”
6”
2430
Name
A
B
C
2483
S4 PAR/PARNel Barndoor*
7 1/2”
7 1/2”
6 3/4”
2488
S4 PAR/PARNEL BARNDOOR (SHORT)*
7 1/2”
7 1/2”
6 3/4”
2488S
7 1/2”
7 1/2”
6”
6 3/4”
2483A
A
Cat. #
Short S4 PAR**
7 1/2”
7 1/2”
3”
6 3/4”
PAR 64 (Altman & L&E)
10”
10”
5”
8”
2473
D-60 Barndoor
8 7/8”
8 7/8”
8”
125mm
125mm
125mm
76mm
100mm
2474
S4 FRESNEL 8 LEAF BARNDOOR
7 1/2”
7 1/2”
6 3/4”
2568
185mm
185mm
171mm
2489
10 5/8”
5 1/16”
4 3/4”
2554
185mm
185mm
185mm
127mm
150mm
2476
185mm Barndoor
245mm
245mm
245mm
127mm
205mm
2478
SELADOR 11” BARNDOOR
* Source Four, Strand SL, Shakespeare and Pacific ellipsoidals (19-50˚)
** These accessories can also be used with S4 PARNel, S4 Zoom fixtures and S4 14˚.
Note: We do not recommend the use of 5” long accessories in 50˚ lens tubes. We do not recommend the use of any accessories in 70˚
or 90˚ lens tubes. Extreme loss of light will occur.
Egg Crate Louver
• Prevents lens glare; provides 45˚ cutoff angle
• Designed for architectural applications with
Source Four® PAR or PARNel fixtures
• Black powdercoat finish
• Round shape for clean appearance
• 1/2” by 1/2” grid, 1/2” deep
• Fabricated from light gauge steel
City Theatrical designs and manufactures the most complete line of accessories for moving lights
available anywhere! We’re always working with designers to develop new equipment to meet their
needs. Call us!
Accessories for Vari-Lite®
Cat. #2650
Martin Accessories
Cat. #2650 Wide
Cat. #2757
Cat. #2760
Cat.# 2762
2588
*Fits D-40
Moving Light Accessories
Cat. #2645
C
B
S4, SL, SH, PC*
S4 PAR**
B
• Fabricated from durable cold rolled steel
with hemmed edges
• Black powdercoat finish, not flocked.
Available in white - see p.26 note.
Cat. # 2770
B
A
Name
A
B
C
S4 PAR/PARNel Egg Crate Louver*
7 1/2”
6 3/4”
1/2”
2485
185mm Egg Crate Louver
185mm
171mm
13mm
2486
S4 Ellipsoidal Egg Crate Louver
6 1/4”
5”
1/2”
2499
D-60 EGG CRATE LOUVER
8 7/8”
7 3/4”
1/2”
2585
SELADOR 11” EGG CRATE LOUVER
10 5/8”
5 1/16”
1/2”
2552
C
Cat. #
*Fits D-40
Cat. #2652
Source Four PAR Cross Baffle Top Hat
Cat.# 2698
Cat. #2780
Accessories for Vari-Lite®
Cat. #2783
Cat. #
VL5, VL500 FULL CONCENTRIC RING
2645
Martin Accessories
VL2000, Vl2500 Top Hat
2650
MAC 700 Profile Top Hat
VL2000, Vl2500 Wide Top Hat
2650
WIDE
MAC 2000 Top Hat
(7” diameter)
VL3000, VL3500 Top Hat
2652
MAC 2000 Wash Top Hat
VL500, VL1000 Floor Stand
2698
Mac 2000 Sound Baffle
VLX TOP HAT
2660
VLX LOUVER
2661
We will build or customize any
moving light accessory to
your specifications.
Cat.# 2782
(Fits Performance and Profile)
(Per pair, one pair required per fixture)
Provides 45˚ cut off in architectural installations
Cat. #
2757
2760
2762
2770
MAC TW1 Top Hat
2780
martin atomic 3000 strobe barndoor
2785
MAC TW1 Louver
2783
MAC TW1 Color Frame
2782
Name
A
B
C
MAC III FOLLOW SPOT HANDLE
2790
S4 par cross baffle top
hat
7 1/2”
3
6 3/4”
C
A
Cat. #
2495
B
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
28
29
Concentric Ring
Broadway Music Stand Light
• Offers full control of stray beams and spill
• Comparable function to a full 6 inch Top Hat
• Fabricated from light gauge steel with hemmed
edges
• Only 2“ long
• Black powdercoat finish
• This is the light specified by many Broadway shows
and tours
• The light from the fixture stays on the music, and
out of the eyes of the audience
D
B
A
Name
A
B
C
D
Cat. #
S4 PAR/PARNel Concentric Ring
7 1/2”
7 1/2”
2”
6 3/4”
2484
185mm Concentric Ring
185mm
185mm
51mm
171mm
2494
PAR 64 CONCENTRIC RING
10”
10”
2”
8”
2493
C
Name
Cat. #
broadway music stand light
4200
(T-10 Bulb not included)
Beam Bender™
Adapter
• Attaches easily to any 6 1/4” Source Four®*, Strand SL™,
Shakespeare™, or Selecon Pacific™ ellipsoidal
• Adjustable mirror for controlling angle and spread of beam
• Ideal for shooting around scenery or other obstructions
• Especially useful for dance designers needing maximum light
output at floor level
6 1/4” to 7 1/2” unit allows use of older accessories
(color wheels, scrollers, etc.) with Source Four®, Strand SL,
Shakespeare, or Selecon Pacific ellipsoidal fixtures
Name
B
Cat. #
6 1/4” to 7 1/2 Adapter
”
Name
A
B
Cat. #
Beam Bender 6 1/4”
12”
7”
1400
* Not for Source Four Zoom
A
C-Clip Truss Protector™
Image Multiplexer™
• Designed to protect expensive truss and lighting battens
from damage caused by fixture clamps
• Provides a sacrificial barrier which absorbs indentations,
snaps onto 2” members and is easy to remove
• A multiprism lighting accessory for
theatrical ellipsoidals
• Multiplies image six times
• Drops into color frame slot (6 1/4”)
• Use with static or moving gobos for
stunning multi-image rotating effects
Name
Cat. #
Image Multiplexer
1450
1251
Name
6
1/4”
Cat. #
”C Clip” Truss Protector, 2” (50
MM) (white)
1370
”C Clip” Truss Protector, 2” (50
MM) (black)
1371
2 1/2”
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
30
31
Color Frames
Donuts
• Fabricated from durable
cold rolled steel
• Round style PAR/PARNel
units are available for
architectural use
• Tough black powdercoat
finish
B
C
C
A
A
Name
A
B
C
Cat. #
S4, SL, SH, PC* COLOR FRAME
6 1/4”
6 1/4”
5”
2350
S4, SL, SH, PC* COLOR FRAME, ALUMINUM
6 1/4
”
6 1/4”
5”
2350A
6” ELLIPSOIDAL COLOR FRAME
7 1/2”
7 1/2”
6”
2300
S4 PAR** COLOR FRAME
7 1/2”
7 1/2”
6 3/4”
2487
S4 PAR (ROUND)** COLOR FRAME
7 1/2”
6 3/4”
2497
MINISTRIP (RECT. OPENING) COLOR FRAME
4 11/16”
3 5/16”
-
2319
R40 COLOR FRAME
5 3/4”
6 3/4”
CITY GROUND CYC COLOR FRAME
8 3/4”
13”
PAR 64 (ALTMAN AND L&E) COLOR FRAME
10”
10”
8”
2322
S4 10°, SL 10° COLOR FRAME
12”
12”
10”
2328
S4 5° COLOR FRAME
14”
14”
12”
2329
CITY SKY CYC COLOR FRAME
15 1/2”
15 7/8”
CITY FAR CYC COLOR FRAME
14 3/4”
15 1/2”
SL 5° COLOR FRAME
16”
16”
14”
2348
125MM COLOR FRAME
125mm
125mm
100mm
2302
185MM COLOR FRAME
185mm
185mm
150mm
2304
245MM COLOR FRAME
245mm
245mm
205mm
2306
-
5”
2320
-
2321
-
2330
-
2338
*
SOURCE FOUR, STRAND SL, SHAKESPEARE, AND SELECON PACIFIC
ELLIPSOIDALS (19-50°)
** THESE ACCESSORIES CAN ALSO BE USED WITH S4 PARNEL AND
S4 ZOOM FIXTURES AND S4 14˚, 70˚, AND 90˚.
B
C
B
C
Name
A
B
C
S4, SL, SH, PC*
6 1/4”
6 1/4”
3 3/16”
Cat. #
2250
S4, SL, SH, PC**
6 1/4”
6 1/4”
2 1/2”
2260
S4 14˚ 6” Ellipsoidal, S4 Zoom
7 1/2”
7 1/2”
3”
2200
S4 10˚, SL 10˚
12”
12”
6”
2252
S4 5˚
14”
14”
7”
2251
SL 5˚
16”
16”
7”
2258
125mm
125mm
125mm
81mm
2208
185mm
185mm
185mm
81mm
2210
* Source Four, Strand SL, Shakespeare and Pacific ellipsoidals (19-50˚)
**SMALLER APERTURE PROVIDES SHARPER IMAGE BUT LESS BRIGHTNESS
A
Drop-in Irises
• Offers precise, smooth control of beam size • Fits easily into most standard theatrical ellipsoidals
• Specially made leaves are tempered and heat
resistant to over 1000˚F
Mainframes®
• Lightweight, flameproof,
black fiberboard color frames
• Secures with a single heavy-duty
staple
• Available in a wide range of sizes
• Simple, safe and inexpensive
• Used to help bring templates into perfect sharpness • Fabricated from light gauge steel
• Durable black powdercoat finish
Name
A
B
C
Cat. #
“INKIE” MAINFRAME
3 3/4”
3 3/4”
3”
2352
“MINI STRIP” (2 HOLE STYLE)
MAINFRAME
4 11/16”
3 5/16”
-
“MINI STRIP” (RECT. OPENING)
MAINFRAME
4 11/16”
3 5/16”
-
ZIP STRIP MAINFRAME
4 3/4”
4 3/8”
-
R40 MAINFRAME
5 3/4”
6 3/4”
5”
2362
S4, SL, SH, PC * MAINFRAME
6 1/4”
6 1/4”
5”
2364
6” ELLIPSOIDAL MAINFRAME
7 1/2”
7 1/2”
6”
2366
S4 PAR ** MAINFRAME
7 1/2”
7 1/2”
6 3/4”
2367
PAR 64 (ALTMAN AND L&E)
MAINFRAME
10”
10”
8”
S4 10º, SL 10º MAINFRAME
12”
12”
10”
2382
S4 5º MAINFRAME
14”
14”
12”
2383
100MM MAINFRAME
100mm
100mm
80mm
2385
125MM MAINFRAME
125mm
125mm
100mm
2387
150MM MAINFRAME
150mm
150mm
125mm
2389
185MM MAINFRAME
185mm
185mm
150mm
2391
230MM MAINFRAME
230mm
230mm
165mm
2393
245MM MAINFRAME
245mm
245mm
205mm
2395
Name
A
B
C
D
Cat. #
Source Four Iris
4 25/32”
5 7/16”
1/2”
3”
2180
Source Four Jr. Iris
3 1/8”
4 9/32”
1/2”
2 5/16”
2185
Strand SL Iris
4 3/16”
5 3/16”
1/2”
3”
2186
Selecon Pacific Iris
4 31/64”
5 63/64”
1/2”
3”
2187
A
2358
2359
2360
CTI Irises carry a Limited
Lifetime Guarantee. See
our website for details.
B
D
C
Ceiling Port for Source Four® PAR
2376
• Mount a Source Four Par above a fixed ceiling
• Manually focusable in both pan and tilt
• Includes trim ring
B
A
*
SOURCE FOUR, STRAND SL, SHAKESPEARE, AND SELECON PACIFIC
ELLIPSOIDALS (19-50°)
** THESE ACCESSORIES CAN ALSO BE USED WITH S4 PARNEL AND
S4 ZOOM FIXTURES AND S4 14˚, 70˚, AND 90˚.
A
Name
A
B
Cat. #
ceiling port for source four par
13”
9”
1470
ceiling port for source four par (WHITE)
Built To Order, Two Week Delivery
13”
9”
1470W
Trim Ring
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
32
33
Holders for Metal Gobos
Blacktak™ and Whitetak™ Light Mask Foil
• Aluminum construction acts as a heat sink to minimize pattern warpage
• Large heat resistant ring pulls
B
A
Sandwich Holders
A
B
S4 “A”
3 11/16”
3 3/16”
2150
S4 “B”
3 11/16”
2 3/4”
2160
S4 Jr. “M”
2 11/16”
2 5/32”
2165
SL “B”
4 3/16”
2 3/4”
2144
360Q/Shakespeare
3 5/16”
2 3/4”
2120
Colortran Style (5/50 Series)
4”
3 1/16”
2190
4 1/2”
2 3/4”
2114
selecon pacific “B”
Tabbed Holders
Cat. #
A
B
SL “B”
4 3/16”
2 3/4”
2040
S4 “A”
3 11/16”
3 3/16”
2050
S4 “B”
3 11/16”
2 3/4”
2060
•Uses include: masking light spill, creating shadows,
forming barndoors, adapting templates, and as a high temperature tape
•High temperature adhesive is heat resistant and won’t melt*
•Can be repositioned without leaving residue
Name
Cat. #
Cat. #
blacktak - 2” (50mm) roll x 75’
(22.8m)
3600
blacktak - 24” (610mm) roll x 15’
(4.5m)**
3624
whitetak - 2” (50mm) roll x 145’ (44m)
3610
*See our website for technical
specs. Whitetak™ has lower
temperature resistance than
Blacktak™.
**24” (610mm) wide Blacktak has
2” (50mm) of adhesive along one
edge (see photo at right)
S4 “A”
#2150
S4 “B”
#2160
S4 Jr. “M”
#2165
SL “B”
#2144
360Q/SH
#2120
Colortran
#2190
Selecon
#2114
SL “B”
#2040
S4 “A”
#2050
S4 ”B”
#2060
Holders for Glass Gobos
• Will hold either glass
or metal patterns
B
A
Candle Lite Unlimited™
Sandwich Holders
A
B
Glass OD
Cat. #
S4 “A” (iris slot)
4 11/16”
3 3/16”
100mm
2171
S4 “B”
3 11/16”
2 3/4”
82mm
2170
•Candle stick holds 9V
battery inside and has
integral switch
•Candle kit has slim circuit
board to make your custom
designs easier
•Dimmable
•All candles available with
LED light source for long
battery life. Call for details.
S4 86mm OD glass (gobo slot)*
3 11/16”
2 3/4”
86mm
2173
S4 86mm OD glass (iris slot)*
4 11/16”
2 3/4”
86mm
2178
S4 “B” (iris slot)
4 11/16”
2 3/4”
82mm
2172
S4 Jr. “M”
2 11/16”
2 5/32”
66mm
2175
S4 jr. “m” (iris slot)
3 1/8”
1 5/8”
48MM
2166
CANDLE KIT (INCANDESCENT)
3450
SL “B”
4 3/16”
2 3/4”
82mm
2146
CANDLE KIT (LED)
3451
SL 86mm OD glass*
4 3/16”
2 3/4”
86mm
2147
CANDLE STICK (INCANDESCENT), 5" (127mm)
3470
360Q/Shakespeare
3 5/16”
2 3/4”
82mm
2130
CANDLE STICK (LED), 5" (127mm)
3471
Strand “B” (also holds metal)
3 1/2”
3”
82mm
2140
CANDLE STICK (INCANDESCENT), 12" (305mm)
3472
Selecon Pacific 86mm OD glass*
4 1/2”
2 27/32”
86mm
2115
CANDLE STICK (LED), 12" (305mm)
3473
Selecon Acclaim Axial
3 3/4”
2 1/8”
66mm
2105
120v AC ADAPTER FOR ONE CANDLE
3480
120v AC ADAPTER FOR SIX CANDLES
3481
230v AC ADAPTER FOR ONE CANDLE
3482
3483
5580
Tabbed Holders
SL “B”
A
B
4 3/16”
2 3/4”
Cat. # 3480, 3481, 3482,
3483
Cat. #
2041
Name
S4 “A”
4 11/16”
3 3/16”
2051
230v AC ADAPTER FOR SIX CANDLES
S4 “B”
3 11/16”
2 3/4”
2061
WIRELESS CANDLE ADAPTER (To dim candles
via show DMX or WDS. CALL FOR INFO.)
*Fits 86mm glass
Cat. #
Application Note: Should you use
incandescent or LED candles? For realism,
S4 “A”(Iris) S4 “B”
#2171 #2170 &
2173
S4 “B”(Iris)
#2172
& 2178
S4 Jr. S4 Jr. “M”
(Iris)
“M”
#2166
#2175
SL ”B”
#2146 &
2147
360Q/SH Strand
#2130
Old Style
#2140
Selecon
#2115
Acclaim
#2105
SL “B”
#2041
S4 “A”
#2051
S4 “B”
#2061
Cat.
#3470
Cat.
#3472
Cat. # 3450
use incandescent. For long battery life, use
LED. (20 hours for LED vs. 2 hours for
incandescent)
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
34
35
Follow Spot Yokes
Moving Light Hangers™
Create your own follow spot with pan and tilt movement as smooth as the world’s best follow
spots and the tungsten color temperature that many designers prefer. Our #1500 is
specifically designed to mount Source Fours® without springs or counterweights and was
designed for the Broadway show and tours of Wicked.
LIGHTING
DIMENSIONS
INTERNATIONAL
2002 PRODUCT
OF THE YEAR
RIGGING &
HARDWARE
Follow Spot Yoke for Source Four
• Fits Source Four 5º to 50º (not Zoom units)
• Perfectly adjusts balance without
counterweights
• Pan and tilt bearings for smooth action
• 1 1/2” NPT internal threads to mount on
pipe stand or use PN1511 Adaptor to
mount to lighting stand
• Top hang or bottom hang
•
•
•
•
Patented flexible Tee Slot System
Allows the user to hang and register a lighting fixture to a predictable position
Allows for fast and easy replacement of the fixture
No refocusing or recuing of moving lights required!
Cat. #130
Follow Spot Pan Bearing
• Use this to make any lighting
fixture into a follow spot
• Large pan bearing for
smooth action
• 1 1/2” NPT internal threads
to mount on pipe stand
• Allows operator to easily control fixture
movement
• Attaches easily to rear of a Source Four
ellipsoidal
Follow Spot Yoke Handle
• Mount one or two of these to your
Source Four as auxiliary handles
• Screws into 5/16" side mounting hole,
or hole that you drill in the lens tube of a
5º or 10º S4
Boomerang Handle
• Boomerang Handle perfectly balances
Drop-In Boomerang
Drop in Boomerang
4”
• Converts any fixture with a 6 1/4”
color frame into a compact,
portable follow spot
• Drops into color frame slot of
fixtures using 19˚ to 50˚ lenses
• Holds six colors
• Reversible for either right or left
handed operation
• Fits Source Four, Strand SL,
Shakespeare, or Selecon Pacific
ellipsoidals
11”
5 1/2”
11”
Cat. #142
Cat. #137
Follow Spot Handle for Source Four
Manual Color Changer
• A six frame manual Color Changer
• 12” x 12” Color Changer fits
S4 10º and Strand SL 10˚
• 14” x 14” Color Changer fits
S4 5º
Cat. #135
Cat. #143
Cat. #138
Cat. #139
Cat. #146
Name
Usage
Cat. #
Tee Slot
Hang from Scenery
130
Tee Head with Knob
Attach to moving light or conventional fixture
135
Tee Slot for Unistrut®
Hang from Unistrut®
137
Tee Slot w/Integral split coupler
Hang from pipe or truss
138
Single Point Tee Head
For single point fixtures such as VL5 & VL6
139
Single Point Tee Head FOR MARTIN MAC 250/MAC 300
MAC 250/300
146
Dual Round Tee Head w/spacer bar FOR VL2000/
VL3000/VL3500
Stiffens the channels on top of VL2000/VL3000
142
Dual Round Tee Head w/spacer bar FOR MAC 2000/
MAC 700
Stiffens the omega clamp on top of MAC 2000
143
Tee Slot Alignment Tool (not shown)
perfectly spaces pairs of tee slots on 10” center
190
Safer Sidearms™
Name
Cat. #
• Safer Sidearms transfer the load back to the
structural pipe
• Safer Sidearm Junior (#220) augments a standard
sidearm, while the others replace them
• Better Boom Arm utilizes 48mm aluminum tube.
Follow Spot Yoke for Source Four
1500
Follow Spot Pan Bearing
1510
Follow Spot Pan Bearing STAND ADAPTOR*
1511
Manual Color Changer 12”x12”
1530
Manual Color Changer 14”x14”
1535
Follow Spot Handle for Source Four
1360
Name
Follow Spot Yoke Handle
1520
Safer Sidearm Original (uses 1/2” pipe)
200
Drop-in boomerang
1410
202
boomerang handle
1415
Safer Sidearm Original w/ 18" of 1/2" pipe and one
sliding tee
Safer Sidearm Original w/ 24"
of 1/2" pipe and two sliding tees
204
Log on to: www.citytheatrical.com
for Follow Spot Yoke and Manual
Color Changer user manuals
Cat. # 210
1 1/2” pipe or 48mm tube not included
Cat. # 204
Cat. #
Steel Safer Sidearm (uses 1 1/2” pipe, not included)
210
1 1/2” pipe (per foot) drilled
for safer sidearm
211
Safer Sidearm Junior
220
Pipe End Tail Down (includes 6’ of 1 1/2” pipe)
290
Cat. # 202
Cat. # 200
Cat. # 290
Includes 72”
of 1 1/2” pipe
Cat. # 220
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
36
37
Track Tamers™
•
•
•
•
Cable Hook
Track Tamers separate the lockdown to the track from the lockdown of the lighting fixture
Easier and faster to hang equipment
Rated working load 500lbs
10-1 safety factor
• Designed to help manage and support
multi-cable runs with truss systems
• Lightweight aluminum construction
• Fits 1 1/2” to 2” truss pipe
Name
Cat. #520
Cat. #521
Cat. #525
Cat. #530
Usage
Track Tamer with Hex Nut
Hang equipment from Unistrut®
520
Track Tamer with Hex Nut (METRIC)
Hang equipment from Unistrut®
520M
Track Tamer with Knob
Hang equipment from Unistrut®
521
Track Tamer with Knob (METRIC)
Hang equipment from Unistrut®
521M
Track Tamer with Aluminum Split Coupler
Adapt Unistrut® to Pipe
Track Tamer with Galvanized Clamp and Hex Nut
Adapt Unistrut® To Pipe
525
Track Tamer with Hex Nut and 5/8” Male Pin
Hang film and video equipment from Unistrut®
530
Track Tamer with Knob and 5/8” Male Pin
Hang film and video equipment from Unistrut®
531
523
091
12" VET
093
24" VET
095
•
•
•
•
1130
Name
4300
LIGHTING
DIMENSIONS
INTERNATIONAL
2002 DEBUTING
PRODUCT/ PROMISING
PROTOTYPE OF THE YEAR
RIGGING & HARDWARE
A
A
2”
• Fits 1 1/2” pipe
• Rugged 1/2” steel rod
welded to both sides of
cap to withstand heavy
lifting
Name
A
Cat. #
Boom Tie Off
5”
1310
C
F
G
H
I
Please see our
A
Cat. #
1340
B
website for important
Breakaways shipping info.
Color
Cat.#
Beer Bottle, Long Neck (9” High)
Clear
3910
Beer Bottle, Long Neck (9” High)
Brown
3911
Beer Bottle, Long Neck (9” High)
Green
3912
Beer Bottle, Short Neck (7 3/4”
High)
Clear
3913
Beer Bottle, Short Neck (7 3/4”
High)
Brown
3914
Beer Bottle, Short Neck (7 3/4”
High)
Green
3915
Whiskey Bottle (10 7/8” High)
Clear
3920
Whiskey Bottle (10 7/8” High)
Brown
3921
Whiskey Bottle (10 7/8” High)
Green
3922
White Wine Bottle (11 1/2” High)
Clear
3930
White Wine Bottle (11 1/2” High)
Brown
3931
White Wine Bottle (11 1/2” High)
Green
3932
Red Wine Bottle (11 1/4” High)
Clear
3940
Brown
3941
Red Wine Bottle (11 1/4” High)
Green
3942
F
Coca-Cola Bottle
(traditional, 7 3/4” High)
Green
3950
G
Medicine Bottle
(traditional, 5 1/2” High)
Brown
3951
H
Champagne Bottle (11 7/8” High)
Green
3953
D
E
Name
Red Wine Bottle (11 1/4” High)
E
Scenery Bumper
18”
C
B
300
•18” diameter rings attach to fixture pipes with C-clamps
• Protects fixtures from flying drops and passing scenery
• Saves refocusing time
• Includes C-clamp
• 3/16” steel construction
Name
A
B
B
D
Cat. #
indexed locking couplers (ILC)
A
Cat. #
•Easy and safe way to use
breaking glass in productions
•Breaks into realistic “glass”
pieces
•Bottles and glasses sold in
cases of six (6)
Indexed Locking Couplers (ILC) lock solidly at 0˚, 45˚ or 90˚
Name
Boom Tie Off
6 lb fixture base for use on floor or table
1/2” tapped center hole for fixture mounting
Black finish
Comes with bolt and washer
A complete range
of bottles and
glasses in a
variety of colors,
sizes, and shapes.
Indexed Locking Couplers
Scenery Bumper
Cat. #
Breakaways
Cat. #
6" VET
1330
10” Boom Base
boom base
• A simple way to raise or lower a piece of equipment
relative to the hanging position
• Compatible with C-clamps, Track Tamers™ or each other
090
SLIDING TEE
Cat. #
Vertical Extension Tubes
VET Adapter for Split Couplers
Name
Cat. #531
Name
Name
• Slide onto 1/2” pipe
• Cast iron
• Hardware included
Cat. #
Cable Hook
Cat. #523
Sliding Tee
I
Water Glass, Short (3 1/4” High )
Clear
3970
Water Glass, Tall (5 1/4” High)
Clear
3971
Sample Box (1 each of Brown
Whiskey, Green Red WINE, CLEAR
WHITE WINE, GREEN BEER SHORT
NECK, BROWN BEER LONG NECK, AND
COCA COLA TRADITIONAL
Various
For questions or more product information, call 201.549.1160 or 800.230.9497, email info@citytheatrical.com
or visit us at www.citytheatrical.com
38
39
IT’S A NEO WORLD
SHoW DMX Neo is the latest
chapter in City Theatrical’s 10
years of wireless DMX innovation.
SHoW DMX Neo is fast and
powerful with all the setup
choices professionals require.
SHoW DMX SHoW Baby
uses the same advanced and
powerful radio, with the world’s
easiest setup.
Neo™
Baby™
SHoW DMX Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
