Digi | ConnectPort X2 | User`s manual | Digi ConnectPort X2 User`s manual

Digi ConnectPort X2 User`s manual

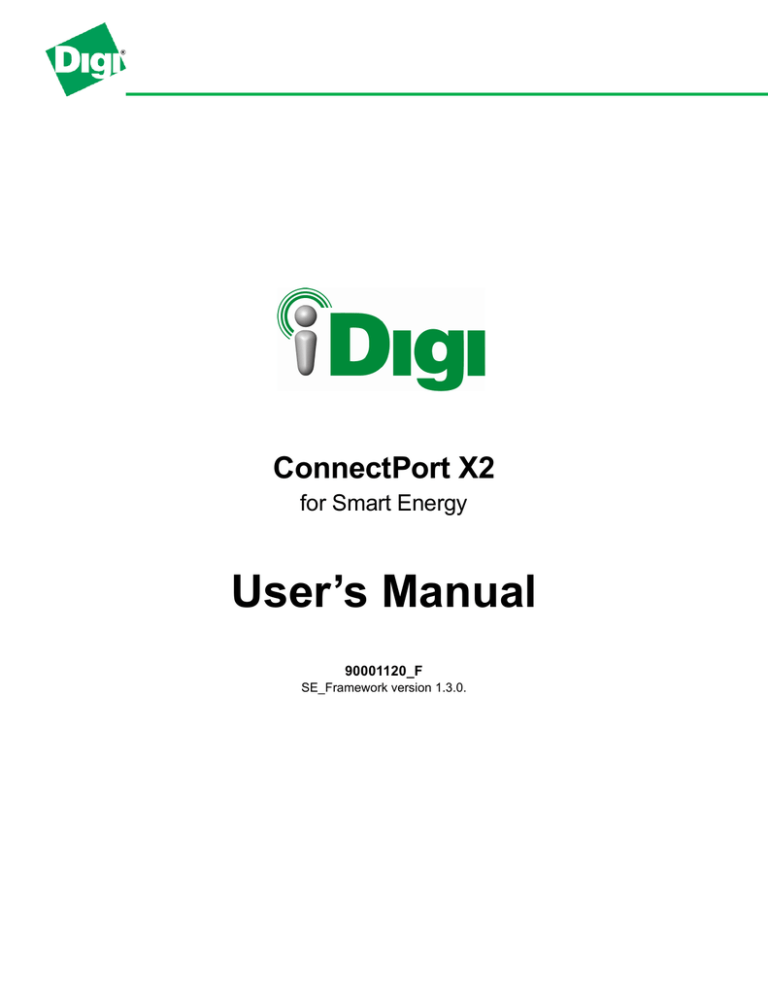

ConnectPort X2
for Smart Energy
User’s Manual
90001120_F
SE_Framework version 1.3.0.
©Digi International Inc. 2010. All Rights Reserved.
The Digi logo is a registered trademarks of Digi International, Inc.
Digi Connect, Connectware Manager, ConnectPort, Digi SureLink, are trademarks of Digi
International, Inc.
All other trademarks mentioned in this document are the property of their respective
owners.
Information in this document is subject to change without notice and does not represent a
commitment on the part of Digi International.
Digi provides this document “as is,” without warranty of any kind, either expressed or
implied, including, but not limited to, the implied warranties of fitness or merchantability
for a particular purpose. Digi may make improvements and/or changes in this manual or in
the product(s) and/or the program(s) described in this manual at any time.
This product could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes may be incorporated in new
editions of the publication.
Contents
Overview .............................................................................. 1
ZigBee Smart Energy ..............................................................................3
Description ......................................................................................3
Advantages .....................................................................................3
ConnectPort X2 for Smart Energy ...........................................................4
Description ......................................................................................4
Network Diagram.............................................................................6
Resources ...............................................................................................7
Downloads.......................................................................................7
Online Documentation .....................................................................7
Getting Started .................................................................... 9
Product Components, Requirements, And Resources ..........................10
Product Components.....................................................................10
PC Requirement............................................................................10
Additional Products ....................................................................... 11
Set up iDigi and Gateway ......................................................................12
Introduction to iDigi........................................................................12
Create an Account on iDigi.com....................................................13
Configure the Gateway..................................................................15
Connect and Power on the ConnectPort X2 ..........................15
Add Gateway to the idigi.com Device List .....................................15
Add Devices to the ZigBee SE Network ................................................18
Smart Energy Security Overview ..................................................18
Add Device to Trust Center Gateway ............................................19
Joining a Router Gateway .............................................................19
Verify Device is on Gateway’s Network .........................................20
Get List of Devices on Network .....................................................20
Remove Device .............................................................................22
iDigi SE Web Sample, Communicating with Gateway...........................23
Overview .......................................................................................23
How to Use this Sample ................................................................23
In-Premise Display/Meter Simulator Sample .........................................29
Overview .......................................................................................29
Getting Started ..............................................................................29
Network View .........................................................................34
i
In-Premise Display .................................................................35
Meter ......................................................................................39
General Operation............................................................. 40
Startup Sequence ..................................................................................41
Remote Device Management ................................................................42
Device Detection ...........................................................................42
SE Client Clusters and Active Devices...................................42
SE Server Clusters and Active Devices .................................42
Transmission Retries and Device Inactivity...................................43
SE Server Clusters and Inactive Devices...............................43
Periodic Refresh............................................................................43
Explicit Device Add and Open Join ...............................................43
ZCL Reporting and Device Activity................................................44
Registry .................................................................................................45
Settings and Defaults ....................................................................45
Power Safety .........................................................................................48
Global Saved Files ........................................................................48
Hidden Saved Files .......................................................................49
Basic Communication Overview ............................................................50
Communication Protocol ................................................. 50
RPC Request and Response Example .........................................51
Automatic Response Pushing .......................................................54
File Format .............................................................................54
XML RPC Interface Overview................................................................55
Conversion to Method Call ............................................................55
Parameter Type Specification Overview........................................56
Simple Parameter Types ...............................................................57
Complex Parameter Types............................................................58
Aliases...........................................................................................60
Request Identifier ..........................................................................61
Broadcasts ....................................................................................61
Synchronous Requests .................................................................61
XML RPC Interface Reference ..............................................................63
General Requests/Responses ......................................................63
registry_configuration .......................................................63
Appendix A ........................................................................ 63
add_module......................................................................64
remove_module................................................................64
add_interface....................................................................65
ii
remove_interface..............................................................65
add_endpoint....................................................................66
remove_endpoint..............................................................67
add_cluster .......................................................................67
remove_cluster .................................................................68
get_version.......................................................................69
help...................................................................................69
exit....................................................................................71
message (response only) .................................................71
get_time............................................................................71
set_time............................................................................71
resync_time ......................................................................72
ZigBee Requests/Responses ........................................................73
add_device .......................................................................73
remove_device .................................................................73
enable_joining ..................................................................74
refresh_device_information ..............................................74
get_device_information ....................................................74
xbee_AT ...........................................................................75
bind...................................................................................75
unbind...............................................................................76
configure_zigbee_network ...............................................77
leave_network ..................................................................78
get_zigbee_network_status..............................................78
ZCL Requests/Responses ............................................................79
read_attributes .................................................................79
write_attributes .................................................................80
discover_attributes ...........................................................81
start_receiving_reports .....................................................82
attribute_report (response only) .......................................83
stop_receiving_reports .....................................................84
stop_sending_reports .......................................................85
get_local_reporting_configurations ..................................86
read_reporting_configuration ...........................................86
identify ..............................................................................88
send_ZCL.........................................................................88
SE Requests/Responses ..............................................................91
get_DRLC_events ............................................................91
create_DRLC_event .........................................................91
cancel_DRLC_event ........................................................92
cancel_all_DRLC_events .................................................94
received_report_event_status (response only) ................94
get_scheduled_DRLC_events..........................................95
clear_DRLC_events .........................................................96
received_DRLC_event (response only) ...........................97
received_DRLC_cancel_event (response only) ...............97
received_DRLC_cancel_all_events (response only)........98
iii
updated_active_DRLC_events (response only) ...............99
get_message_events .....................................................100
create_message_event ..................................................100
cancel_message_event..................................................101
cancel_all_message_events ..........................................102
received_message_confirmation (response only) ..........103
received_message_event (response only).....................104
received_message_cancel_event (response only) ........104
updated_active_message_events (response only) ........105
get_last_message_event ...............................................106
confirm_message ...........................................................107
clear_message_events ..................................................108
get_price_events ............................................................109
create_price_event .........................................................109
cancel_all_price_events .................................................110
get_current_price_event.................................................112
get_scheduled_price_events..........................................113
clear_price_events .........................................................113
received_price_event (response only) ...........................114
Aliasing Commands .................................................................... 115
add_alias ........................................................................115
remove_alias ..................................................................115
list_aliases ......................................................................116
Record Reference ............................................................................... 117
ZDO Records .............................................................................. 117
ZDODeviceRecord .........................................................117
Node_Desc_rsp..............................................................118
Power_Desc_rsp ............................................................119
Simple_Desc_rsp ...........................................................119
ZCL Records ...............................................................................120
ReadAttributeRecord ......................................................120
ReadAttributeStatusRecord............................................120
WriteAttributeRecord ......................................................120
WriteAttributeResponseRecord ......................................121
AttributeReportingConfigurationRecord .........................121
AttributeReportingConfigurationResponseRecord .........122
AttributeReportRecord....................................................122
StopReportingRecord.....................................................123
StopReportingStatusRecord...........................................123
ReadReportingConfigurationRecord ..............................123
ReadReportingConfigurationResponseRecord ..............123
AttributeInformationRecord ............................................124
LocalReportingConfigurationRecord ..............................125
ZCL_ArrayRecord ..........................................................125
SE Records .................................................................................126
LoadControlEventRecord ...............................................126
iv
CancelLoadControlEventRecord ....................................126
CancelAllLoadControlEventsRecord ..............................127
ReportEventStatusRecord..............................................127
GetScheduledEventsRecord ..........................................127
DisplayMessageRecord .................................................128
CancelMessageRecord ..................................................128
MessageConfirmationRecord .........................................129
GetScheduledEventsRecord ..........................................129
PublishPriceRecord ........................................................129
GetScheduledPricesRecord ...........................................130
Appendix B ...................................................................... 131
Smart Energy Certificate Management................................................131
Certificates on ConnectPort X2 for Smart Energy .......................131
Certificates on Standalone XBee Modules ..................................131
Obtaining Test Certificates ..........................................................132
Determining EUI of a ConnectPort X2 for Smart Energy ............132
Determining EUI of a Standalone XBee Module .........................132
Installing Certificates ...................................................................133
Installing Certificates on the ConnectPort X2 for Smart Energy..133
Installing Certificates on a Standalone XBee Module..................134
Reverting/Unininstalling Certificates............................................134
Production Certificates and Modifications ...................................134
v
Overview
CONTENTS
This document provides an introduction to Digi's Smart Energy Framework and explains
how to use the framework to set up a ConnectPort X2™ running Python® code to
implement a ZigBee® Smart Energy™ Gateway, how to use its provided samples, and
details about its operation and XML RPC interface.
DROP­IN NETWORKING
As an integral part of the Drop-in Networking strategy, the Python development
environment is incorporated by Digi into each gateway. Digi's integration of the open
Python scripting language provides customers a truly open standard for complete control
over connections to devices, manipulation of data, and event-based actions. For more
information about the Digi Python custom development platform, visit our Python portal
today at:
http://www.digi.com/technology/drop-in-networking/pdr.jsp
1
QUESTIONS?
For technical assistance with your Drop-in Network, call:
1-800-903-8430 (US Only)
Digi contact numbers outside US
Country
Toll Free Number
Argentina
00-800-3444-3666
Australia
0011-800-3444-3666
Brazil
0021-800-3444-3666
China North
00-800-3444-3666
China South
00-800-3444-3666
France
00-800-3444-3666
Germany
00-800-3444-3666
Hong Kong
001-800-3444-3666
India
000-800-100-3383
Israel
00-800-3444-3666
Italy
00-800-3444-3666
Japan
For calls from KDD fixed land-line phones: 010-800-3444-3666
From KDD public and mobile phones: 001-010-800-3444-3666
For non-KDD phones: 122-001-010-800-3444-3666
Korea
002-800-3444-3666
Mexico
001-800-903-8430
Netherlands
00-800-3444-3666
New Zealand
00-800-3444-3666
South Thailand
001-800-3444-3666
Spain
00-800-3444-3666
United Kingdom
00-800-3444-3666
2
ZIGBEE SMART ENERGY
Description
The ZigBee Smart Energy Profile defines a wireless home area network (HAN) to
manage energy in residential areas. These networks are local to the home and connect
through a gateway back to the Utility head-end application. The current devices defined
for Smart Energy are:
•
•
•
•
•
•
•
•
Meter - Reports consumption of energy, water, gas, etc.
Energy Service Interface (ESI) - Gateway from the Utility head-end to the HAN.
Formerly refered to as Energy Service Portal (ESP)
In-Premise Display (IPD) - Displays consumption and pricing information for the
consumer. Also refered to as In-Home Display (IHD)
Programmable Communicating Thermostat (PCT) - Smart thermostat.
Load Control Device - Can limit or turn off power to devices during high load
times.
Range Extender - Fills in gaps in wireless HAN.
Smart Appliance (not currently defined)
Pre-Payment Terminal (not currently defined)
Advantages
Advantages of a ZigBee Smart Energy network:
•
•
•
Automated meter reading - Remotely report meter usage for Electric, Gas,
Water, etc. in real time.
Reduce peak power usage - Accomplished through mandatory energy reduction
events and financial motivation using pricing.
Empower customers - Give customers access to real time meter usage data and
pricing. Also creates a network connection to devices like thermostats in the home
which may be used to remotely control set points and setbacks (not part of SE
specification but possible through manufacturer extensions).
3
CONNECTPORT X2 FOR SMART ENERGY
Description
The Digi ConnectPort X2 for Smart Energy is a gateway on a Smart Energy network that
provides secure access to a ZigBee Smart Energy network over the internet. The
gateway is set up to take advantage of connection management services offered by the
iDigi™ platform, and to intelligently handle SE events in order to reduce the need for
communication and micro management by utility applications.
There are three Smart Energy certified software applications for the gateway on the
ZigBee network:
Name
Smart Energy Device Type
ESI Coordinator
Energy Service Interface (ESI)
Coordinator / Trust Center
ESI Router
Energy Service Interface (ESI)
Router
In-Premise Display (IPD)
Router
Aux Gateway
Node Type
All of the configurations use the same core Python SE_Framework codebase and share
much of the same functionality. The difference between the node types are as follows:
•
•
Coordinator - Forms the Smart Energy network and acts as the trust center. All
devices joining the network must be authenticated with the trust center.
Router - Joins the Smart Energy network through the trust center. Typically, a
Smart Meter will act as the trust center on the network.
The Smart Energy device type determines whether Smart Energy clusters supported by
the gateway are servers or clients. The ESI is defined by Smart Energy to support the
server side clusters. These clusters create and cancel Smart Energy events; for
example, publishing the price of commodities like electricity on the network. The Energy
Service Interface supports the following clusters:
•
•
•
Time server - Synchronizes real time clock for all of the devices on the ZigBee
network.
Demand Response/Load Control (DRLC) server - Manages DRLC events
which can change temperature set points on thermostats, water heaters, and spas
or turn off devices in the home to prevent brownouts during high peak energy
situations.
Price server - Manages pricing events that set the price of different commodities
using a start time and duration in one minute intervals. For example, increasing
the price of electricity during peak hours in the evening and decreasing price
4
•
•
during low demand times at night. Pricing can be set in real time to respond to
demand or ahead of time to allow customers to plan energy usage.
Messaging server - Sends messages to a customer through ZigBee network.
Messages can require confirmation from the customer.
Metering client - Reads the metering usage data from meters on the network.
The client side clusters receive the events and act on them; for example, a thermostat
may receive a published price event for electricity and change the heating setpoint to
save money. The gateway makes these events available on the internet for other
devices to act on, or for reporting purposes. The In-Premise Display Smart Energy
device type supports the following clusters:
•
•
Time client - Synchronizes real time clock with the time server on the ZigBee
network.
Demand Response / Load Control (DRLC) client - Receives DRLC events from
the server and reports them through iDigi. The gateway handles canceled and
overlapping events and provides updates when the currently active list of events
changes.
•
Price client - Receives price events for all available commodities from the price
servers. The gateway also tracks when the prices of commodities change and
provides updates through iDigi.
•
Messaging client - Receives messages from the server and reports them
through iDigi. The gateway allows users to confirm messages, handles canceled
messages, and provides updates when the currently active message changes.
Metering client - Reads the metering usage data from meters on the network.
•
5
Network Diagram
This diagram shows the role of a Gateway within an Advanced Metering Infrastructure
(AMI) network.
6
RESOURCES
The following resources are referred to throughout this User’s Manual. This page is
intended to be a convenient reference.
The following download is available at www.idigi.com.
•
Python - version 2.4.3 (follow link to Python site)
Downloads
Go to www.digi.com/X2SE or click on the link to download the following:
•
•
•
Digi Device Discovery Application 
(http://ftp1.digi.com/support/utilities/40002265_G.exe)
ZB to Smart Energy (SE) Conversion Kit 
(http://ftp1.digi.com/support/images/zb-to-smart-energy-conversion-kit.zip)
X-CTU 
(http://www.digi.com/xctu)
Online Documentation
Go to www.digi.com/X2SE or click on the link to download the following on-line
documents for detailed information on accessing and using the ConnectPort X2 for
Smart Energy.
•
•
•
ConnectPort X Series Documentation 
(http://ftp1.digi.com/support/documentation/90000832_a.pdf)
XBee SE Manual
http://www.digi.com/products/wireless/zigbee-mesh/xbee-se-module.jsp
iDigi Web Services and Device Management Overview 
(http://developer.idigi.com/edocs/downloads/90001068_A.pdf)
Note:
You will first need an iDigi account to download.
See “Create an Account on iDigi.com” on page 13.
ZigBee Documentation
The referenced specifications are provided by the ZigBee Alliance and can be
downloaded from their website at www.zigbee.org.
•
•
•
ZigBee Smart Energy Test Specification, ZigBee Document 075384r17.
ZigBee Cluster Library Specification, ZigBee Document 075123r02ZB.
ZigBee Specification, ZigBee Document 053474r17.
7
•
ZigBee Smart Energy Profile Specification, ZigBee Document 075356r15.
8
Getting Started
CHAPTER 1
Upon completion of the Getting Started section you will be able to:
•
•
•
•
•
Create an account on iDigi.com
Configure your gateway
Connect your gateway to iDigi.com
Communicate with the gateway's RPC API through iDigi
Add other devices to the gateway's network
The ConnectPort X2 for Smart Energy Starter Kit includes an XStick SE. You may also
convert an XStick ZB, Digi XBee USB adapter, or other serially-attached XBee to SE.
With one of these devices you will be able to:
•
•
•
Simulate basic Smart Energy devices: In-Premise Display, Meter
Add simulated devices to the gateway's network
Communicate between the gateway and the simulated devices
Devices on a Smart Energy network will vary widely between installations. Procedures in
the User’s Manual frequently specify generic tasks. See the manual that came with any
devices you are joining to the gateway for details on how to apply these procedures. A
sample is provided that uses a serially-attached XBee to simulate various Smart Energy
devices and is useful for evaluation and development. When a procedure in this manual
calls for a second device other than the gateway this sample can be used. (See “InPremise Display/Meter Simulator Sample” on page 30.)
The user is also expected to have a means of sending RPC requests and receiving RPC
responses from the gateway to access the Smart Energy Framework's API. In an actual
installation this functionality would be provided by the utility application. In order to
evaluate the gateway and for use during development a web application is provided to
communicate with the gateway. When a procedure in this manual calls for sending an
RPC request to your gateway this sample can be used. (See “iDigi SE Web Sample,
Communicating with Gateway” on page 24.)
9
PRODUCT COMPONENTS, REQUIREMENTS, AND RESOURCES
Product Components
PC Requirement
You will also need:
A personal computer,
connected to the Internet.
10
Additional Products
To run the In-Premise Display/Meter Simulator sample (see page 30), you will also need
one of the following devices that has been converted to SE firmware. Full instructions
and firmware can be found in the ZB to SE conversion kit, which can be downloaded
from www.digi.com/X2SE or by clicking this link: http://ftp1.digi.com/support/images/zbto-smart-energy-conversion-kit.zip.
•
XBee-PRO ZB USB adapter with internal wire antenna (part number XA-Z14CE1P-A). Available for purchase at http://www.digi.com/products/wireless/zigbeemesh/xbee-zb-adapters.jsp#models.
•
XStick USB Adapter, ZB (part number XU-Z11). Available for purchase at http://
www.digi.com/products/wireless/zigbee-mesh/xbee-zb-adapters.jsp#models.
•
XStick USB Adapter, SE (already configured with Smart Energy firmware (part
number XU-SE3). Available for purchase at http://www.digi.com/products/
wireless/zigbee-mesh/xbee-zb-adapters.jsp#models, included in the ConnectPort
X2 for Smart Energy Starter Kit.
•
Other serially-attached XBee if converted to SE firmware.
Note:
The In-Premise Display/Meter Simulator sample only runs in Windows®
11
SET UP IDIGI AND GATEWAY
Introduction to iDigi
The iDigi Platform is a network management solution that provides easy integration for
M2M (Machine-to-Machine) and mesh networking devices. iDigi is based on a cloud
computing model that provides for on-demand scalability and high-availability. It lowers
the barriers to building secure, scalable, cost-effective solutions that seemlessly tie
together enterprise applications and remote devices regardless of their location or
network.
iDigi is a secure, publicly accessible platform allowing remote devices to access it with
little or no configuration. There is no need for connections to be opened through your
DMZ in order for your devices to access iDigi. iDigi is accessed through the iDigi Portal,
so by using a standard web browser you can configure network hardware, track device
performance, remotely set filters and alarms, monitor device connections, device status
and statistics, reboot devices, reset defaults, and remotely upgrade firmware for all the
devices in your iDigi network.
See “Resources” on page 7 for a list of on-line documents that provide more information
about iDigi.
12
Create an Account on iDigi.com
To get started, set up an account on the iDigi Platform as follows.
1. Navigate to http://www.idigi.com.
2. Click on the iDigi Platform Login button.
13
3. If you already have an account enter your user credentials in the User Name and
Password fields, then click the Log on button. For new users, click on the "Are you a
new user" link and create your account.
14
Configure the Gateway
Connect and Power on the ConnectPort X2
1. Unpack the ConnectPort X2 for Smart Energy gateway.
2. Connect the power supply to the X2 gateway and connect the power supply to an
electrical outlet.
Note:
(International version only): Connect the power supply to a power cable (not included),
and the power cable to an outlet.
3. Connect an Ethernet cable from the gateway to your hub or switch that provides
access to the Internet.
Point Gateway to developer.idigi.com
By default, your Connectport X2 gateway points to energy.digi.com. This is our
production server. For your development purposes, you can have up to five devices
added to your account at developer.idigi.com.
Note:
Older versions of the gateway may instead be pointed to device.digi.com. Use the same
following steps to redirect the gateway to the correct server.
To configure your gateway properly, point the device to developer.idigi.com in the
following manner:
1
Use the Digi Device Discovery application (see “Resources” on page 7) to determine your
gateway’s IP address.
2
Telnet to this address, then type in the following commands:
login: root
password: dbps
#> set mgmtconnection svraddr1=”http://developer.idigi.com” conntype=client
This will tell the gateway where to look for a server, specifically “http://
developer.idigi.com. Now, type the “who” command to get the number of the process
currently controlling where the gateway points. In this case, it’s process ID 1. Kill this
process, as shown below.
#> who
ID From
To
Protocol
1
10.8.16.83:45627
67.202.55.55:3197
idigi tcp
10.8.16.85
local shell
2
3
Python: main.py
telnet
4
Python thread
15
5
Python thread
6
Python thread
#>
#> kill 1
Connection 1 : killing connection ...
Now that the process is killed, you can type “who” again to see that the gateway is
currently waiting (in this case, for ten seconds) to retry the server connection, which is
now pointed to the correct server, developer.idigi.com.
#> who
ID From
To
1
wait 0:00:10
waiting to connect
2
3
Protocol
idigi wait
Python: main.py
10.8.16.85
local shell
telnet
4
Python thread
5
Python thread
6
Python thread
#>
After this process, you will be ready to add the gateway to your iDigi device list.
Add Gateway to the idigi.com Device List
To add a gateway to the device list, follow these steps:
1. Log into the iDigi.com user portal using the username and password you just created.
The iDigi Platform interface is displayed.
16
2. In the Devices list, click the
button to bring up the Add Devices dialog.
17
3. Locate and select your device from the list of locally discovered devices and click the
‘OK’ button. If your device was not found in the list, check that it is turned on and connected to the same local network as your PC and click the ‘Refresh’ button. Adding
your device through automatic discovery informs iDigi about the device and configures that device to connect to the iDigi Connectivity server.
Note:
If the device is not locally accessible or cannot be automatically discovered, you can still add it by
clicking the 'Add Manually' button and enter the MAC address found on the bottom of the device.
4. Wait a few moments and click the Refresh button to ensure that your device status is
now Connected.
5. Select your device and double-click it, or right-click and select Properties.
18
6. Your device information will load into a separate tab.
19
ADD DEVICES TO THE ZIGBEE SE NETWORK
The Google App sample may be used to send RPC requests to the gateway. (See “iDigi
SE Web Sample, Communicating with Gateway” on page 24.) Please read this section
first if you do not have a means of sending RPC requests to the gateway. Additionally,
the In-Premise Display/Meter Simulator sample may be used to simulate devices to add
to your network. (See “In-Premise Display/Meter Simulator Sample” on page 30.)
Smart Energy Security Overview
Smart Energy imposes security protocols above and beyond a normal ZigBee network.
Devices join the encrypted Smart Energy network using a pre-shared link key or
installation code (installation codes are hashed into link keys). In a Smart Energy
network, each device can have its own link key or installation code. After a device joins
the network it will initiate key establishment.
During key establishment the trust center will establish an APS link key with the device.
This key is used to encrypt critical data between the trust center and the joining device so
that no other device can decrypt the data portion of the message. The trust center can
also establish APS keys for any two authenticated devices so that they can securely
communicate as well.
Key establishment utilizes certificates on both the trust center and joining device to
authenticate that the device has been certified. Generally certificates are either
production certificates or test certificates and all devices on a network must be of the
same type. The X2 gateway is manufactured with a production certificate. See “Appendix
B” on page 131 for instructions on obtaining and installing a test certificate.
The following generic steps need to be taken for a device to join:
1. Install test or production certificate on joining device to match Smart Energy network.
If joining device is already configured with an appropriate certificate this step may not
be necessary.
2. Register link key/installation code of joining device with the trust center.
3. Enable joining on the Smart Energy network.
4. Instruct joining device to join the Smart Energy network.
20
Add Device to Trust Center Gateway
In order to add a device to the Smart Energy network with the X2 gateway running as a
trust center (ESI coordinator), use the add_device RPC request (see
“add_device_response Parameters:” on page 73). This will add a device with the given
link key or installation code to the device table stored in the ESI. Joining will be enabled
for the specified amount of time (set in this example to 600 seconds). Fill in the
device_address and link_key as appropriate to match the joining device. If using an
installation code replace link_key with installation_code.
This request has the following format:
<add_device>
<device_address type="MAC">11:22:33:44:55:66:77:88</device_address>
<join_time>600</join_time>
<link_key type=”base16”>56777777777777777777777777777777</link_key>
</add_device>
Once the add_device RPC request has been sent, instruct the joining device to join the
network. Once a device joins the network, the gateway will return a message with the
following format:
<message timestamp=”1273104009.18”>
<description type=”string”>
ZDO_Device_Manager - Device 11:22:33:44:55:66:77:88 detected and marked as
active
</description>
<severity type=”int”>0x1</severity>
</message>
Joining a Router Gateway
By default, router gateways (ESI router and Aux Gateway) will automatically try to join
any network on any channel on startup using their pre-configured installation code.
These joining parameters can be configured with the get_zigbee_network_configuration
RPC request (see “get_zigbee_network_configuration” on page 78). This request
configures the interval between join attempts, the scan channel mask for joining, the
installation code and the extended PAN ID.
<get_zigbee_network_configuration>
<extended_pan_id>0</extended_pan_id>
<installation_code type=”base16”>1234567890ABBA9E</installation_code>
<join_attempt_interval>120</join_attempt_interval>
<channel_mask>0xFFFF</channel_mask>
<eui type=”MAC”>00:11:22:33:44:55:66:77</eui>
</get_zigbee_network_configuration>
21
All of the parameters are optional. The response will give the current value for
everything but the link key and the installation code. Once a router gateway has joined a
network, the gateway will return a message with the following format:
<message>
<status type=”int”>0x1</status>
<description type=”string”>Local device detected that it is joined to a ZigBee
network</description>
<severity type=”int”>0x1</severity>
</message>
Verify Device is on Gateway’s Network
To verify that a device is joined to the gateway's network, use the identify RPC request
(see “identify” on page 88). This request should make the device physically identify itself
in some way. The X2 gateways will blink the association LED at a faster rate after
receiving a ZCL Identify command.
This request has the following format:
<identify>
<destination_address type="MAC">11:22:33:44:55:66:77:88</destination_address>
<source_endpoint_id>0x5E</source_endpoint_id>
<destination_endpoint_id>0xFF</destination_endpoint_id>
<identify_time>30</identify_time>
</identify>
Fill in the destination_address and destination_endpoint_id as appropriate to match the
joining device. The identify_time parameter specifies how long the device should identify
itself in seconds.
Get List of Devices on Network
To get a list of devices on a gateway's network, use the get_device_information RPC
request (see “get_device_information” on page 74). This request will retrieve all currently
known information about all devices on the network from the gateway, including
endpoints and clusters. The response will show which devices are active - have joined
the network and are currently communicating with the gateway.
This RPC request has the following format:
< get_device_information />
The response has the following format:
22
<get_device_information_response timestamp="1257799818.0">
<record_list type="list">
This is our local device
<item type="ZDODeviceRecord">
<active_endpoints type="list">
<item>0x5E</item>
</active_endpoints>
<power_descriptor type="Power_Desc_rsp">
(See “Power_Desc_rsp” on page 118 for parameters.)
</power_descriptor>
<node_type>0x0</node_type>
<addr_short type="MAC">0000</addr_short>
<addr_extended type="MAC">00:13:A2:00:40:5C:01:F7</addr_extended>
<node_descriptor type="Node_Desc_rsp">
(See “Node_Desc_rsp” on page 117 for parameters.)
</node_descriptor>
<active type="bool">TRUE</active>
<manufacturer_id>0x101E</manufacturer_id>
<simple_descriptors type="dict">
<endpoint_0x5E type="Simple_Desc_rsp">
(See “Simple_Desc_rsp” on page 118 for parameters.)
</endpoint_0x5E>
</simple_descriptors>
</item>
This is a device that has not joined yet
<item index="2" type="ZDODeviceRecord">
<active type="bool">FALSE</active>
<addr_extended type="MAC">
11:22:33:44:55:66:77:88
</addr_extended>
<node_type>-0x1</node_type>
</item>
This is a device that has joined and is currently active
<item index="3" type="ZDODeviceRecord">
23
<active_endpoints type="list">
<item>0x5E</item>
</active_endpoints>
<power_descriptor type="Power_Desc_rsp">
(See “Power_Desc_rsp” on page 118 for parameters.)
</power_descriptor>
<node_type>0x1</node_type>
<addr_short type="MAC">1397</addr_short>
<addr_extended type="MAC">77:66:55:44:33:22:11:00</addr_extended>
<node_descriptor type="Node_Desc_rsp">
(See “Node_Desc_rsp” on page 117 for parameters.)
</node_descriptor>
<active type="bool">TRUE</active>
<manufacturer_id>0x101E</manufacturer_id>
<simple_descriptors type="dict">
<endpoint_0x5E type="Simple_Desc_rsp">
(See “Simple_Desc_rsp” on page 118 for parameters.)
</endpoint_0x5E>
</simple_descriptors>
</item>
</record_list>
</get_device_information_response>
Remove Device
To remove a device from the network, use the remove_device RPC request (see
“remove_device” on page 73). This request will send a ZDO Mgmt_Leave_req to the
device, remove the device from the list returned by get_device_information_response,
and if the gateway is a trust center (ESI coordinator), unregister the link key / installation
code for this device from the XBee.
This request has the following format:
<remove_device>
<device_address type="MAC">
11:22:33:44:55:66:77:88
</device_address>
</remove_device>
24
IDIGI SE WEB SAMPLE, COMMUNICATING WITH GATEWAY
Overview
This sample provides a simple demonstration of a system which communicates with a
ConnectPort X2 for Smart Energy through iDigi using the RPC interface.
Because this sample provides generic access to the RPC interface, it may be used to
communicate with the gateway for other samples and development.
How to Use this Sample
1. Go to www.idigi-se.appspot.com.
2. Enter your iDigi username and password and click Login.
25
3. On the Options window, select the device ID of your gateway and click Save.
26
4. On the Debug Console page, messages sent by the gateway will appear in the output
window. If the gateway has just been turned on, some initialization messages may be
displayed in the window.
27
5. Query the gateway for available commands by clicking the Refresh Command List
button. This will populate the command list.
28
6. Select a command from the list and modify parameters as necessary. Click Execute.
29
XML requests and responses will appear in the output window and can be expanded by
clicking on them.
30
IN­PREMISE DISPLAY/METER SIMULATOR SAMPLE
Overview
This sample simulates the basic functionality of a Smart Energy In-Premise Display or
Meter with an XBee attached to a personal computer such as an XStick, XBee USB
adapter, or other serially-attached XBee. It can be used to demonstrate Smart Energy
functionality when real SE IPDs and meters are not convenient or available. If you do not
already have one of these devices they may be purchased from the Digi website.
XBee modules are not Smart Energy certified for standalone use. In order to join the
XBee module to the gateway a test certificate will need to be installed on both the XBee
module and the gateway. See “Appendix B” on page 131 for more details on installing
test certificates. In particular, obtain a test certificate for both the gateway and the XBee
module and install the gateway's test certificate prior to executing the following
procedure.
Getting Started
1. Connect the serially-attached XBee to your personal computer.
2. Upgrade the serially-attached XBee to use Smart Energy router firmware if it is not
already. Full instructions and firmware can be found in the ZB to SE conversion kit at
http://ftp1.digi.com/support/images/zb-to-smart-energy-conversion-kit.zip.
3. Download and install the In-Premise Display/Meter Simulator from www.digi.com/
X2SE
4. Start In-Premise Display/Meter Simulator.
31
5. Select the COM port and baud rate of your serially-attached XBee and click Open
COM Port. The Baud rate is shown below as 115200 but will commonly need to be
set to 9600 after following instructions in the ZB to SE Conversion Kit.
32
6. Load the test certificate information that corresponds to the serially-attached XBee.
This can be accomplished in two ways:
Load Cert From File
a. Click Load Cert From File.
b. Select the test certificate file that corresponds to the EUI field under XBee Settings and click Open.
33
Manual Entry
a. Manually enter the CA Public Key, Implicit Cert and Private Key.
7. Write the Certificate to the serially-attached XBee by clicking Write Certificate.
8. Enter a 128-bit hex value of your choosing into the Link Key field and click Set Link
Key to write the link key to the serially-attached XBee. Alternately, you may enter
Install Code, a 48-, 64-, 96-, or 128-bit hex value (including 16-bit CRC), and click Set
Install Code to write a link key computed from the install code to the serially-attached
XBee.
34
9. Enable joining on the trust center and register the link key / installation code of the
XBee. If using an ESI coordinator, send an add_device RPC request to the gateway
in order to allow the serially-attached XBee to join the gateway's network. Set the
parameters of the request to correspond to the serially-attached XBee and to enable
joining.
10. Click Attempt to Join Network and wait until XBee Status indicates that the XBee
has joined with the network. The XBee Status field will display status indicators as it
attempts to join. In case of failure these indicators may aid in troubleshooting.
35
Network View
The Network tab provides a convenient overview of all endpoints and clusters of devices
which have been detected on the network. The information displayed should closely
match the information returned by a get_device_information RPC request sent to the
gateway (see “get_device_information” on page 74).
To detect new devices, endpoints and clusters click Partial Refresh. To clear and
rediscover all known device information, click Full Refresh.
36
ZCL attributes can be read and written from the Network Tab after selecting an attribute.
In-Premise Display
To create an In-Premise Display endpoint, go to the In-Premise Display tab and click the
Enable In-Premise Display check box. This will create Price, Messaging and Simple
Metering client clusters on a new endpoint on the simulated device.
The sample will display the price from any price servers on the network. If there is an
ESI gateway on the network, send it a create_price_event RPC request to set the current
price. Here is an example:
<create_price_event>
<record type="PublishPriceRecord">
<provider_id>1234</provider_id>
<issuer_event_id>0xABCD</issuer_event_id>
<duration_in_minutes>10</duration_in_minutes>
<price>100</price>
</record>
37
</create_price_event>
The price event will automatically be sent to all known Price client clusters. You should
see the new price value appear. If there is an Aux Gateway on the network, it should
receive the price event and return a “received_price_event” (see “received_price_event
on page 114) response and an “updated_active_price_event” (see
“updated_active_price_event” on page 114), assuming there was not another price event
with a matching issuer_event_id.
The sample will also display any active messages on the network. If there is an ESI
gateway on the network, send it a create_message_event RPC request to display a
message. Here is an example:
<create_message_event synchronous=”true”>
<record type=”DisplayMessageRecord”>
<message_id>1234</message_id>
<duration_in_minutes>5</duration_in_minutes>
<message type="string">NOBODY expects the Spanish Inquisition!</message>
</record>
38
</create_message_event>
The message event will automatically be sent to all known Messaging client clusters. You
should see the new message appear. If there is an Aux Gateway on the network, it
should receive the message event and return a “received_message_event” (see
“received_message_event” on page 104) response and an
“updated_active_message_event” (see “updated_active_message_event” on page 105).
Note:
The message server cluster will automatically discard messages with the same
message_id, so be sure to use unique message_ids when creating message events.
39
Additionally, if a Simple Metering server cluster is found on the network, the current
usage information will be automatically retrieved and displayed via ZCL reporting.
40
Meter
To create a Metering Device endpoint, go to the Meter tab and click the Enable Meter
check box. This will create a Simple Metering server cluster on a new endpoint on the
simulated device.
You may set the meter to either have a fixed usage value or a linearly increasing value.
41
CHAPTER 2
General Operation
The following section describes the standard initialization, automation, and configuration
features of the gateway.
40
STARTUP SEQUENCE
The following operations are performed in order by the gateway when powered on.
1. Core modules are imported and core objects are initialized. The gateway will then
load the modules and objects specified in the configuration files (see “Global Saved
Files” on page 48). All RPC requests are now registered and available for use. Be
aware that some RPC requests require time to be synchronized and / or the gateway
to be joined to a network and may return errors.
2. If enabled, the gateway synchronizes time with an NTP server (see “Registry” on
page 45). By default, the ESI coordinator and ESI router will enable NTP; however,
the Aux Gateway will try to set its time using the ZCL time client cluster after it has
joined the network.
3. The gateway waits for its XBee radio to report that it is joined to a network. Until the
radio reports that it is joined to a network, all outgoing ZigBee messages will return an
error.
4. The gateway is fully operational.
41
REMOTE DEVICE MANAGEMENT
Device Detection
A remote device is detected when one of the following happens:
•
•
A ZigBee message is received by the gateway from that device.
A ZigBee message is successfully sent to that device from the gateway.
If the remote device is in the list of registered devices, or if the gateway is in open joining
mode (see “Explicit Device Add and Open Join” on page 43), ZDO queries will be sent to
the remote device in the following order:
•
A Match Descriptor request for the SE key establishment cluster server (0x0800)
and Basic cluster (0x0000). This will update the known network address of the
remote device. A device which responds to at least this request will be considered
active.
•
•
•
A Node Descriptor request.
A Power Descriptor request.
An Active Endpoints request.
For each endpoint returned by the Active Endpoints request, a Simple Descriptor request
will also be sent to find all server and client clusters on the endpoint. Any server clusters
on the gateway will be notified of matching client clusters on the remote device, and
likewise, any client clusters on the gateway will be notified of matching server clusters on
the remote device.
SE Client Clusters and Active Devices
If an SE client cluster on the gateway is notified of a server cluster, that server cluster will
be added to the list of known SE server clusters for that particular SE client cluster. The
client cluster uses this list to request the currently active events from the server(s).
SE Server Clusters and Active Devices
If an SE server cluster on the gateway is notified of a client cluster, that client cluster will
be added to the list of known SE client clusters for that particular SE server cluster. The
server cluster uses this list to unicast certain SE commands to all clients.
SE events stored by the gateway’s server cluster not yet received by a device will be
sent automatically when a device becomes active. If the client also requests events from
the server, these events may be sent to the client twice. However, the gateway will not
consider this case to be an error.
42
Transmission Retries and Device Inactivity
A remote device is considered inactive if a certain number of sequential transmissions to
that device fail (see “ZDO_Device_Manager.max_sequential_TX_failures” on page 46).
When a remote device is marked as inactive, clusters on the gateway will be informed
that any matching clusters on the remote device are no longer available.
SE Server Clusters and Inactive Devices
If an SE server cluster on the gateway is notified that a client cluster has been removed,
that client cluster will be removed from the list of known SE client clusters for that
particular SE server cluster. Events which are missed by the remote device while it is
inactive will be sent when that device becomes active again.
Periodic Refresh
In order to keep network information up to date, refresh messages are sent periodically
(see “ZDO_Device_Manager.refresh_rate” on page 46). These are in the form of Match
Descriptor broadcast requests for the SE Key Establishment cluster server (0x0800).
Devices which do not respond within the timeout period will be considered to have a
transmission failure (see “Conversation.TX_status_timeout” on page 45).
In this manner, active devices which have dropped off the network or otherwise become
unable to receive transmissions (interference, power loss, etc), will be marked as
inactive even if no user-initiated communication to that device has taken place. Devices
currently marked as inactive will be marked as active if they respond to the broadcast.
Explicit Device Add and Open Join
The gateway can be in either open join or explicit device add mode. When in open join
mode, any device can become active. Devices that become active will be added to the
list of known devices (see “Device Detection” on page 42). When in explicit device add
mode, only devices which have previously been added as known devices can become
active. In either mode, devices can be added to the list of known devices by using the
add_device command (see “add_device_response Parameters:” on page 73).
The gateway defaults to open join mode. 
(See “ZDO_Device_Manager.require_explicit_device_add” on page 47.)
43
ZCL Reporting and Device Activity
If ZCL attribute reporting is configured on the gateway to expect reports from an active
remote device, and that device has not sent a report within the configuration’s timeout
setting, the reporting configuration will be resent to the remote device. The remote
device may have had a power loss or other fatal error and so lost its reporting
configuration.
ZCL attribute reports will not be sent to a device which is inactive.
The gateway also supports a simulated reporting mode called “pseudo reporting”.
Pseudo reporting acts like normal ZCL reporting, but instead of sending a Reporting
Configuration to the remote device, the gateway will send periodic reads instead. The
gateway keeps track of previous read values and will send an attribute_report RPC
response (see “attribute_report” on page 83) using the min/max reporting interval and
delta change, as if the remote device had been configured with reporting. This allows
you to use the reporting interface on devices that do not support reporting. The gateway
sends a read to the remote device every Min Reporting Interval. Pseudo reporting is
enabled by setting the pseudo_reporting tag to TRUE in the start_receiving_reports RPC
request (see “start_receiving_reports” on page 82).
44
REGISTRY
The registry is created when the gateway first boots and contains power-safe global
settings to control gateway behavior. Individual entries can be accessed and modified
through the registry_configuration RPC request. A help RPC request can be used to
retrieve the entire registry. If necessary, manually editing registry_settings.ini and
rebooting is possible but not recommended.
Settings and Defaults
Registry Setting
Default
Description
Conversation.default_timeout
40
For unicast conversations with
an expected response message,
if that response has not arrived
within this many seconds a timeout has occurred. For broadcast
conversations, the conversation
will automatically terminate after
this many seconds.
Conversation.TX_status_timeout
10
If the XBee does not provide a
transmission status for an outbound message within this many
seconds, the transmission is
assumed to have failed.
Endpoint.max_socket_retries
3
If an exception occurs while
sending to the socket, the send
will be retried up to this many
times.
NTP_client.server1
north-america.pool.ntp.org
The main NTP server that will be
used for time synchronization.
NTP_client.server2
pool.ntp.org
A backup NTP server that will be
used if synchronization with the
first server fails.
86400
How often the gateway's time is
synchronized with an NTP
server, in seconds.
0
If a message is generated by the
firmware with severity greater
than or equal to this value, it will
be printed to the screen. Default
to all messages.
NTP_client.sync_rate
RPC_General_Interface.debug_print_severity
45
Registry Setting
Default
Description
1
If a message is generated by the
firmware with severity greater
than or equal to this value, it will
be sent as an RPC response.
Default to all warnings and
errors.
RPC_Manager.max_buffer_items
250
Up to this many outgoing RPC
responses will be stored by the
gateway before the oldest
response is discarded.
RPC_Manager.pushed_file_extension
xml
If pushing is enabled, this string
will be used as the file extension
of the pushed file.
RPC_Response
If RPC_Manager.use_push is
TRUE, this string will be used as
the first part of filename for the
pushed file.
RPC_Manager.use_push
FALSE
If TRUE, RPC responses will be
automatically pushed to iDigi.
(See “Automatic Response
Pushing” on page 54.)
RPC_Manager.use_timestamps
TRUE
If TRUE, all RPC responses will
include a timestamp indicating
when they were generated.
Timestamps are in standard Unix
time (seconds since 1970).
ZCL_Cluster.disable_default_response
TRUE
If TRUE, the disable default
response bit of ZCL messages
generated by the gateway will be
set to 1. If FALSE the bit will be
set to 0.
3
If this many transmission failures to a particular device occur
in a row, that device will be
marked as inactive. (See “Transmission Retries and Device Inactivity” on page 43.)
120
Every this many seconds a
match descriptor broadcast is
sent. (See “Periodic Refresh” on
page 43.)
RPC_General_Interface.debug_rpc_severity
RPC_Manager.pushed_file_prefix
ZDO_Device_Manager.max_sequential_TX_failures
ZDO_Device_Manager.refresh_rate
46
Registry Setting
Default
Description
ZDO_Device_Manager.require_explicit_device_add
FALSE
If TRUE, devices must be explicitly added before they can
become active. If FALSE,
devices can become active without being explicitly added. If not
specified, the gateway will use its
default behavior. (See “Explicit
Device Add and Open Join” on
page 43.)
Cluster.disable_APS_encryption
FALSE
If TRUE, APS encryption checks
for clusters which normally
require encryption will be
ignored. For normal operation,
this should be set to FALSE.
Note that changing this value
may result in the XBee leaving
its current network.
47
POWER SAFETY
Certain information is automatically saved to flash in order to maintain gateway
functionality in case of a power failure.
Global Saved Files
The gateway stores the following files under /WEB/python/ for persistent configuration and startup
behavior. These files can be viewed through iDigi, the web interface, or built in file system commands of
the gateway.
File
Description
registry_settings.ini
Stores the current state of the registry settings for the gateway. (See
“registry_configuration” on page 63.) Each line of the registry file is a single entry and is
formatted as follows where type is int, bool, or str.
Format:
registry_name [type registry_value]
If a type and registry_value are not given then the registry entry exists but has no value.
Sample:
devices.ini
Stores the 64-bit extended address of all known devices. Any device added via the
add_device RPC request will be added to this file. If the gateway is in open joining
mode, any new devices which become active will also be added to this file. Devices will
only be removed from this file via the remove_device RPC request.
Note:
modules.ini
Cluster.disable_APS_encryption bool False
It is possible to modify this file directly. However, when the gateway is operating
as a trust center, its wireless radio also maintains an internal table of link keys.
Adding a device to devices.ini directly does not update the wireless radio's
internal table and the new device may not be able to join. The add_device and
remove_device RPC requests update the internal table and are the preferred
interface to devices.ini.
Specifies additional modules to be imported on startup. (See “add_module” on page 64
and “remove_module” on page 64.)
Sample:
RPC_ZCL_Interface
RPC_SE_Interface
This sample will import the modules RPC_ZCL_Interface.pyc and
RPC_SE_Interface.pyc on startup.
interfaces.ini
Specifies additional interface classes to be instantiated on startup. (See “add_interface”
on page 65 and “remove_interface” on page 65.)
Sample:
RPC_ZCL_Interface
RPC_SE_Interface
This will instantiate the classes RPC_ZCL_Interface and RPC_SE_Interface on startup.
48
File
endpoints.ini
Description
Specifies additional endpoints to be instantiated on startup. Optional parameters default
to the class definition. (See “add_endpoint” on page 66 and “remove_endpoint” on
page 67.)
Format:
endpoint_class_name endpoint_id [profile_id [device_id
[device_version]]]
Sample:
SE_EnergyServicePortal 0x5E
This will instantiate an Energy Service Portal on endpoint 0x5E on startup.
clusters.ini
Specifies additional clusters to be instantiated on startup for a given endpoint. Optional
parameters default to the class definition. (See “add_cluster” on page 67 and
“remove_cluster” on page 68.)
Format:
cluster_class_name endpoint_id [server_or_client [cluster_id
[enable_APS_encryption]]]
Sample:
ZCL_Cluster 0x5E 1 0x0200
This will instantiate a generic ZCL Cluster object on endpoint 0x5E as a server with
cluster ID 0x0200.
Hidden Saved Files
Aliases and certain cluster specific information are stored in subdirectories under /WEB/python/. These
files are not accessible through the web interface, not intended to be human-readable, and are frequently
created and removed as needed during normal operation.
Type
Description
RPC aliases
Any RPC aliases which have been added will be saved. (See “Aliases” on
page 60.)
SE Events 
(SE server clusters only)
Valid SE events are saved on the server. Only the event itself is saved, incidental information such as what devices have received a particular event are
not saved. When events terminate their files are removed.
ZCL Reporting
Configurations
When the gateway is expecting reports it will save the reporting configuration
to a file. The file will be removed when reports are stopped.
Power-safe ZCL Attributes
When ZCL attributes are created they can be declared as power-safe.
Power-safe attributes are saved to file when written to a non default value. All
SE cluster attributes are declared power-safe.
49
CHAPTER 3
Communication Protocol
The following section explains the basics of communicating with the gateway when it is
running the SE framework. An API reference for all RPC requests and responses can be
found in “Appendix A” on page 63.
BASIC COMMUNICATION OVERVIEW
The gateway communicates via XML encoded RPC requests and responses. These
messages are sent within an RCI wrapper that specifies the RPC target. Typically
requests and responses will also be routed through iDigi which specifies a further SCI
wrapper. Each request can specify whether it should block until a response is ready or
asynchronously return the response. By default, the gateway operates in a polled mode
where asynchronous responses are cached locally and must be explicitly requested. The
gateway can also be configured to push asynchronous responses to the iDigi servers as
they are generated.
In order to communicate with the gateway, XML requests must be generated along with
RCI/SCI wrappers to address the correct device. It is outside the scope of this document
to cover methods for generating and parsing XML, sending requests to the gateway, or
communicating with the iDigi server from within a custom application. The “iDigi SE Web
Sample, Communicating with Gateway” on page 24 can be used to communicate with
the gateway through iDigi.
50
RPC Request and Response Example
RPC requests and responses are contained in an RCI wrapper, which specifies the
command target (i.e. “RPC_request”). This RCI wrapper is contained in an SCI wrapper,
which specifies devices to which the commands will be sent. Here is an example to send
a synchronous get_time request and an asynchronous get_version request to two
gateways:
<sci_request version=”1.0”>
<send_message>
<targets>
<device id=”00000000-00000000-001122FF-FF334455”/>
<device id=”00000000-00000000-001122FF-FF334456”/>
</targets>
<rci_request version=”1.1”>
<do_command target=”RPC_request”>
<get_version />
<get_time synchronous=”TRUE” />
</do_command>
</rci_request>
</send_message>
</sci_request>
51
The responses from multiple devices will be accumulated into a single SCI response by
iDigi. The reply to the above example would look like the following:
<sci_reply version=”1.0”>
<send_message>
<device id=”00000000-00000000-001122FF-FF334455”/>
<rci_reply version=”1.1”>
<do_command>
<get_time_response timestamp="1234567888.0"/>
<UTC_2000>0x133FDDDD<UTC_2000><UTC_1970>0x4BAD215D<UTC_1970>
</get_time_response>
</do_command>
</rci_reply></device>
<device id=”00000000-00000000-001122FF-FF334456”/>
<rci_reply version=”1.1”>
<do_command>
<get_time_response timestamp="1234567888.0"/>
<UTC_2000>0x133FDDDD<UTC_2000><UTC_1970>0x4BAD215D<UTC_1970>
</get_time_response>
</do_command>
</rci_reply></device>
To retrieve asynchronous response messages from the gateway, send to the
“RPC_response” target. Leaving off the SCI wrapper, the RCI wrapper and command
looks like the following:
<rci_request version=”1.1”>
<do_command target=”RPC_response”>
<get_responses />
</do_command>
</rci_request>
A limit can be set on the number of responses returned by specifying the "limit" attribute.
Responses will be returned starting with the oldest.
<rci_request version=”1.1”>
<do_command target=”RPC_response”>
<get_responses limit=”10”/>
</do_command>
</rci_request>
52
The reply to an RPC_response request contains a listing of RPC responses in chronological order. By
default timestamps are enabled and every response will indicate when it was generated. The top level
“responses” tag will also indicate how many response messages remain in the gateway’s buffer. For
example:
<rci_reply version=”1.1”>
<do_command>
<responses remaining=”0” timestamp=”1234567890.0”>
<message timestamp=”1234567888.0”>
<description type=”string”>You must bring us another shrubbery.</description>
<severity>0x1</severity>
</message>
<get_version_response timestamp=”1234567889.0”>
<version type="string">1.3.0</version>
<version_extended type="dict">
<SE_spec_version type="string">1.0 revision 15</SE_spec_version>
<description type="string">SE Framework with support for ESI and IPD
functionality.</description>
</version_extended>
</get_version_response>
</responses>
</do_command>
</rci_reply>
53
Automatic Response Pushing
The gateway can be configured to push responses immediately to the iDigi server
instead of the default polling mode via RPC_response. (See “RPC_Manager.use_push”
on page 46.) Memory on the gateway is limited and it can be advantageous to store
responses on the iDigi server to avoid the risk of dropping messages if too many
responses are generated.
Note:
Response messages will not be removed from the gateway’s buffer until they have been
successfully pushed to the iDigi server. Responses can still be retrieved via RPC_response if
pushing does not succeed for any reason.
File Format
Each pushed file contains a single response without any RCI or SCI wrapper.
<message>
<description type="string">
You must bring us another shrubbery.
</description>
<severity>0x1</severity>
</message>
The filename is formatted with the following information; pushed file prefix (defaults to
RPC_response), timestamp, sequence number, response type, and file extension
(defaults to xml). The sequence number differentiates responses pushed in the same
second.
RPC_response-1234567890-0000-message.xml
RPC_response-1234567890-0001-get_version_response.xml
RPC_response-1234567890-0002-get_device_information_response.xml
RPC_response-1234567891-0000-message.xml
54
XML RPC INTERFACE OVERVIEW
Conversion to Method Call
XML RPC requests convert into method calls on the gateway in a straightforward
manner.
Example 

An XML RPC request like this:
<request_name>
<param1>value1</param1>
<param2>value2</param2>
<param3>value3</param3>
</request_name>
Will result in an method call like this:
request_name(param1 = value1, param2 = value2, param3 = value3)
XML RPC responses similarly specify the name of the response and have a collection of
parameters.
Example 

An XML RPC response might look like this:
<response_name>
<param1>value1</param1>
<param2>value2</param2>
<param3>value3</param3>
</response_name>
55
Parameter Type Specification Overview
The type of a parameter is specified by the attribute “type” within the tag.
Example 

param1 is specified as being of type string:
<param1 type=”string”>My favorite color is blue.</param1>
If no type is specified, the value will be converted to a bool, int or float, in that order.
Example
<param1>TRUE</param1>
param1 is a bool
<param1>1</param1>
param1 is an int
<param1>1.0</param1>
param1 is a float
For responses, type will always be specified.
56
Simple Parameter Types
int
example:
<param type=”int”>42</param>
<param type="int">0xFF</param>
float
example:
<param type=”float”>3.14159</param>
bool
Takes “TRUE” or “FALSE”, case insensitive.
example:
<param type=”bool”>TRUE</param>
string
A character string.
example:
<param type=”string”>Tis but a scratch.</param>
MAC
Intended for use with long address strings, which commonly contain delimiter characters.
example:
<param type=”MAC”>00:11:22:33:44:55:66:77</param>
base16
A base 16-encoded binary string.
example:
<param type=”base16”>1234567890ABCDEF</param>
base64
A base 64-encoded binary string.
example:
<param type=”base64”>3q2+78r+</param>
none
Used to provide a parameter but with no type or value. Some requests may differentiate between a missing parameter and a none parameter. Unlike other parameters, do
not include the "type" attribute or value.
example:
<param/>
57
Complex Parameter Types
list
A list of subparameters. Note that because a list is an anonymous data structure, the tag
names of subparameters are ignored.
example:
<param type=”list”>
<item>42</item>
<item>FALSE</item>
<item type=”string”>Camelot!</item>
</param>
would generate:
param=[42, False, “Camelot!”]
dict
A dictionary of subparameters. The tag names of the subparameters will become the keys of
the dictionary.
example:
<param type=”dict”>
<first>1</first>
<second>TRUE</second>
<third type=”string”>It’s only a model.</third>
</param>
would generate:
param={“first” : 1, “second” : True, “third” : “It’s only a
model.”}
58
record
A record object with specific subparameters. The subparameters will be passed to the
record object’s constructor according to tag name. (See “Record Reference” on page 116.)
example:
<param type=”MagicRecord”>
<foo>9000</foo>
<bar type=”string”>You must bring us...</bar>
<a_shrubbery type=”bool”>TRUE</a_shrubbery>
</param>
would generate:
param=MagicRecord(foo = 9000, bar = “You must bring us...”,
a_shrubbery = TRUE)
xml
A way to specify that the enclosed XML is to be preserved as XML and not parsed into
types. The XML will be passed into the function as an ElementTree (a Python object that
can parse and represent XML).
example:
<param type=”xml”>
<dead>
<parrot>This is a late parrot! It’s a stiff! Bereft of life,
it rests in peace!</parrot>
</dead>
</param>
would generate:
param=ElementTree.parsestring(“””<root><dead><parrot>This is a
late parrot! It’s a stiff! Bereft of life, it rests in
peace!</parrot></dead></root>”””)
59
Aliases
XML RPC requests can be abstracted using aliases. To use an alias which has been
defined, use the “alias” type. Alias replacements are performed in place.
Example 

If there was an alias named “EXAMPLE_ALIAS” 
defined with the following XML content:
<param1>value</param1>
<param2>value</param2>
<param3>value</param3>
The following XML:
<request_name>
<EXAMPLE_ALIAS type=”alias” / >
</request_name>
Would then become:
<request_name>
<param1>value</param1>
<param2>value</param2>
<param3>value</param3>
</request_name>
The main value of aliasing is in generalizing parameters to commands which are sent to
a large number of devices.
Example 

If there are two gateways with the alias “THERMOSTAT” defined:
Gateway 1:
<destination_address type=”MAC”>00:11:22:33:44:55:66:77
</destination_address>
Gateway 2:
<destination_address type=”MAC”>00:11:22:33:44:AA:BB:CC
</destination_address>
60
The request that needs to be performed has the following structure:
<request_name>
<destination_address>value</destination_address>
<param1>value</param1>
<param2>value</param2>
</request_name>
Ordinarily a different request would be sent to each gateway, since the thermostat
addresses on the two networks are different. However, since a THERMOSTAT alias is
defined on each gateway for its local thermostat, the same request can be sent to both.
<request_name>
<THERMOSTAT type=”alias”>
<param1>value</param1>
<param2>value</param2>
</request_name>
To manage aliases defined on the gateway, use the add_alias, remove_alias, and
list_aliases RPC requests. (See “add_alias” on page 114, “remove_alias” on page 114
and “list_aliases” on page 115.)
Request Identifier
All RPC requests take an optional request_identifier parameter which can be used to
match requests with later responses. The request identifier can be of any simple type but
typically is an integer.
Broadcasts
RPC requests that specify a destination address can sometimes send the corresponding
ZigBee command as a broadcast rather than a unicast. For example, the ZCL Identify
command is either unicast to a single device or broadcast to all devices on the network.
To specify a broadcast, set the destination address to 00:00:00:00:00:00:FF:FF.
Synchronous Requests
Any RPC request sent to the gateway can be made synchronous by adding the attribute
synchronous=”TRUE” to the RPC request tag. Synchronous requests block until the
response is generated or a timeout occurs (See the definition entry for
RPC_Manager.synchronous_request_timeout in the Registry on page 45.) The
response is then returned in the RCI Reply instead of being pushed to iDigi or queued in
an asynchronous response buffer. In the case of a timeout, the response will be returned
asynchronously. Only one request can be processed at a time, and the RCI target
61
RPC_request will not be available while a synchronous request is blocking. (For an
example using synchronous requests, see RPC Request and Response Example on
page 51.)
62
Appendix A
XML RPC INTERFACE REFERENCE
General Requests/Responses
registry_configuration
Sets or gets a registry entry. Can only be used to access an existing entry, not to create a
new one.
registry_configuration Parameters:
Parameter
Type
Description
name
string
Name of the registry entry to access.
value (optional)
bool, int,
float,
string or
none
If provided, this will set registry name to value.
If not provided, this will get the value of registry entry in the response.
registry_configuration_response Parameters:
Parameter
Type
Description
name
string
Name of the registry entry.
write_status
(optional)
bool
Only included if the original request was a set request. If TRUE, registry entry successfully updated. If FALSE, registry entry not updated.
write_errors
(optional)
string
Only included if the original request was a set request and
write_status indicates an error. Description of any errors encountered
while setting the registry entry.
value
bool, int,
string, or
none
Value of registry entry if getting value or original value of request if
setting value.
63
add_module
Adds a module without stopping gateway execution. The module is scanned after it has
been added and any interface, endpoint, cluster, or record classes are immediately
available for use in other interface commands. The module will also be added to
modules.ini so that on startup the module will still be imported.
Note:
The module’s .py, .pyc or .pyo file must first be uploaded to the gateway before it can be added by
this method. A .py file takes significantly more memory then a .pyc or .pyo file. If your gateway is
running low on memory consider precompiling added python modules.
add_module Parameters:
Parameter
module_name
Type
string
Description
Name of the module to be imported (do not include file extension).
add_module_response Parameters:
Parameter
module_name
Type
string
Description
Name of the module that was imported.
remove_module
Removes the module from modules.ini so that it will not be imported on startup. Modules
not imported from modules.ini on startup or via the add_module command cannot be
removed by this request. If the module provided is not currently loaded then no error is
indicated but the module will still be removed from modules.ini if present. Note that this
will not delete the corresponding .py, .pyc or .pyo file from the gateway. The module will
not be removed from RAM unless the Python program is restarted through reboot or the
exit RPC command (see exit on page 71).
remove_module Parameters:
Parameter
module_name
Type
string
Description
Name of the module to be removed (do not include file extension).
remove_module_response Parameters:
Parameter
module_name
Type
string
Description
Name of the module that was removed.
64
add_interface
Instantiates an interface of the given class, making all public methods inside that class
available to be called via RPC. The interface will also be added to interfaces.ini so that
on startup the interface will still be available.
add_interface Parameters:
Parameter
interface_class
Type
string
Description
Name of the interface class to be instantiated.
add_interface_response Parameters:
Parameter
interface_class
Type
string
Description
Name of the interface class that was instantiated.
remove_interface
Removes an interface of the given class, making all public methods inside that class
unavailable to be called via RPC. Also removes the interface from interfaces.ini so that it
will not be made available at startup.
remove_interface Parameters:
Parameter
interface_class
Type
string
Description
Name of the interface class to be removed.
remove_interface_response Parameters:
Parameter
interface_class
Type
string
Description
Name of the interface class that was removed.
65
add_endpoint
Instantiates an endpoint of the given class, along with any of its default clusters. If no
endpoint ID is provided, the next available ID will be chosen. Optional parameters will
override defaults of the endpoint class. The endpoint will also be added to endpoints.ini
so that on startup the endpoint will be instantiated.
add_endpoint Parameters:
Parameter
Type
Description
endpoint_class
string
Name of the endpoint class to be instantiated.
endpoint_id (optional)
int
8-bit identifier of the endpoint. By default the next available identifier will be chosen.
profile_id (optional)
int
16-bit profile identifier of the endpoint. Required if the endpoint
class does not provide a default.
device_id (optional)
int
16-bit device identifier of the endpoint.
device_version (optional)
int
4-bit device version of the endpoint.
add_endpoint_response Parameters:
Parameter
Type
Description
endpoint_class
string
Name of the endpoint class that was instantiated.
endpoint_id
int
8-bit identifier that the endpoint was assigned.
profile_id
int
16-bit profile identifier of the endpoint.
device_id
int
16-bit device identifier of the endpoint, if it exists.
device_version
int
4-bit device version of the endpoint, if it exists.
66
remove_endpoint
Removes an endpoint with the given endpoint ID which has been previously added from
endpoints.ini on startup or via the add_endpoint command. Endpoints added in any other
fashion cannot be removed by this command. Also removes the endpoint from
endpoints.ini so that it will not be instantiated at startup.
Note:
Any clusters on the given endpoint will also be removed when the endpoint is removed.
remove_endpoint Parameters:
Parameter
endpoint_id
Type
int
Description
8-bit identifier of the endpoint to be removed.
remove_endpoint_response Parameters:
Parameter
endpoint_id
Type
int
Description
8-bit identifier of the endpoint that was removed.
add_cluster
Instantiates a cluster of the given class and adds it to the given endpoint. Optional
parameters will override defaults of the cluster class. The cluster will also be added to
clusters.ini so that on startup the cluster will be added to the given endpoint.
add_cluster Parameters:
Parameter
Type
Description
endpoint_id
int
8-bit identifier of the endpoint to which the cluster will be added.
cluster_class
string
Name of the cluster class to be instantiated.
cluster_id (optional)
int
16-bit identifier of the cluster. Required if cluster class does not provide a default.
server_or_client (optional)
int
If 0, the cluster will be a server cluster. If 1, the cluster will be a client cluster. Required if cluster class does not provide a default.
enable_APS_encryption
(optional)
bool
If TRUE, all transmissions over this cluster will use and require
APS-level encryption. If FALSE, this cluster will not use APS-level
encryption.
67
add_cluster_response Parameters:
Parameter
Type
Description
endpoint_id
int
8-bit identifier of the endpoint to which the cluster was added.
cluster_class
string
16-bit identifier of the cluster that was added.
cluster_id
int
16-bit identifier of the cluster.
server_or_client
int
Whether the cluster is a server (0) or client (1) cluster.
enable_APS_encryption
bool
Whether the cluster uses APS encryption or not.
remove_cluster
Removes a cluster of the given class from the given endpoint. If a class is not given, will
remove a cluster with the given type (server or client) and ID from the endpoint. Only
clusters which have been dynamically added from clusters.ini on startup or via the
add_cluster command may be removed in this fashion. Clusters added in any other
fashion cannot be removed by this command. Also removes the cluster from clusters.ini
so that it will not be added to the endpoint at startup.
remove_cluster Parameters:
Parameter
Type
Description
endpoint_id
int
8-bit identifier of the endpoint from which the cluster will be
removed.
cluster_class (optional)
string
Name of the cluster class which is to be removed.
cluster_id (optional)
int
16-bit identifier of the cluster to be removed. Required if cluster
class not given or cluster class does not define cluster ID.
server_or_client (optional)
int
If 0, the cluster to be removed is a server cluster. If 1, the cluster to
be removed is a client cluster. Required if cluster class not given or
cluster class does not define server_or_client.
remove_cluster_response Parameters:
Parameter
Type
Description
endpoint_id
int
8-bit identifier of the endpoint from which the cluster was removed.
cluster_class (optional)
string
Class name of the removed cluster. Only present if given as a
parameter to the remove_cluster command.
cluster_id
int
16-bit identifier of the cluster that was removed.
server_or_client
int
If 0, the removed cluster was a server cluster. If 1, the removed
cluster was a client cluster.
68
get_version
Returns the version information of the given module. If no module is specified, returns
the overall version of the firmware. Each module can be defined with a __version__ and
__version_extended__ variable that can be set to any type. (See “Simple Parameter
Types” on page 57 and “Complex Parameter Types” on page 58.) This command will
return version information for the given module. If no module is given overall firmware
version will be retrieved from Version.py.
get_version Parameters:
Parameter
module_name (optional)
Type
string
Description
The version information of the given module will be returned,
defaults to Version module if not provided.
get_version_response Parameters:
Parameter
Type
Description
module_name
string
Name of the module whose version was requested.
version
any
Version of the requested module. Can be any type depending on
module definition. Typically a string such as "1.0.0".
version_extended
any
Extended version information of the requested module. Can be
any type depending on module definition.
help
Returns a listing of classes, methods and registry settings that are relevant to other RPC
functionality. If no parameters are provided, then only a list of possible parameters to the
help command is returned.
help Parameters:
Parameter
Type
Description
registry (optional)
none
If provided, all registry entries will be listed.
methods (optional)
none
If provided, all RPC methods from instantiated interface classes
will be listed.
interfaces (optional)
none
If provided, all known RPC interface classes will be listed.
endpoints (optional)
none
If provided, all known endpoint classes will be listed.
clusters (optional)
none
If provided, all known cluster classes will be listed.
records (optional)
none
If provided, all known record classes will be listed.
paths (optional)
none
If provided, all extra paths will be listed. This can include zip files.
69
help_response Parameters:
Parameter
registry
(optional)
Type
list
Description
Included only if requested.
item - dict - Contains the information about the given registry entry.
name - string - Name of the registry entry.
value - int, bool, string or none - Current value of the registry entry.
description - string - doc string of the registry entry.
methods
(optional)
list
Included only if requested.
item - dict - Contains the information about the given RPC method.
name - string - Name of the method.
module - string - Name of the module where the method is defined.
description - string - doc string of the method.
interfaces
(optional)
list
Included only if requested.
item - dict - Contains the information about the given interface class.
name - string - Name of the interface class.
module - string - Name of the module where the interface class is
defined.
description - string - doc string of the interface class.
endpoints
(optional)
list
Included only if requested.
item - dict - Contains the information about the given endpoint class.
name - string - Name of the endpoint class.
module - string - Name of the module where the endpoint class is
defined.
description - string - doc string of the endpont class.
clusters
(optional)
list
Included only if requested.
item - dict - Contains the information about the given cluster class.
name - string - Name of the cluster class.
module - string - Name of the module where the cluster class is
defined.
description - string - doc string of the cluster class.
records
(optional)
list
Included only if requested.
item - dict - Contains the information about the given record class.
name - string - Name of the record class.
module - string - Name of the module where the record class is
defined.
description - string - doc string of the record class.
paths
(optional)
list
Included only if requested.
item - string - Contains the path that was dynamically added to the system
70
exit
Terminates the program and associated processes. No parameters. No response.
message (response only)
This is an unsolicited message sent by the gateway and typically indicates either
operational status or errors.
Note:
Only messages with severity greater than or equal to
RPC_General_Interface.debug_rpc_severity will be sent.
(See “RPC_General_Interface.debug_rpc_severity” on page 46)
message Parameters:
Parameter
Type
Description
severity
int
Severity of the message. Can be 0 (debug), 1 (warning), or 2 (error).
description (optional)
string
Contents of the message.
request_identifier
(optional)
can be any
type
Present if this message corresponds to a previous RPC request that
included a request_identifier.
(various) (optional)
can be any
type
Messages may include other parameters to provide more 
information.
get_time
Gets the current universal coordinate time from the gateway. This command takes no
parameters.
get_time_response Parameters:
Parameter
Type
Description
UTC_1970
int
Number of seconds since Jan. 1, 1970, universal coordinate time
UTC_2000
int
Number of seconds since Jan. 1, 2000, universal coordinate time
set_time
Sets the time on the gateway using universal coordinate time. The time can be set using
1970 or 2000 as the EPOCH.
71
set_time Parameters:
Parameter
Type
Description
UTC_1970 (optional)
int
Set the number of seconds since Jan. 1, 1970, universal coordinate
time
UTC_2000 (optional)
int
Set the number of seconds since Jan. 1, 2000, universal coordinate
time
set_time_response Parameters:
Parameter
Type
Description
UTC_1970
int
Number of seconds since Jan. 1, 1970, universal coordinate time
UTC_2000
int
Number of seconds since Jan. 1, 2000, universal coordinate time
resync_time
Forces a resynchronization of time with an NTP or ZCL time server as appropriate. This
RPC command takes no parameters.
set_time_response - no parameters
72
ZigBee Requests/Responses
add_device
Adds the device to the list of known devices and to devices.ini. Additionally, if the XBee
on the gateway is a coordinator and a link key or installation code is provided, the link
key for the device will be added to the link key table of the XBee. This will allow the
remote device to join the network. An optional join time can be specified which will
temporarily enable node joining on the network.
add_device Parameters:
Parameter
Type
Description
device_address
MAC
64-bit extended address of the remote device to be added.
join_time (optional)
int
Number of seconds for which node joining will be enabled on the
network once the device has been added locally. If not provided,
node joining behavior will not be affected.
link_key (optional)
int, base16
or base64.
The link key of the remote device.
installation_code (optional)
string,
base16 or
base64.
The installation code of the remote device. If link_key is also provided, installation_code will be ignored. If provided as a string
any non hex characters will be stripped before generating the
link key to allow formatting characters to be included in
installation_code.
add_device_response Parameters:
:
Parameter
Type
Description
device_address
MAC
64-bit extended address of the remote device that was added.
join_time (optional)
int
Only present if given as a parameter to the add_device request.
remove_device
Removes a device from the list of known devices and from endoints.ini. Additionally, if
the XBee on the gateway is a coordinator, the link key for that device will be removed
from the link key table of the XBee. Once the device is removed a ZDO
Mgmt_Leave_req is sent to the device.
73
remove_device Parameters:
Parameter
Type
device_address
MAC
Description
64-bit extended address of the remote device to be removed.
remove_device_response Parameters:
Parameter
Type
device_address
MAC
Description
64-bit extended address of the remote device that was removed.
enable_joining
Enables node joining on the network for the specified number of seconds. If 0, node
joining will immediately be disabled.
enable_joining Parameters:
Parameter
join_time
Type
int
Description
Number of seconds for which node joining will be enabled on the network.
enable_joining_response Parameters:
Parameter
join_time
Type
int
Description
Number of seconds for which node joining will be enabled on the network.
refresh_device_information
Initiates a periodic refresh immediately. This command can also initiate a full refresh for
existing devices. A full refresh updates all known information such as endpoints, clusters,
power and node descriptors, etc. (See “Periodic Refresh” on page 43)
refresh_device_information Parameters:
Parameter
Type
Description
device_address
(optional)
MAC
If provided, then will only refresh specified device. Defaults to a broadcast
for all devices.
full_refresh
(optional)
bool
If TRUE, then perform a full refresh. If FALSE, then perform a standard periodic refresh. Defaults to FALSE.
get_device_information
Returns all known information about devices on the network.
74
get_device_information Parameters:
Parameter
device_address
(optional)
Type
Description
64-bit address of the device about which to return information. If not 
provided, the device information for every known device will be returned.
MAC
get_device_information_response Parameters:
Parameter
record_list
Type
Description
list
Each item in the list corresponds to a device on the network.
item - ZDODeviceRecord (See “ZDODeviceRecord” on page 116)
xbee_AT
The XBee radio on the gateway provides a set of AT commands to control register
values and issue commands. The xbee_AT request provides direct and unmanaged
access to these commands. It is possible for certain AT commands to interfere with
normal operation of the gateway. For example, changing the baud rate may prevent the
gateway from sending and receiving messages on the Smart Energy network. Except as
instructed in this or other Smart Energy gateway documentation this command should
only be used by advanced users. The XBee SE Manual has further documentation on
XBee AT commands (see “Online Documentation” on page 7).
xbee_AT Parameters:
Parameter
Type
Description
command
string
Case insensitive two character XBee AT command code.
value (optional)
int,
base16, or
base64
When included may be used to set a register value or otherwise
provide command parameters. Do not include to get a register
value in the response or when sending a command with no
parameters.
xbee_AT_response Parameters:
Parameter
Type
Description
command
string
Same as sent in the original request.
value (optional)
int
If not included in the original request then value will be the
XBee's response parameter, if available. Otherwise value will be
the same as sent in the original request.
bind
Sends a ZDO bind request to a device.
75
bind Parameters:
Parameter
Type
Description
destination_address
MAC
64-bit extended address of the device to which to send the ZDO bind
request
destination_endpoint_id
int
8-bit identifier of the endpoint on the remote device on which the target
cluster exists
source_endpoint_id
int
8-bit identifier of the endpoint on the local device on which the target
cluster exists
cluster_id
int
16-bit identifier of the cluster to be bound by the bind request
bind_request Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of the bind request using standard
ZDO status values. Can be success (0x00), not supported (0xAA) or
other
destination_address
MAC
64-bit extended address of the device to which the ZDO bind request
was sent
destination_endpoint_id
int
8-bit identifier of the endpoint on the remote device on which the target
cluster exists
source_endpoint_id
int
8-bit identifier of the endpoint on the local device on which the target
cluster exists
cluster_id
int
16-bit identifier of the cluster to be bound by the bind request
unbind
Sends a ZDO unbind request to a device. Unbind requests remove previous bind
requests.
unbind Parameters:
Parameter
Type
Description
destination_address
MAC
64-bit extended address of the device to which to send the ZDO
unbind request
destination_endpoint_id
int
8-bit identifier of the endpoint on the remote device on which the target
cluster exists
source_endpoint_id
int
8-bit identifier of the endpoint on the local device on which the target
cluster exists
cluster_id
int
16-bit identifier of the cluster to be unbound by the unbind request
76
unbind_response Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of the unbind request using standard
ZDO status values. Can be success (0x00), not supported (0xAA), or
other
destination_address
MAC
64-bit extended address of the device to which the ZDO bind request
was sent
destination_endpoint_id
int
8-bit identifier of the endpoint on the remote device on which the target
cluster exists
source_endpoint_id
int
8-bit identifier of the endpoint on the local device on which the target
cluster exists
cluster_id
int
16-bit identifier of the cluster to be bound by the bind request
configure_zigbee_network
Sets the parameters to join or form a network. Sending this command will cause the
gateway to reform or leave the current network it is joined to.
configure_zigbee_network Parameters:
Parameter
Type
Description
extended_pan_id
(optional)
int
If gateway is a coordinator - Extended PAN ID of the network to
form. If set to zero, network will be formed on a random extended
PAN ID.
If gateway is a router - Extended PAN ID of the network to join. If set
to zero, the gateway will not filter join attempts on extended PAN ID.
channel_mask
(optional)
int
16-bit bitmask of the channels to use for joining or forming a network.
Bits 0 - 16 map directly to channels 0x0B - 0x1A.
link_key (optional)
int, base16
128-bit link key used to join a network.
installation_code
(optional)
int,
base16,
string
48-, 64-, 96-, or 128-bit installation code hashed to generate a 128-bit
link key to join a network. Must include CRC as part of installation
code.
join_interval (optional)
int
Interval between join attempts for router. This parameter will also set
the registry_confirmation parameter
ZDO_Device_Manager.join_interval (see Registry on page 45.
77
configure_zigbee_network_response Parameters:
Parameter
Type
Description
extended_pan_id
int
Extended PAN ID set on the gateway.
channel_mask
int
16-bit bitmask of the channels to use for joining or forming a network.
Bits 0 - 16 map directly to channels 0x0B - 0x1A.
join_interval
int
Interval between join attempts for router. This parameter will also set
the registry_confirmation parameter
ZDO_Device_Manager.join_interval.
leave_network
Will cause a router gateway to leave the network (no effect on the coordinator). This
command takes no parameters.
leave_network_response - has no parameters.
get_zigbee_network_status
Gives the status of the gateway on the ZigBee network. The status is given as both a
human-readable string and an enumerated status value. This command takes no
parameters
get_zigbee_network_status_response Parameters:
Parameter
Type
Description
status
int
8-bit enumerated status value. Corresponds to the Associate
Indication response given from an XBee ATAI command. 0x00
indicates the gateway is successfully joined to a network.
status_description
string
Human-readable string version of the status.
extended_pan_id
int, base16
64-bit operating extended PAN ID of the ZigBee network of the
gateway.
pan_id
int
16-bit operating PAN ID of the ZigBee network of the gateway.
channel
int
The channel of the ZigBee network of the gateway.
addr_short
MAC
16-bit network address of the XBee in the gateway
addr_extended
MAC
64-bit Extended Unique Identifier (EUI aka MAC address) of the
XBee in the gateway
configured_extended_pan_id
int
64-bit configured extended PAN ID of the ZigBee network on the
gateway. 0x0 has special meaning. On a coordinator, 0x0 forms
the network on any PAN ID. On a router, 0x0 will try to join any
network.
78
ZCL Requests/Responses
In order to perform a ZCL command on a remote server cluster, a corresponding client
cluster must exist locally. In order to perform a ZCL command on a remote client cluster,
a corresponding server cluster must exist locally. If necessary, the add_cluster command
can be used to create a ZCL cluster of the appropriate type. (See “add_cluster” on
page 67)
Note:
Some local ZCL requests do not have this limitation.
read_attributes
Reads ZCL attributes from the given cluster on the given device and endpoint.
read_attributes Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster to which the ZCL command will be sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id (optional) int
8-bit identifier of the endpoint from which the ZCL command will be
sent. Only required for remote commands.
destination_address (optional) MAC
64-bit extended address of the device to send the ZCL command to.
If not provided, the request will be to the local device.
manufacturer_code (optional) int
16-bit manufacturer code of the attributes in the record list.
record_list
List of records which will make up the payload of the ZCL Read Attributes Command.
list
Item - ReadAttributeRecord. (See “ReadAttributeRecord” on
page 119)
read_attributes_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster from which the response was sent.
server_or_client
int
Indicates whether the cluster from which the response was sent was
a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was
sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the response was sent. Only
included if the request was not local.
source_address (optional)
MAC
64-bit extended address of the device from which the response was
sent. Only included if the request was not local.
79
Parameter
Type
Description
manufacturer_code (optional) int
16-bit manufacturer code of the attributes in the record list.
record_list
List of records which made up the payload of the ZCL Read 
Attributes Response Command.
item - ReadAttributeStatusRecord 
(See “ReadAttributeStatusRecord” on page 120.)
list
write_attributes
Writes to ZCL attributes on the given cluster on the given device and endpoint. Writes
may be normal or undivided. If any attribute in an undivided write cannot be written then
none of the attributes will be written. In a normal write all attributes are written individually
with success or failure returned for each.
write_attributes Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster to which the ZCL command will be sent.
server_or_client
int
Indicates whether the target cluster is a server (0) or client (1) cluster.
destination_endpoint_id int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint from which the ZCL command will be sent. Only
required for remote commands.
destination_address
(optional)
MAC
64-bit extended address of the device to send the ZCL command to. If not provided, the command will be to the local device.
command_identifier
(optional)
int
8-bit ZCL command identifier to specify Write Attributes Command (0x02) or
Write Attributes Undivided Command (0x05). Defaults to Write Attributes Command.
manufacturer_code
(optional)
int
If included, this is the 16-bit manufacturer code of the attributes in the record
list.
record_list
list
List of records which will make up the payload of the ZCL Write Attributes Command.
item - WriteAttributeRecord (See “WriteAttributeRecord” on page 119)
write_attributes_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster from which the response was sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
80
Parameter
Type
Description
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the response was sent.
source_address (optional)
MAC
64-bit extended address of the device from which the response was
sent.
manufacturer_code (optional) int
16-bit manufacturer code of the attributes in the record list.
record_list
List of records which made up the payload of the ZCL Write Attributes
Response Command.
list
item - WriteAttributeResponseRecord. (See
“WriteAttributeResponseRecord” on page 120)
discover_attributes
Discovers all ZCL attributes on the target cluster.
discover_attributes Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster to which the ZCL command will
be sent.
server_or_client
int
Target cluster is a server (0) or client (1).
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id (optional)
int
8-bit identifier of the endpoint from which the ZCL command will be
sent. Required for remote requests.
destination_address (optional)
MAC
64-bit extended address of the device to send the ZCL command
to.
manufacturer_code (optional)
int
If included, the 16-bit manufacturer code of the attributes to be discovered. Defaults to no manufacturer code.
discover_attributes_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster from which the response was
sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was
sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
81
Parameter
Type
Description
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the response was sent.
source_address (optional)
MAC
64-bit extended address of the device from which the response was
sent.
manufacturer_code (optional)
int
16-bit manufacturer code of the attributes in the record list.
record_list
list
List of records which made up the payload of the ZCL Discover Attributes Response Command.
item - AttributeInformationRecord.
(See “AttributeInformationRecord” on page 123)
start_receiving_reports
Configures the target cluster to begin sending ZCL Report Attributes Commands for the
specified attributes to the local device. Can also be used to enable pseudo reporting on
the gateway, where the gateway sends Read Attribute Commands to the remote device
to simulate enabling reporting on the device.
start_receiving_reports Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster to which the ZCL command will be
sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
pseudo_reporting (optional)
bool
If TRUE, will use pseudo reporting instead of ZCL reporting.
If FALSE, will use ZCL reporting.
If omitted or set to none, will try to use ZCL reporting. If that fails or isn’t
supported, will use pseudo reporting.
source_endpoint_id (optional) int
8-bit identifier of the endpoint from which the ZCL command will be
sent. Required for remote requests.
destination_address (optional) MAC
64-bit extended address of the device to send the ZCL command to.
Defaults to the local device.
manufacturer_code (optional) int
If included, the 16-bit manufacturer code of the attributes in the record
list. Defaults to no manufacturer code.
record_list
List of records will make up the payload of the ZCL Configure Reporting Command.
list
item - AttributeReportingConfigurationRecord (See
“AttributeReportingConfigurationRecord” on page 120)
82
start_receiving_reports_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster from which the response was sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the response was sent.
source_address (optional)
MAC
64-bit extended address of the device from which the response was sent.
manufacturer_code
(optional)
int
16-bit manufacturer code of the attributes in the record list.
record_list
list
List of records which made up the payload of the ZCL Configure Reporting Response Command.
item - AttributeReportingConfigurationResponseRecord 
(See “AttributeReportingConfigurationResponseRecord” on
page 121)
attribute_report (response only)
Attribute reports which arrive from a remote device will generate an attribute_report RPC
response.
Note:
Only one attribute will be included in each attribute_report, even if multiple attributes are
configured for reporting at once.
attribute_report Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster from which the report was
sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the report
was sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the report was
sent.
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the report was sent.
source_address
(optional)
MAC
64-bit extended address of the device from which the
report was sent.
83
Parameter
Type
Description
manufacturer_code
(optional)
int
16-bit manufacturer code of the attribute in the record.
record
AttributeReportRecord
A single attribute report extracted from the payload of a
ZCL Report Attributes Command.
(See “AttributeReportRecord” on page 121)
stop_receiving_reports
Configures the target cluster to stop sending ZCL Report Attributes Commands for the
specified attributes to the local device.
stop_receiving_reports Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster to which the ZCL command will be
sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id
int
8-bit identifier of the endpoint from which the ZCL command will be
sent.
destination_address
MAC
64-bit extended address of the device to send the ZCL command to.
manufacturer_code
(optional)
int
If included, this is the 16-bit manufacturer code of the attributes in the
record list. Defaults to no manufacturer code.
record_list
list
List of records which will make up the payload of the ZCL Configure
Reporting Command.
item - StopReportingRecord (See “StopReportingRecord” on
page 122)
stop_receiving_reports_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster from which the response was sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was
sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
int
8-bit identifier of the endpoint to which the response was sent.
84
Parameter
Type
Description
source_address
MAC
64-bit extended address of the device from which the response was
sent.
manufacturer_code
(optional)
int
16-bit manufacturer code of the attributes in the record list.
record_list
list
List of records derived from the payload of the ZCL Configure Reporting Response Command.
item - StopReportingStatusRecord 
(See “StopReportingStatusRecord” on page 122)
stop_sending_reports
Configures the local device to stop sending specified ZCL Report Attributes Commands
to the destination device. Also sets the destination device's report timeout to 0. It is
currently not possible within ZCL to notify a remote device that reports are no longer
being generated.
stop_sending_reports Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster to which the ZCL command will be sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id
int
8-bit identifier of the endpoint from which the ZCL command will be sent.
destination_address
MAC
64-bit extended address of the device to send the ZCL command to.
manufacturer_code
(optional)
int
If included, the 16-bit manufacturer code of the attributes in the record list.
Defaults to no manufacturer code.
record_list
list
List of records which will make the payload of the ZCL Configure Reporting
Command.
item - StopReportingRecord (See “StopReportingRecord” on
page 122)
stop_sending_reports_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster from which the response was sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
profile_id
int
16-bit identifier of the profile of the endpoint from which the response was
sent.
85
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
int
8-bit identifier of the endpoint to which the response was sent.
source_address
MAC
64-bit extended address of the device from which the response was sent.
manufacturer_code
(optional)
int
16-bit manufacturer code of the attributes in the record list.
record_list
list
List of records derived from the payload of the ZCL Configure Reporting
Response Command.
item - StopReportingStatusRecord (See
“StopReportingStatusRecord” on page 122)
get_local_reporting_configurations
Returns all of the reporting configurations of the gateway. This includes configurations
for gateway reporting to other devices and other devices reporting to the gateway. This
command takes no parameters.
get_local_reporting_configurations_response Parameters:
Parameter
record_list
Type
list
Description
List of records which specify the local reporting configurations on the
gateway.
item - LocalReportingConfigurationRecord
(see “LocalReportingConfigurationRecord” on page 125)
read_reporting_configuration
Retrieves the ZCL Attribute reporting configuration records for the specified attribute
reports.
read_reporting_configuration Parameters:
Parameter
Type
Description
remote_configuration
(optional)
bool
If TRUE, the configuration is to be read from the remote device's
destination_endpoint. If FALSE, the configuration is to be read from the
local device's source_endpoint. Defaults to FALSE
cluster_id
int
16-bit identifier of the target cluster to which the ZCL command will be
sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
86
Parameter
Type
Description
reporting_direction
int
Configuration to be read is for reports being sent from (0) or sent to (1)
the target cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint from which the ZCL command will be sent.
destination_address
MAC
64-bit extended address of the device hosting the destination endpoint.
manufacturer_code
(optional)
int
If included, the 16-bit manufacturer code of the attributes in the record
list. Defaults to no manufacturer code.
record_list
list
List of records which will make up the payload of the ZCL Read Reporting Configuration Response Command
item - ReadReportingConfigurationRecord (See
“ReadReportingConfigurationRecord” on page 122)
read_reporting_configuration_response Parameters:
Parameter
Type
Description
remote_configuration
(optional)
bool
If TRUE, the configuration was read from the remote device's
source_endpoint (destination_endpoint in request). If FALSE, the configuration was read from the local device's destination_endpoint
(source_endpoint in request).
cluster_id
int
16-bit identifier of the cluster from which the response was sent.
server_or_client
int
Cluster from which the response was sent is a server (0) or client (1)
cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the response was sent.
source_address
MAC
64-bit extended address of the device hosting the source endpoint
(destination endpoint in request).
manufacturer_code
(optional)
int
If included, the 16-bit manufacturer code of the attributes in the record
list.
record_list
list
List of records which made up the payload of the ZCL Read Reporting
Configuration Response Command.
item - ReadReportingConfigurationResponseRecord (See
“ReadReportingConfigurationResponseRecord” on page 122)
87
identify
Instructs the target device to begin self-identification. When the target device is a
gateway, it will rapidly blink its associate LED for self-identification.
identify Parameters:
Parameter
Type
Description
destination_endpoint_id
int
8-bit identifier of an endpoint hosting the Identify server cluster
(0x0003).
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint from which the ZCL request will be sent.
Required for remote requests.
destination_address
(optional)
MAC
64-bit extended address of the device to send the ZCL request to.
Defaults to the local device.
identify_time
int
Number of seconds for which identification should occur.
identify_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster from which the response was sent.
profile_id
int
16-bit identifier of the profile of the endpoint from which the response
was sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
(optional)
int
8-bit identifier of the endpoint to which the response was sent.
source_address (optional)
MAC
64-bit extended address of the device from which the response was
sent.
identify_time
int
Number of seconds for which identification should occur.
send_ZCL
Generates and sends a ZCL command with the given header information and payload to
a remote device. This command supports pass-through of custom ZCL commands which
do not have an associated interface method defined.
88
send_ZCL Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the target cluster to which the request will be
sent.
server_or_client
int
Target cluster is a server (0) or client (1) cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on which the target cluster exists.
source_endpoint_id
int
8-bit identifier of the endpoint from which the ZCL request will be
sent.
destination_address
MAC
64-bit extended address of the device to send the ZCL request to.
command_identifier
int
8-bit command identifier of the ZCL request.
command_type (optional)
int
Command is a general ZCL (0) or cluster-specific (1) command.
Defaults to cluster-specific (1).
manufacturer_code (optional)
int
If included, the 16-bit manufacturer code of the attributes for general ZCL commands or the manufacturer code of the command
identifier for cluster-specific commands.
response_command_identifier
(optional)
int
8-bit command identifier of the ZCL response. If provided this will
be used to match a ZCL response to this request.
response_command_type
(optional)
int
Response command will be a general ZCL (0) or cluster-specific
(1) command. Defaults to the value of command_type.
enable_aps_encryption
(optional)
bool
If TRUE, the ZCL request will be sent with APS encryption
enabled. If FALSE the ZCL request will be sent with APS encryption disabled. Defaults to the sending cluster's configuration.
payload
base16,
base64,
record or
list of
records.
Payload of the ZCL command.
89
send_ZCL_response Parameters:
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster from which the response was sent.
server_or_client
int
Target cluster from which the response was sent is a server (0) or client (1) cluster.
profile_id
int
16-bit profile identifier of the endpoint from which the response was
sent.
source_endpoint_id
int
8-bit identifier of the endpoint from which the response was sent.
destination_endpoint_id
int
8-bit identifier of the endpoint to which the response was sent.
source_address
MAC
64-bit extended address of the device from which the response was
sent.
command_identifier
int
8-bit command identifier of the ZCL response.
command_type
int
Response command was a general ZCL (0) or cluster-specific (1)
command.
manufacturer_code
(optional)
int
If included, the 16-bit manufacturer code of the response command.
enable_aps_encryption
(optional)
bool
If TRUE, the response command was APS encrypted. If FALSE, the
command was not APS encrypted. Only included if the original
request provided this parameter.
payload
base16
or
base64
Payload of the ZCL response. It will be of type base64 if the original
request used base64 for its payload. Otherwise it will be of type
base16.
90
SE Requests/Responses
Demand Response / Load Control (DRLC) Commands - Common
get_DRLC_events
Returns the gateway’s list of valid DRLC events. This command can be used on a DRLC
server or client cluster.
get_DRLC_events Parameters:
Parameter
Type
Description
endpoint_id (optional)
int
8-bit identifier of the endpoint on the gateway hosting the DRLC
cluster. Defaults to the standard SE endpoint (0x5E).
server_or_client (optional)
int
Return events from local server (0) or client (1) cluster. If not
specified, will search endpoint for DRLC cluster.
get_DRLC_events_response Parameters:
Parameter
Type
Description
endpoint_id (optional)
int
8-bit identifier of the endpoint on the gateway hosting the DRLC
server cluster.
events_record_list
list
List of valid events.
item - LoadControlEventRecord - Contains information
about the event. (See “LoadControlEventRecord” on
page 125)
Demand Response / Load Control (DRLC) Commands - Server
create_DRLC_event
Adds a DRLC event to the gateway’s list of events. A Load Control Event command
(0x00) will be immediately sent to all DRLC client clusters hosted on an active device.
This command will be sent from the specified endpoint hosting a DRLC server cluster on
the local device.
91
create_DRLC_event Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway hosting
the DRLC server cluster. Defaults to the standard SE
endpoint (0x5E).
record
LoadControlEventRecord
Contains information about the event to add. (See
“LoadControlEventRecord” on page 125).
create_DRLC_event_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the DRLC server cluster.
cluster_id
int
16-bit identifier of the cluster to which the DRLC event
was sent.
status
int
Indicates the local success or failure of adding the
event using standard ZCL status values. Can be success (0x00), invalid field (0x85) or duplicate exists
(0x8A).
record
LoadControlEventRecord
Record containing information about the event that
was added. (See “LoadControlEventRecord” on
page 125).
device_list
list
List of all devices to which the event was sent. Will be
empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the event was sent.
cancel_DRLC_event
Removes a DRLC event from the gateway’s list of events. A Cancel Load Control Event
command (0x01) will be immediately sent to all DRLC client clusters hosted on an active
device. This command will be sent from the specified endpoint hosting a DRLC server
cluster on the local device.
92
cancel_DRLC_event Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway hosting the DRLC server cluster. Defaults to the standard SE endpoint (0x5E).
record
CancelLoadControlEventRecord
Contains information about the cancel. (See
“CancelLoadControlEventRecord” on page 125)
cancel_DRLC_event_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting the DRLC server cluster.
cluster_id
int
16-bit identifier of the cluster to which the DRLC
event was sent.
status
int
Indicates the local success or failure of cancelling
the event using standard ZCL status values. A cancel should never fail locally so this field should
always contain success (0x00).
record
CancelLoadControlEventRecord Contains information about the cancel. (See
“CancelLoadControlEventRecord” on page 125)
device_list
list
List of all devices to which the cancel was sent. Will
be empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the cancel was sent.
93
cancel_all_DRLC_events
Removes all DRLC events from the gateway’s list of events. A DRLC Cancel All Load
Control Events command (0x02) will be immediately sent to all client clusters hosted on
an active device. This command will be sent from the specified endpoint hosting a DRLC
server cluster on the local device.
cancel_all_DRLC_events Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway
hosting the DRLC server cluster. Defaults to the
standard SE endpoint (0x5E).
record
CancelAllLoadControlEventsRecord
Contains information about the cancel. (See
“CancelAllLoadControlEventsRecord” on
page 126)
cancel_all_DRLC_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway
hosting the DRLC server cluster.
cluster_id
int
16-bit identifier of the cluster to which the DRLC
event was sent.
status
int
Indicates the local success or failure of cancelling all events using standard ZCL status values.
A cancel should never fail locally so this field
should always contain success (0x00).
record
CancelAllLoadControlEventsRecord
Contains information about the cancel. (See
“CancelAllLoadControlEventsRecord” on
page 126)
device_list
list
List of all devices to which the cancel was sent.
Will be empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the cancel was sent.
received_report_event_status (response only)
This RPC response is generated when a DRLC server cluster hosted on the local device
receives a DRLC Report Event Status command (0x00).
94
received_report_event_status Parameters:
Parameter
Type
Description
source_address
MAC
64-bit extended address of the device hosting the
DRLC client.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote device
hosting the DRLC client.
record
ReportEventStatusRecord
Describes the status of the event. (See
“ReportEventStatusRecord” on page 126)
cluster_id
int
16-bit identifier of the DRLC cluster.
destination_endpoint_id
int
8-bit identifier of the local endpoint on which the
DRLC cluster exists.
Client
get_scheduled_DRLC_events
Get server to resend scheduled DRLC events. Client sends a get scheduled DRLC
events command (0x01) to each of the active DRLC servers. This request can specify a
start time and maximum number of events for the server to send.
get_scheduled_DRLC_events Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway
hosting the DRLC client cluster. Defaults to the
standard SE endpoint (0x5E).
record (optional)
GetScheduledEventsRecord
Specifies the start time and number of events to
get from the DRLC server cluster. Defaults to
getting all events.
(See GetScheduledEventsRecord” on page
127.)
get_scheduled_DRLC_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway
hosting the DRLC client cluster.
cluster_id
int
16-bit identifier of the cluster from which the
DRLC event was sent.
95
Parameter
Type
Description
record (optional)
GetScheduledEventsRecord
Returns the start time and number of events
requested from the DRLC server cluster. Only
included in the response if record was included
in the original request.
(See “GetScheduledEventsRecord” on page
127.)
device_list
list
List of all devices to which the message was
sent. Will be empty if status is not success
(0x00).
item - MAC - 64-bit extended address of a
device to which the cancel was sent.
clear_DRLC_events
Removes all DRLC events from the gateway’s DRLC client cluster’s list of events. Events
are still active on the server and may be resent or requested to be resent by the client
using the get_scheduled_DRLC_events command.
clear_DRLC_events Parameters:
Parameter
source_endpoint_id
(optional)
Type
Description
int
8-bit identifier of the endpoint on the gateway
hosting the DRLC client cluster. Defaults to the
standard SE endpoint (0x5E).
clear_DRLC_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway
hosting the DRLC client cluster.
cluster_id
int
16-bit identifier of the DRLC cluster.
96
received_DRLC_event (response only)
This RPC response message is generated when a DRLC client cluster hosted on the
local device received a Load Control Event command (0x00). The event will be added to
the DRLC client.
received_DRLC_event Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of receiving the
DRLC event. Can be success (0x00), invalid
field (0x85), or duplicate exists (0x8A).
source_address
MAC
64-bit extended address of the device hosting
the DRLC server cluster.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote
device hosting the DRLC server cluster.
destination_endpoint_id int
8-bit identifier of the endpoint on the gateway
that hosts the DRLC client cluster.
cluster_id
int
16-bit identifier of the DRLC cluster.
record
LoadControlEventRecord
Contains information about the received event.
(See “LoadControlEventRecord” on page 126.)
received_DRLC_cancel_event (response only)
This RPC response message is generated when a DRLC client cluster hosted on the
local device received a Cancel Load Control Event command (0x01).
received_DRLC_cancel_event Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of receiving the
DRLC cancel event. Can be success (0x00),
invalid field (0x85), or duplicate exists (0x8B).
source_address
MAC
64-bit extended address of the device hosting
the DRLC server cluster.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote
device hosting the DRLC server cluster.
destination_endpoint_id int
8-bit identifier of the endpoint on the gateway
that hosts the DRLC client cluster.
97
Parameter
Type
Description
cluster_id
int
16-bit identifier of the DRLC cluster.
record
CancelLoadControlEventRecord
Contains information about the received event.
(See “CancelLoadControlEventRecord” on
page 126.)
received_DRLC_cancel_all_events (response only)
This RPC response message is generated when a DRLC client cluster hosted on the
local device received a Cancel All Load Control Events command (0x02).
received_DRLC_cancel_all_events Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of receiving the
DRLC cancel all event. Can be success (0x00)
or invalid field (0x85).
source_address
MAC
64-bit extended address of the device hosting
the DRLC server cluster.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote
device hosting the DRLC server cluster.
destination_endpoint_id int
8-bit identifier of the endpoint on the gateway
that hosts the DRLC client cluster.
cluster_id
int
16-bit identifier of the DRLC cluster.
record
CancelAllLoadControlEvents
Record
Contains information about the received event.
(See “CancelAllLoadControlEventsRecord” on
page 127.)
98
updated_active_DRLC_events (response only)
The DRLC client cluster keeps a list of currently active DRLC events. When this list
changes, the client generates an updated_active_DRLC_events. This can occur when
an event starts, stops, or is canceled. An empty list of events will be returned when there
are no active events.
updated_active_DRLC_events Parameters:
Parameter
Type
Description
destination_endpoint_id int
8-bit identifier of the endpoint on the gateway
that hosts the DRLC client cluster.
cluster_id
int
16-bit identifier of the DRLC cluster.
record_list
list
List of active DRLC events. List will be empty if
there are no active DRLC events.
item - LoadControlEventRecord
(See “LoadControlEventRecord” on page 126)
99
Messaging Commands - Common
get_message_events
Returns the gateway’s list of valid message events. This command can be used on a
message server or client cluster.
get_message_events Parameters:
Parameter
endpoint_id (optional)
Type
Description
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging cluster. Defaults to the standard SE
endpoint (0x5E).
get_message_events_response Parameters:
Parameter
Type
Description
endpoint_id
int
8-bit identifier of the endpoint on the gatway hosting
the Messaging cluster.
events_record_list
list
List of valid events.
item - DisplayMessageRecord - Contains
information about the message. (See
“DisplayMessageRecord” on page 127)
Messaging Commands - Server
create_message_event
Add a message event to the gateway’s list of events. A Display Message command
(0x00) will be immediately sent to all Messaging client clusters hosted on an active
device. This command will be sent from the specified endpoint hosting a Messaging
server cluster on the local device.
100
create_message_event Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging server cluster. Defaults to the standard SE endpoint (0x5E).
record
DisplayMessageRecord
Contains information about the event to add. (See
“DisplayMessageRecord” on page 127).
create_message_event_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging server cluster.
cluster_id
int
16-bit identifier of the cluster to which the Messaging
command was sent.
status
int
Indicates the local success or failure of adding the
event using standard ZCL status values. Can be success (0x00), invalid field (0x85) or duplicate exists
(0x8A).
record
DisplayMessageRecord
Contains information about the event that was added.
(See “DisplayMessageRecord” on page 127).
device_list
list
List of all devices to which the event was sent. Will be
empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the event was sent.
cancel_message_event
Removes a message event from the gateway’s list of events. A Cancel Message
command (0x01) will be immediately sent to all Messaging client clusters hosted on an
active device. This command will be sent from the specified endpoint hosting a
Messaging server cluster on the local device.
cancel_message_event Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway hosting the
Messaging server cluster. Defaults to the standard SE
endpoint (0x5E).
record
CancelMessageRecord
Contains information about the cancel. 
(See “CancelMessageRecord” on page 127).
101
cancel_message_event_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting the
Messaging server cluster.
cluster_id
int
16-bit identifier of the cluster to which the Messaging 
command was sent
status
int
Indicates the local success or failure of cancelling the
event using standard ZCL status values. A cancel should
never fail locally so this field should always contain success (0x00).
record
CancelMessageRecord
Contains information about the cancel. 
(See “CancelMessageRecord” on page 127).
device_list
list
List of all devices to which the cancel was sent. Will be
empty if status is not success (0x00).
item - MAC - 64-bit extended address of a device to
which the cancel was sent.
cancel_all_message_events
Removes all message events from the gateway’s list of events. The Messaging cluster
does not define a Cancel All Messages command so each message must be canceled
individually. A Cancel Message command (0x01) will be immediately sent to all client
clusters hosted on an active device for each message. These commands will be sent
from the specified endpoint hosting a Messaging server cluster on the local device.
cancel_all_message_events Parameters:
Parameter
source_endpoint_id
(optional)
Type
Description
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging server cluster. Defaults to the 
standard SE endpoint (0x5E).
102
cancel_all_message_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gatway hosting
the Messaging server cluster.
cluster_id
int
16-bit identifier of the cluster to which the Messaging
command was sent.
status
int
Indicates the local success or failure of cancelling the
events using standard ZCL status values. A cancel
should never fail locally so this field should always
contain success (0x00).
device_list
list
List of all devices to which the cancel was sent. Will
be empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the cancel was sent.
Messaging Commands - Client
received_message_confirmation (response only)
This RPC response message is generated when a Messaging server cluster hosted on
the local device receives a Message Confirmation command (0x01). This command can
be sent to confirm a message, or confirm that a message has been canceled.
received_message_confirmation Parameters:
Parameter
Type
Description
source_address
MAC
64-bit extended address of the device hosting
the Messaging client.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote
device hosting the Messaging client.
cluster_id
int
16-bit identifier of the cluster to which the 
message command was sent.
record
MessageConfirmationRecord
Describes the status of the event.
(See “MessageConfirmationRecord” on
page 128)
103
received_message_event (response only)
This RPC response message is generated when a Messaging client cluster hosted on
the local device receives a Display Message command (0x00).
received_message_event Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of receiving the
message event. Can be success (0x00),
invalid field (0x85), or duplicate exists (0x8A).
source_address
MAC
64-bit extended address of the device hosting
the Messaging server cluster.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote
device hosting the Messaging server cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on the gateway
that hosts the Messaging client cluster.
cluster_id
int
16-bit identifier of the cluster to which the 
message command was sent.
record
DisplayMessageEventRecord
Contains information about the received event.
(See “DisplayMessageEventRecord” on page
128.)
received_message_cancel_event (response only)
This RPC response message is generated when a Messaging client cluster hosted on
the local device receives a Cancel Message Event command (0x01).
received_message_confirmation Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of receiving the
cancel message event. Can be success
(0x00), invalid field (0x85), or not found (0x8B).
source_address
MAC
64-bit extended address of the device hosting
the Messaging server cluster.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote
device hosting the Messaging server cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on the gateway
that hosts the Messaging client cluster.
104
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster to which the 
message command was sent.
record
CancelMessageEventRecord
Contains information about the received event.
(See “CancelMessageEventRecord” on page
128.)
updated_active_message_events (response only)
The messaging client cluster keeps a list of currently active message events. When this
list changes, the client generates an updated_active_message_events response. This
can occur when an event starts, stops, or is canceled. An empty list of events will be
returned when there are no active events.
Note:
When a Cancel Message Event command that requires a confirmation for the currently active
message is received, an updated_active_message_events will be generated. The record for the
message that was canceled will have an extra parameter “cancel_message_control” set to the
“message_control” parameter in the Cancel Message Event.
updated_active_message_events Parameters:
Parameter
Type
Description
destination_address_id
int
8-bit identifier of the endpoint on the gateway
on which the Messaging client cluster exists
cluster_id
int
16-bit identifier of the cluster to which the 
message command was sent.
record_list
list
List of active message events. List will be
empty if there are no active message events.
item - DisplayMessageEventRecord (See
“DisplayMessageEventRecord” on page 128.)
get_last_message_event
Get server to resend the most recent message event. Client sends a get last message
event command (0x00) to each of the active Messaging servers.
get_last_message_event Parameters:
Parameter
source_endpoint_id
(optional)
Type
Description
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging client cluster. Defaults to the 
standard SE endpoint (0x5E).
105
get_last_message_event_response Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of requesting the last
event using ZCL status values. Can be success
(0x00), invalid field (0x85), or not found (0x8B).
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging client cluster.
cluster_id
int
16-bit identifier of the cluster from which the message
command was sent.
device_list
list
List of all devices to which the cancel was sent. Will
be empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the cancel was sent.
confirm_message
Message events and cancel message events can require confirmation from the
Messaging client. When the Messaging client receives a confirm_message, it will
immediately send a Message Confirmation Command (0x01) to all the active Messaging
servers. The Message Confirmation Command uses the message ID to specify the
message event or cancel message event it is confirming.
confirm_message Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging client cluster. Defaults to the 
standard SE endpoint (0x5E).
record (optional)
MessageConfirmationRecord
Specifies the message ID for the message event or
cancel message event being confirmed. Defaults to
confirming the currently active message. 
(See “MessageConfirmationRecord” on page 129.)
confirm_message_response Parameters:
Parameter
Type
Description
status
int
Indicates the local success or failure of confirming the
event using standard ZCL status values. Can be 
success (0x00), invalid field (0x85), or not found
(0x8B).
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging client cluster.
106
Parameter
Type
Description
cluster_id
int
16-bit identifier of the cluster from which the message
command was sent.
record (optional)
MessageConfirmationRecord
Specified the message ID for the message event or
cancel message event being confirmed. Only include
if record is specified in the original confirm_message
command (See “MessageConfirmationRecord” on
page 129.)
device_list
list
List of all devices to which the confirmation was sent.
Will be empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the cancel was sent.
clear_message_events
Removes all message events from the gateway’s Messaging client cluster’s list of
events. Events are still active on the server and may be resent or requested to be resent
by the client using get_last_message_event command (see get_last_message_event on
page 106).
clear_message_events Parameters:
Parameter
source_endpoint_id
(optional)
Type
Description
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging client cluster. Defaults to the 
standard SE endpoint (0x5E).
clear_message_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the Messaging client cluster.
cluster_id
int
16-bit identifier of the cluster from which the message
command was sent.
107
Price Commands - Common
get_price_events
Returns the gateway’s list of valid price events. This command can be used on a price
server or client cluster.
get_price_events Parameters:
Parameter
Type
Description
endpoint_id (optional)
int
8-bit identifier of the endpoint on the gateway hosting the Price
server cluster. Defaults to the standard SE endpoint (0x5E).
server_or_client
int
Return events from local server (0) or client (1) cluster. If not
specified, will search endpoint for Price cluster.
get_price_events_response Parameters:
Parameter
Type
Description
endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting the Price
cluster.
cluster_id
int
16-bit identifier of the Price cluster.
server_or_client
int
Identified the local cluster the events list is from as a server (0) or
client (1) cluster.
events_record_list
int
List of valid events.
item - PublishPriceRecord - Contains information about
the event. (See “PublishPriceRecord” on page 128)
Price Commands - Server
create_price_event
Add a price event to the gateway’s list of events. A Publish Price command (0x00) will be
immediately sent to all Price client clusters hosted on an active device. This command
will be sent from the specified endpoint hosting a Price server cluster on the local device.
108
create_price_event Parameters:
Parameter
Type
Description
source_endpoint_id
(optional)
int
8-bit identifier of the endpoint on the gateway hosting
the Price server cluster. Defaults to the standard SE
endpoint (0x5E).
record
PublishPriceRecord
Contains information about the event to be added.
(See “PublishPriceRecord” on page 128).
create_price_event_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the Price server cluster.
cluster_id
int
16-bit identifier of the cluster to which the Price command was sent.
status
int
Indicates the local success or failure of adding the
event using standard ZCL status values. Can be success (0x00), invalid field (0x85) or duplicate exists
(0x8A).
record
PublishPriceRecord
Contains information about the event that was added.
(See “PublishPriceRecord” on page 128)
device_list
list
List of all devices to which the event was sent. Will be
empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the event was sent.
cancel_all_price_events
Removes all price events from the gateway’s list of events. The Price cluster does not
define cancel commands so Price client clusters cannot be notified of the canceled
prices.
cancel_all_price_events Parameters:
Parameter
source_endpoint_id
Type
int
Description
8-bit identifier of the endpoint on the gateway hosting the Price server
cluster. Defaults to the standard SE endpoint (0x5E).
109
cancel_all_price_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting the Price server
cluster.
status
int
Indicates the local success or failure of cancelling all events using standard ZCL status values. A cancel should never fail locally, so this field
should always contain success (0x00).
110
Price Commands - Client
get_current_price_event
Get server to resend the current price event. Client sends a Get Current Price Event
command (0x00) to each of the active price servers.
get_current_price_event Parameters:
Parameter
source_endpoint_id (optional)
Type
int
Description
8-bit identifier of the endpoint on the gateway hosting the Price 
client cluster. Defaults to the standard SE endpoint (0x5E).
get_current_price_event_response Parameters:
Parameter
Type
Description
status
int
Indicates the local success or failure of requesting the current
price using standard ZCL status values. Can be success (0x00),
invalid field (0x85), or not found (0x8B).
endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting the Price 
client cluster.
cluster_id
int
16-bit identifier of the cluster from which the Price command was
sent.
device_list
list
List of all devices to which the request was sent. Will be empty if
status is not success (0x00).
item - MAC - 64-bit extended address of a device to which
the request was sent.
111
get_scheduled_price_events
Get server to resend scheduled price events. Client sends a Get Scheduled Price
Events command (0x01) to each of the active Price servers. This request can specify a
start time and maximum number of events for the server to send.
get_scheduled_price_events Parameters:
Parameter
Type
Description
source_endpoint_id (optional)
int
8-bit identifier of the endpoint on the gateway hosting
the DRLC client cluster. Defaults to the standard SE
endpoint (0x5E).
record (optional)
GetScheduledPricesRecord
Specifies the start time and number of events to get
from the DRLC server cluster. Defaults to all events.
(See “GetScheduledPricesRecord” on page 130.)
get_scheduled_price_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting
the Price client cluster.
cluster_id
int
16-bit identifier of the cluster from which the Price
command was sent.
record (optional)
GetScheduledPricesRecord
Returns the start time and number of events
requested from the Price server cluster. Only included
in response if specified in the request.
(See “GetScheduledPricesRecord” on page 130.)
device_list
list
List of all devices to which the request was sent. Will
be empty if status is not success (0x00).
item - MAC - 64-bit extended address of a
device to which the request was sent.
clear_price_events
Removes all price events from the gateway’s Price client cluster’s list of events. Events
are still active on the server and may be sent or requested to be resent by the client
using the get_scheduled_price_events command.
clear_price_events Parameters:
Parameter
source_endpoint_id
(optional)
Type
int
Description
8-bit identifier of the endpoint on the gateway hosting the Price client
cluster. Defaults to the standard SE endpoint (0x5E).
112
clear_price_events_response Parameters:
Parameter
Type
Description
source_endpoint_id
int
8-bit identifier of the endpoint on the gateway hosting the Price client
cluster.
cluster_id
int
16-bit identifier of the Price cluster.
received_price_event (response only)
This RPC response message is generated when a Price cluster hosted on the local
device receives a Publish Price Event command (0x00). The event will be added to the
Price client.
received_price_event Parameters:
Parameter
Type
Description
status
int
Indicates the success or failure of receiving the price
event. Can be success (0x00), invalid field (0x85), or
duplicate exists (0x8A).
source_address
MAC
64-bit extended address of the device hosting the Price
server cluster.
source_endpoint_id
int
8-bit identifier of the endpoint on the remote device hosting
the Price server cluster.
destination_endpoint_id
int
8-bit identifier of the endpoint on the gateway that hosts the
Price client cluster.
cluster_id
int
16-bit identifier of the Price cluster.
record
DisplayPriceEventRecord
Contains information about the received event. 
(See “DisplayPriceEventRecord” on page 129.)
113
Aliasing Commands
Adding, removing and listing aliases are all standard RPC requests (see below). The
use of an alias does not follow the RPC format because they can be included anywhere
within an RPC request or represent one or more RPC requests. To insert an alias into an
RPC request, use the alias name as the tag name and set the type to “alias”. The
Python RPC manager will replace the alias with the XML from the add_alias command.
See “Aliases” on page 60 for more information.
add_alias
Adds an alias to be used in later RPC requests. The format of this command is as
follows:
<add_alias>
<alias_name type=”xml”>
XML
</alias_name>
</add_alias>
add_alias Parameters:
Parameter
alias_name
Type
xml
Description
Name of the alias. (Does not have to be “alias_name”.) Name is
used to list, remove, and use the alias.
add_alias_response Parameters:
Parameter
alias_name
Type
string
Description
Name of the alias that was created.
remove_alias
Removes a previously defined alias.
The format of this command is as follows:
114
<remove_alias>
<alias_name/>
</remove_alias>
remove_alias Parameters:
Field
alias_name
Type
none
Description
Tag is the name of the alias to be removed.
remove_alias_response Parameters:
Parameter
alias_name
Type
bool
Description
Tag is the name of the alias that was removed.
Set to TRUE if alias was removed.
Set to FALSE if alias didn’t exist.
list_aliases
Lists all aliases that are currently defined. This command takes no parameters.
The format of the response is as follows:
<list_aliases_response>
<alias_list type=”dict”>
<alias_name type=”xml”><always>look on the bright side of life</always></
alias_name>
<different_alias_name type=”xml”><newt>I got better ...</newt></
different_alias_name>
</alias_list>
</list_aliases_response>
list_aliases_response Parameters:
Parameter
alias_list
Type
list
Description
List of aliases of type xml. Each item of the list will use the
name of the alias as the tagname.
115
RECORD REFERENCE
Records are used on the gateway both internally and as input and output parameters in
the RPC Interface. Many of the records correspond to descriptions found in the ZigBee,
ZCL, or SE specifications and where appropriate this has been noted. Type,
descriptions, defaults, etc for record fields are specific to their use in the RPC Interface.
See the appropriate specification for more detailed information.
The referenced specifications are provided by the ZigBee Alliance and can be
downloaded from their website at www.zigbee.org.
ZDO Records
ZDODeviceRecord
This record contains the known information about a device on the gateway’s ZigBee
network. This record is populated and updated as part of discovery explained in "Remote
Device Management" on page 42.
Parameter
Type
Description
active
bool
If TRUE, the device is considered active and is responding to
the gateway's queries. If FALSE, the device is considered inactive due to failed transmissions. This may be caused by interference, power loss, remote device failures, etc.
addr_extended
MAC
64-bit extended address of the device.
addr_short (optional)
MAC
16-bit short network address of the device. Only included if the
device has responded to a ZDO Match_Desc_req.
active_endpoints
(optional)
list
List of all endpoints currently active on the device. Only included
if the device has responded to a ZDO Active_EP_req.
item - int - 8-bit identifier of an active endpoint.
simple_descriptors
(optional)
dict
Dictionary of simple descriptors for active endpoints. Included if
the device has responded to a ZDO Simple_Desc_req.
endpoint_0x## - Simple_Desc_rsp - Simple descriptor
of the endpoint whose identifier is ##. (See
Simple_Desc_rsp on page 119.)
power_descriptor
(optional)
Power_Desc_rsp
Power descriptor of the device. Included if the device has
responded to a ZDO Power_Desc_req. (See Power_Desc_rsp
on page 119.)
node_descriptor
(optional)
Node_Desc_rsp
Node descriptor of the device. Included if the device has
responded to a ZDO Node_Desc_req. (See Node_Desc_rsp
on page 118.)
116
Parameter
Type
Description
node_type (optional)
int
Identifier of the node type of the device. Included if the device
has responded to a ZDO Node_Desc_req.
manufacturer_id
(optional)
int
Manufacturer identifier of the device. Included if the device has
responded to a ZDO Node_Desc_req.
Node_Desc_rsp
All parameters following nwk_addr correspond to the Node Descriptor, whose format is
given in the ZigBee Specification.
If status is not success (0) then all parameters following nwk_addr are excluded.
Parameter
Type
Description
status
int
On failure this parameter will be non-zero and the descriptor is
not present in the response.
nwk_addr
int
16-bit short network address of the device.
logical_type
int
complex_desc_avail
int
user_desc_avail
int
aps_flags
int
frequency_band
int
mac_capability_flags
int
manufacturer_code
int
max_buffer_size
int
max_incoming_transfer_size
int
server_mask
int
max_outgoing_transfer_size
int
descriptor_capability_field
int
117
Power_Desc_rsp
All parameters following nwk_addr correspond to the Power Descriptor, whose format is
given in the ZigBee Specification.
If status is not success (0) then all parameters following nwk_addr are excluded.
Parameter
Type
Description
status
int
On failure this parameter will be non-zero and the descriptor is
not present in the response.
nwk_addr
int
16-bit short network address of the device.
current_power_mode
int
available_power_sources
int
current_power_source
int
current_power_source_level
int
Simple_Desc_rsp
All parameters following nwk_addr correspond to the Simple Descriptor, whose format is
given in the ZigBee Specification.
If status is not success (0) then all parameters following nwk_addr are excluded.
Parameter
Type
Description
status
int
On failure this parameter will be non-zero and the descriptor is
not present in the response.
nwk_addr
int
16-bit short network address of the device.
endpoint_id
int
8-bit identifier of the endpoint.
profile_id
int
16-bit device identifier of the endpoint.
device_id
int
16-bit device identifier of the endpoint.
device_version
int
4-bit device version of the endpoint
input_clusters
list
List of input clusters for the given endpoint.
item - int - 16-bit cluster ID of the input cluster.
output_clusters
list
List of output clusters for the given endpoint.
item - int - 16-bit cluster ID of the output cluster.
118
ZCL Records
ReadAttributeRecord
Corresponds to Read Attributes parameters as given in the ZCL Specification..
Parameter
Type
attribute_id
int
Description
Identifier of the attribute that is to be read.
ReadAttributeStatusRecord
Corresponds to Read attribute status record as documented for Read Attributes
Response in the ZCL Specification.
Parameter
Type
Description
status
int
On failure this parameter will be non-zero and the attribute_type
and value are not present in the response.
attribute_id
int
Identifier of the attribute that was read.
attribute_type
int
Only included if status is success (0)
value
int
Only included if status is success (0)
WriteAttributeRecord
Corresponds to Write attribute record as documented for Write Attributes in the ZCL
Specification.
Parameter
Type
Description
attribute_id
int
Identifier of the attribute to be written.
attribute_type
int
Data type of the attribute to be written. Defaults to Unknown
(0xFF).
value
depends on
attribute_type
Value of the attribute to be written. The type of this parameter
depends on attribute_type.
For example, if attribute_type specifies Unsigned 16-bit
integer (0x21) then value should be an int and if
attribute_type specifies Octet string (0x41) then value
should be a string.
119
WriteAttributeResponseRecord
Corresponds to Write attribute status record as documented for Write Attributes
Response in the ZCL Specification
Parameter
Type
Description
status
int
On failure this parameter will be non-zero.
attribute_id
int
Identifier of the attribute that was written.
attribute_type
int
Copied from the original request parameter.
value
depends on the
attribute type
Copied from the original request parameter.
AttributeReportingConfigurationRecord
Corresponds to Attribute reporting configuration record as documented for Configure
Reporting in the ZCL Specification.
The start_receiving_reports and stop_receiving_reports RPC requests automatically set
the direction to transmitting (0x00). Direction should not be included in the record when
these commands are used.
Parameter
Type
Description
attribute_id
int
Identifier of the attribute to be configured by this request.
direction
int
If 0x00, then configuration is for transmitting reports. If 0x01,
then configuration is for receiving reports. Defaults to 0x00.
attribute_type
int
Include if request is to configure transmitting reports.
Defaults to Unknown (0xFF).
min_interval
int
Include if request is to configure transmitting reports.
Defaults to 0.
max_interval
int
Include if request is to configure transmitting reports.
Defaults to 0.
reportable_change
depends on the
attribute type
Include if request is to configure transmitting reports.
Defaults to 0.
timeout
int
Include if request is to configure receiving reports. Defaults
to 0.
120
AttributeReportingConfigurationResponseRecord
Corresponds to Attribute status record as documented for Configure Reporting
Response in the ZCL Specification. Parameters other than status and attribute_id are
copied from the original request parameters.
If status is not success (0) then all other parameters except attribute_id are excluded.
Parameter
Type
Description
status
int
On failure this parameter will be non-zero and only attribute_id is included in
the response.
attribute_id
int
Identifier of the attribute that was configured.
direction
int
If 0x00, then configuration was for transmitting reports. If 0x01, then
configuration was for receiving reports. Defaults to 0x00.
attribute_type
int
Included if request was to configure transmitting reports. Defaults to
Unknown (0xFF).
min_interval
int
Included if request was to configure transmitting reports. Defaults to 0.
max_interval
int
Include if request was to configure transmitting reports. Defaults to 0.
reportable_change
int
Included if request was to configure transmitting reports. Defaults to 0.
timeout
int
Included if request was to configure receiving reports. Defaults to 0.
AttributeReportRecord
Corresponds to Attribute report as documented for Report Attributes in the ZCL
Specification.
Parameter
Type
Description
attribute_id
int
Identifier of the attribute that is being reported.
attribute_type
int
Type of the attribute that is being reported.
value
depends on
attribute_type
Value of the attribute that is being reported. The type of this
parameter depends on attribute_type.
For example, if attribute_type specifies Unsigned 16-bit
integer (0x21) then value should be an int and if
attribute_type specifies Octet string (0x41) then value
should be a string.
121
StopReportingRecord
When passed as a parameter to the stop_receiving_reports RPC request this record is
used to generate an AttributeReportingConfigurationRecord suitable for stopping
reports.
Parameter
attribute_id
Type
int
Description
Identifier of the attribute for which reporting will be stopped.
StopReportingStatusRecord
A parameter of the stop_receiving_reports_response RPC response.
Parameter
Type
Description
status
int
If success (0) then reporting successfully stopped. If non-zero an error
has occurred.
attribute_id
int
Identifier of the attribute for which reporting was stopped.
ReadReportingConfigurationRecord
Passed as a parameter to the read_reporting_configuration RPC request. This record is
used to generate an Attribute record as documented for Read Reporting Configuration in
the ZCL Specification.
Parameter
attribute_id
Type
int
Description
Identifier of the attribute whose configuration is being requested.
ReadReportingConfigurationResponseRecord
Corresponds to Attribute reporting configuration record as documented for Configure
Reporting Response in the ZCL Specification.
If status is not success (0) then all other parameters except attribute_id are excluded.
Parameter
Type
Description
status
int
On failure this parameter will be non-zero and only attribute_id is included
in the response.
attribute_id
int
Identifier of the attribute whose configuration was requested.
122
Parameter
Type
Description
direction
int
If 0x00, then configuration is for transmitting reports. If 0x01, then
configuration is for receiving reports. Defaults to 0x00.
attribute_type
int
Include if configuration is for transmitting reports. Defaults to
Unknown (0xFF).
min_interval
int
Include if configuration is for transmitting reports. Defaults to 0.
max_interval
int
Included if configuration is for transmitting reports. Defaults to 0.
reportable_change
int
Include if configuration is for transmitting reports. Defaults to 0.
timeout
int
Include if configuration is for receiving reports. Defaults to 0.
AttributeInformationRecord
Corresponds to Attribute information as documented for Discover Attributes Response in
the ZCL Specification.
Parameter
Type
Description
attribute_id
int
Identifier of the attribute.
attribute_type
int
Type of the attribute.
123
LocalReportingConfigurationRecord
Corresponds to the information stored locally for reporting. This report includes
addressing information for the remote device and the reporting configuration.
Parameter
Type
Description
device_address
MAC
64-bit address of the remote device sending or receiving
reports
device_endpoint_id
int
8-bit identifier of the remote endpoint which has the reporting
cluster
endpoint_id
int
8-bit identifier of the local endpoint which has the reporting
cluster
cluster_id
int
16-bit identifier of the local cluster sending or receiving
reports
server_or_client
int
Local cluster is a server (0) or client (1) cluster
reporting_direction
int
Gateway is sending reports (0) or receiving reports (1)
pseudo_reporting
(optional)
bool
If TRUE, the gateway is reading the attribute and simulating
reporting. Only included if reporting_direction is (1).
record
AttributeReportingConfigurationRecord
Reporting configuration values. (See “AttributeReportingConfigurationRecord” on page 121.)
ZCL_ArrayRecord
Corresponds to the ZCL Array type as documented in the ZCL Specification. For
example, this record can be used to define the value field in a
ReadAttributeStatusRecord (See “ReadAttributeStatusRecord” on page 119) or
WriteAttributeRecord (See “WriteAttributeRecord” on page 119)
Parameter
Type
Description
attribute_type
int
Type of attribute that is in the array.
value
list
List of items in the array.
124
SE Records
Demand Response / Load Control (DRLC)
LoadControlEventRecord
Corresponds to payload of Load Control Event in the SE Specification.
Parameter
Type
Description
issuer_event_id
int
No default.
device_class
int
Defaults to 0x0FFF (all non-reserved device classes).
utility_enrollment_group
int
Defaults to 0x0 (all groups).
start_time
int
Defaults to 0x0 (now).
duration_in_minutes
int
No default.
criticality_level
int
Defaults to 0x1 (lowest non-reserved priority).
cooling_temperature_offset
int
Defaults to 0xFF (denotes not used).
heating_temperature_offset
int
Defaults to 0xFF (denotes not used).
cooling_temperature_set_point
int
Defaults to -0x8000 (denotes not used).
heating_temperature_set_point
int
Defaults to -0x8000 (denotes not used).
average_load_adjustment_percentage
int
Defaults to -0x80 (denotes not used).
duty_cycle
int
Defaults to 0xFF (denotes not used).
event_control
int
Defaults to 0x3 (randomize start and end times).
CancelLoadControlEventRecord
Corresponds to payload of Cancel Load Control Event in the SE Specification.
Parameter
Type
Description
issuer_event_id
int
No default.
device_class
int
Defaults to 0x0FFF (all non-reserved device classes).
utility_enrollment_group
int
Defaults to 0x0 (all groups).
cancel_control
int
Defaults to 0x1 (use randomization from original event).
effective_time
int
Defaults to 0x0 (now).
125
CancelAllLoadControlEventsRecord
Corresponds to payload of Cancel All Load Control Events in the SE Specification.
Parameter
cancel_control
Type
int
Description
Defaults to 0x1 (use randomization from original event).
ReportEventStatusRecord
Corresponds to payload of Report Event Status in the SE Specification.
Parameter
Type
Description
issuer_event_id
int
No default.
event_status
int
No default.
event_status_time
int
Defaults to current time when record is created.
criticality_level_applied
int
No default.
cooling_temperature_set_point_applied
int
Defaults to 0x8000 (denotes not used).
heating_temperature_set_point_applied
int
Defaults to 0x8000 (denotes not used).
average_load_adjustment_percentage_applied
int
Defaults to 0x80 (denotes not used).
duty_cycle_applied
int
Defaults to 0xFF (denotes not used).
event_control
int
No default.
signature_type
int
Defaults to 0x01 (ECDSA).
signature
base16
42 bytes. Defaults to all zero.
GetScheduledEventsRecord
Corresponds to payload of Get Scheduled Events in the SE Specification.
Parameter
Type
Description
start_time
int
Defaults to zero (no start time filter)
number_of_events
int
Defaults to zero (no limit on number of events returned)
126
Messaging
DisplayMessageRecord
Corresponds to payload of Display Message in the SE Specification.
Parameter
Type
Description
message_id
int
No default.
message_control
int
Defaults to 0 (normal transmission, low importance, no confirmation required)
cancel_message_control
(optional - response
only)
int
Only included in the RPC response updated_active_message
(See “updated_active_message” on page 105) when a currently
active message is canceled, and the Cancel Message command
(See “cancel_message” on page 101) has a message_control
field that requires confirmation. In this case, the
updated_active_message RPC response inserts the
message_control parameter from the Cancel Message into the
DisplayMessageRecord as the parameter
cancel_message_control to signify that the message was canceled, but should still be displayed until the cancel is confirmed.
start_time
int
Defaults to 0x0 (now)
duration_in_minutes
int
No default
message
string
No default
CancelMessageRecord
Corresponds to payload of Cancel Message in the SE Specification.
Parameter
Type
Description
message_id
int
No default.
message_control
int
Defaults to 0. (normal transmission)
127
MessageConfirmationRecord
Corresponds to payload of Message Confirmation in the SE Specification.
Parameter
Type
Description
message_id
int
No default.
confirmation_time
int
Defaults to current time when record is created.
GetScheduledEventsRecord
Corresponds to payload of Get Scheduled Events in the SE Specification.
Parameter
Type
Description
start_time
int
Defaults to zero (no start time filter)
number_of_events
int
Defaults to zero (no limit on number of events returned)
Price
PublishPriceRecord
Corresponds to payload of Publish Price in the SE Specification.
Parameter
Type
Description
provider_id
int
Defaults to 0xFFFFFFFF (denotes invalid, not
used).
rate_label
string
Defaults to empty string.
issuer_event_id
int
No default.
utc_time
int
Set to current time when record is transmitted.
currency
int
Defaults to 840 (US dollar).
price_trailing_digit_and_price_tier
int
Defaults to 0x20 (two digits to right of decimal,
no related tier).
number_of_price_tiers_and_register_tier
int
Defaults to 0x0 (no price tiers, no related tier).
start_time
int
Defaults to 0x0 (now).
duration_in_minutes
int
No default.
price
int
No default.
128
Parameter
Type
Description
price_ratio
int
Defaults to 0xFF (denotes not used).
generation_price
int
Defaults to 0xFFFFFFFF (denotes not used).
generation_price_ratio
int
Defaults to 0xFF (denotes not used).
alternate_cost_deliverd
int
Defaults to 0xFFFFFFFF (denotes not used).
alternate_cost_unit
int
Defaults to 0x1 (kg of CO2 per unit measure).
alternate_cost_trailing_digit
int
Defaults to 0xFF.
GetScheduledPricesRecord
Corresponds to payload of Get Scheduled Prices in the SE Specification.
Parameter
Type
Description
start_time
int
Defaults to zero (no start time filter)
number_of_events
int
Defaults to zero (no limit on number of events returned)
129
Appendix B
SMART ENERGY CERTIFICATE MANAGEMENT
All devices that operate in a ZigBee Smart Energy network must have a certificate
installed that authenticates the device and allows it to securely join and communicate on
the network. A certificate must be issued by the certificate authority (CA). Each certificate
is tied to the 64-bit extended address of the device.
Currently there are two types of certificates issued by the CA. Production certificates are
intended for use in deployed Smart Energy networks. Only devices which pass stringent
testing and are officially certified may be configured with a production certificate. Test
certificates may also be issued by the CA and are functionally equivalent to production
certificates. However, a device configured with a test certificate will not be able to
securely join and communicate on a production network. Test certificates are useful
during development and test, for example when communicating with prototype devices
that have not yet been certified, but should not be used in an actual deployment.
Certificates on ConnectPort X2 for Smart Energy
All ConnectPort X2 for Smart Energy gateways are certified and configured by default
with a production certificate, allowing them to create or join production networks out of
the box. During the course of development a test certificate may be installed. The
gateway's original production certificate can be restored at any time by removing the test
certificate.
Certificates on Standalone XBee Modules
Standalone XBee modules, such as the XStick SE, do not implement a specific Smart
Energy device and so cannot be certified directly but only as components in larger
systems. Due to this fact, standalone XBee modules cannot be preconfigured with
production certificates and will not be able to securely communicate with a Smart Energy
gateway out of the box.
In order for the standalone XBee to securely communicate on a Smart Energy network a
test certificate will need to be obtained from a certificate authority and installed.
Additional test certificates may also be necessary for other devices that are configured
with production certificates, such as the ConnectPort X2 for Smart Energy.
131
Obtaining Test Certificates
Certicom is the only recognized CA for ZigBee Smart Energy. Certicom provides an
online form to request test certificates at http://www.certicom.com/index.php/
gencertregister. Certificates are linked to a specific 64-bit extended address (EUI) which
must be provided to Certicom. Before requesting test certificates determine the EUI of all
devices which will need test certificates.
Determining EUI of a ConnectPort X2 for Smart Energy
The EUI of a Smart Energy gateway may be determined in several ways depending on
available access.
•
•
•
Through the web interface, EUI is displayed as Gateway Address under
Administration -> System Information -> XBee Network.
Through the iDigi portal, go to developer.idigi.com. Once signed in to the
webpage, click on “XBee Networks” under the Management category in the left
pane. Use the Gateway Device ID located on the bottom of the device to look up
the Node Address (aka EUI) of the Gateway in the table.
The RPC interface can be used to retrieve the EUI of the Gateway as well. The
easiest way is to send the get_zigbee_network_status request (see
get_zigbee_network_status on page 78). This request will return the EUI as one
of the parameters in its response.
<get_zigbee_network_status />
Determining EUI of a Standalone XBee Module
The EUI of a standalone XBee module serially attached to your computer can be
obtained in the following ways.
•
Run the In-Premise Display/Meter Simulator sample on page 30 and open the
serial port associated with the XBee. Once opened, the XBee's EUI will be
displayed under XBee Settings.
•
Run X-CTU (see “Resources” on page 7), and open the serial port associated with
the XBee. Once the serial port has been opened and communication established
click the Modem Configuration tab and then the Read button under Modem
Parameters and Firmware. Once all modem parameters are read the high 32-bits
of EUI are listed as SH - Serial Number High and the low 32-bits are listed as SL Serial Number Low, both under the Addressing subfolder.
132
Installing Certificates
Certificates obtained from Certicom should have the following format where ########
will be a long hexadecimal number for each entry.
CA Public Key: ########
Device Implicit Cert: ########
Device Private Key: ########
Device Public Key: ########
To install certificates onto either the ConnectPort X2 for Smart Energy or a standalone
XBee an AT command must be sent to configure the CA Public KEY (ZU), Device Implicit
Cert (ZT), and Device Private Key (ZV).
Installing Certificates on the ConnectPort X2 for Smart Energy
Use the xbee_AT RPC request to install a certificate. After installing a certificate the
network should also be reset. Use the following requests as a template and send in order.
1. Configure CA Public Key
<xbee_AT>
<command type="string">ZU</command>
<value type="base16">########</value>
</xbee_AT>
2. Configure Device Implicit Cert
<xbee_AT>
<command type="string">ZT</command>
<value type="base16">########</value>
</xbee_AT>
3. Configure Device Private Key
<xbee_AT>
<command type="string">ZV</command>
<value type="base16">########</value>
</xbee_AT>
133
4. Write settings to non-volatile flash
<xbee_AT>
<command type="string">WR</command>
</xbee_AT>
5. Reset network
<xbee_AT>
<command type="string">NR</command>
</xbee_AT>
Installing Certificates on a Standalone XBee Module
The easiest method to install a certificate on a Standalone XBee Module is using the InPremise Display/Meter Simulator sample on page 30.
If this is not possible X-CTU may also be used to send the necessary AT commands.
However, X-CTU does not provide direct support for the certificate AT commands. The
command packets must be manually created, entered into the Terminal tab, and sent to
the XBee. (For downloading the X-CTU see “Downloads” on page 7 and for accessing
the XBee SE Manual see “Online Documentation” on page 7.)
Reverting/Unininstalling Certificates
Certificates may be removed from either the ConnectPort X2 for Smart Energy or a
standalone XBee. Follow instructions in the appropriate section for installing a certificate
except with a value of 0 for the ZU (CA Public Key), ZV (Device Implicit Cert), and ZT
(Device Private Key) commands.
A ConnectPort X2 for Smart Energy will revert to its original production certificate when
this procedure is followed.
Production Certificates and Modifications
The ConnectPort X2 for Smart Energy underwent official testing through National
Technical Systems (NTS) for Smart Energy certification to allow installation of production
certificates. The ZigBee Smart Energy Test Specification and other ZigBee documents
provide a set of guidelines for what hardware and/or software changes may require
recertification. When making any modifications reference these documents and
determine if recertification may be required. Digi International may be able to provide
support for recertification. Contact your Sales Representative for more details.
