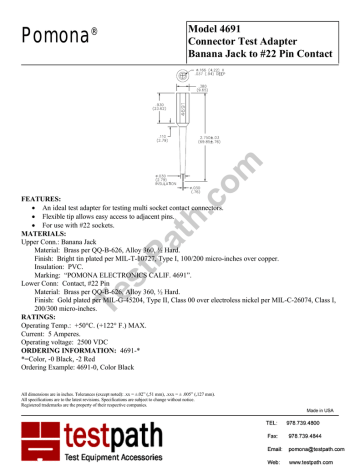

Pomona 4691-2 Datasheet
Pomona
®
co
m
Model 4691
Connector Test Adapter
Banana Jack to #22 Pin Contact
Te
st
Pa
t
h.
FEATURES:
• An ideal test adapter for testing multi socket contact connectors.
• Flexible tip allows easy access to adjacent pins.
• For use with #22 sockets.
MATERIALS:
Upper Conn.: Banana Jack
Material: Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Bright tin plated per MIL-T-10727, Type I, 100/200 micro-inches over copper.
Insulation: PVC.
Marking: “POMONA ELECTRONICS CALIF. 4691”.
Lower Conn: Contact, #22 Pin
Material: Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C-26074, Class I,
200/300 micro-inches.
RATINGS:
Operating Temp.: +50°C. (+122° F.) MAX.
Current: 5 Amperes.
Operating voltage: 2500 VDC
ORDERING INFORMATION: 4691-*
*=Color, -0 Black, -2 Red
Ordering Example: 4691-0, Color Black
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
PomonaACCESS 90579
D4691_1_01.DOC/01
(800) 444-6785 or (949) 253-3858
Date 03/03/99 GRH
EH/LS
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
More drawings available at www.pomonaelectronics.com
