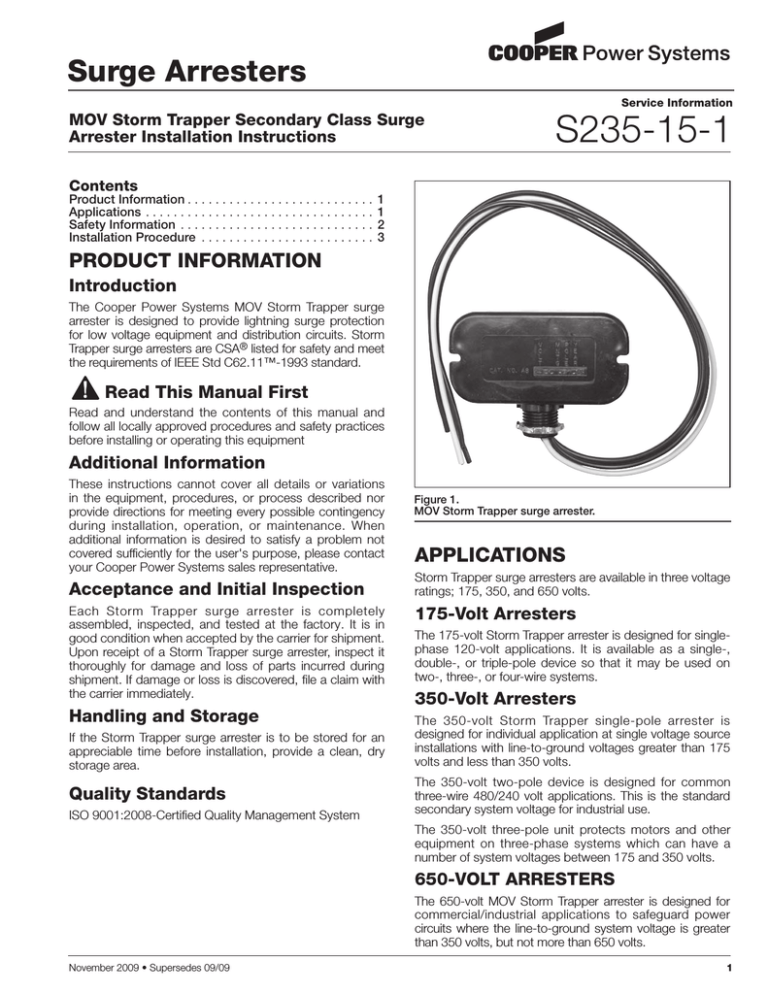

S235-15-1 MOV Storm Trapper Secondary
Surge Arresters
Service Information
MOV Storm Trapper Secondary Class Surge
Arrester Installation Instructions
S235-15-1
Contents
Product Information������������������������������������������������������ 1
Applications������������������������������������������������������������������ 1
Safety Information �������������������������������������������������������� 2
Installation Procedure �������������������������������������������������� 3
Product Information
Introduction
The Cooper Power Systems MOV Storm Trapper surge
arrester is designed to provide lightning surge protection
for low voltage equipment and distribution circuits. Storm
Trapper surge arresters are CSA® listed for safety and meet
the requirements of IEEE Std C62.11™-1993 standard.
!
Read This Manual First
Read and understand the contents of this manual and
follow all locally approved procedures and safety practices
before installing or operating this equipment
Additional Information
These instructions cannot cover all details or variations
in the equipment, procedures, or process described nor
provide directions for meeting every possible contingency
during installation, operation, or maintenance. When
additional information is desired to satisfy a problem not
covered sufficiently for the user's purpose, please contact
your Cooper Power Systems sales representative.
Acceptance and Initial Inspection
Each Storm Trapper surge arrester is completely
assembled, inspected, and tested at the factory. It is in
good condition when accepted by the carrier for shipment.
Upon receipt of a Storm Trapper surge arrester, inspect it
thoroughly for damage and loss of parts incurred during
shipment. If damage or loss is discovered, file a claim with
the carrier immediately.
Handling and Storage
If the Storm Trapper surge arrester is to be stored for an
appreciable time before installation, provide a clean, dry
storage area.
Quality Standards
ISO 9001:2008-Certified Quality Management System
Figure 1.
MOV Storm Trapper surge arrester.
Applications
Storm Trapper surge arresters are available in three voltage
ratings; 175, 350, and 650 volts.
175-Volt Arresters
The 175-volt Storm Trapper arrester is designed for singlephase 120-volt applications. It is available as a single-,
double-, or triple-pole device so that it may be used on
two-, three-, or four-wire systems.
350-Volt Arresters
The 350-volt Storm Trapper single-pole arrester is
designed for individual application at single voltage source
installations with line-to-ground voltages greater than 175
volts and less than 350 volts.
The 350-volt two-pole device is designed for common
three-wire 480/240 volt applications. This is the standard
secondary system voltage for industrial use.
The 350-volt three-pole unit protects motors and other
equipment on three-phase systems which can have a
number of system voltages between 175 and 350 volts.
650-Volt Arresters
The 650-volt MOV Storm Trapper arrester is designed for
commercial/industrial applications to safeguard power
circuits where the line-to-ground system voltage is greater
than 350 volts, but not more than 650 volts.
November 2009 • Supersedes 09/09
1
MOV Storm Trapper Secondary Class Surge Arrester Installation Instructions
!
SAFETY
FOR LIFE
SAFETY FOR LIFE
!
SAFETY
FOR LIFE
Cooper Power Systems products meet or exceed all applicable industry standards relating to product safety. We actively
promote safe practices in the use and maintenance of our products through our service literature, instructional training
programs, and the continuous efforts of all Cooper Power Systems employees involved in product design, manufacture,
marketing and service.
We strongly urge that you always follow all locally approved safety procedures and safety instructions when working around
high-voltage lines and equipment and support our “Safety For Life” mission.
SAFETY Information
The instructions in this manual are not intended as a
sub­s titute for proper training or adequate experience
in the safe operation of the equipment described.
Only competent technicians, who are familiar with this
equipment should install, operate and service it.
A competent technician has these qualifications:
nIs thoroughly familiar with these instructions.
nIs trained in industry-accepted high- and low-voltage
safe operating practices and procedures.
nIs trained and authorized to energize, de-energize, clear,
and ground power distribution equipment.
nIs trained in the care and use of protective equipment
such as flash clothing, safety glasses, face shield, hard
hat, rubber gloves, hotstick, etc.
Following is important safety information. For safe
installation and operation of this equipment, be sure to
read and understand all cautions and warnings.
Hazard Statement Definitions
This manual may contain four types of hazard
statements:
!
DANGER:
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
!
WARNING:
Indicates a hazardous situation which, if not
avoided, could result In death or serious injury.
!
CAUTION:
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
Caution: Indicates a hazardous situation which,
if not avoided, could result in equipment damage
only.
2
Safety Instructions
Following are general caution and warning statements that
apply to this equipment. Additional statements, related to
specific tasks and procedures, are located throughout the
manual.
!
DANGER:
Hazardous voltage. Contact with high voltage will
cause death or severe personal injury. Follow all
locally approved safety procedures when working
around high- and low-voltage lines and equipment.
!
WARNING:
Before installing, operating, maintaining, or testing
this equipment, carefully read and understand
the contents of this manual. Improper operation,
handling or maintenance can result in death, severe
personal injury, and equipment damage.
!
WARNING:
This equipment is not intended to protect human
life. Follow all locally approved procedures and
safety practices when installing or operating this
equipment. Failure to comply may result in death,
severe personal injury and equipment damage.
!
WARNING:
Power distribution and transmission equipment
must be properly selected for the intended
application. It must be installed and serviced
by competent personnel who have been trained
and understand proper safety procedures. These
instructions are written for such personnel and
are not a substitute for adequate training and
experience in safety procedures. Failure to properly
select, install or maintain power distribution and
transmission equipment can result in death, severe
personal injury, and equipment damage.
!
S235-15-1
SAFETY
FOR LIFE
installation procedure
The Storm Trapper surge arrester is completely moisture
proof.
Before installing a Storm Trapper surge
arrester:
1. Check Table 1 to make sure the arrester is correct for
the particular source voltage.
2. Refer to the appropriate wiring diagram in Figure 3 for
the proper connections.
Knockout Installation
The Storm Trapper surge arrester is equipped with a 1/2in. locknut for attaching it to a standard fuse/breaker box
knockout hole.
Surface-Mounting Installation
The Storm Trapper surge arrester is housed in a
weatherproof, molded case with built-in slots that
accommodate two mounting screws. The arrester can be
mounted vertically or horizontally. The ultrasonically sealed
case and moisture-proof seal assure long life.
Lead-Suspension Installation
The Storm Trapper surge arrester is light enough to be
suspended by its own leads. Since lead length affects
discharge voltage, Cooper Power Systems recommends
that the leads be trimmed to the minimum required length.
!
WARNING:
As with any electrical device, precautions must be
observed to prevent injury due to electrical shock.
Be sure all electricity is shut off before installing an
arrester. It is recommended that installation be made
only by an authorized technician.
TABLE 1
Storm Trapper Selector
System
Phase/Wiring
Single-Phase/Two-Wire
Single-Phase/Three-Wire
Three-Phase (ungrounded)/Three-Wire
Three-Phase (one-phase grounded)/ThreeWire
Three-Phase (one-phase center-tap
grounded)/Four-Wire
Three-Phase/Four-Wire
Voltage
(Volts)
120
240
480
600
240-120
480/240
240
480
240
480
240/120
480/240
208Y/120
480Y/277
Storm Trapper Arrester
Maximum Voltage
Rating*
(Volts)
Pole(s)
175
1
350
1
650
1
650
1
175
2
350
2
350
3
650
3
350
2
650
2
350
3
650
3
175
3
350
3
See Wiring
Diagram
1
1
1
1
2
2
3
3
4
4
5
5
6
6
Catalog Number
ASZ175B1
ASZ350B1
ASZ650B1
ASZ650B1
ASZ175B2
ASZ350B2
ASZ350B3
ASZ650B3
ASZ350B2
ASZ650B2
ASZ350B3
ASZ650B3
ASZ175B3
ASZ350B3
* An arrester rating represents the maximum line-to-ground voltage to which the arrester should be subjected. Since surge arresters are inherently
sensitive to overvoltages, they should never be subjected to 60-Hz voltages above their rated voltages even during momentary abnormal conditions.
3
MOV Storm Trapper Secondary Class Surge Arrester Installation Instructions
LINE
LINE
GROUND OR
NEUTRAL
VOLTAGE
GROUND OR
NEUTRAL
120 V
(240 V)
240 V
(480 V)
LINE
WHT
WHT
BLK
BLK
Wiring Diagram 2:
Single-Phase three-wire system.
Wiring Diagram 1:
Single-Phase two-wire system.
LINE
LINE
LINE
240 V
(480 V)
LINE
240 V
(480 V)
WHT
240 V
(480 V)
LINE
240 V
(480 V)
240 V
(480 V)
GROUND OR
NEUTRAL
BLK
WHT
240 V
(480 V)
BLK
GROUND
Wiring Diagram 3:
Three-Phase (ungrounded)/three-wire system.
Wiring Diagram 4:
Three-Phase (one-phase grounded)/three-wire
system.
LINE
LINE
208 V
(480 V)
240 V
(480 V)
LINE
120 V (240 V)
GROUND
120 V (240 V)
LINE
WHT
240 V
(480 V)
240 V
(480 V)
BLK
120 V
(277 V)
208 V
(480 V)
208 V
(480 V)
120 V
(277 V)
LINE
LINE
120 V
(277 V)
WHT
GROUND
Wiring Diagram 5:
Three-Phase (one-phase center-tap grounded)/four-wire
system.
Wiring Diagram 6:
Three-Phase/four-wire system.
Figure 3.
Wiring diagrams.
NOTE: Black leads to line: white leads to ground.
Voltage between a white lead and any black lead should not exceed maximum rated voltage.
4
BLK
!
S235-15-1
SAFETY
FOR LIFE
2.88
2.25
2.03
2.88
1.02 2.25
2.03
1.02
3.66
3.66
4.03
4.03
Figure 4.
MOV Storm Trapper surge arrester top view cutaway with dimensions.
1.45
.25
1.45
SECTION A-A
.25
SECTION A-A
Figure 5.
MOV Storm Trapper surge arrester sideview cutaway with dimensions.
NOTE: Dimensions are given for reference only.
5
MOV Storm Trapper Secondary Class Surge Arrester Installation Instructions
This page intentionally left blank.
6
!
S235-15-1
SAFETY
FOR LIFE
This page intentionally left blank.
7
MOV Storm Trapper Secondary Class Surge Arrester Installation Instructions
!
SAFETY
FOR LIFE
© 2009 Cooper Industries. All Rights Reserved.
Cooper Power Systems is a valuable trademark of Cooper Industries in the U.S. and
other countries. You are not permitted to use the Cooper Trademarks without the prior
written permission of Cooper Industries.
IEEE Std C62.11™-1993 standard is a trademark of the Institute of Electrical and
Electronics Engineers, Inc., (IEEE). This publication/product is not endorsed or
approved by the IEEE.
CSA® is a registered trademark of Canadian Standards Association.
S235151, November 2009
8
2300 Badger Drive
Waukesha, WI 53188 USA
www.cooperpower.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
