TM-5-4310-370-24P

TM-5-4310-370-24P

*TM 5-4310-370-24P

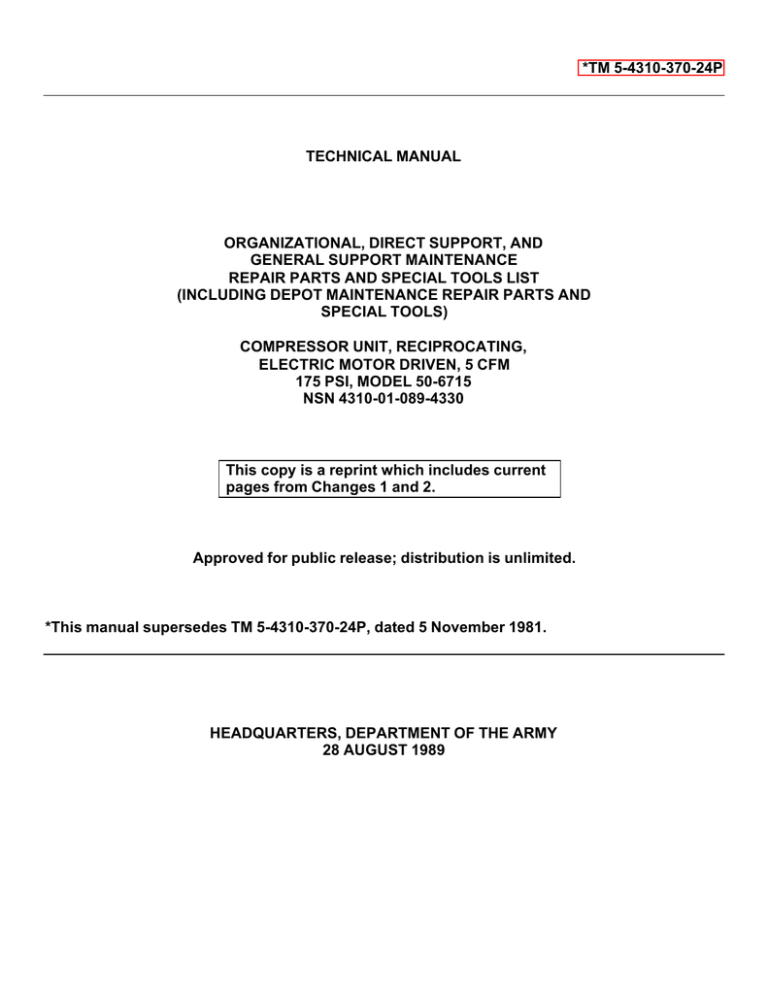

TECHNICAL MANUAL

ORGANIZATIONAL, DIRECT SUPPORT, AND

GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

(INCLUDING DEPOT MAINTENANCE REPAIR PARTS AND

SPECIAL TOOLS)

COMPRESSOR UNIT, RECIPROCATING,

ELECTRIC MOTOR DRIVEN, 5 CFM

175 PSI, MODEL 50-6715

NSN 4310-01-089-4330

This copy is a reprint which includes current pages from Changes 1 and 2.

Approved for public release; distribution is unlimited.

*This manual supersedes TM 5-4310-370-24P, dated 5 November 1981.

HEADQUARTERS, DEPARTMENT OF THE ARMY

28 AUGUST 1989

CHANGE

NO. 2

Organizational, Direct Support, and General Support

Maintenance Repair Parts and Special Tools List

(Including Depot Maintenance Repair Parts and Special Tools)

COMPRESSOR UNIT, RECIPROCATING,

ELECTRIC MOTOR DRIVEN, 5 CFM

175 PSI, MODEL 50-6715

NSN 4310-01-089-4330

DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited

TM 5-4310-370-24P, 28 August 1989, is changed as follows:

1.

Remove and insert pages as indicated below. New or changed text material is indicated by a vertical bar in the margin. An illustration change is indicated by a miniature pointing hand.

Remove pages Insert pages

8-1 and 8-2

8-1 and 8-2

I-1 through I-4 I-1 through I-4

2.

Retain this sheet in front of manual for reference purposes.

By Order of the Secretary of the Army:

TM 5-4310-370-24P

C2

HEADQUARTERS

DEPARTMENT OF THE ARMY

WASHINGTON, D.C., 30 June 1993

Official:

GORDON R. SULLIVAN

General, United States Army

Chief of Staff

MILTON H. HAMILTON

Administrative Assistant to the

Secretary of the Army

DISTRIBUTION:

To be distributed in accordance with DA Form 12-25-E, block no. 0332, requirements for TM 5-4310-370-24P.

CHANGE

NO. 1

TM 5-4310-370-24P

C1

HEADQUARTERS

DEPARTMENT OF THE ARMY

WASHINGTON, D.C., 9 NOVEMBER 1992

Organizational, Direct Support, and General Support Maintenance

Repair Parts and Special Tools List

(Including Depot Maintenance Repair Parts and Special Tools List)

COMPRESSOR UNIT, RECIPROCATING,

ELECTRIC MOTOR DRIVEN, 5 CFM,

175 PSI, MODEL 50-6715

NSN 4310-01-089-4330

Approved for public release; Distribution is unlimited

TM 5-4310-370-24P, 28 August 1989 is changed as follows:

1.

Remove and insert pages as indicated below. New or changed text material is indicated by a vertical bar in the margin. An illustration change is indicated by a miniature pointing hand.

Remove pages i/(ii blank)

6-1 and Fig. 7

- - - - -

I-1 through 1-6

- - - - -

2.

Retain this sheet in front of manual for reference purposes.

By Order of the Secretary of the Army:

Insert pages i/(ii blank)

6-1 and Fig. 6A

6A-1 and Fig. 7

I-1 through I-6

I-6.1/(l-6.2 blank)

Official:

GORDON R. SULLIVAN

General, United States Army

Chief of Staff

MILTON H. HAMILTON

Administrative Assistant to the

Secretary of the Army

02862

DISTRIBUTION:

To be distributed in accordance with DA Form 12-25-E, block no. 0332, requirements for TM 5-4310-370-24P.

TECHNICAL MANUAL

No. 5-4310-370-24P

*TM 5-4310-370-24P

HEADQUARTERS

DEPARTMENT OF THE ARMY

WASHINGTON, D.C., 28 August 1989

Organizational, Direct Support, and General Support Maintenance

Repair Parts and Special Tools List

(Including Depot Maintenance Repair Parts and Special Tools) for

COMPRESSOR UNIT, RECIPROCATING,

ELECTRIC MOTOR DRIVEN, 5 CFM

175 PSI, MODEL 50-6715

NSN 4310-01-089-4330

Current as of 26 April 1989

REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS

You can help improve this manual. If you find any mistake or if you know of a way to improve the procedures, please let us know. Mail your letter, DA Form 2028 (Recommended Changes to Publications and Blank Forms), or DA Form 2028-2 located in the back of this manual direct to: Commander, U.S.

Army Troop Support Command, ATTN: AMSTR-MMTS, 4300 Goodfellow Boulevard, St. Louis, MO

63120-1798. A reply will be furnished directly to you.

Approved for public release; distribution is unlimited.

TABLE OF CONTENTS

Page

Illust/

Figure

Section I

Section II.

Group 01

Group 02

Group 03

Group 04

Section III.

Section IV.

Introduction

Repair Parts List

Belt Guard and Related Parts

Belt Guard Assembly .....................................................................

V-Belts ..........................................................................................

Electric Motor and Related Parts ...........................................................

Motor Cable Assembly ...................................................................

Pressure Switch Cable Assembly ....................................................

Starter Switch.................................................................................

Motor Starter .................................................................................

Pressure Switch Assembly .............................................................

Air Compressor Assembly

Air Compressor Pump Assembly .....................................................

Air Receiver

Air Receiver Assembly ...................................................................

Special Tools List (Not Applicable)

Cross Reference Indexes ......................................................................

National Stock Number Index .........................................................

Part Number Index .........................................................................

Figure and Item Number Index ........................................................

*This manual supersedes TM 5-4310-370-24P, dated 5 November 1981.

1-1

2-1

3-1

4-1

5-1

6-1

6A-1

7-1

8-1

9-1

I-1

I-1

I-2

I-5

8

9

3

4

5

1

2

6

6A

7

Change 1 i/(ii blank)

TM 5-4310-370-24P

ORGANIZATIONAL, DIRECT SUPPORT, AND GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

(INCLUDING DEPOT MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS)

SECTION I. INTRODUCTION

1. SCOPE. This RPSTL lists and authorizes spares and repair parts; special tools; special test, measurement, and diagnostic equipment (TMDE) ; and other special support equipment required for performance organizational, direct support, general support and depot maintenance of Compressor Unit, Reciprocating, Electric Motor Driven. It authorizes the requisitioning, issue, and disposition of spares, repair parts and special tools as indicated by the source, maintenance and recoverability (SMR) codes.

2. GENERAL. In addition to this section, Introduction, this Repair Parts and Special Tools List is divided into the following sections:

a.

Section II. Repair Parts List. A list of spares and repair parts authorized by this RPSTL for use in the

performance of maintenance. The list also includes parts which must be removed for replacement of the authorized parts.

Parts lists are composed of functional groups in ascending alphanumeric sequence, with the parts in each group listed in ascending figure and item number sequence. Bulk materials are listed in item name sequence. Repair parts kits are

listed separately in their own functional group within Section II. Repair parts for repairable special tools are also listed in

this section. Items listed are shown on the associated illustration(s) /figure(s).

b.

Section III. Special Tools List. A list of special tools, special TMDE, and other special support equipment

authorized by this RPSTL (as indicated by Basis of Issue (BOI) information in DESCRIPTION AND USABLE ON CODE column) for the performance of maintenance.

c.

Section IV. Cross-references Indexes. A list, in National Item Identification Number (NIIN) sequence, of all

National stock numbered items appearing in the listing, followed by a list in alphanumeric sequence of all part numbers appearing in the listings. National stock numbers and part numbers are cross-referenced to each illustration figure and item number appearance. The figure and item number index lists figure and item number in alphanumeric sequence and cross-references NSN, FSCM and part number.

3. EXPLANATION OF COLUMNS (SECTIONS II AND III).

a.

ITEM NO. (Column (1)). Indicates the number used to identify items called out in the illustration.

1

TM 5-4310-370-24P b.

SMR Code (Column (2)). The Source, Maintenance, and Recoverability (SMR) code is a 5-position code containing supply/requisitioning information, maintenance category authorization criteria, and disposition instruction, as shown in the following breakout:

Source

Code

Maintenance

Code

Recoverability

Code

XX 1st two positions

How you get an item.

XX X

Code

PA

PB

PC**

PD

PE

PF

PG

KD

KF

KB

3d position 4th position

Who can install, replace or use the item

Who can do complete repair* on the item.

*Complete Repair: Maintenance capacity, capability, and authority to perform all corrective maintenance tasks of the

"Repair" function in a use/user environment in order to restore serviceability to a failed item.

(1) Source Code. The source code tells you how to get an item needed for maintenance, repair, or overhaul of an end item/equipment. Explanations of source codes follows:

Explanation

Stocked items; use the applicable NSN to request/requisition items with these source codes. They are authorized to the category indicated by the code entered in the 3d position of the SMR code.

**NOTE: Items coded PC are subject to deterioration.

Who determined disposition action on an unserviceable item.

Items with these codes are not to be requested/requisitioned individually. They are part of a kit which is authorized to the maintenance category indicated in the 3d position of the SMR code. The complete kit must be requisitioned and applied.

MO--(Made at org.

AVUM Level

MF--(Made at DS/

AVUM Level

MH--(Made at GS

Level)

ML--Made at Specialized Repair

Activity (SRA) )

MD--(Made at Depot) of maintenance.

Explanation

Items with these codes are not to be requested/requisitioned individually. They must be made from bulk material which is identified by the part number in the DESCRIPTION and USABLE ON CODE (UOC) column and listed in the Bulk Material group of the repair parts list in this RPSTL. If the item is authorized to you by the 3d position code of the SMR code, but the source code indicates it is made at a higher level, order the item from the higher level

2

AO--(Assembled by org/AVUM Level)

AF--(Assembled by

DS/AVIM Level)

AH--(Assembled by

GS Category)

AL--(Assembled by

SRA)

AD--(Assembled by

Depot)

Explanation

TM 5-4310-370-24P

Items with these codes are not to be requested/requisitioned individually. The parts that make up the assembled item must be requisitioned or fabricated and assembled at the level of maintenance indicated by the source code. If the 3d position code of the

SMR code authorizes you to replace the item, but the source code indicates the items are assembled at a higher level, order the item from the higher level of maintenance.

Explanation

XA--Do not requisition an "XA"-coded item. Order its next higher assembly. (Also, refer to the NOTE below.)

XB--If an "XB" item is not available from salvage, order it using the FSCM and part number given.

XC--Installation drawing, diagram, instruction sheet, field service drawing, that is identified by manufacturer's part number.

XD--Item is not stocked. Order an "XD"-coded item through normal supply channels using the FSCM and part number given, if no NSN is available.

NOTE

Cannibalization or controlled exchange, when authorized, may be used as a source of supply for items with the above source codes, except for those source coded

"XA" or those aircraft support items restricted by requirements of AR 750-1.

(2) Maintenance Code. Maintenance codes tells you the level(s) of maintenance authorized to USE and

REPAIR support items. The maintenance codes are entered in the third and fourth positions of the SMR code as follows:

(a) The maintenance code entered in the third position tells you the lowest maintenance level authorized to remove, replace, and use an item. The maintenance code entered in the third position will indicate authorization to one of the following levels of maintenance.

Code

C

O

F

Application/Explanation

--Crew or operator maintenance done within organizational or aviation unit maintenance.

--Organizational or aviation unit category can remove, replace, and use the item.

--Direct support or aviation intermediate level can remove, replace, and use the item.

3

TM 5-4310-370-24P

H

O

F

H

L

--General support level can remove, replace, and use the item.

L

D

--Specialized repair activity can remove, replace, and use the item.

--Depot level can remove, replace, and use the item.

(b) The maintenance code entered in the-fourth position tells whether or not the item is to be repaired and identifies. the lowest maintenance level with the capability to do complete repair (i.e., perform all authorized repair functions.) NOTE: Some limited repair may be done on the item at a lower level of maintenance, if authorized by the Maintenance Allocation Chart (MAC) and SMR codes. This position will contain one of the following maintenance codes.

Code Application/Explanation

--Organizational or (aviation unit) is the lowest level that can do complete repair of the item.

--Direct support or aviation intermediate is the lowest level that can do complete repair of the item.

--General Support is the lowest level that can do complete repair of the item.

--Specialized repair activity is the lowest level that can do complete repair of the item.

D

Z

B

--Depot is the lowest level that can do complete repair of the item.

--Nonrepairable. No repair is authorized.

--No repair is authorized. (No parts or special tools are authorized for the maintenance of a

"B" coded item). However, the item may be reconditioned by adjusting, lubricating, etc., at the user level.

(3) Recoverability Code. Recoverability codes are assigned to items to indicate the disposition action on unserviceable items. The recoverability code is entered in the fifth position of the SMR Code as follows:

Recoverability

Codes

Z

Application/Explanation

--Nonrepairable item. When unserviceable, condemn and dispose of the item at the level of maintenance shown in 3d position of SMR Code.

4

TM 5-4310-370-24P

Recoverability

Codes

O

Application/Explanation

--Reparable item. When uneconomically reparable, condemn and dispose of the item at organizational or aviation unit level.

F

H

--Reparable item. When uneconomically reparable, condemn and dispose of the item at the direct support or aviation intermediate level.

--Reparable item. When uneconomically reparable, condemn and dispose of the item at the general support level.

D

L

A

--Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal of item not authorized below depot level.

--Reparable item. Condemnation and disposal not authorized below specialized repair activity (SRA).

--Item requires special handling or condemnation procedures because of specific reasons

(e.g., precious metal content, high dollar value, critical material, or hazardous material).

Refer to appropriate manuals/directives for specific instructions.

c.

FSCM (Column (3) ). The Federal Supply Code for Manufacturer (FSCM) is a 5-digit numeric code which is used to identify the manufacturer, distributor, or Government agency, etc., that supplies the item.

d.

PART NUMBER (Column (4) ). Indicates the primary number used by the manufacturer, (individual, company, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications standards, and inspection requirements to identify an item or range of items.

NOTE

When you use an NSN to requisition an item, the item you receive may have a different part number from the part ordered.

e.

DESCRIPTION AND USABLE ON CODE (UOC) (Column (5) ). This column includes the following information:

(1) The Federal item name and, when required, a minimum description to identify the item.

(2) The physical security classification of the item is indicated by the parenthetical entry, e.g., Phy Sec C1 -

Confidential, Phy Sec C1 (S) - Secret, Phy Sec C1 (T) - Top Secret.

5

TM 5-4310-370-24P

(3) Items that are included in kits and sets are listed below the name of the kit or set.

(4) Spare/repair parts that make up an assembled item are listed immediately following the assembled item line entry.

(5) Part numbers for bulk materials are referenced in this column in the line item entry for the item to be manufactured/fabricated.

(6) When the item is not used with all serial numbers of the same model, the effective serial numbers are shown on the last line(s) of the description (before UOC).

(7) The usable on code, when applicable (see paragraph 5, Special Information).

(8) In the Special Tools List section, the basis of issue (BOI) appears as the last line(s) in the entry for each special tool, special TMDE, and other special support equipment. When density of equipments supported exceeds density spread indicated in the basis of issue, the total authorization is increased proportionately.

(9) The statement "END OF FIGURE" appears just below the last item description in Column 5 for a given

figure in both Section II and Section III.

(10) The indenture, shown as dots appearing before the repair part, indicates that the item is a repair part of the next higher assembly.

f.

QTY (Column (6) ). The QTY (quantity per figure column) indicates the quantity of the item used in the breakout shown on the illustration figure, which is prepared for a functional group, subfunctional group, or an assembly. A "V" appearing in this column in lieu of a quantity indicates that the quantity is variable and may vary from application to application.

4. EXPLANATION OF COLUMNS (SECTION IV).

a.

NATIONAL STOCK NUMBER (NSN) INDEX.

(1) STOCK NUMBER column. This column lists the NSN by National item identification number (NIIN) sequence. The NIIN consists of the last nine digits of the

NSN

NSN, i.e. (5305-01-574-1467).

NIIN

When using this column to locate an item, ignore the first 4 digits of the NSN. However, the complete NSN should be used when ordering items by stock number.

(2) FIG. column. This column lists the number of the figure where the item is identified/located. The figures

are in numerical order in Section II and Section III.

6

TM 5-4310-370-24P

(3) ITEM column. The item number identifies the item associated with the figure listed in the adjacent FIG.

column. This item is also identified by the NSN listed on the same line.

b.

PART NUMBER INDEX. Part numbers in this index are listed by part number in ascending alphanumeric sequence (i.e., vertical arrangement of letter and number combination which places the first letter or digit of each group in order A through Z, followed by the numbers 0 through 9 and each following letter or digit in like order).

(1) FSCM column. 'The Federal Supply Code for Manufacturer (FSCM) is a 5-digit numeric code used to identify the manufacturer, distributor, or Government agency, etc., that supplies the item.

(2) PART NUMBER column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications standards, and inspection requirements to identify an item or range of items.

(3) STOCK NUMBER column. This column lists the NSN for the associated part number and manufacturer identified in the PART NUMBER and FSCM columns to the left.

(4) FIG. column. This column lists the number of the figure where the item is identified/located in Sections II

and III.

(5) ITEM column. The item number is that number assigned to the item as it appears in the figure referenced in adjacent figure number column.

c.

FIGURE AND ITEM NUMBER INDEX.

(1) FIG. column. This column lists the number of the figure where the item is identified/located in Section II

and III.

(2) ITEM column. The item number is that number assigned to the item as it appears in the figure referenced in the adjacent figure number column.

(3) STOCK NUMBER column. This column lists the NSN for the item.

(4) FSCM column. The Federal Supply Code for Manufacturer (FSCM) is a 5-digit numeric code used to identify the manufacturer, distributor, or Government agency, etc., that supplies the item.

(5) PART NUMBER column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications standards, and inspection requirements to identify an item or range of items.

7

TM 5-4310-370-24P

5. SPECIAL INFORMATION.

a.

USABLE ON CODE. The usable on code appears in the lower left corner of the Description column heading.

Usable on codes are shown as "UOC: ....." in the Description Column (justified left) on the last line applicable item description/nomenclature. Uncoded items are applicable to all models.

b.

ASSOCIATED PUBLICATIONS. The publications listed below pertains to the Compressor Unit, Reciprocating

Section and its components.

Publication

TM 5-4310-370-14

Short Title

Compressor Unit, Reciprocating,

Electric Motor Driven

HOW TO LOCATE REPAIR PARTS.

a.

When National Stock Number or Part Number is NOT Known.

(1) First. Using the table of contents, determine the assembly group for subassembly group to which the item belongs. This is necessary since figures are prepared for assembly groups and subassembly groups, and listings are divided into the same groups.

(2) Second. Find the figure covering the assembly group or subassembly group to which the item belongs.

(3) Third. Identify the item on the figure and note the item number.

(4) Fourth. Refer to the Repair Parts List for the figure to find the part number for the item number noted on the figure.

(5) Fifth. Refer to the Part Number Index to find the NSN, if assigned.

b.

When National Stock Number or Part Number is Known:

(1) First. Using the Index of National Stock Numbers and Part Numbers, find the pertinent National Stock

Number or Part Number. The NSN index is in National Item Identification Number (NIIN) sequence (see

4a(1) ). The part numbers in the Part Number index are listed in ascending alphanumeric sequence (see paragraph 4b). Both indexes cross-reference you to the illustration figure and item number of the item you

are looking for.

(2) Second. After finding the figure and item number, verify that the item is the one you are looking for, then locate the item number in the repair parts list for the figure.

7. ABBREVIATIONS. Abbreviations used in this manual are listed in MIL-STD-12.

8

SECTION II

TM 5-4310-370-24P

Figure 1. Belt Guard Assembly.

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

9

10

11

12

13

3

4

5

6

7

8

1 XBOFF 19272

2 PAOZZ 94222

PAOZZ

XBOFF

PAOZZ

PAOZZ

PAOZZ 96906

XDOZZ 96906

XBOZZ

PAOZZ

XDOZZ

PAOZZ

XBOFF

94222

19272

94222

96906

19272

96906

96906

96906

19272

(4)

PART

NUMBER

50-6753

82-11-420-16

82-32-101-20

20-6171

82-47-108-15

MS90726-32

MS35649-2312

MS35338-45

20-6149

MS35292-32

MS35338-45

MS35649-2312

20-6172

(5)

DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 01 BELT GUARD

FIG. 1 BELT GUARD ASSEMBLY

TM 5-4310-370-24P

(6)

QTY

BELT GUARD ASSY..............................................................

.FASTENER, BELT GUARD...................................................

.WASHER, SPLIT..................................................................

.GUARD, BELT, FRONT ........................................................

.RECEPTACLE, CLIP ON.......................................................

.BOLT, MACHINE ..................................................................

.NUT, 5/16-18........................................................................

.WASHER, LOCK ..................................................................

.ANGLE, SUPPORT...............................................................

.BOLT, MACHINE ..................................................................

.WASHER, LOCK ..................................................................

.NUT, 5/16-8..........................................................................

.GUARD, BELT, REAR...........................................................

END OF FIGURE

1

4

4

4

1

2

1

2

1

2

1

1

1

1-1

SECTION II TM 5-4310-370-24P

Figure 2. V-Belts.

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

1 PAOZZ 96906

(4)

PART

NUMBER

MS39242-37

(5)

DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 01 BELT GUARD

FIG. 2

V-BELTS

TM 5-4310-370-24P

(6)

QTY

.BELT, V ...............................................................................

END OF FIGURE

2

2-1

SECTION II TM 5-4310-370-24P

Figure 3. Motor.

PBOFF 05472

PAOZZ 96906

PAOZZ 05472

PAFZZ 05472

XBFZZ 30119

PAOZZ 96906

XBFZZ 05472

PAFZZ 05472

PAFZZ 05472

PAOZZ 05472

XBFZZ 05472

XDOZZ 05472

XBFZZ 05472

PAOZZ 05472

XBFZZ 05472

XBFZZ 05472

XDFZZ 05472

PAOZZ 96906

XBFZZ 71176

XBFZZ 05472

PAOZZ 05472

PAOZZ 05472

PAOZZ 05472

XBFZZ 05472

XBFZZ 05472

PAFZZ 05472

PAOZZ 96906

XBFZZ 05472

PAOZZ 96906

PAFZZ 05472

XBFZZ 05472

PAOZZ 96906

PAOZZ 96906

XDOZZ 96906

XBFZZ 05472

19

20

21

22

23

24

25

26

10

11

12

13

14

15

16

17

18

1

2

3

4

5

6

7

8

9

31

32

33

34

35

27

28

29

30

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

(4)

PART

NUMBER

(5)

TM 5-4310-370-24P

(6)

QTY DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 02 ELECTRIC MOTORS & RELATED

PARTS

FIG. 3

MOTOR

35F927-2208

MS24627-32

36-49

36-48

13-0241

MS51031-49

35-1231

03712

01300

MOTOR ................................................................................

.SCREW, TAPPING , THREA ................................................

.COVER................................................................................

.GASKET .............................................................................

.NUT, WIRE...........................................................................

.SETSCREW.........................................................................

.BOX, CAPACITOR................................................................

.CAPACITOR 12.5MFD, 370VAC ...........................................

.CAPACITOR, FICED, ELE 860-950MFD, ..............................

110VAC ................................................................................

10X318 TYPE B .SCREW, TAPPING, THREA..................................................

35-7697 .HOUSING, REAR .................................................................

1/4-20-3/16 .SCREW, FAN.......................................................................

35-63B .FAN, REAR..........................................................................

1/4-28X1/4 SLOT .PLUG, GREASE, REAR........................................................

35-8503 .END PLATE, FR ..................................................................

W1543-017(W-B) .WASHER, WAVY .................................................................

SP5005

MS16998-40

.SWITCH, ROTARY ...............................................................

.SCREW, SET, PULLEY MOTOR...........................................

2AK49

6-30

400V

35-32G

10-32UNC

35-8503

.PULLEY, MOTOR.................................................................

.KEY, MOTOR, PULLEY ........................................................

.FITTING, LUBRICATION ......................................................

.BOLT, THRU........................................................................

.NUT, THRU BOLT ...............................................................

.END PLATEPU.....................................................................

1/2X13/64X18GAST .WASHER, BALANCE ............................................................

205 .BEARING PART MUST BE RE QN WITH ...............................

PART 35-5618 ......................................................................

MS51965-51

35-63B

MS24629-35

203

.SETSCREW ........................................................................

.FAN, FRONT........................................................................

.SCREW, TAPPING, THREA .................................................

35-5618

.BEARING, BALL, ANNULA PART MUST BE..........................

REQN WITH PART 35-5618...................................................

.ROTOR-SHAFT ASS'Y ........................................................

MS35292-32

MS35649-2312

MS35338-45

35-7755

.BOLT, MACHINE ..................................................................

.NUT, 5/16-18........................................................................

.WASHER, LOCK ..................................................................

.STATOR ..............................................................................

END OF FIGURE

4

4

1

1

1

1

1

1

1

1

1

1

2

1

3

1

1

1

4

1

1

4

2

1

1

1

1

4

4

4

1

1

1

4

1

3-1

SECTION II TM 5-4310-370-24P

Figure 4. Motor Cable

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

1 PAFZZ 19272

(4)

PART

NUMBER

50-6759

(5)

TM 5-4310-370-24P

(6)

QTY DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 02 ELECTRIC MOTOR & RELATED PARTS

FIG. 4

MOTOR CABLE

.CABLE, MOTOR...................................................................

END OF FIGURE

1

4-1

SECTION II TM 5-4310-370-24P

Figure 5. Pressure Switch Cable.

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

1 PAFZZ 19272

(4)

PART

NUMBER

50-6760

(5)

TM 5-4310-370-24P

(6)

QTY DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 02 ELECTRIC MOTOR & RELATED

PARTS

FIG. 5

PRESSURE SWITCH CABLE

.CABLE, PRESSURE SWITCH...............................................

END OF FIGURE

1

5-1

SECTION II TM 5-4310-370-24P

Figure 6. Starter Switch.

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

1

2

3

4

PAOZZ 96906

XDOZZ 96906

PAOZZ 96906

PBFZZ 19272

(4)

PART

NUMBER

MS35649-2312

MS35338-45

MS35292-32

13-0246

(5)

TM 5-4310-370-24P

(6)

QTY DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 02 ELECTRIC MOTOR & RELATED

PARTS

FIG. 6

STARTER SWITCH

.NUT, 5/16-18........................................................................

.WASHER, LOCK ..................................................................

.BOLT, MACHINE ..................................................................

.SWITCH, STARTER .............................................................

END OF FIGURE

2

2

2

1

6-1

SECTION II TM 5-4310-370-24P

Figure 6A. Motor Starter.

Change 1

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

8

9

10

11

12

13

1

2

3

4

5

6

7

14

15

XBFFF 23826

XBFZZ 04718

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

XBFZZ 23826

14CF120A

1047-08

75CF14

73062-001

D54670-001

D25013-001

24817-001

D24827-001

D54873-001

D24826-001

D73116-021

D25551-001

75D73070A

D73060-001

48DC11A2

(4)

PART

NUMBER

TM 5-4310-370-24P

(5)

DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 02 ELECTRIC MOTOR AND RELATED PARTS

(6)

QTY

FIG. 6A MOTOR STARTER.

STARTER, MAGNETIC .........................................................

.ENCLOSURE, STA RTER NEMA 12 ......................................

CONTACT, POWER POLE ...................................................

.COVER, CONTACT BOARD ................................................

.CROSS ARM ........................................................................

.SCREW ..............................................................................

.CLIP, SPRING .....................................................................

.SCREW, TAPPING, THREA .................................................

.BASE, CROSS ARM .............................................................

.SPRING, CROSS ARM ........................................................

.BOARD, CONTACT .............................................................

.MAGNET AND ARMATURE .................................................

.COIL, 60HZ 110-120/208-240 VOLTS ....................................

50HZ 110 VOLTS .................................................................

.BASE ..................................................................................

.RELAY, OVERLOAD ............................................................

END OF FIGURE

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

6A-1 Change 1

SECTION II TM 5-4310-370-24P

Figure 7. Pressure Switch.

Change 1

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

1

2

PBFZZ 51917

PAOZZ 96906

(4)

PART

NUMBER

9013-GHG-2

MS51953-25

(5)

DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 02 ELECTRIC MOTOR & RELATED

PARTS

TM 5-4310-370-24P

(6)

QTY

FIG. 7 PRESSURE SWITCH

.SWITCH, PRESSURE ..........................................................

.NIPPLE, PIPE ......................................................................

END OF FIGURE

1

1

7-1

SECTION II TM 5-4310-370-24P

(Figure 8 Sheet 1 of 2)

(Figure 8 Sheet 2 of 2)

Figure 8. Compressor Pump (Sheet 1 of 2).

SECTION II TM 5-4310-370-24P

Figure 8. Compressor Pump (Sheet 2 of 2).

PAFZZ 11568

XBHZZ 11568

PAFZZ 11568

PBFZZ 11568

PBOZZ 11568

PAOZZ 11568

PAOZZ 11568

PBFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAOZZ 00365

XBFZZ 11568

PAOZZ 11568

PAFZZ 11568

XBOZZ 11568

XBFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAOZZ 96906

PBOFH 11568

PAOZZ 96906

PAOZZ 96906

XDOZZ 96906

PAOZZ 36422

PBOZZ 11568

PAFZZ 75336

XBFZZ 19272

PBFZZ 11568

XBFZZ 11568

XBFZZ 19272

PAOZZ 97942

PBFZZ 11568

PAOZZ 11568

PAFZZ 11568

PAFZZ 11568

PAOZZ 11568

PAFZZ 11568

PAFZZ 11568

PAOFH 11568

PAFZZ 11568

PAOZZ 70188

XBHZZ 11568

PAFZZ 11568

PAFZZ 70188

PAOZZ 96906

45

46

47

48

39

40

41

42

43

44

33

34

35

36

37

38

27

28

29

30

31

32

21

22

23

24

25

26

15

16

17

18

19

20

9

10

11

12

13

14

3

4

5

1

2

6

7

8

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

(4)

PART

NUMBER

(5)

DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 03 AIR COMPRESSOR ASSEMBLY

FIG. 8 COMPRESSOR PUMP

TM 5-4310-370-24P

C2

(6)

QTY

B-31

A-6A

A-29

Z-676

P-3703A

M-1586

M-1587

M-1561

M-1564

M-1565

M-1563

M-1562

F98

P4582A

P4581A

C-30

A-100

C-14C

C-30

C-30B

C-30B

MS20066-256

CAW1

MS35292-32

MS35649-2312

MS35338-45

1X485

NR-4-7A

128 1/4 75

100-64

COMPRESSOR, RECIPROC .................................................

.BOLT, MACHINE .................................................................

.NUT, 5/16-18 .......................................................................

.WASHER, LOCK .................................................................

.SETSCREW.........................................................................

.FLYWHEEL, COMPRESSOR ...............................................

.VALVE, SAFETY RELIEF .....................................................

.BUSHING, 3/8-1/4 ................................................................

A-12A

Z-515

316-6

.MANIFOLD, FLUID COOL ....................................................

.FITTING, COMPRESSION....................................................

.TEE, STREET .....................................................................

330C889P5018C20 .SCREW, CAP, HEXAGON H.................................................

ZC-1 .CYLINDER HEAD, COMPR ..................................................

B-28B ..PLUG, MACHINE THREAD ..................................................

B-75

B-26A

Z-184

Z-122A

U-48

C-1

C-31

2X167

C-6B

A-29

2X167

MS51095-337

..GASKET, VALVE CHAMBER CAP ......................................

..RETAINER, EXHAUST VA ..................................................

..VALVE ASSEMBLY, INTA ....................................................

..VALVE, EXHAUST ..............................................................

..GASKET, VALVE ................................................................

..CYLINDER HEAD, COMPR .................................................

.GASKET .............................................................................

.BOLT, MACHINE .................................................................

.BLOCK, CYLINDER, HIGH....................................................

.GASKET .............................................................................

.BOLT, MACHINE .................................................................

.SCREW, CAP, HEXAGON H.................................................

.GASKET .............................................................................

.CYLINDER, RECIPROCAT ..................................................

.GASKET ..............................................................................

.HEAD ASSEMBLY, REED.....................................................

..RETAINER FILTER .............................................................

..FILTER ELEMENT, INTA .....................................................

..PAD, INTAKE, COMPRESS ................................................

..CYLINDER HEAD, COMPR .................................................

..GASKET ............................................................................

..SCREW ..............................................................................

..FLAPPER, MAGNETIC, VA..................................................

..PLATE, REED VALVE .........................................................

.SCREW, CAP, HEXAGON ....................................................

.SEPARATOR, OIL ...............................................................

.FILTER ELEMENT, INTA ......................................................

.GASKET .............................................................................

.BREATHER .........................................................................

.COVER, CRANKCASE ........................................................

.GASKET .............................................................................

.GASKET R, .005 INCH..........................................................

.GASKET R, .010 INCH..........................................................

.KEY, MACHINE ...................................................................

8-1

1

1

1

1

4

1

1

1

1

1

4

2

1

1

1

1

2

2

2

2

1

1

1

8

8

1

4

1

2

1

1

1

2

1

4

1

2

1

3

1

4

4

1

1

4

1

1

1

67

68

69

70

61

62

63

64

65

66

55

56

57

58

59

60

49

50

51

52

53

54

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

PAFZZ 11568

PAFZZ 11568

XBFZZ 11568

PBFZZ 11568

XDFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAFZZ 11568

PAOZZ 11568

XBFZZ 11568

PBFZZ 11568

XBFZZ 11568

PAHZZ 11568

XBCZZ 11568

PBCZZ 11568

PAOZZ 96906

PAFZZ 11568

PAOZZ 11568

PBFZZ 11568

PAFZZ 11568

PAFZZ 80201

XDHZZ 11568

(4)

PART

NUMBER

ZC-16

ZA-10

A-102

A-21

A-4A

ZC-10

C-21A

C-4A

M-780

P-5086A

P-5031B

P-5087A

C-5

M-1796

M-461

MS51953-59B

B-14

M-565

A-15

A-33

10515

B-9

(5)

TM 5-4310-370-24P

(6)

DESCRIPTION AND USABLE ON CODES (UOC)

..BEARING ASSEMBLY NG ..................................................

..RING SET, LOW PR RING ..................................................

.RING, RETAINING ...............................................................

.PIN, PISTON .......................................................................

.PISTON, COMPRESSOR .....................................................

.RING SET, HIGH PR RING ..................................................

.PIN, PISTON .......................................................................

.PISTON, COMPRESSOR. ...................................................

.SCREW, CAP, HEXAGON ....................................................

.PIN, DIPPER, CENTER. ......................................................

.ROD , CONNECTING, ASSY ................................................

.SCOOP, OIL, LEFT. ............................................................

.CRANKSHAFT, COMPRESS. .............................................

.PLUG, PIPE .........................................................................

.CAP, PIPE ...........................................................................

.NIPPLE, PIPE ......................................................................

.INDICATOR, SIGHT, LIQ OIL LEVEL.....................................

.SCREW, CAP, HEXAGON. ...................................................

.COVER, ACCESS. .............................................................

.GASKET ..............................................................................

.SEAL, PLAIN ENCASED.......................................................

.CRANKCASE. ....................................................................

END OF FIGURE

QTY

1

1

1

1

1

1

4

1

1

1

1

1

6

1

3

1

2

2

1

1

2

6

8-2

SECTION II TM 5-4310-370-24P

Figure 9. Air Receiver Assembly.

SECTION II

(1) (2)

ITEM SMR

NO CODE

(3)

FSCM

9

10

11

3

4

5

1

2

6

7

8

XBOFH 19272

PAOZZ 94894

PAOZZ 19272

PAOZZ 75336

PAOZZ 96906

XBOZZ 19272

PAFZZ 58818

PAFZZ 75336

PAOZZ 96906

PAOZZ 61349

XBOZZ 19272

(4)

PART

NUMBER

50-6754

61-J2-1506

50-6741

501 1/4

MS51953-25

50-6757

A-12

112C1/4 200

MS35782-5

050755

50-6716

(5)

DESCRIPTION AND USABLE ON CODES (UOC)

GROUP 04 AIR RECEIVER

FIG. 9 AIR RECEIVER ASSEMBLY

TM 5-4310-370-24P

(6)

QTY

RECEIVER AIR ASSY ...........................................................

.INFLATOR-GAGE, PNEUM ..................................................

.HOSE ASSEMBLY, NONME .................................................

.VALVE, GLOBE....................................................................

.NIPPLE, PIPE.......................................................................

.TUBE, AFTERCOOL, ASSY..................................................

.VALVE CHECK.....................................................................

.VALVE, SAFETY RELIEF .....................................................

.COCK, DRAIN ......................................................................

.GAGE, PRESSURE , DIAL....................................................

.RECEIVER, AIR ...................................................................

END OF FIGURE

1

1

1

1

1

1

1

1

1

1

1

9-1

Section III. SPECIAL TOOLS LIST

(Not Applicable)

TM 5-4310-370-24P

SECTION IV

STOCK NUMBER

4310-00-033-1415

4310-00-035-6246

5306-00-050-1238

2930-00-105-2373

5306-00-149-7111

6680-00-150-6875

4730-00-188-1870

4730-00-196-1465

4910-00-204-2644

5315-00-256-4794

5330-00-295-8839

6685-00-425-2373

4820-00-477-7958

3110-00-516-5289

5306-00-559-0474

5305-00-724-6789

5305-00-727-1282

5306-00-781-5649

5310-00-829-9981

4820-00-849-1220

5305-00-855-0961

5305-00-884-0156

5330-00-900-2337

5330-00-900-2340

4310-00-911-6607

4310-00-911-6608

4310-00-911-9571

5310-00-949-6139

5305-00-965-7306

5305-00-983-6657

5305-01-015-3345

4310-01-021-1589

5330-01-022-1857

4310-01-039-3732

5340-01-039-5950

4310-01-039-5955

4310-01-039-6115

4310-01-039-6504

4310-01-040-3470

FIG.

8

8

8

8

8

8

8

8

8

1

3

3

8

8

8

3

3

8

8

8

8

6

8

9

1

1

3

3

6

8

3

3

8

9

3

1

8

8

9

8

8

8

7

9

9

1

8

8

8

8

CROSS-REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM STOCK NUMBER

5

52

35

34

67

56

17

18

54

3

10

18

38

33

32

29

2

42

45

46

47

7

12

33

1

3

9

32

3

2

27

6

26

48

21

10

8

30

10

25

65

64

2

5

2

20

16

6

9

22

4310-01-040-7863

4820-01-041-8006

5910-01-043-4846

5325-01-051-0869

4310-01-052-2462

5330-01-065-5889

5330-01-065-8851

5305-01-065-9046

5330-01-067-9696

5330-01-073-6966

5330-01-073-6967

3120-01-079-6373

4310-01-095-2077

4310-01-095-2088

4310-01-095-3581

5305-01-096-1246

4935-01-100-6567

4935-01-100-6569

5330-01-106-9382

5330-01-106-9383

6150-01-108-5793

6150-01-108-5794

6105-01-108-7073

4310-01-108-7901

4820-01-109-1399

4720-01-109-1426

4820-01-109-4670

5910-01-110-3557

5305-01-111-7273

5310-01-111-9441

5325-01-112-6166

5930-01-186-8495

I-1

TM 5-4130-370-24P

ITEM

49

31

15

19

1

1

29

26

30

13

61

57

68

4

36

3

27

24

55

37

9

5

41

22

23

2

4

1

59

4

3

7

8

FIG.

8

8

8

8

4

5

8

8

8

8

3

8

8

3

8

3

8

8

3

1

8

8

8

3

3

1

6

9

9

3

3

8

9

SECTION IV

PART NUMBER

A-100

A-102

A-12

A-12A

A-15

A-21

A-29

A-33

A-4A

A-6A

B-14

B-26A

B-28B

B-31

B-75

B-9

C-1

C-14C

C-21A

C-30

C-30B

C-31

C-4A

C-5

C-6B

CAW1

D24826-001

D24827-001

D25013-001

D25551-001

D54670-001

D54873-001

D73060-001

D73116-021

M-1561

M-1562

M-1563

M-1564

M-1565

M-1586

M-1587

M-1796

M-457

M-461

M-565

M-696

M-780

MS16998-40

MS20066-256

MS24627-32

MS24629-35

MS35292-32

FSCM

11568

11568

58818

11568

11568

11568

11568

11568

11658

11568

11568

11568

11568

11568

11568

11568

11568

11658

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

23826

23826

23826

23826

23826

23826

23826

23826

11568

11568

11568

96906

96906

96906

96906

96906

96906 MS35338-45

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

4820-01-109-4670

2930-00-105-2373

5340-01-039-5950

4310-01-021-1589

5330-01-073-6967

5330-01-065-5889

6680-00-150-6875

4310-00-035-6246

5330-01-073-6966

5330-01-106-9382

4310-00-033-1415

4310-01-040-7863

5330-00-900-2337

5330-00-900-2340

5330-00-295-8839

4310-01-039-5955

4310-01-095-3581

4310-01-039-3732

4310-01-039-6115

4820-01-041-8006

5330-01-022-1857

5305-01-065-9046

4310-01-040-3470

4310-01-039-6504

5305-01-096-1246

5305-00-983-6657

5315-00-256-4794

5305-00-884-0156

5305-00-855-0961

5306-00-559-0474

Change 1 I-2

TM 5-4310-370-24P

ITEM

43

44

55

42

45

46

65

16

14

27

15

70

20

47

21

56

51

7

9

67

52

24

29

68

53

28

6

12

5

9

14

11

34

61

23

1

10

8

38

37

35

36

32

48

2

29

10

32

3

2

8

33

62

12

63

66

39

57

18

FIG.

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

9

8

8

8

8

8

8

8

8

6A

6A

6A

6A

6A

6A

8

8

8

8

6A

6A

8

8

8

8

8

1

3

8

3

3

6

8

1

8

8

8

8

8

8

8

3

SECTION IV

FSCM

96906

PART NUMBER

MS35338-45

96906 MS35649-2312

96906

96906

96906

96906

96906

96906

96906

96906

11568

11568

11568

11568

11568

11568

11568

05472

11568

05472

11568

11568

11568

11568

11568

11568

11568

11568

05472

05472

61349

05472

05472

05472

36422

05472

05472

19272

04718

80201

75336

75336

30119

19272

MS35782-5

MS39242-37

MS51031-49

MS51095-337

MS51953-25

MS51953-59B

MS51965-51

MS90726-32

NR-4-7A

P-3703A

P-5031B

P-5086A

P-5087A

P4581A

P4582A

SP5005

U-48

W1543-017(W-B)

Z-122A

Z-184

Z-515

Z-676

ZA-10

ZC-1

ZC-10

ZC-16

01300

03712

050755

1/2X13/64X18GAST

1/4-20-3/16

1/4-28X1/4 SLOT

1X485

10-32UNC

10X318 TYPE B

100-64

1047-08

10515

112C1/4 200

128 1/4 75

13-0241

13-0246

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5310-00-829-9981

4820-00-849-1220

5305-00-727-1282

5306-00-781-5649

4730-00-196-1465

4730-06-188-1870

5305-00-724-6789

5306-00-050-1238

4935-01-100-6569

4310-01-108-7901

4310-01-052-2462

5330-01-106-9383

4310-00-911-6608

4310-00-911-6607

4310-01-095-2077

4310-01-095-2088

4310-00-911-9571

4935-01-100-6567

5910-01-043-4846

5910-01-110-3557

6685-00-425-2373

5305-01-015-3345

5310-01-111-9441

5305-00-965-7306

4820-00-477-7958

5930-01-186-8495

I-3 Change 1

TM 5-4310-370-24P

ITEM

25

12

14

5

23

10

8

2

69

8

7

5

4

16

18

17

10

30

50

13

60

41

40

17

19

54

49

9

8

10

11

34

2

12

33

4

7

1

3

9

26

2

5

1

6

64

27

6

6

31

59

58

FIG.

3

8

6A

3

3

3

8

3

3

6

8

9

8

8

8

8

8

3

8

8

3

8

8

8

8

3

3

9

8

8

1

3

8

1

6

8

9

1

3

6

2

3

8

7

9

8

8

8

8

8

3

1

SECTION IV

FSCM

23826

71176

70188

19272

19272

19272

05472

05472

23826

19272

05472

05472

05472

05472

05472

05472

05472

05472

05472

05472

05472

23826

19272

19272

19272

19272

19272

19272

19272

75336

05472

94894

23826

23826

23826

94222

94222

94222

51917

PART NUMBER

14CF120A

2AK49

2X167

20-6149

20-6171

20-6172

203

205

24817-001

316-6

35-1231

35-32G

35-5618

35-63B

35-7697

35-7755

35-8503

35F927-2208

36-48

36-49

400V

48DC11A2

50-6716

50-6741

50-6753

50-6754

50-6757

50-6759

50-6760

501 1/4

6-30

61-J2-1506

73062-001

75CF14

75D73070A

82-11-420-16

82-32-101-20

82-47-108-154

9013-GHG-2

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5306-00-149-7111

3110-00-516-5289

3120-01-079-6373

5305-01-111-7273

6105-01-108-7073

5330-01-065-8851

5330-01-067-9696

4720-01-109-1426

6150-01-108-5793

6150-01-108-5794

4820-01-109-1399

4910-00-204-2644

5325-01-112-6166

5310-00-949-6139

5325-01-051-0869

TM 5-4310-370-24P

ITEM

4

20

1

1

1

1

6

3

21

15

11

3

3

13

2

2

4

3

5

1

1

19

22

25

9

4

13

30

26

7

11

7

22

31

13

28

11

35

15

24

1

4

FIG.

9

3

4

5

1

9

9

3

3

6A

9

9

9

6A

6A

6A

1

1

1

7

6A

3

8

3

3

6A

1

1

8

1

8

3

3

3

3

3

3

3

3

3

3

3

I-4 Change 1

SECTION IV

FIG.

3

3

3

3

3

3

3

4

5

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

1

2

3

1

1

1

1

1

1

1

1

1

1

1

1

ITEM

29

30

31

32

33

34

23

24

25

26

27

28

35

1

1

17

18

19

20

21

22

11

12

13

14

15

16

8

9

10

5

6

7

13

1

1

2

3

4

10

11

12

7

8

9

4

5

6

1

2

3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5325-01-112-6166

5310-00-949-6139

5325-01-051-0869

5306-00-050-1238

5310-00-829-9981

5306-00-559-0474

5310-00-829-9981

6105-01-108-7073

5305-00-884-0156

5330-01-067-9696

5330-01-065-8851

5305-00-727-1282

5910-01-110-3557

5910-01-043-4846

5305-00-965-7306

5305-00-983-6657

5305-01-111-7273

5310-01-111-9441

3120-01-079-6373

5305-00-724-6789

5305-00-855-0961

3110-00-516-5289

5306-00-559-0474

5310-00-829-9981

6150-01-108-5793

6150-01-108-5794

05472

05472

05472

05472

96906

05472

96906

05472

05472

96906

96906

96906

05472

19272

19272

05472

05472

05472

05472

05472

05472

05472

96906

71176

05472

05472

05472

19272

96906

05472

96906

05472

05472

30119

96906

05472

05472

05472

05472

19272

94222

94222

19272

94222

96906

96906

96906

19272

96906

96906

96906

I-5

TM 5-4310-370-24P

PART NUMBER

50-6753

82-11-420-16

82-32-101-20

20-6171

82-47-108-15

MS90726-32

MS35649-2312

MS35338-45

20-6149

MS35292-32

MS35338-45

MS35649-2312

20-6172

MS39242-37

35F927-2208

MS24627-32

36-49

36-48

13-0241

MS51031-49

35-1231

03712

01300

10X318 TYPE B

35-7697

1/4-20-3/16

35-63B

1/4-28X1/4 SLOT

35-8503

W1543-017(W-B)

SP5005

MS16998-40

2AK49

6-30

400V

35-32G

10-32UNC

35-8503

1/2X13/64X18GAST

205

MS51965-51

35-63B

MS24629-35

203

35-5618

MS35292-32

M535649-2312

MS35338-45

35-7755

50-6759

50-6760

SECTION IV

FIG.

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

6A

7

7

6A

6A

6A

6A

6A

6A

6A

6A

6A

6A

6A

6A

6

6

6

6

6A

6A

ITEM

22

23

24

25

26

27

28

29

16

17

18

19

20

21

10

11

12

13

14

15

7

8

9

4

5

6

15

1

2

1

2

3

9

10

11

12

13

14

3

4

5

6

7

8

4

1

2

1

2

3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-00-829-9981

5306-00-559-0474

5930-01-186-8495

4730-00-196-1465

5306-00-559-0474

5310-00-829-9981

5305-01-015-3345

2930-00-105-2373

4310-01-095-2088

5330-01-106-9382

4310-00-035-6246

4310-00-911-6607

4310-00-911-6608

5330-01-106-9383

4310-00-033-1415

5330-00-295-8839

5306-00-149-7111

5330-01-073-6967

5306-00-149-7111

5306-00-781-5649

5330-01-073-6966

5330-01-073-6967

11568

11568

11568

11568

11568

11568

70188

11568

11568

70188

96906

11568

11568

11568

96906

36422

11568

75336

19272

11568

11568

19272

11568

11568

11568

11568

23826

23826

23826

23826

23826

23826

23826

51917

96906

11568

96906

96906

96906

96906

96906

19272

23826

04718

23826

23826

23826

23826

23826

23826

Change 1 I-6

TM 5-4310-370-24P

PART NUMBER

MS35338-45

1X485

NR-4-7A

128 1/4 75

100-64

A-12A

Z-515

316-6

M-457

ZC-1

B-28B

B-75

B-26A

Z-184

Z-122A

U-48

C-1

C-31

2X167

C-6B

A-29

2X167

MS51095-337

B-31

A-6A

A-29

MS35649-2312

MS35338-45

MS35292-32

13-0246

14CF120A

1047-08

75CF14

73062-001

D54670-001

D25013-001

24817-001

D24827-001

D54873-001

D24826-001

D73116-021

D25551-001

75D73070A

D73060-001

48DC11A2

9013-GHG-2

MS51953-25

CAW1

MS35292-32

MS35649-2312

SECTION IV

FIG.

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

ITEM

36

37

38

39

40

41

30

31

32

33

34

35

42

43

44

45

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

4310-01-095-2077

4935-01-100-6569

4310-01-040-3470

4310-01-039-6504

4310-01-039-3732

5330-01-022-1857

5305-01-065-9046

4820-01-041-8006

4310-01-039-6115

4310-01-052-2462

5330-00-900-2337

5330-00-900-2337

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

11568

TM 5-4310-370-24P

PART NUMBER

Z-676

P-3703A

M-1586

M-1587

M-1561

M-1564

M-1565

M-1563

M-1562

M-696

P4582A

P4581A

C-30

A-100

C-14C

C-30

I-6.1/(I-6.2 blank) Change 1

SECTION IV

FIG.

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

9

9

9

9

9

9

9

9

9

8

9

9

ITEM

64

65

66

67

68

69

58

59

60

61

62

63

52

53

54

55

56

57

46

47

48

49

50

51

9

10

11

6

7

8

70

1

2

3

4

5

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5330-00-900-2340

5330-00-900-2340

5315-00-256-4794

4935-01-100-6567

4310-01-021-1589

4310-00-911-9571

4310-01-040-7863

4310-01-039-5955

5305-01-096-1246

4310-01-108-7901

4310-01-095-3581

4730-00-188-1870

6680-00-150-6875

5340-01-039-5950

5330-01-065-5889

4910-00-204-2644

4720-01-109-1426

4820-01-109-1399

4730-00-196-1465

4820-01-109-4670

4820-00-477-7958

4820-00-849-1220

6685-00-425-2373

11568

19272

94894

19272

75336

96906

19272

58818

75336

96906

61349

19272

11568

11568

11568

11568

11568

11568

96906

11568

11568

11568

11568

80201

11568

11568

96906

11568

11568

11568

11568

11568

11568

11568

11568

11568

TM 5-4310-370-24P

PART NUMBER

C-30B

C-30B

M520066-256

ZC-16

ZA-10

A-102

A-21

A-4A

ZC-10

C-21A

C-4A

M-780

P-5086A

P-5031B

P-5087A

C-5

M-1796

M-461

MS51953-59B

B-14

M-565

A-15

A-33

10515

B-9

50-6754

61-J2-1506

50-6741

501 1/4

M551953-25

50-6757

A-12

112C1/4 200

MS35782-5

050755

50-6716

I-7

TM 5-4310-370-24P

By Order of the Secretary of the Army:

CARL E. VUONO

General, United States Army

Chief of Staff

Official:

WILLIAM J. MEEHAN, II

Brigadier General, United States Army

The Adjutant General

DISTRIBUTION:

To be distributed in accordance with DA Form 12-25A, Unit, Direct Support and General Support Maintenance requirements for Compressor Unit, Reciprocating, Electric, 5 CFM, 175 PSI (50-6715)

¶ U.S. GOVERNMENT PRINTING OFFICE: 1997 O - 418-292 (67112)

TM 5-4310-370-24P

TM 5-4310-370-24P

TM 5-4310-370-24P

TM 5-4310-370-24P

To change

inches feet yards miles square inches square feet square yards square miles acres cubic feet cubic yards fluid ounces pints quarts gallons ounces pounds short tons pound-feet pound-inches

TM 5-4310-370-24P

The Metric System and Equivalents

Linear Measure

1 centimeter = 10 millimeters = .39 inch

1 decimeter = 10 centimeters = 3.94 inches

1 meter = 10 decimeters = 39.37 inches

1 dekameter = 10 meters = 32.8 feet

I hectometer = 10 dekameters = 328.08 feet

1 kilometer = 10 hectometers = 3.280.8 feet

Liquid Measure

1 centiliter = 10 milliliters = .34 fl. ounce

1 deciliter = 10 centiliters = 3.38 fl. ounces

1 liter = 10 deciliters = 33.81 fl. ounces

1 dekaliter = 10 liters = 2.64 gallons

1 hectoliter = 10 dekaliters = 26.42 gallons

1 kiloliter = 10 hectoliters = 264.18 gallons

Weights

1 centigram = 10 milligrams = .15 grain

1 decigram = 10 centigrams = 1.54 grains

I gram = 10 decigrams = .035 ounce

1 dekagram = 10 grams = .35 ounce

1 hectogram = 10 dekagrams = 3.52 ounces

1 kilogram = 10 hectograms = 2.2 pounds

1 quintal = 100 kilograms = 220.46 pounds

1 metric ton = 10 quintals = 1.1 short tons

Square Measure

1 sq. centimeter = 100 sq. millimeters = .155 sq. inch

1 sq. decimeter = 100 sq. centimeters = 15.5 sq. inches

1 sq. meter (centare) = 100 sq. decimeters = 10.76 sq. feet

1 sq. dekameter (are) = 100 sq. meters = 1.076.4 sq. feet

1 sq. hectometer (hectare) = 100 sq. dekameters = 2.47 acres

1 sq. kilometer = 100 sq. hectometers = .386 sq. mile

Cubic Measure

1 cu. centimeter = 1000 cu. millimeters = .06 cu. inch

1 cu. decimeter = 1000 cu. centimeters = 61.02 cu. inches

1 cu. meter = 1000 cu. decimeters = 35.31 feet

Approximate Conversion Factors

To

centimeters meters meters kilometers square centimeters square meters square meters square kilometers square hectometers cubic meters cubic meters milliliters liters liters liters grams kilograms metric tons newton-meters newton-meters

Multiply by

2.540

.305

.914

1.609

6.451

.093

.836

2.590

.405

.028

.765

29.573

cubic meters

.473

.946

milliliters liters

3.785

liters

28.349

liters

.454

.907

1.356

.11296

To change

ounce-inches centimeters meters meters kilometers square centimeters square meters square meters square kilometers square hectometers cubic meters grams kilograms metric tons

Temperature (Exact)

°

F Fahrenheit temperature

5/9 (after subtracting 32)

Celsius temperature

To

newton-meters inches feet yards miles square inches square feet square yards square miles acres cubic feet cubic yards fluid ounces pints quarts gallons ounces pounds short tons

°

C

Multiply by

.007062

.394

3.280

1.094

.621

.155

10.764

1.196

.386

2.471

35.315

1.308

.034

2.113

1.057

.264

.035

2.205

1.102

TM 5-4310-370-24P

PIN: 049933-002

This fine document...

Was brought to you by me:

Liberated Manuals -- free army and government manuals

Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly available information, slap “watermarks” and other junk on it, and sell it.

Those masters of search engine manipulation make sure that their sites that sell free information, come up first in search engines. They did not create it...

They did not even scan it... Why should they get your money? Why are not letting you give those free manuals to your friends?

I am setting this document FREE. This document was made by the US

Government and is NOT protected by Copyright. Feel free to share, republish, sell and so on.

I am not asking you for donations, fees or handouts. If you can, please provide a link to liberatedmanuals.com, so that free manuals come up first in search engines:

<A HREF= http://www.liberatedmanuals.com/ >Free Military and Government Manuals</A>

Sincerely

Igor Chudov http://igor.chudov.com/

Chicago Machinery Movers

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
