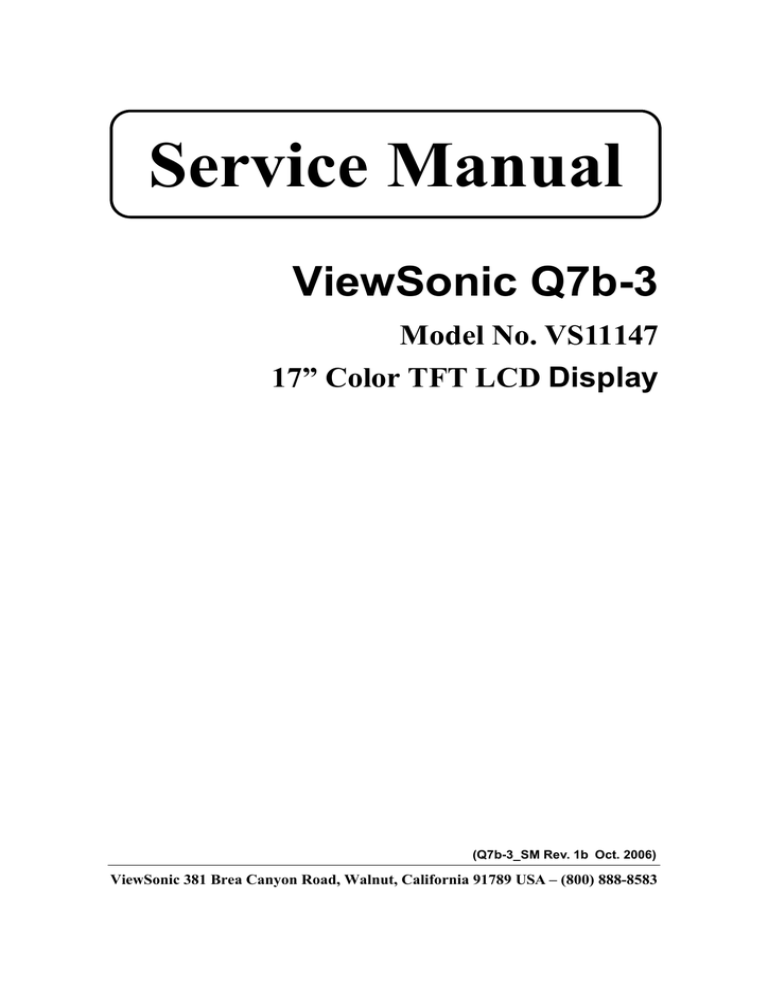

Service Manual
ViewSonic Q7b-3
Model No. VS11147
17” Color TFT LCD Display
(Q7b-3_SM Rev. 1b Oct. 2006)
ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA – (800) 888-8583
Copyright
Copyright © 2006 by ViewSonic Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranty of merchantability or fitness for any
particular purpose. Further, ViewSonic reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of ViewSonic to notify any
person of such revision or changes.
Trademarks
Opt quest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Revision History
Revision
SM Editing Date
1a
05/05/2006
1b
10/19/2006
ECR Number
Description of Changes
Initial Release
Editor
Jamie Chang
VS-E060261
Introduce SVA170SX01TB panel source
Jamie Chang
VS-E060262
Introduce Innolux panel source
Jamie Chang
ViewSonic Corporation
Confidential - Do Not Copy
i
Q7b-3
TABLE OF CONTENTS
1.
Precautions and Safety Notices
1
2.
Specification
5
3.
Front Panel Function Control Description
13
4.
Circuit Description
19
5.
Adjustment Procedure
24
6.
Troubleshooting Flow Chart
45
7.
Recommended Spare Parts List
53
8.
Exploded Diagram and Exploded Parts List
60
9.
Block Diagram
62
10. Schematic Diagrams
63
11. PCB Layout Diagrams
70
ViewSonic Corporation
Confidential - Do Not Copy
ii
Q7b-3
1. Precautions and Safety Notices
1. Appropriate Operation
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Turn off the product before cleaning.
Use only a dry soft cloth when cleaning the LCD panel surface.
Use a soft cloth soaked with mild detergent to clean the display housing.
Use only a high quality, safety approved AC/DC power cord.
Disconnect the power plug from the AC outlet if the product will not be used for a long period of time.
If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
Do not touch the LCD panel surface with sharp or hard objects.
Do not place heavy objects on the LCD display, video cable, or power cord.
Do not use abrasive cleaners, waxes or solvents for your cleaning.
Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas containing excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- In direct sunlight.
2. Caution
No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly familiar
with all of the following safety checks and servicing guidelines.
3. Safety Check
Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage is
exposed in such areas as the associated transformer circuits.
4. LCD Module Handling Precautions
4.1 Handling Precautions
(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when connecting or disconnecting input connector.
(3) Wipe off water drops immediately. Long contact with water may cause discoloration or spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and ensure human earth when handling.
(7) Do not open or modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module in any direction.
(9) In the event that a Module must be put back into the packing container slot after it was taken out of the
container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the
CFL Reflector edge softly. Otherwise the TFT Module may be damaged.
(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface
Connector of the TFT Module.
ViewSonic Corporation
Confidential - Do Not Copy
1
Q7b-3
(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist or
bend the TFT Module even momentarily. When designing the enclosure, it should be taken into consideration
that no bending/twisting forces may be applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module
should be supplied with power that complies with the requirements of Limited Power Source
(IEC60950 or UL1950), or an exemption should be applied for.
(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950
or UL1950). Do not connect the CCFL to a Hazardous Voltage Circuit.
ViewSonic Corporation
Confidential - Do Not Copy
2
Q7b-3
Handing and Placing methods
Correct methods
Only touch the metal frame of the LCD panel or the
Incorrect methods
Surface of the LCD panel is pressed by fingers and that
front cover of the monitor, DO not touch the surfaceof may cause”mura”
the POL
Take out the monitor with cushions
Taking out the monitor by grasping the LCD panel, that
May cause”mura”
ViewSonic Corporation
Confidential - Do Not Copy
3
Q7b-3
Place the monitor on a clean and soft foam pad
Placing the monitor on a foreign objects, that could
scratch The surface of the "Panel" or cause "mura"
The panel is placed facedown the lap,that may cause
"mura"
ViewSonic Corporation
Confidential - Do Not Copy
4
Q7b-3
2. Specification
2-1 GENERAL specification
Test Resolution & Frequency
Test Image Size
Contrast and Brightness Controls
2-2
VIDEO INTERFACE
Input Connector (refer the appendix A)
Default Input Connector
Video Cable Strain Relief
Video Cable Connector DB-15 Pin out
Video Signals
Video Impedance
Maximum PC Video Signal
Maximum Mac Video Signal
Sync Signals
DDC2B
Sync Compatibility
Video Compatibility
Resolution Compatibility
Exclusions
2-3
1280x1024 @ 75Hz
Full Size
Factory Default:
Contrast = 90%, Brightness = 100%
DB-15 (Analog)
Defaults to the first detected input
Equal to twice the weight of the monitor for five
minutes
Compliant 2B
Video RGB (Analog)
Separate Sync
75 Ohms (Analog), 100 Ohms (Digital)
950 mV with no damage to monitor
1250 mV with no damage to monitor
TTL
Compliant with Revision 1.0
Separate Sync
Shall be compatible with all PC type computers,
Macintosh computers, and after market video
cards
640x350, 720x400, 640x480, 800x600, 832x624,
1024x768, 1152x864,
1152x870, 1280x960, 1280x1024
Not compatible with interlaced video
USB INTERFACE
N/A
ViewSonic Corporation
Confidential - Do Not Copy
5
Q7b-3
2-4
POWER SUPPLY
Internal Power Supply
Input Voltage Range
Input Frequency Range
Short Circuit Protection
Over Current Protection
Leakage Current
Efficiency
Fuse
Power Dissipation
Max Input AC Current
Inrush Current (Cold Start)
FSP FSP035-1PI01ZT
90 to 264 VAC
47.5 to 63 Hertz
Output can be shorted without damage
5.0 A typical at 12.0 VDC
3.5mA (Max) at 254VAC / 60Hz
80 % typical at 115VAC Full Load
Internal and not user replaceable
36W(typ) 40W(max)
1.5 Arms @ 90VAC, 0.75 Arms @180VAC
50 A (max) @ 115VAC
90 A (max) @ 230VAC
Power Supply Cold Start
Shall start and function properly when under full
load, with all combinations of input voltage, input
frequency, and operating temperature.
Power Supply Transient Immunity
Shall be able to withstand an ANSI/IEEE
C62.41-1980 6000V 200 ampere ring wave
transient test with no damage.
Power Supply Line Surge Immunity
Shall be able to withstand 1.5 times nominal line
voltage for one cycle with no damage.
Power Supply Missing Cycle Immunity
Shall be able to function properly, without reset or
visible screen artifacts, when ½ cycle of AC power
is randomly missing at nominal input.
Power Supply Acoustics
The power supply shall not produce audible noise
that would be detectable by the user. Audible
shall defined to be in compliance with ISO 7779
(DIN EN27779:1991) Noise measurements of
machines acoustics. Power Switch noise shall not
be considered.
Power Saving Operation(Method)
VESA DPMS Signaling
On Mode < 36W(Typ) / 40W (max)
Power Consumption
Recovery Time
Active Off < 1 W @ 120 Vac /
< 1.5W @ 220Vac
On Mode = N/A, Active Off < 3 sec
ViewSonic Corporation
Confidential - Do Not Copy
6
Q7b-3
2-5
ELECTRICAL REQUIREMENT
Horizontal / Vertical Frequency
Horizontal Frequency
Vertical Refresh Rate
Maximum Pixel Clock
Sync Polarity
30 – 80 kHz
55 – 75 Hz.
135 MHz
Independent of sync polarity.
Timing Table
Timing
Analog
@
70 Hz, 31.5 KHz
640 x 480
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1152 x 870
1280 x 960
1280 x 1024
1280 x 1024
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
60 Hz,
67 Hz,
72 Hz,
75 Hz,
70 Hz,
56 Hz,
60 Hz,
72 Hz,
75 Hz,
75 Hz,
60 Hz,
70 Hz,
75 Hz,
75 Hz,
75 Hz,
60 Hz,
60 Hz,
75 Hz,
31.5
35
37.9
37.5
31.5
35.1
37.9
48.1
46.9
49.7
48.4
56.5
60.2
67.5
68.7
59.7
64
80
Remark
The vertical image size might not full
screen
(vertical position = center).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SOG
Composite
Separated
640 x 350
Digital - TMDS
Item
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
KHz
Primary Presets
1280x1024 @ 75Hz
User Presets
Number of User Presets (recognized timings) Available: 10 presets total in FIFO configuration
Changing Modes
● Maximum Mode Change Blank Time for image stability : 3 seconds (Max), excluding “Auto
Adjust” time
● The monitor needs to do “Auto Adjust” the first time a new mode is detected
(see section “0-Touch™ Function Actions”)
● While running Change Mode, Auto Adjust or Memory Recall, the image shall blank
ViewSonic Corporation
Confidential - Do Not Copy
7
Q7b-3
2-6
FRONT PANEL CONTROLS AND INDICATORS
Front Panel Hardware Controls
Power Switch (Front Head)
Power Control, soft Power Switch.
Power LED (Front Head)
Green – ON
Orange – Active Off
Dark = Soft Power Switch OFF
Front Panel Controls
BUTTON
ICON FUNCTION
(Head; From left to right)
BUTTON1
BUTTON2
BUTTON3
BUTTON4
BUTTON5
Reaction Time
+
SELECT(BACKWARD)
SELECT(FORWARD)
POWER
ADJUST DOWN
ADJUST UP
OSD must fully appear within 0.5s after pushing
Button 1
Short Cuts Function from the button(s)
Button 1
Auto Image Adjust.
Button 2
Main Menu
Button 4
Mute on/off
Button 5
Volume OSD
Button 4 + Button 5
Factory Mode
+ Button 3
(The Burning mode is build in Factory mode)
Remark : All the short cuts function are only available while OSD off
Function descriptions
Main Menu Controls
The Main Menu OSD include most of control functions.
Please refer to APPENDIX B (Main Menu OSD Table) for the detail.
Factory Default OSD Actions
Memory Recall action on the analog and digital mode as below
1. Set the factory defaults as shown in Section 2-8
2. Clean all the mode setting buffer
3. Execute Auto Image Adjust
0-Touch™ Function Actions
1. Execute Auto Image Adjust when new mode detected, and save the settings to buffer for
further use
2. It should be reset by Memory Recall function
(Should not reset by power off, power unplug and others)
OSD Auto Save
The OSD shall save new settings when it is turned off by the user or when it times out.
There shall not be a separate save
Factory Defaults
Item
Contrast
Brightness
Color Setting
Defaults
90
100
NATIVE
ViewSonic Corporation
Confidential - Do Not Copy
8
Q7b-3
2-7
AUDIO INTERFACE (SPEAKER SPECIFICATION)
SPEAKER SPECIFICATION
LINE INPUT CONNECTION
3.5 MM STEREO JACK
LINE INPUT SIGNAL
0.7 VRMS
LINE INPUT IMPEDANCE
18 KOHM
MAXIMUM
POWER
OUTPUT
1 W@ < 15 % DISTORTION
(ELECTRIC)
SIGNAL TO NOISE RATIO
50 DB
FREQUENCY RESPONSE
200 HZ – 10 KHZ
DISTORTION
< 5 % THD (@1KHZ)
THERE SHOULD BE NO AUDIBLE
VIBRATION
VIBRATION WITH VOLUME AT 100% AND
TREBLE / BASS AT DEFAULT.
THERE SHOULD BE NO AFFECT ON THE
SCREEN IMAGE
SCREEN IMAGE STABILITY UNDER ANY
CONDITIONS.
CONNECTOR PC99 REQUIREMENT
LIME GREEN PANTONE # 577C
AUDIO IN
CABLE TYPE / LENGTH
3.5MM STEREO CABLE / 1.8M LENGTH
SPEAKERS SHOULD BE OFF WHEN THE
AUDIO DPMS
REST OF THE MONITOR IS IN POWER
SAVING.
UNDER FOLLOWING CONDITIONS, THERE
SHOULD BE NO SYMPATHETIC HEARD
1. INPUT <=0.7VRMS
SYMPATHETIC
2. VOLUME OSD <=80
3. DISTANCE =30CM ±5CM
ViewSonic Corporation
Confidential - Do Not Copy
9
Q7b-3
2-8
TFT LCD PANEL
Panel Characteristics:
1st Source Panel
Model number
CMO M170E5-L09 (17”)
Type
Active Matrix TFT, TN technology
Pixel Arrangement
RGB Vertical Stripe (0.264 mm Pixel Pitch)
Glass Treatment
Anti-Glare, Hard Coating (3H)
# of Backlights
4 CCFL
Backlight Life
50,000 Hrs (Typical)/40,000 Hrs (Min)
Luminance (Center)
300 cd/m2 (Typical) /230 cd/m2 (Min)
Brightness Uniformity
80% (Typical) / 75% (Min)
Contrast Ratio
500 :1 (Typical) / 400 : 1 (Min)
Color Depth
16.2 million colors (6+2 bit panel)
Viewing Angle (CR>10)
(H) 150°/ (V)130°
Response Time 10%-90% @ Ta=25°C
On/Off : 8 ms
Mercury
3.0 mg per lamp
* P50% units of monthly shipment shall be equal or better than the Typical value above.
2nd Source Panel
Model number
Innolux MT170EN01 (17”)
Type
Active Matrix TFT, TN technology
Pixel Arrangement
RGB Vertical Stripe (0.264 mm Pixel Pitch)
Glass Treatment
Anti-Glare, Hard Coating (3H)
# of Backlights
4 CCFL
Backlight Life
50,000 Hrs (Min)
Luminance (Center)
280 cd/m2 (Typical) / 250 cd/m2 (Min)
Brightness Uniformity
80% (Typical) / 75% (Min)
Contrast Ratio
600 :1 (Typical) / 500 : 1 (Min)
Color Depth
16.2 million colors (6+2 bit panel)
Viewing Angle (CR>10)
(H)150° degrees (V) 135°
Viewing Angle (CR>5)
(H)170°(Typical) / (V)155°(Typical)
Response Time 10%-90% @ Ta=25°C
On/Off : 8 ms
Mercury
3.0 mg per lamp
* P50% units of monthly shipment shall be equal or better than the Typical value above.
3rd Source Panel
Model number
SVA SVA170SX01TB
Type
Active Matrix TFT, TN technology
Pixel Arrangement
RGB Vertical Stripe (0.264 mm Pixel Pitch)
Glass Treatment
Anti-Glare
# of Backlights
4 CCFL
Backlight Life
50,000 Hrs (Typical) / 42,000 Hrs (Min)
Luminance (Center)
300 cd/m2 (Typical) / 240 cd/m2 (Minimum)
Brightness Uniformity
83% (Typical) / 77% (Minimum)
Contrast Ratio
600 :1 (Typical) / 400 : 1 (Minimum)
Color Depth
16.77million colors (6bit panel)
Viewing Angle (CR>10)
(H)130° / (V) 110°
Response Time 10%-90% @ Ta=25°C On/Off : 8 ms
Mercury
<3.0 mg per lamp
* P50% units of monthly shipment shall be equal or better than the Typical value above.
ViewSonic Corporation
Confidential - Do Not Copy
10
Q7b-3
2-9
IMAGE PERFORMANCE
Display Size
Horizontal Display Size, Primary Preset Full Screen
Vertical Display Size, Primary Preset
Full Screen
Luminance
Lv (Max) –Condition:
Lv (Max) = The Luminance requirement of
Brightness / Contrast = 100%
section 2-6 “TFT LCD PANEL”
Color Temperature = User (R/G/B=100)
Lv (NATIVE) –Condition:
Brightness = Default / Contrast = Default
Lv (NATIVE) / Lv (Max) x 100% > 85%
Color Temperature = NATIVE
Lv (COOL) –Condition:
Brightness = Default / Contrast = Default
Lv (COOL) / Lv (Max) x 100% > 70%
Color Temperature = COOL
Lv (WARM) –Condition:
Brightness = Default / Contrast = Default
Lv (WARM) / Lv (Max) x 100% > 70%
Color Temperature = WARM
Contrast Ratio
CR(Max) –Condition:
Contrast / Brightness = 100%
Color Temperature = User (R/G/B=100)
Saturation
Contrast = Default
Brightness = Default
Test pattern = 128-gray
Same as the Contrast Ratio in section 2-6
“TFT LCD PANEL”
NO VISIBLE SATURATION
Preset Color Temperatures
Color Temperature = WARM
(CCT around 5500K)
x = 0.332 ± 0.03
y = 0.348 ± 0.03
Color Temperature = NATIVE
(CCT around 6500K)
x = 0.313 ± 0.03
y = 0.329 ± 0.03
Color Temperature = COOL
(CCT around 9300K)
x = 0.283 ± 0.03
y = 0.298 ± 0.03
*No redish, greenish or bluish tint under any color setting (base on PVT sample)
Video Cards Compatibility
Peaking Performance : Peaking is not adjustable
Raster Artifacts
● Video Artifacts : No visible streaking, sag, or smearing artifacts when driven by the
specified video cards in the primary mode and after user adjustment to best condition
● Power Supply, and Grounding Artifacts : No visible artifacts in any specified video mode
within the horizontal or vertical frequency range of the monitor
● Temperature Drift : Image shall not drift or lose fine-tune adjustment
ViewSonic Corporation
Confidential - Do Not Copy
11
Q7b-3
2-10 MECHANICAL
Desktop
Dimension
Monitor Weight
Head Only / Wall Mount
Dimension
375 mm (W) x 372 mm (H) x 160 mm (D)
14.8" (W) x 14.6" (H) x 6.3" (D)
4.2 Kg (9.3 lbs)
Monitor Weight
375 mm (W) x 323 mm (H) x 56 mm (D)
14.8" (W) x 12.7" (H) x 2.2" (D)
3.9 Kg (8.6 lbs)
Ergonomics
Tilt Up
Tilt Down
+15º ±2 º
-5 º ±2 º
Cabinet Material
Display Head Plastic Material
Neck/Base Plastic Material
Internal Plastic Cabinet Components
Front Bezel Color
ABS-94HB
ABS-94HB
All internal plastic cabinet components shall
be in compliance with the requirements of
MPR II
The reference for the Front Bezel is the Black
color chip provided by ViewSonic
The color difference between any two cabinet
components shall be less than 0.80 “Delta E”, in the
1976 CIE L*a*b Colorspace.
Neck, Base, Speaker Cover, Rear Cover The reference for the Neck, Base, Speaker
and Rear Logo Color
Cover, Rear Cover and Rear Logo is the Black
color chip provided by ViewSonic
The color difference between any two cabinet
components shall be less than 0.80 “Delta E”,
in the 1976 CIE L*a*b Colorspace.
Cabinet Color Drift Due To UV-Light
The color drift due to UV-Light shall be less
than 3.0 “Delta E” in the 1976 CIE L*a*b
colorspace.
Testing shall be performed
according to the requirements of ASTM Test
Method D4459-93.
Cabinet Texture
Mold-Tech # 11010 used on all external
textured surfaces.
Samples
The supplier shall submit textured color chips,
plastic material specifications, and Material
Safety Data Sheets for approval.
ViewSonic Corporation
Confidential - Do Not Copy
12
Q7b-3
3. Front Panel Function Control Description
3.1 Functional Description of Controls
a. User Control Panel
b. Description of Key Functions
No.
Symbol
ƒ
Function
1. Show the mute OSD.
2. Decrease a function’s (
) value.
3. Move to the next function (
1. Show the volume OSD menu
2. Increase a function’s (
) value.
3. Move to the next function (
Power indicator
„
Turn the power on or off
…
1. Show the main OSD menu
2. Select the next OSD icon down
1. Auto-adjust
2. Select the next OSD icon up
•
‚
†
) left
) right
3.2 LED Indicator
The Model has one power LED which has two colors, Green and Amber.
LED should have enough luminance for clear viewable.
Some monitor status area indicated by using this LED, as follows:
Power LED
Normal On
Green
Suspend
Amber
Active Off
Off
Out of Range
Amber
No Input Signal
Amber (OSD ON)
ViewSonic Corporation
Confidential - Do Not Copy
13
Q7b-3
3.3 User Adjustment (At Analog Signal input)
RGB Mode
Hot Key
Auto Adjuster
Brightness
Contrast
H position
V position
Phase
Clock
Color
OSD
Slider Bar
User
Native
Cool
Warm
Brightness
Up
Language
Reset
Exit
Color Red
Color Green
Color Blue
Brightness
Down
3.4 Specification (at all Present Timing)
a. BRT / CONT:
Picture background shall become brighter with BRIGHTNESS at its MAX position, and shall
become darker at its MIN position.
Contrast of picture shall be changed by adjusting contrast value.
b. Adjusted Range for H/V Center
: ±10mm or more / ±5mm or more
c. Adjusted Range for H Phase / Pitch
: >60 steps / ±50 dots
d. Color
: Standard Shipping Condition- Native
Preset Color Mode
- Cool, Native, Warm.
User Adjustment Mode
- Users can adjust each R or G or B color individually.
ViewSonic Corporation
Confidential - Do Not Copy
14
Q7b-3
e. Recall
: Recall include Brightness, Contrast, Volume, OSD Position, OSD Time, and execute
Auto Adjust.
f. Language: Users can choose one of the eight languages:English, French, German, Spanish and
Italian, Russian, Tradition Chinese, Simplify Chinese.
g. Power: Pushing Power button shall cause the monitor to be turned ON and LED to be
illuminated.
Pushing Power button again shall cause the monitor to be turned OFF and LED to be OFF.
3.5 Other User/Service Information
a. SIGNAL OVER RANGE:
If the horizontal or vertical or both input signal frequency exceed the acceptable input frequency
range, the monitor keeps indicating the “SIGNAL OVER RANGE” as the OSD information after
2 seconds. If both input signal frequencies are in the acceptable frequency range, the monitor
puts out the OSD indication and goes back to normal state.
b. RGB NO INPUTSIGNAL:
In case of the pin 14 is +5V, the monitor recognizes PC is connected. Otherwise, the pin 14 is
low (approx. 0V), horizontal or vertical input signals are not exist, the monitor displays OSD
information〝RGB NO INPUTSIGNAL〞5 seconds, then goes to power save.
3.6 Picture Size & Tilt (Primary mode only; to be checked in shipping condition.)
a. Picture Size: <All Models> Follow Panel Spec.
b. Tilt:
A
B’
E’
B
E
F
C
D
G
D’
bezel
video
G’
| AB- CD| = Tilt on top ≦ 1mm
| EF - GH| = Tilt on bottom ≦ 1mm
| BB’-EE’| ≦ 1mm (at left side)
| DD’-GG’| ≦ 1mm (at right side)
H
ViewSonic Corporation
Confidential - Do Not Copy
15
Q7b-3
3.7 Brightness Uniformity and Contrast Ratio
a. Brightness Uniformity:
128
640
1152
B
C
102
A
512
E
D
Bmax - Bmin
Bmax
922
Bmax = MAX (BA, BB, BC, BD, BE)
Bmin = MIN (BA, BB, BC, BD, BE)
Bave = AVE (BA, BB, BC, BD, BE)
≦ 20%
b. Contrast Ratio:
The contrast ratio is measured at point A and calculated by using the following formula
Contrast ratio (CR) =
Luminance with all pixels in white
Luminance with all pixels in black
3.8 Shipping Luminance
a. Condition
Input signal
Controls
Cont./Brt.
Measurement point
Warm-up time
Color analyzer
c. Shipping luminance (center)
Color Temperature
≧ 400(According to CMO
M170E5-L09)
: Full white pattern
: Color temperature of Office
: Default value
: One point at the center of the picture.
: 30 minutes.
: CA-210
Shipping Luminance
Native
17”
≧ 230 cd / ㎡
3.9 Maximum / Minimum Luminance
a. Condition
Input signal
: Full white pattern (Primary mode)
Measurement point : Center of LCD screen
Color Analyzer
: CA-210
Maximum
: BRT→Max.
CONT→Max.
b. Specification: Native only
(1) ≧230 cd/㎡
ViewSonic Corporation
Confidential - Do Not Copy
16
Q7b-3
3.10 Black Level
a. Gray Scale Condition
Input signal: 32 Gray scale (Primary mode)
Controls : CONT./BRT. primary setting, other shipping setting
condition.
b. Specification:Native
(1) The first bar from black of gray scale pattern shall be cut off.
(2) The last bar from the bright of gray scale pattern shall be
discrimination.
3.11 Picture Quality
a. Condition
BRT : MIN. ~ MAX.
CONT : MIN. ~ MAX.
*Inspection of picture quality shall be made at the distance of 50 cm in front of LCD surface.
b. Full White Signal
Condition : Input signal – Full white signal
Specification: The following electrical defects shall not be so conspicuous.
(ITU-R 4.5 or better in primary mode, and ITU-R 4.0 or better in other modes)
(2) ringing, seam, etc.
(3) flicker, noise, beat, etc.
(4) shading, etc.
(5) saturation of video power supply, etc.
c. Inverted Crosshatch Signal
Condition : Input signal – Inverted crosshatch signal
Specification: Following electrical defects shall not be so conspicuous.
(ITU-R 4.5 or better in primary mode, and ITU-R 4.0 or better in other modes)
(1) video ringing, over shoot, smear, etc.
(2) vertical jitter, horizontal jitter, picture vibration, etc.
d. Gray Scale Signal
Condition : Input signal – Gray scale signal
Specification: Following electrical defects shall not be so conspicuous.
(ITU-R 4.5 or better in primary mode, and ITU-R 4.0 or better in other modes)
(1) Oscillation, noise, beat, shading, etc.
ViewSonic Corporation
Confidential - Do Not Copy
17
Q7b-3
3.12 EDID DATA
a. Condition
: Maintain Mode
b. Specification : FOR RGB
DDC EDID 128 BYTES DATA STRUCTURE
No.
00
08
0A
0C
10
11
12
14
Item
Header
ID Manufacturer Name
ID Product Code
ID Serial Number
Week Of Manufacture
Year Of Manufacture
EDID Version,Revision
Video Input Definition
15
16
17
18
19
23
Max. H. Image Size
Max. V. Image Size
Display Transfe
Charac.(gamma)
Feature Support(DPMS)
Color Characteristics
Established Timings
26
Standard Timing Identification
36
Detailed Timing 1 Description
48
Detailed Timing 2 Description
5A
Detailed Timing 3 Description
6C
Detailed Timing 4 Description
7E
7F
Extension Flag
Checksum
NOTE 1
EDID Data or Definition
00 FF FF FF FF FF FF 00
10 8C (DDL)
00 00 (0)
00 00 00 00 (0)
Week of manufacture
Year of manufacture
01 03
7E(Analog signal,0.700,0.000(0.7
Vp-p),Black-to-Black, ,Separate Syncs, Composite Syncs, Sync
on Screen )
22 (34cm)
1B(27cm)
78(2.20)
EB(Stand-by,Suspend,Active Off supported,R/G/B color display)
Per TFT measurement(See NOTE1)
AF--(720*480@70Hz) ,(640*480@60Hz),(640*480@72Hz),
(640*480@75Hz),(800*600@56Hz),(800*600@60Hz)
EF--(800*600@72Hz),(800*600@75Hz),(832*624@75Hz)
(1024*768@60Hz),(1024*768@70Hz),(1024*768@75Hz)
(1280*1024@75Hz)
00—
81 80— 1280*1024@60Hz;
71 4F— 1152*864@75Hz z;
81 40--1280*960@75Hz;
31 46— 640x480 @66Hz
01 01-01 01-01 01-01 01-BC 34 00 98 51 00 2A 40 10 90 13 00 51 0E 11 00 00 1E
(1280*1024@75Hz,Video Size:337mm*270mm,No Stereo)
00 00 00 FF 00 20 44 44 4C 30 30 30 30 30 20 20 20 20
Monitor S/N: DDL00000
00 00 00 FD 00 37 4B 1E 50 0E 00 0A 20 20 20 20 20 20
(Vf:55~75Hz,Hf:30~80KHz,Pixel Clock:140MHz)
00 00 00 FC 00 4C 4D 31 37 30 34 0A 20 20 20 20 20 20
(LM1704)
00
Per DDC Specification
Panel Specification (M170E5-L0A)
Color characteristics
R: x=0.6445
y=0.3477
Store in EDID data=
G: x=0.2803
y=0.6055
B: x=0.1416
y=0.0713
W: x=0.3135
y=0.3291
0C 55 A5 59 47 9B 24 12 50 54
ViewSonic Corporation
Confidential - Do Not Copy
18
Q7b-3
4. Circuit Description
A. A/D converters
The ADC is a 7-bit 4-channel analog-to digital converter ,the structure of these ADCS is 7-bit
successive approximation ,analog voltage is supplied from external sources to the A/D input pins and
the result of the conversion is stored In the 7-bit data latch registers(ADC0_REG~ADC3_REG).The
A/D cannels are activated by cleaning the correspondent control bits in the ADC_CON control register,
when users write”1” into one of the enable control bits(EN_ADC0~EN-ADC3),its correspondent I/O pin
will be switched to the A/D Converter input pin
The conversion will be started by setting STRT_ADC Bit, user can monitor this bit to get the valid A/D
channel, its latched data is meaningful, the analog voltage to be measured should be stable during the
conversion operation and the variation will not exceed 1 LSB for the best accuracy in measurement
B.Scalling controller
1. VGA front end
l
Built-in triple high speed ADC,PLL for analog RGB input
l
Supports both non-interlaced and interlaced RGB graphic input signals
l
Input signal ranges from 0.55-0.9v
l
Provides RGB analog gain and offset control
l
Support 64 steps (one cycle of pixel)of phase adjust
l
ADC sampling rates are up to 110MHZ for x type, 160MHZ for E type Supports analog SOG
input
2. YUV Front End
l
Support ITU-R BT.656 8-bit input
l
Built-in YUV to RGB color space converter
3. Display
l
Supports data swap to fit any panel data alignment for PCB Layout
l
Built in LVDS transmitter
l
Supports spectrum of output clock
4. Hot interface
l
Support serial 2-wire IIC bus
l
Provides 2 channel PMW
5. Power
l
Power supply
l
Less than 1.3W
ViewSonic Corporation
Confidential - Do Not Copy
19
Q7b-3
6. Video processor
l
Flexible de-interlacing unit for VGA and digital YUV video input data
l
Auto-calibration function for quick vide cantering, clock adjust and phase adjust
l
Independent horizontal and vertical zoom in/out algorithm
l
Enhanced interpolation algorithm for optimal image quality
l
Provides RGB digital gain and offset control
l
Dithering function supports 24-bits quality for 18-bit panel
l
SRGB matrix mapping support
l
10-bit programmable gamma table for panel compensation
l
Supports Hue and saturation adjustment
l
Built-in POST pattern
Timing controller
l
Support RSDS output
l
Provides 4 differential data pairs to support 6 or 8-bit RGB data bus
l
10 General Purpose output allow suitability to different production environments
l
Provide single pixel (18-24-bit) or dual pixel (36-48-bit)
l
Programmable RSDS swing level
l
Supports line offset function for two bank system panel
l
12 GPO internal controls 10 GPO external pin outputs
l
Supports data swap to fit any panel data alignment for PCD layout
Sync Processor
l
Supports separate, composite and TTL-level sync-on-Green (SOG) sync input
l
Polarity detection for HSYNCI and VSYNCI
l
Fast mode change detection function
ViewSonic Corporation
Confidential - Do Not Copy
20
Q7b-3
Pin description
ViewSonic Corporation
Confidential - Do Not Copy
21
Q7b-3
ViewSonic Corporation
Confidential - Do Not Copy
22
Q7b-3
C.NT68521
The NT68521 is a high quality image and highly integrated LCD controller, it combines a triple ADC, scaling engine,
OSD, LVDS and timing controller
The ADC supporter up to 160MHZ pixel rate and built-in a low jitter digital for sampling input video that provides
more stabile ,clear data for display,
The NT68521 Built-in DSP engine execute image zoom-in, zoom out function, the zoom feature provides linear
scaling up/down that makes it easier to fit different panel resolutions
The OSD provides a bit map,multi-color RAM front that is more flexible to create the customer’s OSD the output
provides multi-interface and for general panel solutions ,the display provides LVDS interface
The NT68521 also has a built-in spread spectrum feature to provide low EMI solutions ,SRGB for video color space
convert ,post pattern for manufacturing test ,de-interlace feature receives interlace video input and display on TFT
panels
ViewSonic Corporation
Confidential - Do Not Copy
23
Q7b-3
5. Adjustment Procedure
1. Function test
1.1 products
17” LCD Monitor
1.2 test equipment
(2-1). One PC (Windows system);two RS-232 PORT,COM1: signal resolution、COM2: color
meter。
Print PORT: connection with IIC/RS-232 Adapter Board
(2-2).Color Meter: MINOLTA. CA-110 is 21cm apart form the screen (eg: BM-7 distance is 50cm;
Field = 2.0)
(2-3). IIC/RS-232 Adapter Board (Set IIC Port)
(2-4). (TOPCON BM-7 or CA110) will be upright with Monitor
(2-5).each equipment’s connection circuit diagram, pls see the appendix two and three.
Optical
Black Pasteboard Cylinder
LCD Module
MINOLTA CA-110
210mm
(3).Setup
( 3-1 ).with 32 level gray scale Pattern
(3- 2 ).Brightness Set 50; Contrast Set 50.
( 3-3 ). Auto White Balance:
Entered into Maintain mode then choose Menu (F199N) Icon ,and press (+) Key to enter
into Maintain Menu; choose Auto Color ,press down (+) Key to implement Auto Color
Adjust。
(4).adjust specification:
At Brightness=50, Contrast=50 Full White Pattern
6500°K: x=0.313±0.015;y=0.329±0.015
9300°K: x=0.283±0.015;y=0.297±0.015
S RGBK : x=0.313±0.015;y=0.329±0.015
Brightness=50,Contrast=50 Full White ≧180 CD/M2
(5). Applicable program exercitation (use the color temperature adjust program to adjust color
temperature)
ViewSonic Corporation
Confidential - Do Not Copy
24
Q7b-3
(5- 1).WBA.exe, enter the pattern as follow:
(5- 2 ).at this time .pls press the open document as follow, choose the project document and
press the open button, the pattern is as follow
note: pls choose the related program depending on the model and panel of the product
( 5-3 ).pls choose” (Set)”à”Communication”, should alter the communication setup,the patter is
As follow:
ViewSonic Corporation
Confidential - Do Not Copy
25
Q7b-3
( 5-4 ). Pls select” Set”à”Range”, ADC setup range, pattern is as follow:
LM1901XXND: Gain 0 ~ 255 Offset 0 ~ 255
ViewSonic Corporation
Confidential - Do Not Copy
26
Q7b-3
(5-5 ). Pls select”(Set)”à”Color Temperature” setup the color temperature specification, the
7500K of the program is”SRGB”color temperature ,pattern as follow:advise the adjust
tolerance will be ±3
( 5-6 ). Pls select” Set”à”Color Analyzer” setup color analysis fixture Type,at present we can
Use CA-110 and BM-7. Chroma7120,the pattern as follow:
ViewSonic Corporation
Confidential - Do Not Copy
27
Q7b-3
( 5-7 ). Pls select” Set”à”Video Generator” to set the signal generator’s Type and
Timing/Pattern, refer to the pattern as follow:
( 5-8 ) pls select ”Set”à”Default RGB Gain
ViewSonic Corporation
Confidential - Do Not Copy
28
Q7b-3
( 5-9 ). Begin to adjust;pls press the tools menu
Icon, Icon, at this time the program will
go on the color temperature adjusting, refer to the pattern as follow.
(6).when adjusting the color tempreture,after the auto adjust, you must save the document and
then turn
On the machine, test the color and temperature:
6500°K: x=0.313±0.015;y=0.329±0.015
9300°K: x=0.283±0.015;y=0.297±0.015
SRGB : x=0.313±0.015;y=0.329±0.015
(7).POWER SAVING& power test﹕INPUT 1280x1024 @75Hz FULL WHITE, insert the signal
to D-SUB&DVI . CHECK whether the POWER SAVING is normal, POWER SAVING LED
whether the dark orange light is normal and the power is within the specification.
(8).gray scale test﹕Input1280x1024 @75HZ 32 gray scale pattern
Before check the patter、at first execute auto adjust once based on contrast DAC 0∼100
display
The gray scale should be evidently, on the contrary, when it died down and the pattern will
be darker and darker。
(9).DDC LOAD: pls select corresponding Model’s DDC document as the loading
ViewSonic Corporation
Confidential - Do Not Copy
29
Q7b-3
2. Firmware and EDID upgrade/update Methods
. MCU software written:
2-1. Used equipment:
(1).one PC (Windows system),one Print PORT: connect withIIC/RS-232 Adapter Board
(2). IIC/RS-232 Adapter Board(Set IIC Port)
2-2. applicable program operate:
(1).execute Writer.exe to enter the pattern as follow
(2). Then pls press Load Hex document as follow
ViewSonic Corporation
Confidential - Do Not Copy
30
Q7b-3
(3) after opening the Hex document that you choose,pls select the NT68F633 (64K)
(4) begin to load MCU software: after press” AUTO”, then at this time will be loading the MCU
software,pls see the pattern as follow:
2. I/P 1280x1024 @75Hz CROSS TALK (PATTERN63) FH=79KHz,FV=75Hz
2-1.input the signal to D-SUB to execute AUTO ADJUSTING function,then CHECK the pattern
whether have interaction noise.(if still have noise ,we can slightly adjust the clock or phase
menu)
2-2. I/P1280x1024 @75Hz 32 Gray pattern (PATTERN48) CHECK the pattern can’t lack of color or
Have too much color.
2-3 TIMING CHECK
640x480@60/66/72/75Hz
1024x768@60/70/75Hz
800x600@56/60/72/75Hz
1280x1024@60/75Hz
832x624@75Hz
1152x864@75Hz
1280x960@60Hz
720x400@70Hz
ViewSonic Corporation
Confidential - Do Not Copy
31
Q7b-3
3 Disassembly Procedure
1.Remove the hinge cover
2.Unscrew 8 pcs screws
3.Unscrew 2 pcs screws
1
2
ViewSonic Corporation
Confidential - Do Not Copy
32
Q7b-3
4. Insert plastic flake to hole ,and pull the flake along the gap between the bezel and housing, to
separate the housing from bezel.
5. Pull out the speaker waire from the main board
ViewSonic Corporation
Confidential - Do Not Copy
33
Q7b-3
6
7
Take out housing part;
Remove 4pcs screw,take out
;
shield cover
ViewSonic Corporation
Confidential - Do Not Copy
34
Q7b-3
8 . Remove the earth screw,push up the signal cable from the frame, pull up signal cable
connecter from the main board ;
9
Pull out the 4pcs lamp wire from power board;
ViewSonic Corporation
Confidential - Do Not Copy
35
Q7b-3
10
Unscrew 4pcs screw;
11 Take the power board up from the frame;
ViewSonic Corporation
Confidential - Do Not Copy
36
Q7b-3
12. Tear off the aluminum foil where cover the FFC cable,push the connert hook forward ,pull
out FFC cable from the main board;
push the connert
hook forward
ViewSonic Corporation
Confidential - Do Not Copy
37
Q7b-3
13.Take the power board up from the frame;
14. Pull out key wire from main board,tear off type of fix the key wire,push 2pcs hook forward to
take out the key from the bezel;
ViewSonic Corporation
Confidential - Do Not Copy
38
Q7b-3
push 2pcs hook
forward
ViewSonic Corporation
Confidential - Do Not Copy
39
Q7b-3
15. Unscrew 2 pcs screws
ViewSonic Corporation
Confidential - Do Not Copy
40
Q7b-3
Frame
16. Release all hooks around the Panel for remove the bezel;
ViewSonic Corporation
Confidential - Do Not Copy
41
Q7b-3
17. Remove bezel from the panel;
18. Unscrew 2pcs screw with at the panel side
ViewSonic Corporation
Confidential - Do Not Copy
42
Q7b-3
4 Packing Procedure
1.1 Paste production film to protect the monitor screen.(Figure 1)
tape
Production film
1.2 Put the monitor in the PE bag and seal bag with type (Figure 2)
tape
1.3 Put the cushions on the monitor.(Figure 4)
ViewSonic Corporation
Confidential - Do Not Copy
43
Q7b-3
1.4 Put the base in the EPE bag. and then,place the base on the cushions ,as figure
1.5 Place the monitor into the carton and then put all accessories into carton .At last, close the carton.
Use ‘s Guide
Power cord
Base
Audio cord
ViewSonic Corporation
Confidential - Do Not Copy
44
Q7b-3
6. Troubleshooting Flow Chart
Main Procedure
Start
Connect all of devices to
the LCD monitor
Power On
Is indicator LED
light?
A. Power Circuit
Troubleshooting
No
Yes
1
ViewSonic Corporation
Confidential - Do Not Copy
45
Q7b-3
1
Is backlight on?
No
B. Backlight
Troubleshooting
Yes
Display Performance
O.K.?
No
C. Performance
Troubleshooting
No
D. Function
Troubleshooting
No
E. Audio
Troubleshooting
Yes
Function Adjustment
O.K.?
Yes
Audio Function O.K.?
No Trouble Found
End
ViewSonic Corporation
Confidential - Do Not Copy
46
Q7b-3
A. Power Circuit Troubleshooting
Start
Change AC/
DC Adapter
Retry Power
On
End
Change Main
Board & Retry
End
No Trouble Found
End
ViewSonic Corporation
Confidential - Do Not Copy
47
Q7b-3
B. Backlight Troubleshooting
Start
Change
Inverter and
Retry
End
Change
Main
Board&
Retry
End
Backlight
Change
Module
End
No Trouble Found
End
ViewSonic Corporation
Confidential - Do Not Copy
48
Q7b-3
C. Performance Troubleshooting
Start
Screen is
scrolling?
Yes
Change VGA
Cable
No
YES
Change Main
Board
YES
NO
Screen is
flickering?
YES
Change
Inverter Board
NO
YES
Change Main
Board
NO
YES
NO
LCD Line Defect?
YES
Change LCD
Module
YES
Change LCD
Module
YES
NO
Bad Uniformity?
YES
Change LCD
Module
YES
NO
Is screen white?
YES
Check
Connector
NO
YES
Change Main
Board
YES
NO
2
ViewSonic Corporation
Confidential - Do Not Copy
49
Q7b-3
2
Screen with noise or line
bar?
Yes
Prss Reset Button from
front panel control
Yes
End
No
Change Main
Board
No
Screen is smaller?
Yes
Make sure relution is set
at default
No
Yes
Reset O.K.?
No
No
Change Main
Board
Yes
No Trouble Found
End
ViewSonic Corporation
Confidential - Do Not Copy
50
Q7b-3
D. Function Troubleshooting
Start
Control Menu not
Functioning?
No
Change
Control Board
and Retry?
No
Change Main
Board
Yes
Yes
No Trouble Found
End
ViewSonic Corporation
Confidential - Do Not Copy
51
Q7b-3
E. Audio Troubleshooting
Start
Make sure sound output, Audio
cable is OK.
No Sound
Yes
Change
Speaker
Yes
Change
Speaker
Yes
Change Main
Board
No
Sound is broken?
No
Volume
Unadjustable?
No
No Trouble Found
End
ViewSonic Corporation
Confidential - Do Not Copy
52
Q7b-3
7. Recommended Spare Parts List
RECOMMENDED SPARE PARTS LIST (Q7b-3)
ViewSonic Model Number: VS11147
Serial No. Prefix: Q4A
Item
1
2
3
4
5
6
7
8
Main Board Re. 1.3 For Innolux Panel
Key Boardd LM1704R RGB+Audio
Key Board LM/LM1704 Innolux Panel
Power Board + Inverter Board
Power Board + Inverter Board 2nd Source
Power Board + Inverter Board for Innolux Panel
Cabinets:
Base Assembly
23
24
25
26
27
28
29
30
31
ViewSonic P/N
Added on 10/19/06
Added on 10/19/06
Added on 10/19/06
Added on 10/19/06
ECN No. MN0605005
on 10/19/2006
COVER(HINGE) ABS PA757 Black
Front Panel - Bezel Black
Cables:
Documentation:
Electronic
Components:
USER'S GUIDE LM/LM1704ENGLISH
LCD MODULE M170E5-L09 SXGA CMO
Innolux Panel (LCD Module)
LCD Module - SVA Panel 17" Lead Free
Speaker 26AWG/UL Squareness 8Ω 2W
Hardware:
Bracket - Black Rev. 1
Packing Material:
Plastics:
ECN No. MN0605021
on 10/19/06
AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
RGB CABLE 18AWG UL20276 L1500mm
RGB Cable 30A 15 Pin to 2* Pin For All Panels Except CMO
Blank Label LM/MONITOR
Safety Label LM/F1704 L80.5*W60.5mm
17
18
19
20
21
22
ECR/ECN
POWER CORD/AC
Accessories:
PC Board Assembly: Main Board W/Audio (Lead free)
9
10
11
12
13
14
15
16
Rev: 1b
Description
Added on 10/19/06
Updated and Replaced
Part on 08/15/06
C-00005778
C-00005782
C-00005783
CB-00005758
CB-00005759
CB-00008050
DC-00005754
DC-00005773
DC-00008045
DC-00005774
E-00005791
E-00008013
E-00008101
E-00005762
Updated on 8/15/06
Added on 10/19/06
ECN No. MN0608053
on 10/19/06
HOLDER ASSY LM/F179 for RGB
Craft Box
POLYETHYLENE-L EPS LM/F179 L410*W120*H145mm
POLYETHYLENE-R EPS LM/F179 L410*W120*H145mm
FUNCTION-KEY F1704 ABS HB
GENERIC FOAM SET
GENERIC BOX
Panel Cover - Housing RGB +Audio
A-00005760
B-00005755
B-00008140
B-00005756
B-00008141
B-00005757
B-00008128
B-00008142
ECN No. MN0609027
on 10/19/06
HW-00005776
HW-00005777
P-00005779
P-00005780
P-00005781
PL-00005770
P-00001347
P-00002515
PL-00005775
Ref. P/N
Location
Universal number#
W40218A022631
XLMF179040001
XLM1704040002
XLMF179050006
XLM1704050002
XLM1700390003
XLM1700390004
XLM1700390015-SH
XLMLM02280001
XLM1704280001
P70EAF26LM010-A
P727AF26LM020-C
P727AF26LM021-C
W0026918A0142
W0318715AQ261
W0330715AQ261
F103010LM0001
F102506170403
F102506170404
F102506170405
F000217043001
E34722170SC01
E34M02170J001
E34S22170S001-B
E231080200004
XLM1704200003
XLM1704200004
XLMF179210001
F400717170401
F20133F179003
F20143F179003
P763A926LM070
30833
20653
XLM1704110002
XLM1704110004
Remark 1: Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2: All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is to
eliminate repeated cross checks of each item between this version and prior versions
ViewSonic Corporation
Confidential - Do Not Copy
53
Q7b-3
BOM LIST (Q7b-3)
ViewSonic Model Number: VS11147
Rev: 1a
Serial No. Prefix: Q4A
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
ViewSonic P/N
E-00005762
N/A
DC-00005774
N/A
N/A
N/A
DC-00005773
DC-00005754
N/A
N/A
N/A
N/A
N/A
N/A
P-00005780
P-00005781
N/A
N/A
N/A
P-00005779
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
C-00005782
C-00005783
PL-00005770
N/A
N/A
N/A
N/A
N/A
N/A
N/A
CB-00005758
CB-00005759
A-00005760
N/A
N/A
Ref. P/N
Description
E231080200004
26AWG/UL 8O2W SPEAKER+SPEAKERWIRE 4P/2P+2PIN L400/145MM
E34722170SC01
LCD MODULE M170E5-L09 1280×1024 17" SXGA CMO
F000217043001
USER'S MANUAL LM/LM1704 ENGLISH L210*W148mm REV:0
F001217043001
USER'S GUIDE LM/LM1704 ENGLISH L210*W148mm for Viewsonic REV:0
F001219043001
USER'S GUIDE LM/LM1904 ENGLISH L210*W148mm for viwesonic REV:0
F101415170401
MARK LM/LM1704L11*W11mm energy star
F102506170403
Safety Label LM/F1704 L80.5*W60.5mm ViewSonic
F103010LM0001
Blank Label LM/MONITOR L43*W10mm
F103015170401
Blank Label LM/LM1704 L50*W25mm
F103915170401
CARTON LABEL(UPC) LM/LM1704L76*W76mm FOR VIEWSONIC
F103915170402
CARTON LABEL LM/LM1704 L20*W20mm FORVIEWSONIC
F103915170403
CARTON LABEL LM/LM1704 L8*W8mm
F104506170401
RATING LABEL LM/LM1704 L10*W20mm forviewsonic
F104515170401
RATING LABEL LM/LM1704 L7*W7mm forViewsonic
F20133F179003
POLYETHYLENE-L EPS LM/F179 L410*W120*H145mm
F20143F179003
POLYETHYLENE-R EPS LM/F179 L410*W120*H145mm
F300250000070
PLASTIC BAG PE L610*W510*T0.04mm
F300250000071
PLASTIC BAG PE L260*W180*T0.03mm
F300483202001
PEARL BGA EPEL320*W200*T1.0mm FOR LM1904
F400718170401
CARTON C LM/LM1704 L428*W128*H438mm for Vosunis
F401422LM0001
PARTITION SUPPORTBC LM/MONITOR L800*W50*H50*T5mm
F401422LM0002
PARTITION SUPPORTBC LM/MONITOR L1800*W50*H50*T5mm
F401918170401
LM/LM1704 L1040*W432*H60mm
F401918170402
LM/LM1704 L1170*W865*H60mm
F401918170403
LM/LM1704 L1040*W865*H60mm
F50301F179001
PALLET SMOKE WOOD LM/F179 L1180*W870*H120mm
F50301F179002
PALLET SMOKE WOOD LM/F179 L1050*W430*H120nm
F50301F179003
PALLET SMOKE WOOD LM/F179 L1050*W870*H120mm
F900181000001
PE LIMPID W500*T0.03mm 1500m
F900381000004
PE LIMPID L1200*W1200*T0.15mm
F9008G2000002
PACKTHREAD PP WHITEW14.5mm*T0.8mm 1300m
M104243004401
SCREW MACHINE STEEL 十/B F 3.0* L4mm NICKEL
M104254008401
SCREW MACHINE/STEEL 十/TF 4xL8mm NICKEL
M105243005401
SCREW MACHINE B(Binding) F 3.0mm L5mm NICKEL
M1052B3003401
SCREW MACHINE +/I F 3*L3mm NI
M108253006401
screw M3X6 T
M168243010401
SCREW 十/B F 3.0*L10mm NICKEL(R70GB-3010600)
M622700LM0050 panel bracket-L F179 SECC T=0.8mm
M623700LM0050 panel bracket-R F179 SECC T=0.8mm
P36AKAF010001 MYLAR L350 X W290 X T0.12MM
P395241A50001
SPEAKER SPONGE L52.5*W41*T15mm EVA 38° FOR LM1704
P440808500001
RUBBER MAT L8mm*W8mm* H5mm(Y7410051G400)
P441510A70001
(EVA) L15mm*W10mm*H11mm WITH ADHESIVE
P70EAF26LM010-A COVER(HINGE) ABS PA757 C LM/LM1704 (L143*W27.5*H25mm) REV:0
P727AF26LM020-C BEZEL ABS PA757 BLACK C LM/LM1704 FOR VIEWSONIC REV:0
P763A926LM070 FUNCTION-KEY F1704 ABS HB BLACK-C
P791P500LM030-A LENS PMMA NATURAL LM/LM1704&1904 REV:0
V300800000001
50g (-60℃~+200℃)
V5004AP150201
5000*W15*T0.25mm 25m(YW0910300002)
V5005A5080101
L50000*W8*T0.1mm (YW0911200007)
V501275024801
L75m*W48*T 0.045mm FOR VIWESONIC
V900505030001
L100xW40xT0.07mm
V900505030007
AL FOIL L100xW30*T0.35mm(Y78400004G*1)
W0026918A0142
AUDIO CABIE 26AWG UL2547L=1800mm 6C BLACK(N65B80-1800)
W0318715AQ261 RGB CABLE 18AWG UL20276L1500mm DSB15P/ JST14P-2.0BLACK C
W40218A022631
(CON).POWER CORD/AC UL18AWG L1500mmBLACK.C.I-SHENG125V 10A....
W47B103014002
WIRE FFC UL2896 P=1.0mm 30PIN L140mm
XLM1700390004 POWER+INVERTER BOARD12V/42W 4CCFL FSP 035-1PI01ZT(SPI)for 17"
POWER BOARD+INVERTER BOARDASSY LCD MONITOR 17"12V/45W4CCFL
XLM1700390003
DCAC40A3 UMEC
XLM1704110002 HOUSING ASSY LM/F1704
M621700LM0190 REAR_BRACKET SECC T=1.0mm
P728AJ26LM010
housing F179 ABS HB BLACK-C
V300800000001
50g (-60℃~+200℃)
M628700LM0010 SUPPORTER SECC LM/F1704 REV:0
XLM1704200003 BRACKET ASSY LM/F1704 BLACK C F179/LM1704/F199
M154223012801
SCREW F 3*12MM WASHER
M701900LM0050-A Hinge SPCC LM/LM1704 REV:0
P711AJ26LM010
BRACKET(BASE)/ABS HB BLACK C LM/F199 L77.4*W43*H75.5mm
XLMF179040001 MAIN BOARD ASSY LM/F179W/AUDIO (Lead free)
A01F241615A21
IC EEPROM AT24C16 2500nsATMEL SOIC-8 2K*8 (SMD)
A01F241622M21
IC EEPROM 24LC16BT/SN 2.5MSMICROCHIS SOP-8(SMD)
Y114AT24C16A
IC EEPROM AT24C16N- 10SC.-2.7
A03C150915A51
IC LINEAR DC/DC CONVERTERAP1509-5 SOP-8L Anachip8pin (SMD)
A03D111703A53
IC Linear voltage converterAP1117E18A SOT-223-3Pin(SMD)
Y114L1117L*Q
IC L1117L-1.8V
A076863302N02
IC MCU NT68F633LG 64K 8bit NOVATEK PLCC-44P GP (SMD)
A0868521N0006
IC ASIC /SCALER NT68521AEFGCS FOR RSDS PQFP128 NOVATEK(SMD)
BLM1700M10113 BARE PCB LM/LCD 17" MAINBOARD 2SIDES FR-4 T1.6mmREV:1.3
59
B-00005757
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
PL-00005775
N/A
N/A
N/A
N/A
HW-00005776
N/A
N/A
N/A
B-00005755
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
79
N/A
C02222003J111
CAP MLCC /NPO 22PF 50V ±5%(J) 0603 TPPING (SMD)
80
N/A
C02410303K111
CAP MLCC X7R 0.01uF 50V10% 0603 TAPPING(SMD)(Y321103566*0)
81
82
83
N/A
N/A
N/A
Y321103566*0
C4021014M2222
C4024704M2422
CAP X7R 0.01uF K 50V SMD0603
CAP EC(S) -40~105℃ 100uF16V ±20% (M) F 5×H11mmP=2.0mm (DIP)
CAP EC -40°~105℃ 47UF/16V±20% (M) ∮5*H7MM P=2.0MM(DIP)
84
N/A
C4024714M3442
CAP EC -40°~105℃ 470UF16V ±20%(M) ∮8*12MMP=3.5MM(DIP)
85
86
87
N/A
N/A
N/A
D00BAV9905G01
Y134BAV99C*P
D0155C3614B01
DIODE BAV99 SOT-23 GTM (SMD)
FAST SWITCHING DIODE.BAV99 215mA 75V SOT-23
DIODE ZENER ZMM55-C3V6 MINI-MELF BL(SMD)
ViewSonic Corporation
Location
U3
U6 U9
U8
U2
U4
C8 C9 C12 C13
C21C22
C57 C58 C59 C60
C61C62 C63
C85 C90 C92 C96
C3 C15 C37 C47 C55 C101
C53 C64 C67 C69
C7C79 C80 C97
D1 D2 D5 D14
D11
Confidential - Do Not Copy
54
Universal number#
Q'ty
1
1
1
1
1
3
1
1
1
1
1
2
1
1
1
1
1
1
1
1
0.0588
0.0588
0.0046
0.0148
0.0148
0.0074
0.0023
0.0074
0.000156
0.015625
0.000275
10
4
4
2
2
2
1
1
1
2
1
2
1
1
1
1
0.01
0.012
0.006
0.006
1
4
1
1
1
1
1
1
1
2
1
0.01
1
1
3
1
1
1
1
1
1
2
1
1
1
1
1
6
7
7
4
6
8
4
4
1
Q7b-3
Item
88
89
90
91
92
93
94
95
96
97
98
99
100
101
ViewSonic P/N
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Ref. P/N
D0155C5102B01
D01FH5V102F01
Y134RLZ5B1*A
D0155C5614B01
J451322006211
J4527200146A1
L001300201311
L431047020K11
Q441120031161
R010331J10111
R011004J10111
R013601J10111
R070000J30111
R070750J30411
Description
DIODE ZENER ZMM 55-C5V1 LL-34 (SMD)
DIODE ZENER FHZ5V1 LL-34 Fenghua (SMD)
ZENER DIODE RLZ5.1B SMD3515
DIODE ZENER ZMM55-C5V6 MINI-MELF BL(SMD)
PIN HEADER 90° 2 x 3P PH:2.54mm black DIP
CONN WAFER P=2.0mm 14PIN(2*7PIN) 180° GRAY (DIP)
Chip Bead(QT2012RL030)30O ±25% 200mA SMD0805
POWER INDUCTOR DIP COIL 47uH+/-10% 1.5A 180°
CRYSTAL QUARTZ / 12MHz 20PPM 33pF 49S CREC (DIP)
RES CF 330O ±5%(J) 1/10W 0603 TAPPING (SMD)
RES CF 1MO ±5%(J) 1/10W 0603 TAPPING (SMD)
RES CF 3.6KO ±5%(J) 1/10W 0603 TAPPING (SMD)
RES CHIP 0O ±5%(J) 1/16W603TAPPING(SMD)(Y180210000J0)
RES CHIP 75O ±5%(J) 1/16W 0603 TAPPING(SMD)
102
Location
D16
N/A
R071000J30111
05: RESISTOR.RES CHIP 100O±5%(J) 1/16W 0603 TAPPING(SMD)(Y180211000J0)
103
N/A
R071001J30111
RES CHIP 1KO ±5%(J) 1/16W0603 TAPPING(SMD)(Y180211001J0)
104
105
106
107
N/A
N/A
N/A
N/A
R071002J30111
R071201J30111
R071502J30111
R072701J10111
RES CHIP 10KO ±5%(J) 1/160603 TAPPING(SMD)(Y180211002J0)
RES CHIP 1.2KO ±5%(J) 1/16W 0603 TAPPING (SMD)
RES CHIP 15KO ±5%(J) 1/16W 0603 TAPPING (SMD)
RES CF SMD 2K7 5% 1/10W 0603
108
N/A
R074701J30111
RES CHIP 4.7KO ±5%(J) 1/16603TAPPING(SMD)(Y180214701J0)
109
N/A
R074702J30111
RES CHIP 47KO ±5%(J) 1/16W 0603 TAPPING (SMD)
110
111
112
113
114
115
116
117
118
119
120
121
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
R076800J10111
R076801J10111
R078200J10111
T00T390402G01
T003904102R21
Y11474LVC149
Y114TDA7496S
Y134BAT54CWP
Y134SK34***V
Y134SR34***Q
Y134SS14***Q
Y180211802J0
05: RESISTOR.RES CHIP 680O±5%(J) 1/10 0603 TAPPING(SMD)......
RES 6.8KO ±5%(J) 1/10W 0603 (SMD)
RESISTOR.RES CHIP 820O±5%(J).1/10W 0603 TAPPING(SMD)......
TR GMBT3904 SOT-23 GTM (SMD)
MMBT3904LT1 SOT-23 ROM 3PIN (SMD)
IC COMS 74LVC14 SO- 14 TI
IC LINEAR 10P AUDIO AMP TDA7496L
SCHOTTKY RECTIFIER DIODE BAT54CW
SCHOTTKY RECTIFIER DIODE.SK34 3A 40V SMD
SCHOTTKY RECTIFIER DIODE.SK34 3A 40V SMD
SCHOTTKY RECTIFIER DIODE SS14 1A 40V SMA/D0-214AC
RES CHIP 0603 1/16W 18KO ±5%
122
N/A
Y180222001J0
RES SMD0603 1/10W 2KO.± 5%
123
124
N/A
N/A
Y180222209J0
Y321101560*0
RES CF SMD 22R 5% 1/10W 0603
CAP MONO-SMD 100PF 50V NPO J 0603
Y321104765*0
CAP Y5V 0.1uF Z 25V SMD0603
126
N/A
Y321105665*3
CAP C SMD 1U +80-20% 16V Y5V 0603
127
128
129
130
131
132
133
134
135
136
137
138
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
B-00005756
N/A
N/A
N/A
Y502356008*1
Y503102011*1
Y503601022*1
Y503601303*1
Y640307001*1
Y64115HB04*1
Y64115HB08*1
Y641520030*1
XLMF179050006
BLMF179K10110
R3620-4100020
R4003-0C00000
BEAD CORE 3.5*6*0.8 X2
Chip Bead 1KO ±25% 100mA SMD0603
CHIP BEAD.600O+/-25% 200mA SMD0805........
CHIP BEAD.600O +/-25% 3A SMD1206........
JACK PHONE EAR (TJ312-5BP-1)
CONNECTOR M 180°/2.0mm 1 ROW 4P
CONNECTOR 180°.2mm 8Pin........
CONNECTOR FFC RIGHT/BOTTOM 1.0mm SINGLE 30PIN
KEY BOARD ASSY LM/F179 LM1704R RGB+AUDIO
BARE PCB LM/F179 KEY BOARD 1SIDE FR-1 T1.6mm REV:1.0
TACT SWITCH 6x6x5mm 180°
LED3F F100-S10 GREEN-YELLOW LTL-1BEDJ........
139
N/A
W432288C12702
WIRE HARNESS UL1007 28 AWG 8PIN P=2mm 90° L270mm K5ARH F 14*F 10*L15mm
140
141
142
143
144
145
146
147
148
149
150
151
HW-00005777
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
C-00005778
N/A
N/A
XLMF179210001
M627700LM0050
P36AHAE050001
M420202010001
M1052B3003401
P610050010001
XLMF179380002
M644200LM0030
P36AHAD050001
XLMLM02280001
P610051010001
P74AA926LM170
HOLDER ASSY LM/F179 for RGB
frame F179 SECC T=0.8mm
mylar-bottom GK-17 T=0.45mm BLACK
EATHER PLATE COPPER T=0.2mm
SCREW MACHINE I F 3*L3mm NI
L15*W8*T7.2mm
SHIELD ASSY LM
shield SPTE T=0.3mm
MYLAR L158*W156*T0.5MM GK-17 BLACK
BASE ASSY LM/LM1702 FOR Atlantis
LM/199 rubber F 17*T2mm black-c
BASE ABS HB BLACK C LM/LM1702 FOR Atlantis REV:0
7
5
2
2
3
R62 R64 R96 R97R95
R90
R34
R55
Q1 Q2 Q3
D10
R61 R63
5
1
1
1
3
3
1
1
1
1
1
1
2
R29 R30 R31 R32 R65
R54 R89
C17 C18 C19 C26 C68C73
5
2
6
SW1 SW2 SW3 SW4 SW5
D17
Confidential - Do Not Copy
55
28
5
C1 C4 C6 C7 C11
C16C28 C29 C30 C31
C32C33 C35 C36 C38
C3C40 C41 C42 C43
C4C45 C46 C48 C49
C5C51 C54 C56 C65
C7C78 C81 C83 C84
C8C87 C88 C91 C93
C9C98 C99 C100
C14 C27 C66 C70
C71C72 C102
L10 L12 L13 L15
L7
L5 L8 L9
L2
CN12
CN7
CN3
CN5
N/A
Q'ty
1
1
1
5
1
1
3
2
1
2
1
1
1
3
R21 R33 R93 R94R95
U1
U5
D15
D12
125
ViewSonic Corporation
D3 D4 D6 D7 D13
CN9
CN1
L1 L3 L4
L11 L14
X1
R48 R49
R26
R70
R67
R2 R5 R13
R1 R3 R4 R6 R8
R9R12 R14 R23 R24
R25R27 R28 R38 R39
R5R51 R56 R57 R58
R5R60 R68 R69 R85
R8R87 R102
R7 R20 R42 R43
RR44R46 R47
R75 R92 R99 R100R101
R66 R71
R22 R35
R10 R11 R88
Universal number#
44
7
4
1
3
1
1
1
1
1
1
1
5
1
1
1
1
1
2
2
2
1
1
1
1
4
1
Q7b-3
BOM LIST (Q7b-3) "SVA Panel"
ViewSonic Model Number: VS11147
Rev: 1b
Serial No. Prefix: Q4A
Item
1
ViewSonic P/N
E-00005762
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
N/A
DC-00005754
N/A
P-00005780
P-00005781
P-00006586
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
C-00005782
C-00005783
PL-00005770
N/A
N/A
N/A
N/A
N/A
N/A
N/A
CB-00005758
CB-00008050
48
49
50
A-00005760
N/A
N/A
51
N/A
52
53
54
55
56
N/A
N/A
N/A
N/A
N/A
57
N/A
58
N/A
59
60
61
62
N/A
N/A
N/A
N/A
63
64
65
66
N/A
N/A
N/A
N/A
67
N/A
68
69
70
N/A
N/A
N/A
71
72
N/A
N/A
Ref. P/N
E231080200004
Description
26AWG/UL 8Ω2W SPEAKER+SPEAKERWIRE 4P/2P+2PIN L400/145MM
E34S22170S001
LCD MODULE SVA170SX01TB1280×1024[SX] 17" LVDS SVANEC LEAD FREE
F103010LM0001
F103010LM0003
F20133F179003
F20143F179003
F300250000070
F300250000071
F300483202001
F400717LM0203
F401422LM0001
F401422LM0002
F401918170401
F401918170402
F401918170403
F50301F179001
F50301F179002
F50301F179003
F900181000001
F9008G2000002
M104243004401
M104254008401
M105244005401
M108253006401
M168243010401
M621700LM0480-E
M622700LM0050
M623700LM0050
P36A3A2010001
P36AKAF010001
P391510700001
P395241A50002
P441200B30001
P441508980001
P441510A70001
P70EAF26LM010-A
P727AF26LM021-C
P763A926LM070
P791P500LM030-A
V300800000001
V5004AP150201
V5005A5080101
V501275024801
V900505030001
V900505030007
W0026918A0142
W0330715AQ261
Blank Label LM/MONITOR L43*W10mm
Blank Label LM/MONITOR L85*W24mm
POLYETHYLENE-L EPS LM/F179 L410*W120*H145mm
POLYETHYLENE-R EPS LM/F179 L410*W120*H145mm
PLASTIC BAG PE L610*W510*T0.04mm
PLASTIC BAG PE L260*W180*T0.03mm
PEARL BGA EPE L320*W200*T1.0mm FOR LM1904
CARTON B LM/LM1704 L430*W125*H437mm
PARTITION SUPPORTBC LM/MONITOR L800*W50*H50*T5mm
PARTITION SUPPORTBC LM/MONITOR L1800*W50*H50*T5mm
LM/LM1704 L1040*W432*H60mm
LM/LM1704 L1170*W865*H60mm
LM/LM1704 L1040*W865*H60mm
PALLET SMOKE WOOD LM/F179 L1180*W870*H120mm
PALLET SMOKE WOOD LM/F179 L1050*W430*H120nm
PALLET SMOKE WOOD LM/F179 L1050*W870*H120mm
PE LIMPID W500*T0.03mm 1500m
PACKTHREAD PP WHITE W14.5mm*T0.8mm 1300m
SCREW MACHINE STEEL 十/B Φ3.0* L4mm NICKEL
SCREW MACHINE/STEEL 十/TΦ4xL8mm NICKEL
SCREW MACHINE BINDING Φ4.0*L5mm NICKEL with toothed lock washers
SCREW MACHINE/ Φ3*L6mm NI NICKEL
SCREW 十/B Φ3.0*L10mm NICKEL(R70GB-3010600)
Bracket SECC LM/LM1704(RGB CABEL) FOR ViewSonic REV:0
panel bracket-L F179 SECC T=0.8mm
panel bracket-R F179 SECC T=0.8mm
MYLAR L136*W124*T0.188mm
MYLAR L350 X W290 X T0.12MM
SPEAKER SPONGE L15*W10*T7.0mm
SPEAKER SPONGE L52.5*W41*T15mm EVA 25° FOR LM1704
RUBBER CUSHION Φ12*H23.5mm
RUBBER CUSHION /RUBBER L15*W8*T9.8mm BLACKL15*8*9.8 BLACK
(EVA) L15mm*W10mm*H11mm WITH ADHESIVE
COVER(HINGE) ABS PA757 C LM/LM1704 (L143*W27.5*H25mm) REV:0
BEZEL ABS PA757 BLACK C LM/LM1704 FOR ViewSonic REV:1
FUNCTION-KEY F1704 ABS HB BLACK-C
LENS PMMA NATURAL LM/LM1704&1904 REV:0
GLUE 50g/BOTTLE (﹕-60℃~+200℃)
ADHESIVE TAPE L25000*W15*T0.25mm 25m/ROLL(YW0910300002)
L50000*W8*T0.1mm (YW0911200007)
L75m*W48*T 0.045mm FOR VIWESONIC
AL FOIL L100xW40xT0.07mm
AL FOILL100xW30*T0.35mm(Y78400004G*1)
AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
RGB CABLE 30AWG UL20276 L1500mm 15PIN TO 2*8PIN BLACK C
W40218A022631
(CON).POWER CORD/AC UL18AWG L1500mmBLACK.C.I-SHENG125V 10A....
1
W47A103019501
W47B100825001
1
1
XLM1704040001
A01F241615A21
A03D111703A53
A03D111703U01
WIRE FFC CY050408001 P=1.0mm 30PIN L195mm HUNG FU
WIRE FFC FFCC0605T2250EC P=1.0mm 8PIN L250mm
POWER BOARD+INVERTER BOARD ASSY PI-SB03 +24V +5V (W- GROUND)
LM/17''/19'' LCD MONITOR FOR VIEWSONIC
BARE PCB LM/17"&19"LCD(FOR VIEWSONIC) POWER+INVERTER BOARD
1SIDE CEM-1 T1.6mm REV:1.0
MAIN BOARD ASSY LM/F1704/F1904 ( 2 sides FR-4 T1.6mm REV:1.0)
IC EEPROM AT24C16 2500ns ATMEL SOIC-8 2K*8 (SMD)
U4
REG2
IC Linear voltage converter AP1117E18A SOT-223- 3Pin(SMD)
VOLTAGE REGULATOR LD1117-18-A SOT-223 3PIN 1.8V UTC (SMD)
A03D111703A54
IC LINEAR VOLTAGE REGULATOR AP1117E33A SOT-223 ANACHIP (SMD)
1
XLM1700390014
BLM1700P60210
A07TV51202M02
A08D2023R2001
BLM17A4M10300
IC LINEAR IC VOLTAGE REGULATOR GL1117A-3.3 (INPUT 4.8~12V
OUTPUT 3.3V) SOT-223 GTM LeadFree (SMD)
LINEAR IC AUDIO AMPLIFIER APA2068KAI SOP-16 ANPEC LEAD FREE
(SMD)
IC MCU MTV512GMG 64K MYSON LQFP-48P Lead Free (SMD)
IC ASIC/SCALER RTD2023LPLCC-48P REALTEK Lead Free(SMD)
PCB printing LM/F1704/F1904 FOR mainboard 2sides FR-4 T1.6mm REV:1.1
C02210003J111
C02212003J111
C02222003J111
C02310501K111
A03D111703G03
A03K206819A41
Location
Universal number#
Q'ty
1
1
1
1
1
1
1
1
1
1
0.0588
0.0588
0.0046
0.0148
0.0148
0.0074
0.0023
0.0074
0.000156
0.000275
11
4
1
1
2
1
1
1
1
1
1
2
1
2
2
1
1
1
1
0.01
0.012
0.006
0.006
1
1
1
1
ZP
ZP
ZS
ZS
ZM
ZS
1
1
1
1
1
1
REG1
1
UA1
1
U3
U1
1
1
1
CAP MLCC NPO 10pF 50V ±5%0603 TAPPING (SMD)
C15 C18 C22 C46 C47
5
CAP MLCC /NPO 12PF 50V±5%(J) 0603 TAPPING (SMD)
CAP MLCC /NPO 22PF 50V±5%(J) 0603 TPPING (SMD)
CAP MLCC X5R 1uF 16V ±10%(K) 0603 TAPING (SMD)
C26
C25
CA5 CA6 CA8
1
1
3
C02410403K111
CAP MLCC X7R 0.1UF/50V±10%(K) 0603 TAPPING(SMD)
C2 C3 C4 C5 C6 C8
C9 C11 C12 C13 C14
C15 C16 C18 C19 C21
C22 C23 C28 C30 C31
C40 C42 C43 C48 C49
C50 C51 C52 C53 C54
C55 C56 C57 C58
CA1 CA3 CA4
C02447302K111
CAP MLCC/ X7R 0.047uF /25V±10%(K) 0603 TAPPING(SMD)
C02847401M111
C4021006M2431
CAP MLCC Y5V 0.47uF 16V±20%(M) 0603 TAPPING (SMD)
CAP EC(S) -40~105℃ 10uF 25V ±20% (M) Φ5×H7mm P=2.5mm (DIP)
C4021014M2532
CAP EC –40~105℃100uF/16V ±20%(M) Φ6.3×H P=2.5mm (DIP)
CA2 EC2 EC3
C4022204M2322
CAP EC -40~105℃ 22UF/16V ±20%(M) ∮5*H5MM P=2.0MM(DIP)
C1 C10 C17 C20
ViewSonic Corporation
C24 C32 C35 C36 C37
C39
C33
C29 C41 C44
Confidential - Do Not Copy
56
KS
38
6
1
3
3
4
Q7b-3
Item
73
74
75
76
77
78
79
80
81
ViewSonic P/N
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
82
N/A
83
N/A
84
85
86
87
88
89
N/A
N/A
N/A
N/A
N/A
N/A
90
N/A
Ref. P/N
C4022214M3232
C4022296M2122
C4024704M2242
D00BAV9905G01
D00L414803Y11
D01ZT52C03K01
J4509100085C1
J4509100306H1
J4527200164A1
Description
CAP EC -40~105℃ 220UF /16V ±20%(M) Φ6.3*H7mm P=2.5mm (DIP)
CAP EC -40℃~105℃ 2.2uF/25V ±20%(M) ψ4*H5mm P=2.0mm (DIP)
CAP EC -40℃ -+105℃ 47uF/16V Φ5*11mm M DIP
DIODE BAV99 SOT-23 GTM (SMD)
DIODE LL4148 SOD-123 YING (SMD)
ZENER BZT52C SOD-123KINGWELL 5.6V (SMD)
FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP)
FFC CONN ,30 PIN,1.0,DIP 180°,1 ROW,Cvilux 16301V0T or compatible
WAFER P=2.0mm 16PIN(2*8PIN) 180° GRAY (DIP)
L012121201113
BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 120Ω 200mA 0603
(SMD)
L012700201111
L013121302A11
Q441240047151
R070000J20111
R070220J30111
R070330J30111
R070470J10111
R070750F30111
R071000J20111
91
N/A
92
93
94
95
96
97
98
99
100
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
101
102
103
N/A
N/A
N/A
104
105
106
107
108
109
110
111
112
113
114
N/A
N/A
N/A
N/A
N/A
N/A
N/A
B-00008141
N/A
N/A
N/A
115
116
117
118
119
120
121
122
123
124
N/A
PL-00005775
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
125
126
127
128
129
130
131
132
133
134
135
136
N/A
N/A
HW-00005776
N/A
N/A
N/A
C-00005778
N/A
N/A
N/A
N/A
N/A
Location
C45 EC1
CA7
C7
KS
D1 D2 D3
D8 D9 D10 D11
D4 D5 D6 D7
JP1
CN2
CN3
FBA1 FBA3 FBA4
FBA5 FBA6 FBA7
FBA8 FBA9 L5
BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 70Ω 200mA 0603(1608)
L2 L3 L4
TAPING FORD GLORY LEAD FREE (SMD)
FB1 FB2 FB3 FB4
CHIP BEAD Ferrite Chip Beads (high current) WB201209B601QLT02 120Ω
FBA2
3000mA 1206 Walsin (SMD)
CRYSTAL QUARTZ/ 24MHZ30PPM 20PF 49US CRE (DIP)
Y1
05: RESISTOR.RES CHIP 0Ω ±5%(J).1/8W 0603 TAPPING (SMD)......
L1 R15 R19 R24
05: RESISTOR.RES CHIP 22Ω ±5%(J) 1/16W 0603 TAPPING (SMD)......
R53 R55
RES CHIP 33Ω ±5%(J) 1/16W 0603 TAPPING(SMD)
R56
RESISTOR.RES CHIP 47Ω ±5%(J) 1/10W.0603 TAPPING (SMD)
R16 R22 R25
05: RESISTOR.CHIP RES 75Ω ±1%(F).1/16W 0603 TAPPING
R17 R21 R26
(SMD)(Y180217509F0)
RESISTOR.RES CHIP 100Ω±5%(J).1/8W 0603TAPPING(SMD)......
Universal number#
Q'ty
2
1
1
3
4
4
1
1
1
9
3
5
1
4
2
1
3
3
R11 R12 R18 R20 R23
R27 R58 R59 R62 R63
R64 R65 R66 R67 R68
15
R071001J20111
05: RESISTOR.RES CHIP 1KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)......
R2 R4 R5 R7 R61 R70
6
R071002J20111
R071003J10111
R071004J30111
R071502F30111
R072001J30111
R072200J20111
R072201J10111
R073302J30111
05: RESISTOR.RES CHIP 10KΩ±5%(J) 1/8W.0603 TAPPING(SMD)......
RES CHIP 100KΩ ±5%(J) 1/1 0603 TAPPING (SMD)
RES CHIP 1MΩ ±5%(J) 1/16W 0603 TAPPING (SMD)
RES CHIP 15KΩ ±1%(F) 1/16 0603 TAPPING (SMD)
RES CHIP 2KΩ ±5%(J) 1/16W 0603 TAPPING (SMD)(Y180222001J0)
05: RESISTOR.RES CHIP 220Ω ±5%(J) 1/8W.0603 TAPPING(SMD)......
RES CHIP 2.2KΩ ±5%(J)1/10W 0603 TAPPING (SMD)
RES CHIP 33KΩ ±5%(J) 1/16 TAPPING(SMD)(Y180213302J0)
R50 R51 R52 R54
R1
RG1
R8 RA5
R13 R14
R60 R69
R37 R38
R10
R3 R6 R28 R29 R30
R36
RA3 RA4
R57
6
1
1
2
2
2
2
1
R074701J20111
RESISTOR.RES CHIP 4.7KΩ±5%(J) 1/8W.0603 TAPPING(SMD)......
R074702J20111
R076801J10111
05: RESISTOR.RES CHIP 47KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)......
RES CHIP 6.8KΩ ±5%(J)1/10W 0603 TAPING (SMD)
6
2
1
R141002J20111
RES ARRAY 10KΩ ±5%(J) 1/16W 8P4R 3216 TAPPING (SMD)(Y270181002J0) RP1 RP2 RP3 RP4
4
T00T390402G01
T00T390602G01
T01A340102A21
W432264C21301
Y64115HB04*1
Y64115HB06*1
XLM1704050002
BLM1704B10212
D462213405201
J4509100085C1
TR GMBT3904 SOT-23 GTM (SMD)
Triode GMBT3906 SOT-23 GTM (SMD)
XSTR AO3401/ST3401, SOT- 23;3 , Alpha & Omega/ST
WIRE HARNESS UL1007 26AWG 4PIN P=2mm 180° L130mm
CONNECTOR M 180℃/2.0mm 1ROW 4P
CONNECTOR 180℃ 2mm 6PIN
KEY BOARD ASSY LM/LM1704 For Realtek
BARE PCB LM/MR1704 BUTTON BOARD 1SIDE FR-1 T1.6mm REV:1.2
LED Φ4*H5.5mm P=1.5mm ORA/GREEN BULK 3PIN fold 90°
FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP)
3
4
1
1
1
1
1
1
1
1
P764P295LM010
SWITCH PA66 BLACK LCDMONITOR SERIES REV:0
XLM1704110002
M621700LM0190
M628700LM0010
P728AJ26LM010
V300800000001
XLM1704150001
BLM1704A10110
C02410403K111
J41070515T201
HOUSING ASSY LM/F1704 black_c RGB+AUDIO
REAR_BRACKET SECC T=1.0mm
SUPPORTER SECC LM/F1704 REV:0
housing F179 ABS HB BLACK-C
GLUE 50g/BOTTLE (﹕-60℃~+200℃)
AUDIO BOARD ASSY LM/F1704 (PCB 1SIDE FR-1 T1.6mm REV:1.0)
BARE PCB LM/F1704 AUDIO BOARD 1SIDE FR-1 T1.6mm REV:1.0
CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD)
Ear-Phone JACK,5 PIN,DIP 90°,LIME GREEN,Tekcon
BEAD CHOKE Ferrite Chip Beads(generalcircuit) FMC2012 600Ω 300 mA
0805(2012) TAPING Chilisin SMD
CONNECTOR M 180°/2.0mm 1ROW 4P
BRACKET ASSY LM/F1704 BLACK C F179/LM1704/F199 communa
SCREW Φ3*12MM WASHER
Hinge SPCC LM/LM1704 REV:0
BRACKET(BASE)/ABS HB BLACK C LM/F199 L77.4*W43*H75.5mm
BASE ASSY LM/F1704
LM/199 rubber Φ17*T2mm black-c
BASE ABS HB BLACK C LM/LM1702 FOR Atlantis REV:0
SHIELD ASSY LM/MR17V-AAA (SHIELD+Mylar )
SHIELD SPTELM/MR17V-AAAD REV:0
MYLAR L95*W79.5*T0.1mm WHITH ADHESIVE
L012601301311
Y64115HB04*1
XLM1704200003
M154223012801
M701900LM0050-A
P711AJ26LM010
XLM1704280001
P610051010001
P74AA926LM170
XLM17VA380001
M711200LM0160-A
P369579010001
ViewSonic Corporation
Q2 Q3 Q4
Q7 Q8 Q9 Q10
Q1
CNA1
CN1
LED2
CN1
SW1 SW2 SW3 SW4
SW5
C1 C2 C3
CNA1
1
2
1
1
0.01
1
1
3
1
FB1 FB2 FB3
3
CNA1
1
1
3
1
1
1
4
1
1
1
1
ZM
Confidential - Do Not Copy
57
5
Q7b-3
BOM LIST (Q7b-3) "Innolux panel"
ViewSonic Model Number: VS11147
Rev: 1b
Serial No. Prefix: Q4A
Item
ViewSonic P/N
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
E-00005762
E-00008013
DC-00005774
DC-00005754
N/A
P-00005780
P-00005781
P-00006586
N/A
N/A
P-00005779
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
24
25
26
27
28
29
30
31
32
33
34
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
35
36
N/A
N/A
Ref. P/N
M108253006401
M168243010401
M621700LM0480-E
M622700LM0050
M623700LM0050
P36A3A2010001
P36AKAF010001
P391510700001
P395241A50002
P441200B30001
P441508980001
RUBBER CUSHION /RUBBER L15*W8*T9.8mm BLACKL15*8*9.8 BLACK
P441510A70001
(EVA) L15mm*W10mm*H11mm WITH ADHESIVE
2
P70EAF26LM010-A
COVER(HINGE) ABS PA757 C LM/LM1704 (L143*W27.5*H25mm) REV:0
1
XLM1704040001
A01F241615A21
A03D111703A53
BEZEL ABS PA757 BLACK C LM/LM1704 FOR ViewSonic REV:1
FUNCTION-KEY F1704 ABS HB BLACK-C
LENS PMMA NATURAL LM/LM1704&1904 REV:0
GLUE 50g/BOTTLE (﹕-60℃~+200℃)
ADHESIVE TAPE L25000*W15*T0.25mm 25m/ROLL(YW0910300002)
L50000*W8*T0.1mm (YW0911200007)
L75m*W48*T 0.045mm FOR VIWESONIC
AL FOIL L50×W30×T0.10mm
AL FOIL L100xW40xT0.07mm
AL FOILL100xW30*T0.35mm(Y78400004G*1)
AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
RGB CABLE 30AWG UL20276 L1500mm 15PIN TO 2*8PIN BLACK C
(CON).POWER CORD/AC UL18AWG L1500mmBLACK.C.I-SHENG125V
10A....
WIRE FFC CY050408001 P=1.0mm 30PIN L195mm HUNG FU
WIRE FFC FFCC0605T2250EC P=1.0mm 8PIN L250mm
POWER BOARD+INVERTER BOARD ASSY PI-SB03 +24V +5V (WGROUND) LM/17''/19'' LCD MONITOR FOR VIEWSONIC
BARE PCB LM/17"&19"LCD(FOR VIEWSONIC) POWER+INVERTER
BOARD 1SIDE CEM-1 T1.6mm REV:1.0
MAIN BOARD ASSY LM/F1704/F1904 ( 2 sides FR-4 T1.6mm REV:1.0)
IC EEPROM AT24C16 2500ns ATMEL SOIC-8 2K*8 (SMD)
IC Linear voltage converter AP1117E18A SOT-223- 3Pin(SMD)
A03D111703U01
VOLTAGE REGULATOR LD1117-18-A SOT-223 3PIN 1.8V UTC (SMD)
M105244005401
50
51
52
A-00005760
N/A
N/A
W47A103019501
W47B100825001
53
N/A
54
55
56
57
N/A
N/A
N/A
N/A
58
N/A
N/A
61
62
63
N/A
N/A
N/A
64
65
66
67
68
N/A
N/A
N/A
N/A
N/A
69
N/A
70
71
N/A
N/A
Q'ty
LCD MODULE MT170EN01 1280×1024[SX] 17" LVDS INNOLUX
USER'S MANUAL LM/LM1704 ENGLISH L210*W148mm REV:0
Blank Label LM/MONITOR L43*W10mm
Blank Label LM/MONITOR L85*W24mm
POLYETHYLENE-L EPS LM/F179 L410*W120*H145mm
POLYETHYLENE-R EPS LM/F179 L410*W120*H145mm
PLASTIC BAG PE L610*W510*T0.04mm
PLASTIC BAG PE L260*W180*T0.03mm
PEARL BGA EPE L320*W200*T1.0mm FOR LM1904
CARTON B LM/LM1704 L430*W125*H437mm for viewsonic REV:1
PARTITION SUPPORTBC LM/MONITOR L800*W50*H50*T5mm
PARTITION SUPPORTBC LM/MONITOR L1800*W50*H50*T5mm
LM/LM1704 L1040*W432*H60mm
LM/LM1704 L1170*W865*H60mm
LM/LM1704 L1040*W865*H60mm
PALLET SMOKE WOOD LM/F179 L1180*W870*H120mm
PALLET SMOKE WOOD LM/F179 L1050*W430*H120nm
PALLET SMOKE WOOD LM/F179 L1050*W870*H120mm
PE LIMPID W500*T0.03mm 1500m
PACKTHREAD PP WHITE W14.5mm*T0.8mm 1300m
SCREW MACHINE STEEL 十/B Φ3.0* L4mm NICKEL
SCREW MACHINE/STEEL 十/TΦ4xL8mm NICKEL
SCREW MACHINE BINDING Φ4.0*L5mm NICKEL with toothed lock
washers
SCREW MACHINE/ Φ3*L6mm NI NICKEL
SCREW 十/B Φ3.0*L10mm NICKEL(R70GB-3010600)
Bracket SECC LM/LM1704(RGB CABEL) FOR ViewSonic REV:0
panel bracket-L F179 SECC T=0.8mm
panel bracket-R F179 SECC T=0.8mm
MYLAR L136*W124*T0.188mm
MYLAR L350 X W290 X T0.12MM
SPEAKER SPONGE L15*W10*T7.0mm
SPEAKER SPONGE L52.5*W41*T15mm EVA 25° FOR LM1704
RUBBER CUSHION Φ12*H23.5mm
P727AF26LM021-C
P763A926LM070
P791P500LM030-A
V300800000001
V5004AP150201
V5005A5080101
V501275024801
V900505020003
V900505030001
V900505030007
W0026918A0142
W0330715AQ261
60
Universal number#
E34M02170J001
F000217043001
F103010LM0001
F103010LM0003
F20133F179003
F20143F179003
F300250000070
F300250000071
F300483202001
F400717170401
F401422LM0001
F401422LM0002
F401918170401
F401918170402
F401918170403
F50301F179001
F50301F179002
F50301F179003
F900181000001
F9008G2000002
M104243004401
M104254008401
C-00005782
C-00005783
PL-00005770
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
CB-00005758
CB-00008050
N/A
Location
26AWG/UL 8Ω2W SPEAKER+SPEAKERWIRE 4P/2P+2PIN L400/145MM
37
38
39
40
41
42
43
44
45
46
47
48
49
59
Description
E231080200004
W40218A022631
XLM1700390014
BLM1700P60210
A07TV51202M02
A08D2023R2001
IC LINEAR VOLTAGE REGULATOR AP1117E33A SOT-223 ANACHIP
(SMD)
IC LINEAR IC VOLTAGE REGULATOR GL1117A-3.3 (INPUT 4.8~12V
OUTPUT 3.3V) SOT-223 GTM LeadFree (SMD)
LINEAR IC AUDIO AMPLIFIER APA2068KAI SOP-16 ANPEC LEAD
FREE (SMD)
IC MCU MTV512GMG 64K MYSON LQFP-48P Lead Free (SMD)
IC ASIC/SCALER RTD2023LPLCC-48P REALTEK Lead Free(SMD)
BLM17A4M10300
PCB printing LM/F1704/F1904 FOR mainboard 2sides FR-4 T1.6mm REV:1.1
C02210003J111
C02212003J111
C02222003J111
C02310501K111
A03D111703A54
A03D111703G03
A03K206819A41
1
ZP
ZP
ZS
1
1
1
1
1
1
1
1
1
1
0.0588
0.0588
0.0046
0.0148
0.0148
0.0074
0.0023
0.0074
0.000156
0.000275
11
4
1
ZS
ZM
ZS
1
2
1
1
1
1
1
1
2
1
2
1
1
1
0.01
0.012
0.006
0.006
1
1
1
1
1
1
1
1
1
1
U4
REG2
1
1
1
1
REG1
1
1
UA1
1
U3
U1
1
1
CAP MLCC NPO 10pF 50V ±5%0603 TAPPING (SMD)
CAP MLCC /NPO 12PF 50V±5%(J) 0603 TAPPING (SMD)
CAP MLCC /NPO 22PF 50V±5%(J) 0603 TPPING (SMD)
CAP MLCC X5R 1uF 16V ±10%(K) 0603 TAPING (SMD)
C15 C18 C22 C46 C47
C26
C25
CA5 CA6 CA8
5
1
1
3
C02410403K111
CAP MLCC X7R 0.1UF/50V±10%(K) 0603 TAPPING(SMD)
C2 C3 C4 C5 C6 C8 C9
C11 C12 C13 C14 C15 C16
C18 C19 C21 C22 C23 C28
C30 C31 C40 C42 C43 C48
C49 C50 C51 C52 C53 C54
C55 C56 C57 C58 CA1
CA3 CA4
38
C02447302K111
CAP MLCC/ X7R 0.047uF /25V±10%(K) 0603 TAPPING(SMD)
C24 C32 C35 C36 C37 C39
6
C02847401M111
CAP MLCC Y5V 0.47uF 16V±20%(M) 0603 TAPPING (SMD)
C33
1
ViewSonic Corporation
1
Confidential - Do Not Copy
58
Q7b-3
Item
72
73
74
75
76
77
78
79
80
81
82
83
ViewSonic P/N
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Ref. P/N
C4021006M2431
C4021014M2532
C4022204M2322
C4022214M3232
C4022296M2122
C4024704M2242
D00BAV9905G01
D00L414803Y11
D01ZT52C03K01
J4509100085C1
J4509100306H1
J4527200164A1
84
N/A
85
N/A
86
87
88
89
90
91
N/A
N/A
N/A
N/A
N/A
N/A
92
N/A
93
94
95
96
97
98
99
100
101
102
103
104
105
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
R071001J20111
R071002J20111
R071003J10111
R071004J30111
R071502F30111
R072001J30111
R072200J20111
R072201J10111
R073302J30111
R074701J20111
R074702J20111
R076801J10111
106
107
108
109
110
111
112
113
N/A
N/A
N/A
N/A
N/A
N/A
N/A
B-00008141
T00T390402G01
T00T390602G01
T01A340102A21
W432264C21301
Y64115HB04*1
Y64115HB06*1
XLM1704050002
Location
C29 C41 C44
CA2 EC2 EC3
KS
C1 C10 C17 C20 KS
C45 EC1
CA7
C7
D1 D2 D3
D8 D9 D10 D11
D4 D5 D6 D7
JP1
CN2
CN3
FBA1 FBA3 FBA4 FBA5
BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 120Ω 200mA 0603
FBA6 FBA7 FBA8 FBA9
(SMD)
L5
BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 70Ω 200mA
L2 L3 L4
0603(1608) TAPING FORD GLORY LEAD FREE (SMD)
CHIP BEAD Ferrite Chip Beads (high current) WB201209B601QLT02 120Ω
FB1 FB2 FB3 FB4 FBA2
3000mA 1206 Walsin (SMD)
CRYSTAL QUARTZ/ 24MHZ30PPM 20PF 49US CRE (DIP)
Y1
05: RESISTOR.RES CHIP 0Ω ±5%(J).1/8W 0603 TAPPING (SMD)......
L1 R15 R19 R24
05: RESISTOR.RES CHIP 22Ω ±5%(J) 1/16W 0603 TAPPING (SMD)......
R53 R55
RES CHIP 33Ω ±5%(J) 1/16W 0603 TAPPING(SMD)
R56
RESISTOR.RES CHIP 47Ω ±5%(J) 1/10W.0603 TAPPING (SMD)
R16 R22 R25
K
05: RESISTOR.CHIP RES 75Ω ±1%(F).1/16W 0603 TAPPING
R17 R21 R26
K
(SMD)(Y180217509F0)
R11 R12 R18 R20 R23 R27
RESISTOR.RES CHIP 100Ω±5%(J).1/8W 0603TAPPING(SMD)......
R58 R59 R62 R63 R64 R65
R66 R67 R68
05: RESISTOR.RES CHIP 1KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)......
R2 R4 R5 R7 R61 R70
05: RESISTOR.RES CHIP 10KΩ±5%(J) 1/8W.0603 TAPPING(SMD)......
R50 R51 R52 R54
RES CHIP 100KΩ ±5%(J) 1/1 0603 TAPPING (SMD)
R1
RES CHIP 1MΩ ±5%(J) 1/16W 0603 TAPPING (SMD)
RG1
RES CHIP 15KΩ ±1%(F) 1/16 0603 TAPPING (SMD)
R8 RA5
R13 R14
RES CHIP 2KΩ ±5%(J) 1/16W 0603 TAPPING (SMD)(Y180222001J0)
05: RESISTOR.RES CHIP 220Ω ±5%(J) 1/8W.0603 TAPPING(SMD)......
R60 R69
RES CHIP 2.2KΩ ±5%(J)1/10W 0603 TAPPING (SMD)
R37 R38
RES CHIP 33KΩ ±5%(J) 1/16 TAPPING(SMD)(Y180213302J0)
R10
RESISTOR.RES CHIP 4.7KΩ±5%(J) 1/8W.0603 TAPPING(SMD)......
R3 R6 R28 R29 R30 R36
05: RESISTOR.RES CHIP 47KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)......
RA3 RA4
RES CHIP 6.8KΩ ±5%(J)1/10W 0603 TAPING (SMD)
R57
RES ARRAY 10KΩ ±5%(J) 1/16W 8P4R 3216 TAPPING
RP1 RP2 RP3 RP4
(SMD)(Y270181002J0)
TR GMBT3904 SOT-23 GTM (SMD)
Q2 Q3 Q4
Triode GMBT3906 SOT-23 GTM (SMD)
Q7 Q8 Q9 Q10
XSTR AO3401/ST3401, SOT- 23;3 , Alpha & Omega/ST
Q1
WIRE HARNESS UL1007 26AWG 4PIN P=2mm 180° L130mm
CNA1
CONNECTOR M 180℃/2.0mm 1ROW 4P
CN1
CONNECTOR 180℃ 2mm 6PIN
KEY BOARD ASSY LM/LM1704 For Realtek
114
115
116
N/A
N/A
N/A
BLM1704B10212
BARE PCB LM/MR1704 BUTTON BOARD 1SIDE FR-1 T1.6mm REV:1.2
D462213405201
J4509100085C1
LED Φ4*H5.5mm P=1.5mm ORA/GREEN BULK 3PIN fold 90°
FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP)
LED2
CN1
1
1
117
118
119
120
121
122
123
124
125
126
N/A
PL-00005775
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
P764P295LM010
SWITCH PA66 BLACK LCDMONITOR SERIES REV:0
SW1 SW2 SW3 SW4 SW5
5
XLM1704110002
M621700LM0190
M628700LM0010
P728AJ26LM010
V300800000001
XLM1704150001
BLM1704A10110
C02410403K111
J41070515T201
127
128
129
130
131
132
133
134
135
136
137
138
N/A
N/A
HW-00005776
N/A
N/A
N/A
C-00005778
N/A
N/A
N/A
N/A
N/A
HOUSING ASSY LM/F1704 black_c RGB+AUDIO
REAR_BRACKET SECC T=1.0mm
SUPPORTER SECC LM/F1704 REV:0
housing F179 ABS HB BLACK-C
GLUE 50g/BOTTLE (﹕-60℃~+200℃)
AUDIO BOARD ASSY LM/F1704 (PCB 1SIDE FR-1 T1.6mm REV:1.0)
BARE PCB LM/F1704 AUDIO BOARD 1SIDE FR-1 T1.6mm REV:1.0
CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD)
Ear-Phone JACK,5 PIN,DIP 90°,LIME GREEN,Tekcon
BEAD CHOKE Ferrite Chip Beads(generalcircuit) FMC2012 600Ω 300 mA
0805(2012) TAPING Chilisin SMD
CONNECTOR M 180°/2.0mm 1ROW 4P
BRACKET ASSY LM/F1704 BLACK C F179/LM1704/F199 communa
SCREW Φ3*12MM WASHER
Hinge SPCC LM/LM1704 REV:0
BRACKET(BASE)/ABS HB BLACK C LM/F199 L77.4*W43*H75.5mm
BASE ASSY LM/F1704
LM/199 rubber Φ17*T2mm black-c
BASE ABS HB BLACK C LM/LM1702 FOR Atlantis REV:0
SHIELD ASSY LM/MR17V-AAA (SHIELD+Mylar )
SHIELD SPTELM/MR17V-AAAD REV:0
MYLAR L95*W79.5*T0.1mm WHITH ADHESIVE
L012121201113
L012700201111
L013121302A11
Q441240047151
R070000J20111
R070220J30111
R070330J30111
R070470J10111
R070750F30111
R071000J20111
R141002J20111
L012601301311
Y64115HB04*1
XLM1704200003
M154223012801
M701900LM0050-A
P711AJ26LM010
XLM1704280001
P610051010001
P74AA926LM170
XLM17VA380001
M711200LM0160-A
P369579010001
Description
CAP EC(S) -40~105℃ 10uF 25V ±20% (M) Φ5×H7mm P=2.5mm (DIP)
CAP EC –40~105℃100uF/16V ±20%(M) Φ6.3×H P=2.5mm (DIP)
CAP EC -40~105℃ 22UF/16V ±20%(M) ∮5*H5MM P=2.0MM(DIP)
CAP EC -40~105℃ 220UF /16V ±20%(M) Φ6.3*H7mm P=2.5mm (DIP)
CAP EC -40℃~105℃ 2.2uF/25V ±20%(M) ψ4*H5mm P=2.0mm (DIP)
CAP EC -40℃ -+105℃ 47uF/16V Φ5*11mm M DIP
DIODE BAV99 SOT-23 GTM (SMD)
DIODE LL4148 SOD-123 YING (SMD)
ZENER BZT52C SOD-123KINGWELL 5.6V (SMD)
FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP)
FFC CONN ,30 PIN,1.0,DIP 180°,1 ROW,Cvilux 16301V0T or compatible
WAFER P=2.0mm 16PIN(2*8PIN) 180° GRAY (DIP)
ViewSonic Corporation
Q'ty
3
3
4
2
1
1
3
4
4
1
1
1
9
3
5
1
4
2
1
3
3
15
6
6
1
1
2
2
2
2
1
6
2
1
4
3
4
1
1
1
1
1
1
C1 C2 C3
CNA1
1
2
1
1
0.01
1
1
3
1
FB1 FB2 FB3
3
CNA1
1
1
3
1
1
1
4
1
1
1
1
ZM
Confidential - Do Not Copy
59
Universal number#
Q7b-3
8. Exploded Diagram and Exploded Parts List
EXPLODED PARTS LIST (Q7b-3)
ViewSonic Model Number: VS11147
Rev: 1a
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ViewSonic P/N
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
B-00005755
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Ref. P/N
P727AF26LM020-A
P762A926LM070
P791P500LM030-A
P791P500LM030-A
E34672170LZ01
M623700LM0050
M622700LM0050
M104243004401
M627700LM0050
M1052B3003401
M4202010001
P36AHAE050001
XLM170039004
XLMF179040001
M105243005401
P36AHA0050001
M644200LM0030
M6428700LM0010
REAR_BRACKET
SPEAKER
Housing
SCREW
HINGE/SPCC
T-C m3*22.0-b
SCREW MACHINE
BRACKE(BASE)
COVER(HINGE)
RUBBER
BASE
Description
BEZEL
FUNCTION BUTTON
LENS
KEY BOARD ASSY
LCD PANEL
PANEL BARCKET-R
PANEL BRACKET-L
SCREW MACHINE
FRAME F179
SCRW MACHINE
EATHER PLATE
MYLAR-BOTTOM
POWER BOARD
MAIN BOARD ASSY
SCREW MACHINE
MYLAR
SHIED SPTE
SUPPORTER
M621700LM0190
E23108020004
P728AJ26LM010
M154223012801
M701900LM0050
M168253022401
M104254008401
P711A126LM010
P70EAJ26LM010
P610051010001
P74AAF26LM010-A
Q'ty
1
1
1
1
1
1
1
6
1
2
2
1
1
1
8
1
1
1
2
2
1
3
1
2
2
1
1
4
1
EXPLODED PARTS LIST (Q7b-3)
ViewSonic Model Number: VS11147
Rev: 1b
Item ViewSonic P/N
1 N/A
2 N/A
3 N/A
4 N/A
5 N/A
6 N/A
7 N/A
8 N/A
9 N/A
10 N/A
11 N/A
12 N/A
13 N/A
14 N/A
15 N/A
16 N/A
17 N/A
18 N/A
19 N/A
20 C-00005768
21 N/A
22 N/A
23 N/A
24 N/A
25 N/A
26 N/A
27 N/A
28 B-00005755
ViewSonic Corporation
Confidential - Do Not Copy
60
Q7b-3
Ref. P/N
E23108020004
E34672170LZ01
M104243004401
M104254008401
M105243005401
M1052B3003401
M154223012801
M168253022401
M4202010001
M621700LM0190
M622700LM0050
M623700LM0050
M627700LM0050
M6428700LM0010
M644200LM0030
M701900LM0050
P36AHA0050001
P36AHAE050001
P610051010001
P70EAJ26LM010
P711A126LM010
P727AF26LM020-A
P728AJ26LM010
P74AAF26LM010-A
P762A926LM070
P791P500LM030-A
XLM170039004
XLMF179040001
Description
SPEAKER
LCD PANEL
SCREW MACHINE
SCREW MACHINE
SCREW MACHINE
SCRW MACHINE
SCREW
T-C m3*22.0-b
EATHER PLATE
REAR_BRACKET
PANEL BRACKET-L
PANEL BARCKET-R
FRAME F179
SUPPORTER
SHIED SPTE
HINGE/SPCC
MYLAR
MYLAR-BOTTOM
RUBBER
COVER(HINGE)
BRACKE(BASE)
BEZEL
Housing
BASE
FUNCTION BUTTON
LENS
POWER BOARD
MAIN BOARD ASSY
Q'ty
2
1
6
2
8
2
3
2
2
2
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
76
Q7b-3
SILKSCREEN TOP
Rev:
PACKING PART LIST ( Q7b-3 )
ViewSonic Model Number: VS11147
Rev: 1a
Item
1
2
3
4
5
6
7
8
9
10
11
ViewSonic P/N
P-00005779
P-00005780
P-00005781
CB-00005758
A-00005760
DC-00005774
N/A
N/A
C-00005778
N/A
Ref. P/N
F400718170401
F20133F179003
F20143F179003
W0026918A0142
W40218A022631
F000217043001
F300250000071
F300250000070
XLMLM02280001
F300483202001
Location
CARTON LM/LM1704 L428*W128*H438mm for Vosunis
POLYETHYLENE-L EPS LM/F179 L410*W120*H145mm
POLYETHYLENE-R EPS LM/F179 L410*W120*H145mm
AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
CABLE(CON).POWER CORD/AC USA..18AWG L1500mm BLACK.C.
USER'S MANUAL LM/LM1704 ENGLISH L210*W148mm REV:0
PLASTIC BAG PE L260*W180*T0.03mm
MONITOR HEAD ONLY
PLASTIC BAG PE L610*W510*T0.04mm
BASE ASSY LM/LM1702 FOR Atlantis
PEARL BGA EPE L320*W200*T1.0mm FOR LM1904
Q'ty
1
1
1
1
1
1
1
1
1
1
1
PACKING PART LIST ( Q7b-3)
ViewSonic Model Number: VS11147
Rev: 1b
Item ViewSonic P/N
Ref. P/N
1
N/A
F400718170401
2
P-00005780
F20133F179003
3
P-00005781
F20143F179003
4
CB-00005758 W0026918A0142
5
A-00005760
W40218A022631
6
DC-00005774 F000217043001
7
N/A
F300250000071
8
N/A
9 P-00006586
F300250000070
10 C-00005778
XLMLM02280001
11 N/A
F300483202001
ViewSonic Corporation
Confidential - Do Not Copy
61
Q7b-3
Description
CARTON LM/LM1704 L428*W128*H438mm for Vosunis
POLYETHYLENE-L EPS LM/F179 L410*W120*H145mm
POLYETHYLENE-R EPS LM/F179 L410*W120*H145mm
AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
CABLE(CON).POWER CORD/AC USA..18AWG L1500mm BLACK.C.
USER'S MANUAL LM/LM1704 ENGLISH L210*W148mm REV:0
PLASTIC BAG PE L260*W180*T0.03mm
MONITOR HEAD ONLY
PLASTIC BAG PE L610*W510*T0.04mm
BASE ASSY LM/LM1702 FOR Atlantis
PEARL BGA EPE L320*W200*T1.0mm FOR LM1904
Q'ty
1
1
1
1
1
1
1
1
1
1
1
9. Block Diagram
VGA_IN
<Value>
R_IN
B_IN
G_IN
HSI
VSI
R_IN+
G_IN+
B_IN+
HSI
VSI
Scaler
R_IN
G_IN
B_IN
HSI
VSI
<Value>
RX0+/RX1+/RX2+/RXCK+/RX3+/-
SDA
EEPROM
SDA
3.3V
1.8V
Panel Interface
RX0+/RX1+/RX2+/RXCK+/RX3+/-
<Value>
5VA
Power
12V
<Value>
PANEL_VCC
62
SCL
12V
1.8V
DDC_VDD
SCL
<Value>
Key
Key_BUS
<Value>
3.3V
DDC_VDD
MCU
<Value>
12V
5V
Q7b-3
Confidential - Do Not Copy
ViewSonic Corporation
VGA_DET
DDC_SDA
DDC_SCL
Key_BUS
Audio
<Value>
PANEL_VCC
VGA_DET
DDC_SDA
DDC_SCL
DDC_VDD
VGA_DET
VOLUME
VOLUME
SDA
SCL
SDA
SCL
AMP_STBY
AMP_STBY
DDC_SDA
DDC_SCL
MUTE
MUTE
10. Schematic Diagrams
ADC_VAA
C1
1
2
1
2
0.1uF
ADC_GND
D1
BAV99
3
CN1
VGA_HS
1
VGA_VS
3
CON_DET 5
SHIELD
7
DDC_SCL
9
DDC_SDA 11
DDC_5V
13
2
4
6
8
10
12
14
DB_B+
DB_B+
R1
100
R3
100
B_IN+
L1
B0805/80
DB_G+
C2
22pF
DB_R+
L2
PIN HERAD 7X2 PH=2.0mm
R2
75
DDC_VDD
B_IN-
B1206/600
ADC_GND
+ C3
ADC_VAA
47u/16V
1
2
0.1uF
1
DDC_SDA
DDC_SCL
2
C4
DGND
ADC_GND
D2
BAV99
D4
5.6V
SOGI
3
D3
5.6V
ADC_GND
DGND
DGND
DB_G+
R7
1k
R4
100
R6
100
R12
100
R14
100
L3
B0805/80
VGA_DET
C5
22pF
C6
G_IN+
R5
75
0.1u
DGND
R8
100
G_IN-
ADC_VAA
GVS
ADC_GND
C7
R9
100
2
2
1
1
GHS
0.1uF
D5
ADC_GND
D6
5.6V
D7
5.6V
R10
2.7k
R11
2.7k
C8
22p
C9
22p
DB_R+
3
BAV99
L4
B0805/80
C10
22pF
DGND
DGND
R_IN+
R13
75
DGND
3.3V
C11
0.1u
DGND
ADC_GND
U1
74LCX14
GHS
1
2
3
4
5
6
7
R15
NC
D0
Q0
D1
Q1
D2
Q2
GND
VCC
D5
Q5
D4
Q4
D3
Q3
14
13
12
11
10
9
8
R_IN-
GVS
R17
NC
VSI
DGND
DGND
1
C13
22pF
ViewSonic Corporation
Model
2
2
1
HSI
C12
22pF
Title
DGND
Date
ViewSonic Corporation
Confidential - Do Not Copy
63
Q7b-3
VGA IN
Rev:
12V
D15
BAT54C
3
3.3V
R90
680
5VA
D14
BAV99
D16
5.1V
+
R93
4.7k
C101
47u/16V
+
2
DDC_VDD
1
5VA
MCU_VDD
R94
4.7k
R95
4.7k
C16
100n
DGND
DGND
MUTE
DGND
Q1
MMBT3904
1
3.3V
R96
47k
R21
4.7k
R102
BL_EN
R99
10k
HSO
C27
1u
R98
47k
R100 R101
10k
10k
C18
100p
C19
100p
Q3
MMBT3904
1
DGND
MUTE
41
42
43
44
1
2
3
40
PC3/PWM0
PC2
PC1*
PC0*
VCC
PD0
PA0/PWM2
4
PD4
P35/T1
39
W/O Audio : R100= 0 Ohm , Other N.C.
RSTN
DDC_SDA
STBY
38
DDC_SCL
37
VSO
WP
36
MENU/DOWN
34
AUTO/UP
1
2
3
4
33
32
R38
100
R39
100
TXD
RXD
4PIN/2.0mm
HI_BRIGHTNESS
31
DGND
PWR_EN
29
VGA_DET
TO RS232
PB7/SDA1*
30
CN4
SCL
SDA
1
2
3
3PIN/2.0mm
MCU_VDD
DGND
TO DEBUG
DGND
DGND
R31
2k
C17
100p
12M_OSC
1M
MCU_VDD
R32
2k
R29
2k
R30
2k
R86
100
R87
100
R27
100
R28
100
MCU_VDD C28
0.1u
SDA
SCL
U3
AT24C16
DDC_SCL
DDC_SDA
1
2
3
4
ADJUST+
X1
12MHz
C21
22p
R37
NC
CN2
C26
100p
R26
R36
NC
MCU_VDD
35
28
PB6/SCL1*
PD5
R84
NC
MCU_VDD
R34
6.8k
5
P34/T0
18
R83
NC
PD3
27
R33
4.7k
NC
PB3/ADC3/INTE1
PB5/SDA0*
17
PB2/ADC2/INTE0
26
16
NC
NC
PB4/SCL0*
NC
R82
PD2
P31/TXD
25
SDA
R81
PD6
PE0
SCL
NT68F633
PD1
PB1/ADC1
15
PC7
24
14
U2
PB0/ADC0
IRQN
100
P30/RXD
23
R85
13
RSTB
GND
12
TXD
PC6
22
11
PA7/PWM9*
OSCI
10
PC5
21
100
PC4/PWM1
OSCO
R23
RXD
DGND
PA6/PWM8*
20
9
DGND
PA5/PWM7*
PE1
8
19
7
MCU_VDD
PA1/PWM3
DGND
PA2/PWM4
PA4/PWM6*
C14
1u
PA3/PWM5
6
BL_BRIGHT
3.3V
100
VOL
VOLUME
2
LEDG
2
VOL
R22
15k
AMP_STBY
15k
Q2
MMBT3904
1
R97
47k
LEDA
R20
1k
R35
AMP_MUTE
100
3
POWER
2
STBY
3.3V
100
R25
3
DGND
R24
3
C15
47u/16V
C22
22p
ADJUSTR40
NC
CN3
R41
NC
C25
NC
DGND
1
2
3
4
5
6
7
8
9
R42
R43
R44
R46
R47
R48
R49
1k
1k
1k
1k
1k
330
330
POWER
AUTO/UP
MENU/DOWN
ADJUST+
ADJUSTLEDA
LEDG
R52
1k
HI_BRIGHTNESS
C24
NC
DGND
A0
VCC
A1
WP
A2
SCLK
GND SDA
8
7
6
5
DGND
R50
R51
100
100
WP
SCL
SDA
R53
NC
DGND
DGND
ViewSonic Corporation
9PIN/2.0mm
C29
0.1u
C30
0.1u
C31
0.1u
C32
0.1u
C33
0.1u
C34
0.1u
C35
0.1u
Model
C36
0.1u
DGND
Title
DGND
Date
ViewSonic Corporation
Confidential - Do Not Copy
64
Q7b-3
MCU
Rev:
3.3V
3.3V
L5
B0805/600
ADC_VAA
1.8V
+
C37
47u/16V
C38
0.1u
C39
0.1u
C40
0.1u
C41
0.1u
C42
0.1u
C43
0.1u
C44
0.1u
C100
0.1u
C23
+
C47
47u/16V
33PF
_(for
15"sva)
C48
0.1U
0.1u
C49
0.1u
C50
0.1u
C45
0.1u
C51
0.1u
C46
0.1u
DGND
DGND
ADC_GND
+
C53
470u/16V
1.8V
L7
B0805/1k
C54
0.1u
3.3V
DGND
R89
R54
ADC_VAA
22
22
VSO
HSO
IRQN
ADC_VAA
ADC_GND
10n
C61
10n
C62
10n
23
24
28
29
30
31
32
33
34
35
36
C63
10n
RSTN
SDA
SCL
VSI
HSI
16
R56
100
R57
R58
100
100
R59
R60
100
100
121
122
106
107
108
119
126
5
110
111
112
113
114
115
116
117
68
124
T4M/ARSRP[0]
T4P/ARSRN[0]
T5M/ARSRP[1]
T5P/ARSRN[1]
T6M/ARSRP[2]
T6P/ARSRN[2]
TCLK2M/ARSRP[3]
TCLK2P/ARSRN[3]
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
YUV_CLK/D_CLK
U4
NT68521AEF
SOGI
T7M/POLA/ARSCLK_P
T7P/CLKA/ARSCLK_N
CLKB/BRSCLK_N
POLB/BRSCLK_P
BRSRN[3]
BRSRP[3]
BRSRN[2]
BRSRP[2]
BRSRN[1]
BRSRP[1]
BRSRN[0]
BRSRP[0]
OSCI
OSCO
RSTn
SDA
SCL
BRSGN[3]
BRSGP[3]
BRSGN[2]
BRSGP[2]
BRSGN[1]
BRSGP[1]
BRSGN[0]
BRSGP[0]
VSYNCI
HSYNCI
TESTP
BRSBN[3]
BRSBP[3]
BRSBN[2]
BRSBP[2]
BRSBN[1]
BRSBP[1]
BRSBN[0]
BRSBP[0]
NC
NC
22
15
9
NC
ADC_GND
NC
2
1
MD1/GPO9
MD0/GPO8
GPO7
VSO/GPO6
HSO/GPO5
PWM1/GPO4
PWM0/GPO3
GPO2
GPO1
12M/GPO0
83
LVDS_AVDD
3
127
71
37
56
85
103
118
38
104
120
DVDD
DPLL_DVDD
DVDD
DVDD
DVDD
DVDD
DVDD
CVDD
CVDD
CVDD
25
RIN+
RIN-
DGND
SOGI
12M_OSC
GIN+
GIN-
LVDS_AGND
C60
RIN+
RIN-
84
10n
17
18
DPLL_DGND
DGND
DGND
DGND
DGND
CGND
CGND
R_IN-
C59
GIN+
GIN-
70
47
72
94
105
123
27
R_IN+
10n
DGND
G_IN-
10n
C58
BIN+
BIN-
125
G_IN+
C57
10
11
ADC_GND
B_IN-
BIN+
BIN-
ARSBP[0]
ARSBN[0]
ARSBP[1]
ARSBN[1]
ARSBP[2]
ARSBN[2]
T0M/ARSBP[3]
T0P/ARSBN[3]
T1M/ARSGP[0]
T1P1/ARSGN[0]
T2M/ARSGP[1]
T2P/ARSGN[1]
TCLK1M/ARSGP[2]
TCLK1P/ARSGN[2]
T3M/ARSGP[3]
T3P/ARSGN[3]
ADC_GND
B_IN+
R/B SWAP
C56
0.1u
128
3
OPTION
D9
(NC)AIC431CUN
IRQn
Vref
NC
ADC_VAA
NC
NC
NC
NC
ADC_VAA
109
4
7
13
20
6
12
19
ADC_VAA
C20
33PF(for 15"sva)
+
C55
47u/16V
26
R88
(NC)2.7k
2
NC
ADC_VAA
NC
1
R55
(NC)820
21
14
8
DGND
102
101
100
99
98
97
96
95
T0M/ARSBP3
T0P/ARSBN3
93
92
91
90
89
88
87
86
T1M/ARSGP0
T1P/ARSGN0
T2M/ARSGP1
T2P/ARSGN1
TCLK1M/ARSGP2
TCLK1P/ARSGN2
T3M/ARSGP3
T3P/ARSGN3
82
81
80
79
78
77
76
75
T4M/ARSRP0
T4P/ARSRN0
T5M/ARSRP1
T5P/ARSRN1
T6M/ARSRP2
T6P/ARSRN2
TCLK2M/ARSRP3
TCLK2P/ARSRN3
74
73
66
65
T7M/ARSCLK_P
T7P/ARSCLK_N
64
63
62
61
60
59
58
57
55
54
53
52
51
50
49
48
46
45
44
43
42
41
40
39
DGND
SPA
SPB
69
67
ViewSonic Corporation
ADC_GND
PLL_GNDA
DGND
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
65
Q7b-3
Rev:
T5M/ARSRP1
T5P/ARSRN1
T6M/ARSRP2
T6P/ARSRN2
TCLK2M/ARSRP3
TCLK2P/ARSRN3
T7M/ARSCLK_P
T7P/ARSCLK_N
TCLK1M/ARSGP2
TCLK1P/ARSGN2
T3M/ARSGP3
T3P/ARSGN3
T4M/ARSRP0
T4P/ARSRN0
T5M/ARSRP1
T5P/ARSRN1
T6M/ARSRP2
T6P/ARSRN2
TCLK2M/ARSRP3
TCLK2P/ARSRN3
T7M/ARSCLK_P
T7P/ARSCLK_N
CN5
30PIN/1.0mm
CN6
T1M/ARSGP0
T4M/ARSRP0
T0M/ARSBP3
T1M/ARSGP0
T2M/ARSGP1
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
TCLK1M/ARSGP2
T3M/ARSGP3
T4M/ARSRP0
T5M/ARSRP1
T6M/ARSRP2
TCLK2M/ARSRP3
T7M/ARSCLK_P
PANEL_VCC
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
T0P/ARSBN3
T1P/ARSGN0
T2P/ARSGN1
T1P/ARSGN0
TCLK1P/ARSGN2
T3P/ARSGN3
T4P/ARSRN0
T5P/ARSRN1
T4P/ARSRN0
T6P/ARSRN2
TCLK2P/ARSRN3
T7P/ARSCLK_N
15*2PIN/2.0mm
DGND
DGND
31
PANEL_VCC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
GND
32
TCLK1M/ARSGP2
TCLK1P/ARSGN2
T3M/ARSGP3
T3P/ARSGN3
T4M/ARSRP0
T4P/ARSRN0
T0M/ARSBP3
T0P/ARSBN3
T1M/ARSGP0
T1P/ARSGN0
T2M/ARSGP1
T2P/ARSGN1
GND
T0M/ARSBP3
T0P/ARSBN3
T1M/ARSGP0
T1P/ARSGN0
T2M/ARSGP1
T2P/ARSGN1
DGND
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
66
Q7b-3
PANEL CONNECTOR
Rev:
12V
+
C65
0.1u
C64
470u/16V
U5
TDA7496L
1
2
CN8
3
R61
18k
C66
1u
GND
GND
GND
GND
20
19
18
L8
B0805/600
C67
L_IN
1
2
3
GND
4
INL
OUTL
17
CN7
L_OUT
+
AUDIO IN
GND
4
3
2
1
5
C68
100pF
2
5
4
3
2
1
PHONEJACK 3.5D
7
8
R63
18k
C72
1u
10
C73
100pF
2
1
9
R64
47k
VS
16
R_OUT
470u/16V
C69
6
CN12
VAROUT_L
+
VOLUME
VAROUT_R
NC
VS
OUTR
GND
INR
MUTE
SVR
STBY
15
14
L9
B0805/600
+
R62
47k
3PIN/2.0mm
1
R_IN
JST 4Pin PH=2.0mm
C70
1u
C71
1u
TO SPEAKERS
470u/16V
13
R92
10k
12
AMP_MUTE
AMP_STBY
11
C102
1u
VOLUME
C74
470u/16V
C103
NC
C75
NC
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
67
Q7b-3
AUDIO IN
Rev:
1
R65
C76
1uF/0603
2
R66
1.2K
2K
2
4
6
1
3.3VP
L11
47uH/1.5A
Vin
2
Output
3.3V
GND
GND
GND
D10
SS14
C80
+
C83
0.1u
470uF/16V
L10
RH3.5x6x1.0W
D11
3V6
1
1
8
7
2
6
C82
NC
SD
C81
0.1uF
5
+ C79
470uF/16V
L12
RH3.5x6x1.0w
4
PIN HEARD 3X2 PH=2.54mm
C78
0.1u
GND
3.3VP
C77
0.1u
1
1
3
5
U6
AP1509
DGND DGND
3
L15
RH3.5x6x1.0W
FB
12V
CN9
R68
DGND
DGND
R67
0
100
DGND
DGND
DGND DGND
C84
0.1u
+
DGND
C85
100u/16V
2
DGND
C86
0.1u
2
BL_EN
C87
0.1u
DGND
DGND
R69
100
BL_BRIGHT
1.8V
U8
LDO_1117-1.8
C88
0.1u
R70
3.6K
GND
4
DGND DGND
9
8
7
9
8
7
9
8
7
D12
SS14
1
+
PANEL_VCC
C93
0.1u
C92
100u/16V
C94
0.1u
C99
0.1u
+
R75
10k
C97
470uF/16V
D13
5V6
DGND
DGND DGND
DGND DGND
2
5
2
5
2
5
2
5
ViewSonic Corporation
Model
Title
4
H2
6
3
1
4
H1
6
3
1
4
H4
6
3
1
4
H3
6
Date
Confidential - Do Not Copy
68
4
2
DGND
1
ViewSonic Corporation
CASE
VOUT
2
DGND
PWR_EN
9
8
7
R98=2k
R70=3.6k
D12=SS14
D12=SR34
L14
47uH/1.5A
GND
DGND
3
VIN
8
C96
100uF/16V
7
SD
GND
+
GND
Output
GND
C98
0.1u
Vin
5
C91
0.1u
PANEL_VCC=3.3V
PANEL_VCC=5.0V
Panel 15"
Panel 17"/19"
FB
DGND DGND
1
+ C90
100uF/16V
3
U9
AP1509
2
12V
C89
1uF/0603
6
1
R71
1.2K
L13
RH3.5X6X1.0W
3
Q7b-3
Power
Rev:
CN13
1
2
3
4
5
6
7
8
SW1
TOUCH SWITCH 4P
SW2
TOUCH SWITCH 4P
SW3
TOUCH SWITCH 4P
SW4
TOUCH SWITCH 4P
SW5
TOUCH SWITCH 4P
Menu/Down
Auto/Up
POWER
Right/+
Left/-
JST 8Pin PH=2.0 H 90
D17
Amber
3
Green
1
2
LED Dual
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
69
Q7b-3
K/B
Rev:
11. PCB Layout Diagrams
ViewSonic Corporation
Model
ViewSonic Corporation
Confidential - Do Not Copy
70
Q7b-3
Title
COMPONENT SIDE
Date
Rev:
ViewSonic Corporation
Model
ViewSonic Corporation
Confidential - Do Not Copy
71
Q7b-3
Title
COPPER BOTTOM
Date
Rev:
ViewSonic Corporation
Model
ViewSonic Corporation
Confidential - Do Not Copy
72
Q7b-3
Title
DRILL DREAWING
Date
Rev:
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
73
Q7b-3
SOLDER MASK TOP
Rev:
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
74
Q7b-3
SOLDER MASK Bottom
Rev:
ViewSonic Corporation
Model
Title
Date
ViewSonic Corporation
Confidential - Do Not Copy
75
Q7b-3
PASTE MASK TOP
Rev:
* Reader’s Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.
Assessment
A. What do you think about the content of this Service Manual?
Unit
Excellent
Good
Fair
Bad
1. Precautions and Safety Notices
2. Specification
3. Front Panel Function Control Description
4. Circuit Description
5. Adjustment Procedure
6. Troubleshooting Flow Chart
7. Recommended Spare Parts List
8. Exploded Diagram and Exploded Parts List
9. Block Diagrams
10. Schematic Diagrams
11.PCB Layout Diagrams
B. Are you satisfied with this Service Manual?
Item
Excellent
Good
Fair
Bad
1. Service Manual Content
2. Service Manual Layout
3. The form and listing
C. Do you have any other opinions or suggestions regarding this service manual?
Reader’s basic dada:
Name:
Title:
Company:
Add:
Tel:
Fax:
E-mail:
After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
(marc.maupin@viewsonic.com)
ViewSonic Corporation
Confidential - Do Not Copy
77
Q7b-3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
