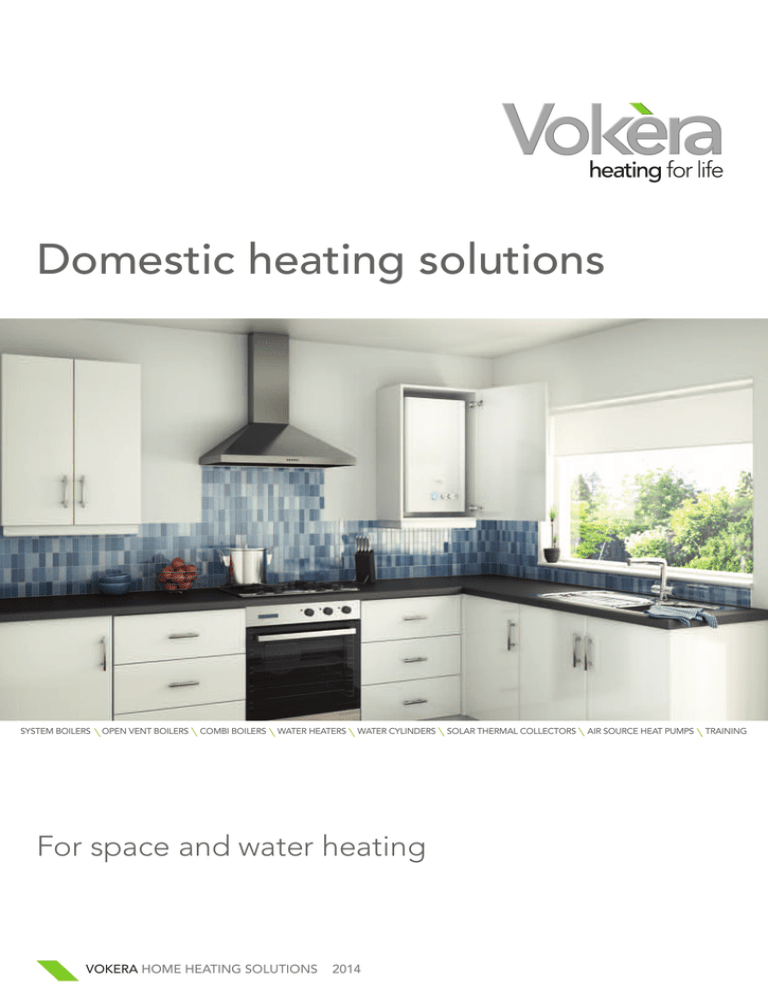

Domestic heating solutions
SYSTEM BOILERS
OPEN VENT BOILERS
COMBI BOILERS
WATER HEATERS
WATER CYLINDERS
For space and water heating
VOKERA HOME HEATING SOLUTIONS
2014
SOLAR THERMAL COLLECTORS
AIR SOURCE HEAT PUMPS
TRAINING
Vokèra products provide a trouble-free focal point for any central heating system.
Our extensive range offers the right choice for every home and application.
Choosing the right boiler shouldn’t have to mean limited choice. Our range comes
in a variety of outputs suitable for any domestic application.
Versatile flueing options and natural gas/LPG flexibility means that virtually any
home can enjoy the benefits of a Vokèra boiler.
And now you can couple a Vokèra boiler with Vokèra renewable technology
products, harnessing the earths natural resources.
warmth
VOKERA HOME HEATING SOLUTIONS
CONTENTS
Vokèra Home Heating Solutions
4
HE Boiler Systems for Domestic Applications
Verve
High efficiency sealed system boiler
NEW Mynute i
High efficiency sealed system boiler
Vision S
High efficiency sealed system boiler
NEW Vibe
High efficiency sealed system boiler
High efficiency open vent boiler
Mynute VHE
Linea One
High efficiency combi boiler
Unica i
High efficiency combi boiler
Unica Balcony HE
High efficiency balcony combi boiler
Vision C
High efficiency combi boiler
Compact A
High efficiency combi boiler
Fuelsaver
Passive flue gas heat recovery device
8
10
12
14
16
18
20
22
24
26
28
Water Cylinders and Water Heaters
AquaFlow
AquaNova
30
31
Unvented single coil water cylinder
Instantaneous multipoint water heater
HE Boiler Range for Light Commercial Applications
CondexaPRO
Wall hung condensing boilers
NEW CondexaPRO Box
Floor standing box condensing boiler units.
Specialist Application Boilers
Mynute SE
Compact SE
Specialist application system boiler
Specialist application combi boiler
32
34
35
Domestic Boiler Feature Quick Reference Chart
Flue Guidance and Options
Energy Saving Controls
Time, energy saving and intelligent controls
36
41
Vokèra Renewable Energy Solutions
Introducing Solar thermal technology and the Vokèra Zenith range
Zenith Evacuated Tube
Solar thermal collectors
Zenith Flat Plate Inset and On Tile
Solar thermal collectors
AquaFlow Twin
Unvented twin coil water cylinder
43
44
45
46
Heat Pump Systems
Introducing air source pump technology and the Vokèra AriaPRO range
AriaPRO
Air source heat pump
47
48
Vokèra Support
Pre Sales Support
Technical Training
Customer Care
Contact Us
49
49
50
50
www.vokera.ie
www.vokera.co.uk
Vokèra Home Heating Solutions
Quality and reliability
More than 1.5 million Vokèra boilers have been installed around the UK and Ireland demonstrating our wealth of experience in home
heating. Vokèra is recognised for the quality and reliability of its products with one of the highest reliability statistics in the market coupled
with a 30 year unblemished record of product quality. At every stage, from research and development through to production and after sales
support, we build quality in as standard.
In support of this we back our Mynute i, Vision, Mynute VHE, Linea One and Unica i boilers with a 5 year warranty and our other boiler
ranges with a 2 year warranty.
100
Reliability percentage
99
98
97
96
95
94
93
92
91
90
2007
2008
2009
2010
2011
2012
2013
2014 *
Vokèra base the monthly reliability factor on the
number of products at risk, measured against the
quantity of bona-fide warranty interventions carried out
during the same period
Choice
Vokèra specialises in the domestic and light commercial market and provides products that fulfil modern requirements. Our product
range incorporates a product for every domestic application, including high efficiency system, open vent and combination boilers, light
commercial boilers and water heaters and cylinders.
Vokèra Renewable energy technology products are now MCS approved demonstrating their quality and reliability. Renewable products
available include the Zenith Solar thermal range and AriaPRO air source heat pumps.
Versatility
All Vokèra boilers are available in natural gas with kits available to allow simple conversion to LPG. The Mynute A system boiler is
available in both NG and LPG ready models. A wide range of flue options means that Vokèra appliances are extremely versatile – there
isn’t any place in the home where they can’t be installed.
Support
Our support network incorporates a Pre Sales support advice service, Technical Training, Technical Support service and a Customer Care
team dedicated to providing great service.
Vokèra employed engineers and approved agent network support every installation, giving you peace of mind that should you need us,
we are there. Our engineers boast a 93% first time fix rate, ensuring a rapid resolution should any Vokèra appliance develop a fault during
the warranty period. We regularly publish our customer satisfaction results on our website, these not only demonstrate our commitment
to continual improvement, but the high levels of 99% satisfaction we consistently achieve every year.*
*Vokèra calculates its monthly customer satisfaction results by the total number of customer
calls our engineers attend versus customer complaints.
4 VOKERA HOME HEATING SOLUTIONS
HOME HEATING SOLUTIONS
High efficiency condensing technology
The latest technology is used to maximise the efficiency of all Vokèra products. All Vokèra high efficiency boilers
conform to the seasonal efficiency requirements of the building regulations.
A Vokèra high efficiency model is amongst the most energy efficient boilers available today. These condensing
boilers dramatically reduce wasted heat, saving money and helping to protect the environment. Most of these
boilers can be fitted with additional energy saving controls to ensure they maximise energy efficiency.
Radial heat exchanger
Starting from the raw materials this key component is designed and built in-house ensuring the highest quality, no compromise. This
provides maximum control over the manufacturing process, ensuring excellent flexibility and reliability of the thermal and corrosion
resistant properties of the heat exchanger.
The innovative heat exchanger, found in our higher specification products, is a single piece component
manufactured from superior quality aluminium alloy that has been specifically chosen for its excellent
corrosion resistant properties and high thermal transfer rate. The radial design and large cross sectional
area eliminate the risk of scaling or superheated areas. No welding or localised heat treatment is
necessary during the manufacture of the heat exchanger, thereby maintaining maximum integral
strength and thermal qualities of the aluminium alloy.
The Mynute i system boiler and Linea One and Unica i combination boilers utilise the latest version of
the radial heat exchanger. The new ‘profile’ has been developed to increase the time between any
required maintenance of the heat exchanger; this has been enabled by increasing the ‘pitch’ of the
coils thereby reducing thepossibility of condense residues sticking to the outer wall of the exchanger.
Class leading up to 10:1 modulation ratio
By incorporating the most advanced technology available, an extremely high modulation ratio of up to 8:1 has
been acheived in the Vokèra Mynute i system boiler range and 10:1 in the Linea One and Unica i combi boiler
ranges. The modulation ratio is a boiler’s ability to reduce its maximum output to its minimum output. The ability
of an appliance to modulate its output to 10% of its maximum output has many benefits.
If a boiler has a maximum output of 38kW yet only has a modulation ratio of 4:1, it will only be able to modulate
down to around 10kW. However, when most rooms have reached the required temperature and radiator TRVs have
closed, the demand on the boiler will be considerably less than 10kW. This means that the minimum output of the
boiler will be higher than it needs to be, so the boiler will constantly switch on and off, leading to fuel inefficiency.
This will also place unnecessary stress on the boiler’s components and parts.
Vokèra Mynute i with
8:1 modulation ratio
A boiler with a high maximum output and a wide modulation ratio however, will be able to modulate down to an extremely low output,
reducing wear and tear on primary components and increasing fuel efficiency resulting in cost savings for the end user.
Secondly, a combination boiler with a high modulation ratio is able to maintain a stable DHW (domestic hot water) flow temperature at a
low flow rate, minimising any temperature fluctuations to provide a continuous flow of hot water, ensuring total end user comfort. This is
particularly important for end users who prefer showers over baths or for those who require a constant DHW outlet temperature – for
example, where there are young children or elderly people in a household, who are at a higher risk of scalding.
When selecting a combi boiler, it’s crucial to consider modulation ratios and to remember that performance isn’t just about kW output.
Installing a combi boiler with a high maximum output and a wide modulation ratio will deliver optimal efficiency and comfort.
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Vokèra Magnetic Filter
High efficiency boilers offer excellent performance for heating systems, however this performance can be
impaired if the central heating system is not cared for. Radiators usually account for the largest surface area of
a central heating system where they act as heat emitters but they are usually made up of mild steel which can
corrode easily if left untreated.
Even when a corrosion inhibitor is added to the system, low levels of corrosion can still occur, forming magnetite;
a black sludge like substance. Magnetite particles can be dispersed throughout the system causing blockages
or restrictions that can result in a loss of performance and homeowner comfort; and can also lead to premature
failure of valves and pumps which can be costly.
The Vokèra Magnetic Filter is compatible with all Vokèra domestic boilers and collects waterborne magnetite particles and any other
debris that has been left within a system, offering additional protection and restoring efficiency without reducing the flow rate through
the system. Easy to install on both horizontal and vertical pipe runs the Magnetic Filter’s base mounted isolation valve also aids servicing
and the easy discharge of the particles collected.
Vokèra Fuelsaver
The Vokèra Fuelsaver passive flue gas heat recovery system consists of a post heat exchanger device that is located between the boiler
and the flue terminal and offers the potential to increase efficiency by capturing heat recovered from the flue exhaust gases that would
normally be wasted. This captured heat is then used to pre-heat the incoming cold mains water supply before entering the boiler, thereby
reducing gas consumption and improving domestic hot water efficiency.
The addition of a Vokèra Fuelsaver can save up to 33% of the gas normally required for DHW; save up to 500kg carbon emissions annually
and reduces cold water wastage by 5% annually due to the inlet water being pre-heated.
For more information on the Fuelsaver see page 28.
Intelligent controls
Vokèra boilers boast some of the latest innovations in technology, including OpenTherm
communication. This technology is built into the Vokèra system boiler range and the
complete combination boiler range so that they are compatible with Vokèra OpenTherm
controls and devices. The new OpenTherm 7 day programmable room thermostat has been
configured for the Unica i range and has a ‘plug and play’ Tyco connection on the receiver
that enables the simplest of installation to the boiler. For installation to other Vokèra ranges
the Tyco connection simply needs to be re-configured or removed.
The installation of a Vokèra intelligent control provides a more comfortable and stable room
temperature for the end user, in addition to helping reduce fuel bills. When installed with
the Unica i, the correct use of the Vokèra OpenTherm control can save up to €80 of a home’s
annual energy bill*.
Wireless OpenTherm Control - Transmitter
Wall mounted wireless RF Transmitter (shown)
Most of Vokèra’s current boiler range also comes with pre-configured weather compensating
technology, allowing you to install the Vokèra weather compensation control with the simple
addition of an external sensor.
Registered Gas Installers: For a step by step video on the installation of an
OpenTherm control visit the Vokèra YouTube channel (search Vokera Ltd).
For more information on the range of Vokèra controls see page 42.
*
Energy saving based on average 18,000kw hrs per annum
6 VOKERA HOME HEATING SOLUTIONS
Wireless OpenTherm Control - Receiver
Tyco ‘plug and play’ connection on wireless OT Receiver
and Unica i boiler for a simple installation.
HOME HEATING SOLUTIONS
Renewable technology
Our MCS approved high grade Zenith Solar thermal collectors maximise energy
efficiency and meet the approved standard of BS EN12975 and have the Solar Keymark
seal of approval.
Both the Zenith Solar thermal collectors and AriaPRO range are MCS approved,
demonstrating their quality and reliability.
The Zenith Solar thermal flat plate collectors are backed by a 10 year warranty and the
evacuated tube collectors and AriaPRO air source heat pumps with a 2 year warranty.
Zenith flat plate and evacuated tube Solar thermal collectors
High Power Commercial Heating Products
The CondexaPRO, a long established product range within Vokèra, makes true plant-room efficiency simple. The high reliability of
products, the availability of a comprehensive line of specific accessories, the ease of mounting and the maximum flexibility, make the
Vokèra CondexaPRO systems the best solution both for large domestic properties and commercial buildings, including hotels, schools,
office-buildings, factories and sports centres.
CondexaPRO products are suitable both for new buildings and as a replacement of old floor-standing boilers, and thanks to their
modularity, they offer the highest efficiency at any time combined with the maximum peace of mind. The availability of two different
heat exchangers, giving nominal outputs of 50kW and 128kW offer a number of practical boiler variations and even more cascade
configurations, up to 6.9MW, all available as natural gas or LPG.
The expert Vokèra Service team are also able to provide a commissioning service for CondexaPRO boiler installations.
CondexaPRO wall hung condensing boilers
CondexaPRO Box floor standing units. Available for
internal and external installations.
Pre sales support for domestic renewable installations and commercial applications
The Vokèra Pre Sales support team offers advice on a range of products and applications to engineers, architects, specifiers and
developers, ensuring you get the correct guidance and reassurance when choosing a solution for your project.
To ensure that your installation is reaching its energy efficiency potential the correct product and output must be specified. The
Vokèra Pre Sales team will carry out a complete survey of your project and provide a bespoke report detailing the energy efficiency
and potential energy savings of the installation, a complete bill of materials, and they can also provide on-site assistance and support
with product assembly and commissioning.
Contact the Vokèra Pre Sales team: [email protected]
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Verve
High output heat only boiler
Up to 92.1% efficient(1) reducing running costs by up to 35% more than a
conventional boiler, helping to safeguard the environment.
92.1%
EFFICIENT
Excellent power to weight ratio enables it to be installed in large
domestic homes or small commercial properties.
(1)
2
Vokèra strongly recommend the addition of the optional hydraulic
separator to ensure that the boiler operates at the required flow-rate,
preventing nuisance shut down and reducing component wear and tear.
year
warranty
Isolating valve kit supplied as standard for simple servicing. The flow
and return valve kit enables the boiler to be isolated from the circuit –
whether sealed or open-vent – eliminating any need to drain the whole
system during servicing.
ALUMINIUM HEAT
EXCHANGER
Addition of the optional 3 port valve enables the installer to configure
different system circuits, including space heating, hot water and low
temperature underfloor heating.
EXCELLENT
POWER TO
WEIGHT RATIO
Our in-house patented unique radial design heat exchanger utilises an
extruded aluminium alloy. Aluminium has excellent thermal transfer
properties and our updated design incorporates a new profile that
inhibits the build-up of condense residues, thereby significantly
reducing the frequency of cleaning.
COMPATIBLE WITH
SOLAR THERMAL
Boiler comes with 80mm twin flue outlet allowing the flue run to go up
to 20m but can easily be converted to a 60/100mm concentric flue or
80/125mm concentric flue, making installation extremely flexible.
Pipe cover supplied as standard. Not shown.
Incorporates Vokèra’s recently introduced Cyclonic Separator, providing
a significant improvement in the effectiveness of the ‘air separator‘ and
can also capture particulates from the system water.
The Verve is relatively lightweight at 39kg and measures in at 858mm
high, 553mm wide and 284mm deep.
Simple installation with the Verve operating on a standard domestic gas
supply, reducing installation preparation.
Low NOx - Class-5 performance.
Combustion analysis test point for easy servicing and maintenance.
Built-in SARA function for improved efficiency, anti-cycling for longer
lasting component performance, frost protection and CO mode for
simple servicing.
Can be converted to LPG with LPG Kit.
OPTIONS
Description
Code
Hydraulic separator (recommended)
20028475
3 way valve kit for DHW
20028476
B23 kit
20028478
Flue kit adaptor 80/80 - 60/100
20028027
Flue kit adaptor 80/80 - 80/125
20028029
24I expansion vessel
20043324
LPG conversion kit
20032155
Condense pump
Magnetic filter
8 VOKERA VERVE
404
29450199
Built-in thermo-regulation, attach an energy saving control(2) to increase
energy efficiency. Compatible with weather compensation sensor and
OpenTherm RF control.
No internal expansion vessel but a 24 litre expansion vessel is available
as an optional extra and is adequate for most systems.
Compatible with Vokèra’s MCS accredited Zenith Solar thermal
collectors.
(1)
(2)
When installed with a Vokèra intelligent control, as proposed in SAP 2005
Contact Vokèra Technical Helpline for advice
47KW HIGH OUTPUT HEAT ONLY BOILER
VERVE
High output heat only boiler
Twin flue outlet
Flue gas analysis test point
Aluminium radial heat exchanger
Condensate level sensor
Anti-seize function on pump
Condense trap
Electric insulation IPX5D
Pressure switch
Frost protection via PCB
(3)
20039783
DIMENSIONS AND CLEARANCES (MM)
150
*
47.00
45.78
49.91
284
39
553
1.0”
22mm
15mm
21mm
600
100
230/50
1.8m
2.8m
4.8m
7.0m
20m/20m
20m/20m
90.1
5
150
Product order code
Central Heating
Heat input (kW)
Maximum heat output (kW) 80/60°c
Maximum heat output (kW) 50/30°c
Weight
Dry weight (kg)
Connections
Flow and Return
Gas
Safety Valve
Condense
Electrical
Voltage (V/Hz)
Flue Details (concentric and twin)
Maximum horizontal flue length (60mm/100mm)
Maximum vertical flue length (60mm/100mm)
Maximum horizontal flue length (80/125mm)
Maximum vertical flue length (80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue length (80mm/80mm)
Maximum vertical flue length (80mm/80mm)
Efficiency
Efficiency(3) (%)
NOx class
Verve
858
SPECIFICATIONS
Safety valve
100
*
From casing or 25mm above flue elbow (whichever is applicable)
HIGH POWER DOMESTIC BOILER
The Verve boiler has been designed to provide domestic
installers the opportunity to expand their scope of work into
large domestic and light commercial applications without
having to gain additional commercial qualifications.
Excellent power to weight ratios and domestic characteristics
include Vokèra’s unique heat exchanger and a similar PCB to
that of other Vokèra domestic appliances, ensuring a familiar
and simple installation.
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
N
EW
Mynute i
High efficiency system boiler
HARP 2005 seasonal efficiency of 92.3%(1).
UP TO
92.3%
5 year parts and labour warranty(2).
EFFICIENT
(1)
High modulation ratio, 7:1 on Mynute i20 and 8:1 on Mynute i30,
increasing efficiency and component longevity.
REAR
FLUE
OPTION
Rear flue option as well as the standard top flue option provides a versatile
installation. Other flueing options available are; horizontal, vertical and
twin flue.
5
UP TO
Simple to use back-lit LCD display ensures end-users can easily operate
and adjust the appliance.
year
warranty
Front mounted heat exchanger assists in simple maintenance. Our
in-house patented heat exchanger incorporates a unique radial design
utilising an extruded aluminium alloy. Aluminium has excellent thermal
transfer properties and our updated design incorporates a new profile
that inhibits the build-up of condense residues, thereby significantly
reducing the frequency of cleaning.
8:1*
MODULATION
RATIO
FRONT MOUNTED
Optional digital programmer, enables direct control over the central
heating timings when installed with built in relay.
IN-HOUSE
PATENTED HEAT
EXCHANGER
Dual temperature range - easily configured to suit under-floor heating
systems, with 2 built-in temperature ranges to suit either high or low
temperature systems.
BUILT IN
ON BOARD
RELAY
Low pressure loss reduces noise and increases pump performance.
Designed for easy installation with standard Vokèra pipework layout
enabling trouble free replacement of older Vokèra models.
*7:1 on the Mynute i 20
COMPATIBLE WITH
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
SOLAR THERMAL
Low NOx - Class-5 performance.
Anti seize function protects the pump from sticking during long periods
of inactivity.
Anti-cycling control prevents energy wasteful on/off cycling and reduces
wear and tear.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
Versatile horizontal or vertical flueing options – using Vokèra’s concentric
or twin flue systems – enable the boiler to be sited almost anywhere in
the home.
OPTIONS
Description
Code
(4)
OpenTherm RF programmable room thermostat
20050690
Weather compensation sensor(4)
2359259
(4)
Relay
29450144
Spacing frame
Mynute i LPG conversion kit
Condense pump
Magnetic filter
(1)
435
20069593
Standard Autostop disabling function(3) that automatically changes the
current operating mode and moves it permanently into the standby
mode, helping Social Landlords fulfill their obligation of an annual gas
safety check. Autostop will only operate after a pre-defined period of time
has elapsed and if it has been activated during commissioning.
Built-in thermo-regulation, attach an energy saving control(4) to increase
energy efficiency. Compatible with weather compensation sensor and
OpenTherm RF control.
Can be converted to LPG with LPG Kit.
404
29450199
When installed with a Vokèra intelligent control, as proposed in SAP 2005.
Subject to registration and annual service. (3) Autostop activation device required.
(4)
Contact Vokèra Technical Helpline for advice
Compatible with Vokèra’s MCS accredited Zenith Solar thermal collectors.
Compatible with Vokèra’s unvented single and twin coil cylinders.
(2)
10 VOKERA MYNUTE i
BLEND OF TRADITION AND INNOVATION
MYNUTE i
High efficiency system boiler
Flue gas analysis test point
Cyclonic Separator
Aluminium radial heat exchanger
Premix burner
Condensate level sensor
Easy maintenance condensate syphon
Anti-seize function on pump
Analogue pressure gauge
Electric insulation IPX5D
Frost protection via PCB
Mynute
i20
Mynute
i30
Mynute
i35(1)
Product order code
20073510
20076857
tbc
20
30
tbc
2.76 - 19.62
3.5 - 29.25
tbc
3 - 21.44
3.8 - 31.77
tbc
Modulation ratio @ 50/30C
Weight
7:1
8:1
tbc
Dry weight (kg)
36
38
tbc
Clearances
Sides
12mm
12mm
tbc
Top(2)
150mm
150mm
tbc
Bottom
150mm
150mm
tbc
Front
Connections
600mm
600mm
tbc
Flow and return
22mm
22mm
tbc
Gas
15mm
15mm
tbc
Safety valve
15mm
15mm
tbc
Condense
21mm
21mm
tbc
7.8
7.8
tbc
8.8
8.8
tbc
18
14
tbc
20
16
tbc
45/45
45/45
30/30
30/30
tbc
tbc
90.30
90.03
tbc
5
5
tbc
DIMENSIONS AND CLEARANCES (MM)
150
SPECIFICATIONS
Central Heating
338 (i20)
400
388 (i30)
780
Heat input (kW)
Maximum heat output
@ 80/60˚C (kW)
Maximum heat output
@ 50/30˚C (kW)
600
12
12
*
From casing or 25mm above flue elbow (whichever is applicable)
GOOD THINGS COME IN SMALL PACKAGES
The new Mynute i range has been redeveloped to provide an
energy efficient, easy to install and simple to maintain
heating solution for homes where space is at a premium.
Flue Details (concentric)
Maximum horizontal flue
length inc. rear flue (60/100mm)
Maximum vertical flue
length (60/100mm)
Maximum horizontal flue
length (80/125mm)
Maximum vertical flue
length (80/125mm)
150
Modulation ratio
The versatile flue options simplify installation and
increase siting flexibility, making the Mynute i range
very easy to install.
Flue Details (twin pipes)
Max horiz (80mm/80mm)
Max vertical (80mm/80mm)
The New Mynute i range is the first Vokèra system boiler to
incorporate a wide modulation ratio; which provides
significant benefits to the end user with the primary
advantages being running costs and user comfort
Efficiency
Efficiency(3) (%)
NOx class
(1)
Mynute i35 is launching soon, please order the Mynute 35HE in the meantime. Code 880
From casing or 25mm above flue elbow (whichever is applicable)
(3)
HARP 2005
(2)
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
UP
G
RA
Vision S
High efficiency system boiler
ED
Up to 92.2% efficient when installed with the weather compensation
sensor or OpenTherm control(1), reducing running costs by up to 35%
more than a conventional boiler which helps to safeguard the
environment.
UP TO
92.2%
EFFICIENT
(1)
5
D
NEW built in on-board relay enables the simplest of connections to 230V
controls including: To enable/disable weather compensation on system
boilers, to enable Y-plan compatibility with Vision system boilers and to
enable use of non ‘voltage-free’ controls on Vision system boilers.
year
warranty
NEW AESTHETIC AND
ON-BOARD RELAY
NEW
BUILT IN
ON-BOARD
NEW aesthetic including easy to understand diagnostic display aids the
service engineer in the unlikely event of a fault developing.
5 year parts and labour warranty.(2)
RELAY
Small dimensions enables the boiler to be sited almost anywhere in the
home, including a kitchen cupboard.
REAR
FLUE
OPTION
Rear flue option as well as the standard top flue option
provides a versatile installation. Other flueing options
available are; horizontal, vertical and twin flue.
KITCHEN
CUPBOARD FIT
Designed for easy installation with standard Vokèra pipework layout
enabling trouble free replacement of older Vokèra models.
LIGHTWEIGHT
FROM JUST
Lightweight at only 25kg for the 20S, enables the boiler able to be lifted
into place easily even in tight spaces.
25KG
Low NOx - Class-5 performance. Only 21mg/kWhr for 20S provides
maximum credits available for a condensing boiler under the Code for
Sustainable Homes.
KITCHEN CUPBOARD FIT
Pipe cover (not shown) available as an optional extra, for a tidy installation.
Vision combi shown
Standard Autostop disabling function(3) automatically changes the current
operating mode and moves it permanently into the standby mode,
helping registered social landlords fulfill their legal obligation of an annual
gas safety check. Autostop will only operate after a pre-defined period of
time has elapsed and if it has been activated during commissioning.
Attach the outside weather compensation sensor or OpenTherm RF
Programmable Room Thermostat to the Vision system boiler to further
increase energy efficiency and comfort (heating only applications).(4)
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
Additional built in functions include: SARA function for automatic
temperature control and improved efficiency, anti-cycling for longer
lasting component performance and CO mode for simple servicing.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
ENERGY SAVING CONTROLS AND OPTIONS
Description
Code
Rear flue terminal
29450133
Pipe cover
20012594
RF Room thermostat control
20059642
(4)
NEW OpenTherm RF control
20050690
Weather compensation sensor(4)
2359259
Spacing frame
20030704
Control interface(5)
29450143
Magnetic filter
29450199
12 VOKERA VISION
Low temperature option for under floor heating.
Can be converted to LPG with LPG kit.
Compatible with Vokèra’s unvented single and twin coil cylinders.
Compatible with Vokèra’s MCS accredited Zenith Solar thermal collectors.
Vision combi boiler also available, see page 18 for more information.
(1)
When installed with a Vokèra intelligent control, as proposed in SAP 2005 (2) Subject to registration and
annual service (3) Autostop activation device required. Contact Vokèra Technical Helpline for advice
(4)
Contact Vokèra technical for advice (5) Required for use with OpenTherm and weather compensation controls
INSTALLER FRIENDLY, FEATURE RICH BOILER RANGE
VISION S
High efficiency system boiler
Flue gas analysis test point
Cyclonic air and particle separator
Premix burner
Expansion vessel location allows for
easy servicing maintenance
Aluminium heat exchanger
Anti-seize function on pump
Electric insulation IPX5D
Frost protection via PCB
(6)
20071534
20071535
20
25
19.5
24.45
20.84
26.23
25
26
22mm
15mm
15 mm
21mm
22mm
15mm
15mm
21mm
230/50
230/50
DIMENSIONS AND CLEARANCES (MM)
150
Vision
25S
*
248
405
600
12
150
Product order code
Central Heating
Heat input (kW)
Maximum heat output
@ 80/60°c (kW)
Maximum heat output
@ 50/30°c (kW)
Weight
Dry weight (kg)
Connections
Flow & return
Gas
Safety Valve
Condensate
Electrical
Voltage (V/Hz)
Flue details (concentric)
Maximum horizontal flue length
(60/100mm)
Maximum vertical flue length
(60/100mm)
Maximum horizontal flue length
(80/125mm)
Maximum vertical flue length
(80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue length
(80mm/80mm)
Maximum vertical flue length
(80mm/80mm)
Efficiency
Efficiency(6) (%)
NOx class
Vision
20S
715
SPECIFICATIONS
12
*
From casing or 25mm above flue elbow (whichever is applicable)
INSTALLER FRIENDLY AND FEATURE RICH
5.85m
4.85m
6.85m
5.85m
15.3m
12.8m
16.3m
13.8m
45m/45m
40m/40m
45m/45m
40m/40m
90.1
5
90.2
5
The new Vision range has been designed to provide installers
with a hassle free installation and end users with a simple to
operate and reliable appliance.
The small dimensions and lightweight 25kg lift weight
(20S), make the Vision boilers very easy to install, even
in tight spaces - including a kitchen cupboard. The rear
flue option also simplifies installation and increases
siting flexibility.
The upgraded Vision system boilers now come with a built in
on-board relay which enables the simplest of connections to
230V controls and energy saving controls including the Vokèra
weather compensation sensor.
HARP 2005
UK Sales, General Enquiries: 0844 391 0999 Vokèra Ireland: 056 7755055 [email protected] www.vokera.co.uk www.vokera.ie
N
EW
Vibe
High efficiency system boiler
Up to 90.1% efficient(1), reducing running costs by up to 35% more
than a conventional boiler, helping to safeguard the environment.
UP TO
90.1%
EFFICIENT
2 year parts and labour warranty(2)
(1)
2
Built in on-board relay enables the simplest of connections to 230V
controls including: To enable/disable weather compensation on system
boilers, to enable Y-plan compatibility with Vibe system boilers and to
enable use of non ‘voltage-free’ controls on Vibe system boilers.
year
warranty
Designed for easy installation. Standard Vokèra pipework layout
enables trouble-free replacement of older Vokèra models.
KITCHEN
CUPBOARD FIT
Compact dimensions and low lift weight enable a flexible installation
with the boiler able to be sited almost anywhere in the home.
Equipped with the Vokèra patented Seasonal Advanced Regulation
Action (S.A.R.A). This feature automatically manages the Central Heating
output temperature depending on the required level of comfort.
CAN BE
CONVERTED
TO LPG
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range
rate the boiler.
OPTIONAL
PIPE COVER
Pipe cover available as an optional extra creates a neater installation.
Anti-cycling control prevents energy wasteful on/off cycling and reduces
wear and tear.
Low NOx - Class-5 performance.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
Installation time saving features:- Built-in condense trap with safety
device and push-fit connection and no ventilation is required.
Combustion analysis test point for easy servicing and maintenance.
Can be converted to LPG with LPG Kit.
Install with a Vokèra unvented cylinder to complete your installation.
Single and twin coil cylinders available.
ACCESSORYS AND OPTIONS
CONTROL PANEL
Description
Code
Pipe cover
20012594
Telescopic flue
29450121
Spacing frame
20030704
Vibe LPG conversion kit
20029055
Condense Pump
Magnetic filter
AquaFlow unvented single coil cylinder
(150L / 200L / 250L) capacities
AquaFlow Twin unvented twin coil cylinder (250L / 300L) capacities
863 / 864 / 865
924 / 925
Full details on water cylinders and Solar thermal products can be found in this catalogue see page 31
Pipe cover available as optional extra.
14 VOKERA VIBE
404
29450199
COST CONSCIOUS SOLUTION
VIBE
High efficiency system boiler
Flue gas analysis test point
Pre mix burner
Cyclonic air and particle separator
Anti seize function on pump
Advanced electronic control
including frost protection via PCB
(1)
Expansion vessel location allows for easy
servicing maintenance
Product order code
Central Heating
Heat input (kW)
Maximum heat output
@ 80°C/60°C (kW)
Weight
Dry weight (kg)
Connections
Flow & return
Gas
Safety Valve
Condensate
Flue details (concentric)
Maximum horizontal flue length
(60/100)
Maximum vertical flue length
(60/100)
Flue details (twin pipes)
Maximum horizontal or vertical
flue length (80mm/80mm) + terminal
Electrical
Voltage (V/Hz)
Efficiency
Efficiency(1) (%)
NOx class
20086245
20086246
20
25
19.5
24.45
26
28
22mm
15mm
15mm
21mm
22mm
15mm
15mm
21mm
DIMENSIONS AND CLEARANCES (MM) - VIBE
150
Vibe 25A
248
405
600
12
5.85m
4.85m
6.85m
5.85m
45/45m
40/40m
230/50
230/50
90.1
5
90.2
5
150
Vibe 20A
715
SPECIFICATIONS
12
ADDITIONAL INFORMATION
The new Vokèra Vibe is a system boiler available in 20 or 25kW. Its
compact dimensions mean the Vibe can be installed in a kitchen
cupboard and has an optional pipe cover for a neat finish.
The new Vibe has been derived from one of Vokèra’s most
reliable high performance system boilers; the Mynute A. It has
been redeveloped to provide a cost conscious, high efficiency
system boiler.
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Mynute VHE
High efficiency open vent boiler
Up to 90.5% efficient(1), reducing running costs by up to 35% more than
a conventional boiler, helping safeguard the environment.
UP TO
90.5%
EFFICIENT
Aluminium heat exchanger provides excellent thermal transfer and anti
corrosion properties and is fully recyclable.
(1)
5 year parts and labour warranty.(2)
5
year
warranty
Low pressure loss reduces noise and increases pump performance.
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
RIELLO HEAT
EXCHANGER
Low NOx - Class-5 performance.
Top and bottom pipe connections(3) for flexibility and ease of installation.
COMPATIBLE WITH
Requires only 1-metre minimum static head.
SOLAR THERMAL
Anti-cycling control reduces on/off cycling, increasing efficiency of the
boiler and reducing fuel costs.
KITCHEN
Built-in frost protection, protects the appliance from damage during
periods of cold weather. External pump must be connected directly to the
boiler to ensure this function operates.
CUPBOARD FIT
(2)
Versatile, horizontal, vertical or rear flueing(3) options enable the boiler to
be sited almost anywhere in the home. Flue type certification also permits
Mynute VHE to be used with Vokèra’s 80mm PP Flexible flue liner and B23
applications.
15kW model shown.
Anti seize function protects the pump from sticking during long periods
of inactivity.
Designed for easy installation with standard Vokèra pipework layout
enabling trouble free replacement of older Vokèra models.
Compatible with Vokèra’s MCS accredited Zenith Solar thermal collectors.
Standard Autostop disabling function(4) automatically changes the current
operating mode and moves it permanently into the standby mode,
helping registered social landlords fulfill their legal obligation of an annual
gas safety check. Autostop will only operate after a pre-defined period of
time has elapsed and if it has been activated during commissioning.
Intuitive control panel ensures end-users can easily operate and adjust
the appliance.
REAR FLUE AND TOP AND BOTTOM PIPE CONNECTIONS
Purge cycle feature. Boiler will automatically run a two minute purge cycle
when the boiler is switched on for the first time before the burner ignites
to expel any air that may be present in the system.
Can be converted to LPG with LPG kit.
Compatible with Vokèra’s unvented single and twin coil cylinders.
OPTIONS
Description
Rear flue terminal (15kW only)
533
White pipe cover 400mm (20kW only)
518
Condense pump
(2)
(4)
404
Magnetic filter
29450199
LPG conversion kit
01005446
(3)
Subject to registration and annual service. 15kW outputs only
Autostop activation device required. Contact Vokèra Technical Helpline for advice
16 VOKERA MYNUTE VHE
Code
COMPACT AND FLEXIBLE
MYNUTE VHE
High efficiency regular open vent boiler
Flue gas analysis test point
Condensate level sensor
Easy maintenance condensate syphon
Aluminium radial heat exchanger
Electric insulation IPX5D
Premix burner
Frost protection via PCB
(1)
15
20
*
*
340
340
19.68
15.74
1m
30m
500 l/h
21.16
1m
30m
500l/h
25
29
22mm
15mm
21mm
22mm
15mm
21mm
230/50
230/50
7.8m
7.8m
8.8m
8.8m
25m
20m
30m
30m
40m/40m
40m/40m
40m/40m
40m/40m
90.0
5
90.5
5
340
600
12
MYNUTE 15 VHE
400
740
14.60
150
886
12
600
12
150
884
DIMENSIONS AND CLEARANCES (MM)
150
Mynute
20VHE
150
Product order code
Central Heating
Heat input (kW)
Maximum heat output
@ 60/80°c (kW)
Maximum heat output
@ 30/50°c (kW)
Min static head
Max static head
Min flow rate at max output
Weight
Dry weight (kg)
Connections
Flow & return
Gas
Condense
Electrical
Voltage (V/Hz)
Flue Details (concentric)
Maximum horizontal flue
length (60/100mm)
Maximum vertical flue
length (60/100mm)
Maximum horizontal flue
length (80/125mm)
Maximum vertical flue
length (80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue
length (80mm/80mm)
Maximum vertical flue
length (80mm/80mm)
Efficiency
Efficiency(1) (%)
NOx Class
Mynute
15VHE
600
SPECIFICATIONS
12
MYNUTE 20 VHE
*
From casing or 25mm above flue elbow (whichever is applicable)
CONTROL PANEL
No pipe cover available for 15kW outputs.
Pipe cover for 20kW output available as optional extra.
Need to upgrade your cylinder as well as your boiler?
You can install this boiler with a Vokèra AquaFlow unvented
single coil cylinder - See page 30 for details
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Linea One
High efficiency combi boiler
Up to 92% efficient when installed with the weather compensation
control(1), supplied as standard with the Linea One.
UP TO
92%
EFFICIENT
Fully modulating pump can be controlled using several modes of
operation and can reduce electrical consumption by up to 50%.
(1)
5 year parts and labour warranty.(2)
5
year
warranty
Flow rate of up to 15.6 l/min results in quick delivery of hot water.
DHW memory function memorises the DHW usage pattern over past 7
days and uses the stored data to plan the pre heat function for the
duration of the following week. The standard pre heat function is
therefore only enabled when necessary, maximising energy savings.
RIELLO HEAT
EXCHANGER
Low NOx – Class-5 performance with only 29mg/kWh.
PRE FIXING JIG
The easy to use appliance interface and controls permits the end user
to view, change and adjust the operating mode of the boiler.
AND BUILT IN
FILLING LOOP
Versatile flue options with concentric flue lengths up to 12m and twin
flue lengths up to 30m.
MODULATION
RATIO
10:1
Use the Vokèra push fit telescopic flue for a quick and simple installation.
Designed for easy installation. A pre-fixing jig and built-in filling loop
allows the system to be connected without the boiler needing to be
in place.
WEATHER
COMPENSATION
CONTROL
SUPPLIED
Extremely high modulation ratio of 10:1 maximises efficiency and comfort
for end user.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
PIPE COVER
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
Pipe cover included, supplied in the box.
Anti-seize function protects the pump and motorised valve from sticking
during long periods of inactivity.
Our in-house patented unique radial design heat exchanger utilises an
extruded aluminium alloy. Aluminium has excellent thermal transfer
properties and our updated design incorporates a new profile that
inhibits the build-up of condense residues, thereby significantly
reducing the frequency of cleaning.
Easy to understand diagnostic display speeds installation and
commissioning and aids the service engineer in the unlikely event of a
fault developing.
Enhanced Autostop disabling function(3) with 4 optional modes of
operation, including: service reminder, reducing the output of the
boiler, supply DHW only and moving the boiler into standby mode (no
heat or DHW). Helping Registered Social Landlords fulfill their legal
obligation of an annual gas safety check.
Can be converted to LPG with LPG Kit.
ENERGY SAVING CONTROLS AND OPTIONS
Description
NEW OpenTherm RF Control
Wiring Kit for use with OpenTherm control
Telescopic flue terminal
LPG conversion kit
Condense pump
Magnetic filter
18 VOKERA LINEA ONE
Code
20050690
1221179
29450121
015005448
404
29450199
HIGHEST TECHNOLOGY
Incorporates Vokèra’s recently introduced Cyclonic Separator, providing
a significant improvement in the effectiveness of the ‘air separator‘ and
can also capture particulates from the system water.
(1)
As proposed in HARP 2005
Subject to registration and annual service
(3)
Autostop activation device required. Contact Vokèra technical for advice
(2)
LINEA ONE
High efficiency combi boiler
Flue gas analysis test point
Flue thermostat
Cyclonic separator
Aluminium radial heat exchanger
Condensate level sensor
Premix burner
Easy maintenance condensate siphon
Analogue pressure gauge
Fully modulating pump
Anti-seize function on 3-way valve
Innovative hydraulic manifold in composite
material for quick and easy maintenance
DHW flow meter
Automatic by-pass
Frost protection via PCB
Electric insulation IPX5D
(1)
DIMENSIONS AND CLEARANCES (MM)
20023491
150
*
30
29.3
32
3.8
3.8
358
38
3.8
15.6
2.0
453
600
12
150
Product order code
Central Heating
Heat input (kW)
Maximum heat output @ 80/60°c (kW)
Maximum heat output @ 50/30°c (kW)
Minimum heat output @ 80/60°c (kW)
Minimum heat output @ 50/30°c (kW)
Domestic Hot Water
Maximum heat input (kW)
Minimum heat input (kW)
Flow Rate - 35°c rise (l/min)
Minimum flow rate (l/min)
Weight
Dry weight (kg)
Connections
Flow & return
Gas
DHW hot & cold
Safety valve
Condense
Electrical
Voltage (V/Hz)
Flue Details (concentric)
Maximum horizontal flue length
(60/100mm)
Maximum vertical flue length
(60/100mm)
Maximum horizontal flue length
(80/125mm)
Maximum vertical flue length
(80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue length (80mm/80mm)
Maximum vertical flue length
(80mm/80mm)
Efficiency
Efficiency(4) (%)
NOx class
Linea One
38HE
845
SPECIFICATIONS
25
*
From casing or 25mm above flue elbow (whichever is applicable)
44
22mm
15mm
15mm
15mm
21mm
ENVIRONMENTALLY FRIENDLY
Vokèra are committed to creating the most environmentally
friendly products available and continue to invest in limiting
emissions such as CO2 and NOx. The Linea One boasts both
impressive energy efficiency ratings and is Class 5, the best
class for NOx emissions, with only 29mg/kWh.
230/50
3.85m
4.85m
10m
12m
Up to 92% efficient the Linea One is an industry leader and one
of the most energy efficiency combination boilers currently
available. With up to 92% of the fuel used being converted into
heat, emissions are kept to a minimum.
30m/30m
30m/30m
The modulating pump can also reduce electrical consumption
by up to 50%, helping to reduce fuel bills and minimising
temperature fluctuations.
90.1
5
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Unica i
High efficiency combi boiler
Up to 92.4% efficient when installed with the weather compensation
sensor or OpenTherm control(1), reducing running costs by up to 35%
more than a conventional boiler which helps to safeguard the
environment.
UP TO
92.4%
EFFICIENT
(1)
5 year parts and labour warranty.(2)
REAR
FLUE
OPTION
Versatile flue options with concentric flue lengths up to 20m and twin flue
lengths up to 45m.
Energy Saving Trust Recommended certification mark.
5
Low NOx - Class-5 performance provides maximum credits available for
a condensing boiler under the Code for Sustainable Homes.
year
warranty
Front mounted heat exchanger assists in simple maintenance.
Our in-house patented unique radial design heat exchanger utilises an
extruded aluminium alloy. Aluminium has excellent thermal transfer
properties and our updated design incorporates a new profile that inhibits
the build-up of condense residues, thereby significantly reducing the
frequency of cleaning.
PRE FIXING JIG
AND BUILT IN
FILLING LOOP
Designed for easy installation with a pre-fixing jig supplied and built-in
filling loop allows the system to be connected without the boiler needing
to be in place.
10:1
MODULATION
Extremely high modulation ratio of 10:1 maximises efficiency and comfort
for end user. Other energy saving features, including low power
consumption, make the Unica i extremely efficient.
RATIO
OPENTHERM
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
‘PLUG AND
PLAY’
Simple to use back-lit LCD display ensures end-users can easily operate
and adjust the appliance.
Compatible with energy saving controls including outside weather
compensation sensor or the new OpenTherm control with a ‘Plug and
Play’ connection for a simple installation. The OpenTherm control can
save a further €80 a year off energy bills.(3)
Rear flue option as well as the standard top flue option
provides a versatile installation. Other flueing options
available are; horizontal, vertical and twin flue, enable the
boiler to be sited almost anywhere in the home.
Easy to understand diagnostic display aids the service engineer in the
unlikely event of a fault developing.
ENERGY SAVING CONTROLS AND OPTIONS
Description
Rear flue terminal
29450133
Telescopic flue terminal
29450121
NEW ‘Plug and Play’ OpenTherm RF Control
20050690
Weather compensation control
2359259
White pipe cover 400mm
(1)
(2)
(4)
Code
518
Spacing frame
435
Magnetic filter
29450199
Fuelsaver
29450000
When installed with a Vokèra intelligent control, as proposed in SAP 2005
Subject to registration and annual service. (3)Energy saving based on average 18,000kw hrs per annum.
Autostop activation device required. Contact Vokèra Technical Helpline for advice.
20 VOKERA UNICA i
Standard Autostop disabling function(4) that automatically changes the
current operating mode and moves it permanently into the standby
mode, helping Landlords fulfill their legal obligation of an annual gas
safety check. Autostop will only operate after a pre-defined period of
time has elapsed and if it has been activated during commissioning.
Incorporates Vokèra’s Cyclonic Separator, providing a significant
improvement in the effectiveness of the ‘air separator‘ and can also
capture particulates from the system water.
Can be converted to LPG with LPG Kit.
Compatible with Vokèra Fuelsaver passive flue gas heat recovery device.
Heat recovered from the flue exhaust gases is used to pre-heat the
incoming cold mains water supply before entering the boiler, thereby
reducing gas consumption and improving domestic hot water efficiency.
See page 28 for more information.
ADVANCED ENERGY SAVING CREDENTIALS
UNICA i
High efficiency combi boiler
Flue gas analysis test point
Cyclonic Separator
Aluminium radial heat exchanger
Premix burner
Condensate level sensor
Easy maintenance condensate siphon
DHW Plate heat exchanger
Anti-seize function on pump
Automatic by-pass
Electric insulation IPX5D
Frost protection via PCB
Analogue pressure gauge
Product order code
Unica
i28
Unica
i32
Unica
i36
20037856
20037857
20065834
20
25
30
19.6
24.6
29.3
21.4
26.7
31.8
28
11.5
32
13.1
36
14.7
39
40
42
22mm
15mm
15mm
15mm
21mm
22mm
15mm
15mm
15mm
21mm
22mm
15mm
15mm
15mm
21mm
230/50
230/50
230/50
DIMENSIONS AND CLEARANCES (MM)
150
SPECIFICATIONS
Central Heating
358
780
Heat input (kW)
Maximum heat output
@ 80/60˚C (kW)
Maximum heat output
@ 50/30˚C (kW)
400
Domestic Hot Water
Heat input (kW)
Flow Rate - 35˚C rise (l/min)
Dry weight (kg)
600
Connections
Flow & return
Gas
DHW hot & cold
Safety valve
Condense
12
Electrical
Voltage (V/Hz)
Flue Details (concentric)
Maximum horizontal flue
length inc. rear flue (60/100mm)
Maximum vertical flue
length (60/100mm)
Maximum horizontal flue
length (80/125mm)
Maximum vertical flue
length (80/125mm)
7.8m
7.8m
7.8m
8.8m
8.8m
8.8m
18m
18m
18m
20m
20m
20m
45m/45m
45m/45m
45m/45m
45m/45m
45m/45m
45m/45m
From casing or 25mm above flue elbow (whichever is applicable)
ADDITIONAL ENERGY SAVING OPTIONS
The Unica i combi range is compatible with the new Vokèra
Fuelsaver passive flue gas heat recovery device.
The Fuelsaver consists of a post heat exchanger device that is
located between the boiler and the flue terminal and offers the
potential to increase efficiency by capturing heat recovered from
the flue exhaust gases that would normally be wasted. This
captured heat is then used to pre-heat the incoming cold mains
water supply before entering the boiler, thereby reducing gas
consumption and improving domestic hot water efficiency.
The addition of a Vokèra Fuelsaver can:
- Save over 33% of the gas normally
required for DHW
- Saves up to 700kg carbon emissions
annually
- Reduces cold water wastage by over
5% annually due to the inlet water
being pre-heated
Efficiency
Efficiency(5) (%)
NOx class
(5)
90.3
5
90.4
5
90.1
5
12
*
Flue Details (twin pipes)
Max horiz (80mm/80mm)
Max vertical (80mm/80mm)
150
Weight
Certified under SAP Appendix Q
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Unica Balcony HE
High efficiency balcony combi boiler
Up to 92.2% efficient when installed with the weather compensation
sensor(1), reducing running costs by up to 35% more than a conventional
boiler which helps to safeguard the environment.
92.2%
EFFICIENT
(1)
2
Designed specifically for external installations, requiring only limited
protection to withstand typical ROI and UK weather conditions.(2)
Optional galvanised casing to reduce possible vandalism and to help
protect against adverse weather conditions and low temperatures.
year
warranty
Low NOx - Class-5 performance.
DESIGNED FOR
EXTERNAL
INSTALLATIONS
Full IPX5D rating enables the Unica BHE to installed either on a balcony
or on an external wall.
RIELLO HEAT
Ideal for problematic installations; flats with limited space, if there are
difficulties with flue clearances or if a long run to an adequate soak away
for the condense are foreseen.
EXCHANGER
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
Extremely high modulation ratio, increasing efficiency and component
longevity.
PIPE COVER
Hot water pre-heat provides instant hot water, saving time and energy.
Anti seize function protects the pump and motorised valve from sticking
during long periods of inactivity.
Pipe cover included, supplied in the box.
Anti-cycling control prevents energy wasteful on/off cycling and reduces
wear and tear.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
Additional external frost protection kit available for when temperatures
are expected to reach temperatures as low as -10°c.
Intuitive control panel ensures end-users can easily operate and adjust
the appliance.
Standard Autostop disabling function(3) that automatically changes
the current operating mode, and moves it permanently into the standby
mode, helping Registered Social Landlords fulfill their legal obligation
of an annual gas safety check. Autostop will only operate after a
pre-defined period of time has elapsed and if it has been activated
during commissioning.
Versatile flueing options that can reach lengths up to 40 metres.
Built-in thermo-regulation to increase further fuel efficiency. Attach an
energy saving control to increase energy efficiency.
ENERGY SAVING CONTROLS AND OPTIONS
Description
REC07 programmable room thermostat
Code
1221169
Weather compensation control
2359259
Galvanised casing
1103289
Telescopic flue terminal
29450121
Condense pump
404
External frost protection kit
1101279
Magnetic filter
29450199
22 VOKERA UNICA BALCONY HE
Can be converted to LPG with LPG Kit.
(1)
When installed with a Vokèra intelligent control, as proposed in SAP 2005
Some additional protection may be required for extreme weather conditions
(3)
Autostop activation device required. Contact Vokèra Technical Helpline for advice
(2)
DESIGNED FOR EXTERNAL INSTALLATIONS
UNICA BALCONY HE
High efficiency balcony combi boiler
Flue gas analysis test point
Expansion vessel
Aluminium radial heat exchanger
DHW Plate heat exchanger
Premix burner
Innovative hydraulic manifold in composite
material for quick and easy maintenance
Condensate level sensor
Anti-seize function on 3-way valve
Easy maintenance condensate siphon
Electric insulation IPX5D
Anti-seize function on pump
Frost protection via PCB
Digital diagnostic code display
Gas
DHW hot & cold
Safety valve
Condense
Electrical
Voltage (V/Hz)
Flue Details (concentric)
Maximum horizontal flue length (60/100mm)
Maximum vertical flue length (60/100mm)
Maximum horizontal flue length (80/125mm)
Maximum vertical flue length (80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue length (80mm/80mm)
Maximum vertical flue length (80mm/80mm)
Efficiency
Efficiency(4) (%)
NOx class
(4)
DIMENSIONS AND CLEARANCES (MM) - UNICA 32 BHE
*
150
20001056
25
24.45
26.3
275
553
32
13.1
600
44
22mm
15mm
15mm
15mm
21mm
230/50
7.8m
8.8m
20m
25m
12
150
Product order code
Central Heating
Heat input (kW)
Maximum heat output @ 80/60°c (kW)
Maximum heat output @ 50/30°c (kW)
Domestic Hot Water
Maximum heat input (kW)
Flow Rate - 35°c rise (l/min)
Weight
Dry weight (kg)
Connections
Flow & return
Unica
32 BHE
890
SPECIFICATIONS
25
*
From casing or 25mm above flue elbow (whichever is applicable)
OPTIONAL GALVANISED CASING
The Vokèra Unica BHE is designed for external installations and can
withstand typical ROI and UK weather conditions. The optional
galvanised casing offers further protection during adverse weather
and also helps prevent vandalism.
It is to be used when the boiler is installed on an external wall
where there is no cover/protection from the elements. When
installed below a balcony no galvanised casing is required.
Galvanised
case open
40m/40m
40m/40m
90.2
5
Galvanised
case closed
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected]ra.co.uk www.vokera.ie www.vokera.co.uk
UP
G
RA
D
Vision C
High efficiency combi boiler
ED
Up to 92.1% efficient when installed with the weather compensation
sensor or OpenTherm control(1), reducing running costs by up to 35%
more than a conventional boiler which helps to safeguard the
environment.
UP TO
92.1%
EFFICIENT
(1)
NEW built-in filling loop as standard allows the system to be connected
without the boiler needing to be in place.
5
5 year parts and labour warranty.(2)
year
warranty
NOW COMES WITH
BUILT IN FILLING LOOP
REAR
FLUE
OPTION
Simple to use built in 7 day digital clock with 3 modes of operation and
back-lit LCD display enables full control of heating timings over a 7 day
period, maximising control and saving energy.
Small dimensions enables the boiler to be sited almost anywhere in the
home, including a kitchen cupboard.
NEW
Rear flue option as well as the standard top flue option
provides a versatile installation. Other flueing options
available are; horizontal, vertical and twin flue.
BUILT IN
FILLING LOOP
BUILT IN
Lightweight at only 26kg for the 25C enables the boiler to be lifted into
place easily even in tight spaces.
7 DAY
DIGITAL CLOCK
Designed for easy installation. Standard Vokèra pipework layout
enables trouble-free replacement of older Vokèra models.
KITCHEN
CUPBOARD FIT
Low NOx - Class-5 performance. Only 21mg/kWhr for 25C provides
maximum credits available for a condensing boiler under the Code for
Sustainable Homes.
LIGHTWEIGHT
Flow rate of up to 12 l/min results in quick delivery of hot water.
FROM JUST
26KG
DHW Pre-Heat function that is easily activated by the end user.
Standard Autostop disabling function(3) automatically changes the
current operating mode and moves it permanently into the standby
mode, helping registered social landlords fulfill their legal obligations
of an annual gas safety check.
KITCHEN CUPBOARD FIT
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
Built in functions include: SARA function for automatic temperature
control and improved efficiency, frost protection to protect the appliance
during periods of cold weather. and CO mode for simple servicing.
Anti-cycling control prevents energy wasteful on/off cycling reduces
wear and tear for longer lasting component performance.
If the boiler is to be installed in a location that is difficult to access then
Vokèra’s optional RF room thermostat control can be installed in a
convenient location so the heating temperature can easily be adjusted.
ENERGY SAVING CONTROLS AND OPTIONS
Description
Code
Rear flue terminal
29450133
Pipe cover
20012594
RF Room thermostat control
20059642
NEW OpenTherm RF control*
20050690
Weather compensation control*
2359259
Spacing frame
20030704
Condense pump
404
Magnetic filter
29450199
Fuelsaver
29450000
Hot water survivor function:- If the hot water thermistor fails it will use
the primary thermistor to provide hot water at 55°c to ensure the end
user has access to a supply of warm water.
Low temperature option for under floor heating.
Can be converted to LPG with LPG kit.
Vision system boiler also available. See page 12 for more information.
Compatible with Vokèra Fuelsaver passive flue gas heat recovery device.
See page 8 for more information.
(1)
*
Control Interface required for use with OpenTherm and weather compensation controls. Code 29450143
24 VOKERA VISION
When installed with a Vokèra intelligent control, as proposed in SAP 2005. The addition of an energy
saving control will over ride the built in digital control settings (2) Subject to registration and annual
service. (3) Autostop activation device required. Contact Vokèra Technical Helpline for advice
THE INSTALLER FRIENDLY AND FEATURE RICH BOILER RANGE
VISION C
High efficiency combi boiler
Flue gas analysis test point
Cyclonic Separator
Premix burner
Expansion vessel location allows for
easy servicing maintenance
Aluminium heat exchanger
Anti-seize function on pump
DHW Plate heat exchanger
Electric insulation IPX5D
Frost protection via PCB
(4)
20052391
20052392
20
25
19.5
24.45
20.84
26.23
25
10.2
29
12
26
27
DIMENSIONS AND CLEARANCES (MM)
150
Vision
30C
*
248
405
600
12
150
Product order code
Central Heating
Max heat input (kW)
Maximum heat output
@ 80/60°c (kW)
Maximum heat output
@ 50/30°c (kW)
Domestic Hot Water
Maximum heat input (kW)
Flow Rate - 35°c rise (l/min)
Weight
Dry weight (kg)
Connections
Flow & return
Gas
DHW hot & cold
Safety Valve
Condensate
Electrical
Voltage (V/Hz)
Flue details (concentric)
Maximum horizontal flue length
inc. rear flue (60/100mm)
Maximum vertical flue length
(60/100mm)
Maximum horizontal flue length
(80/125mm)
Maximum vertical flue length
(80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue length
(80mm/80mm)
Maximum vertical flue length
(80mm/80mm)
Efficiency
Efficiency(4) (%)
NOx class
Vision
25C
715
SPECIFICATIONS
12
*
From casing or 25mm above flue elbow (whichever is applicable)
22mm
15mm
15mm
15mm
21mm
22mm
15mm
15mm
15mm
21mm
230/50
230/50
5.85m
4.85m
6.85m
5.85m
The Fuelsaver consists of a post heat exchanger device that is
located between the boiler and the flue terminal and offers the
potential to increase efficiency by capturing heat recovered from
the flue exhaust gases that would normally be wasted. This
captured heat is then used to pre-heat the incoming cold mains
water supply before entering the boiler, thereby reducing gas
consumption and improving domestic hot water efficiency.
15.3m
12.8m
The addition of a Vokèra Fuelsaver can:
16.3m
13.8m
45m/45m
40m/40m
45m/45m
40m/40m
90.0
5
90.1
5
ADDITIONAL ENERGY SAVING OPTIONS
The Vision combi range is compatible with the new Vokèra
Fuelsaver passive flue gas heat recovery device.
- Save over 33% of the gas normally
required for DHW
- Saves up to 700kg carbon emissions
annually
- Reduces cold water wastage by over
5% annually due to the inlet water
being pre-heated
Certified under SAP Appendix Q
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Compact A
High efficiency combi boiler
Up to 92.1% efficient when installed with the weather compensation
sensor or OpenTherm control(1), reducing running costs by up to 35%
more than a conventional boiler which helps to safeguard the
environment.
UP TO
92.1%
EFFICIENT
(1)
2
NEW rear flue option as well as the standard top flue
option provides a versatile installation. Other flueing
options available are; horizontal, vertical and twin flue,
enable the boiler to be sited almost anywhere in the home.
year
warranty
NEW
NEW AESTHETIC AND
REAR FLUE OPTION
NEW aesthetic including easy to understand diagnostic display aids the
service engineer in the unlikely event of a fault developing.
REAR FLUE
OPTION
Energy Saving Trust Recommended certification mark.
KITCHEN
Compact dimensions and low lift weight enables a flexible installation
with the boiler to be lifted into place easily even in tight spaces.
CUPBOARD FIT
Attach the new RF 7 day programmable room thermostat to increase
efficiency and maintain optimum room temperature. Easy to install with a
Tyco ‘plug and play’ connection, simply plug the receiver in to the boiler.
PIPE COVER
AVAILABLE AS
OPTIONAL
EXTRA
Designed for easy installation. Standard Vokèra pipework layout
enables trouble-free replacement of older Vokèra models.
Hot water survivor function:- If the hot water thermistor fails it will use
the primary thermistor to provide hot water at 55°c to ensure the end
user has access to a supply of warm water.
Simple commissioning, only minimal adjustments are required after
installation and automatic modulation eliminates the need to range rate
the boiler.
Anti-cycling control prevents energy wasteful on/off cycling and reduces
wear and tear.
Low NOx - Class-5 performance.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
Plated heat exchanger reduces the risk of scaling and comes with
5-year anti-scale warranty.
Installation time saving features:- Built-in condense trap with safety
device and push-fit connection and no ventilation is required.
ENERGY SAVING CONTROLS AND OPTIONS
Description
Can be converted to LPG with LPG Kit.
Code
20012594
Selectable pre-heat function enables end-users to manually select the
pre-heat function according to their own individual tastes and
requirements, improving end-user comfort.
NEW 7 day RF programmable room thermostat
20059643
CYCLONIC AIR AND PARTICLE SEPARATOR
NEW OpenTherm RF control*
20050690
Weather compensation sensor*
2359259
Compact A 24 hour analogue clock kit
20025085
Telescopic flue terminal
29450121
The Compact A incorporates Vokèra’s Cyclonic Separator. The Cyclonic
Separator provides a significant improvement in the effectiveness of the
‘air separator ‘ and can also capture particulates from the system water.
Its distinct advantages include:
Spacing frame
20030704
Compact 25A LPG conversion kit
01005446
Compact 29A LPG conversion kit
20029055
Rear flue terminal
29450133
Pipe cover
Condense pump
Magnetic filter
404
29450199
*Control Interface required for use with OpenTherm and Weather compensation sensor. Code 29450143.
26 VOKERA COMPACT A
- Reduced pressure loss through the hydraulic circuit of the boiler
- Quicker discharge of air during commissioning
- Possibility to now remove and clean the inside of the separator,
removing any particulates that may have been trapped
- Quick-release clips – no tools required, reduces time spent on routine
maintenance
N.B: This device/component is not intended to substitute or replace any
requirement for an external particle separator
COST CONSCIOUS SOLUTION
COMPACT A
High efficiency combi boiler
Flue gas analysis test point
Cyclonic Separator
Premix burner
Expansion vessel location allows for
easy servicing maintenance
Aluminium heat exchanger
Anti-seize function on pump
DHW Plate heat exchanger
Electric insulation IPX5D
Frost protection via PCB
NOx class
(1)
Compact
29A
20071498
20071500
20
25
19.5
24.4
DIMENSIONS AND CLEARANCES (MM)
150
*
248
25
10.2
29.5
12.1
26
27
22mm
22mm
15mm
15mm
21mm
22mm
22mm
15mm
15mm
21mm
230/50
230/50
5.85m
4.85m
6.85m
5.85m
15.3m
12.8m
16.3m
13.8m
45m/45m
40m/40m
45m/45m
40m/40m
90.0
90.1
5
5
When installed with a Vokèra intelligent control, as proposed in SAP 2005
(2)
405
600
12
150
Product order code
Central Heating
Heat input (kW)
Maximum heat output
@ 80/60°c (kW)
Domestic Hot Water
Maximum input (kW)
Flow Rate - 35°c rise (l/min)
Weight
Dry weight (kg)
Connections
Flow & return
Gas
DHW hot & cold
Safety Valve
Condensate
Electrical
Voltage (V/Hz)
Flue details (concentric)
Maximum horizontal flue length
inc. rear flue (60/100mm)
Maximum vertical flue length
(60/100mm)
Maximum horizontal flue length
(80/125mm)
Maximum vertical flue length
(80/125mm)
Flue Details (twin pipes)
Maximum horizontal flue length
(80mm/80mm)
Maximum vertical flue length
(80mm/80mm)
Efficiency
Efficiency (2)
Compact
25A
715
SPECIFICATIONS
12
*
From casing or 25mm above flue elbow (whichever is applicable)
‘PLUG AND PLAY’ CONNECTION FOR RF CONTROL
The new 7 day RF programmable
room thermostat allows easy
control over boiler heating timings
and temperatures over a 7 day
period.
This wall mounted, battery
operated, digital thermostat
control enables versatile siting and
ensures end user accessibility.
The receiver is easily connected to the boiler
using the ‘plug and play’ Tyco socket ensuring
the simplest of installation.
See page 41 for more information.
HARP 2005
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Fuelsaver
Passive Flue Gas Heat Recovery Device
The Vokèra Fuelsaver is a Passive Flue Gas Heat Recovery (PFGHR)
device and can be fitted to a new or existing condensing Vokèra Vision
or Unica i combi boiler.
The post heat exchanger device is located between the boiler and the
flue terminal. The device offers the potential to increase efficiency by
capturing some of the heat in boiler flue gases that would normally be
wasted. It uses this extracted heat to reduce the amount of fuel that has
to be burned when providing hot water.
5 year parts and labour warranty.(1)
Gas consumption is reduced saving over 33% of the gas normally required
for DHW.
Reduces carbon emissions by up to 700kg annually.
Cold water wastage is significantly reduced by over 5% annually due to
the inlet water being pre-heated.
Specifically developed to meet new-build requirements with low water
content ensuring optimum performance.
Certified for SAP Appendix Q – helps to meet the requirements of
higher levels of the Code of Sustainable Homes on new dwellings.
Eligible for £90 cash back under the Green Deal Cash Back Incentive.
Enhances Energy Label Classification.
Easy to install – low lift weight and adjustable wall bracket simplify
installation. Designed as a ‘bolt-on’ product, the Fuelsaver unit is
secured to the wall and is connected directly to the appliance flue
outlet. Thereafter the flue system is installed just as it would be in a
normal installation.
Extremely low temperature at flue outlet, virtually eliminates any
nuisance pluming.
No separate condensate required as condensate fluid is collected and
discharged via the boiler.
Can be used on both horizontal and vertical flue configurations
minimising impact on the siting of the installation.
Compatible with Vokèra’s 60/100mm concentric flue system.
No moving parts eliminates the need for annual servicing or maintenance
and permits silent operation.
Compatible with weather compensation to further improve efficiency.
Compatible with other renewable technologies.
WRAS approved product.
REDUCES GAS
CONSUMPTION
BY OVER
33%
REDUCES COLD
WATER WASTAGE
BY
5%
REDUCES
CERTIFIED
CARBON
FOR SAP
EMISSIONS BY
UP TO
5
700KG
year
warranty
ELIGIBLE FOR
COMPATIBLE
GREEN DEAL
WITH VOKERA
CASH BACK
UNICA
SCHEME
i AND
APPENDIX Q
Does not require any electrical supply so has zero parasitical energy
consumption.
Registered Gas installers require no additional trades, skill or
qualifications to install the Vokèra Fuelsaver.
EASY TO INSTALL
Blending valve available as optional extra.
VISION C BOILERS
(1)
28 VOKERA FUELSAVER
Subject to registration
FUELSAVER
Fuelsaver Installation
*Compatible with Vokèra Unica i
and Vision C combi boilers
Hot flue
gases
Outlet pre-heated water
Inlet mains cold water
Condensing boiler*
Heating
Domestic hot water
Mains cold water
SPECIFICATIONS
Fuelsaver
Product order code
29450000
DIMENSIONS
Efficiency Savings
Gas Saving
Carbon Saving (annual)
Water Saving (annual)
33%
Up to 700kg
Over 5%
Dimensions and Weights
Dimensions (HxWxD)
276 x 376 x 262
Lift weight empty (kg)
6.6
Lift weight full (kg)
9.4
276mm
FLUE OPTIONS AND ACCESSORIES
Description
Blending valve
Code
TBC
Telescopic horizontal flue terminal
29450121
Horizontal flue terminal
29450120
Vertical flue terminal
29450122
262mm
376mm
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
AquaFlow
Unvented single coil water cylinder
For use with Vokèra Mynute VHE open vent boiler, Mynute i, Mynute A
and Vision S system boilers.
FOR USE WITH
MYNUTE RANGES
AND VISION S
Inner shell guaranteed for 25 years, made from Super-Molybdenum.
BOILERS
2 years guarantee on ancillary components.
2
High performance mains pressure to all hot water outlets.
year
warranty
Up to 50-litre per minute flow rate.
WRAS Approved.
WRAS
APPROVED
Internal secondary expansion via self generating air gap means no
expansion vessel required, or use fully flooded cylinder with an
expansion vessel.
25 YEAR
No need for ‘sacrificial anode’ due to excellent anti-corrosion properties
of Super-Molybdenum.
GUARANTEE ON
INNER SHELL
Compact dimensions.
TPRV, EV, Tundish, 2-port motorised valve supplied as standard.
3kW immersion heater and energy cut-out device supplied as standard.
Optional secondary return connection if required.
Thermal insulation and energy efficient coil meet Part L Requirements.
SPECIFICATIONS
Product order code
Capacity range
Height
Depth (diameter)
Weight (when full)
Coil rating
Average recovery time
Energy loss (kW/day)
Maximum working pressure
AquaFlow 150
AquaFlow 200
AquaFlow 250
863
864
865
125-150 litres
900mm
580mm
190kg
12kW
30 min
1.78
8-bar
170-200 litres
1150mm
580mm
240kg
26.5kW
26 min
2.04
8-bar
210-250 litres
1400mm
580mm
300kg
26.5kW
28 min
2.45
8-bar
1
1
2
3
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Hot water outlet
Pressure reducing valve
Expansion/check valve
Flexible connection
TPR valve
Tundish
Discharge pipe
Cylinder thermostat
Cold feed tube
Drain cock
11.
12.
13.
14.
15.
16.
17.
18.
19.
Motorised valve
Flow connection
Junction box
Cable Entry
Commissioning drain
valve
Secondary return
Return connection
Tee Piece
Immersion Element
18
17
16
15
14
13
12
11
4
5
6
7
8
9
10
30 VOKERA AQUAFLOW
19
AQUANOVA
Water Heater
AquaNova
Instantaneous multipoint water heater
Suitable for domestic and small light commercial applications.
INSTANTANEOUS
Provides instant hot water to multiple outlets, such as to a kitchen and
bathroom.
HOT WATER
2
Ideal for replacement installations for properties that require hot water
supply only due to existing electric, convector or gas wall heating
appliances.
year
warranty
AquaNova has a 28kW heat output and high flow rate of 11.8 litres per
minute.
HIGH FLOW
RATE
Simple installation and commissioning. All connections are easily
accessible and the appliance features a built-in fly lead.
Continuous gas modulation and electronic temperature sensing gives
accurate temperature control.
AquaNova can be flued horizontally or vertically using Vokèra’s
concentric Uni flue or twin flue systems.
Simple to service. No diaphragm or water section. This reduces
maintenance requirements.
Electronic ignition eliminates the need for a constantly running fan or
energy wasteful pilot light.
28.8
11.8
20
230/50
85
0.15 bar
*
600
400
245
640
785
Rated output to DHW (kW)
Hot water flow rate - 35°c rise (l/min)
Dry weight (kg)
Voltage (V/Hz)
Power consumption (W)
Minimum cold water inlet pressure
Maximum flue length
Max horizontal flue length 60/100mm
Max vertical flue length 60/100mm
Max twin flue length 80/80mm
Pipe connections
DHW
Cold water
Gas
DIMENSIONS AND CLEARANCES (MM) - AQUANOVA
967
2.4m
3.6m
5m/5m + terminal
50
15mm
15mm
15mm
150
Product order code
AquaNova
150
SPECIFICATIONS
50
*
From casing or 25mm above flue elbow (whichever is applicable)
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
CondexaPRO and CondexaPRO Box
Stand alone, cascade and box units for commercial applications
CONDEXAPRO BOILER BACK TO BACK INSTALLATION
The CondexaPRO, a long established product range within Vokèra,
makes true plant-room efficiency simple. The high reliability of products,
the availability of a comprehensive line of specific accessories, the ease
of mounting and the maximum flexibility, make the Vokèra CondexaPRO
systems the best solution both for large domestic properties and
commercial buildings, including hotels, schools, office-buildings,
factories and sports centres. CondexaPRO products are suitable both
for new buildings and as a replacement of old floor-standing boilers and
offer the highest efficiency at any time combined with the maximum
peace of mind, thanks to their modularity.
The availability of two different heat exchangers, giving nominal outputs
of 50kW and 128kW, offer a number of practical boiler variations and
even more cascade configurations, all available as natural gas or LPG.
The expert Vokèra Service team are also able to provide a
commissioning service for CondexaPRO boiler installations.
CONDEXAPRO BOILERS
Possibility to combine CondexaPRO boilers in cascade systems to reach
up to 3MW of total power.
CondexaPRO 50 M Master model - input from 15 to 50 kW (HHV),
consists of one boiler unit and can work both as stand alone and in
cascade applications with slave models.
CONDEXAPRO BOILER CASCADE INSTALLATION
CondexaPRO 100 M Master model - input from 15 to100 kW (HHV),
consists of two boiler units and can work both as stand alone and in
cascade applications with slave models.
CondexaPRO 100 S Slave model - input from 15 to 100 kW (HHV),
consists of two boiler units and can work only in cascade applications
managed by a master model.
CONDEXAPRO BOX 500
Possibility to combine CondexaPRO Box 500 series in cascade systems
to reach up to 3MW of total power.
CondexaPRO Box AI 500 - suitable for outdoor and indoor stand alone
installations, includes shunt pumps. Available as 85M and 128M units.
CondexaPRO Box EXT 500 - suitable for outdoor cascade installations.
Available as 150M and 200M units with shunt pumps or with two way
valves. 100M expansion modular unit with shunt pumps also available.
CondexaPRO Box EXT AI 500 - suitable for outdoor stand alone
installations, includes shunt pumps and hydraulic separator. Available
as 250M and 300M units.
CONDEXAPRO BOX INSTALLATION
CondexaPRO Box INT 500 - suitable for indoor cascade installations.
Available as 150M and 200M units with shunt pumps or with two way
valves.
CONDEXAPRO BOX 1000
Possibility to combine CondexaPRO Box units (1000 series) in cascade
systems to reach up to 6.9MW (NHV) of total power.
CondexaPRO Box AI 500 - suitable for outdoor and indoor stand
alone installations. Available as 128kW units.
CondexaPRO Box EXT 1000 - suitable for external installations,
includes shunt pumps. Available as 256kW, 364kW and 511kW units.
CondexaPRO Box INT 1000 - suitable for indoor cascade installations,
includes shunt pumps. Available as 256kW, 384kW and 511kW units.
NB. ‘AI’ models are not suitable for cascade installations
32 VOKERA CONDEXAPRO
HIGH POWER COMMERCIAL HEATING SOLUTIONS
CONDEXAPRO RANGE
Light commercial solutions
CondexaPRO range
Ten reasons why it is the logical choice
MAXIMUM EFFICIENCY AT ALL TIMES.
MAXIMUM EASE OF SERVICING.
The efficiency of a CondexaPRO and CondexaPRO Box is significantly
higher than a traditional single boiler installation with the same output. In
fact, by automatically controlling the number of boilers in operation, the
system can optimise the heat supply according to demand at any particular
time.
The CondexaPRO range is designed so that all components can be easily
serviced and maintained from the front. Each boiler can also be individually
serviced and maintained while the other boilers of the cascade are still able
to operate.
For instance in spring and autumn, when the heat request is lower, or in
buildings like hotels and restaurants, where the heat request is not
constant, the system can switch individual boilers on and off, ensuring
maximum efficiency.
The CondexaPRO challenges the perception of fuel efficiency only being
possible with low temperature systems. Traditionally it has been believed
that condensing boilers only result in high fuel savings if installed with
low temperature heating outputs (such as underfloor heating). Whilst this
may be true for other condensing boilers with flue temperatures up to
25oC higher than the return temperature, the CondexaPRO’s ability to
keep flue temperatures as low as only 3oC above the return temperature
makes the CondexaPRO ideal and highly efficient for both low
temperature and high temperature heating outputs.
CONDEXAPRO CONDENSING BOILERS
Flue temperature = Return temp +3oC
70oC
55oC
Dew temperature
50oC
MAXIMUM COMMITMENT TO THE ENVIRONMENT.
The CondexaPRO range achieved Class 5 of the UNI EN 677 standard (best
European category in ecological terms), thanks to the condensing
combustion with controlled pre-mix burner and micro-flame burner
combination. A CondexaPRO cascade can also automatically control the
number of boilers in operation according to heat demand, saving energy
and reducing polluting emissions.
MAXIMUM RANGE OF MODULATION.
CondexaPRO M (master model), 500 series boilers and box units contain a
board that can manage up to 60 slaves in cascade and up to 3MW of power,
with a modulation down to only 16kW. For larger commercial applications
the CondexaPRO 1000 series has capabilities of up to 6.9MW, and can
modulate down to 23kW. To configure multi-boiler cascades over 450kW,
all components of the cascade must be accurately sized and selected with
the help of a specialised design engineer.
MAXIMUM FLEXIBILITY.
A CondexaPRO system is designed to provide a space-saving and versatile
solution for light commercial buildings or large domestic properties.
CondexaPRO boilers are available for wall hung and floor standing
installations and CondexaPRO Box units are available for indoor and
outdoor installations with a choice of the standard painted unit or a
stainless steel case. There are also different models according to the
connections of each thermal unit with shunt-pump or two-ways valve. This
last case being suitable for those applications with a single primary
circulation pump.
MAXIMUM INTELLIGENT CONTROL.
Burner
Plant Flow
Plant Return
Flues Exhaust
In some cases, the CondexaPRO hard wired remote control interface unit
can replace the need for an expensive BMS (Building Management System)
as it controls the functionality of the boiler in respect of different zones.
Please contact Vokèra Pre-Sales for further advice and information.
MAXIMUM EASE OF INSTALLATION.
In high temperature plants (ex. 70oC / 50oC), the CondexaPRO boilers
evacuate flue gases at a temperature lower than the natural gas flues dew,
meaning that they work as a high efficiency condensing boiler. This is due
to the low flue gas temperature of only 3oC above the return temperature.
Both CondexaPRO boilers and CondexaPRO Box units are designed to
ensure a simple installation. A CondexaPRO boiler cascade can be
assembled in the boiler room which is useful in new build and refurbished
plant rooms. Within the box units, the combustion groups are already
assembled together with the water, gas, condense and flue manifolds.
MAXIMUM PEACE OF MIND.
The AI box models have the hydraulic separator fitted and connected in the
same box as the combustion groups. The integrated flue collector helps to
keep the total height of the installation to a compact dimension.
A CondexaPRO system is more reliable than a traditional boiler installation
as each boiler of the cascade can be individually serviced and maintained.
In the event of a fault or maintenance on one combustion unit, the other
boilers of the cascade are still able to operate without a total loss of
heating.
MAXIMUM SAVINGS.
Thanks to the intelligent condensing technology of the CondexaPRO
range, upgrading from an inefficient heating system to the high efficiency
CondexaPRO will result in significant energy, fuel and financial savings. In
addition, reduced installation time and quick servicing result in savings for
the end user.
MAXIMUM RELIABILITY.
All components are assembled and tested in the factory ensuring maximum
reliability. The multi-combustion configuration of most of the CondexaPRO
Box units guarantees that the end user benefits from continuity of service
at all times.
Vokèra has carefully selected an extensive range of high quality
components and accessories to configure CondexaPRO Box units to
ensure that all components of your cascade work in harmony with one
another.
For more information on the Vokèra CondexaPRO range please email [email protected]
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
FOR SE & U DUCT BOILERS INSTALLATIONS:
Act now before the impending legislation change in September 2015
Mynute SE
System boiler for specialist applications
The Mynute SE is a standard efficiency appliance that is to be used on
applications where a condensing boiler is not suitable. Any boiler
replacements that use a standard efficiency appliance must have been
deemed exempt under the current building regulations and be issued
with an exemption certificate.
SUITABLE FOR SE
DUCT AND U
DUCT FLUEING
2
Certified and approved for use with Type C2, shared flue systems,
e.g. SE-duct and U-duct.
year
warranty
Compact dimensions and low lift weight enable a flexible installation
with the boiler able to be sited almost anywhere in the home.
COMPACT
Compatible with Vokèra’s unvented single and twin coil cylinders.
DIMENSIONS
Compatible with Vokèra’s current ‘Uni-flue’ range of flue accessories.
COMPATIBLE
Designed for easy installation with the standard Vokèra pipework
enabling a trouble-free replacement of older Vokèra models.
WITH VOKERA
‘UNI-FLUE’
RANGE
Built-in SARA function for improved efficiency, anti-cycling for longer
lasting component performance, frost protection and CO mode for
simple servicing.
Can be converted to LPG with LPG kit.
Mynute
24SE
SPECIFICATIONS
Vertical flue terminal
2359039
45º bend (pair)
2359049
90º bend
2359059
0.75m extension
2359069
1.5m extension
2359079
Telescopic extension
2359089
Long joint clips
2359169
Standard joint clips
2359179
Product order code
Central Heating
Heat input (kW)
Maximum heat output @ 60/80°c (kW)
Dimensions
Height x width x depth (mm)
Dry weight (kg)
Clearances
Sides
Top*
Bottom
Front
Connections
Flow & return
Gas
Safety valve
Electrical
Voltage (V/Hz)
Flue Details (concentric)
Maximum horizontal flue length (60mm/100mm)
Maximum vertical flue length
(60mm/100mm)
Flue Details (twin pipes)
Maximum horizontal flue length (80mm/80mm)
Maximum vertical flue length
(80mm/80mm)
Efficiency
Efficiency(1) (%)
LPG conversion kit
01005500
NOx class
Magnetic filter
29450199
OPTIONS
Description
Mynute 24SE spacing frame
Code
20030704
Telescopic horizontal flue
2359119
Horizontal flue terminal
2359029
34 VOKERA SPECIALIST APPLICATION BOILERS
(1)
HARP 2005
*
20030333
25.80
23.94
715 x 405 x 248
29
From casing or 25mm above flue elbow (whichever is applicable)
12mm
150mm
150mm
600mm
22mm
15mm
15mm
230/50
4.25m
5.25m
16m/16m
16m/16m
81.1
3
FOR SE & U DUCT BOILERS INSTALLATIONS:
Act now before the impending legislation change in September 2015
Compact SE
Combi boilers for specialist applications
The Compact SE is a standard efficiency appliance that is to be used
on applications where a condensing boiler is not suitable. Any boiler
replacements that use a standard efficiency appliance must have been
deemed exempt under the current building regulations and be issued
with an exemption certificate.
SUITABLE FOR SE
DUCT AND U
DUCT FLUEING
Certified and approved for use with Type C2, shared flue systems
e.g. SE duct and U duct.
2
year
warranty
Compact dimensions and low lift weight enables a flexible installation
with the boiler being able to be sited almost anywhere in the home.
COMPACT
DIMENSIONS
‘Tyco’ socket provides a simple ‘plug and play’ connection for the RF
clock thermostat receiver.
COMPATIBLE
Designed for easy installation. Standard Vokèra pipe-work layout for
trouble free replacement of older Vokèra models and top mounted flue
turrent can be rotated 360 degrees.
WITH VOKERA
‘UNI-FLUE’
RANGE
Compatible with Vokèra current ‘Uni-flue’ range of flue accessories.
Built in SARA function for improved efficiency, anti-cycling for longer
lasting component performance, frost protection and CO mode for
simple servicing.
Can be converted to LPG with LPG kit.
SPECIFICATIONS
Product order code
Central Heating
Heat input (kW)
Maximum heat output
@ 60/80°c (kW)
Domestic Hot Water
Maximum input
Flow rate 35°c rise (l/min)
Dimensions and Weight
Height x width x depth (mm)
Dry weight (kg)
Clearances
Sides
Top*
Bottom
Front
Connections
Flow & return
Gas
DHW hot & cold
Safety valve
Electrical
Voltage (V/Hz)
Flue Details (concentric)
Maximum horizontal flue
length (60/100mm)
Maximum vertical flue
length (60/100mm)
Flue Details (twin pipes)
Maximum horizontal flue
length (80mm/80mm)
Maximum vertical length
length (80mm/80mm)
Efficiency
Efficiency(1) (%)
NOx class
CONTROLS AND OPTIONS
Description
Code
NEW 7 day RF programmable room thermostat
20059643
Compact SE spacing frame
20030704
Telescopic horizontal flue terminal
2359119
Horizontal flue terminal
2359029
Vertical flue terminal
2359039
45º bend (pair)
2359049
90º bend
2359059
0.75m extension
2359069
1.5m extension
2359079
Telescopic extension
2359169
Long joint clips
2359169
Standard joint clips
2359179
LPG conversion kit (24 / 28)
Magnetic filter
01005500 / 01005409
29450199
(1)
HARP 2005
Compact
24SE
Compact
28SE
20022436
20022803
25.8
30.2
23.94
28.24
25.8
9.8
30.2
11.6
715 x 405 x 248
28
780 x 450 x 328
41
12mm
150mm
150mm
600mm
12mm
150mm
150mm
600mm
22mm
15mm
15mm
15mm
22mm
15mm
15mm
15mm
230/50
230/50
4.25m
3.40m
5.25m
4.40m
16m/16m
14m/14m
16m/16m
14m/14m
81.1
3
81.4
3
*
From casing or 25mm above flue elbow (whichever is applicable)
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Domestic Boiler Feature Reference Chart
Use this product feature reference chart to quickly identify what Vokèra product provides the ideal solution for your heating and
domestic hot water requirements.
PRODUCT FEATURES
Feature
Verve
Mynute
Vision
Mynute
Mynute
Linea
Unica
Unica
Vision
Compact
47kW
i
System
A
VHE
One
i
BHE
Combi
A
5 year warranty
8
✓
✓
8
✓
✓
✓
8
✓
8
Back lit LCD display
✓
✓
8
8
8
✓
✓
8
✓
8
History recall information function
8
8
8
8
8
✓
✓
8
✓
8
DHW preheat ON/OFF function
8
8
8
8
8
✓
✓
✓
✓
8
External second pump connection
8
8
8
8
8
✓
8
8
8
8
DHW memory function option
8
8
8
8
8
✓
8
8
8
8
DHW comfort function option
8
8
8
8
8
✓
8
8
8
8
Modulating pump
8
8
8
8
8
✓
8
8
8
8
Advanced Autostop function 4 modes operation
8
8
8
8
8
✓
8
8
8
8
Autostop function - 1 mode operation
8
✓
✓
8
✓
8
✓
✓
✓
8
✓(1)
✓(1)
✓(1)
8
8
✓
✓(2)
✓
✓(1)
8
Cyclonic air and particle separator
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Built in filling loop
8
8
8
8
8
✓
✓
8
8
8
Pre-heated hot water
8
8
8
8
8
✓
✓
✓
✓
8
Pre-fixing jig
8
✓
8
8
8
✓
✓
8
8
8
Optional pre-fixing kit available
8
8
8
8
8
✓
✓
8
8
8
OpenTherm control option
Full hot water flame modulation
+/- 1oc max fluctuation
8
8
8
✓
8
✓
✓
✓
✓
✓
Automatic by-pass
8
✓
✓
8
8
✓
✓
✓
✓
✓
Digital diagnostic code display
✓
✓
8
8
✓
✓
✓
✓
✓
8
High efficiency air/gas modulation system
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Weather compensation control option
✓(1)
✓(1)
✓(1)
8
8
✓(3)
✓
✓
✓(1)
8
Compartment ventilation not required
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Built in frost protection
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
LPG model / conversion kit available
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Anti seize function
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
‘Anti cycle’ heating control
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Electrical insulation to IPX5D
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Fault diagnostic display
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Telescopic flue system
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Twin flue system
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Vertical flue option
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Rear flue option
8
✓
✓
8
✓(4)
8
✓
8
✓
8
Combustion analysis function
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Electronic burner ignition
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Pipe space through back of boiler
8
OPT
OPT
OPT
STD
OPT
OPT
8
OPT
OPT
N/A
N/A
N/A
N/A
N/A
✓
✓
✓
✓
✓
Domestic heat exchanger:
5yr guarantee against scaling of DHW
1)
Contact Vokèra Technical for advice
Plug and Play connection on OpenTherm and Unica i
(3)
Weather compensation control supplied as standard
(4)
Mynute 15VHE only
(2)
36 VOKERA BOILER FEATURE QUICK REFERENCE CHART
FLUE GUIDANCE AND OPTIONS
Flue Options
60/100mm CONCENTRIC
Our 60/100 condensing range (for HE
appliances) are the most widely used and
will suit most applications that are usually
encountered.
Vokèra offer a wide range of flue systems
that are able to meet the majority of
applications. There are concentric flue
systems and a parallel (twin) flue system
that can be used in either horizontal or
vertical configurations.
80/125mm CONCENTRIC
The 80/125 range is suitable for use on
specific appliances and suits applications
where a slightly longer concentric flue
system is required.
All Vokèra flue systems incorporate simple
to use, push-fit connections that are
designed to enable a fast and simple
method of installation. The attractive white
finish complements the modern design of
our appliances.
80mm + 80mm PARALLEL (twin)
The 80mm + 80mm parallel (twin) range
can be utilised where an extremely long
flue run is envisaged, or required.
Uni-flue 60/100mm CONCENTRIC
The Uni-flue range is suitable for use on
the Aquanova water heater and standard
efficiency appliances that are only to be
used on applications where a condensing
boiler is not suitable.
TERMINAL POSITIONS
S
Q
T
DE
P
W
V
C
N
I
I
M
F
B
R
H
L
G
H
J
K
A
I
FLUE EXIT CLEARANCES
Flue Exits
Minimum distance SE & HE Boilers
*
A
Below an opening
300mm
B
Above an opening*
300mm
C
To the side of an opening*
300mm
D
Below gutters, drain pipe etc
25mm
E
Below eaves
25mm
F
Below balcony, carport roof etc
G
To side of a vertical soil/drain pipe etc
25mm (60mm for 80/125 flue)
H
From internal or external corner or boundary
25mm (60mm for 80/125 flue)
I
Above ground, roof or balcony level
300mm
J
From a surface or boundary facing a terminal
600mm**
K
From a terminal facing a terminal
1200mm
L
From an opening in the carport into the building
1200mm
M
Vertically from a terminal on the same wall
1500mm
N
Horizontally from a terminal on the same wall
300mm
P
From a structure to the side of a vertical terminal
300mm
Q
From the top of a vertical terminal to the roof flashing
R
To the side of a boundary
S
To the side of an opening / window on a pitched roof
600mm
T
Below an opening / window on a pitched roof
2000mm
V
From a vertical terminal to an adjacent opening*
W
From a vertical terminal to an adjacent vertical terminal
25mm
Flue systems and terminal locations
should be located and installed in
accordance with current Building
Regulations (UK) or I.S. 813 (ROI).
The terminal should be located
where the dispersal of combustion
products is not impeded and with
due regard for the damage and/or
discolouration that may occur to
building products located nearby.
The terminal must not be located in
a place where it is likely to cause a
nuisance. Water vapour may
condense on leaving the terminal.
The effect of such plumeing must
be considered.
As determined by fixed collar of vertical terminal
300mm
Call Vokèra Technical for advice
300mm (only if both terminals are same height)
*
Term ‘opening’ includes window, air brick etc
Minimum clearance ensures the boiler works
safely, however consideration should be made for
nuisance factor.
**
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Flue Options
HORIZONTAL & VERTICAL PARALLEL (TWIN) SYSTEMS
Maximum length
HORIZONTAL & VERTICAL CONCENTRIC SYSTEMS
ALSO AVAILABLE - 80MM FLEXIBLE PP FLUE SYSTEM
The 80mm Flexible PP Flue System range consists of Polypropylene components and a flexible Polypropylene liner. A full range of
flue components and accessories to facilitate different flue requirements are available.
The flexible PP flue system is suitable for multiple applications and is for use with high efficiency appliances, including the Mynute i,
Mynute VHE, Vision system boilers and the Linea One, Unica i, Vision and Compact A combi boilers,
The range includes several different connectors that enable flexible PP to be connected to rigid PP / flexible PP to flexible PP when
off-cuts may be required to be joined together.
For further information and advice please contact the Vokèra Technical Helpline.
MAXIMUM FLUE LENGTHS
Concentric 60/100mm (4’’)
Concentric 80/125mm (5’’)
Parallel (twin)
80mm + 80mm
Flexible PP Flue
Concentric Uni-flue
60/100mm (4”)
Horiz.
Vertical
Horiz.
Vertical
Horiz. / Vertical
Horiz. / Vertical
Horiz.
Linea One
3.85m
4.85m
10.0m
12.0m
30m + 30m
12m + 12m
N/A
Vertical
N/A
Unica i28
7.8m
8.8m
18m
20m
45m + 45m
16m + 16m
N/A
N/A
Unica i32
7.8m
8.8m
18m
20m
45m + 45m
14m + 14m
N/A
N/A
Unica i36
7.8m
8.8m
18m
20m
45m + 45m
14m + 14m
N/A
N/A
Unica Balcony HE
7.8m
8.8m
20m
25m
40m + 40m
16m + 16m
N/A
N/A
Vision 25C
5.85m
6.85m
15.3m
16.3m
45m + 45m
8m + 8m
N/A
N/A
Vision 30C
4.85m
5.85m
12.8m
13.8m
40m + 40m
8m + 8m
N/A
N/A
Compact 25A
5.85m
6.85m
15.3m
16.3m
45m + 45m
8m + 8m
N/A
N/A
Compact 29A
4.85m
5.85m
12.8m
13.8m
40m + 40m
8m + 8m
N/A
N/A
Compact 24SE
N/A
N/A
N/A
N/A
16m + 16m
N/A
4.25m
5.25m
4.40m
Compact 28SE
N/A
N/A
N/A
N/A
14m + 14m
N/A
3.40m
Verve 47kW
1.8m
2.8m
4.8m
7.0m
20m + 20m
8m + 8m
N/A
N/A
Mynute i20
7.8m
8.8m
18m
20m
45m + 45m
16m + 16m
N/A
N/A
Mynute i30
7.8m
8.8m
14m
16m
30m + 30m
16m + 16m
N/A
N/A
Mynute i35
tba
tba
tba
tba
tba
tba
tba
tba
Vision 20S
5.85m
6.85m
15.3m
16.3m
45m + 45m
8m + 8m
N/A
N/A
Vision 25S
4.85m
5.85m
12.8m
13.8m
40m + 40m
8m + 8m
N/A
N/A
Mynute 15VHE
7.8m
8.8m
25m
30m
40m + 40m
16m + 16m
N/A
N/A
Mynute 20VHE
7.8m
8.8m
20m
25m
40m + 40m
16m + 16m
N/A
N/A
Mynute 24SE
N/A
N/A
N/A
N/A
16m + 16m
N/A
4.25m
5.25m
Aquanova
N/A
N/A
N/A
N/A
7m + 7m
N/A
2.4m
3.8m
Reductions for additional bend/s (reduction for PMK = 4.0 metres)
45-deg
1m
1m
1m
1m
1m
N/A
1m
1m
90-deg
1m
1m
1m
1m
1m
N/A
1.5m
1.5m
38 VOKERA FLUES
FLUE GUIDANCE AND OPTIONS
The 80mm + 80mm parallel (twin) system enables greater flue lengths to
be achieved and can be used in either a horizontal or vertical configuration.
However the parallel system must be converted back to a concentric system
at the point of termination. Dedicated flue kits are available for this purpose.
80MM PARALLEL (TWIN) FLUE SYSTEMS
Code
310
Adaptor kit for SE range and Aquanova
430
Adaptor kit for all condensing boilers
0225805
Horizontal terminal & convertor box
0225810
Vertical terminal & convertor box
0225820
250mm extension (pair)
0225825
500mm extension (pair)
0225830
1000mm extension (pair)
0225835
2000mm extension (pair)
0225840
45-deg bend (pair)
0225845
90-deg bend (pair)
0225850
Double pipe bracket 80mm X 80mm (5-OFF)
0225855
Single pipe bracket 80mm (5-OFF)
0225765
Flat roof flashing plate (390mm Dia)
An adaptor kit is required to convert the appliance flue outlet from a
concentric configuration into a parallel configuration.
When used in the horizontal plane, the flue system should be installed so
that it has a 1˚ – minimum – fall back to the boiler. This will enable any
condensate fluid that may form, to drain via the condensate
connection/trap.
The exhaust pipe can reach very high temperatures and so must be
adequately protected to avoid contact with persons and/or materials that
could be damaged as a result.
The air inlet pipe should be insulated to reduce the possibility of condense
forming on the outside of the pipe.
29450178*
Condense trap kit for SE range and Aquanova
29450176
Vertical collector for SE range and Aquanova
29450177
Horizontal collector for SE range and Aquanova
*When ordering this product you will need to also order either the
29450176 or 29450177, depending on your installation requirements.
Vokèra can advise that the Gas Safe Technical Bulletin, TB 008 ed2.1, gives
specific advice on the requirements for new installations with a flue routed
within a void, where appropriate means for the gas engineer to visually
check the flue must be incorporated (this is normally achieved by inspection
hatches located in the ceiling).
The flue system installation options as detailed below are not
generic for all concentric flues. Please see the boiler and flue
compatibility tables for information on a specific appliances
suitability with the different concentric flue systems.
FLUE SYSTEM OPTIONS
Configuration
Description
Compatible with
1
Horizontal Concentric
All appliances
2
Vertical Concentric
All appliances
3
Horizontal parallel system
All appliances
4
Vertical parallel system
All appliances
N.B. A boiler top adaptor/kit is required when using the 80/125mm concentric
and 80mm parallel systems.
White nose cone
Telescopic horizontal flue terminal
Plume management kit
60/100mm concentric flue system
Code:
29450130
60/100mm concentric flue system
Code:
29450121
60/100mm concentric flue system
Code:
522
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Boiler and Flue Compatibility
Concentric flue ranges
The 60/100 condensing range is suitable for all current Vokèra high efficiency (condensing) appliances. A flue kit adaptor is required to
use the 60/100 concentric flue on the Verve 47kW domestic system boiler.
When used in the horizontal plane, the flue system (excluding horizontal terminal) should be installed so that it has a 1˚ - 3˚ fall back to
the boiler (17mm - 51mm per-metre). This will enable any condensate fluid that may form, to drain via the condensate connection/trap.
It can also be used as a replacement flue system on older/obsolete Vokèra HE appliances, however you should contact the Vokèra
Technical Helpline for specific advice.
60/100MM CONCENTRIC FLUE SYSTEMS
Code
29450121
29450120
522
29450131
29450123
29450124
29450125
29450126
29450127
29450128
529
29450122
531
532
533
29450133
534(4)
535(4)
29450130
487
20028027
(1)
Description
Telescopic horizontal flue terminal
Horizontal flue terminal
Plume management kit
Plume management kit extension
90-deg bend
45-deg bend (pair)
500mm extension
1000mm extension
2000mm extension
Telescopic extension
Wall brackets (5 x 100mm)
Vertical flue terminal
Pitched roof flashing plate
Flat roof flashing plate
Telescopic rear flue
Telescopic rear flue
Brick red nose cone
Beige nose cone
White nose cone
45-deg-plume diverter
Flue kit adaptor for Verve
Includes both Vision combi and system boilers
(2)
Verve
47kW
Mynute
i
Vision
Range(1)
Mynute
Mynute
Linea
Unica
Unica
Compact
A
VHE
One
i
BHE
A
✓
✓
8
8
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
8
8
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
8
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
8
8
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
✓
✓
✓
8(2)
8(2)
✓
✓
✓
✓
✓(2)
✓
✓
✓
✓
✓
8
8
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
8
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
8
8
✓
✓
✓
✓
8
✓
✓
8(2)
8(2)
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
8
8
✓
✓
✓
✓
8
Contact Vokèra Technical for advice
(3)
15kW output only
(4)
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓(3)
✓(3)
✓
✓
✓
✓
8
Available as special order only. Minimum order quantities apply
The 80/125 range can be utilised only with certain specific appliances. A flue kit adaptor is required to use the 80/125 concentric flue on
the Verve 47kW domestic system boiler. An adaptor is also required for other appliances to convert the flue outlet from 100mm to 125mm.
When used in the horizontal plane, the flue system (excluding horizontal terminal) should be installed so that it has a 1˚ - 3˚ fall back to the
boiler (17mm - 51mm per-metre). This will enable any condensate fluid that may form, to drain via the condensate connection/trap.
80/125MM CONCENTRIC FLUE SYSTEMS
Code
(1)
Description
Verve
47kW
Mynute
i
Vision
Range(1)
Mynute
A
Mynute
VHE
Linea
One
Unica
i
Unica
BHE
Compact
A
413
Horizontal terminal
✓
✓
✓
8
✓
✓
✓
✓
8
414
Vertical terminal
✓
✓
✓
8
✓
✓
✓
✓
8
415
90-deg bend
✓
✓
✓
8
✓
✓
✓
✓
8
416
45-deg bend (single)
✓
✓
✓
8
✓
✓
✓
✓
8
417(2)
250mm extension
✓
✓
✓
8
✓
✓
✓
✓
8
418
500mm extension
✓
✓
✓
8
✓
✓
✓
✓
8
419
1000mm extension
✓
✓
✓
8
✓
✓
✓
✓
8
420
2000mm extension
✓
✓
✓
8
✓
✓
✓
✓
8
421(2)
3000mm extension
✓
✓
✓
8
✓
✓
✓
✓
8
422(2)
Telescopic extension
✓
✓
✓
8
✓
✓
✓
✓
8
423
Wall brackets (5 x 125mm)
✓
✓
✓
8
✓
✓
✓
✓
8
424
Boiler top adaptor for HE appliances
8
✓
✓
8
✓
✓
✓
✓
8
425(2)
Fixed offset
✓
✓
✓
8
✓
✓
✓
✓
8
426
Silicon lubricant
✓
✓
✓
8
✓
✓
✓
✓
8
532
Flat roof flashing plate
✓
✓
✓
8
✓
✓
✓
✓
8
531
Pitched roof flashing plate
✓
✓
✓
8
✓
✓
✓
✓
8
20028558
Flue kit adaptor for Verve
✓
8
8
8
8
8
8
8
8
Includes both Vision combi and system boilers
(2)
Available by special order
40 VOKERA FLUES
INTELLIGENT CONTROLS
Choosing the right control
Intelligent controls
Maximise energy and fuel savings
With the introduction of condensing technology, boilers have continued to increase in efficiency with most current appliances able to
reach over 90% efficiency. However, the technology within boilers is now so advanced that, even with future developments, there is little
chance of boiler efficiency percentages increasing much further.
The one area that can still help maximise the efficiency and overall performance of the boiler is the correct use of a control. Even with
average efficiencies now reaching over 90%, this can be increased by a further 2% - with the simple addition of a weather compensation
control for example.
Choosing the right control
There are a number of different controls available so establishing the most suitable one for your heating requirements may be confusing.
Vokèra provide a range of controls that can be used with combi and system boilers, including room thermostats, programmable room
thermostats and the Vokèra ‘Intelligent Control’ range that incorporates the most advanced technology available, such as weather
compensation and OpenTherm.
The Vokèra Vision Combi boilers come with a built in 7 day digital clock which enables different settings for each day of the week.
Additional controls can be added to a Vision Combi if it needs to be sited in a difficult to access location or for energy saving purposes.
Intelligent controls
Outside weather compensation sensor
The Vokèra outside weather compensation sensor manages the central heating flow outlet temperature
by regulating the boiler in line with external weather conditions, providing a consistent and comfortable
room temperature. For example, when the central heating is timed to come on, the external sensor
measures the outside temperature and the boiler calculates the required flow temperature needed to
maintain the set room temperature.
Code: 2359259 - This control is supplied as standard with the Linea One combi boiler.
OpenTherm RF programmable room thermostat
Vokèra’s OpenTherm programmable room thermostat incorporates the most advanced technology; the
basic principle of OpenTherm is that it takes over the management of the flow outlet temperature and
raises or lowers the flow temperature of the boiler in order to maintain a certain room temperature that
has been requested or set by the end user.
When you connect the OpenTherm to a boiler, the boiler’s own internal management of the set point
becomes redundant and the OpenTherm control takes over. By allowing the OpenTherm to manage the
set-point the efficiency of the appliance is increased as the control constantly endeavours to maintain a
low outlet temperature, this means an even lower return temperature and condensing boilers are at their peak efficiency when operating
with a low return temperature.
A saving of around 15% can be achieved when using the OpenTherm programmable room thermostat when compared to a typical
ON/OFF room thermostat, this equates to a £67 saving on an annual fuel bill (energy saving based on average 18,000kw hrs per annum).
Not only is the OpenTherm designed to reduce fuel costs it is also designed to improve end user comfort, it achieves this by significantly
reducing or eliminating temperature ‘undershoot’ or ‘overshoot’, meaning that a stable room temperature is achieved and maintained.
You can install the OpenTherm alongside the weather compensation control to benefit from even further energy savings. Weather
compensation technology ‘fine tunes’ the heating system to the outside temperature condition, where the flow temperature
increases/decreases in response to external weather conditions. Effectively it takes into consideration the external temperature and works
with the OpenTherm control to tell the boiler what it needs to do to compensate for the outside weather conditions, so if it is a warm day,
it tells the boiler it will not need to work as hard to achieve the room set point.
Configured for use with the Unica i combi boiler with the receiver being easily connected to the boiler using the ‘plug and play’ Tyco socket.
The Tyco connection can be re-configured or removed to facilitate use with other compatible Vokèra high efficiency combi boilers.
OpenTherm RF programmable room thermostat - colour white. Code: 20050690
(Black version also available. Code: 20050691)
Registered Gas Installers: For a step by step installation video visit the Vokèra YouTube channel (search Vokera Ltd)
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
Choosing the right control
Energy saving controls
Energy Saving Controls
Room thermostats control the ambient room heating temperature. Programmable room thermostats can have different set temperatures
for different periods of the day, offering greater flexibility and a simple solution to boiler control. For maximum comfort it is recommended
that your thermostat is set between 18 - 21oC.
7 day RF programmable room thermostat
This ON/OFF programmable room thermostat allows easy control over boiler heating timings
and temperatures over a 7 day period. A typical heating programme is pre programmed so
the time and day of the week only need to be set before the programmer is fully operational.
Configured for use with the Compact A combi boiler with the receiver being easily connected
to the boiler using the ‘plug and play’ Tyco socket. The Tyco connection can be re-configured
or removed to facilitate use with other compatible Vokèra high efficiency combi boilers.
Wireless version product code: 20059643
Hard-wired version also available,
product code: 20063874
Tyco connection from receiver to boiler
RF room thermostat control
This ON/OFF room thermostat has similar characteristics to the above as it can be used to
adjust the set room temperature. It is ideal for the Vision Combi boilers as it allows easy
control over the heating temperatures but it will not interfere with any programmed heating
timings that have been set on the built in digital clock.
Wireless version product code: 20059642
Hard-wired version also available, product code: 20063869
CONTROLS COMPATIBILITY
Code
(2) .
Verve
47kW
Mynute
i
Vision
System
Mynute
A
Mynute
VHE
Linea
One
Unica
i
Unica
BHE
Vision
Combi
Compact
A
20050690
OpenTherm RF programmable
room thermostat
✓(2)
✓(2)
✓(2)
8
✓(2)
✓(1)
✓
8(4)
✓(3)
✓(3)
2359259
Outside weather compensation control
✓(2)
✓(2)
✓(2)
8
8
20059643
7 Day RF Programmable room thermostat
✓
✓
✓
20063874
7 Day HW Programmable room thermostat
✓(2)
✓(2)
✓(2)
20059642
RF room thermostat control
✓(2)
✓(2)
20063869
Hard-wired (HW) room thermostat control
✓(2)
✓(2)
8
8
20025081
(1)
Control
(6)
Compact A 24 hour analogue clock kit
(2)
(2)
✓(5)
✓
✓
✓
(2)
✓
✓
✓(2)
✓(2)
✓
✓(2)
✓(2)
✓(2)
✓(2)
✓(2)
8
8
(2)
(2)
✓(3)
8
✓
(4)
8
✓
✓
✓
8(4)
✓
✓
✓
✓
✓
✓
✓
✓(2)
✓
✓
✓
✓
✓
8
8
8
8
8
✓
Requires wiring kit - code 1221179 - contact Vokèra Technical for specific advice.
(4)
Can be used on internal installations - contact Vokèra Technical for specific advice.
Can be used on heating only applications - contact Vokèra Technical for specific advice.
(5)
Outside weather compensation control is supplied in the box with every Linea One.
Requires control interface - code 29450143 - contact Vokèra Technical for specific advice.
The addition of an energy saving control will override any settings that have been
programmed into the built in digital clock on the Vision Combi.
(6)
(3)
42 VOKERA ENERGY SAVING CONTROLS
Compact A 24 hour analogue clock kit includes a pipe cover that the analogue clock is
incorporated into.
Renewable Technology
Solar thermal
Solar thermal has become one of the most cost efficient renewable technologies currently available
for reducing CO2 emissions, harnessing the sun’s natural energy to heat water.
Solar thermal collectors absorb the sun’s energy, which is absorbed by the heat transfer fluid that
circulates around the collector and pipework to a twin coil cylinder that heats the domestic hot
water. The water is then stored ready for supply to the taps. When the system does not heat to the
required temperature the boiler steps in to make up the difference.
By installing Solar thermal you can expect to save on average around 350 - 400kg of CO2 per year.
Financial returns will depend on a number of factors including, among others, location of property,
positioning of collectors on the roof, weather conditions and which fossil fuel you are replacing.
Fig 1 - Source: Solar Trade Association
Fig 1 shows the annual average solar radiation falling on one m2 measured in kW hours. (Ireland and UK).
Zenith Solar thermal systems
Our high grade MCS approved Solar collectors maximise energy efficiency and meet the approved standard of
BS EN12975 and have the Solar Keymark seal of approval.
Zenith ‘Evacuated Tube’ collectors - Vokèra Zenith evacuated tubes are made up of 14 double sleeve evacuated glass tubes. The
vacuum inside the double sleeved glass tubes provides effective thermal insulation and permits the collectors to generate heat from
the sun even in bad weather and during winter months. Zenith evacuated tubes can be more efficient than flat plate collectors in colder,
less sunny parts of the ROI and are suitable for retro fit and new build applications.
Zenith ‘On Tile’ collectors and ‘Inset’ collectors - Vokèra Zenith on tile flat plate collectors and inset flat plate collectors are of
high build quality and are designed to use both direct sunlight and daylight to gain the maximum amount of energy throughout the
whole year. Zenith on tile collectors are more suited to retro fit applications and inset collectors to new build applications or for those
requiring a more discreet finish.
Design and Installation
The Vokèra renewable portfolio can be incorporated to form many different heating system layouts that fulfil all heating and domestic
hot water requirements.
The below diagrams show how the Vokèra Zenith range can be teamed with Vokèra boilers to further reduce reliance on fossil fuels and
maximise the benefits of renewable energy. For a Solar efficiency and suitability report contact the Vokèra Pre Sales team.
Zenith Solar system
Mynute i sealed system boiler
Aquaflow Twin coil cylinder
Zenith Solar system
Mynute VHE regular open vent boiler
Aquaflow Twin coil cylinder
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
ZENITH EVACUATED TUBES
Zenith Evacuated Tube
Solar thermal collectors
MCS approved demonstrating the quality and reliability of the Zenith
Solar thermal collector range.
Evacuated tube technology provides better efficiency in cooler parts of
ROI and the UK due to their ability to absorb and retain Solar radiation,
with the tubes working on the same principle as a vacuum flask.
High build quality designed to use both direct sunlight and daylight
maximising energy performance even on cloudy days.
Ideal for retro fit and new build applications.
2
Evacuated tube collectors are easy to install, if necessary, the tubes can be
removed prior to the frame being fitted onto the roof. The tubes can then
be positioned within the collector frame.
year
warranty
Zenith Solar thermal packages include an intelligent controller for
increased functionality and flexibility.
SOLAR KEYMARK
SEAL OF
APPROVAL
Evacuated tube collectors have greater application flexibility, this is due to
the wider range of angles the collector can be positioned in, while
maintaining effective absorption.
MANUFACTURED
IN HOUSE
Easy replacement of glass tubes without having to empty the Solar heating
circuit.
IDEAL FOR
As a guide 1m2 of Solar collector is required per person in a household. Up
to 6 collectors can be connected in a series.
RETRO FIT AND
NEW BUILD
APPLICATIONS
Zenith Solar thermal collector systems are pressurised which provides
greater flexibility for siting of the collector and a faster reaction time to
daylight and sunlight, maximising upon the sun’s energy.
Evacuated Tube
Collector
SPECIFICATIONS
2.77 m2
Total area
Exposed area
2.40 m
Dimensions H x W x D (mm)
1730 x 1600 x 145
Empty weight
52 kg
Liquid content
A highly selective finish on the copper absorber plate within each tube
guarantees exceptional absorption performance.
2
2.69 m2
Effective absorption area
Integrated CPC mirrors maximise absorption even in oblique light.
14 individual tubes in each collector.
Long working life, with no metal parts passing through the glass tubes to
cause loss of vacuum.
2.05 L
2
Recommended flow rate of panel (per m /hr)
30 L
Absorption ( )
> 94%
Emissions (ß)
< 7%
Maximum permitted pressure
10 bar
Maximum temperature
236 oc
Pre Sales service available to provide advice and assistance on suitability
and free design service.
PRE SALES SUPPORT FOR SOLAR THERMAL
Vokèra Pre Sales support offers practical, sound advice and will advise you
if a solution is not fit for purpose, ensuring the correct products are
recommended for the application.
EVACUATED TUBE COLLECTOR PACKAGE CODES
Description
Solar Keymark seal of approval.
Code
Evacuated tube pitched roof package
29450193
Evacuated tube flat roof package
29450194
The report documents potential annual results including proposed
collector power, natural gas savings, system
efficiency and a graphical analysis of Solar
thermal performance, see Fig. 2 for an
example. With this information the most
cost effective and efficient solution can
be determined.
[ °C ]
EVACUATED TUBE COLLECTOR PACKAGE INCLUDES
Information regarding the Solar installation is input into a TSOL simulation
software programme that processes the data and the findings are
submitted in a detailed bespoke specification report.
Evacuated Tube Solar collectors (x2)
Air Vent
Roof kit (pitched or flat roof)
Expansion vessel
Glycol
Premium controller
Pump station
44 VOKERA ENERGY SAVING CONTROLS
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
Jan
Email: [email protected]
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Fig 2. Daily maximum collector
temperature graphical analysis
Zenith Flat Plate ‘On tile’ ‘Inset’
Solar thermal collectors
ON TILE COLLECTORS - Ideal for retro fit applications with Solar
collectors sitting on top of the roof tiles, therefore requiring minimal
adaptation to the roof.
INSET COLLECTORS - Ideal for new build applications with
collectors sitting in the roof therefore requiring less roof tiles and
resulting in a neat and discreet finish.
MCS approved demonstrating the quality and reliability of the Zenith Solar
thermal collector range.
10
High build quality designed to use both direct sunlight and daylight, and
a highly selective finish on the copper absorber plate maximises energy
performance even on cloudy days.
year
warranty
The collectors have an aluminium body, with a single - piece copper
absorber plate to create a greater reflective surface, maximising energy
performance.
SOLAR KEYMARK
SEAL OF
APPROVAL
Flat plate collectors achieve optimum performance when positioned on a
south facing roof at an angle of 35o and 45o. If this position is not possible
a split system could be used whereby one collector would be placed on
the east facing side of the roof and another on the west.
MANUFACTURED
IN HOUSE
The collectors are ultrasonically welded together to ensure high build
quality and product longevity.
IDEAL FOR
RETRO FIT AND
Heat transfer fluid flows through 12 individual copper pipes in the collector
to create a large surface area for absorption.
NEW BUILD
APPLICATIONS
As a guide 1m2 of Solar collector is required per person in a household. Up
to 6 collectors can be connected in a series.
SPECIFICATIONS
Flat Plate Collector
Total area
2.43 m2
Exposed area
2.20 m2
2.15 m2
Effective absorption area
Dimensions H x W x D (mm)
2046 x 1186 x 90
Empty weight
40 kg
Liquid content
1.6 L
Recommended flow rate per m2 (l/hr)
30 L
Absorption ( )
95%
Emissions (ß)
5%
Maximum permitted pressure
10 bar
Maximum temperature
204 oc
Zenith Solar thermal collector systems are pressurised which provides
greater flexibility for siting of the collector and a faster reaction time to
daylight and sunlight, maximising upon the sun’s energy.
The bottom and walls of the collector tray are lined with 4cm of rock wool
insulation to maximise heat retention and energy efficiency.
Low iron oxide content for high energy transmission and to minimise
corrosion.
Each collector is protected with tempered glass to withstand extreme
weather conditions, such as hail stones.
A well installed Zenith system will provide a reliable and extremely efficient
service with a life expectancy of approximately 20+ years.
Pre Sales service available to provide advice and assistance on suitability
and free design service.
FLAT PLATE COLLECTOR PACKAGE CODES
Description
Code
On tile pitched roof package
29450195
On tile flat roof package
29450196
Inset slate roof package
29450191
Inset tile roof package
29450192
FLAT PLATE COLLECTOR PACKAGE INCLUDES
Flat Plate Solar collectors (x2)
Air Vent
Roof kit
Expansion vessel
Glycol
Premium controller
CHOOSING THE RIGHT SOLAR EQUIPMENT
If you are considering taking the step into Solar thermal it is important to:
Carry out a TSOL simulation prior to the Solar installation. This ensures the
suitability of the Solar equipment and identifies the ideal components,
Vokèra offers this service.
Check that the product has the Solar Keymark seal of approval as this
shows that the equipment fulfils the European Standards and ensures a
reliable quality system that is backed by reliable performance information.
Email: [email protected]
Pump station
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
AQUAFLOW TWIN
AquaFlow Twin
Unvented twin coil water cylinder
Install the Aquaflow Twin with a Zenith Solar thermal system and a
system or open vent boiler to benefit from Solar thermal energy.
COMPATIBLE WITH
Inner shell guaranteed for 25 years, made from Super-Molybdenum.
SOLAR THERMAL
Cylinder manufactured from high grade corrosion resistant stainless
steel.
2
year
warranty
Easy and quick to install.
Internal secondary expansion via self generating air gap means no
expansion vessel required, or use fully flooded cylinder with an
additional expansion vessel.
25 YEAR
GUARANTEE ON
INNER SHELL
Balanced cold water supply point.
Secondary return facility on all units as standard.
No need for ‘sacrificial anode’ due to excellent anti-corrosion
properties of Super-Molybdenum.
No cold water feed tanks required means a dry roof space.
Twin coil units supplied with one two port motorised valve.
Twin coil units are supplied with one low level immersion heater factory
fitted and hard wired complete with surface mounted thermostat.
Twin coil cylinders have two thermostats, upper for boiler heating and
lower for Solar pre-heater.
Cylinders are supplied with all mandatory valves and fittings.
SPECIFICATIONS
AquaFlow Twin 250
AquaFlow Twin 300
924
925
207 litres
255kg
250 litres
312kg
1400mm
580mm
239 litres
297kg
300 litres
364kg
1600mm
580mm
Product order code
Unvented capacity
Approximate weight full
Flooded capacity
Approximate weight fully flooded
Height
Diameter
1
1
2
3
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Hot water outlet
Pressure reducing valve
Expansion/check valve
Flexible connection
TPR valve
Tundish
Discharge pipe
Cylinder thermostat
Cold feed tube
Drain cock
11.
12.
13.
14.
15.
16.
17.
18.
19.
Ret 3/4 inch
Sensor Boss 1/2 inch
Cable entry
Flow 3/4 inch
Flow 3/4 inch
Secret 1/2 inch
Ret 3/4 inch
Sensor Boss 1/2 inch
Immersion element
18
4
5
17
16
6
15
7
14
13
12
11
19
8
9
10
46 VOKERA ENERGY SAVING CONTROLS
Renewable Technology
Air source heat pumps
Air source heat pumps utilise air to generate heat in order to heat water using compression technology, providing a great source of
renewable energy.
Air source heat pumps work by extracting heat from the outside air, even when it’s below 0oc. The extracted heat is then transferred to a
plate-heat exchanger that heats the central heating and domestic water in a traditional way.
Air source heat pump technology is best suited to low temperature or under-floor heating systems as they require a lower flow
temperature but some models are also able to achieve higher temperatures that are suitable for traditional central heating systems and
domestic hot water (when connected to a water cylinder). Vokèra recommend that the AriaPRO is installed with an additional back up
heat source, ie. an immersion heater, to ensure all domestic heating and hot water requirements are satisfied.
AriaPRO air source heat pumps
The Vokèra AriaPRO can reach a CoP (Co-efficient of Performance) of 4.2*, i.e. 1kW of electrical energy can provide 4.2kW of heat
output or €1 of electricity can provide over €4 of heat. The appliance can be effective in temperatures ranging from -20oc to +30oc and
so will continue to provide heat even in the cold winter months.
Sited outside a property without the requirement for extensive installation preparation the AriaPRO is an ideal renewable solution for
both new build and retrofit applications.
*
Dependent on ambient outside temperature
Design and Installation: AriaPRO air source heat pump system
The Vokèra renewable portfolio can be incorporated to form many different heating system layouts that fulfil all heating and domestic
hot water requirements. The below diagram shows how the Vokèra AriaPRO air source heat pump can be teamed with Vokèra cylinders
to further reduce reliance on fossil fuels and maximise the benefits of renewable energy.
AriaPRO air source heat pump
Aquaflow single coil cylinder
Domestic hot water terminal
Aquaflow single coil cylinder
AriaPRO air source heat pump
Underfloor heating
A Vokèra boiler can be teamed with the AriaPRO air source heat pump to make up any differential
in heat requirements, ensuring maximum end user comfort.
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
ARIAPRO
AriaPRO
Air source heat pump
INTEGRATED
MODULE
2
year
warranty
FOR EASY
IDEAL FOR
UNDERFLOOR
HEATING
INSTALLATION
MCS approved demonstrating the quality and reliability of the
AriaPRO range.
Extracts heat from ambient air, even when outside temperature is
below 0oc, which is then transferred to a heat exchanger that heats the
central heating and domestic hot water in a traditional way.
Co-efficient of Performance (CoP) of up to 4.2 i.e. 1.0kW of electrical
energy required to generate 4.2kW of heat output (€1 of electricity
can provide over €4 of heat) at EN 14511 reference conditions.
Designed for a simple installation as the integrated hydronic module
requires the addition of only a few external components.
Mono-block design means that the refrigerant circuit is located in the
outdoor equipment only, enabling the AriaPRO to remain outside the
scope of the F-Gas directive for installation; so no F-Gas certification is
necessary to install the product.
Latest inverter technology with twin rotary compressor managed by both
PAM and PWM logic control ensures both temperature and efficiency is
optimised at all times leading to fuel efficiency, lower noise emissions
and improved comfort.
Built-in frost protection, protects the appliance from damage during
periods of cold weather.
Both central heating and domestic hot water can be provided when
connected to a water cylinder.
The Vokèra heat pump system can incorporate Vokèra Zenith Solar
thermal to further minimise reliance on fossil fuels.
Compatible with most Vokèra boilers. Boiler can make up any differential
in heat requirement, maximising end user comfort.
SPECIFICATIONS
AriaPRO
4kW
AriaPRO
6kW
AriaPRO
8kW
AriaPRO
12kW
AriaPRO
15kW
Product order code
20033107
20033108
20033109
20033110
20033111
*
Co-efficient of Performance (1)
Nominal capacity (kW)
4.1
5.8
7.2
11.9
Power input (kW)
1.01
1.37
1.84
3.04
CoP 0/35oc
4.06
4.24
3.95
3.94
Energy class
A
A
B
B
Co-efficient of Performance (2)* Typical Ireland and UK conditions
Nominal capacity (kW)
3.9
5.8
7.4
12.95
Power input (kW)
1.21
1.93
2.34
4.3
CoP 0/45oc
3.2
3.01
3.16
3.01
Energy class
A
B
B
B
Dimensions and weights
Height (mm)
821
821
821
1363
Width (mm)
908
908
908
908
Depth (mm)
350
350
350
350
Empty weight (kg)
61
61
71
105
Sound levels
Sound pressure** (db)
42
42
44
47
Electrical
Voltage (V/Hz)
230/50
230/50
230/50
230/50
*
*
CoP (1) - outside air +7oc / water 30-35oc.
CoP (2) - outside air +7oc / water 40-45oc.
Sound pressure measured in a hemispheric field 4 meters in front of the fan.
**
48 VOKERA ENERGY SAVING CONTROLS
14.5
3.57
4.06
A
14.5
4.36
3.21
B
1363
908
350
105
48
230/50
Sited outside a property without the requirement for
extensive installation preparation.
Flexible application, suitable for both new build and retrofit
applications.
Effective in outside air temperatures ranging from -20oc
to +30oc.
Flow outlet temperature ranging up to +60oc, making the
AriaPRO ideal for a number of domestic applications
including underfloor heating, central heating and domestic
hot water.
Electronically controlled variable speed helical fan ensures
exceptionally low noise levels as low as 42 dBa (4 and 6kW
outputs).
Supplied with built-in external sensor, a supplementary
external sensor and remote control, to maximise efficiency.
Integral 2 litre expansion vessel supplied with the 4kW,
6kW, 8kW and 3 litre expansion vessel supplied with the
12kW and 15kW. Additional expansion capacity may be
necessary dependant on the system.
Vokèra Support
Vokèra prides itself in providing support from concept to completion
Our support network incorporates a Pre Sales support advice service, technical training, technical support service and a Customer Care
team dedicated on providing great service.
Pre Sales support
The Vokèra Pre Sales support team offers advice on a range of products and applications to engineers, architects, specifiers and developers.
The technology available to heat buildings is changing rapidly therefore support is critical to ensure correct solutions are provided for the
application. Pre Sales support ensures you get the correct guidance and reassurance when choosing a solution for your project.
PRE SALES CONDEXAPRO PROJECT
Depending on the technology used and the complexity of the installation, the
advice and level of support you need will differ, from basic advice to a full bespoke
solution. The Pre Sales support team not only offer advice and guidance but can also
provide on-site assistance and support with product assembly and commissioning*.
Vokèra Pre Sales support offers you practical, sound advice and will advise you if a
solution is not fit for purpose, ensuring the correct products are recommended for
the application.
‘It was the specification support, reliability, guarantees and back up
service offered by Vokèra that made it the perfect solution.
Project Manager - Pre Sales Customer
CONTACT PRE SALES
Email:
[email protected]
The Pre Sales support service is available for all renewable technology
installations, domestic and light commercial condensing gas appliances and any
integrated technology heating solution.
*
A cost may be incurred for some Pre Sales activities.
Technical training
Vokèra technical training delivers real value to Registered Gas Installers. Our technical training focuses on the need of the engineer to
become familiar with the product, to enable quick and simple installation or repair. Our technical training is structured to ensure you
cover: the appliance range, installation, operation, wiring, flueing, benchmark, fault finding and commissioning.
Vokèra Product Courses
High Efficiency Product Course (inc. fault finding)
Standard Efficiency Product Course (inc. fault finding)
Solar Overview Product Course
To attend you must be RGII registered.
The one day Solar Overview Product Course provides you with an insight into the theory of Solar Domestic Hot Water and an understanding
of the Vokèra Zenith Solar product and package. It is both theory and workshop based and will give you a good understanding on the
principles of solar domestic hot water, installation, commissioning and fault finding on our products.
For further information on all courses view our course profiles at: www.vokera.ie or book now: 056 7755055 (option 1)
Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk
CUSTOMER CARE
Rock solid support you can depend on
Customer Care
Customer care team
We pride ourselves on providing a first class after sales service with dedicated regional customer care centres in Ireland and the UK,
supported with 41 factory trained Vokèra field engineers along with 85 service agents, which are able to support customers nationwide.
Every engineer carries a full complement of spare parts to help ensure a high first time fix rate
Real time data field reports for service contracts
Full monthly reports can be provided to monitor call outs
One point of contact to report and discuss service issues
Full audit trail to track service calls
Technical Support
Our fully trained, Gas Safe and RGII technical team provides technical help to support the Installer.
Product Warranty
As with all domestic gas boilers, an annual service is recommended to maintain optimum performance, efficiency and safety. In addition
to a free 5 year warranty with the Mynute i, Vision*, Mynute VHE, Linea One and Unica i ranges and a free 2 year warranty offered on all
other Vokèra boilers, we also make a promise to all our customers:-
Our dedicated customer service team and RGII registered engineers are available 5 days a week to support the needs of every
single Vokèra boiler installation. They aim to respond to every call within 48 hours or less, or at a time agreed with the
householder. They will make every effort to solve any technical problem over the phone, answering quickly,
politely and at all times acting in the best interest of our customers.
CONTACT US
Department
Email
Telephone
Fax
Eire Sales and General Enquiries
[email protected]
056 7755055 (option 1)
056 7755060
Customer Care / After Sales Service
[email protected]
056 7755055 (option 2)
056 7755060
Spares and Deliveries Team
[email protected]
056 7755055 (option 3)
056 7755060
Technical Support
[email protected]
056 7755055 (option 4)
056 7755060
Technical Training
[email protected]
056 7755055 (option 1)
0844 391 0998
Customer Relations
[email protected]
0844 391 0999 (option 1)
0844 391 0998
Pre Sales
[email protected]
0844 391 0999 (option 4)
0844 391 0998
Marketing Support
[email protected]
0844 391 0999 (option 1)
0844 391 0998
50 VOKERA ENERGY SAVING CONTROLS
Vokèra Ireland
West Court, Callan
Co Kilkenny
T 056 7755055
F 056 7755060
[email protected]
www.vokera.ie
www.vokera.co.uk
General Enquiries:
T 0844 391 0999
F 0844 391 0998
Registered address:
Vokèra Ltd
Borderlake House
Unit 7 Riverside Industrial Estate
London Colney
Herts AL2 1HG
Vokèra Limited reserve the right to change
specification without prior notice.
Consumers statutory rights are not affected.
E&OE
Company Reg No: 1047779
Search Vokera Ltd
Issue 5 06/13 cm204
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
