User manual | CVSB A170

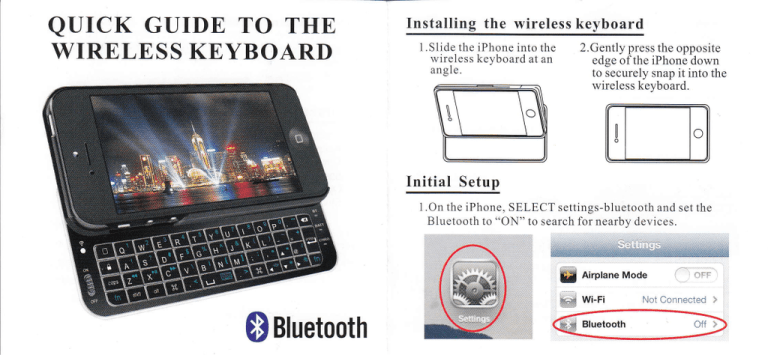

QUICK GUIDE TO THE
WIRELESS KEYBOARD
Installing the wireless keyboard
l.Slide the iPhone into the
2.Gently press the opposite
edge ofthe iPhone down
to securely snap it into the
wireless keyboard.
wireless kevboard at an
angle.
o
\
o
I
Initial
Setup
1.On the iPhone, SELECT settings-bluetooth and set the
Bluetooth to "ON" to search for nearbv devices.
Sl
Airplane
Mode
'
l1r
Not Connected
$ Bluetooth
!
4. " Bluetooth Keyboard" will appear
on your iPhone as one
of
the Bluetooth devices available.
Bluetooth
@
:__
2.On the wireless keyboard, slide the power switch to the
5.Select "Bluetooth Keyboard". Anotification will appear
prompting the password to pair the wireless keyboard with
your iPhone.
6.Enter the password on the wireless keyboard, then press
"enter".
"ON" position.
3.Activate the Bluetooth pairing button with a small reset
pin or tool-a blue LED light will be lit on the wireless
keyboard.
GilT[',
Bluetooth
Devices
Devices
Bluetooth
@NotPaired
Now Discoverable
,.*
Keyb... Con.e.r-q 0
Now Disooverable
Congratulations ! Your iPhone 5 is now successfully
paired with the wireless keyboard.
Getting to know your wireless keyboard
1.
6
-Wireless pairing button- Use a small needle like thing press this
key to activate search mode.
2.Power Switch - Slide the Power Switch to turn your wireless
keyboard On and Off.
3.Charging Port - Connect the wireless keyboard to any USB power
source through the included charging cable to charge the keyboard
4.Comection indicator LED-Blue LED blinking means system in
connectionpair state.
5.Battery indicator LED-green LED Blinking means the keyboard
battery electric quantity is low, please charge the keyboaid; The
LED light will turn green when it is fully charged.
6.Charge indicator LED -The LED light is red when it is charging.
Backlight description
T
Main screen/Esc
c Lock screen
rA Delete
H Command
Prev Track
j.i:
Brightness -
>tl
Playlpause
-$
Brightness +
D
fn
NextTrack
+e Backlight switch
Function
E
<<
Virtual Keyboard
fn-combination key, press FN key can input the blue characters
above on the keyboard or control the blue keys.
1.Turn on the power switch, the system to detect the hardware,
and the backlight will have flash light.
2.When connect with the iphone 5,Press the pairing button, the
backlight turn be light automatically. In the process of
connection, ifthe backlight be shutdown, can press the pairing
button turn on the backlight again.
3.After connect with iphone 5, press fn+-l;- key can turn on the
backlight; More than 1 0 seconds, without any key press of
words, the backlight be shutdown automatically.
4.Text input state, suggest using FN keys to tum on the backlight.
5.The backlight only turn on in the correctprocess of connection
with iphone 5. when the bluetooth closed or shutdown, the
keyboard will enter intelligent save electricity state the backlight
is in shutdown.
Charging the battery
charge
first time user, Please charge the keyboard for at least
hours before using it. Thereafter, charge for at least 2 hours
when the battery runs 1ow.
2.Connection Charging Cable.
1. For the
.,/
+delirp
x
+etlitrF
Quick trouble shooting tips
If the keyboard
3.The passkey is entered correctly.
4.Reboot iPhone - Hold home button and sleepbutton for 5 seconds
5.Make sure your iPhone has sufficient charge.
6.Make sure Airplane mode is turned off.
T.Battery which built-in keyboard in low power station, please
is not working with the iPhone make sure:
l.Check power switch on the wireless Keyboard
2.The Bluetooth function on the iPhone is enabled.
6
it.
Product Specifications
o Bluetooth Specification: Version 3.0
o Range of Frequency: 2.4GHz Spectrum
O Operating Voltage: 3.7Vdc ( Li-ion )
t Standby Current:
1mA
o Operation Current:
< 2.5 mA
o Sleep Current:
< 0.25 mA
This device conplies with Part 15 of the FCC Rules:
0peration is subject to the folloving two conditions:
1. This device nay not cause harmful interference and
2. This device must accept any interference that is received,
including any interference that nay cause undesired operation
