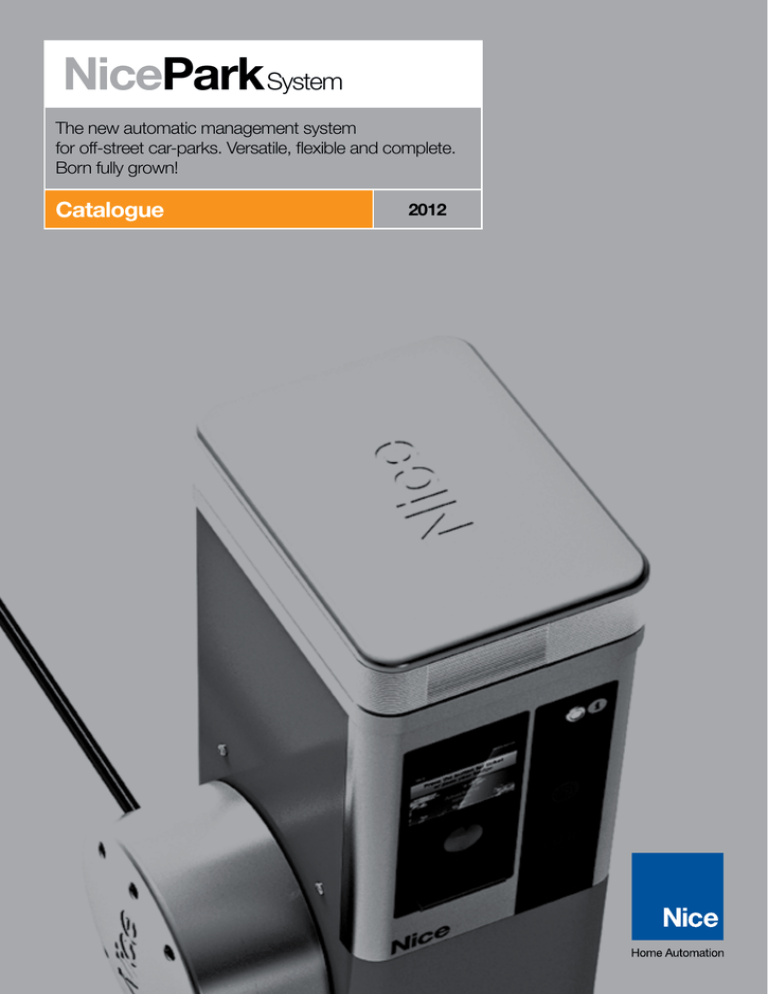

The new automatic management system for off-street car-parks. Versatile, flexible and complete.

Born fully grown!

Catalogue

2012

NicePark System

Welcome to the NicePark ......................... 04|11

Access terminals ....................................... 12|16

Payment terminals ..................................... 17|19

Software ..................................................... 20|23

Accessories ............................................... 24|25

Road barriers ............................................. 26|37

Confi gurations ........................................... 38|51

Connections ............................................... 52|53

Compatibility ................................................... 52

From today, the Nice world includes a Car Park System.

Born fully grown!

Complete

Designed to manage the varying requirements needed today for the professional management of: urban car parks, the entrances to exhibition centres, retail malls, hospitals, amusement parks, airports and stations, and every kind of community, whether small, medium or large.

The system offers access control, user identifi cation, and integration with payment systems with automatic or manual payment points.

Versatile

Versatile, fl exible customisation, thanks to the system’s components, designed to be modular and scalable to suit all requirements.

Innovative

State-of-the-art software: really easy to install, use and program.

It allows safe, user-friendly, quick operation.

User-friendly, stylish, safe.

Integrated solutions for the professional.

Nice opens out new horizons to make life easier.

Nice

Total

Control

Integrated solutions for the home.

User-friendly, stylish, safe.

Nice products are popular with customers because they are easy to install and use, thanks to a product range that combines innovation and style:

1. technology for the installer

2. convenience for the user

3. simplicity for everyone

With Nice, not only gates, garage doors, awnings and roller shutters but also lighting, alarm and now car park systems are always under control.

For alarm systems For blinds and rolling shutters

For venetian blinds

For industrial doors

For gates For garage doors

For road barrier systems

For parking systems

For lighting systems

A Complete

System

Turnkey off-street car-park management solutions.

The NicePark System

terminals

Transit terminals ideal for managing car parks, access control systems, information totems and guided routes.

NicePark Cash and

NicePark Automatic Cash:

manned and automatic payment points for all payment systems, for both occasional customers and ticket holders for every type of pay-to-use car park, including multi-storey facilities.

The software

plug and play solutions, also allowing remote control

Designed for the utmost scalability.

From the standard car park management module (customer record storage, customer account recording and network distribution of data), to functions which can be added over time, for: access control, guided routes, information and advertising totems, including models with time scheduling, to equipment for remote supervision of the installation.

So many extra functions!

640x480 screen for advertising and customisation messages, with modular options which are scalable over time.

For completing

and customising every system

System management information screens; two-light (red/green)

LED access control traffi c light; intercom system for communications between the various access terminals and the operator station, from the conventional to state-of-the-art VoIP.

The barrier

specifi cally designed for parking systems

Nice range of barrier: the ideal solution for controlling vehicle transit in waiting and parking areas and on private and condominium access roads, even with heavy traffi c.

The control

accessories

Nice Opera, the innovative system for managing, programming and controlling automation systems, even from remote, simply and safely, with impressive time savings.

NicePark

System

Terminals

Convenient

Convenient door that simplifi es maintenance and consumables top-up procedures. Security lock.

Safe

Integral fl ashing light, with excellent visibility guaranteed.

Hours of darkness light

function for on-site lighting.

Built in tough aluminium to withstand vandals.

Intelligent

Arrangement for the mounting of photocells inside the internal custom-assembled compartments.

State-of-the-art

State-of-the-art car-park management thanks to integral software and user-friendly colour display, customisable with modular options scalable over time.

User-friendly compact design

Rapid, easy access to internal components.

The separate enclosures for electronics and mechanics protect internal parts from potential hazards.

Stainless steel case with cataphoresis painted fi nish.

The innovative Combi Terminal version combines the convenience of the terminal with the power and speed of Nice barrier arms in a combined solution that cuts costs, including for installation.

Standard Terminal

Steel housing with protective cataphoresis treatment and paint fi nish

Painted aluminium lid with integral fl ashing light

Standard Terminal, the Nice system for performing conventional vehicle access management system functions.

Ideal for use in car-parks, the vehicle access control systems of companies and organisations of various kinds, exhibition centre entrances, camp-sites, camper van parks, sports facilities, information totems, pedestrian and vehicle guided routes and more besides.

In the basic version, the terminal is equipped

with an information display for messages for users, internal temperature control system, embedded PC.

The large side door provides easy access for both installation and maintenance, and if occasional users have to be managed, loading with “consumables” is very quick and easy.

The optional high-effi ciency LED indicator can be integrated in the lid of the steel

structure and can just provide lighting for the location. If needed, it can serve also as an access-way traffi c light, saving installation time and hardware costs.

The basic system is equipped for the installation of conventional intercom and VoIP systems.

A series of hardware and software options are available for user identifi cation, the management of advertising, integration with supervision systems, exhibition management systems, ...

Code Description

PRKTSB

Basic Standard Terminal. Vehicle access control system for installation in both entrance and exit terminal confi gurations

PRKTSB001

Basic Standard Terminal (PRKTSB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXPRN Basic hardware model for issuing barcode tickets

to users by means of thermal printer

- PRKATXMA2 Front panel for installation of additional printer module

on basic terminals

PRKTSB002

Basic Standard Terminal (PRKTSB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXIMG Basic hardware module for user recognition by means

of barcode reader

- PRKATXMA3 Front panel for installation of additional optical reader

module on basic terminals

* For purchase only in combination with the “Hardware identifi cation options” and “Metal structural options”. See page 25.

Technical specifi cations

Code

Electrical data

Power supply (Vac 50/60 Hz)

Absorption (A)

Power (W)

Dimensional and general data

Protection level (IP)

Working temp. ( °C Min/Max)

Dimensions (mm)

Weight (kg)

12 NicePark System

PRKTSB

220 V

1.5

500

43

-20 ÷ +50

400x300x1450 h

40

Display 640x480

Ticket request button

Ticket issue printer

Help button

Fitting for intercom

RFID reader

(various identifi cation systems can be integrated)

Two-dimensional optical scanner

More info

Display

High-luminosity LCD 640x480, 5.7”.

Central control station interfaces:

The system is equipped with:

• 3 RS232 interfaces

(one of which is 1 RS485)

• 1 LVDS video interface

• 1 mouse and keyboard input

• 2 USB ports

• 1 RJ45 network connector 10/100 Mbit

• 1 audio input for microphone

and 1 loudspeaker output.

• 4 entrance control units

• 4 exit control units

• 1 T4 Bus interface

User Management

• occasional users with charging

per hour, by entrances/exits,

on all-inclusive charge basis.

• ticket-holders of all types:

for set time periods (monthly, weekly,

daily)... prepaid by time, by value

and by entrances/exits.

Data storage

Local relational database replicated on central server and on remote backup server, if installed.

Operating modes

Able to operate in three different modes:

• completely stand-alone (Local-Only)

• only connected to management

• automatic (Mixed Mode)

with connection to server:

with lower-level operation

still provided if connection fails.

Hardware Prefi ttings

Equipped to manage:

• RFID 125 kHz

• Mifare R&W RFID

• number plate reading systems

• 1D barcode

• 2D barcode

• etc.

Software capabilities

Equipped to manage:

• advertising systems

• VoIP management for service

to car-park customers

• local and remote supervision systems

• etc.

NicePark System 13

Combi Terminal

Steel housing with protective cataphoresis treatment and paint fi nish

Code Description

PRKTCB*

Basic Combi Terminal. Vehicle access control system integrated with

Nice road barrier system, ideal for installation in both input and output terminal confi gurations where access points are alongside each other

PRKTCB001

Basic Combi Terminal (PRKTCB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXPRN Basic hardware model for issuing barcode tickets

to users by means of thermal printer

- PRKATXMA2 Front panel for installation of additional printer module

on basic terminals

PRKTCB002

Basic Combi Terminal (PRKTCB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXIMG Basic hardware module for user recognition

by means of barcode reader

- PRKATXMA3 Front panel for installation of additional optical reader

module on basic terminals

* For purchase only in combination with the “Hardware identifi cation options” and “Metal structural options”. See page 25.

Technical specifi cations

Code

Electrical data

Power supply (Vac 50/60 Hz)

Absorption (A)

Power (W)

Dimensional and general data

Protection level (IP)

Working temp. ( °C Min/Max)

Dimensions (mm)

Bar Length (m)

Weight (kg)

Performance data

Opening time (s)

Torque (Nm)

Work cycle (cycles/hour)

PRKTCB

220 V

2,8

650

43

-20 ÷ +50

400x300x1450 h

3

40

1.5 - 4

100

500

14 NicePark System

Painted aluminium lid with integral fl ashing light

Tamper-proof function: provision for integrated assembly of photocells

Combi Terminal, the most intelligent solution: installation times and number of fi xing points halved.

As well as all the functions in the standard terminal, this model also incorporates the Nice road barrier system functions to minimise installation and maintenance times.

The ideal solution for installations where the entrance and exit points of the area for control are alongside each other; in this situation, all this product’s capabilities are used to the full, delivering complete management of the car-park’s entrance and exit points with just two terminals with integral road barrier system.

In the basic version, the terminal

is equipped with an information display for messages for users, internal temperature control system, embedded PC

.

The large side door provides easy access for both installation and maintenance, and if occasional users have to be managed, loading with “consumables” is very quick and easy.

The basic system is equipped for the installation of conventional intercom and VoIP systems.

A series of hardware and software options are available for user identifi cation, the management of advertising, integration with supervision systems, exhibition management systems, ...

The optional high-effi ciency LED indicator can be integrated in the lid of the steel

structure and can just provide lighting for the location. If needed, it can serve also as an access-way traffi c light, saving installation time and hardware costs.

Ideal for use in car-parks, the vehicle access control systems of companies and organisations of various kinds, exhibition centre entrances, camp-sites, camper van parks, sports facilities, information totems, pedestrian and vehicle guided routes and more besides.

Display 640x480

Ticket request button

Ticket issue printer

Help button

Fitting for intercom

RFID reader

(various identifi cation systems can be integrated)

Two-dimensional optical scanner

More info

Display

High-luminosity LCD 640x480, 5.7”.

Central control station interfaces:

The system is equipped with:

• 3 RS232 interfaces

(one of which is 1 RS485)

• 1 LVDS video interface

• 1 mouse and keyboard input

• 2 USB ports

• 1 RJ45 network connector 10/100 Mbit

• 1 audio input for microphone

and 1 loudspeaker output.

• 4 entrance control units

• 4 exit control units

• 1 T4 Bus interface

User Management

• occasional users with charging

per hour, by entrances/exits,

on all-inclusive charge basis.

• ticket-holders of all types:

for set time periods (monthly, weekly,

daily)... prepaid by time, by value

and by entrances/exits.

Data storage

Local relational database replicated on central server and on remote backup server, if installed.

Operating modes

Able to operate in three different modes:

• completely stand-alone (Local-Only)

• only connected to management

• automatic (Mixed Mode)

with connection to server:

with lower-level operation

still provided if connection fails.

Hardware Prefi ttings

Equipped to manage:

• RFID 125 kHz

• Mifare R&W RFID

• number plate reading systems

• 1D barcode

• 2D barcode

• etc.

Software capabilities

Equipped to manage:

• advertising systems

• VoIP management for service

to car-park customers

• local and remote supervision systems

• etc.

NicePark System 15

Number plate recognition system

Ideal to manage individual vehicle accesses allowing a better and higher access control.

The Nice number plate recognition system consists of a network camera with on-board OCR.

Code

PRKATXLPR

Description

Number plate recognition module

16 NicePark System

Manual Cash Kit

Complete manned manual payment point system for the management of both occasional users and ticket holders.

A perfect control system!

The Manual Cash Kit is not just an ordinary manual car-park payment point; it is a real car-park control and management system.

So many functions!

For season ticket holder: management of season ticket renewal and expiry is provided, including prepaid charge cards.

For occasional customer: the operator can decide the mode of payment and the type of receipt to be printed.

In the event of loss of ticket, the “lost ticket” function can be used to print a valid exit ticket for a fi xed charge.

Control Function: with the System Monitor software module not only covering payment for use of the car-park but also monitoring of its correct operation.

Code

PRKCMKIT

Description

Manned Manual Payment Point Kit for car-park payment management

Manual Payment Point Kit Composition

Code

PRKCMPC

PRKACMSW

PRKADISP

PRKACMPRN

Description

Server complete with LCD screen and multiple serial port card

10/100 Mbit switch (at least 8 ports)

Single-sided courtesy display for customers

Desktop receipt printer for Manual Payment Point

PRKACMRFIDRO

“RFiD Read Only” reader for Manual Payment Point

PRKACMIMG

PRKSWMC

Basic hardware module for user recognition by means of desktop barcode reader

Manual Cash Software

PRKSWCM

PRKSWSM

PRKSWDB

Customer Manager Software

System Monitor Software

Database Server Software

NicePark System 17

Automatic Cash

The NicePark System is completed by the automatic payment point, ideal for free-standing or wallmounted installation.

With a tamper-proof structure, it provides basic equipment comprising a control PC, touch screen information display, receipt printer, 125 kHz RFID reader, two-dimensional banknote acceptor and barcode reader and coin acceptor and change unit.

All items are thermostatically controlled.

In addition to these standard devices, the system can be equipped with the components necessary for user identifi cation

(13.56 MHz RFID reader,…) and any other additional payment systems required such as a credit card reader.

The automatic payment point can be customised with the advertising module which allows the sale of the video space available and the printing of promotional and information tickets (if required) using the receipt printer.

Code

PRKCAB

PRKACACCR

PRKACASFF

Description

Automatic Payment Point equipped with coin and banknote acceptor system, Read Only two-dimensional barcode and

RFID card reader, LCD information display, and thermostatically controlled tamper-proof structure

Credit/debit card reader

Ground anchoring system

Technical specifi cations

Code

Electrical data

Power supply (Vac 50/60 Hz)

Dimensional and general data

Protection level (IP)

Working temp. ( °C Min/Max)

Dimensions (mm)

Weight (kg)

18 NicePark System

PRKCAB

220 V

43

-20 ÷ +50

650x400x1250

100

More info

Operating System

LINUX operating system.

Language

Ready for use for:

· Italian,

· English,

· French,

· German,

· Spanish

Provision for any other language with dynamic selection.

Currency

Multiple currency system.

Ready for use for the Euro.

Provision for the US dollar, Sterling,…

Database

Management and logging of all information about users and the transactions performed on the local and/or remote database.

Updates

Software can be updated from remote with no need for an installer on the site.

Logs

Automatic or manual dispatch of logs diversifi ed by categories:

· Accounts (logs relating to cash

amounts

and customer records; accounting

and administrative records...)

· Hardware Maintenance (dispatch

of log of alarms and malfunctions...)

· Software Maintenance (dispatch

of logs relating to network connections,

system backups and restores,

software malfunctions in general,..).

Security

The automatic identifi cation through the personal badge allows an immediate access to the accounting section.

NicePark System 19

Software

The heart is the software

Designed for the utmost scalability.

From the standard car park management module (customer record storage, customer account recording and network distribution of data) to functions which can be added over time, for access control, guided routes, information and advertising totems, including models with time scheduling, to equipment for remote supervision of the installation.

State-of-the-art software designed to be installed even by those with little knowledge of IT systems, confi gured using graphics in easy drag&drop mode: “the Nice for you Web”.

Can be installed on Unix/Linux and Microsoft

Windows operating systems.

Multilingual and multicurrency.

Database Server

Stores season ticket holders’ details, user transactions and payments.

Code PRKSWDB

20 NicePark System

Applications Payment Point / Control Station

Customer Manager manages users’ details.

Code PRKSWCM

Manual Cash manages cash transactions for occasional users and season ticket holders.

Code PRKSWMC

System Monitor manages alarms from the various system components

(automation opening and closing commands, etc…).

Code PRKSWSM

NicePark System 21

Software

Confi gurator

Tool for confi guring the individual components of the car park system and for creating rules for the management of vehicle fl ows, price lists and the various operating modes.

- Excellent aid to drawing up quotations and specifi cations

- User-friendly interface, also has “drag&drop” function

- Confi guration of all user enabling, database backup etc. parameters

- Confi guration of graphic mimic display for car park supervision.

Code PRKSWCF

Allows confi guration of one or more price lists for individual groups of users with fi xed, proportional or hybrid tariff rates.

Supervisor

Mimic panel for management of car park systems, and access control systems in general.

- Also allows management of more than one system

- Can also be equipped with client VoIP for communication

with the various access terminals and automatic

and manual payment points

- Screen self-adapts to suit the size of any display.

Code PRKSWSV

Local and/or remote management of the same system, even simultaneously.

Advertising Editor

Graphic mimic display for creation of the advertising schedules for the various terminals and the car park payment points.

- Allows loading and elaboration of images

- Allows schedules to be created on a time basis,

by number of requests, for user groups ...

- Schedules can be exported for dispatch to the individual

car park system.

Code PRKSWAE

Shared advertising schedules can be created for access point terminals and automatic and manual payment points.

22 NicePark System

Basic level plant confi guration mode allowing generation of the list of materials needed for realisation of the car park.

Advanced level plant confi guration mode allowing full exploitation of all NicePark System features.

Graphic and text modes for clearer display of any malfunctions and/or intuitive use of the system’s countless functional features.

Can also be used in “expanded graphic” mode, even more user-friendly when controlling particularly complex systems.

Management of advertising schedules on time basis, by events or in groups, with differentiation for each individual terminal or payment point within the system.

Specifi c display resolutions can be set to allow management of any advertising screens in the car park, independently of the access point terminals or payment points.

NicePark System 23

Accessories for completing every system

Code Description

Accessories

For Standard Terminal / Combi Terminal

PRKAXXTLL

LED traffi c light

PRKAXXBP

PRKAXXBPRK

LP1

Information screen with 1 three-fi gure vacancy counter and full/vacancies sign

Numerical programming keyboard for information screen

Single-channel metal mass detector 24 V power supply

LP2

Two-channel metal mass detector 24 V power supply

For Standard Terminal / Combi Terminal / Automatic Cash

PRKAICM

Two-way outdoor intercom

Consumables

For Standard Terminal / Combi Terminal / Automatic Cash

PRKAPR

MOCARD

Thermal paper for ticket issuer

Pack of 10 RFID cards 125 Khz

MiFCARD

Pack of 10 MiFare Read & Write RFID cards

24 NicePark System

Code Description

Hardware Identifi cation Options

For Standard Terminal / Combi Terminal / Automatic Cash

PRKATXIMG

Basic hardware module for user recognition by means of barcode reader

PRKATXRFIDRO

Basic hardware module for user recognition by means of Read Only RFID technology, 125 Khz

PRKATXRFIDRW

Basic hardware module for user recognition by means of MiFare Read & Write RFID technology, 13.56 Mhz

NB: for purchase only in combination with basic Terminal or Automatic Cash.

For Standard Terminal / Combi Terminal

PRKATXPRN*

Basic hardware model for issuing barcode tickets to users by means of thermal printer

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

* for purchase only in combination with basic Terminal or Automatic Cash.

For Customer Management

PRKACMPRN

Basic hardware model for issuing non-fi scal receipt and/or ticket with barcode by means of desktop thermal printer

PRKACMIMG

PRKACMRFIDRO

PRKACMRFIDRW

Basic hardware module for user recognition by means of desktop barcode reader

Basic hardware module for user recognition by means of desktop Read Only RFID technology, 125 Khz

Basic hardware module for user recognition by means of desktop

MiFare Read & Write RFID technology, 13.56 Mhz

Hardware Options

For Customer Management

PRKADISP

Courtesy display for customers

PRKADRA

PRKCMPC

Metal cash box with security key

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

For Automatic Cash

PRKACACCR

PRKACASFF

Credit/debit card reader

Ground anchoring system

Metal Structural Options

For Standard Terminal / Combi Terminal

PRKATXMA1

Front panel for installation of RFID module only on basic terminals

PRKATXMA2

PRKATXMA3

Front panel for installation of additional printer module on basic terminals

Front panel for installation of additional optical reader module on basic terminals

PRKATXMA4

Front panel for installation of additional printer and optical reader module on basic terminals

NB: for purchase only in combination with basic Terminal.

Software Options

For Standard Terminal / Combi Terminal

PRKSWTM

Additional Client Software for management of Access Control Logic

PRKSWCADV

Client Software for management of “Advertising Scheduler”

NicePark System 25

Safe

Integrable fl ashing or traffi c light.

Nightlight function for on-site lighting. Vandal-proof thanks to the tough aluminium case.

Nice

Road

Barrier

High performing, reliable and durable.

Elegant, streamlined design.

Carefully selected materials.

Greater convenience, safety at all times.

Solemyo System

Solemyo solar power kit for the automation of gates, garage doors and barriers even a long way from electricity supplies, with no need for expensive, unsightly trench digging.

Opera System

For user-friendly, safe control, programming and monitoring of automation systems, with impressive time savings.

BlueBUS

The BlueBUS system allows connection of all system devices using just two wires. Quick installation and easy updating at any time!

Elliptical section bar with high resistance to gusts of wind.

Led signal lights.

User-friendly compact design

Quick and easy access to internal components with separate enclosures for electronics and mechanics to protect from potential risks.

The control unit, located in the upper part of the barrier body, can be reached by simple removing the cover.

Intelligent

Photocells can be fi tted in the specially designed seats in the inner part of the barrier body. Integrated loop detector management.

Power and reliability

New high resistance balancing springs guarantee up to 1,000,000 operations.

Powerful and fast 24 Vdc gearmotor.

Maximum protection: steel housing with protective cataphoresis treatment and paint fi nish, also available in stainless steel version.

L/M/S Bar

Barrier gate operators for all sizes

New range of barrier gate operators to control road access to car parks, private and condominial transit areas, including high traffi c ones.

Powerful and fast: 5 models in 3 standard versions, up to

7 modular bars from 3 to 9 m.

28 NicePark System

S/M/L Bar

Guide to the selection and composition of bars and accessories

4 m

3 m

4 m

5 m

3 m

3 m

5 m

3 m

4 m

3 m

4 m

4 m

4 m

4 m

5 m

SBAR

- With specifi c 4 m bar

Provision for:

protective rubber trim

and indicator lights

M3BAR

- With 3 m bar

Provision for:

protective rubber trim

and indicator lights

M5BAR

- With 4 m bar

Provision for:

protective rubber trim,

indicator lights,

rack, mobile stand

- With 5 m bar

Provision for:

protective rubber trim

and indicator lights

M7BAR

- With 5 m bar

Provision for:

protective rubber trim, indicator lights,

rack, mobile stand

- With bar up to 6 m (3+3 m)*

Provision for:

protective rubber trim, indicator lights,

rack, mobile stand

- With bar up to 7 m (3+4 m)*

Provision for:

protective rubber trim

and indicator lights

*Use XBA9 joint to assemble bars

LBAR

- With bar of 7 m (3+4 m)*

Provision for:

protective rubber trim, indicator lights,

rack, mobile stand

- With bar of 8 m (4+4 m)*

Provision for:

protective rubber trim, indicator lights,

rack, mobile stand

- With bar of 9 m (4+5 m)*

Provision for:

protective rubber trim

and indicator lights

*Use XBA9 joint to assemble bars

NicePark System 29

L-Bar

Paint-fi nished aluminium for bar support and cover, with optional fl ashing light

Nice key release

Tamper-proof function: provision for integrated assembly of photocells

For bars up to 9 m, irreversible 230 Vac, 24 Vdc motor, with foundation plate:

Code Description

LBAR

LBARI

With steel case with protective cataphoresis treatment and paint fi nish

With stainless steel case

Steel case with protective cataphoresis treatment and paint fi nish, or with stainless steel case

Electromechanical road barrier system for control of road access.

24 Vdc gearmotor with built-in control unit and loop detector.

Powerful and fast, for bars from 7 to 9 m.

Modular: are easily assembled using the aluminium expansion joint.

Possibility for intelligent control of two opposing automations thanks to “master/slave” function.

Strength and reliability: robust structure in steel, new high strength balancing springs guaranteed up to 1,000,000 opening and closing operations and elliptical section bar with high wind-gust resistance.

Optional fl ashing or traffi c light can be integrated in cover.

Encoder movement control and electromechanical limit switches.

More comfort and safety in programming

and maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks.

Rapid and easy access to the control unit located in the upper section of the barrier body.

Simple fi xture of the completely concealed photocells onto the specially designed seats on the barrier body.

More safety and reliability:

obstacle detection and monitoring of motor absorption during automation movement.

Automatic fault diagnostics during operation with consequent signalling of fault type through specifi c fl ash sequences.

Provision for connection of latest generation optical and resistive sensitive edges

(with 8.2 KOhm resistance).

Energy saving: the system sets to standby when not in use to save consumption.

No blackouts: emergency backup power with the optional batteries housed inside the case.

Release from side with metal key,

can be installed on either side.

Technical specifi cations

Code

Electrical data

Power supply (Vac 50/60 Hz)

Power supply (Vdc)

Absorption (A)

Power (W)

Performance data

Speed (s)

Torque (Nm)

Work cycle (cycles/hour)

Dimensional and general data

Protection level (IP)

Working temp. ( °C Min/Max)

Dimensions (mm)

Weight (kg)

LBAR

230

24

1.3

160

8 ÷ 12

400

150

44

-20 ÷ +50

500x299x1215 h

98

LBARI

30 NicePark System

10

1

5

8

4

6

7

2

Accessories

Code

XBA3

PS224

XBA15

XBA14

XBA5

XBA9

XBA13

WA10

XBA18

XBA8

XBA7

WA13

XBA17

WA12

WA11

Description

Spare control unit

24 Vdc buffer battery

White paint-fi nished aluminium bar 69x92x3150 mm

White paint-fi nished aluminium bar 69x92x4150 mm

White paint-fi nished aluminium bar 69x92x5150 mm

Expansion joint

Rubber impact protection strip. Length 1 m

Red adhesive refl ector strips

Indicator lights for click fi xture on upper or lower side of bar. Length 8 m

Integrable traffi c light

Integrable fl ashing light

Aluminium rack up to 2 m

Anchorage base with clamps, for LBAR

Mobile stand for bars -

New fully reinforced version

Adjustable stand for bars

3

9

1. L-Bar 2. Transmitter 3. Photocells mounted on posts 4. Photocells 5. Digital or key switches

6. Key-operated selector or digital on post

7. Loop detector 8. SYP* solar panel 9. PSY24* battery box 10. O-View* multifunction display.

*Optional connection to Solemyo and Opera systems.

Pc/pack

9

24

1

1

1

1

1

1

1

1

1

1

1

1

1

NicePark System 31

M-Bar

Paint-fi nished aluminium for bar support and cover, with optional fl ashing light

Nice key release

Tamper-proof function: provision for integrated assembly of photocells

With bar up to 3 m, irreversible 230 Vac, 24 Vdc motor, with foundation plate:

Code Description

M3BAR

M3BARI

With steel case with protective cataphoresis treatment and paint fi nish

With stainless steel case

With bar up to 4 or 5 m, irreversible 230 Vac, 24 Vdc motor, with foundation plate:

Code Description

M5BAR

M5BARI

With steel case with protective cataphoresis treatment and paint fi nish

With stainless steel case

With bar up to 5, 6 or 7 m, irreversible 230 Vac, 24 Vdc motor, with foundation plate:

Code Description

M7BAR

M7BARI

With steel case with protective cataphoresis treatment and paint fi nish

With stainless steel case

Steel case with protective cataphoresis treatment and paint fi nish, or with stainless steel case

Electromechanical road barrier system for control of road access.

24 Vdc gearmotor with built-in control unit and loop detector.

For bars up from 3 to 7 m.

Modular: are easily assembled using the aluminium expansion joint.

Possibility for intelligent control of two opposing automations thanks to “master/slave” function.

Strength and reliability: robust structure in steel, new high strength balancing springs guaranteed up to 1,000,000 opening and closing operations and elliptical section bar with high wind-gust resistance.

Optional fl ashing or traffi c light can be integrated in cover.

Encoder movement control and electromechanical limit switches.

More comfort and safety in programming

and maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks.

Rapid and easy access to the control unit located in the upper section of the barrier body.

Simple fi xture of the completely concealed photocells onto the specially designed seats on the barrier body.

More safety and reliability:

obstacle detection and monitoring of motor absorption during automation movement.

Automatic fault diagnostics during operation with consequent signalling of fault type through specifi c fl ash sequences.

Provision for connection of latest generation optical and resistive sensitive edges

(with 8.2 KOhm resistance).

Energy saving: the system sets to standby when not in use to save consumption.

No blackouts: emergency backup power with the optional batteries housed inside the case.

Release from side with metal key,

can be installed on either side.

Technical specifi cations

Code

Electrical data

Power supply (Vac 50/60 Hz)

Power supply (Vdc)

Absorption (A)

Power (W)

Performance data

Speed (s)

Torque (Nm)

Work cycle (cycles/hour)

Dimensional and general data

Protection level (IP)

Working temp. ( °C Min/Max)

Dimensions (mm)

Peso (kg)

32 NicePark System

M3BAR M3BARI M5BAR M5BARI M7BAR M7BARI

230

24

1.1

110

1.3

150

1.5 ÷ 4

100

500

3 ÷ 6

200

350

80

44

-20 ÷ +50

400x299x1215 h

1.1

110

6 ÷ 10

300

200

85

10

1

5

4

2

3

6

7

Accessories for M3BAR, M5BAR, M7BAR

Code

XBA3

PS224

XBA13

WA10

XBA8

XBA7

XBA16

WA11

Description

Spare control unit

24 Vdc buffer battery

Rubber impact protection strip. Length 1 m

Red adhesive refl ector strips

Integrable traffi c light

Integrable fl ashing light

Anchorage base with clamps, for MBAR

Adjustable stand for bars

Accessories for M3BAR

Code

XBA15

XBA4

XBA10

XBA11

Description

White paint-fi nished aluminium bar 69x92x3150 mm

Indicator lights for click fi xture on upper or lower side of bar. Length 4 m

Pivoting connection for bars up to 4 m

Joint for bars XBA15

Accessories for M5BAR

Code

XBA15

XBA14

XBA5

XBA9

XBA6

XBA18

WA12

WA13

Code

XBA14

XBA5

XBA4

XBA6

XBA10

XBA11

WA12

WA13

Description

White paint-fi nished aluminium bar 69x92x4150 mm

White paint-fi nished aluminium bar 69x92x5150 mm

Indicator lights for click fi xture on upper or lower side of bar. Length 4 m

Indicator lights for click fi xture on upper or lower side of bar. Length 6 m

Pivoting connection for bars up to 4 m

Joint for bars XBA14

Mobile stand for bars - New fully reinforced version

Aluminium rack up to 2 m

Accessories for M7BAR

Description

White paint-fi nished aluminium bar 69x92x3150 mm

White paint-fi nished aluminium bar 69x92x4150 mm

White paint-fi nished aluminium bar 69x92x5150 mm

Expansion joint

Indicator lights for click fi xture on upper or lower side of bar. Length 6 m

Indicator lights for click fi xture on upper or lower side of bar. Length 8 m

Mobile stand for bars - New fully reinforced version

Aluminium rack up to 2 m

9

8

1. M-Bar 2. Transmitter 3. Photocells mounted on posts 4. Photocells 5. Digital or key switches

6. Key-operated selector or digital on post

7. Loop detector 8. SYP* solar panel 9. PSY24* battery box 10. O-View* multifunction display.

*Optional connection to Solemyo and Opera systems.

Pc/pack

1

1

1

1

Pc/pack

1

1

1

1

1

1

1

1

Pc/pack

1

1

9

24

1

1

1

1

Pc/pack

1

1

1

1

1

1

1

1

NicePark System 33

S-Bar

Paint-fi nished aluminium for bar support and cover, with optional fl ashing light

Nice key release

Tamper-proof function: provision for integrated assembly of photocells

With bar up to 4 m, irreversible 230 Vac, 24 Vdc motor, with foundation plate:

Code Description

SBAR

SBARI

With steel case with protective cataphoresis treatment and paint fi nish

With stainless steel case

Steel case with protective cataphoresis treatment and paint fi nish, or with stainless steel case

Electromechanical road barrier system for control of road access.

24 Vdc gearmotor with built-in control unit.

For bar up to 4 m.

Strength and reliability: robust structure in steel, new high strength balancing springs guaranteed up to 1,000,000 opening and closing operations and elliptical section bar with high wind-gust resistance.

Optional fl ashing or traffi c light can be integrated in cover.

More comfort and safety in programming

and maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks.

Rapid and easy access to the control unit located in the upper section of the barrier body.

Simple fi xture of the completely concealed photocells onto the specially designed seats on the barrier body.

More safety and reliability:

obstacle detection and monitoring of motor absorption during automation movement.

Automatic fault diagnostics during operation with consequent signalling of fault type through specifi c fl ash sequences.

Provision for connection of latest generation optical and resistive sensitive edges

(with 8.2 KOhm resistance).

Energy saving: the system sets to standby when not in use to save consumption.

No blackouts: emergency backup power with the optional batteries housed inside the case.

Release from side with Nice triangular key,

can be installed on either side.

Technical specifi cations

Code

Electrical data

Power supply (Vac 50/60 Hz)

Power supply (Vdc)

Absorption (A)

Power (W)

Performance data

Speed (s)

Torque (Nm)

Work cycle (cycles/hour)

Dimensional and general data

Protection level (IP)

Working temp. ( °C Min/Max)

Dimensions (mm)

Peso (kg)

34 NicePark System

SBAR

230

24

1

300

<4

100

100

44

-20 ÷ +50

330x180x1180 h

46

SBARI

5

4

2

9

1

3

8

7

6

Accessories

Code

XBA20

PS124

XBA19

XBA13

WA10

SIA1

XBA7

XBA4

WA11

Description

Spare control unit for SBAR

24 V battery with integrated battery charger

White paint-fi nished aluminium bar 45x58x4000 mm

Rubber impact protection strip. Length 1 m

Red adhesive refl ector strips

Anchorage base with clamps

Integrable fl ashing light

Indicator lights for click fi xture on upper or lower side of bar. Length 4 m

Adjustable stand for bars

1. S-Bar 2. Transmitter 3. Photocells mounted on posts 4. Photocells 5. Digital or key switches

6. Key-operated selector or digital on post

7. SYP* solar panel 8. PSY24* battery box

9. O-View* multifunction display.

*Optional connection to Solemyo and Opera systems.

Pc/pack

1

1

1

1

9

1

1

24

1

NicePark System 35

Opera Control, advanced management of automation systems also at a distance.

The innovative Opera system enables the installer to manage, program and control automation systems, also remotely, simply and safely, with signifi cant savings in time.

Nice Opera simplifi es the installer’s work, making for easier programming, and enabling access to all control panel parameters to adapt the system to all requirements.

No specifi c procedures needed for each product: single programming mode with intuitive menus, with no need to consult instructions.

Software

“O-View Software Suite”

OVBT

36 NicePark System

Software

“O-Box Software Suite”

O-Box B

O-Box (USB)

OVBTGSM

+ GSM

One

Transmitters

One

Receivers

O-Box connection interface which, thanks to the “O-Box Software Suite”, enables the confi guration and programming of all Nice control devices, from the PC or PDA.

Constantly effi cient assistance for all customers:

Simplifi es system programming by means of the O-View multifunction display which when connected directly to the control panels compatible with the Opera system via BUS T4, enables full access to the system functions, for practical, rapid and advanced programming.

BUS T4 is the innovative communication protocol that enables you to create extensive networks of compatible automation systems, managing them from a single point via O-View.

Device management can be protected by two password levels.

By interfacing the system with the PC, you can control a complex automation system such as those found in densely frequented buildings (hospitals, hotels, companies, etc.).

O-View, multifunction display

Unit for control, programming and diagnostics for devices equipped with BUS T4 connection, on site or remotely via GPRS thanks to the connection with your PDA,

Smartphone or PC.

Gates

Garage doors

Barrier gates

Opera

<<< BUS T4

OX4T universal

4-channel receiver

with built-in transmitter.

For remote control of any automation, irrigation and lighting systems or other electrical circuits.

Nice Motors not designed for

Rolling shutters Garage doors

Gates

Barrier gates

Lighting systems Irrigation systems

NicePark System 37

38 NicePark System

Confi gurations

Compatibility

Connections

NicePark System 39

Systems for Season Ticket Holders

Standard Terminal

M3BAR

Standard Terminal

Optional automatic payment point

Manned payment point

M3BAR

Standard Terminal

Code Description

Entrance Terminals

PRKTSB

PRKATXMA1

PRKATXRFIDRO

Basic Standard Terminal. Vehicle access control system for installation in both entrance and exit terminal confi gurations

Front panel for installation of RFID module only on basic terminals

Basic hardware module for user recognition by means of Read Only RFID technology, 125 kHz

Exit Terminals

PRKTSB

PRKATXMA1

PRKATXRFIDRO

Basic Standard Terminal. Vehicle access control system for installation in both entrance and exit terminal confi gurations

Front panel for installation of RFID module only on basic terminals

Basic hardware module for user recognition by means of Read Only RFID technology, 125 kHz

Server / Operator Station

PRKSWDB

PRKCMPC

PRKATXRFIDRO

PRKSWCM

PRKACMSW

Database Server Software

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

Basic hardware module for user recognition by means of desktop Read Only RFID technology, 125 Khz

“Customer Manager” Software

10/100 Mbit switch (at least 8 ports)

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

Consumables

MOCARD

PRKAPR

Pack of 10 RFID cards 125 Khz

Thermal paper for ticket issuer

40 NicePark System

1

1

1

1

1

1

1

1

Q.ty

Opt.

1

1

1

2

1 •

1 •

Systems for Season Ticket Holders

Combi Terminal

Manned payment point

Optional automatic payment point

Combi Terminal

Combi Terminal

Code Description

Entrance Terminals

PRKTCB

PRKATXMA1

PRKATXRFIDRO

Basic Combi Terminal. Vehicle access control system integrated with Nice road barrier system, ideal for installation in both input and output terminal confi gurations where access points are alongside each other

Front panel for installation of RFID module only on basic terminals

Basic hardware module for user recognition by means of Read Only RFID technology, 125 kHz

Exit Terminals

PRKTCB

PRKATXMA1

PRKATXRFIDRO

Basic Combi Terminal. Vehicle access control system integrated with Nice road barrier system, ideal for installation in both input and output terminal confi gurations where access points are alongside each other

Front panel for installation of RFID module only on basic terminals

Basic hardware module for user recognition by means of Read Only RFID technology, 125 kHz

Server / Operator Station

PRKSWDB

PRKCMPC

PRKATXRFIDRO

PRKSWCM

PRKACMSW

Database Server Software

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

Basic hardware module for user recognition by means of desktop Read Only RFID technology, 125 Khz

“Customer Manager” Software

10/100 Mbit switch (at least 8 ports)

Consumables

MOCARD

Pack of 10 RFID cards 125 Khz

PRKAPR

Thermal paper for ticket issuer

1

1

1

1

1

1

1

1

Q.ty

Opt.

1

1

1

1 •

1 •

NicePark System 41

Systems for Season Ticket Holders

Number plate recognition

M3BAR

CCTV

Optional automatic payment point

Manned payment point

M3BAR

CCTV

Code Description

Entrance Terminals

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

Exit Terminals

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

Server / Operator Station

PRKSWDB

PRKCMPC

PRKSWCM

PRKSWTM

Database Server Software

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

“Customer Manager” Software

Additional Client Software for management of Access Control Logic

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

1

1

1

1

2

2

Q.ty

Opt.

1

42 NicePark System

Systems for Season Ticket Holders

Optional equipment

Code Description

Entrance Terminal Options

PRKAXXTLL

PRKAICM

PRKSWCADV

LED traffi c light

Two-way outdoor intercom

Client Software for management of “Advertising Scheduler”

Exit Terminal Options

PRKAXXTLL

PRKAICM

PRKSWCADV

LED traffi c light

Two-way outdoor intercom

Client Software for management of “Advertising Scheduler”

Server / Operator Station Options

PRKSWMC

PRKSWSM

PRKACMPRN

PRKADISP

PRKADRA

PRKSWCADV

“Manual Cash” Software

“System Monitor” Software

Basic hardware model for issuing non-fi scal receipt and/or ticket with barcode by means of desktop thermal printer

Courtesy display for customers

Metal cash box with security key

Client Software for management of “Advertising Scheduler”

Automatic Payment Point

PRKCAB

Automatic Payment Point equipped with coin and banknote acceptor system, Read Only two-dimensional barcode and RFID card reader, LCD information display, and thermostatically controlled tamper-proof structure

Automatic Payment Point Options

PRKACACCR

PRKSWCADV

PRKAICM

PRKACASFF

Credit/debit card reader

Client Software for management of “Advertising Scheduler”

Two-way outdoor intercom

Ground anchoring system

Accessories

PRKAXXBP

PRKAXXBPRK

Information screen with 1 three-fi gure vacancy counter and full/vacancies sign

Numerical programming keyboard for information screen

Q.ty

Opt.

1

1

1

1

1

1

1

1

1

1

1

1

1 •

1

1

1

1

1

1

NicePark System 43

Systems for Occasional Users and Season Ticket Holders

Standard Terminal

Manned payment point

M3BAR

Standard Terminal

Optional automatic payment point

M3BAR

Standard Terminal

Code Description

Entrance Terminals

PRKTSB001

Basic Standard Terminal (PRKTSB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXPRN Basic hardware model for issuing barcode tickets

to users by means of thermal printer

- PRKATXMA2 Front panel for installation of additional printer module

on basic terminals

Exit Terminals

PRKTSB002

Basic Standard Terminal (PRKTSB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXIMG Basic hardware module for user recognition by means

of barcode reader

- PRKATXMA3 Front panel for installation of additional optical reader

module on basic terminals

Server / Operator Station

PRKCMKIT

Manned Manual Payment Point Kit for car-park payment management

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

Consumables

MOCARD

PRKAPR

Pack of 10 RFID cards 125 Khz

Thermal paper for ticket issuer

44 NicePark System

Q.ty

Opt.

1

1

1

2

1 •

1 •

Systems for Occasional Users and Season Ticket Holders

Combi Terminal

Optional automatic payment point

Manned payment point

Combi Terminal

Code Description

Entrance Terminals

PRKTCB001

Basic Combi Terminal (PRKTCB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXPRN Basic hardware model for issuing barcode tickets

to users by means of thermal printer

- PRKATXMA2 Front panel for installation of additional printer module

on basic terminals

Exit Terminals

PRKTCB002

Basic Combi Terminal (PRKTCB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXIMG Basic hardware module for user recognition

by means of barcode reader

- PRKATXMA3 Front panel for installation of additional optical reader

module on basic terminals

Server / Operator Station

PRKCMKIT

Manned Manual Payment Point Kit for car-park payment management

Consumables

MOCARD

Pack of 10 RFID cards 125 Khz

PRKAPR

Thermal paper for ticket issuer

Combi Terminal

Q.ty

Opt.

1

1

1 •

1 •

NicePark System 45

Systems for Occasional Users and Season Ticket Holders

Number plate recognition

Manned payment point

M3BAR

CCTV

Optional automatic payment point

M3BAR

CCTV

Code Description

Entrance Terminals

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

Exit Terminals

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

Server / Operator Station

PRKSWDB

PRKCMPC

PRKACMPRN

PRKSWCM

PRKSWMC

PRKSWTM

Database Server Software

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

Basic hardware model for issuing non-fi scal receipt and/or ticket with barcode by means of desktop thermal printer (essential if the “Manual Cash” module is used for payments)

“Customer Manager” Software

“Manual Cash” Software

Additional Client Software for management of Access Control Logic

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

Q.ty

Opt.

1

1

1

1

1

2

1

1

2

Consumables

PRKAPR

Thermal paper for ticket issuer 1 •

46 NicePark System

Systems for Occasional Users and Season Ticket Holders

Optional equipment

Code Description

Entrance Terminal Options

PRKAXXTLL

PRKAICM

PRKSWCADV

LED traffi c light

Two-way outdoor intercom

Client Software for management of “Advertising Scheduler”

Exit Terminal Options

PRKAXXTLL

PRKAICM

PRKSWCADV

LED traffi c light

Two-way outdoor intercom

Client Software for management of “Advertising Scheduler”

Server / Operator Station Options

PRKSWSM

PRKSWCADV

PRKAICM

“System Monitor” Software

Client Software for management of “Advertising Scheduler”

Two-way outdoor intercom

Automatic Payment Point

PRKCAB

Automatic Payment Point equipped with coin and banknote acceptor system, Read Only two-dimensional barcode and RFID card reader, LCD information display, and thermostatically controlled tamper-proof structure

Automatic Payment Point Options

PRKACACCR

PRKSWCADV

PRKAICM

PRKACASFF

Credit/debit card reader

Client Software for management of “Advertising Scheduler”

Two-way outdoor intercom

Ground anchoring system

Accessories

PRKAXXBP

PRKAXXBPRK

Information screen with 1 three-fi gure vacancy counter and full/vacancies sign

Numerical programming keyboard for information screen

Q.ty

Opt.

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

NicePark System 47

Off-Line Systems

Standard Terminal

M3BAR

Standard Terminal

Optional automatic payment point

Manned payment point

M3BAR

Code

Exit Terminals

PRKTSB002

Description

Basic Standard Terminal (PRKTSB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXIMG Basic hardware module for user recognition by means

of barcode reader

- PRKATXMA3 Front panel for installation of additional optical reader

module on basic terminals

Server / Operator Station

PRKCMKIT

Manned Manual Payment Point Kit for car-park payment management

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

Accessories

PRKAXXBP

PRKAXXBPRK

Consumables

MOCARD

PRKAPR

Information screen with 1 three-fi gure vacancy counter and full/vacancies sign

Numerical programming keyboard for information screen

Pack of 10 RFID cards 125 Khz

Thermal paper for ticket issuer

48 NicePark System

Q.ty

Opt.

1

1

2

1

1

1 •

1 •

Off-Line Systems

Combi Terminal

Manned payment point

Optional automatic payment point

M3BAR

Code

Exit Terminals

PRKTCB002

Description

Basic Combi Terminal (PRKTCB). Complete with:

- PRKATXRFIDRO Basic hardware module for user recognition

by means of Read Only RFID technology, 125 kHz

- PRKATXIMG Basic hardware module for user recognition

by means of barcode reader

- PRKATXMA3 Front panel for installation of additional optical reader

module on basic terminals

Server / Operator Station

PRKCMKIT

Manned Manual Payment Point Kit for car-park payment management

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

Accessories

PRKAXXBP

PRKAXXBPRK

Consumables

MOCARD

PRKAPR

Information screen with 1 three-fi gure vacancy counter and full/vacancies sign

Numerical programming keyboard for information screen

Pack of 10 RFID cards 125 Khz

Thermal paper for ticket issuer

Combi Terminal

Q.ty

Opt.

1

1

1

1

1 •

1 •

NicePark System 49

Off-Line Systems

Number plate recognition

M3BAR

CCTV

Optional automatic payment point

Manned payment point

M3BAR

CCTV

Code Description

Entrance Terminals

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

Exit Terminals

PRKATXLPR

Basic hardware module for user recognition by means of number plate recognition system

Server / Operator Station

PRKSWDB

PRKCMPC

PRKACMPRN

PRKSWCM

PRKSWMC

PRKSWTM

Database Server Software

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

Basic hardware model for issuing non-fi scal receipt and/or ticket with barcode by means of desktop thermal printer

“Customer Manager “Software

“Manual Cash” Software

Additional Client Software for management of Access Control Logic

Recommended road barrier systems

M3BAR

Road barrier system with integral LED fl ashing light

Consumables

PRKAPR

Thermal paper for ticket issuer

1

1

1

1

2

1

1

2

Q.ty

Opt.

1

1 •

50 NicePark System

Off-Line Systems

Optional equipment

Code Description

Exit Terminal Options

PRKAXXTLL

PRKAICM

PRKSWCADV

LED traffi c light

Two-way outdoor intercom

Client Software for management of “Advertising Scheduler”

Server / Operator Station Options

PRKSWSM

PRKSWCADV

PRKAICM

“System Monitor” Software

Client Software for management of “Advertising Scheduler”

Two-way outdoor intercom

Automatic Payment Point

PRKCAB

Automatic Payment Point equipped with coin and banknote acceptor system, Read Only two-dimensional barcode and RFID card reader, LCD information display, and thermostatically controlled tamper-proof structure

Automatic Payment Point Options

PRKACACCR

PRKSWCADV

PRKAICM

PRKACASFF

Credit/debit card reader

Client Software for management of “Advertising Scheduler”

Two-way outdoor intercom

Ground anchoring system

Q.ty

Opt.

1

1

1

1

1

1

1 •

1

1

1

1

NicePark System 51

Standard Terminal Connections

Cable RS485 (Opt.)

Power 220 Vac (Opt.)

Contacts cable 4 x 0,5 mm (Opt.)

Power 220 Vac (Opt.)

Contacts cable 4 x 0,5 mm (Opt.)

Power 220 Vac

BusT4 cable (Opt.)

Contacts cable 8 x 0,5 mm

Contacts cable 8 x 0,5 mm (Opt.)

Contacts cable 8 x 0,5 mm (Opt.)

Power 220 Vac

Network cable Cat. 5E UTP

BusT4 cable (Opt.)

Combi Terminal Connections

Cable RS485 (Opt.)

Power 220 Vac (Opt.)

Contacts cable 4 x 0,5 mm (Opt.)

Power 220 Vac (Opt.)

Contacts cable 4 x 0,5 mm (Opt.)

BusT4 cable (Opt.)

Contacts cable 8 x 0,5 mm

Contacts cable 8 x 0,5 mm (Opt.)

Contacts cable 8 x 0,5 mm (Opt.)

Power 220 Vac

Network cable Cat. 5E UTP

BusT4 cable (Opt.)

52 NicePark System

Programming

Keyboard

Information Screen

Traffi c lights

Road Barrier System or Combi Terminal

Intercom system

Push-button panel for manual control

Electricity supplies

Network Switch

10/100 Mbit

O-View System

Programming

Keyboard

Information Screen

Traffi c lights

Road Barrier System

Intercom system

Push-button panel for manual control

Electricity supplies

Network Switch

10/100 Mbit

O-View System

Server / Manual Cash Connections

RFID system

Power 5 Vdc

Programming keyboard (Opt.)

Power 220 Vac

Cable RS485 (Opt.)

Table-top optic reader

Serial cable RS232

PC Management server

Table printer

Serial cable RS232

Serial cable RS232

Courtesy display

O-View

System

(Opt.)

Network cable Cat. 5E UTP

Power 220 Vac

BusT4 cable (Opt.)

Indoor intercom system point

Contacts cable 8 x 0,5 mm (Opt.)

Push-button panel for manual control

Contacts cable 8 x 0,5 mm (Opt.)

5 Vdc power supply

Electric system

Information Screen

5 Vdc power supply

24 Vdc power supply

18 Vdc power supply

Network Switch

10/100 Mbit

Electric system

BusT4 devices

Intercom system terminals

To barriers for open/close/stop controls

NicePark System 53

Compatibility

Code

PRKTSB

PRKTSB001

PRKTSB002

PRKTCB

PRKTCB001

PRKTCB002

PRKACMPRN

PRKATXIMG

PRKATXRFIDRW

PRKATXLPR

PRKATXMA1

PRKATXMA2

PRKATXMA3

PRKATXMA4

PRKSWTM

PRKSWCADV

PRKAXXTLL

PRKAXXBP

LP1

LP2

PRKAICM

PRKAPR

MOCARD

MiFCARD

PRKSWDB

PRKCMPC

PRKSWMC

PRKSWCM

PRKSWSM

PRKACMIMG

PRKACMRFIDRO

PRKACMRFIDRW

PRKCAB

PRKACACCR

PRKSWSV

PRKSWCF

PRKACMSW

PRKADISP

PRKADRA

PRKATXPRN

PRKATXRFIDRO

PRKAXXBPRK

PRKCMKIT

PRKSWAE

Description

Basic Standard Terminal. Vehicle access control system for installation in both entrance and exit terminal confi gurations

Basic Standard Terminal (PRKTSB). Complete with: PRKATXRFIDRO, PRKATXPRN, PRKATXMA2

Basic Standard Terminal (PRKTSB). Complete with: PRKATXRFIDRO, PRKATXIMG, PRKATXMA3

Basic Combi Terminal. Vehicle access control system integrated with Nice road barrier system, ideal for installation in both input and output terminal confi gurations where access points are alongside each other

Basic Combi Terminal (PRKTCB). Complete with: PRKATXRFIDRO, PRKATXPRN, PRKATXMA2

Basic Combi Terminal (PRKTCB). Complete with: PRKATXRFIDRO, PRKATXIMG, PRKATXMA3

Basic hardware model for issuing barcode tickets to users by means of thermal printer

Basic hardware module for user recognition by means of barcode reader

Basic hardware module for user recognition by means of MiFare Read & Write RFID technology, 13.56 Mhz

Basic hardware module for user recognition by means of number plate recognition system

Front panel for installation of RFID module only on basic terminals

Front panel for installation of additional printer module on basic terminals (PRKTSB)

Front panel for installation of additional optical reader module on basic terminals (PRKTSB)

Front panel for installation of additional printer and optical reader module on basic terminals (PRKTSB)

Additional Client Software for management of Access Control Logic

Client Software for management of “Advertising Scheduler”

LED traffi c light

Information screen with 1 three-fi gure vacancy counter and full/vacancies sign

Single-channel metal mass detector 24 V power supply

Two-channel metal mass detector 24 V power supply

Two-way outdoor intercom

Thermal paper for ticket issuer

Pack of 10 RFID cards 125 Khz

Pack of 10 MiFare Read & Write RFID cards

Database Server Software

Personal Computer complete with operating system licence, LCD screen, keyboard and mouse and serial multiport for connection of fi eld devices

“Manual Cash” Software

“Customer Manager” Software

“System Monitor” Software

Basic hardware module for user recognition by means of desktop barcode reader

Basic hardware module for user recognition by means of desktop Read Only RFID technology, 125 Khz

Basic hardware module for user recognition by means of desktop

MiFare Read & Write RFID technology, 13.56 Mhz

Automatic Payment Point equipped with coin and banknote acceptor system, Read Only two-dimensional barcode and RFID card reader, LCD information display, and thermostatically controlled tamper-proof structure

Credit/debit card reader

Supervision software system for car parks and access control systems in general

Confi guration software system for car parks and access control systems in general

10/100 Mbit switch (at least 8 ports)

Courtesy display for customers

Metal cash box with security key

Basic hardware model for issuing barcode tickets to users by means of thermal printer

Basic hardware module for user recognition by means of desktop Read Only RFID technology, 125 Khz

Numerical programming keyboard for information screen

Manned Manual Payment Point Kit for car-park payment management

Advertising Editor Software

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• •

• • • • • • •

• •

• •

• •

• •

Product Design

Roberto Gherlenda

The information shown in this publication is purely indicative. Nice reserves the right to make any modifications to the products as it sees fit.

Nice SpA

Oderzo TV Italia

Ph. +39.0422.85.38.38

Fax +39.0422.85.35.85

[email protected]

Find out more about Nice products and services on the website:

www.niceforyou.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
