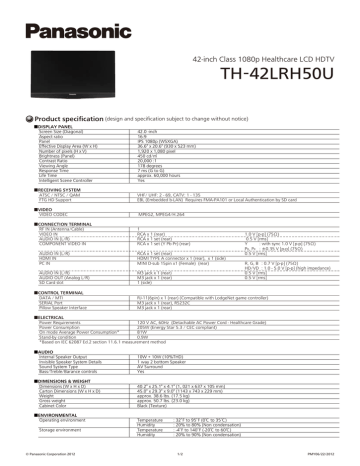

TH-42LRH50U
42-inch Class 1080p Healthcare LCD HDTV
TH-42LRH50U
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Aspect ratio
Panel
Effective Display Area (W x H)
Number of pixels (HxV)
Brightness (Panel)
Contrast Ratio
Viewing Angle
Response Time
Life Time
Intelligent Scene Controller
42.0 -inch
16:9
IPS 1080p (WSXGA)
36.6" x 20.6" (930 x 523 mm)
1,920 x 1,080 pixel
450 cd/㎡
20,000 :1
178 degrees
7 ms (G to G)
approx. 60,000 hours
Yes
■RECEIVING SYSTEM
ATSC / NTSC / QAM
FTG HD Support
VHF/ UHF: 2 - 69, CATV: 1 - 135
EBL (Embedded b-LAN) Requires FMA-PA101 or Local Authentication by SD card
■VIDEO
VIDEO CODEC
■CONNECTION TERMINAL
RF IN (Antenna/Cable)
VIDEO IN
AUDIO IN (L/R)
COMPONENT VIDEO IN
MPEG2, MPEG4/H.264
1
RCA x 1 (rear)
RCA x 1 set (rear)
RCA x 1 set (Y Pb Pr) (rear)
AUDIO IN (L/R)
HDMI IN
PC IN
RCA x 1 set (rear)
HDMI TYPE A connector x 1 (rear), x 1 (side)
MINI D-sub 15pin x1 (Female) (rear)
AUDIO IN (L/R)
AUDIO OUT (Analog L/R)
SD Card slot
M3 jack x 1 (rear)
M3 jack x 1 (rear)
1 (side)
■CONTROL TERMINAL
DATA / MTI
SERIAL Port
Pillow Speaker Interface
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p] (75Ω)
PB, PR : ±0.35 V [p-p] (75Ω)
0.5 V [rms]
R, G, B : 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
0.5 V [rms]
RJ-11(6pin) x 1 (rear) (Compatible with LodgeNet game controller)
M3 jack x 1 (rear), RS232C
M3 jack x 1 (rear)
■ELECTRICAL
120 V AC, 60Hz (Detachable AC Power Cord - Healthcare Grade)
Power Requirements
205W (Energy Star 5.3 / CEC compliant)
Power Consumption
81W
On mode Average Power Consumption*
0.9W
Stand-by condition
*Based on IEC 62087 Ed.2 section 11.6.1 measurement method
■AUDIO
Internal Speaker Output
Invisible Speaker System Details
Sound System Type
Bass/Treble/Barance controls
10W + 10W (10%THD)
1 way 2 bottom Speaker
AV Surround
Yes
■DIMENSIONS & WEIGHT
Dimensions (W x H x D)
Carton Dimensions (W x H x D)
Weight
Gross weight
Cabinet Color
40.2" x 25.1" x 4.1" (1, 021 x 637 x 105 mm)
45.0" x 29.3" x 9.0" (1143 x 743 x 229 mm)
approx. 38.6 lbs. (17.5 kg)
approx. 50.7 lbs. (23.0 kg)
Black (Texture)
■ENVIRONMENTAL
Operating environment
Storage environment
© Panasonic Corporation 2012
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 95°
F (0℃ to 35 ℃)
20% to 80% (Non condensation)
-4°
F to 140°
F (-20℃ to 60℃)
20% to 90% (Non condensation)
1/2
PMY06/22/2012
TH-42LRH50U
42-inch Class 1080p Healthcare LCD HDTV
MAIN FEATURE
ACCESSORIES
Yes
Yes
Yes
Yes
Yes
Yes
Image Viewer (JPEG playback)
Cloning
15/30/60/90 minutes
Initial INPUT
Initial Channel
Initial VOL level
Maximum VOL level
Button Lock
Power Control
VIERA LinkTM, HDAVI ControlTM
Fast Boot
Integrated Pro:Idiom
Local Aucentication
Welcome Image
Channel Remap
SD Card Slot
OFF Timer
Hospital Mode
INCLUDED ACCESSORIES
AC Power Cord (7.5 ft. Healthcare Grade)
Clamper for Power Cord
Operating Instruction
Wall hanging bracket (TY-WK3L2RW)
*VESA Compliant W 200 x H 200mm
Installer Remote Control
(N2QAYB000485)
OPTIONAL ACCESSORIES
STANDARD (CERTIFICATIONS)
RADIATION REGULATIONS
UL60065 Healthcare Grade
(Annex Q), UL6500 Ver.2
FCC Part 15 Class-B, ICES-003, ISTA
UPC Code
885170087965
SAFETY REGULATIONS
DIMENSIONS
Cautions: This drawing is not a scale
Units : inches (mm)
40.2 (1021)
7.9 (200)
7.9 (200)
1.1 (28)
3.8 (96.5)
12.2 (310)
25.1 (637)
13.0 (329)
2.0 (49)
4.1 (105)
0.3 (5.4)
CONNECTION TERMINAL
<rear>
© Panasonic Corporation 2012
<side>
2/2
PMY06/22/2012
