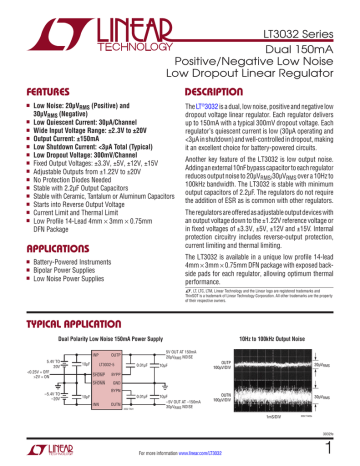

LT3032 Series
Dual 150mA
Positive/Negative Low Noise
Low Dropout Linear Regulator
FEATURES
DESCRIPTION
Low Noise: 20µVRMS (Positive) and
30µVRMS (Negative)
n Low Quiescent Current: 30µA/Channel
n Wide Input Voltage Range: ±2.3V to ±20V
n Output Current: ±150mA
n Low Shutdown Current: <3µA Total (Typical)
n Low Dropout Voltage: 300mV/Channel
n Fixed Output Voltages: ±3.3V, ±5V, ±12V, ±15V
n Adjustable Outputs from ±1.22V to ±20V
n No Protection Diodes Needed
n Stable with 2.2µF Output Capacitors
n Stable with Ceramic, Tantalum or Aluminum Capacitors
n Starts into Reverse Output Voltage
n Current Limit and Thermal Limit
n Low Profile 14-Lead 4mm × 3mm × 0.75mm
DFN Package
The LT®3032 is a dual, low noise, positive and negative low
dropout voltage linear regulator. Each regulator delivers
up to 150mA with a typical 300mV dropout voltage. Each
regulator’s quiescent current is low (30µA operating and
<3µA in shutdown) and well-controlled in dropout, making
it an excellent choice for battery-powered circuits.
n
APPLICATIONS
Another key feature of the LT3032 is low output noise.
Adding an external 10nF bypass capacitor to each regulator
reduces output noise to 20µVRMS/30µVRMS over a 10Hz to
100kHz bandwidth. The LT3032 is stable with minimum
output capacitors of 2.2µF. The regulators do not require
the addition of ESR as is common with other regulators.
The regulators are offered as adjustable output devices with
an output voltage down to the ±1.22V reference voltage or
in fixed voltages of ±3.3V, ±5V, ±12V and ±15V. Internal
protection circuitry includes reverse-output protection,
current limiting and thermal limiting.
The LT3032 is available in a unique low profile 14-lead
4mm × 3mm × 0.75mm DFN package with exposed back­
side pads for each regulator, allowing optimum thermal
performance.
Battery-Powered Instruments
n Bipolar Power Supplies
n Low Noise Power Supplies
n
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
TYPICAL APPLICATION
Dual Polarity Low Noise 150mA Power Supply
INP
5.4V TO
20V
<0.25V = OFF
>2V = ON
10µF
LT3032-5
SHDNN
–5.4V TO
–20V
5V OUT AT 150mA
20µVRMS NOISE
OUTP
SHDNP
10Hz to 100kHz Output Noise
0.01µF
10µF
0.01µF
10µF
–5V OUT AT –150mA
30µVRMS NOISE
20µVRMS
OUTN
100µV/DIV
30µVRMS
BYPP
GND
BYPN
10µF
INN
OUTP
100µV/DIV
OUTN
3032 TA01
1mS/DIV
3032 TA02a
3032fe
For more information www.linear.com/LT3032
1
LT3032 Series
ABSOLUTE MAXIMUM RATINGS
PIN CONFIGURATION
(Note 1)
INP Pin Voltage........................................................±20V
INN Pin Voltage........................................................±20V
OUTP Pin Voltage....................................................±20V
OUTN Pin Voltage (Note 3)......................................±20V
INP Pin to OUTP Pin Differential Voltage.................±20V
OUTN Pin to INN Pin Differential Voltage
(Note 3)...........................................................–0.5V, 20V
ADJP Pin Voltage.......................................................±7V
ADJN Pin Voltage
(with Respect to INN Pin, Note 3)...................–0.5V, 20V
BYPP Pin Voltage....................................................±0.5V
BYPN Pin Voltage
(with Respect to INN Pin).........................................±20V
SHDNP Pin Voltage..................................................±20V
SHDNN Pin Voltage
(with Respect to INN Pin, Note 3)...................–0.5V, 35V
SHDNN Pin Voltage
(with Respect to GND Pin)...............................–20V, 15V
Output Short-Circuit Duration........................... Indefinite
Operating Junction Temperature Range (Note 2)
E, I Grades.......................................... –40°C to 125°C
MP-Grade........................................... –55°C to 125°C
Storage Temperature Range................... –65°C to 150°C
TOP VIEW
OUTP
1
NC†/ADJP
2
BYPP
3
GND
4
GND
5
INN
6
OUTN
7
14 INP
15
GND
13 NC
12 SHDNP
11 BYPN
10 SHDNN
16
INN
9 INN
8 ADJN/NC††
DE14MA PACKAGE
14-LEAD (4mm × 3mm) PLASTIC DFN
TJMAX = 125°C, θJA = 30°C/W TO 43°C/W*, θJC = 10°C/W*
*SEE APPLICATIONS INFORMATION FOR MORE DETAIL
†PIN 2: NC FOR LT3032-3.3/LT3032-5/LT3032-12/LT3032-15, ADJP FOR LT3032
††PIN 8: NC FOR LT3032-3.3/LT3032-5/LT3032-12/LT3032-15, ADJN FOR LT3032
EXPOSED PAD (PIN 15) IS GND, MUST BE SOLDERED TO PINS 4, 5 ON PCB
EXPOSED PAD (PIN 16) IS INN, MUST BE SOLDERED TO PINS 6, 9 ON PCB
ORDER INFORMATION
LEAD FREE FINISH
TAPE AND REEL
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LT3032EDE#PBF
LT3032EDE#TRPBF
3032
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032IDE#PBF
LT3032IDE#TRPBF
3032
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032MPDE#PBF
LT3032MPDE#TRPBF
3032
14-Lead (4mm × 3mm) Plastic DFN
–55°C to 125°C
LT3032EDE-3.3#PBF
LT3032EDE-3.3#TRPBF
03233
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032IDE-3.3#PBF
LT3032IDE-3.3#TRPBF
03233
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032MPDE-3.3#PBF
LT3032MPDE-3.3#TRPBF 03233
14-Lead (4mm × 3mm) Plastic DFN
–55°C to 125°C
LT3032EDE-5#PBF
LT3032EDE-5#TRPBF
30325
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032IDE-5#PBF
LT3032IDE-5#TRPBF
30325
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032MPDE-5#PBF
LT3032MPDE-5#TRPBF
30325
14-Lead (4mm × 3mm) Plastic DFN
–55°C to 125°C
LT3032EDE-12#PBF
LT3032EDE-12#TRPBF
30322
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032IDE-12#PBF
LT3032IDE-12#TRPBF
30322
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032MPDE-12#PBF
LT3032MPDE-12#TRPBF
30322
14-Lead (4mm × 3mm) Plastic DFN
–55°C to 125°C
3032fe
2
For more information www.linear.com/LT3032
LT3032 Series
ORDER INFORMATION
LEAD FREE FINISH
TAPE AND REEL
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LT3032EDE-15#PBF
LT3032EDE-15#TRPBF
03215
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032IDE-15#PBF
LT3032IDE-15#TRPBF
03215
14-Lead (4mm × 3mm) Plastic DFN
–40°C to 125°C
LT3032MPDE-15#PBF
LT3032MPDE-15#TRPBF
03215
14-Lead (4mm × 3mm) Plastic DFN
–55°C to 125°C
Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Consult LTC Marketing for information on nonstandard lead based finish parts.
For more information on lead free part marking, go to: http://www.linear.com/leadfree/
For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at TA = 25°C.
PARAMETER
CONDITIONS
Minimum INP Operating Voltage
LT3032 ILOAD = 150mA
l
LT3032 ILOAD = –150mA
TYP
MAX
1.8
2.3
UNITS
V
l
–2.3
–1.6
LT3032-3.3 VINP = 3.8V, ILOAD = 1mA
4.3V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA
l
3.250
3.200
3.300
3.300
3.350
3.400
V
V
LT3032-3.3 VINN = –3.8V, ILOAD = –1mA
–4.3V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ –150mA
l
–3.250
–3.200
–3.300
–3.300
–3.350
–3.400
V
V
VINP = 5.5V, ILOAD = 1mA
6V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA
l
4.925
4.850
5.00
5.00
5.075
5.150
V
V
VINN = –5.5V, ILOAD = –1mA
–6V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ –150mA
l
–5.075
–5.150
–5.00
–5.00
–4.925
–4.850
V
V
LT3032-12 VINP = 12.5V, ILOAD = 1mA
13V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA
l
11.82
11.64
12.00
12.00
12.18
12.36
V
V
LT3032-12 VINN = –12.5V, ILOAD = –1mA
–13V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ 150mA
l
–12.18
–12.36
–12.00
–12.00
–11.82
–11.64
V
V
LT3032-15 VINP = 15.5V, ILOAD = 1mA
16V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA
l
14.775
14.550
15.00
15.00
15.225
15.450
V
V
LT3032-15 VINN = –15.5V, ILOAD = –1mA
–16V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ 150mA
l
–15.225
–15.450
–15.00
–15.00
–14.775
–14.550
V
V
VINP = 2V, ILOAD = 1mA
2.3V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA
l
1.202
1.184
1.22
1.22
1.238
1.256
V
V
VINN = –2V, ILOAD = –1mA
–2.3V ≤ VINN ≤ –20V, –1mA ≤ ILOAD ≤ –150mA
l
–1.238
–1.256
–1.22
–1.22
–1.202
–1.184
V
V
Minimum INN Operating Voltage
Regulated Output Voltage
(Notes 4, 10)
MIN
LT3032-5
LT3032-5
V
ADJP Pin Voltage
(Notes 4, 5)
LT3032
ADJN Pin Voltage
(Notes 4, 5, 10)
LT3032
Line Regulation (Note 5)
LT3032-3.3 OUTPΔVINP = 3.8V to 20V, ILOAD = 1mA
OUTNΔVINN = –3.8V to –20V, ILOAD = –1mA
l
l
1
9
6
30
mV
mV
OUTPΔVINP = 5.5V to 20V, ILOAD = 1mA
OUTNΔVINN = –5.5V to –20V, ILOAD = –1mA
l
l
1
15
6
50
mV
mV
LT3032-12 OUTPΔVINP = 12.5V to 20V, ILOAD = 1mA
OUTNΔVINN = –12.5V to –20V, ILOAD = –1mA
l
l
1.5
13
15
75
mV
mV
LT3032-15 OUTPΔVINP = 15.5V to 20V, ILOAD = 1mA
OUTNΔVINN = –15.5V to 20V, ILOAD = –1mA
l
l
2
10
20
75
mV
mV
l
l
1
1
6
12
mV
mV
LT3032-5
LT3032
ADJPΔVINP = 2V to 20V, ILOAD = 1mA
ADJNΔVINN = –2V to –20V, ILOAD = –1mA
3032fe
For more information www.linear.com/LT3032
3
LT3032 Series
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at TA = 25°C.
PARAMETER
Load Regulation (Notes 5, 13)
CONDITIONS
MIN
TYP
MAX
UNITS
LT3032-3.3 OUTP
VINP = 4.3V, ΔILOAD = 1mA to 150mA
–5
mV
LT3032-3.3 OUTN
VINN = –4.3V, ΔILOAD = –1mA to –150mA
10
mV
LT3032-5
OUTP
VINP = 6V, ΔILOAD = 1mA to 150mA
–9
mV
LT3032-5
OUTN
VINN = –6V, ΔILOAD = –1mA to –150mA
15
mV
VINP = 13V, ΔILOAD = 1mA to 150mA
–20
mV
LT3032-12 OUTP
LT3032-12 OUTN
VINN = –13V, ΔILOAD = –1mA to –150mA
20
mV
LT3032-15 OUTP
VINP = 16V, ΔILOAD = 1mA to 150mA
–25
mV
LT3032-15 OUTN
VINN = –16V, ΔILOAD = –1mA to –150mA
LT3032
ADJP
VINP = 2.3V, ΔILOAD = 1mA to 150mA
VINP = 2.3V, ΔILOAD = 1mA to 150mA
l
ADJN
VINN = –2.3V, ΔILOAD = –1mA to –150mA
VINN = –2.3V, ΔILOAD = –1mA to –150mA
l
LT3032
27
mV
–1.5
–7
–15
mV
mV
1.5
7
15
mV
mV
Dropout Voltage
VINP = VOUTP(NOMINAL)
(Notes 6, 7)
ILOAD = 1mA
l
0.09
0.20
V
ILOAD = 10mA
l
0.15
0.27
V
Dropout Voltage
VINN = VOUTN(NOMINAL)
(Notes 6, 7)
ILOAD = –1mA
l
0.10
0.20
ILOAD = –10mA
l
0.15
0.27
ILOAD = 50mA
0.21
ILOAD = 150mA
V
0.27
V
V
V
ILOAD = –50mA
0.21
V
ILOAD = –150mA
0.30
V
GND Pin Current
VINP = VOUTP(NOMINAL), VINN = 0V
(Notes 6, 8, 9)
ILOAD = 0mA (LT3032, LT3032-3.3, LT3032-5)
ILOAD = 0mA (LT3032-12, LT3032-15)
ILOAD = 1mA (LT3032, LT3032-3.3, LT3032-5)
ILOAD = 1mA (LT3032-12, LT3032-15)
ILOAD = 10mA
ILOAD = 50mA
ILOAD = 150mA
l
l
l
l
l
l
l
–25
–50
–70
–80
–350
–1.3
–4
–65
–120
–120
180
–500
–1.8
–7
µA
µA
µA
µA
µA
mA
mA
GND Pin Current
VINN = VOUTN(NOMINAL), VINP = 0V
(Notes 6, 8, 9, 10)
ILOAD = 0mA (LT3032, LT3032-3.3, LT3032-5)
ILOAD = 0mA (LT3032-12, LT3032-15)
ILOAD = –1mA (LT3032, LT3032-3.3, LT3032-5)
ILOAD = –1mA (LT3032-12, LT3032-15)
ILOAD = –10mA
ILOAD = –50mA
ILOAD = –150mA
l
l
l
l
l
l
l
30
50
85
90
300
0.75
2
70
130
180
180
600
1.5
5
µA
µA
µA
µA
µA
mA
mA
ADJP Pin Bias Current
LT3032
(Notes 5, 9)
30
100
nA
ADJN Pin Bias Current
LT3032
(Notes 5, 9)
–30
–100
nA
0.7
0.6
1.4
–1.9
1.4
–1.9
2
–0.25
V
V
V
V
V
V
1
1
4
µA
µA
6
–3
1
15
–9
µA
µA
µA
Shutdown Threshold
SHDNP
SHDNP
SHDNN
SHDNN
SHDNN
SHDNN
VOUTP = Off to On
VOUTP = On to Off
VOUTN = Off to On (Positive)
VOUTN = Off to On (Negative)
VOUTN = On to Off (Positive)
VOUTN = On to Off (Negative)
l
l
l
l
l
l
0.25
–2.8
0.25
SHDNP Pin Current (Note 9)
VSHDNP = 0V
VSHDNP = 20V
–1
SHDNN Pin Current
(Note 9)
VSHDNN = 0V
VSHDNN = 15V
VSHDNN = -15V
–1
2
3032fe
4
For more information www.linear.com/LT3032
LT3032 Series
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at TA = 25°C.
PARAMETER
CONDITIONS
Quiescent Current in Shutdown
VINP = 6V, VSHDNP = 0V, VINN = 0V
VINN = –6V, VSHDNN = 0V, VINP = 0V (LT3032, LT3032-3.3,
LT3032-5)
VINN = VOUT(NOMINAL) –1V, VSHDNN = 0V, VINP = 0V
(LT3032-12/ LT3032-15)
TYP
MAX
UNITS
l
l
MIN
0.1
–3
8
–10
µA
µA
l
10
20
µA
Output Voltage Noise (10Hz to 100kHz)
COUTP = 10µF, CBYPP 0.01µF, ILOAD = 150mA
COUTN = 10µF, CBYPN 0.01µF, ILOAD = –150mA
Ripple Rejection
VRIPPLE = 0.5VP-P, fRIPPLE = 120Hz
VINP to VOUTP = 1.5V (Average), ILOAD = 100mA
VINN to VOUTN = –1.5V (Average), ILOAD = –100mA
Current Limit (Note 12)
VINP = 7V, VOUTP = 0V
VINN = –7V, VOUTN = 0V
VINP = 2.3V or VOUTP(NOMINAL) + 1V, ΔVOUTP = –0.1V
VINN = –2.3V or VOUTP(NOMINAL) – 1V, ΔVOUTN = 0.1V
l
l
INP Reverse Leakage Current
VINP = –20V, VOUTP = 0V
l
–1
mA
INN Reverse Leakage Current
VINN = 20V, VOUTN, VADJN, VSHDNN = Open Circuit
l
1
mA
20
20
50
50
10
µA
µA
µA
µA
µA
Reverse Output Current
(Notes 5, 11)
LT3032-3.3
LT3032-5
LT3032-12
LT3032-15
LT3032
VOUTP = 3.3V, VINP < 3.3V
VOUTP = 5V, VINP < 5V
VOUTP = 12V, VINP < 12V
VOUTP = 15V, VINP < 15V
VOUTP = VADJP = 1.22V, VINP < 1.22V
Note 1: Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliability and lifetime.
Note 2: The LT3032 is tested and specified under pulse load conditions
such that TJ ≅ TA. The LT3032E is 100% tested at TA = 25°C. Performance
of the LT3032E over the full –40°C to 125°C operating junction
temperature range is assured by design, characterization, and correlation
with statistical process controls. The LT3032I regulators are guaranteed
over the full –40°C to 125°C operating junction temperature range.
Note 3: Parasitic diodes exist internally between the INN pin and the OUTN,
ADJN, and SHDNN pins. These pins cannot be pulled more than 0.5V
below the INN pin during fault conditions, and must remain at a voltage
more positive than the INN pin during operation.
Note 4: Operating conditions are limited by maximum junction
temperature. Specifications do not apply for all possible combinations of
input voltages and output currents. When operating at maximum input
voltages, the output current ranges must be limited. When operating at
maximum output currents, the input voltage ranges must be limited.
Note 5: The LT3032 is tested and specified for these conditions with the
ADJP pin tied to the OUTP pin and the ADJN pin tied to the OUTN pin.
Note 6: To satisfy requirements for minimum input voltage, the LT3032 is
tested and specified for these conditions with an external resistor divider
(two 250k resistors) from OUTP/OUTN to the corresponding ADJP/ADJN
pin to give an output voltage of ±2.44V. The external resistor divider adds
a 5µA DC load on the output. The LT3032-12/LT3032-15 have higher
internal resistor divider current, resulting in higher GND pin current at
light/no load.
Note 7: Dropout voltage is the minimum input-to-output voltage
differential needed to maintain regulation at a specified output current. In
dropout, output voltage equals:
VINP/INN – VDROPOUT
50
46
170
170
20
30
µVRMS
µVRMS
68
54
dB
dB
400
350
mA
mA
mA
mA
10
10
25
25
5
For lower output voltages, dropout voltage is limited by the minimum
input voltage specification under some output voltage/load conditions;
see curves for Minimum INN Voltage and Minimum INP Voltage in Typical
Performance Characteristics. LTC is unable to guarantee Maximum
Dropout Voltage specifications at 50mA and 150mA due to production
test limitations with Kelvin-Sensing the package pins. Please consult the
Typical Performance Characteristics for curves of Dropout Voltage as a
function of Output Load Current and Temperature.
Note 8: GND pin current is tested with VINP = VOUTP(NOMINAL) or VINN =
VOUTN(NOMINAL) and a current source load. This means the device is tested
while operating in its dropout region. This is the worst-case GND pin
current. GND pin current decreases slightly at higher input voltages.
Note 9: Positive current flow is into the pin. Negative current flow is out of
the pin.
Note 10: For input-to-output differential voltages from INN to OUTN
greater than –7V, a –50µA load is needed to maintain regulation.
Note 11: Reverse output current is tested with the INP pin grounded and
the OUTP pin forced to the nominal output voltage. This current flows into
the OUTP pin and out the GND pin.
Note 12: Positive side current limit is tested at VINP = 2.3V or
VOUTP(NOMINAL) + 1V (whichever is more positive). Negative side current
limit is tested at VINN = –2.3V or VOUTN(NOMINAL) – 1V (whichever is more
negative).
Note 13: LTC is unable to guarantee load regulation specifications on
fixed voltage versions of the LT3032 due to production test limitations
with Kelvin-Sensing the package pins. Please consult the Typical
Performance Characteristics for curves of Load Regulation as a function of
Temperature.
3032fe
For more information www.linear.com/LT3032
5
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
INN-to-OUTN
Typical Dropout Voltage
INP-to-OUTP
Dropout Voltage
500
500
450
450
450
400
400
350
TJ = 125°C
300
250
200
TJ = 25°C
150
100
300
250
150
100
50
0
40
60 80 100 120 140 160
LOAD CURRENT (mA)
TJ = 25°C
200
0
20
TJ = 125°C
350
50
0
DROPOUT VOLTAGE (mV)
500
DROPOUT VOLTAGE (mV)
DROPOUT VOLTAGE (mV)
INP-to-OUTP
Typical Dropout Voltage
400
350
IL = 150mA
300
250
IL = 50mA
200
IL = 10mA
150
IL = 1mA
100
50
–40
–80
–120
LOAD CURRENT (mA)
0
0
–50
–160
–25
50
25
0
75
TEMPERATURE (°C)
3032 G02
3032 G03
3032 G01
INN-to-OUTN
Dropout Voltage
INP Quiescent Current
60
QUIESCENT CURRENT (µA)
DROPOUT VOLTAGE (mV)
450
350
300
IL = 150mA
250
200
IL = 50mA
150
IL = 10mA
100
IL = 1mA
50
0
–50
–25
50
25
0
75
TEMPERATURE (°C)
50
INN Quiescent Current
–60
IL = 0 (FIXED VOLTAGES)
IL = 5µA (ADJUSTABLE)
40
VSHDNP = VINP = 6V
(5V, ADJ)
30
20
100
0
–50
125
VSHDNP = 0V, VINP = 6V
–25
0
25
50
75
100
3.330
3.315
3.300
3.285
3.270
125
75
–25
100
125
TEMPERATURE (°C)
3032 G70
0
25
50
75
TEMPERATURE (°C)
5.075
–3.315
–3.300
–3.285
–3.270
–3.240
–50
125
LT3032-5 OUTP Output Voltage
IL = –1mA
–3.330
100
3032 G06
5.100
–3.255
3.255
50
VSHDNN = 0V, VINN = –6V
0
–50
OUTP OUTPUT VOLTAGE (V)
OUTN OUTPUT VOLTAGE (V)
OUTP OUTPUT VOLTAGE (V)
–3.345
25
VSHDNN = VINN = –6V
(5V, ADJ)
–20
LT3032-3.3 OUTN Output Voltage
–3.360
0
–30
3032 G05
IL = 1mA
3.240
–50 –25
VSHDNN = VINN = VOUTN(NOMINAL) –1V
(12V, 15V)
TEMPERATURE (°C)
LT3032-3.3 OUTP Output Voltage
3.345
–40
IL = 0 (FIXED VOLTAGES)
IL = –5µA (ADJUSTABLE)
–10
10
3032 G04
3.360
–50
VSHDNP = VINP = VOUTP(NOMINAL) +1V
(12V, 15V)
QUIESCENT CURRENT (µA)
70
500
400
125
100
IL = 1mA
5.050
5.025
5.000
4.975
4.950
4.925
–25
0
50
75
25
TEMPERATURE (°C)
100
125
4.900
–50
–25
0
25
50
75
100
125
TEMPERATURE (°C)
3032 G71
3032 G52
3032fe
6
For more information www.linear.com/LT3032
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
LT3032-5 OUTN Output Voltage
IL = –1mA
IL = 1mA
–5.025
–5.000
–4.975
–4.950
12.12
12.06
12.00
11.94
11.88
11.82
–4.925
–4.900
–50
–25
0
50
75
25
TEMPERATURE (°C)
100
0
–25
25
50
75
100
–12.00
–11.94
–11.88
125
–11.76
–50
LT3032-15 OUTP Output Voltage
IL = 1mA
14.925
14.850
14.775
IL = –1mA
–25
0
25
50
75
100
125
–15.150
–15.075
–15.000
–14.925
–14.850
0
–25
TEMPERATURE (°C)
25
50
75
100
1.220
1.215
1.210
125
1.200
–50
INP QUIESCENT CURRENT (µA)
–1.235
–1.220
–1.215
–1.210
–1.205
100
125
3032 G08
50
–80
350
300
250
200
150
100
0
0
1
2
125
100
TJ = 25°C
RL = ∞
–70
VSHDN = VIN
75
LT3032-3.3
INN Quiescent Current
TJ = 25°C
RL = ∞
50
0
25
50
75
TEMPERATURE (°C)
25
3032 G07
400
–1.225
0
TEMPERATURE (°C)
LT3032-3.3
INP Quiescent Current
–1.230
–25
3032 G61
IL = –1mA
–25
1.225
TEMPERATURE (°C)
3032 G60
–1.200
–50
1.230
1.205
–14.700
–50
LT3032 ADJN Pin Voltage
125
100
IL = 1mA
1.235
–14.775
14.700
–50
75
LT3032 ADJP Pin Voltage
ADJP PIN VOLTAGE (V)
OUTN OUTPUT VOLTAGE (V)
15.000
50
1.240
–15.225
15.075
25
3032 G59
LT3032-15 OUTN Output Voltage
15.150
0
TEMPERATURE (°C)
–15.300
15.225
–25
3032 G58
15.300
OUTP OUTPUT VOLTAGE (V)
–12.06
TEMPERATURE (°C)
3032 G53
ADJN PIN VOLTAGE (V)
–12.12
–11.82
11.76
–50
125
IL = –1mA
–12.18
OUTP OUTPUT VOLTAGE (V)
12.18
–5.050
–1.240
LT3032-12 OUTN Output Voltage
–12.24
INN QUIESCENT CURRENT (µA)
OUTN OUTPUT VOLTAGE (V)
–5.075
LT3032-12 OUTP Output Voltage
12.24
OUTP OUTPUT VOLTAGE (V)
–5.100
VSHDN = 0V
3 4 5 6 7
INPUT VOLTAGE (V)
8
9
10
3032 G72
–60
–50
VSHDNN = VINN
–40
–30
–20
VSHDNN = 0V
–10
–0
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INN VOLTAGE (V)
3032 G73
3032fe
For more information www.linear.com/LT3032
7
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
250
200
150
VSHDNP = VINP
100
VSHDNP = 0V
50
0
2
4
6
8 10 12 14 16 18 20
INP VOLTAGE (V)
TJ = 25°C
RL = ∞
–50
VSHDNN = VINN
–30
–20
–10
VSHDNN = 0V
0
–30
–20
VSHDNN = 0V
–10
0
0
INP QUIESCENT CURRENT (µA)
INN QUIESCENT CURRENT (µA)
–40
250
VSHDNP = VINP
200
150
100
0
0
2
4
0
2
4
6
–30
6
–60
–50
8 10 12 14 16 18 20
INP VOLTAGE (V)
VSHDNN = VINN
–40
–30
–20
0
8 10 12 14 16 18 20
INP VOLTAGE (V)
VSHDNN = 0V
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INN VOLTAGE (V)
3032 G65
LT3032-3.3
Positive Side GND Pin Current
VSHDNN = VINN
–20
–15
–10
–0
TJ = 25°C
VIN = VSHDN
*FOR VOUT = 3V
4.5
–25
VSHDNN = 0V
–5
VSHDNP = 0V
0
INN QUIESCENT CURRENT (µA)
INP QUIESCENT CURRENT (µA)
5
8 10 12 14 16 18 20
INP VOLTAGE (V)
5.0
TJ = 25°C
RL = 250k
IL = –5µA
–35
10
6
TJ = 25°C
RL = ∞
–10
VSHDNP = 0V
–40
TJ = 25°C
RL = 250k
4
LT3032-15 INN Quiescent Current
LT3032 INN Quiescent Current
30
15
2
3032 G64
LT3032 INP Quiescent Current
20
0
–70
300
3032 G63
VSHDNP = VINP
VSHDNP = 0V
–80
50
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INP VOLTAGE (V)
25
100
3032 G62
TJ = 25°C
RL = ∞
350
VSHDNN = VINN
VSHDNP = VINP
150
0
INN QUIESCENT CURRENT (µA)
TJ = 25°C
RL = ∞
–50
200
LT3032-15 INP Quiescent Current
400
–60
250
3032 G55
LT3032-12 INN Quiescent Current
–70
300
50
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INN VOLTAGE (V)
3032 G54
–80
TJ = 25°C
RL = ∞
350
–40
–0
LT3032-12 INP Quiescent Current
400
GND PIN CURRENT (mA)
INP QUIESCENT CURRENT (µA)
300
INN QUIESCENT CURRENT (µA)
TJ = 25°C
RL = ∞
350
0
LT3032-5 INN Quiescent Current
–60
INP QUIESCENT CURRENT (µA)
LT3032-5 INP Quiescent Current
400
4.0
3.5
RL = 22Ω
IL = 150mA*
3.0
2.5
RL = 33Ω
IL = 100mA*
2.0
1.5
1.0
RL = 66Ω
IL = 50mA*
0.5
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INN VOLTAGE (V)
3032 G10
3032 G09
0
0
1
2
3 4 5 6 7
INPUT VOLTAGE (V)
8
9
10
3032 G74
3032fe
8
For more information www.linear.com/LT3032
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
–3.0
RL = 22Ω
IL = 150mA*
–2.0
–1.5
RL = 33Ω
IL = –100mA*
–1.0
RL = 66Ω
IL = –50mA*
–0.5
RL = 330Ω
IL = –10mA*
0
–3.0
4.0
RL = 33.3Ω
IL = 150mA*
3.5
3.0
2.5
RL = 50Ω
IL = 100mA*
2.0
1.5
RL = 100Ω
IL = 50mA*
0.5
0
0
1
2
3
3032 G75
TJ = 25°C
VSHDNN = VINN
*FOR VOUTN = –5V
–2.5
1.0
–1 –2 –3 –4 –5 –6 –7 –8 –9 –10
INN VOLTAGE (V)
LT3032-5
Negative Side GND Pin Current
TJ = 25°C
VINP = VSHDNP
*FOR VOUTP = 5V
4.5
GND PIN CURRENT (mA)
GND PIN CURRENT (mA)
5.0
TJ = 25°C
VSHDNN = VINN
*FOR VOUTN = –3.3V
–2.5
0
LT3032-5
Positive Side GND Pin Current
GND PIN CURRENT (mA)
LT3032-3.3
Negative Side GND Pin Current
4
5 6 7
INP VOLTAGE (V)
–2.0
–1.5
RL = 50Ω
IL = –100mA*
–1.0
RL = 100Ω
IL = –50mA*
RL = 500Ω
IL = –10mA*
–0.5
8
9
0
10
RL = 33.3Ω
IL = 150mA*
0
–1 –2 –3 –4 –5 –6 –7 –8 –9 –10
INN VOLTAGE (V)
3032 G57
3032 G56
RL = 80Ω
*IL = 150mA
3.5
3.0
RL = 120Ω
*IL = 100mA
2.5
2.0
1.5
1.0
0
0
2
4
6
4.0
–1.5
–1.0
RL = 120Ω
*IL = –100mA
–0.5
RL = 240Ω
*IL = –50mA
3032 G66
GND PIN CURRENT (mA)
–2.5
–2.0
–1.0
RL = 300Ω, *IL = 50mA
–0.5
0
RL = 1.5k, *IL = –10mA
0
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INN VOLTAGE (V)
3032 G69
RL = 300Ω
*IL = 50mA
0
0
2
4
6
8 10 12 14 16 18 20
INP VOLTAGE (V)
3032 G68
LT3032
Negative Side GND Pin Current
TJ = 25°C
VINP = VSHDNP
*FOR VOUTP = 1.22V
4.5
RL = 150Ω
*IL = –100mA
–1.5
1.5
–3.0
5.0
RL = 100Ω
*IL = –150mA
2.0
LT3032
Positive Side GND Pin Current
GND PIN CURRENT (mA)
TJ = 25°C
VSHDNN = VINN
*FOR VOUTN = –15V
RL = 150Ω
*IL = 100mA
2.5
3032 G67
LT3032-15
Negative Side GND Pin Current
–3.0
3.0
0.5
–2 –4 –6 –8 –10 –12 –14 –16 –18 –20
INN VOLTAGE (V)
4.0
–2.5
RL = 8.07Ω
IL = 150mA*
3.5
3.0
RL = 12.2Ω
IL = 100mA*
2.5
2.0
RL = 24.4Ω
IL = 50mA*
1.5
1.0
TJ = 25°C; VSHDNN = VINN;
*FOR VOUTN = –1.22V
RL = 8.07Ω
IL = –150mA*
–2.0
RL = 12.2Ω
IL = –100mA*
–1.5
–1.0
RL = 24.4Ω
IL = –50mA*
–0.5
RL = 122Ω
IL = –10mA*
0.5
0
0
1
2
3
4
5 6 7
INP VOLTAGE (V)
8
RL = 100Ω
*IL = 150mA
3.5
1.0
RL = 1.2k, *IL = –10mA
0
TJ = 25°C
VSHDNP = VINP
*FOR VOUTP = 15V
4.5
RL = 80Ω
*IL = –150mA
–2.0
0
8 10 12 14 16 18 20
INP VOLTAGE (V)
5.0
TJ = 25°C
VSHDNN = VINN
*FOR VOUTN = –12V
–2.5
RL = 240Ω
*IL = 50mA
0.5
LT3032-15
Positive Side GND Pin Current
GND PIN CURRENT (mA)
4.0
GND PIN CURRENT (mA)
–3.0
TJ = 25°C
VSHDNP = VINP
*FOR VOUTP = 12V
4.5
GND PIN CURRENT (mA)
5.0
LT3032-12
Negative Side GND Pin Current
GND PIN CURRENT (mA)
LT3032-12
Positive Side GND Pin Current
9
10
0
0
–1 –2 –3 –4 –5 –6 –7 –8 –9 –10
INN VOLTAGE (V)
3032 G12
3032 G11
3032fe
For more information www.linear.com/LT3032
9
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
Positive Side GND Pin Current
vs ILOAD
–4.0
VINP = VOUTP(NOMINAL) + 1V
4.5 T = 25°C
J
4.0
3.0
2.5
2.0
1.5
1.0
0.9
–3.0
TJ = –50°C
–2.5
–2.0
TJ = 25°C
–1.5
TJ = 125°C
–1.0
0.5
–0.5
0
0
20
VINN = VOUTN(NOMINAL) – 1V
SHDNP PIN THRESHOLD (V)
3.5
0
SHDNP Pin Threshold
1.0
–3.5
GND PIN CURRENT (mA)
GND PIN CURRENT (mA)
5.0
Negative Side GND Pin Current
vs ILOAD
40
60 80 100 120 140 160
POSITIVE LOAD CURRENT (mA)
IL = 1mA
0.8
ON
0.7
0.6
0.5
0.4
OFF
0.3
0.2
0.1
0
0
–50
–20 –40 –60 –80 –100 –120 –140 –160
NEGATIVE LOAD CURRENT (mA)
–25
50
25
0
75
TEMPERATURE (°C)
3032 G15
SHDNN Pin Thresholds
SHDNP Pin Input Current
2.5
1.0
0.5
0
OFF
–0.5
–1.0
–1.5
ON
–2.0
–2.5
–50
–25
0
25
50
75
TEMPERATURE (°C)
100
SHDNP PIN INPUT CURRENT (µA)
1.5
1.2
SHDNP PIN INPUT CURRENT (µA)
SHDNN PIN VOLTAGE (V)
SHDNP Pin Input Current
1.6
1.4
ON
1.0
0.8
0.6
0.4
0.2
0
125
0
1
3032 G16
2
3 4 5 6 7 8
SHDNP PIN VOLTAGE (V)
9
VSHDNP = 20V
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
–50
10
–25
0
25
50
75
SHDNN Pin Input Current
12
SHDNN PIN INPUT CURRENT (µA)
SHDNN PIN INPUT CURRENT (µA)
6
TJ = 25°C
POSITIVE CURRENT
FLOWS INTO THE PIN
4
2
0
–2
–4
–6
–8
–10
–10 –8 –6 –4 –2 0 2 4 6
SHDNN PIN VOLTAGE (V)
8
10
3032 G19
ADJP Pin Bias Current
140
VINN = –15V
POSITIVE CURRENT
FLOWS INTO THE PIN
9
6
VSHDNN = 15V
3
0
VSHDNN = –15V
–3
–6
–9
–50
–25
0
25
50
75
TEMPERATURE (°C)
125
3032 G18
ADJP PIN BIAS CURRENT (nA)
SHDNN Pin Input Current
10
100
TEMPERATURE (°C)
3032 G17
8
125
3032 G14
3032 G13
2.0
100
100
125
120
100
80
60
40
20
0
–50
–25
50
25
0
75
TEMPERATURE (°C)
100
125
3032 G20
3032 G21
3032fe
10
For more information www.linear.com/LT3032
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
ADJN Pin Bias Current
Positive Side Current Limit
Positive Side Current Limit
500
–60
–50
–40
–30
–20
–10
0
–50
–25
0
25
50
75
TEMPERATURE (°C)
100
VOUTP = 0V
450
400
350
300
250
200
150
100
50
0
125
500
POSITIVE SIDE CURRENT LIMIT (mA)
POSITIVE SIDE CURRENT LIMIT (mA)
ADJN PIN BIAS CURRENT (nA)
–70
0
VINP = 7V
VOUTP = 0V
450
400
350
300
250
200
150
100
50
0
–50
7
4
3
2
5
6
1
INP-TO-OUTP DIFFERENTIAL VOLTAGE (V)
50
25
0
75
TEMPERATURE (°C)
–25
3032 G22
100
3032 G23
Negative Side Current Limit
Negative Side Current Limit
Reverse OUTP Pin Current
–500
–400
–300
–200
–100
0
100
VINN = –7V
VOUTN = 0V
–500
REVERSE OUTP PIN CURRENT (µA)
NEGATIVE SIDE CURRENT LIMIT (mA)
NEGATIVE SIDE CURRENT LIMIT (mA)
∆VOUTN = 100mV
0
3032 G24
–600
–600
–400
–300
–200
–100
0
–50
–4
–8
–12
–16
–20
INN-TO-OUTN DIFFERENTIAL VOLTAGE (V)
–25
0
25
50
75
TEMPERATURE (°C)
125
100
90
70
60
50
LT3032-5
40
LT3032-12
30
LT3032-15
20
10
0
125
LT3032
80
LT3032-3.3
0
2
4
3032 G26
3032 G25
TJ = 25°C, VINP = 0V
CURRENT FLOWS
INTO OUTP PIN
VOUTP = VADJP (LT3032)
6 8 10 12 14 16 18 20
OUTP PIN VOLTAGE (V)
3032 G27
Reverse OUTP Pin Current
35
30
VINP = 0V
VOUTP = VADJP =1.22V (LT3032)
VOUTP = 5V (LT3032-5)
VOUTP = 12V (LT3032-12)
VOUTP = 15V (LT3032-15)
25
(LT3032-12/LT3032-15)
20
15
10
(LT3032-3.3/LT3032-5)
5
(LT3032)
0
–50
–25
50
0
75
25
TEMPERATURE (°C)
INP-to-OUTP Ripple Rejection
80
100
125
3032 G28
INP-TO-OUTP RIPPLE REJECTION (dB)
REVERSE OUTP CURRENT (µA)
40
INP-to-OUTP Ripple Rejection
80
INP-TO-OUTP RIPPLE REJECTION (dB)
45
70
60
50
COUTP = 10µF
40
30
IL = 150mA
VINP = VOUTP(NOMINAL) +
1.5V + 50mVRMS RIPPLE
CBYPP = 0
20
10
0
10
100
COUTP = 2.2µF
1k
10k
FREQUENCY (Hz)
100k
1M
3032 G29
CBYPP = 0.01µF
70
60
CBYPP = 1000pF
50
CBYPP = 100pF
40
30
20
IL = 150mA
VINP = VOUTP(NOMINAL) +
1.5V + 50mVRMS RIPPLE
COUTP = 10µF
10
0
10
100
1k
10k
FREQUENCY (Hz)
100k
1M
3032 G30
3032fe
For more information www.linear.com/LT3032
11
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
INN-to-OUTN Ripple Rejection
INP-to-OUTP Ripple Rejection
60
50
40
COUTN = 10µF
30
20
10
0
COUTN = 1µF
10
100
1k
10k
FREQUENCY (Hz)
100k
66
64
62
60
58
56
54
52
–50
1M
INN-TO-OUTN RIPPLE REJECTION (dB)
IL = –150mA
VINN = VOUTN(NOMINAL) – 1.5V +
50mVRMS RIPPLE
CBYPN = 0
70
INN-to-OUTN Ripple Rejection
60
68
INP-TO-OUTP RIPPLE REJECTION (dB)
INN-TO-OUTN RIPPLE REJECTION (dB)
80
VINP = VOUTP(NOMINAL) +
1.5V + 0.5VP-P RIPPLE
AT f = 120Hz
IL = 150mA
–25
0
25
50
75
56
54
52
50
48
46
44
–50
125
100
VINN = VOUTN(NOMINAL) – 1.5V +
0.5VP-P RIPPLE AT f = 120Hz
IL = –150mA
58
–25
TEMPERATURE (°C)
3032 G31
0
25
50
75
TEMPERATURE (°C)
100
125
3032 G33
3032 G32
LT3032 Minimum INP Pin Voltage
LT3032 Minimum INN Pin Voltage
VOUTP = 1.22V
IL = 150mA
1.75
1.50
IL = 1mA
1.25
1.00
0.75
0.50
–2.5
–2.0
IL = –150mA
–1.5
IL = –1mA
–1.0
NOTE: THE SHDNN PIN THRESHOLD
MUST BE MET TO ENSURE
DEVICE OPERATION
–0.5
0.25
0
–50
–25
50
25
0
75
TEMPERATURE (°C)
100
0
–50
125
Positive Load Regulation
LT3032
LT3032-3.3
–10
–25
0
25
50
75
TEMPERATURE (°C)
LOAD REGULATION (mV)
2.00
MINIMUM INN PIN VOLTAGE (V)
MINIMUM INP PIN VOLTAGE (V)
2.25
0
–3.0
2.50
–20
LT3032-5
–30
LT3032-12
LT3032-15
–40
–50
–60
100
VINP = VOUTP(NOMINAL) +1V
∆IL = 1mA TO 150mA
–70
–50
125
–25
0
25
50
75
TEMPERATURE (°C)
100
125
3032 G36
3032 G35
3032 G34
VINN = VOUTN(NOMINAL) – 1V
IL = –1mA TO –150mA
40
LT3032-12
30
LT3032-15
20
LT3032-3.3
LT3032-5
10
0
–50
LT3032
–25
0
25
50
75
TEMPERATURE (°C)
100
125
3032 G37
OUTP NOISE SPECTRAL DENSITY (µV/√Hz)
LOAD REGULATION (mV)
50
OUTP Noise Spectral Density
10
COUTP = 10µF
IL = 150mA
CBYPP = 0.01µF
1
OUTN Noise Spectral Density
10
CBYPP = 1000pF
CBYPP = 100pF
0.1
0.01
10
VOUTP = 5V
VOUTP = VADJP
100
1k
10k
FREQUENCY (Hz)
100k
OUTN NOISE SPECTRAL DENSITY (µV/√Hz)
Negative Load Regulation
60
CBYPN = 1000pF CBYPN = 100pF
1
0.1
CBYPN = 0
CBYPN = 0.01µF
COUTN = 10µF
IL = –150mA
0.01
10
100
VOUTN = –5V
VOUTN = VADJN
1k
10k
FREQUENCY (Hz)
100k
3032 G39
3032 G38
3032fe
12
For more information www.linear.com/LT3032
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
350
LT3032-15
200
LT3032-12
150 LT3032-5
100
LT3032-3.3
50
100
1k
10k
LT3032-15
LT3032-12
200
150
LT3032-5
100
LT3032-3.3
LT3032
0.1
1
10
100
LOAD CURRENT (mA)
OUTN RMS Noise
vs Load Current (10Hz to 100kHz)
CBYPN = 0
CBYPN = 0.01µF
LT3032-15
LT3032-12
LT3032-5
LT3032-3.3
LT3032
OUTN RMS NOISE (µVRMS)
120
100
80
60
LT3032-12
150
100
50
LT3032-5
0
1k
LT3032-3.3
10
100
1k
10k
CBYPN (pF)
3032 G42
3032 G41
3032 G40
140
200
LT3032
0
0.01
CBYPP (pF)
COUTN = 10µF
IL = –150mA
f = 10Hz TO 100kHz
LT3032-15
COUTP = 10µF
CBYPP = 0
CBYPP = 0.01µF
50
LT3032
10
250
OUTN RMS Noise
vs Bypass Capacitor
250
LT3032-15
LT3032-12
LT3032-5
LT3032-3.3
LT3032
300
OUTP RMS NOISE (µVRMS)
250
0
350
COUTP = 10µF
IL = 150mA
f = 10Hz TO 100kHz
300
OUTP RMS NOISE (µVRMS)
OUTP RMS Noise
vs Load Current (10Hz to 100kHz)
OUTN RMS NOISE (µVRMS)
OUTP RMS Noise
vs Bypass Capacitor
OUTP 10Hz to 100kHz Output Noise
CBYPP = 0
OUTP 10Hz to 100kHz Output Noise
CBYPP = 0.01µF
COUTN = 10µF
LT3032-15
LT3032-12
VOUTP
100µV/DIV
VOUTP
100µV/DIV
LT3032-5
40
LT3032-3.3
LT3032
20
0
–0.01
–0.1
–1
–10
–100
LOAD CURRENT (mA)
COUTP = 10µF
IL = 150mA
VOUTP = 5V
–1k
1ms/DIV
3032 G44
COUTP = 10µF
IL = 150mA
VOUTP = 5V
3032 G45
1ms/DIV
3032 G43
OUTN, 10Hz to 100kHz
Output Noise, CBYPN = 0
OUTN, 10Hz to 100kHz Output
Noise, CBYPN = 0.01µF
OUTP Transient Response
CBYPP = 0
0.3
VOUTP = 5V
VINP = 6V
CINP = 10µF
COUTP = 10µF
OUTP VOLTAGE
DEVIATION (V)
0.2
VOUTN
100µV/DIV
VOUTN
200µV/DIV
0.1
0
–0.1
–0.2
COUTN = 10µF
ILOAD = –150mA
VOUTN = –5V
1ms/DIV
3032 G46
COUTN = 10µF
ILOAD = –150mA
VOUTN = –5V
1ms/DIV
3032 G47
LOAD CURRENT
(mA)
–0.3
150
100
50
0
0
400
800
1200
TIME (µs)
1600
2000
3032 G48
3032fe
For more information www.linear.com/LT3032
13
LT3032 Series
TYPICAL PERFORMANCE CHARACTERISTICS
0.02
0
–0.02
–0.04
VOUTN = –5V
VINN = –6V
CINN = 10µF
COUTN = 10µF
0.2
OUTN VOLTAGE
DEVIATION (V)
VOUTP = 5V
VINP = 6V
CINP = 10µF
COUTP = 10µF
0.04
OUTP VOLTAGE
DEVIATION (V)
OUTN Transient Response
CBYPN = 0
0.1
0
50
0
0
40
80
120
TIME (µs)
160
200
VOUTN = –5V
VINN = –6V
CINN = 10µF
COUTN = 10µF
0.04
0.02
0
–0.04
–0.2
–0.06
LOAD CURRENT
(mA)
LOAD CURRENT
(mA)
LOAD CURRENT
(mA)
100
OUTN Transient Response
CBYPN = 0.01µF
–0.02
–0.1
0
150
0.06
OUTN VOLTAGE
DEVIATION (V)
OUTP Transient Response
CBYPP = 0.01µF
–50
–100
–150
0 100 200 300 400 500 600 700 800 900 1k
TIME (µs)
3032 G50
3032 G49
0
–50
–100
–150
0
50 100 150 200 250 300 350 400 450 500
TIME (µs)
3032 G51
PIN FUNCTIONS
OUTP (Pin 1): Positive Output. This output supplies power
to the positive side load. A minimum output capacitor
of 2.2µF is required to prevent oscillations. Larger output capacitors are required for applications with large
transient loads to limit peak voltage transients. See the
Applications Information section for more information
on output capacitance, bypass capacitance, and reverse
output characteristics.
GND (Pins 4, 5, Exposed Pad Pin 15): Ground. One of
the DFN’s exposed backside pads (Pin 15) is an electrical
connection to ground. To ensure proper electrical and
thermal performance, solder Pin 15 to the PCB’s ground
and tie directly to Pins 4 and 5. Connect the bottom of
the positive and negative output voltage setting resistor
dividers directly to Pins 4 and 5 for optimum load regulation performance.
ADJP (Pin 2, Adjustable Part Only): Positive Adjust. This
is the input to the positive side error amplifier. This pin
is internally clamped to ±7V. It has a typical bias current
of 30nA which flows into the pin (see curve of ADJP Pin
Bias Current vs Temperature in the Typical Performance
Characteristics). The ADJP pin voltage is 1.22V referenced
to ground and the output voltage range is 1.22V to 20V.
INN (Pin 6, 9, Exposed Pad Pin 16): Negative Input. The
DFN package’s second exposed backside pad (Pin 16) is
an electrical connection to INN. To ensure proper electrical and thermal performance, solder Pin 16 to the PCB’s
negative input supply and tie directly to Pins 6 and 9.
Power is supplied to the negative side of the LT3032
through the INN pins. A bypass capacitor is required on
this pin if it is more than six inches away from the main
input filter capacitor. In general, the output impedance of
a battery rises with frequency, so it is advisable to include
a bypass capacitor in battery-powered circuits. A bypass
capacitor in the range of 1µF to 10µF is sufficient.
BYPP (Pin 3): Positive Bypass. The BYPP pin is used to
bypass the reference of the positive side regulator to achieve
low noise performance. The BYPP pin is clamped internally
to ±0.6V (one VBE). A small capacitor from OUTP to this pin
will bypass the reference to lower the output voltage noise.
A maximum value of 0.01µF is used for reducing output
voltage noise to a typical 20µVRMS over the 10Hz to 100kHz
bandwidth. If not used, this pin must be left unconnected.
3032fe
14
For more information www.linear.com/LT3032
LT3032 Series
PIN FUNCTIONS
OUTN (Pin 7): Negative Output. This output supplies power
to the negative side load. A minimum output capacitor
of 1µF is required to prevent oscillations. Larger output
capacitors are required for applications with large tran­
sient loads to limit peak voltage transients. A parasitic
diode exists between OUTN and INN; OUTN can not be
pulled more negative than INN during normal operation,
or more than 0.5V below INN during a fault condition. See
the Applications Information section for more information
on output capacitance and bypass capacitors.
ADJN (Pin 8, Adjustable Part Only): Negative Adjust. This
is the input to the negative side error amplifier. The ADJN
pin has a typical bias current of 30nA that flows out of the
pin. The ADJN pin voltage is –1.22V referenced to ground,
and the output voltage range is –1.22V to –20V. A parasitic
diode exists between ADJN and INN. The ADJN pin cannot
be pulled more negative than INN during normal operation,
or more than 0.5V below INN during a fault condition.
SHDNN (Pin 10): Negative Shutdown. The SHDNN pin puts
the negative side into a low power shutdown state. The
SHDNN pin is referenced to ground for regulator control,
allowing the negative side to be driven by either positive
or negative logic. The negative output will be off if the
SHDNN pin is within ±0.8V(typical) of ground. Pulling the
SHDNN pin more than –1.9V or +1.4V(typical) will turn the
negative output on. The SHDNN pin can be driven by 5V
logic or open-collector logic with a pull-up resistor. The
pull-up resistor is required to supply the pull-up current of
the open-collector device, normally several microamperes,
and the SHDNN pin current, typically 3µA out of the pin
(for negative logic) or 6µA into the pin (for positive logic).
If unused, the SHDNN pin must be connected to INN. The
negative output will be shut down if the SHDNN pin is open
circuit. A parasitic diode exists between SHDNN and INN,
the SHDNN pin cannot be pulled more negative than INN
during normal operation, or more than 0.5V below INN
during a fault condition.
BYPN (Pin 11): Negative Bypass. The BYPN pin is used
to bypass the reference of the negative side regulator to
achieve low noise performance. A small capacitor from
OUTN to this pin will bypass the reference to lower the
output voltage noise. A maximum value of 0.01µF is used
for reducing output voltage noise to a typical 30µVRMS
over the 10Hz to 100kHz bandwidth. If not used, this pin
must be left unconnected.
SHDNP (Pin 12): Positive Shutdown. The SHDNP pin puts
the positive side into a low power shutdown state. The
positive output will be off when the SHDNP pin is pulled
below 0.6V(typical). The SHDNP pin can be driven by 5V
logic or open-collector logic with a pull-up resistor. The
pull-up resistor is required to supply the pull-up current
of the open-collector device, normally several microamperes, and the SHDNP pin current, typically 1µA into the
pin. If unused, the SHDNP pin must be connected to INP.
The positive output will be shut down if the SHDNP pin
is open circuit. The SHDNP pin can be tied directly to the
SHDNN pin and both pins driven directly by positive logic
for a single point control of both outputs.
NC (Pin 13/Pins 2, 8 for Fixed Voltage Devices): No
Connect. The No Connect pin has no connection to internal circuitry and may be tied to INP, GND, INN, SHDNP,
SHDNN, OUTP, OUTN, floated, or tied to any other point.
INP (Pin 14): Positive Input. Power is supplied to the
positive side of the LT3032 through the INP pin. A bypass
capacitor is required on this pin if it is more than six inches
away from the main input filter capacitor. In general, the
output impedance of a battery rises with frequency, so
it is advisable to include a bypass capacitor in batterypowered circuits. A bypass capacitor in the range of 1µF
to 10µF is sufficient.
3032fe
For more information www.linear.com/LT3032
15
LT3032 Series
APPLICATIONS INFORMATION
The LT3032 is a dual 150mA positive and negative low noise
low dropout linear regulator with micropower quiescent
current and shutdown. It supplies ±150mA at a dropout
of 300mV. Output voltage noise can be lowered on the
positive side to 20µVRMS and to 30µVRMS on the negative
side over the 10Hz to 100kHz bandwidth with the addition
of 0.01µF reference bypass capacitors. Additionally, the
reference bypass capacitors improve transient response,
lowering the settling time for transient load conditions.
Quiescent current is 25µA for the positive side and –30µA
for the negative side (45µA each for the LT3032-12/
LT3032-15), typically dropping to less than 3µA total in
shutdown. In addition to the low quiescent current, the
LT3032 incorporates several protection features which
make it ideal for use in battery-powered systems. If the
load is common mode between the two outputs, it does
not matter which output starts first; either output can be
pulled to the opposing side of ground and the regulator
will still start and operate.
Setting Output Voltage
The adjustable LT3032 has output voltage ranges of 1.22V
to 20V for the positive side and –1.22V to –20V for the
negative side. The output voltages are set by the ratio of
two external resistor dividers as shown in Figure 1. The
LT3032 servos the outputs to maintain the voltages at the
ADJP and ADJN pins to 1.22V and –1.22V, respectively.
The current in the bottom resistor of each divider (R1P
or R1N) is equal to 1.22V/R1 and the current in the top
resistor (R2P or R2N) is equal to the current in the bottom
resistor plus the respective ADJP/ADJN pin bias current.
The bias current for ADJP and ADJN is 30nA at 25°C,
flowing into the pin for ADJP and flowing out of the pin
for ADJN. The output voltages can then be calculated using the formulas shown in Figure 1. The value of R1P or
R1N should be less than 250k to minimize errors in the
resultant output voltage caused by the ADJP/ADJN pin
bias current. Note that in shutdown the respective output
is turned off and the divider current will be zero. Curves
of ADJP Pin Voltage, ADJN Pin Voltage, ADJP Pin Bias
Current, and ADJN Pin Bias Current (all vs Temperature)
appear in the Typical Performance Characteristics.
OUTP
R2P
LT3032
+
VOUTP
VADJP = 1.22V
ADJP
IADJP = 30nA at 25°C
OUTPUT RANGE = 1.22V TO 20V
R1P
GND
 R2N 
+ (IADJN ) (R2N)
VOUTN = –1.22V  1+
 R1N 
R1N
ADJN
VADJN = –1.22V
+
IADJN = –30nA at 25°C
R2N
OUTN
 R2P 
+ (IADJP ) (R2P)
VOUTP = 1.22V  1+
 R1P 
OUTPUT RANGE = –1.22V TO – 20V
VOUTN
3032 F01
Figure 1. Setting Output Voltages
The LT3032 is tested and specified with the ADJP/ADJN
pin tied to the respective OUTP/OUTN pin and a ±5µA DC
load (unless otherwise specified) for an output voltage
of ±1.22V. Specifications for output voltages greater than
this will be proportional to ±1.22V; (VOUT/±1.22V). For
example, load regulation for an output current change
of 1mA to 150mA is –2mV typical at VOUTN = –1.22V. At
VOUTN = –12V, load regulation is:
(–12V/–1.22V)•(–2mV) = –19.6mV
Bypass Capacitors and Low Noise Performance
The LT3032 provides reasonable noise performance
without reference bypass capacitors from OUTP/OUTN
to the corresponding BYPP/BYPN pin. Using the LT3032
with the addition of reference bypass capacitors lowers
output voltage noise. Good quality low leakage capacitors
are recommended. These capacitors bypass the internal
references for the positive and negative sides of the LT3032,
providing low frequency noise poles. The noise poles
provided by the bypass capacitors decrease the output
voltage noise to as low as 20µVRMS for the positive side
and 30µVRMS for the negative side with the use of 0.01µF
bypass capacitors.
The BYPP pin and BYPN pin are high impedance nodes
and leakage into or out of these pins affects the reference
voltage. The BYPP pin operates at approximately 74mV at
3032fe
16
For more information www.linear.com/LT3032
LT3032 Series
APPLICATIONS INFORMATION
25°C during normal operation where the BYPN pin operates at approximately –60mV. DC leakages on the order
of 1µA into or out of these pins can throw off the internal
reference by 20% or more.
Output Capacitance and Transient Response
The LT3032 requires output capacitors for stability. It
is designed to be stable with most low ESR capacitors
(typically ceramic, tantalum or low ESR electrolytic). A
minimum output capacitor of 2.2μF with an ESR of 3Ω
or less is recommended to prevent oscillations on each
output. The LT3032 is a micropower device and output
transient response is a function of output capacitance.
Larger values of output capacitance decrease peak deviations and provide improved transient response for larger
load current changes. Additional capacitors, used to decouple individual components powered by the LT3032,
increase the effective output capacitor value. When using
bypass capacitors (for low noise operation), larger values
of output capacitors are needed. For 100pF of bypass capacitance, 3.3µF of output capacitance is recommended.
With a 330pF bypass capacitor or larger, a 4.7µF output
capacitor is recommended. The shaded region of Figure 2
defines the range over which the LT3032 is stable. The
minimum ESR needed is defined by the amount of bypass
capacitance used, while the maximum ESR is 3Ω. These
requirements are applicable to both the positive and negative linear regulator.
4.0
3.5
3.0
STABLE REGION
ESR (Ω)
2.5
2.0
1.5
CBYP = 0
CBYP = 100pF
CBYP = 330pF
CBYP ≥ 3300pF
1.0
0.5
0
1
Give extra consideration to the use of ceramic capacitors.
Ceramic capacitors are manufactured with a variety of dielectrics, each with different behavior across temperature
and applied voltage. The most common dielectrics used
are specified with EIA temperature characteristic codes of
Z5U, Y5V, X5R and X7R. The Z5U and Y5V dielectrics are
good for providing high capacitances in a small package,
but they tend to have strong voltage and temperature
coefficients as shown in Figures 3 and 4. When used with
a 5V regulator, a 16V 10μF Y5V capacitor can exhibit an
effective value as low as 1μF to 2μF for the DC bias voltage
applied and over the operating temperature range. The X5R
and X7R dielectrics result in more stable characteristics
and are more suitable for use as the output capacitor.
The X7R type has better stability across temperature,
while the X5R is less expensive and is available in higher
values. Care still must be exercised when using X5R and
X7R capacitors. The X5R and X7R codes only specify
operating temperature range and maximum capacitance
change over temperature. Capacitance change due to DC
bias with X5R and X7R capacitors is better than Y5V and
Z5U capacitors, but can still be significant enough to drop
capacitor values below appropriate levels. Capacitor DC
bias characteristics tend to improve as component case
size increases, but expected capacitance at operating
voltage should be verified in situ for a given application.
Voltage and temperature coefficients are not the only
sources of problems. Some ceramic capacitors have a
piezoelectric response. A piezoelectric device generates
voltage across its terminals due to mechanical stress. In
a ceramic capacitor, the stress can be induced by vibrations in the system or thermal transients. Tapping on the
ceramic bypass capacitor with a pencil generated the noise
shown in Figure 5. Similar vibration induced behavior can
masquerade as increased output voltage noise.
3
2
4 5 6 7 8 9 10
OUTPUT CAPACITANCE (µF)
1762 F02
Figure 2. Stability
3032fe
For more information www.linear.com/LT3032
17
LT3032 Series
APPLICATIONS INFORMATION
20
Stability and Input Capacitance
BOTH CAPACITORS ARE 16V,
1210 CASE SIZE, 10µF
0
CHANGE IN VALUE (%)
X5R
–20
–40
–60
Y5V
–80
–100
0
2
4
8
6
10 12
DC BIAS VOLTAGE (V)
14
16
3032 F03
Figure 3. Ceramic Capacitor DC Bias Characteristics
40
CHANGE IN VALUE (%)
20
The self-inductance, or isolated inductance, of a wire is
directly proportional to its length. Wire diameter is not a
major factor on its self-inductance. For example, the selfinductance of a 2-AWG isolated wire (diameter = 0.26”) is
about half the self-inductance of a 30-AWG wire (diameter
= 0.01”). One foot of 30-AWG wire has about 465nH of
self-inductance.
X5R
0
–20
–40
Y5V
–60
–80
BOTH CAPACITORS ARE 16V,
1210 CASE SIZE, 10µF
–100
–50 –25
50
25
75
0
TEMPERATURE (°C)
100
125
3032 F04
Figure 4. Ceramic Capacitor Temperature Characteristics
OUTPUT SET TO 5V
Low ESR, ceramic input bypass capacitors are acceptable
for applications without long input leads. However, applications connecting a power supply to an LT3032’s circuit’s
INP/INN and GND pins with long input wires combined
with low ESR, ceramic input capacitors are prone to voltage
spikes, reliability concerns and application-specific board
oscillations. The input wire inductance found in many
battery-powered applications, combined with the low ESR
ceramic input capacitor, forms a high-Q LC resonant tank
circuit. In some instances this resonant frequency beats
against the output current dependent LDO bandwidth and
interferes with proper operation. Simple circuit modifications/solutions are then required. This behavior is not
indicative of LT3032 instability, but is a common ceramic
input bypass capacitor application issue.
3032 F05
One of two ways reduces a wire’s self-inductance. One
method divides the current flowing towards the LT3032
between two parallel conductors. In this case, the farther
apart the wires are from each other, the more the selfinductance is reduced; up to a 50% reduction when placed
a few inches apart. Splitting the wires basically connects
two equal inductors in parallel, but placing them in close
proximity gives the wires mutual inductance adding to
the self-inductance. The second and most effective way
to reduce overall inductance is to place both forward and
return current conductors (the input and GND wires) in
very close proximity. Two 30-AWG wires separated by only
0.02”, used as forward– and return– current conductors,
reduce the overall self-inductance to approximately onefifth that of a single isolated wire.
Figure 5. Noise Resulting From Tapping on a Ceramic Capacitor
3032fe
18
For more information www.linear.com/LT3032
LT3032 Series
APPLICATIONS INFORMATION
If wiring modifications are not permissible for the applications, including series resistance between the power supply
and the input of the LT3032 also stabilizes the application.
As little as 0.1Ω to 0.5Ω, often less, is effective in damping the LC resonance. If the added impedance between
the power supply and the input is unacceptable, adding
ESR to the input capacitor also provides the necessary
damping of the LC resonance. However, the required ESR
is generally higher than the series impedance required.
Thermal Considerations
The power handling capability of the device is limited by
the maximum rated junction temperature (125°C). The
power dissipated by the device is made up of the following components:
The LT3032 is a surface mount device and heat sinking is
accomplished by using the heat spreading capabilities of
the PC board and its copper traces. Copper board stiffeners and plated through-holes can also be used to spread
the heat generated by power devices.
Note that the exposed pads (Pins 15 and 16) are elect­
rically connected to ground (GND) and the negative input
(INN) respectively.
The following table lists thermal resistance as a function
of copper area on a fixed board size. All measurements
were taken in still air on a 4-layer FR-4 board with 1oz
solid internal planes and 2oz external trace planes with a
total finished board thickness of 1.6mm.
Table 3. DE Package, 14-Lead DFN
COPPER AREA
1.Output current of each side multiplied by the respective
input/output voltage differential: (IOUT)(VIN to VOUT),
and
TOPSIDE*
BACKSIDE
BOARD AREA
THERMAL RESISTANCE
(JUNCTION-TO-AMBIENT)
2500mm2
2500mm2
2500mm2
32°C/W
2.GND pin current for each side multiplied by its input
voltage: (IGND)(VIN)
1000mm2
2500mm2
2500mm2
33°C/W
225mm2
2500mm2
2500mm2
38°C/W
100mm2
2500mm2
2500mm2
43°C/W
The GND pin current of each side is found by examining
the GND Pin Current curves in the Typical Performance
Characteristics. Total power dissipation equals the sum
for both channels of the components listed above.
The LT3032 has internal thermal limiting designed to protect each side of the regulator during overload conditions.
For continuous normal conditions, the maximum junction
temperature rating of 125°C must not be exceeded. It is
important to give careful consideration to all sources of
thermal resistance from junction to ambient. Additional
heat sources mounted nearby must also be considered.
*Device is mounted on topside
For further information on thermal resistance and using
thermal information, refer to JEDEC standard JESD51,
notably JESD51-12.
PCB layers, copper weight, board layout and thermal vias
affect the resultant thermal resistance. This table provides
thermal resistance numbers for best-case 4-layer boards
with 1oz internal and 2oz external copper. Modern, multilayer PCBs may not be able to achieve quite the same
level performance as found in this table.
3032fe
For more information www.linear.com/LT3032
19
LT3032 Series
APPLICATIONS INFORMATION
Calculating Junction Temperature
Protection Features
Example: Given a positive output voltage of 3.3V, a positive input voltage of 4V to 6V, output current range from
10mA to 150mA, negative output voltage of –3.3V, negative
input voltage of –5V to –6V, a negative output current of
–100mA, and a maximum ambient temperature of 50°C,
what will the maximum junction temperature be for a
2500mm2 board with topside copper of 1000mm2?
The LT3032 incorporates several protection features that
make it ideal for use in battery-powered circuits. In addition to the normal protection features associated with
monolithic regulators, such as current limiting and thermal
limiting, the LT3032 is protected against reverse input
voltages and reverse output voltages on both channels.
The power in each side equals:
PSIDE = (VIN(MAX) – VOUT)(IOUT(MAX))+(VIN(MAX)•IGND)
where,
IOUTP(MAX) = 150mA
VINP(MAX) = 6V
IGND at (IOUTP = 150mA, VINP = 6V) = 3.7mA
IOUTN(MAX) = –100mA
VINN(MAX) = –6V
IGND at (IOUTN = –100mA, VINN = –6V) = –1.5mA
The total power equals:
PTOTAL = PPOSITIVE + PNEGATIVE
So,
PPOSITIVE = 150mA(6V – 3.3V) + 3.7mA(6V) = 0.43W
P NEGATIVE = –100mA(–6V+3.3V)–1.5mA(–6V) =
0.28W
PTOTAL = 0.43W + 0.28W = 0.71W
Junction Temperature equals:
TJ = TA + PTOTAL • θJA (using tables)
TJ = 50°C + 0.71W • 33°C/W = 73.4°C
In this case, the junction temperature is below the maximum rating, ensuring reliable operation.
Current limit protection and thermal overload protection
protect the device against current overload conditions at
the outputs of the part. For normal operation, the junction
temperature should not be allowed to exceed 125°C.
The positive input of the LT3032 withstands 20V reverse
voltage. The negative input also withstands reverse voltage, but the negative input may not be more than 0.5V
(one VBE) higher than the OUTN and SHDNN pins. This
provides protection against batteries that are plugged in
backwards.
The outputs of the LT3032 can be pulled to opposing voltages without damaging the part. The outputs may be pulled
to the opposing polarity with a load that is common mode
between the two and one regulator starts before the other;
in this condition, it does not matter which regulator started
first. Both sides are capable of having the output pulled to
the opposing polarity and both will still start and operate.
If an input is left open circuit or grounded, the corresponding output can be pulled to its opposing polarity by
as much as 20V. The output will act like an open circuit;
no current will flow into or out of the pin. If the input is
powered by a voltage source, the output will source the
short-circuit current and will protect itself by thermal
limiting. In this case, grounding the respective SHDNP/
SHDNN pin will turn off that side of the LT3032 and stop
the output from sourcing current.
The ADJP pin can be pulled above or below ground by
±7V without damage to the device. If the input is left open
circuit or grounded, the ADJP pin acts like an open circuit
when pulled below ground and like a large resistor (typically
100k) in series with a diode when pulled above ground.
3032fe
20
For more information www.linear.com/LT3032
LT3032 Series
APPLICATIONS INFORMATION
In situations where the ADJP pin is connected to a resistor
divider that would pull the ADJP pin above its 7V clamp
voltage if the output is pulled high, the ADJP pin input
current must be limited to less than 5mA. For example, a
resistor divider is used to provide a 1.5V output from the
1.22V reference and the output is forced to 20V. The top
resistor of the divider must be chosen to limit the current
into the ADJP pin to less than 5mA when the ADJP pin is
at 7V. The 13V difference between OUTP and ADJP divided
by the 5mA maximum current into the ADJP pin yields a
minimum top resistor value of 2.6k.
In circuits where a backup battery is required on the positive output, several different input/output conditions can
occur. The output voltage may be held up while the input
is either pulled to ground, pulled to some intermediate
voltage or is left open circuit. Current flow back into OUTP
follows the curve shown in Figure 6.
REVERSE OUTP PIN CURRENT (µA)
100
90
LT3032
80
TJ = 25°C, VINP = 0V
CURRENT FLOWS
INTO OUTP PIN
VOUTP = VADJP (LT3032)
70
60
50
LT3032-5
40
LT3032-12
30
LT3032-15
20
10
0
LT3032-3.3
0
2
4
6 8 10 12 14 16 18 20
OUTP PIN VOLTAGE (V)
3032 F06
Figure 6. Reverse Output Current
If the INP pin is forced below the OUTP pin or the OUTP
pin is pulled above the INP pin, input current typically
drops to less than 2µA. This can happen if the device is
connected to a discharged (low voltage) battery and the
output is held up by a backup battery or a second regulator circuit. The state of the SHDNP pin has no effect on
the reverse output current if OUTP is pulled above INP.
Like many IC power regulators, the negative side of the
LT3032 has safe operating area (SOA) protection. The safe
operating area protection activates when the differential
voltage between INN and OUTN is greater than -7V. The
SOA protection decreases current limit as a function of
the voltage differential between INN and OUTN and keeps
the power transistor inside a safe operating region for all
values of forward input-to-output voltage. The protection
is designed to provide some output current at all values
of INN to OUTN differential voltage up to the Absolute
Maximum Rating. A 50µA load is required to maintain
regulation for INN to OUTN differential voltages greater
than –7V. When in shutdown, protection circuitry remains
active and will cause the output to rise slightly at zero load.
A small pre-load is needed for zero output, if desired (see
graph of Quiescent Current vs Input Voltage in Typical
Performance Characteristics).
When power to the negative side is first turned on, as the
input voltage rises, OUTN follows INN, allowing the regulator to start into very heavy loads. During start-up, as the
INN voltage is rising, the differential voltage between INN
and OUTN is small, allowing the negative side to supply
large output currents. With a high INN voltage, a problem
can occur wherein removal of an output short will not allow the output voltage to fully recover. Other regulators,
such as the LT1175, LT1964, and LT3080 also exhibit this
phenomenon, so it is not unique to the LT3032.
The problem occurs with a heavy output load when the INN
voltage is high and the OUTN voltage is low. Common situations are immediately after the removal of a short-circuit
or when the SHDNN pin is pulled high after the INN pin
has already been turned on. The load line for such a load
may intersect the output current curve at two points. If
this happens, there are two stable operating points for the
negative side of the LT3032. With this double intersection,
the INN supply may need to be cycled down to zero and
brought up again to make OUTN recover.
3032fe
For more information www.linear.com/LT3032
21
LT3032 Series
PACKAGE DESCRIPTION
Please refer to http://www.linear.com/designtools/packaging/ for the most recent package drawings.
DE14MA Package
14-Lead Plastic DFN (4mm × 3mm)
(Reference LTC DWG # 05-08-1731 Rev A)
1.78 ±0.05
0.70 ±0.05
0.10 TYP
0.51 TYP
3.50 ±0.05
1.65 ± 0.05
2.10 ±0.05
1.07
±0.05
1.65 ± 0.05
PACKAGE
OUTLINE
0.25 ± 0.05
0.50 BSC
3.00 REF
RECOMMENDED SOLDER PAD PITCH AND DIMENSIONS
APPLY SOLDER MASK TO AREAS THAT ARE NOT SOLDERED
4.00 ±0.10
(2 SIDES)
R = 0.05
TYP
3.00 ±0.10
(2 SIDES)
R = 0.115
TYP
8
1.78 ±0.10
14
1.07
±0.10
1.65 ± 0.10
0.10 TYP
1.65 ± 0.10
0.51 TYP
PIN 1
TOP MARK
(SEE NOTE 6)
0.200 REF
0.75 ±0.05
0.40 ± 0.10
7
1
0.25 ± 0.05
0.50 BSC
3.00 REF
0.00 – 0.05
PIN 1 NOTCH
R = 0.20 OR
0.25 × 45°
CHAMFER
(DE14MA) DFN 0507 REV A
BOTTOM VIEW—EXPOSED PAD
NOTE:
1. DRAWING PROPOSED IS NOT A JEDEC PACKAGE OUTLINE
2. DRAWING NOT TO SCALE
3. ALL DIMENSIONS ARE IN MILLIMETERS
4. DIMENSIONS OF EXPOSED PAD ON BOTTOM OF PACKAGE DO NOT INCLUDE
MOLD FLASH. MOLD FLASH, IF PRESENT, SHALL NOT EXCEED 0.15mm ON ANY SIDE
5. EXPOSED PAD SHALL BE SOLDER PLATED
6. SHADED AREA IS ONLY A REFERENCE FOR PIN 1 LOCATION ON THE
TOP AND BOTTOM OF PACKAGE
3032fe
22
For more information www.linear.com/LT3032
LT3032 Series
REVISION HISTORY
REV
DATE
DESCRIPTION
A
08/10
Updated all applicable sections to add fixed voltage ±5V option.
PAGE NUMBER
B
01/11
Swapped OUTN and INN pins in Absolute Maximum Ratings.
Revised values in SHDNN and SHDNP descriptions in Pin Functions.
Revised quiescent current for the positive side up to 25µA in Applications Information.
C
09/11
Updated to add 12V and 15V options
D
03/12
Added MP-Grade to Order Information and Absolute Maximum Ratings
E
08/14
Added ±3.3V option
1-7, 9-14
2
12, 13
14
1-12, 21
2, 3
1-8, 10-12,
21, 24
3032fe
Information furnished by Linear Technology Corporation is believed to be accurate and reliable.
However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection
its circuits
as described
herein will not infringe on existing patent rights.
For of
more
information
www.linear.com/LT3032
23
LT3032 Series
TYPICAL APPLICATION
±5V to ±15V Tracking Supply
5.5V TO
20V
OUTP
INP
LT3032
0.01µF
536k
5V TO 15V
AT 150mA
10µF
BYPP
OFF ON
ADJP
SHDNP
95.3k
GND
SHDNN
250k
ADJN
BYPN
0.01µF
–5.5V TO
–20V
536k
OUTN
10µF
–5V TO –15V
AT –150mA
3032 TA02
RELATED PARTS
PART NUMBER
DESCRIPTION
COMMENTS
LT1175
800mA Negative Low Dropout
Micropower Regulator
VIN: –4.5V to -20V, IQ = 45μA, 0.5V Dropout Voltage, S8, DD-Pak, TO-220 and SOT-223
Packages
LT1761
100mA, Low Noise LDO
300mV Dropout Voltage, Low Noise: 20µVRMS, VIN = 1.8V to 20V, ThinSOT package
LT1762
150mA, Low Noise LDO
300mV Dropout Voltage, Low Noise: 20µVRMS, VIN = 1.8V to 20V, MS8 package
LTC1844
150mA, Very Low Dropout LDO
80mV Dropout Voltage, Low Noise <30µVRMS, VIN = 1.6V to 6.5V, Stable with 1µF Output
Capacitors, ThinSOT Package
LT1962
300mA, Low Noise LDO
270mV Dropout Voltage, Low Noise: 20µVRMS, VIN = 1.8V to 20V, MS8 Package
LT1964
200mA, Low Noise, Negative LDO
340mV Dropout Voltage, Low Noise 30µVRMS, VIN = –1.8V to –20V, ThinSOT and
DFN Packages
LT3023
Dual 100mA, Low Noise, Micropower LDO VIN: 1.8V to 20V, VOUT(MIN) = 1.22V, VDO = 0.30V, IQ = 40μA, ISD < 1μA; DFN and
MS10E Packages
LT3024
Dual 100mA/500mA, Low Noise,
Micropower LDO
VIN: 1.8V to 20V, VOUT(MIN) = 1.22V, VDO = 0.30V, IQ = 60μA, ISD < 1μA; DFN and
TSSOP-16E Packages
LT3027
Dual 100mA, Low Noise, Micropower
LDO with Independent Inputs
VIN: 1.8V to 20V, VOUT(MIN) = 1.22V, VDO = 0.30V, IQ = 50μA, ISD < 1μA; DFN and
MS10E Packages
LT3028
Dual 100mA/500mA, Low Noise,
VIN: 1.8V to 20V, VOUT(MIN) = 1.22V, VDO = 0.32V, IQ = 60μA, ISD < 1μA; DFN and
Micropower LDO with Independent Inputs TSSOP-16E Packages
LT3029
Dual 500mA/500mA, Low Dropout, Low
Noise, Micropower Linear Regulator
LT3082
200mA, Parallelable, Single Resistor, Low Wide Input Voltage Range: 1.2V to 40V Low Value Input/Output Capacitors Required:
Dropout Linear Regulator
0.22μF, Single Resistor Sets Output Voltage Initial Set Pin Current Accuracy: 1%, Low
Output Noise: 40μVRMS (10Hz to 100kHz) Reverse-Battery Protection, Reverse-Current
Protection 8-Lead SOT-23, 3-Lead SOT-223 and 8-Lead 3mm × 3mm DFN Packages
Low Noise: 20μVRMS (10Hz to 100kHz), Low Quiescent Current: 55μA per Channel Wide
Input Voltage Range: 1.8V to 20V (Common or Independent Input Supply) Adjustable
Output: 1.215V Reference, Very Low Quiescent Current in Shutdown: <1μA per Channel
Stable with 3.3μF Minimum Output Capacitor, Thermally Enhanced 16-Lead MSOP and
16-Lead (4mm × 3mm) DFN Packages
3032fe
24 Linear Technology Corporation
1630 McCarthy Blvd., Milpitas, CA 95035-7417
For more information www.linear.com/LT3032
(408) 432-1900 ● FAX: (408) 434-0507
●
www.linear.com/LT3032
LT 0814 REV E • PRINTED IN USA
 LINEAR TECHNOLOGY CORPORATION 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
