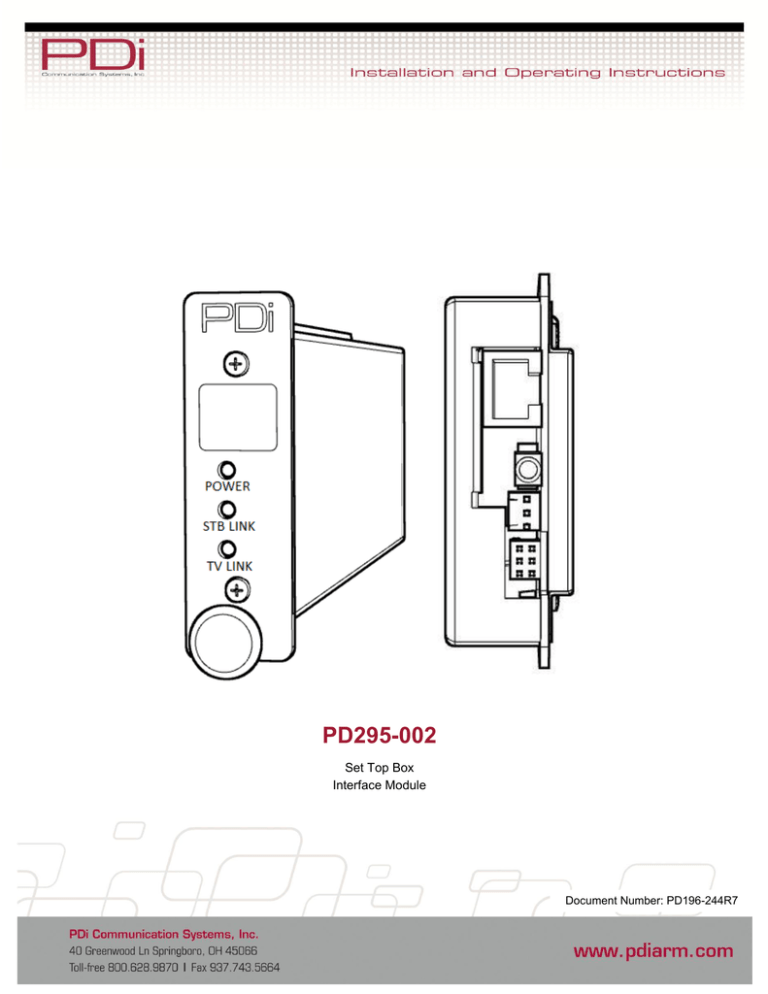

PD295-002

Document Number: PD196-244R6 PD295-002 Set Top Box Interface Module Page 1 of 27

PD295-002

Set Top Box

Interface Module

Document Number: PD196-244R7

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Better Solutions Are Within Reach

®

MODEL NUMBER:

PD295-002

Mini-Module Set Top Box Interface Instruction Manual

Document Number:

PD196-244R7

Page 2 of 27

Table of Contents

CAUTIONS AND WARNINGS ................................................................................................................................................ 3

IMPORTANT SAFETY INSTRUCTIONS ................................................................................................................................ 4

Introduction .............................................................................................................................................................................. 5

Compatibility ............................................................................................................................................................................ 5

Mounting the Interface Module................................................................................................................................................ 6

Connections ............................................................................................................................................................................ 7

Wall Mounted Televisions ................................................................................................................................................... 7

Wall Mounted TV

– Data, Power, and IR Emitter Cable Installation ............................................................................... 7

Wall Mounted TV - RF Cable Installation ........................................................................................................................ 8

Arm Mounted Televisions .................................................................................................................................................... 9

Arm Mounted TV

– Data, Power, and IR Emitter Cable Installation ............................................................................... 9

Arm Mounted TV - RF Cable Installation ...................................................................................................................... 10

TV Setup ............................................................................................................................................................................... 13

Verifying and Troubleshooting Connections ......................................................................................................................... 14

Understanding Interface Module Setup Menus ..................................................................................................................... 15

Programming the Interface Module ....................................................................................................................................... 17

Programming the IR Code Set .......................................................................................................................................... 17

Keypad Programming (Mapping) Instructions ................................................................................................................... 18

Programming for Off-Air Non-Satellite Channels Using Off-Air RF Pass-Thru ................................................................. 18

Programming the STB Signal Input Type ......................................................................................................................... 20

Restoring Factory Default Settings ....................................................................................................................................... 21

Operation ............................................................................................................................................................................... 21

Cable/Satellite TV Operation ............................................................................................................................................. 21

Off-Air TV Operation (Optional)......................................................................................................................................... 21

Troubleshooting .................................................................................................................................................................... 22

Appendix A - Control Device (TV) Key Reference ................................................................................................................ 23

Appendix B - STB Functions and Default Mapping Reference ............................................................................................. 24

Factory Defaults .................................................................................................................................................................... 26

Limited Warranty ................................................................................................................................................................... 27

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R6

CAUTIONS AND WARNINGS

PD295-002 Set Top Box Interface Module Page 3 of 27

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING: To prevent injury, this apparatus must be securely attached to the equipment rack in accordance with the installation instructions.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

Modifications

Any changes or modifications made to this device that are not expressly approved by PDi may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with

FCC Rules and Regulations.

Safety Instructions

To avoid any malfunctions of the unit and associated components and unwanted electric shock or fire accidents, please observe the following:

Review the manual for your STB unit for safety instructions

Review the manual for your PDI TV for safety instructions

Review the manual for the rack unit.

Placement

Avoid placing the unit in surroundings with:

High temperature (over 40 C) or high humidity (over

90%).

Direct sunlight or heat sources, like radiators or ovens.

Excessive dust.

Electrostatic effect.

Vibration, impact, or tilted surface.

Wet Areas

Avoid rain and moisture.

DO NOT set containers with liquid, such as vases, on top of the unit.

Avoid placing the unit in areas where there is dripping and/or splashing.

Avoid placing unit near standing water.

Oxygen Environment

DO NOT use in an oxygen tent or an oxygen chamber.

Such use may cause a fire hazard.

SERVICING

User Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service

Unplug this product and refer servicing to qualified service personnel under the following conditions:

If liquid has been spilled, or objects have fallen into the product.

If the product has been exposed to rain or water.

If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

If the product has been dropped or damaged in any way.

When the product exhibits a distinct change in performance which indicates a need for service.

Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating conditions.

Cleaning & Disinfecting

Unplug before cleaning.

Use a soft cloth to clean.

Do not use harsh chemicals such as solvents.

COPYRIGHT, DISCLAIMER, TRADEMARKS

Copyright

PDi Communication Systems, Inc. claims proprietary right to the material disclosed in this manual. This manual is issued in confidence for installation and operational information only and may not be used to manufacture anything shown herein. Copyright by PDi Communication System, Inc. All rights reserved.

Disclaimer

The author and publisher have used their best efforts in preparing this manual. PDi Communication Systems, Inc. makes no representation or warranties with respect to the accuracy or completeness of the contents of this manual and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose and shall in no event be liable for any loss of profit or any other damages, including but not limited to special, incidental, consequential or other damages for the use of this manual. The information contained herein is believed accurate, but is not warranted, and is subject to change without notice or obligation.

Trademarks

All brand names and product names used in this manual are trademarks, registered trademarks, or trade names of their respective holders. PDi and Better Solutions Are Within Reach are registered trademarks of PDi Communication Systems, Inc.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 4 of 27

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This appliance should be mounted in an equipment rack as recommended by the manufacturer.

16. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

17. If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounding so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code,

ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

NOTE: This reminder is provided to call the CATV system installer’s attention to article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 5 of 27

Introduction

Traditionally a facility pays for dozens or hundreds of cable/satellite channels but only has a small number of set top boxes, each locked on a single channel, and combined onto the cable plant. When a patient wants to view a channel that isn’t on the cable plant, the nurse has to go to the head end and change one of the receivers or tell the patient the channel is not available. In an effort to provide the full channel package to each patient, the set top box may be placed next to each TV in the patient area. Unfortunately, when the IR remote is used by one patient to change his channel, any TV nearby will also change.

The PDi Interface Module is designed to improve the patient experience interacting with a TV at a facility in which the channels come from a cable/satellite set top box. It allows direct access to all set top box functions via PDi TV keypad, IR remote, Pillow speaker and PDI-Qube

™ table radio. It gives patients access to every channel the facility is paying for, and allows patients to easily switch between cable/satellite, in-house DVD and rooftop antenna channels. The interface module can pay for itself by eliminating modulators, splitters and combiners in most environments. It removes the need to modulate signals for distribution (by using one coax or HDMI cable from each set top box to an associated TV). It offers customizable key mapping and works in retro-fit installations (in which each set top box is already modulated to a different channel and combined onto the cable plant). Be st of all it’s made in America!

Compatibility

The PDi interface module forms a communication bridge between a PDi TV and a set top box. Therefore, it has been designed to be compatible with as many models of TV’s and set top boxes as possible. All PDi TV’s larger than 10” built since 2008 are compatible. For earlier model

PDi TV’s look for a CCI port on the unit or contact PDi to verify.

As of this print, the following set top boxes have been tested to work with the PDi interface module. Contact PDi for compatibility with other models.

Provider STB Model

PDi Interface Module

Firmware Version

Scientific Atlanta Explorer 4250HD V3.00 and later Cablevision

Charter

®

Charter

Comcast

®

Motorola DCH6200

Motorola DCT2224

Pace DC50X

V3.03 and later

V3.03 and later

V2.06 and later

Comcast

Comcast

COX

®

Dish

®

Dish

Comcast PR150B

Comcast RNG110

COX 3250HD

(Scientific Atlanta Explorer 3250HD)

Dish ViP211k

Dish ViP222k

V3.00 and later

V3.00 and later

V3.00 and later

V3.00 and later

V3.00 and later

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 6 of 27

Mounting the Interface Module

The PDi interface module is designed to slide into an industry standard mini-mod chassis and is powered by the chass is’ power supply. Standard mini-mod rack mount chassis with power supply are suitable for the interface module. These include, but are not limited to:

Blonder Tongue MIRC-12V with MIPS-12C

Drake

®

RMM-12 with PSM121

Pico Macom

®

MPC-12

Holland HMR with HMPS

When it is more desirable to have the set top box and interface module located near the TV, the module may be used in a stand-alone configuration without the need for a mini-mod chassis. In this case the PDi PD106-747 power adapter (not included) should be used to power the interface module. Since the interface module uses very little energy, it has no special ventilation requirements.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 7 of 27

Connections

The PD295-002 interface module must be connected to the corresponding TV via standard CAT5 cable. The CAT5 data cable should not exceed 300 feet in length. The module must be powered via the rack mounted chassis or a standalone power adapter. The supplied IR Emitter cable must also be connected to the module and adhered to the IR window of the corresponding set top box. CAT5 and power cables are not provided with the Satellite Interface.

PD295-002 is for use with CCI Port only, Not MTI port

Wall Mounted Televisions

Wall Mounted TV

– Data, Power, and IR Emitter Cable Installation

1.

Connect one end of the CAT5 cable to the TV’s CCI port. The CCI port is located on the back of the TV with the other connectors. Be careful not to connect to the MTI port which is usually next to the CCI port.

2. Connect the other end of the CAT5 cable to the RJ45 port on the PD295-002 interface module.

3. Connect the included IR Emitter cable to the PD295-002 interface module.

4. Remove adhesive backer from IR Emitter and secure it to the IR receiver window of the STB.

5. For chassis mounted interface module, connect chassis power cable to PD295-002. For stand alone mounting, connect power cord PD106-747 to PD295-002.

Wall TV with Stand Alone Interface Module

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

PD295-002

STB

Stand Alone Power

Cable PD106-747

CHASSIS MOUNTING

Document Number: PD196-244R7 PD295-002

Wall TV with Chassis Mounted Interface Module

Page 8 of 27

Wall Mounted TV - RF Cable Installation

The RF Output Signal cable from each interface module must also be routed to each remotely located Television. Please refer to the interface module installation instructions for details.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Stand Alone Power

Cable PD106-747

Document Number: PD196-244R7 PD295-002 Page 9 of 27

Arm Mounted Televisions

The PD295-002 interface module is also compatible with several of the PDi Arm Mounted televisions that incorporate a

CCI Port. Models such as the PDI-P15X, PDI-P19W, and P14W can be used successfully with the interface module when ordered with the CCI option. The PDI-P10LCD series arm mounted TV can NOT be used with the PD295-002 interface module as it does not have a CCI Port.

NOTE: Each TV and its Support Arm must be pre-wired with a CAT5 CCI data cable. Please contact PDi

Communication Systems or your PDi distributor for assistance should your TV and/or Arm lack this cable.

Arm Mounted TV

– Data, Power, and IR Emitter Cable Installation

The CAT5 data cable used to connect the remotely located TV to the interface module should not exceed 300 feet in length. CAT5 and power cables are not provided with the interface module.

1. Connect one end of the CAT5 cable to the Data Cable from the Arm/TV. The in-room Data Connection is typically wall mounted as illustrated below.

2. Connect the other end of the CAT5 cable to the RJ45 port on the PD295-002 interface module.

3. Connect the IR Emitter cable to the interface module.

4. Remove adhesive backer from IR Emitter and secure it to the IR receiver window of the STB.

5. For chassis mounted interface module, connect chassis power cable to PD295-002. For stand alone mounting, connect power cord PD106-747 to PD295-002.

Arm TV with Stand Alone Interface Module

STB

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7

Arm TV with Chassis Mount Interface Module

PD295-002 Page 10 of 27

Arm Mounted TV - RF Cable Installation

Unlike

AC powered wall mounted TV’s, PDi arm mounted television models receive their RF signal and TV power combined together along a connecting coax cable from an external power source. Special consideration must be used in handling the low voltage AC power found on the RF signal coax cable.

Two types of external power supplies are used with arm mounted televisions: individual style and central style. The individual power supply mounts near the TV injecting power from a nearby AC outlet onto the incoming coaxial cable. The central supply injects power onto 10 separate coax cables simultaneously and mounts in a wiring closet as far as 150 feet away from the TV

’s. Connection of the RF signal coax cable for each style of power supply is detailed below.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002

Individual Style Power Supply - RF Cable Installation

Page 11 of 27

Signal connections for an arm mounted TV powered from an individual power supply requires a single coax cable no longer than 300 feet, connected at the Set Top

Box’s “Output to TV” connection.

Some set top boxes also allow for the connection of an external Antenna or other signal source via an “OFF-AIR IN” connection. Please consult your set top box installation instructions for details.

NOTE: The drawing below is representative of the typical set top box. Your box may vary in appearance.

Central Style PDI -772HE Power Supply - RF Cable Installation

Low voltage AC TV power is present on each central power supply TV coax cable. A PDi Power Passer (part number

PD167-003) is required to route the AC power on the coax cable around any externally connected device such as the

Satellite Box. A Power Passer is required for each TV/STB connection. For new installations, the use of a PDI-772HE-

IND instead of PDI-772-HE will eliminate the need for the power passers.

NOTE: The PD167-003 Power Passer is an optional device NOT supplied with the interface module and is only required for centrally powered arm mounted televisions. Please contact your PDi distributor to order this device.

1. Remove power from the TV at the central power supply.

2. Connect a coaxial cable from the STB

“OUT TO TV” to the Power Passer’s “RF

IN FROM EXTERNAL DEVICE”.

3. Locate the coaxial cable from the central power supply. Connect this cable to

“FROM POWER SUPPLY”.

4. Connect the coaxial cable from the TV to

“COMBINED SIGNAL TO TV.” The TV coax should be limited to 150’ to accommodate the central power supply coax length limitations.

5. Connect an Optional Secondary RF signal coaxial cable from the Power

Passer’s “RF OUT TO EXTERNAL

DEVICE” to the Set Top Box “OFF-AIR

IN”. This connection is only necessary if you wish to view TV signals that are already present on your system in addition to Set Top Box signals.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002

Central Style PDI-772HE-IND Power Supply - RF Cable Installation

Page 12 of 27

Low voltage AC TV power is present on each central power supply TV RF out port. Each RF In port is designed to be connected to a separate RF source with minimal loss and high isolation.

1. Remove power from the TV at the central power supply.

2. Connect a coaxial cable from the Set Top Box

“OUT TO TV” to one of the 10 “RF IN” ports on the PDI-772HE-IND.

3. Connect the coaxial cable from the

TV to “RF OUT”. The TV coax should be limited to 150’ to accommodate the central power supply coax length limitations.

4. Connect an Optional Secondary RF signal coaxial cable to the Set Top

Box “OFF-AIR IN”. This connection is only necessary if you wish to view TV signals that are already present on your system in addition to Set Top Box signals.

Signal strength entering the Set Top Box should be +3dBmV to +10dBmV.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 13 of 27

TV Setup

To establish communication to interface module the CCI port on the TV must be active and you must have a PDi programming remote PD108-420 (not included). Follow the steps below:

1.

Press SETUP to enter the TV’s setup menu.

2. F rom the setup menu select “Features”.

3.

If the “Standby Power” setting shows in this menu, change it to “Normal”. Some TV’s do not have this setting so this step can be ignored. Other TV’s may operate the interface module on any “Standby Power” setting. This can be determined by trying it or contacting PDi.

4. From the initial setup menu, select “Channels”.

5.

Change the “Pro:idiom” option to “MTI Port”. Some TV’s do not have this setting so this step can be ignored.

6.

From the initial setup menu, select “Sources”. Set each item as detailed below.

The TV Source Setup must properly reflect the actual connections to the TV. Incorrect settings will result in loss of programming or the addition of blank signal sources. In most installations, both cable/satellite and off-air programming is delivered over RF so the “TV Tuner” must be enabled. If the cable/satellite channels are delivered over an alternate method such as HDMI, then that source must be enabled. All unused sources should be disabled.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 14 of 27

Verifying and Troubleshooting Connections

The following steps verify the data connections between the STB and TV. These instructions assume you have followed the previous connection and TV setup sections of this manual.

1. Power the Set Top Box.

2. Power the interface module.

3. Power the TV.

4. Examine the front mounted status lights on the PD295-002 interface module. It contains a Power status light, a Set Top Box (STB) status light and a TV status light. Each light will turn green when properly connected.

5. A dark (Off) status light indicates a problem. Blinking indicates data transfer.

NOTE: Plea se review “The TV does not control the STB” in the “Troubleshooting” section and “Flash

Power LED” in Setup for additional connection troubleshooting help.

POWER STB LINK TV LINK SUGGESTIONS

OFF

ON

ON

ON

ON

OFF

OFF

ON

OFF

ON

OFF

ON

OFF

OFF

ON

1. Verify interface module is powered.

1. Verify IR Emitter cable is properly connected to the interface module.

1. Verify TV is powered.

2. Verify connections interface module, TV wall plate, and TV CCI port.

3. Verify TV standby power is set to “normal” and “Pro:Idiom” is set to “MTI Port”.

4. Make certain data cable is connected to the TV’s CCI port (Not MTI or Ethernet port).

1. Verify IR Emitter and CCI connections.

1. All connections are proper.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 15 of 27

Understanding Interface Module Setup Menus

The interface module is configurable from Setup menus accessed by the TV programming remote. The following instructions assume you have connected the TV, interface module, STB, and the various components according to the previous instructions contained in this manual.

1. Make certain the STB and interface module are powered. See the instructions that came with the STB for more details.

NOTE: Some Set Top Boxes (STBs) require several minutes following application of initial power to effectively respond to commands. Please allow enough time for the STB to properly initialize.

2. Stand in front of the TV and press the SETUP button on the PD108-420 programming remote.

3.

When the TV Setup menu appears on the TV’s screen, press SETUP a second time to display the interface module setup menu.

4.

Press the “CH▲” or “CH▼” on the remote to highlight the desired option. To advance to the next page, press “CH▼” when the bottom item on the list is highlighted.

5.

Press “VOL►” or “VOL◄” on the remote to cycle through a menu item’s setting options.

6. Press SETUP or OK on the remote to exit “interface module” and save changes.

7.

Press the “Power” key to exit (cancel) “interface module” and not save changes.

Menus 1 ~ 5

Menus 1, 2, 3, 4 and 5 provide the mapping content of a control device’s keypad buttons. The factory default settings are shown in the menus pictured here in this manual. A complete listing of STB functions is provided in appendix A.

The left menu column “- TV KEY -” contains a listing of common control buttons found on pillow speakers, remotes, and the television keypads.

INTERFACE MODULE SETUP 1/6

-TV KEY- -STB KEY-

CH Up

CH Dn

CH+

CH-

Vol Up

Vol Dn

Last/Prev Ch Prev Channel

Select OK / Sel / Enter

CC

ARC/Ratio

Mute

Down Arrow

Sleep

SAP/MTS

Up Arrow

Exit: SETUP/OK Cancel: POWER

The right menu column “- STB -” contains default settings that work well with most

STB’s. Adjustment can only be made to items in the right column.

NOTE: An STB menu item that is blank does not provide any STB control functionality, and will operate the standard

TV function.

2

3

4

5

INTERFACE MODULE SETUP 2/6

-TV KEY- -STB KEY-

0

1

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

6

7

8

9

Digit 6

Digit 7

Digit 8

Digit 9

Info Dash (-)

Exit: SETUP/OK Cancel: POWER

INTERFACE MODULE SETUP 3/6

-TV KEY- -STB KEY-

Up Arrow

Dn Arrow

Lt Arrow

Rt Arrow

Up Arrow

Down Arrow

Left Arrow

Right Arrow

Menu

Home

Guide

Info

Guide

Guide

Info

Recall/Star ( * )

Exit:

Prev Channel

Exit

Back (Nav) Back

Exit: SETUP/OK Cancel: POWER

INTERFACE MODULE SETUP 4/6

-TV KEY- -STB KEY-

Play

Pause

Stop

Eject

Play

Pause

Stop

Record

Rewind

Fast Forward

Last Track

Next Track

Rewind

FFWD

Replay

Advance

Exit: SETUP/OK Cancel: POWER

INTERFACE MODULE SETUP 5/6

-TV KEY-

TV/FM

-STB KEY-

Exit

TV/AV/Input

Ch List

DVD Menu

RED

GREEN

YELLOW

Guide

Guide

BLUE

Exit: SETUP/OK Cancel: POWER

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 16 of 27

Menu 6

Menu 6 provides STB configuration settings and firmware information.

MENU ITEM EXPLANATION

STB Signal Input

STB Channel

Sets the TV’s signal type input to correspond to the STB’s signal output. The majority of STB’s utilize modulated RF as the signal type and is the type shown in this instruction manual. TUNER is the default setting. Additional settings are available for STB’s with different output signal types.

When the STB Signal Input is se t to “Tuner”, STB Channel sets the channel the TV tunes to view the STB’s signal. This setting should match the STB’s “CH” switch setting which is usually 3 or 4.

STB Model

Restore Factory

Defaults

Flash Power LED

Interface F/W Ver

TV CCI Ver

IR Cable

Model number of Set Top Box. Must match actual unit for proper operation.

NOTE: Changing the STB Model does not change the previous STB Key parameter selections. If the STB Model is changed, the STB Key parameters should be reviewed to determine if they are the desired selections for the installation.

Press vol

►to restore all interface settings to factory defaults.

NOTE: Each STB Model has a unique set of Factory Defaults. Selecting “Restore Factory

Defaults” changes the parameters to the Factory Defaults for the selected STB Models and it does not change the “STB Model” selection .

The default settings for each s upported STB is detailed below in “Appendix B – STB Functions and

Default Mapping Reference”

This provides a diagnostic tool to help determine if the TV is connected to the expected STB. If

“Flash LED” is turned on, the “Power LED” on the interface module controlled by this TV will flash to help identify the correct interface module to the expected TV.

NOTE: This is not a stored parameter. It is set to “OFF” by changing this selection or by cycling power to the interface module.

PDi Set Top Box Interface Firmware Version

CCI communication protocol version reported by TV

Connection status of IR Emitter cable.

INTERFACE MODULE SETUP 6/6

STB Signal Input Tuner

STB Channel

STB Model

Restore Factory Defaults

Flash Power LED

003

DC50X

>

Off

DIAGNOSTICS

Interface F/W Ver

TV CCI Ver

IR Cable

V3.01

V4.6

Connected

Exit: SETUP/OK Cancel: POWER

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002

Programming the Interface Module

Page 17 of 27

Programming the IR Code Set

The Interface Module sends infrared (IR) codes that mimic the set top box’s remote control. Therefore the interface must know which set top box is being controlled to send the proper codes.

1. Enter the Interface Module Setup Menu (See Interface Module Setup Menus earlier in this manual).

2. Select menu Interface Module

SETUP 6/6”.

3.

Set “STB Model” to match the actual model of the STB.

4. Perform a factory reset (See Restoring Factory Default Settings later in this manual).

Provider STB Model

On Screen

“STB

M odel” Setting

Cablevision

Charter

Scientific Atlanta Explorer 4250HD

Motorola DCH6200

3250HD

DCH6200

Charter

Comcast

Comcast

Comcast

COX

Dish

®

Dish

Motorola DCT2224

Pace DC50X

Comcast PR150B

Comcast RNG110

COX 3250HD

(Scientific Atlanta Explorer 3250HD)

Dish ViP211k

Dish ViP222k

DCH6200

DC50X

PR150B

PR150B

3250HD

VIP222K

VIP222K

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 18 of 27

Keypad Programming (Mapping) Instructions

The Set Top Box (STB) can be controlled remotely by any of the following that incorporate a keypad: PDi-Qube

™, Pillow

Speaker, TV’s Keypad (Arm Mounted TV’s), or Handheld Remote Control. In other words, any control device that incorporates a keypad capable of controlling the TV can also control the Set Top Box.

Keypad Programming or Mapping involves assigning key functions to the corresponding Set Top Box (STB) functions. It is common practice to designate a control button to activate the STB’s Channel “Guide” feature. This feature allows for quicker selection o f satellite channels. Some common control buttons used for “Guide” are listed below. Your installation may vary depending upon the control device’s availability of these particular buttons.

Control Button STB Function

Menu Guide

(-) Guide

1. Enter the Interface Module Setup Menu (See Interface Module Setup Menus earlier in this manual).

2. Select menu pages 1 through 5.

3.

For each “TV Key” on the left column, set the matching “STB Key” on the right column to the desired STB function.

Programming for Off-Air Non-Satellite Channels Using Off-Air RF Pass-Thru

The Set Top Box (STB) can be remotely turned off, which allows any signal connected to the “OFF-AIR” input of the STB to be active and then viewed downstream by the TV. The Off-Air signal could be a DVD player for an in-house movie channel, an externally connected antenna for local over-the-air channels, or cable TV channels. See pages 7 or 8 for details regarding connection of an Off-Air signal.

NOTE: Off-Air signals are optional and may not be available at the facility. Some Set Top Boxes do not have off air pass through. In either case this instruction section may be skipped.

To view an Off-Air signal, the patient must turn Off the STB. A control key must be assigned to perform this function. The control key should NOT be the TV’s POWER button as it is used to power the TV On and Off. Instead, another key must be selected. Below are some suggestions for STB “Power” keys that might be utilized on some common control devices.

CONTROL DEVICE

Pillow Speaker

TV Keypad

Remote

SUGGESTED CONTROL KEY

ALT, MENU, TV/AV

MENU, OK, AV

TV/AV, ( - )

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 19 of 27

An Example for Off-Air RF Pass-Thru

A facility has an outside antenna that contains several local TV channels that they wish to provide to their patients for viewing in addition to Satellite TV channels.

The facility is equipped with the PDI-P15X arm mounted television powered remotely from a central style power supply.

The Off-Air antenna signal is connected to the input of the central power supply and the STB is connected using the

Optional Secondary RF Coax cable as shown on pages 8 and 9.

For this configuration, the yellow (Menu) button on the TV’s keypad is chosen to Power the STB on and off by changing the mapping of the TV “Menu” key to “Power”.

STB INTERFACE SETUP 3/6

-TV KEY- -STB KEY-

Up Arrow Up Arrow

Dn Arrow Down Arrow

Lt Arrow

Rt Arrow

Menu

Left Arrow

Right Arrow

Power

Home

Guide Guide

Info Info

Recall/Star ( * ) Prev Channel

Exit: Exit

Back (Nav) Back

Exit: SETUP/OK Cancel: POWER

Now, Exit the Interface Module SETUP menu by pressing the SETUP button on the programming remote.

Pressing the “MENU” button on the TV’s keypad should power the STB on and off with each key press. The only remaining setup involves programming the TV for the Off-Air channels while the STB is o ff. The TV’s channel programming is not required to include the STB’s channel as well. For example, if the STB is set for channel 3 output, the same channel could be omitted from the TV’s channel table, if no local channel 3 is available. Please see the programming instructions specific to the model PDi TV being used.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002

Programming the STB Signal Input Type

The Interface Module must be programmed so that it knows which TV source input needs the keys to be mapped to the

STB. When any other signal source is selected, all keys will operate normally.

1. Enter the Interface Module Setup Menu (see Interface

Module Setup Menus earlier in this manual)

2. Select menu “Interface Module SETUP 6/6”.

3.

Set “STB Signal Input” to match the connection to the

STB. This is usually Tuner, but may be “HDMI” or

“Component” for high definition STB’s.

4.

If “STB Signal Input” is “Tuner” then set the “STB Channel” to match the STB’s modulated RF output. The illustration depicts the channel as number 3 in this example.

5. Exit setup. Verify the STB signal is now displayed on the television.

Page 20 of 27

INTERFACE MODULE SETUP 6/6

STB Signal Input Tuner

STB Channel

STB Model

Restore Factory Defaults

Flash Power LED

003

DC50X

>

Off

DIAGNOSTICS

Interface F / W Ver

TV CCI Ver

IR Cable

V3.01

V4.6

Connected

Exit: SETUP/OK Cancel: POWER

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 21 of 27

Restoring Factory Default Settings

The Interface Module configuration can be reset to factory defaults. Resetting to defaults cannot be undone. If the

Interface is connected to a PDI-

P19W the default configuration will be optimized for the P19W’s keypad. It will not match the settings that came preloaded onto the Interface.

1. Enter the Interface Module Setup Menu (See Interface Module Setup

Menus earlier in this manual).

2.

Select menu “Interface Module SETUP 6/6”.

3.

Highlight the “Restore Factory Defaults” item.

4.

Press “VOL►” to restore factory defaults. The operation will happen immediately and cannot be undone.

INTERFACE MODULE SETUP 6/6

STB Signal Input Tuner

STB Channel

STB Model

Restore Factory Defaults

Flash Power LED

003

DC50X

>

Off

DIAGNOSTICS

Interface F / W Ver

TV CCI Ver

IR Cable

V3.01

V4.6

Connected

Exit: SETUP/OK Cancel: POWER

Operation

PDI Interface Module operation is straight forward once configured. Site installations that involve a secondary “Off Air” signal require additional instruction to provide a worry-free patient viewing experience.

Cable/Satellite TV Operation

1. Turn the TV on. A channel from the set top box should be displayed.

2. Channel the TV Up or Down. The set top box channel should follow.

3. Press the designated Guide button. A channel guide should appear.

4. Select a channel from the Guide. The viewed set top box channel should follow the selection.

Off-Air TV Operation (Optional)

1. a. If using the TV Tuner for cable/satellite programming, press the control button designated for STB Power (see section

“Programming for Off-Air Non-Satellite Channels Using OFF-AIR RF Pass-Thru”). b. If using an input other than RF Tuner for cable/satellite programming, press the TV/AV key repeatedly until the

TV Tuner source is selected.

2. The STB signal should disappear.

3. Channel the TV Up or Down. The TV should now tune the Off-Air channels (non-STB channels).

4. a. If using the TV Tuner for cable/satellite programming, press the control button designated for STB Power again. b. If using an input other than RF Tuner for cable/satellite programming, press the TV/AV key again until the cable/satellite box source is selected.

5. The Off-Air channel should disappear and be replaced with a cable/satellite channel.

6.

Press the TV’s power button to turn off the TV at any time.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7

Troubleshooting

Symptom

IR Interference from other remotes or IR emitters

Set Top Box turns ON when the TV is turned OFF or Set Top Box turns OFF when the TV is turned ON

The TV does not control the Set Top Box

(any model)

The TV does not control the Set Top Box

(Dish models only)

PD295-002 Page 22 of 27

Resolution

Depending on the location of the Set Top Box, the Set Top Box may experience interference from IR Remotes or from other IR Emitters on Set

Top Boxes in the same area.

The IR Emitter supplied with the PD295-002 allows the pass through of other external IR Signals through its outward facing side. This IR Emitter also sends the IR Signal out the side opposite the cable entry, besides sending the signal through the side mounted to the Set Top Box. If there is a possibility that the IR Emitter can be exposed to the IR from remotes and other Set Top Boxes in the area, it is recommended that the IR Emitter be mounted to the Set Top Box and covered with tape that blocks IR.

It is possible that the TV and the Set Top Box get out of Power ON/OFF synchronization. To correct this problem, turn both the TV OFF and Set

Top Box OFF. Let the TV control the STB by just turning the TV ON.

Verify the Interface Module “STB Model” parameter is set properly. See

“Programming the IR Code Set”, page 17.

Verify the Interface Module

“STB Signal Input” parameter is set to the source input (such as TV RF, HDMI 1, etc.) that matches the set top box’s connection to the TV. See

“Programming the STB Signal Input Type”, page

20.

Verify the TV’s source input is wired to the STB that the TV is controlling.

The Interface Module Setup Menu provides a diagnostic tool to help determine if the TV is connected to the expected STB. On page 6 of the

Interface Module

Setup Menu, go to “Flash Power LED”. If “Flash Power

LED” is turned ON, the “Power LED” indicator on the Interface Module controlled by that TV will flash. Verify the Interface Module with the flashing

LED is connected to the Set Top Box that sends its output to the same TV.

Dish receivers must be set to Primary Remote Address #1 for proper operation.

Verify the remote address setting by pressing “System Info” on the Dish receiver's front panel. The system Information screen displays on the TV showing the Primary Remote Address. If the value is not 1, then follow these steps to reset it.

1. Turn off all other nearby Dish receivers.

2. Aim the Dish IR remote at the powered on receiver.

3. Press and hold SAT on the Dish IR remote control, for about three seconds, until all mode buttons light up. Release SAT.

4. Use the NUMBER PAD on the Dish remote to enter the number 1.

5. Press POUND(#). If the address was entered correctly, SAT will flash three times.

6. Press RECORD on the Dish remote. The TV screen should update.

Make sure the Primary Remote Address shown on the System

Information screen is now '1'.

7. Press SELECT to remove the System Information screen.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 23 of 27

Appendix A - Control Device (TV) Key Reference

A listing of Control Device Keys is provided below. Any one of these control device keys can be programmed to control a supported function on a Set Top Box that is compatible with the Interface Module

. Please refer to sections “TV Setup” and

“Understanding Interface Module Setup Menus” for programming details

NOTE: A “Control Device Key” (also referenced as a ‘TV Key’) is a key located on the front panel of a PDi TV and/or on a PDi

TV compatible controller (IR remote control, pillow speaker, or wireless control device).

Control Device Key

Ch Up

Ch Down

Vol Up

Vol Down

Menu

Last/Prev Ch

OK/Sel/Enter

CC

1

2

3

4

ARC/Ratio

Mute

Sleep

0

5

6

7

8

9

Play

Pause

Stop

Eject

Rewind

Fast Forward

Last Track

Next Track

Up Arrow

Down Arrow

Left Arrow

Right Arrow

Dash (-)

TV/FM

TV/AV/Input

SAP/MTS

Ch List

Guide

Info

Recall/Star (*)

Exit

Back (Nav)

Home

DVD Menu

RED

GREEN

YELLOW

BLUE

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Lang

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Power

Info

CH+

CH-

Enter

Last

Document Number: PD196-244R7 PD295-002 Page 24 of 27

Appendix B - STB Functions and Default Mapping Reference

A listing of all the possible STB function “keys” for each of the “compatible” Set Top Boxes are provided below and shown with the “default” control device settings for the selected STB Model.

NOTE: The Set Top Box may not support all of the functions shown.

Please refer to section “Interface Module Setup Menus” for programming details to change the “STB Model” selection and to change the “STB Function” that a “Control Device Key” controls.

NOTE: Each “STB Function” can be changed to any “Control Device Key”.

Available STB Functions

Comcast

DC50X

Comcast

PR150B

RNG110

COX 3250HD

Cablevision 4250HD

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Power

Info

CH+

CH-

OK /Select

Last

FAV

Right Arrow

Left Arrow

Up Arrow

Down Arrow

HD Zoom

Exit

Guide

Menu

My DVR

Red (C)

Help

Yellow (A)

Blue (B)

Pause

Rewind

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Power

Info

CH Up

CH Down

Select

Last

FAV

Right Arrow

Left Arrow

Up Arrow

Down Arrow

ENTER

EXIT

Guide

Menu

DVR LIST

Red (C)

Green (D)

Yellow (A)

Blue (B)

Pause

Rewind

Play

Stop

REC

Replay

Play

Stop

REC

Replay

Fast Forward Fast Forward

ON DEMAND ON DEMAND

Dish

ViP211k

ViP222k

Charter

DCH6200

DCT2224

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Power

Info

CH Up

CH Down

Select

Recall

(*)

Right Arrow

Left Arrow

Up Arrow

Down Arrow

(#)

Cancel

Guide

Menu

Search

Red

Green

Yellow

Blue

Pause

Back

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Power

Info

CH Up

CH Down

Select

Last

FAV

Right Arrow

Left Arrow

Up Arrow

Down Arrow

(#)

EXIT

Guide

Menu

LIST

Red (C)

Green (D)

Yellow (A)

Blue (B)

Pause

Rewind

Play

Stop

Record

Skip Back

Play

Stop

REC

Replay

Fast Forward Fast Forward

ON DEMAND ON DEMAND

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7

Available STB Functions (continued)

PD295-002

Comcast

DC50X

Comcast

PR150B

RNG110

COX 3250HD

Cablevision 4250HD

Page Up

Page Down

PIP (On-Off)

PIP (Swap)

PIP (Move)

PIP (CH +)

PIP (CH -)

LIVE

PAGE +

PAGE -

PIP (ON OFF)

PIP (SWAP)

PIP (MOVE)

PIP (CH +)

PIP (CH -)

LIVE

TV/VCR/Input INPUT

HD ZOOM

SETTINGS

CC

USER

Dish

ViP211k

ViP222k

Page Up

Page Down

PIP

PIP Swap

Position

Skip FWD dish

LIVE

INPUT

Page 25 of 27

Charter

DCH6200

DCT2224

PAGE +

PAGE -

PIP (ON OFF)

PIP (SWAP)

PIP (MOVE)

PIP (CH +)

PIP (CH -)

LIVE

VIDEO SOURCE

(*)

SETTINGS

DAY +

DAY -

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7

Factory Defaults

Control Device

Key

DC50X

3

4

5

6

7

8

9

Play

Ch Up

CH+

Ch Dn

CH-

Vol Up

Vol Down

Menu

Info

Last/Prev Ch

Last

OK/Select/Enter

Enter

CC

ARC/Ratio

Mute

Sleep

0

1

2

Digit 0

Digit 1

Digit 2

Pause

Stop

Eject

Rewind

Fast Forward

Last Track

Next Track

Up Arrow

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Down Arrow

Left Arrow

Right Arrow

Dash (-)

TV/FM

TV/AV/Input

SAP/MTS

Ch List

Guide

Info

Recall/Star (*)

Exit

Back (Nav)

Home

DVD Menu

RED

GREEN

YELLOW

Lang

Info

Info

BLUE

Parameter

STB Signal Input Tuner

STB Channel

003

PD295-002 Page 26 of 27

PR150B 3250HD VIP222K DCH6200

Right Arrow

Exit

Guide

Guide

Info

Last

Exit

Menu

Red (C)

Help

Yellow (A)

CH+

CH-

Menu

Last

OK/Select

Down Arrow

Up Arrow

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

CH Up

CH Down

Menu

Last

Select

Down Arrow

Up Arrow

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

CH Up

CH Down

Menu

Recall

Select

Down Arrow

Up Arrow

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

CH Up

CH Down

Menu

Last

Select

Down Arrow

Up Arrow

Digit 0

Digit 1

Digit 2

Digit 3

Digit 4

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Play

Pause

Stop

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Play

Pause

Stop

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Play

Pause

Stop

Digit 5

Digit 6

Digit 7

Digit 8

Digit 9

Play

Pause

Stop

REC

Rewind

REC

Rewind

Record

Back

REC

Rewind

Fast Forward Fast Forward Fast Forward Fast Forward

Replay Replay Skip Back Replay

Up Arrow

Down Arrow

Left Arrow

ON DEMAND ON DEMAND ON DEMAND

Up Arrow

Down Arrow

Left Arrow

Up Arrow

Down Arrow

Left Arrow

Up Arrow

Down Arrow

Left Arrow

Right Arrow

Exit

Guide

Guide

Info

Last

Exit

Guide

Red (C)

Green (D)

Yellow (A)

Right Arrow

Cancel

Guide

Guide

Info

Recall

Cancel

Guide

Red

Green

Yellow

Right Arrow

Exit

Guide

Guide

Info

Last

Exit

Guide

Red (C)

Green (D)

Yellow (A)

Blue (B) Blue (B) Blue Blue (B)

Tuner

003

Tuner

003

Tuner

003

Tuner

003

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Document Number: PD196-244R7 PD295-002 Page 27 of 27

Limited Warranty

PDi Communication Systems Inc., (“PDi”) warrants, to the original purchaser only, that the product will be free from defects in materials and workmanship, under normal use, for 2 years from the date of original purchase. This warranty does not cover any other equipment that may have been included with PDi’s shipment of this product.

After receipt of written notice of a defect or malfunction occurring during the warranty period, PDi will repair or replace goods returned to its Springboro, Ohio location, at its discretion, the whole or any component part of any product manufactured by PDi and found by PDi to be defective. If the decision is made to replace the product, PDi will exchange the model for the same model or a model similar in form and function.

As a condition to obtaining warranty service, written notification of the defective product must be received by PDi within ten (10) days of noticing the defect. Repair of said product requires it to be shipped to the PDi factory in Springboro,

O hio. All shipments shall be F.O.B. Springboro, Ohio, and all shipping and freight charges to PDi’s factory shall be paid by the customer.

For information regarding authorized servicing and all other information pertaining to this warranty, please contact PDi

COMMUNICATION SYSTEMS at 40 Greenwood Lane, Springboro, Ohio 45066 or phone 800-628-9870 and ask for

Service.

This warranty gives specific legal rights and you may also have other rights which vary from state to state.

Exclusions from Warranty

Products damaged by any catastrophe, accident, or from neglect, misuse, fault, improper assembly, improper maintenance, inadequate return packaging, or negligence by the customer or any third party. They will be treated as out of warranty for external cause to the Products, such as, but not limited to, failure of or faulty electric power, air conditioning, operator error, failure or malfunction of any data communications system. Such conditions will be determined by PDi at its sole unfettered discretion.

Service and repair of accessories, apparatus, attachments or any other devices which are not PDi products or options.

Defacing of product, revision control and PDi labeling (label alterations, serial number missing, serial number no longer discernible and serial number invalid). All serial numbers are recorded and tracked for warranty purposes.

Unauthorized changes, modifications or alterations in or to the Products not installed by PDi.

Damage to or loss of any programs, data, or removable storage media.

Damage incurred during installation, relocation or removal of the Products or any accessories, apparatus, attachments or other devices.

Normal wear.

The furnishing of accessories or supplies.

Damage by shipping carrier.

Incompatibility issues.

Damages of any kind including, but not limited to, direct or indirect damages, lost profits, lost saving, or other special incidental, exemplary or consequential damages whether for breach of contract, tort or otherwise, or whether arising out of the use of or inability to use the product, even if PDi or any distributor, dealer, or authorized service provider has been advised of the possibility of such damages, or any claim by any other party

Damage caused by any software or application not installed at the factory.

PDi’s liability under this warranty is limited to repair or replacement of defective products and parts as provided above.

PDi shall not be liable for incidental or consequential damages.*

The warranty contained herein is in lieu of all other expressed or implied warranties, including any implied warranty of merchantability or fitness for any particular purpose. PDi neither assumes nor authorizes any person to assume, on its behalf, any other obligation or liability.

*Some states do not allow the exclusion or limitation of incidental or consequential damages or a disclaimer of warranties implied by law, so the above limitation or exclusion may not apply.

The information and technical data in this manual is believed accurate, but is not warranted and is subject to change without notice or obligation. PDi reserves the right to change this policy without advance notice.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
