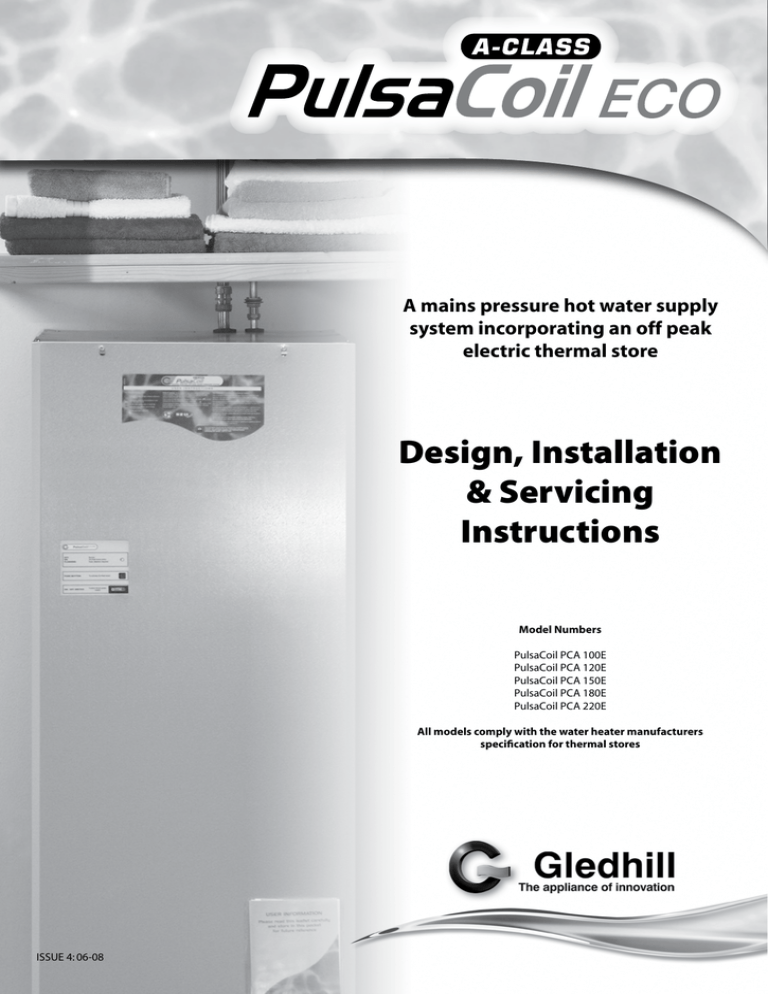

Gledhill PulsaCoil A-Class ECO Owner's manual

Gledhill PulsaCoil A-Class ECO Owner's manual
A mains pressure hot water supply
system incorporating an off peak
electric thermal store
Design, Installation
& Servicing
Instructions
Model Numbers
PulsaCoil PCA 100E
PulsaCoil PCA 120E
PulsaCoil PCA 150E
PulsaCoil PCA 180E
PulsaCoil PCA 220E
All models comply with the water heater manufacturers
specification for thermal stores
ISSUE 4: 06-08
CONTENTS
ISSUE 4: 06-08
Section
DESIGN
Introduction Technical Data
System Details
INSTALLATION
Site Requirements
Installation
Commissioning
SERVICING
Annual Service
Changing Components
Short Parts List
Fault Finding
The code of practice for the installation,
commissioning & servicing of central heating systems
Page
3
5
9
13
14
19
20
20
21
22
ADDENDIX
Addendix A
Addendix B
Addendix C
Addendix D
25
26
28
29
30
Terms & Conditions
Building Regulations and Benchmark Commissioning
The Building Regulations (England & Wales) require that the installation of a heating
appliance be notified to the relevant Local Authority Building Control Department.
From 1st April 2005 this can be achieved via a Competent Person Self Certification
Scheme as an option to notifying the Local Authority directly. Similar arrangements
will follow for Scotland and will apply in Northern Ireland from 1st January 06.
CORGI operates a Self Certification Scheme for gas heating appliances.
These arrangements represent a change from the situation whereby compliance with
the Building Regulations was accepted if the Benchmark Logbook was completed and
this was then left on site with the customer).
With the introduction of a self certification scheme, the Benchmark Logbook is being
replaced by a similar document in the form of a commissioning check list and a service
interval record is included with all gas appliance manuals. However, the relevant
Benchmark Logbook is still being included with all Thermal Storage products and
unvented cylinders.
Gledhill fully supports the Benchmark aims to improve the standards of installation
and commissioning of central heating systems in the UK and to encourage the regular
servicing of all central heating systems to ensure safety and efficiency.
Building Regulations require that the heating installation should comply with the
manufacturer’s instructions. It is therefore important that the commissioning check
list is completed by the competent installer. This check list only applies to installations
in dwellings or some related structures.
Page The Gledhill PulsaCoil range is a WBS
listed product and complies with the
WMA Specification for hot water only
thermal storage products. The principle was
developed in conjunction with British Gas.
This product is manufactured under an ISO
9001:2000 Quality System audited by BSI.
The Gledhill Group’s first priority is to give a
high quality service to our customers.
Quality is built into every Gledhill product
and we hope you get satisfactory service
from Gledhill.
If not please let us know.
DESIGN
Any water distribution system/installation must comply with the relevant
recommendations of the current version of the Regulations and British Standards
listed below:Building Regulations
Requirements for Electrical Installations
Water Regulations
Manual Handling Operations Regulations
British Standards
BS6700 and BS7671.
A suitably competent trades person must install the PulsaCoil and carry out any
subsequent maintenance/repairs. In fact the appliance front cover is secured by
2 screws and this should only be removed by a competent trades person. The
manufacturer’s notes must not be taken as overriding statutory obligations.
The PulsaCoil A-Class ECO is not covered by section G3 of the current Building
Regulations and is therefore only notifiable to Building Control as part of the domestic
water installations.
The PulsaCoil A-Class is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience or knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The information in this manual is provided to assist generally in the selection of
equipment. The responsibility for the selection and specification of the equipment
must however remain that of the customer and any Designers or Consultants
concerned with the design and installation.
Please Note: We do not therefore accept any responsibility for matters of design,
selection or specification or for the effectiveness of an installation containing one of
our products unless we have been specifically requested to do so.
All goods are sold subject to our Conditions of Sale, which are set out at the rear of
this manual.
INTRODUCTION
In the interest of continuously improving the PulsaCoil range, Gledhill Water Storage
Ltd reserve the right to modify the product without notice, and in these circumstances
this document, which is accurate at the time of printing, should be disregarded. It will
however be updated as soon as possible after the change has occurred.
Page DESIGN
Cistern can be provided with a
visual sight glass or ballvalve
and overflow connector as
optional extras if required.
Top up cistern
15
13
14
3, S1/S2
20
11
4, S6
2
8
Appliance
case
S4
PULSACOIL ECO
10
S3
12
9
5, S5
11
19
17
1
18
16
Schematic Hydraulic Arrangement
Figure 1.1
The PulsaCoil A-Class ECO shown schematically above is a very highly insulated version
of the standard PulsaCoil A-Class appliance. As such, the products will allow a pass to
be achieved in SAP2005 even in small apartment situations. However, the product
still retains the basic principles of the standard PulsaCoil A-Class product which is to
provide an improved method of supplying mains pressure hot water when using a
suitable off peak electric supply/tariff.
The heat losses from thermal stores should not be directly compared with heat losses
from unvented or vented cylinders because they are treated differently in SAP. The
SAP calculator takes account of the type of store and various correction factors are
included to reflect the different ways that the hot water and heating operates.
INTRODUCTION
1. Bottom (Off-Peak) immersion heater
(1H_1)
2. Top (On-Peak) immersion heater (IH_2)
3. Overheat sensor pocket (Sensor) S1/S2)
4. Top/middle sensor pocket (Sensor S6 for
IH_2)
5. Bottom sensor pocket (Sensor S5 for
IH_1)
6. Cold water inlet sensor, S3
7. DHW outlet sensor, S4
8. Grundfos UPR 15-50 pump (Modulating)
9. Filter & flow regulator
10. Plate heat exchanger
11. Pump isolating valve
12. Non-Return valve
13. Open vent
14. Cold Feed
15. Top up cistern - provided separately
from the appliance
16. CW inlet
17. HW outlet
18. Drain
19. Return from PHE to store
20. Flow from store to PHE
The main feature of the concept is that hot water can be supplied directly from the
mains at conventional flow rates without the need for temperature and pressure
relief safety valves or expansion vessels. This is achieved by passing the mains water
through a plate heat exchanger. The outlet temperature of the domestic hot water is
maintained by a printed circuit control board, which controls the speed of the pump
circulating the primary water from the store through the plate heat exchanger.
The Building Regulations L1A: New dwellings/L1B: Existing dwellings and the requirements set
out in the Domestic Heating Compliance Guide specify that “where the mains water hardness
exceeds 200ppm provision should be made to treat the feed water to water heaters and the
hot water circuit of combination boilers to reduce the rate of accumulation of lime scale”.
To comply with this requirement the hardness of the mains water should be checked
by the installer and if necessary the optional factory fitted in-line scale inhibitor should
Page be specified at the time of order for hardness
levels between 200 and 300 ppm (mg/l).
Where the water is very hard ie 300ppm (mg/l)
and above the optional polyphosphate type,
scale inhibitor should be specified at the time
of order. However, this will need to be fitted by
the installer at a suitable point in the cold water
supply to the appliance.
The printed circuit board incorporates the
facility to automatically run the D.H.W.
primary pump for about 3 seconds every
30 hours to help prevent it sticking. For
this reason we would recommend that
once the appliance is installed it should be
commissioned and the on peak electricity
supply left on to the appliance.
Because this product does not require a safety
discharge from a temperature and pressure
relief valve, any installations will be easy to
incorporate into the building and will not suffer
from the problems associated with using PVCu
soil stacks to take the discharge from unvented
cylinders.
DESIGN
Table 1.1
Technical Specification
Description
PCA 100E
PCA 120E
PCA 150E
PCA 180E
PCA 220E
Appliance height
mm
1000
1136
1337
1538
1739
Appliance width
mm
560
560
560
560
560
Appliance depth
mm
605
605
605
605
605
kg
140
167
195
223
250
Total volume (nominal)
litres
100
125
150
175
200
Volume heated (on peak)
litres
50
60
60
70
80
kWh/24hr
1.019
1.118
1.300
1.463
1.569
Approx weight (full)
Heat loss
1
Hot water flow rate
up to 35 litres/minute
2
Table 1.2
Model Selection
Bedroom
mm
1
1
1-2
2-3
2-3
Bathroom
mm
1 or
1 or
1 or
1
1
En-suite shower room
mm
1
1
1
1
2
Model selection data
(7 hour off peak)
Floor area m
50
70
100
130
170
PCA 120E
PCA 150E
PCA 150E
PCA 180E
PCA 220E
Model selection data
(10 hour off peak)
Floor area m
50
70
100
130
170
PCA 100E
PCA 120E
PCA 150E
PCA 150E
PCA 180E
2
2
Notes:-
TECHNICAL DATA
1. The heat losses from thermal stores should not be directly compared with heat
losses from unvented or vented cylinders because they are treated differently in
SAP. The SAP calculator takes account of the type of store and various correction
factors are included to reflect the different ways that the hot water and heating
operates.
2. The flow rates are based on a 35°C temperature rise and assume that recommended
pressures and adequate flow are available at the appliance. The flow rate will be
reduced if the available water pressure is below that recommended. The actual
flow rate from the appliance is automatically regulated to a maximum of 27 litres/
min.
3. The domestic hot water outlet temperature is automatically regulated to
approximately 52°C at the bath flow rate of 18 litres/min recommended by BS
6700. The temperature is not user adjustable.
Page DESIGN
Standard Equipment
11
The standard configuration of the PulsaCoil
A-Class ECO is shown opposite. The Printed
Circuit Control Board (A.C.B.), mounted inside
the appliance, controls the operation of the
complete system. This is pre-wired to a terminal
strip where all electrical connections terminate.
It is supplied with the following factory fitted
equipment:1. 2. 3. 4. 5.
12
15
16
17
13
2
3
3kW Off-Peak immersion heater
3kW On-Peak boost immersion heater
Printed Circuit Board
Plate heat exchanger
Domestic hot water primary (plate heat
exchanger) pump
6. Isolating terminal connectors for dry fire
protection
7. DHW temperature sensor
8. Incoming cold water sensor
9. Strainer and flow regulator
10. Screwed connection for a drain tap
11. Top up cistern complete with cold
feed/open vent pipework is supplied
separately
12. Overheat sensor
13. Middle store control sensor
14. Bottom store control sensor
15. Operation/warning light
16. Boost/reset button
17. On/Off switch (on peak control circuit)
Note : Both immersion heaters are low watts
density type with incaloy 825 sheaths and are
specially manufactured to suit Thermal Stores. It
is recommended that any replacements should
be obtained from Gledhill Water Storage.
Optional Extra Equipment
5
•
In line scale inhibitor for mains water
services with hardness levels between 200
and 300ppm (mg/l) fitted and wired.
•
Polyphosphate scale inhibitor for fitting on
site by the installer.
•
Hot and cold water manifolds for use with
plastic pipework - see Appendix B.
•
Manual fill sight glass for top up cistern.
•
Ballvalve/overflow connector for top up
cistern.
7
6
4
8
TECHNICAL DATA
14
1
10
9
Figure 1.2
Page DESIGN
Appliance Dimensions
300
*350
*Min maintenance
access to comply with
the Water Regulations
(ballvalve model only)
Top up
cistern
Model
Height
(A)
Width
(B)
Depth
(C)
PCA 100E
1000
560
605
PCA 120E
1136
560
605
PCA 150E
1337
560
605
PCA 180E
1538
560
605
PCA 220E
1739
560
605
Note: The Appliance dimensions above do not
allow for the100mm high installation base.
B
D
The following table of minimum cupboard
dimensions only allow the minimum space
required for the appliance (including the top up
cistern). Any extra space required for shelving
etc in the case of airing cupboards etc must
be added.
PulsaCoil A-Class ECO
E
Width
(E)
Depth
(F)
PCA 100E
1750
600
620
PCA 120E
1900
600
620
PCA 150E
2100
600
620
PCA 180E
2300
600
620
PCA 220E
2500
600
620
The cupboard door
opening will need
to take into
account the various
sizes of appliances.
Figure 1.3
Page TECHNICAL DATA
Maintenance
access
C
Top up
cistern
420
F
Height
(D)
If pipework needs to rise vertically adjacent
to the appliance the width/depth will need
increasing to accommodate this.
280
The minimum
clear opening in
front of the
appliance to be
at least the
same depth as
the appliance.
Model
Note: The above dimensions are based on the
Appliance and the Top up cistern (fitted with
a ballvalve) being in the same cupboard. If
the manual fill model is chosen, the heights
shown above can be reduced by 125mm.
100
A
Minimum Cupboard Dimensions
DESIGN
PLAN OF APPLIANCE CONNECTIONS
Connection Details/Dimensions For Top Of Unit
580 (605 including the door/clock)
145
80
560
The PulsaCoil A-Class ECO units are supplied
on an installation base to allow the pipe runs
to connect to the appliance from any direction.
It is easier if all pipes protrude vertically in the
cut out area shown. Compression or push fit
connections can be used. All pipe positions
are approximate and subject to a tolerance of
+/- 10mm in any direction. Space will also be
required for a 15mm cold water supply and a
22mm warning / overflow pipe (if the optional
extra ball valve and overflow connector have
been specified. If a warning/overflow pipe
is NOT provided the F&E Cistern should be
filled from a temporary hose connection
incorporating a double check valve. This can
be from a temporary hose connection supplied
from a cold water tap or a permanent cold
branch provided adjacent to the Top up Cistern.
The temporary connection must be removed
once the appliance is filled.
Note: All dimensions are shown in mm and
are to the centre line of pipework.
315 - Open Vent
360 - Cold Feed/Expansion
Connection Details/Dimensions For Bottom Of Unit
TECHNICAL DATA
525
580 (605 including the door/clock)
560
405 - Hot Water Outlet
465 - Mains Cold Water Inlet
Figure 1.4
Page DESIGN
Hot and Cold Water System
General
A schematic layout of the hot and cold water services in a typical small dwelling is
shown below. PulsaCoil A-Class ECO will operate at mains pressures as low as 1 bar and
as high as 5 bar although the recommended range is 2-3 bar dynamic at the appliance.
If the manifolds (available as an optional extra) are being used the inlet pressure to
the manifold must be a minimum of 2 bar. It is also important to check that all other
equipment and components in the hot and cold water system are capable of accepting
the mains pressure available to the property. If the mains pressure can rise above 5
bar or the maximum working pressure of any item of equipment or component to be
fitted in the system, a pressure limiting (reducing) valve set to 3 bar will be required.
If you encounter a situation where the water pressure is adequate but flow rates are
poor please contact our technical helpline for details of an effective solution.
Note : Each Pulsacoil A-Class ECO is fitted with a strainer and flow regulator on the cold
mains supply connection. If the supply pressure is less than 2 bar or if the manifolds
(available as an optional extra) are being used or if all taps are provided with flow
regulators the flow regulator on the cold inlet should be removed.
No check valve or similar device should be fitted on the cold water supply branch to
the PulsaCoil A-Class ECO.
Where the water is very hard ie 300ppm (mg/l)
and above the optional polyphosphate type,
inhibitor should be specified at the time of
order. However, this will need to be fitted by
the installer at a suitable point in the cold water
supply to the appliance.
The hot water flow rate from the PulsaCoil AClass ECO is directly related to the adequacy
of the cold water supply to the dwelling.
This must be capable of providing for those
services, which could be required to be supplied
simultaneously, and this maximum demand
should be calculated using procedures defined
in BS 6700.
If a water meter is fitted in the service pipe,
it should have a nominal rating to match the
maximum hot and cold water peak demands
calculated in accordance with BS 6700. This
could be up to 60ltr/min in some properties.
The Building Regulations L1A: New dwellings/L1B: Existing dwellings and the
requirements set out in the Domestic Heating Compliance Guide specify that “where
the mains water hardness exceeds 200ppm provision should be made to treat the feed
water to water heaters and the hot water circuit of combination boilers to reduce the
rate of accumulation of lime scale”.
Note: The diagram below shows the Top up
cistern with ballvalve and warning/overflow
pipe. The ballvalve/overflow connector can
be supplied as an optional extra if required.
However, the standard preferred arrangement
is for the cistern to be manually filled from a
temporary hose connection fitted with a double
check valve.
To comply with this requirement the hardness of the mains water should be checked by
the installer and if necessary the optional factory fitted in-line scale inhibitor should be
specified at the time of order for hardness levels between 200 and 300 ppm (mg/l).
The cistern must not be fitted more than
6 metres above the PulsaCoil A-Class ECO
appliance itself.
Safety/open vent
Top up cistern
Shower
MCWS
Second
dwelling
a
PULSACOIL
A-CLASS ECO
Pressure limiting valve
NOT REQUIRED at
pressures below 5 bar
unless any components
have a lower
maximum working
pressure
MCWS
supply
pipe
‘a’ - flow regulator recommended for
better balance of hot and cold
water supplies
Expansion/
cold feed
Double check valve
NOT REQUIRED unless
pipe supplies more
than one dwelling
Sink
H C
a
Bath
H C
a
a
Hand basin
H C
a
a
WC - fitted
with BS1212
ballvalve
C
a
SV
Check valve
NOT REQUIRED unless
chemical water
treatment unit is fitted
Typical hot and cold water distribution
Page Figure 1.5
SYSTEM DETAILS
Warning/
overflow
pipe
DESIGN
Hot and Cold water System
Pipe Sizing / Materials
To achieve even distribution of the available supply of hot and cold water, it is
important in any mains pressure system, that the piping in a dwelling should be
sized in accordance with BS 6700. This is particularly important in a large property
with more than one bathroom.
However, the following rule of thumb guide lines should be adequate for most smaller
property types as long as water pressures are within the recommended range.
1. A 15mm copper or equivalent external service may be sufficient for a small 1
bathroom dwelling (depending upon the flow rate available), but the minimum
recommended size for new dwellings is 22mm (25mm MDPE).
2. The internal cold feed from the main incoming stop tap to the PulsaCoil should
be run in 22mm pipe. The cold main and hot draw-off should also be run in 22mm
as far as the branch to the bath tap.
3. The final branches to the hand basins and sinks should be in 10mm and to the
baths and showers in 15mm. (1 metre minimum)
4. We would recommend that best results for a balanced system are achieved
by fitting appropriate flow regulators to each hot and cold outlet. This is
particularly relevant where the water pressures are above the recommended
water pressure range. Details of suitable flow regulators are provided in
Appendix A.
The supply of hot and cold mains water directly
to a bidet is permitted provided that it is of the
over-rim flushing type and that a type ‘A’ air
gap is incorporated.
Hot and Cold Water System
If the length of the hot water draw off pipework
is excessive and the delivery time will be more
than 60 seconds before hot water is available
at the tap, you may wish to consider using trace
heating to the hot water pipework such as the
Raychem HWAT system. Please consult Gledhill
Technical Department for further details.
Note: If manifolds (available as an optional extra) are being used suitable flow
regulators are automatically provided in the manifold and do not need to be
provided at each outlet. See Appendix B for further details.
Note: A conventional pumped secondary
circulation system is NOT suitable for use with
this appliance.
All the recommendations with regard to pipework systems in this manual are generally
based on the use of BS/EN Standard copper pipework and fittings.
It is important that the cold water pipework
is adequately separated/protected from any
heating/hot water pipework to ensure that
the water remains cold and of drinking water
quality.
However, we are happy that plastic pipework systems can be used in place of copper
internally as long as the chosen system is recommended for use on domestic hot and
cold water systems by the manufacturer and is installed fully in accordance with their
recommendations.
It is also essential that if an alternative pipework material/system is chosen the
manufacturer confirms that the design criteria of the new system is at least equivalent
to the use of BS/EN Standard copper pipework and fittings.
Taps/Shower Fittings
Aerated taps are recommended to prevent splashing.
Any type of shower mixing valve can be used as long as both the hot and cold
supplies are mains fed. However all mains pressure systems are subject to
dynamic changes particularly when other hot and cold taps/showers are opened
and closed, which will cause changes in the water temperature at mixed water
outlets such as showers. For this reason and because these are now no more
expensive than a manual shower we strongly recommend the use of thermostatic
showers with this appliance.
SYSTEM DETAILS
The hot water supply to a shower-mixing valve
should be fed wherever practical directly from
the PulsaCoil A-Class ECO or be the first drawoff point on the hot circuit. The cold supply
to a shower-mixing valve should wherever
practical be fed directly from the rising mains
via an independent branch. The shower must
incorporate or be fitted with the necessary check
valves to provide back-syphonage protection in
accordance with the Water Regulations.
The shower head provided must also be suitable for mains pressure supplies.
However, if it is proposed to use a ‘whole body’ or similar shower with a number of
high flow/pressure outlets please discuss with the Gledhill technical department.
Page 10
DESIGN
Electrical Installation
DHW Outlet Sensor
PHE Inlet Sensor
Control for Off-Peak I.H.
Control for On-Peak I.H.
Store Overheat Sensor
C1
ON PEAK L
230V, 50Hz N
E
15A
The whole of the electrical installation shall be
designed and installed by a competent person
fully in accordance with the latest edition of
the Requirements for Electrical installations
BS 7671.
DHW
Pump
C2
OFF PEAK L
230V, 50Hz N
E
15A
The PulsaCoil A-Class ECO appliance is provided
with two side entry 3kW immersion heaters and
has been designed to generally operate with an
off peak supply.
C1 and C2 : Contactors
Immersion
(Off Peak)
The Schematic arrangement of the wiring
within the PulsaCoil A-Class ECO is shown
opposite.
Immersion
(On Peak)
The lower immersion heater heats the whole
of the contents and is normally connected to
the off peak supply.
PulsaCoil A-Class ECO Schematic Wiring Diagram
The upper immersion heater is positioned at a
level on the PulsaCoil A-Class ECO to heat the
top 50 - 80 litres of the store - see Technical
Data Table on page 5. This is connected to the
unrestricted on peak supply and is switched
manually by the householder using the button
provided on the front of the appliance. When
pressed the on-peak boost will remain active
until the next time the off-peak becomes
available (unless switched off again manually).
The size of the appliance and the need to use
the on peak boost facility is reduced if a better
off peak tariff can be agreed with the electrical
supply company - see Model Selection Guide
on page 5.
Wiring the PulsaCoil A-Class ECO with a split
consumer unit i.e. separate on and off peak
supplies
Twin Tariff Consumer Only
METER
24 HOUR
DOMESTIC
SUPPLY
ON
ON
OFF
OFF
On Peak
Element
Off Peak
Element
B16
B16
ON
ON
ON
ON
OFF
OFF
OFF
OFF
MCB
Historically this has been the typical supply
method and no special wiring arrangements
are required.
RESTRICTED
OFF PEAK
SUPPLY
ON
ON
ON
OFF
OFF
OFF
MCB
ON PEAK 3KW
20 Amp
Installer
Terminals
Double Pole
Isolator
20 Amp
Control
Supply
Boost
Control
Installer
Terminals
Double Pole
Isolator
OFF PEAK 3KW
Twin Tariff Restricted Off Peak Connections
Page 11
SYSTEM DETAILS
Rate1
Rate 2
DESIGN
Wiring the PulsaCoil A-Class ECO with
combined on and off peak supplies
Rate1
Rate 2
METER
With this arrangement the dwelling has a single
supply to the consumer unit from the meter
and the whole dwelling goes off-peak or onpeak when the tariff changes at the meter. In
this case a single channel clock will need to be
fitted in the off peak supply to the PulsaCoil AClass ECO. The off-peak time clock will need to
be synchronised with the tariff times set on the
meter and be rated for at least 3kW at 230V.
On Peak Off Peak
Element Element
24 HOUR
DOMESTIC
SUPPLY
B16 B16
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
MCB MCB
Off Peak During
00:00 - 07:00 E7
ON PEAK 3KW
Installer
Terminals
20 Amp
Double Pole
Isolator
Control
Supply
Installer
Terminals
20 Amp
Timer Programmed to Synchronized with
Off Peak Availabilty EG. 00:00 - 07:00 E7
Boost
Control
Double Pole
Isolator
Immersion Heater
Timeswitch
3KW
Although the PulsaCoil A-Class ECO appliance is
primarily designed to operate with an off peak
supply it will also operate quite successfully
if it is only supplied with an on peak supply.
However, this will substantially increase the
running costs of the appliance and should
only be considered if an off peak supply is not
available.
OFF PEAK 3KW
Twin Tariff Un-Restricted Off Peak Connections
Wiring the PulsaCoil A-Class ECO when only
an on peak supply is available
Rate1
METER
With this arrangement the dwelling has no offpeak tariff available. Because the appliance will
continuously sense the presence of a supply at
the bottom immersion heater (normally offpeak) the controller will always use the bottom
immersion heater to charge the store and
boost will not be available unless the bottom
immersion heater fails.
On Peak Off Peak
Element Element
24 HOUR
DOMESTIC
SUPPLY
B16 B16
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
MCB MCB
ON PEAK 3KW
20 Amp
Installer
Terminals
Double Pole
Isolator
20 Amp
Double Pole
Isolator
Control
Supply
Boost
Control
Installer
Terminals
OFF PEAK 3KW
SYSTEM DETAILS
Single Tariff Domestic Supply No Off Peak Connections
Page 12
To allow the appliance to operate successfully
with on peak only supplies, two separate 16A
230V 50Hz supplies MUST be provided with
one wired into the on peak connections in the
normal way and the other wired into the off
peak connections.
In all cases the two switches/isolators must be
clearly labelled for the householders use.
installation
The appliance is designed to be installed in an airing/cylinder cupboard and the
relevant minimum dimensions are provided in the Technical Data section of this
manual.
Because of the ease of installation we recommend that the cupboard construction is
completed and painted before installation of the appliance. The cupboard door can
be fitted after installation.
If the unit needs to be stored prior to installation it should be stored upright in a dry
environment and on a level base/floor.
Installation and maintenance access is needed to the front of the appliance and above
the top up cistern. See the Technical Data section of this manual for further details.
The minimum dimensions, contained in the Technical Data section, allow for the
passage/connection of pipes to the appliance from any direction as long as the
appliance is installed on the installation base provided. If the installation base is not
used extra space may be needed to allow connection to the pipework and the whole
of the base area should be continuously supported on a material which will not easily
deteriorate if exposed to moisture.
The floor of the cupboard needs to be level and even and capable of supporting the
weight of the appliance when full. Details of the weight when full is provided in the
Technical Data section of this manual.
The appliance is designed to operate as quietly as practicable. However, some
noise (from pumps etc) is inevitable when hot water is being used. This will be most
noticeable if the cupboards are located adjacent to bedrooms, on bulkheads, or at
the mid span of a suspended floor. Some noise may also be experienced from the
immersion heaters as the store approaches its design temperature.
Cupboard temperatures will normally be slightly higher than in a conventional system
and the design of the cupboard and door will need to take this into account. No
ventilation is normally required to the cupboard.
The separate Top up cistern will need to be located on top of the appliance or at
high level in the cupboard housing the PulsaCoil A-Class ECO. The dimensions and
clearances are provided in the Technical Data section of this manual. If the top up
cistern is sited remotely, the location will need to provide a suitable route for the cold
feed expansion pipe as well as the open safety vent pipe. If the ballvalve/overflow
connector have been ordered (available as optional extras), the location will also need
to provide a suitable route and discharge position for the warning/overflow pipe and
the ballvalve supply from the mains cold water system.
Note: The standard appliance is supplied with a cistern without a ballvalve/
overflow for filling manually.
The electrical mains supply needs to be 230V/50Hz.
The sizes/types of electrical supplies must be as detailed in System Details section
of this manual. A means for disconnection from the supply mains having a contact
separation in all poles that provides full disconnection under over voltage category
III conditions must be incorporated in the fixed wiring in accordance with the wiring
rules. This shall be located within 1m of the appliance and only serve the appliance.
The hot and cold water ‘first fix’ pipework should be terminated 50mm above the
finished floor level in accordance with the dimensions provided in the Technical
Data section.
Page 13
site requirements
An electrical supply must be available which is correctly earthed, polarized and in
accordance with the latest edition of the IEE requirements for electrical Installations
BS 7671.
INSTALLATION
1
2
3
4
S1 & S2
1
0
S3
RELAY R2
200 - 240Vac 50Hz
S4
S5
4
2
6
8
S6
1
0
RELAY R1
200 - 240Vac 50Hz
2
4
8
6
Bl
11
COM
NL
14
ON
IH
L
ON
ON
ON
PEAK PEAK PEAK
N
L
PE
ON
IH
N
OFF
IH
L
OFF
PEAK
L
OFF
OFF
PEAK PEAK
PE
N
L
N
ON
E
RELAY
R3
1 2 3 4
N
OFF
PEAK
F2
SPD1/2A
ON
PEAK
F1
L
PART No.
XB142
12
OFF
IH
N
Br
E
A2
A1
SCALE INHIBITOR
DRN.
Off Peak Supply
2
1.5mm Flex
DATE
S. McGachie
08-06-07
DATE : JUNE 2007
OFF PEAK
On Peak Supply
2
1.5mm Flex
ON PEAK
INSTALLATION
IF FITTED
CH'KD.
SIGN.
DATE.
08-06-07
S. McGachie
ISSUE No : 6
APPROVED
APP'D.
SIGN.
S. Gataora
08-06-07
DO NOT SCALE FROM THIS DRAWING. COPYRIGHT OF THIS DRAWING
IS RESERVED. IT IS NOT TO BE REPRODUCED COPIED OR DISCLOSED
TO A THIRD PARTY EITHER WHOLLY OR IN PART WITHOUT OUR
WRITTEN CONSENT.
© GLEDHILL WATER STORAGE LTD.
Page 14
DATE
Y
G
Br
Wh
Br
Wh
Br
Wh
Br
Wh
Br
Wh
installation
5
6
Bl
R
Bl
B
R
Br
Y
Y
Br
Y
8
FRONT PANEL
R
R
Or
Or
R
ID_RESISTOR
Bl
B
Y
Bl
7
R
Or
Br
R
Or
Br
B
B
A
Red LED
Push Button
R
B
B
Off - On Green Neon Rocker
1B
Or
Or
J9
J31
0
Br
Br
1
B
1A
1
J30
C
J29
(ON PEAK SIGNAL)
J3
V
Br
(ON PEAK IMMERSION HEATER)
R
(OFF PEAK IMMERSIONHEATER)
J33
J28
(OFF PEAK SIGNAL) V
J32
G/Y
J34
Bl
Bl
D
E
Br
N
Br
DHW
Pump
B
L
J5
M
G/Y
BOTTOM
TOP
3kW
3kW
* All wire sizes 0.5mm² unless otherwise stated
GLEDHILL WATER STORAGE LTD.
SYCAMORE TRADING ESTATE
SQUIRES GATE LANE
BLACKPOOL
LANCASHIRE
FY4 3RL
TITLE
JOB NAME
'A' CLASS PULSACOIL APPLIANCE
'A' CLASS PULSACOIL APPLIANCE
ELECTRICAL SCHEMATIC DRAWING
DRG. SIZE
A3
Page 15
DRG. NAME
'A' Class Pulsacoil ver 6.ai
INSTALLATION
E
Off Peak
Immersion
On Peak
Immersion
INSTALLATION
Preparation/placing the appliance in
position.
The ‘first fix’ pipework positions should be
checked using the template provided with
each appliance. If these have been followed
installation is very simple and much quicker
than any other system.
The appliance is supplied shrink wrapped on a
timber installation base. Carrying handles are
also provided in the back of the casing.
The feed and expansion cistern complete with
ballvalve, cold feed/expansion and overflow/
warning pipe fittings are provided in a separate
box.
The appliance should be handled carefully to
avoid damage and the recommended method
is shown above.
HANDLING
When lifting the unit work with someone of similar build and height if possible.
Choose one person to call the signals.
Lift from the hips at the same time, then raise the unit to the desired level.
Move smoothly in unison.
Larger units may require a team lift.
A specific manual handling assessment is shown in Appendix D
at the rear of this manual.
Note: Although the above guidance is provided
any manual handling/lifting operations will
need to comply with the requirements of
the Manual Handling Operations Regulations
issued by the H.S.E. - further details are provided
in Appendix D.
The appliance can be moved using a sack truck
on the rear face although care should be taken
and the route should be even.
In apartment buildings containing a number
of storeys we would recommend that the
appliances are moved vertically in a mechanical
lift.
If it is proposed to use a crane expert advice
should be obtained regarding the need for
slings, lifting beams etc.
Before installation the site requirements should
be checked and confirmed as acceptable.
The plastic cover and protective wrapping
should be removed from the appliance and
the installation base (provided) placed in
position.
INSTALLATION
The appliance can then be lifted into position in
the cupboard on top of the base and the front
panel removed by unscrewing the 2 screws and
lifting the door up and out, ready for connection
of the pipework and electrical supplies.
The feed and expansion cistern support shall
be installed ensuring that the base is fully
supported, the working head of the appliance
is not exceeded and the recommended access
is provided for maintenance - see the Technical
Data section of this manual for details.
Page 16
installation
Pipework connections
The position of the pipework connections is
shown opposite. The exact location dimensions
are listed in the Technical Data section of this
manual.
All the connections are also labelled on the
appliance. It is essential that the pipework is
connected to the correct connection.
Connections A and B are plain ended copper
pipe.
Connection C and D are compression fittings.
Connection E is RC½ (½ in BSPT internal)
A
B
A
B
C
D
E
- 22mm Safety open vent
- 15mm Cold feed/expansion
- 22mm Incoming mains cold water
- 22mm Domestic hot water
- ½” Drain tap connection
Note: The safety open vent and cold feed/
expansion must be connected to the top up
cistern using the pipework assembly provided.
Do not alter or connect any pressure-relief
device to the vent pipe of this water heater.
All factory made joints should be checked after
installation in case they have been loosened
during transit.
The fittings for the top up cistern should be
installed following the instructions provided
and the cistern fitted on its supports/top of
the appliance.
E
C
Figure 1.6
Page 17
INSTALLATION
D
INSTALLATION
It is normally envisaged that the top up cistern will be located in the same cupboard
as the PulsaCoil A-Class ECO appliance itself to maintain a dry roof space.
Electrical Connection - Standard Appliance
If it is necessary to locate the cistern in any other location, the cold feed/open vent
pipework (as supplied) should be used to connect to the top up cistern and pipework
site run by the installler to connect this to the appliance.
The PulsaCoil A-Class ECO is pre-wired internally,
strictly in accordance with the IEE Requirements
for Electrical Installations BS 7671. The external
wiring/connections should be carried out by a
competent person to the same standard. The
arrangement of the internal wiring is shown on
the previous page.
Obviously, any pipework in the roof space and the feed and expansion cistern will
need to be adequately insulated to protect against frost damage.
Details of the incoming power supplies are
shown below.
Combined feed and open pipe arrangements must not be used.
All the terminals are suitably labelled.
No valves should be fitted in the safety open vent which must be a minimum of 22mm
copper pipe or equivalent throughout its length.
Note: Do not attempt the electrical work unless
you are competent to carry it out to the above
standards.
The cold feed/open vent pipework (as supplied) should be used to install the top up
cistern directly on top of the appliance.
The mains cold water supply to the ballvalve (if provided) shall be provided with a
suitable servicing valve.
The overflow/warning pipe (if provided) shall have a continuous fall, be fitted to
discharge clear of the building and be sited so that any overflow can be easily observed.
It shall also be installed in a size and material suitable for use with heating feed and
expansion cisterns in accordance with BS 5449 (e.g 22mm copper) and should not
have any other connections to it.
Note: If a warning/overflow pipe is NOT provided the top up cistern should be
filled from a temporary hose connection supplied from any cold water tap or
from a permanent cold branch provided adjacent to the top up cistern. The
temporary hose must be fitted with a double check valve and removed once
the appliance is filled.
The store may fill more slowly than the feed tank. It is important to check the
water level again in the cistern after commissioning and top up if necessary.
Before commencing check that the power source
is in accordance with the Site Requirements
section of this manual and ensure that it is
isolated.
Run the external wiring from the adjacent
isolator through the service slot provided in the
base of the appliance.
Because of the exposed nature of the electrical
connections to the relays, a metal panel is fitted
over part of the electric panel. This will need to
be removed to make the connections, but MUST
be replaced prior to the electrical supply being
switched on and left in position.
Make the connections as shown below.
Cold feed / open vent
pipework
(as supplied)
ON
IH
L
ON
ON
ON
PEAK PEAK PEAK
N
L
PE
L
OFF
PEAK
L
L
OFF
OFF
PEAK PEAK
PE
N
N
OFF
IH
N
E
Off Peak Supply
2
1.5mm Flex
Clamp the cables in the grips provided and
ensure all cables are routed to avoid hot
surfaces.
Boiler
INSTALLATION
E
OFF
IH
L
OFF PEAK
On Peak Supply
2
1.5mm Flex
ON PEAK
Interconnecting
Pipework
(By Installer)
N
ON
IH
N
Note: The appliance pipework should be bonded
to earth to comply with the IEE Requirements
for Electrical Installations BS 7671.
Figure 1.7
Page 18
Before switching on the electrical supply
check all the factory made terminal
connections to ensure they have not become
loose during transit.
installation
Open the incoming stop valve and fill the domestic mains cold and hot water systems
including the PulsaCoil A-Class ECO appliance.
Check the water level in the top up cistern and if a ballvalve is fitted adjust if
necessary.
Put the on/off switch on the front control panel
to the on position to activate the appliance
control board. The switch will glow green when
in the on position.
Check the whole of the domestic hot and cold distribution systems for leaks. Fully
flush and if necessary chlorinate the hot and cold water system in accordance with
the recommendations in the Water Regulations and BS 6700.
If an off peak supply is not available the onpeak boost immersion heater will need to be
switched on by pressing the black button. The
red light will change to permanently on.
Please note that the whole of the domestic hot and cold water systems including the
appliance must be adequately flushed after chlorination. Failure to do this can cause
damage to the plate heat exchanger/immersion heaters etc. If there are any doubts
regarding this or the quality of the water being used to fill the PulsaCoil A-Class ECO
appliance an inhibitor such as Fernox MBI or Sentinel X100 should be added to the
appliance when filling in line with the manufacturers instruction for these products.
It can be checked that the boost immersion
heater is drawing current by use of a clamp
meter on the live supply when boost is active
or by interrogating the printed circuit control
board in accordance with the instructions in the
fault finding section of this manual.
It is most important to check that the top up tank is filled up to the water level shown
on the label, if it is a manual fill model. If the optional level gauge has been provided,
the level will be shown by the red float.
The sensor control set points are shown on
page 25 and can be checked on the 2 digit
ACB display.
If a ballvalve is provided, turn down the servicing valve once the system is finally
filled to the point where the warning/overflow pipe will cope with the discharge
arising from a ballvalve failure.
The boost immersion heater can be switched
off by pressing again the black button.
If an overflow is not provided ensure the temporary filling hose is isolated and
removed from its connection to the cold water supply.
It is essential that all systems function properly for optimum performance.
To achieve this the flow rate from each tap should be checked and a suitable number
of taps run simultaneously to check the impact of this on the flow rate at individual
taps.
If an off peak supply is available at the time
the appliance is switched on the appliance will
automatically switch on the off peak immersion
heater. Its operation can be checked in the
same way as described above for the on peak
immersion heater. When the off peak supply
is available the on peak immersion heater
operation can still be checked as described
above by switching off the off peak supply.
OFF
ON
FLASHING
Normal
On-Peak boost active
Fault attention required
Note: If the on and off peak supplies have been
connected wrongly (“crossed”) at the appliance
it will not operate properly (it may charge if off
peak is available but will not carry out any other
operations).
PUSH BUTTON
To activate On-Peak boost
If the appliance has been connected with the
polarity incorrect it will not operate at all.
ON/OFF SWITCH
Control circuit power
supply
We recommend that flow regulators are provided for each tap/terminal fitting
to ensure that the available flow is shared evenly - See Appendix A for further
details.
Commissioning the PulsaCoil A-Class ECO Control System
Once the PulsaCoil A-Class ECO is filled with water, check the on/off switch on the
front is in the off position. The electrical supplies can then be switched on and the
switches on the two isolating terminal connectors can be pushed home.
WARNING - Pushing home these switches will complete the electrical circuit to the
immersion heaters. DO NOT PUSH HOME THESE SWITCHES AND SWITCH ON THE
ELECTRICITY SUPPLY UNTIL YOU HAVE CHECKED THAT THERE IS WATER IN THE F
& E CISTERN. Failure to do this can result in dry firing and premature failure of the
immersion heaters, which will invalidate the warranty.
Page 19
Run a tap and using a digital thermometer
check that the temperature of the hot water
is about 52°C. This temperature is factory set
and is independent of the store temperature
assuming the store is above 55°C and typical
hot water flow rates of 6-25l/min are being
drawn.
This product is covered by the ‘Benchmark’
scheme and a separate commissioning/
service log book is included with this
product. This must be completed during
commissioning and left with the product
to meet the Warranty conditions offered
by Gledhill.
COMMISSIONING
See the Fault Finding section of the manual for
further details.
SERVICING
Important Do’s and Don’ts
Annual Service
1. DO check the incoming mains water pressure. The preferred range of mains
pressure is 2 -3 bar.
2. DO check the flow rate of the incoming cold water main is adequate to meet the
maximum hot and cold water simultaneous demands.
3. DO check that all connections are in accordance with the labelling on the thermal
store.
4. DO NOT push home the 2 switches on the isolating terminal connectors and
switch on the electricity supply until you have checked that the appliance is full
of water i.e. there is water in the top up cistern.
5. DO check the water level is correctly set in the top up cistern when cold and (if
fitted) that there is no discharge from the overflow when the appliance is up to
temperature.
6. DO check that the sensors switch the immersion heaters off at the correct set
point i.e. approx 70°C.
7. DO insulate any exposed hot water pipework in the PulsaCoil A-Class ECO
cupboard.
8. If the ballvalve in the F & E cistern is permanently connected to the mains cold
water supply DO plumb the overflow/warning pipe in a 20mm internal diameter
pipe and ensure it discharges in a conspicuous external position. Use a material
which is suitable for use with heating F & E cisterns in accordance with BS 5449
(such as copper).
9. DO ensure the green light ‘on/off’ switch glows.
10. Once the appliance is filled and commissioned DO leave the electricity switched
on to the appliance to ensure the automatic pump run facility can operate to
prevent the pump sticking.
11. DO ensure that the functioning and control of the system is explained to the
occupant.
12.DON’T place any clothing or other combustible materials against or on top of this
appliance.
No annual servicing of the PulsaCoil A-Class
ECO is necessary.
These instructions should be placed along with the component manufacturers
instructions in the pocket provided on the top of the appliance. The appliance
should be left with the front panel fitted and screwed in position.
ANNUAL SERVICE/CHANGING COMPONENTS
However, if required, the operation of the
controls and a hot water performance test can
be carried out to prove the appliance is working
satisfactorily and within its specification.
If it is decided to carry out the above tests the
water level in the top cistern should also be
checked and if necessary topped up.
Changing Components
Free of charge replacements for any faulty
components are available from Gledhill during
the in-warranty period on return of the faulty
part (normally 12 months).
After this, spares can be obtained direct from
Gledhill using the ‘Speed Spares’ service, or
through any of the larger plumbers merchants/
specialist heating spares suppliers.
Help and advice is also available from the
Technical Helpline on 08449 310000.
However, all components are readily accessible
and can be changed quickly and easily by the
installer using common plumbing/electrical
practice.
However all maintenance work on the PulsaCoil
A-Class ECO appliance must be carried out by a
competent trades person.
Note: The pump is a Grundfos UPR 15-50
4 wire pattern and any replacement must
be the same model obtained from Gledhill.
Failure to do this will affect the hot water
performance.
Page 20
SERVICING
Supplier & Model
1
PHE pump
Grundfos, UPR 15-50
2
Plate heat exchanger (PHE)
SWEP, 24 Plate heat exchanger
3
Pump isolating valve - outlet
Watt Industries, 90° valve
4
Pump isolating valve - inlet
Watt Industries
5
Top immersion heater
6
Bottom immersion heater
7
Main PCB controller
8
Middle sensor
9
Part Number
Stock Code
5950543
GT089
E8T/24
GT017
7308123
GT135
GT133
Shell, 14” Immersion heater - no stat
Incalloy 825
XB083
Argus Vision 147/4GS controller
147/4GS
GT490
Tasseron, Single sensor
TSK10B4
GT198
Top (OHT) sensor
Tasseron, Duplex sensor
TSK11B4
GT199
10
Front panel display
RH Technical, Membrane overlay
P210328
XB411
11
Front panel display harness
RH Technical, Membrane harness
12
Off-Peak circuit fuse holder
Phoenix, (Part of DIN rail assembly-non stock item)
13
Control & off-peak circuit fuses
RS Components, 5A FF
14
Off-Peak/On-Peak contactor
Duracool
XB178
15
Bracket
Duracool
XB179
16
Complete DIN rail assembly
Phoenix, Bespoke terminal and component
assembly
XB180
17
Complete wiring harness
18
On-Off switch (part of panel)
XB057
415-626
XB382
Arcoelectric, Green illuminated rocker switch
C5503-ALNAK
CA006
GT198
+
GT295
19
DHW inlet & outlet sensors
Tasseron, single sensor complete with nut & olive
Wet pocket
sensor, comes
as a kit.
20
Relay
Relpol
RM87N-231135-5230
XB424
21
DIN rail socket
Relpol
GZT92
XB425
1
2
3
4
5/6
7
8/19
9
10
11
12
13
14/15
16
17
18
20
21
Page 21
SHORT PARTS LIST
Description
SERVICING
The PulsaCoil A-Class ECO appliance control panel and printed circuit control board/
display have been designed to be fully automatic whilst able to provide functional
and diagnostic information to the householder/installer.
The panel/board work in conjunction with a number of sensors (thermistors) located
as shown in the diagram below.
S1/S2
Automatic Control Operation
S6
Heating of the store is controlled by sensors S1/S2 and S5 and S6. The control set
points are shown in the table on page 25.
On peak IH
During normal charging cycle sensor S5 will control the bottom off peak I.H. in the
same way S6 will control the top on peak I.H. when manually activated.
S4
In the event of either of these sensors failing, control will be taken over by sensors
S1/S2.
S5
Normally, sensors S1/S2 are used to detect an overheat condition (over 95°C) which
will cause the red LED on the front control panel to flash (rapid).
This condition should not normally be reached as sensors S1/S2 will also switch off
the supplies to the I.H’s if a temperature above 85°C is detected. Normal operation will
automatically resume when the temperature at the sensors drops below 78°C.
The hot water temperature is controlled by sensors S3 and S4.
S3 checks for a drop in temperature every second and if the drop is more than 2°C,
it switches on the hot water pump to raise the domestic hot water temperature to
52°C (± 2°C).
The control of the hot water temperature is carried out by sensor S4 adjusting the
speed of the hot water pump.
Off peak IH
Sensors
S1/S2 Store/OH sensors
S3 DHW inlet sensor
S4 DHW outlet sensor
S5 Control sensor for Off peak Htr
S6 Control sensor for On peak Htr
Fault Condition
Possible Causes
DHW temperature
remains cold
exiting the taps.
- Thermal store is cold/DHW
pump is permanently stuck
- Temperature sensor or
printed circuit control
board is faulty.
- The water level is low in the
F&E Cistern
- Overheat stat tripped
- One or both immersion
heaters have failed
DHW temperature
fluctuates wildly
when flow is
steady
- DHW pump keeps sticking
intermittently
- Hot & cold crossed at
appliance.
DHW temperature
exceeds and
remains well above
60°C when the
flow rate is low.
- DHW printed circuit control
board and/or temperature
sensor is/are faulty.
- Immersion heater
thermostat temperature
setting too high should
be 70°C.
Store not heating
- The two switches on
the isolating terminal
connectors are not pushed
home - i.e. unit is not
commissioned.
- No power supplies/fuses
are blown.
- Overheat stat has tripped.
- One or both immersion
heaters have failed.
The pump is stopped once S3 reaches a temperature of above 30°C.
The following checks should be carried out by the installer before calling the
manufacturer.
Noise when hot water tap is opened/closed
If the plate heat exchanger pump is noisy when the hot water tap is opened, then
check the level of water in the F & E cistern and vent the pump if necessary.
Water hammer - loose pipework and/or tap washers and/or washing machine
valves.
Causes of ‘Unsatisfactory Hot Water Service’
See table opposite.
FAULT FINDING
Overflow from Feed and Expansion Cistern
Check that the controlled level of water in the cistern is at the correct level. Adjust if
required and check the ballvalve is shutting off the water supply.
Page 22
S3
SERVICING
Normal - standby state
Indicate system status
S2
S1
2 digit
display
Press S2
Sensor temperature
reading
Press
Press
Press
Press
S1
S1
S1
S1
Press
Press
Press
Press
S1
S1
S1
S1
Press
Press
Press
Press
S1
S1
S1
S1
Press
Press
Press
Press
S1
S1
S1
S1
S2 S1
2 push
buttons
Main
processor
Press S2
Control set-point
reading
Press S2
Fault code indicator
block outs
2 DIGIT ACB BOARD DISPLAY FLOW CHART
Appliance Control Board
APPLIANCE CONTROL BOARD (A.C.B)
and setting the appliance code on the controller
is described below.
The appliance control board (shown above) has a 2 digit display and 2 push buttons
which are used to check the status of the appliance, check and set its identity and
interrogate it for the current faults and the fault history.
The 2 digit display is controlled by 2 buttons S1 and S2. The flow chart of display modes
is shown above. Generally, each press of button S2 cycles the display from top to bottom
and each press of button S1 cycles the display functions from left to right.
The button S2 is also used to reset the appliance i.e. clear the lockout errors and reset
the appliance.
Note: The board is used on a range of products and not all terminals are used on
every appliance.
Display in Normal (Standby) Mode
In the standard/normal mode the 2 digit display indicates the status of the appliance
inputs and outputs by switching on the appropriate segments of the display - see
page 25 for details.
Appliance Type Selection
The PulsaCoil A-Class ECO is fitted with an identity (ID) resistor which is read by the
controller for comparison with the appliance type (code) set on the controller. The two
must match for the controller/appliance to function. Therefore if either the appliance
code setting or the ID resistor is wrong, the appliance will shut down safely and flag
the error code until the fault is rectified. The controller codes and the ID resistor values
for the PulsaCoil A-Class ECO are 03 and 3K3 respectively. The procedure for checking
Page 23
• The appliance selection menu (A0 ... A9) on
the controller is hidden. It is only possible
to get to the appliance selection using the
reset button (Left hand, S2) on the main
board.
• When going from the show ‘ locking error’ to
show ‘blocking error’ menu (see opposite),
do not release the button but hold it for 10
seconds. The display will change from ‘c’ to
‘A’. At this stage the push button (S2) can be
released.
• The appliance type can now be selected by
using right hand push button, S1, e.g. for this
appliance A01.
Press the reset button, S2, to accept the
setting.
If the selected appliance code does not match
with the ID resistor fitted to the appliance, then,
an error ‘33’ will be displayed.
FAULT FINDING
Fault code indicator
lock outs
Fuse T3.15L 250V
Press S2
SERVICING
Control panel - (on the
front of the appliance)
OFF
ON
FLASHING
Normal
On-Peak boost active
Fault attention required
Red LED indicator
PUSH BUTTON
To activate On-Peak boost
Black push button
ON/OFF SWITCH
Control circuit power
supply
Green rocker switch illuminated when in the
‘ON’ position
S6 sensor (top)
calling
Off peak supply
present
DHW pump on
On peak heater
on
On peak supply
present
Off peak heater
on
S5 sensor
(bottom) calling
If flashing on its own, the system
is running normal
This is designed for operation by the householder
and the operation is in line with the instructions
on the panel.
If a sensor error is detected one of the following
three error codes flash alternately with the
sensor number instead of the temperature
E1 Open circuit
E2 Short circuit
E3 Temperature greater than 99°C
A code of FF indicates the fault location is
empty.
If flashing on its own system has
locked out and needs a reset
If both flashing indicates a fault but unit is still working
S1
Top immersion heater sensor on
(S6)
70°C
S2
Top immersion heater sensor off
(S6)
78°C
The set point reading mode is normally only
used by the Gledhill engineer to check the
sensor set points are still correct. The set point
alternately flashes with S1-S6.
S3
DHW in
(S6)
35°C
See table opposite for set points.
S4
DHW out
(S6)
52°C
S5
Bottom immersion heater sensor on
(S6)
75°C
S6
Bottom immersion heater sensor off
(S6)
79°C
Sensor Control Set Points
The two fault code indication modes are again
mainly for use by the Gledhill engineer and can
only be used with a reference table.
Sensor Control Set Points
FAULT FINDING
Code
Note: The S1-S6 reference display does not
correspond with the S1-S6 sensor references
used earlier. These are shown in brackets on
the table opposite.
Code
10
Overheat error
45
S1 overheat 1 shorted
30
Phase error
48
I.D. resistor shorted
33
Appliance selection
49
S4 sensor shorted
37
S1 overheat 1 open
50
S5 sensor shorted
40
I.D. resistor open
51
S6 sensor shorted
41
S4 sensor open
52
S2 overheat 2 shorted
42
S5 sensor open
55
Top IM failure
43
S6 sensor open
56
Bottom IM failure
44
S2 overheat 2 open
Any other code displayed should be checked against the full chart.
The Blocking errors will clear automatically
when the fault is cleared/component changed.
The Locking errors can only be cleared by
resetting the controller.
In each case there are 16 fault locations stored
in date order with C0 being the latest and CF
the first.
The most common fault codes are shown
opposite. Not all appliances use all the error
codes available.
For further assistance please call the Gledhill
Technical Helpline on 08449 310000.
Page 24
APPENDIX
Water Savings
Water Related Costs Can Be Reduced By Good Plumbing Practice
1
2
1
1
2 tap
half open
Unregulated
Over
20 l/m
Fitted with regulator
5, 6 or
8 l/m
2
2
TAPS & MIXERS
4 Fixing Options For Taps & Mixers
1. MK Range - Combined Regulators & Aerator
for screwing onto Taps & Mixers with internal
or external threads on their noses.Anti Vandal
models also available.
Unregulated
25 - 30 l/m
Regulated
10 - 12 l/m
SHOWERS
Vast quantities of water are needlessly run off to waste due to Taps, Mixers and Showers
discharging flow rates far in excess of the rates required for them to perform their
duties.
The contrasting flow rates shown on this leaflet clearly illustrate the savings that can
be made whilst still providing a good performance.
British made Aquaflow Regulators provide constant flow rates by automatically
compensating for supply pressure changes between 1 bar & 10 bars.
To facilitate installation into the wide range of plumbing equipment which is
encountered in the U.K, Four Fixing Options are available:-
2. MR05-T Range - Internal Regulators. Pushfit into Tap or Mixer seats. Produced in
three sizes - 12.5mm (BS1010), 12mm &
10mm, Flangeless models also available for
Taps with Low Lift washers.
3. MXF Standard Range - Screw on tail
models for Taps & Mixers. Fix onto the tails
before fitting the tap connectors. Available
in 3/8", 1/2", 3/4" and 1" BSP.
4. Compression Fitting Range - “In Line”
regulators housed in 15mm & 22mm CXC
Couplers & Isolating Valves.“ ”UK WFBS listed
by the Water Research Centre. Isolation valves
available for slotted screwdriver operation or
with coloured plastic handles. Now available
also in plastic bodied push-fit couplers &
valves.
3
3
1. MXF “DW” Range - For fitting behind Fixed Shower Heads or onto Flexible Hoses for
Handshowers (preferably onto the inlet end when lightweight hoses are used).
1
2. Compression Fitting Range. “In Line” regulators as in Option 4 for Taps & Mixers.
4
Information by courtesy of
Aquaflow Regulators Ltd
Haywood House, 40 New Road, Stourbridge, West Midlands DY8 1PA
Telephone (01384) 442611 Fax: (01384) 442612
Page 25
APPENDIX A
Options For Showers
APPENDIX
Manifolds
Two sets of manifolds are available as an
optional extra. Each set comprises a separate
hot and cold water manifold. Both are provided
with a 22mm inlet connection located centrally.
All outlet connections are 15mm compression.
The centre to centre dimension of each branch
is 55mm.
Manifold type: 1 - Stock Code MIP 050
(one bathroom, one en suite shower room, one cloakroom, one kitchen)
Flow regulator
(litres/minutes)
Terminal fitting
Hot water
manifold outlets
Quantity
Cold water
manifold outlets
Quantity
18
Bath tap
1
1
9
Hand basin
3
3
12
Kitchen sink
1
1
9
Toilet cistern
None
3
9
Shower
1
1
12
Washing machine
1
1
9
Dishwasher
None
1
Total
7
11
595mm
595mm
A (hot)
Flow regulator
(litres/minutes)
Terminal fitting
Hot water
manifold outlets
Quantity
Cold water
manifold outlets
Quantity
18
Bath tap
2
2
9
Hand basin
4
4
Kitchen sink
2
2
9
Toilet cistern
None
4
9
Shower
1
1
12
Washing machine
1
1
9
Dishwasher
None
1
Total
10
15
The manifolds are designed to be used with
plastic pipework and are supplied complete
with isolation valves and flow regulators on
each branch. They would normally be installed
in the same cupboard as the thermal storage
appliance (as shown below) but can be installed
in another cupboard close to the appliance if
required.
55mm
Page 26
85mm
90mm
18 l/min
12 l/min
9 l/min
9 l/mm
9 l/mm
9 l/min
9 l/min
85mm
9 l/mm
inlet
9 l/min
12 l/min
9 l/mm
12 l/min
9 l/mm
18 l/min
9 l/mm
18 l/min
12 l/min
9 l/min
595mm
9 l/min
9 l/min
9 l/min
inlet
9 l/min
12 l/min
12 l/min
18 l/min
APPENDIX B
595mm
C (hot)
The arrangement of each manifold is supplied as
shown. This provides the best balance of flows
but the flow regulators/duty of each branch can
be changed if required as long as a reasonable
balance is maintained. If it is necessary to
change or clean the flow regulator this can be
done without needing to drain the system by
closing the valve and removing the screwed
cover below the white plastic cover.
90mm
D
(cold)
195 mm
12
9 l/mm
B (cold)
165mm
Manifold type: 2- Stock Code MIP 060
(two bathrooms, one en suite shower room, one cloakroom, one kitchen,
one utility room)
12 l/mm
9 l/mm
9 l/mm
9 l/mm
9 l/mm
inlet
9 l/mm
9 l/mm
12 l/mm
18 l/mm
blank
12 l/mm
9 l/mm
9 l/mm
9 l/mm
55mm
9 l/mm
inlet
9 l/mm
12 l/mm
blank
18 l/mm
2 No 6mm
fixing holes
APPENDIX
The pressure loss through a flow regulator at the
designated flow rate is about 1.8 bar. Therefore
for the flow regulator to control the flow rate at
pre-set level, the inlet pressure must be greater
than 1.8 bar. If the inlet pressure is lower, the
flow rate will be correspondingly less than the
pre-set values.
The maximum equivalent pipe lengths from
the manifold to the terminal fittings can be
estimated from the above information and
the resistance characteristics of the pipes.
The examples presented below are for 15mm
copper pipe in table 1 and for plastic pipework
in table 2.
The preferred solution where
space will allow
The size of the distribution pipes supplying
the manifold should be calculated using
the method set out in BS 6700. A typical
diagrammatic arrangement of a system using
Manifold Type 1 is shown below.
An optional location where
cupboard space is tight
Table 1: Maximum equivalent pipe length in 15mm copper
Inlet pressure
(bar)
@ 9 l/m
@ 12 l/m
@ 18 l/m
2.0
25
10
5
2.5
75
30
15
3.0
150
60
30
This is only meant to show the principles
involved and the actual connection of fittings to
the manifold will need to suit the arrangements
shown on page 42.
Maximum equivalent length of pipe (m)
Note: If it is proposed to fit chemical water
treatment such as a water softener this should
be fitted in this location and the cold water
branch in the sink should be branched off the
cold water main prior to the treatment device
instead of the cold water manifold.
Table 2: Maximum equivalent pipe length in plastic pipe
Inlet pressure
(bar)
Maximum equivalent length of pipe (m)
@ 9 l/m
@ 12 l/m
@ 18 l/m
2.0
1.5
15mm : 10
15mm : 4.5
22mm : 40
2.5
3.0
15mm : 20
15mm : 9.0
22mm : 80.0
3.0
4.5
15mm : 30
15mm 13.5
22mm : 120
Pressure limiting valve NOT REQUIRED
at pressures below 5 bar unless any
system components have a lower
maximum working pressure
See Note 1
DW
WM
Scale
inhibitor
NOT REQUIRED
Any other isolating/control valves and backflow
protection devices should be provided as
n e ce s s a r y to co m p l y w i t h t h e Wate r
Regulations.
Airing
cupboard
Thermal
Store
Kitchen sink
Mains
supply
Kitchen
Double check
valve NOT REQUIRED
unless supply pipe
services more than
one dwelling
Check valve
NOT REQUIRED
unless chemical
water treatment
is fitted
Toilet Hand
Shower cistern basin
Bath Toilet Hand
cistern basin
Bathroom
Toilet Hand
cistern basin
Page 27
Cloak room
APPENDIX B
En-Suite
APPENDIX C
APPENDIX
Page 28
APPENDIX
MANUAL HANDLING OF APPLIANCE PRODUCTS
e. Taking the lead for team lifts- As
more than one person is required
for these products ensure that one
Manual handling means any transporting or supporting of a load (including lifting,
person is taking the lead. This may
putting down, pushing, pulling, carrying or moving) by hand or bodily force.
be you so ensure that each person
that is helping is made aware of the
Scope
weight and of the items listed within
this assessment.Make sure you and
This assessment will cover the largest Appliance,namely ElectraMate, GulfStream,
any others helping know the route
BoilerMate, SysteMate, PulsaCoil, Accolade and Stainless Lite manufactured by
you intend to take that it is clear of
Gledhill.
any obstructions.Never jerk the load
as this will add a little extra force and
can cause severe strain to the arms,
The maximum weight of the largest product in each range is 98kg and the size is
back and shoulders.If there are steps
595 x 595 x 2020 mm high.
involved decide on where you will
stop and take a rest period. Move
Main Hazards
smoothly and in unison taking care to
look and listen to others helping with
Vision may not be clear due to the size of the products.
the lift. Where possible use a sack
Adopting an incorrect method of lifting may cause injury, attempting to lift these
truck to move the product over long
products will require help from others. (Team lifts)
flat distances, only lift the products
when necessary.If in doubt stop and
get more help.The unit handles and
Control Measures
packaging with the pallet have been
designed to ensure that two-four
Manual lifting procedure
people can assist when lifting up
stairs or over longer distance.
The lift, key factors in safe lifting are:
Description
Individual capability
Balance
Position of back
Positioning of the arms and body
The hold
Taking the lead for team lifts
a.
Balance - Since balance depends essentially upon the position of the feet,
they should be apart about hip breadth with one foot advanced giving full
balance sideways and forward without tension.In taking up this position,
lifting is done by bending at the knees instead of the hips and the muscles
that are brought into use are those of the thigh and not the back.
b.
Position of back - Straight - not necessary vertical. The spine must be
kept rigid, this coupled with a bent knee position, allows the centre line of
gravity of the body to be over the weight so reducing strain.
c.
Positioning of arms and body - The further arms are away from the side,
the greater the strain on the shoulders, chest and back. Keep elbows close
to the body arms should be straight.
d.
The hold - Before lifting ensure you have a good hold.Two handles are
provided on Appliance products at the top rear side, these allow one or
two persons to have a purposely-designed hold at the top of the appliance
to ensure easy lifting at the top of the product.Each appliance is supplied
with a pallet, which has been attached to the unit via the packaging.The
pallet will also allow for one or two persons to get a good hold.
Page 29
Individual capability plays an important
part in handling these products.Persons
above average build and strength will
find it easier and should be in good
health.Persons below average build and
strength may require more rest periods
during the handling process.
Pregnant women should not carry out
this operation.
Persons who are not in good health
should seek medical advice prior to
commencing any lifting or manual
handling operation.
Residual risk
Following the guidelines given above will
reduce any risk to injury.
All persons carrying out this operation
must be fully trained and copies of the
specific risk assessment made available
for inspection and use in their training
process.
Further guidance on Manual Handling
can be obtained from the Health and
Safety Executive. Manual Handling
Operations Regulations 1992.
APPENDIX D
a.
b.
c.
d.
e.
Gledhill (Water Storage) Ltd
TERMS AND CONDITIONS
AMD. JUNE 2008
CONDITIONS OF SALE & GUARANTEE TERMS
1.
Gledhill (Water Storage) Ltd (“We” or “Gledhills”) only do business upon the Conditions which appear below
and no other. Unless we so agree in writing these Conditions shall apply in full to any supply of goods by us to
the exclusion of any Conditions or terms sought to be imposed by any purchaser. These Conditions of Sale and
Warranty Terms override those which are contained on the Invoice Forms and all Sales are now subject to these
Conditions of Sale and Warranty terms only.
2.
PRICE
Once an order or call off has been accepted the price will be held for three months but if delivery is extended
beyond that period at the customer’s request, then we reserve the right to amend the price when necessary.
The company reviews its pricing annually to adjust for changes in our cost base. We reserve the right to alter prices
at any time for severe movements in raw materials (mainly copper and steel). If there is to be a change we will give
customers at least four weeks notice but anything delivered after that date will be at the revised price. An order
may not be cancelled or varied after acceptance without the written consent of the company. Such cancellation or
variation shall be subject to such reasonable charges as may be appropriate.
3.
SPECIFICATION
The goods are supplied in accordance with the Specifications (if any) submitted to the Purchaser and any additions
and alterations shall be the subject of an extra charge. Any goods not so specified shall be in accordance with our
printed literature or the literature of any of our component suppliers (subject to any modifications made since
publication). If we adopt any changes in construction or design of the goods, or in the specification printed in our
literature, the Purchaser shall accept the goods so changed in fulfilment of the order.
4.
PAYMENT
The invoice price of goods shall be payable within 30 days of despatch by us of our invoice for the goods or such
longer time as may be stated by our quotation or invoice. If we receive payment in full on or before the due date we
will allow an appropriate settlement discount except where we have quoted a special net price. If payment is not
received in full on or before the due date we shall be entitled in addition to the invoice price to:
(i)
payment of a sum equal to any increase in the copper price supplement applicable to the particular goods
sold between the date of receipt of order and the date of receipt of payment in full; and
(ii) interest on any part of the invoice price unpaid after the due date at the rate of 3% per annum over the base
rate for the time being of HSBC Bank plc.
5.
TIME
We give estimates of delivery dates in good faith and time of delivery is not nor shall be made of the essence of any
contract nor shall we be liable for any loss or damage occasioned by delay in delivery.
6.
DELIVERY
We deliver free normally by our own vehicles within 25 miles of any of our manufacturing depots. Delivery to any
place more than 25 miles from one of our manufacturing depots may be subject to our quoted delivery charges. We
reserve the right to make delivery of goods contained in one order by more than one consignment and at different
times. Where a period is agreed for delivery and such period is not extended by our Agreement, the Purchaser shall
take delivery within that period. If the Purchaser fails to take delivery, we shall be entitled at the Purchaser’s risk and
expense to store the goods at the Purchaser’s premises or elsewhere and to demand payment as if they had been
despatched. Off loading at point of delivery shall be the responsibility of and be undertaken by the Purchaser.
7.
SHORTAGES OR DAMAGE
Goods must be inspected before signature of delivery note and any damage, shortage or discrepancy noted on the
delivery note and the goods returned on the same vehicle. The buyer must also give us immediate written notice of
the damage, shortage or discrepancy so that we may prompt investigation.
8.
RETURN OF GOODS
Goods may not be returned to the Company except by prior written permission of an authorised officer of the
Company and such return shall be subject to payment by the Purchaser of handling and re-stocking charges,
transport and all other costs incurred by the Company.
9.
COMPANY LIABILITY AND GUARANTEE
9.1. Subject to the terms of these Conditions of Sale and Guarantee Terms Gledhills provide Guarantees in respect
of specific products as set out in this clause.
9.2. Each Guarantee is strictly conditional upon the following:9.2.1. Complaints must be given to us immediately, before any action is taken, as responsibility cannot be accepted
if repairs or renewals are attempted on site without our written approval.
9.2.2. The unit has been installed in accordance with our installation and service instructions and all relevant codes
of practice and regulations in force at the time of installation.
9.2.3. All necessary inlet controls and safety valves have been fitted correctly.
9.2.4. The unit has only been used for the storage of potable water supplied from the public mains.
9.2.5 Where appropriate the unit has been regularly maintained as detailed in the installation and service
instructions
9.2.6. Defects caused by corrosion or scale deposits are not covered by any Guarantee.
9.2.7. Where we agree to rectify any defect we reserve the right to undertake the work on our own premises.
9.3. Guarantees are provided in respect of specified goods supplied by Gledhills as follows:(a) Domestic and Commercial Open Vented Cylinders and Tanks.
The copper storage vessel is guaranteed for ten years and if it proves to be defective either in materials or
workmanship, we will either repair or supply replacement at our option with the closest substitute in the case
of any obsolete product to any address in Great Britain.
(i) free of all charge during the first year after delivery by us.
(ii) thereafter at a charge of one-tenth of the then current list price and any copper price supplement and
delivery charge during the second year after delivery by us and increasing by a further one-tenth on the
second and subsequent anniversary of delivery by us.
(b) Domestic Mains Fed Products [Primary Stores]
The copper storage vessel is guaranteed for five years and if it or any integral pipework as part of the storage
vessel assembly proves to be defective either in materials or workmanship, we reserve the right to either
repair or supply replacements or the closest possible substitute in the case of any obsolete product and will
collect and deliver to any address in England, Wales and Scotland (excluding all Scottish Islands).
(i) free of all charge during the first year after delivery by us.
(ii) thereafter at a charge of one-fifth of the then current list price or any copper price supplement and
delivery charge during the second year after delivery by us increasing by a further one-fifth on the second
and subsequent anniversary of delivery by us.
(c) Integrated Boiler and Storage Vessel Products and Stand Alone Boilers
In the case of the GulfStream range of products and the Gledhill boiler range of products, Gledhill guarantees
the heat exchanger (boiler) for material and construction faults for two years. THE RESPONSIBILITY FOR THE
EXECUTION OF THIS GUARANTEE LIES WITH THE INSTALLER.
The guarantee becomes null and void if the appliance is used incorrectly, or in the event of proven negligence
or incorrectly implemented repairs OR FAILURE TO CARRY OUT THE RECOMMENDED INSPECTION/
MAINTENANCE. The guarantee also becomes null and void if changes are made to the appliance without our
knowledge, or if the serial number on the appliance is removed or made illegible.
Page 30
The annual service must be carried out by a competent
installer in accordance with the advice given by
Gledhill and using Gledhill approved parts.
(d) Stainless Steel Unvented Cylinders
Gledhill guarantee the components including controls,
valves and electrical parts for two years from the date
of purchase. IT SHOULD BE NOTED THAT THE FACTORY
FITTED TEMPERATURE AND PRESSURE RELIEF VALVE
MUST NOT BE REMOVED OR ALTERED IN ANY WAY
OR THE GUARANTEE WILL NOT BE VALID. GLEDHILL
WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL
LOSS OR DAMAGE HOWEVER IT IS CAUSED.
The guarantee for the stainless steel vessel is for
twenty five years if the original unit is returned to us
AND PROVIDED THAT:
(i) It has been installed as per the Design, Installation
& Servicing Instructions, relevant standards,
regulations and codes of practice.
(ii) It has not been modified, other than by Gledhill.
(iii) It has not been subjected to wrong or improper
use or left uncared for.
(iv) It has only been used for the storage of potable
water.
(v) It has not been subjected to frost damage.
(vi) The benchmark log book is completed after each
annual service.
(vii) The unit has been serviced annually.
It should be noted that the guarantee does not cover:
- the effects of scale build up
- any labour charges associated with replacing the
unit or parts.
If the stainless steel vessel proves to be defective
either in materials or workmanship we reserve the
right to either repair or supply replacements or the
closest possible substitute in the case of any obsolete
product and will collect and deliver to any address in
England, Scotland and Wales (excluding all islands):
(i) free of charge during the first year after delivery by us.
(ii) thereafter at a charge of one twenty fifth of the
then current list price during the second year
after delivery by us and increasing by a further
one twenty fifth on the second and subsequent
anniversary of delivery by us.
ACTION IN THE EVENT OF FAILURE
If the stainless steel cylinder develops a leak we will
ask for a deposit against the supply of a new one. This
will be refunded if the failure is within the terms of the
warranty when it has been examined by us.
(e) Solar Panels and ancillary equipment
Gledhill provides a five year warranty for defects in
the collectors (except broken glass and collector
accessories eg metal edgings). If the collector
demonstrably fails to meet one of the requirements of
the standard DIN 4757 part 3 we will replace it free of
charge based on the date of invoice. We can not be
responsible for damage caused by mechanical stress
and/or changes caused by weather related influences.
The warranty excludes minor surface damage that
does not affect performance or malfunction due to
improper assembly or installation.
Please note:
- Installation must have been carried out by a
licensed specialized company (heating contractor
or plumber) following the version of installation
instructions in force.
- Gledhill or its representative was given the
opportunity to check complaints on site
immediately after any defect occurred.
- Confirmation exists that the system was
commissioned properly and that the system
was checked and maintenance was performed
annually by a specialised company licensed for
this purpose.
(f) Components of our products other than
Storage Vessels and Integral Pipework.
We will either extend to the purchaser the same terms
of warranty as we are given by the manufacturer of
the component or if the manufacturer does not give
any warranty, replace free of charge any component
which becomes defective within two years after the
date of the delivery by us and is returned to us at the
purchaser’s expense but we shall not meet the cost of
removal or shipping or return of the component or
any other cost charges or damages incurred by the
purchaser.
If the appliance manufactured by Gledhill incorporates
a factory fitted scale inhibitor then during the period
9.4.
9.4.1. In respect of goods supplied by us and in respect of any installation work carried out by or on our behalf, our
entire liability and the purchaser’s sole remedies (subject to the Guarantees) shall be as follows:(a) We accept liability for death or personal injury to the extent that it results from our negligence or that of
our employees
(b) Subject to the other provisions of this clause 9 we accept liability for direct physical damage to tangible
property to the extent that such damage is caused by our negligence or that of our employees, agents or
subcontractors.
(c) Our total liability to the purchaser over and above any liability to replace under the Guarantees (whether
in contract or in tort including negligence) in respect of any one cause of loss or damage claimed to result
from any breach of our obligations hereunder, shall be limited to actual money damages which shall not
exceed £20,000 provided that such monetary limit shall not apply to any liability on the part of ourselves
referred to in paragraph (a) above
(d) Except as provided in paragraph (a) above but otherwise not withstanding any provision herein contained
in no event shall we be liable for the following loss or damage howsoever caused and even if foreseeable
by us or in our contemplation:(i) economic loss which shall include loss of profits, business revenue, goodwill or anticipated savings
(ii) damages in respect of special indirect or consequential loss or damage (other than death, personal
injury and damage to tangible property)
(iii) any claim made against the purchaser by any other party (save as expressly provided in paragraph (b)
above)
(e) Except in respect of our liability referred to in paragraph (a) above no claim may be made or action
brought (whether in contract or in tort including negligence) by the purchaser in respect of any goods
supplied by us more than one year after the date of the invoice for the relevant goods.
(f) Without prejudice to any other term we shall not be liable for any water damage caused directly or
indirectly as a result of any leak or other defect in the goods. We cannot control the conditions of use of
the goods or the time or manner or location in which they will be installed and the purchaser agrees to
be fully responsible for testing and checking all works which include the goods at all relevant times (up
to, including and after commissioning) and for taking all necessary steps to identify any leaks and prevent
any damage being caused thereby.
(g) Nothing in these Conditions shall confer on the purchaser any rights or remedies to which the purchaser
would not otherwise be legally entitled
10. LOSS OR INJURY
Notwithstanding any other provision contained herein the purchaser’s hereby agree to fully indemnify us against
any damages losses costs claims or expenses incurred by us in respect of any claim brought against us by any third
party for:(a) any loss injury or damage wholly or partly caused by any goods supplied by us or their use.
(b) any loss injury or damage wholly or partly caused by the defective installation or substandard workmanship
or materials used in the installation of any goods supplied by us.
(c) any loss injury or damage in any way connected with the performance of this contract.
(d) any loss resulting from any failure by the purchaser to comply with its obligations under these terms as to
install and/or check works correctly.
PROVIDED that this paragraph will not require the purchaser to indemnify us against any liability for our own acts
of negligence or those of our employees agents or sub-contractors
FURTHER in the case of goods supplied by us which are re-sold and installed by a third party by the purchaser it will
be the sole responsibility of the purchaser to test the goods immediately after their installation to ensure that inter
alia they are correctly installed and in proper working order free from leaks and are not likely to cause any loss injury
or damage to any person or property.
11. VARIATION OF WARRANTY AND EXCLUSION
Should our warranty and exclusion be unacceptable we are prepared to negotiate for variation in their terms but
only on the basis of an increase in the price to allow for any additional liability or risk which may result from the
variation.
Purchasers are advised to insure against any risk or liability which they may incur and which is not covered by our
warranty.
12. RISK AND RETENTION OF TITLE
(a) goods supplied by us shall be at the Purchaser’s risk immediately upon delivery to the Purchaser or into
custody on the Purchaser’s behalf or to the Purchaser’s Order. The Purchaser shall effect adequate insurance
of the goods against all risks to the full invoice value of the goods, such insurance to be effective from the time
of delivery until property in the goods shall pass to the Purchaser as hereinafter provided.
(b) property in the goods supplied hereunder will pass to the Purchaser when full payment has been made by the
Purchaser to us for :(i) the goods of the subject of this contract.
(ii) all other goods the subject to of any other contract between the Purchaser and us which, at the time of
payment of the full price of the goods sold under this contract, have been delivered to the Purchaser but
not paid for in full.
(c) until property in the goods supplied hereunder passes to the Purchaser in accordance with paragraph (2)
above.
(i) the Purchaser shall hold the goods in a fiduciary capacity for us and shall store the same separately from
any other goods in the Purchaser’s possession and in a manner which enables them to be identified as our
goods.
(ii) the Purchaser shall immediately return the goods to us should our authorised representative so request.
All the necessary incidents associated with a fiduciary relationship shall apply.
(d) the Purchaser’s right to possess the goods shall cease forthwith upon the happening of any of the following
events, namely :(i) if the Purchaser fails to make payment in full for the goods within the time stipulated in clause 4 hereof.
(ii) if the Purchaser, not being a company, commits any act of bankruptcy, makes a proposal to his or her
creditors for a compromise or does anything which would entitle a petition for a Bankruptcy Order to be
presented.
(iii) if the Purchaser, being a company, does anything or fails to do anything which would entitle an
administrator or an administrative receiver or a receiver to take possession of any assets or which would
entitle any person to present a petition for winding up or to apply for an administration order.
(e) the Purchaser hereby grants to us an irrevocable licence to enter at any time any vehicle or premises owned
or occupied by the Purchaser or in the possession of the Purchaser for the purposes of repossessing and
Page 31
recovering any such goods the property in which
has remained in us under paragraph (2) above. We
shall not be responsible for and the Purchaser will
indemnify us against liability in respect of damage
caused to any vehicle or premises in such repossession
and removal being damaged which it was not
reasonably practicable to avoid.
(f)
notwithstanding paragraph (3) hereof and subject to
paragraph (7) hereof, the Purchaser shall be permitted
to sell the goods to third parties in the normal course
of business. In this respect the Purchaser shall act
in the capacity of our commission agent and the
proceeds of such sale :(i) shall be held in trust for us in a manner which
enables such proceeds to be identified as such,
and :
(ii) shall not be mixed with other monies nor paid into
an overdrawn bank account.
We, as principal, shall remunerate the Purchaser as
commission agent a commission depending upon
the surplus which the Purchaser can obtain over and
above the sum, stipulated in this contract of supply
which will satisfy us.
(g) in the event that the Purchaser shall sell any of the
goods pursuant to clause (6) hereof, the Purchaser
shall forthwith inform us in writing of such sale and
of the identity and address of the third party to whom
the goods have been sold.
(h) if, before property in the goods passes to the
Purchaser under paragraph (2) above the goods are or
become affixed to any land or building owned by the
Purchaser it is hereby agreed and declared that such
affixation shall not have the effect of passing property
in the goods to the Purchaser. Furthermore if, before
property in the goods shall pass to the Purchaser
under paragraph (2) hereof, the goods are or become
affixed to any land or building (whether or not owned
by the Purchaser), the Purchaser shall:(i) ensure that the goods are capable of being removed
without material injury to such land or building.
(ii) take all necessary steps to prevent title to the
goods from passing to the landlord of such land
or building.
(iii) forthwith inform us in writing of such affixation
and of the address of the land or building
concerned.
The Purchaser warrants to repair and make good
any damage caused by the affixation of the goods
to or their removal from any land or building and
to indemnify us against all loss damage or liability
we may incur or sustain as a result of affixation or
removal.
(i) in the event that, before property in the goods
has passed to the Purchaser under paragraph (2)
hereof, the goods or any of them are lost, stolen,
damaged or destroyed :(ii) the Purchaser shall forthwith inform us in writing
of the fact and circumstances of such loss, theft,
damage or destruction.
(iii) the Purchaser shall assign to us the benefit of any
insurance claim in respect of the goods so lost,
stolen, damaged or destroyed.
13. NON-PAYMENT
If the Purchaser shall fail to make full payment for the goods
supplied hereunder within the time stipulated in clause 4
hereof or be in default of payment for any other reason then,
without prejudice to any of our other rights hereunder, we
shall be entitled to stop all deliveries of goods and materials
to the Purchaser, including deliveries or further deliveries of
goods under this contract. In addition we shall be entitled
to terminate all outstanding orders.
14. VALUE ADDED TAX
All prices quoted are exclusive of Value Added Tax which
will be charged at the rate ruling at the date of despatch of
invoice.
15. TRADE SALES ONLY
We are only prepared to deal with those who are not
consumers within the terms of the Unfair Contract Terms
Act 1977, the Sale of Goods Act 1979 and the Supply of
Goods and Services Act 1982. Accordingly any person who
purchases from us shall be deemed to have represented that
he is not a consumer by so purchasing.
16. JURISDICTION
The agreement is subject to English law for products
delivered in England and Scottish law for products delivered
in Scotland and any dispute hereunder shall be settled in
accordance therewith dependent upon the location.
TERMS AND CONDITIONS
of three years from the date of delivery Gledhill will replace, free of charge, any plate heat exchanger fitted in
the appliance as original equipment in which scale formation occurs that materially reduces the effectiveness
of the plate heat exchanger. This guarantee does not extend to any other component installed within the
Gledhill appliance or elsewhere in the Purchasers domestic water system.
The code of practice for the installation,
commissioning & servicing of central heating systems
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
