Escene ES310 User manual

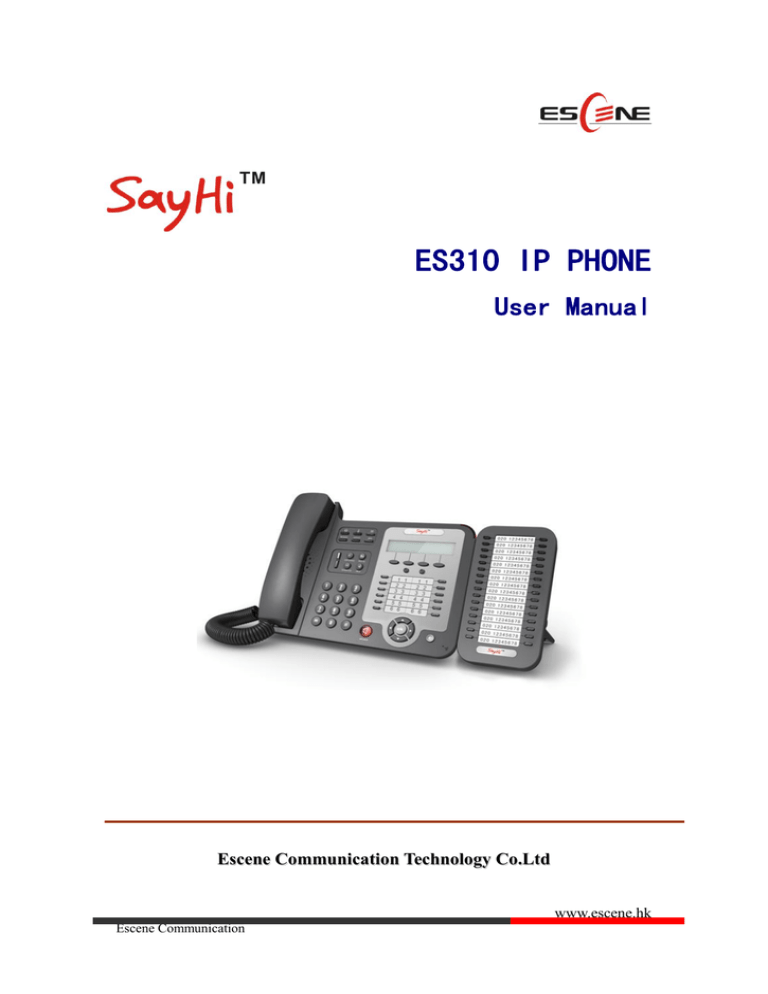

ES310 IP PHONE
User Manual
Escene Communication Technology Co.Ltd
www.escene.hk
Escene Communication
Tables of Contents
1. Getting Started ............................................................................................................................. 1
About......................................................................................................................................... 1
Feature Highlights:.................................................................................................................... 1
Technical Features..................................................................................................................... 1
2. Connecting Your Phone ............................................................................................................... 3
3. Phone overview ........................................................................................................................... 5
Understanding Buttons and Hardware ...................................................................................... 5
Understanding Phone Screen Features ...................................................................................... 8
4. Basic Call Handling................................................................................................................... 10
Placing a Call .......................................................................................................................... 10
Answering a Call..................................................................................................................... 11
Ending a Call........................................................................................................................... 12
Using Hold and Resume (Switch Calling Line) ...................................................................... 12
Transferring Calls.................................................................................................................... 13
Using Mute.............................................................................................................................. 13
Do Not Disturb ........................................................................................................................ 14
3-way Conference ................................................................................................................... 14
5. Advanced Call Handling ........................................................................................................... 16
Speed Dialing .......................................................................................................................... 16
Using the phone book ............................................................................................................. 16
Using Call Logs ...................................................................................................................... 19
6. Keypad Instruction .................................................................................................................... 20
Language ................................................................................................................................. 20
SIP Account Settings ............................................................................................................... 20
Network Setting ...................................................................................................................... 21
Customizing Rings and Volume .............................................................................................. 22
7. Web Settings .............................................................................................................................. 23
Account and Sip server ........................................................................................................... 23
Hotline..................................................................................................................................... 24
Extension set ........................................................................................................................... 24
Codec Selection....................................................................................................................... 25
Contact .................................................................................................................................... 26
www.escene.hk
Escene Communication
ES310 IPPhone
1. Getting Started
About
SayHi ES310 is next-generation 2-line SIP phone, 4 dynamic context-sensitive soft keys, 12
programmable hard keys, and dual 10/100Mbps auto-sensing Ethernet ports with integrated PoE.
The ES310 offers excellent voice PSTN, FXS, Record Port, security protection for privacy.
The 12 programmable speed-dial keys enable one-button access to office personnel and it
create one-button access to indispensable telephony features including conference, voicemail,
transfer, etc.
Feature Highlights:








160*32 Pixel LCD with Support Chinese display
HD Voice: HD Codec
2 VoIP accounts
Enterprise Phone Book
12 programmable hard keys and support BLF
Expansion Module: Up to 6 EMS32 programmable key modules
Support Plug and Play
Support PoE and AC power adapter
Technical Features
Item
Screen
ES310
Grayscale LCD with background light
160*32 pixel
Line
2
Function Keys
4 Soft keys,2 Line keys(dual-color LED)
6 Navigation keys(arrow button, OK button, C button)
Volume adjust, Hands-free, Mute, Headset, Message,
Menu, Directory, Service, Hold, Redial, Conference, Transfer
VoIP Protocol
SIP 2.0
HTTP、DHCP、TFTP、IEEE 802.1Q、IEEE 802.1X
Codec
G.723.1, G.729 A/B, G.711 A/U, G.722
QoS
TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)
Network
2*RJ45 10/100M Ethernet interfaces(LAN/PC)
IP Assignment: Static IP or DHCP
DNS Client
www.escene.hk
Escene Communication
ES310 IPPhone
Call Processing
Call Sharing/Bridged Lines
Line Status Indicator(dual color LED) Multi Account
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup,
Callback One Key Dial, Redial
Phone directory speed dial, Call record direct dial
3-way conference
DnD
Voice mail, Voice Prompt, Voice Message
BLF
Extension
Interface
EXT: ESM32 programmable key module
SOR: FXS, FXO, Record
USB
Security
User Authentication for configuration pages
Signaling encryption
Media encryption
Application
Public phone directory
Private phone directory
PnP (Plug & Play)
Power Supply
Power adapter: AC 100-240V input and DC 12V/1A output
PoE (IEEE 802.af)
Specification
Storage Temperature: 0℃-60℃
Operating Humidity: 10%-90%
Size 254mm*205mm*87mm
www.escene.hk
Escene Communication
ES310 IPPhone
2. Connecting Your Phone
Your system administrator will likely connect your new SayHi ES310 IP Phone to the corporate IP
telephony network. If that is not the case, refer to the graphic and table below to connect your
phone.
1) Open the box ES310 IP Phone; carefully check the packing list, Packing List as follows:
Item
Counts
IP Phone
1
Handset
1
Handset Cord
1
Power adapter
1
RJ45 cable
1
CD
1
Quick Reference
1
Product certification
1
2) As shown in figure 2.1 and figure 2.2, Please plug Handset Cord into RJ11 interface(IP
Phone and Handset), RJ45 cable into the LAN interface;IP Phone will automatically start if IP
Phone with POE function.
3) The phone must work together with power adapter without POE support.
4) Connect your computer to PC interface of the phone with cable.
* More detailed description please refers to the 3.Phone overview-Understanding phone
buttons and hardware.
Figure 2.1 Interfaces of SayHi ES310
Figure 2.2 Footstand of ES310
www.escene.hk
Escene Communication
ES310 IPPhone
5) If you want to connect a ESM (Extension set), you could connect it (any interface) to the EXT
interface on the phone with a RJ-45 cable (a straight-through cable), and the second ESM can be
connected to the first one too. It supports 6 ESMs.
www.escene.hk
Escene Communication
ES310 IPPhone
3. Phone overview
Understanding Buttons and Hardware
From figure 3.1 to figure 3.2, you can understand buttons and hardware about SayHi ES310。
Figure 3.1 Buttons and Hardware of SayHi ES310
4 ○
5 ○
6
○
1 ○
2 ○
3
○
21
○
22
○
9
○
8
○
7
○
20
○
10
○
11
○
14
○
15
○
16
○
17
○
12
○
Num
Buttons
1
13
○
19 ○
18
○
23
○
Description
Headset button: Toggles the headset on or off.
Red means the feature is enabled.
2
Mute button: Toggles the Mute feature on or off.
Red means the feature is enabled.
3
Messages button: Typically auto-dials your voice message service.
Red means have unread voice mail.
4
SERVICE
Server button: Open or Close the Services menu.
5
DIRECTORIES
Directory button: Use it to access call logs and corporate
www.escene.hk
Escene Communication
ES310 IPPhone
directories.
6
MENU
7
Menu button: Allows you to scroll through menus.
Volume button: Controls the volume and other settings.
8
CONFERENCE
Conference button: Connect calling / called party to the conference
9
REDIAL
Redial button: To Redial the last number.
10
TRANSFER
Transfer button: Transfer redirects a connected.
11
HOLD
Hold button: Put a call on hold
12
0-9, *, #
Basic Call Handling: press “#” send out a call(default)
13
Speaker button
Speaker button: Toggles the speakerphone on or off.
14
Softkey
1)
Red, flashing: There is an incoming call.
2)
Red, steady: Pick up and enter normal call.
Each displays a softkey function, To activate a softkey, press the
softkey button.
15
Line buttons
Select the phone line(Call or Answer) ;
Different colors for different status:
16
1)
Red, flashing: There is an incoming call.
2)
Red, steady: Pick up and enter normal call.
3)
Blue, flashing: Holding call.
4)
Blue, steady: Active call.
Programmable
Hotline number can be used to bind in order to achieve speed dial;
Buttons
Turn on BLF:
1)
Red, steady: Remote line is busying.
2)
Blue, steady: Remote line is idle.
The order of the hot keys:
On the left top to bottom: 1, 2, 3, 4, 5, 6;
On the right top to bottom: 7, 8, 9, 10, 11, 12;
17
C
Back button: Return to the standby interface;
www.escene.hk
Escene Communication
ES310 IPPhone
18
Navigation
“Up”: Adjust ring volume, operate with the “down” button
button
“Down”: Open „Missed Calls” list:
“Left”: Open “Received Calls” list;
“Right”: Open “Dialed Numbers” list
19
OK
OK button: To confirm the action;
20
Hands-free
Hands-free voice of the output
speakerphone
21
LCD screen
22
Light strip
160*32 pixels, grayscale LCD with background light.
Red flashing: There are incoming call;
Red, steady: Missed Calls, or phone busy;
23
Hands-free
Sounds input when hands-free
microphone
Figure 3.2 Interfaces of SayHi ES310
1
○
11
○
10
○
2
○
2
○
3
○
9
○
8 ○
6
○
7
○
Num
1
Hardware
Footstand
4
○
5
○
functions
Hold up phone
www.escene.hk
Escene Communication
ES310 IPPhone
2
Footstand button
Press buttons at the same time to adjust the angle
3
Reserved for USB port
Enhanced scalability
4
Microphone port
Connect the Microphone
5
Headphone port
Connect the Headphone
6
Power port
12VDC
7
Headset port
Support RJ11 interface connection
8
Handset port
Connect the Handset
9
Reserved port
Enhanced scalability:
1) EXT: ESM interface;
2) SOR: S-FXS O-FXO R-record
10
LAN port
Connect to a LAN interconnecting device
11
PC port
Connect to a local PC
Understanding Phone Screen Features
This is what your main phone screen might look like:
Figure 3.3 LCD of SayHi ES310
1
○
2
○
3
○
4
○
5
○
Num
Screen
Functions
1
Time and Date
Show current time and date.
2
Auto-answer
Enabled Auto-answer, displays “AA”
3
Missed calls
Show the number of missed calls.
4
Line status
Show the phone line status:
1)
: Disconnect into network.
www.escene.hk
Escene Communication
ES310 IPPhone
2)
3)
: Only Peer-to-Peer call.
: Network connected normal, but the line is not
successfully registered.
5
Softkey labels
4)
: Network is OK and the line is available.
5)
: Line is turned on DND.
Each displays a softkey function (displayed on your phone screen),
and the function is different when menu changes.
www.escene.hk
Escene Communication
ES310 IPPhone
4. Basic Call Handling
You can perform basic call-handling tasks using a range of features and services. Feature
availability can vary; see your system administrator for more information.
Note: The bold type of the following text and following a “button” in table signifies the phone's
button (for example, OK button), and the
signifies softkey.
Placing a Call
Here are some easy ways to place a call on SayHi ES310 IP Phone:
If you want to...
Place a call using the
Then...
Pick up the handset
--2) The first line light is
handset
Place a call using a
speakerphone
--1) You can hear the dial tone;
Press Speaker,
--3) Enter a number;
--4) Press „#’ button(default) ,
or Programmable buttons
-or press
;
-or wait 5s (default), then it send
the number automatically.
or
Place a call using a
Put on your headset and active
headset
Headset button, and then do as
;
using speakerphone
Redial
--Press REDIAL button to dial the last number
-or press Navigation button-Right > “Dialed number”, select a
number, and press
Dial from a call log
or OK button.
--1) Press MENU or OK button > “Call history”, you can select
“Missed calls”, “Received calls” and “Dialed numbers”,
- or press Navigation button (in Standby interface) > select “Missed
calls” (down), “Received calls” (left) and “Dialed numbers”
(right) );
--2) Then press OK button or
Place a call while
Another call is active
--1) Press Hold button or
.
;
--2) Enter a number;
--3) Press „#’ button (default) ;
www.escene.hk
Escene Communication
ES310 IPPhone
-or press
to send the number.
Tips
• You can dial on-hook, without a dial tone (pre-dial). To pre-dial, enter a number, and then go
off-hook by lifting the handset or pressing
, Headset or Speaker button.
• If you make a mistake while dialing, press C button to erase digits.
Answering a Call
You can answer a call by simply lifting the handset, or you can use other options if they are
available on SayHi ES310.
If you want to...
Answer
with
a
Then...
--1) Your phone ring;
--2) Line button of the ringing
handset
line is Red
and flashing,
Light strip is Red
and flashing;
Answer with the
speakerphone
--Pick up the handset
--Press Speaker button
-or press the flashing
(Non-headset
Line button,
-or press
mode)
Answer with the a
--Put on headset, press Headset button
headset
so that the status light is Red
,
and then do as using speakerphone
Switch
from
a
--1) Another Line button is Red
connected Call to
answer a ringing
and flashing;
--2) Press the flashing
call
Auto-answer
and flashing, Light strip is Red
Line button to answer (at this time, the original
call will be hold.)
--1) Press MENU or OK button > “Function setting” > “Auto answer”;
--2) Select “Enable”;
--3) Your phone answers incoming calls automatically after a few rings.
www.escene.hk
Escene Communication
ES310 IPPhone
Ending a Call
To end a call, hang up. Here are some more details.
If you want to...
Hang up while using the
Handset
Hang up while using the
Speakerphone
Then...
--Return the handset to its cradle,
-or press
--Press Speaker button that is Red
,
-or press Line button for the appropriate line,
-or press
Hang up while using the
Headset
Hang up one call, but
preserve another call on
--Press Handset button, (Do not keep the headset mode) ,
-or press
--Press
(keep the headset mode)
,
-or refer to the above three methods
the other line
Using Hold and Resume (Switch Calling Line)
You can hold and resume calls. You can take a call in one line at anytime, and the other lines
would be hold. As a result of that, you can switch different calling line on our phone.
If you want to...
Put a call on hold
Then...
--Press HOLD button,
-or press
Hold a line and switch to
Press another Line button for the appropriate line
another line
Resume a call on current
line
Release a call on different
--Press HOLD button,
-or press
Select the line want to release hold, press the line, so recovery;
line
www.escene.hk
Escene Communication
ES310 IPPhone
Tips
• Engaging the Hold feature typically generates music or a beeping tone.
• A held call is indicated by the Blue
and flashing Line button.
Transferring Calls
Transfer redirects a connected call. The target is the number to which you want to transfer the call.
If you want to...
Talk to the transfer
recipient
before
transferring a call
Then...
--1) Press TRANSFER button or press
;
--2) Enter number;
--3) press “#”(default) ,
-or press
(consult transfer)
then transfer the call,
-or wait five seconds(default)then transfer the call
Transferred
to
idle
--1) Press TRANSFER button or
;
lines or other numbers
--2) Press
;
without talking to the
transfer recipient
--3) Enter number;
--4) Press “#”(default)
(Blind transfer)
-or press
, then transfer the call;
-or wait five seconds(default)then transfer the call
Blind transfer to the
held line
--1) Press TRANSFER button or press
;
--2) Press the Line button of held line
Using Mute
With Mute enabled, you can hear other parties on a call but they cannot hear you. You can use
mute in conjunction with the handset, speakerphone, or a headset。
If you want to...
Then...
Toggle Mute on
Press Mute button, then the button is Red
Toggle Mute off
Press Mute button, then the button light off
www.escene.hk
Escene Communication
ES310 IPPhone
Do Not Disturb
You can use the Do Not Disturb(DND) feature to block incoming calls on your phone with a busy
tone(Can also be set to their voice mail or other extension numbers, etc.).
If you want to...
Then...
Enable global DND
--1) Press
;
--2) All enabled line on the phone would changes to
status.
Enable DND on a
Press MENU or OK button > “Function setting” > “DND” > (select
single line
line) “Enable”
Disable DND
--Global DND enabled, press
to disable global DND;
--Line DND enabled, press twice
,
-or press MENU or OK button > “Function setting” >
“DND” >(select line) “Disable”
3-way Conference
You can establish a three-party conference, during the conversation three phone parties can
communicate with each other.
If you want to...
Invite
the
recipient
conference
Then...
transfer
into
a
in
a
transferring
--1)
When
the
transfer
recipient
CONFERCENCE button or
answer
the
call,
press
on your phone;
--2) Then the held one, transfer recipient and you will be into a
conference, and the LCD will display
status.
Invite the third party
--1) Press CONFERENCE button or
into a conference in a
--2) Enter the third party number;
active call
--3) After connected the third party, press CONFERENCE button or
in an active call;
again
www.escene.hk
Escene Communication
ES310 IPPhone
establish a conference
--1) when one phone line is holding on and the other line is busy;
with held line
--2) Press CONFERENCE button,
-or Press
Soft key
--3) press the held line's programmable button, the 3-way Conference
will establish.
www.escene.hk
Escene Communication
ES310 IPPhone
5. Advanced Call Handling
Speed Dialing
Speed dialing allows you to enter an index number, press a button, or select a phone screen item to
place a call.
If you want to...
Then…
Set up Speed Dials
--1) Press MENU or OK button > “Function setting” > “Hot line keys”;
on your phone
--2) You can configure twelve speed dial numbers on the SayHi ES310
IP Phone;
--3) Press OK button or
to set and modify:
-Mode:
-Speed dial: Speed dial mode
-Asterisk BLF: In the Speed dial based on the increase in BLF
(Busy line detection) function
-Account: Speed Dial hot keys using the account
-Name: Description of this hot-key,
-Number: Need to speed dial numbers
--4) Press
to save the changes
Using the phone book
You can store a large number of contacts in your phone's directory. You can add, edit, delete, dial,
or search for a contact in this directory.
If you want to…
Add Contacts
Then…
--1) Press
,
-or press MENU button > “Phone book”,
-or press Directories button > “Phone book”;
--2) Press
;
www.escene.hk
Escene Communication
ES310 IPPhone
--3) Select “Add contact”, press OK button or
;
--4) Use the navigation keys to select content, press OK button or
to set and modify:
-Name: set the name of contact,
-NO.1-5: you can set up 5 contacts‟ numbers,
-Group: the contacts be divided into different user‟s groups
--5) Press
Add group
--1) Press
soft key to complete
soft key,
-or press MENU button > “Phone book”,
-or press Directories button > “Phone book”;
--2) Press
soft key;
--3) Select the “add group” then press OK button or
;
--4) Use the navigation keys to select content, press OK button or
to set and modify:
-Group name: name of the group
-Description: description of the group
--5) Press
Modify group
--1) Press
soft key to complete
soft key,
-or press MENU button > “Phone book”,
-or press Directories button > “Phone book”;
--2) Press
soft key;
--3) Select the “Modify group” then press OK button or press
;
--4) Select the group you want to modify, press the OK button or
to set and modify, press
Delete group
--1) Press
to save the change
soft key,
-or press MENU button > “Phone book”,
www.escene.hk
Escene Communication
ES310 IPPhone
-or press Directories button > “Phone book”;
--2) Press
soft key;
--3) Select the “Delete group” or OK button or
;
--4) Select a group you want to delete, press OK button or
View/Edit Contacts
--1) Press
soft key,
-or press MENU button > “Phone book”,
-or press Directories button > “Phone book”;
--2) Select “View ALL”,
-or select a contact who are belong to different group;
--3) Select the contact, press the OK button or
contact‟s information, press OK button or
Call
from
phone
book
--1) Press
(to edit the
)
soft key,
-or press MENU button > “Phone book”,
-or press Directories button > “Phone book”;
--2) Select “View ALL”,
-or select a contact who are belong to different group;
--3) Select a contact, then press
,
(If there are multiple numbers of one contact, press
to
enter the interface of “call options”, select the one you want to call and
press
)
Modify the relative
--1) Open your web browser, enter the “web” interface. (For details, you
account of a contact
can refer to 7.Web Settings.)
--2) Open “Contact” > “Phone book”, select the contact who are needed
to be modified, click
--3) Select the account in the drop-down column of the account, click
“Submit” to complete it.
www.escene.hk
Escene Communication
ES310 IPPhone
Using Call Logs
Your phone maintains records of your missed, placed, and received calls.
If you want to…
Then…
View your call logs
--1) Press MENU button > “Call history” > “Missed Calls”, “Received
Calls”, or “Dialed numbers”
--2) Use the navigation keys to view the call record information.
Dial from a call log
Please refer to the previous part 4.Basic call handing – Placing a call.
Erase your call logs
--1) If you want to delete a call record, you have to select this record
from the logs and press
;
--2) If you want to delete an entire call record list, you have to select
this record list from the logs and press
Tips
• Each call log store up to 20 entries on SayHi ES310 IP phone.
www.escene.hk
Escene Communication
ES310 IPPhone
6. Keypad Instruction
SayHi series IP phones are can be configured in two ways. The first you can use the phone keypad
where you can settings for you IP phones, the other you can log in to User Options web pages
where you can settings for you IP phones.
Use phone keypad to setting. Press MENU or OK button to the main menu, Use the navigation
keys to select menu, press OK button to confirm menu selections, press C button or
delete input information.
to
Language
SayHi ES310 IP Phone supports Simplified Chinese and English.
If you want to…
To change the
language via
Phone interface
Then...
--1) Choose “System setting” > “Phone setting” > “Language”;
--2) Scroll through the list of available languages.
--3) Press OK button or
when the desired language is
highlighted. The language appears on the graphic display will be changed
to the one you chose.
SIP Account Settings
SayHi ES310 series IP phone make calls based on sip accounts, SayHi ES310 series IP phones can
support 2 independent SIP account, each account can be configured to different SIP server.
If you want to…
Create an SIP account
Then...
--1) Choose “System setting” > “Advanced setting”;
--2) Enter the password required(The default is empty) ;
--3) Choose “SIP” > “Account sip”;
--4) Choose one of the account you want to setting, you can configure
the following parameters
-Enable account*: choose Enable
-Display Name: The name displayed on the screen
-User Name*: the account matched with the SIP server.(extension
www.escene.hk
Escene Communication
ES310 IPPhone
number) ,
-Authen usr: the Authenticated users matched with the SIP server.
(The default With the same account)
-user pwd*: the user password matched with the SIP server
-Description: description of this account,
-SIP1*: the primary SIP server, By default all calls through the
server,
-SIP2: the secondary SIP , When the primary server is
unavailable ,use the SIP server
-Refresh time: Registration refresh interval, the minimum value is
20 The default value is 3600.
--5) Set up the above parameters, Press
softkey to saves
settings, Complete the account creation;
* Note: the parameters with the * mark must be set.
--1) Choose “System setting” > “Advanced setting”;
Disable sip account
--2) Enter the password required(The default is empty) ;
--3) Choose “SIP” > “Account sip”;
--4) Choose “Enable account” > “Disable”;
--5) Press
soft key
Network Setting
If you want to …
network setting
Then…
--1) Choose “System setting” > “Advanced setting”;
--2) Enter the password required(The default is empty) ;
--3) Choose “Network”, you can configure the following parameters:
-Type: static IP or DHCP
-IP: enter IP address , Note: Do not duplicate the IP address with
other devices on the network
-Mask: enter appropriate subnet mask
www.escene.hk
Escene Communication
ES310 IPPhone
-GW: enter appropriate gateway
- DNS1: enter IP address of the primary DNS server
- DNS2: enter IP address of the secondary DNS server
-Web port: the default Web port is 80,if you change it(for example
change it to 88),you must use IP and Web port to login the web page (for
example http://192.168.0.200:88).It will take effect on next reboot.
-Telnet port: the default Telnet port is 23,if you change it(for
example change it to 2003),you must use IP and Telnet port to login the
manage page (for example telnet 192.168.0.200:2003).It will take effect
on next reboot.
Customizing Rings and Volume
If you want to…
Then…
Change the ring
--1) Choose “System setting” > “Phone setting” > “Ring type”;
tone
--2) Press navigation to choose ring tone;
--3) Press
Press
Press OK or
Press
softkey Choose a ring tone to play a sample of it.
softkey to Stop Playing
softkey to set the ring tone,
softkey to cancel
Adjust the volume
--1) Choose “System setting” > “Phone setting” > “Volume setting”;
level
--2) You can adjust the volume level of following types
-Ring volume: Phone call ring volume,
-Handset volume: Handle output volume,
-Handset mic volume: Handle input volume,
-Speaker volume: Hands-free speaker output volume,
-Speaker mic volume: Hands-free input volume,
-Headset volume: Headphone output volume,
-Headset mic volume: Headset microphone input volume
www.escene.hk
Escene Communication
ES310 IPPhone
7. Web Settings
We can configure IP Phone more handy through web setting. Press OK button on the keypad of the
phone to enter the status page and find out the IP address of IP phone. Enter it (for example
http://192.168.0.200) into the address bar of web browser. The default login name and password
are both “root”.
Account and Sip server
The phone attempts to register to the SIP server using the account/registrar data provided by the
automatic or manual initialization.
Choose Account, you will find the following parameters:
Field
Description
Enable
You can choose on/off to enable/disable the line.
Display Name
It is showed as Caller ID when making a phone call
Username
It is authenticated ID for authentication
Authenticate Name
It is authenticated ID for authentication
Password
It is provided by administrator for registration
SIP Server
Server for registration, provided by administrator
Register Expire Time
IP phone automatically registered every time
www.escene.hk
Escene Communication
ES310 IPPhone
Hotline
You can use a Hotline to speed dialing and BLF. You can set a hotline as follow:
Click “Hotline”, set parameters in the following table:
Hotline
Key n
ES310 IP phone supports 12 keys.
Mode
Two modes:
--Speed Dial: Enable speed dialing in this key;
--Widelink BLF+ Speed Dial
Account
A SIP account relates to this key, another word, you will call this
hotline by this SIP account.
Name
Description of this hotline.
Number
Number relates to this key.
Extension set
Extension set is extended Hotline function; you can believe it support more hotline by using
extension set. You can refer to 2.Connecting Your Phone about connecting of Extension set.
After connecting Extension set to a phone, you can install it as follow:
1)Click “Extension set”, select a set that you install (the one you connect to IP phone directly is
Set1, the one connect to Set1 is Set2, and so on) and click “Set”.
2)After installing, you can set each Extension set same as Hotline.
www.escene.hk
Escene Communication
ES310 IPPhone
Codec Selection
The IP phone supports the following voice codecs: G.722, G.711A, G.711U, G.723, and G.729A.
You can enable/disable the desired codecs via Web interface. Please contact your system
administrator for more details about the codecs.
To enable/disable the codecs:
1) Choose Audio-> Audio Codecs
www.escene.hk
Escene Communication
ES310 IPPhone
2) Use the navigation keys to highlight the desired one in the Enabled/Disable Codecs list, and press
the
/
to move to the other list.
3) Choose Submit to save the change.
Of course, you can control the voice bulk in this choose.
Contact
You can add, edit and delete contact in a phone book on web page of ES310.
1) Click “Contact” > “Phone book”,
If you want to add a contact, you just ought to click
.
You can edit an existed contact by click .
You can delete an existed contact by click , if you want to delete all contacts, you just ought
to click
.
2) When you add a contact or edit an existed contact, you can set several parameter as follow:
www.escene.hk
Escene Communication
ES310 IPPhone
Phone book
Serial number
Serial number of a contact
Description
Description of a contact
Name
Name of a contact
Phone n
You can add 5 different phone number for every contact
Group
You can assign a contact to a specific group. If there isn‟t any group set
on the phone, the group is None by default.
Account ID
Select a SIP account relating this contact, that is you can dial to the
contact from this SIP account.
Besides, you can add, edit and delete group by click “Contact” > “Group”. The operation is
similar to phone book.
----------------------------------------------------------------------------------------------------------------------
Escene Communication Technology Co.Ltd
Address: Room 209, Yuehe Building, 54-56 Huacui Street, Tianhe Industrial
Zone, Guangzhou, China
Postal Code: 510665
Tel: 86-20-85543101
Fax: 86-20-85540528
http://www.escene.hk
Technical Support:
Tel: 86-20-88130114
E-mail: support@escene.cn
www.escene.hk
Escene Communication
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
