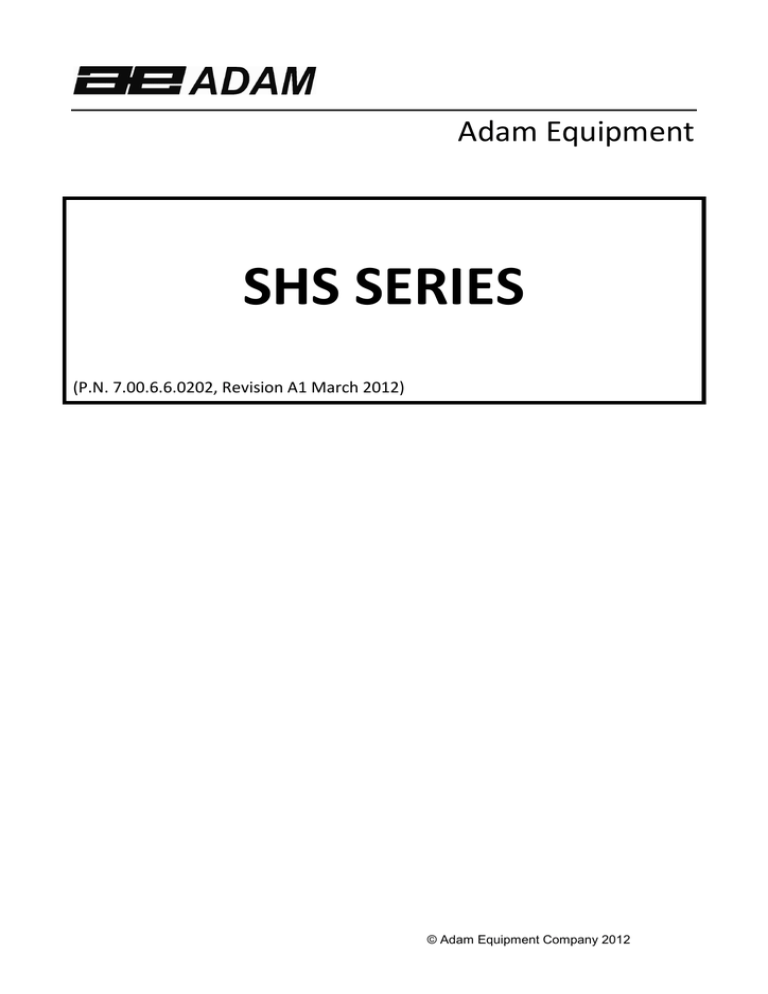

Adam Equipment SHS Series Specifications
Adam Equipment
SHS SERIES
(P.N. 7.00.6.6.0202, Revision A1 March 2012)
© Adam Equipment Company 2012
1.0 CONTENTS
1.0
CONTENTS.........................................................................................1
2.1
INTRODUCTION ..............................................................................2
2.2
TECHNICAL SPECIFICATIONS.......................................................3
2.3
SAFETY NOTICE .............................................................................4
2.4
KEY AND PANEL DESCRIPTION....................................................5
2.5
DISPLAY INDICATIONS WITH LED.................................................5
3.0
OPERATION .......................................................................................6
3.1
SAFETY INSTRUCTIONS................................................................6
3.2
BATTERY OPERATION ...................................................................7
3.3
BASIC OPERATIONS ......................................................................8
3.4
REMOTE CONTROL UNIT ..............................................................9
3.5
USER PARAMETERS ......................................................................9
4.0
CALIBRATION................................................................................10
5.0
PARTS LIST......................................................................................11
WARRANTY INFORMATION ....................................................................13
1
© Adam Equipment Company 2012
2.0
INTRODUCTION
2.1
INTRODUCTION
The SHS Series is a range of heavy-duty lower capacity crane scales
The main features include:
• Easy Operation & Rugged construction
• 15mm bright red LED display enabling a good viewing angle.
• 360 degree rotary safety hook and support ring design
• Overload safety up to 150% of model capacity
• Selectable weighing units include kg, Lbs and Newtons
• Hold feature
• Internal lithium battery fitted as standard
• Alternative power from AA or NiMH batteries
• Auto power off after 30 minutes of non use
• 8.4Vdc 800ma battery charger
• Strong ABS plastic housing
• Infrared remote control
2
© Adam Equipment Company 2012
2.2
3
TECHNICAL SPECIFICATIONS
Model No.
Capacity
Division
SHS-50
50kg
0.01kg
SHS-150
150kg
0.02kg
SHS-300
300kg
0.05kg
© Adam Equipment Company 2012
2.3
SAFETY NOTICE
The limit stated below is the Ultimate Overload Limits of the scales.
Adam Equipment Co. Ltd. Its directors, owners and affiliated companies and
organisations cannot be held liable for any resulting damage or injury sustained as a
result of the machines being used in excess of their stated capacities or ultimate
overload limits.
Model No.
Max
capacity
Overload
capacity
SHS 50
SHS 150
SHS 300
50kg
150kg
300kg
100kg
300kg
450kg
NOTICE:
Do not use the scales if any parts are bent or loose or show signs of damage or wear.
Refer to the user manual.
4
© Adam Equipment Company 2012
2.4
KEY AND PANEL DESCRIPTION
[ON/OFF]
2.5
The power switch is located on the rear housing. Use this key to
turn the scale ON and OFF.
[ZERO]
Press the [ZERO] key to return the reading to zero.
[UNIT]
Press the [UNIT] key to change the weighing unit being
displayed. Kg, Lbs and Newtons are available.
[HOLD]
Use this key to hold the display. When pressed an LED will light at
the top left side of the display and the reading on the display will
lock and flash. Press the [HOLD] key again to cancel the [HOLD]
function.
DISPLAY INDICATIONS WITH LED
Kg lb N
Weighing unit Indicator
Low battery Indicator
5
Hold
Hold Indicator
Stab
Stable Indicator
© Adam Equipment Company 2012
3.0 OPERATION
3.1
SAFETY INSTRUCTIONS
Read this manual carefully before you operate the SHS Crane Scale.
• Unpack the Crane Scale carefully from the packaging.
• Attach it to your hoist or equivalent existing equipment securely at the
ground level to the support ring in the upright position. Make sure that
the equipment to which the scale is attached is in proper condition. The
operator should be trained for its safe operation.
• Carry out regular visual inspection for any damage or wear and tear on
parts. The split pins in particular at the hook and eyebolts, as well as the
inner wall of the hook and all joints should be checked regularly. If any
damage or wear has taken place, stop using the scale and replace the
parts.
• Do all inspection and maintenance work when the scale is not in use.
• Do not expose the scale to extreme temperatures. The operating
temperature range is 0° C to 40° C.
• Secure the sample to be weighed in the hook of the scale. Ensure that
the sprung Safety Lever returns to its resting position which prevents
the sample from slipping out of the hook.
• Do not exceed the maximum capacity of the Scale .
• Clean and protect your scale after use.
6
© Adam Equipment Company 2012
3.2 BATTERY OPERATION
• The lithium battery will operate continuously for 20 hours before
requiring recharging. The scale will alert you that the battery is low on
charge when the Indicator LED above the battery symbol lights up.
• To charge the battery, unclip the battery cover on the rear of the scale
and insert the connector into the socket as marked. Plug the charger
into the mains power supply and wait until the LED on the charger
shows green. The battery is now fully charged.
• Charging time for a completely discharged battery is approximately 16
hours. A full battery pack is recommended to keep the scale
continuously operational.
• Only use the charger as supplied with the unit.
• The switch inside the battery cover must be in position A to make use
of the lithium battery.
• If using AA or NiMH batteries the switch must be in position B
• The scale will automatically power down after 30 minutes of non use to
further protect the battery.
• To replace the lithium battery pack please contact your dealer
7
© Adam Equipment Company 2012
3.3 BASIC OPERATIONS
Power on and off
Press the [ON/OFF] button to turn the scale on or off. The display on the scale
will show the model capacity then countdown from 9 to 0 before displaying
ZERO weight.
Zero the scale
Press the [Zero] key so that the display shows zero.
Hold
When the reading may not be perfectly stable or you cannot view a reading
easily you can press the [HOLD] key to lock it. The reading will be locked and also
flash at the point you press the [HOLD] button enabling you to view it when you
can. Once you have noted the reading, press [HOLD] again to return to normal
weighing mode.
Overload Warning
Please do not add any item that exceeds the maximum capacity of the scale.
When the display shows”- - - - - ” remove the item to avoid damage to the load
cell and scale.
8
© Adam Equipment Company 2012
3.4
REMOTE CONTROL UNIT
The remote control works via infra red and can be used to operate the SHS from
long distances. It operates using 2 x AAA batteries and these can be exchanged by
unclipping a cover on the rear of the remote control unit.
3.5
USER PARAMETERS
Three USER settable parameters are available on the SHS, to access these power
up the scale and whilst the display is counting down press and then release the
[UNIT] button. The display should show Bee 0 which is the first of the parameters.
Press the [HOLD] button to change the setting, and the [ZERO] button to move to
the next setting.
Parameter setting table.
FUNCTION
BEE
CHT
YES
9
DESCRIPTION
DEFAULT
Sets buzzer
0: Disable
1: Enable
Sets weighing unit on power up
0: kg
1: Lb’s
2: Newtons
Sets save:
0: not saved
1: save new settings
0
0
0
© Adam Equipment Company 2012
4.0 CALIBRATION
• Press the [ZERO] key and power up the scale using the on/off button.
• Release the [ZERO] key and the display will show “SPAN”. Make sure
the hook is empty unless you intend to use any chains, slings etc to hold
the calibration mass. Add any items such as these to the hook before
continuing.
• Press the [ZERO] button and the display will show “SET” then “00000”
when the reading at zero is stable. This completes the zero calibration
• Following zero calibration the value of the mass being used to calibrate
the scale should be entered. Use the [HOLD] button to increment the
right hand digit, and the [UNIT] button to move this digit to the left.
Proceed by entering a number for the next digit if required, until the
value of your chosen calibration weight is displayed correctly.
• Load this mass onto the hook and when the scale is stable press the
[ZERO] key. The display shows ‘HOLD’.
• After a few seconds, the calibration is complete and the scale returns to
normal weighing showing the value of the calibration mass as used.
10
© Adam Equipment Company 2012
5.0 PARTS LIST
SHS
Part number
11
Description
Item No
7.00.1.0.0286
SHS SUPPORT RING
1
7.00.4.0.0091
SHS ON/OFF PUSHBUTTON
2
7.00.4.0.0092
SHS LITHIUM BATTERY PACK - 2 PIECES
3
7.00.4.0.0095
SHS POWER CONNECTOR SOCKET
4
7.00.4.0.0011
SHS COMPLETE HOUSING
7.00.4.0.0093
SHS MAIN PCB
7.00.1.0.0280
SHS LOAD CELL - 50kg
10
7.00.1.0.0281
SHS LOAD CELL - 150kg
10
7.00.1.0.0282
SHS LOAD CELL - 300kg
10
7.00.5.6.0048
SHS KEYPAD PANEL
11
7.00.1.0.0283
SHS HOOK
12
7.00.5.6.0049
SHS DISPLAY PANEL - 50kg
13
7.00.5.6.0050
SHS DISPLAY PANEL - 150kg
13
7.00.5.6.0051
SHS DISPLAY PANEL - 300kg
13
7.00.4.0.0094
SHS KEYBOARD PUSHBUTTON
7.00.4.0.0096
SHS 8.4 VDC @ 800ma UK CHARGER UNIT
7.00.4.0.0097
SHS 8.4 VDC @ 800ma EURO CHARGER UNIT
7.00.4.0.0099
SHS REMOTE CONTROL UNIT
7.00.3.0.0026
SHS COMPLETE PACKAGING SET
5, 6, 7, 8
9
© Adam Equipment Company 2012
12
© Adam Equipment Company 2012
WARRANTY INFORMATION
Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects
in materials or workmanship. Warranty starts from the date of delivery.
During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or
Adam Equipment Company. The company or its authorised Technician reserves the right to repair or
replace the components at any of its workshops depending on the severity of the problems. However,
any freight involved in sending the faulty units or parts to the service centre should be borne by the
purchaser.
The warranty will cease to operate if the equipment is not returned in the original packaging and with
correct documentation for a claim to be processed. All claims are at the sole discretion of Adam
Equipment.
This warranty does not cover equipment where defects or poor performance is due to misuse,
accidental damage, exposure to radioactive or corrosive materials, negligence, faulty installation,
unauthorised modifications or attempted repair or failure to observe the requirements and
recommendations as given in this User Manual. Additionally rechargeable batteries (where supplied)
are not covered under warranty.
Repairs carried out under the warranty does not extend the warranty period. Components removed
during the warranty repairs become the company property.
The statutory right of the purchaser is not affected by this warranty. The terms of this warranty is
governed by the UK law. For complete details on Warranty Information, see the terms and conditions
of sale available on our web-site.
13
© Adam Equipment Company 2012
Manufacturer’s Declaration of Conformity
This product has been manufactured in accordance with the harmonised European standards, following the
provisions of the below stated directives:
Electro Magnetic Compatibility Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
Adam Equipment Co. Ltd.
Bond Avenue, Denbigh East
Milton Keynes, MK1 1SW
United Kingdom
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. The equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent
RF emission limits governing this device.
Changes or modifications not expressly approved by Adam Equipment could void the user's authority to
operate the equipment
WEEE COMPLIANCE
Any Electrical or Electronic Equipment (EEE) component or assembly of parts intended to be incorporated into
EEE devices as defined by European Directive 2002/95/EEC must be recycled or disposed using techniques that
do not introduce hazardous substances harmful to our health or the environment as listed in Directive
2002/95/EC or amending legislation. Battery disposal in Landfill Sites is more regulated since July 2002 by
regulation 9 of the Landfill (England and Wales) Regulations 2002 and Hazardous Waste Regulations 2005.
Battery recycling has become topical and the Waste Electrical and Electronic Equipment (WEEE) Regulations
are set to impose targets for recycling.
© Adam Equipment Company 2012
ADAM EQUIPMENT is an ISO 9001:2008 certified global company with more than 35 years
experience in the production and sale of electronic weighing equipment.
Adam products are predominantly designed for the Laboratory, Educational, Health and Fitness,
retail and Industrial Segments. The product range can be described as follows:
-Analytical and Precision Balances
-Compact and Portable Balances
-High Capacity Balances
-Moisture analysers / balances
-Mechanical Scales
-Counting Scales
-Digital Weighing/Check-weighing Scales
-High performance Platform Scales
-Crane scales
- Health and Fitness Scales
-Retail Scales for Price computing
For a complete listing of all Adam products visit our website at www.adamequipment.com
© Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or
translated in any form or by any means without the prior permission of Adam Equipment.
Adam Equipment reserves the right to make changes to the technology, features, specifications and design of
the equipment without notice.
All information contained within this publication is to the best of our knowledge timely, complete and
accurate when issued. However, we are not responsible for misinterpretations which may result from the
reading of this material.
The latest version of this publication can be found on our Website.
www.adamequipment.com
© Adam Equipment Company 2012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
