Go To Table Of Contents

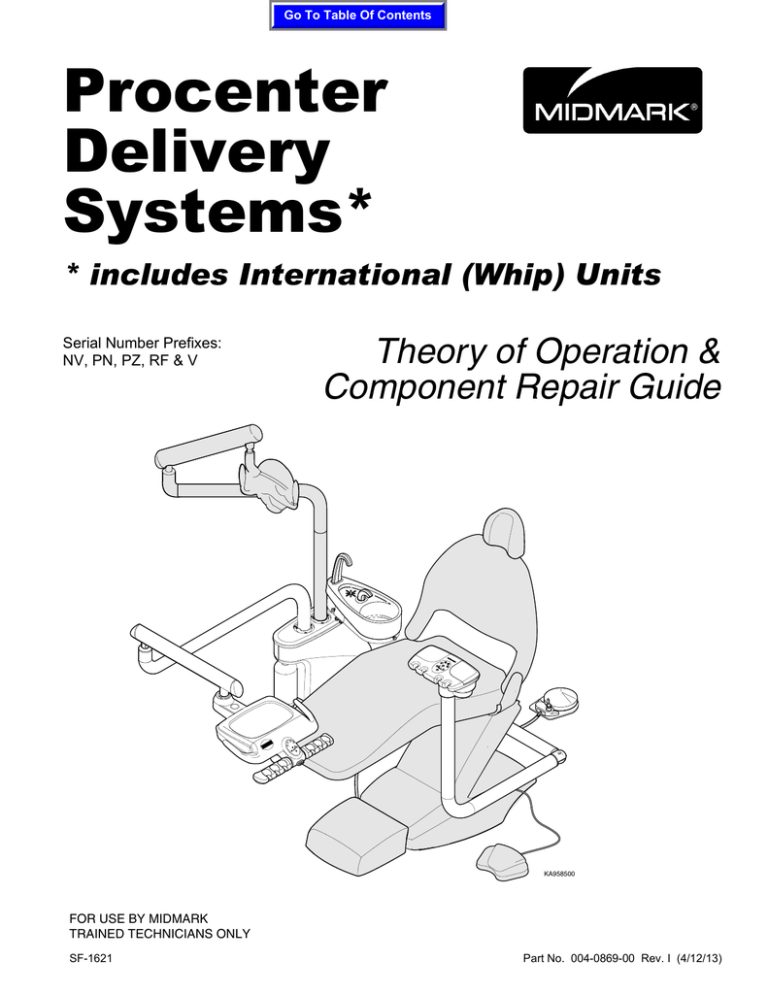

Procenter
Delivery
Systems*
* includes International (Whip) Units
Serial Number Prefixes:
NV, PN, PZ, RF & V
Theory of Operation &
Component Repair Guide
3
4
2
1
KA958500
FOR USE BY MIDMARK
TRAINED TECHNICIANS ONLY
SF-1621
Part No. 004-0869-00 Rev. I (4/12/13)
Go To Table Of Contents
TABLE OF CONTENTS
TABLE OF CONTENTS
Section/Paragraph................................................Page
Section/Paragraph ............................................... Page
IMPORTANT INSTRUCTIONS
General Safety Instructions .......................................... iii
Safety Alert Symbols ....................................................iii
Warranty Instructions ................................................. iii
4.22
4.23
Cuspidor
Cuspidor Bowl Replacement...................... 4-18
Push Button Valve Replacement................ 4-18
Cup Fill Water Valve Replacement............. 4-19
Bowl Flush Water Valve Replacement ....... 4-19
Bowl Flush Solenoid Replacement ............ 4-20
Cup Fill / Bowl Flush Timing Valve
Adjustment / Replacement ..................... 4-20
4.30 Cup Fill Air Valve Replacement.................. 4-22
4.31 Cuspidor Limit Switch Replacement .......... 4-22
4.24
4.25
4.26
4.27
4.28
4.29
SECTION I THEORY OF OPERATION
1.1 Scope of Manual .......................................... 1-1
1.2 How To Use Manual ..................................... 1-1
1.3 Description and Theory of Operation ........... 1-1
1.4 Standard Torque Specifications.................... 1-6
1.5 Parts Replacement Ordering........................ 1-6
1.6 Specifications ............................................... 1-6
1.7 Special Tools .............................................. 1-14
SECTION II TESTING AND TROUBLESHOOTING
2.1 Operational Test ........................................... 2-1
Assistant’s Instrument Unit
4.32 Syringe Button Valve Replacement............ 4-23
4.33 Chair Control Touch Pad Replacement...... 4-23
4.34 Water Quick Connect Valve Replacement . 4-24
SECTION IV COMPONENT REPLACEMENT
INSTRUCTIONS
Delivery Unit
4.1 Regulator Adjustment................................... 4-1
4.2 Regulator Repair .......................................... 4-1
4.3 Master Pilot Shut-Off Valve Repair............... 4-2
4.4 Whip-style Delivery Unit Cover
Removal / Installation ................................ 4-3
4.5 Kink Valve Replacement............................... 4-3
4.6 Foot Control Repair ...................................... 4-4
4.7 Water Bottle Gasket Replacement ............... 4-5
4.8 Flex Arm Unlock Button Valve
Replacement / Adjustment ........................ 4-6
4.9 Handpiece Holder Valve Replacement......... 4-6
4.10 Adjustment Valve Replacement.................... 4-8
4.11
4.12
4.13
Chair Control Touch Pad Replacement:
Procenter® - Chair Mtd. Units................. 4-16
Procenter® - Casework Mtd. Units ......... 4-17
4.35
4.36
4.37
4.38
Flex Arm
Flex Arm Cover Removal / Installation ....... 4-25
Flex Arm Spring Tension Adjustment......... 4-26
Lock Pawl Replacement............................. 4-26
Lock Cylinder Replacement ....................... 4-27
Alternative Handpiece Installation
4.39 Lares Handpiece Tubing Installation ......... 4-28
Master ON/OFF Switch Valve Replacement:
Procenter® - Chair Mtd. Units ................... 4-9
Procenter® - Casework Mtd. Units.......... 4-10
Whip Units - Chair Mtd. ........................... 4-10
Coolant Water Flush Valve Replacement:
4.14
Procenter & Whip Chair Mtd.Units .......... 4-11
4.15
Procenter - Casework Mtd. Units ............ 4-12
4.16 Supply Manifold Replacement.................... 4-12
4.17 Delivery Unit Leveling Adjustment.............. 4-13
4.18 LR Delivery Arm Leveling Adjustment ........ 4-14
4.19
4.20
4.21
Water Selector Valve Replacement:
Console Mounted Units........................... 4-14
LR Units .................................................. 4-15
12:00 Casework Mtd. Units ..................... 4-16
(*) Indicates a serial number break exists for the illustration resulting in
point page(s) following the original page.
© Midmark Corporation 2000 SF-1621 Rev. 5/11
Page i
Printed in U.S.A.
Go To Table Of Contents
TABLE OF CONTENTS
General Safety Instructions
Safety First: The primary concern of Midmark Corporation is that this delivery system is maintained with
the safety of the patient and staff in mind. To assure
that services and repairs are completed safely and correctly, proceed as follows:
NOTE
A NOTE is used to amplify an operating procedure,
practice or condition.
Warranty Instructions
(1) Read this entire manual before performing any
services or repairs on this delivery system.
Refer to Midmark “Limited Warranty” printed in the
Operation Manual for warranty information. Failure to
follow guidelines listed below will void the warranty and/
or render the delivery system unsafe for operation.
(2) Be sure you understand instructions contained
in this manual before attempting to service or
repair delivery system.
•
Safety Alert Symbols
Throughout this manual are safety alert symbols that
call attention to particular procedures. These items are
used as follows:
•
•
In event of a malfunction, do not attempt to use
delivery system until necessary repairs have been
made.
Do not attempt to disassemble delivery system,
replace malfunctioning or damaged components,
or perform adjustments unless you are one of Midmark’s authorized service technicians.
Do not substitute parts of another manufacturer
when replacing inoperative or damaged components. Use only Midmark replacement parts.
DANGER
A DANGER is used for an imminently
hazardous operating procedure, practice, or condition which, if not correctly followed,
will result in loss of life or serious personal
injury.
WARNING
A WARNING is used for a potentially
hazardous operating procedure, practice, or condition which, if not correctly followed,
could result in loss of life or serious personal
injury.
CAUTION
A CAUTION is used for a potentially hazardous operating procedure, practice, or
condition which, if not correctly followed, could result
in minor or moderate injury. It may also be used to
alert against unsafe practices.
EQUIPMENT ALERT
An EQUIPMENT ALERT is used for an
imminently or potentially hazardous operating procedure, practice, or condition which, if not
correctly followed, will or could result in serious, moderate, or minor damage to unit.
© Midmark Corporation 2000 SF-1621
Page ii
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
SECTION I
THEORY OF OPERATION
1.1
Scope of Manual
B. Basic Theory of Operation:
ProCenter-style Delivery Units (Figure 1-1)
This manual contains detailed troubleshooting, scheduled maintenance, and service instructions for Midmark
Delivery System components. This manual is intended
to be used by authorized service technicians only.
1.2
How to Use Manual
A. Manual Use When Performing Scheduled
Maintenance
(1) Perform inspections and services listed in
Scheduled Maintenance Chart.
(Refer to para 3.1).
(2) If a component is discovered to be faulty or out
of adjustment, replace or adjust component as
necessary. Refer to Section IV for common
service procedures.
B. Manual Use When Delivery System Component Is
Malfunctioning And Cause Is Unknown
(2) If a component is discovered to be faulty or out
of adjustment, replace or adjust component as
necessary. Refer to Section IV for common
service procedures.
C. Manual Use When Damaged Component Is Known
(1) Replace or adjust damaged component(s).
Refer to Section IV for common service procedures.
A. General Description
Midmark delivery systems are intended to provide dental professionals with air & water to operate dental
handpieces, syringes, and Midmark authorized accessories during dental examinations and
procedures.
© Midmark Corporation 2000 SF-1621 Rev. 1/13
With the air manual shut-off valve open, unregulated air
is supplied to the Master ON/OFF switch on the delivery
unit [thru 1/8 in. purple tubing]. When the Master ON/
OFF switch is turned ON, air passes thru the ON/OFF
switch valve to the pilot air manifold [thru 1/8 in. red tubing]. The pilot air manifold directs the flow of air to the
handpiece holder valves, flex arm unlock buttons, and
back to the air and water master pilot shut-off valves in
the junction box [thru 1/8 in. red tubing].
Master Pilot Shut-Off Valves
The air from the Master ON/OFF switch opens the air
and water master pilot shut-off valves allowing air/water
to pass thru the master pilot shut-off valves to the air/
water regulators.
The air regulator w/gauge provides air to the foot control throttle valve [thru 1/4 in. grey ribbed tubing] and air
to the syringe and cuspidor [thru 1/8 in. yellow tubing].
This regulator should be set at 80 PSI to optimize performance.
The air regulator w/o gauge provides 30 PSI to
pressurize the water bottle [thru 1/8 in. brown tubing].
This regulator is preset at the factory and should not be
adjusted.
An updated in-line regulator currently provides 30 PSI
to the water bottle replacing above mentioned regulator.
Description and Theory of Operation
Systems are available in various styles and configurations [Procenter-style (console, L/R, & 12:00 casework
mounted), & Whip-style (console & L/R mounted)].
Master ON/OFF Switch (1, FIgure 1-1)
Air / Water Regulators
(1) Perform troubleshooting procedures listed in
Troubleshooting Guide. (Refer to Section II).
1.3
[Refer to Section V for tubing diagrams]
The water regulator provides “city” water to the
City/Bottle water selector valve [thru 1/8 in. blue tubing].
This regulator should be set at 30 PSI to optimize performance.
Water Selector Switch Valve (2, Figure 1-1)
Distilled water is supplied to the selector valve from the
water bottle [thru 1/8 in. blue tubing]. City water is supplied to the selector valve from the water regulator [thru
1/8 in. blue tubing].
Page 1-1
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
Master ON / OFF Switch Location
1
1
2
1
3
4
1
1
Water Selector Switch Location
2
2
2
Adjustment Knob Location
1
2
3
4
KA999800i
Figure 1-1. Delivery Unit Control Locations
© Midmark Corporation 2000 SF-1621 Rev. 10/01
Page 1-2
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
C. Basic Theory of Operation
Whip-style Delivery Units (Figure 1-1)
With the selector valve toggle switch in City or Bottle
position, [city water or distilled water] flows thru the
selector valve to the water supply manifold [thru 1/8 in.
blue tubing]. The water supply manifold directs the flow
of water to the syringe adjustment valve and the handpiece adjustment valves [thru 1/8 in. blue tubing].
NOTE: The outgoing water line from the selector valve
is used for both City and Bottle water.
Master ON/OFF Switch (1, Figure 1-1)
Foot Control Assembly
Pilot Valve Block
When the foot control pedal is depressed, the throttle
valve [in foot control] opens, and supplies drive air and
coolant air for the handpieces.
The pilot valve block directs the flow of air, city water,
and self contained water throughout the system
Drive air is supplied to the handpiece supply drive air
manifold [thru 1/4 in. clear tubing]. The handpiece supply drive air manifold directs the flow of air to the handpiece drive air adjustment valves [thru 1/4 in. clear
tubing]. The drive air is regulated by the adjustment
valves then directed to the kink valves [thru 1/4 in. clear
tubing]. Coolant air is supplied to the handpiece coolant
air adjustment valve [thru 1/8 in. green tubing]. The
coolant air is regulated by the adjustment valve then
directed to the kink valves [thru 1/8 in. green tubing].
When the Wet / Dry toggle valve [on foot control] is
switched to the Wet position, pilot air for coolant water is
supplied to the kink valve manifolds [thru
1/8 in. orange tubing]. The kink valve manifolds direct
the pilot air to the coolant water adjustment valves [thru
1/8 in. white tubing]. The pilot air opens the coolant
water adjustment valves, allowing water to flow to the
kink valves [thru 1/8 in. blue tubing].
Kink Valve Assembly
When a handpiece is removed from holder, the activation lever is released. This causes the (normally closed)
handpiece holder valve to stop the airflow to the kink
valve manifold [thru 1/8 in. purple tubing] and allows the
kink valve to open. When the kink valve opens, coolant
air, drive air, and coolant water flow thru the kink valve
to the handpiece.
Adjustment Knobs (See Figure 1-1 for location)
Allow user to adjust air & water flow to instruments.
[Refer to Section V for diagrams]
When the Master ON/OFF switch is turned ON, air
passes through the ON/OFF switch valve to the pilot
valve block.
Water Selector Valve (2, Figure 1-1)
Distilled water is supplied to the selector valve from the
water bottle [thru 1/8 in. blue tubing]. City water is supplied to the selector valve from the water regulator [thru
1/8 in. blue tubing].
With the selector valve toggle switch in City or Bottle
position, [city water or distilled water] flows thru the
selector valve to the water supply manifold [thru 1/8 in.
blue tubing]. The water supply manifold directs the flow
of water to the syringe adjustment valve and the handpiece adjustment valves [thru 1/8 in. blue tubing].
NOTE: The outgoing water line from the selector valve
is used for both City and Bottle water.
Foot Control Assembly
The foot control supplies drive air and coolant water to
handpieces. When the water ON/OFF switch is turned
ON, the coolant water valve opens allowing
coolant water to flow to handpieces.
Handpiece Operation
When a handpiece is lifted, the whip assembly pivots
causing a pilot valve to close. This action shuts off the
pilot air to the kink valve causing the valve to relax the
tubing, allowing air flow thru the kink valve tubing.
Kink Valve Assembly
When the pilot valve opens, pilot air flow shuts off to the
kink valve allowing it to relax. This allows coolant air,
drive air, and coolant water to flow through the kink
valve tubing to the handpiece.
Adjustment Knobs (See Figure 1-1 for location)
Allow user to adjust air & water flow to instruments.
© Midmark Corporation 2000 SF-1621 Rev. 9/08
Page 1-3
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
D. Basic Theory of Operation
Cuspidor (Figure 1-2)
[Refer to Section V for diagrams]
Supply Water
With the water manual shut-off valve [in junction box]
open and the Master ON/OFF switch [on delivery unit]
ON, the master pilot shut-off valve supplies regulated
water to the cup fill flow control valve and the bowl flush
control pinch valve in the cuspidor [thru 1/4 in. blue tubing]. The cup fill flow control valve regulates the supply
water, then directs the water to the cup fill water valve
[thru 1/4 in. blue tubing]. The bowl flush control pinch
valve regulates the supply water, then directs the water
to the bowl flush water valve [thru 1/4 in. blue tubing].
Supply Air
With the air manual shut-off valve [in junction box] open
and the Master ON/OFF switch [on delivery unit] ON,
the air regulator w/gauge supplies 80 PSI to the two
manually operated cup filler valves, cup filler primary air
valve, bowl flush solenoid, and the manually operated
bowl flush valve.
Figure 1-2. Cup Fill / Bowl Flush Buttons
Cup Fill (Current Versions)
Cup Fill (Earlier Versions)
When one of the manual cup fill valve buttons (1,
Figure 1-2) is depressed, air is supplied to the (normally
open) cup fill pilot air valve [thru 1/8 in. white tubing]. Air
passes thru this valve to the cup fill timing adjustment
valve and to the (normally closed) cup fill primary air
valve [thru 1/4 in. yellow tubing]. The air opens the normally closed valve and supplies pilot air to the cup fill
water valve and back to the (normally open) cup fill pilot
air valve [thru 1/8 in. red tubing]. The pilot air to the cup
fill water valve opens the valve and allows water to flow
to the cup fill faucet. The pilot air to the (normally open)
cup fill pilot air valve closes the valve, trapping air in the
1/4 in. yellow tubing between the pilot and primary air
valves. This allows the cup fill faucet to run until air
pressure in the 1/4 in yellow tubing is “bled off” thru the
cup fill timing adjustment valve.
NOTE: The cup fill timing adjustment valve may be
adjusted to shorten/lengthen the amount of time it takes
to bleed off air pressure.
© Midmark Corporation 2000 SF-1621 Rev. 4/13/13
when the manual cup fill valve button is depressed, pilot
air is supplied to the shuttle valve. The shuttle valve
blocks off the air line going to the opposite cup fill valve,
and supplies pilot air to the cup fill water valve as well
as the cup fill timing adjustment valve [thru 1/8” red tubing]. The pilot air opens the cup fill water valve allowing
water to flow to the cup fill faucet.
The cup fill timing adjustment valve gradually bleeds off
air pressure from the cup fill water valve. When air pressure is removed from the cup fill water valve, the valve
closes and water flow to the cup fill faucet is stopped.
NOTE: The cup fill timing adjustment valve may be
adjusted to shorten/lengthen the amount of time it takes
to bleed off air pressure.
Page 1-4
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
Bowl Flush
For Procenter Cuspidor Mounted on Elevance Chair
ONLY
Manual Push Button Operation
When the manual bowl flush valve button (2, Figure 1-2)
is depressed, pilot air is supplied to the bowl flush water
valve as well as the bowl flush timing adjustment valve
[thru 1/8 in. red tubing]. The pilot air opens the bowl
flush water valve allowing water to flow to the bowl flush
faucet. The bowl flush timing adjustment valve gradually
bleeds off air pressure from the bowl flush water valve.
When air pressure is removed from the bowl flush water
valve, the valve closes and water flow to the bowl flush
faucet is stopped.
NOTE: The bowl flush timing adjustment valve may be
adjusted to shorten/lengthen the amount of time it takes
to bleed off air pressure.
Cupidor Position Mode Setting
Press button 4 to raise chair (patient) to the cuspidor
position, a position convenient for cuspidor use. The
cuspidor solenoid output also activates on the PC
board. The cuspidor solenoid ouput (J5) can be connected to an optional automatic bowl flush solenoid,
initiating an automatic bowl flush function as the chair
raises to the cuspidor position. Press button 4 again to
return chair to last position used before the cuspodor
positon.
1.) Positon (1) on dipswitch - Position (4) on remote
2.) Chairboard sends signal to cuspidor board
Automatic Bowl Flush Function
When using the cuspidor with a Midmark dental chair,
the operator may program a “Patient Cuspidor Position”
on program button 4. This moves the chair to a desired
position, and electrically activates the cuspidor bowl
flush solenoid.
With the chair PC board in Cuspidor Position Return
Mode, pressing program button 4 begins to move the
chair to the programmed position and the PC board
supplies voltage to the bowl flush solenoid (until chair
reaches the programmed position). This voltage causes
the solenoid to open, allowing pilot air to flow to the bowl
flush water valve as well as the bowl flush timing adjustment valve [thru 1/8 in. red tubing]. The pilot air opens
the bowl flush water valve allowing water to flow to the
bowl flush faucet. The bowl flush timing adjustment
valve gradually bleeds off air pressure from the bowl
flush water valve. When air pressure is removed from
the bowl flush water valve, the valve closes and water
flow to the bowl flush faucet is stopped.
NOTE: The bowl flush timing adjustment valve may be
adjusted to shorten/lengthen the amount of time it takes
to bleed off air pressure.
© Midmark Corporation 2000 SF-1621 Rev 4/12/13
3.) Rinse solenoid turns on
4.) Deposit in bowl
5.) Position (4) - chair back to previous position
• No chair base movement
Page 1-5
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
E. Basic Theory of Operation
Assistant’s Instrument Unit (Figure 1-3)
Vacuum
[Refer to Section V for diagrams]
Syringe Air
With the air manual shut-off valve [in junction box] open
and Master ON/OFF switch [on delivery unit] ON, the air
regulator w/gauge supplies 80 PSI to the syringe [thru
1/8 in yellow tubing].
Supply Water
The City / Bottle water selector valve supplies water to
the syringe and water quick connect valve [thru 1/8 in
blue tubing].
The central vacuum unit (not provided w/delivery system) provides suction for the HVE and saliva ejector.
Vacuum tubing connects to the central vacuum unit in
the junction box, runs thru the umbilical, and connects
to the solids collector housing (1, Figure 1-3) [inside of
the assistant’s unit]. The HVE and saliva ejector hoses
connect to the solids collector housing under the assistant’s unit.
NOTE: Any unused, ejector hose connection holes
under the solids collector must be capped for proper
operation.
With the central vacuum unit turned on, and the lever of
the desired ejector opened, there is suction present at
the ejector. Any solids taken in by the ejector are caught
in the solids collector basket (2, Figure 1-3).
City / Bottle Water Selector Valve
Distilled water is supplied to the selector valve from the
delivery system water bottle [thru 1/8 in. blue tubing].
City water is supplied to the selector valve from the
water regulator [thru 1/8 in. blue tubing].
2
With the selector valve toggle switch in City or Bottle
position, [city water or distilled water] flows thru the
selector valve to the syringe [thru 1/8 in. blue tubing].
NOTE: The outgoing water line from the selector valve
is used for both City and Bottle water.
1
Ortho / Pedo
Cabinets
1
2
KA948701
Figure 1-3. Assistant’s Instrument Unit
Solids Collector
© Midmark Corporation 2000 SF-1621 Rev. 4/12/13
Page 1-6
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
Figure 1-5 shows model / serial number location for
delivery system components.
Figures 1-6 thru 1-10 show dimensional information.
1
2
3
4
KA999900i
Figure 1-5. Model / Serial Number Location
© Midmark Corporation 2000 SF-1621 Rev. 4/02
Page 1-7
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
29 in.
(73.7 cm)
70°
70°
90°
53 in.
(134.7 cm)
100°
Arm does not
move in this zone.
45°
100°
30°
12.5 in. (31.7 cm)
63.5 in. (161.3 cm)
Max.
56 in. (142.2 cm)
Max. - Chair all the way up
12.5 in. (31.7 cm)
42.5 in. (108 cm)
Min. - Chair all the way down
38.5 in. (97.8 cm)
Max. - Chair all the way up
50 in. (127 cm)
Min.
25 in. (97.8 cm)
Min. - Chair all the way down
14 in. (35.6 cm)
KA945400
Figure 1-6. Console Mounted Delivery System
Range of Motion / DImensions
© Midmark Corporation 2000 SF-1621 Rev. 4/02
Page 1-8
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
140o
130
o
130o
140o
100o
100o
12.5 in. (31.8 cm)
63.5 in. (161.3 cm)
Max. - Chair all the way up
56.5 in. (143.5 cm)
12.5 in. (31.8 cm)
Max. - Chair all the way up
38.5 in. (97.8 cm)
Max. - Chair all the way up
49.0 in. (124.5 cm)
42.5 in. (108 cm)
Min. - Chair all the way down
Min. - Chair all the way down
24.0 in. (61.0 cm)
Min. - Chair all the way down
KA962000i
Figure 1-7. LR Mounted Delivery System
Range of Motion / Dimensions
© Midmark Corporation 2000 SF-1621 Rev. 4/02
Page 1-9
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
170o
200o
180o
170o
50.5 in.
MAX.
128.3 cm.
KA958100
36.5 in.
92.7 cm.
26.5 in.
67.3 cm.
MIN.
KA959900
Figure 1-8. Cuspidor (Console & LR versions shown)
Dimensions / Range of Motion
© Midmark Corporation 2000 SF-1621 Rev. 4/02
Page 1-10
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
.
100o
90o
100o
90o
90o
90o
8.5 in.
(21.6 cm)
25 in.
(63.5 cm)
8.5 in.
(21.6 cm)
45.0 in. (Max.)
(114.3 cm)
31.25 IN (Min.)
(79.4 cm)
8 in.
(20.3 cm)
20 in.
(50.8 cm)
28.5 in. (Max. Arc)
(72.4 cm)
Figure 1-9. Assistant’s Instrument Unit (Rear Mounted shown)
Range of Motion / Dimensions
© Midmark Corporation 2000 SF-1621 Rev. 4/02
Page 1-11
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
43.25 in.
(109.9 cm)
22.75 in.
(57.9 cm)
47.25 in.
(120 cm)
or
52.25 in.
(132.7 cm)
19 in.
(48.3 cm)
20 in.
(50.8 cm)
16.9 in.
(42.9 cm)
4.5 in.
(11.4 cm)
21.5 in.
(54.6 cm)
20 in.
(50.8 cm)
or
9.25 in.
(23.5 cm)
72.6 in.
(184.3 cm)
or
61.8 in.
(157 cm)
55.6 in.
(141.1 cm)
or
44.8 in.
(113.8 cm)
33.4 in.
(84.8 cm)
31.1 in.
(78.9 cm)
22.6 in.
(57.5 cm)
42.5 in.
(108 cm)
KA998700i
Figure 10. 12:00 Free-Standing Casework (w/Delivery System) Dimensions
© Midmark Corporation 2000 SF-1621 Rev. 4/02
Page 1-12
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
Short Flex Arm
28 in. (71.1 cm)
Long Flex Arm
in.36 in. (91.4 cm)
14.12 in. Short Flex Arm
(35.9 cm) 16 in. (40.6 cm)
Long
14.12
in. Flex Arm
(35.9
24 cm)
in. (60.9 cm)
15.5
(39.4cm)
Flex Arm
12.5 in.
(31.75 cm)
7 in.
(17.8 cm)
Short Flex Arm
5.875 17
in. in. (43.2 cm)
(14.9 cm)
Long Flex Arm
27.5 in. (69.8 cm)
135°
19.125 in.
(48.6 cm)
18.5 in.
(47 cm)
180°
3.0 in.
(7.7 cm)
Fixed Arm
7.28i
(18.5 c
15.5 Flex
in. Arm
Short
16 in. (40.6 cm)
(39.4cm)
Long Flex Arm
24 in. (60.9 cm)
180°
Short Fixed Arm
13.5 in. (34.3 cm)
Long Fixed Arm
24 in. (60.9 cm)
KA947
30°
5.5Arm
in.
Short Fixed
(13.9
13.5 in. (34.3
cm) cm)
Long Fixed Arm
24 in. (60.9 cm)
135°
Min.**
48.2 in.
(122.3 cm)
Long Flex Arm
12.5 in. (31.7 cm)
10.2 in.
(25.9 cm)
12 in.
Short Flex Arm
(30.5
8.3 in. (21.1 cm)
Max.*
66.6 in.
(169.3 cm)
cm)
Figure 1-11. Junction Box Dimensions
Max.* 66.6 in. (169.3 cm)
Min.** 48.2 in. (122.3 cm)
* Measurement w/long fixed arm & long flex arm (Standard w/wall mtd. unit)
** Measurement w/ short fixed arm & short flex arm (Standard w/cabinet mtd. unit)
12 in. to 24 in.
(30.4 cm to 60.9 cm)
55 in. to 61 in.
(139.7 cm to 154.9 cm)
NOTE: Product can be configured
to use either fixed arm with
either flex arm
Figure 1-1. Side Delivery Unit Dimensions / Range of Motion /
Recommended Mounting Location / Cabinet size Requirements
© Midmark Corporation 2000 SF-1621 Rev. 4/03
Page 1-13
Printed in U.S.A.
Go To Table Of Contents
SECTION I
GENERAL INFORMATION
14.12 in.
(35.9 cm)
15.5 in.
(39.4cm)
14.12 in.
(35.9 cm)
12.5 in.
(31.75 cm)
7 in.
(17.8 cm)
19.125 in.
(48.6 cm)
5.875 in.
(14.9 cm)
7.28in.
(18.5 cm)
18.5 in.
(47 cm)
3.0 in.
(7.7 cm)
15.5 in.
(39.4cm)
KA947401
5.5 in.
(13.9 cm)
12 in.
(30.5 cm)
10.2 in.
(25.9 cm)
Figure 1-12. Junction Box Dimensions
1.7
Special Tools
Table 1-3 lists all of the special tools needed to repair
the delivery system, how to obtain the special tools,
and
the purpose of each special tool.
Table 1-3. Special Tool List
Description of Special Tool
Manufacturer’s
Name / Address / Phone
Manufacturer’s
Part Number
Purpose of Special Tool
Multimeter
Commercially Available
Any Type
Used to perform continuity and voltage checks.
Torque Wrench
Commercially Available
Any Type
Used to tighten nuts or screws to specified values.
© Midmark Corporation 2000 SF-1621 Rev. 4/03
Page 1-14
Printed in U.S.A.
Go To Table Of Contents
SECTION II
TESTING AND TROUBLESHOOTING
SECTION II
TESTING AND TROUBLESHOOTING
2.1
Operational Test
To effectively diagnose a delivery system malfunction, it
may be necessary to perform the following operational
test.
Observe. When foot control pedal is
depressed, the handpiece that is removed from
its holder should run and have a fine mist of
water until the foot pedal is released.
(9) Repeat this step for each handpiece.
NOTE
Cuspidor
The Operational Test describes what should happen
during basic operation of delivery / whip system components. If a malfunction is discovered, refer to the
appropriate troubleshooting guide to determine the
cause of the problem and corrective procedures.
(10) Place cup under fill spout and depress cup fill
button.
Observe. Water should run until cup is filled to
desired level.
(1) Turn air and water manual shut-off valves [in
junction box] ON.
(11) Depress bowl flush button.
Observe. Water should run for desired time to
sufficiently rinse bowl.
(2) Turn delivery unit master switch ON.
Delivery Unit
Assistant’s Instrument Unit
(3) Depress air and water buttons of syringe(s).
(12) Move lever of ejector to the OPEN position.
Observe. When air button is depressed,
syringe should release air pressure from tip.
When water button is depressed, syringe
should release water stream from tip.
Observe. Suction should be present at the
ejector.
(13) Repeat this step for each ejector.
(4) Move delivery unit foot control toggle switch to
DRY position.
(14) Depress air and water buttons of syringe(s).
(5) Remove one handpiece from holder; then
depress foot control pedal for several seconds,
then release pedal.
Observe. When air button is depressed,
syringe should release air pressure from tip.
When water button is depressed, syringe
should release water stream from tip.
Observe. When foot control pedal is
depressed, the handpiece that is removed from
its holder should run until the foot pedal is
released. There should be no water coming
from the handpiece.
(6) Repeat this step for each handpiece.
(7) Move delivery unit foot control toggle switch to
WET position.
(8) Remove one handpiece from holder and
depress foot control pedal for several seconds;
then release pedal.
© Midmark Corporation 2000 SF-1605 Rev. 10/01
Page 2-1
Delivery / Whip Unit Flex Arm
(15) Move flex arm upward, and release; then
attempt to move flex arm downward.
Observe. Flex arm should move upward freely
and stay in position when released. It should
not move downward.
(16) Depress flex arm unlock button(s) on delivery
unit and move flex arm downward; then release
unlock button(s).
Observe. Flex arm should move downward
freely with unlock buttons depressed, and lock
in place when unlock buttons are released.
Printed in U.S.A.
Go To Table Of Contents
SECTION II
TESTING AND TROUBLESHOOTING
© Midmark Corporation 2000 SF-1605
Page 2-2
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
SECTION IV
MAINTENANCE / SERVICE INSTRUCTIONS
Delivery Unit
4.2
4.1
A. Removal
Typical Regulator Adjustment
A. Adjustment
(1) Turn air and water manual shut-off valves (1,
Figure 4-2) OFF.
EQUIPMENT ALERT
(2) Tag and disconnect any tubing connected to
fittings of regulator (2).
The operatory equipment has been
designed to operate at the recommended
settings. Adjusting the pressure higher or lower can
damage the equipment and/or result in decreased
operating efficiency.
(1) Pull adjustment knob (FIgure 4-1) outward to
unlock.
(3) Remove locking ring (3) from regulator (2) then,
if needed, remove from mounting plate (4).
NOTE
If removing water bottle air regulator (w/o gauge), the
following step is not necessary. Go to step 5.
(2) Rotate adjustment knob:
clockwise to increase pressure.
counterclockwise to decrease pressure.
(4) Unscrew regulator (2) from master pilot shut-off
valve (5).
(3) Push adjustment knob inward to lock.
Decrease
Typical Regulator
Removal / Installation
(5) Remove gauge (6), and any fittings (7) or
plugs (8) from regulator (2).
Increase
3
4
Adjustment Knob
Unlock
2
Lock
3
5
8
4
1
2
80
5
6
1
0
0
7
0
KA957100
Figure 4-1. Typical Regulator Adjustment
7
40
60
20
2
3
4
1
80
0
5
0
6
7
100
6
DA
i
Figure 4-2. Typical Regulator
Removal / Installation
© Midmark Corporation 2000 SF-1621 Rev. 1/13
Page 4-1
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
B. Installation
(2) Apply removable loctite, then screw master pilot
shut-off valve (2) onto fitting of regulator (4).
(1) Install gauge (6), and any fittings (7) or
plugs (8) [removed in step 5] into regulator (2).
EQUIPMENT ALERT
When performing the following step, it may
be necessary to replace the compression
sleeve. Failure to do so could cause connection to
leak.
NOTE
If installing water bottle air regulator (w/o gauge), the
following step is not necessary. Go to step 3.
(2) Apply removable loctite, then screw
regulator (2) onto fitting of master pilot shut-off
valve (5).
(3) Insert master pilot shut-off valve (2) into manual
shut-off valve (1); then tighten compression
nut (6).
(3) Secure regulator (2) with locking ring (3).
(4) Place mounting plate (5) over regulator (4);
then secure regulator with locking ring (3).
(4) Connect tubing to proper fittings of regulator.
(5) Connect tubing to proper fittings of master pilot
shut-off valve (2).
(5) Turn air and water manual shut-off valves (1)
ON and check for proper operation.
4.3
(6) Turn air and water manual shut-off valves (1)
ON and check for proper operation.
Typical Master Pilot Shut-Off Valve
Removal / Installation
A. Removal
3
(1) Turn air and water manual shut-off valves (1,
Figure 4-3) OFF.
3
(2) Tag and disconnect all tubing connected to
master pilot shut-off valve (2).
2
5
4
(3) Remove locking ring (3) from regulator (4); then
remove mounting plate (5) from regulator.
1
40
60
20
2
3
4
1
80
0
5
0
6
(4) Loosen compression nut (6) and remove master pilot shut-off valve (2) from manual shut-off
valve (1).
7
100
40
60
20
2
3
4
1
5
0
80
0
4
6
7
100
(5) Unscrew master pilot shut-off valve (2) from
regulator (4).
6
(6) Remove any fittings/plugs/gaskets (7) from
master pilot shut-off valve (2).
7
B. Installation
(1) Install any fittings/plugs/gaskets (7) [removed in
step 6] into master pilot shut-off valve (2).
© Midmark Corporation 2000 SF-1621 Rev. 1/13
Page 4-2
DA
i
Figure 4-3. Typical Master Pilot Shut-Off Valve
Removal / Installation
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.4
Whip-style Delivery Unit Cover
Removal
EQUIPMENT ALERT
On Whip Units, the kink valves are
mounted to spacer blocks instead of the
lower housing. Do not remove the spacer block when
replacing the kink valve. Removing the spacer block
will release the whip spring.
A. Removal
(1) Turn master ON/OFF switch OFF.
(2) Remove instrument pad (1, Figure 4-4). [The
instrument pad is pressure fit onto two studs;
no tools are required].
(4) Remove screw (5) and kink valve assembly (6).
(3) Remove four screws (2) and delivery unit
cover (3).
1
3
2
MA933000
Figure 4-4. Whip-style Delivery Unit Cover Removal
4.5
Kink Valve Removal / Installation
A. Removal
NOTE
The ProCenter® Delivery Unit is shown in Figure 4-5.
The procedure for the Whip & casework mounted
units is similar.
(1) Turn master ON/OFF switch (1, Fig. 4-5) OFF.
(2) Depress Panel Unlock button (2) to access
internal components.
(3) Tag and disconnect tubing from six kink
valve fittings (3), and three kink valve manifold
fittings (4).
© Midmark Corporation 2000 SF-1621 Rev.10/01
Figure 4-5. Kink Valve (ProCenter shown)
Page 4-3
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.6
B. Installation
(1) Connect tubing to proper kink valve fittings (3),
and proper kink valve manifold fittings (4).
Foot Control Removal / Installation
A. Removal
(1) Access air / water regulators.
(2) Position kink valve (6) and secure with
screw (5).
In Junction Box / Cabinet Base:
(2) Disconnect tubing (1, Figure 4-7) from fitting (A)
of air regulator (2).
(3) Turn master ON/OFF switch (1) ON, and check
for proper operation.
(3) Disconnect tubing (3) from tubing (4).
C. Adjustment (Whip Units Only)
(4) Disconnect tubing (5) from tubing (6).
NOTE
(5) Disconnect tubing (7) from tubing (8).
Whip-style delivery units use an actuator assembly
(1, Figure 4-6) attached to the kink valve (2). The
actuator contains a normally closed On/Off Valve (3)
that opens, supplying pilot air to the kink valve, when
the instrument is lifted from the instrument pad. The
actuator can be adjusted.
(6) Remove foot control.
B. Installation
(1) Remove delivery unit cover. Refer to para 4.4.
Air to Foot Control
(1) Connect tubing (1) [from foot control] to fitting
(A) of air regulator (2). Secure with sleeve.
(2) To adjust the actuator (1, Figure 4-6), loosen
the jam nut (4) and turn the adjustment screw
(5) inward to open the valve or outward to close
the valve.
Handpiece Drive Air
(2) Connect tubing (plain) (3) [from foot
control] to tubing (4) [from umbilical]. Secure
with sleeve.
(3) Check operation.
Handpiece Coolant Water Pilot Air
(3) Connect tubing (5) [from foot control] to tubing
(6) [from umbilical]. Secure with uni-clamp.
Handpiece Coolant Air
(4) Connect tubing (7) [from foot control] to tubing
(8) [from umbilical]. Secure with uni-clamp.
Figure 4-6. Adjustment (Whip Units only)
© Midmark Corporation 2000 SF-1621 Rev.1/13
Page 4-4
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
2
A
1
80 PSI
(551.6 kpa)
5
3
8
7
6
4
2
A
80 PSI
1
(551.6 kpa)
7
5
5
3
3
8
7
1
4
6
DA
i
Figure 4-7. Foot Control Removal / Installation
4.7
Water Bottle Gasket
Replacement
A. Removal
(2) Remove damaged gasket (2) from bottle
mounting cap (3).
B. Installation
EQUIPMENT ALERT
NOTE
Figure 4-8 shows a console mounted water bottle.
The procedure for LR, & casework mounted systems
is the same.
When performing the following step, be
sure gasket is properly aligned with top of
water bottle. Failure to comply could result in damage
to gasket.
(1) Unscrew water bottle (1, Figure 4-8) and set
aside.
© Midmark Corporation 2000 SF-1621 Rev.1/13
(1) Align new gasket (2) on top of water bottle (1).
Page 4-5
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
3
2
1
KA970900i
Figure 4-8. Water Bottle Gasket Replacement
(2) Route tubing into water bottle (1); then screw
bottle into bottle mounting cap (3).
4.8
Figure 4-9. Flex Arm Unlock Button Valve
Flex Arm Unlock Button Valve
Removal / Installation / Adjustment
C. Adjustment
(1) If necessary, adjust position of valve (6) by loosening/tightening set screw (7).
A. Removal
(1) Turn master ON/OFF switch [on delivery unit]
OFF.
4.9
(2) Remove three screws (1, Figure 4-9), lower
handle cover (2), and switch lever (3).
(3) Tag and disconnect 1/8 in. brown tubing (4) and
1/8 in. red tubing (5) from valve (6); then
remove valve.
B. Installation
Handpiece Holder Valve
Removal / Installation / Adjustment
(ProCenter-style Units only)
NOTE
Figure 4-10 shows the chair mounted version of the
delivery unit. The procedure for casework mounted
units is similar.
A. Removal
(1) Connect 1/8 in. brown tubing (4) and 1/8 in. red
tubing (5) to proper fittings of valve (6).
(1) Remove two screws (1, Figure 4-10) and
cover (2).
(2) Install switch lever (3) in slot of lower
handle cover (2); then position valve (6) in
switch lever (3).
(2) Remove two screws (3), actuator block (4),
lever (5), and valve (6).
(3) Install lower handle cover (2) and secure with
three screws (1).
(3) Tag and disconnect 1/8 in. purple tubing and
1/8 in. red tubing from valve (6).
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-6
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
B. Installation
C. Adjustment
(1) Connect 1/8 in. purple tubing and 1/8 in. red
tubing to proper fittings of valve (6).
(1) If kink valve does not open completely when
handpiece is removed from holder, loosen set
screw (7).
(2) Position valve (6) in actuator block (4); then
while holding lever (5) in position, secure
actuator block with two screws (3).
(2) If kink valve does not close completely when
handpiece is properly stowed in holder, tighten
set screw (7).
(3) Install cover (2) and secure with two screws (1).
Figure 4-10. ProCenter Handpiece Holder Valve Removal / Installation / Adjustment
(Chair / Console Mounted Version shown)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-7
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.10
Typical Adjustment Valve
Removal / Installation
NOTE
Steps 2 & 3 do not apply to casework mounted delivery systems. Go to step 4.
A. Removal
(1) Turn master ON/OFF switch (1, FIgure 4-11)
OFF.
(2) Push panel unlock button (2) to access internal
components.
(3) Remove three screws (3); then lower lid
cover (4) to access adjustment valve (5).
5
9
(4) Tag and disconnect all tubing connected to
adjustment valve (5).
10
(5) Loosen set screw (6) and remove adjustment
knob (7).
4
(6) Hold trim ring (8) in place, then unscrew adjustment valve (5).
6
(7) Remove adjustment valve (5), nut (9),
washer (10), and trim ring (8) from lid
cover (4).
B. Installation
7
(1) Insert adjustment valve (5) thru nut (9),
washer (10), and lid cover (4).
8
(2) Secure adjustment valve (5) with trim ring (8).
(3) Turn valve stem clockwise as far as it will go;
then install adjustment knob (7) and tighten set
screw (6).
11
(4) Connect all tubing to proper fittings of adjustment valve (5).
4
(5) Raise lid cover (4); then secure to upper housing (11) with three screws (3).
3
(6) Close upper housing; then turn master ON/OFF
switch (1) ON and check for proper operation.
2
1
KA972301i
Figure 4-11. Typical Adjustment Valve
Removal / Installation
(ProCenter Chair / Console Mtd. Version shown)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-8
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.11
Master ON/OFF Switch Valve
(Chair Mounted ProCenter®-style units)
A. Removal
(1) Turn air manual shut-off valve [in junction box]
OFF.
(2) Press air button of syringe(s) until all residual
air pressure is removed from the system.
EQUIPMENT ALERT
Residual air pressure will eject the plunger
from the master ON/OFF switch valve. Be
sure all air pressure is removed from the system
before performing the following step.
(3) Remove six screws (1, Figure 4-12) and two
screws (2); then partially separate front
cover (3) and remove master switch (4).
(4) Remove plunger (5) from valve (6).
(5) Remove two screws (7) and partially separate
instrument holder (8) from bottom housing (9);
then slide valve (6) out of instrument holder.
(6) Tag and disconnect 1/8 in. purple tubing and
1/8 in. red tubing from valve (6).
B. Installation
(1) Connect 1/8 in. purple tubing and 1/8 in. red
tubing to proper fittings of valve (6).
(2) Slide valve (6) into instrument holder (8).
(3) Secure instrument holder (8) to bottom
housing (9) with two screws (7).
Figure 4-12. Master ON/OFF Switch Valve
(Chair Mounted ProCenter-style Units)
(4) Install plunger (5) into valve (6).
(5) Position master switch (4) and front cover (3) on
bottom housing (9); then secure with two
screws (2) and six screws (1).
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-9
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.12
Master ON/OFF Switch Valve
4.13
(12:00 Casework Mounted
ProCenter®-style units)
Master ON/OFF Switch Valve
(Whip-style Units)
A. Removal
A. Removal
(1) Turn air manual shut-off valve [in cabinet base]
OFF.
(2) Tag and disconnect tubing from toggle valve (1,
Figure 13).
(1) Turn air manual shut-off valve [in junction box]
OFF.
(2) Press air button of syringe(s) until all residual
air pressure is removed from the system.
(3) Remove the top cover. Refer to para 4.4.
(3) Hold toggle valve (1) in place and remove trim
ring (2); then remove toggle valve (1) from
water bottle bracket (3).
B. Installation
(4) Disconnect the tubing (1, Fig. 4-14) from the
Master On / Off toggle valve (2).
(5) While holding the threaded ring (3) that secures
the On / Off Toggle Valve (2) to the case, loosen
the jam nut (4).
(1) Insert toggle valve (1) thru water bottle
bracket (3) and secure with trim ring (2).
(6) Remove the threaded ring (3), then remove the
Master On / Off Valve (2), jam nut (4) and lockwasher (5).
(2) Connect tubing to proper fittings of toggle
valve (1).
3
2
1
Figure 4-14. Master On/Off Switch
(Whip-style Units)
Ka99831100
Figure 4-13. Master ON/OFF Switch Valve
(12:00 Casework Mtd. ProCenter-style Units)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-10
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
B. Installation
(1) Place the jam nut (4) and lockwasher (5) on to
the On / Off Toggle Valve (2) and place it in
position in the bottom cover.
EQUIPMENT ALERT
Position the outlet (top fitting) on the valve
upward to assure the toggle works in conjunction with the On / Off symbols on the cover.
(2) Place the threaded ring (3) onto the end of the
On / Off Toggle valve and tighten.
(3) Connect the 1/8" red tubing to the top (outlet)
fitting and the 1/8" purple tubing to the end
(inlet) fitting.
4.14
Coolant Water Flush Valve
Removal / Installation
(Chair Mtd. ProCenter Units & Whip-style Units)
A. Removal
Figure 4-14. Coolant Water Flush Valve
(1) Turn master ON/OFF switch (1, Figure 4-14)
OFF.
(Chair Mtd. ProCenter Unit shown)
B. Installation
NOTE
Remove the top cover on the Whip. Refer to para 4.4.
(2) Push panel unlock button (2) to access internal
components; use a prop to hold up lid if necessary.
(3) Tag and disconnect tubing from flush valve (3).
(4) Loosen set screw (4) and remove adjustment
knob (5).
(5) Unscrew flush valve (3); remove valve, nut (6),
washer (7), and trim ring (8) from housing.
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-11
(1) Insert flush valve (3) thru washer (7) and
nut (6); then insert valve thru hole in housing
and secure to with trim ring (8).
(2) Secure flush valve (3) with trim ring (8).
(3) Install adjustment knob (5); then tighten set
screw (4).
(4) Connect 1/8 in. yellow (blue) inlet tubing and 1/
8 in. orange (white) outlet tubing to proper fittings of flush valve (3).
(5) Close upper housing, or install cover on Whip
unit; then turn master ON/OFF switch (1) ON
and check for proper operation.
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.15
Coolant Water Flush Valve
Removal / Installation
4.16
(12:00 Casework Mtd. ProCenter Units)
Typical Supply Manifold
Removal / Installation
(ProCenter-style Units)
A. Removal
A. Removal
(1) Turn Master ON/OFF switch OFF.
(1) Turn master ON/OFF switch(1, Figure 4-16)
OFF.
(2) Tag and disconnect tubing from flush valve (1,
Figure 15).
NOTE
Steps 2 & 3 do not apply to casework mounted delivery systems. Go to step 4.
(3) Loosen set screw (2) and remove adjustment
knob (3).
(4) Hold flush valve (1) in place and remove trim
ring (4); then remove flush valve (1) from water
bottle bracket (5).
(2) Push panel unlock button (2) to access internal
components.
NOTE
B. Installation
If replacing pilot air manifold [mounted in lower housing], the following step is not necessary.
(1) Insert flush valve (1) thru water bottle
bracket (5) and secure with trim ring (4).
(3) Remove three screws (3); then lower lid
cover (4) to access manifold (5).
(2) Connect tubing to proper fittings of flush
valve (1).
(4) Tag and disconnect all tubing connected to
manifold (5).
(3) Install adjustment knob (3) and tighten set
screw (2).
NOTE
All manifolds are held in place with double sided foam
tape. There is no hardware to remove.
5
(5) Remove manifold (5).
B. Installation
4
(1) Peel backing from double sided tape [applied to
back of manifold]; then position manifold (5)
and apply pressure to secure.
1
3
(2) Connect all tubing to proper fittings of
manifold (5).
2
(3) Raise lid cover (4); then secure to upper housing (6) with three screws (3).
DA103200i
(4) Close upper housing; then turn master ON/OFF
switch (1) ON and check for proper operation.
Figure 4-15. Coolant Water Flush Valve
Removal / Installation
(12:00 Mounted ProCenter-style Units)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-12
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.17
5
ProCenter Delivery Unit Leveling
Adjustment (Chair Mtd Units only)
A. Adjustment
(1) Remove four screws (1, Figure 4-17) and bottom cover (2).
(2) Loosen three button-head screws (3) slightly.
(3) Place a level on top of delivery unit; then adjust
three leveling screws (4) until unit is level.
(4) Tighten three button-head screws (3).
(5) Replace bottom cover (2) and secure with four
screws (1).
6
4
3
2
1
KA974800i
Figure 4-16. Typical Supply Manifold
Figure 4-17. Delivery Unit Leveling Adjustment
(Chair Mtd. ProCenter Unit shown)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-13
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.18
LR Delivery Arm
Leveling Adjustment
4.19
Water Selector Valve
Removal / Installation
(Console Mounted Units)
A. Adjustment
A. Removal
(1) Remove seat upholstery; then lift seat frame to
access connection box.
(2) Remove four screws (1, Figure 4-18) and connection box cover (2).
(3) Position delivery arm (3) straight out from casting (4) as shown; then adjust three leveling
screws (5) until delivery arm is level.
(1) Remove console side cover.
EQUIPMENT ALERT
The three pieces of 1/8 in. blue tubing (1,
Figure 4-19) must be connected to the
same fittings of valve (2) during installation. Tag tubing before disconnecting to ensure proper installation.
(4) Install connection box cover (2) and secure with
four screws (1).
(5) Lower seat frame and replace seat upholstery.
Figure 4-18. LR Delivery Arm Adjustment
Figure 4-19. Water Selector Valve (Console)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-14
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
(2) Tag and disconnect three pieces of 1/8 in. blue
tubing (1, Figure 4-19) from valve (2).
(3) Hold trim ring (3) in place and unscrew
valve (2); remove trim ring, valve, washer (4),
and nut (5) from console (6).
B. Installation
(1) Install washer (4) and nut (5) onto valve (2).
(2) Insert valve (2) thru hole in console (6); then
secure with trim ring (3).
(3) Connect three pieces of 1/8 in. blue tubing to
proper fittings of valve (2).
(4) Install console side cover.
4.20
Water Selector Valve
Removal / Installation
(LR Units)
A. Removal
(1) Turn master ON/OFF switch [on delivery unit]
OFF.
(2) Remove water bottle (1, Figure 4-20).
(3) Lift cover (2); then remove two screws (3) and
separate bottle cap (4) from bracket (5).
EQUIPMENT ALERT
Residual water pressure in tubing will
result in leaks when tubing is removed in
the following step. With the toggle switch in “City”
position, depress the water button of syringe(s) until
all water pressure is removed from the system.
Figure 4-20. Water Selector Valve (LR Units)
(4) Tag and disconnect 1/8 in. blue tubing (6),
1/8 in. grey tubing w/o rib (7), and 1/8 in. grey
tubing w/rib (8) from valve (9).
(2) Connect 1/8 in. grey tubing w/rib (8),
1/8 in. grey tubing w/o rib (7), and 1/8 in. blue
tubing (6) to proper fittings of valve (9).
(5) Remove nut (10), washer (11), valve (9) and
jam nut (12) from bracket (5).
(3) Secure valve (9) to bracket (5) with washer (11)
and nut (10).
B. Installation
(1) Install jam nut (12) onto valve (9); then position
valve in bracket (5).
(4) Secure bottle cap (4) to bracket (5) with two
screws (3).
(5) Install water bottle (1); then lower cover (2).
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-15
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.21
Water Selector Valve
Removal / Installation
4.22
(12:00 Mtd. ProCenter Units)
Chair Control Touch Pad
Removal / Installation
(Chair Mtd ProCenter Units only)
A. Removal
A. Removal
(1) Turn master ON/OFF switch OFF.
(1) Disconnect all electrical power to operatory.
(2) Tag and disconnect tubing from toggle valve (1,
Figure 21).
(2) Turn air manual shut-off valve [in junction box]
OFF.
(3) Hold toggle valve (1) in place and remove trim
ring (2) and washer (3); then remove toggle
valve (1) from water bottle bracket (4).
(3) Press air button of syringe(s) until all residual
air pressure is removed from the system.
EQUIPMENT ALERT
B. Installation
(1) Insert toggle valve (1) thru water bottle
bracket (4); then install washer (3) and secure
with trim ring (2).
Residual air pressure will eject plunger (A)
from the master ON/OFF switch valve. Be
sure all air pressure is removed from the system
before performing the following step.
(2) Connect tubing to proper fittings of toggle
valve (1)
(4) Remove six screws (1, Figure 4-22) and two
screws (2); then partially separate front
cover (3) and remove master switch (4).
4
(5) Disconnect wire harness (5) from bevel/touch
pad (6).
3
2
(6) Remove screw (7), bracket (8), and bevel/touch
pad (6) from front cover (3).
B. Installation
(1) Secure bevel/touch pad (6) to front cover (3)
with bracket (8), and screw (7).
1
(2) Connect wire harness (5) to bevel/touch
pad (6).
EQUIPMENT ALERT
Ensure that switch valve plunger (A) is in
place before performing the following step.
DA103300i
Figure 4-21. Water Selector Valve
Removal /Installation
(3) Install master switch (4); then position front
cover (3) and secure with six screws (1) and
two screws (2).
(12:00 Mtd. ProCenter Units)
(4) Turn air manual shut-off valve [in junction box]
ON, connect electrical power to operatory, and
check for proper operation.
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-16
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.23
3
Chair Control Touch Pad
Removal / Installation
(12:00 Casework Mtd ProCenter Units)
A. Removal
(1) Disconnect all electrical power to unit.
6
(2) Remove four screws (1, Figure 23) and
bottom cover (2).
(3) Disconnect wire harness (3) from touch pad (4).
(4) Remove screw (5), bracket (6), and touch
pad (4).
8
B. Installation
7
5
(1) Install touch pad (4) and secure with bracket (6)
and screw (5).
(2) Conect wire harness (3) to touch pad (4).
(3) Install bottom cover (2) and secure with four
screws (1).
4
2
A
4
5
1
2
KA975301i
Figure 4-22. Chair Control Touch Pad
Removal / Installation (Chair Mtd. ProCenter Units)
6
3
1
DA103400i
Figure 4-23. Chair Control Touch Pad
Removal / Installation (12:00 Mtd. ProCenter Units)
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-17
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
Cuspidor
4.24
A. Installation
(1) Position cuspidor bowl (6) over bottom
housing (7) and gently press downward.
Cuspidor Bowl
(4) Turn master ON/OFF switch [on delivery unit] to
OFF position.
(2) Install cup fill gasket (2) onto cup fill spout (1);
then insert cup fill spout into hole (A).
(3) Install bowl flush gasket (4) onto bowl flush
spout (3); then insert bowl flush spout into
hole (B).
NOTE
To prevent residual water spilling, place finger over
end of spouts when removing.
(4) Install gold trap (5).
(5) Remove cup fill spout (1, Figure 4-24), cup fill
gasket (2), bowl flush spout (3), bowl flush gasket (4), and gold trap (5).
(5) Turn master ON/OFF switch ON and check for
proper operation.
NOTE
4.25
Typical Push Button Valve
Cuspidor bowl is pressure-fit. There is no hardware to
remove.
A. Removal
NOTE
Figure 4-25 shows the bowl flush button valve. The
procedure for the cup fill button valves is similar.
(1) Remove cuspidor bowl. Refer to para 4.24.
(2) Tag and disconnect all tubing connected to
push button valve (1, Figure 4-25).
(3) Remove barbed fitting (2) and gasket (3) from
push button valve (1).
(4) Loosen set screw (4) and remove knob (5).
(5) Unscrew push button valve (1); then remove
valve, washer (6), and trim ring (7) from bottom
housing (8).
B. Installation
(1) Insert push button valve (1) thru washer (6),
and bottom housing (8).
(2) Secure push button valve (1) with trim ring (7).
(3) Install knob (5) and tighten set screw (4).
(4) Install gasket (3) and barbed fitting (2) onto
push button valve (1).
Figure 4-24. Cuspidor Bowl
(6) Remove cuspidor bowl (6).
© Midmark Corporation 2000 SF-1621 Rev.10/01
Page 4-18
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
Figure 4-26. Cup Fill Water Valve
B. Installation
Figure 4-25. Typical Push Button Valve
(1) Secure cup fill water valve (1) to valve
bracket (3) with screw (4) and washer (5).
(5) Connect all tubing to proper fittings of push button valve (1).
(2) Install valve bracket (3) into bottom housing (6)
and secure with two screws (2).
(6) Install cuspidor bowl. Refer to para 4.24.
4.26
(3) Connect 1/4 in. blue tubing and 1/8 in. red
tubing to proper fittings of cup fill water
valve (1).
Cup Fill Water Valve
A. Removal
(1) Remove cuspidor bowl. Refer to para 4.24.
(2) Tag and disconnect 1/4 in. blue tubing and
1/8 in. red tubing from cup fill water valve (1,
Figure 4-26).
(4) Install cuspidor bowl. Refer to para 4.24.
4.27
A. Removal
(1) Remove cuspidor bowl. Refer to para 4.24.
(3) Remove two screws (2) and valve bracket (3).
(2) Tag and disconnect 1/4 in. blue tubing and 1/8
in. red tubing from bowl flush water valve (1,
Figure 4-27).
(4) Remove screw (4), washer (5), and cup fill
water valve (1) from valve bracket (3).
© Midmark Corporation 2000 SF-1621 Rev.10/01
Bowl Flush Water Valve
Page 4-19
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
Figure 4-28. Bowl Flush Solenoid
Figure 4-27. Bowl Flush Water Valve
B. Installation
(3) Remove screw (2) and bowl flush water
valve (1).
(1) Connect 1/8 in. yellow tubing and 1/8 in. red
tubing proper fittings of solenoid (3).
B. Installation
(2) Connect electrical lead (2) to solenoid (3).
(1) Secure bowl flush water valve (1) to bottom
housing (3) with screw (2).
(3) Install solenoid (3) and secure to bottom housing (4) with two screws (1).
(2) Connect 1/4 in. blue tubing and 1/8 in. red
tubing to proper fittings of bowl flush water
valve (1).
(4) Install cuspidor bowl. Refer to para 4.24.
4.29
(3) Install cuspidor bowl. Refer to para 4.24.
4.28
A. Adjustment (Refer to Figure 4-29)
Bowl Flush Solenoid
(1) To increase the length of time the bowl flush/
cup fill water runs, insert a screwdriver thru
proper hole in bottom housing; then turn
valve adjuster counterclockwise.
A. Removal
(1) Remove cuspidor bowl. Refer to para 4.24.
(2) Remove two screws (1, Figure 4-28).
(2) To decrease the length of time the bowl flush/
cup fill water runs, insert a screwdriver thru
proper hole in bottom housing; then turn
valve adjuster clockwise.
(3) Disconnect electrical lead (2) from solenoid (3).
(4) Tag and disconnect 1/8 in. yellow tubing and
1/8 in. red tubing from solenoid (3); then
remove solenoid.
Cup Fill / Bowl Flush Timing Valve
B. Removal (Earlier Units)
(1) Remove cuspidor bowl. Refer to para 4.24.
© Midmark Corporation 2000 SF-1621 Rev.2/06
Page 4-20
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
(2) Secure timing adjustment valve (4) to mounting
plate (2) with nut (5), washer (6), and trim
ring (7).
(3) Connect tubing to proper fitting of timing adjustment valve (4).
Cup
Fill
Bowl
Flush
Decrease
Fill / Flush
Time
Increase
Fill / Flush
Time
KA972000i
Figure 4-29. Timing Valve Adjustment
(2) Remove four screws (1, Figure 4-30); then partially separate mounting plate (2) from bottom
housing (3).
(3) Tag and disconnect tubing connected to timing
adjustment valve (4).
(4) Unscrew timing adjustment valve (4); then
remove valve, nut (5), washer (6), and trim
ring (7) from mounting plate (2).
Figure 4-30. Cup Fill / Bowl Flush Timing Valve
(4) Position mounting plate (2) and secure to bottom housing (3) with four screws (1).
(5) Remove set screw (8) and valve adjuster (9)
from timing adjustment valve (4).
(5) Install cuspidor bowl. Refer to para 4.24.
C. Installation (Earlier Units)
(1) Install valve adjuster (9) onto timing adjustment
valve (4) and secure with set screw (8).
© Midmark Corporation 2000 SF-1621 Rev.2/06
D. Removal (Present Units)
Page 4-21
(1) Remove cuspidor bowl. Refer to para 4.24.
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
(2) Tag and disconnect all tubing from valve
assembly (1, Figure 4-32).
(2) Remove four screws (1, Figure 4-31); then partially separate mounting plate (2) from bottom
housing (3).
2
1
3
4
5
Figure 4-32. Cup Filler (Primary / Pilot) Air Valve
Figure 4-31. Cup Fill / Bowl Flush Timing Valve
(3) Tag and disconnect tubing connected to timing
adjustment valve(s) (4).
(3) Remove valve cap (A) from valve body (B); then
remove valve body from mounting plate (2).
B. Installation
(4) Remove mounting screws (5) and timing adjusting valve(s) (4).
(1) Insert valve body (B) thru mounting plate (2);
then install valve cap (A) to secure in place.
E. Installation (Present Units)
(2) Connect all tubing to proper fittings of valve
assembly (1).
(1) Place timing adjusting valve(s) (4) in position
and secure with mounting screws (5).
(2) Connect tubing to proper fitting(s) of timing
adjustment valve (4).
(3) Position mounting plate (2) and secure to bottom housing (3) with four screws (1).
(3) Install cuspidor bowl. Refer to para 4.24.
4.31
A. Removal
(1) Remove cuspidor bowl. Refer to para 4.24.
(4) Install cuspidor bowl. Refer to para 4.24.
4.30
(2) Remove four screws (1, Figure 4-33); then partially separate mounting plate (2) from bottom
housing (3).
Cup Fill (Primary / Pilot) Air Valve
A. Removal
(3) Remove two screws (4) and switch bracket (5).
NOTE
(4) Disconnect wiring harness (6) from limit
switch (7).
The pilot air valve has 2-Way sticker on valve. The
primary air valve has 3-Way sticker on valve.
(5) Remove two screws (8), two nuts (9), and limit
switch (7).
(1) Remove cuspidor bowl. Refer to para 4.24.
© Midmark Corporation 2000 SF-1621 Rev.2/06
Cuspidor Limit Switch
Page 4-22
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
(2) Gently tap roll pin (1, Figure 4-34) out of syringe
body (2) until malfunctioning button valve (3) is
released.
1
2
4
9
7
8
5
3
6
Figure 4-34. Syringe Button Valve
KA973600i
Figure 4-33. Cuspidor Limit Switch
(3) Remove button valve (3) and spring (4).
B. Installation
B. Installation
(1) Secure limit switch (7) to switch bracket (5) with
two screws (8) and two nuts (9).
(2) Connect wiring harness (6) to terminals of limit
switch (7). Note: The black wire must connect
to the terminal marked COM, and the red wire
must connect to the terminal marked NO.
NOTE
Align hole in button valve with roll pin when installing.
(1) Install spring (4) and button valve (3) into
syringe body (2); then gently tap roll pin (1) thru
button valve.
(3) Secure switch bracket (5) to bottom housing (3)
with two screws (4).
(2) Turn master ON/OFF switch ON and check for
proper operation.
(4) Position mounting plate (2) and secure to bottom housing (3) with four screws (1).
4.33
(5) Install cuspidor bowl. Refer to para 4.24.
A. Removal
Assistant’s Instrument Unit
4.32
(1) Disconnect all electrical power to operatory.
Syringe Button Valve
(2) Turn master ON/OFF switch [on delivery unit] to
OFF position.
A. Removal
(1) Turn master ON/OFF switch [on delivery unit] to
OFF position.
© Midmark Corporation 2000 SF-1621
Chair Control Touch Pad
Rev.2/06
Page 4-23
(3) Remove solids collector cover (1, Figure 4-35)
and screw (2).
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
(4) Remove four screws (3) and partially separate
top cover (4) from bottom housing (5).
4.34
Water Quick Connect Valve
A. Removal
(5) Disconnect wire harness (6) from bevel/touch
pad (7); then remove top cover (4).
(6) Remove screw (8), bracket (9), and bevel/touch
pad (7) from top cover (4).
B. Installation
(1) Secure bevel/touch pad (7) to top cover (4) with
bracket (9), and screw (8).
(1) Turn master ON/OFF switch [on delivery unit] to
OFF position.
(2) Remove solids collector cover (1, Figure 4-36)
and screw (2).
(3) Remove four screws (3) and top cover (4) from
bottom housing (5).
(2) Connect wire harness (6) to bevel/touch
pad (7).
(4) Unscrew compression nut (6) and disconnect
1/4 in. blue tubing (7) from valve (8); then
remove coupler (9) from tubing.
(3) Install top cover (4) and secure to bottom housing (5) with four screws (3).
(5) Remove nut (10) and valve (8) from bottom
housing (5).
(4) Install screw (2) and solids collector cover (1).
(5) Turn master ON/OFF switch [on delivery unit]
ON, connect electrical power to operatory, and
check for proper operation.
7
1
4
2
6
9
5
8
3
KA975401
Figure 4-36. Water Quick Connect Valve
Figure 4-35. Chair Optional Touch Pad
© Midmark Corporation 2000 SF-1621 Rev. 2/06
Page 4-24
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
Flex Arm
B. Installation
(1) Insert valve (8) thru hole in bottom housing (5);
then secure with nut (10).
4.35
(2) Install compression nut (6) and coupler (9) onto
1/4 in. blue tubing (7); then connect tubing to
valve (8).
A. Removal
(1) Remove two screws (1, Figure 4-37) and two
end caps (2).
(3) Tighten compression nut (6).
(4) Install top cover (4) and secure to bottom housing (5) with four screws (3).
Flex Arm Cover
(2) Remove flex arm cover (3) and bottom cover (4)
from flex arm (5).
B. Installation
(5) Install screw (2) and solids collector cover (1).
(1) Hold bottom cover (4) in place, then slide flex
arm cover (3) over flex arm (5).
(6) Turn master ON/OFF switch [on delivery unit]
ON and check for proper operation.
(2) Install two end caps (2) and secure with two
screws (1).
2
3
5
2
1
1
2
3
4
1
4
KA973400i
Figure 4-37. Flex Arm Cover
© Midmark Corporation 2000 SF-1621 Rev.2/06
Page 4-25
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.36
Flex Arm Spring Tension Adjustment
(2) Remove retaining ring (1, Figure 4-39); then
(while supporting delivery unit) remove clevis
pin (2) and two lock pawls (3) from cylinder
block assembly (4).
A. Adjustment
(1) Remove flex arm cover. Refer to para 4.35.
(2) Adjust tension nut (1, Figure 4-38) to increase
or decrease spring tension.
Figure 4-39. Lock Pawl
(3) Remove two screws (5), two washers (6), and
pivot bracket (7) from damaged lock pawl (3).
B. Installation
(1) Secure pivot bracket (7) to lock pawl (3) with
two washers (6) and two screws (5).
Figure 4-38. Flex Arm Spring Tension Adjustment
(3) Raise and lower flex arm; then move flex arm to
horizontal position and observe. Flex arm
should be easy to move, yet not drift downward
when released. Repeat step 2 as necessary.
NOTE
Be sure slotted holes in pivot brackets (7) are
positioned over the ends of cylinder pin.
(2) Insert clevis pin (2) thru one lock pawl (3),
cylinder block (4), and other lock pawl (3); then
secure clevis pin with retaining ring (1).
(4) Install flex arm cover. Refer to para 4.35.
4.37
Lock Pawl
A. Removal
(3) Install flex arm cover. Refer to para 4.35.
(1) Remove flex arm cover. Refer to para 4.35.
CAUTION
The delivery unit will drop when clevis pin
is removed in the following step. Use an
assistant to hold the delivery unit, or place support
under delivery unit prior to removing clevis pin. Failure to do so could result in personal injury or damage
to delivery unit.
© Midmark Corporation 2000 SF-1621 Rev.2/06
Page 4-26
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
4.38
Lock Cylinder
A. Removal
(1) Remove flex arm cover. Refer to para 4.35.
(2) Remove lock pawls. Refer to para 4.37.
EQUIPMENT ALERT
The 1/8 in. brown tubing has a short section of wire inserted to prevent kinking.
Retain wire for installation.
(3) Disconnect 1/8 in. brown tubing from fitting (1,
Figure 4-40).
(4) Remove fitting (1) and gasket (2) from cylinder
block assembly (3).
(5) Loosen set screw (4); then remove lock
cylinder (5) from cylinder block assembly (3).
(6) Remove cylinder pin (6) from lock cylinder (5).
B. Installation
EQUIPMENT ALERT
Thread cylinder pin onto lock cylinder so
that only 1-2 threads are exposed at the
end of the plunger.
(1) Install cylinder pin (6) onto lock cylinder (5).
Figure 4-40. Lock Cylinder
(2) Insert lock cylinder (5) into cylinder block
assembly (3) until end of cylinder is flush with
block; then tighten set screw (4).
(3) Install fitting (1) and gasket (2) into lock
cylinder (4).
EQUIPMENT ALERT
Be sure the short section of wire is
installed in 1/8 in. brown tubing before connecting to fitting (1). Failure to do so could allow tubing to kink, preventing proper operation.
(4) Connect 1/8 in. brown tubing to fitting (1).
(5) Install lock pawls. Refer to para 4.37.
(6) Install flex arm cover. Refer to para 4.35.
© Midmark Corporation 2000 SF-1621 Rev. 2/06
Page 4-27
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
Alternative Handpiece Installation
4.39
(4) Disconnect two pieces of 1/8” clear tubing (6)
from 1/8” clear tube (7); then insert straight
barb fitting (8).
Lares® Handpiece Tubing Installation
NOTE
A. Removal of Existing Handpiece Tubing
If removing 3-port tubing, the following Removal step
is not necessary. Go to Installation procedure.
(1) Disconnect three handpiece tubes (1,
Figure 4-41) from kink valve (2).
(5) Disconnect handpiece tube (9) from 1/4” clear
exhaust tube (10).
(2) Disconnect 1/8” green tube (3) from kink
valve (2).
(3) Disconnect two pieces of 1/8” green tubing (4)
from 1/8” green tube (3); then insert straight
barb fitting (5).
4
10
5
3
9
2
1
6
7
8
DA111700i
Figure 4-41. Removal of Existing Handpiece Tubing
© Midmark Corporation 2000 SF-1621 Rev. 2/06
Page 4-28
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
B. Installation of Lares ® Handpiece Tubing
(1) Route Lares®tubing (1, Figure 4-42) up thru
hole in delivery unit; then connect 1/4” clear
tube (2) to kink valve (3) as shown.
(2) Install uni-clamp (4) onto 1/8” blue tube (5) and
connect to kink valve (3) as shown.
(3) Install a 1/8” to 1/4” barb fitting (6) into 1/8”
clear tube (7); then connect to 1/4” clear
exhaust tube (8).
8
6
4
2
7
1
3
5
DA111600i
Figure 4-42. Lares® Handpiece Tubing Installation
© Midmark Corporation 2000 SF-1621 Rev. 2/06
Page 4-29
Printed in U.S.A.
Go To Table Of Contents
SECTION IV
MAINTENANCE / SERVICE
© Midmark Corporation 2000 SF-1621
Page 4-30
Printed in U.S.A.
Go To Table Of Contents
Return To Table Of Contents
Midmark Corporation
60 Vista Drive
P.O. Box 286
Versailles, Ohio 45380-0286
937-526-3662
Fax 937-526-5542
midmark.com
Subject to change without notice.
Refer to www.Documark.com for latest revision.
© Midmark Corporation - 2005
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
