EN FREEZER / REFRIGERATOR
FR RÉFRIGÉRATEUR / CONGÉLATEUR
ES REFRIGERADOR CON CONGELADOR
242090205 March 2012

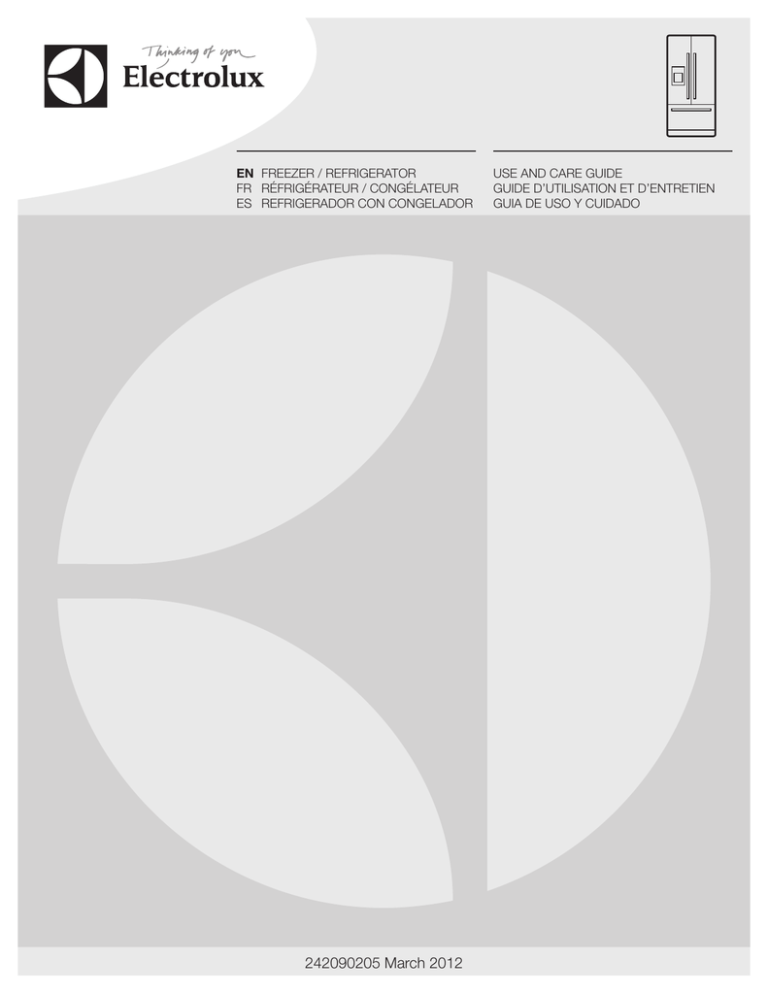

USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
2
Finding Information
Please read and save this guide
Table of contents
Thank you for choosing Electrolux, our new premium
brand in home appliances. This Use & Care Guide is part
of our commitment to customer satisfaction and product
quality throughout the service life of your new appliance.
Finding Information....................................................2
Safety............................................................................3
Feature Overview........................................................5
Keep a record for
quick reference
Installation...................................................................6
Removing the Doors.................................................10
Installing Door Handles............................................12
Purchase date
Connecting the Water Supply..................................13
Controls......................................................................14
Electrolux model number
Automatic Ice & Water Maker/Dispenser..............19
Automatic Ice Maker - Freezer................................21
Electrolux serial number
NOTE
Storage Features......................................................22
Registering your product with Electrolux enhances our
ability to serve you. You can register online at www.
electroluxappliances.com or by sending your Product
Registration Card in the mail.
Storing Food and Saving Energy............................27
Normal Operating Sounds & Sights........................28
Changing the Water and Air Filters.........................29
Questions?
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit http://
www.electroluxappliances.com
Care and Cleaning....................................................31
Solutions to Common Problems.............................34
Warranty.....................................................................38
Installation Checklist
Doors
Ice Maker
 Handles are secure and tight
 House water supply connected to refrigerator
 Door seals completely to cabinet on all sides
 No water leaks present at all connections recheck in 24 hours
 Freezer drawer is level across top
Leveling
 Refrigerator is level, side-to-side and tilted ¼ in.
(6 mm) front-to-back
 Toe grille is properly attached to refrigerator
 Cabinet is setting solid on all corners
Electrical Power
 House power turned on
 Refrigerator plugged in
 Ice maker is turned ON
 Ice & water dispenser operates correctly
 Front filter must be flush with filter housing (select
models)
Final Checks
 Shipping material removed
 Fresh food and freezer temperatures set
 Crisper humidity controls set
 Registration card sent in
Safety
Important safety instructions
Safety Precautions
Do not attempt to install or operate your unit until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a Danger,
Warning, or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
Indicates installation, operation, or maintenance
information which is important but not hazard-related.
General Safety
WARNING
Please read all safety instructions before using
your new refrigerator.
• Do not store or use gasoline or other flammable
liquids near this or any other appliance. Read
product labels for warnings regarding flammability
and other hazards.
• Do not operate the refrigerator in the presence of
explosive fumes.
• Avoid contact with any moving parts of the
automatic ice maker.
• Remove all staples from the carton to avoid injury.
Staples can also damage finishes if they come in
contact with other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs, bedspreads,
plastic sheets, or stretch wrap may become
airtight chambers and can quickly cause
suffocation.
• Destroy or recycle the product’s carton, plastic
bags, and any other exterior wrapping material
immediately after the refrigerator is unpacked.
Children should never play with these items.
Child Entrapment and Suffocation:
• These problems are not limited to the past.
Whether junked, abandoned, or temporarily stored
(even for a few hours), unattended refrigerators
and freezers are dangerous. Please take the
precautions listed below.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance recycling/
disposal methods. Check with your utility company or
visit www.energystar.gov/recycle for more information on
recycling your old refrigerator.
Before you recycle or dispose of your old refrigerator/
freezer:
• Remove the doors.
• Leave the shelves
and baskets in place
so children may not
easily climb inside.
• Have refrigerant
and compressor
oil removed by a
qualified service
technician.
3
4
Safety
Electrical information
WARNING
You must follow these guidelines to ensure
that your refrigerator’s safety mechanisms are
operating correctly.
• The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz, AC-only non-GFCI
electric outlet. The power cord of the appliance
is equipped with a three-prong grounding plug for
your protection against electrical shock hazards. It
must be plugged directly into a properly grounded
three-prong receptacle. The receptacle must
be installed in accordance with local codes and
ordinances. Consult a qualified electrician. Do not
use an extension cord or adapter plug.
• If the power cord is damaged, it should be
replaced by the manufacturer, service technician,
or a qualified person.
• Never unplug the refrigerator by pulling on the
power cord. Always grip the plug firmly and
pull straight out from the receptacle to prevent
damaging the power cord.
• To avoid electrical shock, unplug the refrigerator
before cleaning and before replacing a light bulb or
LED light.
• Performance may be affected if the voltage varies
by 10% or more. Operating the refrigerator with
insufficient power can damage the compressor.
Such damage is not covered under your warranty.
• Do not plug the unit into an outlet controlled by a
wall switch or pull cord to prevent the refrigerator
from being turned off accidentally.
IMPORTANT
To turn off power to your refrigerator, unplug the power
cord from the wall outlet.
Feature Overview
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. The illustration below is
provided to assist you with familiarizing yourself with product features and terminology.
NOTE
*Features may vary according to model. Model is shown without freezer drawer cover.
*Air
Filter
*Incandescent Light
Ice Bin
Flipper Guide
Ice Maker
*LED Light
Dairy Compartment
Flipper
Mullion
*Air
Filter
Luxury-DesignTM
Shelves
Luxury-DesignTM
Shelves
Crisper
Drawer
Crisper
Drawer
*Special
Items Rack
(inside PTD)
*Tilt Can
Bin
*LED Light
LED Light
*Perfect TempTM Drawer
(PTD)
or Deli Drawer
(with humidity slides)
Water
Filter
*Adjustable
Hinges
Freezer Baskets
*Freezer
Ice maker
Toe Grille
IMPORTANT
Features not included with your refrigerator can be
purchased at www.electroluxappliances.com or by
calling 1-877-435-3287.
*Wire Tilt-Out Shelf (inside freezer drawer)
5
6
Installation
Required Tools
You will need the following tools:
This Use & Care Guide provides general installation and
operating instructions for your model. We recommend
using a service or kitchen contracting professional to
install your refrigerator. Use the refrigerator only as
instructed in this Use & Care Guide. Before starting
the refrigerator, follow these important first steps.
Location
• Choose a place that is near a grounded, nonGFCI, electrical outlet. Do Not use an extension
cord or an adapter plug.
• If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher, or
other heat sources.
• The refrigerator must be installed on a floor that is
level and strong enough to support a fully loaded
refrigerator.
• Consider water supply availability for models
equipped with an automatic ice maker.
CAUTION
DO NOT install the refrigerator where the
temperature will drop below 55°F (13°C) or rise above
110°F (43°C). The compressor will not be able to
maintain proper temperatures inside the refrigerator.
DO NOT block the toe grille on the lower front of your
refrigerator. Sufficient air circulation is essential for
the proper operation of your refrigerator.
Installation
• Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
Sides & Top
Back
³⁄₈ inch (9.5 mm)
1 inch (25.4 mm)
NOTE
If your refrigerator is placed with the door hinge against
a wall, you may have to allow additional space so the
door can be opened wider.
Door opening
NOTE
The refrigerator doors are designed to shut by
themselves within a 20-degree opening.
Your refrigerator should be positioned to allow easy
access to a counter when removing food. For best use of
refrigerator drawers and freezer baskets, the refrigerator
should be in a position where both can be fully opened.
Installation
Leveling Freezer Drawer (if necessary)
1 Check gasket seal around top, bottom, and sides
of freezer drawer.
2 If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
2You can raise or lower each door. Use a ³⁄₈ inch
socket wrench to turn the adjustment screws (1
per side).
3 Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Do Not Remove
Other Screws
To raise: turn adjustment screw clockwise.
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
To lower: turn adjustment screw counterclockwise.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
4 Tighten four (4) drawer screws.
4 After unit is leveled, lower anti-tip leg until it
contacts the floor.
5 Recheck gasket seal.
Grab Drawer
At Center
From Both Sides
Then
Pull Drawer Out
Push Against
Freezer Drawer
Door
A
Door
B
Raise
Level Refrigerator & Adjust
Doors (if necessary)
Anti-tip
Leg
Lower
Guidelines for final positioning of your refrigerator:
• All four corners of the cabinet must rest firmly on
the floor.
• The sides should tilt 1/4 inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
• Doors should align with each other and be level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
5 Install the toe grille by fitting into place.
7
8
Installation
To adjust the door stop:
5 Retighten screw.
Door stop is adjustable between 85 to 145 degrees.
NOTE
View shown is looking up at the bottom of the
refrigerator door.
Retighten Screw
6 Ensure door stops in desired location before
resuming normal use.
To level the doors using the adjustable lower hinge
(select models):
Adjustable Door Stop
1 Remove all food items from door bins on door
being adjusted.
1 Open door to provide access to screw.
2 Open doors to 90 degrees.
2 Loosen screw.
3 Loosen or remove screw.
3 Adjust door to desired location.
B Loosen or Remove
Screw
Open
A Door
90
degrees
Bottom of Door
Adjusting Door
4 Rotate door stop until it makes contact with the
lower hinge.
Loosen/Remove Screw (where applicable)
NOTE
Adjustable hinge should only be used after doors have
been leveled with rollers.
Installation
4 Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counterclockwise (when viewed from the bottom).
To adjust the flipper mullion:
1Loosen the screw located on the flipper mullion hinge.
Adjusting Flipper Mullion Screw
Raising/Lowering Door
5 Retighten the screw (where applicable), ensuring it is
between the spokes of the washer. Screw will not
be tight, just insert until it is flush with the hinge.
2 Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
Screw (where applicable)
Adjusting Flipper Mullion Height
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace
with the longer one supplied in the handle package.
3 Retighten screw.
9
10 Removing the Doors
Getting through narrow spaces
If your refrigerator will not fit through an entrance area,
you can remove the doors. Check first by measuring
the entrance.
To remove the refrigerator doors:
1 Trace lightly around the door’s top hinges with a
pencil. This makes reinstallation easier.
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged
from the wall outlet.
2 Open the freezer drawer and remove the toe grille
(see “Installation” section).
3 Remove any food from the door shelves and close
the doors.
To remove the top hinge covers:
1 Remove the two (2) screws from each cover over
the top door hinges.
2 Lift inside edge of hinge cover and tilt back.
2 Disconnect the harness by grasping both sides of
the connector firmly, depress the latch, and pull
apart. Remove the two (2) screws from the top
hinge. Lift the door off of the bottom hinge and set
it aside.
3 Detach the water tube from the connector located behind the refrigerator and pull the tube
back out to the front of the unit. The connector
releases when you press inward on the outer
sleeve while pushing the tube toward the
connector then while continuing to hold in the
sleeve, pull the tube away.
NOTE
Use care while pulling the water tube from the unit to
be sure you do not kink it.
NOTE
DO NOT remove the ground screw from hinge.
5
Removing the Doors 11
Installing Freezer Drawer
NOTE
You will be pulling approximately five (5) feet of water
tube from the back of the refrigerator.
1 With lower slides pulled out, hang drawer onto
slide brackets ensuring pins on each side are fully
inserted into slots on each side.
4 Unscrew the three (3) lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above steps.
Drawer
Assembly
Lower Hinge Removal
Fully Extend
Drawer Slides
Pin
Cabinet
Slot
Once both doors are in place, ensure they are aligned with
each other and level (Please see the “Installation” section
for more details), and replace the top hinge cover.
2 Reinstall four (4) drawer screws (two (2) per side),
tighten down, and close drawer (C).
NOTE
When reinserting the water tube and replacing the top
hinge cover, use care to be sure you do not kink the tube.
Install Hex
Head Drawer
Screws
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury,
or damage to the doors or handles.
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left sides (two
(2) screws on each side).
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
3 Check gasket seal around top, bottom, and sides
of freezer drawer.
4 If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Do Not Remove
Other Screws
Grab Drawer
At Center
From Both Sides
Then
Pull Drawer Out
Push Against
Freezer Drawer
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
CAUTION
Drawer is heavy. Use caution when lifting.
3 Lift drawer up and out to remove.
A
B
6 Tighten four (4) drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
12 Installing Door Handles
Door Handle
Mounting Instructions
1 Remove handles from
protective packaging.
2 Position fresh food handle
end caps (A) over upper and
lower pre-installed shoulder
bolts (B) that are fastened
into door, ensuring the holes
for the set screws are facing
towards the opposite door. 3 While holding handle firmly
against door, fasten upper
and lower Allen set screws (C)
with supplied Allen wrench.
4 Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards the
first door.
5 Position freezer handle end
caps over left and right preinstalled shoulder bolts that
are fastened to the drawer,
ensuring the holes for the set
screws are facing down.
6 While holding handle firmly
against drawer, fasten left and
right Allen set screws (C) with
supplied Allen wrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
NOTE
To ensure that handles are flush with doors/drawer, make sure that set screws are completely tightened.
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
Connecting the Water Supply 13
WARNING
To avoid electric shock, which can cause death or
severe personal injury, disconnect the refrigerator
from electrical power before connecting a water
supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing is
recommended for the water supply line. Water
supply tubing made of ¼ inch plastic is not
recommended to be used. Plastic tubing greatly
increases the potential for water leaks, and the
manufacturer will not be responsible for any
damage if plastic tubing is used for the supply
line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker. If the ice maker
is connected to soft water, ensure that the
softener is maintained and working properly.
IMPORTANT
Ensure that your water supply line connections comply
with all local plumbing codes.
Before installing the water supply line, you will need:
1. Basic Tools: adjustable wrench, flat-blade
screwdriver, and PhillipsTM screwdriver
2. Access to a household cold water line with water
pressure between 30 and 100 psi.
3. A water supply line made of ¼ inch (6 mm) OD,
copper or stainless steel tubing. To determine the
length of tubing needed, measure the distance
from the ice maker inlet valve at the back of
the refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning (as
shown).
4. A shutoff valve to connect the water supply line to
your household water system. DO NOT use a selfpiercing type shutoff valve.
5. Do NOT reuse compression fitting or use thread
seal tape.
6. A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the ice
maker inlet valve.
To connect water supply line to ice maker inlet valve:
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket.
Turn ON water supply and flush supply line until
water is clear. Turn OFF water supply at shutoff
valve.
3. Remove plastic cap from water valve inlet and
discard cap.
4.If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto water
supply line. Push water supply line into water
valve inlet as far as it will go (¼ inch / 6 mm). Slide
ferrule (sleeve) into valve inlet and finger tighten
compression nut onto valve. Tighten another half
turn with a wrench; DO NOT over- tighten. See
Figure 1.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing. Slide
compression nut onto valve inlet and finger tighten
compression nut onto valve. Tighten another half
turn with a wrench; DO NOT over- tighten. See
Figure 2.
5. With steel clamp and screw, secure water supply
line (copper tubing only) to rear panel of refrigerator
as shown.
6. Coil excess water supply line (copper tubing only),
about 2½ turns, behind refrigerator as shown
and arrange coils so they do not vibrate or wear
against any other surface.
7. Turn ON water supply at shutoff valve and tighten
any connections that leak.
8. Reconnect refrigerator to electrical power source.
9.To turn ice maker on, lower wire signal arm (freezer
ice maker) or set the ice maker’s On/Off power
switch to the “On” position (fresh food ice maker).
Plastic Water Tubing
to Ice Maker
Fill Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Figure 1
Figure 2
NOTE
Check with your local building authority for recommendations on water lines and associated materials prior to installing
your new refrigerator. Depending on your local/state building codes, Electrolux recommends for homes with existing
valves its Smart Choice® water line kit 5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an
existing valve, Electrolux recommends its Smart Choice water® line kit 5305510264 (with a 20 ft. Copper Water Line with
self-tapping saddle valve). Please refer to www.electroluxappliances.com for more information.
14 Controls
Wave-Touch
TM
IQ-Touch
TM
Controls 15
Wave-TouchTM (select models)
Your refrigerator is equipped with a Wave-TouchTM
control panel display. It is only necessary to gently touch
the glass. There are three (3) levels of display.
1st Level: Sleep Mode
IMPORTANT
When the ice maker is turned off, the ice in the bucket
should be transferred to the freezer or discarded to
prevent it from melting.
3rd Level: User Variable Options
Sleep Mode displays only the WATER, CUBES and
CRUSHED options. Touch an icon to activate the desired
dispenser mode. The active dispenser mode is more
brightly illuminated.
2nd Level: Awakened Display Mode
The control panel is awakened by touching anywhere on
the glass where there is an indicator. Black space will not
awaken the display. After 10 seconds of inactivity, the
control panel will return to the Sleep mode.
The following dispenser options are illuminated:
ice off
(Fresh
Food Ice
Maker)
fast freeze
Press and hold for three (3) seconds to turn
the ice maker “ON” or “OFF”. The ice maker is
OFF when the LED above the “Ice Off” icon is
illuminated. If there is no red indicator, then the
ice maker is ON. Turning the ice maker “OFF”
disables the ice dispensing feature. Neither
“CUBES” nor “CRUSHED” will operate with
the ice maker “OFF”.
Activates a faster rate for freezing food and
increased ice production.
NOTE
Refer to Automatic Ice Maker-Freezer section for
freezer ice maker controls.
dispenser light On / Off
control lock
Press and hold for three (3) seconds to activate and deactivate. This restricts undesired
changes to the refrigerator’s settings and
prevents use of the ice and water dispenser.
Touching the options icon displays the following options:
vacation mode Conserves energy by increasing the time
between automatic defrost. This feature is
automatically activated during long periods
between door openings. Vacation mode is
manually activated when the red indicator is
lit.
water filter
Touch to display filter condition status. Press
and hold for three (3) seconds to reset after
filter change.
air filter Touch to display filter status. Press and
hold for three (3) seconds to reset after filter
change.
temp display When active, it allows the display of the
freezer and fridge temps during “Sleep
Mode”. The temperature is displayed when the red indicator is lit.
temp mode
Touch to toggle display from Fahrenheit to
Celsius.
mute sounds Tones emitted by each keypress can be
turned off based on user preference. The
sounds are muted when the red indicator is
lit. Warning signals will stay active.
factory default Resets all refrigerator settings such as temp,
temp display, and alarm tones to their factory default settings.
on off
Press and hold for three (3) seconds to
turn off the cooling system to clean the
refrigerator. It also turns off the ice maker, all
dispenser functions, and the Perfect TempTM
drawer (select models). The temperature
display will read OFF.
IMPORTANT
Pressing the system on/off icon does not turn off
power to your refrigerator. You must unplug the power
cord from the wall outlet.
16 Controls
Setting cooling temperatures
1 Touch the glass panel to illuminate the 2 level of
display.
nd
2 Select the options icon.
Plus (+) and minus (-)
indicators will appear on
either side of the displayed
temperatures.
Wave-TouchTM/IQ-TouchTM “Sabbath Mode”
The Sabbath Mode is a feature that disables portions of
the refrigerator and its controls for both Wave-TouchTM
and IQ-TouchTM, in accordance with observance of
the weekly Sabbath and religious holidays within the
Orthodox Jewish community.
3 Press the + or – indicator to
adjust the temperature to the desired setting.
The temperature display will begin to blink with the
first touch. After five (5) seconds of inactivity, the
display will beep to accept the new temperature.
After 10 seconds, the display times out and returns
to the basic display.
NOTE
While in Sabbath Mode, the Wave-TouchTM model will
only illuminate the -/+ keys used to turn the Sabbath
Mode Off.
Alarms
Door Ajar
High Temp Power Fail
If the door has been left open for an extended period of time, an alarm will sound
and the door ajar indicator will display on
the center of the display. The alarm is turned
off by closing the door. The alarm off key
will blink to prompt the reset of any pending
alarms. Press this key to reset any system
Alarms.
In the event of a high temperature condition,
the temperature display will blink and display
“HI”. After 20 minutes, the high temp alert
will be displayed and the alarm off icon will
illuminate until pressed, acknowledging the
alarm, at which time the highest temperature
reached will be displayed and the refrigerator will resume normal operation. All
other modes are turned off until the alarm is
acknowledged.
In the event of a power failure, the power fail alert will be displayed and the alarm
off key will blink until the alarm off icon is
pressed, acknowledging the alarm. Other
modes may be turned off until the alarm is
acknowledged. When the power fail alert is
turned off, the refrigerator will resume normal
operation. The high temp alarm may also
be illuminated until a safe operating
range temperature has been reached.
Sabbath Mode is turned ON and OFF by pressing and
holding both the outermost “-” and “+” indicators for five
(5) seconds for both the Wave-TouchTM and IQ-TouchTM
modes. The display shows “Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active for
health reasons. If a high temperature alarm is
activated during this time, for example due to a
door left ajar, the alarm will sound intermittently
for about 10 minutes. The alarm will then silence
on its own and a red high temperature icon will display.
The high temp icon will continue to display, even if the door
is closed, until the Sabbath mode is exited and the icon
reset. The refrigerator will function normally once the door is
closed, without any violation of the Sabbath/Holidays.
For further assistance, guidelines for proper usage and a
complete list of models with the Sabbath feature, please
visit the web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights, dispenser,
nor the control panel will work until Sabbath Mode
is deactivated.
Refrigerator stays in Sabbath Mode after power failure
recovery. It must be deactivated with the buttons on
the control panel.
Controls 17
IQ-TouchTM (select models)
NOTE
Although you have entered the Sabbath Mode, the ice
maker will complete the cycle it had already initiated.
The ice cube compartment will remain cold and new
ice cubes can be made with standard trays.
Sabbath Mode and the Perfect TempTM Drawer
The Perfect TempTM Drawer should be turned off for the
Sabbath/Holidays. Before putting the refrigerator into
the Sabbath mode, turn the Perfect TempTM Drawer off
by pressing the drawer on/off button. The display will
show “OFF” and the drawer will turn off. Then enter the
Sabbath mode function on the main refrigerator display.
See Wave-Touch/IQ-Touch “Sabbath Mode” section.
When in Sabbath mode, the display will not illuminate
and the drawer will remain off. The drawer can still be
used as a non-temp controlled drawer in this mode.
When the refrigerator is taken out of Sabbath mode, the
Perfect TempTM Drawer will have to be turned back on.
NOTE
Your refrigerator is equipped with a Glass Touch control
panel. It is only necessary to gently touch the glass.
There are three (3) dispenser modes:
1Water
2Ice Cubes
3Crushed Ice
A red indicator light will be illuminated above the active feature.
Touch the icon to activate the options below.
If the Perfect Temp Drawer is not turned off prior to
putting the unit into Sabbath Mode, it will continue to
adjust itself to maintain the set point even if the display
does not illuminate to show that it is still on.
TM
ice off
Press and hold for three (3) seconds to turn
the ice maker “ON” or “OFF”. The ice maker
is OFF when the LED above the “Ice Off” icon
is illuminated. If there is no indicator, then
the ice maker is ON. Turning the ice maker
“OFF” disables the ice dispensing feature.
Neither “CUBES” nor “CRUSHED” will operate with the ice maker “OFF”.
(Fresh
Food Ice
Maker)
fast freeze
Activates a faster rate for freezing food and
increased ice production.
dispenser light On / Off
NOTE
Refer to Automatic Ice Maker-Freezer section for
freezer ice maker controls.
control lock
Press and hold for three seconds to activate and deactivate. This restricts undesired changes to the refrigerators settings and prevents use of the ice
and water dispenser.
vacation mode Conserves energy by increasing the time
between automatic defrost. This feature is
automatically activated during long periods
between door openings. Vacation mode is
manually activated when the red indicator is
lit.
water filter
Touch to display filter condition status. Press
and hold for three (3) seconds to reset after
filter change.
air filter Touch to display filter status. Press and
hold for three (3) seconds to reset after filter
change.
18 Controls
temp display Touch to toggle the freezer and fridge temp
display on and off.
Touch and hold temp display to toggle
display from Fahrenheit to Celsius.
mute sounds Tones emitted by each key press can be
turned off based on user preference. The
sounds are muted when the red indicator is
lit. Warning signals will stay active.
Alarms
factory default Resets all refrigerator settings such as temp,
temp display and ring tones to their factory
default settings.
on off
Press and hold for three (3) seconds to turn
off the cooling system to clean the refrigerator. It also turns off the ice maker and all dispenser functions. The temperature display
will read OFF.
Door Ajar
If the door has been left open for an extended period of time, an alarm will sound
and the door ajar indicator will display on
the right side of the control panel. The alarm
is turned off by closing the door. The mute
sounds key will blink to prompt the reset of
any pending alarms. Press this key to reset
any system alarms.
High Temp In the event of a high temperature condition,
the temperature display will blink and display
“HI”. After 20 minutes, the high temp alert
will be displayed and the alarm off icon
will illuminate until pressed, acknowledging the alarm, at which time the highest
temperature reached will be displayed and
the refrigerator will resume normal operation.
All other modes are turned off until the alarm
is acknowledged.
Power Fail
In the event of a power failure, the power
fail alert will be displayed and the temperature display will blink until the mute sounds
icon is pressed, acknowledging the alarm.
Other modes may be turned off until the
alarm is acknowledged. The power fail
alert is turned off and the refrigerator will
resume normal operation. The high temp
alarm may also be illuminated until a
safe operating range temperature has
been reached.
IMPORTANT
Pressing the system on/off icon does not turn off
power to your refrigerator. You must unplug the power
cord from the wall outlet.
IMPORTANT
When the ice maker is turned off, the ice in the bucket
should be transferred to the freezer or discarded to
prevent it from melting.
Setting cooling temperatures
1 Touch the control panel to illuminate plus (+)
and minus (-) indicators on either side of the
temperatures displays.
2 Press the + or – indicator to adjust the temperature
to the desired setting.
The temperature display will begin to blink with the
first touch. The display will time out after a minute
and returns to the basic display.
Automatic Ice & Water Maker/Dispenser 19
Priming the water supply system
CAUTION
For proper dispenser operation, recommended
water supply pressure should fall between 30 psi
and 100 psi. Excessive pressure may cause water
filter to malfunction.
1 Begin filling the tank by pressing and holding a
drinking glass against the water dispenser paddle.
2 Keep the glass in
this position until
water comes out
of the dispenser. It
may take about
1½ minutes.
3 Continue dispensing
water for about
three (3) minutes
to flush the system
and plumbing
connections of any impurities (stopping to empty
the glass as necessary).
NOTE
The water dispenser has a built-in device that shuts
off the water flow after three (3) minutes of continuous
use. To reset this shutoff device, simply release the
dispenser paddle.
Ice maker operation & care
After the refrigerator is installed properly and has cooled
for several hours, the ice maker can produce ice within
24 hours. The ice maker will fill the ice bin from the rear.
You must dispense some ice to force the ice forward in
the bin. This will allow the bin to fill completely.
IMPORTANT
Your ice maker is turned on at the factory so it can work
as soon as you install your refrigerator. If you cannot
connect a water supply, set the ice maker’s On/Off icon to
Off and turn off the water supply valve; otherwise, the ice
maker’s fill valve may make a loud chattering noise when it
attempts to operate without water.
Turning the fresh food ice maker on and off
Ice production is controlled by the ice maker’s On/Off
icon on the control panel. Press and hold the “Ice Off”
icon for three (3) seconds to turn the ice maker “ON” or
“OFF”. If there is no indicator, then the ice maker is ON.
IMPORTANT
Turning off the ice maker will result in existing ice
melting in the bin.
IMPORTANT
Turning off the ice maker will disable the ice dispenser.
You will still be able to dispense water.
NOTE
The ice maker also has a built-in plastic signal bale
arm that automatically stops ice production when the
ice bin is full. This signal arm should not be used to
manually stop the ice maker.
Using the ice maker after installation
Before making ice for the first time, be sure to prime
the water supply system. Air in new plumbing lines can
result in two (2) or three (3) empty ice maker cycles.
Furthermore, if the system is not flushed, the first ice
cubes may be discolored or have an odd flavor.
IMPORTANT
On occasion, unusually small ice cubes may be noticed
in the bucket or in dispensed ice. This could occur in
normal operation of the ice maker. If you start seeing
these more frequently, it may be an indication of low
water pressure or the water filter needs to be replaced.
As the water filter nears the end of its useful life and
becomes clogged with particles, less water is delivered
to the ice maker during each cycle. Remember, if it’s
been six (6) months or longer since you last changed
your water filter, replace the water filter with a new one.
Poor quality household water may require the filter to be
changed more frequently.
20 Automatic Ice & Water Maker/Dispenser
Ice maker/dispenser tips
• If your refrigerator is not connected to a water supply
or the water supply is turned off, turn off the ice
maker by holding the On/Off soft-touch icon for three
(3) seconds.
• The following sounds are normal when the ice maker
is operating:
- Motor running - Ice dropping into ice bin
- Water valve opening or closing
- Running water
• When dispensing ice, you will hear a snapping or
clicking sound when the ice chute opens and closes.
• If you need a large quantity of ice at one time, it is best
to get cubes directly from the ice bin.
• Ice cubes stored too long may develop an odd flavor.
Empty the ice bin as explained below.
• When dispensing cubed ice, it is normal to have
a small quantity of little pieces along with the
whole cubes.
CAUTION
Remove the ice bin and shake to loosen the cubes or clean
as explained above.
CAUTION
NEVER use an ice pick or similar sharp instrument
to break up the ice. This could damage the ice bin.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely dry.
IMPORTANT
When removing or replacing the ice bin, DO
NOT rotate the auger in the ice bin. If the auger is
accidentally rotated, you must realign the auger by
turning it in 45 degree turns (see below) until the ice bin
fits into place with the drive mechanism. If the auger
is not properly aligned when replacing the ice bin, the
refrigerator will not dispense ice. The fresh food door
also may not close properly causing warm air to leak
into the fresh food compartment.
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener can
damage the ice maker.
Cleaning the ice
maker
Clean the ice maker and
ice bin at regular intervals,
especially prior to vacation
or moving.
1 Turn off the ice maker.
2 Remove the ice bin by
pulling straight out.
3 Empty and carefully
Removing Ice Bin
clean the ice bin with
mild detergent. Do not
use harsh or abrasive cleaners. Rinse with clear water.
4 Allow the ice bin to dry completely before replacing in
the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or longer) causes
ice cubes in the ice bin to melt and freeze together,
jamming the dispenser mechanism.
• You do not use the ice dispenser frequently. Ice
cubes will freeze together in the bin, jamming the
dispenser mechanism.
Adjusting Ice Bin Auger
Automatic Ice Maker - Freezer 21
Ice maker operation & care
(select models)
After the refrigerator is installed properly, the ice maker
can produce ice within 24 hours. It can completely fill an
ice bin in about three (3) days.
When using the ice maker for the first time and in order
for the ice maker to work properly, it is necessary to
clear air from water filter tubing. Once ice maker begins
making ice, allow the bucket to fill completely, then
discard the first TWO (2) FULL buckets of ice. It will
take at least two (2) days to completely fill the bucket on
regular ice making mode or 1 1/2 days on fast ice mode.
The ice maker produces approximately four (4) pounds of
ice every 24 hours depending on usage conditions.
• The following sounds are normal when the ice
maker is operating:
- Motor running - Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
Fast Ice Function
Your refrigerator is equipped with a “Smart” Fast Ice
Function, that will, if activated at your user interface,
allow an increase in ice production. You do not need to
deactivate it, if not needed, your refrigerator will operate
on normal conditions.
IMPORTANT
Your ice maker is turned on at the factory so it can
work as soon as you install your refrigerator. If you
cannot connect a water supply, lift the ice maker’s wire
signal arm to turn it off. Otherwise, the ice maker’s
fill valve may make a loud chattering noise when it
attempts to operate without water.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener can
damage the ice maker.
Turning the ice maker on and off
Ice production is controlled by lifting/lowering the ice
maker’s wire signal arm. To gain access to the ice
maker, pull the freezer drawer out. Lift the wire signal
arm to turn the ice maker OFF and lower the wire signal
arm to turn it ON.
Cleaning the ice maker
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin with mild
detergent. Do not use harsh or abrasive cleaners.
Rinse with clean water.
4 Allow the ice bin to dry completely before replacing
in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and freeze
together.
Ice maker tips
• If your refrigerator is not connected to a water
supply or the water supply is turned off, turn off the
ice maker by lifting wire signal arm.
Remove the ice bin and shake to loosen the cubes or
clean as explained above.
CAUTION
NEVER use an ice pick or similar sharp instrument
to break up the ice. This could damage the ice bin.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely dry.
22 Storage Features
CAUTION
To avoid injury from breakage, handle tempered
glass shelves carefully. Sudden temperature
changes can cause glass breakage.
NOTE
Drawers
Your refrigerator includes a variety of storage drawers.
These drawers are located in fixed positions at the
bottom of the fresh food compartment.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
Features may vary according to model.
Your refrigerator includes glass shelves that are designed
to catch and hold accidental spills.
You can easily adjust shelf positions in the fresh food
compartments to suit your needs. The shelves have
mounting brackets that attach to slotted supports at the
rear of each compartment.
To change the position of a shelf:
1 Remove all food from shelf.
2 Lift the front edge up and pull the shelf out.
3 Replace by inserting the mounting bracket hooks
into the desired support slots.
Opening Crisper Drawer
4 Lower the shelf and lock into position.
Crisper humidity control
Shelf features
Crisper drawers include a sliding control for adjusting the
humidity inside the crisper. Leafy vegetables keep best
when stored with the Humidity Control set on Higher
Humidity. Fresh fruits keep best when stored with the
Humidity Control set on Lower Humidity.
Adjusting Crisper Humidity
(varies by model)
Luxury-DesignTM Shelf (varies by model)
Storage Features 23
To remove the Crisper Drawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Cool Zone Drawer (select models)
Removing Crisper Drawer
Special items rack (select models)
The innovative design of the special items rack allows
you to store four (4) bottles of wine or soft drink bottles.
Some models are equipped with a meat keeper drawer
for short-term storage of bulk meat items. This drawer
includes sliding controls for adjusting the humidity inside.
Any meat to be kept longer than two (2) days should be
frozen. If you store fruits or vegetables in this drawer, set
it to a higher humidity.
Perfect TempTM Drawer (select models)
The Perfect TempTM Drawer is designed to keep food items at a precise temperature whether cooler, warmer, or the
same as the fresh food section of the refrigerator. The thaw setting holds a temperature for thawing frozen foods for
12 hours. At the end of that time, it then switches to the snacks setting to store the thawed food.
To operate:
1 To turn on and off, press the drawer’s On/Off button.
The numeric display will show a temperature between
“28°F and 42°F” when on and “OFF” when off.
2 Press F/C if you prefer to display Fahrenheit “F,” or
Celsius “C”.
3 Press either the up ∧ or down ∨ scroll buttons to
illuminate the desired item.
The temperature is adjusted up by pressing the +
or – buttons. The drawer will store the selected
temperature setting until it is changed.
7 The control buttons can be locked to prevent
accidental changes by pressing the control
lock button for three (3)seconds. Deactivate by
pressing for three (3)seconds again.
4 Once an option is selected, the drawer will adjust
and maintain the temperature for the setting
selected.
5 When turned off, the Perfect TempTM Drawer
functions as a standard meat pan. The Perfect
TempTM Drawer is best used for packaged food
products. Leafy vegetables and unpackaged fruits
are best kept in one of the crisper drawers.
6 The three favorite selections provide flexibility to
set and store personal temperature selections.
Opening the Drawer
24 Storage Features
IMPORTANT
DO NOT clean the display area of the Perfect TempTM
Drawer with abrasive or caustic cleaners. Wipe clean
with a moist sponge.
CAUTION
To change the position of an adjustable door bin:
1 Remove all food from bin.
2 Grip the bin firmly with both hands and lift it
upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in place.
The Perfect TempTM Drawer and cover can
be removed for cleaning but the control unit,
attached to the right side of the fridge, cannot be
removed. Do not immerse the Perfect TempTM
Drawer cover in water or put it in a dishwasher.
Clean with a damp cloth or sponge.
To remove the Perfect TempTM Drawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Adjustable Door Bin
Accessories (varies by model)
Tall bottle retainer
The tall bottle retainer keeps tall containers in the bin from
falling forward when opening or closing the refrigerator door.
To install, insert the ends of the retainer into the holes.
Removing the Drawer
NOTE
When the refrigerator is turned off by pressing the
main Wave-TouchTM or IQ-TouchTM on/off button, the
Perfect TempTM Drawer will also be turned off. When
the refrigerator is turned back on, the Perfect TempTM
Drawer will resume operations at the temp setting that
was set before the refrigerator was turned off.
Tilt can bins
The can bins allow you to efficiently and securely store up
to eight 12-ounce canned beverages.
Doors
Storage bins
The doors to your fresh food compartment use a system
of modular storage bins. All of these bins are removable
for easy cleaning. Some of them have fixed positions,
while others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles, cans, and
large drink containers. They also enable quick selection
of frequently used items.
Tilt Can Bin
Storage Features 25
Dairy compartment
Use the dairy compartment, at the top of the fresh food
compartment door, for short-term storage of cheese,
spreads, or butter. The dairy compartment is designed to
be warmer than the open area and includes a lift-up cover
that may be locked and a dairy divider (select models).
To reinstall upper and middle baskets (select models),
position basket onto the retainer clips making sure
the front of the basket rests in the retainer clips on the
stabilizer bar.
If the upper basket is installed with the tabs towards the
front of the unit, the upper basket will “kick out” when the
drawer is opened.
If the upper basket is installed with the tabs towards the
rear of the unit (backwards), the upper basket will remain
inside the freezer when the drawer is opened.
NOTE
Dairy Compartment
(lock on some models only)
Freezer Features (varies by model)
If basket is not resting on stabilizer bar retainer clips,
the drawer will not close properly.
To Remove Lower Basket
1 Remove all items from basket.
2 Remove the basket by tilting it forward and lifting it
from the retainer clips.
Three Freezer Baskets (select models)
To Remove Upper and Middle Baskets
1 Remove all items from baskets.
2 Remove baskets by pulling baskets out to their full
extension and lift out.
Removing Lower Basket
To reinstall lower basket, insert basket into retainer clips.
NOTE
The third basket is designed to partially pull out when
the drawer is opened. To disable this feature, turn the
third basket 180 degrees and reinstall.
Tilt Wire Shelf
The freezer tilt wire shelf (located on the inside of the
freezer drawer) is not designed to be removed.
Removing Upper and Middle
Baskets (select models)
26 Storage Features
Dividers Removal
Lift up on the front of the middle divider and pull out.
Middle Basket Divider
Lift up on the rear of the lower divider and pull out.
Lower Basket Divider &
Spill Guard Tray
To reposition the pivoting divider (some models), lift up
and slide to desired location. The pivoting divider is not
designed to be removed .
Spill Guard
Tray
Lower Basket
Pivoting Divider
Lower Basket Pivoting Divider
(some models)
NOTE
Spill Guard Tray should be hand washed in warm water.
Storing Food and Saving Energy 27
Ideas for storing foods
Fresh food storage
• Leave a space between packages, so cold air can
circulate freely, allowing food to freeze as quickly
as possible.
• Keep the fresh food compartment between 34° F
and 40° F with an optimum temperature of 37° F.
Ideas for saving energy
• Avoid overcrowding the refrigerator shelves, which
reduces air circulation and causes uneven cooling.
Installation
Fruits and vegetables
• Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food
quality for longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or high
moisture content.
Meat
• Wrap raw meat and poultry separately and
securely to prevent leaks and contamination of
other foods or surfaces.
• Use the Cool Zone drawer or Perfect TempTM
drawer and set to meat/poultry setting for shortterm storage. Any meat to be kept longer than two
(2) days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0° F or lower.
• A freezer operates most efficiently when it is at
least ²⁄₃ full.
Packaging foods for freezing
• To minimize food dehydration and quality
deterioration, use aluminum foil, freezer wrap, freezer
bags, or airtight containers. Force as much air out
of the packages as possible and seal them tightly.
Trapped air can cause food to dry out, change color,
and develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable freezer
wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the freezer
• Prior to grocery shopping, activate “fast freeze”
so that on your return you can ensure your newly
purchased food designated for the freezer will be
preserved as quickly as possible.
• Activating “fast freeze” also will help your freezer
more efficiently maintain the selected temperature
after placing new purchases with pre-existing
frozen foods.
• Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate of
freezing, and can raise the temperature of frozen foods.
• Locate the refrigerator in the coolest part of the
room, out of direct sunlight, and away from heating
ducts or registers.
• Do not place the refrigerator next to heatproducing appliances such as a range, oven, or
dishwasher. If this is not possible, a section of
cabinetry or an added layer of insulation between
the two (2) appliances will help the refrigerator
operate more efficiently.
• Level the refrigerator so that the doors close tightly.
Temperature settings
• Refer to the “Controls” section for procedures on
temperature settings.
Food storage
• Avoid overcrowding the refrigerator or blocking
cold air vents. Doing so causes the refrigerator to
run longer and use more energy.
• Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts down on
moisture build-up inside the unit.
• Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and
close the door as soon as possible.
• Do not place a hot container directly on a cold
shelf. Remember, such an extreme temperature
change may damage the glass.
28 Normal Operating Sounds
Understanding the sounds you
may hear
Your new, high-efficiency refrigerator may introduce
unfamiliar sounds. These sounds normally indicate
your refrigerator is operating correctly. Some surfaces
on floors, walls, and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the evaporator
may create a boiling or gurgling sound.
B Evaporator fan You may hear air being forced
through the refrigerator by the evaporator fan.
C Defrost heater During defrost cycles, water
dripping onto the defrost heater may cause a
hissing or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice has been
produced, you will hear ice cubes falling into the
ice bin. Ice maker fan, water valve activation, and
refrigerant gas fluid may create sounds from its
operation.
E Electronic control & automatic defrost control
These parts can produce a snapping or clicking
sound when turning the cooling system on and off.
F Condenser fan You may hear air being forced
through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than older models.
The compressor may have a high-pitched hum or
pulsating sound.
H Water valve Makes a buzzing sound each time it
opens to fill the ice maker.
I Drain pan (not removable) You may hear water
dripping into the drain pan during the defrost cycle.
J Condenser May create minimal sounds from
forced air.
K Motorized Perfect TempTM drawer damper
May produce a light humming during operation.
L Ice dispensing paddle When dispensing ice,
you will hear a snapping, clicking, or popping
sound when the solenoid opens and closes the ice
chute.
M Motorized damper May produce a light
humming during operation.
N Perfect TempTM drawer fan Turns off when door
opens or Perfect TempTM drawer is turned off.
NOTE
Energy efficient foam in your refrigerator is not a
sound insulator.
NOTE
During automatic defrost cycle, a red glow in the back
wall vents of your freezer compartment is normal.
Changing The Water and Air Filters 29
Your refrigerator is equipped with separate water and
air filtering systems. The water filter system filters all
dispensed drinking water, as well as the water used to
produce ice. The air filter removes odors and impurities
from the refrigerator compartment.
NOTE
The control panel includes controls to monitor the
status of your water and air filters. See the Controls
section for more information.
About your advanced water filter
The PureAdvantageTM NGFC 2000 ice and
water filter system is tested and certified by NSF
International to NSF/ANSI Standards 42 and
53 for the reduction of claims specified on the
performance data sheet.
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system. Systems certified for cyst reduction may be used
on disinfected waters that may contain filterable cysts.
• Rated Capacity - 400 gallons for
PureAdvantageTM ice and water filter
• Rated service flow - .5 gallons per minute
• Maximum Rated Pressure - 100 pounds per
square inch
• Recommended Minimum Operating Pressure: 30
pounds per square inch
• Operating Temp.: Min. 33°F, Max. 100°F
Water filter
The water filter is located at the lower left side of the fresh
food compartment.
Push Water Filter Button
4 Unpack the new filter cartridge and remove the
two (2) protective caps covering the inlet and exit
of the filter. Slide the filter gently into the housing
until it stops against the snap-in connector at the
back of the housing.
5 Push firmly until the cartridge snaps into
place (you should hear two clicks). When fully
engaged, the front of the filter cartridge should be
flush with the filter release button.
Replacing your PureAdvantageTM water filter
In general, you should change the water filter every six (6)
months to ensure the highest possible water quality. The
Water Filter Status light on the Touch Panel prompts you
to replace the filter after a standard amount of water (400
gallons) has flowed through the system.
If your refrigerator has not been used for a period of time
(during moving for example), change the filter before
reinstalling the refrigerator.
It is not necessary to turn the water supply off to change
the filter. Be ready to wipe up any small amounts of water
released during the filter replacement.
1Turn Off the ice maker on the control panel.
2 Push the filter release button above the cartridge
to disconnect it.
3 Slide the old water filter cartridge straight out of the
housing and discard it.
Reinstall Water Filter
6Turn On the ice maker at the control panel.
7 Press a drinking glass against the water dispenser
while checking for any leaks at the filter housing.
Spurts and sputters may occur as the system
purges air out of the dispenser system.
8 Prime the water supply system as
described previously.
9 Press and hold the Filter Status button on the
control panel for three (3) seconds. When the
display changes from “Replace” to “Good,” the
status has been reset.
30 Changing The Water and Air Filters
Air filter
The air filter is located under the utility bin and/or on the
inside of the left door above the ice maker chute.
Replacing your PureAdvantageTM air filter
To ensure optimal filtering of refrigerator odors, you
should change the air filter every six (6) months (the filter
status light on the Touch Panel prompts you to replace
the filter after six (6) months).
1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into the housing.
4 To close the air filter door, push the top and
bottom to lock the door closed.
5 Press and hold the Air Filter Reset button on
the control panel for three (3)seconds. When the
display changes from “Replace” to “Good,” the
status has been reset.
6The Air Filter Reset will turn itself off after a
few seconds.
Filter located under the utility bin
Filter located above the ice maker chute
Close
Door
Ordering replacement filters
Order new filters by calling 877-808-4195, online at www.electroluxappliances.com, or through the dealer where you
bought your refrigerator. You may want to consider ordering extra filters when you first install your refrigerator.
Water Filter FC-300 PureAdvantageTM Replacement Cartridge #EWF01
Air Filter Replacement cartridge, part #EAFCBF
Care and Cleaning 31
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately
and clean the freezer and fresh food compartments at least twice a year.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors,
gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue
until you unplug the power cord from the wall outlet.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the
appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent the
floor from being damaged.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be
careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply
system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service
representative to perform this operation.
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.
Vacation and moving tips
Occasion
Tips
Short Vacations
•Leave refrigerator operating during vacations of three (3) weeks or less.
•Use all perishable items from refrigerator compartment.
•Turn automatic ice maker off and empty ice bucket, even if you will only be gone a few days.
Long Vacations
•Remove all food and ice if you will be gone one (1) month or more.
•Turn the cooling system off (see “Controls” section for location of On/Off button) and disconnect
power cord.
•Turn water supply valve to closed position.
•Clean interior thoroughly.
•Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.
•Remove all food and ice.
•If using a handcart, load from the side.
•Adjust rollers all the way up to protect them during sliding or moving.
•Pad cabinet to avoid scratching surface.
Moving
32 Care and Cleaning
Care and cleaning tips
Part
Interior & Door
Liners
Door Gaskets
Drawers &
Bins
Glass Shelves
Toe Grille
Exterior &
Handles
Exterior &
Handles
(Stainless
Steel Models
Only)
Cleaning
Agents
•Soap and
water
•Baking soda
and water
•Soap and
water
•Soap and
water
•Soap and
water
•Glass cleaner
•Mild liquid
sprays
•Soap and
water
•Mild liquid
sprays
•Vacuum
•Soap and
water
•Non abrasive
glass cleaner
•Soap and
water
•Stainless steel
cleaners
Tips and Precautions
• Use two (2) tablespoons of baking soda in one (1) quart of warm water.
•Be sure to wring excess water out of sponge or cloth before cleaning around
controls, light bulb or any electrical part.
•Wipe gaskets with a clean soft cloth.
•Use a soft cloth to clean drawer runners and tracks.
•Do not wash any removable items (bins, drawers, etc.) in dishwasher.
•Allow glass to warm to room temperature before immersing in warm water. Sudden
temperature changes can cause glass breakage.
•Remove toe grille (see Installation Instructions).
•Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and dry.
•Do not use commercial household cleaners containing ammonia, bleach or alcohol
to clean handles.
•Use a soft cloth to clean smooth handles.
•Do not use a dry cloth to clean smooth doors.
•Never use CHLORIDE or cleaners with bleach to clean stainless steel.
•Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth.
•Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at
most home improvement or major department stores. Always follow manufacturer’s
instruction. Do not use household cleaners containing ammonia or bleach.
•NOTE: Always clean, wipe and dry with grain to prevent scratching.
•Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well
and wipe dry with a clean soft cloth.
Ice Chute Extension
Installing the Ice
Chute Extension
The ice chute extension is
designed to better direct ice
flow into containers.
1 Turn the refrigerator
off using the button on
the control panel (refer
to Owner’s Manual).
2 Align the extension
with the ice chute so
that the snap clips are
just inside the front
edge of the chute.
Removing the Ice
Chute Extension For Cleaning
1 Turn the refrigerator off using the button on the
control panel (refer
to Owner’s Manual).
2 Press inward firmly
on the front of the
chute and pull
down.
Press Here
Firmly
3 Turn your
refrigerator back on.
Pull Down
Push Upward Until The
Extension Snaps In Place
3 Push upward until the extension snaps into place.
4 Turn your refrigerator back on.
Care and Cleaning 33
Replacing LED Lights (select models)
Both the freezer and fresh food compartments of your
refrigerator include LED lights. Always use Electrolux
parts for replacement.
To replace LED Lights:
CAUTION
Wear gloves when replacing incandescent light
bulbs to avoid getting cut.
To replace light bulbs:
1 Unplug your refrigerator’s power cord.
1 Unplug your refrigerator’s power cord.
2 Remove light cover by pushing up and out.
2 Wear protective gloves.
3 Hold the LED cover with one hand and pull the
connector with the other hand while pressing the
connector latch.
3 Remove light cover, if necessary.
4 Replace LED light and snap in place assuring the
light is facing in toward the unit (inside fresh food
and freezer) or facing outward on bottom of fresh
food doors.
4 Unscrew and replace old bulb with an appliance
bulb of the same type and wattage (normally 40
watts).
5 Replace light cover, if necessary.
6 Plug in the refrigerator’s power cord.
LED Light Removal
Refrigerator Light
LED Light Harness Removal
Freezer Light
NOTE
LED lights are in series so if one is bad or unplugged,
several lights may not light up.
Replacing Light Bulbs (select models)
Both the freezer and fresh food compartments of your
refrigerator include incandescent light bulbs that will need
replacing from time-to-time. Some lights have covers
that need to be removed before replacing the bulbs.
Always use bulbs that are designed for appliance lighting.
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online at
www.electroluxappliances.com, or through the dealer
where you bought the refrigerator. Here is the product
number to request when ordering:
LED Light, Part #241891102
Incandescent Lights (40-watt bulb), Part
#5305514148
34 Solutions to Common Problems
Before you call...
If you experience a problem with your refrigerator or notice a product behavior or condition that you do not understand, you can
usually avoid a call to your service representative by referring to this section for an answer. Beginning with the following table, this
information includes common concerns, causes, and suggested solutions.
Automatic Ice Maker
Concern
Potential Cause
Common Solution
Ice maker is not
making any ice.
• Ice maker is turned off.
• Turn on ice maker. For the fresh food ice maker, press and hold
the “Ice Off” button for three (3) seconds until the indicator light
is off. For the freezer ice maker, lower the wire signal arm.
• Connect the unit to the household water supply and ensure
the water valve is open.
• Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
• Remove and reinstall the water filter. Be sure to push the
filter firmly so that you hear it lock solidly into position.
• If water dispenses slowly or not at all, or if the filter is six (6)
months old or older, it should be replaced.
• Turn off household water line valve. Remove valve. Ensure
valve is not a self-piercing saddle valve. Clean valve. Replace
valve if necessary.
• Move any item or frozen ice cubes that may block the signal
arm from being in the on or down position. See Automatic
Ice Maker-Freezer section in manual.
• Refrigerator is not connected to water line
or water valve is not open.
• The water supply line is kinked.
• The water filter is not seated properly.
• The water filter may be clogged with
foreign material.
• Saddle valve on cold water pipe is clogged
or restricted by foreign material.
• Freezer ice maker wire signal arm is being
held up by an item not allowing it to go in
the on or down position.
• Heavy traffic, opening or closing of the
doors excessively.
• The fresh food and freezer ice makers will each produce
approximately 2.5 pounds of ice every 24 hours depending
on usage conditions.
• If water dispenses slower than normal, or if the filter is six (6)
months old or older, it should be replaced.
• Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
• Turn off household water line valve. Remove valve. Ensure
that valve is not a self-piercing saddle valve. Clean valve.
Replace valve if necessary.
• Press Fast Freeze to temporarily increase ice
production rate.
Freezer ice
maker will not
stop making ice.
• Ice maker wire signal arm is being held
down by some package in the freezer that
has fallen against the ice maker.
• Move the item or frozen ice cubes that may block the signal
arm from being on the off or upward position. See Automatic
Ice Maker-Freezer section in manual.
Ice cubes are
freezing together.
• Ice cubes are not being used frequently
• Remove ice container and discard ice. The ice maker will
enough or interruption of power for proproduce fresh supply. Ice should be used at least twice
longed time.
weekly to keep the cubes separated.
• Ice cubes are hollow (shells of ice with water • This generally occurs when the ice maker does not get
inside). The hollow cubes break open in the
enough water. This is usually the result of a clogged water
bin and leak their water onto existing ice,
filter. Replace the water filter, and, if the condition still occurs,
which causes it to freeze together.
check for a Saddle Valve, water valve not turned on all the
way, or kinked water supply line.
Ice maker is
not making
enough ice.
• Ice maker is producing less ice than
you expect.
• The water filter may be clogged with
foreign material.
• The water supply line is kinked.
• Saddle valve on cold water pipe is clogged
or restricted by foreign material.
Dispenser (Ice & Water)
Concern
Potential Cause
Common Solution
Dispenser will not
dispense ice.
•Dispenser lock out is engaged.
•Water supply is not connected.
•Press and hold control lock for three (3) seconds.
•Connect water supply (see Connecting The Water
Supply section).
•Ensure ice maker is turned on. When the first supply of ice is
dropped into the bin, the dispenser should operate.
•Open household water line valve. Allow sufficient time for the ice
to be made. When ice is made, the dispenser should operate.
•Ensure Fresh Food door is closed. (See Problem Section,
Opening/Closing of Doors/Drawers)
•Motor is overloaded. Motor overload protector will reset in
approximately three (3) minutes. Ice can then be dispensed.
•Ice storage bin is empty.
•Household water line valve is not open.
•Fresh Food door is not closed.
•Ice dispensing paddle has been held in for
more than four to (4-5) minutes.
Solutions to Common Problems 35
Dispenser (Ice & Water--continued)
Concern
Potential Cause
Common Solution
Ice dispenser is
jammed.
•Ice has melted and frozen around auger
due to infrequent use, temperature
fluctuations, and/or power outages.
•Ice cubes are frozen together.
•Ice cubes are smaller than normal.
•Remove ice bin, thaw, and empty the contents. Clean bin,
wipe dry, and replace in proper position. When new ice is
made, dispenser should operate.
•Use the dispenser often so that cubes do not freeze together.
•The ice & water filter cartridge could be clogged. Replace
the filter cartridge. Dispensing system operates best at 30100 psi water pressure. Well water pressures should fall
within this range.
Dispenser will
not dispense
water.
•Dispenser lock out is engaged.
•Water filter not seated properly.
•Press and hold control lock for three (3) seconds.
•Remove and reinstall the water filter. Be sure to push the
filter firmly so that you hear it lock solidly into position.
•Replace filter cartridge. Be sure to remove protective caps and
push the filter firmly so that you hear it lock solidly into position.
•Open household water line valve. See Problem section, Ice
Maker Is Not Making Ice.
•Water filter is clogged.
•Household water line valve is not open.
Water has an
odd taste
and/or odor.
•Water has not been dispensed for an
extended period of time.
•Unit not properly connected to cold
water line.
•Draw and discard 10-12 glasses of water to freshen the
supply and completely rinse out the tank.
•Connect unit to cold water line that supplies water to the
kitchen faucet.
Water pressure
is extremely low.
•Cut-off and cut-on pressures are too low
(well systems only).
•Reverse osmosis system is in
regenerative phase.
•Have someone turn up the cut-off and cut-on pressure on
the water pump system (well systems only).
•It is normal for a reverse osmosis system to be below 20 psi
during the regenerative phase.
Light Is Not On
Concern
Potential Cause
Common Solution
Light is not on.
• Light bulb is burned out or LED light
is damaged.
• No electric current is reaching refrigerator.
• Control system has disabled lights because
one or both doors were left open too long.
• See Replacing Light Bulbs or LED lights in Care and
Cleaning section.
• See “Problem” section, “Running Your Refrigerator”.
• Close and reopen door(s) to enable lights.
Odors In Refrigerator
Concern
Potential Cause
Common Solution
Interior is dirty.
Odors
• Interior needs to be cleaned.
• Food with strong odors is stored
in refrigerator.
• See Care & Cleaning Tips.
• Cover food tightly. Turn on air filtration system. Air filter may
need to be changed more frequently if foods with strong
odors are routinely stored in refrigerator.
Opening/Closing Of Doors/Drawers
Concern
Potential Cause
Common Solution
Door(s) will
not close.
• Refrigerator is not level. It rocks on the floor
when moved slightly.
• Ensure floor is level and solid, and can adequately support
the refrigerator. Contact a carpenter to correct a sagging or
sloping floor.
Drawers are
difficult to move.
• Food is touching shelf on top of drawer.
• Drawer is overloaded
• Keep less food in drawer.
• Remove or redistribute food.
36 Solutions to Common Problems
Running Your Refrigerator
Concern
Potential Cause
Common Solution
Compressor
does not run.
• Cooling system is turned Off.
• Turn cooling system On. See Controls Section for location
of cooling system On/Off button.
• This is normal for a fully automatic defrost refrigerator. The
defrost cycle occurs periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
• Check house lights. Call local Electric Company.
• This is normal. Refrigerator goes on and off to keep
temperature constant.
• Refrigerator is in defrost cycle.
• Plug at wall outlet is disconnected.
• House fuse is blown or a tripped
circuit breaker.
• Power outage.
• Electronic control system keeps the
refrigerator at a constant temperature.
Refrigerator
runs too much
or too long.
• Room or outside weather is hot.
• Refrigerator has recently been
disconnected for a period of time.
• Automatic ice maker is operating.
• Doors are opened too frequently or
too long.
• Refrigerator/freezer door may be
slightly open.
• Freezer control is set too cold (control
found in fresh food section).
• Fresh food/freezer gasket is dirty, worn,
cracked, or poorly fitted.
• This model is provided with a highefficiency, variable-speed compressor.
Digital
temperature
displays are
flashing.
• Electronic control system has detected a
performance problem.
• It’s normal for the refrigerator to work longer under
these conditions.
• It takes 8-12 hours for the refrigerator to cool
down completely.
• Ice maker operation causes refrigerator to run slightly more.
• Warm air entering the refrigerator causes it to run more.
Open doors less often.
• Ensure refrigerator is level. Keep food and containers from
blocking door. See Problem section, Opening/ Closing of
Doors/ Drawers.
• Set freezer control to warmer setting until refrigerator
temperature is satisfactory. Allow 24 hours for temperature
to stabilize.
• Clean or change gasket. Leaks in door seal will cause refrigerator
to run longer in order to maintain desired temperatures.
• It is normal for the compressor to run for long periods
of time.
• Call your Electrolux service representative, who can
interpret any messages or number codes flashing on the
digital displays.
Temperatures Are Too Cold
Concern
Potential Cause
Common Solution
Freezer
temperature
too cold.
Refrigerator
temperature
is satisfactory.
• Freezer control is set too cold.
• Set freezer control to a warmer setting. Allow 24 hours for
temperature to stabilize.
• It is normal for the freezer compartment to over cool while
automatic ice maker is on.
Refrigerator
temperature too
cold. Freezer
temperature
is satisfactory.
• Refrigerator control is set too cold.
• Set refrigerator control to a warmer setting. Allow 24 hours
for temperature to stabilize.
Food stored
in drawers
freezes.
• Refrigerator control is set too cold.
• See solution above.
Food stored
in Meat
Keeper freezes
(select models).
• Meat Keeper temperature control is set
too cold.
• Adjust Meat Keeper temperature control to a warmer
setting. Meat should be stored at a temperature just below
the freezing point for maximum fresh storage time. It is
normal for ice crystals to form due to the moisture content
of meat.
• Ice maker is on.
Solutions to Common Problems 37
Temperatures Are Too Warm
Concern
Potential Cause
Common Solution
Freezer/
Refrigerator
temperature is
too warm.
• Doors are opened too frequently or
too long.
• Door is slightly open.
• Warm air enters the refrigerator whenever the door is
opened. Open the door less often.
• See Problem section, Opening/Closing of Doors/Drawers.
Freezer
temperature
is too warm.
Refrigerator
temperature
is satisfactory.
• Freezer control is set too warm.
• Set freezer control to a colder setting. Allow 24 hours for
temperature to stabilize.
Refrigerator
temperature
is too warm.
Freezer
temperature is
satisfactory.
• Refrigerator control is set too warm.
• Set refrigerator control to a colder setting. Allow 24 hours
for temperature to stabilize.
Temperature
in the Cool
Zone Drawer
or Perfect
TempTM Drawer
is too warm
(select models).
• Temperature control is set too warm.
• Adjust temperature control to a colder setting.
Water/Moisture/Frost Inside Refrigerator
Concern
Potential Cause
Common Solution
Moisture collects
on inside of
refrigerator walls.
• Weather is hot and humid.
• Door is slightly open.
• Door is opened too often or too long.
• Open containers.
• The rate of frost buildup and internal sweating increases.
• See Problem section, Opening/Closing of Doors/Drawers.
• Open door less often to allow internal temperature to stabilize.
• Keep containers covered.
Water collects
on bottom
side of
drawer cover.
• Vegetables contain and give off moisture.
• Moisture on the bottom side of the cover is not unusual.
• Move humidity control (select models) to lower setting.
Moisture
collects in
bottom of
drawer.
• Washed vegetables and fruit drain while in
the drawer.
• Fruits and vegetables are kept past
their prime.
• Dry items before putting them in the drawer. Water
collecting in bottom of drawer is normal.
• Routinely clean out old fruits and vegetables especially if
they begin to break down.
Moisture
collects on
outside of
refrigerator or
between doors.
• Weather is humid.
• This is normal in humid weather. When humidity is lower, the
moisture should disappear.
• See Problem section, Opening/Closing of Doors/Drawers.
• Door is slightly open, causing cold air
from inside refrigerator to meet warm air
from outside.
38 Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace
any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained
in accordance with the provided instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During the 2nd through 5th years
from your original date of purchase, Electrolux will repair or replace any parts in the cabinet liner and sealed refrigeration system which
prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions.
Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Food loss due to any refrigerator or freezer failures.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household
use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a
part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other
cosmetic parts.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors,
cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts
or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate
power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS
PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW,
BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY
OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If
service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux
Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this
warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated
are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
