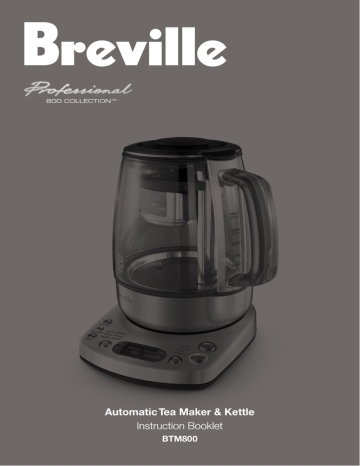

Automatic Tea Maker & Kettle
Instruction Booklet
BTM800
CONGRATULATIONS
On the purchase of your new Breville Tea Maker
Today, tea is the most consumed beverage
in the world after water. Whether your taste
preference is for a rich full bodied Darjeeling
tea, a delicate first picked Japanese Green
tea or one of the hundreds of herbal teas
now available, all tea drinkers know the
special moment of escape that can be
found while drinking that perfect cup.
Yet brewing tea is both an art and a
science. Tea varieties are grown and
produced in different environments and
require specific water temperatures and
controlled brew times to allow their unique
flavour and aroma to develop during
brewing. Boiled water is not considered
good for making many tea types as the
boiling process removes oxygen, making
the water stale. To bring out the optimal
quality and taste of more delicate tea leaves
such as green, oolong and white tea, a
lower temperature will produce a better
flavoured cup of tea while boiling water
may scald the tea leaves and result in a
3
bitter, astringent brew. Similarly, brewing
the tea for too long may result in a bitter,
unpleasant brew, while brewing for too
short a period may leave the tea weak
and tasteless.
The Breville Automatic Tea Maker is fully
programmable for all types of tea, water
temperatures and brew times, eliminating
the guesswork so you can enjoy a perfect
cup of tea, every time.
CONTENTS
4
Breville recommends safety first
7
Know your Breville Tea Maker
10
Tea insights
11
11
12
- Tea types
- Tea storage
-Tips for optimal tea brewing
14 Before first use
15 - Preparing the tea maker for use
16
Operating your Breville Tea Maker
17 17 18 19 20 20 22
- Use as a tea maker for brewing tea
- Selecting the Tea Type
- Selecting the Tea Strength
- Selecting the 'Keep Warm' Feature
- Selecting the 'Basket Cycle' Feature
- Use as a variable temperature kettle
Additional features
23 - Customising brew temperature
23 - Customising brew time
24 - Auto Start feature
25 - A note on standby mode
26 - Moving the tea basket when not in the brewing cycle
27 - A note on temperature conversion
(°C to °F)
28 Care and cleaning
29 -Cleaning the Jug Lid and Integrated Scale Filter
29 -Cleaning the Glass Jug
30 -Cleaning the Basket Lid, Basket, and Tea Scoop
30 -Cleaning the Power Base
30 -Storage
32
Troubleshooting
BREVILLE RECOMMENDS SAFETY FIRST
At Breville we are very safety conscious. We design and manufacture consumer products with the
safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of
care when using any electrical appliance and adhere to the following precautions.
Important safeguards
Read all instructions
• Carefully read all instructions before operation and save for future reference.
• Remove and safely discard any packaging material and promotional labels before
using the appliance for the first time.
• To eliminate a choking hazard for young
children, remove and safely discard the
protective cover fitted to the power plug
of this appliance.
• This appliance has been designed specifically for the purpose of heating and boiling
quality drinking water and tea only. Under
no circumstances should this product be
used to heat or boil any other liquids or
foodstuffs.
• Do not place the appliance near the edge
of a bench or table during operation.
Ensure that the surface is level, clean and
free of water.
• Do not place the appliance on or near a
hot gas burner, electric element or where
it could touch a heated oven.
• Keep the appliance clear of walls, curtains
and other heat or steam sensitive materials. Keep a minimum 8" (20cm) of space
on both sides of the appliance.
• Always ensure the appliance is properly
assembled before connecting to a power
outlet and operating. Follow the instructions provided in this book.
• Attach the Jug Lid securely to the Glass
Jug before operation.
• Do not place anything on top of the
Jug Lid.
• Do not open the Jug Lid during operation
as scalding may occur.
• Extreme caution must be used when moving the Glass Jug containing hot liquid.
• Use caution when pouring water from the
Glass Jug as boiling water and steam will
scald. Do not pour the water too quickly.
• To avoid scalding, never fill the Glass Jug
past the 'WATER MAX' (when heating
water) or 'TEA MAX' (when brewing tea)
line markings.
• Do not operate the appliance without
water. Always fill the Glass Jug to at least
the 'MIN' marking. Should it be operated
without water, the boil-dry protection will
shut the power off automatically. Allow the
appliance to cool before refilling.
!
To protect against electric
shock, do not immerse the
Glass Jug base, Power Base,
power cord or power plug
in water or allow moisture
to come in contact with
these parts.
• The Glass Jug must be used only with the
Power Base supplied. Do not use on a
range top.
• The appliance is not intended to be operated by means of an external timer or
separate remote control system.
• Do not touch hot surfaces. Use the handle
for lifting and carrying the Glass Jug.
4
Please refer to cleaning instructions on
page29 of the Instruction Booklet.
BREVILLE RECOMMENDS SAFETY FIRST
• Do not remove the Glass Jug from the
Power Base during heating or when the
basket is in operation. Ensure the appliance has completed the water heating
or tea brewing cycle before removing the
Glass Jug from the Power Base.
• The use of accessory attachments not
recommended by Breville may result in
fire, electric shock or injury to persons.
• To turn OFF the appliance, press the
TEA|Cancel button (when brewing tea)
or the HOT WATER|Cancel button
(when heating water) on the Power Base.
The appliance is OFF when the button
surround illumination goes out.
• To disconnect from the wall outlet, first
turn OFF the appliance then remove the
power plug from the wall outlet.
• Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord or use an adapter.
• Do not operate the Tea Maker on a sink or
drain board.
• This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure they can
use the appliance safely.
• Young children should be supervised to
ensure that they do not play with
the appliance.
!
Never immerse the Glass Jug,
Power Base, power cord
or power plug in water or
allow moisture to come in
contact with these parts.
!
Do not wash jug exterior
under running water.
• When the appliance is not in use or when
left unattended, disconnect the power
cord from the wall outlet.
• Before attempting to move the appliance
or before assembling or disassembling
parts, cleaning or storing, turn OFF the
appliance, allow to cool and disconnect
from the wall outlet.
• Allow the appliance to cool down in between brewing cycles.
• Strictly follow the Care and Cleaning
instructions on Page 29.
• Do not use harsh abrasives or caustic
cleaners when cleaning this appliance.
• This appliance is equipped with a power
cord having a grounding wire with a
grounding plug. The appliance must
be grounded using a 3-hole properly
grounded outlet. In the event of an electrical short circuit, grounding reduces the
risk of electrical shock.
• If the power outlet is a standard 2-prong
wall outlet, it is your personal responsibility
and obligation to have it replaced with a
properly grounded 3-prong wall outlet.
5
BREVILLE RECOMMENDS SAFETY FIRST
FOR ALL ELECTRICAL
APPLIANCES
• This appliance is for household use only.
• Unwind the power cord fully before use.
• Do not let the cord hang over the edge of
a table or counter, or touch hot surfaces.
• Do not use the appliance for anything
other than its intended purpose as
described in this booklet. Do not use
outdoors. Do not use in moving vehicles
or boats.
• Close supervision is necessary when any
appliance is used by or near children.
• Regularly inspect the supply cord, plug
and actual appliance for any damage.
Do not operate if damaged in any way
or after the appliance malfunctions.
Immediately cease use of the appliance
and call Breville Customer Service at
1300-139-798 for examination, repair or
adjustment.
• For any maintenance other than
cleaning, call Breville Customer Service
at 1300-139-798.
• Consult a qualified electrician if the
grounding instructions are not completely
understood, or if doubt exists as to
whether the appliance is properly
grounded.
!
DO NOT OPERATE THE
APPLIANCE ON AN INCLINED
SURFACE. DO NOT MOVE
THE APPLIANCE WHILE IT IS
SWITCHED ON.
Breville Assist™ PLug
Your Breville appliance comes with
a unique Assist™ Plug, conveniently
designed with a finger hole in the power
plug for easy and safe removal from
the wall outlet. For safety reasons it is
recommended you plug your Breville
appliance directly into its own electrical
outlet on a dedicated circuit separate from
other appliances. If the electric circuit is
overloaded with other appliances, your
appliance may not function properly.
Use in conjunction with a power strip or
extension cord is not recommended.
short cord
instructions
Your Breville appliance is fitted with a short
power supply cord as a safety precaution
to prevent personal injury or property
damage resulting from pulling, tripping or
becoming entangled with a longer cord.
Do not allow children to use or be near this
appliance without close adult supervision.
Longer detachable power supply cords or
extension cords are available and may be
used if care is exercised. If an extension
cord is used, (1) the marked electrical
rating of the cord set or extension cord
should be at least as great as the electrical
rating of the appliance, (2) the cord should
be arranged so that it will not drape over
the countertop or tabletop where it can
be pulled on by children or tripped over
unintentionally and (3) the extension cord
must include a 3-prong grounding plug.
SAVE THESE INSTRUCTIONS.
for household use only
6
KNOW
Your Breville Tea Maker
7
know your breville TEA MAKER
A
B
C
D
E
F
G
J
I
H
A Jug lid
B Stainless steel scale filter
C Tea basket lid
D Stainless steel tea basket
E Jug post - magnetically
attaches the tea basket
F Glass jug - 1500ml water
max, 1200ml tea max
8
G Immersed temperature
sensor
H Tea scoop
I Power base
J Cord Storage
- concealed on the
underside of the power
base
K AUTO START button
- set the tea maker to
automatically begin
brewing at a pre-selected
time
L KEEP WARM button
- keeps the brewed tea or
heated water warm for up
to 60 minutes
know your breville TEA MAKER
K
S
L
M
T
N
M BASKET button
- auto lifts & lowers
the tea basket. The
movement allows water
to circulate freely around
the tea leaves for
maximum infusion
N TEA TYPE button
- preset brew
temperatures
O
P
Q
recommended for green,
black, white, herbal &
oolong tea
O Variable temperature
control – overrides the
preset brew temperatures
P Backlit LCD
Q Variable time control
– overrides the preset
brew times
R
R TEA STRENGTH button
- preset brew times
recommended for strong,
medium and mild brews
S HOT WATER|Cancel
button - for use as a
variable temperature kettle
T TEA|Cancel button
- activates the tea
brewing cycle
9
TEA INSIGHTS
10
tea insights
Tea Types
There are four main types of teas from the
tea plant camellia sinensis. The picking and
processing methods determine the type of
tea finally produced.
1. Black Tea
Black tea is the most common type of
tea worldwide. It is made by fermenting
the harvested leaves for a couple of
hours before heating or drying. This
oxidation darkens the leaves and
increases the amount of caffeine. Of all
the teas, black tea has the strongest
colour and flavour.
2. White Tea
White tea is the rarest and the most
exclusive tea. White tea consists of the
whitish buds of the tea plant which are
steamed then left to dry naturally. This
tea is low in caffeine and has a slightly
sweet flavour.
3. Green Tea
Green tea makes up approximately
ten percent of the world’s tea. The
leaves are picked, rolled and dried
before they can go brown. Green tea
has a distinctive aroma and has a
slight astringent taste.
4. Oolong Tea
Oolong Tea is semi fermented,
which means leaves are processed
immediately after picking. They only
have a short period of oxidation which
turns the leaves from green to red/
brown. Its leaves have a floral, fruity
quality and hence have a delicate fruity
taste. It is recommended not to drink
Oolong tea with milk, sugar or lemon.
5. Herbal infusions or Tisanes
Herbal infused teas are not produced
from the tea plant, but from flowers,
leaves, roots or seeds. Common herbal
beverages are chamomile, peppermint,
fennel, rose hip, and lemon verbena.
Herbal infusions that do not contain
tea will generally not become bitter
with extended brews. These can often
be brewed with boiling water 3 times
without jeopardising the taste.
6. Blends
Tea producers make blends by
combining different types of teas, often
in order to achieve flavour consistency
from one season to the next. Common
black tea blends include English
Breakfast, Earl Grey, Irish Breakfast,
and Russian Caravan.
TIP:
Brewed tea leaves make an ideal
garden fertilizer and help condition
the soil.
Tea Storage
• Teas stored inside a vacuum sealed
bag can be stored for up to two years,
depending on the quality and grade of
tea. Once opened, tea should be stored
in an airtight container and kept in a dry
and dark place.
• Once opened, black teas will last longer
than green and oolong teas but all tea
needs to be stored in ideal conditions.
• You can tell when tea is past its best if it
has lost its aroma and will create either
a bitter or dull tasting cup.
11
tea insights
Tips for optimal Tea BREWING
• Water quality affects taste. For best
results, use filtered water.
• Finer tea particles and leaves will infuse
more quickly than whole leaves. As a
result, finer tea particles often release
too much tannin too quickly, creating a
harsher taste. Adjust the brewing time
until desired strength is achieved.
• Using the tea scoop provided, use
roughly one scoop of tea per cup /
250ml of water.
Water to Tea Scoop Ratio
Glass Jug
Marking
Cups / ml
Tea
Scoops
500mL
Approx.
2 Cups / 500ml
2 Scoops
750mL
Approx.
3 Cups / 750ml
3 Scoops
1000mL
Approx.
4 Cups / 1000ml
4 Scoops
1200mL
Approx.
5 Cups / 1200ml
5 Scoops
12
13
BEFORE FIRST USE
Of your Breville Tea Maker
14
BEFORE FIRST USE
Preparing THE Tea Maker
for use
In order to remove any dust or protective
residues from the manufacturing process, it
is recommended to run a boiling cycle then
discard the water.
5. Unwind the power cord completely and
insert the power plug into a grounded
wall outlet.
6. The LCD screen will illuminate with the
default brew temperature and brew
time display.
1. Remove and safely discard any packing
material, promotional labels and tape
from the Tea Maker.
2. Remove the Jug Lid then remove the
Tea Basket from the magnetic post
within the Glass Jug. Wash the Jug
Lid, Tea Basket, Basket Lid and Tea
Scoop in warm soapy water with a soft
sponge, rinse and dry thoroughly.
!
Never immerse the base of
the Glass Jug, the POWER
Base, power cord or
power plug in water or
allow moisture to come in
contact with these parts.
7. Press the left
ARROW UP button
until the LCD screen displays 100°C.
The 'Custom' LED will automatically
illuminate.
3. Place the Power Base on a flat, dry
surface.
4. Without the Tea Basket in place, fill the
Glass Jug to the water maximum mark
(1500mL WATER MAX) and place on
the Power Base. Securely fit the Jug Lid
onto the Glass Jug.
!
!
Never fill the glass jug
with chilled water. Allow
the tea maker to cool
before refilling.
Filling past the 'MAX' line
may result in serious burns
or injuries as a result of
overflowing hot or boiling
water. Filling below the
'MIN' line will result in the
tea maker switching off
before the water has boiled
or reached the selected
temperature.
8. Press the HOT WATER|Cancel button
to start the cycle. The button surround
will illuminate and the LCD screen will
display 'ON' and the real-time heating
progress in increments of 5°C.
9. Once the water reaches 100°C, the
tea alert will sound three times and
the HOT WATER|Cancel button
surround will cease to illuminate.
10. Discard the water. The Tea Maker is
now ready to use.
15
OPERATING
Your Breville Tea Maker
16
BREWING TEA
Use as a tea maker for
brewing tea
1. Remove the Glass Jug from the Power
Base and remove Jug Lid. When
brewing tea, fill with desired amount of
water. Ensure you do not fill past the tea
maximum mark (1200mL TEA MAX).
!
Filling past the 'MAX' line
may result in serious burns
or injuries as a result of
overflowing hot or boiling
water. Filling below the
'MIN' line will result in the
tea maker switching off
before the water has boiled
or reached the selected
temperature.
4. Replace the Basket Lid on top of the
Basket. Ensure lid is securely snapped
in place by pressing firmly on the centre
of the lid.
5. Slide the assembled Basket on to the
magnetic post located within the Glass
Jug. The assembled Basket will attach
itself to the top of the magnetic post.
Replace Jug Lid.
2. Place the Basket on a flat, dry surface.
Remove Basket Lid by lifting from
the sides.
Selecting the Tea Type
The tea type determines brew temperature.
The Tea Maker has 5 preset tea types
recommended for optimal brewing of
Green, Black, White, Herbal or Oolong Tea.
It also features a customisable tea type
temperature setting for other tea varieties
or to suit your personal taste (see Page 23,
Customising Brew Temperature).
3. Use the provided Tea Scoop to fill the
Basket with tea leaves. As a general
guide, use 1 scoop of tea leaves
per cup / 250ml of water, however
this will depend on the instructions
on tea packaging and your personal
preference (See Page 12, Water to
Tea Scoop Ratio).
6. To select a preset tea type:
a.Press the TEA TYPE button and
toggle through until the desired tea –
'Green', 'Black', 'White', 'Herbal' or
'Oolong' illuminates.
b.The LCD screen will display
the preset brew temperature
recommended for optimal brewing
of the selected tea type. This is
displayed as the left figure on the
LCD screen.
17
BREWING TEA
GREEN
TEA
WHITE
TEA
PRESET
BREW TEMP
80˚C
85˚C
90˚C
100˚C
100˚C
PRESET
BREW TIME
3:00
3:00
3:00
4:00
2:00
TEA TYPE
Selecting the Tea Strength
The desired tea strength determines the
brew time. The correct brew time depends
on the tea type and your personal tea
strength preference.
The Tea Maker has 3 preset tea strengths
recommended to achieve Strong, Medium
or Mild tea brews. It also features a
customisable brew time setting to suit your
personal taste (see Page 23, Customising
Brew Time).
7. To select a preset tea strength:
a)Press the TEA STRENGTH button
and toggle through until the desired
tea strength – 'Strong', 'Medium' or
'Mild' illuminates.
b)The LCD screen will display the
preset brew time recommended to
achieve the selected brew strength
for the tea type selected. This is
displayed as the right figure on the
LCD screen.
8. Press the TEA|Cancel button to start
the tea brewing cycle. The button
surround will illuminate and the
LCD screen will display 'ON' and the
real-time heating progress in increments
of 5°C. Once the water temperature
reaches 50°C, 'ON' will be replaced
by the selected brew time.
18
OOLONG HERBAL
TEA
TEA
BLACK
TEA
NOTE:
The 'BREW TIME' can be adjusted
during the heating process but
'BREW TEMP' cannot be changed
once the heating cycle commences.
To change the brew time press the right
ARROW UP button to increase the
time, or the right
ARROW DOWN
button to decrease the time. The
brewing time can be adjusted in 30
second increments up to a maximum
of 10 minutes.
To change the brew temperature,
press the TEA|Cancel button to cancel
the heating cycle. Re-select the brew
temperature (see Page 15 and 20).
9. Once the selected brew temperature
is reached the assembled Basket
will automatically lower into the
heated water.
10. Once the Basket reaches the bottom
of the Glass Jug, the LCD screen
will indicate the brewing progress,
automatically counting down in one
second increments. This is displayed
as the right figure on the LCD screen.
BREWING TEA
11. At the end of the tea brewing cycle,
the Basket will automatically rise to
the top of the Glass Jug to prevent
over-brewing. The tea alert will sound
three times.
!
The tea basket is hot to
touch after tea is brewed.
Ensure the tea basket
handle has cooled
before handling.
Selecting the 'Keep Warm' Feature
This feature allows the brewed tea or
heated water to remain warm for up to
60 minutes. The 'Keep Warm' temperature
ranges between 70-80°C depending on
the original brew temperature selected.
The lower the brew temperature, the
lower the 'Keep Warm' temperature.
Original Brew
Temp.
Approximate
Keep Warm Temp.
70˚C - 80˚C
70˚C
85˚C
75˚C
90˚C - 100˚C
80˚C
NOTE:
During the 'Keep Warm' cycle,
brewed tea will continue to develop
flavour. Depending on how long you
intend to keep the brewed tea warm,
you may consider reducing the
initial tea strength / brew time
(see Page 18 and 23).
To activate the 'Keep Warm' feature:
1. Press the KEEP WARM button before,
during or after completion of the
tea brewing or water heating cycle.
The button surround will illuminate,
indicating the 'Keep Warm' feature has
been selected.
NOTE:
'Keep Warm' will only maintain
temperature during the 60 minute
'Time Since Brew' feature at the end
of the ‘Tea’ or ‘Hot Water’ function.
2. Once the tea brewing or water heating
cycle is complete, the LCD screen will
automatically display the 'Time Since
Brew' count-up. The KEEP WARM
button surround will remain illuminated,
indicating the 'Keep Warm' cycle is
active for up to 60 minutes during
'Time Since Brew' while the Glass Jug
remains on the Power Base.
3. During this time, the Glass Jug can
be removed from the Power Base,
however the 'Keep Warm' feature
will automatically switch off. You can
re-select the 'Keep Warm' feature by
pressing the KEEP WARM button. The
'Keep Warm' cycle will remain active
for the duration of the 60 minute 'Time
Since Brew' feature.
NOTE:
'Keep Warm' feature will not activate
and will not function if water
temperature is below 50°C.
19
BOILING OR HEATING WATER
Selecting the 'Basket Cycle' Feature
This feature continuously auto lifts and
lowers the Basket during the tea brewing
cycle. This movement loosens the tea
leaves within the Basket, allowing the
heated water to circulate freely around
the tea leaves for maximum infusion.
NOTE:
The 'Basket Cycle' can significantly
increase the rate of infusion and
affect the tea strength. You may
consider reducing the initial tea
strength / brew time (see Page 18
and 23) when using the 'Basket
Cycle' feature.
NOTE:
It is recommended that this feature
is used only when making between
1000mL (approx. 4 cups) to 1200mL
(approx. 5 cups).
1. To activate the 'Basket Cycle' feature,
press the BASKET button once.
The button surround will illuminate
and the LCD screen will display
BASKET CYCLE.
2. During the brewing cycle, the BASKET
button surround will flash while the
Basket slowly lifts and lowers within the
heated water.
3. The 'Basket Cycle' feature can be
cancelled anytime during the tea
brewing cycle. Press the BASKET
button once. The button surround will
cease to illuminate and the LCD screen
will no longer display BASKET CYCLE.
The Basket will return to the bottom
of the Glass Jug for the remaining
brewing time.
20
Use as a variable
temperature kettle
The Tea Maker can be used for boiling
or heating water to a customisable
temperature.
NOTE:
If you have used the Glass Jug
for making tea we recommend
thoroughly cleaning the interior
of the Jug and removing the
Tea Basket before boiling or
heating water.
1. Fill the Glass Jug with the desired
amount of water. Do not fill over the
water maximum mark (1500mL
WATER MAX).
2. a) To boil water (100°C):
Press the left
ARROW UP button
to increase the temperature to 100°C.
The 'Custom' LED will automatically
illuminate.
b) To heat water to a customised temperature:
ARROW UP button
Press the left
to increase the temperature, or the
left
ARROW DOWN button to
decrease the temperature. The
temperature can be adjusted in 5°C
increments from 70°C to a maximum
of 100°C (or in the Fahrenheit mode,
5°F increments from 160°F to a
maximum of 212°F). The 'Custom'
LED will automatically illuminate.
BOILING OR HEATING WATER
NOTE:
Once a customised temperature
has been selected and once tea
making or water heating cycle has
been activated, the customised
temperature setting will remain in
the memory of the Tea Maker until
you change it. To return to default
settings, see Page 33.
NOTE:
'Keep Warm' will only maintain
temperature during the 60 minute
'Time Since Brew' feature at the end
of the ‘Tea’ or ‘Hot Water’ function.
3. Press the HOT WATER|Cancel button
to start the cycle. The button surround
will illuminate and the LCD screen will
display 'ON' and the real-time heating
progress in increments of 5°C.
4. The brew temperature cannot be
changed once the heating cycle
commences. To change the brew
temperature, press the HOT
WATER|Cancel button to cancel
the heating cycle. Re-select the brew
temperature (see Page 18 and 24).
5. Once the selected temperature is
reached, the tea alert will sound
three times. The LCD screen will
automatically display the ‘Time Since
Brew’ function. This function counts
up to a maximum of 60 minutes,
allowing you to monitor when the
water heating cycle was complete. It
does not activate the heating elements.
6. The Tea Maker has a 'Keep Warm'
Feature that allows brewed tea or
heated water to remain warm for up
to 60 minutes. This feature can be
activated before, during or after the
water heating cycle (see Page 19,
Selecting the 'Keep Warm' Feature).
21
ADDITIONAL FEATURES
Of your Breville Tea Maker
22
CUSTOMIsING BREW TEMPERATURE & TIME
Customising Brew
Temperature
In addition to the 5 preset brew
temperatures (see Page 18, Selecting
the Tea Type), the Tea Maker also features
a customisable brew temperature setting
for other tea varieties or to suit your
personal taste.
To customise a brew temperature:
ARROW UP button to
1. Press the left
increase the temperature, or the left
ARROW DOWN button to decrease
the temperature. The brewing
temperature can be adjusted in 5°C
increments from 70°C to a maximum of
100°C (or in the Fahrenheit mode, 5°F
increments from 160°F to a maximum
of 212°F).
2. The LCD screen will display the
customised brew temperature. This
is displayed as the left figure on the
LCD screen.
NOTE:
Pressing the left
ARROW UP or
the
ARROW DOWN button while
'Green', 'Black', 'White', 'Herbal'
or 'Oolong' are illuminated, will
override the tea type options and
illuminate 'Custom'.
NOTE:
This product is not calibrated
for commercial or scientific use.
Temperatures may vary ± 3˚C, which
is within range for optimal brewing
for each tea variety.
Customising Brew Time
In addition to the 3 preset brew times (see
Page 18, Selecting the Tea Strength), the
Tea Maker also features a customisable
brew time setting to suit your personal taste.
To customise a brew time:
1. Ensure the brew temperature (tea type)
has been selected (see Page 18 and 24).
Brew time less than 10 minutes
ARROW UP button
i) Press the right
to increase the time, or the right
ARROW DOWN button to decrease
the time. The brewing time can be
adjusted in 30 second increments up
to a maximum of 10 minutes.
ii) Once the Tea Maker is activated
and the correct water temperature is
reached, the Basket will automatically
lower and the brew time counter will
count down the selected time.
iii)Once the brewing is complete, the
basket will automatically rise and the
LCD screen will display the ‘Time
Since Brew’ function. This function
counts up to a maximum of 60
minutes, allowing you to monitor the
freshness of your brew. It does not
activate the heating elements.
Manual mode-brew times over 10
minutes
In this mode, once the correct water
temperature is reached, the assembled
Basket will automatically lower and
commence brewing. However, it will not
automatically lift the Basket, allowing you to
manually lift it once the desired brew time
has elapsed.
23
AUTO START
i) Press the right
ARROW UP
button to increase the time up to the
maximum 10 minutes.
ii) Continue to press the right
ARROW UP button. The LCD
screen will display 'MANUAL LIFT'
and ‘- - : - -‘ on the right side of
the LCD.
iii)Once the Tea Maker is activated
and the correct water temperature
is reached, the Basket will
automatically lower.
Auto Start Feature
iv)In the manual lift mode, the LCD
screen will automatically commence
the 'Brew Time' feature. This feature
counts up to a maximum of 60
minutes, allowing you to monitor
how long the Basket has been
submerged.
Setting the ‘Auto Start’ Feature
v)Once the desired brew time has
elapsed, press and hold the BASKET
button for 2 seconds. The Basket
will rise.
vi)Once the brewing is complete, the
LCD screen will automatically display
the ‘Time Since Brew’ function. This
function counts up to a maximum of
60 minutes, allowing you to monitor
the freshness of your brew. It does
not activate the heating elements.
NOTE:
Once a customised time has been
selected and one tea making or
water heating cycle has been
activated, the customised time will
remain in the memory of the Tea
Maker until you change it. To return
to default settings, see Page 33.
This feature allows you to program the
specific time when the Tea Maker will
automatically turn on and start either a tea
brewing cycle or water heating cycle.
1. Press and hold the AUTO START
button for 2 seconds. The button
surround will illuminate and the tea alert
will sound.
2. The LCD screen will display the AUTO
START clock symbol and a blinking
CURRENT TIME and START TIME.
3. To set the CURRENT TIME, press the
ARROW UP button to increase
left
ARROW DOWN
the time, or the left
button to decrease the time in 1 minute
increments. Ensure the correct 'AM' or
'PM' is displayed.
NOTE:
Pressing and holding the
ARROW UP button or
ARROW DOWN button will
increase the scrolling speed.
4. To set the START TIME, press the right
ARROW UP button to increase the
time, or the right
ARROW DOWN
button to decrease the time in 1 minute
increments. Ensure the correct 'AM' or
'PM' is displayed.
24
5. Once current time and start time
are programmed, press either the
flashing HOT WATER|Cancel or
TEA|Cancel button to select which
feature you would like to start at the
programmed time.
6. The LCD screen will display the current
time and start time, in addition to the
AUTO START symbol. The AUTO
START button surround will illuminate
and remain illuminated until the START
TIME is reached, indicating that the
'Auto Start' feature has been activated.
7. Ensure that the Tea Maker is
prepared with:
a)Sufficient water in the Glass Jug and
tea leaves in the Basket for the tea
brewing cycle or,
b)Sufficient water in the Glass Jug for
the water heating cycle.
NOTE:
Insufficient water may discolour
your teamaker base!
NOTE:
The 'Auto Start' feature can be
canceled anytime by pressing
the AUTO START button. The LCD
screen will no longer display the
AUTO START symbol and the
AUTO START button surround will
cease to illuminate.
A NOTE ON STANDBY MODE
When the Tea Maker is plugged into a wall
outlet, the LCD screen will illuminate for
3 minutes before entering standby mode.
When in standby mode, the LCD screen
will cease to illuminate.
To re-activate the Tea Maker out of
standby mode, press any button,
except the HOT WATER|Cancel or
TEA|Cancel button on the Power Base.
The LCD screen will re-illuminate.
Pressing either the HOT WATER|Cancel or
TEA|Cancel button will start the respective
operation immediately.
8. Once the selected START TIME
is reached, the Tea Maker will
automatically commence the tea
brewing or water heating cycle. During
this time, the AUTO START button
surround will no longer illuminate until
the cycle is complete.
Re-selecting the 'Auto Start' feature
using previous START TIME
1. Press the AUTO START button
once. The HOT WATER|Cancel and
TEA|Cancel buttons will flash.
2. Press either the HOT WATER|Cancel
or TEA|Cancel button to re-select the
the desired function. The 'Auto Start'
feature has now been re-set.
25
Standby Mode / MOVING THE TEA BASKET
MOVING THE TEA BASKET WHEN
NOT IN THE BREWING CYCLE
After the brewing cycle is complete, you
may wish to lower the Tea Basket again
for extra infusion to produce a stronger
tasting tea. To do this, press and hold the
BASKET button for 2 seconds. The button
surround will flash and the Tea Basket will
automatically lower to the bottom of the
Glass Jug.
Once the desired strength has been
reached, press and hold the BASKET
button for 2 seconds. The button
surround will flash and the Tea Basket will
automatically rise to the top of the
Glass Jug.
NOTE:
If the Glass Jug is removed from
the Power Base and the Tea Basket
is in the lowered position, it will
automatically return to the top
upon return of the Glass Jug to the
Power Base.
26
TEMPERATURE CONVERSION (°C to °F)
A NOTE ON TEMPERATURE
CONVERSION (°C to °F)
The temperature reading on the
Tea Maker is preset to Celsius but
can be converted to Fahrenheit.
Simultaneously press and hold the
TEA TYPE and TEA STRENGTH buttons
for 2 seconds. The corresponding '°C'
or '°F' symbol will be displayed on the
LCD screen.
PRESS & HOLD
FOR 2 SECONDS
NOTE:
Once the Celsius default has been
changed to Fahrenheit and one
tea brewing or water heating cycle
has been activated, the Fahrenheit
setting will remain in the memory of
the Tea Maker until you change it.
To return to default settings, see
Page 33.
27
CARE & CLEANING
Your Breville Tea Maker
28
Ensure the Tea Maker is turned OFF by
pressing the TEA|Cancel button (when
brewing tea) or the HOT WATER|Cancel
button (when heating water) on the Power
Base. The Tea Maker is OFF when the
button surround illumination goes out.
Remove the power plug from the wall outlet.
2. Alternatively, the Jug Lid is dishwasher
safe. Position the Jug Lid vertically so
the scale filter is facing upwards. This
will allow water to drain properly.
3. Let all surfaces dry thoroughly prior
to using.
Cleaning the Glass Jug
NOTE:
Allow all parts of the Tea Maker
to cool completely before
disassembling and cleaning.
NOTE:
Only the Jug Lid, Tea Basket, Tea
Basket Lid and Tea Scoop are
dishwasher safe.
!
Never immerse the BASE
OF THE GLASS JUG, POWER
Base, power cord or
power plug in water or
allow moisture to come in
contact with these parts.
1. After each use, empty the Glass Jug. Do
not allow brewed tea to stand overnight.
2. Wipe the interior of the Glass Jug with
a soft damp sponge or rinse with warm
water. Tea deposits will enhance the
flavour of the brewed tea, so if only
using as a Tea Maker do not wash
with soapy water.
3. Wipe the exterior of the Glass Jug with
a soft damp cloth to clean.
!
NEVER IMMERSE OR WASH
EXTERIOR OF GLASS JUG
UNDER RUNNING WATER.
Cleaning the Jug Lid and integrated
scale filter
1. Wash the Jug Lid in warm soapy
water with a soft sponge, rinse and
dry thoroughly. The integrated scale
filter can be cleaned by placing under
running hot water and rubbing with a
cleaning cloth or brush.
NOTE:
Do not use chemicals, steel wool, or
abrasive cleaners to clean the inside
or outside of the Glass Jug as these
may scratch the surface.
29
4. To remove the build-up of tannin,
the astringent chemical constituent
of tea, fill the Glass Jug with water up
to the water maximum mark (1500mL
WATER MAX) and either:
a)Add the juice of one lemon, as well
as the lemon and boil. Leave to soak
overnight then discard the solution.
Fill the Glass Jug with clean water,
boil, then discard the water. Repeat
if necessary.
or,
b)Add 6 tablespoons of white vinegar
and boil. Leave to soak overnight
then discard the solution. Fill the
Glass Jug with clean water, boil,
then discard the water. Repeat
if necessary.
5. Dry thoroughly with a soft, lint-free cloth
before using.
NOTE:
Through regular use over time, scale
build-up can affect the performance
and the life of the Tea Maker. Lime
and phosphate are common forms
of scale that can damage your
Tea Maker. Lime scale, a harmless
mineral, comes in the appearance
of white-coloured or rusty looking
build up on the inner walls and inner
base of the Glass Jug. Phosphate
scale can’t be seen, however, it can
cause the water to appear cloudy
when heated. To prevent scale from
damaging your Tea Maker, ensure
to de-scale the Glass Jug regularly.
Use a commercial de-scaling agent
and follow the instructions that
come with the agent.
30
Cleaning the Tea Basket Lid,
Tea Basket and Tea Scoop
1. Wash the Tea Basket Lid, Tea Basket
and Tea Scoop in warm soapy water
with a soft sponge, rinse and dry
thoroughly. A non-abrasive liquid
cleanser or mild spray solution may be
used to avoid build-up of stains. Apply
the cleanser to the sponge, not the
accessory surfaces, before cleaning.
2. Alternatively, these accessories are
dishwasher safe.
3. Let all surfaces dry thoroughly prior
to using.
Cleaning the Power Base
1. Wipe the Power Base with a soft
damp sponge.
2. Let all surfaces dry thoroughly prior
to inserting the power plug into a
wall outlet.
Storage
1. Ensure the Tea Maker is switched off,
cleaned and dried before storing.
2. Ensure that the assembled Tea Basket
is securely attached to the magnetic
post within the Glass Jug.
3. Ensure that Jug Lid is securely
in place.
4. Wrap the power cord around the power
cord storage under the Power Base.
5. Stand the Tea Maker upright on the
Power Base. Do not store anything
on top.
31
TROUBLESHooting
POSSIBLE PROBLEM
Tea Maker will not
switch 'ON'
EASY SOLUTION
• Check that the power plug is securely inserted into
the outlet
• Insert the power plug into an independent outlet
• Insert the power plug into a different outlet
• Reset the circuit breaker if necessary
• For additional safety the Tea Maker is fitted with a
thermal cut out. In the event of severe overheating,
the Tea Maker will automatically shut down to prevent
further damage. Should this continue, call the Breville
Customer Service Centre 1300-139-798.
The Tea Maker will
not work
• Check that the Glass Jug is securely positioned on the
Power Base.
The LCD light has
gone out
• The Tea Maker goes into standby mode if not used for
3 minutes. When in standby mode, the LCD screen will
cease to illuminate.
• To re-activate the Tea Maker out of standby mode:
- Remove then replace the Glass Jug from the
Power Base.
- Press any button on the Power Base except the
HOT WATER|Cancel or TEA|Cancel buttons.
The LCD screen will re-illuminate.
I cannot select a
certain function
• Certain features cannot be selected or changed during
the heating or brewing cycle. The LCD screen may
temporarily change or a sound alert may be heard, but
no changes to the cycle will be made.
The LCD screen
displays 'RESET'
• The LCD screen will display a flashing ‘RESET’ when
there is a resettable electronic issue. Remove the plug
from the wall outlet, wait 5 seconds, then plug back in.
• Call Breville Customer Service 1300-139-798 if the
‘RESET’ message continues.
The LCD screen
displays 'ERROR'
32
• The LCD screen will display a flashing 'ERROR' when
there is a non-resettable issue with the appliance.
Should this occur, call the Breville Customer Service
Centre 1300-139-798.
TROUBLESHooting
POSSIBLE PROBLEM
I would like to have the
Tea Maker's default
settings back
EASY SOLUTION
• Even when unplugged from the wall outlet, the
Tea Maker will remember the last setting used for
each function.
• To restore the Tea Maker’s default settings for each
function, simultaneously press and hold AUTO START
and KEEP WARM buttons for 2 seconds.
The 'BASKET CYCLE'
feature / BASKET button
does not work
• The basket cycle is only operational during brewing
cycles that are under 10 minutes.
After boiling water,
bubbles appear around
the temperature sensor
• This is normal for the functionality of the Tea Maker
My tea tastes too weak
or too strong
• Tea taste is a personal preference and may require
experimentation to get it to your liking. For stronger
tasting tea, increase the amount of tea or brew time
(see Page 18 and 23). For a weaker tasting tea,
decrease the amount of tea or brew time (see page
18 and 23).
There is a rattling noise
inside the Glass Jug
• This is normal. The noise is from the magnet located
inside the jug post and may be heard when the Tea
Basket is not attached.
• The Tea Basket cannot be lowered during the heating
up phase of normal operation.
33
NOTES
34
NOTES
35
Breville Customer Service Centre
Australian Customers
New Zealand Customers
Mail:
Mail:
Breville Customer
Service Centre
PO Box 22
Botany
NSW 2019
AUSTRALIA
Breville Customer
Service Centre
Private Bag 94411
Greenmount
Auckland
New Zealand
Phone: Customer Service:
1300 139 798
Phone: Customer Service:
0800 273 845
Fax
(02) 9384 9601
Fax 0800 288 513
Email
Customer Service
[email protected]
Email
Customer Service
[email protected]
www.breville.com.au
Breville is a registered trademark of Breville Pty Ltd.
A.B.N. 98 000 092 928
BTM800
Issue D/10
Professional Collection is a trademark of Breville Pty Ltd
Head Office Building 2,
Port Air Industrial Estate,
1A Hale Street,
Botany, NSW, 2019 Australia
Tel: 1300 139 798
20 Mono Place,
Ellerslie, Auckland, New Zealand
Private Bag 94411,
Greenmount, Auckland
Tel: 0800 273 845
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
