American Dryer Corp. ID-170 Installation manual

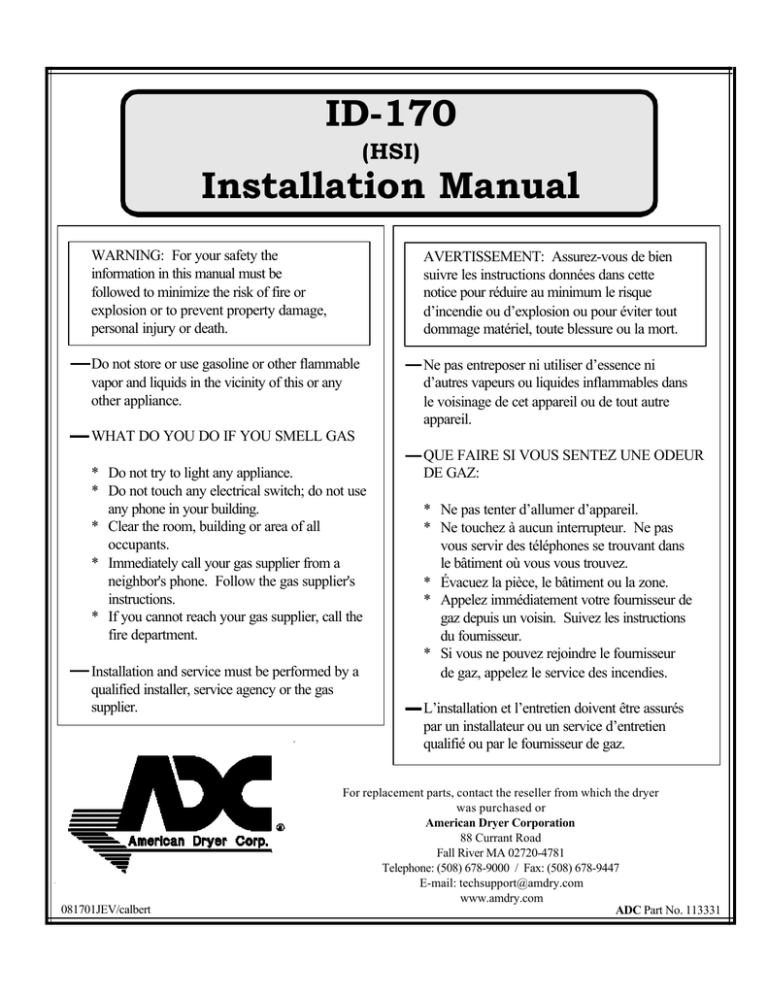

ID-170
(HSI)
Installation Manual
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion or to prevent property damage,
personal injury or death.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d’incendie ou d’explosion ou pour éviter tout
dommage matériel, toute blessure ou la mort.
Do not store or use gasoline or other flammable
vapor and liquids in the vicinity of this or any
other appliance.
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
WHAT DO YOU DO IF YOU SMELL GAS
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use
any phone in your building.
* Clear the room, building or area of all
occupants.
* Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
* If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
081701JEV/calbert
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
* Ne pas tenter d’allumer d’appareil.
* Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le bâtiment où vous vous trouvez.
* Évacuez la pièce, le bâtiment ou la zone.
* Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
* Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
L’installation et l’entretien doivent être assurés
par un installateur ou un service d’entretien
qualifié ou par le fournisseur de gaz.
For replacement parts, contact the reseller from which the dryer
was purchased or
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
www.amdry.com
ADC Part No. 113331
Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
POUR VOTRE SÉCURITÉ
Do not store or use gasoline or
other flammable vapors or
liquids in the vicinity of this or
any other appliance.
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
Important
For your convenience, log the following information:
ID-170
DATE OF PURCHASE________________________________ MODEL NO. __________________________________________
RESELLER’S NAME ________________________________________________________________________________________
Serial Number(s)
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory,
you can FAX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
IMPORTANT
YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND THE GAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(Occupational Safety and Health Administration) STANDARDS.
“Caution: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper operation.”
«Attention: Lor des opérations d’entretien
des commandes étiqueter tous fils avant
de les déconnecter. Toute erreur de
câblage peut étre une source de danger et
de panne.»
CAUTION
DRYER(S) SHOULD NEVER BE LEFT UNATTENDED WHILE IN OPERATION.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE DRYER(S).
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYER(S) IN OPERATION.
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES should the dryer door switch the lint drawer switch,
or the heat safety circuit devices ever be disabled.
WARNING
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
WARNING
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or
specified in the installation manual included with the dryer.
Dryers must not be installed or stored in an area where it will be exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.
Table of Contents
SECTION I
IMPORTANT INFORMATION .......................................................................... 3
A. Receiving and Handling ............................................................................................................... 3
B. Safety Precautions ....................................................................................................................... 4
SECTION II
SPECIFICATIONS/COMPONENT IDENTIFICATION .................................. 6
A. Specifications .............................................................................................................................. 6
B. Component Identification............................................................................................................. 8
SECTION III
INSTALLATION PROCEDURES .................................................................... 10
A. Location Requirements.............................................................................................................. 10
B. Unpacking/Setting Up ................................................................................................................11
C. Dryer Enclosure Requirements .................................................................................................. 14
D. Fresh Air Supply Requirements ................................................................................................. 15
E. Exhaust Requirements............................................................................................................... 16
F. Electrical Information ................................................................................................................ 22
G. Gas Information......................................................................................................................... 26
H. Steam Information..................................................................................................................... 30
I. Preparation For Operation/Start-Up .......................................................................................... 34
J. Preoperational Tests .................................................................................................................. 35
K. Compressed Air Requirements ................................................................................................... 38
L. Shut Down Instructions .............................................................................................................. 39
SECTION IV
SERVICE/PARTS INFORMATION ................................................................. 40
A. Service ..................................................................................................................................... 40
B. Parts ......................................................................................................................................... 40
SECTION V
WARRANTY INFORMATION ......................................................................... 41
A. Returning Warranty Cards ......................................................................................................... 41
B. Warranty................................................................................................................................... 41
C. Returning Warranty Parts .......................................................................................................... 41
SECTION VI
ROUTINE MAINTENANCE ............................................................................ 43
A. Cleaning ................................................................................................................................... 43
B. Adjustments .............................................................................................................................. 45
C. Lubrication ............................................................................................................................... 45
SECTION VII
REVERSING TIMER SPIN/DWELL ADJUSTMENTS ................................... 46
SECTION VIII
DATA LABEL INFORMATION......................................................................... 47
A. Data Label................................................................................................................................ 47
SECTION IX
PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT
COMPONENTS ................................................................................................. 49
SECTION X
BURNER AND BASKET (TUMBLER)/LINT CHAMBER
MANUAL RESET HI-LIMIT INSTRUCTIONS .............................................. 50
SECTION I
IMPORTANT INFORMATION
A. RECEIVING AND HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and
wooden skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect
further before delivering carrier leaves.
Dryers damaged in shipment:
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the trucker's receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers which were not damaged in a
damaged shipment should be accepted, but the number received and the number refused must be noted
on the receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carrier's freight terminal immediately and file a claim. The freight company considers this
concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult
when more than a day or two passes after the freight was delivered. It is your responsibility to file freight
claims. Dryer/parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.
ADC assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508)
678-9000.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.
3
B. SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury, or loss of life.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryer(s) must be exhausted to the outdoors.
6. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry
cleaning solvents, a combustible detergent, or "all purpose" cleaner.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,
or wax.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvent will create a fire
hazard.
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or
similarly textured rubber materials. Drying in a heated basket (tumbler) may damage
plastics or rubber and may be a fire hazard.
4
7. A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork,
and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire
hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failure to do so will VOID THE WARRANTY.
9. UNDER NO CIRCUMSTANCES should the dryer door switch, the lint drawer switch, or the heat
safety circuit devices ever be disabled.
WARNING: PERSONAL INJURY OR FIRE COULD RESULT.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
12. DO NOT operate steam dryers with more than 125 PSI (8.61 bars) steam pressure. Excessive steam
pressure can damage the steam coil and/or harm personnel.
13. Replace leaking flexible steam hoses or other fixtures immediately. DO NOT operate the dryer with
leaking flexible hoses. PERSONAL INJURY MAY RESULT.
14. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DRYER.
15. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%), 112 lbs (50.80 kg) of its rated capacity.
WARNING: YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND
THE GAS SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR
GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS
FOR CLEANING, ADJUSTING, INSTALLATION, OR TESTING OF ANY
EQUIPMENT PER OSHA (Occupational Safety and Health Administration)
STANDARDS.
5
SECTION II
SPECIFICATIONS/COMPONENT IDENTIFICATION
A. SPECIFICATIONS
MAXIMUM CAPACITY (DRY WEIGHT)
170 lbs
77.26 kg
BASKET (TUMBLER) DIAMETER
51-1/2"
130.81 cm
BASKET (TUMBLER) DEPTH
42-1/2"
107.95 cm
BASKET (TUMBLER) MOTOR
1-1/2 HP
1.12 kw
BLOWER (FAN/IMPELLOR) MOTOR
7-1/2 HP
5.6 kw
DOOR OPENING (DIAMETER)
31-3/8"
79.7 cm
BASKET (TUMBLER) VOLUME
51.2 cu. ft.
1.45 cu.m.
DRYERS PER 20'/40' CONTAINER
3/7
DRYERS PER 45'/48' TRUCK
8/8
Gas
VOLTAGE AVAILABLE
208-460v 3ø 3, 4w 50/60Hz
APPROX. WEIGHT (UNCRATED)
1,900 lbs
861.8 kg
APPROX. WEIGHT (CRATED)
2,066 lbs
937.14 kg
550,000 btu/hr
138,600 kcal/hr
3,700 cfm
104.8 cmm
HEAT INPUT
AIRFLOW
INLET PIPE SIZE
1-1/4" F.P.T.
COMPRESSED AIR VOLUME
2.5 cfh @ 80 PSI
COMPRESSED AIR CONNECTION
1/8" N.P.T.
VOLTAGE AVAILABLE
Steam
0.07 cmh @ 5.51 bars
208-460v 3ø 3, 4w 50/60Hz
APPROX. WEIGHT (UNCRATED)
2,053 lbs
931.2 kg
APPROX. WEIGHT (CRATED)
2,220 lbs
1,007 kg
AIRFLOW
4,400 cfm
124.6 cmm
3.25 cfh @ 80 PSI
0.09 cmh @ 5.51 bars
COMPRESSED AIR VOLUME
COMPRESSED AIR CONNECTION
1/8" N.P.T.
BOILER HP
NORMAL LOAD
STEAM CONSUMPTION
725 lbs/hr
329.1 kg/hr
19
OPERATING STEAM PRESSURE
125 PSI max
8.6 bars
STEAM SUPPLY
STEAM RETURN
1-1/2"
1-1/2"
Shaded areas are stated in metric equivalents
IMPORTANT: Gas dryers and steam dryers must be provided with a clean, dry, regulated 80 PSI
+/- 10 PSI (0.68 bars +/- 5.51 bars) air supply.
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
6
Specifications
IDG-170 (Gas)
IDS-170 (Steam)
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
7
B. COMPONENT IDENTIFICATION
1. Dryer Front View
Illus. No.
1
2
3
4
5
6
7
8
Description
Microprocessor Control/Keyboard (touch pad) Panel Assembly (controls)
Control (top access) Door Assembly
Main Door Assembly
Lint Drawer
Lint Door
Wire Diagram (located behind control door)
Data Label and Installation Label
Top Console (module) Assembly
8
2. Dryer Rear View
Illus. No.
1
2
3
4
5
6
7
Description
Drive (basket [tumbler]) Motor
Drive Assembly
Blower Motor
Idler Assembly
Installation Label
Data Label
Heating Unit
9
SECTION III
INSTALLATION PROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION,
or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural
Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “The dryer must be installed on noncombustible floors only.”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. The dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. Dryer must be exhausted to the outdoors as noted in this manual (refer to Exhaust Requirements in
Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
refer to Exhaust Requirements in Section E).
IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary.
9. The dryer must be installed with a proper exhaust duct connection to the outside.
10
10. The dryer must be installed with provisions for adequate combustion and make-up air supply.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6
months, inspect the exhaust ducting and remove any lint build up.
B. UNPACKING/SETTING UP
Remove protective shipping material (i.e., plastic wrap, and/or optional shipping box) from dryer.
IMPORTANT: Dryer must be transported and handled in an upright position at ALL times.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid
the dryer, locate and remove the four (4) lag bolts securing the base of the dryer to the wooden skid. Two (2) are
at the rear base, and two (2) are located in the bottom of the lint chamber. To remove the two (2) lag bolts
located in the lint chamber area, remove the lint drawer and the three (3) Phillips head screws securing the lint
door in place.
1. Leveling Dryer
a. To level the dryer, place 4-inch (10.16 cm) metal shims or other suitable material under the base pads.
It is suggested that the dryer be tilted slightly to the rear (refer to the illustration above).
b. The V-belts are disconnected from the basket (tumbler) drive motor for shipping. Reconnect V-belts
before starting the dryer.
11
2. If more headroom is needed when moving the dryer into position, the top console (module) may be removed.
a. To Remove Top Console (module)...
1) Disconnect the ground wire (A in the illustration below) located at the rear upper left corner of
the dryer.
2) Remove the eight (8) sets of nuts and washers (B in the illustration below) holding the console
(module) to the base.
3) Disconnect the white plug (C in the illustration below) connector located on the top of the rear
electric service/relay box (provides power to the heat circuit).
4) Disconnect air connection from the 3-way micro valve.
5) Lift the console (module) off of the dryer base.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.
12
3. Exhaust Ductwork
NOTE: A transition piece for the exhaust is shipped inside the basket (tumbler). This transition piece is
for locations with round exhaust ductwork.
a. To install the transition piece, align the four (4) clinch studs into the four (4) clearance holes on the
dryer.
b. Using the four (4) free spin wash nuts (included with the transition piece), tighten the wash nuts on the
clinch studs, which will secure the transition piece to the dryer.
c. The round duct can now be connected to the dryer.
13
C. DRYER ENCLOSURE REQUIREMENTS
Even though a 12-inch (30.48 cm) clearance is acceptable, it is recommended that the rear of the dryer be
positioned approximately 2 feet (24-inches) from the nearest obstruction (i.e., wall) for ease of installation,
maintenance, and service. Bulkheads and partitions should be made from noncombustible materials. The
clearance between the bulkhead header and the dryer must be a minimum of 4-inches (10.16 cm) and must not
extend more than 4-inches (10.16 cm) to the rear of the front. A 2-inch (5.08 cm) clearance is required between
the bulkhead facing and the top of the dryer.
NOTE: Bulkhead facing should not be installed until after the dryer is in place. Ceiling area must be
located a minimum of 12-inches (30.48 cm) above the dryer top console (module) and
18-inches (45.72 cm) for steam models.
NOTE: When fire sprinkler systems are located above the dryers, a minimum of 18-inches (45.72 cm)
above the dryer console (module) is required. Dryers may be positioned sidewall to sidewall,
however, 1 or 2-inches (2.54 or 5.08 cm) is suggested for ease of installation and
maintenance. Allowances must be made for the opening and closings of the control door and
the lint door.
14
D. FRESH AIR SUPPLY REQUIREMENTS
When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and
exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the
make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and
sail switch "fluttering" problems may result, as well as premature motor failure from overheating.
Air supply (make-up air) must be given careful consideration to assure proper performance of each dryer. An
unrestricted source of air is necessary for each dryer. An airflow of 3,700 cfm (cubic feet per minute) (104.77
cmm [cubic meters per minute]) must be supplied to each gas dryer and 4,400 cfm (cubic feet per minute)
(124.59) must be supplied to each steam dryer. As a general rule, an unrestricted air entrance from the
outdoors (atmosphere) of a minimum of 4 square feet (0.37 square meters) is required for each gas dryer and a
minimum of 4.75 square feet (0.44 square meters) for each steam dryer.
To compensate for the use of registers or louvers used over the openings, this make-up air must be increased by
approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near
where exhaust vents exit the building.
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL
the dryers. The dryer must be installed with provisions for adequate combustion and make-up air supply.
EXAMPLE: For a bank of six (6) dryers, two (2) unrestricted openings measuring 3 feet by 4 feet (0.91
meters by 1.21 meters) (12 square feet each [1.11 square meters]) is acceptable.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes.
Make-up air that is contaminated by dry cleaning solvent fumes will result in
irreparable damage the motors and other dryer components.
NOTE: Component failure due to dry cleaning solvent fumes will VOID THE WARRANTY.
15
E. EXHAUST REQUIREMENTS
1. General Exhaust Ductwork Information
Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork
will create excessive back pressure which results in slow drying, increased use of energy, overheating of
the dryer, and shutdown of the burner by the airflow (sail) switches, burner hi-limits, or basket (tumbler)
hi-heat thermostats. The dryer must be installed with a proper exhaust duct connection to the outside.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.
CAUTION: DRYER MUST BE EXHAUSTED TO THE OUTDOORS.
CAUTION: IMPROPERLY SIZED OR INSTALLED EXHAUST DUCTWORK CAN
CREATE A POTENTIAL FIRE HAZARD.
NOTE: When a dryer is exhausted separately, it is recommended that a back draft damper be
installed.
NOTE: When dryers are exhausted into a multiple (common) exhaust line, each dryer must be
supplied with a back draft damper.
The ductwork should be laid out in such a way that the ductwork travels as directly as possible to the
outdoors with as few turns as possible. Single or independent dryer venting is recommended.
When single dryer venting is used, the ductwork from the dryer to the outside exhaust outlet must not
exceed 20 feet (6.09 meters). In the case of multiple (common) dryer venting, the distance from the last
dryer to the outside exhaust outlet must not exceed 20 feet (6.09 meters). The shape of the ductwork is
not so critical so long as the minimum cross-sectional area is provided. It is suggested that the use of 90º
turns be avoided; use 30º and/or 45º bends/angles instead. The radius of the elbows should preferably be
1-1/2 times the diameter of the duct. Excluding basket (tumbler)/dryer elbow connections or elbows used
for outside protection from the weather, no more than two (2) elbows should be used in the exhaust duct
run. If more than two (2) elbows are used, the cross-sectional area of the ductwork must be increased in
proportion to the number of elbows used.
ALL ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be
connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the
building. Inspection door should be installed at strategic points in the exhaust ductwork for periodic
inspection and cleaning of lint from the ductwork.
IMPORTANT: Exhaust back pressure measured by a manometer in the exhaust duct must be no less
than 0 and must not exceed 0.3 inches (0.74 mb) of water column (W.C.).
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this opening.
16
a. Outside Ductwork Protection
1) To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward
should be installed where the exhaust exits the building. If the ductwork travels vertically up
through the roof, it should be protected from the weather by using a 180° turn to point the opening
downward. In either case, allow at least twice the diameter of the duct between the duct opening
and the nearest obstruction.
IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust
ductwork.
2. Single Dryer Venting
Where possible, it is suggested to provide a separate exhaust duct for each dryer. The exhaust duct should
be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns
as possible. It is suggested that the use of 90° turns in the ducting be avoided; use 30° and/or 45° angles
instead. The shape of the exhaust ductwork is not critical so long as the minimum cross section area is
provided.
IMPORTANT: The minimum duct size is 18-inches (45.72 cm) for a round duct 16-inches x
16-inches (40.64 cm x 40.64 cm) for a square duct. THE DUCT SIZE MUST
NOT BE REDUCED ANYWHERE DOWNSTREAM OF THE DRYER.
IMPORTANT: Exhaust back pressure measured by a manometer at each basket (tumbler) exhaust
duct area must be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water
column (W.C.).
17
It is suggested that the ductwork from each dryer not exceed 20 feet (6.09 meters) with no more than two
(2) elbows (excluding dryer connections). If the ductwork exceeds 20 feet (6.09 meters) or has numerous
elbows, the cross-sectional area of the ductwork must be increased in proportion to the length and number
of elbows in it. In calculating duct size, the cross-sectional area of a square or rectangular duct must be
increased twenty percent (20%) for each additional 20 feet (6.09 meters) The diameter of a round exhaust
duct should be increased ten percent (10%) for each additional 15 feet (4.57 meters). Each 90º elbow is
equivalent to an additional 40 feet (12.19 meters), and each 45º elbow is equivalent to an additional 20 feet
(6.09 meters).
IMPORTANT: For extended ductwork runs, the cross section area of the ductwork can only be
increased to an extent. Maximum proportional ductwork runs cannot exceed 20 feet
(6.09 meters) more than the original limitations of 20 feet (6.09 meters) with two (2)
elbows. When the ductwork approaches the maximum limits as noted in this manual,
a professional heating, venting, and air conditioning (HVAC) firm should be consulted
for proper venting information.
ALL ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be
connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the
building. Inspection doors should be installed at strategic points in the exhaust ductwork for periodic
inspection and cleaning of lint from the ductwork.
18
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this opening.
a. Outside Ductwork Protection
1) To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward
should be installed where the exhaust exits the building. If the ductwork travels vertically up
through the roof, it should be protected from the weather by using a 180° turn to point the opening
downward. In either case, allow at least twice the diameter of the duct between the duct opening
and the nearest obstruction.
IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust
ductwork.
3. Multiple Dryer (Common) Venting
If it is not feasible to provide separate exhaust ducts for each dryer, ducts from individual dryers may be
channeled into a “common main duct.” The individual ducts should enter the bottom or side of the main
duct at an angle not more than 45° in the direction of the flow and should be spaced at least 55-5/8 inches
(141.28 cm) apart. The main duct should be tapered, with the diameter increasing before each individual
18-inch (45.72 cm) duct is added.
IMPORTANT: The ID-170 is not provided with a back draft damper. When exhausted into a
multiple (common) exhaust line, a back draft damper must be installed at each dryer
duct.
IMPORTANT: No more than three (3) dryers should be connected to one (1) main common duct.
The main duct may be any shape or cross-sectional area, so long as the minimum cross section area is
provided. The illustrations on page 21 show the minimum cross section area for multiple dryer round or
square venting. These figures must be increased 10 square inches (64.51 square centimeters) when
rectangular main ducting is used, and the ratio of duct width to depth should not be greater than 3-1/2 to
1. These figures must be increased in proportion if the main duct run to the last dryer to where it exhausts
to the outdoors is unusually long (over 20 feet [6.09 meters]) or has numerous elbows (more than two [2])
in it. In calculating ductwork size, the cross-sectional area of a square or rectangular duct must be
increased twenty percent (20%) for each additional 20 feet (6.09 meters). The diameter of a round
exhaust must be increased ten percent (10%) for each additional 20 feet (6.09 meters). Each 90° elbow
is equivalent to an additional 40 feet (12.19 meters) and each 45° elbow is equivalent to an additional 20
feet (6.09 meters).
IMPORTANT: For extended ductwork runs, the cross section area of the ductwork can only be
increased to an extent. Maximum proportional ductwork runs cannot exceed 20 feet
(6.09 meters) (more than the original limitations of 20 feet (6.09 meters) with two (2)
elbows. When the ductwork approaches the maximum limits as noted in this manual,
a professional heating, venting, and air conditioning (HVAC) firm should be consulted
for proper venting information.
19
IMPORTANT: Exhaust back pressure measured by a manometer in the exhaust duct must be no less
than 0 and must not exceed 0.3 inches (0.74 mb) of water column (W.C.).
The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be
connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the
building. Inspection doors should be installed at strategic points in the exhaust ductwork for periodic
inspection and cleaning of lint from the ductwork.
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this duct.
a. Outside Ductwork Protection
1) To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward
should be installed where the exhaust exits the building. If the exhaust ductwork travels vertically
up through the roof, it should be protected from the weather by using a 180° turn to point the
opening downward. In either case, allow at least twice the diameter of the duct between the duct
opening and the nearest obstruction.
IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust
ductwork.
20
21
F. ELECTRICAL INFORMATION
1. Electrical Requirements
It is your responsibility to have ALL electrical connections made by a properly licensed and competent
electrician to assure that the electrical installation is adequate and conforms to local and state regulations or
codes. In the absence of such codes, ALL electrical connections, materials, and workmanship must
conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST
EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated
in this manual can result in personal injury or component failure.
NOTE: Component failure due to improper installation will VOID THE WARRANTY.
Each dryer should be connected to an independently protected branch circuit. The dryer must be connected
with copper wire only. DO NOT use aluminum wire, which could cause a fire hazard. The copper
conductor wire/cable must be of proper ampacity and insulation in accordance with electric codes for
making ALL service connections.
NOTE: The use of aluminum wire will VOID THE WARRANTY.
NOTE: Wiring diagrams are affixed to the inside at the top front control door and the rear upper back
guard/panel.
22
2. Electrical Service Specifications
IDG-170 (Gas)
IDS-170 (Steam)
ELECTRIC SERVICE SPECIFICATIONS (PER DRYER)
IMPORTANT: 208 VAC and 230/240 VAC ARE NOT THE SAME. When ordering, specify exact voltage.
NOTES: A. When fuses are used they must be dual element, time delay, current limiting, class RK1 or RK5 ONLY.
Calculate/determine correct fuse value, by applying either local and/or National Electrical Codes
to lised appliance amp draw data.
B. Circuit breakers are thermal magnetic (industrial) motor curve type ONLY. For others, calculate/verify
correct breaker size according to appliance amp draw rating and type of breaker used.
C . Circuit breakers for 3-phase dryers must be 3-pole type.
SERVICE
VOLTAGE
208
230/240
380
416
440
480
*
APPROX.
WIRE
MINIMUM
PHASE
AMP DRAW
SERVICE
WIRE SIZE
60 Hz 50 Hz
3ø
3
30
30
*
3ø
3
29
-*
3ø
3/4
-16
*
3ø
3/4
-16
*
3ø
3/4
15
-*
3ø
3/4
15
-*
FUSING
Dual Element
Time Delay
CIRCUIT
BREAKER
50
40
25
25
25
25
60
60
30
30
30
30
AWG Stranded Type Wire...size wire as per National Electrical Code or local codes.
IMPORTANT: The dryer must be connected to the electric supply shown on the data label that is
affixed to the left side panel area behind the top control (access) door. In the case of
208 VAC or 230/240 VAC, the supply voltage must match the electric service
specifications of the data label exactly.
WARNING: 208 VAC AND 230/240 VAC ARE NOT THE SAME. Any damage done to dryer
components due to improper voltage connections will automatically VOID THE
WARRANTY.
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
23
3. Electrical Connections
NOTE: A wire diagram is included with each dryer and is affixed to the back side of the top control
(access) door.
The only electrical input connections to the dryer are the 3-phase (3ø) power leads (L1, L2, and L3),
GROUND, and in the case of 4 wire service, the NEUTRAL. These electrical connections are made at
the terminal block located in the service/relay box at the rear, upper left hand corner of the dryer. To gain
access into this service box, the service cover must be removed.
The “LINE POWER” and the “GROUND” connections to the dryer must be made through the knock out
hole at the top of the electric service/relay box. A strain relief must be used where the line power ground
wires go into the electric service/relay box.
Providing local codes permit, power connections to the dryer can be made by use of a flexible underwriters
laboratory list cord/pigtail (wire must conform to ratings of the dryer), or the dryer can be hard wired
directly to the service breaker. In ALL cases, a strain relief must be used where the wire(s) enter the
dryer electrical service (relay) box.
NOTE: A CIRCUIT SERVICING EACH DRYER MUST BE PROVIDED.
24
4. Grounding
A ground (earth) connection must be provided and installed in accordance with state and local codes. In
the absence of these codes, grounding must conform to applicable requirements of the National Electrical
Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable
Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The
ground connection may be to a proven earth ground at the location service panel.
NOTE: A grounding connection (terminal lug) is provided in the in the dryers electrical service/relay
box at the rear, upper left hand corner of the dryer.
For added personal safety, when possible, it is suggested that a separate ground wire (sized per local codes)
be connected from the ground connection of the dryer to a grounded cold water pipe. DO NOT ground
to a gas pipe or hot water pipe. The grounded cold water pipe must have metal to metal connection
ALL the way to the electrical ground. If there are any nonmetallic interruptions, such as a meter, pump,
plastic, rubber, or other insulating connectors, they must be jumped out with no. 4 copper wire and securely
clamped to bare metal at both ends.
IMPORTANT: For personal safety and proper operation, the dryer must be grounded. For proper
operation of the microprocessor controller (computer), an earth (zero) ground is
required.
NOTE: Grounding via metallic electrical conduit (pipe) is not recommended.
25
G. GAS INFORMATION
It is your responsibility to have ALL plumbing connections made by a qualified professional to assure that the gas
plumbing installation is adequate and conforms to local and state regulations or codes. In the absence of such
codes, ALL plumbing connections, materials, and workmanship must conform to the applicable requirements of
the National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes
CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (liquid propane [L.P.] Gas) or LATEST
EDITION.
IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated
in this manual, can result in personal injury and improper operation of the dryer.
The dryer and its individual shutoff valves must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The dryer must be isolated
from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the
gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa).
IMPORTANT: Failure to isolate or disconnect dryer from supply as noted can cause irreparable
damage to the gas valve, which will VOID THE WARRANTY.
WARNING: FIRE OR EXPLOSION COULD RESULT.
1. Gas Supply
The gas dryer installation must meet the American National Standard...National Fuel Gas Code ANSI
Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1 M91 (Natural
Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION, as well as local codes and ordinances
and must be done by a qualified professional.
NOTE: Undersized gas piping will result in ignition problems, slow drying, increased use of energy, and
can create a safety hazard.
The dryer must be connected to the type of heat/gas indicated on the dryer data label affixed to the left
side panel area behind the top control (access) door (refer to the illustration in Section VIII of this
manual). If this information does not agree with the type of gas available, DO NOT OPERATE THE
DRYER. Contact the reseller who sold the dryer or contact the ADC factory.
IMPORTANT: Any burner changes or conversions must be made by a qualified professional.
The input ratings shown on the dryer data label are for elevations up to 2,000 feet (609.6 meters), unless
elevation requirements of over 2,000 feet (609.6 meters) were specified at the time the dryer order was
placed with the factory. The adjustment or conversion of dryers in the field for elevations over 2,000 feet
(609.6 meters) is made by changing each burner orifice. If this conversion is necessary, contact the
reseller who sold the dryer or contact the ADC factory.
26
2. Technical Data
a. Gas Specifications
TYPE OF GAS
NATURAL
Manifold Pressure*
In-Line Pressure
LIQUID PROPANE
3.5 inches W.C.
8.7 mb
10.5 inches W.C.
26.1 mb
6.0 - 12.0 inches W.C.
14.92 - 29.9 mb
11.0 inches W.C.
27.4 mb
Shaded areas are stated in metric equivalents
b. Gas Connections:
Inlet connection ---------- 1-1/2” N.P.T.
Inlet supply size ---------- 1-1/2” N.P.T. (minimum)
Btu/hr input (per dryer) - 550,000 (138,600 kcal/hr)
1) Natural Gas
Regulation is controlled by the dryer's gas valve's internal regulator. Incoming supply pressure
must be consistent between a minimum of 6.0 inches (14.92 mb) and a maximum of 12.0 inches
(29.9 mb) water column (W.C.) pressure.
2) Liquid Propane (L.P.) Gas
Dryers made for use with L.P. gas have the gas valve's internal pressure regulator blocked open so
that the gas pressure must be regulated upstream of the dryer. The pressure measured at each
gas valve pressure tap must be a consistent 10.5 inches (26.1 mb) water column. There is no
regulator or regulation provided in an L.P. dryer. The water column pressure must be regulated at
the source (L.P. tank) or an external regulator must be added to each dryer.
TYPE OF GAS
Natural
Liquid Propane
BTU
MODEL
Kcal/hr
Per Hour
Part
Part
NUMBER
Rating Qty. D.M.S.*
Qty. D.M.S.*
Rating
Number
Number
ID-170
550,000
138,600
4
#2
140839
Shaded area is stated in metric equivalent.
* Drill Materical Size (D.M.S.) equivalents are as follows:
Natural Gas ................. #2 = .2210” (5.61 mm)
Liquid Propane Gas .... #29 = .1360” (3.45 mm)
27
3
#29
140820
L.P.
Conversion
Kit
Part Number
883111
3. Piping/Connections
ALL components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LATEST
EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (liquid propane
[L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and
ordinances and must be done by a qualified professional. It is important that gas pressure regulators meet
applicable pressure requirements, and that gas meters be rated for the total amount of ALL the appliance
BTUs being supplied.
The dryer is provided with a 1-1/2” N.P.T. inlet pipe connection extending out the back area of the burner
box. The minimum pipe size (supply line) to the dryer is 1-1/2” N.P.T. For ease servicing, the gas supply
line of each dryer must have its own shutoff valve.
The size of the main gas supply line (header) will vary depending on the distance this line travels from the
gas meter or, in the case of L.P. gas, the supply tank, other gas operated appliances on the same line, etc.
Specific information regarding supply line size should be determined by the gas supplier.
NOTE: Undersized gas supply piping can create a low or inconsistent pressure, which will result in
erratic operation of the burner ignition system.
Consistent gas pressure is essential at ALL gas connections. It is recommended that a 1-1/2” (3.18 cm)
pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator must
be installed in the gas supply line (header) if the (natural) gas pressure exceeds 12.0 inches (29.9 mb) of
water column (W.C.) pressure.
NOTE: A consistent water column test pressure of 3.5 inches (8.7 mb) for natural gas and 10.5 inches
(26.1 mb) for L.P. dryers is required at the gas valve pressure tap of each dryer for proper and
safe operation.
A 1/8" N.P.T. plugged tap, accessible for a test gauge connection, must be installed in the main gas supply
line immediately upstream of each dryer.
IMPORTANT: Pipe joint compounds that resist the action of natural gas and L.P. gas must be used.
IMPORTANT: Test ALL connections for leaks by brushing on a soapy water solution (liquid
detergent works well).
WARNING: NEVER TEST FOR LEAKS WITH A FLAME!!!
ALL components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LATEST
EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas)
or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and ordinances
and must be done by a qualified professional. It is important that gas pressure regulators meet applicable
pressure requirements, and that gas meters be rated for the total amount of ALL the appliance BTUs being
supplied.
28
IMPORTANT: The dryer and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of
1/2 psig (3.5 kPa).
NOTE: The dryer must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure test of the gas supply system at test pressures equal to or less
than 1/2 psig (3.5 kPa).
29
H. STEAM INFORMATION
It is your responsibility to have ALL steam plumbing connections made by a qualified professional to assure that
the installation is adequate and conforms with local and state regulations or codes.
IMPORTANT: Failure to comply with the requirements stipulated in this manual can result in
component failure which will VOID THE WARRANTY.
NOTE: The IDS-170 is manufactured with a pneumatic (piston) damper system which requires an
external supply of clean, dry, regulated air of 3.25 cfh (0.09 cmh) at 80 PSI +/- 10 PSI (5.51
bars +/- 0.68 bars). Refer to Steam Damper Air System Connections , Section H, item 4.
1. Steam Coil PH Level
The normal PH level for copper type steam coils must be maintained between a value of 8.5 to 9.5. For
steel type steam coils the PH level must be maintained between a value of 9.5 to 10.5. These limits are set
to limit the acid attack of the steam coils.
IMPORTANT: Coil failure due to improper PH level will VOID THE WARRANTY.
2. Steam Requirements - High Pressure
Inlet --------- 1-1/2" supply line connection ---- qty. one (1) at top manifold.
Return ------ 1-1/2" return line connection ----- qty. one (1) at bottom manifold.
OPERATING STEAM PRESSURE
MAXIMUM
125 psig
862 kPa
MINIMUM
100 psig*
689 kPa
HEAT INPUT (NORMAL LOAD)
19 Bhp
CONSUMPTION (APPROXIMATE) @ 125 PSI
725 lbs/hr
329.1 kg/hr
Shaded areas are stated in metric equivalents
* Minimum operating pressure for optimum results.
3. Installation Instructions
To insure an adequate supply of steam is provided, be sure that the steam lines and steam return lines are
sized and laid out as stipulated in this manual. Inadequate steam lines and steam return lines or improper
steam plumbing will result in poor performance and can cause component failure. Clean, dry steam must
be provided to the dryer.
IMPORTANT: Steam coil failure due to water hammer by wet steam will VOID THE WARRANTY.
a. The pressure of the condensate in the steam supply will cause water hammer and subsequent heat
exchanger (steam coil) failure. The steam supply connection into the main supply line must be made
with a minimum 10-inch (25.4 cm) riser. This will prevent any condensate from draining towards the
dryer.
30
b. The steam supply piping to the dryer must include a 12-inch (30.48 cm) rise along with a drip trap and
check valve. This will prevent any condensate from entering the steam coil.
c. Flexible hoses or couplings must be used. The dryer vibrates slightly when it runs and this will cause
the steam coil connections to crack if they are hard piped to the supply and return mains.
d. Shutoff valves for each dryer should be installed in the supply line, return line, and drip trap return line.
This will allow the dryer to be isolated from the supply main and the return main if the dryer needs
maintenance work.
e. Install an inverted bucket steam trap and check valve at least 12-inches (30.48 cm) below the steam
coil as close to the coil as possible.
1) An inverted bucket steam trap with a capacity of 1,400 lbs (635.02 kg) of condensate per hour @
125 PSI (8.61 bars) is required for each dryer.
f. A 3/4” (19.05 mm) vacuum breaker should be installed. This will save energy and provide for the
safety of the operator and maintenance personnel.
g. Water pockets in the supply line, caused by low points, will provide wet steam to the coil possibly
causing steam coil damage. ALL horizontal runs of steam supply piping should be pitched 1/4-inch
(6.35 mm) for every 1 foot (0.30 meters) back towards the steam supply header causing the condensate
in the line to drain to the header. Install a bypass trap in any low point to eliminate wet steam.
STEAM DAMPER SYSTEM
31
4. Steam Damper Air System Connections
The IDS-170 is manufactured with a pneumatic (piston) damper system which requires an external supply
of compressed air. The air connection is made to the steam damper solenoid valve which is located at the
rear inner top area of the dryer just in front of the electric service relay box. (Refer to the bottom
illustration on page 33).
a. Air Requirements
COMPRESSED
AIR SUPPLY
AIR PRESSURE
Normal
80 PSI
5.51 bars
Minimum Supply
70 PSI
4.82 bars
Maximum Supply
90 PSI
6.21 bars
Shaded areas are stated in metric equivalents
b. Air Connection
Air connection to system --- 1/8-inch N.P.T.
c. No air regulator or filtration is provided with the dryer. External regulation/filtration of 3.25 cfh (0.09
cmh) at 80 PSI (5.51 bars) must be provided. It is suggested that a regulator/filter gauge arrangement
be added to the compressed air line just before the dryer connection. This is necessary to insure that
correct and clean air pressure is achieved.
5. Steam Damper System Operation
The IDS-170 steam damper as shown in the top illustration on page 33, allows the coil to stay constantly
charged eliminating repeated expansion and contraction. When the damper is opened, the air immediately
passes through the already hot coil, providing instant heat to start the drying process. When the damper is
closed, ambient air is drawn directly into the basket (tumbler), allowing a rapid cool down.
Diagram 1 shows the damper in the heating (open) mode, allowing heat into the basket (tumbler).
Diagram 2 shows the damper in the cool down (closed) mode, pulling ambient air directly into the basket
(tumbler) without passing through the coils.
NOTE: With the dryer off or with no air supply, the steam damper is in cool down mode as shown in
Diagram 2 at the top of page 33.
32
5. Steam Damper Air Piston (Flow Control) Operation Adjustment
Although the steam damper operation was tested and adjusted prior to shipping at 80 PSI (5.51 bars), steam
damper operation must be checked before the dryer is put into operation. Refer to the illustration above
for correct steam damper operation. If steam damper adjustment is necessary, locate the flow control
valve and make the necessary adjustments as noted below.
33
I. PREPARATION FOR OPERATION/START-UP
The following items should be checked before attempting to operate the dryer:
1. Read ALL "CAUTION," "WARNING," and "DIRECTION" labels attached to the dryer.
2. Check incoming supply voltage to be sure that it is the same as indicated on the dryer data label affixed to
the left side panel area behind the top control (access) door (refer to the illustration in Section VIII of
this manual). In the case of 208 VAC or 230/240 VAC THE SUPPLY VOLTAGE MUST MATCH
THE ELECTRIC SERVICE EXACTLY.
3. GAS MODELS - check to assure that the dryer is connected to the type of heat/gas indicated on the dryer
data label.
4. GAS MODELS - the sail switch damper assembly was installed and pre-adjusted at the factory to prior
shipping. However, each sail switch adjustment must be checked to assure that this important safety
control is functioning.
5. Check to be sure that the drive belts between the idler pulley and the motor pulley have been reconnected.
NOTE: The drive belts were disconnected at the factory prior to dryer shipment.
6. GAS MODELS - be sure that ALL gas shutoff valves are in the open position.
7. Be sure ALL back panels (guards) and electric box covers have been replaced.
8. Check ALL service doors to assure that they are closed and secured in place.
9. Be sure the lint drawer is securely in place.
NOTE: LINT DRAWER MUST BE ALL THE WAY IN PLACE TO ACTIVATE THE
SAFETY SWITCH OTHERWISE THE DRYER WILL NOT START.
10. Rotate the basket (tumbler/drum) by hand to be sure it moves freely.
11. Check bolts, nuts, screws, terminals, and fittings for security.
12. GAS MODELS and STEAM MODELS - check to insure air supply 80 PSI (5.51 bars) is connected to the
dryer.
13. STEAM MODELS - check to insure ALL steam shutoff valves are open.
14. STEAM MODELS - check steam damper operation.
15. Check basket (tumbler) bearing setscrews to insure they are ALL tight.
34
J. PREOPERATIONAL TESTS
ALL dryers are thoroughly tested and inspected before leaving the factory. However, a preoperational test
should be performed before the dryer is publicly used. It is possible that adjustments have changed in transit or
due to marginal location (installation) conditions.
1. Turn on electric power to the dryer.
2. Make sure the main door is closed and the lint drawer is securely in place.
3. Refer to the Operating Instructions for starting your particular model dryer.
4. Check to insure that the basket (tumbler) starts in the clockwise (CW) direction. Additionally, check the
direction of the blower motor impellor (fan) to insure that the impellor (fan) rotates in the clockwise (CW)
direction as viewed from the front. If it is, the phasing is correct. If the phasing is incorrect, reverse two
(2) of the leads at L1, L2, or L3 of the power supply connections made to the dryer.
IMPORTANT: Dryer blower motor/pulley that drives the impellor/fan (squirrel cage) when viewed
from the back of the dryer must turn in the counterclockwise (CCW) direction,
otherwise the dryer efficiency will be drastically reduced and premature component
failure can result.
5. Heat Circuit Operational Test
a. Gas Models
1) When the dryer is first started (during initial start-up), the burner has a tendency not to ignite on the
first attempt. This is because the gas supply piping is filled with air, so it may take a few minutes for
this air to be purged from the lines.
2) The dryer is equipped with a Hot Surface Ignition (HSI) system which has internal diagnostics. If
ignition is not established after the first attempt, the heat circuit HSI module will LOCKOUT until it
is manually reset. To reset the HSI system, open and close the main door and restart the dryer
(press the “START” key).
NOTE: During the purging period, check to be sure that ALL gas shutoff valves are open.
3) Once ignition is established, a gas pressure test should be taken at the gas valve pressure tap of
each dryer to assure that the water column (W.C.) pressure is correct and consistent.
NOTE: Water column pressure requirements (measured at the gas valve pressure tap)...
Natural Gas -------- 3.5 Inches (8.7 mb).
L.P. Gas ------------ 10.5 Inches (26.1 mb).
35
IMPORTANT: There is no regulator provided in an liquid propane (L.P.) dryer. The water column
(W.C.) pressure must be regulated at the source (L.P. tank) or an external regulator
must be added to each dryer.
b. Steam Models
1) Check to insure that the steam damper is functioning properly.
a) The steam damper should not "slam" (open or closed) when it reaches the end of (piston)
travel. Additionally, the steam damper should not bind and/or stop during travel. If either of
these conditions occur, the flow control must be adjusted. Refer to the bottom illustration on
page 33 for air adjustment instructions.
6. Make a complete operational check of ALL safety related circuits (i.e., lint drawer switch, and sail switch
on gas models).
NOTE: To check for proper sail switch operation, open the main door and while holding main door
switch plunger in, start the dryer. The dryer should start but the heat circuit should not be
activated (on). If the heat (burner) does activate, shut the dryer off and make the necessary
adjustments.
7. A reversing basket (tumbler) dryer should never be operated with less than a 100 lbs (45.35 kg) load (dry
weight). The size of the load will affect the coast down and dwell (stop) times. The basket (tumbler) must
come to a complete stop before starting in the opposite direction.
a. Microprocessor Controller (Computer) Dryer Models
1) Spin and stop are not adjustable in the Automatic Mode and have been preprogrammed into the
microprocessor controller (computer) for 150-seconds spin time in the forward direction and
120-seconds in the reverse direction with a 5-second dwell (stop) time.
2) Spin and stop times are adjustable in the Manual (timed) Mode.
b. Dual Timer Dryer Models
1) Both spin time and stop (dwell) time are adjustable (refer to the illustration on page 46).
BASKET COATING
The basket (tumbler) is treated with a protective coating. We suggest dampening old garments or cloth
material with a solution of water and nonflammable mild detergent and tumbling them in the basket (tumbler) to
remove this coating.
36
9. Make a complete operational check of ALL operating controls.
a. Microprocessor controller (computer) programs/selections...
1) Each microprocessor controller (computer) has be preprogrammed by the factory with the most
commonly used parameter (program) selections. If computer changes are required, refer to the
computer programming manual, which was shipped with the dryer.
b. Dual Timer check...
1) Heating Timer
2) Cool Down Timer
3) Temperature Selection Switch
37
K. COMPRESSED AIR REQUIREMENTS
The model ID-170 dryer requires an external supply of compressed air (2.5 cfh @ 80 PSI [0.07 cmh @ 5.51
bars] for gas models and 3.25 cfh @ 80 PSI [0.09 cmh @ 5.51 bars] for steam models). For steam models,
compressed air is necessary for the air operated steam damper. On both the steam model as well as the gas
models, compressed air is necessary/required for blower air jet operation...to clean lint from the impellor/fan
(squirrel cage).
1.
Air Requirements
a. Microprocessor controller (computer) dryers...
COMPRESSED
AIR SUPPLY
AIR PRESSURE
Normal
80 PSI
5.51 bars
Minimum Supply
70 PSI
4.82 bars
Maximum Supply
90 PSI
6.21 bars
Shaded areas are stated in metric equivalents
2. Air Regulation
a. No air regulation or air filtration is provided with the dryer. External regulation/filtration of 80 PSI (5.51
bars) must be provided. It is suggested that a regulator/filter gauge arrangement be added to the
compressed air line just before the dryer connection. This is necessary to insure that correct and clean
air pressure is achieved.
3. Air Connection
a. Air connection to this system is a 1/8” F.P.T. as per the illustration below.
38
L. SHUT DOWN INSTRUCTIONS
If the dryer is to be shut down (taken out of service) for a period of time, the following must be performed:
1. Discontinue power to the dryer either at the external disconnect switch or the circuit breaker.
2. Discontinue the heat supply:
a. GAS MODELS...discontinue the gas supply.
1) SHUT OFF external gas supply shutoff valve.
2) SHUT OFF internal gas supply shutoff valve located in the gas valve burner area.
b. STEAM MODELS...discontinue the steam supply.
1) SHUT OFF external (location furnished) shutoff valve.
2) SHUT OFF internal steam valves in the supply lines and the return lines.
39
SECTION IV
SERVICE/PARTS INFORMATION
A. SERVICE
1. Service must be performed by a qualified trained technician, service agency, or gas supplier. If service is
required, contact the reseller from whom the ADC equipment was purchased. If the reseller cannot be
contacted or is unknown, contact the ADC Service Department for a reseller in your area.
NOTE: When contacting the ADC Service Department, be sure to give them the correct model
number and serial number so that your inquiry is handled in an expeditious manner.
B. PARTS
1. Replacement parts should be purchased from the reseller from whom the ADC equipment was purchased.
If the reseller cannot be contacted or is unknown, contact the ADC Parts Department for a reseller in
your area. Parts may also be purchased directly from the factory by calling the ADC Parts Department at
(508) 678-9000 or you may FAX in your order at (508) 678-9447.
NOTE: When ordering replacement parts from the ADC reseller or the ADC factory be sure to give
them the correct model number and serial number so that your parts order can be
processed in an expeditious manner.
40
SECTION V
WARRANTY INFORMATION
A. RETURNING WARRANTY CARDS
1. Before any dryer leaves the ADC factory test area, a warranty card is placed on the back side of the main
door glass. These warranty cards are intended to serve the customer where we record the individual
installation date and warranty information to better serve you should you file a warranty claim.
a. If a warranty card did not come with your dryer, contact the ADC Warranty Department or the ADC
Service Department at (508) 678-9000.
IMPORTANT: A separate warranty card must be completed and returned for each individual dryer.
NOTE: Be sure to include the installation date when returning the warranty card(s).
B. WARRANTY
For a copy of the ADC commercial warranty covering your particular dryer(s), contact the ADC reseller from
whom you purchased the equipment and request a dryer warranty form. If the reseller cannot be contacted or
is unknown, warranty information can be obtained from the factory by contacting the ADC Warranty Department
at (508) 678-9000.
NOTE: Whenever contacting the ADC factory for warranty information, be sure to have the dryer’s
model number and serial number available so that your inquiry can be handled in an
expeditious manner.
C. RETURNING WARRANTY PARTS
ALL dryer or parts warranty claims or inquires should be addressed to the ADC Warranty Parts Department.
To expedite processing, the following procedures must be followed:
1. No parts are to be returned to ADC without prior written authorization (“Return Material Authorization”
[R.M.A.]) from the factory.
NOTE: An R.M.A. is valid for only thirty (30) days from date of issue.
a. The R.M.A. issued by the factory, as well as any other correspondence pertaining to the returned
part(s), must be included inside the package with the failed merchandise.
41
2. Each part must be tagged with the following information:
a. Model number and serial number of the dryer from which part was removed.
b. Nature of failure (be specific).
c. Date of dryer installation.
d. Date of part failure.
e. Specify whether the part(s) being returned is for a replacement, a credit, or a refund.
NOTE: If a part is marked for a credit or a refund, the invoice number covering the purchase of the
replacement part must be provided.
NOTE: Warranty tags (ADC Part No. 450064) are available at “no charge” from ADC upon request.
3. The company returning the part(s) must clearly note the complete company name and address on the
outside of the package.
4. ALL returns must be properly packaged to insure that they are not damaged in transit. Damage claims
are the responsibility of the shipper.
IMPORTANT: No replacements, credits, or refunds will be issued for merchandise damaged in
transit.
5. ALL returns should be shipped to the ADC factory in such a manner that they are insured and a proof of
delivery can be obtained by the sender.
6. Shipping charges are not the responsibility of ADC. ALL returns should be “prepaid” to the
factory. Any “C.O.D.” or “COLLECT” returns will not be accepted.
IMPORTANT: No replacements, credits, or refunds will be issued if the claim cannot be processed
due to insufficient information. The party filing the claim will be notified in writing,
either by “FAX” or “CERTIFIED MAIL - Return Receipt Requested,” as to the
information necessary to process claim. If reply is not received by the ADC
Warranty Department within thirty (30) days from the FAX/letter date, then no
replacements, credits, or refunds will be issued, and the merchandise will be
discarded.
42
SECTION VI
ROUTINE MAINTENANCE
A. CLEANING
A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from
various areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be
determined from experience at each location. Maximum operating efficiency is dependent upon proper air
circulation. The accumulation of lint can restrict this airflow. If the guidelines in this section are met, an ADC
dryer will provide many years of efficient, trouble-free, and most importantly safe operation.
WARNING: LINT FROM MOST FABRICS IS HIGHLY COMBUSTIBLE. THE
ACCUMULATION OF LINT CAN CREATE A POTENTIAL FIRE HAZARD.
WARNING: KEEP DRYER AREA CLEAR AND FREE FROM COMBUSTIBLE
MATERIALS, GASOLINE, AND OTHER FLAMMABLE VAPORS AND
LIQUIDS.
NOTE: REMOVE POWER FROM THE DRYER BEFORE PERFORMING ANY
MAINTENANCE IN THE DRYER (cleaning the lint drawers and both steam coil lint
screens are the only exceptions).
NOTE: Suggested time intervals shown are for average usage, which is considered six (6) to eight (8)
operational (running) hours per day.
IMPORTANT: Dryer produces combustible lint and must be exhausted to the outdoors. Every 6
months, inspect the exhaust ducting and remove any lint build up.
CLEAN LINT FROM LINT DRAWER/SCREEN EVERY THIRD OR FOURTH LOAD.
NOTE: The frequency of cleaning the lint screens can best be determined from experience at each
location.
WEEKLY
Clean lint accumulation from the lint chamber, thermostat, and microprocessor temperature sensor (sensor
bracket) area.
WARNING: TO AVOID HAZARD OF ELECTRICAL SHOCK, DISCONTINUE
ELECTRICAL POWER SUPPLY TO THE DRYER.
43
STEAM DRYERS
Clean the steam coil fins. Suggest using compressed air and a vacuum cleaner with brush attachment.
NOTE: When cleaning steam coil fins, be careful not to bend the fins. If fins are bent,
straighten by using a fin comb, which is available from any local air conditioning supply house.
90 DAYS
Remove lint from around basket (tumbler), drive motors, and surrounding areas. Remove lint from the gas valve
burner area with a dusting brush or vacuum clearer attachment.
Re-grease the two (2) bearings that support the impellor/fan shaft. Use Shell Alvania #2 grease or its equivalent.
Impellor (fan/blower) shaft bearings should be lubricated using a #2 grease or its equivalent.
Check to make sure that the setscrews on the impellor/fan shaft bearings are tight.
Remove lint from around basket (tumbler), drive motors, and surrounding areas. Remove lint from gas valve
burner area with a dusting brush or vacuum cleaner attachment.
NOTE: To prevent damage, avoid cleaning and/or touching the Hot Surface Ignitor (HSI).
Remove lint accumulation from inside
6 MONTHS
Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from dryers internal
exhaust ducting.
NOTE: THE ACCUMULATION OF LINT IN THE EXHAUST DUCTWORK CAN
CREATE A POTENTIAL FIRE HAZARD.
NOTE: DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR.
CHECK CUSTOMER FURNISHED BACK DRAFT DAMPERS IN THE EXHAUST
DUCTWORK. INSPECT AND REMOVE ANY LINT ACCUMULATION, WHICH
CAN CAUSE THE DAMPER TO BIND OR STICK.
NOTE: A back draft damper that is sticking partially closed can result in slow drying and shutdown of
the heat circuit safety switches or thermostats.
NOTE: When cleaning the dryer cabinet(s), avoid using harsh abrasives. A product intended for the
cleaning of appliances is recommended.
Check ALL V-belts for tightness and wear. Retighten, realign, or replace if required.
NOTE: V-belts should be replaced in matched sets (pairs).
44
B. ADJUSTMENTS
7 DAYS AFTER INSTALLATION AND EVERY 6 MONTHS THEREAFTER
Inspect bolts, nuts, screws, (bearing setscrews), gounding connections, and nonpermanent gas connections
(unions, shutoff valves, and orifices). Fan (impellor) V-belts, along with the motor and drive belts should be
examined and replaced if necessary. Tighten loose V-belts when necessary. Complete operational check of
controls and valves. Complete operational check of ALL safety devices (i.e., door switches, lint drawer switch,
sail switch, burner and hi-limit thermostats).
ID-170 ONLY : Squirrel cage type fan (impellor) on the blower motor must be inspected and cleaned
every six (6) months.
C. LUBRICATION
The motor bearings, the idler bearings, and the basket (tumbler) bearings are permanently lubricated.
NO LUBRICATION IS NECESSARY.
90 DAYS
Re-grease the two (2) bearings that support the impellor/fan shaft. Use Shell Alvania #2 grease or its equivalent.
Impellor (fan/blower) shaft bearings should be lubricated using a #2 grease or its equivalent.
45
SECTION VII
REVERSING TIMER SPIN/DWELL ADJUSTMENTS
Timer models have an electronic reversing timer in the electrical service box which is located in the upper left
rear area of the dryer.
Both the dwell (stop) time and the basket (tumbler) spin time are adjustable by mode selection switches located
on the electronic timer (as noted in the illustration below).
TIMING LEGEND
SPIN TIME
Adjustment Position Number
1
2
3
4
5
Time in Seconds*
30
60
90
120
150
Adjustment Position Number
1
2
3
4
5
Time in Seconds*
5
6.3
7.6
8.9
10.2
DWELL (STOP) TIME
* Values shown are +/- 1-second.
46
SECTION VIII
DATA LABEL INFORMATION
A. DATA LABEL
When contacting American Dryer Corporation, certain information is required to insure proper service/parts
information from ADC. This information is on the data label that is affixed to the left side panel area behind the
top control (access) door. When contacting ADC please have the model number as well as the serial number
readily available.
47
THE DATA LABEL
1. MODEL NUMBER
The model number is an ADC number, which describes the size of the dryer and the
type of heat (gas, electric, or steam).
2. SERIAL NUMBER
The serial number allows ADC to gather information on your particular dryer.
3. MANUFACTURING CODE NUMBER
The manufacturing code number is a number issued by ADC, which describes ALL
possible options on your particular model.
4. TYPE OF HEAT
This describes the type of heat for your particular dryer: gas (either natural gas or
liquid propane [L.P.] gas) or steam.
5. HEAT INPUT (for GAS DRYERS)
This describes the heat input in British Thermal Units per Hour (BTUH).
6. ORIFICE SIZE (for GAS DRYERS)
Gives the number drill size used.
7. ELECTRIC SERVICE
This describes the electric service for your particular model.
8. GAS MANIFOLD PRESSURE (for GAS DRYERS)
This describes the manifold pressure taken at the gas valve tap.
9. APPLICABLE APPROVAL SEAL(S)
I.E., Canadian Standards Association International.
48
SECTION IX
PROCEDURE FOR FUNCTIONAL CHECK
OF REPLACEMENT COMPONENTS
1. For Models With Hot Surface Ignition (HSI) Module (CE Version)
a. Upon completing installation of the replacement HSI module, reestablish power to the dryer.
b. The HSI module’s “red” indicator light will
light for up to approximately 5-seconds (self
check routine). If the HSI module’s “red”
indicator light stays on or flashes continuously,
then the HSI module is wired incorrectly or
has failed.
c. Start the drying cycle.
d. The HSI will turn on, and after approximately
4-seconds, the ignitor will shut off and the gas
valve will be energized. Ignition (flame)
should now be established.
e. With the burner flame on, remove the flame sensor wire from the S2 terminal of the HSI module. The
burner flame must shut off immediately.
f. Stop the drying cycle, with the flame sensor wire still removed, restart the drying cycle.
g. The HSI will turn on, and after a few seconds later, the gas valve will be energized and the HSI will shut
off. Ignition (flame) should be evident for approximately 7-seconds and then shut off.
h. The HSI module will attempt to light burner only “once.” If flame is not reestablished the HSI module
will lockout and the “red” indicator light will flash continuously.
i. Functional check of the HSI module is complete.
1) Replace the flame sensor wire from the S2 terminal to the HSI module.
49
SECTION X
BURNER AND BASKET (TUMBLER)/LINT CHAMBER
MANUAL RESET HI-LIMIT INSTRUCTIONS
I M P O RTA N T
MANUAL RESET HI-LIMIT INSTRUCTIONS
FOR PHASE 7 MODELS (GAS MODELS ONLY)
This dryer was manufactured with a burner manual reset hi-limit and basket (tumbler)/lint chamber hi-limit
thermostat, which is monitored by the Phase 6 computer. If either manual reset thermostat is open prior to start
of the drying cycle, the dryer will start momentarily and then shutdown, the Phase 6 computer will display an
error code with an audio indication. If the basket (tumbler)/lint chamber hi-limit thermostat is open, the display
will read “dRUM SAFETY FAIL.” If the burner hi-limit thermostat is open, the display will read “bURNER
SAFETY FAIL.”
If either manual reset hi-limit thermostat opens during a drying cycle, the display will show the applicable error
code described above along with an audio indication. If the drum temperature is above 100º F (38º C), the dryer
will continue to run with no heat for 3 minutes or until the drum temperature has flattened below 100º F (38º C).
The clear/stop button on the Phase 6 keyboard (touch pad) must be pressed to clear the error condition. The
open manual reset hi-limit thermostat must be reset “manually” prior to the start of the next cycle.
This hi-temperature condition may be caused due to a restricted exhaust, poor airflow, or improper burner
operation.
The location of the burner hi-limit is on the right side of the burner box and the basket (tumbler) hi-limit is located
in the lint chamber area.
WARNING: Discontinue power to dryer before attempting to reset hi-limit.
IMPORTANT
This dryer is equipped with a burner
hi-limit and tumbler/lint chamber hi-limit
thermostat which must be reset manually.
WARNING: Discontinue power to dryer
before attempting to reset hi-limit.
ADC P/N: 114093
50
ADC 113331
1 - 08/27/01-25
