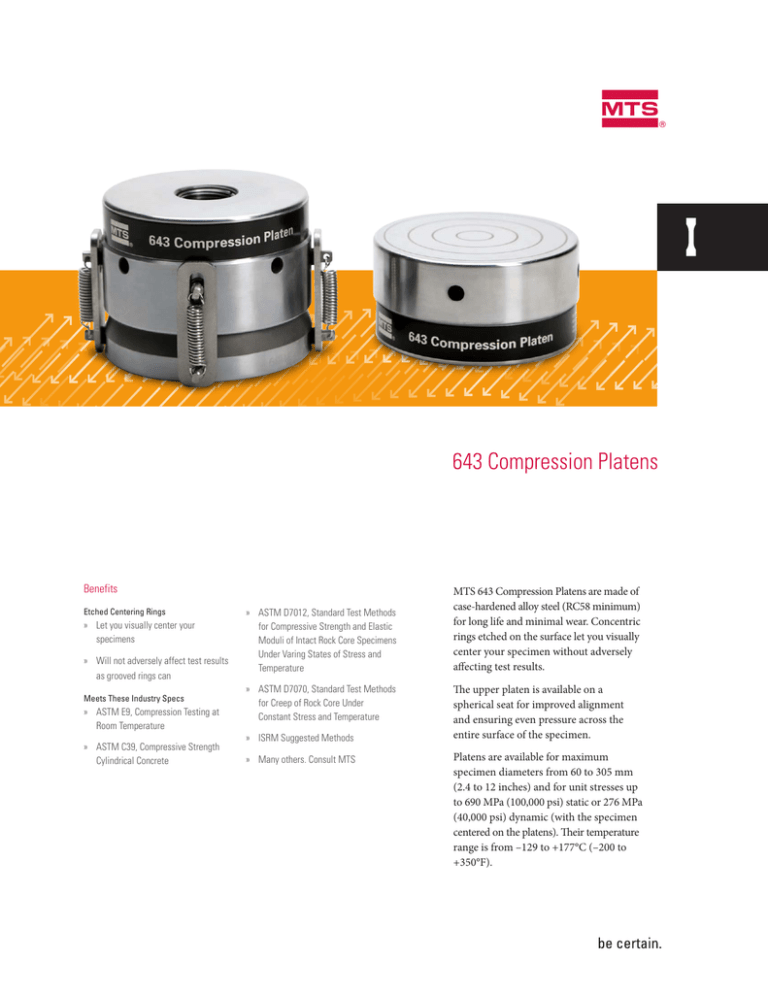

Compression Platens

Compression Platens
m
643 Compression Platens
Benefits
Etched Centering Rings
»» Let you visually center your
specimens
»» Will not adversely affect test results
as grooved rings can
Meets These Industry Specs
»» ASTM E9, Compression Testing at
Room Temperature
»» ASTM C39, Compressive Strength
Cylindrical Concrete
»» ASTM D7012, Standard Test Methods
for Compressive Strength and Elastic
Moduli of Intact Rock Core Specimens
Under Varing States of Stress and
Temperature
»» ASTM D7070, Standard Test Methods
for Creep of Rock Core Under
Constant Stress and Temperature
»» ISRM Suggested Methods
»» Many others. Consult MTS
MTS 643 Compression Platens are made of
case-hardened alloy steel (RC58 minimum)
for long life and minimal wear. Concentric
rings etched on the surface let you visually
center your specimen without adversely
affecting test results.
The upper platen is available on a
spherical seat for improved alignment
and ensuring even pressure across the
entire surface of the specimen.
Platens are available for maximum
specimen diameters from 60 to 305 mm
(2.4 to 12 inches) and for unit stresses up
to 690 MPa (100,000 psi) static or 276 MPa
(40,000 psi) dynamic (with the specimen
centered on the platens). Their temperature
range is from –129 to +177°C (–200 to
+350°F).
Specifications
Model
Maximum
Specimen Diameter
Mounting Thread
Insert Sizes
643.06B
60 mm (2.4 in)
M12 x 1.25 / 1/2”-20
643.10B
100 mm (4 in)
M27 x 2 / 1”-14
643.15B
150 mm (6 in)
M27 x 2 / 1”-14
643.20B
200 mm (8 in)
M27 x 2 / 1”-14
643.30B
300 mm (12 in)
M52 x 2 / 2”-12
Model
Description
Part Number*
643.06B-01
Fixed & Spherical
050-292-603
643.06B-03
Two Fixed
050-292-503
643.06B-05
One Fixed
050-612-103
643.10B-01
Fixed & Spherical
050-292-803
643.10B-03
Two Fixed
050-292-703
643.10B-05
One Fixed
050-612-203
643.15B-01
Fixed & Spherical
050-293-003
643.15B-03
Two Fixed
050-292-903
643.15B-05
One Fixed
050-612-303
643.20B-01
Fixed & Spherical
053-042-503
643.20B-03
Two Fixed
053-042-803
643.20B-05
One Fixed
053-042-703
643.30B-01
Fixed & Spherical
050-293-203
643.30B-03
Two Fixed
050-293-103
643.30B-05
One Fixed
050-612-403
*Note that MTS Model 643 Compression Platens are also compatible with
electromechanical load frames. Consult MTS for appropriate part numbers.
MTS Systems Corporation
14000 Technology Drive
Eden Prairie, MN 55344-2290 USA
Telephone: 1.952.937.4000
Toll Free: 1.800.328.2255
Fax: 1.952.937.4515
E-mail: [email protected]
www.mts.com
ISO 9001 Certified QMS
Specifications subject to change without notice.
MTS is a registered trademark of MTS Systems Corporation in the United
States. This trademark may be protected in other countries. RTM No. 211177.
© 2014 MTS Systems Corporation.
100-015-483a CompressionPlatens643 Printed in U.S.A. 8/14
