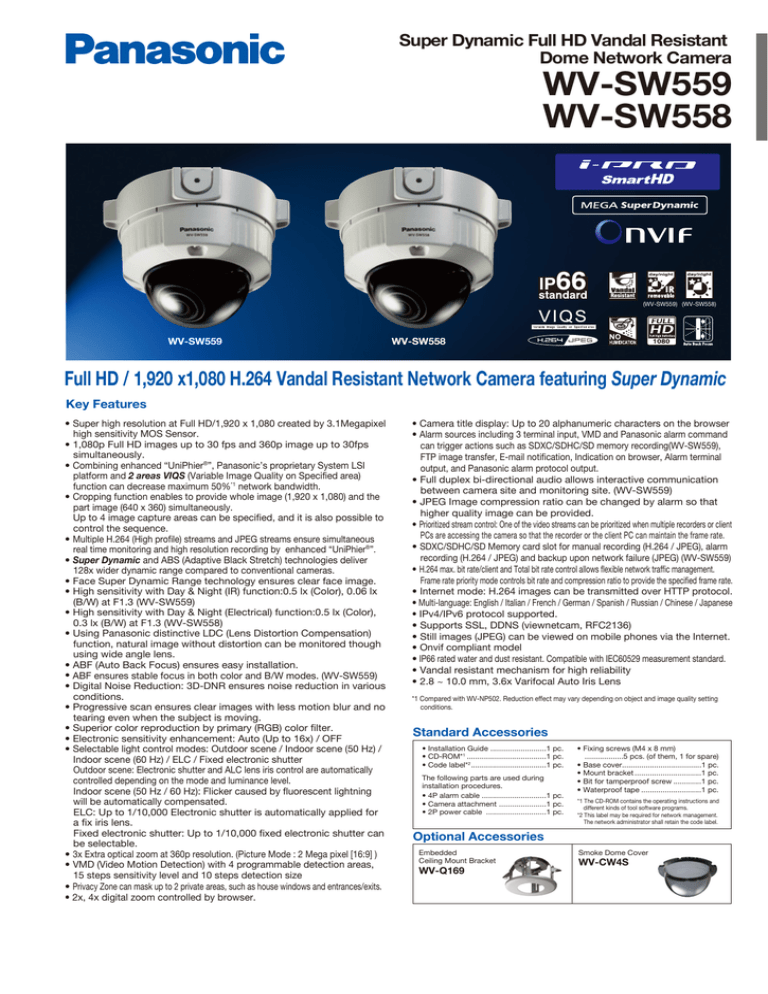

WV-SW559 WV-SW558 Super Dynamic Super Dynamic Full HD Vandal Resistant

WV-SW559 WV-SW558 Super Dynamic Super Dynamic Full HD Vandal Resistant
Super Dynamic Full HD Vandal Resistant
Dome Network Camera
WV-SW559
WV-SW558
(WV-SW559) (WV-SW558)
WV-SW559
WV-SW558
Full HD / 1,920 x1,080 H.264 Vandal Resistant Network Camera featuring Super Dynamic
Key Features
• Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel
high sensitivity MOS Sensor.
• 1,080p Full HD images up to 30 fps and 360p image up to 30fps
simultaneously.
• Combining enhanced “UniPhier®”, Panasonic’s proprietary System LSI
platform and 2 areas VIQS (Variable Image Quality on Specified area)
function can decrease maximum 50%*1 network bandwidth.
• Cropping function enables to provide whole image (1,920 x 1,080) and the
part image (640 x 360) simultaneously.
Up to 4 image capture areas can be specified, and it is also possible to
control the sequence.
• Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous
real time monitoring and high resolution recording by enhanced “UniPhier®”.
• Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver
128x wider dynamic range compared to conventional cameras.
• Face Super Dynamic Range technology ensures clear face image.
• High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx
(B/W) at F1.3 (WV-SW559)
• High sensitivity with Day & Night (Electrical) function:0.5 lx (Color),
0.3 lx (B/W) at F1.3 (WV-SW558)
• Using Panasonic distinctive LDC (Lens Distortion Compensation)
function, natural image without distortion can be monitored though
using wide angle lens.
• ABF (Auto Back Focus) ensures easy installation.
• ABF ensures stable focus in both color and B/W modes. (WV-SW559)
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various
conditions.
• Progressive scan ensures clear images with less motion blur and no
tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter.
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) /
Indoor scene (60 Hz) / ELC / Fixed electronic shutter
Outdoor scene: Electronic shutter and ALC lens iris control are automatically
controlled depending on the mode and luminance level.
Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning
will be automatically compensated.
ELC: Up to 1/10,000 Electronic shutter is automatically applied for
a fix iris lens.
Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can
be selectable.
• 3x Extra optical zoom at 360p resolution. (Picture Mode : 2 Mega pixel [16:9] )
• VMD (Video Motion Detection) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.
• 2x, 4x digital zoom controlled by browser.
• Camera title display: Up to 20 alphanumeric characters on the browser
• Alarm sources including 3 terminal input, VMD and Panasonic alarm command
can trigger actions such as SDXC/SDHC/SD memory recording(WV-SW559),
FTP image transfer, E-mail notification, Indication on browser, Alarm terminal
output, and Panasonic alarm protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site. (WV-SW559)
• JPEG Image compression ratio can be changed by alarm so that
higher quality image can be provided.
• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client
PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.
• SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm
recording (H.264 / JPEG) and backup upon network failure (JPEG) (WV-SW559)
• H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management.
Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
• Internet mode: H.264 images can be transmitted over HTTP protocol.
• Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported.
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via the Internet.
• Onvif compliant model
• IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.
• Vandal resistant mechanism for high reliability
• 2.8 ~ 10.0 mm, 3.6x Varifocal Auto Iris Lens
*1 Compared with WV-NP502. Reduction effect may vary depending on object and image quality setting
conditions.
Standard Accessories
• Installation Guide ..........................1 pc.
• CD-ROM*1 .....................................1 pc.
• Code label*2 ...................................1 pc.
The following parts are used during
installation procedures.
• 4P alarm cable ..............................1 pc.
• Camera attachment ......................1 pc.
• 2P power cable ............................1 pc.
Optional Accessories
Embedded
Ceiling Mount Bracket
WV-Q169
• Fixing screws (M4 x 8 mm)
..................5 pcs. (of them, 1 for spare)
• Base cover.....................................1 pc.
• Mount bracket ...............................1 pc.
• Bit for tamperproof screw .............1 pc.
• Waterproof tape ............................1 pc.
*1 The CD-ROM contains the operating instructions and
different kinds of tool software programs.
*2 This label may be required for network management.
The network administrator shall retain the code label.
Smoke Dome Cover
WV-CW4S
Super Dynamic
Dynamic Range
Face Super Dynamic
Adaptive Black Stretch
AGC
Electronic Sensitivity UP
Day & Night
Digital Noise Reduction
Video Motion Detection
Privacy Zone
Upside Down
VIQS
Camera Title (OSD)
Focus Adjustment
Lens Distortion Compensation
Lens
Focal Length
Angular Field of View*2
Maximum Aperture Ratio
Focusing Range
Adjusting Angle
Browser
GUI
Cropping
Camera Control
Display Mode
Digital Zoom
Camera Title
Clock Display
Alarm Control
One Shot Capture
Audio
SD Memory Data Download
GUI/Setup Menu Language
System Log
Supported OS *3 *4
Supported Browser
Network
Network IF
Image Image Capture Mode:
Resolution 2 mega pixel [16:9]
Image Capture Mode:
1.3 mega pixel [16:9]
Image Capture Mode:
1.3 mega pixel [4:3]
Image Capture Mode:
3 mega pixel [4:3]
5
H.264 * Transmission Mode
Frame Rate
Bit Rate/Client
Image Quality
Refresh Interval
Transmission Type
JPEG
Image Quality
Refresh Interval
Transmission Type
Audio Compression *Only at WV-SW559
Audio Mode *Only at WV-SW559
Authentication for Audio *Only at WV-SW559
Total Bit Rate
Supported Protocol
FTP Client
No. of Simultaneous Users
SDXC/SDHC/SD
Memory Card (Option)
*Only at WV-SW559
Cellular Phone Compatibility
External I/O Terminals
General
WV-SW559
ALARM IN 1/DAY/NIGHT IN, ALARM IN 2/ALARM OUT, ALARM IN 3/AUX OUT
WV-SW558
ALARM IN, ALARM OUT, AUX OUT
Safety/EMC Standard
UL (UL60950-1), FCC (Part15 ClassA), CE, IEC60950-1
C-UL (CAN/CSA C22.2 No.60950-1), (EN55022 ClassB, EN55024)
DOC (ICES003 ClassA)
Power Source and
WV-SW559
12V DC: 850 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 180 mA (Class 0 device)
Power Consumption
WV-SW558
12V DC: 830 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 175 mA (Class 0 device)
* FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.
Ambient Operating Temperature -40 °C ~ +50 °C (-40 °F ~ 122 °F)
Ambient Operating Humidity Less than 90 % (no condensation)
Water and Dust Resistance IP66, IEC60529 measuring standard compatible
Shock Resistance
Compliant with 50 J (IEC 60068-2-75)/IK10 (IEC 62262)
Dimensions
ø164 mm x 148.5 mm (H) x 191.5 mm (W)
{ø6-15/32 inches x 5-7/8 inches (H) x 7-17/32 inches (W)} (Base Cover)
Mass (approx.)
1.6 kg (3.53 lbs)
Finish
Main body: Aluminum die cast, light gray,
Dome section: Clear polycarbonate resin
*1 Converted value
*2 If "1.3 megapixel [4:3]" is selected for the imaging mode, the viewing angle will become narrower.
*3 Refer to "Notes on Windows Vista® / Windows® 7" on the provided CD-ROM for further information
about system requirements for a PC and precautions when using Microsoft® Windows® 7 or
Microsoft® Windows Vista®.
*4 When using IPv6 for communication, use Microsoft® Windows® 7 or Microsoft® Windows Vista®.
*5 Transmission for 2 streams can be individually set in the same compression method.
*6 For further information about compatible devices, refer to our website
(http://panasonic.net/pss/security/support/info.html).
Part Names and Functions
* E model only
Panning Lock Screw
Panning Table
SD Memory Card Slot
(SW559 only)
Monitor Out Connector for
Adjustment
Initial Set Button
Auto Focus(AF) Button /
Extra Optical Zoom Button
Link Indicator (Lit when Linking)
Access Indicator
(Blinks when Accessing)
SD Memory Card Error Indicator
(SW559 only) /Auto Focus Indicator
Zoom Lock Knob
Focus Ring
Inner Dome
Tilting Lock Screw (x2)
Tilting Table
Azimuth Adjustment ring
Network cable
RJ-45 (female)
Alarm input/output cable
Power cable (12 V DC)
Microphone/line input cable
(white) (SW559 only)
Audio output cable (black)
(SW559 only)
* This illustration represents WV-SW559.
Appearance
Unit: mm
(inches)
46(1-3/4")
85
(3-3/8")
138(5-3/8")
83.5
(3-1/4")
Shutter Speed
TV System
NTSC
PAL
Network Mobile Terminal Compatibility*6 iPad, iPhone, iPod touch (iOS 4.2.1 or later) , AndroidTM mobile terminals
Alarm
Alarm Source
WV-SW559
3 terminals input, VMD, Command alarm
WV-SW558
1 terminal input, VMD, Command alarm
SDXC/SDHC/SD memory recording*, E-mail notification, Indication on
Alarm Actions
browser, FTP image transfer, Panasonic protocol output *Only at WV-SW559
Alarm Log
With SDXC/SDHC/SD memory card*: 5,000 logs,
without SDXC/SDHC/SD memory card: 1000 logs *Only at WV-SW559
Schedule
Alarm / VMD / Access permission / H.264 recording
Input/
Monitor Output
VBS: 1.0 V [p-p]/75 Ω,
VBS: 1.0 V [p-p]/75 Ω,
Output
(for adjustment)
NTSC composite, RCA Jack
PAL composite, RCA Jack
Microphone/Line Input MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack
*Only at WV-SW559
(monaural input) (Applicable microphone: Plug-in power type)
Supply voltage: 2.5 V ±0.5 V Input impedance: approx. 2 kΩ
Audio Output
ø3.5 mm stereo mini jack (monaural output) Line level
*Only at WV-SW559
191.5(7-1/2")
White Balance
Light Control Mode
NTSC
PAL
1/3 type MOS Sensor
Approx. 3.1 megapixel
Progressive scan
4.51 mm (H) x 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}
WV-SW559:
Color: 0.5 lx, BW: 0.06 lx (F1.3, Auto slow shutter: Off (1/30s), Gain:On(High))
Color: 0.03 lx, BW 0.004 lx (F1.3, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1
WV-SW558:
Color: 0.5 lx, BW: 0.3 lx (F1.3, Auto slow shutter: Off (1/30s), Gain:On(High))
Color: 0.03 lx, BW 0.02 lx (F1.3, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Outdoor scene: Automatic integration of ALC and ELC
Indoor scene [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)
Indoor scene [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)
ELC: (up to 1/10,000 sec.)
Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120,
1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
ON / OFF
52 dB typ. (Super Dynamic: ON, Light Control Mode: indoor)
ON / OFF (Only at Super Dynamic: ON)
ON / OFF (Only at Super Dynamic: OFF)
ON (LOW, MID, HIGH) / OFF
OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
WV-SW559: IR
Mode: AUTO1 / AUTO2 / ON / OFF, Level:High / Low, with external control
WV-SW558: Electrical
Mode: OFF / AUTO
High / Low
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Up to 2 zones, Gray
ON / OFF
Up to 2 zones
Up to 20 characters (alphanumeric characters, marks)
ABF/MANUAL
256 steps
2.8 mm - 10 mm, 3.6x (8.4 mm - 30 mm 10.8x with Extra optical zoom (at 360P))
H: 24.2 °(TELE) ~ 86.6 °(WIDE) V: 13.50°(TELE) ~ 47.57°(WIDE)
1 : 1.3 (WIDE) ~ 1 : 3.0 (TELE)
0.3 m ~ ∞
Horizontal: 180 ° (clockwise), 160 ° (counterclockwise),
Vertical: ±75 °, Image tilt adjustment range: ±100 °
H.264(2) / JPEG(VGA or 640 x 360) / JPEG(QVGA or 320 x 180)
Up to 4 image capture areas can be specified
Brightness, AUX ON / OFF, Zoom (1x, 2x 4x)
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
1x, 2x, 4x controlled by browser GUI
Up to 20 alphanumeric characters
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Reset
A still picture will be displayed on a newly opened window.
Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High (Only at WV-SW559)
Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. (Only at WV-SW559)
English / Italian / French / German / Spanish / Russian / Chinese / Japanese
Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory
when the recording format is set to JPEG.) error logs (Only at WV-SW559)
Microsoft® Windows® 7, Microsoft® Windows Vista®,Microsoft® Windows® XP SP3
Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit),
Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3
10Base-T / 100Base-TX, RJ-45 connector
H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
H.264: 1,280 x 960, up to 15 fps
JPEG (MJPEG): 2,048 x1,536, up to 15 fps
Constant bitrate / Framerate priority / Best effort
1 / 3 / 5 / 7.5 / 12 / 10 / 15 / 20 / 30 fps
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps
LOW / NORMAL / FINE
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
UNICAST / MULTICAST
10 steps
0.1 fps ~ 30 fps
PULL / PUSH
G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps
OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Level 1 only / Level 2 higher / All users
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS,
NTP, SNMP, UPnP,IGMP,ICMP,ARP
Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed,
backup on an optional SDXC/SDHC/SD memory card is available. *) *Only at WV-SW559
Up to 14 users (Depends on network conditions)
H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure Compatible
SD (SDHC/SDXC) card: Panasonic 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
JPEG image
85
(3-3/8")
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
138(5-3/8")
Specifications
53.5 52.5
(2-1/8") (2-1/8")
42.5(1-5/8")
130
(5-1/8")
200
(7-7/8")
106(4-1/8")
148.5(5-7/8")
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.
– UniPhier is a registered trademark of Panasonic Corporation.
– "MEGA Super Dynamic"and "i-PRO SmartHD" logos are trademarks or registered trademarks of Panasonic Corporation.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
– All other trademarks identified herein are the property of their respective owners.
Important
– Safety Precaution: Carefully read the operating instructions and installation manual before using this product.
– Panasonic cannot be responsible for the performance of the network and/or other manufacturers'
products used on the network.
• All TV pictures are simulated.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
DISTRIBUTED BY:
http://security.panasonic.com
http://www.facebook.com/PanasonicNetworkCamera
Printed in Japan (2A-084DA)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
