201502200 TOWER WEST..

201502200 TOWER WEST..

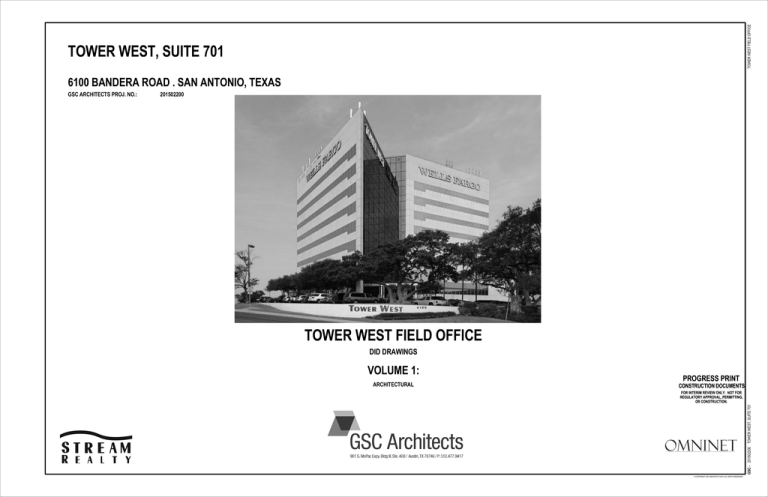

TOWER WEST, SUITE 701

6100 BANDERA ROAD . SAN ANTONIO, TEXAS

GSC ARCHITECTS PROJ. NO.: 201502200

TOWER WEST FIELD OFFICE

DID DRAWINGS

VOLUME 1:

ARCHITECTURAL

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

GENERAL SYMBOLS LEGEND

A6

EXISTING PARTITION

TO REMAIN

W1

NEW GYPSUM BOARD

PARTITION

ROOM NAME

101

PARTITION TYPE

X-XXX

WINDOW TAG

ROOM TAG

EQUIPMENT TAG

NEW DOOR

1

KEYED NOTE

1

REVISION

A

101

1 HW1

1

A101

EXISTING DOOR

TO REMAIN

DOOR NUMBER,

TYPE , HARDWARE

SIM

SECTION DETAIL

SYMBOL

A3-1.1

F.E.C.

SPOT ELEVATION

ELEVATION TAG

FIRE EXTINGUISHER

CABINET

ENLARGED PLAN OR

DETAIL REFERENCE

10 / A10-10

LIGHTING SYMBOLS LEGEND

2' X 2' ACOUSTICAL

CEILING SYSTEM

RECESSED CAN LIGHT

FIXTURE

EXIT LIGHT

2' X 4' RECESSED

DIRECT/INDIRECT

FIXTURE

J

42"

DC

42"

42"

MECHANICAL SYMBOLS LEGEND

2'X2' SUPPLY

DIFFUSER, SQUARE

2'X2' RETURN AIR

GRILLE, SQUARE

ACCESS PANEL

SLOT SUPPLY DIFFUSER

ELECTRICAL SYMBOLS LEGEND

WALL MOUNTED 120 V.

DUPLEX RECEPTACLE

HEIGHTS NOTED IN INCHES

WALL MOUNTED 120 V.

DUPLEX RECEPTACLE

DEDICATED CIRCUIT

WALL MOUNTED 120 V.

QUADRAPLEX RECEPTACLE

JUNCTION BOX. (IN CEILING IF

NOTED ON RCP) ONE CIRCUIT

PER BOX, U.N.O.

PLUMBING SYMBOLS LEGEND

DOUBLE SINK,

COUNTER MOUNTED

"

#

&

.'

@

ABBREVIATIONS

INCH

POUND

AND

FOOT

AT (THE RATE OF)

A/C AIR CONDITIONING

ACT ACOUSTICAL CEILING

TILE

AFF ABOVE FINISHED FLOOR

ALUM ALUMINUM

ANOD ANODIZED

ARCH ARCHITECT,

ARCHITECTURAL

BATH BATHROOM

BLDG BUILDING

BLKG BLOCKING

CAB CABINET

CER CERAMIC

CG

CH

CJ

CORNER GUARD

COAT HOOK

CONTROL JOINT

CL CENTER LINE

CLG CEILING

CLR CLEAR(ANCE)

CPT CARPET

CR CHAIR RAIL

CRS COLD ROLLED STEEL

CT CERAMIC TILE

CTR CENTER

CW CURTAIN WALL

MATERIALS LEGEND

ACOUSTICAL TILE

GYPSUM BOARD

(INTERIOR)

ALUMINUM

INSULATION-BATT

BRONZE

CARPET

CONCRETE

(PRECAST CAST STONE)

CONCRETE

(STRUCTURAL)

GLAZING

INSULATION-RIGID

INSULATION-FIRE

SAFING

PLASTER CEMENT,

SAND, MORTAR

PLYWOOD

STEEL

ABBREVIATIONS

DEPT DEPARTMENT

DF DRINKING FOUNTAIN

DIA DIAMETER

DIM DIMENSION

DIV

DN

DIVISION

DOWN

DR DOOR

DTL DETAIL

DWG DRAWING

E

EA

EF

EJ

EL

EAST

EACH

EXHAUST FAN

EXPANSION JOINT

ELEVATION

ELEV ELEVATOR

ENGR ENGINEER

ENT ENTRANCE

EQ EQUAL

EQUIP EQUIPMENT

EWC ELECTRIC WATER

COOLER

EXH EXHAUST

EXIST EXISTING

EXT EXTERIOR

FA

FD

FE

FIRE ALARM

FLOOR DRAIN

FIRE EXTINGUISHER

FEC FIRE EXTINGUISHER

CABINET

FF&E FURNITURE, FIXTURES &

EQUIPMENT

FGL FIBERGLASS

STONE - UNCUT

LOCATION PLAN

STONE - CUT

WOOD BLOCKING

(CONTINUOUS)

WOOD BLOCKING OR SHIM

(NOT CONTINUOUS)

WOOD - FINISH GRADE

(SURFACE)

WOOD - FINISH GRADE

(SECTION)

TRUE NORTH

ABBREVIATIONS

FIN FINISH(ED)

FIXT FIXTURE

FLR FLOOR

FLUOR FLUORESCENT

FOS FACE OF STUD

FR FIRE RATED

FRMG FRAMING

FRT FIRE RETARDANT

TREATED

FT FOOT, FEET

FURN FURNISH(ING),

FURNITURE

FWC FABRIC WALL COVERING

GA GAUGE, GAGE

GALV GALVANIZED

GB GRAB BAR

GC

GL

GR

GYP

BD

GENERAL CONTRACTOR

GLASS, GLAZED,

GLAZING

GUARD RAIL

GYPSUM BOARD

H

HB

HIGH

HOSE BIB

HDR HEADER

HDW HARDWARE

HM HOLLOW METAL

HORIZ HORIZONTAL

HR

HT

HANDRAIL

HEIGHT

HVAC HEATING, VENTILATION

AND AIR CONDITIONING

HW HOT WATER

ABBREVIATIONS

ID

INCAN

D

INSIDE DIAMETER

INCANDESCENT

IND INDUSTRIAL

INFO INFORMATION

INT INTERIOR, INTERNAL

JAN JANITOR

J-BOX JUNCTION BOX

JT JOINT

KO KNOCKOUT

L LEFT

LAB LABORATORY

LAM LAMINATE(D)

LAV LAVATORY

LBR LUMBER

LD LINEAR DIFFUSER

LNDG LANDING

LH

LIN

LEFT HAND

LINEAR

LKR LOCKER

LOC LOCATION

LTG LIGHTING

LVR LOUVER

LVT LUXURY VINYL TILE

MACH MACHINE

MAN MANUAL

MAS MASONRY

MATL MATERIAL

MAX MAXIMUM

FLOOR MOUNTED FLUSH

120 V. DUPLEX

RECEPTACLE

FLOOR MOUNTED FLUSH

120 V. QUADRAPLEX

RECEPTACLE

FLOOR MOUNTED FLUSH

DATA OUTLET

FLOOR MOUNTED FLUSH

COMBINATION 120 V./DATA

OR AS NOTED

ABBREVIATIONS

MB MARKER BOARD

MDF MEDIUM DENSITY FIBER

BOARD

MDO MEDIUM DENSITY

OVERLAY

MECH MECHANICAL

MEMB MEMBRANE

MEZZ MEZZANINE

MFD MANUFACTURED

MFR MANUFACTURER

MIN MINIMUM

MIR MIRROR

MISC MISCELLANEOUS

MRT MOISTURE RESISTANCE

TREATED

MTD MOUNTED

MTL METAL

MULT MULTIPLE

N

N/A

NORTH

NOT APPLICABLE

NEO NEOPRENE

NIC NOT IN CONTRACT

NO.

NUMBER

NOM NOMINAL

NRC NOISE REDUCTION

COEFFICIENT

NS NON-SLIP

NTS NOT TO SCALE

O/A OVERALL

O/H OVERHEAD

O/O OUT TO OUT

OC

OD

ON CENTER

OUTSIDE DIAMETER

ABBREVIATIONS

OF/CI OWNER FURNISHED /

CONTRACTOR

INSTALLED

OF/OI OWNER FURNISHED /

OWNER INSTALLED

OFF OFFICE

OH OPPOSITE HAND

OPG OPENING

OPP OPPOSITE

PAR PARALLEL

PB PARTICLE BOARD

PED PEDESTAL, PEDESTRIAN

PERF PERFORATE(D)

PERP PERPENDICULAR

PLAM PLASTIC LAMINATE

PLBG PLUMBING

PLYW

D

PLYWOOD

PNL PANEL

PR PAIR

PREFABRICATED PREFA

B

PREFI

N

PREFINISHED

PREP PREPARATION

PROD PRODUCTION

PROJ PROJECT(OR),

PROJECTION

PS PROJECTION SCREEN

PT PAINT

PTN PARTITION

PWR POWER

QT QUARRY TILE

QTR QUARTER

GENERAL NOTES

1 PERFORM ALL WORK IN COMPLIANCE WITH ALL APPLICABLE

CODES, REGULATIONS, ORDINANCES AND STANDARDS OF THE

LOCAL BUILDING CODE AUTHORITY. DIRECT ALL QUESTIONS

REGARDING SUCH COMPLIANCE TO THE ARCHITECT FOR

RESOLUTION PRIOR TO PROCEEDING WITH THE WORK IN

QUESTION.

2 THE CONTRACTOR SHALL OBTAIN AND PAY FEES FOR ALL

REQUIRED PERMITS, LICENSES, CERTIFICATES, TESTING, ETC.

3 THE CONTRACTOR AND ALL SUBCONTRACTORS SHALL PERFORM

DUE DILIGENCE INSPECTION OF EXISTING CONDITIONS PRIOR TO

SUBMITTAL OF A PROPOSAL, AND SHALL BRING CONFLICTS

BETWEEN EXISTING CONDITIONS AND THE DOCUMENTS TO THE

ATTENTION OF THE ARCHITECT. SUBMITTAL OF A PROPOSAL

SHALL BE CONSIDERED CONFIRMATION THAT SUCH INSPECTION

HAS BEEN MADE, AND NO FURTHER COMPENSATION SHALL BE

DUE THE CONTRACTOR FOR CLAIMS ARISING AS A RESULT OF

FAILURE TO PERFORM SUCH INSPECTION.

4 ALL MATERIALS PROVIDED SHALL BE NEW, EXCEPT WHERE

SPECIFICALLY NOTED OTHERWISE.

5 WARRANT ALL MATERIALS AND LABOR FOR A PERIOD OF ONE

YEAR FROM THE DATE OF SUBSTANTIAL COMPLETION, OR THE

DATE OF BENEFICIAL OCCUPANCY BY THE OWNER, WHICHEVER

IS LATER. REPAIR OR REPLACE ALL WORK THAT IS DISCOVERED

TO BE DEFECTIVE DURING THAT PERIOD.

6 REPAIR DAMAGE TO, OR HOLES IN, EXISTING PARTITIONS TO

REMAIN THAT RESULT FROM DEMOLITION OPERATIONS OR ARE

EXISTING CONDITIONS. PREPARE REPAIRED AREAS TO RECEIVE

NEW SCHEDULED FINISHES.

7 THE CONTRACTOR SHALL COORDINATE THE WORK OF ALL

TRADES.

8 THE CONTRACTOR SHALL PERFORM CUTTING AND PATCHING

FOR ALL TRADES. CONFIRM LOCATIONS OF STRUCTURAL

MEMBERS PRIOR TO CUTTING HOLES IN FLOORS OR ROOFS. DO

NOT CUT HOLES IN STRUCTURAL MEMBERS BEFORE OBTAINING

WRITTEN PERMISSION FROM THE STRUCTURAL ENGINEER OF

RECORD.

9 CONFIRM SIZES OF ALL OPENINGS REQUIRED FOR THE

INSTALLATION OF ALL STRUCTURAL, MECHANICAL, ELECTRICAL

AND PLUMBING WORK PRIOR TO FRAMING OR CUTTING FOR

INSTALLATION.

10 LEAVE THE PROJECT CLEAN AND READY FOR OCCUPANCY BY

THE OWNER.

11 PROVIDE RECORD DRAWINGS OF THE WORK AT THE

CONCLUSION OF CONSTRUCTION. RECORD DRAWINGS MAY BE IN

THE FORM OF TWO MARKED-UP COPIES OF CONSTRUCTION

DOCUMENTS OR, AS AN OPTION, RECORD DRAWINGS MAY BE IN

ADOBE .PDF FORMAT ON ELECTRONIC MEDIA (CD-ROM OR USB

THUMB DRIVE). DELIVER RECORD DRAWINGS TO THE ARCHITECT.

12 IT IS THE INTENT OF THE CONTRACT DOCUMENTS THAT THE

CONTRACTOR PROVIDES A COMPLETE, FUNCTIONING PROJECT

INCLUDING ALL GENERAL, MECHANICAL AND ELECTRICAL

CONSTRUCTION REQUIRED TO FULFILL THAT INTENT. ALL ITEMS

REQUIRED SHALL BE FURNISHED AND INSTALLED, REGARDLESS

OF WHETHER OR NOT SHOWN ON THE DRAWINGS.

ABBREVIATIONS

QTY QUANTITY

QUAD QUADRANT

R

RA

RISER(S), RADIUS

RETURN AIR

RB RUBBER BASE

REC RECESSED

RECPT RECEPTACLE

REF REFERENCE,

REFRIGERATOR

REG REGISTER, REGULATOR

REINF REINFORCE,

REINFORCING

REPR

O

REPRODUCE,

REPRODUCTION

REQD REQUIRED

RESIL RESILIENT

RESIS

T

RESISTANT

RET RETURN

REV REVISE, REVISION

RM

RT

ROOM

RIGHT

S SOUTH

SAFB SOUND ATTENUATING

FIRE BLANKET

SC SOLID CORE

SCHED SCHEDULE(D)

SECT SECTION, SECTOR

SEP SEPARATE, SEPARATION

SF SQUARE FOOT (FEET),

STOREFRONT

SGL SINGLE

SHT SHEET

ABBREVIATIONS

SHLVG SHELVING

SHWR SHOWER

SIM SIMILAR

SQ SQUARE

SR SHOWER ROD

SSTL STAINLESS STEEL

STA STATION

STC SOUND TRANSMISSION

COEFFICIENT

STD STANDARD

STL STEEL

STOR STORAGE

STRUC STRUCTURE,

STRUCTURAL

SURF SURFACE

SUSP SUSPEND(ED)

SV SHEET VINYL

SVC SERVICE

SYS SYSTEM

T TREAD(S)

T&B TOP & BOTTOM

T&G TONGUE & GROOVE

TB TOWEL BAR, TACK

BOARD, THROUGH BOLT

TEL TELEPHONE

TEMP TEMPERED

TER TERRAZZO

THK THICK

TLT TOILET

TOW TOP OF WALL

TRTD TREATED

TS TUBULAR STEEL

TV TELEVISION

TYP TYPICAL

GENERAL NOTES

13 WRITTEN DIMENSIONS GOVERN. DO NOT SCALE DRAWINGS.

NOTIFY THE ARCHITECT IN THE EVENT THAT REQUIRED

DIMENSIONS ARE NOT PROVIDED. DO NOT PROCEED WITH WORK

IN AFFECTED AREA UNTIL RESOLUTION OF THE CONFLICT IS

OBTAINED.

14 ITEMS FURNISHED BY THE OWNER BUT INSTALLED BY THE

CONTRACTOR ARE NOTED "O.F.C.I.". CONTRACTOR SHALL

INCLUDE COST FOR INSTALLATION ONLY IN HIS PROPOSAL.

15 ITEMS FURNISHED AND INSTALLED BY THE OWNER ARE NOTED

"O.F.O.I.". CONTRACTOR SHALL NOT INCLUDE COSTS FOR

FURNISHING OR INSTALLATION IN HIS PROPOSAL.

16 ITEMS OR WORK NOT TO BE FURNISHED OR ACCOMPLISHED BY

THE CONTRACTOR ARE NOTED "N.I.C.".

17 "ALIGN" AS USED IN THESE DOCUMENTS, MEANS TO ALIGN THE

FINISHED FACE OF ELEMENTS IN THE SAME PLANE, EITHER

IMMEDIATELY ADJACENT TO ONE ANOTHER OR ACROSS AN

OPENING.

18 "SIMILAR" OR "SIM", AS USED IN THESE DOCUMENTS MEANS THAT

THE ITEM OR DETAIL REFERENCED IS SUBSTANTIALLY THE SAME

AS THE ITEM OR DETAIL BEING REFERRED TO, WITH MINOR

VARIATIONS THAT DO NOT AFFECT FUNCTION OR APPEARANCE.

19 "TYPICAL" OR "TYP.", AS USED IN THESE DOCUMENTS MEANS

THAT THE ITEM OR DETAIL REFERENCED IS THE SAME FOR ALL

CONDITIONS OF A SIMILAR NATURE THROUGHOUT THE PROJECT,

UNLESS NOTED OTHERWISE.

20 "OPPOSITE HAND" OR "O.H." AS USED IN THESE DOCUMENTS

MEANS THAT THE ITEM OR DETAIL REFERENCED IS THE SAME AS

THE REFERENCED ITEM OR DETAIL EXCEPT THAT IT IS EXACTLY

OPPOSITE (MIRRORED) IN ORIENTATION.

21 DO NOT ISSUE INCOMPLETE (PARTIAL) SETS OF CONSTRUCTION

DRAWINGS. DRAWINGS ARE INTERRELATED.

22 THE CONTRACTOR SHALL SUBMIT COMPLETE SHOP DRAWINGS

FOR MILLWORK, SPECIAL SYSTEMS, AND MECHANICAL,

ELECTRICAL AND PLUMBING SYSTEMS (INCLUDING FIRE

PROTECTION SYSTEMS) WHEN REQUIRED BY M.E.P.

CONSULTANT'S DOCUMENTS. SUBMIT THREE COPIES OF ALL

SHOP DRAWINGS FOR REVIEW AND APPROVAL. ONE COPY WILL

BE RETAINED BY THE ARCHITECT OR M.E.P. CONSULTANT; ONE

COPY WILL BE PROVIDED TO THE BUILDING OWNER AND ONE

COPY WILL BE RETURNED TO THE CONTRACTOR.

23 THE CONTRACTOR SHALL SUBMIT PRODUCT DATA FOR DOOR

AND FRAMES, HARDWARE AND TOILET ACCESSORIES. SUBMIT

FOUR COPIES OF ALL DATA FOR REVIEW AND APPROVAL. ONE

COPY WILL BE RETAINED BY THE ARCHITECT, ONE COPY WILL BE

PROVIDED TO THE BUILDING OWNER AND TWO COPIES WILL BE

RETURNED TO THE CONTRACTOR.

24 THE DESIGN OF FIRE PROTECTION SYSTEMS IS THE

RESPONSIBILITY OF THE CONTRACTOR'S FIRE PROTECTION

SYSTEMS CONTRACTOR. ALL FIRE PROTECTION SYSTEMS SHALL

BE DESIGNED BY A PROFESSIONAL ENGINEER LICENSED BY THE

STATE OF TEXAS FOR THE DESIGN OF THIS TYPE OF SYSTEM.

M.E.P. CONSULTANT WILL REVIEW DESIGN DRAWINGS FOR FIRE

PROTECTION SYSTEMS FOR GENERAL COMPLIANCE WITH M.E.P.

DRAWINGS ONLY. COORDINATE INTERFACE WITH EXISTING

BUILDING SYSTEMS WITH BUILDING OWNER.

GENERAL NOTES

25 THE CONTRACTOR SHALL COORDINATE ALL CONSTRUCTION

SEQUENCING WITH THE BUILDING OWNER AND SCHEDULE ALL

SERVICE INTERRUPTIONS OUTSIDE NORMAL BUSINESS HOURS

TO MINIMIZE INCONVENIENCE TO CURRENT TENANTS.

26 THE CONTRACTOR IS RESPONSIBLE FOR ALL TEMPORARY

SHORING, BRACING OR OTHER TEMPORARY MEASURES

REQUIRED DURING CONSTRUCTION.

27 THE CONTRACTOR SHALL MAINTAIN A SITE “NEAT” IN

APPEARANCE. REMOVE TRASH AND CONSTRUCTION DEBRIS ON

A WEEKLY BASIS, AT A MINIMUM, AND LEGALLY DISPOSE OF IN

LEGAL DISPOSAL FACILITIES. MINIMIZE WASTE DIVERTED TO

LANDFILLS AND RECYCLE OR REUSE THE MAXIMUM VOLUME OF

WASTE POSSIBLE.

28 DO NOT USE MATERIALS THAT CONTAIN ASBESTOS OR OTHER

HAZARDOUS MATERIALS IN ANY FORM IN ANY PART OF THE

CONSTRUCTION OF THIS PROJECT.

BUILDING CODE INFORMATION

APPLICABLE CODES:

EXISTING BUILDING CONSTRUCTED UNDER THE FOLLOWING CODES:

2015 IBC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IRC FOR ONE AND TWO FAMILY DWELLINGS

2015 IMC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IPC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 EBC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IFGC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IFC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IECC WITH CITY OF SAN ANTONIO AMENDMENTS

2014 NEC WITH CITY OF SAN ANTONIO AMENDMENTS

2012 TEXAS ACCESSIBILITY STANDARDS

RENOVATION DESIGNED IN COMPLIANCE WITH THE FOLLOWING CODES:

2015 IBC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IRC FOR ONE AND TWO FAMILY DWELLINGS

2015 IMC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IPC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 EBC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IFGC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IFC WITH CITY OF SAN ANTONIO AMENDMENTS

2015 IECC WITH CITY OF SAN ANTONIO AMENDMENTS

2014 NEC WITH CITY OF SAN ANTONIO AMENDMENTS

2012 TEXAS ACCESSIBILITY STANDARDS

CONSTRUCTION TYPE: II B, FULLY SPRINKLERED

NUMBER OF STORIES: 10

WORK AREAS LOCATED ON LEVEL 7

INDEX OF DRAWINGS

ABBREVIATIONS

UC

UL

UNDER COUNTER

UNDERWRITERS

LABORATORIES, INC.

UNO UNLESS NOTED

OTHERWISE

UR URINAL

UTIL UTILITY

VAR VARIES, VARIABLE,

VARIOUS

VCT VINYL COMPOSITION TILE

VERT VERTICAL

VEST VESTIBULE

VIF VERIFY IN FIELD

VOL VOLUME

VWC VINYL WALL COVERING

W

W/

WEST, WIDE, WIDTH

WITH

W/O WITH OUT

WC WATER CLOSET

WD WOOD

WDW WINDOW

WF WIDE FLANGE

WGL WIRED GLASS

WH WATER HEATER

WI WROUGHT IRON

WP

WR

WATER PROOFING

WATER RESISTANT,

WASTERECEPTACLE

WS WEATHERSTRIPPING

WSCT WAINSCOT

WT WEIGHT

YD YARD

NO.

NAME

00 GENERAL

A0-01 COVER SHEET

A0-02 PROJECT INFORMATION

A1-02 SPECIFICATIONS

A1-03 SPECIFICATIONS

FLS-01 FIRE & LIFE SAFETY PLAN

TAS-01 ACCESSIBILITY INFORMATION

TAS-02 ACCESSIBILITY INFORMATION

03 ARCHITECTURAL

A1-01 SPECIFICATIONS

A2-01 DEMOLITION FLOOR PLAN

A2-11 FLOOR PLAN

A2-21 REFLECTED CEILING PLAN

A2-31 FINISH PLAN & SCHEDULE

A2-41 FURNITURE PLAN

A2-51 POWER/SIGNAL PLAN

A3-01 ENLARGED FLOOR PLANS & ELEVATIONS

A3-02 ENLARGED FLOOR PLANS & ELEVATIONS

A4-01 PARTITION TYPES

A4-02 PARTITION DETAILS

A4-10 DOOR & WINDOW TYPES

A6-01 INTERIOR DETAILS

A6-02 MILLWORK DETAILS

TAS-03 ACCESSIBILITY INFORMATION

05 MECHANICAL

M01-01 MECHANICAL SYMBOL LEGEND

08 ELECTRICAL

E01-01 ELECTRICAL SYMBOL LEGEND

09 PLUMBING

P02-01 FLOOR PLAN PLUMBING

SCHEMATIC

A1-04 Unnamed

NO.

REVISION

SHEET NAME:

PROJECT

INFORMATION

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

A0-02

DATE

05/27/2015

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

SECTION 01100 - SUMMARY OF WORK

1.

THE PROJECT CONSISTS OF A REMODEL, APPROXIMATELY 10,310 S.F.

AND WILL BE KNOWN AS TOWER WEST FIELD OFFICE, 6100 BANDERA

ROAD, SUITE 701 (A TWO STORY BUILDING) IN SAN ANTONIO, TX.

2.

CONSTRUCTION SERVICES TO BE PROVIDED INCLUDE, BUT ARE NOT

LIMITED TO THE FOLLOWING:

A. PROVIDE ALL SUPERVISION, LABOR MATERIALS, CONSTRUCTION

EQUIPMENT, TOOLS, AND SUBCONTRACT ITEMS WHICH ARE

NECESSARY FOR THE COMPLETION OF THE PROJECT WHICH ARE

NOT PROVIDED BY THE SUBCONTRACTORS.

B. APPLY FOR AND OBTAIN ALL BUILDING PERMITS AND SPECIAL

PERMITS AS REQUIRED FOR PERMANENT IMPROVEMENTS,

EXCLUDING PERMITS FOR INSPECTION TYPICALLY OBTAINED

DIRECTLY FROM VARIOUS SUBCONTRACTORS.

C. COMPLETE THE PROJECT WITHIN THE BUDGET/ESTIMATE.

D. COMPLETE THE PROJECT WITHIN THE PROJECT SCHEDULE.

E. SUBMIT SHOP DRAWINGS FOR ARCHITECTURAL REVIEW IN A TIMELY

MANNER AS REQUIRED TO AVOID CONSTRUCTION DELAYS.

F. PROVIDE SUPERVISION TO ASSURE ALL WORK IS CARRIED OUT IN A

PROFESSIONAL MANNER.

G. KEEP OWNER AND ARCHITECT AWARE OF ALL ASPECTS OF

CONSTRUCTION PROCESS.

H. PROVIDE TESTING OF ALL HVAC, ELECTRICAL AND PLUMBING

INSTALLATIONS TO MEET DESIGN OBJECTIVES AND FULL LOAD

CONDITIONS.

I. CREATE AND ENFORCE A SAFETY MANAGEMENT PROGRAM.

J. COORDINATE WITH THE OWNER FOR THE INSTALLATION OF OWNER

ITEMS, INCLUDING FURNITURE, PHONE SYSTEM, AND AUDIO

FURNITURE AND EQUIPMENT

K. STABLISH SCHEDULE OF VALUES USING FORMAT APPROVED BY THE

ARCHITECT.

L. PRINTING OF BIDDING/CONSTRUCTION DOCUMENTS AND

ASSOCIATED COSTS.

SECTION 01310 - PROJECT COORDINATION

1. THE GENERAL CONTRACTOR (A.K.A. CONTRACTOR) SHALL COORDINATE

THE WORK, INCLUDING THE WORK OF ALL SUBCONTRACTORS FOR THE

PROJECT. THE CONTRACTOR SHALL SCHEDULE AND CONDUCT

PROGRESS MEETINGS ON A REGULAR BASIS. THE CONTRACTOR SHALL

ABIDE BY ALL CONDITIONS OF THE CONTRACT FOR CONSTRUCTION AS

SIGNED WITH OWNER.

2. IF IT IS NECESSARY IN THE EXECUTION OF THE WORK TO INTERRUPT

EXISTING SURFACE DRAINAGE, SEWERS, CONDUITS, UTILITIES, OR

SIMILAR UNDERGROUND STRUCTURES, OR PARTS THEREOF, THE

GENERAL CONTRACTOR SHALL BE RESPONSIBLE FOR AND TAKE ALL

NECESSARY PRECAUTIONS TO PROTECT AND PRESERVE OR PROVIDE

TEMPORARY SERVICES FOR SAME. WHEN SUCH FACILITIES ARE

ENCOUNTERED, THE GENERAL CONTRACTOR SHALL NOTIFY THE

ARCHITECT WHO SHALL ARRANGE FOR THEIR REMOVAL OR

ADJUSTMENT, IF NECESSARY.

SECTION 01330 - SUBMITTALS

1. ELECTRONIC COPIES OF CAD DRAWINGS OF THE CONTRACT DRAWINGS

WILL BE PROVIDED BY ARCHITECT FOR CONTRACTOR'S USE IN PREPARING

SUBMITTALS UPON ARCHITECT'S RECEIPT OF A SIGNED CAD RELEASE

FORM FROM CONTRACTOR: USE ARCHITECT'S CAD RELEASE FORM.

2. ARCHITECT RESERVES THE RIGHT TO WITHHOLD ACTION ON A SUBMITTAL

REQUIRING COORDINATION WITH OTHER SUBMITTALS UNTIL RELATED

SUBMITTALS ARE RECEIVED. PROVIDE ALL SUBMITTALS THAT REQUIRE

COLOR, PATTERN OR TEXTURE SELECTION AT THE SAME TIME TO ALLOW

ARCHITECT TO MAKE SELECTIONS IN A COORDINATED MANNER. ALLOW

SUFFICIENT TIME FOR SUBMITTAL REVIEW, INCLUDING TIME FOR

RESUBMITTALS. TIME FOR REVIEW SHALL COMMENCE ON ARCHITECT'S

RECEIPT OF SUBMITTAL. NO EXTENSION OF THE CONTRACT TIME WILL BE

AUTHORIZED BECAUSE OF FAILURE TO TRANSMIT SUBMITTALS FAR

ENOUGH IN ADVANCE OF THE WORK TO PERMIT PROCESSING.

3. HIGHLIGHT, ENCIRCLE, OR OTHERWISE IDENTIFY DEVIATIONS FROM THE

CONTRACT DOCUMENTS ON SUBMITTALS.

4. USE FOR CONSTRUCTION: USE ONLY SUBMITTALS THAT HAVE BEEN

REVIEWED BY THE ARCHITECT AND INDICATE THE ACTION TAKEN BY

ARCHITECT IN RELATION TO CONSTRUCTION.

5. PREPARE PROJECT-SPECIFIC INFORMATION, DRAWN ACCURATELY TO

SCALE. DO NOT BASE SHOP DRAWINGS ON REPRODUCTIONS OF THE

CONTRACT DOCUMENTS OR STANDARD PRINTED DATA. INCLUDE THE

FOLLOWING INFORMATION, AS APPLICABLE:

DIMENSIONS.

FABRICATION AND INSTALLATION DRAWINGS.

ROUGHING-IN AND SETTING DIAGRAMS.

DESIGN CALCULATIONS.

COMPLIANCE WITH SPECIFIED STANDARDS.

NOTATION OF COORDINATION REQUIREMENTS.

NOTATION OF DIMENSIONS ESTABLISHED BY FIELD MEASUREMENT.

SECTION 01410 - REGULATORY REQUIREMENTS

1. THE FOLLOWING AHJ [AUTHORITY HAVING JURISDICTION] REQUIRES

COMPLIANCE WITH THE FOLLOWING CODES AND REGULATIONS:

A. TEXAS DEPARTMENT OF LICENSING & REGULATION

T.A.S. TEXAS ACCESSIBILITY STANDARDS] OF THE ARCHITECTURAL

BARRIERS ACT (ARTICLE 9102, TEXAS CIVIL STATUTES).

EFFECTIVE: APRIL 1, 2012.

B. 2012 INTERNATIONAL BUILDING CODE WITH CITY OF SAN ANTONIO

AMENDMENTS (NOTE CHAPTERS 11 & 35 REFERENCE THE ICC/ANSI

A117.1 - 1998 FOR ACCESSIBILITY REQUIREMENTS).

(SEE COVER SHEET FOR APPLICABLE CODES.)

SECTION 01783 - RECORD DRAWINGS

1. THE GENERAL CONTRACTOR SHALL MAINTAIN A COMPLETE SET OF

BLACK-LINE PRINTS TO BE USED EXCLUSIVELY FOR RECORD DRAWINGS.

2. RECORD INFORMATION CONCURRENTLY WITH CONSTRUCTION

PROGRESS.

3. RECORD DRAWINGS ARE TO BE SUBMITTED BEFORE CERTIFICATE OF

SUBSTANTIAL COMPLETION IS ISSUED.

SECTION 01500 - TEMPORARY FACILITIES & CONTROLS

1. PROVIDE ALL TEMPORARY FACILITIES AND CONTROLS AS REQUIRED TO

ACCOMPLISH THE WORK OF THIS CONTRACT, INCLUDING BUT NOT

LIMITED TO THE FOLLOWING:

A. TEMPORARY UTILITIES

B. TEMPORARY POWER & LIGHTING

C. TEMPORARY HEAT & VENTILATION

D. TEMPORARY TELEPHONE SERVICE

E. TEMPORARY WATER

F. PROVIDE ACCESS TO SANITARY FACILITIES, IN COMPLIANCE WITH

LAWS AND REGULATIONS, AT APPROVED LOCATIONS AND

SCREENED TO SECURE PRIVACY. SERVICE, CLEAN, AND

MAINTAIN FACILITIES AND ENCLOSURES. AT SUCH TIME AS

PERMANENT WATER AND SEWER CONNECTIONS ARE

AVAILABLE, THE GENERAL CONTRACTOR MAY SELECT ONE

PERMANENT TOILET ROOM WITHIN THE BUILDING FOR THE USE

OF ALL WORKERS. PROVIDE WATER CLOSETS WITH TEMPORARY

SEATS, AND MAINTAIN THE ROOM IN SANITARY CONDITIONS AT

ALL TIMES. REPLACE ALL PERMANENT FIXTURES OR MATERIALS

DAMAGED BY USE BEFORE THE BUILDING IS COMPLETED AND

TURNED OVER TO THE OWNER.

G. PROVIDE TEMPORARY WEATHERTIGHT ENCLOSURE OF

EXTERIOR WALLS FOR SUCCESSIVE AREAS OF THE BUILDING AS

WORK PROGRESSES, AS NECESSARY TO PROVIDE ACCEPTABLE

WORKING CONDITIONS, PROVIDE WEATHER PROTECTION FOR

MATERIALS, ALLOW FOR EFFECTIVE TEMPORARY HEATING, AND

TO PREVENT ENTRY OF UNAUTHORIZED PERSONS.

H. FURNISH, INSTALL, AND MAINTAIN TEMPORARY FIELD OFFICES

DURING THE ENTIRE CONSTRUCTION PERIOD. FURNISH, INSTALL,

AND MAINTAIN STORAGE AND WORK SHEDS NEEDED FOR

CONSTRUCTION. AT THE COMPLETION OF THE WORK, REMOVE

FIELD OFFICES, SHEDS, AND CONTENTS.

I.

FURNISH, WITHOUT CHARGE TO SUBCONTRACTORS, ADEQUATE

DRINKING WATER AT THE JOB SITE AS LONG AS THE GENERAL

CONTRACTOR HAS PERSONNEL ON THE JOB REQUIRING

DRINKING WATER.

J. PROVIDE CONSTRUCTION AIDS AND EQUIPMENT REQUIRED BY

PERSONNEL AND TO FACILITATE EXECUTION OF THE WORK;

SCAFFOLDS, STAGING, LADDERS, STAIRS, RAMPS, RUNWAYS,

PLATFORMS, RAILINGS, HOISTS, CRANES, CHUTES, AND OTHER

SUCH FACILITIES AND EQUIPMENT.

K. PROVIDE CONSTRUCTION BARRIERS AS REQUIRED TO CONTAIN

WORK A AREA AND PROTECT AGAINST UNAUTHORIZED OR

UNINTENTIONAL ENTRY TO WORK AREA. PROVIDE DUST

CONTROL AND VENTILATION OF AREA WITHIN CONSTRUCTION

BARRIER. PROVIDE TEMPORARY CONTROL DOORS FOR EGRESS

AS REQUIRED TO SAFELY EXIT FROM WORK AREA. AT THE

COMPLETION OF THE WORK, REMOVE CONSTRUCTION BARRIER

AND RELATED EQUIPMENT AND DUST PROTECTION SHEETING.

PLACEMENT OF CONSTRUCTION BARRIER SHOULD CONSIDER

EXISTING EXIT WAYS FOR ADJACENT AREAS TO REMAIN IN

OPERATION TO AVOID COMPROMISING LIFE SAFETY OF

ADJACENT AREAS AND MAINTAINING REQUIRED MEANS OF

EGRESS.

L. REMOVE TEMPORARY CONSTRUCTION AND FACILITIES WHEN NO

LONGER NEEDED AND RESTORE AREAS.

M. ARRANGE DELIVERIES OF PRODUCTS IN ACCORDANCE WITH

CONSTRUCTION SCHEDULES; COORDINATE TO AVOID CONFLICT WITH

WORK AND CONDITIONS AT THE SITE. STORE PRODUCTS IN

ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS WITH

SEALS AND LABELS INTACT AND LEGIBLE. FABRICATED PRODUCTS

STORED OUTSIDE SHOULD BE DONE SO ABOVE GROUND, ON

BLOCKING OR SKIDS, TO PREVENT SOILING OR STAINING. COVER

PRODUCTS, WHICH ARE SUBJECT TO DETERIORATION WITH

IMPERVIOUS SHEET COVERINGS. PROVIDE ADEQUATE VENTILATION

TO AVOID CONDENSATION. STORE LOOSE GRANULAR MATERIALS IN A

WELL-DRAINED AREA ON SOLID SURFACES TO PREVENT MIXING WITH

FOREIGN MATTER. STORAGE OF MATERIALS SHOULD BE CONFINED

WITHIN THE LIMITS OF THE CONSTRUCTION AREA SERVED.

N. ALL MATERIALS, FIXTURES, AND APPARATUS SHALL BE PROTECTED

FROM DAMAGE, WHETHER INCORPORATED INTO THE BUILDING OR

NOT, BY PROTECTIVE DEVICES OR COVERINGS PROVIDED BY THE

GENERAL CONTRACTOR, UNLESS OTHERWISE SPECIFICALLY NOTED

IN INDIVIDUAL SECTIONS OF THE SPECIFICATIONS. FINISHED

SURFACES, MATERIALS, AND INSTALLED DEVICES AND EQUIPMENT

SHALL BE COVERED AND PROTECTED AGAINST ALL DAMAGE, DIRT,

DEMARCATION, STAINING, DRIPPING, AND/OR SPLASHING. PROVIDE

TEMPORARY WOOD DOORS AND CLOTH OR TRANSPARENT PLASTIC

COVERED WOOD FRAMES FOR EXTERIOR WALL OPENINGS UNTIL

THE BUILDING HAS DRIED OUT. INSTALL TEMPORARY RAILINGS,

BARRICADES, COVERINGS, HOUSINGS, PLANKING, FENCING, ETC., FOR

THE PROTECTION OF COMPLETE OR PARTIALLY COMPLETED WORK,

AND PROVIDE WARNING LIGHTS, GUARDS, FLASHERS, FLAGS, ETC.,

WHERE REQUIRED BY LAWS OR AS REQUIRED FOR SAFETY. PROVIDE

DUST-TIGHT CLOSURES TO CONFINE DUST TO LOCALIZED AREAS.

KEEP EXCAVATED AREAS, TRENCHES, PITS, ETC., FREE OF WATER AT

ALL TIMES UNTIL THE COMPLETION OF THE WORK.

SECTION 01782 - OPERATING MANUAL

1. COMPILE PRODUCT DATA AND RELATED INFORMATION APPROPRIATE FOR

THE OWNER'S MAINTENANCE AND OPERATION OF ALL EQUIPMENT

FURNISHED. SUBMIT TO THE ARCHITECT, FOR APPROVAL, TWO COPIES OF

THE OPERATING MANUAL BOUND IN 3-POST 8 X 11" VINYL BINDERS.

APPROVED OPERATING MANUALS SHALL BE PROVIDED BEFORE THE

OWNER'S PERSONNEL ARE INSTRUCTED IN OPERATING THE EQUIPMENT

AND BEFORE A CERTIFICATE OF SUBSTANTIAL COMPLETION IS ISSUED.

SECTION 01732 - CUTTING & PATCHING

1. THE CONTRACTOR SHALL BE RESPONSIBLE FOR ALL CUTTING (E.G.

REMOVAL OF EXISTING CONSTRUCTION NECESSARY TO PERMIT

INSTALLATION OR PERFORMANCE OF OTHER WORK) AND PATCHING (E.G.

FITTING AND REPAIR WORK REQUIRED TO RESTORE SURFACES TO

ORIGINAL CONDITIONS AFTER INSTALLATION OF OTHER WORK) FOR ALL

TRADES.

2. CONFIRM LOCATIONS OF STRUCTURAL MEMBERS AND EMBEDDED ITEMS

IN CONCRETE SLABS PRIOR TO CUTTING HOLES; DO NOT CUT HOLES IN

STRUCTURAL MEMBERS BEFORE OBTAINING WRITTEN AUTHORIZATION

FROM THE STRUCTURAL ENGINEER OF RECORD. USE NON-DESTRUCTIVE

SCANNING METHODS TO DETERMINE LOCATIONS OF ITEMS EMBEDDED IN

CONCRETE SLABS.

3. DO NOT CUT AND PATCH THE FOLLOWING ELEMENTS OR RELATED

COMPONENTS IN A MANNER THAT COULD CHANGE THEIR LOAD-CARRYING

CAPACITY, THAT RESULTS IN REDUCING THEIR CAPACITY TO PERFORM AS

INTENDED, OR THAT RESULTS IN INCREASED MAINTENANCE OR

DECREASED OPERATIONAL LIFE OR SAFETY.

A. WATER, MOISTURE, OR VAPOR BARRIERS.

B. MEMBRANES AND FLASHINGS.

C. EXTERIOR CURTAIN-WALL CONSTRUCTION.

D. EQUIPMENT SUPPORTS.

E. PIPING, DUCTWORK, VESSELS, AND EQUIPMENT.

F. NOISE AND VIBRATION CONTROL ELEMENTS AND SYSTEMS.

4. EXECUTE CUTTING AND DEMOLITION BY METHODS THAT WILL PREVENT

DAMAGE TO OTHER WORK, AND WILL PROVIDE PROPER SURFACES TO

RECEIVE INSTALLATION OF REPAIRS. SCHEDULE NUISANCE WORK AT A

TIME THAT WILL NOT BE DISRUPTIVE TO DAILY OPERATIONS. RESTORE

WORK THAT HAS BEEN CUT OR REMOVED; INSTALL NEW PRODUCTS TO

PROVIDE COMPLETE WORK IN ACCORDANCE WITH THE REQUIREMENTS OF

THE CONTRACT DOCUMENTS. .

5. REFINISH ENTIRE SURFACES AS NECESSARY TO PROVIDE AN EVEN FINISH

TO MATCH ADJACENT FINISHES. FOR CONTINUOUS SURFACES, REFINISH

TO NEAREST INTERSECTION; FOR AN ASSEMBLY, REFINISH ENTIRE UNIT.

A. ALL PARTS OF THE WORK SHALL FIT TOGETHER PROPERLY. FIT

WORK AIRTIGHT TO PIPES, SLEEVES, DUCTS, CONDUIT, AND OTHER

PENETRATIONS THROUGH SURFACES

B. UNCOVER PORTIONS OF THE WORK TO PROVIDE FOR

INSTALLATION OF MIS-SEQUENCED WORK.

C. REMOVE PORTIONS OF INSTALLED WORK AS REQUIRED FOR

TESTING.

D. REMOVE AND REPLACE DEFECTIVE WORK AND/OR WORK NOT

CONFORMING TO REQUIREMENTS OF THE CONTRACT

DOCUMENTS.

E. REPAIR ALL DAMAGE CAUSED BY WORK UNDER THIS CONTRACT, AND

FINISH TO MATCH ADJACENT.

6. REMOVE AND REPLACE EXISTING PAVING OF ALL KINDS, WHICH IS NOT

INVOLVED IN WORK UNDER THE CONTRACT, DAMAGED DUE TO DELIVERY

OF MATERIALS. CONDITION TO BE THE SAME OR BETTER AS WHEN

CONSTRUCTION STARTED.

SECTION 01770 - PROJECT CLOSE-OUT PROCEDURES

1. SUBSTANTIAL COMPLETION PROCEDURE:

A. WHEN THE GENERAL CONTRACTOR CONSIDERS THAT THE PROJECT,

OR DESIGNATED PORTION THEREOF WHICH IS ACCEPTABLE TO THE

OWNER, IS SUBSTANTIALLY COMPLETE, AS DEFINED IN THE

CONDITIONS OF THE CONTRACT, THE CONTRACTOR SHALL PREPARE

FOR SUBMISSION TO THE ARCHITECT A WRITTEN NOTICE, ALL

OPERATING MANUALS, AND HVAC BALANCING REPORT.

B. WITHIN A REASONABLE AMOUNT OF TIME AFTER RECEIPT OF THE

PREVIOUSLY MENTIONED MATERIAL, THE ARCHITECT WILL MAKE AN

INSPECTION TO DETERMINE THE STATUS OF COMPLETION, COMPILE

AN INSPECTION LIST OF ITEMS REMAINING TO BE COMPLETED

(PUNCH LIST) AND PREPARE A CERTIFICATE OF SUBSTANTIAL

COMPLETION FOR THE OWNER'S AND GENERAL CONTRACTOR'S

WRITTEN ACCEPTANCE.

2. FINAL INSPECTION PROCEDURE:

A. WHEN THE GENERAL CONTRACTOR CONSIDERS THAT THE PROJECT

IS COMPLETE, HE SHALL SUBMIT WRITTEN CERTIFICATION THAT:

1. THE CONTRACT DOCUMENTS HAVE BEEN REVIEWED.

2. THE PROJECT HAS BEEN INSPECTED BY THE GENERAL

CONTRACTOR FOR COMPLIANCE WITH THE CONTRACT

DOCUMENTS.

3. THE PROJECT HAS BEEN COMPLETED IN ACCORDANCE WITH

THE CONTRACT DOCUMENTS.

4. EQUIPMENT AND SYSTEMS HAVE BEEN TESTED AND ARE

OPERATIONAL.

3. THE PROJECT IS COMPLETE AND READY FOR FINAL INSPECTION.

B. WITHIN A REASONABLE TIME AFTER RECEIPT OF THE CONTRACTOR'S

CERTIFICATION REQUESTING FINAL INSPECTION, THE ARCHITECT

WILL MAKE AN INSPECTION TO DETERMINE THE STATUS OF

COMPLETION. SHOULD THE ARCHITECT CONSIDER THE PROJECT

INCOMPLETE OR DEFECTIVE:

1. THE ARCHITECT WILL NOTIFY THE GENERAL CONTRACTOR IN

WRITING, TO INCLUDE A PUNCH LIST OF THE INCOMPLETE OR

DEFECTIVE PORTION OF THE PROJECT.

2. THE GENERAL CONTRACTOR SHALL TAKE IMMEDIATE ACTION

TO REMEDY THE STATED DEFICIENCIES, AND SEND TO THE

ARCHITECT, A SECOND WRITTEN CERTIFICATION THAT THE

PROJECT IS COMPLETE AND READY FOR RE-INSPECTION.

3. THE ARCHITECT WILL RE-INSPECT THE PROJECT AND NOTIFY

CONTRACTOR OF HIS FINDINGS.

4. CLOSE-OUT SUBMITTALS: THE GENERAL CONTRACTOR

SHALL SUBMIT THE FOLLOWING MATERIAL TO THE

ARCHITECT:

A. COPY OF THE CERTIFICATE OF OCCUPANCY.

B. RECORD DRAWINGS

C. SPECIAL WARRANTIES.

D. FINAL APPLICATION FOR PAYMENT

SECTION 01905 - INSPECTIONS FOR STATE LICENSING SECTION 02411 - SELECTIVE DEMOLITION

1. REFER TO STATE LICENSING CHECK LIST FOR ALL REQUIRED ITEMS

1. REMOVAL OF EXTERIOR AND INTERIOR BUILDING COMPONENTS AND

A. CITY OF AUSTIN FIRE DEPARTMENT APPROVAL

B. CERTIFICATE OF OCCUPANCY FROM CITY OF AUSTIN

SYSTEMS AS INDICATED ON DRAWINGS, OR AS REQUIRED.

2. PROTECTION OF PORTIONS OF BUILDINGS ADJACENT TO, OR AFFECTED BY

C. FIRE SPRINKLER CERTIFICATION

D. FIRE ALARM CERTIFICATION

E. MEDICAL GAS CERTIFICATION

SELECTIVE DEMOLITION, INCLUDING ERECTION AND REMOVAL OF

TEMPORARY PARTITIONS.

F. ELECTRICAL GROUNDING REPORT

G. WALL COVERING FLAME SPREAD DOCUMENTATION

3. REMOVAL OF ABANDONED UTILITIES AND WIRING SYSTEMS.

4. REMOVAL AND PROTECTION OF EXISTING FIXTURES AND EQUIPMENT ITEMS

AS INDICATED, OR AS REQUIRED.

H. CUBICAL CURTAIN FLAME RESISTANCE DOCUMENTATION

2. PROVIDE ALL NECESSARY APPROVALS, TESTING AND CERTIFICATIONS

5. REMOVAL OF ITEMS FOR REINSTALLATION AS PART OF THIS PROJECT,

INCLUDING STORAGE AND CLEANING.

REQUIRED BY STATE, AND SUPPLY PROPER DOCUMENTATION FOR

PRESENTATION TO DEPT. OF STATE HEALTH SERVICES FACILITY LICENSING

GROUP AT FINAL INSPECTION. ITEMS TO BE PRESENTED IN ORDERLY

6. REMODELING CONSTRUCTION WORK AND PATCHING IS INCLUDED WITHIN

THE RESPECTIVE SECTIONS OF SPECIFICATIONS, INCLUDING REMOVAL OF

MATERIALS FOR RE-USE AND INCORPORATED INTO REMODELING OR NEW

MANNER IN TABBED BINDER TO BE GIVEN (COPY) TO STATE AT FINAL

INSPECTION.

CONSTRUCTION.

7. RELOCATION OF PIPES, CONDUITS, DUCTS, OTHER MECHANICAL AND

3. PROVIDE 4 WEEKS PRIOR NOTIFICATION IN WRITING TO ARCHITECT OF

INTERMEDIATE (IF REQUIRED) AND / OR FINAL INSPECTION SO THAT

ARCHITECT MAY SCHEDULE THE REQUESTED DATE(S). FOR THE FINAL

ELECTRICAL WORK ARE SPECIFIED BY RESPECTIVE TRADES.

8. SUBMIT SCHEDULE INDICATING PROPOSED METHODS AND SEQUENCE OF

INSPECTION, CONTRACTOR MUST INSURE THAT ALL APPROVALS, TESTING

AND CERTIFICATIONS WILL BE OBTAINED BY REQUEST DATE (INCLUDING CITY

OPERATIONS FOR SELECTIVE DEMOLITION WORK TO OWNER'S

REPRESENTATIVE FOR REVIEW PRIOR TO COMMENCEMENT OF WORK.

INCLUDE COORDINATION FOR SHUT-OFF, CAPPING, AND CONTINUATION OF

APPROVALS AND CERTIFICATE OF OCCUPANCY). CONTRACTOR SHALL

NOTIFY ARCHITECT IMMEDIATELY SHOULD THE REQUESTED DATE NEED TO

UTILITY SERVICES AS REQUIRED, TOGETHER WITH DETAILS FOR DUST AND

NOISE CONTROL PROTECTION.

BE RESCHEDULED. NOTE: DSHS REGULATIONS REQUIRES 21 DAY MINIMUM

LEAD-TIME TO SCHEDULE AN INSPECTION; DSHS WILL NOT ACCEPT AN

INSPECTION REQUEST FROM CONTRACTOR.

9. OWNER WILL BE CONTINUOUSLY OCCUPYING AREAS OF THE BUILDING

IMMEDIATELY ADJACENT TO AREAS OF SELECTIVE DEMOLITION. CONDUCT

4. PRIOR TO FINAL INSPECTION OR ACCEPTANCE, FULLY INSTRUCT OWNER'S

DESIGNATED OPERATING AND MAINTENANCE PERSONNEL IN OPERATION,

SELECTIVE DEMOLITION WORK IN MANNER THAT WILL MINIMIZE NEED FOR

DISRUPTION OF OWNER'S NORMAL OPERATIONS. PROVIDE MINIMUM OF 14

DAYS ADVANCE NOTICE TO OWNER OF DEMOLITION ACTIVITIES WHICH WILL

ADJUSTMENT, AND MAINTENANCE OF PRODUCTS, EQUIPMENT, AND

SYSTEMS.

SEVERELY IMPACT OWNER'S NORMAL OPERATIONS.

10. THE OWNER SHALL HAVE THE FIRST RIGHT OF REFUSAL FOR SALVAGEABLE

SECTION 02512 - CLEANING

1. EXECUTE CLEANING DURING PROGRESS OF THE WORK AND AT THE

COMPLETION OF THE PROJECT AS REQUIRED BY THE GENERAL

ITEMS. ITEMS INDICATED TO BE REMOVED AND THE OWNER DOES NOT

CLAIM, BUT OF SALVABLE VALUE TO CONTRACTOR MAY BE REMOVED FROM

STRUCTURE AS WORK PROGRESSES. TRANSPORT SALVAGED ITEMS NOT

CONDITIONS. BUILDING PREMISES, SITE, DRIVES, PARKING AREAS,

SIDEWALKS, AND ADJOINING STREETS SHALL BE MADE NEAT AND FREE OF

EARTH AND DEBRIS RESULTING FROM THIS PROJECT. THE GENERAL

CLAIMED BY THE OWNER FROM SITE AS THEY ARE REMOVED.

11. STORAGE OR SALE OF REMOVED ITEMS ON SITE WILL NOT BE PERMITTED.

12. PROVIDE TEMPORARY BARRICADES AND OTHER FORMS OF PROTECTION AS

REQUIRED TO PROTECT OWNER'S PERSONNEL AND GENERAL PUBLIC FROM

CONTRACTOR SHALL BE RESPONSIBLE AND PAY FOR THE PERIODIC

REMOVAL OF ALL RUBBISH AND DEBRIS FROM THE BUILDING AND JOB SITE.

2. CLEAN ALL EXPOSED FINISH MATERIALS TO REMOVE EXTRANEOUS PAINT

AND MORTAR. DO NOT DISTURB GLAZING COMPOUND AT WINDOWS.

3. CONDUCT CLEANING AND DISPOSAL OPERATIONS TO COMPLY WITH CODES,

INJURY DUE TO SELECTIVE DEMOLITION WORK.

13. PROMPTLY REPAIR DAMAGES CAUSED TO ADJACENT FACILITIES BY

DEMOLITION WORK AT NO COST TO OWNER.

14. TRAFFIC: CONDUCT SELECTIVE DEMOLITION OPERATIONS AND DEBRIS

REMOVAL IN A MANNER TO ENSURE MINIMUM INTERFERENCE WITH ROADS,

ORDINANCES, REGULATIONS, AND ANTI - POLLUTION LAWS.

SECTION 06100 - ROUGH CARPENTRY

1. PROVIDE PRESERVATIVE TREATMENT BY PRESSURE PROCESS IN

STREETS, WALKS, AND OTHER ADJACENT OCCUPIED OR USED FACILITIES.

15. DO NOT USE CUTTING TORCHES FOR REMOVAL UNTIL WORK AREA IS

CLEARED OF FLAMMABLE MATERIALS. AT CONCEALED SPACES, SUCH AS

ACCORDANCE WITH AWPA C2 AND AWPA C9 FOR ROUGH CARPENTRY AT

INTERIOR OF DUCTS AND PIPE SPACES, VERIFY CONDITION OF HIDDEN

SPACE BEFORE STARTING FLAME-CUTTING OPERATIONS. MAINTAIN

THE FOLLOWING LOCATIONS:

A. WOOD CANTS, NAILERS, CURBS, EQUIPMENT SUPPORT BASES,

BLOCKING, STRIPPING, AND SIMILAR MEMBERS IN CONNECTION WITH

PORTABLE FIRE SUPPRESSION DEVICES DURING FLAME-CUTTING

OPERATIONS.

ROOFING, FLASHING, VAPOR BARRIERS, AND WATERPROOFING.

B. WOOD SILLS, SLEEPERS, BLOCKING, FURRING, STRIPPING, AND

16. MAINTAIN EXISTING UTILITIES INDICATED TO REMAIN IN SERVICE AND

PROTECT THEM AGAINST DAMAGE DURING DEMOLITION OPERATIONS.

17. USE OF EXPLOSIVES WILL NOT BE PERMITTED.

SIMILAR CONCEALED MEMBERS IN CONTACT WITH MASONRY OR

CONCRETE.

18. USE WATER SPRINKLING, TEMPORARY ENCLOSURES, AND OTHER SUITABLE

METHODS TO LIMIT DUST AND DIRT RISING AND SCATTERING IN AIR TO

C. WOOD FLOOR PLATES THAT ARE INSTALLED OVER CONCRETE SLABS

DIRECTLY IN CONTACT WITH EARTH.

2. PROVIDE FIRE-RETARDANT-TREATED MATERIALS THAT COMPLY WITH

LOWEST PRACTICAL LEVEL. COMPLY WITH GOVERNING REGULATIONS

PERTAINING TO ENVIRONMENTAL PROTECTION.

PERFORMANCE REQUIREMENTS IN AWPA C20 AND AWPA C27 WHERE

INDICATED OR REQUIRED BY LOCAL BUILDING CODES.

19. PRIOR TO COMMENCEMENT OF SELECTIVE DEMOLITION WORK, INSPECT

AREAS IN WHICH WORK WILL BE PERFORMED. PHOTOGRAPH EXISTING

CONDITIONS TO STRUCTURE SURFACES, EQUIPMENT OR TO SURROUNDING

3. TELEPHONE AND ELECTRICAL EQUIPMENT BACKING PANELS SHALL BE DOC

PS 1, EXPOSURE 1, C-D PLUGGED, FIRE-RETARDANT TREATED, IN THICKNESS

INDICATED OR, IF NOT INDICATED, NOT LESS THAN 3/4" THICK.

PROPERTIES WHICH COULD BE MISCONSTRUED AS DAMAGE RESULTING

FROM SELECTIVE DEMOLITION WORK; FILE WITH OWNER'S

4. PROVIDE FASTENERS OF SIZE AND TYPE APPROPRIATE FOR INSTALLATION.

WHERE ROUGH CARPENTRY IS EXPOSED TO WEATHER, IN GROUND

REPRESENTATIVE PRIOR TO STARTING WORK. MEASURE ON-SITE

CONDITIONS WHICH ARE CRITICAL TO THE WORK AND REPORT ANY

DISCREPANCIES TO THE ARCHITECT FOR RESOLUTION.

CONTACT, OR IN AREA OF HIGH RELATIVE HUMIDITY, PROVIDE FASTENERS

WITH HOT-DIP ZINC COATING COMPLYING WITH ASTM A153/A.

20. PROVIDE INTERIOR AND EXTERIOR SHORING, BRACING, OR SUPPORT TO

PREVENT MOVEMENT, SETTLEMENT OR COLLAPSE OF STRUCTURES TO BE

5. FIT ROUGH CARPENTRY TO OTHER CONSTRUCTION; SCRIBE AND COPE AS

REQUIRED FOR ACCURATE FIT. LOCATE FURRING, NAILERS, BLOCKING,

GROUNDS, AND SIMILAR SUPPORTS TO COMPLY WITH REQUIREMENTS FOR

DEMOLISHED AND ADJACENT FACILITIES TO REMAIN.

21. PERFORM SELECTIVE DEMOLITION WORK IN A SYSTEMATIC MANNER. USE

ATTACHING OTHER CONSTRUCTION.

SECTION 06402 - INTERIOR ARCH. WOODWORK

SUCH METHODS AS REQUIRED TO COMPLETE WORK INDICATED ON

DRAWINGS IN ACCORDANCE WITH DEMOLITION SCHEDULE AND GOVERNING

REGULATIONS.

1. SUBMIT SHOP DRAWINGS SHOWING LOCATION OF EACH ITEM,

DIMENSIONED PLANS AND ELEVATIONS, LARGE-SCALE DETAILS, LOCATION

OF PLASTIC LAMINATE SEAMS, ATTACHMENT DEVICES AND OTHER

COMPONENTS.

2. FABRICATE WOODWORK IN ACCORDANCE WITH AWI SECTION 400 CUSTOM

GRADE, FLUSH OVERLAY CONSTRUCTION UNLESS NOTED OTHERWISE.

3. WOOD CABINETS FOR TRANSPARENT FINISH:

A. WOOD SPECIES, CUT, AND GRAIN MATCHING AS INDICATED IN THE

FINISH SCHEDULE

B. SHOP FINISHED: AWI FINISH SYSTEM TR-6: CATALYZED

POLYURETHANE, SATIN SHEEN

4. PLASTIC LAMINATE CABINETS

A. HORIZONTAL SURFACES, VERTICAL SURFACES, AND EDGES TO BE

HGS HIGH-PRESSURE DECORATIVE LAMINATE.

B. POSTFORMED SURFACES TO BE HGP HIGH-PRESSURE DECORATIVE

LAMINATE.

5. COUNTERTOP SUBSTRATE SHALL BE WATER RESISTANT PLYWOOD FOR A

MINIMUM OF 24 INCHES EACH SSIDE OF ALL SINK LOCATIONS.

6. INSTALL WOODWORK TO COMPLY WITH AWI SECTION 1700 FOR THE SAME

GRADE SPECIFIED.

7. INSTALL STANDING AND RUNNING TRIM WITH MINIMUM NUMBER OF

JOINTS POSSIBLE, USING FULL-LENGTH PIECES FROM MAXIMUM LENGTH

OF LUMBER AVAILABLE TO GREATEST EXTENT POSSIBLE. DO NOT USE

PIECES LESS THAN 36 INCHES LONG. SCARF RUNNING JOINTS AND

STAGGER IN ADJACENT AND RELATED MEMBERS. EXPOSED END RETURNS

TO BE MITERED OR PROFILED. ANY MITERS OVER 4" LONG SHALL BE

SPLINED OR DOWELED AND GLUED.

8. ANCHOR PANELING TO SUPPORTING SUBSTRATE WITH CONCEALED

PANEL-HANGER CLIPS. DO NOT USE FACE FASTENING, UNLESS COVERED

BY TRIM.

22. IF UNANTICIPATED MECHANICAL, ELECTRICAL OR STRUCTURAL ELEMENTS

WHICH CONFLICT WITH INTENDED FUNCTION OR DESIGN ARE

ENCOUNTERED, INVESTIGATE AND MEASURE BOTH NATURE AND EXTENT

OF THE CONFLICT. SUBMIT REPORT TO OWNER'S REPRESENTATIVE IN

WRITTEN, ACCURATE DETAIL. PENDING RECEIPT OF DIRECTIVE FROM

OWNER'S REPRESENTATIVE REARRANGE SELECTIVE DEMOLITION

SCHEDULE AS NECESSARY TO CONTINUE OVERALL JOB PROGRESS

WITHOUT DELAY.

23. WHERE INDICATED ON DRAWINGS AS "RETURN TO OWNER", CAREFULLY

REMOVE INDICATED ITEMS, CLEAN, STORE AND TURN OVER TO OWNER AND

OBTAIN RECEIPT. WHERE INDICATED ON THE DRAWINGS AS "SALVAGE-

REINSTALL", THE INSTALLER (AS DETERMINED BY THE APPROPRIATE

SPECIFICATION SECTION) SHALL CAREFULLY REMOVE INDICATED ITEMS,

CLEAN AND STORE FOR REINSTALLATION AS SPECIFIED THE APPROPRIATE

SPECIFICATION SECTION.

24. REMOVE DEBRIS, RUBBISH AND OTHER MATERIALS RESULTING FROM

DEMOLITION OPERATIONS FROM BUILDING SITE. TRANSPORT AND

LEGALLY DISPOSE OF MATERIALS OFF SITE.

25. HAZARDOUS MATERIALS ENCOUNTERED DURING DEMOLITION OPERATIONS

WILL BE HANDLED BY THE OWNER AT THE OWNER'S EXPENSE.

26. BURNING OF REMOVED MATERIALS IS NOT PERMITTED ON PROJECT SITE.

27. UPON COMPLETION OF DEMOLITION WORK, REMOVE TOOLS, EQUIPMENT

AND DEMOLISHED MATERIALS FROM SITE. REMOVE PROTECTIONS AND

LEAVE INTERIOR AREAS BROOM CLEAN.

28. REPAIR DEMOLITION PERFORMED IN EXCESS OF THAT REQUIRED. RETURN

STRUCTURES AND SURFACES TO REMAIN TO CONDITION EXISTING PRIOR

TO COMMENCEMENT OF SELECTIVE DEMOLITION WORK. REPAIR ADJACENT

CONSTRUCTION OR SURFACES SOILED OR DAMAGED BY SELECTIVE

DEMOLITION WORK.

NO.

DATE

05/27/2015

SPECIFICATIONS

DATE:

SHEET NO.:

REVISION

SHEET NAME:

05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

A1-01

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

SECTION 07840 - FIRESTOPPING

1. PROVIDE FIRESTOP SYSTEMS CONSISTING OF A MATERIAL, OR

COMBINATION OF MATERIALS INSTALLED TO RETAIN THE INTEGRITY OF FIRE

RESISTANCE RATED CONSTRUCTION BY MAINTAINING AN EFFECTIVE

BARRIER AGAINST THE SPREAD OF FLAME, SMOKE AND/OR HOT GASES

THROUGH PENETRATIONS, FIRE RESISTIVE JOINTS, AND PERIMETER

OPENINGS IN ACCORDANCE WITH THE REQUIREMENTS OF THE BUILDING

CODE FOR THIS PROJECT.

2. FIRESTOP SYSTEMS SHALL BE USED IN LOCATIONS INCLUDING, BUT NOT

LIMITED TO, THE FOLLOWING:

A. PENETRATIONS THROUGH FIRE RESISTANCE RATED FLOOR AND

ROOF ASSEMBLIES INCLUDING BOTH EMPTY OPENINGS AND

OPENINGS CONTAINING PENETRANTS.

B. PENETRATIONS THROUGH FIRE RESISTANCE RATED WALL

ASSEMBLIES INCLUDING BOTH EMPTY OPENINGS AND OPENINGS

CONTAINING PENETRANTS.

C. MEMBRANE PENETRATIONS IN FIRE RESISTANCE RATED WALL

ASSEMBLIES WHERE ITEMS PENETRATE ON SIDE OF THE BARRIER.

D. JOINTS BETWEEN FIRE RESISTANCE RATED ASSEMBLIES.

E. PERIMETER GAPS BETWEEN RATED FLOORS/ROOFS AND AN

EXTERIOR WALL ASSEMBLY.

3. UNDERWRITERS LABORATORIES INC. (UL):

A. UL 263:FIRE TESTS OF BUILDING CONSTRUCTION AND MATERIALS.

B. UL 723:SURFACE BURNING CHARACTERISTICS OF BUILDING

MATERIALS.

C. UL 1479:FIRE TESTS OF THROUGH-PENETRATION FIRE STOPS.

D. UL 2079:TESTS FOR FIRE RESISTANCE OF BUILDING JOINT SYSTEMS.

4. GENERAL: PROVIDE PRODUCTS THAT UPON CURING, DO NOT RE-EMULSIFY,

DISSOLVE, LEACH, BREAKDOWN OR OTHERWISE DETERIORATE OVER TIME

FROM EXPOSURE TO ATMOSPHERIC MOISTURE, SWEATING PIPES, PONDING

WATER OR OTHER FORMS OF MOISTURE CHARACTERISTIC DURING AND

AFTER CONSTRUCTION. PROVIDE FIRESTOP SEALANTS SUFFICIENTLY

FLEXIBLE TO ACCOMMODATE MOTION SUCH AS PIPE VIBRATION, WATER

HAMMER, THERMAL EXPANSION AND OTHER NORMAL BUILDING

MOVEMENT WITHOUT DAMAGE TO THE SEAL. PROVIDE AND INSTALL

COMPLETE FIRESTOPPING SYSTEMS THAT HAVE BEEN TESTED AND

APPROVED FIRE TESTS IN A CONFIGURATION THAT IS REPRESENTATIVE OF

FIELD CONDITIONS. FIRESTOPPING PRODUCTS SHALL HAVE FLAME-SPREAD

RATINGS LESS THAN 25 AND SMOKE-DEVELOPED RATINGS LESS THAN 450,

AS DETERMINED PER ASTM E 84.

5. THROUGH PENETRATIONS: PROVIDE THROUGH-PENETRATION FIRESTOP

SYSTEMS THAT ARE PRODUCED AND INSTALLED TO RESIST THE SPREAD OF

FIRE, PASSAGE OF SMOKE AND OTHER HOT GASES ACCORDING TO

REQUIREMENTS INDICATED, TO RESTORE THE ORIGINAL FIRE-RESISTANCE

RATING OF BARRIER PENETRATED.

6. FIRE RESISTIVE JOINTS: PROVIDE JOINT SYSTEMS WITH FIRE RESISTANCE

ASSEMBLY RATINGS INDICATED, AS DETERMINED BY UL 2079 (ASTM E 1399

AND E 1966), BUT NOT LESS THAN THE FIRE RESISTANCE RATING OF THE

CONSTRUCTION IN WHICH THE JOINT OCCURS. FIRESTOPPING ASSEMBLIES

MUST BE CAPABLE OF WITHSTANDING ANTICIPATED MOVEMENTS FOR THE

INSTALLED FIELD CONDITIONS.

7. SINGLE SOURCE LIMITATIONS: OBTAIN FIRESTOP SYSTEMS, FOR EACH KIND

OF PENETRATION AND CONSTRUCTION CONDITION INDICATED FROM A

SINGLE MANUFACTURER, WHERE POSSIBLE. MATERIALS FROM DIFFERENT

FIRESTOP MANUFACTURERS SHALL NOT BE INSTALLED IN THE SAME

FIRESTOP SYSTEM OR OPENING. MATERIALS USED SHALL BE IN

ACCORDANCE WITH THE MANUFACTURER'S WRITTEN INSTALLATION I

INSTRUCTIONS.

8. FIRESTOPPING MATERIAL SHALL BE ASBESTOS AND LEAD FREE AND SHALL

NOT INCORPORATE NOR REQUIRE THE USE OF HAZARDOUS SOLVENTS.

9. LABEL EACH FIRESTOPPING SYSTEM INSTALLATION WITH THE FOLLOWING

INFORMATION:

A. FIRESTOPPING PRODUCT NAME

B. SYSTEM LISTING NUMBER

C. NAME AND ADDRESS OF MANUFACTURER

10. INSPECTION OF THROUGH-PENETRATIONS AT FIRE-RATED FLOOR AND WALL

ASSEMBLIES SHALL BE IN ACCORDANCE WITH ASTM E 2174, STANDARD

PRACTICE FOR ON-SITE INSPECTION OF INSTALLED FIRE STOPS.

11. INSPECTION OF FIRE-RESISTIVE JOINTS AND PERIMETER BARRIERS SHALL

BE IN ACCORDANCE WITH ASTM E 2393, STANDARD PRACTICE FOR ON-SITE

INSPECTION OF INSTALLED FIRE RESISTIVE JOINT SYSTEMS AND PERIMETER

FIRE BARRIERS.

12. COORDINATE CONSTRUCTION OF OPENINGS AND PENETRATING ITEMS TO

ENSURE THAT FIRESTOPPING ASSEMBLIES ARE INSTALLED ACCORDING TO

SPECIFIED REQUIREMENTS; COORDINATE SIZING OF SLEEVES, OPENINGS,

CORE-DRILLED HOLES, OR CUT OPENINGS TO ACCOMMODATE THROUGH-

PENETRATION FIRESTOP SYSTEMS.

13. DO NOT CONCEAL FIRESTOPPING INSTALLATIONS UNTIL THE OWNER'S

INSPECTION AGENCY OR AUTHORITIES HAVING JURISDICTION HAVE EXAMINED

EACH INSTALLATION.

14. FIRESTOPPING PRODUCTS SPECIFIED IN SYSTEM DESIGN LISTINGS BY UL MAY

BE USED PROVIDING THEY CONFORM TO THE CONSTRUCTION TYPE,

PENETRANT TYPE, ANNULAR SPACE REQUIREMENTS AND FIRE-RATING

INVOLVED IN EACH SEPARATE ASSEMBLY.

15. SUBJECT TO COMPLIANCE WITH THE REQUIREMENTS, PROVIDE PRODUCTS BY

ONE OF THE FOLLOWING:

A. GRACE CONSTRUCTION PRODUCTS

B. 3M FIRE PROTECTION PRODUCTS

C. HILTI, INC.

D. TREMCO COMMERCIAL SEALANTS & WATERPROOFING

E. NELSON FIRESTOP

F. RECTORSEAL

G. SPECIFIED TECHNOLOGIES INC

H. THERMAFIBER, INC.

16. INSTALL FIRESTOP SYSTEMS TO COMPLY WITH “PERFORMANCE

REQUIREMENTS” ARTICLE IN PART 1 AND FIRESTOPPING MANUFACTURER'S

WRITTEN INSTALLATION INSTRUCTIONS AND PUBLISHED DRAWINGS FOR

PRODUCTS AND APPLICATIONS INDICATED. INSTALLATION OF FIRESTOPPING

SHALL BE PERFORMED BY AN APPLICATOR/INSTALLER QUALIFIED AS

DESCRIBED IN ARTICLE 1.7.

SECTION 08125 - INTERIOR ALUMINUM FRAMES

1. PROVIDE EXTRUDED ALUMINUM COMPONENTS OF NOT LESS THAN .062 INCH

THICK MATERIAL. COMPLY WITH NFPA 80 FOR FIRE-RATED ASSEMBLIES.

2. FABRICATE FRAMES FOR DRYWALL SLIP-ON TYPE WITH THROAT SIZE AS

REQUIRED FOR SCHEDULED PARTITION TYPE THICKNESS.

3. FACTORY FINISH ALL COMPONENTS SO THAT ANY PART EXPOSED TO VIEW

UPON COMPLETION OF INSTALLATION WILL BE UNIFORM IN FINISH AND

COLOR.

SECTION 08211 - FLUSH WOOD DOORS

1. FIRE-RATED WOOD DOORS SHALL COMPLY WITH NFPA 80 AND SHALL BE

LISTED AND LABELED BY A TESTING AND INSPECTING AGENCY ACCEPTABLE

TO AUTHORITIES HAVING JURISDICTION FOR FIRE RATINGS INDICATED.

2. PROVIDE WARRANTY ON MANUFACTURER'S STANDARD FORM, SIGNED BY

MANUFACTURER, INSTALLER, AND CONTRACTOR, IN WHICH

MANUFACTURER AGREES TO REPAIR OR REPLACE DOORS THAT ARE

DEFECTIVE IN MATERIALS OR WORKMANSHIP. WARRANTY SHALL BE IN `

EFFECT FROM DATE OF SUBSTANTIAL COMPLETION FOR LIFE OF

INSTALLATION.

3. CONSTRUCT DOORS WITH FIVE PLIES WITH STILES AND RAILS BONDED TO

CORE, THEN ENTIRE UNIT ABRASIVE PLANED BEFORE FACES AND

CROSSBANDS ARE APPLIED. DOOR CORES TO BE PARTICLEBOARD

COMPLYING WITH ANSI A208.1, GRADE LD-2. PROVIDE MANUFACTURER'S

STANDARD MINERAL-CORE CONSTRUCTION AS NEEDED TO ACHIEVE FIRE

RATING INDICATED. PROVIDE BLOCKING IN DOORS AS REQUIRED TO

ELIMINATE THROUGH-BOLTING HARDWARE.

4. DOOR FACING AS INDICATED IN DOOR SCHEDULE SHALL BE AS FOLLOWS:

A. WOOD VENEER (WV):

1) GRADE: AWI PREMIUM, WITH GRADE A FACES.

2) SPECIES, CUT AND GRAIN MATCHING AS INDICATED IN DOOR

SCHEDULE

3) STILES: SAME SPECIES AS FACES

4) FINISH: PREMIUM GRADE, AWI SYSTEM TR-6 CATALYZED

POLYURETHANE, SATIN SHEEN.

B. PLASTIC-LAMINATE (PL):

1) GRADE: AWI PREMIUM

2) LAMINATE FACES: HIGH-PRESSURE DECORATIVE LAMINATES

COMPLYING WITH NEMA LD 3,GRADE HGS

3) COLORS, PATTERNS, AND FINISHES: AS INDICATED IN DOOR

SCHEDULE

4) STILES: HARDWOOD EDGES FOR PAINTING

5. PROVIDE MANUFACTURER'S STANDARD WOOD BEADS FOR LITE OPENINGS

IN NON-RATED WOOD DOORS OF SAME SPECIES AS DOOR FACES. AT 20

MINUTE, FIRE- RATED, WOOD-CORE DOORS, PROVIDE WOOD BEADS AND

METAL GLAZING CLIPS APPROVED FOR SUCH USE. PROVIDE

MANUFACTURER'S STANDARD METAL FRAME FORMED OF 0.0478-INCH

THICK, COLD-ROLLED STEEL SHEET; FACTORY PRIMED AND APPROVED

FOR USE IN DOORS OF FIRE RATING INDICATED.

6. INSTALL DOORS TO COMPLY WITH MANUFACTURER'S WRITTEN

INSTRUCTIONS, AWI QUALITY STANDARDS, AND AS INDICATED. INSTALL

FIRE-RATED DOORS IN CORRESPONDING FIRE-RATED FRAMES ACCORDING

TO NFPA 80.

SECTION 08710 - HARDWARE

1. QUALITY STANDARD FOR HARDWARE SHALL BE BHMA GRADE 1 FOR

CORRIDOR DOORS AND GRADE 2 FOR ALL OTHER DOORS.

2. HARDWARE COMPONENTS ARE NOTED ON THE DRAWINGS.

3. MATCH BUILDING HARDWARE STANDARD, UNLESS NOTED OTHERWISE.

4. HARDWARE STANDARDS ARE AS FOLLOWS:

RE: A9-01 DETAILS

5. KEY ALL LOCKS TO BUILDING GRAND MASTER SYSTEM. PROVIDE

CONSTRUCTION CORES DURING CONSTRUCTION PHASE. GENERAL

CONTRACTOR IS RESPONSIBLE FOR CHANGING OUT CONSTRUCTION

CORES PRIOR TO BENEFICIAL OCCUPANCY.

6. ADJUST DOOR CLOSERS TO COMPLY WITH TEXAS ACCESSIBILITY

STANDARDS (T.A.S.) AND THE AMERICANS WITH DISABILITIES ACT (A.D.A.).

MAXIMUM DOOR OPENING FORCE FOR INTERIOR DOORS SHALL NOT

EXCEED 5 LBS.

SECTION 08800 - GLAZING

1. GLASS THICKNESS' INDICATED ARE MINIMUMS AND ARE FOR DETAILING

ONLY. CONFIRM GLASS THICKNESS BY ANALYZING PROJECT LOADS AND IN-

SERVICE CONDITIONS. PROVIDE GLASS LITES FOR VARIOUS SIZE OPENINGS

IN NOMINAL THICKNESS' INDICATED, BUT NOT LESS THAN THICKNESS' AND IN

STRENGTHS (ANNEALED OR HEAT TREATED) REQUIRED TO MEET OR

EXCEED ASTM E 1300.

2. COMPLY WITH NFPA 80 FOR GLAZING IN FIRE RATED DOOR AND WINDOW

ASSEMBLIES.

3. PROVIDE KIND HS (HEAT STRENGTHENED) AND KIND FT (FULLY TEMPERED)

AS INDICATED OR REQUIRED BY LOCAL CODE AND FEDERAL SAFETY

GLAZING STANDARDS.

4. UNFRAMED MIRRORS (FRAMED MIRRORS ARE SCHEDULED WITH TOILET

ACCESSORIES): ANNEALED FLOAT GLASS, ASTM C 1048, TYPE 1, CLASS 1

(CLEAR), QUALITY Q2 (MIRROR) WITH COATING SYSTEM COMPLYING WITH FS

DD-M-411, WITH POLISHED EDGES. PREPARE SUBSTRATE AND INSTALL

GLASS IN ACCORDANCE WITH MANUFACTURER'S WRITTEN INSTALLATION

INSTRUCTIONS. PROVIDE PERMANENT MEANS OF SUPPORT ALONG BOTTOM

AND TOP EDGES.

SECTION 10431 - SIGNS

1. UNLESS NOTED OTHERWISE, MATCH EXISTING BUILDING SIGN STANDARDS.

2. SUBMIT SHOP DRAWINGS FOR ALL SIGN TYPES. INDICATE LOCATION FOR

EACH SIGN. SHOW ALL PERTINENT DETAILS AND INFORMATION RELATING TO

FABRICATION AND INSTALLATION, INCLUDING MOUNTING METHOD,

LOCATION, HEIGHT, REINFORCEMENT, ACCESSORIES, ELECTRICAL

REQUIREMENTS AND OTHER INSTALLATION DETAILS.

3. VERIFY THAT ITEMS PROVIDED UNDER OTHER SECTIONS OF WORK ARE

SIZED AND LOCATED TO ACCOMMODATE SIGNS.

4. EXAMINE SUPPORTING MEMBERS TO ENSURE THAT SURFACES ARE AT

ELEVATIONS INDICATED OR REQUIRED TO COMPLY WITH AUTHORITIES

HAVING JURISDICTION AND ARE FREE FROM DIRT AND OTHER

DELETERIOUS MATTER. PROCEED WITH INSTALLATION ONLY AFTER

UNSATISFACTORY CONDITIONS HAVE BEEN CORRECTED.

5. INSTALL SIGNS LEVEL, PLUMB AND AT HEIGHTS INDICATED OR OTHERWISE

REQUIRED USING METHODS DESCRIBED IN MANUFACTURER'S WRITTEN

INSTRUCTIONS.

6. ALL INSTALLATIONS SHALL BE IN COMPLIANCE WITH TEXAS ACCESSIBILITY

STANDARDS (T.A.S.) AND THE AMERICANS WITH DISABILITIES ACT (A.D.A.).

SECTION 09250 - GYPSUM BOARD ASSEMBLIES

1. INSTALL METAL STUDS, FRAMING AND GYPSUM BOARD IN ACCORDANCE WITH

ASTM C840, GA-201, GA-214, GA-216 AND GA-600.

2. CONTRACTOR SHALL DETERMINE SIZE AND GAUGE OF STUDS BASED ON THE

STUD MANUFACTURER'S LIMITING HEIGHT TABLES FOR THE APPLICATION.

STUDS SHALL BE INSTALLED IN FULL LENGTHS UNLESS HEIGHT EXCEEDS

MANUFACTURER'S MAXIMUM LENGTH IN WHICH CASE CONTRACTOR SHALL

SUBMIT STUD SPLICE DETAILS DESIGNED BY STUD MANUFACTURER.

3. PENETRATIONS IN DEMISING AND SOUND INSULATED PARTITIONS ABOVE

FINISHED CEILING SHALL BE EFFECTIVELY SEALED TO PREVENT SOUND

LEAKAGE.

4. SCREWS OR ANY OTHER MECHANICAL FASTENERS SHALL NOT ATTACH

PARTITIONS ABUTTING WINDOW MULLIONS. PROVIDE SOUNDPROOF CLOSURE

STRIPS AT PARTITION TERMINATION'S AT WINDOWS.

5. ALL PARTITION RETURNS SHALL HAVE METAL CORNER BEADS FLOOR TO

CEILING. ALL EXPOSED GYPSUM BOARD EDGES SHALL HAVE J BEAD FLOOR

TO CEILING.

6. ALL GYPSUM BOARD IS TO BE 5/8" TYPE X FIRE RATED UNLESS NOTED

OTHERWISE.

7. INSTALL 5/8" CEMENT BOARD AT ALL SHOWER STALLS AND OTHER WET

LOCATIONS. INSTALL ASTM C-630, 5/8" TYPE X MOISTURE RESISTANT GYPSUM

BOARD AT ALL OTHER LOCATIONS THAT ARE SUBJECT TO MOISTURE

EXPOSURE.

8. INSTALL CONTROL JOINTS ACCORDING TO ASTM C840, GA-216 AND IN

SPECIFIC LOCATIONS APPROVED BY ARCHITECT FOR VISUAL EFFECT.

9. ALL PARTITIONS IDENTIFIED AS DEMISING OR SOUND INSULATED TO BE MIN.

OF 48 STC. NO BACK-TO- BACK WALL BOXES. SEPARATE BOXES A MINIMUM

24".

10. FINISH GYPSUM BOARD IN ACCORDANCE WITH ASTM C840 TO LEVELS

INDICATED BELOW:

LEVEL 1: EMBED TAPE AT JOINTS ABOVE FINISHED CEILING AREAS

CONCEALED FROM VIEW UNLESS A HIGHER LEVEL OF FINISH IS

REQUIRED FOR FIRE-RESISTANCE OR SOUND-RATED ASSEMBLIES.

LEVEL 2: EMBED TAPE AND APPLY SEPARATE FIRST COAT OF JOINT

COMPOUND TO TAPE, FASTENERS, AND TRIM FLANGES WHERE

PANELS ARE SUBSTRATE FOR TILE AND WHERE LIGHT TO MEDIUM

WEIGHT WALLCOVERINGS ARE SCHEDULED.

LEVEL 3: EMBED TAPE AND APPLY SEPARATE FIRST AND FILL COATS OF

JOINT COMPOUND TAPE, FASTENERS, AND TRIM FLANGES

WHEREINDICATED.

LEVEL 4: EMBED TAPE AND APPLY SEPARATE FIRST, FILL AND FINISH COATS

OF JOINT COMPOUND TO TAPE, FASTENERS, AND TRIM FLANGES

AT PANEL SURFACES THAT WILL BE EXPOSED TO VIEW,UNLESS

OTHERWISE INDICATED.

SECTION 09310 - CERAMIC AND STONE TILE

1. EXTEND TILE WORK INTO RECESSES AND UNDER OR BEHIND EQUIPMENT

AND FIXTURES TO FORM COMPLETE COVERING WITHOUT INTERRUPTIONS,

UNLESS OTHERWISE INDICATED. TERMINATE WORK NEATLY AT

OBSTRUCTIONS, EDGES, AND CORNERS WITHOUT DISRUPTING PATTERN OR

JOINT ALIGNMENTS. WHEN TILE PATTERNS ARE GIVEN IN THE DRAWINGS,

INFORM THE ARCHITECT IF FIELD CONDITIONS WILL PREVENT THE SPECIFIED

PATTERN FROM BEING INSTALLED AS SHOWN. WHERE POSSIBLE, ALWAYS

LAY OUT TILE AND STONE FROM CENTERLINES TO AVOID EDGE PIECES OF

LESS THAN HALF TILE OR UNIT UNLESS NOTED OTHERWISE.

2. SUBMIT SHOP DRAWINGS SHOWING STONE TILE SIZES, DIMENSIONS OF TILED

AREAS, JOINT PATTERNS, BEDDING, AND DETAILS SHOWING RELATIONSHIP

OF TILE UNITS TO ADJACENT WORK.

3. FOR TILE INSTALLED ON WALKING SURFACES, PROVIDE PRODUCTS WITH

THE FOLLOWING STATIC COEFFICIENT OF FRICTION VALUES AS DETERMINED

BY TESTING IDENTICAL PRODUCTS PER ASTM C 1028:

LEVEL SURFACES: MINIMUM 0.6

STEP TREADS: MINIMUM 0.6

RAMP SURFACES: MINIMUM 0.8

4. PROVIDE SETTING AND GROUTING MATERIALS THAT ARE COMPATIBLE WITH

STONE PRODUCTS SPECIFIED AND THAT WILL NOT DISCOLOR THE STONE

MATERIALS.

5. SEAL STONE AND GROUT MATERIALS WITH COLORLESS, SLIP AND STAIN

RESISTANT SEALER WHICH WILL NOT AFFECT COLOR, APPEARANCE, OR

PHYSICAL PROPERTIES OF STONE SURFACES AS RECOMMENDED BY STONE

TILE MANUFACTURER FOR APPLICATION INDICATED.

6. TILE INSTALLATION SCHEDULE ACCORDING TO TILE COUNCIL OF AMERICA

(TCA) SYSTEMS:

INTERIOR FLOOR INSTALLATION ON CONCRETE; THIN-SET MORTAR; TCA

F113.

INTERIOR WALL INSTALLATION OVER GYPSUM BOARD ON METAL STUDS;

ORGANIC ADHESIVE; TCA W242.

INTERIOR WALL INSTALLATION OVER WATER-RESISTANT GYPSUM

BACKER BOARD; ORGANIC ADHESIVE; TCA W242.

INTERIOR WALL AND SHOWER-RECEPTOR INSTALLATION; THIN-SET

MORTAR OVER CEMENTITIOUS BACKER UNITS; TCA B415 AND TCA W244.

7. WHERE SHOWERS ARE INDICATED ON THE DRAWINGS, PROVIDE AND

INSTALL YORK COPPER FABRIC SHOWER PANS (5 OZ.) UNLESS NOTED

OTHERWISE. PANS TO BE FACTORY FABRICATED TO REQUIRED SIZE

INCLUDING MINIMUM 6" UPTURN ALL AROUND.

SECTION 09511 - ACOUSTIC TILE CEILINGS

1. MEASURE EACH CEILING AREA AND ESTABLISH LAYOUT OF ACOUSTICAL TILES

TO BALANCE BORDER WIDTHS AT OPPOSITE EDGES OF EACH CEILING. AVOID

USING LESS THAN HALF WIDTH TILES AT BORDERS.

2. SUSPEND CEILING HANGERS FROM BUILDING'S STRUCTURAL MEMBERS,

PLUMB AND FREE FROM CONTACT WITH INSULATION OR OTHER OBJECTS

WITHIN CEILING PLENUM. SPLAY HANGERS ONLY WHERE REQUIRED TO MISS

OBSTRUCTIONS; OFFSET RESULTING HORIZONTAL FORCES BY BRACING,

COUNTERSPLAYING, OR OTHER EQUALLY EFFECTIVE MEANS. WHERE WIDTH

OF DUCTS AND OTHER CONSTRUCTION WITHIN CEILING PLENUM PRODUCES

HANGER SPACINGS THAT INTERFERE WITH LOCATION OF HANGERS, USE

TRAPEZES OR EQUIVALENT DEVICES.

3. LOCATE LIGHT FIXTURES, FIRE DETECTION DEVICES AND ALARMS, AND

OTHER CEILING MOUNTED ELECTRICAL DEVICES CENTERED IN CEILING TILE.

LOCATE SPRINKLER HEADS AN EQUAL DISTANCE IN TWO DIRECTIONS FROM

TILE EDGES BUT NOT LESS THAT 2" FROM TILE EDGE.

4. PROVIDE ATTIC STOCK FOR EACH TYPE OF ACOUSTICAL TILE EQUAL TO 5%

OF THE TOTAL OF EACH TYPE USED, UNLESS NOTED OTHERWISE IN THE

DRAWINGS.

5. SUBMIT SAMPLES OF EACH TYPE OF MATERIAL USED (TILE, TRACK & TRIM)

FOR APPROVAL

6. INSTALL CEILING TRACK AND TRIM IN LONGEST POSSIBLE LENGTHS WITH NO

SECTION LESS THAN 48 INCHES LONG. USE CONCEALED INSTALLATION CLIPS

PROPERLY ALIGNED.

SECTION 09651 - RESILIENT FLOORING

1. PREPARE SUBSTRATES ACCORDING TO MANUFACTURER'S WRITTEN

RECOMMENDATIONS TO ENSURE ADHESION OF RESILIENT PRODUCTS.

2. LAY OUT TILES FROM CENTER MARKS ESTABLISHED WITH PRINCIPAL WALLS,

DISCOUNTING MINOR OFFSETS, SO TILES AT OPPOSITE EDGES OF ROOM ARE

OF EQUAL WIDTH. ADJUST AS NECESSARY TO AVOID USING CUT WIDTHS

THAT EQUAL LESS THAN ONE-HALF TILE AT PERIMETER.

3. SCRIBE, CUT, AND FIT TILES TO BUTT NEATLY AND TIGHTLY TO VERTICAL

SURFACES AND PERMANENT FIXTURES INCLUDING BUILT-IN FURNITURE,

CABINETS, PIPES, OUTLETS, EDGINGS, DOOR FRAMES, THRESHOLDS, AND

NOSINGS. EXTEND TILES INTO TOE SPACES, DOOR REVEALS, CLOSETS AND

SIMILAR OPENINGS.

4. ADHERE TILES TO FLOORING SUBSTRATES USING A FULL SPREAD OF

ADHESIVE APPLIED TO SUBSTRATE TO PRODUCE A COMPLETED

INSTALLATION WITHOUT OPEN CRACKS, VOIDS, RAISING AND PUCKERING AT

JOINTS, TELEGRAPHING OF ADHESIVE SPREADER MARKS, AND OTHER

SURFACE IMPERFECTIONS.

5. INSTALL BASE ON SOLID BACKING BONDED TIGHTLY TO WALL AND FLOOR

SURFACES. MITER INTERNAL CORNERS; AT EXTERNAL CORNERS, "V" CUT

BACK OF BASE STRIP TO 2/3 OF ITS THICKNESS AND FOLD. AT EXPOSED

ENDS, USE PREMOLDED UNITS.

6. WHEN TILE PATTERNS ARE GIVEN IN THE DRAWINGS, INFORM THE ARCHITECT

IF FIELD CONDITIONS WILL PREVENT THE SPECIFIED PATTERN FROM BEING

INSTALLED AS SHOWN. WHERE POSSIBLE, ALWAYS LAY OUT TILE FROM

CENTERLINES TO AVOID EDGE PIECES OF LESS THAN ONE HALF TILE UNLESS

NOTED OTHERWISE.

7. PROVIDE ATTIC STOCK FOR EACH TYPE OF RESILIENT FLOORING EQUAL TO

5% OF THE TOTAL AREA OF EACH TYPE USED, UNLESS NOTED OTHERWISE.

8. SUBMIT SAMPLES OF EACH TYPE AND COLOR OF FLOORING USED FOR

APPROVAL.

SECTION 09912 - PAINTING

1. PROVIDE A FULL-COAT MOCKUP FINISH SAMPLE OF AT LEAST 12"X12"

MINIMUM FOR EACH TYPE OF COATING AND SUBSTRATE REQUIRED. FINAL

APPROVAL OF COLORS WILL BE DETERMINED BY ARCHITECT FROM MOCKUP

SAMPLES. PROVIDE ADDITIONAL SAMPLES IF REQUESTED ON THE FINISH

SCHEDULE.

2. FURNISH OWNER WITH 1 GALLON OF EXTRA PAINT OF EACH COLOR, TYPE

AND SURFACE TEXTURE UTILIZED. LABEL EACH CONTAINER WITH COLOR,

TYPE, TEXTURE AND LOCATIONS IN ADDITION TO MANUFACTURER'S LABEL.

3. PROVIDE BLOCK FILLERS, PRIMERS, AND FINISH-COAT MATERIALS THAT ARE

COMPATIBLE WITH ONE ANOTHER AND WITH THE SUBSTRATES INDICATED

UNDER CONDITIONS OF SERVICE AND APPLICATION, AS DEMONSTRATED BY

MANUFACTURER BASED ON TESTING AND FIELD EXPERIENCE.

4. APPLY PAINT ACCORDING TO MANUFACTURER'S WRITTEN INSTRUCTIONS.

USE APPLICATORS AND TECHNIQUES BEST SUITED FOR SUBSTRATE AND

TYPE OF MATERIAL BEING APPLIED.

5. THE TERM "EXPOSED SURFACES" INCLUDES AREAS VISIBLE WHEN

PERMANENT OR BUILT-IN FIXTURES, GRILLES, COVERS OR SIMILAR

COMPONENTS ARE IN PLACE. EXTEND COATINGS IN THESE AREAS, AS

REQUIRED, TO MAINTAIN SYSTEM INTEGRITY AND PROVIDE DESIRED

PROTECTION.

6. PAINT SURFACES BEHIND MOVABLE EQUIPMENT AND FURNITURE THE SAME

AS SIMILAR EXPOSED SURFACES.

7. PAINT SURFACES OF DUCTS WITH A FLAT, NONSPECULAR BLACK PAINT

WHERE VISIBLE THROUGH REGISTERS OR GRILLES.

8. SUBMIT SAMPLE OF EACH TYPE AND COLOR OF PAINT USED FOR APPROVAL.

SECTION 09680 - CARPET

1. MAINTAIN UNIFORMITY OF CARPET DIRECTION & LAY OF PILE. AT

DOORWAYS, CENTER SEAMS UNDER DOOR IN CLOSED POSITION. BIND OR

SEAL CUT EDGES AS RECOMMENDED BY CARPET MANUFACTURER.

2. REFER TO FINISH KEY FOR SPECIFIC CARPET PRODUCTS.

3. DO NOT INSTALL CARPET OVER CONCRETE SLABS UNTIL SLABS HAVE

CURED & ARE SUFFICIENTLY DRY TO BOND WITH ADHESIVE & CONCRETE

SLABS HAVE PH RANGE RECOMMENDED BY MANUFACTURER.

4. COMPLY WITH CARPET & RUG INSTITUTE (CRI) 104.

5. PROVIDE CARPET WARRANTY IN WHICH MANUFACTURER AGREES TO

REPLACE CARPET THAT FAILS WITHIN 10 YEARS FROM DATE OF

SUBSTANTIAL COMPLETION. FAILURES INCLUDE, BUT ARE NOT LIMITED TO,

MORE THAN 10 PERCENT LOSS OF FACE FIBER, EDGE RAVELING, SNAGS,

RUNS, AND DELAMINATION.

6. RECYCLE USED CARPET UNDER THE DUPONT CARPET RECLAMATION

PROGRAM. RECLAMATION AGENCY & CARPET REMOVER SHALL CERTIFY

IN WRITING THE USED CARPET WAS REMOVED & RECYCLED IN

ACCORDANCE WITH THE DUPONT CARPET RECLAMATION PROGRAM.

7. PROVIDE ATTIC STOCK OF EACH CARPET TILE SELECTION & EACH ROLL

STOCK SELECTION EQUAL TO 5% OF THE TOTAL AREA OF EACH TYPE OF

CARPET TILE USED, UNLESS OTHERWISE NOTED.

8. SUBMIT SAMPLES OF EACH TYPE & COLOR OF CARPET USED FOR

APPROVAL.

SECTION 08300 - STEEL DOORS AND FRAMES

1. PROVIDE STEEL DOORS AND FRAMES WHERE SCHEDULED, COMPLYING

WITH ANSI A250.8 AND NFPA 80 FOR FIRE-RATED ASSEMBLIES.

2. INSULGARD CORPORATION: HM544 BULLET RESISTANT DOOR SYSTEM

BULLET RESISTING DOOR CONSTRUCTION:

A. U.L. LEVEL 3, 11 GAUGE BALLISTIC STEEL FACE-PLATES ARE

WELDED TO 14 GAUGE INTERIOR LOCK AND HINGE RAILS. EACH

DOOR WILL HAVE 14 GAUGE VERTICAL STEEL STIFFENERS. TOP

AND BOTTOM OF DOOR TO RECEIVE 14 GAUGE CLOSURE

CHANNELS.

B. DOOR FRAMING WILL BE CONSTRUCTED OF 11 GAUGE BALLISTIC

STEEL AND BE OFFERED IN TYPES FOR DRYWALL AND MASONRY

OPENINGS.

C. DOOR HARDWARE (STANDARD) WILL BE: CONTINUOUS HINGES,

LCN CLOSER.

D. OPTIONAL HARDWARE - HARDWARE MATERIALS SHALL BE OF A

TYPE LISTED ABOVE, UNLESS OTHERWISE REQUESTED.

E. FINISH - ALL DOORS AND FRAMES FURNISHED PRIME PAINTED,

READY FOR FINAL FINISH IN FIELD. REFER TO DOOR SCHEDULE

FOR BUILDING STANDARD FINISH.

F. CONTINUOUS HINGE PREPARATION; CLOSER REINFORCED.

4. DOOR FRAME CONSTRUCTION:

A. DOOR FRAME ASSEMBLY IS CONSTRUCTED OF FORMED STEEL

PLATES. FRAMING DIMENSIONS ARE 2" WIDE X 6 3/4" DEEP. DOOR

FRAMES ARE COMPLETELY FABRICATED AT FACTORY AND SHIPPED

WITH DOORS ATTACHED.

B. ALL DOORS TO BE PRE-TESTED FOR ALL LOCKING FUNCTIONS,

CLEARANCES, AND EASE OF OPERATION, TO MAKE FIELD

INSTALLATION EASIER.

C. ALL JOINT CONNECTIONS ARE WEDLED TO PROVIDE A RIGID

ASSEMBLY WHEN INSTALLED.

D. VERTICAL JAMES, DOOR STOPS AND TRANSOMS CONTAIN BULLET

RESISTANT MATERIAL EQUAL TO THE VALUE OF THE DOOR UNIT.

E. ALL SEAMS OF THE DOOR ND FRAME ARE PROTECTED IN THE SAME

MANNER.

F. THE DOOR STOP IS BUILT INTO THE FRAME.

G. GLEEN JOHNSON SILENCERS ARE USED AT THE LOCK JAMB.

H. FRAMES ARE PREDRILLED TO ACCEPT 1/4" ANCHORS 18" O.C.

SHIMS ARE PROVIDED TO TAKE UP A SPACE AT EACH ANCHOR.

I. WIRING DIAGRAMS ARE SHIPPED ENCLOSED IN THE HARDWARE

PACKAGES.

SECTION 26000 - ELECTRICAL PORTAL CONTROLS

1. THE FOLLOWING IS THE MINIMUM REQUIREMENTS FOR ELECTRONIC

PORTAL CONTROLS INCLUDING ELECTRIC STRIKES, MAGNETIC LOCKS AND

OTHER ELECTRONIC CONTROLS. ATF'S PHYSICAL SECURITY BRANCH WILL

DETERMINE THE NEED FOR AND AUTHORIZE ELECTRONIC PORTAL

CONTROLS.

2. DEVICE SPECIFICATIONS: ALL ELECTRONIC LOCKS INSTALLED IN ATF SPACE

SHALL HAVE:

A. LEAKAGE OF UNDER 60 GAUSS AT 6 INCHES AND LESS THAN 1 GAUSS

AT 2 INCHES ENERGIZED OR DE-ENERGIZED.

B. A 600 POUND FORCING STRENGTH (IN THE OPENING DIRECTION).

FORCING STRENGTH SHALL BE MEASURED IN ACTUAL PRESSURE IN

POUNDS THAT IT TAKES TO PULL LOCK APART.

C. CAPABILITY TO OPERATE WITH 12 OR 24 VOLT D.C. POWER AND TO

INTEGRATE WITH A REMOTE OPENING SYSTEM/DEVICE.

D. STANDARD BUILT IN ELECTRONICS TO ELIMINATE RESIDUAL

MAGNETISM AND ALSO TO PROVIDE TRANSIENT SUPPRESSION.

E. CAPABILITY TO MEET GUIDELINES FROM ANSI AND BHMA AND BE U.L.

LISTED FOR BURGULAR RESISTANCE.

F. A STATUS SENSING MECHANISM THAT INDICATES THE DOOR IS

CLOSED AND LOCKED.

G. APPLICABILITY FOR INSTALLATION WITH HOLLOW METAL, SOLID

CORE WOOD DOOR, GLASS ALUMINUM AND FIRE DOORS.

H. CAPABILITY OF FAIL-SECURE OPERATION.

I. PROTECTION AGAINST FORCED ATTACK SUCH AS PICKING, DRILLING

AND PRYING.

J. RESISTANCE TO RUST AND WATER.

4. INSTALLATION REQUIREMENTS:

A. ALL LEADS FOR THE ELECTRONIC LOCKS SHALL BE INACCESSIBLE

FROM THE EXTERIOR (UNPROTECTED SIDE) OF THE DOOR. WHEN

LEADS MUST BE INSTALLED EXPOSED, ALL WIRING SHALL BE

ENCASED IN ARMORED CABLE.

B. ALL DEVICES SHALL BE INSTALLED PER THE MANUFACTURER'S

SPECIFICATIONS.

C. ALL DOORS DESIGNATED AS EMERGENCY EXITS SHALL USE A U.L.

LISTED FAIL-SECURE DEVICE.

D. ALL ELECTRONIC LOCKING DEVICES SHALL BE POWERED FROM A

CONSTANT, CONTINUOUS POWER SOURCE.

SECTION 111500 - BULLET RESISTANT FIBERGLASS

1. THE DETAILS, AS LISTED BELOW, FORM A PART OF THIS SPECIFICATION.

UNDERWRITERS LABORATORY UL 752 10TH EDITION, STANDARD FOR BULLET

RESISTING EQUIPMENT DATED MARCH 10,2000. ASTM E119-98 STANDRAD

TEST FOR ONE-HOUR FIRE RATING OF BUILDING CONSTRUCTION AND

MATERIALS.

A. SUBMITTALS: SUBMIT FOR APPROVAL PRIOR TO FABRICATION

NO.

REVISION

SHEET NAME:

DATE

05/27/2015

SAMPLES, BROCHURES, SPECIFICATIONS, U; ;ISTINGS VERIFICATION

AND UL752 CURRENT TEST RESULTS AS PROVIDED BY UNDERWRITERS

LABORATORIES, AND PRINTED DATA IN SUFFICIENT DETAIL TO INDICATE

COMPLIANCE WITH THE CONTRACT DOCUMENTS. ASTM E119-98 ONE-

HOUR FIRE RATING OF BUILDING CONSTRUCTION AND MATERIALS.

SPECIFICATIONS

MANUFACTURER'S INSTRUCTIONS FOR INSTALLATION OF BULLET

RESISTANT FIBERGLASS PANELS.

B. DESIGN: THROUGH THE DESIGN, MANUFACTURING TECHNIQUE AND

DATE: 05/27/2015

MATERIAL APPLICATION THE BULLET RESISTANT FIBERGLASS SHALL

BE OF THE "NON RICOCHET TYPE". THIS DESIGN IS INTENDED TO

PERMIT THE ENCAPTURE AND RETENTION OF AN ATTACKING

PROJECTILE LESSENING THE POTENTIAL OF RANDOM INJURY OR

LATERAL PENETRATION.

C. WARRANTY: ALL MATERIALS AND WORKMANSHIP SHALL BE

WARRANTED AGAINST DEFECTS FOR A PERIOD OF TWO (2) YEARS

FROM THE DATE OF RECEIPT AT THE PROJECT SITE.

REVIEWED BY:

PROJECT NO.:

SHEET NO.:

SLB

201502200

A1-02

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

SECTION 111500 - BULLET RESISTANT FIBERGLASS

2. 2.1 BULLET RESISTANT FIBERGLASS MATERIAL: THE PANELS SHALL BE

MADE OF MULTIPLE LAYERS OF WOVEN ROVING BALLISTIC GRADE

FIBERGLASS CLOTH IMPREGNATED WITH A THERMOSET POLYESTER RESIN

AND COMPRESSED INTO FLAT RIGID SHEETS. THE RPODUCTION

TECHNIQUE AND MATERIALS USED SHALL PROVIDE THE CONTROLLED

INTERNAL DELAMINATION TO PERMIT THE ENCAPTURE OF A PENETRATING

PROJECTILE. BULLET RESISTANT FIBERGLASS PANELS: 7/16" MAXIMUM

THICKNESS, AND 4.7 POUNDS PER SQUARE FOOT MAXIMUM WEIGHT.

A. ARMORCORE LEVEL 3 BY WACO COMPOSITES L LTD., WACO, TEXAS.

TOLL FREE 866.688.3088, FAX# 254.776.1424, WEB SITE:

WWW.ARMORCORE.COM

B. GE POLYMERSHAPES INSULGARD, 7633 INDUSTRIAL BOULEVARD,

ALLENTOWN, PA 18106, 800.893.9657, FAX # 610.366.7701, WEB SITE:

WWW.INSULGARD.COM

3. SECURITY LEVEL: THE BULLET RESISTANT FIBERGLASS WILL BE RATED

AND TESTED FOR UL752 LEVEL 3

4. EXECUTION - SUPPORTING MEMBERS: PRIOR TO INSTALLING THE BULLET

RESISTIVE MATERIAL THE CONTRACTOR SHALL VERIFY THAT ALL

SUPPOSRTS HAVE BEEN INSTALLED AS REQUIRED BY THE CONTRACT

DOCUMENTS AND THE ARCHITECTURAL DRAWINGS.

5. JOINTS: ALL JOINTS SHALL BE REINFORCED BY A BACK-UP LAYER OF

BULLET RESISTIVE MATERIAL. THE BULLET RESISTANCE OF THE JOINT, AS

REINFORCED, SHALL BE AT LEAST EQUAL O THAT OF THE PANEL. MINIMUM

WIDTH OF REINFORCING LAYER AT JOINT SHALL BE 4-INCHES (2" ON EACH

PANEL OR A 2" MINIMUM OVERLAP).

6. APPLICATION: ARMOR SHALL BE INSTALLED IN ACCORDANCE WITH THE

MANUFACTURER'S PRINTED RECOMMENDATIONS. ARMOR PANELS SHALL

BE ADHERED USING AN INDUSTRIAL ADHESIVE, MASTIC, SCREWS OR

BOLTS. METHOD OF APPLICATION SHALL MAINTAIN THE BULLET RESISTIVE

RATING AT JUNCTURES WITH THE CONCRETE FLOOR SLAB, THE CONCRETE

ROOF SLAB, THE BULLET RESISTIVE DOOR FRAMES, THE BULLET RESISTIVE

WINDOW FRAMES, AND ALL REQUIRED PENETRATIONS..

SECTION 077000 - DEMISING WALS

1. NOTE: IN CONSTRUCTION, PERIMETER AND DEMISING WALLS MAY BE

DESCRIBED TWO DIFFERENT TYPES OF WALLS. IN CONSTRUCTION,

PERIMETER WALLS DESCRIBE THE EXTERIOR WALLS OF THE BUILDING AND

DEMISING WALLS DESCRIBE THE EXTERIOR WALLS OF THE TENAT'S SPACE.

PERSONNEL IN THE SECURITY INDUSTRY MAY DESCRIBE THE EXTERIOR

WALLS OF THE SECURED SPACE AS THE PERIMETER WALLS. FOR THE

PURPOSE OF THIS DOCUMENT, TENANT WILL USE THE TERM PERIMETER

WALLS AND DEMISING WALLS INTERCHANGEABLY BUT ITS MEANING WILL

REMAIN THE SAME - I.E. EXTERIOR WALLS OF TENANT SPACE.

2. DEMISING WALLS OF TENANT FACITILITIES MUST BE ACOUSTICALLY

SEPARATE FROM NEIGHBORING BUILDINGS OR TENANTS SHARING SPACE

IN THE SAME BUILDING. ALL PERIMETER WALLS SEPARATING TENANT

SPACE FROM BUILDING COMMON AREAS OR OTHER TENANTS, WHETHER

GOVERNMENT OR NON-GOVERNMENT, MUST BE SEPARATED WITH WALL

PARTITIONS THAT EXTEND FROM THE STURCTURAL FLOOR TO THE

STRUCTURAL CEILING. DEMISING WALLS MUST HAVE A MINIMUM SOUND

TRANSMISSION CLASS (STC) OF 45 AND CONTAIN 3 INCH SOUND BLANKET

INSULATION BETWEEN 5/8 INCH GYPSUM PARTITION. THIS INCLUDES

PUBLIC CORRIDOR WALLS. SEE WALL TYPE 3A. ACOUSTICAL SEALANT

SHALL BE APPLIED ON BOTH SIDES OF THE METAL STUD RUNNER AT BOTH

SLABS, ON FLOORS/CEILINGS WITH COMPOSITE METAL DECKS, THE

PARTITION, SOUND INSULATION, AND ACOUSTICAL SEALANT SHALL EXTEND

BETWEEN THE FLUTES OF THE METAL DECKS. ALL SERVICE BOXES SHALL

BE SEALED. ALL ELECTRICAL CONDUIT CABLES SHALL BE PLUGGED WITH

AN ACOUSTICAL LINING AND CONSTRUCTED TO IMPEDE SOUND

TRANSMISSION.

3. IN ADDITION, A MINIMUM OF 3/4" #9 STANDARD OR 9-GAUGE EXPANDED

CARBON STEEL (EXPANDED METAL) SHALL BE MOUNTED TO THE OUTER

SIDE OF THE WALL STUDS AND RUN FROM SLAB-TO-SLAB. THE LONG WAY

OF THE DIAMOND OPENING IN THE EXPANDED METAL SHALL BE NO

GREATER THAN 2 INCHES AND SHOULD BE CONSISITENT THROUGHOUT

THE SPACE. IN CASES WHERE CONCRETE BLOCK IS USED AS A DEMISING

WALL, EXPANDED METAL MAY BE ELIMINATED.

4. EXISTING OFFICE SPACE: THE EXISTING DEMISING WALLS SHALL BE

REINFORCED WITH SLAB-TO-SLAB EXPANDED METAL. IT IS PERFERABLE TO

WELD THE EXPANDED METAL ON THE OUTSIDE FACE OF THE WALLS, BUT IF

THIS IS NOT POSSIBLE, SECURING THE EXPANDED METAL ON THE INSIDE

FACE OF THE WALLS IS ACCEPTABLE. (NOTE: WELDING MAY NOT BE

POSSIBLE IF THE EXISTING STUD GAUGE IS TOO THIN OR IF THE SPACE ON

THE OPPOSITE SIDE OF TENAT'S SPACE IS OCCUPIED.) TENANT WILL

ALLOW INSTALLATION OF THE EXPANDED METAL ON THE TENANT SIDE OF

THE DEMISING WALL WITH NON-REMOVABLE SCREWS AND METAL

RETAINING CLIPS IN THESE INSTANCES.

A. THE PROSPECTIVE LESSOR SHALL BE RESPONSIBLE FOR

IDENTIFICATION OF THE CURRENT CONDITION OF THE DEMISING

PARTITION AND SHALL REPORT THESE CONDITIONS TO THE TENANT.

TENANT WILL THEN DETERMINE THE MODIFICATIONS THAT ARE

REQUIRED TO INSURE THAT THE DEMISING PARTITION RESULTS IN

AT LEAST A 3A PARTITION TYPE.

SECTION 260000 - CONDUITS FOR ELECTRIC AND

TELEPHONE LINES

1. DEDICATED CONDUITS ARE TO BE RUN FROM POINT OF ENTRY INTO THE

BUILDING ("DEMARK POINT") TO TENANT'S SPACE. PROVIDE A 3" FLEXIBLE

METAL CONDUIT FROM THE MAIN TELEPHONE ROOM INTO THE BUILDING TO

TENAT'S MAIN LAN ROOM. IF PULL BOXES ARE NECESSARY DUE TO EXISTING

CONDITIONS, THEY MUST BE OUTFITTED WITH TAMPER RESISTANT SCREWS.

A. IF THE DATA OR TELEPHONE CABLE LEAVES TENANT SPACE AND

PASSES THROUGH THE PUBLIC HALLWAY, THE TENANT/PROJECT

MANAGER SHOULD REQUEST FOR TWO 3" FLEXIBLE METAL CONDUITS

THAT PASS THROUGH THE PUBLIC HALLWAY.

SECTION 081000 - PERIMETER DOORS

1. OFFICE PERIMETER ENTRANCE DOORS (FROM THE PUBLIC CORRIDOR)

ARE REQUIRED TO BE SOLID WOOD CONSTRUCTION WITH A MINIMUM

THICKNESS OF 1-3/4 INCHES WITH AN AUTOMATIC DOOR CLOSURE.

THESE DOORS SHALL HAVE LON-THROW, HIGH SECURITY, SINGLE-KEY

DEADBOLT LOCKS INSTALLED FOR SECURED HOURS. DOORS WILL BE

TIGHT FITTING WITH ONE-HALF OF AN INCH BY ONE-EIGHT OF AN INCH

SOLID NEOPRENE STOP ON THREE SIDES AND THRESHOLD. THERE WILL

BE NO TRANSPARENT PANELS INSTALLED ON THESE DOORS. ALL

CORRIDOR DOORS (PUBLIC AND SUITE) WILL HAVE A DOOR SWEEP TO

STOP SOUND TRANSMISSION.

A. TENANT WILL MAINTAIN CONTROL OF ALL PERIMETER DOOR

KEYS. EMERGENCY ACCESS TO TENANT SPACE WILL BE BY

TENANT AUTHORIZATION ONLY. ALL PERIMETER DOORS WILL

HAVE LOCK COVERS TO PREVENT FORCED ENTRY.

B. ALL PERIMETER DOORS (I.E. ENTRANCE, SECOND

ENTRANCE/EXIT, OR STAIRWELL DOORS) THAT SWING OUT INTO

THE PUBLIC SPACE FROM TENANT'S SPACE SHOULD HAVE HINGE

PINS THAT ARE SPPOT WELDED, BRAIDED, PROVIDED WITH NON-

REMOVABLE PIN HINGES, OR SECURITY STUD HINGE TO PREVENT

REMOVAL OF PERIMETER ENTRANCE DOORS. (A SECURITY

STUD HINGE HAS A METAL STOD ON THE FACE OF ONE HINGE

LEAF AND A HOLE IN THE FACE OF THE OTHER LEAF. AS THE

DOOR CLOSES, THE STUD ENTERS THE HOLE AND PENETRATES

THE FULL THICKNESS OF THE LEAF, WHICH CREATES A

"BOLTING" OR "LOCKING" EFFECT.)

2. THE MAIN ENTRANCE TO ALL DIVISION OFFICES FROM THE BUILDING

LOBBY SHALL HAVE SOLID CORE WOOD DOUBLE DOORS.

SECTION 089000 - VENTS & DUCTS - DEMISING WALLS

1. VENTS AND DUCTS AND ALL OTHER OPENINGS ALONG THE DEMISING

WALLS WITH A TOTAL DIMENSION OF MORE THAN 90 SQUARE INCHES

WILL BE PROTECTED BY THE INSTALLATION OF HARDENED STEEL

ROUND BARS, 3/8 INCH IN DIAMETER, MEETING A 600 BRINELL

HARDNESS RATING, SPACED ON 6 INCH CENTERS. THE STEEL BARS

SHALL BE WELDED TO A 1/4 INCH STEEL ANGLE IRON FRAME. THE

STEEL FRAME AND ITS SUPPORTS SHALL BE SUPPORTED TO THE

BUILDING STRUCTURE BY WELDING OR THE USE OF TAMPER FREE

ANCHORING DEVICES. WHERE FEASIBLE, THE HARDNED STEEL BARS

AND STEEL ANGLE IRON FRAME SHALL BE ANCHORED TO THE MASONRY

WALL BY DRILLING HOLES INTO THE WALL AND USING TAMPER PROOF

ANCHORS EPOXY GLUED INTO THE WALL OR WELD STEL ANGLE IRON

FRAME TO THE EXPANDED METAL WITHIN THE DEMISING PARTITION.

SECTION 078000 - EMERGENCY FIRE EXITS

1. EMERGENCY/FIRE EXITS SHALL BE EQUIPPED WITH PANIC BARS AND A

QUICK RELEASE LONG THROW DEAD BOLT LOCK FOR AFTER HOURS.

THESE DOORS MUST BE ALARMED. HINGES SHALL MEET THE

REQUIREMENTS OUTLINED ABOVE FOR PERIMETER ENTRANCE DOORS.

SECTION 111500 - SECURITY AND DOOR HARDWARE

1. TENANT'S PHYSICAL SECURITY PROGRAMS BRANCH (PSPB) WILL

PROVIDE SUPPLEMENTAL REQUIREMENTS, WITH ALL SECURITY

RELATED COMPONENTS WILL BE FURNISHED AND INSTALLED BY

TENANT'S SECURITY CONTRACTOR SUCH AS MOTION DETECTORS,

CAMERAS, ETC. UNLESS OTHERWISE NOTED ON THE SPACE PLANS OR

PROGRAM REQUIREMENTS PREPARED BY TENANT.

A. SECURITY CAMERA LOCATION: CAMERAS WILL BE POTENTIALLY

PLACED IN ALL PERIMETER ENTRANCES AND ADJACENT

CORRIDORS ON FLOOR AS WELL AS STAIRWELLS. A DRAWING IS

TO BE PROVIDED BY LESSOR PRIOR TO INSTALLATION OF

CAMERAS.

B. THE GENERAL CONTRACTOR SHALL FURNISH AND INSTALL ALL

DOOR HARDWARE AND ELECTRIC STIKES NOTED ON THE

CONSTRUCTION DOCUMENTS UNLESS OTHERWSIE NOTED.

ELECTRICA STIKES SHALL CONFORM TO TENANT'S MINIMUM

STANDARDS IDENTIFIED IN ELECTRONIC PORTAL CONTROLS

SPECIFICATIONS. PRIOR TO PURCHASING AND INSTALLATION OF

THE ELECTRIC STRIKES, THE CONTRACTOR MUST SUBMIT

MANUFACTURE'S DETAILED INFORMATION OF THE ELECTRIC

STRIKES (I.E. CUT SHEETS, BROCHURE DESCRIPTION, ETC.) FOR

TENANT'S APPROVAL.

C. ALL ELECTRIC STRIKES SHALL HAVE THE FOLLOWING OPTIONS: 24

VOLT POWER AND FAIL SECURE OPTIONS.

D. CHANGES TO ANY SECURITY RELATED ISSUES MUST BE APPROVED

BY TENANT'S PHYSICAL SECURITY PROGRAMS BRANCH.

2. TELEPHONE AND SECURITY SYSTEM EQUIPMENT - ALL TELEPHONE AND

SECURITY ALARM SYSTEM EQUIPMENT ARE TO BE LOCATED WITHIN THE

TENANT CONTROLLED OFFICE AREA. TELEPHONE AND COMPUTER

CLOSETS WILL BE SECURED BY COMMERCIAL GRADE LOCKING DEVICES.

TENANT WILL MAINTAIN KEY CONTROL.

SECTION 125000 - SYSTEM FURNITURE WHIPS

1. IN ALL TENANT PROJECTS THAT INCORPORATE SYSTEMS FURNITURE,

THE GENERAL CONTRACTOR SHALL BE RESPONSIBLE FOR HARDWIRING

ONE END OF THE WHIP TO THE ELECTRICAL CIRCUITS. NOTE:

TENANT'S SYSTEMS FURNITURE CONTRACTOR WILL INSTALL THE

OPPOSITE END OF THE WHIP OR MAKE FINAL CONNECTION TO THE

SYSTEMS FURNITURE.

SECTION 272000 - LAN ROOM COMPLETION

1. THE LAN ROOM VINYL COMPOSITION FLOOR TILE, DRYWALL PARTITION,

DOOR/FRAME/HARDWARE (WITH LOCKABLE HARDWARE), PLYWOOD

BLOCKING, CEILING LIGHTS, POWER OUTLETS (FOR SECURITY, TELEPHONE

AND DATA), AND AIR-CONDITIONING UNIT MUST BE COMPLETE ONCE THE

SECURE PERIMETER WALLS/DOORS HAVE BEEN ERECTED. tHIS WILL HELP

ENSURE THAT THENAT OFFICES HAVE THE COMMUNICATIONS AND

COMPUTER INFRASTRUCTURE AND TOOLS NEEDED FOR THEIR WORK EVEN

IF SOME ADDITIONAL CONSTRUCTION STILL NEEDS TO BE COMPLETE. THE

LAN ROOM COMPLETION DATE SHALL BE COORDINATED AT THE PRE-

CONSTRUCTION MEETING.

NO.

DATE

05/27/2015

SPECIFICATIONS

DATE:

SHEET NO.:

REVISION

SHEET NAME:

05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

A1-03

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

19

'-5

"

1

LEVEL 1

1/8" = 1'-0"

17'-6"

6'-0"

UP

EXIT

UP

4'-2"

47

'-0

"

1 HOUR FIRE

FIRE & LIFE SAFETY LEGEND

2 HOUR FIRE

3 HOUR FIRE

4 HOUR FIRE

SMOKE BARRIER

EGRESS PATH

F.E.C.

F.E.B.

FIRE EXTINGUISHER CABINET

FIRE EXTINGUISHER BRACKET

OCCUPANCY

OCCUPANCY TYPE: BUSINESS

OCCUPANCY LOAD FACTOR: 1 PER 100 SQ. FT.

TOTAL SQUARE FEET: 10,310 USF

TRAVEL DISTANCE TO STAIR I: 94'-4"

TRAVEL DISTANCE TO STAIR II: 106' 9"

OCCUPANCY LOAD: 103

NO.

REVISION DATE

05/27/2015

SHEET NAME:

FIRE & LIFE SAFETY

PLAN

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

FLS-01

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

MAIN ENTRY FLOOR

DOOR OPEN

EMERGENCY ALARM

EMERGENCY STOP

(OCTAGON - RAISED)

NOTE: ALL CONTROL BUTTONS

SHALL BE DESIGNATED BY

BOTH BRAILLE AND RAISED

CHARACTERS

3/4" CONTROL

BUTTONS

S

7

5

3

1

8

6

4

2

B

CONTROL PANEL

HANDRAIL

POST

. 12"

REQ'D. RAMP

WIDTH

HANDRAIL

4"

POST

**4"

REQ'D. RAMP

WIDTH

HANDRAIL

HANDRAIL

POST

RAMP

5'-0" MIN.

RAMP

REFER TO EDGE

PROTECTION

RAMP

5'-0" MIN.

ACCESSIBLE

COUNTER

3'-0"

2'-6"

HANDRAIL

POST

REFER TO EDGE

PROTECTION

PROJECTING SURFACE CURB PROTECTION

RAMP LANDING DIMENSIONS

@ STRAIGHT RUN

3' - 0" MIN.

CLEAR

RAMP EDGE PROTECTION

CLEAR INSIDE DIMENSION:

44" @ RAMPS > 30' - 0"

36" @ RAMPS ≤ 30' - 0"

HANDRAIL

1 1/4" (NOMINAL) SCHEDULE 40

STANDARD STRUCTURAL PIPE

RAMP LANDING

DIMENSIONS

@ CHANGE OF

DIRECTION

1' - 0" HORIZ.

RAIL EXTENSION

RAMP LONGITUDINAL SECTION

DEFINITIONS:

1' - 0" HORIZ.

RAIL EXTENSION

30' - 0" MAX (SLOPE 1:12 - 1:16)

40' - 0" MAX (SLOPE 1:16 - 1:20)

(RAIL ON WALL)

1' - 0" HORIZ

RAIL EXTENSION

RAMP: A WALKING SURFACE THAT HAS A RUNNING SLOPE STEEPER THAN 1:20.

HANDRAILS: REQUIRED ON BOTH SIDES FOR RAMPS OF RISE > 6" OR A

HORIZONTAL LENGTH > 72".

(FREESTANDING RAIL)

EDGE PROTECTION WHERE

REQUIRED. SEE SECTION 405.9 OF

THE TEXAS ACCESIBILITY

STANDARDS FOR ADDITIONAL

INFORMATION.

30' - 0" MAX (SLOPE 1:12 - 1:16)

40' - 0" MAX (SLOPE 1:16 - 1:20)

RAMP LONGITUDINAL SECTION

SEE SECTION 405 OF THE 2012

TEXAS ACCESSIBILITY

STANDARDS FOR ADDITIONAL

INFORMATION ON RAMPS

NOTE: WHERE A GUARDRAIL IS

REQUIRED, HEIGHT AND INFILL

SHALL BE AS REQUIRED BY THE

BUILDING CODE, WITH A HANDRAIL

MOUNTED INSIDE AT HEIGHT

INDICATED.

405: RAMPS

ACCESSIBLE DINING SURFACES

AND WORK SURFACES

SEE SECTION 902 OF THE 2012 TEXAS

ACCESSIBILITY STANDARDS FOR

ADDITIONAL INFORMATION ON DINING

SURFACES AND WORK SURFACES.

ACCESSIBLE COUNTER ELEVATION

(INFO COUNTERS, TRANSACTION

COUNTERS, TELLER WINDOWS)

SEE SECTION 904 OF THE 2012 TEXAS

ACCESSIBILITY STANDARDS FOR

ADDITIONAL INFORMATION ON CHECK-

OUT AISLES AND SALES AND SERVICE

COUNTERS.

ADDITIONAL COUNTERS

10" MAX.

SIDE REACH PLAN

HIGH AND LOW REACH

(ADJUSTABLE SHELVES)

NO LIMIT 4" MAX.

NO LIMIT

10" MAX.

OBSTRUCTION

HIGH AND LOW

SIDE REACH

UNOBSTRUCTED

FORWARD REACH

25" MAX.

FORWARD

REACH PLAN

OBSTRUCTED

FORWARD REACH

2'-6" 4'-0"

FORWARD

REACH PLAN

2'-0"

MAX.

MAXIMUM SIDE REACH

OVER AN OBSTACLE

5'-8"

MIN.

3'-0" MIN.

SIDE OPENING DOOR

6'-8"

MIN.

CONTROL

PANEL

4'-0" 4'-0"

CLEARANCES FOR DOORS IN SERIES DOOR THRESHOLD DETAIL

NOTE: THERE SHALL BE NO

PROJECTIONS INTO THE REQUIRED

CLEAR OPENING WIDTH LOWER

THAN 34" ABOVE THE FLOOR OR

GROUND. PROJECTIONS INTO THE

CLEAR OPENING WIDTH BETWEEN

34" AND 80" ABOVE THE FLOOR

SHALL NOT EXCEED 4".

1'-6"

CONTROL

PANEL

2'-8"

CLEAR

SWING DOOR CLEARANCES

PULL SIDE, FRONT APPROACH

(*) 12"

36" (1)

42" (2)

PULL SIDE, HINGE SIDE APPROACH

MANEUVERING CLEARANCES AT DOORS - PULL SIDE

2'-0"

PULL SIDE, LATCH SIDE

APPROACH (*) W/ CLOSER

2'-0"

APPROACH

PARALLEL

TO A WALL

2'-0"

MAX.

APPROACH

PARALLEL

TO A WALL

APPROACH

PERPENDICULAR

TO A WALL

ANY DIMENSION PERMISSIBLE

BETWEEN WING WALLS

ELEC./COMM.

RECEPTACLE

WALL SWITCH/ WALL

MOUNTED CONTROL DEVICE

VISUAL ALARM

ELECTRICAL FIXTURES

308: REACH RANGES

2'-6"

5'-0" MIN.

3'-0" MIN.

CONTROL

PANEL

FLOOR

DESIGNATION

MOUNTED INSIDE

BOTH JAMBS

CALL BUTTON

3'-6" MIN.

CENTER OPENING DOOR

ENTRANCE ELEVATION

CENTER OPENING

OR SINGLE SLIDE

DOOR

HALL SIGNAL

DOOR PROTECTIVE

& REOPENING

DEVICE

407: ELEVATORS

CHAPTER 4: CONTINUED

NOTE: ALL DOORS IN ALCOVES MUST

COMPLY WITH THE CLEARANCES NOTED FOR

FRONT APPROACHES.

1'-4"

SEE SECTION 404.2.4.3 OF THE 2012 TEXAS

ACCESSIBILITY STANDARDS FOR ADDITIONAL

INFORMATION ON DOORS IN RECESSES.

SEE SECTION 404 OF THE 2012 TEXAS

ACCESSIBILITY STANDARDS FOR

ADDITIONAL INFORMATION ON DOORS

PUSH SIDE, FRONT APPROACH

(*) W/ BOTH LATCH & CLOSER

PUSH SIDE, HINGE SIDE APPROACH

(*) W/ BOTH LATCH & CLOSER

MINIMUM MANEUVERING CLEARANCES AT DOORS - PUSH SIDE

PUSH SIDE, LATCH SIDE

APPROACH (*) W/ CLOSER

404: DOORS, DOORWAYS, AND GATES

2 WHEELCHAIR PASSAGE

5'-0"

MAX. CONSTRICTION

IN ACCESSIBLE

ROUTE

2'-8"

MIN.

3'-0"

MIN.

INFORMATION PROVIDED IS NOT COMPREHENSIVE. REFER TO CHAPTER 4 OF

THE 2012 TEXAS ACCESSIBILITY STANDARDS FOR ADDITIONAL INFORMATION

ON ACCESSIBLE ROUTES, WALKING SURFACES, DOORS, DOORWAYS, AND

GATES, RAMPS, CURB RAMPS, ELEVATORS AND PLATFORM LIFTS.

PLAN OVERHEAD

CLEARANCE

307: PROTRUDING OBJECTS

5'-0

"

1'-0"

3'-0"

1'-0"

PARALLEL APPROACH FORWARD APPROACH

MANEUVERING CLEARANCE IN ALCOVE

WHEELCHAIR

CLEAR FLOOR SPACE

305: CLEAR FLOOR OR GROUND SPACE

SEE 3.5.5 FOR ADDITIONAL INFORMATION

2

1

BEVELED VERTICAL

NO.

REVISION DATE

WHEELCHAIR

TURNING SPACE

T-SHAPED SPACE

FOR 180° TURNS

1/2" MAX.

303: CHANGES IN LEVEL

SEE 303.4 FOR LEVEL CHANGES > 1/2"

DIRECTION OF TRAVEL

SECTION

SHEET NAME:

3'-0"

MIN.

X < 48"

3'-0"

MIN.

180 DEGREE TURN

(EXCEPTION)

3'-6"

MIN.

X < 48"

3'-6"

MIN.

180 DEGREE TURN

403: WALKING SURFACES

SECTION

INFORMATION PROVIDED IS NOT COMPREHENSIVE. REFER TO CHAPTER 3

OF THE 2012 TEXAS ACCESSIBILITY STANDARDS FOR ADDITIONAL

INFORMATION ON FLOOR AND GROUND SURFACES, CHANGES IN LEVEL,

TURNING SPACE, CLEAR FLOOR OR GROUND SPACE, KNEE AND TOE

CLEARANCE, PROTRUDING OBJECTS, REACH RANGES AND OPERABLE

PARTS.

LONG DIMENSION OF

GRATING PERPENDICULAR

TO DOMINANT DIRECTION

OF TRAVEL

FLOOR OPENINGS

PLAN

302: FLOOR AND GROUND SURFACES

CHAPTER 4: ACCESSIBLE ROUTES CHAPTER 3: BUILDING BLOCKS

ACCESSIBILITY

INFORMATION

DATE: 05/27/2015

REVIEWED BY: SLB

201502200

SHEET NO.:

TAS-01

05/27/2015

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

6" MAX.

1'-6"

5'-0"

3'-0"

3'-0"

1'-6" 1'-6"

04

05

10

10

DOOR PULL ON BOTH SIDES

OF DOOR, NEAR LATCH

C4

TAS-2

D5

ACCESSIBLE END STALL

1/4" = 1'-0"

SHOWER SPRAY

& CONTROLS

6" MAX.

6" MAX.

10

A2

TAS-3

D4

DOOR PULL ON

BOTH SIDES OF

DOOR, NEAR

LATCH

O.H.

A2

TAS-3

10

2'-8"

C4

TAS-2

SIM

04

05

10

ACCESSIBLE (CRUTCH) STALL

1/4" = 1'-0"

NO CURB

5'-0" CLEAR MIN.

30" X 60" CLEAR

FLOOR SPACE

D2

TAS-2

NOTE: FLOOR SURFACE IN ROLL-IN STALL SHALL

NOT SLOPE IN EXCESS OF 1:50 IN ANY DIRECTION

D3

TAS-2

TYP.

C5

ACCESSIBLE ROLL-IN SHOWER

1/4" = 1'-0"

1/2 WIDTH OF

SPECIFIED LAV.

3' - 0" MIN.

. 15"

CLR. TO LAV.

** 18"

6" MAX

3'-0"

FLUSH CONTROL

ON WIDE SIDE

TOILET PARTITION

06

10

05

04

C4

ACCESSIBLE STALL FRONT

1/4" = 1'-0"

5'-0"

3'-0"

6" MAX.

1'-6"

10

04

05

10

4'-0"

C3

TAS-2

2'-6"

B5

SINGLE OCCUPANCY TOILET

1/4" = 1'-0"

01

DOOR PULL ON

BOTH SIDES OF

DOOR, NEAR

LATCH

4"

MAX.

A2

TAS-3

O.H.

04

05

10

WIDTH OF LAV

U.N.O.

1

ACCESSIBLE STALL

1/4" = 1'-0"

C4

TAS-2

O.H.

D3

12

6" MAX.

10

BACK WALL

NO CURB OR

THRESHOLD

ACCESSIBLE ROLL-IN SHOWER SIDE

1/4" = 1'-0"

* NOTE: LAVATORIES AND SINKS SHALL BE INTALLED WITH THE FRONT OF THE

HIGHER OF THE RIM OR COUNTER SURFACE 34" MAXIMUM ABOVE THE FINISH

FLOOR OR GROUND. SEE SECTION 606 OF THE 2012 TEXAS ACCESSIBILITY

STANDARDS FOR ADDITIONAL INFORMATION ON LAVATORIES AND SINKS.

WALL MOUNTED

LAVATORY OR SINK

PIPING SHIELD - INSULATE

ALL EXPOSED PLUMBING

HAND-HELD SHOWER

MOUNTING DEVICE

6" MAX.

10

6" MAX.

CONTROLS

AREA

NO CURB OR THRESHOLD

D2

NOTE: ALWAYS LOCATE SHOWER CONTROLS AND

SHOWER HEAD ON SAME WALL

ACCESS. ROLL-IN SHOWER CTRL WALL

1/4" = 1'-0"

GENERAL NOTES - T.A.S.

1 THESE STANDARDS ARE TAKEN FROM FEDERAL AND STATE LAW, AND THEY

TAKE PRECEDENT OVER THE REMAINDER OF THE DOCUMENTS. NOTIFY THE

ARCHITECT IMMEDIATELY OF ANY DISCREPANCIES BETWEEN THE

ARCHITECTURAL DRAWINGS AND THE INFORMATION GIVEN ON THIS SHEET.

2 INFORMATION SHOWN ON THIS SHEET IS THE MINIMUM REQUIRED FOR ADA

COMPLIANCE.

3 NOT ALL CONDITIONS SHOWN ON THIS SHEET MAY BE REQUIRED BY THIS

PROJECT. COMPARE THE REQUIREMENTS OF THE ARCHITECTURAL

DRAWINGS WITH THIS SHEET FOR RELEVANCE OF INFORMATION.

4 UNLESS NOTED OTHERWISE, DIMENSIONS INDICATED ARE THE MINIMUM

CLEAR DIMENSIONS REQUIRED BY THE ADA ACCESSIBILITY GUIDELINES.

DIMENSIONS ACCOMPANIED WITH **INDICATES ABSOLUTE DIMENSIONS. THE

CONTRACTOR IS RESPONSIBLE FOR LAYOUT OF BUILDING ELEMENTS TO

ASSURE THAT DIMENSIONS SHOWN ARE PROVIDED.

5 NOTIFY THE ARCHITECT IMMEDIATELY OF ANY CONFLICTS BETWEEN THE

ARCHITECTURAL DRAWINGS AND THE INFORMATION GIVEN ON THIS SHEET.

6 DO NOT SCALE THESE DRAWINGS.

7 REFER TO FEDERAL PUBLICATION "AMERICANS WITH DISABILITIES ACT,

TITLE III : PUBLIC ACCOMMODATIONS" (LATEST EDITION) AND PROJECT

LOCAL GOVERNING REGULATIONS FOR COMPLETE PROJECT ACCESSIBILITY

REQUIREMENTS

* NOTE: LAVATORIES AND SINKS SHALL BE INTALLED WITH THE FRONT OF THE

HIGHER OF THE RIM OR COUNTER SURFACE 34" MAXIMUM ABOVE THE FINISH

FLOOR OR GROUND. SEE SECTION 606 OF THE 2012 TEXAS ACCESSIBILITY

STANDARDS FOR ADDITIONAL INFORMATION ON LAVATORIES AND SINKS.

NOTE: THE INFORMATION SHOWN IS FOR MIN/ MAX CLEARANCES FOR

ACCESSORIES IN ACCESSIBLE TOILET ROOMS AS PROVIDED BY THE 2012

TEXAS ACCESSIBILITY STANDARDS. NOTIFY THE ARCHITECT IF THERE ARE

CONFLICTS WITH THESE CLEARANCES OR ARRANGEMENT OF ACCESSORIES

IN ACCESSIBLE TOILET ROOMS.

00

STL. SUPPORTS FOR

COUNTERS 6' AND LONGER

REF. MILLWORK FOR

COUNTER CONSTRUCTION

INFORMATION PROVIDED ON THIS SHEET IS NOT COMPREHENSIVE. REFER TO

CHAPTER 6 OF THE 2012 TEXAS ACCESSIBILITY STANDARDS FOR ADDITIONAL

INFORMATION ON PLUMBING ELEMENTS AND FACILITIES AND ADDTIONAL

CHAPTERS OF THE 2012 TEXAS ACCESSIBILITY STANDARDS THAT APPLY.

C3

11" MIN.

17" TO 25"

TYPICAL LAVATORY SECTION

1/4" = 1'-0"

1'-6" 2'-6" 2'-6" 1'-6"

07 07

07 00

8" MIN.

11" MIN.

PIPING SHIELD

17" TO 25"

C2

TYP. LAVATORY COUNTER SECTION

1/4" = 1'-0"

* NOTE: LAVATORIES AND SINKS SHALL BE INTALLED WITH THE

FRONT OF THE HIGHER OF THE RIM OR COUNTER SURFACE 34"

MAXIMUM ABOVE THE FINISH FLOOR OR GROUND. SEE SECTION 606

OF THE 2012 TEXAS ACCESSIBILITY STANDARDS FOR ADDITIONAL

INFORMATION ON LAVATORIES AND SINKS.

00

CABINET

MOUNT

BRACKET

MOUNT

FIRE EXTINGUISHER CABINET OR BRACKET

MOUNTING HEIGHT

C2

TAS-2

30" X 48" CLEAR

FLOOR SPACE

NOTE: REF. PLANS FOR

NUMBER OF LAVATORIES

B2

TAS-2

B3

TYP. ACCESSIBLE LAVATORY COUNTER

1/4" = 1'-0"

NOTE: LOCATE DISPENSER SO

END OF SPOUT IS OVER SINK

B2

07

BOTTOM OF SHIELD

TYP. LAVATORY COUNTER FRONT

1/4" = 1'-0"

REFER

PLANS

ABOVE

REF. PLANS,

ELEVATIONS, OR

SPECIFICATIONS

FOR MIRROR

DIMENSIONS

ACCESSORY

SPECIFICATION NO.

WALL

REINFORCEMENT

DETAIL

REFER TO E3/A4-01

DESIGN TYPE

REFER TO

SPECIFICATIONS IF

NONE CALLED OUT

00 UNFRAMED MIRROR 01

PAPER TOWEL

DISPENSER/ WASTE

RECEPTACLE

04 TOILET TISSUE

DISPENSER

05

SANITARY

NAPKIN

DISPOSAL

06

TOILET SEAT

COVER

DISPENSER

07

COUNTER

MOUNTED SOAP

DISPENSER

08

SURFACE

MOUNTED SOAP

DISPENSER

09

SANITARY NAPKIN

DISPENSER/

VENDING MACHINE

10

GRAB BAR

B

B A A A A A C

11 ROBE

HOOK

B

CONTINUOU

S FEED

12 FRAMED

MIRROR

B

14 SHOWER

ROD

B

17 TOWEL BAR 19 DIAPER CHANGING

STATION

24 HAND

DRYER

REVISION DATE

B1

F.E.C. MOUNTING

1/4" = 1'-0"

ACCESSIBLE MOUNTING HEIGHTS

NO.

C A B

SHEET NAME:

ACCESSIBILITY

INFORMATION

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

TAS-02

05/27/2015

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

D

C

B

A

5

5

4

4

A4

SUITE 701 - DEMOLITION FLOOR PLAN

3/32" = 1'-0"

3

6

6

3

5

3

5

1

3

5

6

1

1

1

3

5

3

3

5

5

3

1

3

5

1

5

3

5

3

3

1

3

5

UP

3

5

2

5

3

1

1

3

5

1

1

3

5

1

1

3

1

1

3

5

6

3

5

3

5

1

5

3

1

1

5

3

5

3

3

5

1

1

1

5

3

6

5

3

3

5

3

5

1

3

5

1

1

3

5

3

5

5

3

1

UP

5

3

3

1

2

5

5

3

1

1

1

1

3

2

2

5

3

5

3

5

3

6

1

GENERAL NOTES - DEMOLITION

1 THE CONTRACTOR IS RESPONSIBLE FOR DAMAGE TO THE EXISTING

BUILDING AND GROUNDS RESULTING FROM DEMOLITION OPERATIONS.

2 DASHED LINES INDICATE EXISTING CONSTRUCTION TO BE REMOVED.

REMOVE ALL CONSTRUCTION THAT CONFLICTS WITH THE DESIGN

INTENT OF THE NEW CONSTRUCTION.

3 NOTIFY ARCHITECT OF ALL M.E.P. ITEMS LOCATED IN PARTITIONS OR

CEILINGS INDICATED FOR REMOVAL AND NOT DOCUMENTED ON M.E.P.

DRAWINGS.

4 VERIFY LOCATIONS OF UTILITIES BELOW SLABS ON GRADE PRIOR TO

EXCAVATING OR TRENCHING FOR NEW ULTILITIES. REPAIR OR

REPLACE ALL UTILITIES DAMAGED AS A RESULT OF DEMOLITION OR

CONSTRUCTION OPERATIONS.

5 REMOVAL OF DOORS ALSO INCLUDES REMOVAL OF DOOR FRAMES

AND HARDWARE UNLESS SPECIFICALLY NOTED OTHERWISE.

6 RETURN ALL SALVAGED DOORS, FRAMES, HARDWARE, LIGHT

FIXTURES AND EQUIPMENT NOT REUSED IN THIS PROJECT TO OWNER

FOR REUSE ELSEWHERE, UNLESS NOTED OTHERWISE.

7 SALVAGE EXISTING CEILING TILE AND GRID FOR REUSE UNLESS NOTED

OTHERWISE. CONFINE REUSED TILE TO USE IN AREAS DESIGNATED

ON NEW CONSTRUCTION REFLECTED CEILING PLAN AND / OR ROOM

FINISH SCHEDULE. REPLACE ALL SUSPENSION GRID MEMBERS

DAMAGED DURING DEMOLITION OPERATIONS OR CUT MEMBERS LEFT

EXPOSED BY DEMOLITION OPERATIONS, IN AREAS WHERE EXISTING

CEILING IS TO REMAIN.

8 RELOCATION OF EXISTING DUCTWORK TO REMAIN IN ORDER TO AVOID

CONFLICT WITH NEW CONSTRUCTION IS THE RESPONSIBILITY OF THE

MECHANICAL CONTRACTOR.

9 RELOCATION OF EXISTING ELECTRICAL WORK TO REMAIN IN ORDER TO

AVOID CONFLICT WITH NEW CONSTRUCTION IS THE RESPONSIBILITY

OF THE ELECTRICAL CONTRACTOR.

10 RELOCATION OF EXISTING PLUMBING WORK TO REMAIN IN ORDER TO

AVOID CONFLICT WITH NEW CONSTRUCTION IS THE RESPONSIBILITY

OF THE PLUMBING CONTRACTOR.

11 NOTIFY ARCHITECT OF ALL APPARENT DEFECTS IN EXISTING

CONSTRUCTION PRIOR TO BEGINNING DEMOLITION OPERATIONS, AS

WELL AS CONCEALED DEFECTS UNCOVERED DURING DEMOLITION

OPERATIONS.

NOTIFY ARCHITECT OF ALL APPARENT DEFECTS IN EXISTING

CONSTRUCTION PRIOR TO BEGINNING DEMOLITION OPERATIONS, AS

WELL AS CONCEALED DEFECTS UNCOVERED DURING DEMOLITION

OPERATIONS.

12 REMOVE ALL EXISTING DEBRIS, ABANDONED DUCT, WIRING AND

CONDUIT FROM ABOVE CEILING AREAS THAT ARE TO REMAIN.

13 REMOVE ELECTRICAL BOXES, WIRING AND CONDUIT IN DEMOLISHED

PARTITIONS BACK TO THEIR RESPECTIVE PANELS, UNLESS INDICATED

TO BE REROUTED.

14 ELECTRICAL BOXES TO BE REMOVED FROM PARTITIONS TO REMAIN

ARE INDICATED ON THE PLANS. REMOVE DEVICES AND REPAIR

PARTITION, READY TO RECEIVE NEW FINISHES.

15 LIGHTING TO BE REMOVED AND / OR RELOCATED IS INDICATED ON THE

REFLECTED CEILING PLAN, OR A SEPARATE CEILING DEMOLITION

PLAN.

D

C

DEMOLITION PLAN LEGEND

EXISTING PARTITION TO REMAIN

PORTION OF PARTITION TO BE REMOVED

EXISTING PARTITION TO BE REMOVED

EXISTING DOOR TO REMAIN

DOOR TO BE REMOVED

B

EXISTING CEILING GRID TO BE REMOVED

NO.

REVISION

PLAN

NORTH

DATE

AREA NOT IN CONTRACT

DEMOLITION PLAN - KEYED NOTES

1

CONTRACTOR TO SALAVAGE ALL DOORS, FRAMES AND

HARDWARE AND STORE FOR REUSE.

2

REMOVE ALL MILLWORK

3

REMOVE FLOORING AND PREPARE FOR NEW FLOOR FINISH

4

EXISTING LIGHT FIXTURES TO BE REMOVED AND RELOCATED

AS INDICATED ON THE REFLECTED CEILING PLAN

5

REMOVE CEILING GRID. AND CEILING TILES TO PREPARE FOR

NEW.

6

CONTRACTOR TO REMOVE EXISTING MINI BLINDS AND STORE

FOR REINSTALLATION. PREPARE WINDOWS TO RECEIVE

BLAST FILM.

1

05/27/2015

SHEET NAME:

DEMOLITION FLOOR

A

PLAN

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

A2-01

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

D

C

B

A

5

5

5 4 3 2

BREAK ROOM

703

217.7 SF

RAC 1

716

250 SF

3H

3H

3H

12'-10"

13'-4"

RAC 3

710

250 SF

10'-3"

AUDITOR

709

146.1 SF

3H

C

716

3 5

RAC 3 AGENTS

713

1,343.7 SF

C

710

3 5

3H

3H

D

709

4 5

A5

5'-11"

3E

RAC 1 & IO

INVESTIGATORS

717

2,431.8 SF

1

C4 Sim

2

3

6

D

718

4 1

A1

/ A3-01

6

A3-01

4

5

GUN RACKS

3E

6

7

SECURE EVIDENCE

715

3E

400 SF

D

714

4 4

SECURE WORK AREA

714

100 SF

3E

7

6

3A

SECURE WORK AREA

718

100 SF

3E

7 3A

1 2

3E

6

3E

GUN RACKS

SECURE EVIDENCE

719

400 SF

6

3 4 5 6

C4

A3-01

D

712

4 4

3E

3E

SECURE FILES

712

160 SF

D

711

4 2

3F

GENERAL SUPPLIES

711

3F

160 SF

3F

7

3A

D

713

4 6

UP

ALIGN

7 3A

F.E.C.

9'-2"

B

708

2 2

3F

21'-1"

3F

3F

4

5

°

D

707

4 4

6

7 3A

A2 / A3-01

SECURE FILES

3E

707

3E

173.9 SF

135°

3F

3F

EQUIPMENT STORAGE

& LOCKERS

708

423.8 SF

IA'S

705

380.1 SF

3A

3E

B

717

2 6

7

3A

IO SECURE FILES

6

720

160 SF

3A 3A

3E

7

D

720

4 4

3E

D

721

4 2

IO GENERAL

SUPPLIES

721

160 SF

12'-10"

3F

3A

7 3F

3A

D

706

4 2

8'-1"

3A

LAN ROOM

706

100.2 SF

3H

2

10'-3" 8'-11"

3A

8'-11"

D

702

4 6

D

700B

1 6

3A

SECURE FOYER

3B

700

3B

97.6 SF

1

3

A

700

2 7

A5

A3-01

D

701

2 6

3A

4

D

702B

4 3

3B

PROCESS

701

110.1 SF

3B

INTERVIEW

702

110.1 SF

A3-01

3B

4

D5

C

704

3 3

D

702B

4 6

3A

ASAC SECRETARY &

RECEPTION

726

C

727

3 5

178.4 SF

3H

CONFERENCE

704

312.2 SF

3H

ASAC

727

259.6 SF

UP

3A

D4

A3-01

13'-4"

D

729

4 6

5

DW

D

702C

4 5

CASE ROOM

5'-5

"

C

727C

7'-1

0"

3H

ADMIN & WARTIME

INTERNS

729

490.7 SF

D

724

4 5

IO SUPERVISOR

724

250.1 SF

702C

3H

3H

IO RESEARCH

725

150 SF

13'-11"

C

723

3 5

D

725

4 5

3A

7 3H

CONFERENCE

723

323.4 SF

16'-5"

3A 7

SUITE 701 NEW CONSTRUCTION PLAN

1/8" = 1'-0"

5

5

5

4

5

5'-9" 12'-8"

5

3

14'-2"

PLAN

NORTH

5

5

FLOOR PLAN - KEYED NOTES

1 BULLET RESISTANT TREATMENT IS REQUIRED. SEE WALL TYPE 3B.

SPECIFICATIONS OF THE BULLETPROOF WALL MUST MEET MINIMUM UL

RATINGS THAT ARE CAPABLE OF WITHSTANDINGBULLETS FIRED FROM A 44

MAGNUM OR 9 MM SUBMACHINE GUN AT CLOSE RANGE (UL LEVEL 3 RATING).

2 DEMISING PARTITIONS SHALL BE SLAB TO SLAB WITH 45 STC AND WITH 9

GAUGE WELDED EXPANDED METAL. SEE WALL TYPE 3A.

3

BULLET RESISTANCE DOORS ARE REQUIRED ALONG WALLS WITH BULLET

RESISTANT TREATMENT ONLY. THE BULLETPROOF DOOR MUST MEET

MINIMUM UL RATINGS THAT ARE CAPABLE OF WITHSTANDINGBULLETS FIRED

FROM A 44 MAGNUM OR 9 MM SUBMACHINE GUN AT CLOSE RANGE (UL LEVEL

3 RATING). SEE DOOR TYPE A AND STEEL DOOR SPECIFICATIONS.

4

CONTRACTOR TO PROVIDE (2) WALL MOUNTED D-RINGS MOUNTED TO

(2) STAINLESS STEEL KICKPLATES. THE RINGS SHOULD BE MOUNTED

5"AFF AND 25"AFF. tHE D-RINGS ARE SCREWED TO WOOD BLOCKINGS

BEHIND DRYWALL PARTITION. GRIND ALL BOLTS DOWN OR USE TAMPER

PROOF SCREWS TO PREVENT ANYONE FROM REMOVING THE D-RINGS FROM

THE WALL. SEE EXHIBIT #10

5

ALIGN WALL CONSTRUCTION WITH EXISTING WINDOW MULLION. REFER TO

TYPICAL DETAIL.

6

ALIGN WALL CONSTRUCTION WITH EXISTING WALL. REFER TO TYPICAL

DETAIL

7

CONTRACTOR TO CONFIRM THAT EXISTING DEMISING WALLS MEET GSA

STANDARDS AS TAGED. RECONSTRUCT AS REQUIRED.

2

1

GENERAL NOTES - FLOOR PLAN

1 UNLESS NOTED OTHERWISE, DIMENSIONS ARE TO FACE OF GYPSUM

BOARD, FACE OF EXISTING SURFACES, CENTERLINE OF COLUMN OR OTHER

STRUCTURAL MEMBER, OR TO EXPOSED SURFACES OF CONCRETE OR

MASONRY.

2 ROOM NAMES AND NUMBERS SHOWN ARE FOR PURPOSES OF

COORDINATION DURING CONSTRUCTION AND DO NOT NECESSARILY

REPRESENT FINAL ROOM NAMES OR NUMBERS.

3 DOOR FRAMES SHALL BE HELD 4 INCHES FROM FRAME FACE TO ADJACENT

WALLS AT HINGE JAMB UNLESS NOTED OTHERWISE.

4 DIMENSIONS NOTED “VERIFY” SHALL BE CONFIRMED IN THE FIELD. REPORT

VARIATIONS TO ARCHITECT FOR RESOLUTION BEFORE PROCEEDING WITH

D

WORK AFFECTED.

5 REFER TO ACCESSIBILITY INFORMATION SHEETS FOR INFORMATION

RELATING TO ACCESSIBILITY, INCLUDING CLEARANCES, MOUNTING

HEIGHTS AND OTHER REQUIREMENTS.

6 PREPARE EXISTING SURFACES TO REMAIN TO RECEIVE NEW FINISHES.

7 EXISTING FIRE EXTINGUISHER CABINETS SHALL REMAIN IN PLACE UNLESS

NOTED OTHERWISE. NEW CABINETS SHALL MATCH EXISTING TYPE AND

FINISH.

8 NOTIFY ARCHITECT WHEN PARTITION LAYOUT IS COMPLETE AND READY

FOR APPROVAL.

GENERAL NOTES - MECHANICAL

1 IT IS THE INTENT OF THE DOCUMENTS THAT THE CONTRACTOR

DELIVERS A MECHANICAL SYSTEM THAT IS COMPLETE, IN WORKING

ORDER, AND IN COMPLIANCE WITH ALL CODES, ORDINANCES AND

STANDARDS ADOPTED BY THE LOCAL BUILDING CODE AUTHORITY.

2 INFORM ARCHITECT IMMEDIATELY OF ALL CONFLICTS DISCOVERED ON

SITE BETWEEN DRAWINGS AND FIELD CONDITIONS. OBTAIN

CLARIFICATION OR RESOLUTION OF CONFLICTS PRIOR TO PROCEEDING

WITH WORK IN QUESTION.

3 LOCATIONS OF HVAC DEVICES ON ARCHITECTURAL REFLECTED CEILING

PLANS TAKE PRECEDENCE OVER MECHANICAL PLANS.

4 REFER TO MECHANICAL DRAWINGS FOR ADDITIONAL NOTES.

C

GENERAL NOTES - PLUMBING & FIRE PROTECTION

1 IT IS THE INTENT OF THE DOCUMENTS THAT THE CONTRACTOR DELIVERS

A PLUMBING SYSTEM THAT IS COMPLETE, IN WORKING ORDER, AND IN

COMPLIANCE WITH ALL LOCAL CODES, ORDINANCES AND STANDARDS

ADOPTED BY THE LOCAL BUILDING CODE AUTHORITY.

2 FIRE PROTECTION SYSTEMS SHALL BE IN COMPLIANCE WITH

REQUIREMENTS OF THE STATE FIRE MARSHAL, AND SHALL BE DESIGNED

BY A LICENSED FIRE PROTECTION SYSTEMS ENGINEER REGISTERED IN

THE STATE WHERE THE PROJECT IS LOCATED.

3 PLUMBING FIXTURES AND THEIR INSTALLATIONS SHALL COMPLY WITH THE

APPROPRIATE ACCESSIBILITY STANDARDS FOR THOSE FIXTURES

REQUIRED TO BE ACCESSIBLE. FIXTURES REQUIRED TO BE ACCESSIBLE

INCLUDE, BUT ARE NOT LIMITED TO, WATER CLOSETS, URINALS,

LAVATORIES, BREAKROOM SINKS, AND WATER FOUNTAINS. REFER TO

ACCESSIBILITY INFORMATION SHEETS FOR MORE INFORMATION.

4 INSULATE EXPOSED PIPING SUBJECT TO CONTACT AT FIXTURES

REQUIRED TO BE ACCESSIBLE, INCLUDING BUT NOT LIMITED TO SINKS AND

LAVATORIES, WHETHER OR NOT THE FIXTURE IS SPECIFICALLY

DESIGNATED AS AN ACCESSIBLE FIXTURE.

5 REFER TO PLUMBING DRAWINGS FOR ADDITIONAL NOTES.

B

ROOM NAME

101

FLOOR PLAN LEGEND

ROOM IDENTIFICATION

A

101

1 HW1

F.E.C.

F.E.B.

A6

1

EXISTING DOOR TO REMAIN

NEW DOOR

DOOR TAG: NUMBER, DOOR , FRAME

AND HARDWARE TYPE

PARTITION TYPE

KEYED NOTE

EXISTING PARTITION

NEW PARTITION

FIRE EXTINGUISHER CABINET

FIRE EXTINGUISHER BRACKET

MILLWORK

1

NO.

REVISION

SHEET NAME:

A

FLOOR PLAN

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

A2-11

DATE

05/27/2015

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

NOTE: REFER TO

REFLECTED CEILING

PLAN FOR CEILING

HEIGHTS

REFER TO REFLECTED

CEILING PLAN FOR

CEILING HEIGHTS

REFLECTED CEILING PLAN - KEYED NOTES

1

INSERT REFLECTED CEILING PLAN KEYNOTE

2 INSERT REFLECTED CEILING PLAN KEYNOTE

An

SCHEDULED

SUSPENDED

ACOUSTICAL

CEILING TILE

5/8" PAINTED

GYP. BD.

D5

CORNER

BEAD

CEILING HEIGHT TRANSITION AT ACT

1 1/2" = 1'-0"

EQ

9' - 0"

An

EQ

9' - 0"

An

EQ

An

An

An

9' - 0"

An

An

An

An

An

EQ

An

EQ

9' - 0"

An

Dn

8' - 0"

EQ EQ

An

EQ

An

An

An

An

An

D4

9' - 0"

An

An

An

An

8"

GYP. BD. CEILING

WITH SCHEDULED

FINISH.

SCHEDULED

LIGHT FIXTURE

CORNER BEAD

5/8" PAINTED GYP. BD.

LIGHT COVE AT GYP. BD. CEILING

1 1/2" = 1'-0"

An

An

An

An

An

An

An

An

An

An

An

An

An

9' - 0"

An

9' - 0"

An An

An

D5

A2-21

8' - 0"

Sim

Dn

Dn

EQ EQ

An

An

An

9' - 0"

An

An

9' - 0"

An

An

Dn

EQ EQ

An

9' - 0"

An

EQ EQ

8' - 0"

Dn

An

An

9' - 0"

An

9' - 0"

An

D5

A2-21

Sim

An

An

9' - 0"

An

An

3'-8

"

EQ

EQ

EQ

Dn

Dn

EQ

EQ

Dn

3'-8

"

Dn

8' - 0"

An

An

An

An

An

An

9' - 0"

An

An

9' - 0"

An

An

3'-0" 3'-11" 3'-0"

Dn Dn

9' - 0"

An

An

An

An

9' - 0"

Dn

Dn Dn

Dn Dn

Dn Dn

9' - 0"

8' - 0"

An

An

9' - 0"

Dn

Dn

Dn

An

9' - 0"

Dn

Dn

An

Dn

Dn

Dn

Dn

An

Dn

An

9' - 0"

Dn

Dn

Dn

An

Dn

D1 /A3-01

D4

A2-21

Sim

An

An

D5

A2-21

Sim

8' - 0"

Dn

Dn

Dn

Dn

Dn

Dn

An

2'-

5"

3'-

1"

2'-

5"

Dn

EQ

EQ

Dn

Dn

EQ

EQ

8' - 0"

An

9' - 0"

An

An

9' - 0"

9' - 0"

An

An

An

An

An

9' - 0"

Dn

An

9' - 0"

Bn

9' - 0"

Dn

8' - 0"

An

9' - 0"

An

D4

A2-21

Dn

Sim

Dn

Bn

Bn

Dn

Dn

EQ EQ

EQ EQ EQ EQ EQ EQ

An

An

An

A4

SUITE 701 REFELCTED CEILING PLAN

1/8" = 1'-0"

PLAN

NORTH

GENERAL NOTES - RCP

1 NOTIFY ARCHITECT IMMEDIATELY OF CONFLICTS DISCOVERED ON SITE

BETWEEN DRAWINGS AND ACTUAL FIELD CONDITIONS. OBTAIN

CLARIFICATION OR RESOLUTION OF CONFLICTS PRIOR TO PROCEEDING

WITH WORK IN QUESTION.

2 UNLESS NOTED OTHERWISE, CEILING HEIGHT IS 9’-0”. REFER TO

REFLECTED CEILING PLAN AND INTERIOR ELEVATIONS FOR ADDITIONAL

INFORMATION.

3 CONFIRM EXISTING LAYOUT FOR FIXTURES INDICATED TO REMAIN.

NOTIFY ARCHITECT OF DEVIATIONS FROM REFLECTED CEILING PLAN.

4 REFER TO LIGHTING, POWER AND COMMUNICATIONS GENERAL NOTES

FOR INFORMATION PERTAINING TO LIGHTING.

5 REFER TO MECHANICAL GENERAL NOTES FOR INFORMATION PERTAINING

TO HVAC DEVICES IN THE CEILING.

6 REFER TO PLUMBING AND FIRE PROTECTION GENERAL NOTES FOR

INFORMATION PERTAINING TO FIRE SPRINKLER SYSTEMS. CENTER

SPRINKLER HEADS IN CEILING TILES U.N.O.

7 REUSE EXISTING CEILING TILE AND GRID IN ISOLATED AREAS AS SHOWN

OR NOTED ON THE REFLECTED CEILING PLAN.

8 REPLACE ALL EXISTING DAMAGED TILE IN AREAS OF SUSPENDED CEILING

INDICATED TO REMAIN.

9 REPLACE ALL NEW CEILING TILE AND GRID DAMAGED DURING THE

COURSE OF CONSTRUCTION PRIOR TO TENANT MOVE-IN.

10 LOCATIONS OF LIGHT FIXTURES, HVAC DEVICES AND OTHER

CEILING-MOUNTED ELEMENTS ON ARCHITECTURAL REFLECTED CEILING

PLANS TAKE PRECEDENCE OVER LOCATIONS SHOWN ON M.E.P.

DRAWINGS.

11 CEILING AND SOFFIT HEIGHTS ARE NOTED ON THE REFLECTED CEILING

PLANS.

12 UNLESS NOTED OTHERWISE, INSTALL ALL SWITCHES AT 48” A.F.F. TO

CENTERLINE OF COVER PLATE.

13 LAY-IN LIGHTING FIXTURES SHALL BE BUILDING STANDARD, UNLESS

NOTED OTHERWISE. ALL OTHER FIXTURES SHALL BE AS SCHEDULED.

LOCATIONS OF LIGHTING FIXTURES SHALL BE AS SHOWN ON

ARCHITECTURAL DRAWINGS. REPORT CONFLICTS BETWEEN

ARCHITECTURAL AND ELECTRICAL DRAWINGS TO THE ARCHITECT FOR

RESOLUTION PRIOR TO INSTALLATION.

14 REFER TO MECHANICAL AND ELECTRICAL DRAWINGS FOR ADDITIONAL

NOTES, IF APPLICABLE.

15 PAINT ALL GYPSUM BOARD CEILINGS AND SOFFITS AS SCHEDULED. REFER

TO FINISH PLANS FOR ADDITIONAL INFORMATION.

16 PAINT ALL GYP. BD. CEILINGS PT-2 (EGSHELL FINISH), U.N.O.

17 ALL CEILINGS ARE CL-1, U.N.O.

18 ALL VERTICAL FACES AND UNDERSIDE OF BULKHEADS TO BE PAINTED

STANDARD CEILING WHITE, U.N.O.

19 EXISTING TYPICAL CEILING HEIGHT IS ??’-0”. CONTRACTOR TO VERIFY ALL

CRITICAL DIMENSIONS WHEN DETERMINING WALL FINISH REQUIREMENTS.

REFLECTED CEILING PLAN LEGEND

2X2 ACOUSTICAL CEILING SYSTEM

DIR/INDIR

S

2X4 ACOUSTICAL CEILING SYSTEM

2X2 FOCAL POINT, LUMINAIRE SERIES -

LUNA FLU-22-B-3-T8-E-120-G-PS-WH

FOCAL POINT, LUMINAIRE SERIES - LUNA

FLU-24-B-3-T8-E-120-G-PS-WH

1X4 FOCAL POINT, LUMINAIRE SERIES -

LUNA FLU-_-B-3-T8-E-120-G-PS-WH

DECORATIVE LINEAR PENDANT

STRIP LIGHT

UNDER COUNTER LIGHT

DECORATIVE PENDANT LIGHT

RECESSED LIGHT FIXTURE

RECESSED WALL WASHER

SPEAKER

NO.

HVAC SUPPLY DIFFUSER (SQUARE)

REVISION

SHEET NAME:

HVAC RETURN REGISTER

HVAC EXHAUST GRILLE

ACCESS PANEL

REFLECTED

CEILING PLAN

DATE

05/27/2015

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

A2-21

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

FLOOR FINISH TRANSITIONS

2

1

SCHLUTER SCHIENE #M60

CPT TO TILE TRANSITION

6" = 1'-0"

JOHNSONITE TRANSITION

SLT-WG-A. THIS PRODUCT HAS

A LEAD TIME

CPT TO RSF TRANSITION

6" = 1'-0"

4

3

1

RAC 1

716

1

RAC 3 AGENTS

713

RAC 3 AGENTS

713

2 1

PT-3

3 4

RAC 1 & IO

INVESTIGATORS

717

1

PT-2

SECURE EVIDENCE

715

1

SECURE WORK AREA

718

1

SECURE EVIDENCE

719

1

SECURE WORK AREA

714

SECURE FILES

712

1

UP

GENERAL SUPPLIES

711

1

F.E.C.

EQUIPMENT STORAGE

VCT-1

1

& LOCKERS

708

VCT-1

1

IO SECURE FILES

720

PT-3

1

IO GENERAL

SUPPLIES

721

UP

SECURE FILES

707

1

LAN ROOM

706

SECURE FOYER

700

PROCESS

701

1

VCT-1

1

INTERVIEW

702

1

ASAC SECRETARY &

RECEPTION

726

CPT-1

1

PT-2

IA'S

705

2 1

1

PT-3

CONFERENCE

704

CPT-1

1

ASAC

727

CPT-1

1

4

3

ADMIN & WARTIME

INTERNS

729

CPT-1

1

PT-2

VCT-1

1

BREAK ROOM

703

DW

CASE ROOM

702C

1

IO SUPERVISOR

724

CPT-1

1

2 1

VCT-1

CPT-1

IO RESEARCH

725

PT-3

CONFERENCE

723

1

4

3

RAC 3

710

3 4

4

3

2 1

1

AUDITOR

709

4

FINISH PLAN - LEVEL 1

3/32" = 1'-0"

PLAN

NORTH

LIST OF FINISHES

WALL FINISHES

PT-1 OVERALL PAINT COLOR

MANUFACTURER: SHERWIN

WILLIAMS

COLOR: SW7637 OYSTER

WHITE

FINISH: EGGSHELL ON

WALLS W/ SEMI-GLOSS ON

TRIM AND DOORS

NOTES:

TILE

CT-1 CERAMIC TILE FLOORING

MANUFACTURER:

STYLE:

COLOR:

FINISH:

SIZE:

NOTES:

PT-2 ACCENT PAINT COLOR

MANUFACTURER: SHERWIN

WILLIAMS

COLOR: SW2827 COLONIAL

REVIVIAL STONE

FINISH: EGGSHELL ON

WALLS W/ SEMI-GLOSS ON

TRIM AND DOORS

NOTES:

PT-3 CEILING PAINT COLOR

MANUFACTURER: SHERWIN

WILLIAMS

COLOR: SW7068 GRIZZLE

GRAY

FINISH: EGGSHELL ON

WALLS W/ SEMI-GLOSS ON

TRIM AND DOORS

NOTES:

CTB-1 CERAMIC TILE BASE

MANUFACTURER:

STYLE:

COLOR:

FINISH:

SIZE:

NOTES:

GLAZING

GL-1 GLASS INSERT/SIDELITES

MANUFACTURER:

STYLE:

COLOR:

FINISH:

NOTES:

BF-1 BLAST FILM

MANUFACTURER:

STYLE:

COLOR:

FINISH:

LOCATION:

NOTES: KEYNOTE 4

FLOORING

CPT-1 OVERALL CARPET

MANUFACTURER: MOHAWK

STYLE: SONATA CHILL KT157

COLOR: 969 ALLEGRO

SIZE: 24X24 MODULAR

TREATMENT: SENTRY PLUS

INSTALLATION: ASHLAR

NOTES: 28 OZ MIN.

MILLWORK

PL-1 PLASTIC LAMINATE

MANUFACTURER: WILSONART

STYLE: 7965K-12

COLOR: WALNUT HEIGHTS

NOTES: BASE & UPPER CABINETS

VCT-1 VINYL COMPOSITION TILE

MANUFACTURER:

MANNINGTON

STYLE: PROGRESSIONS

COLOR: ALMOND BUFF 55507

SIZE:12X12

INSTALLATION: QUARTER

TURNED

NOTES:

PL-2 PLASTIC LAMINATE

MANUFACTURER: WILSONART

STYLE: 7964K-12

COLOR: SKYLINE WALNUT

NOTES: COUNTERTOPS

RB-1 RUBBER BASE

MANUFACTURER:

JOHNSONITE

STYLE: COVED

COLOR: TO MATCH PT-3

SIZE: 4"

TYPE:

NOTES: CONTINUOUS

COVE BASE

GENERAL NOTES - FINISH PLAN

1 REFER TO FINISH PLANS FOR ACCENT FINISH LOCATIONS.

2 REFER TO REFLECTED CEILING PLANS FOR SUSPENDED CEILING GRID

LAYOUT.

3 REFER TO FINISH PLAN & DETAILS FOR SPECIAL CARPET PATTERN

LAYOUTS.

4 REFER TO DOOR, FRAME & HARDWARE INFORMATION FOR FINISHES OF

DOORS AND FRAMES.

5 WHERE WALLS ARE PAINTED, PROVIDE LIGHT STIPPLE TEXTURE.

PROVIDE APPROXIMATELY 100 SQ. FT. MOCKUP FOR ARCHITECT’S

APPROVAL PRIOR TO PROCEEDING WITH TEXTURE. APPROVED MOCKUP

MAY REMAIN AS A PART OF FINAL WORK.

6 ALL EXTERIOR WINDOWS SHALL BE PROVIDED WITH WINDOW

TREATMENT. UNLESS NOTED OTHERWISE, WINDOW TREATMENT SHALL

BE BUILDING STANDARD MINIBLINDS. WHERE WINDOW BLINDS ARE

EXISTING, CLEAN BLINDS AS A PART OF FINAL CLEANING.

7 MAKE ALL FLOOR FINISH TERMINATIONS AT THE CENTERLINE OF DOOR

AND CASED OPENINGS, UNLESS NOTED OTHERWISE.

8 FLOORING TRANSITION STRIPS BETWEEN CARPET AND V.C.T. SHALL BE

ROPPE NO. 159, UNLESS NOTED OTHERWISE. COLOR SHALL MATCH

COLOR OF BASE.

9 WHERE FABRIC WALLCOVERINGS ARE SCHEDULED, WRAP ELECTRICAL

DEVICE COVER PLATES WITH FABRIC MATCHING SCHEDULED

WALLCOVERING.

10 COVER PLATES FOR ELECTRICAL DEVICES ON WOOD-PANELED WALLS

SHALL BE COVER PLATE MANUFACTURER’S STANDARD BROWN COLOR.

11 WHERE WOOD FLOORING AND WOOD BASE ARE SCHEDULED, PROVIDE

WOOD SHOE MOLD OF THE SAME SPECIES AND FINISH OF FLOORING

AND BASE.

12 PAINT UNDERSIDES OF ALL UPPER CABINETS TO MATCH COLOR OF

CABINET FINISH.

13 PREPARE SLAB AS REQUIRED PER FLOOR FINISH MANUFACTURER

INSTRUCTIONS.

14 ALL VINYL COMPOSITION TILE IS VCT-1, U.N.O.

15 ALL WALL BASE IS RB-1, U.N.O.

16 ALL CARPET IS CPT-1, U.N.O.

17 ALL CERAMIC TILE IS CT-1, U.N.O.

18 PROVIDE COVE BASE AT ALL FLOORING U.N.O.

19 HEAT WELD ALL RESILIENT FLOORING SEAMS. REFERENCE FINISH

SCHEDULE FOR WELD ROD SPECIFICATION INFORMATION. SHEET VINYL

WELDING RODS TO BE USED ON SEAMS WHERE TWO COLORS JOIN. ALL

OTHER SEAMS TO BE CHEMICALLY BONDED. WELDING ROD COLOR FOR

SHEET VINYL TO MATCH, U.N.O.

20 SUBMIT FLOOR SEAMING DIAGRAM TO ARCHITECT FOR REVIEW AND

APPROVAL.

21 GROUT JOINTS ON FLOOR TO BE 1/8” WIDE, U.N.O. GROUT JOINTS ON

WALL TILE TO BE 1/8” WIDE, U.N.O. NOTIFY ARCHITECT IF

MANUFACTURER’S RECOMMENDED INSTALLATION INSTRUCTION DIFFER.

22 REFER TO DOOR AND FRAME SCHEDULE FOR FINISHES.

23 ALL METAL DOORS TO BE PAINTED PT-2 (SEMI-GLOSS FINISH), U.N.O.

24 ALL PAINTED METAL DOOR FRAMES TO BE PAINTED PT-2 (SEMI-GLOSS

FINISH), U.N.O.

25 PAINT BEGINS FROM WALL EDGES AND CORNERS, U.N.O.

26 PAINT ALL WALLS PT-1, U.N.O.

FINISH PLAN - KEYED NOTES

1

FIELD PAINT TO BE PT-1, UNLESS NOTED OTHERWISE.

2

ACCENT PAINT TO START AND STOP AT INSIDE CORNERS OF WALL (TYP)

3

EXISTING WINDOW BLINDS TO REMAIN. CONTRACTOR TO VERIFY WORKING

CONDITION AND REPLACE ANY DAMAGED OR NON-WORKING BLINDS.

4

CONTRACTOR TO INSTALL BLAST FILM ON INTERIOR SIDE OF ALL

PERIMETER WINDOWS.

1

A15

CPT

T

RSF

RB

PL

PT

CG

W-1

FINISH PLAN LEGEND

TRANSITION PIECE

TRANSITION IN FLOORING MATERIAL

TRANSITION IN WALL MATERIAL

FLOORING TYPE AS SPECIFIED

TILE TYPE AS SPECIFIED

RESILIANT FLOORING AS SPECIFIED

RUBBER BASE AS SPECIFIED

PLASTIC LAMINATE AS SPECIFIED

EXTENT OF PAINT

CORNER GUARD

NO.

REVISION DATE

SHEET NAME:

FINISH PLAN &

SCHEDULE

DATE: 05/27/2015

REVIEWED BY:

PROJECT NO.:

SLB

201502200

SHEET NO.:

A2-31

05/27/2015

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

GENERAL NOTES - FURNITURE/EQUIPMENT

1 VERIFY ALL EXISTING EQUIPMENT AND FURNITURE SIZES.

2 EXISTING FURNITURE OR EQUIPMENT SHOWN AS HALFTONE

AND/OR NOT IDENTIFIED ARE NOT PART OF THIS WORK AND WILL

BE SUPPLIED AND INSTALLED BY THE OWNER/TENANT.

3'-7

"

1

BREAK ROOM

703

217.7 SF

CASE ROOM

702C

255.5 SF

1

RAC 3

710

250 SF

RAC 1

716

250 SF

R3 3

R3 5

1

R3 2

R3 4

R1 9 R1 7 R1 5

R1 4

R1 2

R1 1

RAC 1 & IO

INVESTIGATORS

717

2,431.8 SF

IO 11

IO 8

IO 10 IO 7

R3 1

R1 8 R1 6

1

R1 3 R1 10 IO 9 IO 6

1 1

1

GUN RACKS

4

5

2

3

SECURE EVIDENCE

715

400 SF

SECURE WORK AREA

1

714

100 SF

6

7

SECURE WORK AREA

718

100 SF

1

SECURE EVIDENCE

719

400 SF

1

GUN RACKS

1 2 3 4 5 6

ALIGN

IO 5

IO 4

IO 3

IO 2

IO 1

IO SECURE FILES

720

160 SF

IO INVESTIGATORS

IO GENERAL

SUPPLIES

721

160 SF

R3 7

R3 9

R3 6

R3 8

SECURE FILES

712

160 SF

UP

MECH.

ELEC.

PROCESS

701

110.1 SF

INTERVIEW

702

110.1 SF

GENERAL SUPPLIES

711

160 SF

ALIGN

F.E.C.

R3 10

TF 3

TF 1

TF 2

1

TF 4

RAC 3 AGENTS

713

1,343.7 SF

TF 5

EQUIPMENT STORAGE

& LOCKERS

708

423.8 SF

SECURE FILES

707

173.9 SF

ADMIN SUPPORT

IA'S

705

380.1 SF

1

LAN ROOM

706

100.2 SF

SECURE FOYER

700

97.6 SF

1

TF 7 IA 1

1

1 1

TF 8 IA 2

1

TF 6

CONFERENCE

704

312.2 SF

UP

1

WT 1

WT 3 WT 2

IO12 IA 3

WARFIGHTER INTERNS &

ADMIN SUPPORT

IO RESEARCH

725

150 SF

1

IO SUPERVISOR

724

250.1 SF

1

1

ASAC SECRETARY &

RECEPTION

726

178.4 SF

ASAC

727

259.6 SF

CONFERENCE

723

323.4 SF

FURNITURE PLAN - KEYED NOTES

1

FURNITURE PLACEMENT IS STRICTLY REPRESENTATIONAL. TENANT IS

RESPONSIBLE FOR PROVIDING FINAL FURNITURE PLAN LAYOUT IN

ORDER FOR THE CONTRACTOR TO COORDINATE ELECTRICAL AND DATA

NEEDS.

NO.

REVISION DATE

AUDITOR

709

146.1 SF

A4

FURNITURE PLAN - LEVEL 1

1/8" = 1'-0"

PLAN

NORTH

SHEET NAME:

FURNITURE PLAN

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A2-41

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

2'-0"

RAC 1

716

1

+18"

+18"

26'-10"

1

J

3'-10" 4'-5"

+18"

11'-4"

1

23'-9"

1

1

1

+18"

1

+18"

SECURE EVIDENCE

715

+18"

+18"

SECURE EVIDENCE

SECURE WORK AREA

+18"

718

719

18"

SECURE WORK AREA

714

+18"

1

J

J

18"

1

1

1

RAC 3 AGENTS

713

UP

SECURE FILES

712

+18"

GENERAL SUPPLIES

711

+18"

+18"

+18"

1

F.E.C.

+18"

+1

8"

J

+18"

EQUIPMENT STORAGE

& LOCKERS

708

+18"

+18"

+18"

J

+18"

AUDITOR

709

4'-2"

+18"

11'-2"

1

1

4'-3"

IO SECURE FILES

720

+18"

+18"

IO GENERAL

SUPPLIES

721

+18"

+18"

+18" D

+44"

UP

SECURE FILES

707

+18"

+1

8"

42"

DC

LAN ROOM

706

SECURE FOYER

+18"

700

+18"

PROCESS

701

+18" +18"

INTERVIEW

702

+18" +18"

ASAC SECRETARY &

RECEPTION

726

+18"

+18"

+1

18

"

8"

D

IA'S

705

J

1

+18"

+18"

2

+18"

CONFERENCE

704

TV

+60"

+18"

ASAC

727

+18"

J

+18"

+18"

+1

8"

CASE ROOM

702C

1

+18"

IO SUPERVISOR

724

+18"

1

+18"

IO RESEARCH

725

+18"

1

CONFERENCE

723

+18"

30'-2"

A4

POWER/SIGNAL PLAN - LEVEL 1

1/8" = 1'-0"

1

18

"

BREAK ROOM

703

GENERAL NOTES - POWER/SIGNAL

1 INFORMATION SHOWN ON THIS SHEET SUPPLEMENTS INFORMATION

SHOWN ON ELECTRICAL DRAWINGS. LOCATIONS OF DEVICES SHOWN

ON THIS SHEET TAKE PRECEDENCE OVER LOCATIONS SHOWN ON

ELECTRICAL DRAWINGS.

2 HORIZONTAL LOCATION DIMENSIONS INDICATED ARE FROM FACE OF

GYPSUM BOARD TO CENTERLINE OF DEVICE, U.N.O.

3 VERTICAL DIMENSIONS GIVEN AT INDIVIDUAL DEVICES ARE FROM THE

TOP OF STRUCTURAL CONCRETE TO THE CENTERLINE OF THE DEVICE,

U.N.O.

4 REFER TO INFORMATION ON ACCESSIBILITY SHEETS FOR MOUNTING

HEIGHTS OF DEVICES. IN THE EVENT OF CONFLICT BETWEEN

ACCESSIBILITY SHEETS AND ELECTRICAL DRAWINGS, ACCESSIBILITY

SHEETS GOVERN.

5 OUTLETS AND OTHER DEVICES SHOWN BACK-TO-BACK SHALL BE

OFFSET HORIZONTALLY FROM EACH OTHER A MINIMUM OF 8 INCHES

AND ACOUSTICALLY SEALED.

6 DO NOT LOCATE BACK-TO-BACK OUTLETS IN THE SAME STUD SPACE.

7 ACOUSTICALLY SEAL ALL DEVICES THAT PENETRATE SOUND

INSULATED PARTITIONS.

8 COORDINATE INSTALLATION OF ALL EQUIPMENT NOT INCLUDED IN THE

PROJECT SCOPE WITH THE PARTY RESPONSIBLE FOR ITS

INSTALLATION.

9 ALL A/V, SECURITY AND TECHNOLOGY EQUIPMENT IS

TENANT-FURNISHED, CONTRACTOR-INSTALLED, U.N.O.

10 THE GENERAL CONTRACTOR IS RESPONSIBLE FOR PROPERLY

LOCATING ALL FLOOR CORES TO AVOID STRUCTURAL ELEMENTS,

INCLUDING BEAMS AND FLOOR SLAB REINFORCEMENT AND FOR

MAINTAINING REQUIRED FLOOR RATINGS. CONTACT ARCHITECT FOR

RESOLUTION OF CONFLICTS PRIOR TO BEGINNING CORING

OPERATIONS.

11 THE GENERAL CONTRACTOR IS RESPONSIBLE FOR MAINTAINING

REQUIRED RATINGS OF STRUCTURAL ELEMENTS, USING APPROVED

FIRESTOPPING ASSEMBLIES AND METHODS.

12 USE ONLY FLUSH FLOOR RECEPTACLES AND OTHER FLOOR DEVICES,

U.N.O.

13 ALL DEVICES SHALL BE WHITE, U.N.O.

14 REFER TO ELECTRICAL DRAWINGS FOR ADDITIONAL INFORMATION.

15 ALL UNDER CABINET LIGHTS SHOULD HAVE ONE SWITCH PER

LOCATION

POWER/SIGNAL LEGEND

42"

DUPLEX RECEPTACLE

42"

TRIPLEX RECEPTACLE

42"

QUADRIPLEX RECEPTACLE

18"

OUTLET - DATA

18"

OUTLET - DATA/TELECOM

TV

18"

OUTLET - CATV

GFCI

42"

INDICATES GROUND FAULT

CIRCUIT INTERRUPTER

DC

42"

INDICATES DEDICATED

CIRCUIT

FLOOR MOUNTED DUPLEX

RECEPTACLE

FLOOR MOUNTED QUAD

RECEPTACLE

FLOOR OUTLET - DATA

FLOOR OUTLET - PHONE

FLOOR OUTLET -

DATA/TELECOM

J BOX

J BOX WITH POWER POLE

CARD READER

FURNITURE WHIP

NO.

REVISION DATE

PLAN

NORTH

POWER/SIGNAL PLAN - KEYED NOTES

1

CONTRACTOR TO COORDINATE ALL POWER AND DATA REQUIREMENTS

WITH TENANT AND TENANT PROVIDED FURNITURE DEALER.

2

CONTRACTOR TO COORDINATE FLOOR POWER AND DATA FLOOR LOCATION

BASED ON TENANT PROVIDED AND PLACED FURNITURE

SHEET NAME:

POWER/SIGNAL

PLAN

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A2-51

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

B3

A6-02

Sim

1'-5" 1'-5" 1'-5"

8'-6"

1'-5" 1'-5"

A1

A6-02

Sim

1'-5"

EQ EQ

5'-6"

A1

A6-01

Sim

EQ EQ

1'-5" 1'-5" 1'-5" 1'-5" 1'-5" 1'-5"

D5

PROCESSING ROOM1

1/2" = 1'-0"

EQ EQ EQ

D4

COPY CENTER

1/2" = 1'-0"

EQ

3"

C2

A6-02

Sim

C2

A6-02

Sim

EQ EQ 6'-0"

C4

LONG GUN RACK

1/2" = 1'-0"

3I

A4-01

6'-0"

BULLET RESISTANT

VIEWING GLASS

A5

SECURE FOYER

1/2" = 1'-0"

1'-3" 3'-6"

EQ EQ

A4

SECURE EVIDENCE STORAGE

1/2" = 1'-0"

3'-5" 2'-5"

9' - 0"

8' - 0"

Dn

Dn

Dn

Dn

Dn Dn

D1

CONFERENCE 726 RCP

1/4" = 1'-0"

D4

A2-21

Sim

8'-0" 2'-3"

D4

A2-21

Sim

+18"

42"

DC

LAN ROOM

706

A2

TELEPHONE/LAN ROOM

3/8" = 1'-0"

+18"

3E

GUN RACK GUN RACK

3E

C4

A3-01

GUN RACK

GUN RACK

GUN RACK

GUN RACK

SECURE EVIDENCE

715

GUN RACK

CONTRACTOR TO PROVIDE SLAB TO SLAB EXPANDED

METAL PARTITION WITH A SLIDING GATE WITH HASP &

LATCH SECURED WITH A HIGH SECURITY CHANGEABLE

COMBINATION PADLOCK. (SEE EXHIBITS #13A, #13B, #13C)

3E

A1

A4

SECURE WORK AREA

714

A3-01

SECURED EVIDENCE STORAGE

3/8" = 1'-0"

NO.

REVISION DATE

6'-7"

3A

3E

PLAN

NORTH

SHEET NAME:

ENLARGED FLOOR

PLANS &

ELEVATIONS

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A3-01

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

NO.

REVISION DATE

05/18/15

SHEET NAME:

ENLARGED FLOOR

PLANS &

ELEVATIONS

DATE: 05/18/15

REVIEWED BY:

PROJECT NO.:

Checker

201502200

SHEET NO.:

A3-02

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

NON BEARING FULL HEIGHT

PARTITION: 18 GA. (MIN) METAL

STUDS, CORROSION

PROTECTED W/ TOP & BOTTOM

RUNNERS; STUDS SPACED @

24" O.C.; 5/8" THK. GYP. BOARD

ON BOTH SIDES; DECK-TO-

DECK CONSTRUCTION.

3C

SLAB TO SLAB

BOTTOM OF

STRUCTURE

SOUND ATTENUATING FIRE

BLANKET, FULL HEIGHT

NON BEARING FULL HEIGHT

PARTITION: 18 GA. (MIN)

METAL STUDS, CORROSION

PROTECTED W/ TOP &

BOTTOM RUNNERS; STUDS

SPACED @ 24" O.C.; 3" MIN

MINERAL WOOL OR FIBER

BATT INSULATION; FRICTION

FITTED BETWEEN STUDS;

ACOUSTICAL BEAD SEALANT

CAULKED AROUND EDGES;

5/8" THK. GYP. BOARD ON

BOTH SIDES; DECK-TO-DECK

CONSTRUCTION.

3G

SLAB TO SLAB, 45 STC

SCHEDULED CEILING

3 5/8" METAL STUDS (18

GA. MIN.) @ 24" O.C.

5/8" GYP BOARD

EACH SIDE

FINISH FLOOR

BOTTOM OF

STRUCTURE

SCHEDULED CEILING

3 5/8" METAL STUDS (18

GA. MIN.) @ 24" O.C.

5/8" GYP BOARD

EACH SIDE

FINISH FLOOR

3I

3F

SECURE EVIDENCE GATE - SECTION

SIM.

SLAB TO CEILING

BOTTOM OF STRUCTURE

SCHEDULED CEILING

3 5/8" METAL STUDS 20 GA

(MIN) @ 2'-0" O.C.

5/8" LAYER GYP BD

EACH SIDE

3H

3E

SIM.

SLAB TO CEILING W/ 36" BATT INSULATION

NON BEARING FULL HEIGHT

PARTITION: 18 GA. (MIN) METAL

STUDS, CORROSION

PROTECTED W/ TOP & BOTTOM

RUNNERS; STUDS SPACED @

24" O.C.; #9 GA SECURITY

MESH BEHIND DRYWALL

ATTACHED TO METAL STUDS;

5/8" THK. GYP. BOARD ON BOTH

SIDES; DECK-TO-DECK

CONSTRUCTION.

BOTTOM OF STRUCTURE

36" WIDE; 3" MINERAL WOOL OR

FIBERGLASS BATT INSULATION.

SCHEDULED CEILING

3" MINERAL WOOL OR FIBERGLASS

BATT INSULATION SOUND

ATTENUATING FIRE BLANKET,

FULL HEIGHT

3 5/8" METAL STUDS (20 GA MIN)

@ 2'-0" O.C.

5/8" GYP BOARD EACH SIDE

BOTTOM OF

STRUCTURE

SCHEDULED CEILING

3 5/8" METAL STUDS (18

GA. MIN.) @ 24" O.C.

5/8" GYP BOARD

EACH SIDE

FINISH FLOOR

SLAB TO SLAB W/ #9 GAUGE SECURITY MESH

EXTEND TO UNDERSIDE

OF ROOF DECK OR FLOOR

STRUCTURE, FILL VOIDS

WITH FIRESAFING

INSULATION AND

SEALANT.

NON BEARING FULL HEIGHT

PARTITION: 18 GA. (MIN) METAL

STUDS, CORROSION

PROTECTED W/ TOP & BOTTOM

RUNNERS; STUDS SPACED @

24" O.C.; FIBERGLASS BULLET

RESISTANCE OPAQUE ARMOR,

7/16" THICK; 5/8" THK. GYP.

BOARD ON BOTH SIDES; DECK-

TO-DECK CONSTRUCTION.

SCHEDULED CEILING

3 5/8" METAL STUDS (18

GA. MIN.) @ 24" O.C.

5/8" GYP BOARD EACH SIDE

FINISH FLOOR

3" MINERAL WOOL OR

FIBERGLASS BATT

INSULATIONSOUND

ATTENUATING FIRE

BLANKET, FULL HEIGHT

NON BEARING FULL HEIGHT

PARTITION: 18 GA. (MIN) METAL

STUDS, CORROSION

PROTECTED W/ TOP & BOTTOM

RUNNERS; STUDS SPACED @

24" O.C.; 3" MIN MINERAL WOOL

OR FIBER BATT INSULATION;

FRICTION FITTED BETWEEN

STUDS; ACOUSTICAL BEAD

SEALANT CAULKED AROUND

EDGES; ; #9 GA SECURITY MESH

BEHIND DRYWALL ATTACHED TO

METAL STUDS; 5/8" THK. GYP.

BOARD ON BOTH SIDES; DECK-

TO-DECK CONSTRUCTION.

3B

SLAB TO SLAB W/ BULLET RESISTANT ARMOR

3A

BOTTOM OF

STRUCTURE

SCHEDULED CEILING

3 5/8" METAL STUDS (18

GA. MIN.) @ 24" O.C.

5/8" GYP BOARD EACH SIDE

FINISH FLOOR

SLAB TO SLAB, 45 STC, #9 GA SECURITY MESH

GENERAL NOTES - PARTITIONS

1 UNLESS NOTED OTHERWISE, ALL NEW INTERIOR PARTITIONS ARE TYPE

'3H'.

2 ALL GYPSUM BOARD IS 5/8" THICK'. USE WATER-RESISTANT GYPSUM

BOARD AT ALL WET LOCATIONS. USE CEMENT BACKER BOARD AT

LOCATIONS SCHEDULED TO RECEIVE TILE OR OTHER RIGID FINISHES.

3 METAL STUDS ARE 3 5/8" IN DEPTH UNLESS INDICATED OTHERWISE. CMU

WIDTH IS 8" UNLESS INDICATED OTHERWISE. REFER TO PARTITION TYPE

REFERENCES ON FLOOR PLANS AND SPECIFIC DETAILS FOR PARTITION

WIDTHS OTHER THAN 3 5/8" OR 8". WHERE THE PARTITION TYPE

INDICATION IS SHOWN WITH A NUMERICAL SUFFIX, REFER TO THE

PARTITION LEGEND FOR STUD OR CMU WIDTH.

4 UNLESS INDICATED OTHERWISE, ALL METAL STUDS LESS THAN 8" ARE 22

GA.. LIMITING HEIGHTS FOR STUDS ARE BASED ON USG STUD LIMITING

HEIGHT TABLES FOR A DEFLECTION CRITERIA OF L/360. WHERE THESE

HEIGHTS ARE EXCEEDED BY PROJECT CONDITIONS, USE THE

APPROPRIATE STUD GAGE FOR THE VERTICAL SPAN OF THE PARTITION.

DEFLECTION CRITERION IS L/360 FOR ALL PARTITIONS EXCEPT THOSE

THAT HAVE RIGID APPLIED FINISHES, SUCH AS STONE VENEER OR

CERAMIC TILE. WHERE A DEFLECTION CRITERION OF L/600 IS REQUIRED.

WHEN ANOTHER MANUFACTURERS STUDS ARE USED, CONSULT THE

MANUFACTURERS LIMITING HEIGHT TABLES FOR THE APPROPRIATE

STUD GAGE.

5 UNLESS INDICATED OTHERWISE, METAL STUD SPACING IS 2'-0" O.C.

6 CEILING HEIGHTS MAY VARY ON EITHER OR BOTH SIDES OF THE

PARTITION. REFER TO PLANS, REFLECTED CEILING PLANS AND OR

CEILING FINISH NOTES FOR CEILING HEIGHTS.

7 FLOOR TO FLOOR DIMENSIONS MAY VARY. REFER TO BUILDING

SECTIONS, WALL SECTIONS, AND OTHER CONSTRUCTION DOCUMENTS

TO DETERMINE FLOOR TO FLOOR HEIGHTS.

8 PROVIDE VERTICAL CONTROL JOINTS IN ACCORDANCE WITH GA-216 IN

ALL FULL HEIGHT GYPSUM BOARD PARTITIONS.

9 UNLESS INDICATED OTHERWISE, ALL JOINTS SHALL BE TAPED AND

FLOATED, INCLUDING FIRE RATED PARTITIONS, NON RATED PARTITIONS,

EXPOSED SURFACES, CONCEALED SURFACES AND SURFACES ABOVE

THE CEILING.

10 ALL METAL STUDS ARE CONTINUOUS FROM FLOOR TRACK TO BOTTOM

OF STRUCTURE ABOVE, UNLESS INDICATED OTHERWISE. FILL ALL VOIDS

BETWEEN THE TOP RUNNER TRACK AND THE BOTTOM OF STRUCTURE

WITH THE APPROPRIATE SEALANT OR FIRE STOPPING SYSTEM. WHERE

THE DISTANCE EXCEEDS AVAILABLE STUD LENGTHS, SUBMIT A

PROPOSED SPLICE DETAIL FOR REVIEW AND APPROVAL BEFORE

INSTALLATION OF PARTITION.

11 EXTEND FURRING TO 6" ABOVE CEILING. BRACE TO STRUCTURE OR WALL

AT TOP AND AT MID-SPAN WHEN FURRING HEIGHT EXCEEDS 12'-0".

12 PARTITION TYPE REFERENCES ARE INDICATED ON THE FLOOR PLANS.

WHERE AREAS THAT ARE ENLARGED ELSEWHERE ARE REFERENCED,

PARTITION TYPES ARE INDICATED ON THE ENLARGED PLANS ONLY.

13 PARTITION TYPES DO NOT DETERMINE EXTERIOR WALL CONSTRUCTION.

REFER TO WALL SECTIONS FOR EXTERIOR WALL CONSTRUCTION.

14 DETAILED PARTITION TYPES ARE PROVIDED FOR GENERAL REFERENCE.

ALL TYPES SHOWN ARE NOT NECESSARILY USED ON THIS PROJECT.

REFER TO FLOOR PLANS FOR ACTUAL PARTITION TYPES USED.

15 WHERE ROOMS ARE SCHEDULED WITHOUT CEILINGS, PARTITIONS SHALL

EXTEND TO STRUCTURE ABOVE UNLESS NOTED OTHERWISE.

16 PENETRATIONS THROUGH PARTITIONS BY PIPES, CONDUIT, OR OTHER

RIGID MEMBERS ARE TO BE THROUGH HOLES WHICH ARE AT LEAST 1"

LARGER THAN THE PENETRATING MEMBER. THE HOLES ARE TO BE

FILLED WITH FIBERGLASS AROUND THE MEMBER SO THAT THE MEMBER

DOES NOT TOUCH THE WALL AND THEN THE FILLER IS TO BE SEALED

OVER FULLY ON EACH SIDE OF THE WALL.

17 THE ACTUAL THICKNESS OF PARTITIONS ARE INDICATED ON THE PLANS

AND DO NOT INCLUDE FINISH MATERIALS. REFER TO THE ROOM FINISH

SCHEDULE FOR FINISH MATERIALS.

18 PARTITION TYPES DO NOT INCLUDE PARTIAL HEIGHT WALLS. REFER TO

DETAILS FOR PARTIAL HEIGHT WALL INFORMATION.

19 THE BOTTOM OF STRUCTURE IS DEFINED AS THE BOTTOM OF THE ROOF

DECK OR FLOOR DECK ABOVE.

20 THE LOCATION OF FIRE RATED PARTITIONS ARE INDICATED ON THE

FLOOR PLANS BY LINE SYMBOLS IN THE CENTER OF THE WALL OR BY

GENERAL NOTE. THESE LOCATIONS SHALL COMPLY WITH THE UL DESIGN

ASSEMBLY AS INDICATED BY THE PARTITION TYPE, INCLUDING THE

APPLICATION OF FIRE STOPPING SEALANT AT THE PERIMETER OF THE

PARTITION.

GENERAL NOTES - PARTITIONS

21 CONSTRUCTION OF FIRE RATED PARTITIONS, INCLUDING TAPING,

FLOATING, AND FINISHING OF GYPSUM BOARD FOR FULL HEIGHT TO

STRUCTURE ABOVE SHALL BE IN ACCORDANCE WITH THE

REQUIREMENTS OF THE TESTED ASSEMBLY TO ACHIEVE THE REQUIRED

RATING.

22 AT ALL LOCATIONS WHERE FIRE RATED PARTITIONS ABUT OR ATTACH TO

A FIRE RATED STRUCTURAL MEMBER THE FIRE RATING OF BOTH THE

PARTITION AND THE STRUCTURAL MEMBER SHALL BE MAINTAINED.

23 WHERE ITEMS ARE RECESSED INTO A FIRE RATED PARTITION PROVIDE

ADDITIONAL GYPSUM, FIREPROOFING, OR FIRE STOPPING AROUND THE

RECESSED PORTION OF THE ITEM AS REQUIRED TO MAINTAIN THE

INDICATED FIRE RATING.

24 FIRE RESISTANT SOUND ATTENUATION BLANKETS AND NON RATED

SOUND ATTENUATION BLANKETS SHALL BE CONTINUOUS FOR THE FULL

HEIGHT OF THE PARTITION AND 3" THICK.

25 CONTROL JOINTS AND EXPANSION JOINTS IN FIRE RATED PARTITIONS

SHALL BE CONSTRUCTED TO MAINTAIN THE FIRE RATING OF THE

PARTITION. CONTROL JOINTS AND EXPANSION JOINTS IN NON RATED

PARTITIONS SHALL BE CONSTRUCTED WITH SOUND ATTENUATION

BLANKET MATERIAL WITHIN THE JOINT TO REDUCE SOUND

TRANSMISSION.

26 FIREWALLS, FIRE BARRIERS, FIRE PARTITIONS, SMOKE BARRIERS AND

SMOKE PARTITIONS OR ANY OTHER WALL REQUIRED TO HAVE

PROTECTED OPENINGS OR PENETRATIONS SHALL BE EFFECTIVELY AND

PERMANENTLY IDENTIFIED WITH SIGNS OR STENCILING. SUCH

IDENTIFICATION SHALL:

1. BE LOCATED IN ACCESSIBLE CONCEALED FLOOR, FLOOR-CEILING OR

ATTIC SPACES;

2. BE REPEATED AT INTERVALS NOT EXCEEDING 30 FEET MEASURED

HORIZONTALLY ALONG THE WALL OR PARTITION; AND

3. INCLUDE LETTERING NOT LESS THAN 0.5 INCH IN HEIGHT,

INCORPORATING THE SUGGESTED WORDING:"FIRE AND/OR SMOKE

BARRIER-PROTECT ALL OPENINGS," OR OTHER WORDING.

27 SOUND-ISOLATION PARTITIONS SHALL BE SEALED AIRTIGHT FOR FULL

HEIGHT TO PREVENT PASSAGE OF AIRBORNE SOUND. TAPE AND FINISH

ALL GYP. BD. JOINTS AND FASTENERS. INSTALL ACOUSTIC SEALANT AT

PERIMETER AND AT ALL PENETRATIONS, UNLESS NOTED FIRE RATED,

THEN USE FIRE STOP SEALANT.

28 PROVIDE 2X4 MIN SIZE FIRE-TREATED WOOD BLOCKING OR 6" 20 GA.

STEEL STUD/RUNNER REINFORCEMENT BEHIND ALL WALL HUNG ITEMS.

SECURE WOOD BLOCKING WITH MIN. 2 SCREWS @ EA. END AND 4

SCREWS @ EA. END FOR STEEL STUDS OR RUNNERS. PROVIDE

BLOCKING AND STEEL BACKING ADEQUATE TO SUPPORT LOADS

IMPOSED ON WALL.

29 CONTROL JOINTS, WHERE REQUIRED, SHALL BE LOCATED ON EACH SIDE

OF A DOOR OPENING. REFER TO CONSTRUCTION ELEVATIONS OF WALL

OPENINGS INDICATED ON DETAILS SHEET.

30 TYPICAL REINFORCEMENT FOR DOOR OPENINGS IN GYP. BD. WALL

PARTITIONS:

1. DOORS UP TO 3'-0" WIDE WEIGHING NOT MORE THAN 100 LBS.: DOUBLE

20 GA. STEEL STUDS AND 20 GA. RUNNERS.

2. DOORS 2'-8" WIDE TO 4'-0" WIDE WEIGHING NOT MORE THAN 200 LBS.:

DOUBLE 20 GA.STEEL STUDS AND 20 GA. RUNNERS.

3. DOORS UP TO 4'-0" WIDE WEIGHING NOT MORE THAN 300 LBS.: DOUBLE

20 GA. STEEL STUDS AND 20 GA. RUNNERS.

4. DOORS OVER 4'-0" WIDE WEIGHING MORE THAN 300 LBS.: DOUBLE 16

GA. STEEL STUDS AND 16 GA. RUNNERS.

31 FURRING @ COLUMNS EXTENDS 4" ABOVE CEILING WITH STUDS BRACED

BACK TO COLUMN EXCEPT WHERE FURRING FORMS ONE SIDE OF A

FIRE-RATED PARTITION ASSEMBLY. AT THOSE CONDITIONS, THE

FURRING MUST EXTEND TO THE STRUCTURE ABOVE.

32 CHASE WALLS REQUIRE 12" GYP. PANEL CROSS BRACES (OR 2 1/2" MIN.

STEEL STUD CROSS BRACES) BETWEEN STUD ROWS @ 48" O.C.

VERTICALLY.

33 STEEL RUNNER TRACKS EXPOSED AT THE TOP OF THE PARTITION SHALL

BE ACCURATELY FORMED, STRAIGHT AND EVEN. USE THE MAXIMUM

LENGTHS PRACTICAL WITH A MINIMUM NUMBER OF JOINTS. ALIGN

SECTIONS AND BUTT JOINTS TIGHTLY.

NO.

REVISION

SHEET NAME:

DATE

PARTITION TYPES

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A4-01

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

REF. TO PLAN

C5

CMU PARTITION ANCHORAGE

3" = 1'-0"

TYPE A

B5

MTL. STUDS

CONT. 18 GA.

BACK-UP PLATE,

4" WIDE

BLOCKING

3" = 1'-0"

ELEC OUTLET. ACOUSTICAL

SEALANT AROUND PERIMETER AT

PARTITIONS W/ SOUND

ATTENUATING BATTS. USE FIRE

RETARDANT SEALANT AT FIRE

RATED PARTITIONS

PARTITION

SEALANT, BOTH SIDES - USE

ACOUSTICAL SEALANT AT

PARTITIONS W/ SOUND

ATTENUATING BATTS - USE FIRE

RETARDANT SEALANT AT FIRE

RATED PARTITIONS, AS REQ'D BY

UL DESIGNATION.

SCHEDULED BASE

RUNNER, FASTEN @

24" OC MAX.

A5

PARTITION BOTTOM

3" = 1'-0"

SEALANT & BACKER ROD EA. SIDE

OR FIRE SAFING AS REQ'D.

BOTTOM OF CONCRETE

STRUCTURE

REF. NOTE 9 FOR LATERAL

SUPPORT

BOND BEAM W/ #4 REINF. CONT.

& 3,000 PSI CONC. @ FIRST FULL

COURSE BELOW STRUCTURE

TYPE B

MTL. STUDS

20 GA. MTL. RUNNER -

CLIP FLANGES TO FIT

OVER STUDS

D4

C4

SHAFTWALL TOP

1 1/2" = 1'-0"

PARTITION

J-RUNNER

FASTEN RUNNER @ 24" OC

PARTITION

J-RUNNER

FASTEN RUNNER @ 24" OC

SCHEDULED BASE

SHAFTWALL BOTTOM

1 1/2" = 1'-0"

MTL. STUDS FACE

OPPOSITE DIRECTIONS

TO ALLOW MOUNTING

PLATE ATTACHMENT

2X FRT WOOD

BLOCKING OR 20 GA.

STL. RUNNER - CLIP

FLANGES AND FOLD

WEB TO FORM

ATTACHMENT FLANGE

TYPE C

FILL VOIDS BETWEEN MTL

DECK & PLATE W/ INSULATION

@ SOUND & FIRE RATED

PARTITIONS

OMIT INSULATION & PLATE @

CONCRETE STRUCTURE

SEAL INTERFACE

BETWEEN DECK FLUTES

& PLATE EA. SIDE

METAL DECK

20 GA. PLATE, CONT.-

ANCHOR TO STRUCTURE

@ 4'-0" O.C.

SEALANT, BOTH SIDES USE

ACOUSTICAL SEALANT @ SOUND

RATED PARTITIONS - USE FR

SEALANT @ FIRE RATED

PARTITIONS

DEEP LEG RUNNER

HOLD STUD 1/2" MIN.

BELOW RUNNER, 3/4" @

FIRE RATED PARTITION

PARTITION

NOTE: DO NOT ATTACH GYP.

BD. OR STUDS TO RUNNER

PARALLEL TO FLUTES

1 1/2" MIN.

FILL VOIDS BETWEEN MTL

DECK & PLATE W/ INSULATION

TRACK @ CONC. DECK, OMIT

INSULATION & PLATE

SEALANT, BOTH SIDES USE

ACOUSTICAL SEALANT @ SOUND

RATED PARTITIONS - USE FIRE RATED

SEALANT @ FIRE RATED PARTITIONS

DEEP LEG RUNNER

NOTE: DO NOT ATTACH GYP.

BD. OR STUDS TO RUNNER

A4

PERPENDICULAR TO FLUTES

PARTITION TOP - CONCRETE/METAL DECK

3" = 1'-0"

METAL DECK

SEAL OVER INSULATION

BETWEEN DECK FLUTES &

PLATE, BOTH SIDES, CONT.

@ SOUND & FIRE RATED

PARTITIONS

HOLD STUD 1/2" MIN.

BELOW RUNNER, 3/4" @

FIRE RATED PARTITION

20 GA. PLATE, CONT.

PARTITION

SEAL INTERFACE BTWN.

DECK FLUTES & PLATE

EACH SIDE @ FIRE AND

SOUND RATED PARTITION

BOTTOM OF CONC. SLAB

CONSTRUCTION OMIT

PLATE & INSULATION

SEALANT & BACKER ROD

BOTH SIDES - USE FIRE

RATED SEALANT @ FIRE

RATED PARTITIONS

CMU PARTITION

BOTTOM OF CONCRETE

STRUCTURE CONDITION:

OMIT PLATE & INSULATION

SEALANT, BOTH SIDES

USE FIRE RATED

SEALANT @ FIRE RATED

PARTITIONS

FILL SPACE BTWN. T.O.

CMU & PLATE W/ FIRE

SAFING INSULATION

CMU PARTITION

PARALLEL TO FLUTES

FILL VOIDS BTWN. MTL.

DECK & PLATE W/ FIRE

SAFING INSULATION

FILL SPACE BTWN. TOP

OF CMU & PLATE W/ FIRE

SAFING INSULATION @

FIRE & SOUND RATED

PARTITION

METAL DECK

12 GA. PLATE EA. CONT.

ANCHOR TO STRUCT. @

4'-0" O.C.

12 GA. 3" X 6" STL.

PLATE EA. SIDE WELD

TO CONT. PLATE @ 4'-0"

O.C. STAGGERED

FILL VOIDS BTWN.

MTL. DECK & PLATE W/

FIRE SAFING

INSULATION

SEAL OVER INSUL. BTWN.

DECK FLUTES & PLATE,

BOTH SIDES @ SOUND OR

FIRE RATED PARTITIONS

12 GA. PLATE, CONT.

ANCHOR TO STRUCT. @

4'-0" O.C.

12 GA. 3" X 6" STL. PLATE

EA. SIDE WELD TO CONT.

PLATE @ 4'-0" O.C.

STAGGERED

PERPENDICULAR TO FLUTES

C2

PARTITION TOP - METAL DECK (CONCRETE DECK SIM)

3" = 1'-0"

CEILING GRID

SUSPENSION

SYSTEM

SHIMS @

FASTENERS

A2

J OR L - TYPE MTL.

CASING BEAD,

BOTH SIDES

COMPRESSIBLE

NEOPRENE

GASKET, CONT.

B2

PARTITION TOP AT ACT CEILING

3" = 1'-0"

CONTROL JOINT

TYPICAL DOOR FRAMING 02

3" = 1'-0"

CONTROL JT.

ANCHOR RUNNER

TRACK TO SUSP.

SYS. W/ SCREWS

@ 24" O.C.

SCHEDULED

PARTITION

STEEL STUDS @ 16" O.C., TYP.

SECURE DOUBLE 20 GA. MTL.

STUDS TO STRUCTURE TOP &

BOTTOM @ JAMBS

1 1/2" COLD ROLLED CHANNEL

@ OPENINGS OVER 3'-4" WIDE -

EXTENDED TO FIRST STUD

BEYOND

STEEL RUNNER TRACK

BTWN. JAMB STUDS. TURN

UP AT JAMBS AND SECURE

ENDS.

PROVIDE ONE JAMB ANCHOR

ABOVE EACH HINGE AND

BELOW TOP HINGE. LOCATION

OF ANCHORS ON STRIKE JAMB

TO BE IDENTICAL

FLOOR ANCHOR CLIPS

SECURED W/ 2 FASTENERS, MIN.

WALL OR STRUCTURE

SCHEDULED CEILING

METAL STUDS W/ BRACKETS

OR CLIP ANGLES

D1

PARTITION

PARTITION TOP - FURRING

1 1/2" = 1'-0"

REF: PARTITION

TYPE

REF. PLANS FOR

PARTITION TYPE

EXTEND PARTITION

AROUND ALL SIDES

OF ACCESSORY

RECESS, TYP.

C1

CABINET/ACCESSORY

AS SPECIFIED

ACCESSORY RECESS AT RATED PARTITION

3" = 1'-0"

REF. PARTITION TOP DETAILS

STEEL BAR JOIST

STEEL BEAM

LONG LEG RUNNER

SCRIBE 3/8" JOINT

AROUND STEEL & FILL

W/ SEALANT. USE FIRE

RETARDANT SEALANT

@ FIRE RATED

PARTITION

METAL

STUDS

B1

STEEL RUNNER

BRACING

WALL BOARD -

REFER TO

PARTITION TYPES

NOTE: GYP. BD. NOT

SHOWN FOR CLARITY

PARTITION PENETRATION FRAMING/SPACING

3" = 1'-0"

CONTROL

JOINT STEEL STUDS @ 16" O.C., TYP.

CONTROL JT.

JOINT

SECURE DOUBLE 20 GA. MTL

STUDS TO STRUCTURE TOP

AND BOTTOM @ JAMBS

1 1/2" COLD ROLLED CHANNEL

@ OPENINGS OVER 3'-4" WIDE

- EXTENDED TO FIRST STUD

BEYOND

STEEL RUNNER TRACK BTWN.

JAMB STUDS. TURN UP AT

JAMB AND SECURE ENDS

NO.

REVISION

SHEET NAME:

DATE

07/21/14

PARTITION DETAILS

REFER TO

DOOR SCHEDULE

A1

TYPICAL DOOR FRAMING

3" = 1'-0"

PROVIDE ONE JAMB ANCHOR

ABOVE EACH HINGE AND

BELOW TOP HINGE. LOCATION

OF ANCHORS ON STRIKE

JAMB TO BE IDENTICAL

DATE: 07/21/14

REVIEWED BY:

PROJECT NO.:

FLOOR ANCHOR CLIPS

SECURED W/ 2 FASTNERS (MIN.)

SHEET NO.:

Checker

201502200

A4-02

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

HARDWARE SCHEDULE

HARDWARE SET #1: SLIDING DOOR HARDWARE

ADAMS RITE: MS DEADBOLT - MS 1950-050 SERIES

CYLINDER BACKSET: 31/32", 1/8" OR 1-1/2" ONLY

CASE: FULLY STAINLESS STEEL CASE AND INTERNAL COMPONENTS

1"X6"XDEPTH (DEPTH VARIES BY BACK-SET)

BOLT: 5/8"X1-3/8" WITH 13/16" THROW EIGHT-PLY LAMINATED STEEL WITH

ALUMINA CERAMIC CORE DEFEATS ANY HACKSAW ATTACK, WHILE `

HOOK SHAPE REPELS PRYBAR ATTEMPTS TO SPREAD DOOR FROM ITS

JAMB OR LIFT OFF OF TRACK.

OPERATION: 360 DEGREE TURN OF KEY OR THUMBTURN THROWS OR

RETRACTS THE COUNTERBALANCED BOLT. KEY CAN BE REMOVED

ONLY WHEN BOLT IS IN A POSITIVELY LOCKED OR UNLOCKED

POSITION. LOCK ACCEPTS ANY STANDARD 1-5/32" DIAMETER MORTISE

CYLINDER OR THUMBTURN FROM EITHER OR BOTH SIDES. CYLINDER

MUST HAVE M5 DIMENSIONED CAM.

HARDWARE SET #2: STORAGE

3 EA. BUTT HINGES

1 EA. LOCK SET

1 EA. WALL STOP

3 EA. SILENCERS

1 EA. KICKPLATE

HARDWARE SET #3: GENERAL

3 EA. BUTT HINGES

1 EA. PASSAGE SET

1 EA. CLOSERS

1 EA. WALL STOP

1 EA. SEAL

HARDWARE SET #4: SECURE STORAGE

3 EA. BUTT HINGES

1 EA. LOCK SET

1 EA. WALL STOP

1 EA. CLOSERS

3 EA. SILENCERS

1 EA. KICKPLATE

1 EA. CARD READER

HARDWARE SET #5: OFFICE

3 EA. BUTT HINGES

1 EA. LOCKSET

1 EA. WALL STOP

3 EA. SILENCERS

1 EA. PERM CORE

1 EA. DOOR SWEEP

HARDWARE SET #6: CORRIDOR

2 EA. BUTT HINGES

1 EA. ELEC. BUTT HINGE

1 EA. ELEC. LOCKSET

1 EA. ELEC. EXIT DEVICE

1 EA. CLOSERS

1 EA. SEAL

1 EA. KICKPLATE

1 EA. CARD READER

1 EA. POWER SUPPLY

1 EA. PERM CORE

1 EA. DOOR SWEEP

HARDWARE SET #7: PERIMETER DOORS

4 EA. SPOT WELDED HINGE PINS, BRAIDED, BRAIDED WITH NON-

REMOVABLE PIN HINGES OR SECURITY STUD HINGE TO

PREVENT REMOVAL OF PERIMETER ENTRANCE DOOR.

1 EA. LONG-THROW, HIGH SECURITY, SINGLE-KEY DEADBOLT LOCK

INSTALLED FOR SECURED HOURS.

1 EA. ELEC. LOCKSET

1 EA. ELEC. EXIT DEVICE

1 EA. AUTOMATIC DOOR CLOSERS

1 EA. 1/2" X 1/8" SOLID NEOPRENE STOP ON ALL THREE SIDES AND

THRESHOLD.

1 EA. KICKPLATE

1 EA. CARD READER

1 EA. POWER SUPPLY

1 EA. PERM CORE

1 EA. DOOR SWEEP TO STOP SOUND TRANSMISSION

HARDWARE SET #8: KEYPAD

3 EA. BUTT HINGES

1 EA. KEYPAD LOCK

1 EA. CLOSERS

1 EA. SEAL

1 EA. KICKPLATE

1 EA. DOOR MONITORING

1 EA. PERM CORE

PLEASE NOTE: TENANT'S PHYSICAL SECURITY PROGRAMS BRANCH

(PSPB) WILL PROVIDE THE CONTRACTOR SUPPLEMENTAL

REQUIREMENTS AND SPECIFICATIONS DURING THE CONSTRUCTION

PHASE. IF THE SPECIFICATIONS NOTED WITHIN THIS DOCUMENT

CONFLICT WITH THE SPECIFICATIONS PROVIDED BY PSPB, THE

SUPPLEMENTAL REQUIREMENTS AND SPECIFICATIONS FROM PSPB WILL

SUPERSEDE THE SPECIFICATIONS NOTED IN THIS DOCUMENT.

PLEASE NOTE: CONTRACTOR TO REFER TO SPECIFICATIONS FOR

ADDITIONAL INFORMATION AND DETAILS.

DOOR

#

704

706

707

708

709

710

711

700

700B

701

702

702B

702B

702C

718

720

721

723

724

725

712

713

714

715

716

717

727

727C

729

DOOR

TYPE WIDTH HEIGHT THK

C

D

B

D

C

D

D

D

D

D

A

D

D

D

C

D

D

D

D

D

C

C

D

D

C

B

D

D

D

3' - 0"

3' - 0"

3' - 0"

6' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

3' - 0"

6' - 0"

3' - 0"

3' - 0"

3' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

6' - 8"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

6' - 8"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

7' - 0"

MATERIAL

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 1/2" STEEL PLATES/STEEL TUBES

1 3/4"

1 3/4"

1 3/4"

1 3/4"

1 3/4"

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

1 3/4"

1 3/4"

1 3/4"

1 3/4"

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

1 3/4"

1 3/4"

1 3/4"

1 3/4"

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

BUILDING STANDARD

DOOR SCHEDULE

FRAME

3

4

2

4

3

4

4

4

4

4

2

1

2

4

4

3

2

4

4

4

4

3

3

4

4

4

4

TYPE MATERIAL FINISH

INTEGRAL

HM

HM

HM

HM

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

4

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

HM

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

PAINTED

GLAZ

TEMPERED

TEMPERED

TEMPERED

TEMPERED

TEMPERED

HW

SET

5

2

2

5

3

2

4

3

6

5

7

6

6

6

1

5

6

4

6

4

5

5

5

5

1

4

2

6

A4

TYPE 4

HOLLOW METAL

APPLIED GLAZING AND

STOP AS SCHEDULED,

ATTACH WITH TAMPER-

PROOF SCREWS

HOLLOW METAL

FRAME ANCHOR

HOLLOW METAL

FRAME AND

SCHEDULED DOOR

HM JAMB AT DOOR AND SIDE LITE

3" = 1'-0"

TYPE 3

HOLLOW METAL

A3

TYPE 2

HOLLOW METAL

TYPE 1

FORMED STEEL

PLATES

DOOR FRAME TYPES

REF: PARTITION TYPE

HM DOOR HEAD

3" = 1'-0"

SCHEDULED PARTITION

ACOUSTIC BATT

INSULATION WHERE

SCHEDULED

SEALANT EACH SIDE

JAMB ANCHOR

HOLLOW METAL

FRAME AND

SCHEDULED DOOR

A2

REF: PARTITION TYPE

HM DOOR JAMB

3" = 1'-0"

TYPE D

SOLID CORE

STAINED PER

BUILDING STANDARD

TYPE C

SINGLE DOOR WITH SIDELIGHT

TEMPERED GLASS

WITH FILM

TYPE B

DOUBLE DOOR

SOLID CORE

STAINED PER BUILDING

STANDARD

TYPE A

INSULGUARD

CORPORATION HM544

BULLET RESISTING

DOOR SYSTEM

DOOR TYPES

NO.

REF: PARTITION TYPE

SCHEDULED PARTITION

ACOUSTIC BATT

INSULATION WHERE

SCHEDULED

SEALANT EACH SIDE

JAMB ANCHOR

SCHEDULED PARTITION

ACOUSTIC BATT

INSULATION WHERE

SCHEDULED

SEALANT EACH SIDE

HOLLOW METAL

FRAME ANCHOR

HOLLOW METAL

FRAME AND

SCHEDULED DOOR

A1

3" 2"

APPLIED GLAZING AND

STOP AS SCHEDULED,

ATTACH WITH TAMPER-

PROOF SCREWS

HOLLOW METAL SIDE LITE

3" = 1'-0"

REVISION DATE

SHEET NAME:

DOOR & WINDOW

TYPES

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A4-10

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

THIN SET TILE AS

SCHEDULED

SOLID SURFACE

TRANSITION AS

SCHEDULED

CARPET AS

SCHEDULED

D2

TRANSITION TILE TO CARPET-RR

3" = 1'-0"

C2

CARPET TILE,

AS SCHEDULED

JOHNSONITE CRS-20-A

SEALED CONCRETE

CARPET TO SEALED CONCRETE

6" = 1'-0"

NOTE: REFER TO

REFLECTED CEILING

PLAN FOR CEILING

HEIGHTS

SECURE TO

STRUCTURE ABOVE.

CEILING

PLATE.

SCHEDULED ACOUSTICAL

CEILING TILE SYSTEM.

BLOCKING AS REQUIRED

CHIEF MANUFACTURING

MCS, POLE MOUNTED LCD

WITH ADJUSTABLE ARM.

VERIFY SIZE OF LCD

PRIOR TO INSTALLATION.

C1

POLE MOUNTED LCD TELEVISION / MONITOR

1 1/2" = 1'-0"

B2

LVT TO TILE

6" = 1'-0"

FLOAT OUT 4'-0"

LVT, AS SCHEDULED

SCHLUTER-SCHIENE, A110

TILE, AS SCHEDULED

LVT, AS SCHEDULED

JOHNSONITE, RRS-20-D

SEALED CONCRETE

A2

LVT TO SEALED CONCRETE

6" = 1'-0"

SCHEDULED PARTITION

4"

PAINT GYP. BD. RECESS

TO MATCH ADJACENT

WALLS

PROVIDE IN WALL

BLOCKING AS REQUIRED.

CHIEF MANUFACTURING

LARGE THINSTALL DUAL

SWING ARM WALL

MOUNT.

CONTRACTOR TO

PROVIDE AND INSTALL

LCD.

RECESSED QUAD

RECEPTACLE FOR

POWER AND DATA

CONNECTIONS.

VERIFY DIMENSIONS OF

LCD TO ENSURE 3" GAP

AROUND PERIMETER

FOR VENTILATION

A1

RECESSED LCD TELEVISION / MONITOR

1 1/2" = 1'-0"

NO.

REVISION

SHEET NAME:

DATE

INTERIOR DETAILS

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A6-01

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

2'-1"

DOUG MOCKETT EDP3 FLIP

TOP 2 11/2" GROMMET. REFER

TO ELEVATIONS FOR

LOCATIONS.

PLASTIC LAMINATE CLAD MDF

COUNTERTOP, BACKSPLASH

AND NOSING.

COORDINATE SIZE OF CLEAT

WITH EQUIP. TO INSURE PROPER

FIT.

D3

SPECIFIED EQUIP. SHOWN

DASHED, CONFIRM EXACT

DIMENSIONS PRIOR TO

FABRICATION OF BASE CABINET.

PROVIDE RECESSED UTILITY

BOX CONNECTIONS WHERE

REQUIRED & NECESSARY

ELECTRICAL DEVICES AT

EQUIP.

BASE CABINET W/ EQUIPMENT

1" = 1'-0"

1'-1"

FACE OF MILLWORK

TO ALIGN WITH

FACE OF FURR

DOWN

2"

8 1/4" 9 3/4" 1 1/4"

4"

8"

R 1

' - 2

"

2'-1"

6"

SCHEDULED

UNDERCABINET

LIGHTING. REFER

TO MEP.

1'-7 1/2" 5 1/4"

SCHEDULED SINK AND FACUET. REFER

TO MEP SCHEDULES

C2

LONG GUN RACK SECTION

1" = 1'-0"

2'-1"

PLASTIC LAMINATE

CLAD MDF

COUNTERTOP,

BACKSPLASH AND

NOSING.

2'-1"

FACE OF MILLWORK

TO ALIGN WITH

FACE OF FURR

DOWN

8" MIN.

PROVIDE ELECTRICAL

DEVICES AT EACH

MICROWAVE, REFER TO

ELECTRICAL PLAN.

MICROWAVE SHOWN

DASHED FOR

REFERENCE.

LINE OF CABINET DOOR

BEYOND.

FIXED SHELVES. PROVIDE

WOOD BLOCKING FOR

SUPPORT OF SHELVES.

PROVIDE HOLES FOR

VENTILATION BETWEEN

SHELVES.

6" MAX

1'-5" MIN.

B3

ADA SINK CABINET

1" = 1'-0"

2'-1"

EQ EQ

FULL-EXTENSION DRAWER

GUIDES, TYP.

PLAM ON 3/4" MDF

PLYWOOD COUNTERTOP &

BACKSPLASH

3"

A4

3 - MICROWAVE CABINET

1" = 1'-0"

PROVIDE PLASTIC LAMINATE

BASEBOARD TO MATCH

ADJ. CABINETS, TYP.

SCRIBE TO FLOOR. HEIGHT

TO MATCH ADJ. SCHEDULED

BASE.

A3

3"

BASE CABINET-TRASH

1" = 1'-0"

DOUG MOCKETT STAINLESS

STEEL TRASH GROMMET

TM2B 8" X 2"

CONTRACTOR TO PROVIDE

RUBBERMAID SLIM JIM 3540

20"D X 11"W X 30"H, COLOR

GRAY

3"

B2

4 DRAWER BASE CABINET

1" = 1'-0"

A2

2'-1"

BOX/BOX/FILE

1" = 1'-0"

3"

PLASTIC LAMINATE

COUNTERTOP,

BACKSPLASH AND

NOSING.

GENERAL NOTES : MILLWORK

1 ALL MILLWORK CONSTRUCTION TO COMPLY WITH AWI SECTION

400, PREMIUM GRADE, FLUSH OVERLAY CONSTRUCTION. FINISH

AS LISTED BELOW.

2 ALL CLOSET AND UTILITY SHELVING TO COMPLY WITH AWI

SECTION 600. FINISH TO BE PAINT, UNLESS NOTED OTHERWISE.

3 SUBSTRATE THICKNESSES TO BE AS INDICATED ON THE

DRAWINGS.

4 SUBSTRATE MATERIALS TO BE AS FOLLOWS:

CABINET BODIES – M.D.F.

SHELVES – M.D.F.

COUNTERTOPS – M.D.F., EXCEPT USE PLYWOOD AT CABINETS

WITH SINKS, AND AT CABINET UNITS EITHER SIDE OF SINK

CABINETS.

CABINET BACKS – HARDBOARD

DOORS – M.D.F.

DRAWER FRONTS – M.D.F.

DRAWER BOXES – ½” SOLID WOOD OR PLYWOOD

DRAWER BOTTOMS – ¼ ” HARDBOARD

BLOCKING – SOLID WOOD, PLYWOOD OR M.D.F.

INTERMEDIATE BOTTOM SUPPORTS – PLYWOOD OR M.D.F.

5 FINISHES TO BE AS FOLLOWS, UNLESS NOTED OTHERWISE:

EXPOSED SURFACES – PLASTIC LAMINATE

SEMI-EXPOSED SURFACES – MELAMINE

CONCEALED SURFACES – UNFINISHED

VARIATIONS AS NOTED ON THE DRAWINGS

6 CABINET HARDWARE:

PULLS: 4” WIRE PULL, BRUSHED ALUMINUM – HAEFELE 116.39.464

OR EQUAL.

HINGES: SELF-CLOSING – GRASS 1003 OR EQUAL.

RECESSED STANDARDS: KV255 – ZINC PLATED STEEL.

CLIPS: KV256 – ZINC PLATED STEEL

SHELF PINS: HAEFELE 282.04.711 – NICKLE-PLATED

DOOR BUMPERS: HAEFELE 365.25.400 OR EQUAL.

DRAWER SLIDES: KV1284 – ¾ EXTENSION, EPOXY-COATED

UTILITY SHELVING STANDARDS – KV80 W/ KV180 BRACKETS –

BRUSHED ALUMINUM FINISH

7 REFER TO ROOM FINISH SCHEDULE AND INTERIOR ELEVATIONS

FOR CABINET FINISH SELECTIONS.

8 SHOP DRAWINGS – PROVIDE 3 SETS OF PRINTS FOR REVIEW

PRIOR TO COMMENCEMENT OF FABRICATION.

A1

1'-2"

2'-1"

BASE CABINET

1" = 1'-0"

FACE OF MILLWORK TO ALIGN

WITH FACE OF FURR DOWN

SCHEDULED UNDERCABINET

LIGHTING. REFER TO MEP.

PLAM ON 3/4" MDF

COUNTERTOP &

BACKSPLASH

MELAMINE CLAD MDF

ADJUSTABLE

SHELVING, TYPCIAL.

NO.

REVISION

SHEET NAME:

DATE

MILLWORK DETAILS

DATE:

REVIEWED BY:

PROJECT NO.:

GSC

201502200

SHEET NO.:

A6-02

© COPYRIGHT GSC ARCHITECTS 2014. ALL RIGHTS RESERVED.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
