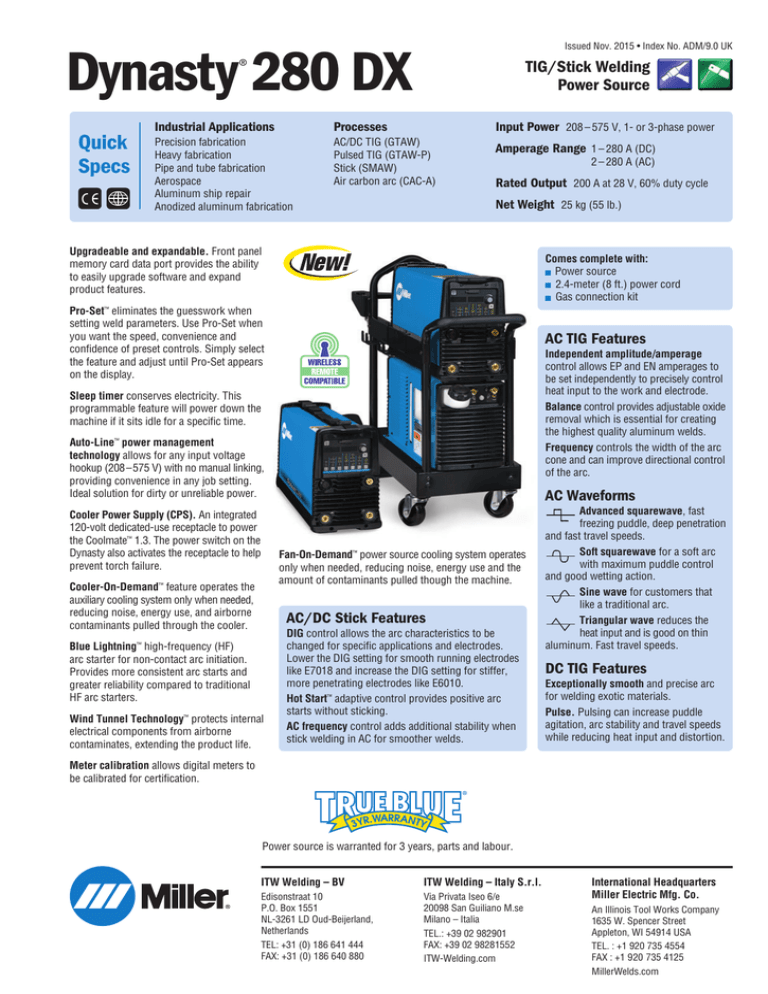

Dynasty 280 DX Quick ®

Dynasty 280 DX Quick ®
Issued Nov. 2015 • Index No. ADM/9.0 UK
Dynasty 280 DX
®
Quick
Specs
TIG/Stick Welding
Power Source
Industrial Applications
Processes
Precision fabrication
Heavy fabrication
Pipe and tube fabrication
Aerospace
Aluminum ship repair
Anodized aluminum fabrication
AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air carbon arc (CAC-A)
Input Power 208 – 575 V, 1- or 3-phase power
Amperage Range 1 – 280 A (DC)
2 – 280 A (AC)
Rated Output 200 A at 28 V, 60% duty cycle
Net Weight 25 kg (55 lb.)
Upgradeable and expandable. Front panel
memory card data port provides the ability
to easily upgrade software and expand
product features.
Comes complete with:
Power source
2.4-meter (8 ft.) power cord
Gas connection kit
Pro-Set™ eliminates the guesswork when
setting weld parameters. Use Pro-Set when
you want the speed, convenience and
confidence of preset controls. Simply select
the feature and adjust until Pro-Set appears
on the display.
AC TIG Features
Independent amplitude/amperage
control allows EP and EN amperages to
be set independently to precisely control
heat input to the work and electrode.
Balance control provides adjustable oxide
removal which is essential for creating
the highest quality aluminum welds.
Frequency controls the width of the arc
cone and can improve directional control
of the arc.
Sleep timer conserves electricity. This
programmable feature will power down the
machine if it sits idle for a specific time.
Auto-Line™ power management
technology allows for any input voltage
hookup (208 –575 V) with no manual linking,
providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
Cooler Power Supply (CPS). An integrated
120-volt dedicated-use receptacle to power
the Coolmate™ 1.3. The power switch on the
Dynasty also activates the receptacle to help
prevent torch failure.
AC Waveforms
Fan-On-Demand™ power source cooling system operates
only when needed, reducing noise, energy use and the
amount of contaminants pulled though the machine.
Cooler-On-Demand™ feature operates the
auxiliary cooling system only when needed,
reducing noise, energy use, and airborne
contaminants pulled through the cooler.
AC/DC Stick Features
Blue Lightning™ high-frequency (HF)
arc starter for non-contact arc initiation.
Provides more consistent arc starts and
greater reliability compared to traditional
HF arc starters.
Wind Tunnel Technology™ protects internal
electrical components from airborne
contaminates, extending the product life.
DIG control allows the arc characteristics to be
changed for specific applications and electrodes.
Lower the DIG setting for smooth running electrodes
like E7018 and increase the DIG setting for stiffer,
more penetrating electrodes like E6010.
Hot Start™ adaptive control provides positive arc
starts without sticking.
AC frequency control adds additional stability when
stick welding in AC for smoother welds.
Advanced squarewave, fast
freezing puddle, deep penetration
and fast travel speeds.
Soft squarewave for a soft arc
with maximum puddle control
and good wetting action.
Sine wave for customers that
like a traditional arc.
Triangular wave reduces the
heat input and is good on thin
aluminum. Fast travel speeds.
DC TIG Features
Exceptionally smooth and precise arc
for welding exotic materials.
Pulse. Pulsing can increase puddle
agitation, arc stability and travel speeds
while reducing heat input and distortion.
Meter calibration allows digital meters to
be calibrated for certification.
Power source is warranted for 3 years, parts and labour.
ITW Welding – BV
ITW Welding – Italy S.r.l.
Edisonstraat 10
P.O. Box 1551
NL-3261 LD Oud-Beijerland,
Netherlands
TEL: +31 (0) 186 641 444
FAX: +31 (0) 186 640 880
Via Privata Iseo 6/e
20098 San Guiliano M.se
Milano – Italia
TEL.: +39 02 982901
FAX: +39 02 98281552
ITW-Welding.com
International Headquarters
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 W. Spencer Street
Appleton, WI 54914 USA
TEL. : +1 920 735 4554
FAX : +1 920 735 4125
MillerWelds.com
Specifications (Subject to change without notice.)
Welding
Amperage
Range
Rated Output
3-phase
1–280 A (DC)
2–280 A (AC)
235 A at 19.4 V,
60% duty cycle
19
17
10
9
7
7.0
6.7
1-phase
1–280 A (DC)
2–280 A (AC)
235 A at 19.4 V,
60% duty cycle
33
30
17
15
12
6.9
6.8
3-phase
5–280 A
200 A at 28 V,
60% duty cycle
22
20
11
10
8
8.2
7.9
1-phase
5–280 A
180 A at 27.2 V,
60% duty cycle*
34
31
17
15
12
7.1
7.0
Welding
Mode
Input
Power
TIG
(GTAW)
Stick
(SMAW)
Amps Input at Rated Load Output, 50/60 Hz
208 V 230 V 400 V 460 V 575 V KVA KW
Max. OpenCircuit
Voltage
60 VDC
(11 VDC**)
Dimensions
Net
Weight
H: 346 mm (13.6 in.)
W: 219 mm (8.6 in.)
D: 569 mm (22.5 in.)
25 kg
(55 lb.)
with CPS
*Refer to owner’s manual for 208 V output ratings and duty cycle. **Low OCV sense voltage for stick and Lift-Arc ™ TIG.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
IP23 rating — This equipment is designed for outdoor use. It may be stored, but is not intended to be used outside during precipitation unless sheltered. Operating
temperature range is -10 to 40° C (14 to 104° F). Storage temperature range is -30 to 65° C (-22 to 149° F). Portions of the preceding text are contained in EN 60974-1:
“Welding power sources for arc welding equipment.”
Coolmate 1.3 CE Cooler
™
•
•
•
•
Dynasty® models with CPS turn Coolmate 1.3 on and off
Power indicator light
Fluid level sight window
Rustproof polyethylene-molded coolant tank and
filler spout
• Efficient fin and tube heat exchanger
• Filter and coolant filling spout are conveniently located
• Brass-body, positive displacement rotary vane pump
provides consistent coolant flow and pressure rating with
long pump-life expectancy
Input Power
Maximum Current Draw
Rated Cooling Capacity
Tank Capacity
Dimensions
Net Weight
115 V, 60 Hz
4.7 A (60 Hz)
1470 W (5020 BTU/hr.)
1 L/min. (1.1 qt./min.)
4.9 L (1.3 gal.)
H: 320 mm (12.6 in.)
W: 219 mm (8.6 in.)
D: 620 mm (24.4 in.)
23.2 kg
(51 lb.)
TIG Upgrade Chart
Why Upgrade?
Thickness Capacity
Syncrowave 250
UPGRADE
Dynasty 280 DX
.015 – 3/8 in. aluminum
.012 – 3/8 in. steel
.012 – 3/8 in. aluminum
.004 – 3/8 in. steel
200 A, 60%
235 A, 60%
Weld longer at higher amperages. At 200 A the
Dynasty 280 DX can weld continuously.
Continuous HF
Start only HF
HF on start only limits HF interference issues during
the weld.
Digital and dial %
All digital
Precise adjustments allow EN and EP amperage values to be
set independently to precisely control heat input to the work
and electrode.
Confusion on Where
to Set the Controls?
Trial and error
Pro-Set™ eliminates the guesswork
when setting weld parameters.
Select the feature and adjust until Pro-Set appears in
display. Pro-Set is available for Balance, Frequency, Pulse and
DIG parameters.
AC Frequency Control
(Aluminum TIG)
Fixed at 60 Hz
Variable 20 – 400 Hz
AC Balance Control
(Aluminum TIG)
45 – 68%,
electrode negative
50 – 99%,
electrode negative
AC Waveforms
(Aluminum TIG)
Soft squarewave
Advanced squarewave
Soft squarewave
Sine wave
Triangular wave
Duty Cycle
High Frequency
Arc Starting
Precision Controls
Weld Aluminum with
Pointed Tungsten
(Aluminum TIG)
Portability
Power Flexibility
Line Draw at
200 Amps
2
Dynasty 280 DX Benefits
The Dynasty 280 DX has a lower bottom end, and can weld
thinner metals.
Higher frequencies provide better arc control and faster
travel speeds.
Greater electrode negative helps to produce welds with less
etching for more aesthetic looking welds.
Advanced squarewave = travel faster
Soft squarewave = maximum puddle control
Sine wave = traditional characteristics
Triangular wave = reduced heat input
Extended frequency and balance controls permit welding
aluminum with pointed tungsten. The benefits are reduced heat
input into your part, smaller weld beads, better starting, more
control of the arc and faster travel speeds.
378 lb. (172 kg),
crane or cart
52 lb. (23.6 kg),
carry or cart
Manual link, 208/230/460 V,
single-phase only
Auto-Line™, 208 – 575 V,
single-phase or three-phase
77 A, 230 V, single-phase
25 A, 230 V, single-phase
15 A, 230 V, three-phase
Easier to move because of size and weight. Don’t have to wait
for a crane operator.
Auto-Line allows the unit to operate on any voltage.
Single- or three-phase. Even generators!
Line requirement to operate is much less. Smaller electrical
service needed, smaller breaker/fuses and power cord.
Genuine Miller Accessories
®
Small Runner Cart
#301 318
Designed for Maxstar
210/280, Dynasty 210/280
and STH 270, with or without
cooler. Cart features single
cylinder rack, cable holder
and foot pedal holder.
Remote Controls and Switches
MH Running Gear
#018 035 026
Designed for Maxstar
210/280, Dynasty 210/280
and STH 270, with or without
cooler. Easy-to-maneuver
two-wheel cart with single
cylinder rack, cable holder
and storage area.
RFCS-14 HD Foot Control
#194 744
Maximum flexibility is accomplished with a reconfigurable
cord that can exit the front, back or either side
of the pedal. Foot pedal provides remote
current and contactor control.
Coolmate™ 1.3 CE
#028 042 108
Designed to integrate with
Maxstar 280 and Dynasty
210/280. For use with
water-cooled torches
rated up to 280 amps.
4.9 L (1.3 gal.) capacity.
RCC-14 Remote Contactor and Current
Control #151 086 14-pin plug
Side-to-side rotary-motion fingertip control
fastens to TIG torch using two hook-and-loop
straps.
Memory Cards
Wireless Remote Foot Control
#300 429
For remote current and
contactor control. Receiver
plugs directly into the 14-pin receptacle of
Miller machine.
Wireless Remote Hand
Control #300 430
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine.
RMS-14 On/Off Control #187 208
Momentary-contact switch for contactor
control. Rubber-covered pushbutton dome
switch ideal for repetitive on-off applications.
RCCS-14 Remote Contactor and Current
Control #043 688 14-pin plug
Up-and-down rotary-motion fingertip control
fastens to TIG torch using two hook-and-loop
straps.
Memory Card Expansion
#301 151 14-Pin Automation Expansion
Provides the ability to access common
automation functions through the 14-pin
connection.
#301 152 14-Pin Modbus® Expansion
Provides the ability to access basic and
advanced functions through the 14-pin
connection.
#301 328 Hot Wire Power Supply Expansion
Provides the ability to access common hot wire
TIG power supply functions.
SHRC-14 Remote Control
#058 040 019 5 m (16.4 ft.)
#058 040 020 10 m (32.8 ft.)
#058 040 021 20 m (65.6 ft.)
Single-hand control for current only.
Memory Card (Blank) #301 080
Blank memory card for transferring data from
computer to machine.
RHC-14 Hand Control
#242 211 020
Miniature hand control for
remote current and contactor
control.
Tungsten
Tungsten
Amp Range
2% Ceriated (AC/DC)
2% Lanthanated (AC/DC)
1.6 mm (1/16 in.)
70 –150 A
WC116X7
WL2116X7
2.4 mm (3/32 in.)
140 – 250 A
WC332X7
WL2332X7
3.2 mm (1/8 in.)
225 – 400 A
WC018X7
WL2018X7
4.0 mm (5/32 in.)
300 – 500 A
WC532X7
WL2532X7
3
Ordering Information
Equipment and Options
Stock No.
Description
Dynasty 280 DX with CPS
#907 514 002
Auto-Line 208 – 575 V, 50/60 Hz, CE. 2.4 m (8 ft.) primary cord
®
Qty.
™
Accessories
Small Runner Cart
#301 318
MH Running Gear
#018 035 026
Coolmate™ 1.3 CE
#028 042 108
115 V, 60 Hz, CE. Requires coolant
Blu-Liquid Coolant
#050 024 004
Low conductivity, 10 litres
Memory Card Expansion
#301 151
#301 152
#301 328
14-pin automation expansion
14-pin Modbus® expansion
Hot wire power supply expansion
Memory Card (Blank)
#301 080
Welding Cable Kit, Stick
#058 066 040
200 A, 35 mm2, 5 m (16.4 ft.)
Work Piece Cable
#057 014 148
#057 014 149
300 A, 50 mm2, 3 m (9.8 ft.)
300 A, 50 mm2, 5 m (16.4 ft.)
MH two-wheeled cart with cylinder rack
TIG Torch
Tungsten
See page 3
Helmet
Gas Hose
Remote Controls
Wireless Remote Foot Control
#300 429
Foot control with wireless 27.4 m (90 ft.) operating range
RFCS-14 HD
#194 744
6 m (20 ft.), heavy-duty foot control
RCC-14
#151 086
8 m (26.5 ft.), remote current/contactor side-to-side rotary control
RCCS-14
#043 688
8 m (26.5 ft.), remote current/contactor up-and-down rotary control
SRHC-14
#058 040 019
#058 040 020
#058 040 021
5 m (16.4 ft.), single-hand remote control for current only
10 m (32.8 ft.), single-hand remote control for current only
20 m (65.6 ft.), single-hand remote control for current only
RHC-14
#242 211 020
6 m (20 ft.), remote current/contactor hand control
Wireless Remote Hand Control
#300 430
Hand control with wireless 91.4 m (300 ft.) operating range
RMS-14
#187 208
8 m (26.5 ft.), momentary-contact switch for contactor control
Date:
Distributed by:
© 2015 Miller Electric Mfg. Co.
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
