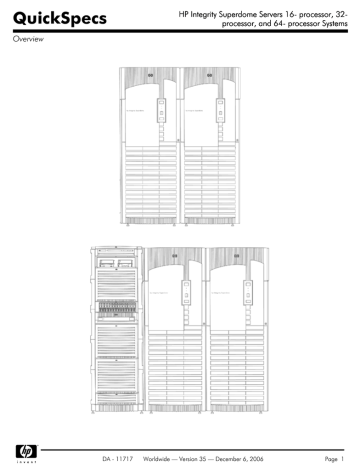

QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Overview
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 1
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Overview
At A Glance
The latest release of Superdome, HP Integrity Superdome supports the new and improved sx2000 chip set.
The Integrity Superdome with the sx2000 chipset supports the Mad9M Itanium 2 processor at initial release.
HP Integrity Superdome supports the following processors:
sx2000
Dual core Itanium 2 1.6-GHz processor
Itanium 2 1.6-GHz processor
sx1000
Itanium 2 1.5 GHz and 1.6 GHz processors
HP mx2 processor module based on two Itanium 2 processors
HP sx1000 Integrity Superdome supports mixing the Itanium 2 1.5 GHz processor, the Itanium 2 1.6 GHz processor and the HP mx2
processor module in the same system, but on different partitions, as long as they have the same chipset. All cell boards to be mixed
in a system must contain the same chipset, sx1000 or sx2000, but not both. HP Integrity sx1000 Superdome also supports mixing
the Itanium 2 1.6 GHz processor, PA 8800 and PA 8900 processors in the same system, but on different partitions, again only with
the same chipset, sx1000 or sx2000.
Throughout the rest of this document, the term HP sx1000 Integrity Superdome with Itanium 2 1.5 GHz processors, Itanium 2 1.6
GHz processors or mx2 processor modules will be referred to as simply "Superdome sx1000". The HP sx2000 Integrity Superdome
with dual core Itanium processors or single core Itanium 2 processors will be referred to as "Superdome sx2000".
Superdome with Itanium processors showcases HP's commitment to delivering a 64 processor Itanium server and superior investment
protection. It is the dawn of a new era in high end computing with the emergence of commodity based hardware.
Superdome supports a multi OS environment. Currently, HP UX, Windows Server 2003, Red Hat, SUSE , and OpenVMS are
shipping with Integrity Superdome sx1000. Customers can order any combination of HP UX 11i v2, Windows Server 2003
Datacenter Edition, Windows Server 2003 Enterprise Edition, RHEL AS 3 or 4, SLES 9 or10 or OpenVMS running in separate hard
partitions.
With the release of HP Superdome sx2000 with dual-core Itanium 2 processors, HP-UX, Windows Server 2003, OpenVMS and Linux
are all supported in separate hard partitions.
The multi OS environment offered by Superdome is listed below.
HP-UX 11i version 2
(sx1000 & sx2000
systems)
Improved performance over PA-8700
Investment protection through upgrades from existing Superdomes to next-generation Itanium 2
processors
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 2
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Overview
Windows Server 2003,
Datacenter Edition or
Enterprise Edition for
Itanium 2
(sx1000 and sx2000
Itanium systems)
Extension of industry standard-based computing with the Windows operating system further into
the enterprise data center
Increased performance and scalability over 32-bit implementations
Lower cost of ownership versus proprietary operating system solutions
Ideal for scale up database opportunities (such as SQL Server 2000 or 2005 (64 bit), Enterprise
Edition)
Ideal for database consolidation opportunities such as consolidation of legacy 32 bit versions of
SQL Server 2000 to SQL Server 2005 (64 bit)
NOTE: Windows Server 2003, Enterprise Edition is not supported with mx2 modules
Red Hat RHEL AS 3 and 4
and SUSE SLES 9 or 10
(sx1000 Itanium systems
only)
Red Hat RHEL AS 4 and
SUSE SLES 10
(sx2000 systems)
Extension of industry standard computing with Linux further into the enterprise data center
Lower cost of ownership
Ideal for server consolidation opportunities
Not supported on Superdome with mx2 processor modules
OpenVMS V8.2-1
Unmatched availability and disaster tolerance
100% application availability with clustering
Up to 800 km between cluster nodes affords maximum Disaster Tolerance
Impenetrable security
Most secure commercial OS
Complies with US Federal Government C2 Standards
Minimum TCO and outstanding investment protection
Allowing nodes in a cluster from a workstation to Superdome as well as mixed architecture
clusters
Server consolidation
UNIX portability features allowing easy port to OpenVMS
HP Superdome sx1000 configurations
Minimum version is OpenVMS V8.2-1
Mad9M processors only
Requires Firmware Version rel_6.0 (or higher). In systems with PA-RISC and Integrity
partitions, firmware version rel_6.1 (or higher) is required.
HP Superdome sx2000 configurations
Minimum version is OpenVMS V8.3
Dual-core Itanium 2 processors only
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 3
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Overview
Superdome Service
Solutions
Superdome continues to provide the same positive Total Customer Experience via industry-leading HP
Services, as with existing Superdome servers. The HP Services component of Superdome is as follows:
HP customers have consistently achieved higher levels of satisfaction when key components of their
IT infrastructures are implemented using the Solution Life Cycle.
Cycle The Solution Life Cycle focuses
on rapid productivity and maximum availability by examining customers' specific needs at each of
five distinct phases (plan, design, integrate, install, and manage) and then designing their
Superdome solution around those needs. HP offers three pre configured service solutions for
Superdome that provides customers with a choice of lifecycle services to address their own
individual business requirements.
Foundation Service Solution: This solution reduces design problems, speeds time-toproduction, and lays the groundwork for long-term system reliability by combining preinstallation preparation and integration services, hands on training and reactive support.
This solution includes HP Support Plus 24 to provide an integrated set of 24x7 hardware
and software services as well as software updates for selected HP and third party products.
Proactive Service Solution: This solution builds on the Foundation Service Solution by
enhancing the management phase of the Solution Life Cycle with HP Proactive 24 to
complement your internal IT resources with proactive assistance and reactive support.
Proactive Service Solution helps reduce design problems, speed time to production, and lay
the groundwork for long term system reliability by combining pre installation preparation
and integration services with hands on staff training and transition assistance. With HP
Proactive 24 included in your solution, you optimize the effectiveness of your IT environment
with access to an HP-certified team of experts that can help you identify potential areas of
improvement in key IT processes and implement necessary changes to increase availability.
Critical Service Solution: Mission Critical environments are maintained by combining
proactive and reactive support services to ensure maximum IT availability and performance
for companies that can't tolerate downtime without serious business impact. Critical Service
Solution encompasses the full spectrum of deliverables across the Solution Lifecycle and is
enhanced by HP Critical Service as the core of the management phase. This total solution
provides maximum system availability and reduces design problems, speeds time-toproduction, and lays the groundwork for long term system reliability by combining preinstallation preparation and integration services, hands on training, transition assistance,
remote monitoring, and mission critical support. As part of HP Critical Service, you get the
services of a team of HP certified experts that will assist with the transition process, teach
your staff how to optimize system performance, and monitor your system closely so potential
problems are identified before they can affect availability.
HP's Mission-Critical Partnership: This service offering provides customers the opportunity to
create a custom agreement with Hewlett Packard to achieve the level of service that you need to
meet your business requirements. This level of service can help you reduce the business risk of a
complex IT infrastructure, by helping you align IT service delivery to your business objectives,
enable a high rate of business change, and continuously improve service levels. HP will work with
you proactively to eliminate downtime, and improve IT management processes.
Service Solution Enhancements: HP's full portfolio of services is available to enhance your
Superdome Service Solution in order to address your specific business needs. Services focused
across multi-operating systems as well as other platforms such as storage and networks can be
combined to compliment your total solution.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 4
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Standard Features
Minimum/Maximum Configurations for Superdome (sx1000 & sx2000) with Intel Itanium 2 Processors (1.5 GHz and 1.6 GHz)
NOTE: : HP Superdome (sx2000) systems (Itanium 2 (1.6 GHz) '"Mad9M") support only HP UX and Windows.
System Size
Minimum Configuration
HP-UX
11i V2
16 Processors
Processors
Maximum Configuration
(One Partition)
Windows Red Hat OpenVMS HP-UX 11i Windows
SUSE
Red Hat OpenVMS
2003 RHEL AS3 version
2003
SLES 9 RHEL AS 4 version
V2
Datacenter & 4and 8.2 1 (or
Datacenter/ (sx1000
(sx1000 8.2 1 (or
Edition SuSE SLES higher) 3
*Enterprise
Enterprise
only)
only)
higher)3
and
9 & 10
Edition4
Enterprise (sx1000
Edition4
only)
2
2
2
2
16
Memory
2 GB
2 GB
2 GB
2 GB
256 GB/
512 GB
(sx2000)
Cell Boards
1 Cell
Board
1 Cell
Board
1 Cell
Board
1 Cell
Board
4 Cell
Boards
1
1
1
1
4
PCI-X Chassis
Max nPARS
32-Processors
Processors
Not
Not
Not
Not
applicable applicable applicable applicable
2
2
DA - 11717
2
2
4
32
16/
*8
256 GB
(sx1000
with DC
Edition)/
512GB
(sx2000
with DC
Edition)/
128 GB
(sx1000
with EE)/
256 GB
(sx2000
with EE)
4 Cell
Boards/
*2 Cell
Boards
4/
*2
4/
*2
16
16
16
256 GB
256 GB
256 GB
4 Cell
Boards
4 Cell
Boards
4 Cell
Boards
2
2
4
4
4
4
16
16
16
32/
*8
Worldwide — Version 35 — December 6, 2006
Page 5
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Standard Features
Memory
2 GB
2 GB
2 GB
2 GB
512 GB/
256 GB
(sx2000)
512 GB
(sx1000
with DC
Edition)/
1024 GB
(sx2000
with DC
Edition)/
128 GB
(sx1000
with EE)/
256 GB
(sx2000
with EE)
256 GB
256 GB
256 GB
Cell Boards
1 Cell
Board
1 Cell
Board
1 Cell
Board
1 Cell
Board
8 Cell
Boards
4 Cell
Boards
4 Cell
Boards
4 Cell
Boards
1
1
1
1
8
8 Cell
Boards/
*2 Cell
Boards
8/
*2
81/
*2
2
2
4
8(1)
8(1)
8(1)
PCI-X Chassis
Max nPARS
64 Processors
Processors
Memory
Cell Boards
PCI-X Chassis
Max nPARS
Not
Not
Not
Not
applicable applicable applicable applicable
6
6
6 GB
6 GB
2 GB
3 Cell
Boards
3 Cell
Boards
Datacenter
Edition; 2
Cell
Boards
Enterprise
Edition
1
1 Cell
Board
1
Not
Supported
1
2
1
Not
Not
Not
Not
Applicable Applicable Applicable Applicable
DA - 11717
8 (1)
64
64/
Not
Not
*8
Supported Supported
1024 GB/ 1024 GB
2048 GB
(both
(sx2000) sx1000 and
sx2000 with
DC
Edition)/
128 GB
(sx1000
with EE)/
256 GB
(sx2000
with EE)
16 Cell
16 Cell
Boards
Boards/
*2 Cell
Boards
16
16 (2)
16/
*2
162/
*2
16
256 GB
4 Cell
Boards
2
2
4
16 (2)
16 (2)
16 (2)
Worldwide — Version 35 — December 6, 2006
Page 6
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Standard Features
1Requires I/O expansion cabinet if more than 4 nPARS
2Requires I/O expansion cabinet if more than 8 nPARS
31.6 Ghz Mad9M Processors only on sx1000 configurations for OpenVMS
4Windows Server 2003, Enterprise Edition is not support with mx2 modules.
*NOTE: HP Superdome (sx2000) systems (Itanium 2 (1.6 GHz) '"Mad9M") support only HP UX and
Windows.
Minimum/Maximum Configurations for Superdome (sx2000) with Dual-core Intel Itanium 2 Processors
HP UX
11i V2
16 Processors / 32 Cores
Processors/ cores
1/2
Minimum Configuration
Maximum Configuration (One Partition)
SUSE
Red Hat OpenVMS
Windows Red Hat OpenVMS HP UX 11i Windows
2003
R4 U3
V8.3 (or
2003
SLES 10
RHEL 4
version
V2
Datacenter
higher)3
Datacenter/ (Q1 07)
(U3)
8.3 (or
Edition
Enterprise
higher)3
and
Edition
Enterprise
Edition
1/2
Datacenter
16/32;
Enterprise
8/16
Memory
2 GB
2 GB
4GB
2 GB
512 GB
Datacenter
512 GB;
Enterprise256
GB
Cell Boards
1 Cell
1 Cell
1 Cell
1 Cell
4 Cell
Datacenter 4
Board
Board
Board
Board
Boards Cell Boards;
Enterprise 2
Cell Boards
PCI X Chassis
1
1
1
1
4
Datacenter 4;
Enterprise 2
Maximum nPars
Not
Not
Not
Not
4
Datacenter 4;
applicable applicable applicable applicable
Enterprise 2
32 Processors / 64 Cores
Processors / Cores
1/2
1/2
1/2
1/2
32/64
Datacenter
32/64;
Enterprise
8/16
Memory
2 GB
2 GB
4 GB
2 GB
1024 GB Datacenter
1024 GB;
Enterprise
256 GB
Cell Boards
1 Cell
1 Cell
1 Cell
1 Cell
8 Cell
Datacenter 8
Board
Board
Board
Board
Boards Cell Boards;
Enterprise 2
Cell Boards
PCI X Chassis
1
1
1
1
8
Datacenter 8;
Enterprise 2
DA - 11717
1/2
1/2
16/32
Worldwide — Version 35 — December 6, 2006
16/32
16/32
256 GB
512 GB
4 Cell
Boards
4 Cell
Boards
4
4
4
4
32/64
16/32
512 GB
512 GB
8 Cell
Boards
4 Cell
Boards
4
4
Page 7
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Standard Features
Maximum nPars
Not
Not
Not
Not
applicable applicable applicable applicable
64 Processors / 128 Cores
Processors / Cores
2/4
2/4
Memory
6 GB
6 GB
2 GB
3 Cell
Boards
3 Cell
Boards
Datacenter
Edition; 2
Cell
Boards
Enterprise
Edition
1
1 Cell
Board
Cell Boards
PCI X Chassis
Maximum nPars
1
To be
supported
Q1 07
1/2
1
Not
Not
Not
Not
applicable applicable applicable applicable
1Requires I/O expansion cabinet if more than 4 nPars
2 Requires I/O expansion cabinet if more than 8 nPars
3 Dual core Montecito processors only on sx2000 configurations
Standard Hardware
Features
81
Datacenter
81;
Enterprise 2
64/128
Datacenter
32/64;
Enterprise
8/16
2048 GB Datacenter
1024 GB;
Enterprise
256 GB
16 Cell
Datacenter
Boards
16 Cell
Boards;
Enterprise 2
Cell Boards
16
162
81
81
To be
supported
Q1 07
16/32
512 GB
4 Cell
Boards
Datacenter
16;
Enterprise 2
Datacenter
162;
Enterprise 2
4
162
for OpenVMS
Superdome with Intel Itanium 2 and Dual core Itanium 2 Processors Standard Hardware Features
Redundant Power supplies
Redundant Fans
Factory integration of memory and I/O cards
Installation Guide, Operator's Guide and Architecture Manual
HP site planning and installation
One-year warranty with same business day on-site service response
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 8
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Standard Features
The HP Integrity (sx1000) Superdome servers may require a firmware update to support Intel Itanium 2
Processor/Cell Add on products shipping after June 15, 2005.
Affected Intel Itanium 2 processor products for the Integrity (sx1000) Superdome are:
AD003A-Intel Itanium 2 1.6 GHz 9 MB processor (2 pack)
AD004A-Instant Capacity right to access Intel Itanium 2 1.6 GHz 9 MB processor
ACTION:
Check the server firmware prior to installing any of these processor products. The firmware versions can be
checked using the MP "sysrev" command. The HP Integrity Superdome requires "Firmware Version rel_5.1"
or later. The individual firmware revisions that make up version rel_5.1 and the firmware upgrade
instructions are in the Release Notice that is included in the firmware download bundle. If you are not able
to check the firmware or if the firmware is not at version rel_5.1 or later, contact HP support.
NOTE: For sx1000 configurations, OpenVMS requires firmware version rel_6.0 or later and for for systems
with PA RISC and Integrity partitions, firmware version rel_6.1 or later.
NOTE: Once the firmware is at the supported revision level, proceed with attaching the Processor/Cell
Add-On Products to the server using the Service Guide. The Service Guide is available at
http://docs.hp.com.
Minimum/Maximum Configurations for Superdome with mx2 Processor Modules (sx1000 systems only)
System Size
Minimum Configuration
HP-UX 11i V2
16 Processors
Processors
Memory
Cell Boards
PCI-X Chassis
Max nPARS
32-Processors
Processors
Memory
Cell Boards
PCI-X Chassis
Max nPARS
64-Processors
Processors
Memory
Cell Boards
PCI-X Chassis
Max nPARS
Windows 2003
Datacenter
Maximum Configuration
(One Partition)
HP-UX 11i V2
Windows 2003
Datacenter
2
2 GB
1 Cell Board
1
Not applicable
2
2 GB
1 Cell Board
1
Not applicable
32
256 GB
4 Cell Boards
4
4
32
256 GB
4 Cell Boards
4
4
2
2 GB
1 Cell Board
1
Not applicable
2
2 GB
1 Cell Board
1
Not applicable
64
512 GB
8 Cell Boards
8
8 (1)
64
512 GB
8 Cell Boards
8
8 (1)
6
6 GB
3 Cell Boards
1
Not Applicable
6
6 GB
3 Cell Boards
1
Not Applicable
128
1024 GB
16 Cell Boards
16
16 (2)
64
1024 GB
16 Cell Boards
16
16 (2)
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 9
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Standard Features
Standard Hardware
Features
Redundant Power supplies
Redundant Fans
Factory integration of memory and I/O cards
Installation Guide, Operator's Guide and Architecture Manual
HP site planning and installation
One-year warranty with same business day on-site service response
(1) Requires I/O Expansion cabinet if more than 4 nPARS
(2) Requires I/O Expansion cabinet if more than 8 nPARS
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 10
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
There are three basic building blocks in the Superdome system architecture: the cell, the crossbar backplane and the PCI-X based
I/O subsystem.
Cabinets (sx1000 &
sx2000)
Starting with the sx1000 chip set, Superdome servers will be released with the Graphite color. A
Superdome system will consist of up to four different types of cabinet assemblies:
One Superdome left cabinet.
No more than one Superdome right cabinet (only Superdome 64-processor system)
The Superdome cabinets contain all of the processors, memory and core devices of the system.
They will also house most (usually all) of the system's PCI-X cards. Systems may include both left
and right cabinet assemblies containing, a left or right backplane respectively.
One or more HP Rack System/E or the new HP Universal 10K G2 cabinets. These 19 inch rack
cabinets are used to hold the system peripheral devices such as disk drives.
Optionally, one or more I/O expansion cabinets (Rack System/E or the new HP Universal 10K
G2). An I/O expansion cabinet is required when a customer requires more PCI X cards than can
be accommodated in their Superdome cabinets.
Superdome cabinets will be serviced from the front and rear of the cabinet only. This will enable
customers to arrange the cabinets of their Superdome system in the traditional row fashion found in most
computer rooms. The width of the cabinet will accommodate moving it through common doorways in the
U.S. and Europe. The intake air to the main (cell) card cage will be filtered. This filter will be removable
for cleaning/replacement while the system is fully operational.
A status display will be located on the outside of the front and rear doors of each cabinet. The customer
and field engineers can therefore determine basic status of each cabinet without opening any cabinet
doors.
Superdome 16 processor and Superdome 32 processor systems are available in single cabinets.
Superdome 64 processor systems are available in dual cabinets.
Each cabinet may contain a specific number of cell boards (consisting of processors and memory) and
I/O. See the following sections for configuration rules pertaining to each cabinet.
Cells (Processors and
Memory)
A cell, or cell board, is the basic building block of a Superdome system. It is a symmetric multi processor
(SMP), containing up to 4 processor modules and up to 16 GB of main memory using 512 MB DIMMs
(sx1000 only), up to 32 GB of main memory using 1 GB DIMMs and up to 64 GB of main memory
using 2 GB DIMMs. It is also possible to mix 512 MB, 1 GB, and 2 GB DIMMs on the same cell board.
A connection to a 12 slot PCI X card cage is optional for each cell.
The Superdome cell boards shipped from the factory are offered with 2 processors or 4 processors.
These cell boards are different from those that were used in the previous PA RISC releases of Superdome.
The Superdome cell board contains:
(sx1000):Itanium 2 1.5 GHz processors or Itanium 2 1.6 GHz processors (up to 4 processor
modules for a total of 4 cores) or mx2 dual processor modules (up to 4 modules for a total of 8
cores)
(sx2000): Dual core Itanium 2 1.6GHz processor modules (up to 4 processor modules for a total
of 8 cores) or Itanium 2 1.6 GHz processors (up to 4 processor modules for a total of 4 cores)
Cell controller ASIC (application specific integrated circuit)
Main memory DIMMs (up to 32 DIMMs per board in 4 DIMM increments, using 512 MB [sx1000
only], 1 GB, 2 GB, or 4-GB [sx2000 only] DIMMs-or some combination of both. sx2000 based
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 11
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
systems use the 1 GB, 2 GB or 4 GB DIMMs only)
Voltage Regulator Modules (VRM)
Data buses
Optional link to 12 PCI X I/O slots
Crossbar Backplane
Sx2000: Each backplane contains 3 independent crossbar fabrics resulting in a robust highly available
system. A High speed serial (HSS) link technology is employed for crossbars interconnect. Each
backplane cabinet can support up to eight cells. Eight cells support a 32 processor module Superdome.
Two backplanes (two cabinets) can be linked together with flex cables to produce a complex that can
support up to 16 cells resulting in a 64 processor module Superdome (64 core Itanium 2 (Mad9M)).
Sx1000: Each crossbar backplane contains two sets of two crossbar chips that provide a non blocking
connection between eight cells and the other backplane. Each backplane cabinet can support up to
eight cells. A backplane supporting four cells results in a 16 processor Superdome (16 core Itanium 2
Madison or 32 core Itanium2 mx2). Similarly, a backplane supporting eight cells would result in a 32
processor Superdome (32 core Itanium 2 Madison or 64 core Itanium 2 mx2). Two backplanes can be
linked together with flex cables to produce a cabinet that can support up to 16 cells resulting in a 64
processor Superdome (128 core Dual core Itanium 2 or 64 core Itanium 2 (Mad9M)).
I/O Subsystem
Each I/O chassis provides twelve I/O slots.
SX1000: Superdome PA 8600 and Superdome PA 8700 support I/O chassis with 12 PCI 66 capable
slots, eight PCI 2x, supported via single (1x) ropes (266 MB/s peak) and four PCI 4x, supported via dual
(1x) ropes (533 MB/s peak). Superdome PA 8600 and PA 8700 systems support PCI I/O chassis only.
Superdome PA 8800/PA 8900 supports I/O chassis with 12 PCI X 133 capable slots, eight PCI 4x,
supported via single enhanced (2x) ropes (533 MB/s peak) and four PCI X supported via dual enhanced
(2x) ropes (1066 MB/s peak). Superdome PA 8800/PA 8900 will be shipped with PCI X I/O chassis, but
supports both PCI and PCI X I/O chassis for in field upgrades.
Sx2000: The sx2000 Superdome supports I/O chassis with two PCI-X 266 MHz slots, six PCI-X 133MHz
slots and 4 PCI -X 66 MHz slots. These I/O chassis employ a PCI-X bus for each I/O slot. PCI-X mode 2
is supported.
Each Superdome cabinet supports a maximum of four I/O chassis. The optional I/O expansion
cabinet can support up to an additional six I/O chassis
A 4 cell Superdome (16 processor) supports up to four I/O chassis for a maximum of 48 PCI X
slots.
An 8 cell Superdome (32 processor) supports up to eight I/O chassis for a maximum of 96 PCI X
slots. Four of these I/O chassis will reside in an I/O expansion cabinet.
A 16 cell Superdome (64 processor) supports up to sixteen I/O chassis for a maximum of 192 PCI
X slots. Eight of these I/O chassis will reside in two I/O expansion cabinets (either six chassis in
one I/O expansion cabinet and two chassis in the other, or four chassis in each).
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 12
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Core I/O (required by
sx1000 systems only,
sx2000 systems do not
have a core I/O)
The core I/O in Superdome provides the base set of I/O functions required by every Superdome
partition. Each partition must have at least one core I/O card in order to boot. Multiple core I/O cards
may be present within a partition (one core I/O card is supported per I/O backplane); however, only
one may be active at a time. Core I/O will utilize the standard long card PCI-X form factor but will add a
second card cage connection to the I/O backplane for additional non-PCI X signals (USB and utilities).
This secondary connector will not impede the ability to support standard PCI-X cards in the core slot
when a core I/O card is not installed.
Any I/O chassis can support a Core I/O card that is required for each independent partition. A system
configured with 16 cells, each with its own I/O chassis and core I/O card could support up to 16
independent partitions. Note that cells can be configured without I/O chassis attached, but I/O chassis
cannot be configured in the system unless attached to a cell.
HP-UX Core I/O
(A6865A)(sx1000
(A6865A)
systems only, sx2000
systems do not have a
core I/O)
The core I/O card's primary functions are:
Partitions (console support) including USB and RS-232 connections
10/100Base-T LAN (general purpose)
Other common functions, such as Ultra/Ultra2 SCSI, Fibre Channel, and Gigabit Ethernet, are not
included on the core I/O card. These functions are, of course, supported as normal PCI-X add-in cards.
The unified 100Base-T Core LAN driver code searches to verify whether there is a cable connection on an
RJ-45 port or on an AUI port. If no cable connection is found on the RJ-45 port, there is a busy wait
pause of 150 ms when checking for an AUI connection. By installing the loopback connector (description
below) in the RJ-45 port, the driver would think an RJ-45 cable was connected and would not continue to
search for an AUI connection, hence eliminate the 150 ms busy wait state
Product/
Option Number
A7108A
0D1
Windows Core I/O
(A6865A and optional
VGA/USB
A6869A/A6869B)A6869A/A6869B)
(sx1000 systems only,
sx2000 systems do not
have core I/O)
Description
RJ-45 Loopback Connector
Factory integration RJ-45 Loopback Connector
For Windows Server 2003, Windows does not support the 10/100 LAN on the A6865A core I/O card, a
separate Gigabit Ethernet card such as the A7061A, A7073A, A9899A or A9900A is required. The use
of Graphics/USB card (A6869A/A6869B) is optional and not required.
NOTE: A6869A is not supported on systems with the sx2000 chipset.
Linux Core I/O
The core I/O card's primary functions are:
(A6865A)(sx1000
systems
(A6865A)
Partitions (console support) including USB and RS-232 connections
only, sx2000 systems do
10/100Base-T LAN (general purpose)
not have core I/O)
Other common functions, such as Ultra/Ultra2 SCSI, Fibre Channel, and Gigabit Ethernet, are not
included on the core I/O card. These functions are supported as normal PCI-X add-in cards.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 13
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
OpenVMS Core I/O
The core I/O card's primary functions are:
(A6865A)(sx1000
systems
(A6865A)
Partitions (console support) including USB and RS 232 connections
only, sx2000 systems do
10/100Base T LAN (general purpose)
not have core I/O)
Other common functions, such as Ultra320 SCSI, Fibre Channel, and Gigabit Ethernet, are not included
on the core I/O card. These functions are supported as normal PCI X add in cards.
I/O Expansion Cabinet
The I/O expansion functionality is physically partitioned into four rack-mounted chassis—the I/O
expansion utilities chassis (XUC), the I/O expansion rear display module (RDM), the I/O expansion
power chassis (XPC) and the I/O chassis enclosure (ICE). Each ICE supports up to two 12-slot PCI-X
chassis.
Field Racking
The only field rackable I/O expansion components are the ICE and the 12-slot I/O chassis. Either
component would be field installed when the customer has ordered additional I/O capability for a
previously installed I/O expansion cabinet.
No I/O expansion cabinet components will be delivered to be field installed in a customer's existing rack
other than a previously installed I/O expansion cabinet. The I/O expansion components were not
designed to be installed in racks other than Rack System E or the new Universal 10K G2 rack. In other
words, they are not designed for Rosebowl I, pre merger Compaq, Rittal, or other third party racks.
The I/O expansion cabinet is based on a modified HP Rack System E and the new Universal 10K G2
and all expansion components mount in the rack. Each component is designed to install independently
in the rack. The Rack System E and the Universal 10K G2 cabinet have been modified to allow I/O
interface cables to route between the ICE and cell boards in the Superdome cabinet. I/O expansion
components are not designed for installation behind a rack front door. The components are designed for
use with the standard Rack System E and the Universal 10K G2 perforated rear door.
I/O Chassis Enclosure
(ICE)
The I/O chassis enclosure (ICE) provides expanded I/O capability for Superdome. Each ICE supports up
to 24 PCI-X slots by using two 12-slot Superdome I/O chassis. The I/O chassis installation in the ICE
puts the PCI-X cards in a horizontal position. An ICE supports one or two 12-slot I/O chassis. The I/O
chassis enclosure (ICE) is designed to mount in a Rack System E rack and consumes 9U of vertical rack
space.
To provide online addition/replacement/deletion access to PCI or PCI-X cards and hot-swap access for
I/O fans, all I/O chassis are mounted on a sliding shelf inside the ICE.
Four (N+1) I/O fans mounted in the rear of the ICE provide cooling for the chassis. Air is pulled through
the front as well as the I/O chassis lid (on the side of the ICE) and exhausted out the rear. The I/O fan
assembly is hot swappable. An LED on each I/O fan assembly indicates that the fan is operating.
Cabinet Height and
Although the individual I/O expansion cabinet components are designed for installation in any Rack
Configuration Limitations System E cabinet, rack size limitations have been agreed upon. IOX Cabinets will ship in either the 1.6
meter (33U) , 1.96 meter (41U) or the 2.0-meter (Universal 10K G2)(42U) cabinet. In order to allay
service access concerns, the factory will not install IOX components higher than 1.6 meters from the
floor. Open space in an IOX cabinet will be available for peripheral installation.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 14
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Peripheral Support
All peripherals qualified for use with Superdome and/or for use in a Rack System E or Universal 10K G2
are supported in the I/O expansion cabinet as long as there is available space. Peripherals not
connected to or associated with the Superdome system to which the I/O expansion cabinet is attached
may be installed in the I/O expansion cabinet.
Server Support
No servers except those required for Superdome system management such as Superdome Support
Management Station or ISEE may be installed in an I/O expansion.
Peripherals installed in the I/O expansion cabinet cannot be powered by the XPC. Provisions for
peripheral AC power must be provided by a PDU or other means.
Standalone I/O
Expansion Cabinet
DVD Solution
If an I/O expansion cabinet is ordered alone, its field installation can be ordered via option 750 in the
ordering guide (option 950 for Platinum Channel partners).
The DVD solution for Superdome requires the following components. These components are required per
partition. External racks A4901A and A4902A must also be ordered with the DVD solution. Note: One
DVD is required and one DAT is recommended per nPartition.
NOTE: One DVD and one DAT is required per nPartition.
NOTE: For OpenVMS, only the one DVD is required per nPartition.
Superdome DVD Solutions
Description
PCI 2 channel Ultra320 SCSI (required for OpenVMS)
Surestore Tape Array 5300
HP DVD+RW Array Module (one per partition)
NOTE: The HP DVD-ROM Array Module for the TA5300
(C7499B) is replaced by HP DVD+RW Array Module (Q1592A) to
provide customers with read capabilities for loading software from
CD or DVD, DVD write capabilities for small amounts of data (up
to 4 GB) and offline hot-swap capabilities. Windows supports using
and reading from this device, but Windows does not support DVD
write with this device. OpenVMS supports reading and booting,
only, from this device, at this time.
DDS-4/DAT40 (DDS-5/DAT 72 is also supported. Product number
is Q1524B) (one per partition)
Jumper SCSI Cable for DDS-4 (optional)1
SCSI cable 1-meter multi-mode VH-HD68
SCSI Terminator
10.5-meter HD HDTS68 is required if DDS-4 or
2Supported, but may no longer be orderable.
DA - 11717
Part Number
A7173A
C7508AZ
Q1592A
Option Number
0D1
C7497B
0D1
C2978B
C2361B
C2364A
0D1
0D1
0D1
0D1
DDS-5 is used.
Worldwide — Version 35 — December 6, 2006
Page 15
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Partitions
Superdome can be configured with hardware partitions, (nPars). Given that Windows Server 2003, SuSE
SLES 9, Red Hat (RHEL) AS 3 and 4, and OpenVMS do not support virtual partitions (vPars), Superdome
systems running Windows Server 2003, Datacenter Edition or *Enterprise Edition, SuSE SLES 9, Red Hat
RHEL AS 3 and 4, or OpenVMS, do not support vPars.
A hardware partition (nPar) consists of one or more cells that communicate coherently over a high
bandwidth, low latency crossbar fabric. Individual processors on a single cell board cannot be separately
partitioned. Hardware partitions are logically isolated from each other such that transactions in one
partition are not visible to the other hardware partitions within the same complex.
Each nPar runs its own independent operating system. Different nPars may be executing the same or
different revisions of an operating system, or they may be executing different operating systems altogether.
Superdome supports HP UX 11i version 2, Windows Server 2003, Datacenter Edition or Enterprise
Edition, SuSE SLES 10, Red Hat RHEL AS 3 and 4, and OpenVMS operating systems. The diagram below
shows a multi OS environment within Superdome. Note: The sx2000 Superdome with Mad9M processors
only supports HP UX 11i version2 and Windows Server 2003, Datacenter Edition or Windows Server
2003, Enterprise Edition.
NOTE: It is possible for PA 8800 and PA 8900 nPars to co exist with Itanium 2 1.6 GHz nPars in the
same Superdome system, but on different partitions. Customers can configure an Itanium 2 1.6 GHz nPar
in an HP 9000 Superdome running PA 8800 or PA 8900 (and vice versa) in the field only. Factory orders
for mixed Itanium and PA RISC nPars are not allowed.
*Enterprise Edition is not supported with mx2 modules.
Each nPar has its own independent processors, memory and I/O resources consisting of the resources of
the cells that make up the partition. Resources (cell boards and/or I/O chassis) may be removed from one
nPar and added to another without having to physically manipulate the hardware, but rather by using
commands that are part of the System Management interface. The table below shows the maximum size
of nPars per operating system:
Maximum size of nPar
Maximum number of
nPars
HP-UX 11i
Windows
Version 2
Server 2003
64
32
processors/128 processors/64
cores,
cores, Data
512 GB RAM Center
8
processors/16
cores
Enterprise
Edition
512 GB RAM
16
16
Red Hat
SUSE SLES 9 OpenVMS
8 processors
(RHEL 3),
32 processors,
64 cores
(RHEL4)
512 GB RAM
16
processors,32
cores
256 GB RAM
16
16
sx1000 - 4
cells with up
to 16 P/16C,
256 GB RAM
sx2000 - 4
cells with up
to 16
Processors/
32 Cores,
512 GB RAM
16
For information on type of I/O cards for networking and mass storage for each operating environment,
please refer to the Technical Specifications section of this document. For licensing information for each
operating system, please refer to the Ordering Guide.
Superdome supports static partitions. Static partitions imply that any nPar configuration change requires a
reboot of the nPar. In a future HP-UX and Windows release, dynamic nPars will be supported. Dynamic
npars imply that nPar configuration changes do not require a reboot of the nPar. Using the related
capabilities of dynamic reconfiguration (i.e. on-line addition, on-line removal), new resources may be
added to an nPar and failed modules may be removed and replaced while the nPar continues in
operation. Adding new nPars to Superdome system does not require a reboot of the system.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 16
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Windows Server 2003,
Datacenter edition for
Itanium-based systems HP Product Structure
Product Number T2372A
Pre-loaded Windows Server 2003, Datacenter Edition for Itanium 2 systems
Options:
0D1 - factory integration
B01 - on site installation at customer's location (must contact HP Services for a quote to install onsite!)
ABA - English localization only (other languages, Ger, Fre, Ita available only as a special with
extra lead time)
ABJ - Japanese localization
002 - 2 processor LTU
004 - 4 processor LTU
008 - 8 processor LTU
016 - 16 processor LTU
032 - 32 processor LTU
064 - 64 processor LTU
Windows Server 2003,
Enterprise Edition for
Itanium based SystemsHP Product Structure
Product Number T2373A
Pre-loaded Windows Server 2003, Enterprise Edition for Itanium 2 systems
Options:
0D1 - factory integration
ABA - English localization only (other languages, Ger, Fre, Ita available only as a special with
extra lead time)
NOTE: See Windows 2003 Ordering Section for further information. Not available/supported in Japan.
Windows Server 2003, Enterprise Edition is not supported with mx2 modules.
Mixing of PA-RISC and
Itanium Cells in
Superdome
1) Which processors can be mixed in a Superdome?
The first step in determining which processors can be mixed within a Superdome is to look at the chipset.
A Superdome can only support one type of chipset (legacy chipset, sx1000 chipset or sx2000 chipset) at
a time.
The legacy chipset only supports the PA-RISC architecture. The PA-8600,
PA-8700, and PA-8700+ processors were supported with this chipset. As a result, they can be mixed
within the Superdome but they can not be mixed with processors supported by other chipsets (i.e. Itanium
2 9M with the sx1000 chipset).
With the sx1000 chipset, processors of like architectures (PA-RISC and Itanium 2 architectures) that are
supported by the sx1000 chipset can be mixed in separate hard partitions. For example, the HP 9000
Superdome supports mixing the PA-8800 and PA-8900 processors in separate hard partitions. The HP
Integrity Superdome supports mixing the Itanium 2 6M, and Itanium 2 9M processors, as well as the mx2
dual processor module in separate hard partitions. In addition, a subset of the PA-RISC and Itanium 2
processors (PA-8800, PA-8900 and Itanium 2 9M processors) can be supported at the same time in
different hard partitions within a Superdome.
With the sx2000 chipset, Dual core Itanium 2 and Itanium2 1.6 MHz processors are the only supported
processors and therefore you cannot mix other processors in this system.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 17
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
The table below highlights which processors can co-exist on a Superdome in separate hard partitions.
PA 8600 PA 8700 PA 8700 PA 8800 PA 8900 Itanium 2 Itanium 2 mx2 dual Dual
+
6M
9M
processor core
module Itanium 2
PA 8600
NA
Yes
Yes
No
No
No
No
No
No
Yes
NA
Yes
No
No
No
No
No
No
PA 8700
PA 8700
Yes
Yes
NA
No
No
No
No
No
No
+
No
No
No
NA
Yes
No
Yes
No
No
PA 8800
No
No
No
Yes
NA
No
Yes
No
Yes
PA 8900
No
No
No
No
No
NA
Yes
Yes
No
Itanium 2
6M
(sx1000)
No
No
No
Yes
Yes
Yes
NA
Yes
No
Itanium 2
9M
(sx1000)
No
No
No
No
No
Yes
Yes
NA
No
mx2 dual
processor
module
No
No
No
No
No
No
N/A
No
Yes
Itanium 2
9M
(sx2000)
No
No
No
No
Yes
No
Yes
No
NA
Dual
core
(future)
Itanium 2
(sx2000)
2) In order to run an Itanium-based partition in an Integrity server, what changes are required?
In order to add a new partition with Itanium 2 9M processors on an HP 9000 Superdome, the following
steps are required:
Step #1: Upgrade firmware on PA-RISC based partitions
Step #2: Create a new hard partition in the Superdome for Itanium 2-based cell (s)
Step #3: Plug in cell boards for Itanium 2-based cells
Step #4: Some I/O cards may need to be added for that specific hard partition (Windows does not
support the identical set of I/O cards that HP-UX 11i supports)
Step #5: Load operating system for Itanium 2-based partition
Upgrading a PA-RISC partition to support Itanium 2 processors would require similar steps:
Step #1: Upgrade firmware on PA-RISC based partitions
Step #2: Pull out existing PA-RISC cell boards
Step #3: Swap existing memory into cell boards for Intel Itanium 2 processor (protects investment in
current memory)
Step #4: Plug in cell boards for Itanium 2-based cell boards
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 18
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Step #5: Some I/O cards may need to be added for that specific hard partition (Windows does not
support the identical set of I/O cards that HP-UX 11i supports)
Step #6: Load operating system for Itanium 2-based partition
The in-box addition of Itanium 2 processors can be done with no additional hardware, no new chassis
and no change to backplane.
3) When will mixing of PA-RISC and Itanium 2 processors be available?
Support for mixing PA RISC and Itanium 2 processors with the sx1000 chipset in separate hard partitions
are available.
NOTE: At this time, OpenVMS on Integrity is not supported on a Superdome that includes PA RISC nPars.
NOTE: At this time, sx2000 chipset does not support PA-RISC processors.
4) Is mixing of PA-RISC and Itanium processors factory configurable?
NO. The plan is to enable PA-RISC systems that shipped from the factory to add Itanium partitions later
on in the field. In addition, HP offers the ability to enable Itanium-based systems that shipped from the
factory to add PA-RISC partitions later on in the field (this will happen less frequently)
The plan is not to allow PA RISC or Intel Itanium based partitions to be added to systems that shipped
from the factory. The sx2000 Superdome does not support PA-RISC processors yet so therefore mixing of
Itanium 2 and PA-RISC processors is not supported in the sx2000 systems. Mixing of sx1000 and sx2000
chipsets in the same system is NOT supported.
5) How long does it take to add an Itanium-based partition in an HP 9000 customers?
The effort required to add an Itanium-based partition to an HP 9000 Superdome is slightly more than
what is required to add a new PA-RISC-based partition. In both cases you have to create a new hard
partition in the Superdome, plug in cell boards for the new processors and load the operating system.
There are no hardware changes required to support mixing of processor types. The only known difference
at this time is that a customer would need to upgrade the firmware to support the Itanium architecture.
The process is currently being tested by R&D. This document will be updated as we learn more through
testing. The sx2000 chipset is NOT able to be installed in a sx1000 system. The chipsets in a system must
be the same.
6) Will mixing impact the overall performance of a Superdome (i.e. would an Itanium-based partition
have the same performance in a mixed Superdome as in a Superdome only populated with Itanium 2
processors)?
No. For example, suppose you have a hard partition with 16 Intel Itanium 2 9M processors. This partition
would have the same performance in a system with a mix of PA-RISC and Itanium 2-based hard partitions
as a server where all of the other partitions are Itanium 2-based. This is assuming that besides the type of
processors, all of the other configuration options are the same (memory, cell board locations, number of
partitions, etc).
7) Can I add PA RISC processors to an Itanium based Integrity Superdome?(sx1000 based sytems
only, sx2000 systems does not allow mixing at this point)
Yes. HP offers the ability to enable Itanium-based systems that shipped from the factory to add PA-RISC
partitions later on in the field. This serves as a safety net/insurance policy. If the customer determines after
the fact that a specific application is not ready for the Itanium technology, they can simply add a PA-RISC
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 19
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
hard partition to that Integrity Superdome and continue the execution of the application while it is
certified.
8) Why can't PA-8700+ processors be mixed with Itanium 2 9M processors?
For years, HP has had a high level of investment protection with the HP 9000 Superdome. Customers
have been provided with the maximum investment protection level by keeping their investment in PA8600
and PA8700 processors while adding the higher speed PA8700+. In addition, each processor type runs
at its rated speed so there is no downgrading of the higher speed processors (some competitors are
erroneously saying Superdome has to downgrade the higher speed processors). For example, the PA8700
runs at a full 750 MHz while the PA8600 runs at 550 MHz-there is no forcing of the PA8700 down to
550 MHz just to obtain compatibility. This is possible because the processor speeds are independent from
the bus speeds.
The Intel Itanium 2 processor family is an advanced architecture featuring exceptional floating point and
SSL performance. The Itanium 2 processors have the processing power that is consistent with a
Superdome class high-end server. In addition, the Itanium processor accesses cache memory using a
data block that is greater than twice the size of the PA8600, PA8700, and PA8700+. Thus, the Itanium
processor family and subsequent PA-8800 and PA-8900 processors require a different chipset than the
PA8600, PA8700, or PA8700+ processors. One of the key restrictions in mixing processors is that all cell
boards in a given Superdome must have the same chipset. The PA-8700+ is supported by a legacy
chipset that only supported PA-RISC processors. As a result, the PA-8700+ can only be mixed with PA8700 and PA-8600 processors. In order to support Itanium 2 9M processors in their current HP 9000
Superdome, the customer would be required first to upgrade all of their PA-8700+ processors to PA8800 or PA-8900 processors utilizing the sx1000 chipset. Once this is complete, the customer would
then have the option of adding the Itanium 2 9M processor in a separate partition because it is also
supported by the sx1000 chipset.
9) Why are Itanium 2 6M processors and mx2 dual processor modules not supported?
The original plan was to enable PA-RISC systems that shipped from the factory to add Itanium-based
partitions later on. The plan was not to allow PA-RISC-based partitions to be added to systems that
shipped from the factory as Itanium-based servers with Itanium 2 6M processors and/or mx2 dual
processor modules. This is the only case where we encounter a problem with no support for Itanium 2 6M
processors and mx2 dual processor modules. If a customer has already made the decision to go with
Integrity Superdomes, it is very unlikely that they will take a back step to PA-RISC-based partitions.
Conversely, if a customer wants to upgrade a PA-RISC-based partition to be Itanium 2-based, they are
much more likely to use the Itanium 2 9M processor than the Itanium 2 6M processors or
mx2 dual processor modules because of the added performance and larger cache sizes.
Finally, this feature requires a significant amount of resources to test the different type of configurations
supported in a Superdome. In order to provide this functionality in a timely basis to customers, we had to
narrow the scope. Thus, the decision was made to not support Itanium 2 6M processors and mx2 dual
processors in a mixed processor type of system.
If a customer with Itanium 2 6M processors or mx2 dual processor modules wants to add PA-RISC
modules, they would need to first upgrade the partitions with Itanium 2 6M processors or mx2 dual
processor modules to Itanium 2 9M processors and then they could add a PA-RISC-based partition to the
Superdome.
10) Which versions of the HP-UX 11i operating system will be supported?
Currently HP plans to support HP-UX 11.11 (HP-UX 11i v1) for the PA-RISC architecture as well as 11.23
(HP-UX 11i v2) for Itanium processors and
PA-RISC processors in a mixed environment. Based on HP's testing, HP believes that using HP-UX 11.11
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 20
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
(HP-UX 11i v1) in a mixed configuration is going to require a PA-RISC Firmware update.
NOTE: HP-UX 11iV2 is the only HP-UX version supported on sx2000 based systems.
11) Does a customer have to power down when they add an Itanium-based partition to a PA-RISCbased Superdome?
It depends.
If the existing PA-RISC based partitions are running HP-UX 11i v2 and PDC 22.1 (released in December
2004) then an Itanium-based partition may be added while the PA-RISC partitions are active. If the
customer is running WLM it must be patched for proper operation in a mixed environment. We are
currently checking with the WLM team to see what impact this would have on the PA-RISC partitions.
HP's shipping firmware for PA-RISC processors does not fully support mixing if the PA-RISC partitions are
running HP-UX 11i v1. In this case, downtime for all PA-RISC based partitions would be required to
update to the new PDC. The partitions could all be updated independently if desired. HP will release this
new PDC when testing is complete for mixing processor types. The above comment regarding WLM also
applies.
12) What are the minimum firmware requirements for mixing various operating environments?
The matrix below describes the minimum firmware requirements for sx1000 systems:
Mixing Mad9M with PA
8800/PA 8900
11i v1
11i v2
Mixing Scenarios:
operating systems,
firmware and
management tools
(sx1000 systems only)
11i v2 HWE0409;
11i v2 HWE0505
(no vPars)
Windows Server
2003
Linux
PDC 22.3
IPF 2.54
MFW 15.14
PDC 22.1
IPF 2.50
MFW 15.14
11i v2 HWE0505
(vPars)
OpenVMS
PDC 22.3
IPF 3.x
MFW 15.20
PDC 22.1
IPF 3.x
MFW 15.20
PDC 22.3
IPF 3.88, MFW
15.22
PDC 22.1
IPF 3.88, MFW
15.22
The following table summarizes the various operating environments supported on the PA-8800, PA-8900
and Intel Itanium 2 1.6 GHz processors:
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 21
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
firmware and
management tools
(sx1000 systems only)
Processor
PA8800
PA8900
Itanium 2 1.6 GHz
Operating System
HPUX 11.i v1 HWE 0312 (with patches)
HPUX 11.i v1 HWE 0406
HPUX 11.i v1 HWE 0412
HPUX 11.i v2 HWE 0409
HPUX 11.i v2 HWE 0505
HPUX 11.i v1 HWE 0412
HPUX 11.i v2 HWE 0409
HPUX 11.i v2 HWE 0505
HPUX 11.i v2 HWE 0409
HPUX 11.i v2 HWE 0505
Linux RHEL3 U3 (and higher)
Linux SLES 9 (and higher)
Windows 2003 Server, Smart Setup 3.1 (and higher)
OpenVMS V8.2-1 (and higher). [See note below]
NOTE: For 8.2-1, an OpenVMS patch kit, that benefits performance for OpenVMS on all cell based
systems, should be applied. The patch kit, VMS821I_IPMI-V0100.ZIPEXE (or any patch kit that supercedes
this patch kit), can be downloaded at http://www.itrc.hp.com/service/patch/mainPage.do.
The following table lists the minimum firmware requirements for mixing:
Processor
PA8800
PA8900
Itanium 2 1.6 GHz A1
Itanium 2 1.6 GHz A2
Supported
PDC 22.1 (SMS rel_5.0) or above
PDC 22.1 (SMS rel_5.0) or above
IPF 2.50 (SMS rel_5.0) or above
IPF 2.52 (SMS rel_5.1) or above
Not Supported
PDC 20.8, 21.2
n/a
n/a
n/a
NOTE: PDC 20.8 and PDC 21.2 do not contain the required enhancements for mixing. Customers who
are running on either of these PDC versions will be required to upgrade to PDC 22.1 to enable mixing.
PDC 22.1 also happens the minimum firmware required to support PA8900.
Any of the above operating environments may be used on a mixed Superdome. In the process of testing
all of the above combinations some issues and restrictions were discovered with WLM, gWLM and the
GUI version of partition manager on HPUX 11i v1. Firmware, operating system or application updates
can resolve these issues. However, such updates may not always be possible or practical.
The following mixing scenarios serve to illustrate the issues that were found during testing and possible
ways to work around or resolve them. For simplicity, the first three scenarios assume that all the PA
partitions in the Superdome are running the same version of HPUX. The fourth scenario explains the more
general case where the PA partitions are running different versions of HPUX.
Scenario 1: PA8800 Partitions running HPUX 11i v1 HWE 0312 or 0406 mixed with Itanium 2 1.6 GHz
Known issue with the GUI version of Parmgr: Both of these HWEs shipped with Parmgr V1. This version of
Parmgr and the stack that sits under it are not capable of managing Integrity partitions. Parmgr generates
error messages when trying to access the Integrity cells and display information about them.
Alternatives to running Parmgr GUI on the PA partitions:
Integrity partitions (and PA partitions) may be managed from the SMS
Integrity partitions (and PA partitions) may be managed by parcmds from any partition
Integrity partitions (and PA partitions) may be managed by the GUI version of Parmgr on any Integrity
partition
The minimum firmware listed in the table above is sufficient for running this configuration.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 22
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Possible upgrades: If it is important to be able to use the Parmgr GUI on the PA HPUX 11i v1 you can
upgrade HPUX to HWE 0412 and follow the process in Scenario 2. If a customer upgrades to any 11i v1
HWE beyond HWE 0412 (HWE 0509 and later) then the proper nPar provider is already included in the
HWE and the firmware upgrades in Scenario 2 are sufficient to get full functionality.
Scenario 2: PA-8800 partitions or PA-8900 partitions running 11i v1 HWE 0412 mixed with Itanium 2
1.6 GHz
Known issue with the GUI version of Parmgr: HPUX 11i v1 HWE 0412 introduced Parmgr V2. This
version of Parmgr will exhibit the same issues as Scenario 1 with the minimum required firmware from the
table. However, upgrades to firmware and the nPar provider will make this version of Parmgr fully
functional and capable of managing Integrity partitions. See the upgrade section below for details.
Alternatives to running Parmgr GUI on the PA partitions: These are essentially the same as Scenario 1.
Integrity partitions (and PA partitions) may be managed from the SMS
Integrity partitions (and PA partitions) may be managed by parcmds from any partition
Integrity partitions (and PA partitions) may be managed by the GUI version of Parmgr on any Integrity
partition
The minimum firmware listed in the table above is sufficient for running this configuration.
Possible upgrades: If it is important to be able to use the Parmgr GUI on the PA partitions to manage the
Integrity partitions the following updates must be made to the system:
PDC must be at revision 22.3 or higher in the 11.i v1 partition. This version of PDC contains a single fix
on top of PDC 22.1 that compensates for the byte reversal in the cell info structure between PA and
Integrity (this is due to the different "endianness" of the processors). PDC 22.3 will be released as part of
SMS rel_6.0 in September 2005.
Integrity firmware must be upgraded to the version that supports vPars. This version of Integrity firmware
contains a fix that populates I/O slot information in cell info structures used by the PA partition
management stack. Currently shipping Integrity firmware does not populate this information and causes
the PA management stack to report errors for Integrity cells. This version of Integrity firmware will be
released as part of SMS rel_6.0 in September 2005.
The nPartition provider ("NPar" bundle) must be updated to version B.11.11.01.04 or above. This version
will first be released on HPUX 11.i v1 HWE 0509. The version of nPar provider that shipped with HWE
0412 did not properly handle the single core Madison 9M processors.
Scenario 3: PA-8800 partition or PA-8900 partition running 11.i v2 (HWE 0409 or 0505) mixed with
Itanium 2 1.6 GHz
This is the simplest scenario. The minimum firmware listed in the table is sufficient and all the partition
management tools just work. The PA partition can manage other PA partitions and the Integrity partition
and vice versa. Enjoy.
Scenario 4: PA-8800 or PA-8900 partitions running a mixture of the above scenarios mixed with Itanium
2 1.6 GHz
The previous scenarios apply to the individual partition pairs. For instance, say you have a Superdome
with a PA8800 11.i v1 HWE0406 partition, a PA8900 11.i v1 HWE0412 partition a PA8800 11.i v2
partition and an Integrity partition. As described in Scenario 1 the PA8800 11.i v1 HWE0406 partition
will not be able to recognize the Integrity cells. Manage the Integrity partition from the SMS, the PA8800
11.i v2 partition or using parcmds. As described in Scenario 2, the PA8900 11.i v1 HWE0412 partition
cannot manage the Integrity partition with out the firmware and nPar provider upgrades outlined above.
Use the SMS, the PA 11.i v2 partition or parcmds to manage the Integrity partition.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 23
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
WLM:
WLM (workload manager) currently uses the Unix command "uname -i" to ensure that all the partitions it
is managing are on the same Superdome. WLM verifies that all the managed partitions "uname -i" values
match. It turns out the Integrity partitions and PA partitions on the same Superdome do not return the
same value for "uname -i". This prevents WLM from properly managing all the partitions on a single
Superdome in a mixed environment with iCAP. The WLM team has provided patches WLM A.03.00 for
both 11.i v1 (PHSS_33499 - s700_800 11.11 WLM A.03.00 Cumulative Patch) and 11.i v2
(PHSS_33477 - s700_800 11.23 WLM A.03.00 Cumulative Patch) to resolve this issue. Customers who
wish to use WLM in a mixed environment with iCAP will need to install/upgrade to version A.03.00 and
install the appropriate patch. Customers who are using either WLM A.02.x or A.03.x in a non-iCAP
environment can use their current version of WLM with no upgrade/patch. Future versions of WLM
(A.03.00.01 and later) will not require a patch.
gWLM:
gWLM 1.1.1 (global workload manager) was first released with HPUX 11.i v2 HWE0505. It has the same
issue with "uname -i" as WLM. This only affects gWLM iCAP SRDs. VPAR, PSET and FSS SRDs work
correctly in mixed environments. The gWLM team plans to remedy this issue in the first maintenance
release of gWLM. Contact [email protected] for a workaround if you have a gWLM 1.1.1
customer who needs to deploy an iCAP SRD on a mixed complex before the first maintenance release is
available.
Global Workload Manager (gWLM V1.1) is also available for OpenVMS on Integrity Servers.
Single System
Reliability/Availability
Features
Superdome high availability offering is as follows:
NOTE: Online addition/replacement for cell boards is not currently supported and will be available in a
future HP UX release. Online addition/replacement of individual processors and memory DIMMs will
never be supported.)
Processor: The features below nearly eliminate the down time associated with processor cache
errors (which are the majority of processor errors). If a processor is exhibiting excessive cache
errors, HP UX 11i version 2 will ONLINE activate to take its place. Furthermore, the processor
cache will automatically be repaired on reboot, eliminating the need for a service call.
Dynamic processor resilience with Instant Capacity enhancement.
NOTE: Dynamic processor resilience and Instant Capacity are not supported when running
Windows Server 2003, SUSE SLES 9, Red Hat, or OpenVMS V8.2 1 in the partition. Cell iCAP
support is available with OpenVMS partitions starting with OpenVMS V8.3.
Processor cache ECC protection and automatic de allocation
Processor bus parity protection
Redundant DC conversion
Memory:
Memory The memory subsystem design is such that a single SDRAM chip does not contribute
more than 1 bit to each ECC word. Therefore, the only way to get a multiple-bit memory error
from SDRAMs is if more than one SDRAM failed at the same time (rare event). The system is also
resilient to any cosmic ray or alpha particle strike because these failure modes can only affect
multiple bits in a single SDRAM. If a location in memory is "bad", the physical page is deallocated
dynamically and is replaced with a new page without any OS or application interruption. In
addition, a combination of hardware and software scrubbing is used for memory. The software
scrubber reads/writes all memory locations periodically. However, it does not have access to
"locked down" pages. Therefore, a hardware memory scrubber is provided for full coverage.
Finally data is protected by providing address/control parity protection.
Memory DRAM fault tolerance, i.e. recovery of a single SDRAM failure
DIMM address / control parity protection
Dynamic memory resilience, i.e. page de allocation of bad memory pages during
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 24
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
operation.
NOTE: Dynamic memory resilience is not supported when running Windows Server 2003,
SUSE SLES 9,r Red Hat RHEL AS 3, or OpenVMS in the partition.
Hardware and software memory scrubbing
Redundant DC conversion
Cell ICAP.
NOTE: Cell ICAP is not supported when Windows Server 2003 SUSE SLES 9, Red Hat RHEL
AS 3, or OpenVMS V8.2-1 is running in the partition. Cell iCAP support is available with
OpenVMS partitions starting with OpenVMS V8.3.
I/O:
I/O Partitions configured with dual path I/O can be configured to have no shared components
between them, thus preventing I/O cards from creating faults on other I/O paths. I/O cards in
hardware partitions (nPars) are fully isolated from I/O cards in other hard partitions. It is not
possible for an I/O failure to propagate across hard partitions. It is possible to dynamically repair
and add I/O cards to an existing running partition.
Full single-wire error detection and correction on I/O links
I/O cards fully isolated from each other
HW for the Prevention of silent corruption of data going to I/O
On-line addition/replacement (OLAR) for individual I/O cards, some external peripherals,
SUB/HUB.
NOTE:
NOTE Online addition/replacement (OLAR) is not supported when running Red Hat RHEL
AS 3,SUSE SLES 9, or OpenVMS in the partition.
Parity protected I/O paths
Dual path I/O
Crossbar and Cabinet Infrastructure:
Infrastructure
Recovery of a single crossbar wire failure
Localization of crossbar failures to the partitions using the link
Automatic de-allocation of bad crossbar link upon boot
Redundant and hotswap DC converters for the crossbar backplane
ASIC full burn-in and "high quality" production process
Full "test to failure" and accelerated life testing on all critical assemblies
Strong emphasis on quality for multiple-nPartition single points of failure (SPOFs)
System resilience to Management Processor (MP)
Isolation of nPartition failure
Protection of nPartitions against spurious interrupts or memory corruption
Hot swap redundant fans (main and I/O) and power supplies (main and backplane power
bricks)
Dual power source
Phone-Home capability
"HA Cluster-In-A-Box" Configuration:
Configuration The "HA Cluster-In-A-Box" allows for failover of users'
applications between hardware partitions (nPars) on a single Superdome system. All providers of
mission critical solutions agree that failover between clustered systems provides the safest
availability-no single points of failures (SPOFs) and no ability to propagate failures between
systems. However, HP supports the configuration of HA cluster software in a single system to allow
the highest possible availability for those users that need the benefits of a non-clustered solution,
such as scalability and manageability. Superdome with this configuration will provide the greatest
single system availability configurable. Since no single system solution in the industry provides
protection against a SPOF, users that still need this kind of safety and HP's highest availability
should use HA cluster software in a multiple system HA configuration. Multiple HA software
clusters can be configured within a single Superdome system (i.e., two 4-node clusters configured
within a 32-processor Superdome system).
HP-UX: Serviceguard and Serviceguard Extension for RAC
Windows Server 2003: Microsoft Cluster Service (MSCS) - limited configurations supported
RHEL 4 and SUSE SLES 9: Serviceguard for Linux
HP OpenVMS Cluster Software
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 25
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Multi-system High
Availability
HP-UX 11i v2
Any Superdome partition that is protected by Serviceguard or Serviceguard Extension for RAC can be
configured in a cluster with:
Another Superdome with like processors (i.e., both Superdomes must have Itanium 2 1.6 GHz
processors or both Superdomes must have mx2 processor (sx1000 systesm only) modules in the
partitions that are to be clustered together.)
One or more standalone non Superdome systems with like processors
Another partition within the same single cabinet Superdome (refer to "HA Cluster-in-a-Box" above
for specific requirements) that has like processors
Separate partitions within the same Superdome system can be configured as part of different
Serviceguard clusters.
Geographically Dispersed The following Geographically Dispersed Cluster solutions fully support cluster configurations using
Cluster Configurations
Superdome systems. The existing configuration requirements for non-Superdome systems also apply to
configurations that include Superdome systems. An additional recommendation, when possible, is to
configure the nodes of cluster in each datacenter within multiple cabinets to allow for local failover in the
case of a single cabinet failure. Local failover is always preferred over a remote failover to the other
datacenter. The importance of this recommendation increases as the geographic distance between
datacenters increases.
Extended Campus Clusters (using Serviceguard with MirrorDisk/UX)
Metrocluster with Continuous Access XP
Metrocluster with EMC SRDF
Continentalclusters
From an HA perspective, it is always better to have the nodes of an HA cluster spread across as many
system cabinets (Superdome and non-Superdome systems) as possible. This approach maximizes
redundancy to further reduce the chance of a failure causing down time.
Windows Server 2003,
Datacenter
Edition/Enterprise Edition
for Itanium 2 systems
Microsoft Cluster Service (MSCS) comes standard with Windows Server 2003. When a customer orders
T2372A, Windows Server 2003, Datacenter Edition or T2373A Windows Server 2003, Enterprise
Edition for Itanium 2 systems, it includes Microsoft Cluster Service there is no additional SKU or charge
for this Windows Server 2003 functionality. MSCS does not come preconfigured from HP's factories,
however, so it is recommended that if your customer is interested in a MSCS configuration with Integrity
Superdome, HP Services be engaged for a statement of work to configure MSCS on Integrity Superdome
with HP storage.
HP Storage is qualified and supported with MSCS clusters. HP storage arrays tested and qualified with
MSCS clusters on Superdome are:
EVA 3000 v3.01
EVA 5000 v3.01
XP 48/512
XP 128/1024.
XP12000
MSA1000
MSA1500
In addition, the following EMC storage arrays are supported with MSCS:
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 26
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
EMC CLARiiON FC4700
EMC CLARiiON CX200/CX400/CX600
EMC CLARiiON CX300/CX500/CX700
EMC Symmetrix 8000 Family
EMC DMX 800/1000/2000/3000
HP has qualified and supports the following capabilities with Integrity Superdome and MSCS:
Active/Active and Active/Passive MSCS clusters
Partition size: Any size from 2 processors up to 64 processors can be in a cluster
HP supports anywhere from 2 nodes in an MSCS cluster with Superdome to 8 nodes
Cluster nodes can be within the same Superdome cabinet or between different Superdome
cabinets co located at the same site
MSCS clusters can be between similar partitions of processor capacity (i.e. 8 processor partition
clustered to 8 processor partition, 16 processor partition clustered to 16 processor partition)
MSCS clusters can also be between dissimilar partitions of processor capacity (i.e. 16 processor
partition clustered to 8 processor partition, 32 processor partition clustered to 16 processor
partition). Note: You and the customer should work with HP Support to determine the appropriate
configuration based on the availability level that is needed by the customer. As an example, if the
customer wants a Service Level Agreement based on application availability, then perhaps an
exact mirror of the production partition be set up for failover (i.e. similar processor capacity). In
any event, please ensure that the proper amount of hardware resources on the target server is
available for failover purposes.
HP Cluster Extention XP is a disaster recovery solution that extends local clusters over
metropolitan-wide distance. It now supports MSCS on Windows Integrity with XP48/XP512,
XP128/XP1024, XP12000.
For high availability purposes with MSCS, it is recommended (but not required) that customers also use
HP SecurePath software (v4.0c SP1) with HP storage for multi pathing and load balancing capabilities in
conjunction with the fiber channel HBA, AB466A or AB467A. Additionally, the NCU (NIC Configuration
Utility), which is provided from HP on the SmartSetup CD that ships with Windows partitions, can also be
used in conjunction with MSCS clusters with the HP supported Windows NIC cards.
Additionally, customers can see the completion of our certification for the Microsoft Windows catalog at
the following URL: http://www.microsoft.com/windows/catalog/server/default.aspx?subID=22&xslt=
cataloghome&pgn=catalogHome
Microsoft requires hardware vendors to complete this certification - also called "Windows logo-ing."
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 27
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Below is the ordering information for Windows Server 2003 Datacenter Edition (for Itanium 2 based HP Integrity Superdome only).
To order a system with Windows Server 2003 Datacenter Edition, you must order the T2372A product number with English or
Japanese localization (option ABA or ABJ), and the appropriate license to use option code (002 through 064). Windows
Server 2003 Datacenter Edition license options should be ordered to accommodate the total number of processors running
Windows in the system. Order the fewest option numbers possible for the total license number. For example if there are a total
of 24 processors in the system running Datacenter, order options 016 and 008. Datacenter can be partitioned (nPars only)
into any number of instances, but is limited to one OS image per nPar.
NOTES:
Windows Server 2003 Datacenter Edition should be installed with assistance from HP. If factory installation is selected, then a
qualified Windows storage device must be ordered and an A9890A or 337972 B21card must be ordered. There must be at
least one boot drive for each partition. Two drives are required for RAID 1; one drive is required for
RAID 0 or no RAID.
Cannot order more than one of the same license options.
Windows Datacenter Edition only supports a maximum of 64 processor coress per partition.
Quantity of Windows Client Access Licenses with Windows Datacenter Edition, T2372A is 5.
Description
Microsoft® Windows® Server 2003 Datacenter Edition for Itanium 2 Systems
English Localization
Japanese Localization
Factory Integration
Include with complete system
2 processor license to use
4 processor license to use
8 processor license to use
16 processor license to use
32 processor license to use
64 processor license to use
HP Standalone Operating System for field install. Windows Server 2003 Datacenter Edition Stand-alone for use
when adding licenses to an existing server or replacing another operating system on a Datacenter qualified
server. 0D1 (factory integration) is the default operating system installation method and should be used whenever
possible. Must be ordered with the appropriate number of licenses (LTU, for example T2372A-016 for 16
Windows Server 2003 Datacenter licenses. There must be a Windows Server 2003 Datacenter Edition processor
license for each processor in an Integrity server running Windows. When ordering T2372A-501, the appropriate
on-site HP Services installation options will be added to the order.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Product/Option
Number
T2372A
ABA
ABJ
0D1
B01
002
004
008
016
032
064
501
Page 28
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Below is the ordering information for Windows Server 2003 Enterprise Edition (for Itanium 2 based HP Integrity Superdome only).
NOTE: All orders for systems using Windows Server 2003 Enterprise Edition (64 bit) must contain T2373A or T2369AA Foundation
Pack for Windows LTU but not both. Windows Server 2003, Enterprise Edition is not supported with mx2 modules.
To order a system with Windows Server 2003 Enterprise Edition: Windows Server 2003 Enterprise Edition supports a
maximum of 8 processors per partition; each partition will require a separate instance of the Enterprise Edition OS (T2373A)
or a copy of Foundation Pack for Windows LTU (T2369AA). For example, if the Superdome is configured into 4 partitions, the
quote must include an order for four (4) T2373As or four (4) T2369AAs or a combination of the two part numbers for a total
of four. Configurations can have a maximum of 2 cell boards per partition; a maximum of 1 card cage per cell board
(maximum of two card cages per partition) and a maximum of 12 I/O cards per card cage/cell board.
Configurations requiring greater than 8 processors per partition must select Windows Server 2003 Datacenter Edition
(T2372A). Datacenter Edition is ordered on a per processor basis and supports a maximum of 64 processor cores per
partition. Moving a partition from Enterprise Edition to Datacenter Edition requires the OS to be reinstalled. If a customer
foresees the potential for their environment to grow beyond eight processors per partition it is recommended they purchase
Datacenter Edition.
Quantity of Windows Client Access Licenses with Windows Enterprise Edition, T2373A is 25.
Description
Microsoft Windows Server 2003 Enterprise Edition for Itanium 2 Systems
English Localization
Factory Integration
Installation and Startup Services are bundled with T2373A.
OS support is (optional) for T2373A, however, it is highly recommended that an OS support level is purchased
equal to the hardware support level.
HP Integrity Essential Foundation Pack for Windows
Include with complete system
Installation and Startup Services are required for T2369AA. Please order part number HA114A1-5EK.
OS support for T2369AA is a custom quote as the OS is not sold with the system.
*NOTE:
NOTE: Not orderable/supported in Japan.
Product/Option
Number
T2373A*
ABA
0D1
T2369AA
B01
NOTE: For Japanese versions of Windows Server 2003 Datacenter Edition or Enterprise Edition:
The AG064A (the Japanese TFT7600) is supported with Superdome partitions; the AG064A IS NOT
SUPPORTED as part of SMS.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 29
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Network Adapter
Teaming with Windows
Server 2003
Windows Server 2003 supports NCU, NIC Configuration Utility. This is the same NCU that is available to
Proliant customers. This NCU has been ported to 64 bit Windows Server 2003 and is included with every
SmartSetup CD that comes with a Windows partition on Integrity Superdome.
All ProLiant Ethernet network adapters support the following three types of teaming:
NFT—Network Fault Tolerance
TLB—Transmit Load Balancing
SLB—Switch-assisted Load Balancing
For Windows Server 2003 on Superdome, there are four network interface cards that are currently
supported (thus, these are the only cards that can be teamed with this NCU):
Windows/Linux PCI 1000Base-T Gigabit Ethernet Adapter (Copper)
Windows/Linux PCI 1000Base-SX Gigabit Ethernet Adapter (Fiber)
A7061A
A7073A
Windows/Linux PCI 2 port 1000Base-T Gigabit Ethernet Adapter (Copper)
Windows/Linux PCI 2 port 1000Base-T Gigabit Ethernet Adapter (Fiber)
A9900A
A9899A
Also, note that teaming between the ports on a single A9900A or A9899A above is supported by the
NCU.
OpenVMS Multi-System
High Availability
An HP OpenVMS Cluster is a highly integrated organization of AlphaServer and HP Integrity server
systems, applications, operating systems, and storage devices. These systems can be connected to each
other and storage components in a variety of ways. HP OpenVMS Cluster software is an integral part of
the OpenVMS operating system, providing the basis for many of the key capabilities utilized by
OpenVMS enterprise solutions. A full "shared everything" cluster design that has been in existence for
more than 20 years, OpenVMS Cluster software allows for the maximum in expandability, scalability,
and availability for mission-critical applications. Qualified for up to 96 computer nodes and more than
3,000 processors, OpenVMS clusters afford virtually 100 percent uptime and expand the
multiprocessing capabilities of the computing environment.
For information on OpenVMS Cluster software, refer to the OpenVMS Cluster Software page
http://h71000.www7.hp.com/openvms/products/clusters/index.html and the OpenVMS Cluster
Software product description at http://h18000.www1.hp.com/info/SP2978/SP2978PF.PDF. For specific
information on supported cluster and storage options for OpenVMS, refer to the OpenVMS Operating
System product description at http://h18000.www1.hp.com/info/XAV12X/XAV12XPF.PDF. For
information on specific Cluster Configuration guidelines, refer to the OpenVMS documentation at
http://h71000.www7.hp.com/doc/, specifically the latest version of the Guidelines to OpenVMS Cluster
Configuration manual.
Management Features
Integrity Superdome now supports the Console and Support Management Station in one device.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 30
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Service Processor (MP)
The service processor (MP) utility hardware is an independent support system for nPartition servers. It
provides a way for you to connect to a server complex and perform administration or monitoring
tasks for the server hardware and its nPartitions. The main features of the service processor include the
Command menu, nPartition consoles, console logs, chassis code viewers, and partition Virtual Front
Panels (live displays of nPartition and cell states).
Access to the MP is restricted by user accounts. Each user account is password protected and provides a
specific level of access to the Superdome complex and service processor commands. Multiple users can
independently interact with the service processor because each service processor login session is private.
Up to 16 users can simultaneously log in to the service processor through its network (customer LAN)
interface and they can independently manage nPartitions or view the server complex hardware states.
Two additional service processor login sessions can be supported by the local and remote serial ports.
These allow for serial port terminal access(through the local RS-232 port) and external modem access
(through the
remote RS-232 port).
In general, the service processor (MP) on Superdome servers is similar to the service processor on other
HP servers, while providing enhanced features necessary for managing a multiple-nPartition server. For
example, the service processor manages the complex profile, which defines nPartition configurations as
well as complex-wide settings for the server. The service processor also controls power, reset, and TOC
capabilities, displays and records system events (chassis codes), and can display detailed information
about the various internal subsystems.
Functional capabilities
The primary features available through the service processor are:
The Service Processor Command Menu: provides commands for
system service, status, access configuration, and manufacturing tasks.
Partition Consoles: Each nPartition in a server complex has its own
console. Each nPartition's console provides access to Boot Console
Handler (BCH) interface and the HP-UX console for the nPartition.
Console Logs: Each nPartition has its own console log, which has a
history of the nPartition console's output, including boot output, BCH
activity, and any HP-UX console login activity.
Chassis Logs Viewers (Live and Recorded Chassis Codes): Three types
of chassis code log views are available: activity logs, error logs, and
live chassis code logs.
Virtual Front Panels: Each nPartition's Virtual Front Panel (VFP) displays
real-time status of the nPartition boot status and activity, and details
about all cells assigned to the nPartition. The VFP display
automatically updates as cell and nPartition status changes.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 31
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Support Management
Station
Statio (SMS)
The Support Management Station (SMS) runs the Superdome scan tools that enhance the diagnosis and
testability of Superdome. The SMS and associated tools also provide for faster and easier upgrades and
hardware replacement.
The purpose of the SMS is to provide Customer Engineers with an industry leading set of support tools,
and thereby enable faster troubleshooting and more precise problem root cause analysis. It also enables
remote support by factory experts who consult with and back up the HP Customer Engineer. The SMS
complements the proactive role of HP's Instant Support Enterprise Edition (ISEE) that is offered to Mission
Critical customers by focusing on reactive diagnosis for both mission critical and non mission critical
Superdome customers.
The user of the SMS is the HP Customer Engineer and HP Factory Support Engineer. The Superdome
customer benefits from their use of the SMS by receiving faster return to normal operation of their
Superdome server and improved accuracy of fault diagnosis, resulting in fewer callbacks. HP can offer
better service through reduced installation time.
Functional Capabilities:
The SMS basic functional capabilities are:
Remote access via customer LAN
Modem access (PA-8800/PA-8900 SMS only)
Ability to be disconnected from the Superdome platform(s) and not
disrupt their operation.
Ability to connect a new Superdome platform to the SMS and be
recognized by scan software.
Support for up to sixteen Superdome systems
Ability to support multiple, heterogeneous Superdome platforms (scan
software capability).
System scan and diagnostics
Utility firmware updates
Enhanced IPMI logging capabilities (Windows-based ProLIant SMS
only)
Console Access
The optimal configuration of console device(s) depends on a number of factors, including the customer's
data center layout, console security needs, customer engineer access needs, and the degree with which
an operator must interact with server or peripheral hardware and a partition (i.e. changing disks, tapes).
This section provides a few guidelines. However the configuration that makes best sense should be
designed as part of site preparation, after consulting with the customer's system administration staff and
the field engineering staff.
Customer data centers exhibit a wide range of configurations in terms of the preferred physical location
of the console device. (The term "console device" refers to the physical screen/keyboard/mouse that
administrators and field engineers use to access and control the server.) The Superdome server enables
many different configurations by its flexible configuration of access to the MP, and by its support for
multiple geographically distributed console devices.
Three common data center styles are:
The secure site where both the system and its console are physically secured in a small area.
The "glass room" configuration where all the systems' consoles are clustered in a location
physically near the machine room.
The geographically dispersed site, where operators administer systems from consoles in remote
offices.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 32
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
These can each drive different solutions to the console access requirement.
The considerations listed below apply to the design of provision of console access to the server. These
must be considered during site preparation.
The Superdome server can be operated from a VT100 or an hpterm compatible terminal
emulator. However some programs (including some of those used by field engineers) have a more
friendly user interface when operated from an hpterm.
LAN console device users connect to the MP (and thence to the console) using terminal emulators
that establish telnet connections to the MP. The console device(s) can be anywhere on the network
connected to either port of the MP.
Telnet data is sent between the client console device and the MP "in the clear", i.e. unencrypted.
This may be a concern for some customers, and may dictate special LAN configurations.
If an HP-UX workstation is used as a console device, an hpterm window running telnet is the
recommended way to connect to the MP. If a PC is used as a console device, Reflection1
configured for hpterm emulation and telnet connection is the recommended way to connect to the
MP.
The MP currently supports a maximum of 16 telnet-connected users at any one time.
It is desirable, and sometimes essential for rapid time to repair to provide a reliable way to get
console access that is physically close to the server, so that someone working on the server
hardware can get immediate access to the results of their actions. There are a few options to
achieve this:
Place a console device close to the server.
Ask the field engineer to carry in a laptop, or to walk to the operations center.
Use a system that is already in close proximity of the server such as the Instant Support
Enterprise Edition (ISEE) or the System Management Station as a console device close to the
system.
The system administrator is likely to want to run X-applications or a browser using the same
client that they access the MP and partition consoles with. This is because the partition
configuration tool, parmgr, has a graphical interface. The system administrator's console
device(s) should have X-window or browser capability, and should be connected to the
system LAN of one or more partitions.
Local console physical connection (RS-232)
Functional capabilities
Display of system status on the console (Front panel display messages)
Console mirroring between LAN and RS-232 ports
System hard and soft (TOC or INIT) reset capability from the console.
Password secured access to the console functionality
Support of generic terminals (i.e. VT100 compatible).
Power supply control and monitoring from the console. It will be
possible to get power supply status and to switch power on/off from
the console.
Console over the LAN. This means that a PC or HP workstation can
become the system console if properly connected on the customer
LAN. This feature becomes especially important because of the remote
power management capability. The LAN will be implemented on a
separate port, distinct from the system LAN, and provide TCP/IP and
Telnet access.
There is one MP per Superdome cabinet, thus there are two (2) for
Superdome 64-processor. But one, and only one, can be active at a
time. There is no redundancy or failover feature.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 33
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Windows Server 2003
For Windows Server 2003 customers desiring uninterrupted visibility to the Superdome Windows partition,
it is recommended that customers purchase an IP console solution separately to view the partition while
the OS is rebooting (in addition to normal Windows desktop if desired). Windows Terminal Services
(standard in Windows Server 2003) should be the recommended method to provide remote access, but is
lacking in displaying VGA output during reboot.
For customers who mandate VGA access during reboot, the IP console switch (262586-B21), used in
conjunction with a VGA/USB card in the partition (A6869A/A6869B) is the solution. These IP console
solutions are available "off the shelf" with resellers or the ProLiant supply chain.
The features of this switch are as follows:
Provides keyboard, video and mouse (KVM) connections to 16 direct attached Windows partitions
(or servers) - expandable to 128.
Allows access to partitions (or servers) from a remote centralized console.
1 for local KVM
3 concurrent remote users (secure SSL data transfer across network)
Single screen switch management with the IP Console Viewer Software:
Authentication
Administration
Client Software
If the full graphical console access is needed, the following must be ordered with the Integrity Superdome
purchase (it will not be integrated in the factory, but will ship with the system):
Component
3×1×16 IP console switch (100 240V)-1 switch per 16 OS instances (n<=16), each
connected to VGA card
8 to 1 console expander-Order expander if there are more than 16 OS instances
USB interface adapters-Order one per OS instance
CAT5 cable-Order one per OS instance
Product Number
262586-B21
262589-B21
336047-B21
NOTE: For Japanese versions of Windows Server 2003 Datacenter Edition or Enterprise Edition:
The (the Japanese TFT7600) is supported with Superdome partitions; the AG064A IS NOT SUPPORTED
as part of SMS.
For additional information, please visit:
http://h18004.www1.hp.com/products/servers/proliantstorage/rack-options/kvm/index-console.html
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 34
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Support
The following matrix describes the supported SMS and recommended console devices for all
Superdomes.
SMS and Console Support Matrix
PA 8700 (pre March 1, 2004)
PA 8700 (post March 1, 2004)
PA 8700 upgraded to Integrity
or PA-8800/PA-8900
Integrity or PA-8800/PA-8900
SMS
Console
1
Legacy UNIX SMS
PC/workstation
UNIX rx2600 bundle
TFT5600 + Ethernet switch
Legacy UNIX SMS with software PC/workstation
upgrade 2
UNIX rx2600 bundle 3
TFT5600 + Ethernet switch
Windows SMS/Console (ProLiant ML350)
Windows SMS/Console (ProLiant ML350)
UNIX SMS/Console (rx2600)
1
A legacy UNIX SMS could be an A400, A500, rp2430 or rp2470 bundle, depending on when it was
ordered
2 In order for a legacy SMS to be upgraded to support Integrity or PA8800/PA-8900, it must be running
HP-UX 11.0 or later, as sx1000 scan tools are not supported on HP-UX 10.20.
3 rx2600 SMS bundles ordered and installed prior to October 2004 will require a software upgrade in
order to support an sx1000-based Superdome. As of October 2004, all rx2600 SMS bundles support
PA8800/PA-8900 and Integrity Superdomes without this upgrade.
Hardware Requirements
There are two alternatives for Integrity Superdome: a Windows ProLiant SMS/Console or a UNIX rx2600
SMS/Console.
The UNIX rx2600 SMS bundle is comprised of:
HP rx2600 1.0G 1.5MB processor server Solution
Factory rack kit for rx2600
1GB DDR memory
36GB 15K HotPlug Ultra320 HDD
HP-UX 11iv2 Foundation OE
1 x HP Tape Array 5300 with DVD-ROM and DAT 40
HP ProCurve Switch 2124
CAT 5e Cables
By default, the rx2600 SMS does not come with a display monitor or keyboard unless explicitly ordered
to enable console access (the TFT5600 rackmounted display/mouse/keyboard is the recommended
solution). See the ordering guide for details on the additional components that are required in order to
use the rx2600 SMS as a console.
The Windows ProLiant SMS:
Allows local access to SMS by CE.
Provides integrated console access, providing hpterm emulation over telnet and web browser,
connecting over LAN or serial to a Superdome system
Provides remote access over a LAN or dialup connection:
ftp server with capability to ftp the firmware files and logs
dialup modem access support (i.e., PC Anywhere or VNC)
Provides seamless integration with data center level management.
Provides partition logon capability, providing hpterm emulation over telnet, X windows, and
Windows Terminal Services capabilities.
Provides following diagnostics tools:
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 35
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Runs HP's proven highly effective JTAG scan diagnostic tools, which offer rapid fault resolution to
the failing wire.
Console log storage and viewing
Event log storage and viewing
Partition and memory adviser flash applications
Supports updating platform and system firmware.
Always on event and console logging for Superdome systems, which captures and stores very long
event and console histories, and allows HP specialists to analyze the first occurrence of a problem.
Allows more than one LAN connected response center engineer to look at SMS logs
simultaneously.
Can be disconnected from the Superdome systems and not disrupt their operation.
Provides ability to connect a new Superdome system to the SMS and be recognized by scan
software.
Scans one Superdome system while other Superdome systems are connected (and not disrupt the
operational systems).
Supports multiple, heterogeneous Superdome platforms.
The Windows ProLiant SMS/Console is comprised of a ProLiant ML350 G3/G4 and a TFT5600
retractable display monitor/keyboard/mouse to enable console access. This solution also requires (and
includes) a switch. This is because scan diagnostics will not work properly if more than one IP address
exists on the ProLiant SMS/Console. An important difference between the UNIX rx2600 SMS and the
Windows ProLiant SMS/Console is that the ProLiant SMS, by default, provides console functionality
whereas the UNIX rx2600 SMS does not. The TFT5600 retractable display/keyboard which is an
optional add-on for the UNIX-based rx2600 SMS, is included by default with the Windows ProLiant SMS.
Additionally, the Windows ProLiant SMS/Console includes an internal modem that is intended for
connection to a phone line. This is for cases in which the Customer does not want the SMS to be on a
public network, and HP Field Services needs to access the SMS (they would then access the SMS via the
phone line and PCAnywhere.)
A customer may not substitute any PC running Windows Server 2000 SP4 for the ProLiant SMS/Console
due to the specialized software applications that have been qualified on the hardware and OS. Utilizing
any other device as the SMS will void the warranty on the Superdome system and degrade the ability to
service the system.
The Windows ProLiant SMS bundle is comprised of:
1 x HP ProLiant server ML350 G3/G4
1 x Intel Xeon ™ DP 3.06 GHz processor
2 x 256MB
36GB 10K U320 HDD
1 x internal DVD
1 x internal V.90 56K modem with phone cord
Windows 2000 Server SP4
2 x 25' CAT5e cables
1 x 4' CAT5e cable
Ethernet switch and jumper cord
Retractable display/keyboard/mouse
Third-party applications
NOTE: If full graphical access to the SMS is needed, the PS/2 Interface Adapter (262588 B21) will allow
the SMS to share the IP Console Switch with other OS instances.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 36
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Software Requirements
All SMS software is preloaded in the factory and delivered to the customer as a complete solution.
The UNIX rx2600 SMS supports only HP UX 11i at this time. Current versions of the SMS software have
not been qualified for 64 bit Windows.
The Windows ProLiant SMS/Console will run Windows 2000 SP4 as the default operating system. The
ProLiant SMS/Console will follow the Windows OS roadmap and support later versions of this operating
system as needed. The version of the scan tools used on the sx1000 Superdomes also does not require
scan traffic to be isolated from console traffic.
SMS/Console
Connectivity
The UNIX rx2600 SMS requires the addition of a retractable display/keyboard in order to provide
console access to Integrity Superdome.
Console capabilities are integrated with the Windows ProLiant SMS solution. The ProLiant SMS includes
the necessary display, keyboard and mouse, and only one LAN port on the MP is required to be
connected. The Windows ProLiant SMS can support and connect to either of the MP LAN interfaces
(known as the Private and Customer LAN ports). Both LAN ports on the MP have identical functionality so
there is no preference in using one over the other. Only one IP port on the Superdome MP is required to
be connected to the ProLiant SMS. Since scan and console traffic can co-exist on the same network, only
one IP address exists (and is supported) on the ProLiant SMS.
The Integrity Superdome scan tools use TCP/IP, not UDP, for scan diagnostics. Therefore it is not
necessary to isolate scan and console traffic on Integrity Superdomes.
The Core I/O cards from each nPar can optionally be connected to the Ethernet switch in order to
facilitate graphical console functionality (i.e., parmgr). However, security concerns may dictate that a
partition NIC not be connected to the management LAN. Alternatives are to access from a management
station to a partition LAN through a secure router, or to use text mode access to commands via the
console.
Additional Integrity Superdomes can be added to this configuration. Each new Integrity Superdome will
require only one CAT5e LAN cable for connection of the Customer/Private LAN port on the Superdome
MP to the existing switch.
Customers using the UNIX rx2600 SMS solution for Integrity Superdome can also use the rx2600 as a
console device. In order to use the UNIX rx2600 SMS as a console for Integrity Superdome, the only
component that must be ordered is the TFT5600 retractable keyboard/display/mouse. See the ordering
guide for more details.
Additional Integrity Superdomes require only a CAT5e LAN cable for connection of the Private/Customer
LAN port to the existing switch. PA-8700 Superdomes can also be added to this configuration, but
require separate scan & console networks. Details on mixed Superdome environments follow later in this
section.
Windows Terminal Services (standard in Windows Server 2003) should be the recommended method to
provide remote access for Windows partitions, but is lacking in displaying VGA output during reboot. For
customers who mandate VGA access during reboot, configure the IP console switch (262586 B21) used
in conjunction with a VGA/USB card in the partition (A6869A).
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 37
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Mixed Superdome Environments
Some important rules regarding SMS/Console support in mixed Superdome environments:
1. PA-8700 Superdomes require scan and console traffic to be isolated on separate networks
2. Integrity Superdomes do not require scan and console traffic to be isolated on separate networks
3. The Windows ProLiant SMS cannot be used to manage PA-8700 Superdomes
4. The UNIX rx2600 SMS can be used to manage all current models of Superdome
5. A legacy UNIX SMS can manage Integrity Superdomes as long as it undergoes a software upgrade and is running HP-UX
11.0
Upgrading a PA-8700
Superdome to Integrity
Upgrading a PA-8700 Superdome to Integrity
Once a PA-8700 Superdome has been upgraded to Integrity, a software upgrade must be performed on
the SMS in order to have the correct scan tools for the sx1000 chipset. Alternatively, a new Windows
ProLiant SMS or a UNIX rx2600 SMS can be ordered.
After performing the software upgrade, scan and console traffic from the SMS to the newly upgraded
Superdome can co-exist on the same network. Note that if there are other PA-8700 Superdomes still
connected to the SMS, those Superdomes will still require the two separate networks (see Adding a PA8800/PA-8900 Superdome to a PA-8700 Environment, below).
Adding an Integrity
When adding an Integrity Superdome to a PA-8700 environment, the Customer can choose to purchase
Superdome to a PA-8700 a new SMS/Console (either the Windows or UNIX version) to manage the new Integrity Superdome, and
Environment
continue to use their existing legacy SMS to manage the PA-8700 Superdomes.
A simpler solution is to upgrade the software on the legacy UNIX SMS so that it may manage the new
Integrity Superdome. The upgraded UNIX SMS is able to determine which Superdomes are PA-8700 and
which are Integrity, and will separate scan traffic from console traffic on the PA-8700 Superdomes.
To support this, the separate scan and console networks should be maintained for all PA-8700
Superdomes. The new Integrity Superdome requires only one connection to the SMS from its
Private/Customer LAN port on the MP.
System Management
Features
HP-UX (sx1000 & sx2000)
HP-UX Servicecontrol Manager is the central point of administration for management
applications that address the configuration, fault, and workload management requirements of an
adaptive infrastructure.
Servicecontrol Manager maintains both effective and efficient management of computing
resources. It integrates with many other HP-UX-specific system management tools, including the
following, which are available on Itanium 2 based servers:
Ignite-UX-Ignite-UX
addresses the need for HP-UX system administrators to perform fast
Ignite-UX
deployment for one or many servers. It provides the means for creating and reusing standard
system configurations, enables replication of systems, permits post-installation customizations, and
is capable of both interactive and unattended operating modes.
Software Distributor (SD) is the HP-UX administration tool set used to deliver and maintain HP-UX
operating systems and layered software applications. Delivered as part of HP-UX, SD can help you
manage your HP-UX operating system, patches, and application software on HP Itanium2-based
servers.
System Administration Manager (SAM) is used to manage accounts for users and groups, perform
auditing and security, and handle disk and file system management and peripheral device
management. Servicecontrol Manager enables these tasks to be distributed to multiple systems
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 38
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
and delegated using role based security.
self-optimizing kernel changes. The new HP-UX Kernel
HP-UX Kernel Configuration-for
Configuration
Configuration tool allows users to tune both dynamic and static kernel parameters quickly and
easily from a Web based GUI to optimize system performance. This tool also sets kernel
parameter alarms that notify you when system usage levels exceed thresholds.
Partition Manager creates and manages nPartitions-hard partitions for high-end servers. Once the
partitions are created, the systems running on those partitions can be managed consistently with
all the other tools integrated into Servicecontrol Manager. Key features include:
Easy-to-use, familiar graphical user interface.
Runs locally on a partition, or remotely. The Partition Manager application can be run
remotely on any system running HP-UX 11i Version 2 and eventually select Windows
releases and remotely manage a complex either by 1) communicating with a booted OS on
an nPartition in the target complex via WBEM, or 2) communicating with the service
processor in the target complex via IPMI over LAN. The latter is especially significant
because a complex can be managed with NONE of the nPartitions booted.
Full support for creating, modifying, and deleting hardware partitions.
Automatic detection of configuration and hardware problems.
Ability to view and print hardware inventory and status.
Big picture views that allow system administrators to graphically view the resources in a
server and the partitions that the resources are assigned to.
Complete interface for the addition and replacement of PCI devices.
Comprehensive online help system.
Security Patch Check determines how current a systems security patches are, recommends
patches for continuing security vulnerabilities and warns administrators about recalled patches still
present on the system.
System Inventory Manager is for change and asset management. It allows you to easily collect,
store and manage inventory and configuration information for HP-UX based servers. It provides an
easy-to-use, Web-based interface, superior performance, and comprehensive reporting
capabilities
Event Monitoring Service (EMS) keeps the administrator of multiple systems aware of system
operation throughout the cluster, and notifies the administrator of potential hardware or software
problems before they occur. HP Servicecontrol Manager can launch the EMS interface and
configure EMS monitors for any node or node group that belongs to the cluster, resulting in
increased reliability and reduced downtime.
Process Resource Manager (PRM) controls the resources that processes use during peak system
load. PRM can manage the allocation of processor, memory resources, and disk bandwidth. It
allows administrators to run multiple mission critical applications on a single system, improve
response time for critical users and applications, allocate resources on shared servers based on
departmental budget contributions, provide applications with total resource isolation, and
dynamically change configuration at any time-even under load. (fee based)
HP-UX Workload Manager (WLM) A key differentiator in the HP-UX family of management tools,
Workload Manager provides automatic processor resource allocation and application
performance management based on prioritized service-level objectives (SLOs). In addition, WLM
allows administrators to set real memory and disk bandwidth entitlements (guaranteed minimums)
to fixed levels in the configuration. The use of workload groups and SLOs improves response time
for critical users, allows system consolidation, and helps manage user expectations for
performance. (Fee-based)
HP's Management Processor enables remote server management over the Web regardless of the
system state. In the unlikely event that none of the nPartitions are booted, the Management
Processor can be accessed to power cycle the server, view event logs and status logs, enable
console redirection, and more. The Management Processor is embedded into the server and does
not take a PCI slot. And, because secure access to the Management Processor is available
through SSL encryption, customers can be confident that its powerful capabilities will be available
only to authorized administrators. New features that will be available include:
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 39
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Support for Web Console that provides secure text mode access to the management
processor
Reporting of error events from system firmware.
Ability to trigger the task of PCI OL* from the management processor.
Ability to scan a cell board while the system is running. (only available for partitionable
systems)
Implementation of management processor commands for security across partitions so that
partitions do not modify system configuration (only available for partitionable systems).
OpenView Operations Agent-collects
and correlates OS and application events (fee based)
Agent
OpenView Performance Agent-determines
OS and application performance trends (fee based)
Agent
OpenView GlancePlus-shows
real time OS and application availability and performance data to
GlancePlus
diagnose problems (fee based)
OpenView Data Protector (Omniback II)-backs up and recovers data (fee based)
In addition, the Network Node Manager (NNM) management station will run on HP-UX Itanium 2 based
servers. NNM automatically discovers, draws (maps), and monitors networks and the systems connected
to them.
All other OpenView management tools, such as OpenView Operations, Service Desk, and Service
Reporter, will be able to collect and process information from the agents running on Itanium 2-based
servers running HP-UX.
Windows Server 2003, Datacenter Edition/Enterprise Edition (sx1000 and sx2000)
The HP Essentials Foundation Pack for Windows is a complete toolset to install, configure, and
manage Itanium2 servers running Windows. Included in the Pack is the Smart Setup DVD which
contains all the latest tested and compatible HP Windows drivers, HP firmware, HP Windows
utilities, and HP management agents that assist in the server deployment process by preparing the
server for installation of standard Windows operating system and in the on going management of
the server. Please note that this is available for HP service personnel but not provided to end
customers.
Partition Manager and Partition Commands
Two tools are available for managing nPartition (hard partition) configurations on Superdome.
The first tool is the Partition Manager (parmgr) is a web-based application that allows system
administrators to use a convenient graphical user interface (GUI) to configure and manage
nPartitions on HP server systems. Partition Manager can also detect several types of configuration
problems. Partition Manager can be accessed on the SMS through the System Management
Homepage (see below).
The second tool is Partition Commands (parCLI) is a set of command-line utilities for viewing and
modifying the nPartition configuration of HP server systems. All functionality provided by the
Partition Commands are
also available via the Partition Manager GUI, however the commands may be used for scripting
common tasks. The Partition Commands may be run on the SMS from a Command Prompt
window or batch script.
Key features of both tools include full support for creating, modifying, and deleting hardware
partitions. Refer to the HP UX section above for additional features of Partition Manager and the
Partition Commands.
Insight Manager 7 maximizes system uptime and provides powerful monitoring and control.
Insight Manager 7 delivers pre-failure alerting for servers ensuring potential server failures are
detected before they result in unplanned system downtime. Insight Manager 7 also provides
inventory reporting capabilities that dramatically reduce the time and effort required to track server
assets and helps systems administrators make educated decisions about which system may
required hardware upgrades or replacement. And Insight Manager 7 is an effective tool for
managing your HP desktops and notebooks as well as non HP devices instrumented to SNMP or
DMI.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 40
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
System Management Homepage displays critical management information through a simple, task
oriented user interface. All system faults and major subsystem status are now reported within the
initial System Management Homepage view. In addition, the new tab-based interface and menu
structure provide one click access to server log. The System Management Homepage is accessible
either directly through a browser (with the partition's IP address) or through a management
application such as Insight Manager 7 or an enterprise management application.
HP's Management Processor enables remote server management over the Web regardless of the
system state. In the unlikely event that the operating system is not running, the Management
Processor can be accessed to power cycle the server, view event logs and status logs, enable
console redirection, and more. The Management Processor is embedded into the server and does
not take a PCI slot. And, because secure access to the Management Processor is available
through SSL encryption, customers can be confident that its powerful capabilities will be available
only to authorized administrators. New features on the management processor include:
Support for Web Console that provides secure text mode access to the management
processor
Reporting of error events from system firmware.
Ability to trigger the task of PCI OL* from the management processor.
Ability to scan a cell board while the system is running.
Implementation of management processor commands for security across partitions so that
partitions do not modify system configuration.
OpenView Management Tools,
Tools such as OpenView Operations and Network Node Manager, will
be able to collect and process information from the SNMP agents and WMI running on Windows
Itanium 2 based servers. In the future, OpenView agents will be able to directly collect and
correlate event, storage, and performance data from Windows Itanium 2-based servers, thus
enhancing the information OpenView management tools will process and present.
Red Hat RHEL AS 3 & 4 and SUSE SLES 9 (sx1000 & sx2000)
Insight Manager 7 maximizes system uptime and provides powerful monitoring and control.
Insight Manager 7 also provides inventory reporting capabilities that dramatically reduce the time
and effort required to track server assets and helps systems administrators make educated
decisions about which system may required hardware upgrades or replacement. And Insight
Manager 7 is an effective tool for managing your HP desktops and notebooks as well as non HP
devices instrumented to SNMP or DMI.
The HP Enablement Kit for Linux facilitates setup and configuration of the operating system. This
kit includes System Imager, an open source operating system deployment tool. System Imager is a
golden image based tool and can be used for initial deployment as well as updates.
Partition Manager creates and manages nPartitions-hard partitions for high-end servers. Once the
partitions are created, the systems running on those partitions can be managed consistently with
all the other tools integrated into Servicecontrol Manager.
NOTE: At first release, Partition Manager will require an HP-UX 11i Version 2 partition or
separate device (i.e. Itanium2 based workstation or server running HP-UX 11i Version 2) in order
to configure Red Hat or SUSE partitions. Refer to HP UX section above for key features of Partition
Manager.
HP's Management Processor enables remote server management over the Web regardless of the
system state. In the unlikely event that the operating system is not running, the Management
Processor can be accessed to power cycle the server, view event logs and status logs, enable
console redirection, and more. The Management Processor is embedded into the server and does
not take a PCI slot. And, because secure access to the Management Processor is available
through SSL encryption, customers can be confident that its powerful capabilities will be available
only to authorized administrators.
Support for Web Console that provides secure text mode access to the management
processor
Reporting of error events from system firmware.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 41
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Ability to trigger the task of PCI OL* from the management processor.
NOTE: Online addition/replacement (OLAR) is not supported when running Red Hat or
SUSE in the partition.
Ability to scan a cell board while the system is running. (only available for partitionable
systems)
Implementation of management processor commands for security across partitions so that
partitions do not modify system configuration. (only available for partitionable systems)
OpenVMS
Software Deployment
Factory Installed Software
Configuration
Partition Manager creates and manages nPartitions-hard partitions for high?end servers. Once the
partitions are created, the systems running on those partitions can be managed consistently with
all the other tools integrated into HP Systems Insight Manager. See "Partitioning" for more
information.
OpenVMS Management Station to manage user accounts, printers, and disks
Availability Manager for real-time performance monitoring
Workload Management
Global Workload Manager (gWLM) - Global Workload Manager provides automatic CPU
resource allocation and application performance management based on prioritized service level
objectives (SLOs).
Class Scheduler for resource management
System Management for OpenVMS
HP Systems Insight Manager (see above) in conjunction with (Web) Management Agents
Central Management Server - CMS - Management agent for gWLM
OpenView for OpenVMS
OpenView Operations Agent-collects and correlates OS and application events (fee-based)
OpenView Performance Agent -- determines OS and application performance trends (fee-based)
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 42
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
General Site Preparation AC Power Requirements
Rules
The modular, N+1 power shelf assembly is called the Front End Power Subsystem (FEPS). The
redundancy of the FEPS is achieved with 6 internal Bulk Power Supplies (BPS), any five of which can
support the load and performance requirements.
Input Options
Reference the Site Preparation Guide for detailed power configuration options.
Input Power Options
PDCA
Product
Number
A5800A
Option 006
Source Source Voltage
Type (nominal)
PDCA
Input Current
Required Per Phase
200-240 VAC
3Voltage range
4-wire
44 A
phase 200-240 VAC,
Maximum per
phase-to-phase,
phase
50/60 Hz
A5800A
3Voltage range
5-wire
Option 007 phase 200-240 VAC,
phase-to-neutral,
50/60 Hz
Power Required
2.5 meter UL power cord and OL
approved plug provided. The
customer must provide the mating in
line connector or purchase quantity
one A6440A opt 401 to receive a
mating in line connector. An
electrician must hardwire the in-line
connector to 60 A/63 A site
power.a,b,c
24 A
2.5 meter <HAR> power cord and
Maximum per VDE approved plug provided. The
phase
customer must provide the mating in
line connector or purchase quantity
1 A6440A opt 501 to receive a
mating in-line connector. An
electrician must hardwire the in-line
connector to 30 A/32 A site
power.a,b,d
a. A dedicated branch is required for each PDCA installed.
b. In the U.S.A, site power is 60 Amps; in Europe site power is 63 Amps.
c. Refer to the Option 006 and 007 Specifics Table for detailed specifics related to this option.
d. In the U.S.A. site power is 30 Amps; in Europe site power is 32 Amps.
Option 006 and 007 Specifics*
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 43
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
PDCA Product
Number
A5800A Option
006
A5800A Option
007
Attached Power
Cord
OLFLEX 190 (PN
600804), fourconductor, 6-AWG
(16 mm2), 600Volt, 60-Amp, 90degree C, UL, and
CSA approved,
conforms to CE
directives GN/YW
ground wire.
Five conductors,
10-AWG (6 mm2),
450/475-Volt, 32Amp, <HAR>
European wire
cordage, GN/YW
ground wire.
Attached Plug
Mennekes ME
460P9 3-phase, 4wire, 60-Amp, 250Volt, UL-approved.
Color blue, IEC
309-1, IEC 309-1,
grounded at 3:00
o'clock.
Mennekes ME
532P6-14 3-phase,
5-wire, 32-Amp,
450/475-volt, VDEcertified, color red,
IEC 309-1, IEC
309-2, grounded at
6:00 o'clock.
Customer Provided Part
In Line Connector Panel Mount
Receptacle
Mennekes ME
Mennekes ME
460C9 3-phase,
460R9 3 phase,
4-wire, 60-amp,
4-wire, 60-amp,
250-Volt, UL250-Volt,
approved. Color
UL-approved. Color
blue, IEC 309-1,
blue, IEC 309-1,
IEC 309-1,
IEC 309-1,
grounded at 9:00 grounded at 9:00
o'clock.a
o'clock.b
Mennekes ME
Mennekes
532C6 16 3-phase, ME532R6 1276 35-wire, 32-Amp,
phase, 5-wire, 32450/475-Volt, VDE- Amp, 450/475certified, color red, Volt, VDE- certified,
IEC 309-1, IEC
color red, IEC 309309-2, grounded at 1, IEC 309-2,
6:00 o'clock.c
grounded at 6:00
o'clock.b
a. In-line connector is available from HP by purchasing A6440A, Option 401.
b. Panel mount receptacles must be purchased by the customer from a local Mennekes supplier.
c. In-line connector is available from HP by purchasing A6440A, Option 501.
NOTE: A qualified electrician must wire the PDCA in line connector to site power using copper wire and
in compliance with all local codes.
Input Requirements
Reference the Site Preparation Guide for detailed power configuration requirements.
Requirements
Value
Nominal Input Voltage (VAC rms) 200/208/220/230/240
Input Voltage Range (VAC rms)
200-240
Conditions/Comments
Auto-selecting. Measure at input
terminals
Frequency Range (Hz)
Number of Phases
50/60
3
Maximum Input Current (A rms),
3-Phase 5-wire
20
Maximum Input Current (A rms),
3-Phase 4-wire
40
Maximum Inrush Current (A peak)
Circuit Breaker Rating (A),
3-Phase 5-wire
Circuit Breaker Rating (A),
3-Phase 4-wire
Power Factor Correction
90
25 A
Per phase
45 A
Per phase
DA - 11717
3-phase 5-wire with power cord;
3-phase 4-wire with power cord
3-phase source with a source
voltage of 220 VAC measured
phase to neutral
3-phase source with a source
voltage of either 208 VAC or 230
VAC measured phase to phase
0.95 minimum
Worldwide — Version 35 — December 6, 2006
Page 44
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Ground Leakage Current (mA)
>3.5 mA, with 6 BPSs installed
Warning label applied to the
PDCA at the AC Mains input
Cooling Requirements
The cooling system in Superdome was designed to maintain reliable operation of the system in the
specified environment. In addition, the system is designed to provide redundant cooling (i.e. N+1
fans and blowers) that allows all of the cooling components to be "hot swapped."
Superdome was designed to operate in all data center environments with any traditional room
cooling scheme (i.e. raised floor environments) but in some cases where data centers have
previously installed high power density systems, alternative cooling solutions may need to be
explored by the customer. HP has teamed with Liebert to develop an innovative data room cooling
solution called DataCool. DataCool is a patented overhead climate system utilizing fluid based
cooling coils and localized blowers capable of cooling heat loads of several hundred watts per
square foot. Some of DataCool's highlights are listed below:
Liebert has filed for several patents on DataCool
DataCool, based on Liebert's TeleCool, is an innovative approach to data room cooling
Liquid cooling heat exchangers provide distributed cooling at the point of use
Delivers even cooling throughout the data center preventing hot spots
Capable of high heat removal rates (500 W per square foot)
Floor space occupied by traditional cooling systems becomes available for revenue generating
equipment.
Enables cooling upgrades when installed in data rooms equipped with raised floor cooling
DataCool is a custom-engineered overhead solution for both new data center construction and for data
room upgrades for high heat loads. It is based on Liebert's TeleCool product, which has been installed in
600 telecommunications equipment rooms throughout the world. The system utilizes heat exchanger
pump units to distribute fluid in a closed system through patented cooling coils throughout the data
center. The overhead cooling coils are highly efficient heat exchangers with blowers that direct the cooling
where it is needed. The blowers are adjustable to allow flexibility for changing equipment placement or
room configurations. Equipment is protected from possible leaks in the cooling coils by the patented
monitoring system and purge function that detects any leak and safely purges all fluid from the affected
coils. DataCool has interleaved cooling coils to enable the system to withstand a single point of failure
and maintain cooling capability.
Features and Benefits
Fully distributed cooling with localized distribution
Even cooling over long distances
High heat load cooling capacity (up to 500 W per square foot)
Meets demand for narrow operating temperature for computing systems
Allows computer equipment upgrade for existing floor cooled data rooms
Floor space savings from removal of centralized air distribution
Withstand single point of failures
For More Information
http://www.liebert.com/assets/products/english/products/env/datacool/
60hz/bro_8pg/acrobat/sl_16700.pdf
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 45
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
HP has entered into an agreement with Liebert to reference sell the DataCool solution
The HP/Liebert business relationship is managed by the HP Complementary Products Division.
DataCool will be reference by HP. Liebert will perform installation, service and support.
HP will compensate the HP Sales Representative and District Manager for each DataCool that
Liebert sells to a customer referred by HP.
An HP/Liebert DataCool website will be setup to get more information on the product and to
manage the reference sales process. Please go to http://hpcp.grenoble.hp.com/ for more
information.
Environmental
68 to 86 degrees F (20 to 30 degrees C) inlet ambient temperature
0 to 10,000 feet (0 to 3048 meters)
2600 CFM with N+1 blowers. 2250 CFM with N.
65 dBA noise level
Uninterruptible Power Supplies (UPS)
HP will be reselling-high end (10 kW and above) three-phase UPS systems from our partners. We will test
and qualify a three-phase UPS for Superdome.
All third-party UPS resold by HP are tested and qualified by HP to ensure interoperability with our
systems
We plan to include ups_mond ups communications capability in the third party UPS(s), thus
ensuring consistent communications strategy with our PowerTrust UPS(s)
We will also establish a support strategy with our third-party UPS partners to ensure the appropriate
level of support our customer have come to expect from HP.
For more information on the product and to manage the reference sales process please go to
http://hpcp.grenoble.hp.com/.
APC Uninterruptible Power Supplies for Superdome
The Superdome team has qualified the APC Silcon 3-phase 20 kW UPS for Superdome.
There are several configurations that can be utilized depending on the Superdome configuration your
customer is deploying. They range from a 64 processor Superdome with dual cord and dual UPS with
main tie main to a 32 processor Superdome with single cord and single UPS. In all configurations the
APC Silcon SL20KFB2 has been tested and qualified by the Superdome engineers to ensure
interoperability.
HP UPS Solutions
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 46
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Product
Number/
Description
SL20KFB2
APC Silcon
3-phase UPS
Quantity/
Configuration
Quantity 2
32- or 64processor dualcord/dual-UPS
with main-tiemain
Quantity 1
32- or 64processor singlecord/single-UPS
Quantity 1
32- or 64processor dualcord/dual-UPS
with main-tiemain
Quantity 0
32- or 64processor singlecord/single-UPS
Quantity 2
32- or 64processor dualcord/dual-UPS
with main-tiemain
Quantity 1
32- or 64processor singlecord/single-UPS
Quantity 2
32- or 64processor dualcord/dual-UPS
with main-tiemain
Quantity 1
32- or 64processor singlecord/single-UPS
QJB22830
Switch Gear
WSTRUP5X8SL10
Start-Up Service
WONSITENBDSL10
Next Business
Day On-site
Service
Watt VA
Technology Family
Package
Output
20
kW
20
kVA
Delta
APC Silcon Standalone Configurable
conversion 3-phase
rack
for 200: 208
on-line
or 220V 3double
phase
conversion
nominal
output
voltage
N/A
N/A
N/A
Customer N/A
Design for
Superdome
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
NOTE: The APC Silcon 3-phase UPS solutions for Superdome must be ordered directly from APC. Please
contact Ron Seredian at [email protected]
Superdome Server Watt Ratings for UPS loading
Class
Superdome
Models
32-processor
Superdome
64-processor
DA - 11717
Watt Rating for UPS loading
19 kW
UPSs Typically Used
SL20KFB2; 20 kW/20 kVA
SL20KFB2; 20 kW/20 kVA;
19 kW each cabinet; 38 kW total
Quantity 2
Worldwide — Version 35 — December 6, 2006
Page 47
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Power Protection
Runtimes
The UPS will provide battery backup to allow for a graceful shutdown in the event of a power failure.
Typical runtime on the APC SL20KFB2 Silcon 3 Phase UPS varies with the kW rating and the load. The
APC SL20KFB2 UPS provides a typical runtime of 36.7 minutes at half load and 10.7 at full load. If
additional run time is needed please contact your APC representative
Power Conditioning
The APC SL20KFB2 provides unparalleled power conditioning with its Delta-Conversion on-line double
conversion technology. This is especially helpful in regions were power is unstable.
Continuous Power during Short Interruptions of Input Power
The APC SL20KFB2 will provide battery backup to allow for continuous power to the connected
equipment in the event of a brief interruption in the input power to the UPS. Transaction activity will
continue during brief power outage periods as long as qualified UPS units are used to provide backup
power to the SPU, the Expansion Modules, and all disk and disk array products.
UPS Configuration Guidelines
In general, the sum of the "Watt rating for UPS sizing" for all of the connected equipment should not
exceed the watt rating of the UPS from which they all draw power. In previous configuration guides, this
variable was called the "VA rating for UPS sizing." With Unity Power Factor, the Watt rating was the same
as the kVA rating, so it didn't matter which one we used. VA is calculated by multiplying the voltage times
the current. Watts, which is a measurement of true power, may be less than VA if the current and voltage
are not in phase. APC SL20KFB2 has Unity Power Factory correction, so the kW rating equals the kVA
rating. Be sure to add in the needs for the other peripherals and connected equipment. When sizing the
UPS, allow for future growth as well. If the configuration guide or data sheet of the equipment you want
to protect gives a VA rating, use this as the watt rating. If the UPS does not provide enough power for the
additional devices such as system console and mass storage devices, additional UPSs may be required.
Superdome
The only qualified UPS available for use with Superdome is the APC SL20KFB2 Silcon 3 Phase 20-kW
UPS.
The APC SL20KFB2 can provide power protection for the SPU and peripherals. If the system console and
primary mass storage devices also require power protection (which is highly recommended) they may
require one or more additional UPSs depending on the total Watts. Make sure that the total watts do not
exceed the UPS's voltage rating.
Integration/Installation
The APC SL20KFB2 includes both field integration start up service and next day on-site service for one
year provide by APC.
Power Connections with the APC SL20KFB2
Product Number
SL20KFB2
Watts
20 kW
NOM Out
115/200 3PH,
120/208 3PH,
127/220 3PHV
Output Receptacles Input Receptacles
Hardwire
Hardwire
Communications Connections
A DB-25 RS-232 Contact Closure connection is standard on all APC SL20KFB2 UPS. A WEB/SNMP card
is also included.
Power Management
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 48
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
Description
General Features
Includes
Documentation
Network interface cards that provide standards-based remote management
of UPSs
Boot-P support, Built-in Web/SNMP management, Event logging, Flash
Upgradeable, MD5 Authentication Security, Password Security, SNMP
Management, Telnet Management, Web Management
CD with software, User Manual
User Manual
Installation Guide
Type of UPSs
Some customers may experience chronic "brown-out" situations or have power sources that are
consistently at the lower spectrum of the standard voltage range. For example, the AC power may come
in consistently at 92 VAC in a 110 VAC area. Heavy-load electrical equipment or power rationing are
some of the reasons these situations arise. The APC SL20KFB2 units are designed to kick in before the
AC power drops below the operating range of the HP Superdome Enterprise Server. Therefore, these
UPS units may run on battery frequently if the AC power source consistently dips below the threshold
voltage. This may result in frequent system shutdowns and will eventually wear out the battery. Although
the on-line units can compensate for the AC power shortfall, the battery life may be shortened. The best
solution is to use a good quality boost transformer to "correct" the power source before it enters the UPS
unit.
Ordering Guidelines
The APC SL20KFB2 Silcon 3-phase UPS units may be ordered as part of a new Superdome system
order or as a field upgrade to an existing system.
For new systems order please contact Ron Seredian at APC by e-mail at [email protected]
during the Superdome pre-consulting phase. APC will coordinate with HP to ensure the UPS is
installed to meet the Superdome installation schedule.
For field upgrades please contact Ron Seredian at APC by e-mail at [email protected] when
you determine a customer is in need and/or interested in power protection for Superdome. APC
will coordinate with the customer to ensure the UPS is installed to meet their requirements.
Numerous options can be ordered to compliment APC SL20KFB2 Silcon 3-phase UPS units. Your
APC consultant can review these option with you are you can visit the APC website at
www.apcc.com
Power Redundancy
Superdome servers, by default, provide an additional power supply for N+1 protection. As a result,
Superdome servers will continue to operate in the event of a single power supply failure. The failed
power supply can be replaced without taking the system down.
Multi-cabinet
Configurations
When configuring Superdome systems that consist of more then one cabinet and include I/O expansion
cabinets, certain guidelines must be followed, specifically the I/O interface cabling between the
Superdome cabinet and the I/O expansion cabinet can only cross one additional cabinet due to cable
length restrictions.
Configuration Guidelines/Rules
Superdome Configuration Guidelines/Rules
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 49
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Category
General
Processor
Memory
Rule Index
1
2
3
4
5
6
7
8
9
10
11
12
13
I/O
14
Performance
15
16
17
18
19
20
21
22
23
24
25
Rule Description
Every Superdome complex requires connectivity to a Support Management Station (SMS). The
PC-based SMS also serves as the system console.
Every cell in a Superdome complex must be assigned to a valid physical location.
All processors in a cell are the same type, same Front Side Bus (FSB) frequency, and same core
frequency.
Configurations with 8, 16 and 32 DIMM slots are recommended (i.e. are fully qualified and
offer the best bandwidth performance.)
Configurations with 4 and 24 DIMM slots are supported (i.e. are fully qualified, but don't
necessarily offer the best bandwidth performance).
DIMMs can be deallocated in 2 DIMM increments (to support HA).
Mixed DIMM sizes within a cell board are supported, but only in separate Mbat interleaving
groups.
System orders from the factory provide mixed DIMM sizes in recommended configurations only.
For system orders from the factory, the same memory configuration must be used for all cells
within a partition.
DIMMs in the same rank must have SDRAMs with the same number of banks and row and
column bits.
Size of memory within an interleave group must be power of 2.
DIMMs within the same interleave group must be same size and have same number of banks,
row bits, and column bits.
There are currently no restrictions on mixing DIMMs (of the same type) with different vendor
SDRAMs.
One cell in every partition must be connected to an I/O chassis that contains a Core I/O card,
a card connected to boot media, a card connected to removable media, and a network card
with a connected network.
A partition cannot have more I/O chassis than it has active cells.
Removable media device controller should be in slot 8 of the I/O chassis.
Core I/O card must be in slot 0 of the I/O chassis.(sx2000 systems do not have a core I/O)
Boot device controller should be in slot 1 of the I/O chassis
PCI-X high bandwidth I/O cards should be in the high bandwidth slots in the I/O chassis
Every I/O card in an I/O chassis must be assigned to a valid physical location.
Every I/O chassis in a Superdome complex must be assigned to a valid physical location
The amount of memory on a cell should be evenly divisible by 4 GB if using 512-MB DIMMs or
8 GB if using 1-GB DIMMs, i.e. 8, 16 or 32 DIMMs. The cell has four memory subsystems and
each subsystem should have an echelon (2 DIMMs) populated. The loading order of the
DIMMs alternates among the four subsystems. This rule provides maximum memory bandwidth
on the cell, by equally populating all four memory subsystems.
All cells in a partition should have the same number of processors.
The number of active processors per cell should be balanced across the partition, however
minor differences are OK. (Example: 4 active processors on one cell and three active
processors on the second cell)
If memory is going to be configured as fully interleaved, all cells in a partition should have the
same amount of memory (symmetric memory loading). Asymmetrically distributed memory
affects the interleaving of cache lines across the cells. Asymmetrically distributed memory can
create memory regions that are non optimally interleaved. Applications whose memory pages
land in memory interleaved across just one cell can see up to 16 times less bandwidth than
ones whose pages are interleaved across all cells.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 50
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
26
27
28
29
If a partition contains 4 or fewer cells, all the cells should be linked to the same crossbar (quad)
in order to eliminate bottlenecks and the sharing of crossbar bandwidth with other partitions. In
each Superdome cabinet, slots 0, 1, 2 and 3 link to the same crossbar and slots 4, 5, 6 and 7
link to the same crossbar.
A Core I/O card should not be selected as the main network interface to a partition. A Core
I/O card is a PCI X 1X card that possibly produces lower performance than a comparable PCI
X 2X card.
The number of cells in a partition should be a power of two, i.e., 2, 4, 8, or 16.
Optimal interleaving of memory across cells requires that the number of cells be a power of
two. Building a partition that does not meet this requirement can create memory regions that
are non optimally interleaved. Applications whose memory pages land in the memory that is
interleaved across just one cell can experience up to 16 times less bandwidth than pages which
are interleaved across all 16 cells.
Before consolidating partitions in a Superdome 32 processor or 64 processor system, the
following link load calculation should be performed for each link between crossbars in the
proposed partition.
Links loads less then 1 are best. As the link load begins to approach 2 performance bottlenecks
may occur.
30
31
32
33
34
35
For crossbars X and Y
Link Load = Qx * Qy / Qt / L, where
- Qx is the number of cells connected to crossbar X (quad)
- Qy is the number of cells connected to crossbar Y (quad)
- Qt is the total number of cells in the partition
- L is the number of links between crossbar X and Y (2 for Superdome 32 processor systems
and 1 for Superdome 64 processor systems)
Maximum performance for optimal configurations (power of two cells, uniform memory across
cells, power of two DIMM ranks per cell)
(If rule #30 cannot be met, rule #31 is recommended) Non-power of two cells, but still
uniform memory across cells, power of two DIMM ranks per cell, uniform type of DIMM.
(If rule #30 or #31 cannot be met, rule #32 is recommended) Same amount of memory in
each cell, but possibly different memory types in each cell (for instance, a two cell configuration
with 8 512MB DIMMs (sx1000 only) in one cell, and 4 1GB DIMMs in the other). Differences
in memory across different cells within the same partition should be minimal for the best
performance.
Same amount of memory in each cell, but non optimal and/or mixed loading within a cell (for
instance, a two cell configuration with 16 512MB DIMMs (sx1000 only) and 8 1GB DIMMs in
each cell).
Non-uniform amount of memory across cells (this needs to boot and run, but performance is
whatever you get).
For the same amount of total memory, best performance is with a larger number of smaller size
DIMMs.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 51
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Single System
High Availability
36
37
38
39
40
41
42
43
44
45
46
47
Multi-System
High Availability
(Please also refer
to Multi-System
High Availability
section following
this table)
48
Each cell should have at least two active processors.
Each cell should have at least 4 GB (8 DIMMs) of memory using 512 MB DIMMs (sx1000 only)
and at least 8 GB of memory using 1 GB DIMMs.
I/O chassis ownership must be localized as much as possible. One way is to assign I/O chassis
to partitions in sequential order starting from INSIDE the single cabinet, then out to the I/O
expansion cabinet 'owned' by the single cabinet.
I/O expansion cabinets can be used only when the main system cabinet holds maximum
number of I/O card cages. Thus, the cabinet must first be filled with I/O card cages before
using an I/O expansion cabinet.
Single cabinets connected to form a dual cabinet (using flex cables) should use a single I/O
expansion cabinet if possible.
Spread enough connections across as many I/O chassis as it takes to become 'redundant' in
I/O chassis'. In other words, if an I/O chassis fails, the remaining chassis have enough
connections to keep the system up and running, or in the worst case, have the ability to reboot
with the connections to peripherals and networking intact.
All SCSI cards are configured in the factory as unterminated. Any auto termination is defeated.
If auto termination is not defeatable by hardware, the card is not used at first release.
Terminated cable would be used for connection to the first external device. In the factory and
for shipment, no cables are connected to the SCSI cards. In place of the terminated cable, a
terminator is placed on the cable port to provide termination until the cable is attached. This is
needed to allow HP-UX to boot. The customer does not need to order the terminators for these
factory integrated SCSI cards, since the customer will probably discard them. The terminators
are provided in the factory by use of constraint net logic.
Partitions whose I/O chassis are contained within a single cabinet have higher availability than
those partitions that have their I/O chassis spread across cabinets.
A partition's core I/O chassis should go in a system cabinet, not an I/O expansion cabinet
A partition should be connected to at least two I/O chassis containing Core I/O cards. This
implies that all partitions should be at least 2 cells in size. The lowest number cell or I/O
chassis is the 'root' cell; the second lowest number cell or I/O chassis combo in the partition is
the 'backup root' cell.
A partition should consist of at least two cells.
Not more than one partition should span a cabinet or a crossbar link. When crossbar links are
shared, the partition is more at risk relative to a crossbar failure that may bring down all the
cells connected to it.
Multi-initiator support is required for Serviceguard.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 52
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Configuration
Traditional
Multi-System
High Availability
49
50
51
52
53
54
55
56
57
Heterogeneous
Multi System
High Availability
58
59
60
61
62
63
64
65
66
67
68
69
70
To configure a cluster with no SPOF, the membership must extend beyond a single cabinet. The
cluster must be configured such that the failure of a single cabinet does not result in the failure
of a majority of the nodes in the cluster. The cluster lock device must be powered independently
of the cabinets containing the cluster nodes. Alternative cluster lock solution is the Quorum
Service, which resides outside the Serviceguard cluster providing arbitration services.
A cluster lock is required if the cluster is wholly contained within two single cabinets (i.e., two
Superdome/ 16 processor or 32 processor systems or two Superdome/PA 8800 /PA 8900 32
processor or 64 processor systems) or two dual cabinets (i.e. two Superdome 64 processor
systems or two Superdome/PA 8800/PA 8900 128 processor systems). This requirement is due
to a possible 50% cluster failure.
Serviceguard only supports cluster lock up to four nodes. Thus a two cabinet configuration is
limited to four nodes (i.e., two nodes in one dual cabinet Superdome/ 64 processor system or
Superdome/PA 8800/PA 8900 128 processor system and two nodes in another dual cabinet
Superdome/ 64 processor system or Superdome/PA 8800/PA 8900 128 processor system).
The Quorum Service can support up to 50 clusters or 100 nodes (can be arbitrator to both HP
UX and Linux clusters).
Two-cabinet configurations must evenly divide nodes between the cabinets (i.e. 3 and 1 is not a
legal 4-node configuration).
Cluster lock must be powered independently of either cabinet.
Root volume mirrors must be on separate power circuits.
Redundant heartbeat paths are required and can be accomplished by using either multiple
heartbeat subnets or via standby interface cards.
Redundant heartbeat paths should be configured in separate I/O chassis when possible.
Redundant paths to storage devices used by the cluster are required and can be accomplished
using either disk mirroring or via LVM's pvlinks.
Redundant storage device paths should be configured in separate I/O chassis when possible.
Dual power connected to independent power circuits is recommended.
Cluster configurations can contain a mixture of Superdome and non Superdome nodes.
Care must be taken to configure an even or greater number of nodes outside of the Superdome
cabinet
If half the nodes of the cluster are within a Superdome cabinet, a cluster lock is required
(4-node maximum cluster size)
If more than half the nodes of a cluster are outside the Superdome cabinet, no cluster lock is
required (16-node maximum Serviceguard cluster size).
Up to a 4 node cluster is supported within a single cabinet system (Superdome/16 processor or
Superdome/PA 8800/PA 8900 32 processor)
Up to an 8 node cluster is supported within a single cabinet system* (Superdome/32 processor
or Superdome/PA 8800/PA 8900 64 processor)
Up to a 16 node cluster is supported within a dual cabinet system* (Superdome/64 processor
or Superdome/PA 8800/PA 8900 128 processor)
Cluster lock is required for 2-node configurations
Cluster lock must be powered independently of the cabinet.
Root volume mirrors must be on separate power circuits.
Dual power connected to independent power circuits is highly recommended.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 53
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Configuration
* Superdome 32 processor system requires an I/O expansion cabinet for greater than 4 nodes. Superdome 64 processor system
requires an I/O expansion cabinet for greater than 8 nodes.
NOTE:
NOTE
"Recommended" refers to configurations that are fully qualified and offer the best bandwidth performance.
"Supported" refers to configurations that are fully qualified, but do not necessarily offer the best performance.
Instant Capacity (iCAP)-formerly known as Instant Capacity on Demand (iCOD) and Pay Per Use Programs. For a complete
description of how to configure Instant Capacity, please refer to the following URL:
http://h18000.www1.hp.com/products/quickspecs/11723_div/11723_div.HTML
OpenVMS
NOTE: Support for iCAP, TiCAP, and PPU on sx1000 and sx2000 Superdome configurations is available with OpenVMS V8.3 (or
higher).
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 54
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Upgrades
For information on Superdome System Upgrades, please refer to the Superdome Server Upgrades QuickSpec.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 55
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Memory
Total No. of No. of 1 E0
E1
E2
E3
E4
E5
E6
E7
E8
E9
Amount 512 MB GB
0A- 1A- 2A- 3A- 4A- 5A- 6A- 7A- 8A- 9AMemory
0B
1B
2B
3B
4B
5B
6B
7B
8B
9B
per Cell
512 512 512 512
4 GB
8
MB MB MB MB
8 GB
8
1 GB 1 GB 1 GB 1 GB
8 GB
16
512 512 512 512 512 512 512 512
MB MB MB MB MB MB MB MB
16 GB
16
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
16 GB
32
512 512 512 512 512 512 512 512 512 512
MB MB MB MB MB MB MB MB MB MB
32 GB
32
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
12 GB
8
8
1 GB 1 GB 1 GB 1 GB 512 512 512 512
MB MB MB MB
24 GB
16
16
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 512 512
MB MB
28 GB
8
24
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
2 GB
4 GB
12 GB
24 GB
20 GB
4
4
24
8
24
16
512
MB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
1 GB
512
MB
1 GB
512
MB
512
MB
1 GB
512
MB
EA
EB
EC
AAAB
BA-BB CACB
ED
EE
EF
DADB
EA-EB FA-FB
512 512 512 512 512 512
MB MB MB MB MB MB
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
512 512 512 512 512 512
MB MB MB MB MB MB
1 GB 1 GB 512 512 512 512
MB MB MB MB
512
MB
1 GB
512
MB
512
MB
1 GB
512
MB
Ex Echelon number, i.e. Echelon 0 consists of 2 DIMMs, 1 on A side and 1 on B side.
0A 0B refers to two DIMMs in Echelon 0, A and B side.
Recommended List of DIMM Configurations in Superdome (sx1000 systems)
Total Amount of Memory Per Cell (GB)
2
4
4
8
8
12
12
20
16
16
24
24
28
32
Number of 512 MB DIMMs
4
8
0
0
16
8
24
8
0
32
16
0
8
0
DA - 11717
Number of 1 GB DIMMs
0
0
4
8
0
8
0
16
16
0
16
24
24
32
Worldwide — Version 35 — December 6, 2006
Page 56
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Memory
NOTES:
NOTES
1. Configurations with 8, 16, or 32 DIMMs will result in the best performance
2. These are configurations that are shipped from manufacturing. Other configurations are supported, as long as they are not illegal.
Total No. of 1 No. of 2 E0
E1
E2
E3
E4
E5
E6
E7
E8
E9
EA EB
EC ED EE
EF
GB GB
Amount
0A- 1A- 2A- 3A- 4A- 5A- 6A- 7A- 8A- 9A- AA- BA- CA- DA- EA-EB FA-FB
Memory
0B
1B
2B
3B
4B
5B
6B
7B
8B
9B
AB BB
CB DB
per Cell
8 GB 8
1 GB 1 GB 1 GB 1 GB
16 GB
8
2 GB 2 GB 2 GB 2 GB
16 GB* 16
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
24 GB 8
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
24 GB 24
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
32 GB*
16
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
32 GB 16
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
32 GB* 32
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
40 GB 8
16
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
40 GB 24
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
48 GB
24
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
48 GB* 16
16
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
58 GB 8
24
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
64 GB*
32
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
*NOTE:
NOTE: These configurations will result in the best performance
sx2000 Superdome Memory Configurations
Memory
Number of DIMMs
Echelon
per Cell
1 GB
2 GB
4 GB
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
(GBytes)
1
8
8
1 GB 1 GB 1 GB
GB
16
8
2 GB 2 GB 2 GB 2
GB
16
16
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1
GB
24
8
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1
GB
24
24
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
32
8
4 GB 4 GB 4 GB 4 GB
32
16
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1
GB
32
16
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
32
32
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
40
8
8
4 GB 4 GB 4 GB 4 GB 1 GB 1 GB 1 GB 1 GB
40
8
16
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
40
24
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
48
8
8
4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2
GB
48
16
8
2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
48
24
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
48
16
16
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
56
8
8
8
4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 57
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Memory
56
8
24
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
56
24
8
4 GB 4 GB 4 GB 4 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
64
16 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
64
16
8
4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
64
16
8
8
4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
64
32
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
72
8
16 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 1 GB 1 GB 1 GB 1 GB
72
8
16
8
4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
80
8
16 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB
80
24
8
4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
80
16
16 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
88
8
8
16 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 1 GB 1 GB
96
24 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
96
16
16 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
104
8
24 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 1 GB 1 GB 1 GB 1 GB
112
8
24 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 2 GB 2 GB 2 GB 2 GB
128
32 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
*NOTE:
NOTE: These configurations will result in the best performance
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 58
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Superdome sx2000
Specifications
SPU Description
Superdome 16
processor*
processor
A9833A
1 - 16
SPU Product Number
Number of Dual core
Itanium 2
1.6 GHz processors
Number of Itanium 2
1.6 GHz processors
2-16
Benchmarks
TPC C disclosure (HP UX)
TPC C disclosure
(Windows)
Supported Processors
Dual core Itanium 2
processor
Itanium 2 Processor
Memory
1 GB DIMMs (DDRII)
2 GB DIMMs (DDRII)
DA - 11717
Superdome 32
processor*
processor
A9834A
1 - 32
Superdome 64
processor*
processor
A9834A+A9835A
2 - 64
Windows Server 2003,
DatacenterEnterprise
Edition can support a
maximum of 32 Dual
core 8 Itanium2
processors with 64 cores
per partition if hyperthreading is turned off; or
a maximum of 16 Dual
core Itanuim2 processors
with 32 cores and 64
threads per partition if
hyper-threading is turned
on.
Windows Server 2003,
Enterprise Edition can
support a maximum of 8
Dual core Itanium2
processors with 16 cores,
and 32 threads per
partition (see ordering
guidelines under the
operating system section).
4-64
Windows Server 2003,
Enterprise Edition can
support a maximum of 8
Itanium2 processors per
partition (see ordering
guidelines under the
operating system section).
N/A
N/A
TBD
N/A
2-32
N/A
N/A
1.6 GHz, 24 MB & 18MB 1.6 GHz, 24 MB & 18MB 1.6 GHz, 24 MB & 18MB
cache
cache
cache
1.6 GHz, 9 MB cache
1.6 GHz, 9 MB cache
1.6 GHz, 9 MB cache
8-128 GB
16-256 GB
8-128 GB
16-256 GB
Worldwide — Version 35 — December 6, 2006
16-512 GB
32-1024 GB
Page 59
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
4-GB DIMMs (DDRII)
DIMM Density (MB)
Cell Boards
2 processor
4 processor cells
Software Support
HP-UX revision
Windows revision
32-512 GB
32-1024 GB
1024/2048/4096
1024/2048/4096
64-2048 GB (max. is
1024 GB for Windows)
1024/2048/4096
1-4
1-8
4 - 16
HP UX 11i version 2
Windows Server 2003, Datacenter Edition for Itanium 2
. Hyper-threading supported with Dual core Itanium2 processors (default from
factory hyper-threading off).
Linux
OpenVMS
RHEL 4 U3 and SLES 10
OpenVMS V8.3 minimum; dual core (Montecito) processors only on sx2000
configurations; hyperthreading support on sx2000
Expandability / Connectivity
12-slot PCI-X I/O chassis
1-4
SPU cabinet must be
No I/O expansion
filled first before placing
cabinet needed
I/O chassis in I/O
expansion cabinet
Number of partitions
without I/O expansion
cabinet
Number of partitions with
I/O expansion cabinet
RS-232C serial ports
10/100Base-T Ethernet
Superdome sx1000
Specifications
SPU Description
SPU Product Number
DA - 11717
1-4
Not Applicable
1-8
1-16
I/O expansion cabinet
I/O expansion cabinet
required if number of I/O required if number of I/O
chassis is more greater chassis is greater than 8.
than 4.
A second I/O expansion
cabinet is required if the
number of I/O chassis is
greater than 14.
NOTE: Linux to support
up to 8 I/O chassis by
Q2 2007
1-4
1-8
1-8
1- 16
Yes
Yes
Yes
Yes
Yes
Yes
Windows does not
Windows does not
Windows does not
support 10/100Base-T
support 10/100Base-T
support 10/100Base-T
Ethernet. Windows
Ethernet. Windows
Ethernet. Windows
requires Gigabit Ethernet requires Gigabit Ethernet requires Gigabit Ethernet
card
card
card
Superdome 16
processor*
processor
A6113A
Superdome 32
processor*
processor
A5201A
Worldwide — Version 35 — December 6, 2006
Superdome 64
processor*
processor
A5201A+A5202A
Page 60
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Number of Itanium 2 1.5
GHz or 1.6 GHz
processors
2 - 16
2 - 32
Number of mx2
processors
NOTE: Linux and
OpenVMS do not support
mx2
2 - 32
2 - 64
N/A
N/A
TBD
N/A
N/A
1,231,433 tpmC
Windows Server 2003
Datacenter Edition with
SQL Server 2005 64 bit
version
1.5 GHz, 6 MB cache
1.6 GHz, 9 MB cache
1.1 GHz, 6 MB cache
(each processor)
1.5 GHz, 6 MB cache
1.6 GHz, 9 MB cache
1.1 GHz, 6 MB cache
(each processor)
1.5 GHz, 6 MB cache
1.6 GHz, 9 MB cache
1.1 GHz, 6 MB cache
(each processor)
2 - 128 GB
2 - 256 GB
6 - 256 GB
4 - 128 GB
8 - 256 GB
512 / 1024
4 - 256 GB
8 - 512 GB
512 / 1024
12 - 512 GB
24 - 1024 GB
512 / 1024
Benchmarks
TPC-C disclosure
(HP-UX)
TPC-C disclosure
(Windows)
Supported Processors
Itanium 2 Processor
Itanium 2 Processor
Mx2 Processor Module (2
processor cores)
Memory
512 MB DIMMs (sx1000
only)
1 GB DIMMs
2 GB DIMMs
DIMM Density (MB)
6 - 64
Windows Server 2003
Enterprise Edition
supports a maximum of 8
processors per partition
(see ordering guidelines
under the operating
system section).
6 - 128
Windows Server 2003
Datacenter Edition
supports up to 64
processors in a single
instance of the operating
system. A fully configured
mx2 128 processor
Superdome requires at
least two instances of
Windows Server 2003
Datacenter Edition.
Windows Server 2003
Enterprise Edition is not
supported with mx2
modules
Cell Boards
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 61
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
1 processor (mx2 only)/2
processor 3 processor
(mx2 only)/4 processor
cells
Software Support
HP-UX revision
Windows revision
1-4
1-8
HP- UX 11i version 2
Windows Server 2003, Datacenter Edition for Itanium 2; Windows Server
2003, Enterprise Edition for Itanium 2
Red Hat RHEL AS 3,and 4 /SUSE SLES 9 and 10
Linux revision on Superdome with Intel Itanium 2 processors only (not on
Superdome with mx2 processor modules)
OpenVMS version 8.2-1 (or higher)
Superdome with Intel Itanium 2 Mad9M processors only (not on Superdome
with mx2 or Mad6 modules)
Linux revision
OpenVMS revision
Expandability / Connectivity
12 slot PCI X I/O chassis
1-4
Note: SPU cabinet must
No I/O expansion
be filled first before
cabinet needed
placing I/O chassis
in I/O expansion cabinet
Number of Partitions
without I/O expansion
cabinet
Number of Partitions with
I/O expansion cabinet
RS 232C Serial Ports
10/100Base T Ethernet
1-8
I/O expansion cabinet
required if number of I/O
chassis is more greater
than 4.
Linux supports 2 I/O
Chassis
1-4
1-4
3 - 16
I/O expansion cabinet
required if number of I/O
chassis is greater than 8.
A second I/O expansion
cabinet is required if the
number of I/O chassis is
greater than 14.
1-8
Not Applicable
1-8
1- 16
Yes
Yes
Yes
Yes
Yes
Yes
Windows does not
Windows does not
Windows does not
support 10/100 Base T
support 10/100
support 10/100 Base T
Ethernet. Windows
Base T Ethernet. Windows
Ethernet. Windows
requires Gigabit Ethernet
requires
requires Gigabit Ethernet
card
Gigabit Ethernet card
card
Maximum I/O Cards See supported I/O table for specific products
A6113A(sx1000)
A5201A (sx1000)
SPU Product Number
A9833A (sx2000)
A9834A (sx2000)
Mass Storage
LAN
WAN
Multi-Function (Mass
Storage / LAN)
DA - 11717
3 - 16
16 - 48
2 - 32
8
8 - 48
16 - 96
2 - 48
16
16 -96
Worldwide — Version 35 — December 6, 2006
A5201A+A5202A
(sx1000)
A9834A+A9835A
(sx2000)
16 - 192
2 - 96
32
32 -192
Page 62
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Additional Interface
Cards
8
8 -14
8 -14
Typical Electrical Characteristics by Configuration
AC input power
200 240 VAC, 50/60 Hz 200 240 VAC, 50/60 Hz 200 240 VAC, 50/60 Hz
Typical Input Power
5,900
9,800
19,600
(watts)
4 cells, 32 GB, 4 I/O
8 cells, 32 GB, 4 I/O
16 cells, 32 GB, 4 I/O
dissipation Itanium 2
chassis with 6 PCI each
chassis with
chassis with
(watts)
6 PCI each
6 PCI each
Typical power dissipation
5,730
9,490
18,980
mx2 (watts)
Typical 3 Phase 4Wire
17A / Phase
29A / Phase
Two Cabinets 29A /
Current requirements at
Phase
200V 240V
Typical 3 Phase 5Wire
Current requirements at
200V 240V
10A / Phase
17A / Phase
Two Cabinets 17A /
Phase
Maximum Electrical Characteristics
Maximum Input Power
8,200
12,196
24,392
(VA)
Cabinet Marked Electrical
AC input power-Option
200 240 VAC phase to neutral, 5 wire, 50/60 Hz
7: 3 phase 5 wire input
AC input power-Option
200 240 VAC phase to phase, 4 wire, 50/60 Hz
6: 3 phase 4 wire input
Maximum Current requirements at 220V 240V:
Option 7: 3 phase 5 wire 24 A/Phase
24 A/Phase
24 A/Phase
input
Option 6: 3 phase 4 wire 44 A/Phase
input
Required Power
ReceptacleHeat Characteristics
Maximum Heat
dissipation (BTUs/hour)
Typical Heat dissipation
(BTUs/hour)
Site Preparation
Site planning and
installation included
Depth (mm / inches)
Width (mm / inches)
Height (mm / inches)
Weight (Kg / lbs)
DA - 11717
44 A/Phase
44 A/Phase
Option 6: IEC Compliant 4 Wire 60A 250V Ph-Ph
Option 5: IEC Compliant 5 Wire 32A 480VPh-Ph
28,969
41,614
83,288
20,131
33,439
66,877
Yes
Yes
Yes
1,220 / 48.1
762 / 30
1,960 / 77.2
500 / 1,123
1,220 / 48.1
762 / 30
1,960 / 77.2
598 / 1,343
1,220 / 48.1
1,524 / 60
1,960 / 77.2
1,196 / 2,685
Worldwide — Version 35 — December 6, 2006
Page 63
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Environmental Characteristics
Acoustics
Operating temperature
Non operating
temperature
Maximum rate of
temperature change
Operating relative
humidity
Operating altitude
Non operating altitude
Regulatory Compliance
Safety
65 dB
+20° to +30° C
-40° to +70° C
20° C/hour
15% to 80% @ 30°C
0 3.1 km (0 10,000 ft)
0 4.6 km (0 15,000 ft)
IEC 950:1991+A1, +A2, +A3, +A4; EN60950:1992+A1, +A2, +A3,
+A4, +A11; UL 1950, 3rd edition; cUL CSA C22.2 No. 950 95
Key Dates
First CPL date
6/03 (sx1000) 3/06 (sx2000)
First ship date
3Q03 (sx1000) 2Q06 (sx2000)
Given that Itanium 2 1.5 GHz are single core processors and mx2 is a dual core processor, the columns
listed in this table refer to 16 processor, 32 processor and 64 processor. This terminology refers to 16
core, 32 core and 64 core for Superdome Itanium 2 1.5 GHz systems and 32 processor cores, 64
processor cores and 128 processor cores for Superdome mx2 systems.
sx1000 and sx2000
Superdome
Specifications
SPU Description
SPU Product Number
Superdome 16
processor*
processor
A6113A (sx1000)
A9833A (sx2000)
Superdome 32
processor*
processor
A5201A (sx1000)
A9834A (sx2000)
Superdome 64
processor*
processor
A5201A+A5202A
(sx1000)
A9834A+A9835A
(sx2000)
Maximum I/O Cards
Mass storage
16-48
16-96
16-192
LAN
2-32
2-48
2-96
WAN
8
16
32
Multi function (Mass
8-48
16-96
32-192
Storage/LAN)
Additional interface cards
8
8-14
8-14
Typical Electrical Characteristics by Configuration
AC input power
200-240 VAC, 50/60 Hz 200-240 VAC, 50/60 Hz 200-240 VAC, 50/60 Hz
Typical input power
5,900
9,800
19,600
dissipation Itanium 2
4 cells, 32 GB, 4 I/O
8 cells, 32 GB, 4 I/O
16 cells, 32 GB, 4 I/O
(watts)
chassis with 6 PCI each chassis with 6 PCI each
chassis
with 6 PCI each
Typical power dissipation
5,730
9,490
18,980
mx2 (watts)
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 64
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Technical Specifications
Typical 3 phase 4 wire
17A/Phase
29A/Phase
current requirements at
200V 240V
Typical 3 phase 5 wire
10A/Phase
17A/Phase
current requirements at
200V 240V
Maximum Electrical Characteristics
Maximum input power
8,200
12,196
(VA)
cabinet marked electrical
AC input power-Option 200 240 VAC phase to neutral, 5 wire, 50/60 Hz
7: 3 phase 5 wire input
AC input power-Option 200 240 VAC phase to phase, 4 wire, 50/60 Hz
6:
3 phase 4 wire input
Maximum current
requirements at 220V
240V:
Option 7: 3 phase 24 A/Phase
24 A/Phase
5 wire input
Option 6: 3 phase 44 A/Phase
44 A/Phase
4 wire input
Required power
Option 6: IEC Compliant 4 wire 60A 250V Ph Ph
receptacle
Option 5: IEC Compliant 5 wire 32A 480V Ph Ph
Heat Characteristics
Maximum heat
28,969
41,614
dissipation (BTUs/hour)
Typical heat dissipation 20,131
33,439
(BTUs/hour)
Site Preparation
Site planning and
Yes
Yes
installation included
Depth (mm/inches)
1,220/48.1
1,220/48.1
Width (mm/inches)
762/30
762/30
Height (mm/inches)
1,960/77.2
1,960/77.2
Weight (Kg/lbs)
500/1,123
598/1,343
Environmental Characteristics
Acoustics
65 dB
Operating temperature +20°C to +30°C
Non operating
-40°C to +70°C
temperature
Maximum rate of
20°C/hour
temperature change
Operating relative
15% to 80% @ 30°C
humidity
Operating altitude
0 3.1 km (0 10,000 ft)
Non operating altitude
0 4.6 km (0 15,000 ft)
DA - 11717
Worldwide — Version 35 — December 6, 2006
Two cabinets 29A/Phase
Two cabinets 17A/Phase
24,392
24 A/Phase
44 A/Phase
83,288
66,877
Yes
1,220/48.1
1,524/60
1,960/77.2
1,196/2,685
Page 65
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Regulatory Compliance
Safety
IEC 950:1991+A1, +A2, +A3, +A4; EN60950:1992+A1, +A2, +A3,
+A4, +A11;
UL 1950, 3rd edition; cUL CSA C22.2 No. 950 95
Key Dates
First CPL date
6/03 (sx1000); 3/06 (sx2000)
First ship date
3Q03 (sx1000); 2Q06 (sx2000)
*NOTE:
NOTE: Given that Itanium 2 1.5 GHz is a single core processor and mx2 is a dual core processor, the
columns listed in this table refer to 16 processor, 32 processor and 64 processor. This terminology refers
to 16 processor cores, 32 processor cores and 64 processor cores for Superdome Itanium 2 1.5 GHz
systems and 32 processor cores, 64 processor cores and 128 processor cores for Superdome mx2
systems.
Superdome I/O
Expansion (IOX) Cabinet
Specifications
SPU Description
SPU Product Number
Maximum Number of I/O
Chassis Enclosures (ICEs)*
(ICEs)
Peripherals Supported
Servers Supported
Dimensions
Height (mm / inches)
Depth (mm / inches)
Width (mm / inches)
Superdome 16
processor
A6113A (sx1000)
A9833A (sx2000)
Superdome 32
processor
A5201A (sx1000)
A9834A (sx2000)
Not Applicable
2
Superdome 64
processor
A5201A+A5202A
(sx1000)
A9834A+A9835A
(sx2000)
4
Not Applicable
All peripherals qualified for use with Superdome
and/or for use in a 10K G2 or Rack System E are
supported in the I/O expansion cabinet as long as
there is available space. Peripherals not connected
to or associated with the Superdome system to
which the I/O expansion cabinet is attached may
be installed in the I/O expansion cabinet.
No servers except those required for Superdome system or High Availability
Observatory or ISEE may be installed in an I/O expansion cabinet.
Not Applicable
1.6 meters or 2.0 meters
45.5 in (115.57 cm) (same depth as 32W)
24.0 in (61 cm)
Environmental
Not Applicable
Same as Superdome
Relevant Product Numbers
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 66
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Technical Specifications
12 slot PCI X chassis for
A6864AZ (sx1000)
HP rack expansion cabinet
A9836AZ (sx2000)
I/O Expansion Cabinet
A5861A
Power and Utilities
Subsystem
Not Applicable
I/O Expansion Power and
A5861D
Utilities Subsystem
Graphite color
I/O Chassis Enclosure for
A5862A (sx1000)
12 slot PCI X Chassis
A9852A (sx2000)
NOTE: Each ICE holds two I/O card cages or 24 PCI X I/O slots.
APC SL20KFB2
Specifications
Description
General features
Includes
Spare parts kits
Documentation
Input
Batteries
Physical
DA - 11717
A6864AZ (sx1000)
A9836AZ (sx2000)
A5861A
A5861D
A5862A (sx1000)
A9852A (sx2000)
APC Silcon 20000VA/20000W
Input: 115/200 3PH, 120/208 3PH, 127/220 3PHV; Output: 115/200
3PH, 120/208 3PH, 127/220 3PHV; Interface port: DB 25 RS 232; Contact
closure
0 95% non condensing, 200% overload capability, audible alarms, built in
static bypass switch, Delta Conversion online technology, environmental
protection, event logging, extendable run time, full rated output available in
kW, input power factor correction, intelligent battery management, LCD
alphanumeric display, overload indicator, paralleling capability, sine wave
output, SmartSlot, software, web management
Parallel card, triple chassis for three SmartSlots, user manual, Web/SNMP
Management Card
See APC website http://www.apcc.com
User Manual and Installation Guide
Nominal input voltage
115/200 3PH, 120/208 3PH, 127/220 3PH V
Input frequency
50 Hz programmable +/- 0.5, 1, 2, 4, 6, 8%;
60 Hz programmable +/- 0.5, 1, 2, 4, 6, 8%
Input connection type
Hardwire 5 wire (3PH+N+G)
Input voltage range for
170-230 (200 V), 177-239 (208 V), 187-242
main operations
(220 V) V
Typical backup time at
36.7 minutes
half load
Typical backup time at full 10.7 minutes
load
Battery type
Maintenance free sealed lead acid battery with
suspended electrolyte: leak proof
1
Typical recharge time
2 hours
Maximum height
55.12 in (140.00 cm)
dimensions
Maximum width
39.37 in (100.00 cm)
dimensions
Maximum depth
31.50 in (80.01 cm)
dimensions
Net weight
1,290.00 lbs (586.36 kg)
Shipping weight
1,340.00 lbs (609.09 kg)
Worldwide — Version 35 — December 6, 2006
Page 67
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Shipping height
Shipping width
Shipping depth
Color
Communications and
Management
Environmental
Units per pallet
Communications and
Management
Interface port
SmartSlot interface
quantity
Pre installed SmartSlot
cards
Control panel
Audible alarm
Emergency power off
(EPO)
Optional management
device
Operating environment
Operating relative
humidity
Operating elevation
Storage temperature
Storage relative humidity
Storage elevation
Audible noise at 1 meter
from surface of unit
Protection class
66.93 in (170.00 cm)
43.31 in (110.00 cm)
35.43 in(90.00 cm)
Dark green (NCS 7020 B50G), Light gray (NCS
2703 G84Y)
1.0
DB-25 RS-232, Contact Closure
2
AP9606
Multi-function LCD status and control console
Beep for each 52 alarm conditions
Yes
See APC website http://www.apcc.com
32° to 104°F (0° to 40 °C)
0% to 95%
0 to 3333 ft (0 to 999.9 m)
-58° to 104°F (-50° to 40 °C)
0% to 95%
0 to 50,000 ft (0 to 15,000 m)
55 dBA
4,094 BTU/hour
NEMA 1, NEMA 12 optional
Online thermal dissipation 4,094 BTU/hour
Protection Class
NEMA 1, NEMA 12
Conformance
Approvals
EN 55022 Class A, ISO 9001, ISO 14001, UL
1778, UL Listed, cUL Listed
Standard warranty
One-year repair or replace, optional on-site
warranties available, optional extended
warranties available
Optional new service
See APC website http://www.apcc.com
1The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load
rated for 1/2 the full load rating of the UPS
Sx2000 Superdome supported I/O
I/O Card
Product
Number
DA - 11717
Connector
Type(s)
Operating
Systems2
Maximum Cards by
System (per partition)
64
16
32
Worldwide — Version 35 — December 6, 2006
Special
Notes
Page 68
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Mass Storage Host Bus Adapters
PCI 2x Fibre Channel
PCI 2 Gb/s Fibre Channel
PCI-X 2 channel 2 Gb /s Fibre
Channel
PCI 1 port U160 SCSI
A5158A
A6795A
A6826A
H
H
H, O
48
48
48
96
96
96
192
192
192
A6828A
H
48
96
192
PCI 2 port U160 SCSI
PCI 1 port 4Gb FC card (PCIX266)
PCI 1 port 4Gb FC card (PCIX 266)
PCI 2 port 4Gb FC card (PCIX 266)
A6829A
AB378A
LC
H
H, O
48
48
96
96
192
192
AB378B
AB379A
LC
LC
H
H , W, L, O
48
48
96
96
192
192
PCI 2 port 4Gb FC card (PCIX 266)
PCI-X 4 Gb Fibre Channel Adapter
FC1114BR
AB379B
AB429A
LC
H
W, L
48
24
96
24
192
24
PCI 2 channel Ultra320 SCSI
A7173A
VHDCI
H, W, L, O
48
96
192
PCI-X 2 channel Smart Array 6402
U320
PCI-X 4-channel Smart Array 6404
Ultra320
A9890A
VHDCI
W, L
8
8
8
A9891A
VHDCI
W
8
8
8
DA - 11717
LC
LC
LC
Worldwide — Version 35 — December 6, 2006
OpenVMS: Max
8/partition
OpenVMS: Max
8/partition
Windows:
Maximum
16/partition; No
boot support
from factory;
boot support
capable with
complete system
integration in the
field) OpenVMS
and Linux: Max
8/partition
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Linux: 8 per
partition
Windows: 16 per
partition, no boot
support
OpenVMS: Max
4/partition;
bootable
Linux: 8 per
partition
Boot support
Windows: Boot
support
Page 69
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
PCI-X 4Gb Fiber Channel Adapter
FC2143BR
AD167A
PCI-X 2P 4Gb Fiber Channel
Adapter FC2243BR
AD168A
PCI-X 4 Gb Fibre Channel Adapter
FC1114BR
AB429A
Smart Array P600 serial attached
SCSI (SAS) Controller - for external
storage connect only
(Maximum cable length for
P600/MSA50 connect is 4 meters).
337972-B21
512MB cache memory upgrade for
SA P600 and SA6402 Controller
(field install only)
PCI X 2 channel 2 Gb /sFibre
Channel Windows
372538-B21
AB466A
DA - 11717
LC
2 internal
(SFF8484) x 4
wide and
1 external
(SFF8470) x 4
wide
W, L
24
24
24
W, L
16
16
16
W, L
24
24
24
W
8
8
8
16
16
16
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Linux: 8 per
partition
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Linux: 8 per
partition
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Linux: 8 per
partition
Windows: Boot
support
W
LC
W
Worldwide — Version 35 — December 6, 2006
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Page 70
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
PCI X 1 channel 2 Gb /sFibre
Channel Windows
AB467A
LC
W
32
32
32
A4926A
A4929A
A5230A
RJ 45
RJ-45
RJ-45
H
H
H
16
16
24
32
32
48
64
64
96
PCI 4 port 100Base TX
PCI 1 port 1000Base T (gigabit
copper)
A5506B
A6825A
RJ-45
RJ-45
H
H, O
8
16
16
32
32
64
PCI 1 port 1000Base SX (gigabit
fiber)
A6847A
Duplex SC
H, O
16
32
64
PCI 1 port 1000Base SX (gigabit
fiber)
PCI-X 2-port 1000Base-SX
AD332A
Duplex SC
H, O
16
32
64
A7011A
Duplex SC
H, O
16
32
64
PCI-X 2-port 1000Base-T
A7012A
RJ-45
H, O
16
32
64
PCI 1 port 1000Base-T
A7061A
RJ 45
W
32
32
32
PCI 1 port 1000Base-SX
A7073A
Duplex SC
W
32
32
32
PCI 2 port Windows/Linux
1000Base SX
A9899A
LC
W, L
16
16
16
PCI 2 port Windows/Linux
1000Base TX
A9900A
RJ-45
W, L
16
16
16
PCI -X 2 port 4x Fabric (HPC)
Adapter
HP PCI-X 4-port 1000Base-T
Gigabit Adpt
AB286A
4x Infiniband
Copper
RJ-45
H
8
8
8
H, O
16
32
64
Local Area Network (LAN) Adapters
PCI 1 port 1000Base SX
PCI 1 port 1000BaseT
PCI 1 port 1000BaseT
AB545A
DA - 11717
Worldwide — Version 35 — December 6, 2006
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
OpenVMS:
Maximum
8/partition;
bootable
OpenVMS:
Maximum
8/partition; boot
support
OpenVMS:
Maximum
8/partition; boot
support
OpenVMS:
Maximum
8/partition; boot
support
Windows: No
boot support
Windows: No
boot support
Windows: Boot
support
Linux: 8 per
partition
Windows: Boot
support
Linux: 8 per
partition
OpenVMS:
Maximum
3/partition; boot
support
Page 71
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
HP PCI-X 2-port 4X Fabric (HA &
DB) Adpt
HP PCI-X 10 GigE
PCI-X 10GbE LAN Adapter
AB345A
4x Infiniband
Copper
Duplex LC
Duplex LC
H
16
32
64
H
W
81
8
81
8
161
8
374191-B22
H
16
32
64
374193-B22
H
16
32
64
VHDCI/RJ-45
H1
8
16
32
LC
H, V
48
96
192
1 LC, 1 RJ-45
H
48
96
192
2 LC
H
48
96
192
SCSI - LVD/SE
LAN - RJ-45
H
48
96
192
H, W, L, O
1
1
1
H
8
16
32
AB345C
H
8
16
32
AB286C
A6386A
A6748A
H
H
H
8
8
8
16
8
14
32
8
14
AB287A
AD144A
NC370T PCI-X MFN
10/100/1000T (copper)
NC370F PCI-X MF 1000SX (fibre)
Multi-Function Cards (Mass Storage / LAN)
PCI 2 port 100Base T/ 2 port
A5838A
Ultra2 SCSI
PCI-X 2Gb Fibre Channel /
A9782A
1000BaseSX
PCI-X 2Gb Fibre Channel /
A9784A
1000BaseTX
HP PCI-X Multifunction 2-port 2Gb
AB465A
FC / 2-port 1 Gb Ethernet Adapter
HP PCI-X Multifunction 2-port
AB290A
1000BT and dual-port U320 SCSI
adapter
Graphics/USB card
A6869B
Wide Area Network (WAN) Adapters
2 port Programmable Serial
Interface
(PSI) X.25 / Frame Relay / SDLC
Additional Interface Cards
PCI-X 2-port HBA 4x Fabric (HA &
DB)
PCI-X 2-port HBA 4x Fabric (HPC)
PCI HyperFabric 2 Fibre1
PCI 8-port Terminal Multiplexer
J3525A
DA - 11717
RS-530, RS232, V.35, RS449 or X.21
LC Duplex
RS-232
Worldwide — Version 35 — December 6, 2006
No boot support
Windows: no
boot support
from factory,
boot support
capable with
complete system
integration in the
field
Linux: 2 per
partition
Windows and
Linux: Supports
graphics and
USB, no boot
support
Linux and
OpenVMS: USB
only
Page 72
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
PCI 64-port Terminal Multiplexer
A6749A
RS-232 or RS422
H
8
14
14
1
Maximum cards are two per I/O chassis. Therefore: 16 processor=8 maximum, 32 processor=16 maximum, and 64
processor=32 maximum.
2 Operating Systems Legend H=HP UX 11i V2, W= Windows Server 2003 Datacenter or Enterprise Edition, L= Linux (Red Hat
RHELAS 3 and 4 and SuSE SLES9), O= OpenVMS
sx1000 Superdome Supported I/O
I/O Card
Mass Storage Host Bus Adapters
PCI 2x Fibre Channel
Product
Number
Connector
Type(s)
Operating
Systems2
Maximum Cards by System
(per partition)
16
32
64
A5158A
LC
H
48
96
192
PCI 2 Gb/s Fibre Channel
PCI X 2 channel 2 Gb /sFibre
Channel
A6795A
A6826A
LC
LC
H
H, L, O
48
48
96
96
192
192
PCI 1 port 4Gb FC card (PCIX
266)
AB378A
O
48
96
192
PCI 2 port 4 Gb FC card (PCIX
266)
AB379A
O
48
96
192
PCI 2 channel Ultra320 SCSI
A7173A
VHDCI
H, W, L,O
48
96
192
PCI-X 2 channel Smart Array
6402 U320
A9890A
VHDCI
W,L
PCI-X 4-channel Smart Array
A9891A
VHDCI
6404 Ultra320
Smart Array P600 serial attached 337972-B21
2 internal
SCSI (SAS) Controller (for external
(SFF8484) x 4
storage connect only)
wide and
(Maximum cable length for
1 external
P600/MSA50 connect is 4
(SFF8470) x 4
meters).
wide
512MB cache memory upgrade 372538-B21
for SA P600 and SA6402
Controller (field install only)
DA - 11717
W
8
8
8
W
8
8
8
Special
Notes
14 for SLES 9, 10
8 for RHEL 4
OpenVMS-8 per
partition;
bootable
OpenVMS: Max
8/partition ; V8.3
minimum
OpenVMS:
Maximum
8/partition; V8.3
minimum
Linux : 8 per
partition
Windows: 16 per
partition, no boot
support
OpenVMS: 4 per
partition,
bootable
Linux : 8 per
partition
Windows: Boot
support
8/Linux partition
Windows: Boot
support
Windows: Boot
support
W
Worldwide — Version 35 — December 6, 2006
Page 73
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
PCI-X 4Gb Fiber Channel
Adapter FC2143BR
AD167A
PCI X 2 channel 2 Gb /sFibre
Channel Windows
AB466A
PCI X 1 channel 2 Gb /sFibre
Channel Windows
AB467A
Local Area Network (LAN) Adapters
PCI-X 4-Gb Fiber Channel
AD167A
Adapter FC2143BR (Windows
maximum=24 per
partition/system)
W
24
24
24
LC
W
16
16
16
LC
W
32
32
32
LC
W, L
24 (W)
PCI-X 2P 4-Gb Fiber Channel
Adapter FC2243BR (Windows
maximum=16 per
partition/system)
AD168A
LC
W, L
16 (W)
PCI 1 port Universal FDDI LAN
PCI 1 port 1000Base SX
PCI 1 port 1000BaseT
PCI 1 port 1000BaseT
PCI 4 port 100Base TX
A3739B
A4926A
A4929A
A5230A
A5506B
FDDI SC
RJ 45
RJ-45
RJ-45
RJ-45
H
H
H
H, L
16
16
24
8
DA - 11717
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
(Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
24 (W) 24 (W)
Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Linux : 8 per
partition
16 (W) 16 (W) Windows: No
boot support
from factory;
boot support
capable with
complete system
integration in the
field)
Linux : 8 per
partition
Worldwide — Version 35 — December 6, 2006
32
32
48
16
64
64
96
32
Page 74
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
PCI 1 port 802.5 Token Ring
4/16/100
PCI 1 port 1000Base T (gigabit
copper)
PCI 1 port 1000Base SX (gigabit
fiber)
PCI-X 2-port 1000Base-SX
PCI X 2-port 1000Base-SX
A5783A
H
8
16
32
A6825A
RJ-45 and DB
9
RJ-45
H, O
16
32
64
A6847A
Duplex SC
H, O
16
32
64
A7011A
A7011A
Duplex SC
Duplex LC
H
O
16
32
64
PCI-X 2-port 1000Base-T
A7012A
RJ-45
H, O
16
32
64
PCI 1 port 1000Base-T
A7061A
RJ 45
W, L
32
32
32
PCI 1 port 1000Base-SX
A7073A
Duplex SC
W, L
32
32
32
PCI 2 port Windows/Linux
1000Base SX
A9899A
LC
W,L
16
16
16
PCI 2 port Windows/Linux
1000Base TX
A9900A
RJ-45
W,L
16
16
16
PCI -X 2 port 4x Fabric (HPC)
Adapter
HP PCI-X 4-port 1000 Base-T
Gigabit Adapter
AB286A
H
8
8
8
AB545A
4x Infiniband
Copper
RJ-45
H, O
16
32
64
HP Linux 4-port 1000Base-T
Gigabit Adptr
AD145A
RJ45
L
8
HP PCI-X 2-port 4X Fabric (HA &
DB) Adapter
HP PCI-X 4-port 1000Base-T
Gigabit Adpt
AB345A
4x Infiniband
Copper
RJ-45
H
8
8
8
H, O
16
32
64
HP PCI-X 2-port 4X Fabric (HA &
DB) Adpt
HP PCI-X 10 GigE
AB345A
H
16
32
64
Stand alone
shipments
OpenVMS: 3 per
partition, no boot
support
Boot support
Can be used only
with RHEL 4 U1
or later
4 cards per
partition
Stand-alone
Shipments
Boot support
OpenVMS 3/part; no boot
support
No boot support
H
8
8
16
No boot support
AB545A
AB287A
DA - 11717
4x Infiniband
Copper
Duplex LC
Worldwide — Version 35 — December 6, 2006
OpenVMS 8/part
OpenVMS 8/part
OpenVMS 8/part
OpenVMS 8/part
8 for Linux
Windows: No
boot support
8 for Linux
Windows: No
boot support
Windows: Boot
support
Linux : 8 per
partition
Windows: Boot
support
Linux : 8 per
partition
Page 75
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
HP Linux 133MHz 10GbE SR
Fiber Adapter
AD144A
Multi-Function Cards (Mass Storage / LAN)
PCI 2 port 100Base T/ 2 port
A5838A
Ultra2 SCSI
PCI-X 2Gb Fibre Channel /
A9782A
1000BaseSX
Duplex LC
L, W
4
8 (W)
8 (W)
8 (W)
VHDCI/RJ-45
H1
8
16
32
LC
H, O
48
96
192
PCI-X 2Gb Fibre Channel /
1000BaseTX
A9784A
1 LC, 1 RJ-45
H, O
48
96
192
HP PCI-X Multifunction 2-port
2Gb FC / 2-port 1 Gb Ethernet
Adapter
AB465A
2 LC
H, O
48
96
192
HP PCI-X Multifunction 2-port
1000BT and dual-port U320
SCSI adapter
AB290A
SCSI - LVD/SE
LAN - RJ-45
H, O
48
96
192
HP PCI X Multi function 2 port FC
and 2 port GigE-T
AB465A
2 LC,
2 RJ-45
H, O
48
96
192
DA - 11717
Worldwide — Version 35 — December 6, 2006
Windows: No
boot support
from factory.
Boot support
capable with
complete system
integration in the
field; 8 per
partition
Boot support
RHEL 4 U1 or
greater, SLES 9
SP3 or SLES 10
Linux: 2 cards per
partition
OpenVMS 4/part; FC
bootable
OpenVMS 4/part; FC
bootable
3.3 volts
only
Supported
on HP UX
11i and
11i v2
Boot
support on
FC and 1Gb
Ethernet
OpenVMS2/partition;
FC
bootable
Boot support on
SCSI and GigE
OpenVMS 2/part; SCSI
bootable
Boot support on
FC and GigE
OpenVMS2/partition; FC
bootable
Page 76
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Wide Area Network (WAN) Adapters
PCI 1 port ATM 155 Mbps (MMF)
A5513A
2 port Programmable Serial
J3525A
Interface
(PSI) X.25 / Frame Relay / SDLC
Additional Interface Cards
PCI HyperFabric 2 Fibre1
PCI 8-port Terminal Multiplexer
PCI 64-port Terminal Multiplexer
HP StorageWorks Linux Q2300
64-bit HBA
1-port 4Gb FC Qlogic
Duplex SC
RS-530, RS232, V.35,
RS-449 or
X.21
H
H
8
8
16
16
32
32
LC Duplex
RS-232
RS-232 or RS422
H
H
H
8
8
8
8
14
14
8
14
14
A7538A
L
8
8
8
AB429A
L
8
8
8
Form
Factor
1U
Operating
Systems
H
1U
H
A5486A
A6748A
A6749A
RHEL 4 U4 and
SLES 10
Standalone Switches
Description
HP 24 port 4X Fabric Copper
Switch
PCI X 24 port 4x Fabric Copper
Switch
Product
Number
376227-B21
AB399A
Connector
4x Infiniband
Copper
Notes
Replaces
AB399A
Discontinued,
Replaced by
376227 B21
1No Serviceguard support
2Operating Systems Legend H=HP-UX 11i V2, W= Windows Server 2003 Datacenter or Enterprise Edition, L= Linux (Red Hat
RHELAS 3 and SUSE SLES9), O= OpenVMS
3Supported, but may no longer be orderable
4Standalone orders only
NOTE: MSA30 SB/DB are supported as boot disks for Superdome running HP UX 11i with the following cards: A7173A, A6828A,
A6829A and A5838A.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 77
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
The boot configuration for Windows Server 2003, Datacenter Edition Superdome partitions can be:
The Smart Array 6402/6404 disk array controllers (A9890A/A9891A) connected to StorageWorks 4400 (a.k.a. MSA30) series
enclosures.
The SA P600 SAS controller (337972 B2) connected to the MSA50 (NOTE:
NOTE: Maximum cable length available is 4 meters.)
Fibre Channel PCI X (AB466A or AB467A) HBAs(no boot from factory).
The Windows Server 2003 operating system comes with a software mirroring solution. However, the majority of Windows customers
use hardware based RAID solutions (such as the industry leading Smart Array disk array controllers from HP) instead and do not use
this mirroring tool. Also note that the Smart Array controllers do not support failover capability (customers cannot have 2 Smart Array
cards connected to the same boot partition on a StorageWorks 4300/4400 enclosure). RAID levels 0, 1, 5, 1+0 and ADG are
supported as well as disk sparing.
Note that booting from external storage arrays is supported (HP XP and EVA storage). In these cases, it is recommended by HP that
the FC HBAs are configured in a redundant pair using HP Secure Path software for high availability.
Please refer to the table below as guidance for configuring your Windows Server 2003 partition on Superdome (note that "Watson"
rules are in place that reflect these recommendations). Please note that if the VGA/USB card (A6869A/A6869B) is used, it would only
be needed once per instance to the Windows OS instance.
PCI-X Technical Slotting Information for Windows Server 2003
Slot
Clock Speed
(MHz)
Left
11
66
Right
10
66
9
66
8
66
4X
4X
4X
Default boot Windows LAN VGA/USB Core I/O slot
device slot for Gig E card
(A6869A/
(A6865A)
Smart Array
(A7061A)
A6869B). If
controller
ordered, must
(A9890A)
be placed in
recommended
Slot One
4X
2X
2X
2X
2X
8X
8X
8X
8X
Special Notes
for Windows
Server 2003
Datacenter
Edition
Previously on
A4856A
Now on PCI-X
2X
2X
2X
SCSI Card
(A7060A
Or
A7173A)
removable
media slot
2X
4X
4X
4X
4X
7
6
5
4
66 66 66 66
or or or or
133 133 133 133
3
66
4X
2
66
4X
1
66
4X
0
66
4X
NOTE: FC HBA (AB466A or AB467A) are to consume 8X slots first and then populate 4X slots (recommended for performance
optimization)
To ensure Windows Server 2003 high availability for storage connectivity, it is recommended to use HP SecurePath (with HP storage)
and EMC PowerPath (with EMC storage) for load balancing/redundancy between fibre channel HBAs (AB232A, AB466A or
AB467A).
External Storage
HP has the broadest, most robust server and storage line up in the industry, providing exactly the right fit for every need. Refer to the
Storage-Server matrix found in the introductory section of Chapter 4 of this configuration guide to see a matrix that highlights which
storage device, server and operating system is interoperable.
For HP Storage connectivity, the webpage http://spock.corp.hp.com/index.aspx has all of the detail for HP hardware. Please consult
this matrix for HP supported on line and near line storage.
For EMC connectivity with Windows Server 2003 on HP Integrity servers, the EMC support matrix has detailed information concerning
supported HP hardware: http://www.emc.com/interoperability/index.jsp. Please consult this matrix to determine if your customer's
desired configuration is supported by EMC.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 78
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
Superdome Supported Online Storage
Storage Device
HP-UX 11i v2
XP 48/512
XP128/1024
VA7100
VA7400
VA 7410/7110
MSA1000
MSA1500
EVA 5000
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
EVA 3000
Yes
StorageWorks 4300 series
StorageWorks 4400 series (MSA30)
MSA50
FC10
SC10
DS2100
No
Yes
No
Yes
Yes
Yes
DS2120
No
DS2110
Yes
DS2300
DS2405
EMC Symmetrix 3000
EMC Symmetrix 5000
EMC Symmetrix 5500
EMC Symmetrix 8000
EMC DMX Series
EMC CLARiiON CX200
EMC CLARiiON CX 400/CX600
EMC CLARiiON CX300/CX500/CX700
EMC CLARiiON FC4700
SAN 2/8
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
Yes
DA - 11717
Windows Server
2003 Datacenter
Edition
Yes
Yes
No
No
Yes
Yes
Yes
Yes (EVA v3 or
greater)
Yes (EVA v3 or
greater)
Yes
Yes
Yes
No
No
Yes (not
recommended for
use with U320
adapter)
Yes (not
recommended for
use with U320
adapter)
Yes (not
recommended for
use with U320
adapter)
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
No
Red Hat RHEL AS 3
&4 and SUSE SLES
9
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
OpenVMS
Yes
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
No
No
No
Yes
No
No
Yes
Yes
Yes
Yes
No
No
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
No
No
No
No
Yes
No
Yes
Worldwide — Version 35 — December 6, 2006
Yes
Yes
No
No
No
Yes
No
Yes
Page 79
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
SAN 2/8 EL
SAN 2/16
SAN 2/16 EL
StorageWorks Core 2/64
StorageWorks Edge 2/24
StorageWorks Edge 2/32
StorageWorks SAN Director 2/64
StorageWorks SAN Director 2/140
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
Yes
No
No
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Storage Device
HP-UX 11i v2
ESL9595 with SDLT 220 and 320
ESL9595 with Ultrium 230 and 460 drives
Yes
Yes
Windows Server
2003 Datacenter
Edition
Yes
Yes
ESL9322 with SDLT 220 and 320
ESL9322 with Ultrium 230 and 460 drives
Yes
Yes
Yes
Yes
MSL5000 series with Ultrium 230 drives
MSL5000 series with SDLT 220 drives
MSL5000 series with SDLT 320 drives
MSL6000 series with Ultrium 460 drives
SSL1016 with DLT1
SSL1016 with SDLT 320
SSL1016 with Ultrium 460
Tape Autoloader 1/8
NSR 1200 FC/SCSI router for MSL series
libraries
NSR e1200, e1200-160 FC/SCSI router for
MSL libraries
NSR e2400, e2400-160 FC/SCSI router for
ESL libraries
NSR 2402 FC/SCSI router for ESL series
libraries
Optical Jukebox 2200mx
Optical Jukebox 1200mx
Optical Jukebox 700mx
Optical Jukebox 600mx
Optical Jukebox 300mx
Optical Jukebox 220mx
Optical Jukebox 9100mx
Ultrium 460 Standalone/Rack
Ultrium 230 Standalone/Rack
Ultrium 215 Standalone/Rack
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Red Hat RHEL AS 3 OpenVMS
& 4 and SUSE SLES
9
Yes
Yes
Yes
No (230) / Yes
(460)
Yes
Yes
Yes
No (230) / Yes
(460)
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
No
Yes
No
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
No
No
Superdome Supported Nearline Storage
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 80
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
QuickSpecs
Technical Specifications
DVD - Rack
TA5300 - Tape Array (plus all supported
devices in TA5300)*
DDS-4 Standalone/Rack
DDS-4×6 Standalone
DDS-5 Standalone/Rack
DLT-80 Standalone/Rack
DLTVS80 Standalone/Rack
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
*Supported devices in TA5300 are C7498A, C7497B, Q1524B, C7492B, DW019A, C7470B, Q1512B, Q1540A
NOTES:
NOTES
All shipments of SCSI devices for Superdome except HVD10 and SC10 are supported with standard cables and auto
termination enabled. Only the Surestore Disk System HVD10 (A5616AZ) and the Surestore Disk System SC10 (A5272AZ) will
use disabled auto termination and In-Line Terminator cables.
Each A5838A PCI 2-port 100Base-T 2-port Ultra2 SCSI card that supports a Surestore Disk System SC10 (A5272AZ) will need
quantity two (2) of product number C2370A (terminator); otherwise it must have a terminated cable in place prior to HP UX
boot.
Peripherals Required Per Partition (nPar)
HP-UX 11i v2
I/O Cards
Core I/O (Slot 0)
provides console
and LAN
Default Boot Device
(Slot 1)
Removable Media
Card (Slot 8)
Peripherals
DVD Hard Drive
(Boot Disk)
DDS-4/DAT-40
Tape Backup
C7508AZ or
C7508A (Qualec
Device)
DA - 11717
Windows Server 2003
Red Hat RHEL AS 3 & 4 OpenVMS
and SUSE SLES 9
Core I/O (Slot 0)
Core I/O (Slot 0)
Core I/O (Slot 0)
provides console
provides console
provides console
only, Windows does
and LAN
and LAN
not support the
Default Boot Device
Boot Device (any
10/100 LAN
(Slot 1)
slot)
A7061A, A7073A,
Removable Media
Removable Media
A9899A or A9900A
Card
Card (any slot)
provide LAN support
A7059A/A7060A
(Slot 2)
(Slot 8)
Optional A6869A/
A6869B Obsidian
Card or Obsidian 2
Card (Slot 1)USB/VGA
Removable Media
Card
A7059A/A7060A/
A7073A (Slot 8)
DVD Hard Drive
DVD Hard Drive
DVD Hard Drive
(Boot Disk)
(Boot Disk)
DDS-4/DAT-40
DDS-4/DAT-40
Tape Backup
Tape Backup
C7508AZ or
C7508AZ or
C7508A Tape Array
C7508A (Tape
5300
Array 5300)
Worldwide — Version 35 — December 6, 2006
Page 81
QuickSpecs
HP Integrity Superdome Servers 16- processor, 32processor, and 64- processor Systems
Technical Specifications
© Copyright 2003-2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows Server 2003 are US registered trademarks of Microsoft Corporation. Intel and Itanium are US registered
trademarks of Intel Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11717
Worldwide — Version 35 — December 6, 2006
Page 82
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
