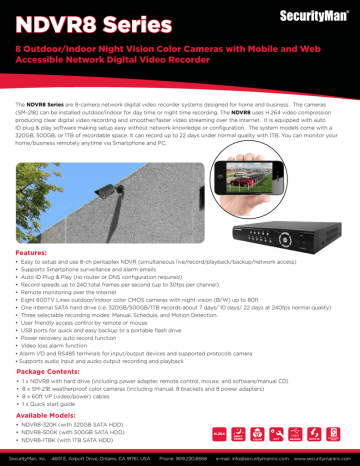

NDVR8 System Kits
NDVR8 Series
8 Outdoor/Indoor Night Vision Color Cameras with Mobile and Web
Accessible Network Digital Video Recorder
The NDVR8 Series are 8-camera network digital video recorder systems designed for home and business. The cameras
(SM-218) can be installed outdoor/indoor for day time or night time recording. The NDVR8 uses H.264 video compression
producing clear digital video recording and smoother/faster video streaming over the Internet. It is equipped with auto
ID plug & play software making setup easy without network knowledge or configuration. The system models come with a
320GB, 500GB, or 1TB of recordable space. It can record up to 22 days under normal quality with 1TB. You can monitor your
home/business remotely anytime via Smartphone and PC.
•
•
•
•
•
•
•
•
•
•
•
•
Easy to setup and use 8-ch pentaplex NDVR (simultaneous live/record/playback/backup/network access)
Supports Smartphone surveillance and alarm emails
Auto ID Plug & Play (no router or DNS configuration required)
Record speeds up to 240 total frames per second (up to 30fps per channel)
Remote monitoring over the Internet
Eight 600TV Lines outdoor/indoor color CMOS cameras with night vision (B/W) up to 80ft
One internal SATA hard drive (i.e. 320GB/500GB/1TB records about 7 days/ 10 days/ 22 days at 240fps normal quality)
Three selectable recording modes: Manual, Schedule, and Motion Detection.
User friendly access control by remote or mouse
USB ports for quick and easy backup to a portable flash drive
Power recovery auto record function
Video loss alarm function
• Alarm I/O and RS485 terminals for input/output devices and supported protocols camera
• Supports audio input and audio output recording and playback
•
•
•
•
1 x NDVR8 with hard drive (including power adapter, remote control, mouse, and software/manual CD)
8 x SM-218 weatherproof color cameras (including manual, 8 brackets and 8 power adapters)
8 x 60ft VP (video/power) cables
1 x Quick start guide
• NDVR8-320K (with 320GB SATA HDD)
• NDVR8-500K (with 500GB SATA HDD)
• NDVR8-1TBK (with 1TB SATA HDD)
H.264
NIGH T
VISION
COLOR
D.I.Y
BACKUP
AUTO ID
SATA HARD
DRIV E
Specifications of NDVR8:
Item
Operating System
Compression
Record and playback
NTSC: CIF(352x240) / D1(720x480)
Live display resolution
Video output
Video standard
Recording mode
Playback
Storage and Backup
HDD
Backup
NIC
Protocol
Network
Internet viewing
Mobile surveillance
Interface
USB
NTSC: D1(720x480) / PAL: D1(720x576)
8ch BNC
1ch BNC, 1ch VGA
NTSC/PAL adjustable
Manual, schedule or motion detection recording
Search by time, events, channels, or files
320GB, 500GB, or 1TB (supports up to 2TB max)
USB backup device, Local HDD backup, Remote access
RJ45 10/100/1000Mbps
TCP-IP/DHCP/DDNS/PPPoE
Client software, IE, Mozilla Firefox, and Google Chrome
iPhone, Win Mobile, WinCE, Symbian, Android, and BlackBerry
2X USB 2.0 for USB mouse and other USB backup device
4 RCA inputs
Audio output
1 RCA output
PTZ
Remote
Others
PAL: CIF(352x288) / D1(720x576)
Audio input
Alarm I/O
Control
H.264
240fps (30fps/ch, NTSC) CIF, 60fps (7.5fps/ch) D1 200fps (25fps/ch, PAL) CIF, 50fps (6.25fps/ch) D1
Video input
Record
Embedded Linux
Total recording speed
Resolution
Video
8CH NDVR8-320/500/1TB
4 Alarm inputs & 1 Alarm output
RS485
Yes (2xAA 1.5v batteries included)
Mouse
Yes (USB mouse included)
Panel
Yes
Network
Yes
Power
Dimensions(LxWxH)
AC 100-240V 50-60Hz 1.0A/ DC 12V 2.0A
12.4” x 8.8” x 2.1”
Working condition
Humidity 20%-95%, temperature -10~50°C (14-122°F)
Weight (net/gross)
10.1lbs (w/ HDD)/13.1lbs
Specifications of Camera (SM-218):
Image Sensor
1/3” Color CMOS
Shutter Speed
1/50(1/60)--1/100,000(sec)
Effective Pixels
NTSC: 512 (H) x 492 (V)
White Balance
Auto Tracking White Balance
Signal System
PAL/NTSC
S/N Ratio
More than 48db(AGC OFF)
Horizontal Resolution
600TV Lines
IR Distance
Up to 80ft (Night vision B/W)
Lens/Viewing Angle
6mm / 60 degree
Power Requirement
DC12V/500mA
Weatherproof
IP66 and anti-fog camera glass/
Power Consumption
3.5W
metal case
Dimensions (LxWxH)
3.3”x2.2”x2.3” (camera body)
Standard 0.2Lux; with LEDs 0Lux
Camera Weight (net/gross)
0.8lbs (without bracket) / 2.4 lbs
Minimum illumination
