Samsung WB1102F User manual

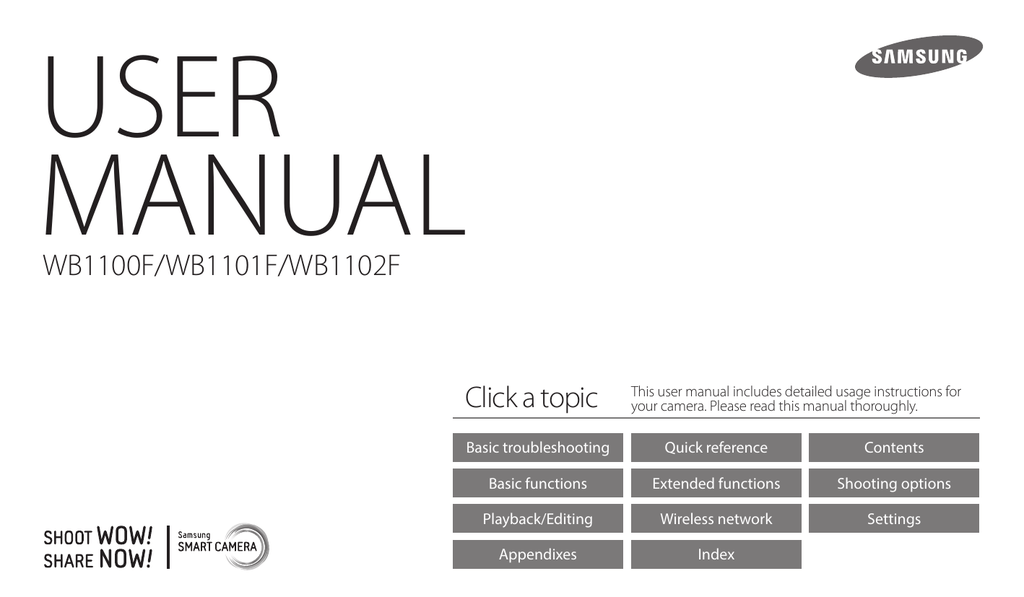

USER MANUAL WB1100F/WB1101F/WB1102F Click a topic This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly. Basic troubleshooting Quick reference Contents Basic functions Extended functions Shooting options Playback/Editing Wireless network Settings Appendixes Index Health and safety information Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera. Prevent damage to subjects’ eyesight. Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage. Warning—situations that could cause injury to yourself or others Do not disassemble or attempt to repair your camera. You can damage the camera and expose yourself to the risk of an electric shock. Keep your camera away from small children and pets. Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Do not use your camera near flammable or explosive gases and liquids. This may cause a fire or explosion. Do not insert flammable materials into the camera or store these materials near the camera. This may cause a fire or electric shock. Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components. Do not handle your camera with wet hands. This may result in an electric shock. 1 Health and safety information Avoid covering the camera or charger with blankets or clothes. The camera may overheat, which may distort the camera or cause a fire. Avoid interference with pacemakers. Maintain a safe distance between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and research groups. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. Do not handle the power supply cord or the charger during a thunderstorm. This may result in electric shock. If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center. Comply with any regulations that restrict the use of a camera in a certain area. • Avoid interference with other electronic devices. • Turn off the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn off your camera when directed by airline personnel. • Turn off the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. 2 Health and safety information When you use the AC charger, turn off the camera before you disconnect the power to the AC charger. Failing to do so may result in fire or electric shock. Caution—situations that could cause damage to your camera or other equipment Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera. Disconnect the charger from the wall socket when not in use. Failing to do so may result in fire or electric shock. Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries. This may cause a fire or electric shock. Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery. Inauthentic, damaged, or heated batteries may cause a fire or personal injury. Do not allow the AC charger to come in contact with the +/- terminals on the battery. This may cause a fire or electric shock. Use only Samsung-approved batteries, chargers, cables and accessories. • Using unauthorized batteries, chargers, cables or accessories can cause batteries to explode, damage your camera, or cause injury. • Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables or accessories. Do not drop or subject the camera to strong impacts. Doing so may damage the screen or external or internal components. Exercise caution when you connect cables or adapters and install batteries and memory cards. If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories. Use the battery only for its intended purpose. Misusing the battery may cause a fire or electric shock. Do not touch the flash while it fires. The flash is very hot when fired and may burn your skin. 3 Health and safety information Keep cards with magnetic strips away from the camera case. Information stored on the card may be damaged or erased. Avoid interference with other electronic devices. Your camera emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience. To prevent unwanted interference, use only Samsung-approved devices or accessories. Never use a damaged charger, battery, or memory card. This may result in electric shock or camera malfunction or cause a fire. Do not place the camera in or near magnetic fields. Doing so may cause the camera to malfunction. Use your camera in the normal position. Avoid contact with your camera’s internal antenna. Do not use the camera if the screen is damaged. If the glass or acrylic parts are broken, visit a Samsung Electronics Service Center to have the camera repaired. Data transference and your responsibilities • Data transferred via WLAN could be leaked, so avoid transferring sensitive data in Check that the camera is operating properly before use. The manufacturer takes no responsibility for any loss of files or damage that may result from camera malfunction or improper use. public areas or on open networks. • The camera manufacturer is not liable for any data transfers that infringe on copyrights, trademarks, intellectual property laws, or public decency ordinances. You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. 4 Outline of the User Manual Copyright information • Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation. • Mac and Apple App Store are registered trademarks of the Apple Corporation. • Google Play Store is a registered trademark of Google, Inc. • Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • Trademarks and trade names used in this manual are the property of their respective owners. Basic functions 19 Learn about your camera’s layout, icons, and basic functions for shooting. Extended functions 43 Learn how to capture a photo and record a video by selecting a mode. Shooting options 53 Learn how to set the options in Shooting mode. Playback/Editing • Camera specifications or contents of this manual may be changed 74 Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect your camera to your computer or TV. without prior notice due to upgrade of camera functions. • We recommend using your camera within the country where you Wireless network purchased. • Use this camera responsibly and adhere to all laws and regulations concerning its use. • You are not allowed to reuse or distribute any part of this manual without prior permission. 92 Learn to connect to wireless local area networks (WLANs) and use functions. Settings 109 Refer to options to configure your camera’s settings. Appendixes Get information about error messages, specifications, and maintenance. 5 115 Indicators used in this manual Icons used in this manual Shooting mode Indicator Icon Smart Auto Additional information Program Safety warnings and precautions Smart Panorama Magic Plus Settings Movie Wi-Fi Shooting mode icons These icons appear in the text when a function is available in a mode. See the example below. Note: The or mode may not support functions for all scenes or modes. Adjusting brightness and color For example: Learn how to adjust the brightness and color for better image quality. Adjusting the exposure manually (EV) Depending on the intensity of the ambient light, your photos may be too bright or dark. In these cases, you can adjust the exposure to get a better photo. Press [F/t] toin adjust the exposure. 3Available Program • The photo will be brighter as the exposure value increases. and Movie modes EV : +1 Back Darker (-) 1 2 Neutral (0) In Shooting mode, press [m]. Select EV. Function Brighter (+) 4 Set Press [o] to save your settings. • Once you adjust the exposure, the setting will be stored automatically. You may need to change the exposure value later to avoid overexposure or underexposure. • If you cannot decide on an appropriate exposure, select the AEB (Auto Exposure Bracket) option. The camera will capture 3 consecutive photos, each with a different exposure: normal, underexposed, and overexposed. (p. 72) 6 [] Camera buttons. For example, [Shutter] represents the shutter button. () Page number of related information → The order of options or menus you must select to perform a step; for example: Select Face Detection → Normal (represents Select Face Detection, and then select Normal). * Annotation Expressions used in this manual Pressing the shutter • Half-press [Shutter]: Press the shutter halfway down • Press [Shutter]: Press the shutter all the way down Half-press [Shutter] Exposure (Brightness) The amount of light that enters your camera determines the exposure. You can alter the exposure by changing the shutter speed, aperture value, or ISO sensitivity. By altering the exposure, your photos will be darker or lighter. Press [Shutter] Normal exposure Subject, background, and composition • Subject: The main object in a scene, such as a person, animal, or still life • Background: The objects around the subject • Composition: The combination of a subject and background Background Subject Composition 7 Overexposure (too bright) Special features of your camera Using the DIRECT LINK button Reading NFC tag information (Tag & Go) Install the Samsung SMART CAMERA App on an NFC-enabled device, and then place the device’s NFC antenna near the camera’s NFC tag. The Samsung SMART CAMERA App launches automatically. If the app is not installed, a prompt to install the app will appear. Press the DIRECT LINK button to activate the Wi-Fi function that you have designated. Setting a DIRECT LINK button option You can select a Wi-Fi function to launch when you press the DIRECT LINK button. 1 Access Settings. 2 Access the DIRECT LINK button option. 3 Select a Wi-Fi feature from the list. 8 Special features of your camera Using AutoShare When you capture a photo with your camera, the photo is saved to a smart phone automatically. The camera connects to the smart phone wirelessly. 1 Install Samsung SMART CAMERA 4 Select the camera from the list and App on the smart phone. connect the smart phone to the camera. • If a pop-up message appears on your camera, allow the smart phone to connect to your camera. 2 Turn on the AutoShare feature on the camera. 5 Capture a photo. • The captured photo is saved to the camera, and then transferred to the smart phone. 3 Launch Samsung SMART CAMERA App on the smart phone. 9 Special features of your camera Using MobileLink You can send files easily from your camera to a smart phone. The camera connects wirelessly to smart phones that support the MobileLink feature. 1 Install the Samsung SMART 4 Select the camera from the list and CAMERA App on the smart phone. connect the smart phone to the camera. • If a pop-up message appears on your camera, allow the smart phone to connect to your camera. 5 On the smart phone or camera, 2 Access the MobileLink mode on the select files to transfer from the camera. camera. • If a pop-up message appears, select an option. 6 On the smart phone, touch the copy 3 Launch the Samsung SMART button or on the camera, select Send. CAMERA App on the smart phone. 10 Special features of your camera Using Remote Viewfinder You can remotely control your camera from a smart phone. The camera connects to the smart phone wirelessly. Use the smart phone as a remote shutter release with the Remote Viewfinder feature. The captured photo will appear on the smart phone. 1 Install the Samsung SMART 4 Select the camera from the list and CAMERA App on the smart phone. connect the smart phone to the camera. • If a pop-up message appears on your camera, allow the smart phone to connect to your camera. 5 Touch and hold to focus, and then release it to capture a photo. 2 Access the Remote Viewfinder mode on the camera. 3 Launch the Samsung SMART CAMERA App on the smart phone. 6 Touch the thumbnail to view the photo. 11 Special features of your camera 1 Select the macro option ( Shooting samples – Macro You can capture close up shots of a subject or small subjects, such as flowers or insects. 2 Capture a photo. The example image may differ from the actual photo that you capture. 12 ). Basic troubleshooting Learn to solve common problems by setting shooting options. The subject’s eyes appear red. Red eye occurs when the subject's eyes reflect light from the camera flash. • Set the flash option to Red-eye or Red-eye Fix. (p. 57) • If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 86) Photos have dust spots. If dust particles are present in the air, you may capture them in photos when you use the flash. • Turn off the flash or avoid capturing photos in a dusty place. • Set ISO sensitivity options. (p. 59) Photos are blurred. Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly. Use the OIS function or half-press [Shutter] to ensure the subject is in focus. (p. 41) Photos are blurred when shooting at night. As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold the camera steady long enough to capture a clear photo and may result in camera shake. • Select Night in mode. (p. 47) • Turn on the flash. (p. 58) • Set ISO sensitivity options. (p. 59) • Use a tripod to prevent your camera from shaking. When the light source is behind the subject or when there is a high contrast between light and dark areas, the subject may appear too dark. • Avoid shooting toward the sun. • Set the flash option to Fill in. (p. 58) • Adjust the exposure. (p. 67) • Set the Auto Contrast Balance (ACB) option. (p. 68) • Set the metering option to Spot if a subject is in the center of the frame. (p. 68) Subjects come out too dark because of backlighting. 13 Quick reference Capturing photos of people • mode > Beauty Face 47 • Red-eye/Red-eye Fix (to prevent or correct red-eye) 57 • Face Detection, Self-Portrait 64 • Smile Shot 65 Capturing photos at night or in the dark • Adjusting the exposure (brightness) • ISO sensitivity (to adjust the sensitivity to light) 59 • EV (to adjust exposure) 67 • ACB (to compensate for subjects against bright backgrounds) 68 • Metering 68 • AEB (to capture 3 photos of the same scene with different exposures) 71 Capturing photos of scenery mode > Sunset, Silhouette, Fireworks, Light Trace 47 • Flash options 58 • ISO sensitivity (to adjust the sensitivity to light) 59 • • • mode > Photo Filter 50 • Image Adjust (to adjust Sharpness, Contrast, or Saturation) 72 Capturing photos of text, insects, or flowers • mode > Macro 47 • Macro 60 Applying effects to videos • • Optical Image Stabilization (OIS) 40 • Dual Image Stabilization (Dual IS) 40 Sending and sharing files • Using the NFC Feature (Tag & Go) 97 • Sending photos or videos to a smart phone 99 • Sending photos or videos via email 102 • Using photo or video sharing services 105 • Viewing photos or videos on devices that support Samsung Link 107 mode 48 Applying effects to photos Capturing action photos • mode > Action Freeze 47 • Continuous, Motion Capture 71 mode > Landscape 47 Reducing camera shake mode > Movie Filter 51 14 • Viewing files as thumbnails 76 • Viewing files by category 77 • Deleting all files on the memory 79 • Viewing files as a slide show 81 • Viewing files on a TV 88 • Connecting your camera to a computer 89 • Adjusting sound and volume 111 • Adjusting the brightness of the display 112 • Changing the display language 113 • Setting the date and time 113 • Before contacting a service center 128 Contents Using the Mode screen ............................................................................................ 31 Basic functions.................................................................................................................. 19 Selecting a Mode Screen ........................................................................................ 31 Icons on the Mode screen ...................................................................................... 32 Unpacking .................................................................................................................... 20 Camera layout ............................................................................................................ 21 Selecting options or menus .................................................................................. 33 Using the DIRECT LINK button .............................................................................. 23 Attaching a strap ..................................................................................................... 24 Attaching a lens cap ................................................................................................ 24 Setting the display and sound ............................................................................. 35 Setting the display type ......................................................................................... 35 Setting the sound .................................................................................................... 36 Inserting the battery and memory card ........................................................... 25 Capturing photos ...................................................................................................... 37 Charging the battery and turning on your camera ...................................... 26 Zooming ................................................................................................................... 38 Changing the zoom speed .................................................................................... 39 Reducing camera shake (OIS) ............................................................................... 40 Charging the battery .............................................................................................. 26 Turning on your camera ......................................................................................... 26 Performing the initial setup .................................................................................. 27 Tips for getting a clearer photo ............................................................................ 41 Learning icons ............................................................................................................ 29 15 Contents Extended functions........................................................................................................ 43 Shooting in the dark ................................................................................................ 57 Preventing red-eye .................................................................................................. How to use the flash ............................................................................................... Using the flash ......................................................................................................... Adjusting the ISO sensitivity .................................................................................. Using the Smart Auto mode .................................................................................. 44 Using the Program mode ....................................................................................... 46 Using the Smart mode ............................................................................................ 47 Using the Panorama mode .................................................................................... 48 57 57 58 59 Changing the camera’s focus ............................................................................... 60 Using the Magic Plus mode .................................................................................. 50 Using the Photo Filter mode ................................................................................. 50 Using the Movie Filter mode ................................................................................. 51 Using macro ............................................................................................................. 60 Changing the focus option .................................................................................... 60 Adjusting the focus area ........................................................................................ 61 Using the Movie mode ............................................................................................ 52 Using Face Detection ............................................................................................... 64 Detecting faces ........................................................................................................ Capturing a self portrait shot ................................................................................ Capturing a smile shot ........................................................................................... Detecting eye blinking ........................................................................................... Tips for detecting faces .......................................................................................... Shooting options............................................................................................................. 53 Selecting a resolution and quality ...................................................................... 54 Selecting a resolution ............................................................................................. 54 Setting the photo quality ....................................................................................... 55 Using the timer ........................................................................................................... 56 16 64 64 65 65 66 ontents C Adjusting brightness and color ............................................................................ 67 Adjusting the exposure manually (EV) ................................................................ Compensating for backlighting (ACB) ................................................................. Changing the metering option ............................................................................. Selecting a White Balance setting ........................................................................ Editing a video ............................................................................................................ 87 67 68 68 69 Trimming a video .................................................................................................... 87 Capturing an image from video ............................................................................ 87 Viewing files on a TV ................................................................................................ 88 Transferring files to a computer ........................................................................... 89 Using burst modes (continuous, motion capture, AEB) .................................. 71 Adjusting images ...................................................................................................... 72 Transferring files to your Windows OS computer .............................................. 89 Transferring files to your Mac OS computer ....................................................... 90 Reducing the sound of the zoom ........................................................................ 73 System Requirements .............................................................................................. 91 Playback/Editing.............................................................................................................. 74 Wireless network............................................................................................................. 92 Viewing photos or videos in Playback mode .................................................. 75 Connecting to a WLAN and configuring network settings ........................ 93 Starting Playback mode ......................................................................................... 75 Viewing photos ........................................................................................................ 79 Playing a video ......................................................................................................... 82 Connecting to a WLAN ........................................................................................... Using the login browser ......................................................................................... Network connection tips ....................................................................................... Entering text ............................................................................................................. Editing a photo ........................................................................................................... 83 Resizing photos ....................................................................................................... Rotating a photo ..................................................................................................... Applying Smart Filter effects ................................................................................. Adjusting your photos ............................................................................................ 93 94 95 96 Using the NFC Feature (Tag & Go) ....................................................................... 97 83 83 84 85 Using NFC features in Shooting mode ................................................................ 97 Using NFC features in Playback mode (Photo Beam) ........................................ 97 Using NFC features in Wi-Fi mode ........................................................................ 97 17 ontents C Saving files to a smart phone automatically ................................................... 98 Appendixes......................................................................................................................115 Sending photos or videos to a smart phone ................................................... 99 Error messages ......................................................................................................... 116 Using a smart phone as a remote shutter release ....................................... 100 Camera maintenance ............................................................................................. 117 Sending photos or videos via email ................................................................. 102 Cleaning your camera ........................................................................................... Using or storing the camera ................................................................................ About memory cards ............................................................................................ About the battery .................................................................................................. Upgrading Firmware ............................................................................................. Changing email settings ...................................................................................... 102 Sending photos or videos via email .................................................................. 104 Using photo or video sharing services ........................................................... 105 117 118 120 123 127 Accessing a sharing service ................................................................................. 105 Uploading photos or videos ............................................................................... 105 Before contacting a service center .................................................................... 128 Using Samsung Link to send files ...................................................................... 107 Camera specifications ............................................................................................ 131 Viewing photos or videos on devices that support Samsung Link ............... 107 Glossary ...................................................................................................................... 135 FCC notice .................................................................................................................. 140 Settings.............................................................................................................................. 109 Index ............................................................................................................................ 142 Settings menu .......................................................................................................... 110 Accessing the settings menu .............................................................................. Sounds .................................................................................................................... Display ..................................................................................................................... Connectivity ........................................................................................................... General .................................................................................................................... 110 111 111 112 113 18 Basic functions Learn about your camera’s layout, icons, and basic functions for shooting. Unpacking ………………………………………… 20 Camera layout ……………………………………… 21 Using the DIRECT LINK button …………………… 23 Attaching a strap ………………………………… 24 Attaching a lens cap ……………………………… 24 Inserting the battery and memory card ………… 25 Charging the battery and turning on your camera …………………………………… 26 Charging the battery ……………………………… 26 Turning on your camera ………………………… 26 Performing the initial setup ……………………… 27 Learning icons ……………………………………… 29 Using the Mode screen …………………………… 31 Selecting a Mode Screen ………………………… 31 Icons on the Mode screen ………………………… 32 Selecting options or menus ……………………… 33 Setting the display and sound …………………… 35 Setting the display type …………………………… 35 Setting the sound ………………………………… 36 Capturing photos ………………………………… 37 Zooming ………………………………………… 38 Changing the zoom speed ……………………… 39 Reducing camera shake (OIS) …………………… 40 Tips for getting a clearer photo …………………… 41 Unpacking The following items are included in your product box. Optional accessories Camera Rechargeable battery Lens cap/Lens cap strap AC adapter/USB cable Camera case A/V cable Battery charger Memory card Memory card/Memory card adapter Strap Quick Start Guide • The illustrations may differ slightly from the items shipped with your product. • The items included in the box may differ depending on the model. • You can purchase optional accessories at a retailer or a Samsung service center. Samsung is not responsible for any problems caused by using unauthorized accessories. Basic functions 20 Camera layout Before you start, familiarize yourself with your camera’s parts and their functions. Mode dial Flash* * While not in use, keep the flash unit closed to prevent damage. Forcing the flash unit open may cause damage to your camera. POWER button DIRECT LINK button Start a preset Wi-Fi function. Flash pop-up button Internal antenna* * Avoid contact with the internal antenna while using a wireless network. Shutter button SPEED CONTROL button (p. 39) AF-assist light/Timer lamp NFC Tag Launch an NFC feature by reading a tag from an NFC-enabled device. (p. 97) Lens USB and A/V port Accepts USB cable and A/V cable. Basic functions 21 Camera layout Microphone Status lamp • Blinking: When the camera is saving a photo or video, being read by a computer, when the image is out of focus, or when the camera is connecting to WLAN or sending a photo. • Steady: When the camera is connected to a computer, charging the battery, or when the image is in focus. Zoom button • In Shooting mode: Zoom in or out. • In Playback mode: Zoom in on part of a photo or view files as thumbnails, or adjust the volume. Eyelet for camera strap Buttons (p. 23) Display Battery chamber cover Insert a memory card and battery. Tripod mount Speaker Basic functions 22 Camera layout Using the DIRECT LINK button Buttons Button Description You can turn on the Wi-Fi feature conveniently with [DIRECT LINK]. Press [DIRECT LINK] to activate the Wi-Fi function that you have designated. Press [DIRECT LINK] again to return to the previous mode. Start recording a video. Access options or menus. Go back. Basic functions D c F t Change the display option. Change the macro option. Change the flash option. Change the timer option. Other functions Move up Move down Move left Move right Confirm the highlighted option or menu. Enter Playback mode. Delete files in Playback mode. Setting a DIRECT LINK button option You can select a Wi-Fi function to launch when you press [DIRECT LINK]. 1 Rotate the mode dial to . 2 Select General → DIRECT LINK (Wi-Fi Button). 3 Select a Wi-Fi feature. (p. 114) Basic functions 23 Camera layout Attaching a strap Attaching a lens cap Attach a strap to carry your camera conveniently. Attach a lens cap with a lens cap strap to protect the camera lens. Basic functions 24 Inserting the battery and memory card Learn how to insert the battery and an optional memory card into the camera. Removing the battery and memory card Rechargeable battery Insert a memory card with the goldcolored contacts facing up. Battery lock Slide the lock down to release the battery. Push the card gently until it disengages from the camera, and then pull it out of the slot. Memory card Insert the battery with the Samsung logo facing up. Memory card Using the memory card adapter To use micro memory cards with this product, a PC, or a memory card reader, insert the card into an adapter. Rechargeable battery Basic functions 25 Charging the battery and turning on your camera Charging the battery Turning on your camera Before you use the camera for the first time, you must charge the battery. Plug the small end of the USB cable into your camera, and then plug the other end of the USB cable into the AC adapter. Press [X] to turn your camera on or off. • The initial setup screen appears when you turn on the camera for the first time. (p. 27) Status lamp • Red light on: Charging • Red light off: Fully charged Turning on your camera in Playback mode Press [P]. The camera turns on and immediately accesses Playback mode. Use only the AC adapter and USB cable supplied with your camera. If you use another AC adapter (such as AD5055), the camera battery may not charge or work properly. Basic functions 26 If you turn on your camera by pressing and holding [P], the camera does not emit any sounds. Performing the initial setup When the initial setup screen appears, follow the steps below to configure the camera’s basic settings. The default language is preset for the country or region where the camera is sold. You can change the language as desired by selecting Language. 1 Press [c] to select Time Zone, and then press [t] or [o]. 2 Press [F/t] to select a time zone, and then press [o]. 3 Press [c] to select Date/Time Set, and then press [t] or [o]. Date/Time Set Home Year Month Day Hour Min Cancel London Cancel Set DST Set 4 Press [F/t] to select an item. 5 Press [D/c] to set the date, time, and daylight-saving time, and then press [o]. Basic functions 27 Performing the initial setup 6 Press [c] to select Date Type, and then press [t] or [o]. 7 Press [D/c] to select a date type, and then press [o]. 9 Press [D/c] to select a time type, and then press [o]. 10 Press [r] to finish the initial setup. Date Type The screen may differ depending on the language you selected. YYYY/MM/DD MM/DD/YYYY DD/MM/YYYY Back Set 8 Press [c] to select Time Type, and then press [t] or [o]. Basic functions 28 Learning icons The camera displays icons for the mode and options you set. The icons flash yellow for a while if you change options. 1 1 Shooting information Icon Description Icon Description Aperture value Current date Shutter speed Current time Available recording time Exposure value Available number of photos Memory card inserted • • • : Fully charged : Partially charged : Empty (Recharge) Basic functions 29 Auto focus frame Camera shake Zoom indicator Photo resolution when the Intelli zoom is on Zoom ratio Histogram Learning icons 2 3 2 Shooting options (left) 3 Shooting options (right) Icon Icon Description Description Shooting mode ISO sensitivity White Balance Video resolution Image Adjust (Sharpness, Contrast, and Saturation) Flash Focus Area Focus Face Detection Burst option AutoShare On Frame Rate (per second) Photo resolution Zoom Mute Intelli zoom on Optical Image Stabilization (OIS) Metering Timer Basic functions 30 Using the Mode screen Use the mode dial to select a shooting mode or function. Rotate the mode dial to a desired mode. You can also select an icon on the Mode screen in some modes. Selecting a Mode Screen No. In Shooting or Playback mode, rotate the mode dial to display a Mode Screen. You can select an icon on the Mode screen in Magic Plus mode. 1 1 2 Mode icons • Press [D/c/F/t] to scroll to a desired mode, and then press [o] to access the mode. 2 Photo Filter Movie Filter Description Current Mode screen • Rotate the mode dial to go to another mode screen. Photo Editor ▲ For example: When you select Photo Filter in Magic Plus mode. Basic functions 31 Using the Mode screen Icons on the Mode screen Mode Icon Description Mode Icon Description Smart Auto: Capture a photo with a scene mode selected automatically by the camera. (p. 44) Movie: Customize settings to record a video. (p. 52) Program: Capture a photo with settings you have adjusted manually. (p. 46) MobileLink: Send photos or videos to a smart phone. (p. 99) Smart: Capture a photo with options preset for a specific scene. (p. 47) Panorama: Capture and combine a series of photos to create a panoramic image. (p. 48) Photo Filter: Capture a photo with various filter effects. (p. 50) Remote Viewfinder: Use a smart phone as a remote shutter release and see a preview of an image from your camera on your smart phone. (p. 100) Email: Send photos or videos stored on the camera via email. (p. 102) Movie Filter: Record a video with various filter effects. (p. 51) SNS & Cloud: Upload photos or videos to file sharing services. (p. 105) Photo Editor: Edit photos with various effects. (p. 83) Samsung Link: View files on devices that support Samsung Link. (p. 107) Settings: Adjust settings to match your preferences. (p. 110) Basic functions 32 Selecting options or menus To select an option or a menu, press [m], and then press [D/c/F/t] or [o]. 1 In Shooting or Playback mode, press [m]. 2 Select an option or a menu. • To move up or down, press [D] or [c]. • To move left or right, press [F] or [t]. Going back to the previous menu Press [r] to go back to the previous menu. Half-press [Shutter] to return to Shooting mode. 3 Press [o] to confirm the highlighted option or menu. Basic functions 33 Selecting options or menus For example, to select a White Balance option in Program mode: 1 Rotate the mode dial to . 3 Press [D/c] to select White Balance, and then press [t] or [o]. 4 Press [F/t] to select a White Balance option. White Balance : Daylight Back 2 Press [m]. 5 Press [o] to save your settings. AutoShare EV White Balance ISO Flash Focus Exit Set Select Basic functions 34 Setting the display and sound Learn how to change the basic display information and sound settings. Setting the display type About histograms You can select a display type for the Shooting or Playback mode. Each type displays different shooting or playback information. See the table below. A histogram is a graph that illustrates how light is distributed in your photo. If the histogram has a high peak on the left, the photo is underexposed and will appear dark. A peak on the right of the graph means that the photo is overexposed and will appear washed out. The height of the peaks is related to color information. The more of a particular color, the taller the peak. Under-exposed Press [D] repeatedly to change the display type. Mode Shooting Playback Display type • Hide all information about shooting options. • Show all information about shooting options. • Show all information about shooting options and a histogram. • Hide all information about the current file. • Hide all information about the current file except basic information. • Show all information about the current file. Basic functions 35 Well-exposed Over-exposed Setting the display and sound Setting the sound Setting the option display view You can hide or show the option display appearing in some modes. Turn the sound your camera emits when you perform functions on or off. Press [o] repeatedly. 1 Rotate the mode dial to . 2 Select Sound → Beep Sound. 3 Select an option. • Hide the option display. • Show the option display. Smart : Beauty Face Option display Set ▲ For example, in mode Basic functions 36 Option Off Description The camera does not emit any sounds. On The camera emits sounds. Capturing photos Learn how to capture photos easily and quickly in Smart Auto mode. 1 Rotate the mode dial to . 3 Half-press [Shutter] to focus. • A green frame means the subject is in focus. • A red frame means the subject is out of focus. 2 Align your subject in the frame. 4 Press [Shutter] to capture a photo. 5 Press [P] to view the captured photo. • To delete the photo, press [f], and then select Yes. 6 Press [P] to return to Shooting mode. See page 41 for tips to get clearer photos. Basic functions 37 Capturing photos Zooming Digital zoom You can capture close-up photos by adjusting the zoom. Digital zoom is supported by default in Shooting mode. If you zoom in on a subject in Shooting mode and the zoom indicator is in the digital range, your camera is using Digital zoom. By using both the 35X Optical zoom and 2X Digital zoom, you can zoom in up to 70 times. Optical range Zoom indicator Digital range Zoom ratio • Digital zoom is not available with the Tracking AF option or Face Detection options. Zoom out • If you capture a photo with Digital zoom, the photo quality may be lower than Zoom in normal. When you rotate the zoom button, the zoom ratio shown on the screen may change inconsistently. Basic functions 38 Capturing photos Intelli zoom Setting Intelli zoom If the zoom indicator is in the Intelli range, your camera is using Intelli zoom. Photo resolution varies according to the zoom rate if you use Intelli zoom. By using both Optical zoom and Intelli zoom, you can zoom in up to 70 times. Photo resolution when Intelli zoom is on Optical range 1 In Shooting mode, press [m]. 2 Select Intelli Zoom. 3 Select an option. Icon Description Off: The Intelli zoom is deactivated. Zoom indicator On: The Intelli zoom is activated. Intelli range • Depending on the shooting options you selected, Intelli zoom is not available. • Intelli zoom helps you capture a photo with less quality deterioration than Digital zoom. However, the photo quality may be lower than when you use Optical zoom. • Intelli zoom is available only when you set a 4:3 resolution ratio. If you set another resolution ratio with Intelli zoom on, Intelli zoom will be turned off automatically. • Intelli zoom is always on in mode. Changing the zoom speed When you use the zoom button with [SPEED CONTROL], the speed of the zoom is changed. • Photo recording mode: the zoom function works faster. • Video recording mode: the zoom function works slower. Basic functions 39 Capturing photos Reducing camera shake (OIS) In Shooting mode, you can set either the Optical Image Stabilizer (OIS) or the Dual Image Stabilizer (Dual IS) to reduce or eliminate picture blurriness from camera shake. • OIS may not function properly when: -- you move your camera to follow a moving subject -- you use Digital zoom -- there is too much camera shake -- the shutter speed is slow (for example, when you capture night scenes) -- you capture a close-up shot • If you use the OIS function with a tripod, your images may be blurred by the vibration of the OIS sensor. Deactivate the OIS function when you use a tripod. • If the camera is hit or dropped, the display will be blurry. If this occurs, turn off the camera, and then turn it on again. Before correction After correction 1 In Shooting mode, press [m]. 2 Select OIS. 3 Select an option. Icon Description Off: OIS is deactivated. On: OIS is activated. Dual IS: The Dual Image Stabilizer (Dual IS) is activated. Basic functions 40 Tips for getting a clearer photo Holding your camera correctly Reducing camera shake • Set the Optical Image Stabilization option to reduce camera Ensure nothing is blocking the lens, flash, or microphone. shake digitally. (p. 40) • Set the Dual IS option to reduce camera shake both optically and digitally. (p. 40) Half-pressing the shutter button When is displayed Half-press [Shutter] and adjust the focus. The camera adjusts the focus and exposure automatically. Camera shake The camera sets the aperture value and shutter speed automatically. Focus frame • Press [Shutter] to capture the photo if the focus frame appears in green. • Change the composition and half-press [Shutter] again if the focus frame appears in red. When you shoot in the dark, avoid setting the flash option to Slow Sync or Off. The aperture remains open longer and it may be harder to hold the camera steady long enough to capture a clear photo. • Use a tripod or set the flash option to Fill in. (p. 58) • Set ISO sensitivity options. (p. 59) Basic functions 41 Preventing your subject from being out of focus It may be difficult to get your subject in focus when: --there is little contrast between the subject and background (for example, when your subject is wearing clothing that is similar in color to the background) --the light source behind the subject is too bright --the subject is shiny or reflective --the subject includes horizontal patterns, such as blinds --the subject is not positioned in the center of the frame • When you capture photos in low light Turn on the flash. (p. 58) • When subjects are moving rapidly Use the Continuous or Motion Capture function. (p. 71) Using the focus lock Half-press [Shutter] to focus. When the subject is in focus, you can reposition the frame to change the composition. When you are ready, press [Shutter] to capture your photo. Basic functions 42 Extended functions Learn how to capture a photo and record a video by selecting a mode. Using the Smart Auto mode ……………………… Using the Program mode ………………………… Using the Smart mode …………………………… Using the Panorama mode ……………………… 44 Using the Magic Plus mode ……………………… 50 46 Using the Photo Filter mode ……………………… 50 Using the Movie Filter mode ……………………… 51 47 48 Using the Movie mode …………………………… 52 Using the Smart Auto mode In Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not familiar with the camera settings for various scenes. . 1 Rotate the mode dial to 2 Align your subject in the frame. Icon Description Landscapes • The camera automatically selects a scene. An appropriate scene icon appears at the top left of the screen. The icons are listed below. Scenes with bright white backgrounds Landscapes at night Portraits at night Landscapes with backlighting Portraits with backlighting Portraits Close-up photos of objects Close-up photos of text 3 Half-press [Shutter] to focus. 4 Press [Shutter] to capture the photo. Sunsets Indoors, dark Partially lit Close-up with spot lighting Portraits with spot lighting Extended functions 44 Using the Smart Auto mode Icon Description Blue skies Forested areas Close-up photos of colorful subjects Camera is stabilized on a tripod and the subject is not moving for a certain period of time. (when shooting in the dark)* Actively moving subjects* * This icon appears next to the scene icon. • If the camera does not recognize an appropriate scene mode, it uses the default settings for mode. • Even if it detects a face, the camera may not select a portrait mode depending on the subject's position or lighting. • The camera may not select the correct scene depending on the shooting conditions, such as camera shake, lighting, or distance to the subject. mode if the subject is moving. • The camera consumes more battery power, because it changes settings often to select appropriate scenes. • Even if you use a tripod, the camera may not detect the Extended functions 45 Using the Program mode In Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically. 1 Rotate the mode dial to 2 Set the desired options. . • For a list of options, refer to "Shooting options". (p. 53) 3 Align your subject in the frame, and then half-press [Shutter] to focus. 4 Press [Shutter] to capture the photo. Extended functions 46 Using the Smart mode In Smart mode, you can capture a photo with options that are preset for a specific scene. 1 Rotate the mode dial to 2 Select a scene. . Option Night Macro Smart : Beauty Face Light Trace Description Capture a photo with less image noise in low light conditions. Capture small or close-up subjects. Capture scenes with the light trailing in low-light conditions. 3 Align your subject in the frame, and then half-press [Shutter] to focus. 4 Press [Shutter] to capture the photo. Set Option Beauty Face Description Capture a portrait with options to hide facial imperfections. Action Freeze Capture subjects moving at high speed. Capture scenes at sunset, with natural-looking reds and yellows. Capture still-life scenes and landscapes. Capture subjects as dark shapes against a light background. Capture scenes with fireworks. Sunset Landscape Silhouette Fireworks Extended functions 47 Using the Panorama mode In Panorama mode, you can capture a wide panoramic scene in a single photo. Panorama mode captures and combines a series of photos to create a panoramic image. 4 With [Shutter] pressed, slowly move the camera in the direction that will let it capture the rest of the panorama. • Arrows pointing in the direction of motion are displayed, and the entire shooting image is displayed in the preview box. • When the viewfinder is aligned with the next scene, the camera captures the Shooting example next photo automatically. 1 Rotate the mode dial to . 2 Align your subject in the frame, and then half-press [Shutter] to focus. • Align the camera with the far left or the far right, or very top or bottom, of the scene you want to capture. 3 Press and hold [Shutter] to start shooting. Shakiness: A flatter line represents less camera shake. 5 When you are finished, release [Shutter]. • When you have captured all the necessary shots, the camera combines them into one panoramic photo. Extended functions 48 Using the Panorama mode • For best results when capturing panoramic photos, avoid the following: -- moving the camera too quickly or too slowly -- moving the camera too little to capture the next image -- moving the camera at irregular speeds -- shaking the camera -- shooting in dark places -- capturing moving subjects nearby -- shooting conditions where the brightness or color of light is changing • Photos taken are automatically saved, and shooting is stopped under the following conditions: -- if you change the shooting direction while shooting -- if you move the camera too rapidly -- if you don't move the camera • Selecting Panorama mode will disable the digital and optical zoom functions. If you select Panorama mode while the lens is zoomed in, the camera automatically zooms out to the default position. • Some shooting options are not available. • The camera may stop shooting due to the shooting composition or movement within the scene. • Your camera may not capture the last scene in its entirety if you stop moving the camera exactly where you want the scene to end. To capture the entire scene, move your camera slightly beyond the point where you want the scene to end. Extended functions 49 Using the Magic Plus mode Capture a photo or record a video with various effects. Using the Photo Filter mode Option Apply various filter effects to your photos to create unique images. Miniature Vignetting Fish-eye Classic Miniature Vignetting Retro Cross Filter Description Apply a tilt-shift effect to make the subject appear in miniature. (The top and bottom of the photo will be blurred.) Apply the retro-looking colors, high contrast, and strong vignette effect of Lomo cameras. Distort close objects to imitate the visual effect of a fisheye lens. Apply a black and white effect. Apply a sepia tone effect. Add lines that radiate outward from bright objects to imitate the visual effect of a cross filter. 4 Align your subject in the frame, and then half-press [Shutter] to focus. 5 Press [Shutter] to capture a photo. Fish-eye 1 Rotate the mode dial to 2 Select . 3 Select an effect. Classic • Depending on the option you select, the resolution may change to or less automatically. • To apply filter effects to saved photos, press [m], and then select Open Image → a desired image. The camera will save edited photos as new files. . Extended functions 50 Using the Magic Plus mode 4 Press 5 Press Using the Movie Filter mode Apply various filter effects to your videos to create unique images. 1 Rotate the mode dial to 2 Select . 3 Select an effect. Option Miniature Vignetting Fish-eye Classic Retro Palette Effect 1 Palette Effect 2 Palette Effect 3 Palette Effect 4 . (Video recording) or [Shutter] to start recording. (Video recording) or [Shutter] again to stop recording. • If you select Miniature, playback speed will increase. • If you select Miniature, you cannot record sound in the video. • Depending on the option you select, the recording resolution may change to or less automatically. Description Apply a tilt-shift effect to make the subject appear in miniature. (The top and bottom of the photo will be blurred.) Apply the retro-looking colors, high contrast, and strong vignette effect of Lomo cameras. Distort close objects to imitate the visual effect of a fisheye lens. Apply a black and white effect. Apply a sepia tone effect. Create a vivid look with sharp contrast and strong color. Make scenes clean and clear. Apply a soft brown tone. Create a cold and monotone effect. Extended functions 51 Using the Movie mode In Movie mode, you can customize settings to record HD (1280 X 720) videos of up to 20 minutes in length. The camera saves recorded videos as MP4 (H.264) files. • MP4 (H.264) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T. • If you use memory cards with slow write speeds, the camera may not save videos properly. Video recordings may be corrupted or fail to play back correctly. • Memory cards with slow write speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds. • If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. Use the Zoom Mute function not to record zoom noise. (p. 73) 1 Rotate the mode dial to 2 Set desired options. Pause recording . The camera allows you to temporarily pause a video while recording. With this function, you can record separate scenes as a single video. • For a list of options, refer to "Shooting options". (p. 53) 3 Press 4 Press (Video recording) or [Shutter] to start recording. (Video recording) or [Shutter] again to stop recording. You can start recording a video in some modes by pressing without having to rotate the mode dial to . (Video recording) • Press [o] to pause while recording. • Press [o] to resume. Extended functions 52 Shooting options Learn how to set the options in Shooting mode. Selecting a resolution and quality ……………… 54 Selecting a resolution …………………………… 54 Setting the photo quality ………………………… 55 Using the timer …………………………………… 56 Shooting in the dark ……………………………… 57 Preventing red-eye ……………………………… How to use the flash ……………………………… Using the flash …………………………………… Adjusting the ISO sensitivity ……………………… 57 57 58 59 Changing the camera’s focus …………………… 60 Using macro ……………………………………… 60 Changing the focus option ……………………… 60 Adjusting the focus area ………………………… 61 Using Face Detection ……………………………… 64 Detecting faces …………………………………… 64 Capturing a self portrait shot …………………… Capturing a smile shot …………………………… Detecting eye blinking …………………………… Tips for detecting faces …………………………… 64 65 65 66 Adjusting brightness and color …………………… 67 Adjusting the exposure manually (EV) …………… Compensating for backlighting (ACB) …………… Changing the metering option …………………… Selecting a White Balance setting ………………… 67 68 68 69 Using burst modes (continuous, motion capture, AEB) ……………… 71 Adjusting images ………………………………… 72 Reducing the sound of the zoom ………………… 73 Selecting a resolution and quality Learn how to change the image resolution and quality settings. Selecting a resolution Setting the video resolution As you increase the resolution, your photo or video will include more pixels, so it can be printed on larger paper or displayed on a larger screen. When you use a high resolution, the file size will also increase. Setting the photo resolution Icon 1 In Shooting mode, press [m]. 2 Select Photo Size. 3 Select an option. Icon 1 In Shooting mode, press [m]. 2 Select Movie Size. 3 Select an option. Description 1280 X 720: HD files to play back on an HDTV. 640 X 480: SD files to play back on an analog TV. 320 X 240: Post on a web page. Description For Sharing: Post on a website using the wireless network (30 seconds maximum). 4608 X 3456: Print on A1 paper. 4608 X 3072: Print on A1 paper in wide ratio (3:2). 4608 X 2592: Print on A1 paper in panorama ratio (16:9) or play back on an HDTV. 3648 X 2736: Print on A2 paper. 2832 X 2832: Print on A3 paper in 1:1 ratio. 2592 X 1944: Print on A4 paper. 1984 X 1488: Print on A5 paper. 1920 X 1080: Print on A5 paper in panorama ratio (16:9) or play back on an HDTV. 1024 X 768: Attach to an email. Shooting options 54 Selecting a resolution and quality Setting the photo quality Set the photo quality settings. Higher image quality settings will result in larger file sizes. The camera compresses and saves the photos you capture in the JPEG format. 1 In Shooting mode, press [m]. 2 Select Quality. 3 Select an option. Icon Description Super Fine: Capture photos in super high quality. Fine: Capture photos in high quality. Normal: Capture photos in normal quality. Shooting options 55 Using the timer Learn how to set the timer to delay shooting. 1 In Shooting mode, press [t]. 3 Press [Shutter] to start the timer. • The AF-assist light/timer lamp blinks. The camera will automatically capture a photo after the specified time has elapsed. • Press [Shutter] or [t] to cancel the timer. • Depending on the Face Detection options you selected, the timer function may not be available. Timer : Off • Timer options are not available if you set burst options. • In some modes, you can also set the timer option by pressing [m], and then selecting Timer. Exit Set 2 Select an option. Icon Description Off: The timer is not active. 10 Sec: Capture a photo after a 10-second delay. 2 Sec: Capture a photo after a 2-second delay. Double: Capture one photo after a 10-second delay and another photo after a 2-second delay. Available options may differ depending on the shooting conditions. Shooting options 56 Shooting in the dark Learn how to capture photos at night or in low light conditions. Preventing red-eye How to use the flash If the flash fires when you capture a photo of a person in the dark, a red glow may appear in the person’s eyes. To prevent this, select Red-eye or Red-eye Fix. Refer to flash options in "Using the flash." (p. 58) Before correction Press the flash pop-up button to pop the flash up. When the flash unit pops up, the flash fires in accordance with the option you have selected. If you select Off, the flash does not fire even when it is popped up. • While not in use, keep the flash unit closed to prevent damage. • Forcing open the flash unit may cause damage to your camera. After correction Shooting options 57 Shooting in the dark Using the flash Use the flash when you capture photos in the dark or when you need more light in your photos. 3 Select an option. Icon 1 Press [F] to pop the flash up when it is need. 2 In Shooting mode, press [F]. Flash : Auto Exit Set Shooting options 58 Description Off: • The flash will not fire. • The camera will display the shake warning when you are shooting in low light. Auto: The flash will fire automatically when the subject or background is dark. Red-eye: • The flash will fire twice when the subject or background is dark to reduce the red-eye effect. • There is an interval between the 2 bursts of the flash. Do not move until the flash fires a second time. Fill in: • The flash always fires. • The camera automatically adjusts the intensity of the flash. Slow Sync: • The flash fires and the shutter stays open longer. • This option is recommended when you want to capture more ambient light to reveal more details in the background. • Use a tripod to prevent your photos from blurring. • The camera will display the shake warning when you are shooting in low light. Shooting in the dark Icon Description Adjusting the ISO sensitivity Red-eye Fix: • The flash fires twice when the subject or background is dark. The camera corrects red-eye through its advanced software analysis. • There is an interval between the 2 bursts of the flash. Do not move until the flash fires a second time. The ISO sensitivity is the measure of a film’s sensitivity to light as defined by the International Organization for Standardization (ISO). The higher ISO sensitivity you select, the more sensitive to light your camera becomes. Use a higher ISO sensitivity to capture better photos and reduce camera shake when not using the flash. Available options may differ depending on the shooting conditions. • Flash options are not available if you set burst options or select Self-Portrait or Blink Detection. • Make sure that your subjects are within the recommended distance from the 1 In Shooting mode, press [m]. 2 Select ISO. 3 Select an option. • Select flash. (p. 132) • If light from the flash is reflected or there is a substantial amount of dust in the air, tiny spots may appear in your photo. • In some modes, you can also set the flash option by pressing [m], and then selecting Flash. Shooting options 59 to use an appropriate ISO sensitivity based on the brightness of the subject and lighting. • Higher ISO sensitivities may result in more image noise. • If you set the ISO option to , the resolution may change to or smaller. Changing the camera’s focus Learn how to adjust the camera’s focus to suit the subject and the shooting conditions. Using macro Changing the focus option Use macro to capture close-up photos of subjects, such as flowers or insects. (Refer to "Changing the focus option".) You can get clearer photos by selecting an appropriate focus option according to the distance between the camera and subjects. 1 In Shooting mode, press [c]. Focus : Normal (AF) Exit • Try to hold the camera firmly to prevent blurry photos. • Turn off the flash if the distance to the subject is less than 40 cm. Shooting options 60 Set Changing the camera’s focus 2 Select an option. Icon Adjusting the focus area Description Normal (AF): Focus on a subject farther than 31 in. (80 cm) away. Farther than 59 in. (150 cm) away when you use the zoom. Macro: Focus on a subject that is 4-31 in. (10-80 cm) from the camera. 59-138 in. (150-350 cm) when you use the zoom. Auto Macro: • Focus on a subject farther than 0.4 in. (1 cm) away. Farther than 59 in. (150 cm) away when you use the zoom. • It is set automatically in some shooting modes. Super Macro: Focus on a subject that is 0.4 in. (1 cm) from the camera. You can get clearer photos by selecting an appropriate focus area according to your subject's location in the scene. 1 In Shooting mode, press [m]. 2 Select Focus Area. 3 Select an option. Icon Description Center AF: Focus on the center of the frame (suitable when subjects are located at or near the center). Multi AF: Focus on one or more of 9 possible areas. Selection AF: Focus on the area that you select. (p. 62) Available options may differ depending on the shooting conditions. In some modes, you can also set the focus option by pressing [m], and then selecting Focus. Tracking AF: Focus on and track the subject. (p. 62) Available shooting options may differ depending on the shooting conditions. Shooting options 61 Changing the camera’s focus Focusing on a selected area Using tracking auto focus You can focus on an area that you have selected. 1 In Shooting mode, press [m]. 2 Select Focus Area → Selection AF. 3 Press [o], and then press [D/c/F/t] to move the frame to a desired area. Tracking AF allows you to track and auto focus on your subject, even when you are moving. 1 In Shooting mode, press [m]. 2 Select Focus Area → Tracking AF. 3 Focus on the subject you want to track, and then press [o]. • A focus frame appears on the subject and follows the subject as you move the camera. Move Set 4 Press [o]. 5 Press [Shutter] to capture the photo. • The white frame means that your camera is tracking the subject. • When you half-press [Shutter], the green frame means that your subject is in • Press [o] to change the focus area. focus. If you use this function, you cannot set Face Detection options, Timer options, and Intelli zoom. • The red frame means that your camera failed to focus. 4 Press [Shutter] to capture the photo. Shooting options 62 Changing the camera’s focus • If you do not select a focus area, the focus frame will appear in the center of the screen. • Tracking a subject may fail when: -- the subject is too small -- the subject moves excessively -- the subject is backlit or you are shooting in a dark place -- colors or patterns on the subject and the background are the same -- the subject includes horizontal patterns, such as blinds -- the camera shakes excessively • When tracking fails, the feature will be reset. • If the camera fails to track the subject, you must reselect the subject to track. • If the camera fails to focus, the focus frame will change to red and the focus will be reset. • If you use this function, you cannot set Face Detection options, Timer options, Drive options and Intelli zoom. Shooting options 63 Using Face Detection If you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera adjusts the exposure automatically. Use Blink Detection to detect closed eyes or Smile Shot to capture a smiling face. Detecting faces Capturing a self portrait shot Your camera automatically detects up to 10 human faces in one scene. Capture photos of yourself. The camera sets the focus distance to close-up, and then emits a beep when ready. 1 In Shooting mode, press [m]. 2 Select Face Detection → Normal. The face nearest the camera or nearest the center of the scene appears in a white focus frame and the rest of the faces appear in gray focus frames. 1 In Shooting mode, press [m]. 2 Select Face Detection → Self-Portrait. 3 Compose your shot with the lens facing you. 4 When you hear a quick beep, press [Shutter]. When faces are located in the center, the camera beeps rapidly. The closer you are to the subjects, the quicker your camera will detect faces. If you turn Volume off in the sound settings, the camera will not emit a beep. (p. 111) Shooting options 64 Using Face Detection Capturing a smile shot Detecting eye blinking The camera automatically releases the shutter when it detects a smiling face. If your camera detects closed eyes, it will automatically capture 2 photos in succession. 1 In Shooting mode, press [m]. 2 Select Face Detection → Smile Shot. 3 Compose your shot. 1 In Shooting mode, press [m]. 2 Select Face Detection → Blink Detection. • The camera automatically releases the shutter when it detects a smiling face. When your subject smiles broadly, your camera can detect the smile more easily. Shooting options 65 Using Face Detection Tips for detecting faces • When your camera detects a face, it tracks the detected face automatically. • Face Detection may not be effective when: --the subject is far from the camera --it is too bright or too dark --the subject is not facing the camera --the subject is wearing sunglasses or a mask --the subject’s facial expression changes drastically --the subject is backlit or the lighting conditions are unstable • Face Detection is not available when you set the Selection AF or Tracking AF. • When you set Face Detection options, the AF area is automatically set to Multi AF. • Depending on the Face Detection options you selected, some shooting options may not be available. • Depending on the shooting options you selected, Face Detection options may not be available. Shooting options 66 Adjusting brightness and color Learn how to adjust the brightness and color for better image quality. Adjusting the exposure manually (EV) Depending on the intensity of the ambient light, your photos may be too bright or dark. In these cases, you can adjust the exposure to get a better photo. 3 Press [F/t] to adjust the exposure. • The photo will be brighter as the exposure value increases. EV : +1 Back Darker (-) Neutral (0) 1 In Shooting mode, press [m]. 2 Select EV. Brighter (+) Set 4 Press [o] to save your settings. • Once you adjust the exposure, the setting will be stored automatically. You may need to change the exposure value later to avoid overexposure or underexposure. • If you cannot decide on an appropriate exposure, select the AEB (Auto Exposure Bracket) option. The camera will capture 3 consecutive photos, each with a different exposure: normal, underexposed, and overexposed. (p. 71) Shooting options 67 Adjusting brightness and color Compensating for backlighting (ACB) Changing the metering option When the light source is behind your subject or there is high contrast between your subject and the background, your subject is likely to appear dark in the photo. In this case, set the Auto Contrast Balance (ACB) option. The metering mode refers to the way in which a camera measures the quantity of light. The brightness and lighting of your photos will vary depending on the metering mode you select. 1 In Shooting mode, press [m]. 2 Select Metering. 3 Select an option. Icon ▲ Without ACB ▲ With ACB 1 In Shooting mode, press [m]. 2 Select ACB. 3 Select an option. Icon Description Off: ACB (Auto Contrast Balance) is deactivated. On: ACB (Auto Contrast Balance) is activated. • The ACB feature is always on in mode. • The ACB feature is not available when you set burst options. Shooting options 68 Description Multi: • Your camera divides the frame into several areas, and then measures the light intensity of each area. • Suitable for general photos. Spot: • Your camera measures only the light intensity at the very center of the frame. • If a subject is not in the center of the frame, your photo may be improperly exposed. • Suitable for a subject with backlighting. Center-weighted: • Your camera averages the meter reading of the entire frame with emphasis placed on the center. • Suitable for photos with subjects in the center of the frame. Adjusting brightness and color Selecting a White Balance setting The color of your photo depends on the type and quality of the light source. If you want the color of your photo to be realistic, select a White Balance setting that is appropriate for the lighting conditions, such as Auto WB, Daylight, Cloudy, or Tungsten. 1 In Shooting mode, press [m]. 2 Select White Balance. 3 Select an option. Icon Description Auto WB: Automatically set the White Balance based on the lighting conditions. Daylight: For outdoor photos on a sunny day. Cloudy: For outdoor photos on a cloudy day or in shadows. Auto WB Fluorescent_H: For shooting under a daylight fluorescent or 3-way fluorescent light. Daylight Fluorescent_L: For shooting under white fluorescent light. Tungsten: For shooting indoor photos under incandescent bulbs or halogen lamps. Custom Set: To use White Balance settings that you define. (p. 70) Color Temp.: To adjust the color temperature of the light source. (p. 70) Cloudy Tungsten Shooting options 69 Adjusting brightness and color Defining your own White Balance Adjusting color temperature You can customize the White Balance by capturing a photo of a white surface, such as a piece of paper, under the lighting conditions in which you intend to capture a photo. The White Balance feature will help you to match the colors in your photo with the actual scene. 1 In Shooting mode, press [m]. 2 Select White Balance → Custom Set. 3 Aim the lens at a piece of white paper, and then press [Shutter]. 1 In Shooting mode, press [m]. 2 Select White Balance → Color Temp.. 3 Press [F/t] to adjust the color temperature to match your light source. • You can get a warmer photo with a higher value, and a cooler photo with a lower value. Color Temp. : 6500K Back Set 4 Press [o] to save your settings. Shooting options 70 Using burst modes (continuous, motion capture, AEB) It can be difficult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos. Also, it can be difficult to adjust the exposure correctly and select a proper light source. In these cases, select one of the burst modes. Icon 1 In Shooting mode, press [m]. 2 Select Drive. 3 Select an option. Icon Description Motion Capture: While you are pressing [Shutter], the camera photos (5 photos per second; maximum of 30 photos). captures AEB: • Capture 3 consecutive photos, each with a different exposure: normal, underexposed, and overexposed. • Use a tripod to prevent blurry photos. • You can use the flash, timer, and ACB only when you select Single. • When you select Motion Capture, your camera will set the resolution to and set the ISO sensitivity to Auto. • Depending on the Face Detection option you selected, some Burst options may not be available. Description Single: Capture a single photo. Continuous: • While you are pressing [Shutter], the camera continuously captures photos. • The maximum number of photos depends on the capacity of your memory card. Shooting options 71 Adjusting images Adjust the sharpness, contrast, or saturation of your photos. 1 In Shooting mode, press [m]. 2 Select Image Adjust. 3 Select an option. 4 Press [F/t] to adjust each value. Sharpness - • Sharpness • Contrast • Saturation + Contrast + Description Soften the edges on your photos (suitable for editing the photos on your computer). Sharpen the edges to improve the clarity of your photos. This may also increase the noise in your photos. Description Decrease the color and brightness. Increase the color and brightness. Image Adjust Saturation - Sharpness Contrast + Saturation Back Set Description Decrease the saturation. Increase the saturation. 5 Press [o] to save your settings. Select 0 if you do not want to apply any effects (suitable for printing). Shooting options 72 Reducing the sound of the zoom When you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Zoom Mute function not to record zoom noise. 1 In Shooting mode, press [m]. 2 Select Voice. 3 Select an option. Icon Description Zoom Mute: The camera stops recording sound temporarily when you use the zoom. Off: Record a video without sound. On: Record a video with sound. • Do not block the microphone when you use the Voice function. • Recordings made with Voice may differ from actual sounds. Shooting options 73 Playback/Editing Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect your camera to your computer or TV. Viewing photos or videos in Playback mode …… 75 Editing a video ……………………………………… 87 Starting Playback mode ………………………… 75 Viewing photos …………………………………… 79 Playing a video …………………………………… 82 Trimming a video ………………………………… 87 Capturing an image from video ………………… 87 Editing a photo …………………………………… 83 Resizing photos …………………………………… Rotating a photo ………………………………… Applying Smart Filter effects ……………………… Adjusting your photos …………………………… 83 83 84 85 Viewing files on a TV ……………………………… 88 Transferring files to a computer ………………… 89 Transferring files to your Windows OS computer ………………………………………… 89 Transferring files to your Mac OS computer ……… 90 System Requirements ……………………………… 91 Viewing photos or videos in Playback mode Learn how to play back photos or videos and how to manage files. Starting Playback mode Photo file information View photos or play videos stored in your camera. Memory in use 1 Press [P]. • The most recent file will be displayed. • If the camera is off, it will turn on and display the most recent file. File Information 2 Press [F/t] to scroll through files. Histogram • Press and hold [F/t] to scroll through files quickly. • You may not be able to edit or play back files that were captured with other cameras, due to unsupported sizes (image size, etc) or codecs. Use a computer or another device to edit or play back these files. • Photos or videos captured in portrait orientation do not rotate automatically and are displayed in landscape orientation by the camera and other devices. Album/Zoom In Icon Description Current file/Total files Folder name–File name Protected file To display file information on the screen, press [D]. Playback/Editing 75 Viewing photos or videos in Playback mode Video file information Viewing files as thumbnails Scan thumbnails of files. In Playback mode, rotate [Zoom] to the left to view thumbnails (12 at a time). Rotate [Zoom] to the left once more to display more thumbnails (24 at a time). Rotate [Zoom] to the right to return to the previous view. File Information Album Play Icon Capture Move to the desired file, and then press [o] to display it in full screen view. Description Current file/Total files Folder name-File name Current playback time Menu Video length Protected file Press [D/c/F/t] to scroll through files. To display file information on the screen, press [D]. Playback/Editing 76 Viewing photos or videos in Playback mode Viewing files by category View files by category, such as date or file type. 1 In Playback mode, rotate [Zoom] to the left. 2 Press [m]. 3 Select Filter → a category. 4 Scroll to a desired list, and then press [o] to open the list. 5 Scroll to a desired file, and then press [o] to view the file. 6 Rotate [Zoom] to the left to return to the previous view, and then press [r]. • If you change the category, it may take some time for the camera to reorganize files depending on the number of files. Filter • If you delete a category classified by Date or File Type, all files in the category will be deleted. All Date File Type Back Icon Set Description All: View files normally. Date : View files by the date they were saved. File Type: View files by the file type. Playback/Editing 77 Viewing photos or videos in Playback mode Deleting multiple files You can select multiple files, and then delete them at once. Protecting files Protect a file from accidental deletion. 1 In Playback mode, press [f]. 1 In Playback mode, select a file to protect. 2 Press [m], and then select Protect → On . 3 Repeat steps 1 and 2 to protect additional files. • When in thumbnails view, press [m], select Delete → Select, and then skip to step 3, or press [f], select Select, and then skip to step 3. 2 When the pop-up message appears, select Multiple Delete. 3 Scroll to each file you want to delete, and then press [o]. You cannot delete, resize, or rotate a protected file. • Press [o] again to cancel your selection. 4 Press [f]. 5 When the pop-up message appears, select Yes. Deleting files Select files to delete in Playback mode. Deleting a single file You can select one file, and then delete it. 1 In Playback mode, select a file, and then press [f]. 2 When the pop-up message appears, select Yes. You can also delete files in Playback mode by pressing [m], and then selecting Delete → Delete → Yes. Playback/Editing 78 Viewing photos or videos in Playback mode Viewing photos Deleting all files You can select all files, and then delete them at once. 1 In Playback mode, press [m]. Enlarge part of a photo or view photos as a slide show. • When in thumbnails view, press [m], select Delete → Delete All, and then Enlarging a photo skip to step 3, or press [f], select Delete All, and then skip to step 3. 2 Select Delete → Delete All. 3 When the pop-up message appears, select Yes. In Playback mode, rotate [Zoom] to the right to enlarge a portion of the photo. Rotate [Zoom] to the left to zoom out. • All unprotected files are deleted. Enlarged area Back Playback/Editing 79 Crop Viewing photos or videos in Playback mode Viewing panoramic photos To Move the enlarged area Description Press [D/c/F/t]. Trim the enlarged photo Press [o], and then select Yes. (The trimmed photo will be saved as a new file. The original photo is retained in its original form.) View photos captured in Panorama mode. When you view photos that were captured by another camera, the zoom ratio may differ. 1 In Playback mode, press [F/t] to scroll to a desired panoramic photo. • The entire panoramic photo appears on the screen. 2 Press [o]. • The camera automatically scrolls through the photo from left to right for a horizontal panoramic photo and from top to bottom for a vertical panoramic photo. The camera then switches to Playback mode. • While playing back a panoramic photo, press [o] to pause or resume from pausing. • After you have paused the playback of a panoramic photo, press [D/c/F/t] to move the photo horizontally or vertically, depending on the direction you moved when capturing the photo. 3 Press [r] to return to Playback mode. The camera automatically scrolls through the panoramic photo only if the longest side of the photo is two or more times longer than the shortest side. Playback/Editing 80 Viewing photos or videos in Playback mode Playing a slide show Apply effects and audio to a slide show of your photos. The slide show function does not work for videos. 1 In Playback mode, press [m]. 2 Select Slide Show Options. • Press [o] to pause the slide show. • Press [o] again to resume the slide show. • Skip to step 5 to start a slide show with no effects. 3 4 Press [m] or [r]. 5 Select Start Slide Show. 6 View the slide show. • Press [r] to stop the slide show and return to Playback mode. • Rotate [Zoom] to the left or right to adjust the volume level. Select a slide show effect option. * Default Option Description Play Mode Set whether or not to repeat the slide show. (One Play*, Repeat) Interval Music Effect • Set the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec) • You must set the Effect option to Off to set the interval. Set background audio. • Set a scene change effect between photos. (Off, Calm*, Relax, Lively, Sweet, Shine) • Select Off to cancel effects. • When you use the Effect option, the interval between photos will be set to 1 second. Playback/Editing 81 Viewing photos or videos in Playback mode Playing a video To In Playback mode, you can view a video, and then capture or trim parts of the playing video. You can save the captured or trimmed segments as new files. Scan backward 1 In Playback mode, select a video, and then press [o]. 2 View the video. Current playback time/ Video length Pause or resume playback Scan forward Adjust the volume level Description Press [F]. Each time you press [F], you change the scan speed in this order: 2X, 4X, 8X. Press [o]. Press [t]. Each time you press [t], you change the scan speed in this order: 2X, 4X, 8X. Rotate [Zoom] to the left or right. You can scan backwards or forwards or pause the video after at least 2 seconds have elapsed from the starting point. Stop Pause Playback/Editing 82 Editing a photo Learn how to edit photos. • The camera will save edited photos as new files. • When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to a lower resolution. Resizing photos Rotating a photo Change the size of a photo and save it as a new file. 1 Rotate the mode dial to . 2 Select . 3 Rotate [Zoom] to the left, and then select a photo. 4 Select Rotate → an option. 1 In Playback mode, select a photo, and then press [m]. 2 Select Resize. 3 Select an option. Resize 2592 X 1944 1984 X 1488 1024 X 768 Rotate : Right 90˚ Back Set Available resize options differ depending on the original size of the photo. Cancel Save 5 Press [c] to save. • The camera will overwrite the original file. • In Playback mode, press [m], and then select Rotate to rotate a photo. Playback/Editing 83 Editing a photo Applying Smart Filter effects Option Apply special effects to your photos. Normal 1 Rotate the mode dial to . 2 Select . 3 Rotate [Zoom] to the left, and then select a photo. 4 Select Smart Filter → an option. Miniature Vignetting Fish-eye Classic Retro Cross Filter Smart Filter : Miniature Description No effect Apply a tilt-shift effect to make the subject appear in miniature. (The top and bottom of the photo will be blurred.) Apply the retro-looking colors, high contrast, and strong vignette effect of Lomo cameras. Distort close objects to imitate the visual effect of a fisheye lens. Apply a black and white effect. Apply a sepia tone effect. Add lines that radiate outward from bright objects to imitate the visual effect of a cross filter. 5 Press [c] to save. Cancel Set Playback/Editing 84 Editing a photo Adjusting your photos Learn how to adjust the brightness, contrast, or saturation or how to correct the red-eye effect. If the center of a photo is dark, you can adjust it to be brighter. The camera will save an edited photo as a new file, but may convert it to a lower resolution. • You can adjust brightness, contrast, and saturation and apply Smart Filter effects at the same time. • You cannot apply the ACB, Face Retouch, and Red-eye Fix effects at the same time. Adjusting brightness, contrast, or saturation 1 Rotate the mode dial to . 2 Select . 3 Rotate [Zoom] to the left, and then select a photo. 4 Select an adjusting option. Icon 5 Press [F/t] to adjust the option. 6 Press [o]. 7 Press [c] to save. Adjusting dark subjects (ACB) 1 Rotate the mode dial to . 2 Select . 3 Rotate [Zoom] to the left, and then select a photo. 4 Select ACB. 5 Press [c] to save. Description Brightness Contrast Saturation Playback/Editing 85 Editing a photo Retouching faces 1 Rotate the mode dial to . 2 Select . 3 Rotate [Zoom] to the left, and then select a photo. 4 Select Face Retouch. 5 Press [F/t] to adjust the option. • As the number increases, the skin tone becomes brighter and smoother. Removing red-eye 1 Rotate the mode dial to . 2 Select . 3 Rotate [Zoom] to the left, and then select a photo. 4 Select Red-eye Fix. 5 Press [c] to save. 6 Press [c] to save. Playback/Editing 86 Editing a video While playing back a video, you can trim the video or capture an image from the video. Trimming a video Capturing an image from video 1 In Playback mode, select a video, and then press [m]. 2 Select Trim Movie. 3 Press [o] to start playing the video. 4 Press [o] → [c] at the point where you want the trimming to 1 While viewing a video, press [o] at the point where you want to capture an image. 2 Press [c]. • The resolution of the captured image will be the same as the original video. • The captured image is saved as a new file. begin. 5 Press [o] to resume playing the video. 6 Press [o] → [c] at the point where you want the trimming to end. 7 Press [c] to trim. 8 When the pop-up message appears, select Yes. • The original video should be at least 10 seconds long. • The camera will save the edited video as a new file and leave the original video intact. Playback/Editing 87 Viewing files on a TV Play back photos or videos by connecting your camera to a TV with the A/V cable. 1 Rotate the mode dial to . 2 Select Connectivity → Video Out. 3 Select the video signal output for your country or region. (p. 112) 4 Turn off your camera and TV. 5 Connect your camera to your TV with the A/V cable. Audio 6 Turn on your TV, and then select the A/V video source. 7 Turn on your camera. • The camera automatically enters Playback mode when you connect it to a TV. 8 View photos or play videos using the camera buttons. Video Playback/Editing 88 • Depending on the TV model, you may see some digital noise or part of an image may not appear. • Images may not be centered on the TV screen depending on your TV settings. Transferring files to a computer Connect the camera to the computer, to transfer files from the camera's memory card to the computer. 5 Turn on the camera. Transferring files to your Windows OS computer • The computer recognizes the camera automatically. Connect the camera to your computer as a removable disk. 6 On your computer, select My Computer → Removable Disk → Your computer must be running Windows XP, Windows Vista, Windows 7, or Windows 8 for you to connect the camera as a removable disk. DCIM → 100PHOTO. 7 Drag or save files to your computer. 1 2 Select Connectivity → i-Launcher → Off. 3 Turn off the camera. 4 Connect the camera to your computer with the USB cable. Rotate the mode dial to . Disconnecting the camera (for Windows XP) With Windows Vista , Windows 7 and Windows 8 the methods for disconnecting the camera are similar. You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. 1 If the status lamp on your camera is blinking, wait until it stops. 2 Click on the tool bar at the bottom right of your computer screen. 3 Click the pop-up message. 4 Click the message box that indicates the camera can be removed safely. 5 Remove the USB cable. Playback/Editing 89 Transferring files to a computer Transferring files to your Mac OS computer When you connect the camera to your Mac OS computer, the computer will automatically recognize the device. You can transfer files directly from the camera to the computer without installing any programs. Mac OS 10.5 or later (except PowerPC) is supported. 3 Turn on the camera. • The computer recognizes the camera automatically and displays a removable disk icon. 4 On your computer, open the removable disk. 5 Drag or save files to your computer. 1 Turn off the camera. 2 Connect your camera to your Mac OS computer with the USB cable. You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. Playback/Editing 90 System Requirements Recommended system requirements to play videos on a PC or run the i-Launcher application. Windows OS Requirements Mac OS requirements Item Requirements Intel® Pentium®4 3.2 GHz or higher/ AMD Athlon™ FX 2.6 GHz or higher Item OS Minimum 512 MB RAM (1 GB or more recommended) Windows 7 or Windows 8 250 MB or more (1 GB and above recommended) • 1024 X 768 pixels, 16-bit color display compatible monitor (1280 X 1024 pixels, 32-bit color display recommended) • USB 2.0 port • nVIDIA Geforce 7600GT or higher/ ATI X1600 series or higher Hard disk capacity CPU RAM OS* Hard disk capacity Others Requirements RAM Others Mac OS 10.5 or higher (except PowerPC) Minimum 256 MB RAM (512 MB or more recommended) Minimum 110 MB USB 2.0 port • The requirements are recommendations only. It may not work properly even when the computer meets the requirements, depending on the condition of your computer. • The manufacturer is not responsible for any damage that results from using unqualified computers such as a computer you assembled yourself. * A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows 7 and Windows 8. Playback/Editing 91 Wireless network Learn to connect to wireless local area networks (WLANs) and use functions. Connecting to a WLAN and configuring network settings ……………………………………………… 93 Connecting to a WLAN …………………………… Using the login browser ………………………… Network connection tips ………………………… Entering text ……………………………………… 93 94 95 96 Using the NFC Feature (Tag & Go) ………………… 97 Using NFC features in Shooting mode …………… 97 Using NFC features in Playback mode (Photo Beam) ……………………………………… 97 Using NFC features in Wi-Fi mode ………………… 97 Saving files to a smart phone automatically …… 98 Sending photos or videos to a smart phone …… 99 Using a smart phone as a remote shutter release ……………………………………………… 100 Sending photos or videos via email ……………… 102 Changing email settings ………………………… 102 Sending photos or videos via email ……………… 104 Using photo or video sharing services ………… 105 Accessing a sharing service ……………………… 105 Uploading photos or videos ……………………… 105 Using Samsung Link to send files ………………… 107 Viewing photos or videos on devices that support Samsung Link ……………………………………… 107 Connecting to a WLAN and configuring network settings Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings. Connecting to a WLAN Icon . 1 Rotate the mode dial to 2 Select , , or . 3 Follow the on-screen instructions until the Wi-Fi Setting screen Secured AP WPS AP Signal strength Press [t] to open network setting options. appears. • The camera automatically searches for available AP devices. • In some modes, press [m], and then select Wi-Fi Setting. • When you select a secured AP, a pop-up window appears. Enter the required passwords to connect to the WLAN. For information about entering text, refer to "Entering text". (p. 96) • When a login page appears, refer to "Using the login browser". (p. 94) • When you select an unsecured AP, the camera will connect to the WLAN. • If you select a WPS profile supported AP, select → WPS PIN connection, and then enter a PIN on the AP device. You can also connect to a WPS profile supported AP by selecting → WPS button connection on the camera, and then pushing the WPS button on the AP device. • If a pop-up message about data collection regulations appears, read and agree to it. 4 Select an AP. Wi-Fi Setting Refresh Samsung 1 Samsung 2 Samsung 3 Samsung 4 Back Description Ad hoc AP Manual • Select Refresh to refresh the list of connectable APs. • Select Add wireless network to add an AP manually. The AP name must be in English to add the AP manually. Wireless network 93 Connecting to a WLAN and configuring network settings Using the login browser Setting network options 1 In the Wi-Fi Setting screen, move to an AP, and then press [t]. 2 Select each option, and then enter the required information. Option Network Password IP Setting You can enter your login information via the login browser when connecting to some APs, sharing sites, or cloud servers. Button Description [D/c/F/t] Enter the network password. Set the IP address automatically or manually. [o] [m] Manually setting the IP address 1 In the Wi-Fi Setting screen, move to an AP, and then press [t]. 2 Select IP Setting → Manual. 3 Select each option, and then enter the required information. Option IP Description Enter the static IP address. Subnet Mask Enter the subnet mask. Enter the gateway. Enter the DNS address. Gateway DNS Server [r] Description Move to an item or scroll the page. Select an item. Access the following options: • Previous Page: Move to the previous page. • Next Page: Move to the next page. • Reload: Reload the page. • Stop: Stop loading the page. • Exit: Close the login browser. Close the login browser. • You may not be able to select some items depending on the page you connected to. This does not indicate a malfunction. • The login browser may not close automatically after you log into some pages. If this occurs, close the login browser by pressing [r], and then proceed with the desired operation. • It may take longer to load the login page due to the page size or network speed. If this occurs, wait until the login information input window appears. Wireless network 94 Connecting to a WLAN and configuring network settings Network connection tips • Some Wi-Fi features are not available if you do not insert a memory card. • The quality of the network connection will be determined by the AP. • The further the distance between your camera and the AP, the longer it will take to connect to the network. • If a nearby device is using the same radio frequency signal as your camera, it may interrupt your connection. • If your AP name is not in English, the camera may not be able to locate the device or the name may appear incorrectly. • For network settings or a password, contact your network administrator or network service provider. • If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect to the WLAN, contact your network service provider. • Depending on the encryption type, the number of digits in the password may differ. • A WLAN connection may not be possible in all surroundings. • The camera may display a WLAN enabled printer on the AP List. You cannot connect to a network via a printer. • You cannot connect your camera to a network and a TV simultaneously. • Connecting to a network may incur additional charges. Costs will vary based on • If you cannot connect to a WLAN, try another AP from the available AP list. • A login page may appear when you select free WLANs provided by some network service providers. Enter your ID and password to connect to the WLAN. For information about registering or the service, contact the network service providers. • Be cautious when you enter personal information for an AP connection. Do not enter any payment or credit card information on your camera. The manufacturer is not liable for any problem caused by entering such information. • Available network connections may differ by country. • The WLAN feature of your camera must comply with radio transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera. • The process for adjusting network settings may differ, depending on network conditions. • Do not access a network that you are not authorized to use. • Before you connect to a network, ensure your battery is fully charged. • You cannot upload or send files captured in some modes. • Files that you transfer to another device may not be supported by the device. In this case, use a computer to playback the files. the conditions of your contract. Wireless network 95 Connecting to a WLAN and configuring network settings Entering text Icon Description Learn how to enter text. The icons in the table below let you move the cursor, change the case, etc. Press [D/c/F/t] to move to a desired key, and then press [o] to enter the key. Delete the last letter. Move the cursor. In ABC mode, change the case. Enter ".com". Switch between Symbol mode and ABC mode. Enter a space. Done View the entering text guide. Done Cancel Save the displayed text. Backspace • You can use only the English alphabets in some modes, regardless of the display language. • To move to Done directly, press [P]. • You can enter up to 64 characters. • The screen may differ depending on the input mode. Wireless network 96 Using the NFC Feature (Tag & Go) Place a smart phone's NFC tag near the camera’s NFC tag to launch the feature for saving photos to a smart phone automatically or the feature for using a smart phone as a remote shutter. You can also transfer files to an NFC-enabled device in Playback mode. • This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices. • You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps or the Google Play Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. • To read an NFC tag, place the NFC-enabled device near the camera’s NFC tag for more than 2 seconds. • Do not modify the tag information in any way. Using NFC features in Shooting mode Using NFC features in Wi-Fi mode Launch AutoShare or Remote Viewfinder by reading a tag from an NFC-enabled device. (p. 98, 100) Preset to launch the Wi-Fi function by reading a tag on an NFCenabled device. (p. 114) Select MobileLink or Remote Viewfinder from the pop-up window that appears by reading a tag from an NFC-enabled device. (p. 99, 100) Using NFC features in Playback mode (Photo Beam) In Playback mode, the camera transfers the current file to the smart phone automatically when you read a tag from an NFC-enabled device. • To transfer multiple files, read a tag from an NFC-enabled device in the thumbnail view, and then select files. Wireless network 97 Saving files to a smart phone automatically The camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone automatically. • The AutoShare feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly. • You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. • If you set this function, the setting is maintained even when you change the Shooting mode. • This feature may not be supported in some modes. 1 On the camera, in Shooting mode, press [m]. 2 On the camera, select AutoShare → On. 5 On the camera, allow the smart phone to connect to your camera. • If the smart phone has been connected to your camera before, it is connected automatically. • If the pop-up message that prompts you to download the application • An icon that shows the connection status ( appears, select Next. 3 On the smart phone, turn on the Samsung SMART CAMERA App. • For iOS devices, turn on the Wi-Fi feature before turning on the application. • To start the application automatically on an NFC-enabled smart phone, turn screen. 6 On the camera, capture a photo. ) will appear on the camera’s • The captured photo is saved to the camera, and then transferred to the smart on the function and place the smart phone near the NFC tag (p. 21) on the camera. 4 Select the camera from the list and connect the smart phone to the camera. • The smart phone can connect to only one camera at a time. Wireless network 98 phone. Sending photos or videos to a smart phone The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone. • The MobileLink feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly. • You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. • When there are no files in the camera memory, you cannot use this feature. • If you select files from the smart phone, you can view up to 1,000 recent files and send up to 1,000 files at a time. If you select files from the camera, you can view files that were selected from the camera and the maximum number of files you can send varies depending on the storage space of the smart phone. • When using this feature on an iOS device, the device may lose its Wi-Fi connection. 1 On the camera, rotate the mode dial to 2 On the camera, select . 5 Select the camera from the list and connect the smart phone to the . camera. • The smart phone can connect to only one camera at a time. • If the pop-up message that prompts you to download the application 6 On the camera, allow the smart phone to connect to your camera. appears, select Next. • If the smart phone has been connected to your camera before, it is connected 3 On the camera, select a sending option. • If you select Select Files from Smartphone, you can use your smart phone to view and share files stored on the camera. • If you select Select Files from Camera, you can select files to send on the camera. 4 On the smart phone, turn on the Samsung SMART CAMERA App. • For iOS devices, turn on the Wi-Fi feature before turning on the application. • To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 21) on the camera. automatically. • The application on the smart phone can be closed if no operations are performed on the camera for 30 seconds. 7 On the smart phone or camera, select files to transfer from the camera. 8 On the smart phone, touch the copy button or on the camera, select Send. • The camera will send the files. The camera screen turns off if you perform no operations on the camera for 30 seconds. Wireless network 99 Using a smart phone as a remote shutter release The camera connects to a smart phone via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewfinder feature. The captured photo will display on the smart phone. • The Remote Viewfinder feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly. • You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. 1 On the camera, rotate the mode dial to 2 On the camera, select . 5 On the camera, allow the smart phone to connect to your camera. . • If the smart phone has been connected to your camera before, it is connected automatically. • If the pop-up message that prompts you to download the application 6 On the smart phone, set the following shooting options. appears, select Next. 3 On the smart phone, turn on the Samsung SMART CAMERA App. • For iOS devices, turn on the Wi-Fi feature before turning on the application. • To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 21) on the camera. • While using this feature, some buttons are not available on your camera. • With the smart phone, you can operate the camera only by touching the screen. • Remote Viewfinder mode supports the 10M or 3M photo sizes only. 4 Select the camera from the list and connect the smart phone to the camera. • The smart phone can connect to only one camera at a time. Wireless network 100 Using a smart phone as a remote shutter release 7 On the smart phone, touch and hold • The focus is automatically set to Multi AF. 8 Release to focus. to capture the photo. • When you use this feature, the ideal distance between the camera and the smart phone may vary, depending on your surroundings. • The smart phone must be within 23 feet (7 m) when you use this feature. • It will take some time to capture the photo after you release on the smart phone. • The Remote Viewfinder function will deactivate when: -- either the camera or the smart phone turn off -- either device loses its connection to the WLAN -- the Wi-Fi connection is poor or unstable -- you perform no operations for approximately 3 minutes while connected • The camera screen turns off if you perform no operations on the camera for 30 seconds. Wireless network 101 Sending photos or videos via email You can change settings in the email menu and send photos or videos stored on the camera via email. Changing email settings In the email menu, you can change settings for storing your information. You can also set or change the email password. For information about entering text, refer to "Entering text". (p. 96) 6 Select the Name box, enter your name, and then select Done. Sender Setting Name Storing your information 1 Rotate the mode dial to 2 Select . 3 Connect to a WLAN. (p. 93) 4 Press [m]. 5 Select Sender Setting. Email . Save Reset Back 7 Select the Email box, enter your email address, and then select Done. 8 Select Save to save your changes. • To delete your information, select Reset. Wireless network 102 Sending photos or videos via email Setting an email password Changing the email password . 1 Rotate the mode dial to 2 Select . 3 Connect to a WLAN. (p. 93) 4 Press [m]. 5 Select Setting Password → On. . 1 Rotate the mode dial to 2 Select . 3 Connect to a WLAN. (p. 93) 4 Press [m]. 5 Select Change Password. 6 Enter your current 4-digit password. 7 Enter a new 4-digit password. 8 Enter the new password again. 9 When the pop-up appears, select OK. • To deactivate the password, select Off. 6 When the pop-up appears, select OK. 7 Enter a 4-digit password. 8 Enter the password again. 9 When the pop-up appears, select OK. If you forget your password, you can reset it by selecting Reset on the password setting screen. When you reset the information the previously saved user’s setting information, email address, and recently sent email list will be deleted. Wireless network 103 Sending photos or videos via email Sending photos or videos via email You can send photos or videos stored on the camera via email. For information about entering text, refer to "Entering text". (p. 96) . 1 Rotate the mode dial to 2 Select . 3 Connect to a WLAN. (p. 93) 4 Select the Sender box, enter your email address, and then select 7 Scroll to files to send, and then press [o]. • You can select up to 20 files. The total size must be 7 MB or less. 8 Select Next. 9 Select the comment box, enter your comments, and then select Done. 10 Select Send. • The camera will send the email. Done. • Even if a photo appears to have transferred successfully, errors with the • If you have previously saved your information, it will be inserted automatically. (p. 102) • To use an address from the list of previous senders, select → an address. 5 Select the Receiver box, enter an email address, and then select Done. • To use an address from the list of previous recipients, select → an address. • Select to add additional recipients. You can input up to 30 recipients. • Select to delete an address from the list. 6 Select Next. Wireless network 104 recipient’s email account may cause the photo to be rejected or recognized as spam. • You may not be able to send an email if no network connection is available or if your email account settings are incorrect. • You cannot send an email if the combined file sizes exceed the 7MB. The maximum resolution of photos you can send is 2M. The maximum resolution of videos you can send is . If the selected photo has a resolution higher than 2M, it will be automatically resized to a lower resolution. • If you cannot send an email because of firewall or user authentication settings, contact your network administrator or network service provider. • When there are no files in the camera memory, you cannot use this feature. • You can also send an email in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → Email. Using photo or video sharing services Upload your photos or videos to file sharing services. Available sharing services will be displayed on your camera. To upload files to some sharing services, you must visit the services and register before connecting your camera. Accessing a sharing service 1 Rotate the mode dial to 2 Select . 3 Select a sharing service. Uploading photos or videos 1 Access the sharing service with your camera. 2 Select files to upload. . • You can select up to 20 files. The total size must be 10 MB or less. • If the pop-up message that prompts you to create an account appears, select OK. (On some sharing services, the total size or number of files may vary.) 3 Select Upload. • The camera will upload photos or videos. • On some sharing services, you can enter your comments by selecting the 4 Connect to a WLAN. (p. 93) 5 Enter your ID and password to log in. • For information about entering text, refer to "Entering text". (p. 96) • To select an ID from the list, select → an ID. • If you have previously logged in to the sharing service, you may be logged in automatically. You must have an existing account on the file sharing services to use this feature. Wireless network 105 comment box. For information about entering text, refer to "Entering text". (p. 96) Using photo or video sharing services • You can set an upload folder for Facebook by pressing [m], and then selecting Upload Folder (Facebook) on the sharing service's list screen. • You cannot upload files if the file size exceeds the limit. The maximum resolution of photos you can upload is 2M. The maximum resolution of videos you can upload is . If the selected photo has a resolution higher than 2M, it will be automatically resized to a lower resolution. (On some sharing services, the maximum photo resolution may vary.) • The method of uploading photos or videos may differ depending on the selected sharing service. • If you cannot access a sharing service because of firewall or user authentication settings, contact your network administrator or network service provider. • Uploaded photos or videos may be automatically titled with the date they were captured. • The speed of your internet connection may affect how quickly photos upload or web pages open. • When there are no files in the camera memory, you cannot use this feature. • You can also upload photos or videos to file sharing services in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → a sharing service. • You cannot upload videos to some sharing services. Wireless network 106 Using Samsung Link to send files You can view files on a Samsung Link device connected to the same AP. Viewing photos or videos on devices that support Samsung Link 1 2 Select Rotate the mode dial to 6 On the Samsung Link device, browse the shared photos or videos. • For information about searching for the camera and browsing the photos or videos on the Samsung Link device, refer to the device's user manual. • Videos may not play smoothly depending on the type of Samsung Link . device or the network condition. If this happens, re-record the video in (640 X 480) or smaller quality and play it again. If videos do not play smoothly on your device over the wireless connection, try connecting the camera to the device with an A/V cable. → Nearby devices. • If the guide message appears, select OK. • The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. • If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 93) • You can set to allow only selected devices or all devices to connect by pressing [m], and then selecting DLNA Access Control on the screen. • A sharing file list is created. Wait until other devices can find your camera. 3 Connect the Samsung Link device to a network, and then turn on AP the Samsung Link feature. • Refer to your device's user manual for more information. 4 On the camera, allow the Samsung Link device to connect to your camera. 5 On the Samsung Link device, select a camera to connect to. The camera is connected to a TV that supports Samsung Link via WLAN. Wireless network 107 Using Samsung Link to send files • You can share up to 1,000 recent files. • On a Samsung Link device, you can view only photos or videos captured with your camera. • The range of the wireless connection between your camera and a Samsung Link device may vary depending on the specifications of the AP. • If the camera is connected to 2 Samsung Link devices, playback may be slower. • Photos or videos will be shared in their original sizes. • You can use this feature only with devices that support Samsung Link. • Shared photos or videos will not be stored on the Samsung Link device, but they can be stored in the camera to meet the device's specifications. • Transferring photos or videos to the Samsung Link device may take some time depending on the network connection, the number of files to be shared, or the sizes of the files. • If you power off the camera abnormally while viewing photos or videos on a Samsung Link device (for example, by removing the battery), the device considers the camera to still be connected. • The order of photos or videos on the camera may be different than on the Samsung Link device. • Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process. • While viewing photos or videos on the Samsung Link device, continuously using the device's remote or performing additional operations on the device may prevent this feature from working properly. • If you reorder or sort files on the camera while viewing them on a Samsung Link device, you must repeat the initial set-up process to update the list of files on the device. • When there are no files in the camera memory, you cannot use this feature. • We recommend you use a network cable to connect your Samsung Link device to your AP. This will minimize any video ‘Stuttering’ you may experience when streaming content. • To view files on a Samsung Link device using the Nearby devices feature, enable multicast mode on your AP. Wireless network 108 Settings Refer to options to configure your camera’s settings. Settings menu ………………………………………… 110 Accessing the settings menu ……………………… 110 Sounds ……………………………………………… 111 Display ……………………………………………… 111 Connectivity ………………………………………… 112 General ……………………………………………… 113 Settings menu Learn to configure your camera's settings. Accessing the settings menu 1 Rotate the mode dial to 2 Select a menu. 3 Select an item. . Sounds On Beep Sound Settings Sound 1 Shutter Sound Sounds Off Start Sound Display On AF Sound Connectivity General Medium Volume Back Select 4 Select an option. Volume Icon Description Off Sounds: Set various camera sounds and the volume. (p. 111) Low Display: Customize the display settings. (p. 111) Medium High Connectivity: Set the connection options. (p. 112) General: Change the settings for the camera system such as memory format and default file name. (p. 113) Back Set 5 Press [r] to return to the previous screen. Settings 110 Settings menu Sounds Display * Default Item Volume Description Set the volume of all sounds. (Off, Low, Medium*, High) Set the sound the camera emits when you press the buttons or switch modes. (Off, On*) Set the sound the camera emits when you press the shutter Shutter Sound button. (Off, Sound 1*, Sound 2, Sound 3) Set the sound the camera emits when you turn on your camera. Start Sound (Off*, Star Flight, Laser Show, Cloud) Set the sound the camera emits when you half-press the shutter AF Sound button. (Off, On*) * Default Item Beep Sound Start Image Description Set a start image to display when the camera turns on. • Off*: Display no start image. • Logo: Display a default image stored in the internal memory. • User Image: Select User Image from the photos you captured in the memory. If you select a new photo as a User Image or reset your camera, the camera will delete the current image. Guide Line Date/Time Display Help Display Display Brightness Settings 111 Select a guide to help you compose a scene. (Off*, 3 X 3, 2 X 2, Cross, Diagonal) Set whether or not to display the date and time on the camera's display. (Off*, On) Display a brief description of an option or menu. (Off, On*) Adjust the brightness of the screen. (Auto*, Dark, Normal, Bright) Normal is fixed in Playback mode even if you have selected Auto. Settings menu Connectivity * Default * Default Item Quick View Auto Display Off Description Item Set whether or not to review a captured image before returning to the Shooting mode. (Off, On*) This feature does not work in some modes. Video Out If you perform no operations for 30 seconds, the camera automatically switches to Auto Display Off mode. (Off*, On) In Auto Display Off mode, press any button other than [X] to resume using the camera. i-Launcher Settings 112 Description Set the video signal output for your region. • NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etc • PAL (supports only BDGHI): Australia, Austria, Belgium, China, Denmark, England, Finland, France, Germany, Italy, Kuwait, Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain, Sweden, Switzerland, Thailand, etc Set i-Launcher to launch automatically when you connect your camera to your computer. (Off, On*) Settings menu General * Default Item Network Information Language Time Zone Date/Time Set Date Type Description View the Mac address and network certification number of your camera. Set a language for the display text. Set the time zone for your location. When you travel to another country, select Visit, and then select the appropriate time zone. (Home*, Visit) Set the date and time. Set a date format. (YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY) * Default Item Specify how to name files. • Reset: Set the file number to start from 0001 when you insert a new memory card, format a memory card, or delete all files. • Series*: Set the file number to resume from the previous file number when you insert a new memory card, format a memory card, or delete all files. • The default name of the first folder is 100PHOTO and File No. the default name of the first file is SAM_0001. • The file number increases by one, from SAM_0001 to SAM_9999, each time you take a picture. The default date type may differ depending on the language selected. • The folder number increases by one, from 100PHOTO to 999PHOTO, each time a folder is full. Set the time format. (12 Hr, 24 Hr) Time Type Description • The maximum number of files that can be stored in The default time type may differ depending on the language selected. one folder is 9,999. • The camera defines file names according to the Design rule for Camera File system (DCF) standard. If you intentionally change file names, the camera may not play back the files. Settings 113 Settings menu * Default Item * Default Description Item Set whether or not to display the date and time on captured photos. (Off*, Date, Date & Time) Live view NFC • The date and time will be displayed on the bottom Imprint right corner of the photo. • Some printer models may not print the date and time AF Lamp properly. • The photo will not display the date and time if: -- you select mode Format Set the camera to turn off automatically when you perform no operations for a specified period. (Off, 1 min, 3 min*, 5 min, 10 min) Auto Power Off • Your settings will not change when you replace the battery. • The camera will not turn off automatically when the DIRECT LINK (Wi-Fi Button) Set a Wi-Fi function to launch by reading a tag from an NFC-enabled device in Shooting mode. (AutoShare, Remote Viewfinder*) Set a light to turn off automatically in dark places to help you focus. (Off, On*) Format the memory. Formatting will delete all files, including protected files. (Yes, No*) Errors can occur if you use a memory card formatted by another brand of camera, a memory card reader, or a computer. Please format memory cards in the camera before using them to capture photos. Reset menus and shooting options. Date and time, language, and video output settings will not be reset. (Yes, No*) Open Source Licenses Show the Open source licenses information. Reset camera is connected to a computer or WLAN or when you are playing a slide show or videos. Description Start a preset Wi-Fi function by pressing [DIRECT LINK]. (AutoShare, MobileLink*, Remote Viewfinder, Email, SNS & Cloud, Samsung Link) Settings 114 Appendixes Get information about error messages, specifications, and maintenance. Error messages ………………………………………… 116 Camera maintenance ………………………………… 117 Cleaning your camera ……………………………… 117 Using or storing the camera ………………………… 118 About memory cards ………………………………… 120 About the battery …………………………………… 123 Upgrading Firmware ………………………………… 127 Before contacting a service center ………………… Camera specifications ………………………………… Glossary ……………………………………………… Index …………………………………………………… 128 131 135 142 Error messages When the following error messages appear, try these remedies. Error message Suggested remedies Cannot read file content Delete the damaged file or contact a service center. Card Error • Turn off your camera, and then turn it on again. • Remove your memory card, and then insert it again. • Format your memory card. You can lock an SD, SDHC, or SDXC card to prevent files from being deleted. Unlock the card when shooting. Card Locked Card not supported. The inserted memory card is not supported by your camera. Insert a SD, SDHC, or SDXC memory card. • The camera cannot connect to the network using the Error message Suggested remedies File system not supported. Your camera does not support the FAT file structure of the inserted memory card. Format the memory card on the camera. Initialization failed. The camera has failed to locate a device that supports Samsung Link. Turn on devices on the network that support Samsung Link. Low Battery Insert a charged battery or recharge the battery. Memory Full Delete unnecessary files or insert a new memory card. No Image File Capture photos or insert a memory card that contains some photos. Password Incorrect The password for transferring files to another camera is wrong. Enter the correct password. selected access point. Select another AP and try again. • The camera has failed to connect to the other devices. Try connecting again. Transfer failed. Device disconnected. Network connection disconnected while photos are being transferred to supported devices. Re-select a supported device. DCF Full Error File Error Delete the damaged file or contact a service center. Connection failed. Appendixes 116 • The camera has failed to send e-mails or files to the other devices. Try sending again. • Check the network connection and try again. File names do not match the DCF standard. Transfer the files from the memory card to your computer and format the card. Then, open the Settings menu and select General → File No. → Reset. (p. 113) Camera maintenance Cleaning your camera Camera body Wipe gently with a soft, dry cloth. Camera lens and display Use a blower brush to remove dust and wipe the lens gently with a soft cloth. If any dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe gently. • Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction. • Do not press on the lens cover or use a blower brush on the lens cover. Appendixes 117 Camera maintenance Using or storing the camera Storing for extended period of time • When you store the camera for an extended period, place it in a sealed container with an absorbent material, such as silica gel. Inappropriate places to use or store the camera • Avoid exposing the camera to very cold or very hot temperatures. • Avoid using your camera in areas with extremely high humidity, or where the • Over time, unused batteries will discharge and must be recharged before use. • The present date and time can be initialized when the camera is turned on after the camera and battery have been separated for a prolonged period. humidity changes drastically. • Avoid exposing the camera to direct sunlight and storing it in hot, poorlyventilated areas, such as in a car during summer time. • Protect your camera and the display from impact, rough handling, and excessive vibration to avoid serious damage. • Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components. • Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories. • Do not store the camera where there are mothballs. Using the camera with caution in humid environments When you transfer the camera from a cold environment to a warm one, condensation can form on the lens or internal components of the camera. In this situation, turn off the camera and wait for at least 1 hour. If condensation forms on the memory card, remove the memory card from the camera and wait until all moisture has evaporated before reinserting it. Other cautions • Do not swing your camera by the strap. This may cause injury to yourself or others Using on beaches or shores • Protect your camera from sand and dirt when you use it on beaches or in similar areas. • Your camera is not waterproof. Do not handle the battery, adapter, or memory card with wet hands. Operating the camera with wet hands may cause damage to your camera. or damage to your camera. • Do not paint your camera, as paint can clog moving parts and prevent proper operation. • Turn off the camera when not using it. • Your camera contains delicate parts. Avoid impacts to the camera. Appendixes 118 Camera maintenance • Protect the display from external force by keeping it in the case when not in use. Protect the camera from scratches by keeping it away from sand, sharp implements, or loose change. • Do not use the camera if the screen is cracked or broken. Broken glass or acrylic could cause injury to your hands and face. Take the camera to a Samsung service center to have it repaired. • Never place cameras, batteries, chargers, or accessories near, on, or in heating devices, such as microwave ovens, stoves, or radiators. Heat can deform or overheat these devices, which can cause a fire or explosion. • Do not expose the lens to direct sunlight, as this may discolor the image sensor or cause it to malfunction. • Protect the lens from fingerprints and scratches. Clean the lens with a soft, clean, debris-free lens cloth. • The camera may turn off if struck or dropped. This is to protect the memory card. Turn on the camera to use it again. • While you use the camera, it may heat up. This is normal and should not affect your camera’s lifespan or performance. • When you use the camera in low temperatures, it may take some time to turn on, the color of the display may be changed temporarily, or after-images may appear. These conditions are not malfunctions and they will correct themselves when the camera is returned to milder temperatures. • Paint or metal on the outside of the camera may cause allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you experience any of these symptoms, stop using the camera immediately and consult a doctor. • Do not insert foreign objects into any of your camera’s compartments, slots, or access points. Damage due to improper use may not be covered by your warranty. • Do not allow unqualified personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualified service is not covered by your warranty. Appendixes 119 Camera maintenance About memory cards Memory card adapter Supported memory cards This product supports SD (Secure Digital), SDHC (Secure Digital High Capacity), SDXC (Secure Digital eXtended Capacity), microSD, microSDHC, or microSDXC memory cards. Memory card Terminal To use micro memory cards with this product, a PC, or a memory card reader, insert the card into an adapter. Write-protect switch Label (front) You can prevent files from being deleted by using the write protect switch on an SD, SDHC, or SDXC card. Slide the switch down to lock or slide it up to unlock. Unlock the card when capturing photos and videos. Appendixes 120 Camera maintenance Video Memory card capacity The memory capacity may differ depending on shooting scenes or shooting conditions. These capacities are based on a 2 GB SD card: Size Photo Size 30fps 1280 X 720 Approx. 15' 45" 640 X 480 Approx. 30' 45" Super Fine Fine Normal 325 488 673 320 X 240 Approx. 90' 06" 264 525 697 For Sharing Approx. 90' 06" 407 610 813 360 723 943 592 849 1,146 673 1139 1,463 957 1,619 1,928 1,382 2,263 2,740 2,645 3,147 3,682 The figures above are measured without using the zoom function. Available recording time may vary if you use the zoom. Several videos were recorded in succession to determine the total recording time. Appendixes 121 Camera maintenance Cautions when using memory cards • Avoid exposing memory cards to very cold or very hot temperatures (below • Prevent memory cards from making contact with liquids, dirt, or foreign 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards to malfunction. • Insert a memory card in the correct direction. Inserting a memory card in the wrong direction may damage your camera and memory card. • Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera. • Turn off the camera before you insert or remove the memory card. • Do not remove the memory card or turn off your camera while the lamp is blinking, as this may damage your data. • When the lifespan of a memory card has expired, you cannot store any more photos on the card. Use a new memory card. • Do not bend, drop, or subject memory cards to heavy impact or pressure. • Avoid using or storing memory cards near strong magnetic fields. • Avoid using or keeping memory cards in areas with high temperature, high humidity, or corrosive substances. substances. If dirty, wipe the memory card clean with a soft cloth before you insert the memory card into your camera. • Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction. • When you carry a memory card, use a case to protect the card from electrostatic discharges. • Transfer important data to other media, such as a hard disk, CD, or DVD. • When you use the camera for an extended period, the memory card may become warm. This is normal and does not indicate a malfunction. Appendixes 122 The manufacturer is not responsible for any loss of data. Camera maintenance About the battery Battery life Use only Samsung-approved batteries. Average shooting time/ Number of photos Battery specifications Specification Model Description SLB-10A Type Lithium-ion battery 1030 mAh 3.7 V Cell capacity Voltage Charging time* (when the camera is switched off) Test conditions (when the battery is fully charged) The battery life was measured under the following conditions: in Program mode, in darkness, resolution, Fine quality, OIS on. Photos Approximately 100 min/ Approximately 200 photos Videos Approximately 70 min Approximately 240 min * Charging the battery by connecting it to a computer may take longer. 1. Set the flash option to Fill in, take a single shot, and zoom in or out. 2. Set the flash option to Off, take a single shot, and zoom in or out. 3. Perform steps 1 and 2, waiting 30 seconds between each step. Repeat the process for 5 minutes, and then turn off the camera for 1 minute. 4. Repeat steps 1 to 3. Record videos at resolution and 30 FPS. • The figures above are based on the CIPA test standards. Your results may differ depending on your actual usage. • Several videos were recorded in succession to determine the total recording time. • When using network functions, the battery will be depleted more quickly. Appendixes 123 Camera maintenance Low battery message Cautions about using the battery When the battery has fully discharged, the battery icon will turn red and the "Low Battery" message will appear. Notes about using the battery • Avoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of your batteries. • When you use the camera for an extended period, the area around the battery chamber may become warm. This does not affect the normal use of the camera. • Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a fire or electric shock. • In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease. • Battery capacity may decrease in low temperatures but will return to normal in milder temperatures. • Remove the batteries from your camera when storing it for an extended period. Installed batteries may leak or corrode over time and cause serious damage to your camera. Storing the camera for extended periods with the battery installed causes the battery to discharge. You may not be able to recharge a fully discharged battery. • When you do not use the camera for an extended period (3 months or more), check the battery and recharge it regularly. If you let the battery discharge continually, its capacity and life may decrease, which can lead to a malfunction, fire, or explosion. Protect batteries, chargers, and memory cards from damage Prevent batteries from making contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage and may cause a fire or electric shock. Notes about charging the battery • If the status lamp is off, make sure that the battery is inserted correctly. • If the camera is on while charging, the battery may not fully charge. Turn off the camera before charging the battery. • Do not use your camera when you are charging the battery. This may cause a fire or electric shock. • Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a fire or electric shock. • Let the battery charge for at least 10 minutes before turning on the camera. • If you connect the camera to an external power source when the battery is depleted, using high energy-consuming functions will cause the camera to turn off. To use the camera normally, recharge the battery. Appendixes 124 Camera maintenance • If you reconnect the power cable when the battery is fully charged, the status lamp turns on for approximately 30 minutes. • Using the flash or recording videos depletes the battery quickly. Charge the battery until the red status lamp turns off. • If the indicator light does not illuminate, reconnect the cable, or remove the battery and insert it again. • Overcharging batteries may shorten battery life. After charging is finished, disconnect the cable from your camera. • Do not bend or place heavy objects on the AC cable. Doing so may damage the cable. Handling and disposing of batteries and chargers with care • Never dispose of batteries in a fire. Follow all local regulations when you dispose of used batteries. • Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when they are overheated. Notes about charging with a computer connected • Use only the provided USB cable. • The battery may not charge when: --you use a USB hub --other USB devices are connected to your computer --you connect the cable to the port on the front side of your computer --the USB port of your computer does not support the power output standard (5 V, 500 mA) Appendixes 125 Camera maintenance Personal injury or death can occur if the battery is handled carelessly or improperly. For your safety, follow these instructions for proper battery handling: • The battery can ignite or explode if not handled properly. If you notice any deformities, cracks, or other abnormalities in the battery, immediately discontinue use of the battery and contact a service center. • Use only authentic, manufacturer-recommend battery chargers and adapters and charge the battery only by the methods described in this user manual. • Do not place the battery near heating devices or expose it to excessively warm environments, such as the inside of an enclosed car in the summertime. • Do not place the battery in a microwave oven. • Avoid storing or using the battery in hot, humid places, such as spas or shower enclosures. • Do not rest the device on flammable surfaces, such as bedding, carpets, or electric blankets for a prolonged period. • When the device is switched on, do not leave it in any confined space for a prolonged period. • Do not allow battery terminals to come in contact with metallic objects, such as necklaces, coins, keys, or watches. • Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Appendixes 126 • Do not disassemble or puncture the battery with any sharp object. • Avoid exposing the battery to high pressure or crushing forces. • Avoid exposing the battery to major impacts, such as dropping it from high places. • Do not expose the battery to temperatures of 60 °C (140 °F) or above. • Do not allow the battery to come in contact with moisture or liquids. • Do not expose the battery to sources of excessive heat such as sunshine, fire, or the like. Disposal guidelines • Dispose of the battery with care. • Do not dispose of the battery in a fire. • Disposal regulations may differ by country or region. Dispose of the battery in accordance with all local and federal regulations. Guidelines for charging the battery Charge the battery only by the method described in this user manual. The battery can ignite or explode if not charged properly. Camera maintenance 6 Install i-Launcher on the PC. Upgrading Firmware i-Launcher allows you to upgrade the firmware of your camera. OS 1 Rotate the mode dial to . 2 Select Connectivity → i-Launcher → On. 3 Turn off the camera. 4 Connect the camera to your computer with the USB cable. Windows You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. Mac How to install When the pop-up window prompting you to install i-Launcher appears, select Yes. • If a pop-up window prompting you to run iLinker.exe appears, run it first. • If the pop-up window prompting does not appear, click My Computer → i-Launcher → iLinker.exe. • When you connect the camera to a computer with i-Launcher installed, the program will launch automatically. Click Devices → i-Launcher → Mac → iLinker. 7 Upgrade the firmware to the latest version following the on-screen instructions. • Select Firmware Upgrader on the screen of i-Launcher. • Before upgrading the firmware, ensure that the PC is connected to a network. • Do not turn the camera off until the firmware upgrading is finished. 5 Turn on the camera. Appendixes 127 Before contacting a service center If you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted the suggested remedy and are still having problems with your device, contact your local dealer or service center. When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery. Situation Cannot turn on the camera The power turns off suddenly Suggested remedies • Ensure that the battery is inserted. • Ensure that the battery is inserted correctly. (p. 25) • Charge the battery. Situation Suggested remedies • There is no space on the memory card. Delete unnecessary files or insert a new card. • Charge the battery. • Your camera may be in Auto Power Off mode. (p. 114) • The camera may turn off to prevent the memory card from being damaged due to an impact. Turn on your camera again. • The battery may lose power more quickly in low temperatures (below 0 °C/32 °F). Keep the battery warm by putting it into your pocket. • Using the flash or recording videos depletes the battery The camera is losing battery power quickly quickly. Recharge if needed. • Batteries are consumable parts that must be replaced over time. Get a new battery if the battery life is diminishing quickly. Cannot capture photos The camera freezes The camera heats up The flash does not work Appendixes 128 • Format the memory card. • The memory card is defective. Get a new memory card. • Make sure that the camera is switched on. • Charge the battery. • Make sure that the battery is inserted correctly. Remove the battery and insert it again. While you use the camera, it may heat up. This is normal and should not affect your camera’s lifespan or performance. • The flash option may be set to Off. (p. 58) • You cannot use the flash in some modes. Before contacting a service center Situation Suggested remedies Situation The flash fires unexpectedly The flash may fire due to static electricity. The camera is not malfunctioning. If you change the name of a file, your camera may not play the file (the name of the file should meet the DCF Cannot play back files standard). If you encounter this situation, play back the files on your computer. • Make sure that the focus option you set is suitable for close-up shots. (p. 60) • Make sure that the lens is clean. If not, clean the lens. The photo is blurry (p. 117) • Make sure that the subject is within range of the flash. (p. 132) An incorrect White Balance can create unrealistic color. The colors in the photo do not match Select the proper White Balance option to suit the light the actual scene source. (p. 69) Your photo is overexposed or underexposed. • Turn the flash off or on. (p. 58) The photo is too bright or dark • Adjust the ISO sensitivity. (p. 59) • Adjust the exposure value. (p. 67) The date and time are Set the date and time in the display settings. (p. 113) incorrect The display or Remove the battery, and then insert it again. buttons do not work The camera display responds poorly The memory card has an error If you use your camera at very low temperatures, it may cause the camera screen to malfunction or discolor. For better performance of your camera screen, use your camera in moderate temperatures. • Turn off your camera, and then turn it on again. • Remove your memory card, and then insert it again. • Format your memory card. See "Cautions when using memory cards" for more detail. (p. 122) Appendixes 129 Suggested remedies Before contacting a service center Situation The TV does not display your photos Your computer does not recognize your camera Your computer disconnects the camera while transferring files Suggested remedies TV with the A/V cable. Situation Your TV or computer cannot display photos and videos that are stored on a SDXC memory card. system. Your computer does not recognize a SDXC memory card. • Make sure that the camera is correctly connected to the • Make sure that your memory card contains photos. • Make sure that the USB cable is connected correctly. • Make sure that your camera is switched on. • Make sure that you are using a supported operating The file transmission may be interrupted by static electricity. Disconnect the USB cable and connect it again. • End i-Launcher and restart the program. • Make sure that i-Launcher is set to On in the settings menu. (p. 112) i-Launcher is not functioning properly • Depending on your computer's specifications and environment, the program may not launch automatically. In this case, click Start → All Programs → Samsung → i-Launcher → Samsung i-Launcher on your computer. (For Windows 8, click Start → All apps → Samsung i-Launcher.) Appendixes 130 Suggested remedies SDXC memory cards use the exFAT file system. Ensure that the external device is compatible with the exFAT file system before connecting the camera to the device. SDXC memory cards use the exFAT file system. To use SDXC memory cards on a Windows XP computer, download and update the exFAT file system driver from the Microsoft website. Camera specifications Image sensor Type 1/2.3" (Approximately 7.73 mm) CCD Effective pixels Approximately 16.20 mega-pixels Total pixels Approximately 16.50 mega-pixels Normal (AF) Range Auto Macro Lens Focal length Samsung Lens 35x Zoom Lens f = 4.5–157.5 mm (35 mm film equivalent: 25–875 mm) F-stop range F3.0 (W)–F5.9 (T) Digital zoom • Still image mode: 1.0~35.0X(Optical)/1.0~2.0X(Digital) • Playback mode: 1.0–14.4X (depending on image size) • Intelli zoom: 2.0X Macro Super Macro Wide (W) Tele (T) 31 in. (80 cm)– 59 in. (150 cm)–infinity infinity 4-31 in. (10-80 cm) 59-138 in. (150-350 cm) 0.4 in. (1 cm)– 59 in. (150 cm)–infinity infinity 0.4 in. (1 cm) – Shutter speed • Auto: 1/8–1/2,000 sec. • Program: 1–1/2,000 sec. • Night: 8–1/2,000 sec. Exposure Display Control Program AE Type TFT LCD Metering Multi, Spot, Center-weighted, Face Detection Feature 3.0" (75.0 mm) 460K Metering range EV 1–17 (Wide, ISO Auto), EV 3–17 (Tele, ISO Auto) Compensation ±2EV (1/3 EV Step) ISO equivalent Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200 (3M) Focusing Type TTL Auto Focus (Center AF, Multi AF, Selection AF, Tracking AF, Face Detection AF) Appendixes 131 Camera specifications Flash Shooting Mode Off, Auto, Red-eye, Fill in, Slow Sync, Red-eye Fix Range • Wide: 31-236 in. (0.8–6 m) (ISO Auto) • Tele: 59-118 in. (1.5 –3 m) (ISO Auto) Recharging time Approximately 5 sec. • Modes: Smart Auto (Portrait, Night Portrait, Night, Backlight Photos Shake reduction Dual IS [OIS(Optical Image Stabilization) + DIS(Digital Image Stabilization)] Effect Photo Shooting mode Video Shooting mode • Photo Filter (Smart Filter): Miniature, Vignetting, Fish-eye, Classic, Retro, Cross Filter • Image Adjust: Sharpness, Contrast, Saturation Videos Movie Filter: Miniature, Vignetting, Fish-eye, Classic, Retro, Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4 White Balance Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set, Color Temp. Date Imprinting Date & Time, Date, Off Appendixes 132 Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Macro Color, Natural Green, Blue Sky, Sunset, Low Light, Spot Light, Spot Light Macro, Spot Light Portrait), Program, Smart (Beauty Face, Action Freeze, Sunset, Landscape, Silhouette, Fireworks, Night, Macro, Light Trace), Panorama, Magic Plus (Photo Filter) • Burst: S ingle, Continuous, AEB, Motion Capture • Timer: Off, 10 Sec, 2 Sec, Double • Modes: Movie, Magic Plus (Movie Filter) • Format: MP4 (H.264) (Max recording time: 20 min) • Size: 1280 X 720, 640 X 480, 320 X 240, 240 Web • Frame Rate : 30fps • Voice: On, Off, Zoom Mute Camera specifications Playback Icon • Type: Single image, Thumbnails, Multi Slide Show with Music and Effect, Movie clip Photos 4608 X 3072 • Edit: Resize, Rotate, Smart Filter, Crop • Effect: Image Adjust (Brightness, Contrast, Saturation, ACB, 4608 X 2592 Face Retouch, Red-eye Fix), Smart Filter (Normal, Miniature, Vignetting, Fish-eye, Classic, Retro, Cross Filter) Videos Video editing: Still image capture, Time trimming 3648 X 2736 Image size Storage File format 1984 X 1488 SD card (2 GB guaranteed), SDHC card (up to 32 GB guaranteed), SDXC card (up to 64 GB guaranteed) --Class 6 and above recommended • Still Image: JPEG (DCF), EXIF 2.3 • Movie Clip: MP4 (Video: MPEG4, AVC/H.264, Audio: AAC) 2832 X 2832 2592 X 1944 • External memory (Optional): Media Size 4608 X 3456 1920 X 1080 1024 X 768 Wireless network MobileLink, Remote Viewfinder, SNS & Cloud, Email, S/W Upgrade Notifier, Samsung Link, AutoShare NFC Yes Appendixes 133 Camera specifications Interface Dimensions (W X H X D) Digital output connector USB 2.0 Audio input/ output Internal speaker (Mono), Microphone (Mono) Video output A/V: NTSC, PAL (selectable) DC power input connector 5.0 V 4.9 X 3.4 X 3.6 in. (124.5 X 86.5 X 92.0 mm) (without protrusions) Weight 16.4 oz. (464 g) (without battery and memory card) Operating Temperature 0–40 °C (32–104 °F) Operating Humidity 5–85 % Power source Software Rechargeable battery Lithium-ion battery (SLB-10A, 1030 mAh) Connector type Micro USB (5 pin) i-Launcher Specifications may change without notice to improve performance. The power source may differ depending on your region. Appendixes 134 Glossary ACB (Auto Contrast Balance) This feature automatically improves the contrast of your images when the subject is backlit or when there is a high contrast between your subject and the background. Composition Composition in photography means arranging objects in a photo. Usually, abiding by the rule of thirds leads to a good composition. AEB (Auto Exposure Bracket) This feature automatically captures several images at different exposures to help you capture a properly-exposed image. DCF (Design rule for Camera File system) A specification to define a file format and file system for digital cameras created by the Japan Electronics and Information Technology Industries Association (JEITA). AF (Auto Focus) A system that automatically focuses the camera lens on the subject. Your camera uses the contrast to focus automatically. Depth of field The distance between the nearest and farthest points that can be acceptably focused in a photograph. Depth of field varies with lens aperture, focal length, and distance from the camera to the subject. Selecting a smaller aperture, for example, will increase the depth of field and blur the background of a composition. Aperture The aperture controls the amount of light that reaches the camera’s sensor. Camera shake (Blur) If the camera is moved while the shutter is open, the entire image may appear blurred. This occurs more often when the shutter speed is slow. Prevent camera shake by raising the sensitivity, using the flash, or using a faster shutter speed. Alternately, use a tripod, the DIS or OIS function to stabilize the camera. Digital zoom A feature that artificially increases the amount of zoom available with a zoom lens (Optical zoom). When using the Digital zoom, the image quality will deteriorate as the magnification increases. Appendixes 135 Glossary Exposure The amount of light allowed to reach the camera’s sensor. Exposure is controlled by a combination of the shutter speed, the aperture value, and ISO sensitivity. DIS (Digital Image Stabilization) This feature compensates in real-time for shaking and vibrating while shooting. There can be a certain amount of image degradation compare to Optical Image Stabilization. EV (Exposure Value) All the combinations of the camera’s shutter speed and lens aperture that result in the same exposure. EV Compensation This feature allows you to quickly adjust the exposure value measured by the camera, in limited increments, to improve the exposure of your photos. Set the EV compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step brighter. Exif (Exchangeable Image File Format) A specification to define an image file format for digital cameras created by the Japan Electronic Industries Development Association (JEIDA). Flash A speed light that helps to create adequate exposure in low-light conditions. Focal length The distance from the middle of the lens to its focal point (in millimeters). Longer focal lengths result in narrower angles of view and the subject is magnified. Shorter focal lengths result in wider angles of view. Histogram A graphical representation of the brightness of an image. The horizontal axis represents the brightness and the vertical axis represents the number of pixels. High points at the left (too dark) and right (too bright) on the histogram indicate a photo that is improperly exposed. H.264/MPEG-4 A high-compression video format established by international standard organizations ISO-IEC and ITU-T and developed by the Joint Video Team (JVT). This codec is capable of providing good video quality at low bit rates. Appendixes 136 Glossary Image sensor The physical part of a digital camera that contains a photosite for each pixel in the image. Each photosite records the brightness of the light that strikes it during an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS (Complementary Metal Oxide Semiconductor). ISO sensitivity The sensitivity of the camera to light, based on the equivalent film speed used in a film camera. At higher ISO sensitivity settings, the camera uses a higher shutter speed, which can reduce blur caused by camera shake and low light. However, images with high sensitivity are more susceptible to noise. Macro This feature allows you to capture close-up photos of very small objects. When using the macro feature, the camera can maintain a sharp focus on small objects at a near life-size ratio (1:1). Metering The metering refers to the way in which the camera measures the quantity of light to set the exposure. MJPEG (Motion JPEG) A video format which is compressed as a JPEG image. JPEG (Joint Photographic Experts Group) A lossy method of compression for digital images. JPEG images are compressed to reduce their overall file size with minimal deterioration of the image resolution. NFC (Near Field Communication) NFC is a set of standards for radio communication at very close proximity. You can use NFC-enabled devices to activate features or exchange data with other devices. LCD (Liquid Crystal Display) A visual display commonly used in consumer electronics. This display needs a separate backlight, such as CCFL or LED, to reproduce colors. Noise Misinterpreted pixels in a digital image that may appear as misplaced or random, bright pixels. Noise usually occurs when photos are shot with a high sensitivity or when a sensitivity is automatically set in a dark place. Appendixes 137 Glossary Optical zoom This is a general zoom which can enlarge images with a lens and does not deteriorate quality of images. Quality An expression of the rate of compression used in a digital image. Higher quality images have a lower rate of compression, which usually results in a larger file size. Resolution The number of pixels present in a digital image. High resolution images contain more pixels and typically show more detail than low resolution images. Vignetting A reduction of an image’s brightness or saturation at the periphery (outer edges) compared to the center of the image. Vignetting can draw interest to subjects positioned in the center of an image. White balance (color balance) An adjustment of the intensities of colors (typically the primary colors red, green, and blue) in an image. The goal of adjusting the white balance, or color balance, is to correctly render the colors in an image. Shutter speed Shutter speed refers to the amount of time it takes to open and close the shutter, and it is an important factor in the brightness of a photo, as it controls the amount of light which passes through the aperture before it reaches the image sensor. A fast shutter speed allows less time to let light in and the photo becomes darker and more easily freezes subjects in motion. Appendixes 138 Correct disposal of batteries in this product (Applicable in countries with separate collection systems) Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories, or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product or their local government office for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. PlanetFirst represents Samsung Electronics' commitment to sustainable development and social responsibility through eco-driven business and management activities. This marking on the battery, manual, or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd, or Pb indicate that the battery contains mercury, cadmium, or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. CAN ICES-3 (B)/NMB-3(B) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799 Appendixes 139 FCC notice FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC ID:A3LWB1100F This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. IC: 649E-WB1100F Appendixes 140 FCC notice Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Déclaration d'exposition aux radiations: Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. FOR PORTABLE DEVICE USAGE (<20m from body/SAR needed) IC: 649E-WB1100F • Declaration of Conformity Trade Name Model No. Responsible Party Address Telephone No. : Samsung Electronics America, Inc. : Samsung WB1100F : Samsung Electronics America, Inc. : 85 Challenger Road, Ridgefield Park, NJ 07660 : 1-800-SAMSUNG (726-7864) T his device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Appendixes 141 Index A B C D AF-assist light Battery Camera maintenance 117 Camera specifications 131 Capturing an image from video 87 Charging 26 Cleaning Date/Time Set 113 Deleting files 78 Digital zoom 38 DIRECT LINK button 21 Disconnecting the camera 89 Display brightness 112 Display type 35 location 21 Settings 114 AF Lamp 114 AF Sound 111 Auto Contrast Balance (ACB) Playback mode 85 Shooting mode 68 Auto Display Off 112 Auto Exposure Bracket (AEB) 71 AutoShare 98 A/V port 21 Caution 124 Charging 26 Inserting 25 Beauty Face 47 Blink Detection 65 Brightness Playback mode 85 Shooting mode 67 Burst modes Auto Exposure Bracket (AEB) 71 Continuous 71 Motion Capture 71 Camera body 117 Display 117 Lens 117 Connecting to a computer Mac 90 Windows 89 Contrast Playback mode 85 Shooting mode 72 Appendixes 142 E Editing photos 83 Editing videos Capturing 87 Trimming 87 Index Email 102 Enlarging 79 Error messages 116 Exposure 67 Focus area Center AF 61 Multi AF 61 Selection AF 61 Tracking AF 61 Formatting 114 F Face Detection 64 Flash Auto 58 Fill in 58 Off 58 Red-eye 58 Red-eye Fix 59 Slow Sync 58 G Guide Line 111 H Half-press shutter 41 I Icons Playback mode 75 Shooting mode 29 i-Launcher 127 Image Adjustment ACB 85 Brightness Playback mode 85 Shooting mode 67 Contrast Playback mode 85 Shooting mode 72 Red-eye 86 Saturation Playback mode 85 Shooting mode 72 Sharpness 72 Appendixes 143 Image quality 55 Imprint 114 Intelli zoom 39 ISO sensitivity 59 L Language settings 113 M Macro Auto Macro 61 Macro 61 Super Macro 61 Magic Plus mode Movie Filter 51 Photo Filter 50 Index Memory card Caution 122 Insert 25 Menu button 23 Metering Center-weighted 68 Multi 68 Spot 68 MobileLink 99 Movie mode 52 N NFC 97 O Q S Open source licenses 114 Optical Image Stabilization (OIS) 40 Optional accessories 20 Quick view 112 Samsung Link 107 Saturation R Red-eye P Panorama mode 48 Playback button 23 Playback mode 75 POWER button 21 Program mode 46 Protecting files 78 Playback mode 86 Shooting mode 57 Remote Viewfinder 100 Reset 114 Resolution Playback mode 83 Shooting mode 54 Retouching faces 86 Rotating 83 Appendixes 144 Playback mode 85 Shooting mode 72 Self portrait 64 Service center 128 Settings 113 Sharing service Accessing 105 Uploading photos or videos 105 Sharpness 72 Shooting portraits Blink Detection 65 Face Detection 64 Red-eye 58 Red-eye fix 59 Self portrait 64 Smile Shot 65 Index Shutter button 21 Slide show 81 Smart Auto mode 44 Smart Filter Photo shooting mode 50 Playback mode 84 Video recording mode 51 Smart mode 47 Smile Shot 65 Sound settings 36 Start Image 111 Status lamp 22 T U W Thumbnails 76 Timer Unpacking 20 USB port 21 White Balance 69 Wireless network 93 V Z Shooting mode 56 Timer lamp 21 Time settings 27 Time zone settings 27, 113 Transferring files Email 102 Mac 90 Windows 89 Tripod mount 22 Video Playback mode 82 Shooting mode 52 Video out 112 Viewing files Category 77 Panoramic photos 80 Slide show 81 Thumbnails 76 TV 88 Appendixes 145 Zoom Using the zoom 38 Zoom button 22 Zoom sound settings 73 Please refer to the warranty that came with your product or visit our website www.samsung.com for after-sales service or inquiries.
