QuickSpecs
HP Elite 7100 Microtower PC

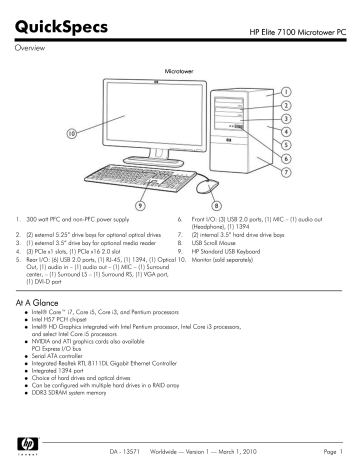

Overview
Microtower
1. 300 watt PFC and non-PFC power supply
2.
3.
4.
5.
6.
Front I/O: (3) USB 2.0 ports, (1) MIC – (1) audio out
(Headphone), (1) 1394
(2) external 5.25” drive bays for optional optical drives
7.
(2) internal 3.5” hard drive drive bays
(1) external 3.5” drive bay for optional media reader
8.
USB Scroll Mouse
(3) PCIe x1 slots, (1) PCIe x16 2.0 slot
9.
HP Standard USB Keyboard
Rear I/O: (6) USB 2.0 ports, (1) RJ-45, (1) 1394, (1) Optical 10. Monitor (sold separately)
Out, (1) audio in – (1) audio out – (1) MIC – (1) Surround
center, – (1) Surround LS – (1) Surround RS, (1) VGA port,
(1) DVI-D port
At A Glance
Intel® Core™ i7, Core i5, Core i3, and Pentium processors
Intel H57 PCH chipset
Intel® HD Graphics integrated with Intel Pentium processor, Intel Core i3 processors,
and select Intel Core i5 processors
NVIDIA and ATI graphics cards also available
PCI Express I/O bus
Serial ATA controller
Integrated Realtek RTL 8111DL Gigabit Ethernet Controller
Integrated 1394 port
Choice of hard drives and optical drives
Can be configured with multiple hard drives in a RAID array
DDR3 SDRAM system memory
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 1
QuickSpecs
HP Elite 7100 Microtower PC
Standard Features and Configurable Components (availability may vary by country)
Processor and Speed
One of the following
Intel Core i7-870 Processor* (2.93 GHz, 1 MB L2 and 8 MB L3 shared cache)
Up to 3.6 GHz with Intel Turbo Boost Technology**
Intel Core i7-860 Processor* (2.8 GHz, 1 MB L2 and 8 MB L3 shared cache)
Up to 3.46 GHz with Intel Turbo Boost Technology**
Intel Core i5-750 Processor* (2.66 GHz, 1 MB L2 and 8 MB L3 shared cache)
Up to 3.2 GHz with Intel Turbo Boost Technology**
Intel Core i5-670 Processor (3.46 GHz), 512 KB L2 and 4 MB L3 shared cache)
Up to 3.73 GHz with Intel Turbo Boost Technology**
Intel Core i5-660 Processor (3.33 GHz), 512 KB L2 and 4 MB L3 shared cache)
Up to 3.60 GHz with Intel Turbo Boost Technology**
Intel Core i5-650 Processor (3.2 GHz), 512 KB L2 and 4 MB L3 shared cache)
Up to 3.46 GHz with Intel Turbo Boost Technology**
Intel Core i3-540 Processor (3.06 GHz, 512 KB L2 and 4 MB L3 shared cache)
Intel Core i3-530 Processor (2.93 GHz, 512 KB L2 and 4 MB L3 shared cache)
Intel Pentium G6950 Processor (2.8GHz, 3MB L2 cache)
* Requires one of the discrete graphics cards listed in Graphics section below.
** Under some configurations and workloads, Intel Turbo Boost technology enables higher
performance through the availability of increased core frequency.
NOTE: Intel processor numbers are not a measure of performance. Processor numbers differentiate
features within each processor family, not across different processor families.
Operating Systems and
Application Software
(availability varies by
region)
Genuine Windows 7 Professional Edition 32*
Genuine Windows 7 Professional Edition 64*
Genuine Windows XP Professional available through downgrade rights from Windows 7
Professional*+
Genuine Windows 7 Home Premium Edition 32*
Genuine Windows 7 Home Basic Edition 32*
Genuine Windows Vista Business 32**
Novell SUSE Linux Enterprise Desktop 11†
FreeDOS
Certified:
Certified
Red Hat Enterprise Linux†
Novell SUSE Linux Enterprise Desktop†
NOTE: Windows XP Mode, available as a separate download for Windows 7 Professional, works with
virtualization software such as Windows Virtual PC to run older Windows XP business software on the
Windows 7 desktop.
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See:
http://www.microsoft.com/windows/windows-7/ for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 2
QuickSpecs
HP Elite 7100 Microtower PC
Standard Features and Configurable Components (availability may vary by country)
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: http://www.windowsvista.com/upgradeadvisor.
+ Windows XP Professional is preinstalled on this system and includes end user rights and media for
Windows 7 Professional. You may only use one version at a time. You must back up all data (files,
photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
† The following features are not supported by Linux:
Integrated 1394 port
Intel Gigabit CT Desktop NIC
LSI PCIe x1 56K International SoftModem
HP Wireless 802.11 b/g/n PCIe x1 Card
NVIDIA GeForce G210 HDMI PCIe x16 graphics card
NVIDIA GeForce GT230 (1.5GB) PCIe x16 graphics card
ATI Radeon HD 4550 (512MB DH) PCIe x16 graphics card
ATI Radeon HD 4650 (1GB DH ) PCIe x16 graphics card
Belkin USB to serial adapter
22-in-1 Media Reader
Microsoft Office 2007 Basic
Microsoft Office 2007 Small Business
Microsoft Office 2007 Professional
HP Recovery Manager
Intel Matrix Storage Manager
Mozilla Firefox for HP Virtual Solutions
Roxio Easy Media Creator 10*
Intervideo WinDVD 8*
McAfee Total Protection Anti-Virus**
PDF Complete
* Supporting software available with certain optical drive configurations
** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
Internal Storage
(3.5-inch SATA)
Hard Drives
160 GB Hard Drive
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
250 GB Hard Drive
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
320 GB Hard Drive
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
500 GB Hard Drive
16MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
1 TB Hard Drive
16MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
Solid State Drive
64-GB Solid State Drive
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 3
QuickSpecs
HP Elite 7100 Microtower PC
Standard Features and Configurable Components (availability may vary by country)
System Memory
1-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (1 x 1GB)
2-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (2 x 1GB)
2-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (1 x 2GB)
3-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (3 x 1GB)
4-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (4 x 1GB)
4-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (1 x 4GB)
4-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (2 x 2GB)
6-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (3 x 2GB)
8-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (4 x 2GB)
8-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (2 x 4GB)
16-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (4 x 4GB)
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. Addressing memory above 4 GB
requires a 64-bit operating system.
Removable Storage
One or more of the
following (see Storage
section below)
Media Reader
HP 22-in-1 Media Reader and additional USB 2.0 port
Optical Drives (Serial ATA)
SATA DVD-ROM Drive
SATA SuperMulti LightScribe DVD Writer Drive
HP SATA Blu-ray Writer
Input Devices
Keyboard – One of the following
HP USB Standard Keyboard
HP USB Mini Keyboard
HP Washable Keyboard
HP USB Smartcard Keyboard
HP 2.4 GHz Wireless Keyboard and Mouse
Mouse – One of the following
USB 2-Button Optical Scroll Mouse
USB 2-Button Laser Mouse
Audio/Visual
Realtek ALC888S High Definition audio codec
3D audio compliant with AC'97 Rev. 2.3 and HD Audio compatible
HP Thin USB Powered Speakers
HP USB 2.0MP Business Webcam
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 4
QuickSpecs
HP Elite 7100 Microtower PC
Standard Features and Configurable Components (availability may vary by country)
Communication
Integrated Realtek RTL8111DL Gigabit Ethernet Controller
Intel Gigabit CT Desktop NIC
LSI PCIe x1 56K International SoftModem
HP Wireless 802.11 b/g/n PCIe x1 Card (full height)
Graphics
Integrated graphics with Intel Pentium processor, Intel Core i3 processors,
and select Intel Core i5 processors:
Intel® HD Graphics
Available discrete graphics cards:
NVIDIA GeForce G210 HDMI PCIe x16 Graphics Card
NVIDIA GeForce GT230 1.5GB PCIe x16 Graphics Card
ATI Radeon HD 4550 Dual Head PCIe x16 Graphics Card
ATI Radeon HD 4650 1GB PCIe x16 Graphics Card
ATI Radeon HD 5450 1GB PCIe x16 Graphics Card
Miscellaneous
Belkin USB to serial adapter
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 5
QuickSpecs
HP Elite 7100 Microtower PC
System Details
Base Unit
MT: Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and
four expansion slots
Active type heatsink
92 x 92 x 25 mm chassis fan for Microtower chassis
System board with Intel H57 PCH chipset, RTL8111DL Gigabit Ethernet controller and Realtek
audio, (3) PCI Express x1 slots, (1) PCI Express x16 slot, (4) DDR3 DIMM memory slots, (4) Serial
ATA data connectors, (10) USB Ports (see USB support below), 1394 Firewire, Optical Out, VGA
port, DVI-D port
Power cord
Slots
PCI
PCI Express x1 slots
(3) full-height (4.34”), length (6.6”), Max power per slot 10W
PCI Express x16 2.0 slot (for graphic cards)
(1) full-height (4.34”), length (9.5”), Max power per slot 75W
Memory Expansion
Four (4) DDR3 SDRAM DIMM slots (16 GB maximum memory support)
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. Addressing memory above 4 GB
requires a 64-bit operating system.
Bays
Internal
External
USB Support
EHCI high-speed USB 2.0 controller
Three (3) front ports; six (6) rear ports, five (5) internal ports on system board
Other Ports
Front:
Front
(1) audio out; (1) microphone in, (1) 1394 port
Rear:
Rear
(1) Digital Out
(1) audio in, (1) audio out; (1) microphone in, (1) surround rear, (1) surround side,
(1) center/sub
(1) RJ-45 network port
(1) 1394 port
(6) USB ports
(1) VGA port
(1) DVI-D port
Two (2) 3.5-inch
Two (2) 5.25-inch; One (1) 3.5-inch
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 6
QuickSpecs
HP Elite 7100 Microtower PC
System Details
Weight & Dimensions
Chassis Dimensions
(H x W x D)
Packaged Dimensions
(L x W x H)
System Weight
Shipping Weight
15.14 x 7.27 x 16.36 in
385 x 185 x 416 mm
19.13 x 21.875 x 10.13 in
490 x 556 x 257 mm
22.4 lb (10.2 kg)
30.8 lb (14.0 kg)
Technology and Features Memory Type
PC3-10600 DDR3 (1333 MHz) non-ECC
Up to 16 GB system memory standard
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. Addressing memory above 4 GB
requires a 64-bit operating system.
Serial ATA
Hard Drive Interfaces
Supported
RAID
Redundant Array of Independent Drives
RAID 0,1 are the RAID configurations that HP Elite 7100 Microtower PC products offer as factory
configurations. The pre-configured systems:
Are complete RAID systems and have both drives installed.
Have the necessary Option ROM configuration.
Are pre-loaded and pre-installed with all required Intel software.
Include a preinstalled operating system that is in mirrored mode out of the box.
SMART Technology*
Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted
Technology
(Self-Monitoring, Analysis
Predicts failures before they occur. Tracks fault prediction and failure indication parameters such
and Reporting Technology)
as re-allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned
user downtime and potential data loss from hard drive failure
IOEDC: I/O Error Detection Circuitry
Detects errors in Read/Write buffers on HDD cache RAM
Interface in F10 setup provides confirmation of SMART support.
* This feature is inoperable when a RAID configuration is enabled.
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 7
QuickSpecs
HP Elite 7100 Microtower PC
System Details
Chassis
Front Panel
Cooling Solutions
Supported
Slots Supported
Front I/O
Rear I/O
Drive Bays (MT)
Internal Speaker
Security
Power Supply
Power button
Power On LED
HDD Activity LED
Power Supply Fan (variable speed)
Active heatsink (variable speed)
Chassis fan (variable speed) (MT only)
(3) PCI Express x1 slots, (1) PCI Express x16 slot
Three (3) USB 2.0 ports, 1394, Headphone, Mic
Standard Micro ATX I/O connectors, including six (6) USB 2.0 ports
Two (2) 5.25-inch (13.335 cm) half height external
One (1) 3.5-inch (8.89 cm) half height external
Two (2) 3.5-inch (8.89 cm) half height internal
Not supported
Padlock loop
Support for chassis padlocks and cable lock devices
Kensington Lock Support
MT: 300-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line
switch (varies by country/region)
Unit Environment and
Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
41° to 95° F (5° to 35° C)
Temperature Range
Operating
–22° to 140° F (–30° to 60° C)
Non-operating
15% to 80% (non-condensing at ambient)
Relative Humidity
Operating
90% (non-condensing at ambient)
Non-operating
7500 ft (2286 m)
Maximum Altitude
Operating
(unpressurized)
15,000 ft (4572 m)
Non-operating
NOTE: Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 7500 ft (2286 m) for MT
and 10000 ft (3000m) for SFF above sea level, no direct sustained sunlight. Maximum rate of change is
7.5 deg C/Hr for MT and 10 deg C/Hr for SFF. The upper limit may be limited by the type and number
of options installed.
System Board
Processor
Socket LGA1156 industry standard Micro ATX form factor
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 8
QuickSpecs
HP Elite 7100 Microtower PC
System Details
PWM
Chipset
Super I/O
Memory Bus Frequency
Memory
Clock Generator
Audio
LOM
Storage
Expansion Slots
Intel Core i3, Core i5, or Core i7 processor
Intersil ISL6338 – 3 phase
Intel H57 PCH Chipset
N/A
1333 MHz
DDR3 SDRAM
4 x DIMM slots
N/A
Realtek ALC888S HD Audio compatible codec with two channel audio 3D
audio compliant with AC'97 rev. 2.3
Realtek RTL8111DL Gigabit Ethernet
Four Serial ATA interfaces
3 x PCI Express x1 slots
1 x PCI Express x16 slot
BIOS
SPI FLASH ROM
Industrial Standard
PCIe compliant
USB 2.0
Rear Side I/O Ports
6 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x 1394 port
1 x Digital Out
6 x audio ports
1 VGA port
1 DVI-D port
On Board I/O Interfaces 1 x ATX power connector
1 x +12V power connector
1 x Front panel connector, Switch, LED (ON/Flash/OFF)
2 x Fan headers for CPU, chassis, with voltage/fan speed control
2 x header (1 -2x5, 1-1x5) to support 3 USB 2.0 ports at front side
1 x header (1 - 2x5) to support USB Card Media Reader
3 x headers (1 -1x5) to support additional USB devices
1 x header 2x5 to support 2 front (Headphone/Mic) audio ports
1 x header 2x5 to support 1 front IEEE 1394
Board Size
Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm)
4-layer PCB with green color
Additional Features
Bootable without keyboard, mouse or monitor
Keyboard/mouse/USB wake up
Support S3, S4 and S5
ACPI status
Hardware monitor capability
CPU fan speed control
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 9
QuickSpecs
HP Elite 7100 Microtower PC
System Details
Network Interface
Integrated Realtek RTL8111DL Gigabit NIC
Intel Gigabit CT Desktop NIC (optional)
Wireless
Wireless 802.11b/g/n PCIe Card (full height bracket)
Power Supply
ATX Power Supply – Passive PFC
ATX Power Supply – High Voltage (HV)
ATX Power Supply – High Efficiency (85%)
Passive Power Factor Correction (PFC/NPFC) - with line switch set to 230V – No PFC in 115V line
switch position
90 to 140VAC, or 180 to 264VAC operating voltage range
100 to 127VAC, or 200 to 240VAC rated voltage range
50-60 Hz rated line frequency
47-63 Hz operating line frequency range
300 watt maximum rated power
80-mm power supply fan – variable speed for optimum acoustics
Power Conservation
'Energy Saver'
APM 1.2 support
Screen blanking
Hard drive 'Idle' mode
System Idle mode
~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC)
Processor/Cache memory power-down (S3)
S5 Max Power Savings (<1W) for Eup Lot 6 compliance
System Environmental
Specs
Values are subject to change without notification and are for reference only.
Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
Levels presented do not account for non-HP/Compaq installed hardware.
MT: Operating 41° to 95°F (5 to 35°C) (Test 0 to
Ambient Air Temperature Operating
104°F (40°C));
SFF: 50° to 95°F (10° to 35°C) at sea level with
an altitude de-rating of 1.0°C per every 1000 ft
(300 m) above sea level to a maximum of
10,000 ft (3000 m), no direct sustained sunlight.
Maximum rate of change is 77°F/Hr (25°C/Hr).
The upper limit may be limited by the type and
number of options installed.
MT: Storage: 90% RH @ 60°C for 12 hours
Storage
(Non-condensing)
SFF: -22° to 140°F (-30° to 60°C) – Maximum
rate of change: 410°F/Hr (210°C/Hr).
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 10
QuickSpecs
HP Elite 7100 Microtower PC
System Details
Humidity
Operating
15% to 80% relative humidity (Rh), 35°C noncondensing.
Storage
90% relative humidity (Rh), 60°C for
12 hours, non-condensing).
Operating
0 to 7,500 feet (0 to 2286 meters) – This value
may be limited by the type and number of
options installed.
Non-Operating
0 to 15,000 feet (0 to 4572 meters)
Listed are the levels of shock the product can withstand with No damage
being incurred. The values represent peak input acceleration during an 2~3
ms half-sine shock pulse, 11 ms trapezoidal shock pulse.
35G's (Half-sine Shock)
Non-Operating
35G's (Trapezoidal Shock)
Listed are the levels of vibration the product can withstand with No damage
being incurred. The values represent a flat random vibration input
acceleration profile across the given frequency range.
MT: Random Operating: ~0.21Grms (5-500
Operating
Hz) Swept Sine: 0.5g (5-500Hz) 5 min. dwell at
4 resonance's 5Hz to 300Hz, (0.25G's nominal).
SFF: Random vibration at [email protected]²/Hz,
[email protected]²/Hz, [email protected]²/Hz,
[email protected].00001G²/Hz
5Hz to 300Hz, (0.25G's nominal).
MT: ~2.09Grms (5-500Hz), Non-Operational
Non-Operating
SFF: Random vibration at 0.008G²/Hz,
10Hz to 500Hz, (2 Grms nominal).
Altitude
Shock
Vibration
Service and Support
On-site WarrantyNote 1: One-year (1-1-1) limited warranty delivers one year of on-site, next businessdayNote 2 service for parts and labor and includes free telephone supportNote 3 24 x 7. Global
coverageNote 2 ensures that any product purchased in one country and transferred to another nonrestricted country will remain fully covered under the original warranty and service offering. One-year
onsite and labor are not available in all countries.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other
warranty variations may be offered in your region.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured Compaq and third-party HPqualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 11
QuickSpecs
HP Elite 7100 Microtower PC
After-Market Options (availability may vary by country)
Communications
Hard Disk Drives
NICs
Intel Gigabit CT Desktop NIC PCIe x1
Wireless LAN
HP Wireless 802.11/b/g/n PCIe x1
Modems
LSI PCIe x1 56K International SoftModem
FH969AA
FH971AA
FH970AA
HP 500-GB SATA 3.0-Gb/s Hard Drive
HP 250-GB SATA 3.0-Gb/s Hard Drive
KW347AA
PY278AA
HP 160-GB SATA 3.0-Gb/s Hard Drive
HP 1-TB SATA 3.0-Gb/s Hard Drive
PY277AA
TBD
External Storage Devices HP 250-GB Pocket Media Drive
FE477AA
Removable Storage
Devices
22-in-1 Media Reader
FX273AA
Input Devices
HP USB Standard Keyboard
HP Washable Keyboard
HP Mini Keyboard
HP 2.4 GHz Wireless Keyboard and Mouse
HP USB 2-Button Optical Scroll Mouse
HP USB 2-Button Laser Mouse
Memory
HP 1-GB PC3-10600 (DDR3 1333-MHz) DIMM
HP 2-GB PC3-10600 (DDR3 1333-MHz) DIMM
HP 4-GB PC3-10600 (DDR3 1333-MHz) DIMM
AT023AA
AT024AA
VH638AA
Audio/Visual
HP Thin USB Powered Speakers
HP USB 2.0M Business Webcam
KK912AA
NX252AA
Graphics
ATI Radeon HD 4650 PCIe x16 Graphics Card
NVIDIA GeForce G210 HDMI SH PCIe x16 Graphics Card
AR956AA
VN565AA
DA - 13571
Worldwide — Version 1 — March 1, 2010
DT528A
VF097AA
AS601AA
NB896AA#xxx
DC172B
GW405AA
Page 12
QuickSpecs
HP Elite 7100 Microtower PC
After-Market Options (availability may vary by country)
Optical Drives
HP SATA DVD-ROM Drive
HP SATA SuperMulti LightScribe DVD Writer Drive
HP SATA Blu-ray Writer (black)
AH047AA
GF343AA
AR482AA
Security
HP Business PC Security Lock Kit
Security Cable with Kensington Lock
HP USB Smartcard Keyboard
PV606AA
PC766A
ED707AA
Miscellaneous
Accessories
Belkin Serial to USB adapter
EM449AA
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 13
QuickSpecs
HP Elite 7100 Microtower PC
Memory
DDR3 SYNCH DRAM NON-ECC MEMORY
The Intel H57 chipset supports non-ECC DDR3 memory up to PC3-16000 (1333-MHz). Memory upgrades are accomplished by
adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an
active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric
performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default to the slowest
DIMM.
STANDARD MEMORY
1-GB, 2-GB or 4GB DDR3 SYNCH DRAM
OPTIONAL MEMORY UPGRADES
Supports up to 16-GB of DDR3 SYNCH DRAM. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due
to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
DIMM Size
1-GB
2-GB (dual-channel symmetric)
4-GB (dual-channel symmetric)
4-GB (dual-channel symmetric)
8-GB (dual-channel symmetric)
16-GB (dual-channel symmetric)
Slot 1 (Black)
1-GB
1-GB
2-GB
2-GB
4-GB
DA - 13571
Slot 2 (Blue)
1-GB
1-GB
1-GB
2-GB
2-GB
4-GB
Slot 3 (Black)
Slot 4 (Blue)
1-GB
1-GB
2-GB
4-GB
2-GB
4-GB
Worldwide — Version 1 — March 1, 2010
Page 14
QuickSpecs
HP Elite 7100 Microtower PC
Storage
HP Elite 7100 Microtower PC
Maximum Quantity Supported
Position Supported
Controller
1
2
2
2
2
3
1, 2
1, 2
1, 2
4, 5
Internal USB 2.0 port
SATA
SATA
SATA
SATA
Drive Support
Media Reader
CD-ROM Drives
DVD-ROM Drives
DVD+/-RW Drives
3.5” Serial ATA Devices
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 15
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Audio
Integrated Realtek
ALC888S Audio
Type
HD Audio compatible
codec
Sampling
Audio Jacks
Integrated
Yes
Power Support
Digital: 3.3V
Analog: 5V
Meets performance requirements for audio on PC99/2001 systems
High-performance DACs with 97dB SNR(A-Weighting)
ADCs with 90dB NR(A-Weighting)
Other
DA - 13571
2-channel
Supports 48/96 KHz
Mic-In
Line-In
Line-Out / Headphone Out
Center/Sub
Surround Side
Surround Rear
Worldwide — Version 1 — March 1, 2010
Page 16
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Communications
Integrated Realtek
RTL8111DL Gigabit
Ethernet Controller
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
Hardware certifications
RJ-45
RTL 8111DL
N/A
10/100/1000 Mbps
IEEE 802.3 compliant, 802.3x flow control
PCI Express 1.1
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
588.5mW - 1000mbps
322.3mW - 100mbps
278.3mW - 10mbps
S3 - 195.8mW
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
32° to 120°F (0° to 48.89° C)
Operating temperature
85% at 120°F (48.89° C)
Operating humidity
Dimensions
68Pin QFN (9mm x 9mm x 0.85mm)
Management capabilities WOL, PXE, (WOL supported from S1, S3, S4 states only. Not supported from
S5 state).
Intel Gigabit CT Desktop Connector
NIC
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
DA - 13571
RJ-45
Intel WG82574L Gigabit Ethernet Controller
Integrated Dual 48K configurable transmit receive FIFO Buffers
10/100/1000 Mbps
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
PCI-E 1.0a
X1, 250 MB/s, Bi-directional interface
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Yes
Worldwide — Version 1 — March 1, 2010
Page 17
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Communications
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)
Management capabilities WOL, PXE, DMI, WFM 2.0
HP Wireless 802.11b/g/n Dimensions (L x H)
PCIe
Weight
Controller
System interface
Network standard
Frequency band
Operating temperature
Storage temperature
Humidity
Operating voltage
Power consumption
Output power
(approximately)
DA - 13571
3.3 x 4.7 inches (8.5 x 12 cm)
0.08 pounds (40 g)
Ralink RT2790
PCIExpress x1
802.11 b/g/n
2.400 - 2.497 GHz
14° to 149°F, operating (-10° to 65°C, operating)
-40° to 176°F, non-operating (-40° to 80°C, non-operating)
10-90% operating
5-95% non-operating
3.3V +/- 9%
12V +/- 8%
Platform/WLAN Mode
Power Consumption
Maximum Power
10 Watts
Consumption
Transmit Only
4 Watts maximum averaged power over 1
second
Transmit Packet or Active 1000 mA peak current for 100 microseconds or
Scanning
longer
Receive Only Mode or Idle 3 Watts maximum averaged over 1 second
without IEEE PSP mode
enabled
Idle, with IEEE PSP mode 1.0 Watts maximum averaged over 1 second
enabled
Transmit Disabled (turned 50 mW maximum, averaged over 1 second
off in software)
Platform in S3 or S4
5 mW maximum, averaged over 1 second
(power removed from Low
Profile PCI Express Card)
802.11b modes
802.11g modes
EWC modes
+19 dBm +/- 1.0 dB
+17 dBm +/- 1.0 dB +17 dBm +/- 1.0 dB
maximum
maximum
maximum (total power
in all transmit chains)
Worldwide — Version 1 — March 1, 2010
Page 18
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Communications
Receive sensitivity
Data transfer rate
DA - 13571
Mode
802.11b
802.11b
802.11g
802.11g
802.11g
802.11g
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
Data Rate (MCS)
1 Mbps (802.11 b)
2 Mbps (802.11 b)
5.5 Mbps (802.11 b)
11 Mbps (802.11 b)
12 Mbps (802.11 g)
18 Mbps (802.11 g)
24 Mbps (802.11 g)
36 Mbps (802.11 g)
48 Mbps (802.11 g)
54 Mbps (802.11 g)
6.5 Mbps (20 MHz EWC)
13 Mbps (20 MHz EWC)
19.5 Mbps (20 MHz
EWC)
26 Mbps (20 MHz EWC)
39 Mbps (20 MHz EWC)
52 Mbps (20 MHz EWC)
58.5 Mbps (20 MHz
EWC)
65 Mbps (20 MHz EWC)
78 Mbps (20 MHz EWC)
104 Mbps (20 MHz EWC)
117 Mbps (20 MHz EWC)
130 Mbps (20 MHz EWC)
13.5 Mbps (40 MHz
EWC)
27 Mbps (40 MHz EWC)
Data rate
1 Mbps
11 Mbps
6 Mbps
18 Mbps
48 Mbps
54 Mbps
6.5 Mbps
54 Mbps
81 Mbps
162 Mbps
270 Mbps
300 Mbps
Minimum Throughput
700 kbps
1.4 Mbps
3.5 Mbps
5.9 Mbps
6 Mbps
9 Mbps
12 Mbps
18 Mbps
21 Mbps
22.5 Mbps
4.5 Mbps
9 Mbps
13.5 Mbps
Sensitivity
-94 dBm
-85 dBm
-91 dBm
-85 dBm
-75 dBm
-72 dBm
-87 dBm
-82 dBm
-78 dBm
-74 dBm
-68 dBm
-64 dBm
18 Mbps
27 Mbps
36 Mbps
40 Mbps
45 Mbps
54 Mbps
72 Mbps
81 Mbps
91 Mbps
8 Mbps
16 Mbps
Worldwide — Version 1 — March 1, 2010
Page 19
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Communications
Security
Antenna
Certifications
Certifications for use by
country
LSI PCIe x1 56K
Data Transmission
International SoftModem
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
DA - 13571
40.5 Mbps (40 MHz
24 Mbps
EWC)
54 Mbps (40 MHz EWC) 32 Mbps
81 Mbps (40 MHz EWC) 48 Mbps
108 Mbps (40 MHz EWC) 64 Mbps
121.5 Mbps (40 MHz
72 Mbps
EWC)
135 Mbps (40 MHz EWC) 81 Mbps
IEEE and WiFi compliant 64 / 128 bit WEP encryption
AES: CCM
802.1x authentication
WPA: 802.1x. WPA-PSK and TKIP
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
HP part number 497792-001
Wi-Fi certified
United States, Canada, Peru, Taiwan
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2,
Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold. If
the power management event (PME) feature is enabled in D3cold, a modem
can wake the system via WAKE# (WAKEN) or beacon. Meets PCI Express
1.1 standard.
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
Worldwide — Version 1 — March 1, 2010
Page 20
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Communications
Operating Humidity
Power
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI express bus
Uses only one PCI express load (i.e., one grant/request pair), one shared
IRQ, one electrical load
LSI SV92EX - Integrated PCI interface with 3.3-V tolerant buffers and
CardBus support
Complies with PCI express low profile specifications-6.7 x 2.3 in (17.0 x 5.8
cm) and supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
The SV92EX device is packaged in a 32-pin micro leadless chip carrier
(MLCC). The SV92EX is fully compliant with the PCI Express revision 1.1
specification. WHQL approved; ASPM compliant.
EMC
Telecom
Other
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 21
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Graphics
NVIDIA GeForce GT230 Bus type
1.5GB PCIe x16
Input/Output
Graphics Card
connectors
Board display options
Board configuration
PCI Express (x16 lanes)
DVI, VGA and HDMI
Supports two displays through any combination of two of the three output
ports.
Specification
Description
Graphics Chip
NVIDIA GeForce GT230
Core clock
550 MHz
Memory clock
500 MHz
Frame buffer
768MB DDR2
Maximum vertical refresh rate 85 Hz
Integrated 400 MHz RAMDAC
Display support
2048 x 1536 (analog), 2560x1600 (digital)
Display max resolution
NVIDIA GeForce GT230 768MB PCIe x16 Graphics Controller display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
85
60
85
60
85
60
85
60
85
60
75
60
85
60
75
60
85
60-R*
60-R
85
60-R
85
N/A
75
N/A
N/A
60**
60
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1600
* Max HDMI resolution is 1080p
** Only supported when using a dual-link DVI connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections
Languages supported
Maximum power
Compliance standards
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
70W
EMC Emissions:
a. CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
measurement of radio disturbance characteristics of Information
Technology Equipment
EMC Immunity:
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 22
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Graphics
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.
ATI Radeon HD 4550
Dual Head PCIe x16
Graphics Card
Input/Output connectors
DMS-59
S-video connector
Board display options
Supports two displays via included DMS-59 to dual VGA cable or 2 DVI
monitors via optional DMS-59 to dual DVI cable kit part number:
DL139A. 4-pin mini-DIN S-video connector for TV output
Board configuration
Specification
Description
Graphics Chip
RV710
Core clock
600 MHz
Memory clock
800 MHz
Frame buffer
256 MB DDR2, 64 bit wide
Bus type
PCI Express (x16 lanes)
Maximum vertical refresh rate 85 Hz
Display support
Integrated 400 MHz RAMDAC
Display max resolution
1900 x 1200 digital, 2048 x 1536 analog
ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
N/A
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections.
Languages supported
Core power
Compliance standards
DA - 13571
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
21 W
EMC Emissions:
a) FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing
Devices for Home & Office Use
b) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
Worldwide — Version 1 — March 1, 2010
Page 23
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Graphics
measurement of radio disturbance characteristics of Information
Technology Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
g) Korean (KCC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.
ATI Radeon HD 4650 1
GB PCIe x16 Graphics
Card
Bus type
PCI Express (x16 lanes)
Maximum vertical refresh rate 85 Hz
Integrated 400 MHz RAMDAC
Display support
2560 x 1600 digital, 2048 x 1536 analog
Display max resolution
ATI Radeon HD 4650 1 GB PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
85
60
85
60
85
60
85
60
85
60
75
60
85
60
75
60
85
60-R*
85
60-R
85
N/A
75
N/A
N/A
60**
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1600
* Max HDMI resolution is 1080p
** Only supported when using a dual-link DVI connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections.
Board display options
Board configuration
Maximum power
DA - 13571
Supports two displays through any combination of two of the three output
ports.
Specification
Description
Graphics Chip
RV730Pro
Core clock
600MHz
Memory clock
500 MHz
Frame buffer
1 GB DDR3, 128 bit wide
55 W
Worldwide — Version 1 — March 1, 2010
Page 24
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Graphics
Languages supported
Compliance standards
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
EMC Emissions:
a) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
measurement of radio disturbance characteristics of Information
Technology Equipment
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.
NVIDIA GeForce
G210 HDMI
(512MB) FullHeight (FH) PCIe
x16 Graphics Card
Bus type
Maximum vertical
refresh rate
Display support
Display max resolution
(VGA)
Display max resolution
(DVI and HDMI)
Board display options
Board configuration
PCI Express (x16 lanes)
75 Hz
Integrated 600 MHz RAMDAC
2048x1536 analog
1920x1200 digital
Dual Display Support: VGA+DVI, VGA+HDMI, DVI+HDMI
Description
Specification
Graphics Chip
RV710
Core clock
600 MHz
Memory clock
500 MHz
Frame buffer
512 MB DDR2, 64 bit wide
Audio Support (through Integrated HD Audio codec supports linear PCM and Dolby® Digital (7.1) audio
HDMI only)
formats for HDMI output
Languages supported 21 languages: US English, UK English, Canadian French, Latin American Spanish,
Castilian Spanish, French, Swedish, Norwegian, Dutch, German, Italian, Portuguese,
Danish, Finnish, Russian, Polish, Traditional Chinese, Simplified Chinese, Korean,
Japanese, Thai
Operating systems
Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional
support
Edition 32*, Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*,
Windows 7 Ultimate Edition 64*, Windows Vista Ultimate 32†, Windows Vista Ultimate
64†, Windows Vista Business 32†, Windows Vista Business 64†, Windows Vista Home
Premium 32†, Windows Vista Home Premium 64†, Windows Vista Home Basic 32†,
Windows Vista Home Basic 64†, Windows XP Professional or Windows XP Home 32†.
*This system may require upgraded and/or separately purchased hardware and/or a
DVD drive to install the Windows 7 software and take full advantage of Windows 7
functionality. See: http://www.microsoft.com/windows/windows-7/ for details.
† Certain Windows Vista product features require advanced or additional hardware.
Windows Vista Upgrade Advisor can help you determine which features of Windows
Vista will run on your computer. To download the tool, visit:
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 25
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Graphics
http://www.windowsvista.com/upgradeadvisor. For Windows Vista system
requirements, visit: http://www.windowsvista.com/systemrequirements.
Linux x86 and x86_64 distributions using XFree86 or X.Org‡.
‡Linux drivers are available from NVIDIA's website and may be available in a Linux
distribution. Refer to the Open Source and Linux from HP website:
http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
Core power
25 W (max)
Dimensions (H x D)
7.09 x 4.72 in (18 x 12 cm)
Weight
0.30 lb (134.3 g)
Option kit contents
NVIDIA GeForce G210 HDMI (512MB) Full-Height (FH) PCIe x16 Graphics
Card
Software CD with graphics drivers
Warranty documentation
Compliance standards EMC Emissions:
a) FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for
Home & Office Use
b) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement
of radio disturbance characteristics of Information Technology Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
g) Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity
Characteristics - Limits and Methods of Measurement.
NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP.
Resolution
640x480
720x480
720x576
800x600
1024x768
1152x720
1152x864
1280x720
1280x768
1280x960
1280x1024
1440x900
1600x1200
Analog (VGA) Connection
75
60
50
75
75
60
75
60
75
75
75
60
60
DA - 13571
Maximum Refresh Rate (Hz)
Digital (DVI) Connection
75
60
N/A
75
75
60
60
60
60
60
75
60
N/A
Worldwide — Version 1 — March 1, 2010
Digital (HDMI) Connection
75
60
50
75
75
60
75
60
75
75
75
60
N/A
Page 26
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Input Devices
HP USB Standard
Keyboard
Physical
characteristics
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
ESD
EMI - RFI
Electrical
Mechanical
Environmental
Approvals
Ergonomic compliance
HP USB Smartcard
Keyboard
Keys
Physical
characteristics
MicrosoftPC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Keys
Form factor
Colors
Dimensions (H x W x D)
Weight
Operating voltage
Electrical
DA - 13571
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
104, 105, 106, 107, 109 layout (depending
upon country)
USB basic Smart Card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
Worldwide — Version 1 — March 1, 2010
Page 27
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Input Devices
Power consumption
System interface
ESD
EMI - RFI
Mechanical
Environmental
Approvals
SMARTCARD function
DA - 13571
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
100-mA maximum (with four LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
30+ available
Low-profile design
55 g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant membrane
Key-leveling mechanisms For all double-wide and greater-length keys
6 ft (1.8 m)
Cable length
Microsoft PC 99 - 2001 Mechanically compliant
43-dBA maximum sound pressure level
Acoustics
50° to 122° F (10° to 50° C)
Operating temperature
-22° to 140° F (-30° to 60° C)
Non-operating
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick,
MIC, JITC, EMV2000, USB-IF, FIPS 201
All ISO 7816 smart cards
Support
Reads from and writes to all ISO7816-1, 2, 3, 4
Interface
memory and microprocessor smart cards (T=0,
T=1)
SCM STCII
Chipset
Standard APIs supported PC/SC, EMV2000, SET
USB Port
Power
Short circuit detection (protects smart card and
reader)
Power supply compliant with ISO7816 and EMV
(5V, 60 mA)
Supports 3-V and 5-V cards
Worldwide — Version 1 — March 1, 2010
Page 28
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Input Devices
Power consumption
Communication
Landing mechanism
Interface modes
Reader performance
interface
Electro-magnetic
standards
HP USB 2-Button Laser
Mouse
Scroll Wheel
Maximum Rotation Speed
Switch Type
Switch Life
Environmental
Electrical
Mechanical
DA - 13571
24
48 rats/sec
wheel
Button - 3,000,000
Wheel - 1,000,000 times
Tilt switch - 500,000 times
Operating Temperature
Non-operating
Temperature
Operating Humidity
Non-operating Humidity
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Operating Voltage
Power Consumption
MTBF
ESD
EMI-RFI
PC98
Resolution
Tracking Speed
250-mA maximum draw (50 mA for the
keyboard with three LEDs ON and 200-mA
maximum startup current using a high-current,
60-mA smart card)
Programmable from
From card
9,600 baud to
115,200 baud
Up to 38,400 baud
From computer
Friction contact
Contact device
Card insertions rating Up to 100,000
insertion cycles
USB communications through USB port
SCM protocol
Automatic card insertion/removal detection
USB connection
Europe
USA
89/336/CEE guideline
USAFCC part 15
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
+ 5VDC ± 5%
> 150,000 hrs
IEC-61000-4-2 criteria B, Contact discharge:
+/- 4kV, Air discharge: +/- 8kV
FCC Class B
PC 99 Compliant
800dpi
25 cm/sec
Worldwide — Version 1 — March 1, 2010
Page 29
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Input Devices
Acceleration
Switch Actuation
Switch Life
Regulatory Approvals
HP USB Optical Scroll
Mouse
Dimensions (H x L x W)
Weight
Cable length
DA - 13571
0.5mm
0.6N (60gf)
Button - 3,000,000
Wheel - 1,000,000 times
Tilt switch - 500,000 times
Cable Length
1850mm
PC98-99
PC99 compliant
UL60950-1, UL 94, UL 746 (A-E), UL 796
TUV/GS: EN 60950-1, EN 60825-1
FCC Class B, UL 1950, cUL, TUV GS, CE, C-tick, VCCI, BSMI, RRL
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
Worldwide — Version 1 — March 1, 2010
Page 30
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Hard Drives
3.5" 7200 RPM Serial
ATA Hard Drives
1 TB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
500 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
320 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
DA - 13571
1,000,204,886,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
32 MB
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
7,200 rpm
1,953,525,168
41° to 131° F (5° to 55° C)
500,107,862,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
16 MB
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
7,200 rpm
976,773,168
41° to 131° F (5° to 55° C)
320,072,933,376 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Worldwide — Version 1 — March 1, 2010
Page 31
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Hard Drives
250 GB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
Capacity
Height
Width
250,059,350,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 13571
7,200 rpm
625,142,448
41° to 131° F (5° to 55° C)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
0.9 ms
Average
9.3 ms
Full-Stroke
18 ms
7,200 rpm
312,581,808
41° to 131° F (5° to 55° C)
Worldwide — Version 1 — March 1, 2010
Page 32
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Hard Drives
Solid State Drive
64 GB
Capacity
NAND Flash Memory
Interface type
Dimensions-external
(W x H x D)
Weight
Internal transfer rate
Host transfer rate
Power
64 GB
Multi Level Cell (MLC) with wear leveling controller
SATA 3Gb/sec
2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)
0.14 lb (65 g)
Write speed
Read speed
Ultra DMA mode
DC power requirement
Total power consumption
Up to 220 MB/s
Up to 120 MB/s
Up to 150 MB/s
5 VDC 5%-100 mV ripple p-p
<1.12Watt
Environmental
(all conditions, noncondensing)
Temperature (operating) 32° to 158° F (0° to 70° C)
5% to 95%
Relative Humidity
(operating)
84° F (29° C)
Maximum Wet Bulb
Temperature (operating)
Regulations
UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS
13438, AS/NZS CISPR 22:2002 Class B, R1113 and C1172
Class B
NOTE: For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted
capacity of this drive before a portion of the drive is reserved for flash management
features. Actual capacity varies by content and will be less than 15.8GB.
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 33
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Optical Storage
SATA DVD-ROM Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Read speeds
Removable Storage Media Compatibility DVD-ROM
Access times
(typical reads, including
setting)
Power
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
DVD-RAM
CD-ROM, CD-R
CD-RW
Media
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
DVD-R DL
Random
Full Stroke
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
DA - 13571
Up to 4X
Up to 48X
Up to 32X
Write
Read
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
Worldwide — Version 1 — March 1, 2010
Page 34
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Optical Storage
HP SATA SuperMulti
LightScribe DVD Writer
Drive
Environmental
(all conditions
non-condensing)
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
Write speeds
2.6 lb (1.2 kg)
DVD-RAM
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
DVD-RAM
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
DVD-ROM DL
DVD-ROM, DVD+R,
DVD-R
CD-ROM, CD-R
CD-RW
Random
Read speeds
Access time
(typical reads, including
settling)
Power
Full Stroke
Source
DC Power Requirement
DC Current
Environmental conditions Temperature
(operating - nonRelative Humidity
condensing)
Maximum Wet Bulb
Temperature
DA - 13571
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
Up to 12X
Up to 16X
Up to 8X
Up to 8X
Up to 8X
Up to 16X
Up to 6X
Up to 48X
Up to 32X
Up to 12X
Up to 8X
Up to 8X
Up to 16X
Up to 48X
Up to 32X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
Worldwide — Version 1 — March 1, 2010
Page 35
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Optical Storage
HP SATA Blu-ray Writer
5.25-inch, half-height, tray-load
Either horizontal or vertical
Orientation
SATA/ATAPI
Interface type
50 GB DL or 25 GB standard
Disc capacity
Dimensions (W x H x D) 5.9 x 1.7 x 7.5 in (15.0 x 4.4 x 19.0 cm)
2.0 lb (907g)
Weight (max)
Single-layer
2x, 4x CLV, 6x CAV
Write speed
BD-R
2.3x
BD-RE
DVD-R
DVD-RW
DVD+R
DVD+RW
DVD-RAM
CD-R
CD-RW
Read speeds
Sustained Transfer rate
Burst Transfer rate
DA - 13571
BD-ROM
BD-R
BD-RE (SL/DL)
DVD-ROM
DVD-R
DVD-RW
DVD+R
DVD+RW
BDMV (AACS Compliant
Disc)
DVD-RAM
DVD-Video (CSS
Compliant Disc)
CD-R/RW/ROM
CD-DA (DAE)
80 mm CD
BD-ROM
DVD-ROM
CD-ROM
Double-layer
2x, 4x CLV
2x CLV
2x, 4x CLV, 8x ZCLV,
2x, 4x CLV
8x, 12x PCAV, 16x CAV
1x, 2x, 4x, 6x CLV
Not supported
2.4x, 4x CLV, 8x ZCLV, 2.4x, 4x CLV
8x, 12x PCAV, 16x CAV
2.4x, 4x, 6x CLV, 8x
Not supported
ZCLV
2x, 3x CLV, 3-5x PCAV
8x,16x CLV, 24x, 32x PCAV, 40x CAV
4x, 10x, 16x CLV, 24x ZCLV
Single-layer
Double-layer
6x CAV
4.8x CAV
6x CAV
4.8x CAV
4.8x CAV
4.8x CAV
16x CAV
8x CAV
12x CAV
8x CAV
10x CAV
Not support
12x CAV
8x CAV
10x CAV
Not support
4.8x CAV
2x, 3x CLV, 3x-5x PCAV
8x CAV
40x / 40x / 40x CAV
32x CAV
16x CAV
215.79 Mbits/s (6x) max.
16.62 Mbytes/s (16x) max.
6,000 KB/s (40x) max.
1.5Gbps bits/s (10b side)
1.2Gbps bits/s (8b side)
Worldwide — Version 1 — March 1, 2010
Page 36
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Optical Storage
Multimedia MPC-3
compliant
Access times
(typical reads, including
setting)
Power
Yes
Random
Full Stroke
Source
DC Power Requirement
DC Current
Environmental
(all conditions
non-condensing)
DA - 13571
Temperature (operating)
Relative Humidity
(operating)
Maximum Wet Bulb
Temperature (operating)
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC -1000 mA typical, 1600 mA maximum
12 VDC -600 mA typical, 1400 mA maximum
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
Worldwide — Version 1 — March 1, 2010
Page 37
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Removable Storage
HP 22-in-1 Media Card
Reader
USB interface
USB 2.0 High-speed device via PCI card or pass -through via internal USB
port of system board
Advance protocol support
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50 MHz SD 4-bit card (version 1.1)
Support high-speed 52 MHz MMC 8-bit card (version 4.x)
Supported media types
Supports CompactFlash Card Type I (CF I), CompactFlash Card Type
II (CF II),MicroDrive (MD)
Supports 3.3V SmartMedia Card (SM), SmartMedia ROM (SM ROM),
xD-Picture Card (xD)
Supports Secure Digital Card (SD), Secure Digital ROM Card (SD
ROM), miniSD, MultiMediaCard (MMC), Secure MultiMediaCard
(Secure MMC), ROM Type MultiMediaCard (MMC ROM), Reduced
Size MultiMediaCard (RS MMC), MultiMediaCard 4.0 (MMC Plus),
Reduced Size MultiMediaCard 4.0 (MMC Mobile)
Support Memory Stick (MS), Memory Stick ROM (MS ROM),
MagicGate Memory Stick (MG), Memory Stick Select, Memory Stick
Duo (MS Duo), Memory Stick PRO (MS-PRO), Memory Stick PRO Duo
(MS PRO Duo)
Mechanical
124.7 cm
Length (3.5")
101.6 cm
Width (3.5")
25.4 cm
Height (3.5")
171.6 cm
Length (5.25)
148.9 cm
Width (5.25")
42.7 cm
Height (5.25")
Environmental
Test Parameters/Conditions – Power applied,
Operational
environmental extremes unit operating on system ±5%
nominal supply voltage.
10°C 10% R.H. = 24 hours
10°C 90% R.H. = 24 hours
20°C 90% R.H. = 24 hours
30°C 90% R.H. = 24 hours
40°C 90% R.H. = 24 hours
50°C 90% R.H. = 24 hours
50°C 10% R.H. = 24 hours
Test Parameters/Conditions
Storage environmental
extremes
60°C @ 80% R.H. for 96 hours
-30°C @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Approvals
Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design
Guide V. 1.2
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 38
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Environmental Data
Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be
declarations
labeled with one or more of these marks:
IT ECO declaration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the Ultraslim Desktop model is based on a typically configured product
Energy Consumption
115 VAC
230 VAC
100 VAC
Normal Operation
27.759W
27.832W
27.391W
Sleep (Energy Star low
1.554W
1.774W
1.536W
power mode)
Off
0.348W
0.550W
0.330W
System Configuration
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
115 VAC
230 VAC
100 VAC
95 BTU/hr
95 BTU/hr
94 BTU/hr
5 BTU/hr
6 BTU/hr
5 BTU/hr
1 BTU/hr
2 BTU/hr
1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
Sound Power
(LWAd, bels)
3.2
3.3
Sound Pressure
(LpAm, decibels)
20
21
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Li-Metal
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –
2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 90% recyclable when properly disposed of at end of life.
Packaging Materials
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 39
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Environmental Data
RoHS Compliance
Material Usage
Packaging
External:
Corrugated Paper – 1480 g
Internal:
EPE-Expanded Polyethylene – 173 g
Polyethylene low density foam – 40 g
The Corrugated Paper packaging material is made from 0% recycled content.
The EPE-Expanded Polyethylene packaging material is made from 0% recycled content.
The Polyethylene low density foam packaging material is made from 0% recycled content.
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for
all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is
no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 40
QuickSpecs
HP Elite 7100 Microtower PC
Technical Specifications - Environmental Data
End-of-life Management
and Recycling
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel, Core i5, and Core i7 are registered trademarks or trademarks of Intel
Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective
companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 13571
Worldwide — Version 1 — March 1, 2010
Page 41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
