Technical datasheet:

Technical datasheet:

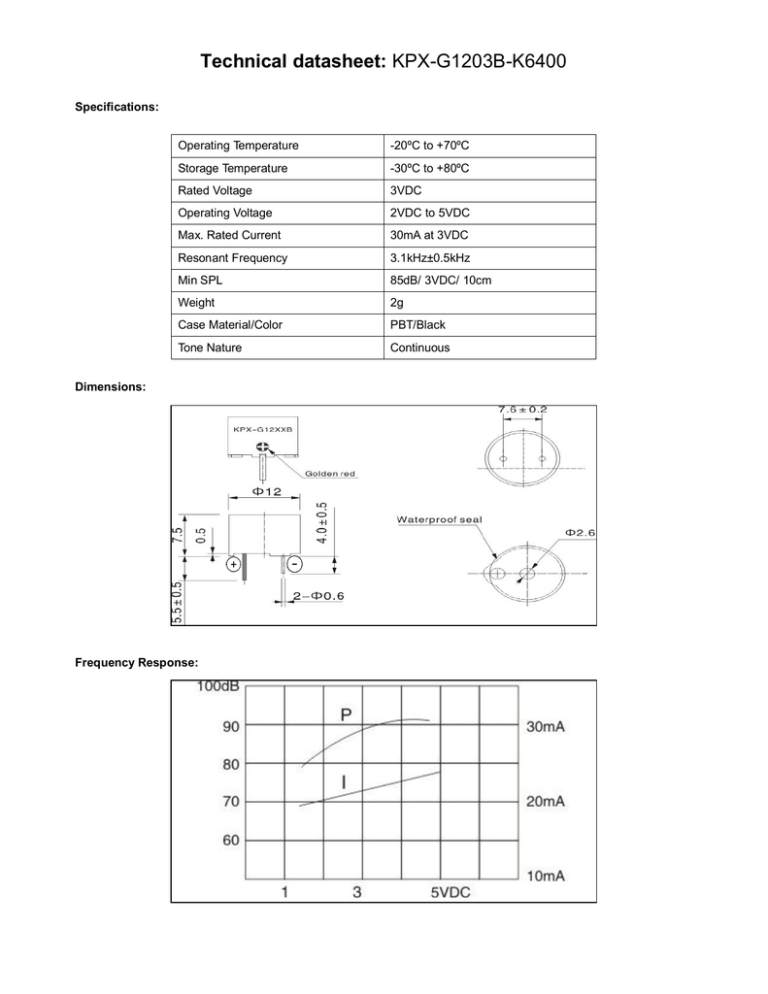

Technical datasheet: KPX-G1203B-K6400
Specifications:
Operating Temperature
-20ºC to +70ºC
Storage Temperature
-30ºC to +80ºC
Rated Voltage
3VDC
Operating Voltage
2VDC to 5VDC
Max. Rated Current
30mA at 3VDC
Resonant Frequency
3.1kHz±0.5kHz
Min SPL
85dB/ 3VDC/ 10cm
Weight
2g
Case Material/Color
PBT/Black
Tone Nature
Continuous
Dimensions:
Frequency Response:
