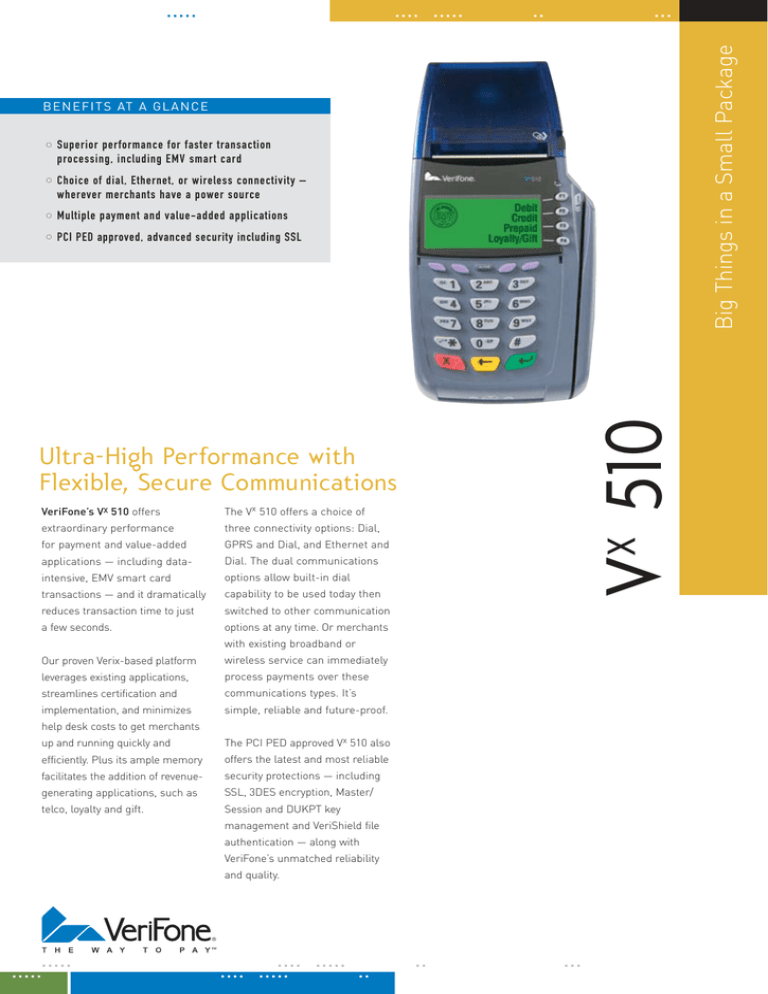

Big Things in a Small Package
.....
BENEFITS AT A GLANCE
Superior performance for faster transaction
processing, including EMV smart card
Choice of dial, Ethernet, or wireless connectivity –
wherever merchants have a power source
Multiple payment and value-added applications
V 510
PCI PED approved, advanced security including SSL
VeriFone’s VX 510 offers
The Vx 510 offers a choice of
extraordinary performance
three connectivity options: Dial,
for payment and value-added
GPRS and Dial, and Ethernet and
applications — including data-
Dial. The dual communications
intensive, EMV smart card
options allow built-in dial
transactions — and it dramatically
capability to be used today then
reduces transaction time to just
switched to other communication
a few seconds.
options at any time. Or merchants
x
Ultra-High Performance with
Flexible, Secure Communications
with existing broadband or
Our proven Verix-based platform
wireless service can immediately
leverages existing applications,
process payments over these
streamlines certification and
communications types. It’s
implementation, and minimizes
simple, reliable and future-proof.
help desk costs to get merchants
up and running quickly and
The PCI PED approved Vx 510 also
efficiently. Plus its ample memory
offers the latest and most reliable
facilitates the addition of revenue-
security protections — including
generating applications, such as
SSL, 3DES encryption, Master/
telco, loyalty and gift.
Session and DUKPT key
management and VeriShield file
authentication — along with
VeriFone’s unmatched reliability
and quality.
.....
.....
.... .....
.... .....
..
..
...
...
.....
.... .....
..
.... .....
Big Things in a Small Package
.....
..
...
...
SPECIFICATIONS
Processor
Dial Modem
200 MHz ARM9 32-bit RISC processor
3 MB – dial only
6 MB (4 MB of Flash, 2 MB of SRAM)
Standard 14.4 kbps modem
supporting Bell 103/212a, CCITT V.21/
V.22/V.22bis/V.32/V.32bis
(300/1200/2400/9600/14400 and HC Fast
Connect for 1200 bps)
Display
Optional Wireless Modem
128 x 64 pixel graphical LCD
with backlighting; supports
8 lines x 21 characters
Supports Wide Area Wireless
GSM/GPRS on 850/900/1800/1900 MHz
Magnetic Card Reader
Ethernet 10-base T
Memory
Triple track (tracks 1, 2, 3), high
coercivity, bi-directional
Smart Card Reader (Optional)
ISO 7816, 1.8V, 3V, 5V or synchronous
and asynchronous cards; EMV Level 1
and 2 Type approved
SAM Card Reader (Optional)
3 Security Access Modules (SAMs)
Keypad
3 x 4 numeric keypad, plus
8 soft-function keys and
4 screen-addressable keys
Dial: Two RS-232, one telco
Dial/Ethernet: Two RS-232,
one Ethernet, one telco
Dial/GPRS: One RS-232 port, telco port,
mini-USB Host port supports
communications and peripherals
including PIN pads and check readers
Printer
Integrated thermal with graphics
capabilities, 18 lines per second, 32 or
42 columns; standard roll paper
58 mm (2.25 in.) x 25 M (82 ft.), single ply
x
V 510
Peripheral Ports
Optional Ethernet Port
Protocols
Application selects between
asynchronous protocols (Visa 1, Visa 2,
and others) and synchronous protocols
(including ISO 8583/SDLC)
Security
SSL v3.0, 3DES encryption, Master/
Session and DUKPT key
management; PCI PED approved;
VeriShield file authentication
Physical
Length: 209 mm (8 in.); Width: 102 mm
(4 in.); Height: 72mm (2.8 in.) Weight:
Terminal/500 g (1.10 lbs.), Full
shipping/1,326 g (2.84 lbs.)
Environmental
0 to 40 C (32 to 104 F) operating
temperature; 5% to 90% relative
humidity, non-condensing
Voltage
AC input 100 - 240 VAC, 50/60 Hz;
DC Output 8.6 - 9.4 VDC, 4.0 Amp
Features & Benefits
Unmatched Performance
• 200 MHz 32-bit RISC processor —
the fastest processor in the industry
for multi-tasking capabilities
• Exceptional graphics-handling by
both display and printer quickly
renders logos, graphical fonts and
character-based languages
• Up to 6 MB of lightning-fast DMM
(dynamically managed memory)
provide exceptional processing on
debit, credit, EBT and value-added
transactions — including EMV
smart card
• Integrated high-speed thermal
printer is quiet and fast (18 lines per
second) with drop-in, “clam shell”
loading to simplify paper changing
and eliminate jams
• Optional IP/dial and wireless/dial
capabilities are built into the same
device so it is easy to switch from one
communication option to the other —
without attachments
• Intuitive ATM-style interface, large
backlit display, ergonomic keys and
bold menu prompts minimize clerk
training, speed lines, and reduce
errors
• Service offerings through VeriFone
Connect make it easy for merchants
to accept wireless electronic
transactions wherever they have a
power source
• Triple-track, high-coercivity card
reader handles most magneticstriped cards, including mini-cards
• File compression, used in conjunction
with high-speed networks or highspeed modems, greatly streamlines
application downloads
• Supports IP-based transactions,
building upon the Verix IP
infrastructure and its suite of
familiar TCP/IP tools
Easy to Use
• Includes built-in smart card reader
and Security Access Modules (SAMs)
to support multiple smart card
solutions and offer added data
protection
Advanced Security And Superior
Reliability
• Latest security protections
include advanced 3DES encryption,
Master/Session and Derived Unique
Key Per Transaction (DUKPT)
management, and sophisticated
VeriShield file authentication and
tamper resistance
• PCI PED approved for debit and
other PIN-based transactions and
has earned EMV Level 1 and Level 2
Type approval
• Application separation at both
the hardware and software level
minimizes or eliminates the need
to recertify existing payment
applications every time an
application is added or modified
• MasterCard PTS approved for
advanced encryption protection of
IP-based communication
• Internal PIN pad for debit and other
PIN-based applications
• Sleek and stylish, with an extremely
small footprint and “hand-over”
design for customer PIN entry
© 2009 VeriFone. All rights reserved. VeriFone, the VeriFone logo, VX Solutions, VeriFone Connect, VeriShield, and Verix are either trademarks or
registered trademarks of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their
respective holders. All features and specifications are subject to change without notice.
07/09 45388 Rev H 0/FS
