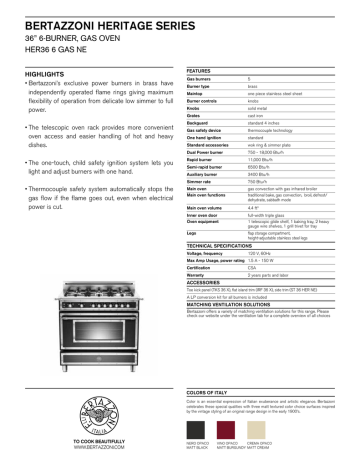

BERTAZZONI HERITAGE SERIES
36” 6-BURNER, GAS OVEN
HER36 6 GAS NE
HIGHLIGHTS
•Bertazzoni’s exclusive power burners in brass have
independently operated flame rings giving maximum
flexibility of operation from delicate low simmer to full
power.
•The telescopic oven rack provides more convenient
oven access and easier handling of hot and heavy
dishes.
•The one-touch, child safety ignition system lets you
light and adjust burners with one hand.
•Thermocouple safety system automatically stops the
gas flow if the flame goes out, even when electrical
power is cut.
FEATURES
Gas burners
5
Burner type
brass
Maintop
one piece stainless steel sheet
Burner controls
knobs
Knobs
solid metal
Grates
cast iron
Backguard
standard 4 inches
Gas safety device
thermocouple technology
One hand ignition
standard
Standard accessories
wok ring & simmer plate
Dual Power burner
750 - 18,000 Btu/h
Rapid burner
11,000 Btu/h
Semi-rapid burner
6500 Btu/h
Auxiliary burner
3400 Btu/h
Simmer rate
750 Btu/h
Main oven
Main oven functions
gas convection with gas infrared broiler
traditional bake, gas convection, broil, defrost/
dehydrate, sabbath mode
Main oven volume
4.4 ft3
Inner oven door
Oven equipment
full-width triple glass
1 telescopic glide shelf, 1 baking tray, 2 heavy
gauge wire shelves, 1 grill trivet for tray
Legs
flap storage compartment,
height-adjustable stainless steel legs
TECHNICAL SPECIFICATIONS
Voltage, frequency
120 V, 60Hz
Max Amp Usage, power rating 1.5 A - 150 W
Certification
CSA
Warranty
2 years parts and labor
ACCESSORIES
Toe kick panel (TKS 36 X), flat island trim (IRF 36 X), side trim (ST 36 HER NE)
A LP conversion kit for all burners is included
MATCHING VENTILATION SOLUTIONS
Bertazzoni offers a variety of matching ventilation solutions for this range. Please
check our website under the ventilation tab for a complete overview of all choices
COLORS OF ITALY
Color is an essential expression of Italian exuberance and artistic elegance. Bertazzoni
celebrates these special qualities with three matt textured color choice surfaces inspired
by the vintage styling of an original range design in the early 1900’s.
TO COOK BEAUTIFULLY
WWW.BERTAZZONI.COM
NERO OPACO
MATT BLACK
VINO OPACO
CREMA OPACO
MATT BURGUNDY MATT CREAM
INSTALLATION INSTRUCTIONS
HER36 6 GAS NE
25" 3⁄16
GAS X
GAS X
16
GAS
XT
GAS XE
25" 3⁄16
GAS NE
25" 3⁄16
2" 3⁄8
25" 3⁄16
2" 3⁄8 25" 3⁄16
2" 3⁄8
4"
4"
35" 1⁄2 min
37" 1⁄4 max 35" 1⁄2 min
37" ⁄ max
4"
35" 7⁄8
4"
1" 9⁄16
4"
35" ⁄ min
37" 1⁄4 max
12
1" 9⁄16
35" 1⁄2 min
37" 1⁄4 max
32"
32"
35" 1⁄2 min
37" 1⁄4 max 35" 1⁄2 min
14
4"
35" 7⁄8
32"
37" 1⁄4 max
1" 5⁄16
1" 5⁄16
35" 7⁄8
" ⁄
19" 15⁄16
1" ⁄
78
4"
4"
19" 15⁄16
5 16
19" 15⁄16
4"
35" ⁄
78
35" 7⁄8
2" 15⁄16
35" 7⁄8
25" 3⁄16
1" 11⁄16
2"
35" 7⁄8
2" 3⁄8
11
7⁄8 11
35" 1"
⁄16
4"
2"
4"
1"
1" 9⁄16
1"
32"
54"
35" ⁄ min
37" 1⁄4 max
19" 15⁄16
Electricity
Gas
20"
54"
36" 13"
54"
20"
24" 13⁄16
3" 1⁄8
20"
9
3" 1⁄8 6" ⁄16
3"
3"
4"
3"
3"
9
3" 1⁄2 min 6" ⁄16
1⁄4 max
5"
3" 1⁄2 min
5" 1⁄4 max
2" 15⁄16
2"
Disclaimer:
while every effort has been made to insure the accuracy of the information contained in
11
⁄16
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
7⁄8 "
Fratelli Bertazzoni,
Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
24" 13⁄16
20"
Gas
7⁄8 "
24" ⁄
Bertazzoni recommends to operate the appliance after it has been
installed in a cabinet. The kitchen cabinets shall be made of materials
capable of withstanding
temperatures at least 117°F (65°C) above
1"
room temperature in order to avoid possible damage to the cabinets
Electricity
during oven usage. For further installation instructions refer to the
Gas
installation manual
54"
⁄16
⁄8 "
13 16
35" 7⁄8
1" 11⁄16
11
Electricity
3"
1" 5⁄16
2" 15⁄16
⁄16 1"
7
Gas
12
1" ⁄
11 16
WWW.BERTAZZONI.COM
3" 1⁄8
6" 9⁄16
