)23NAIL#AMERAS

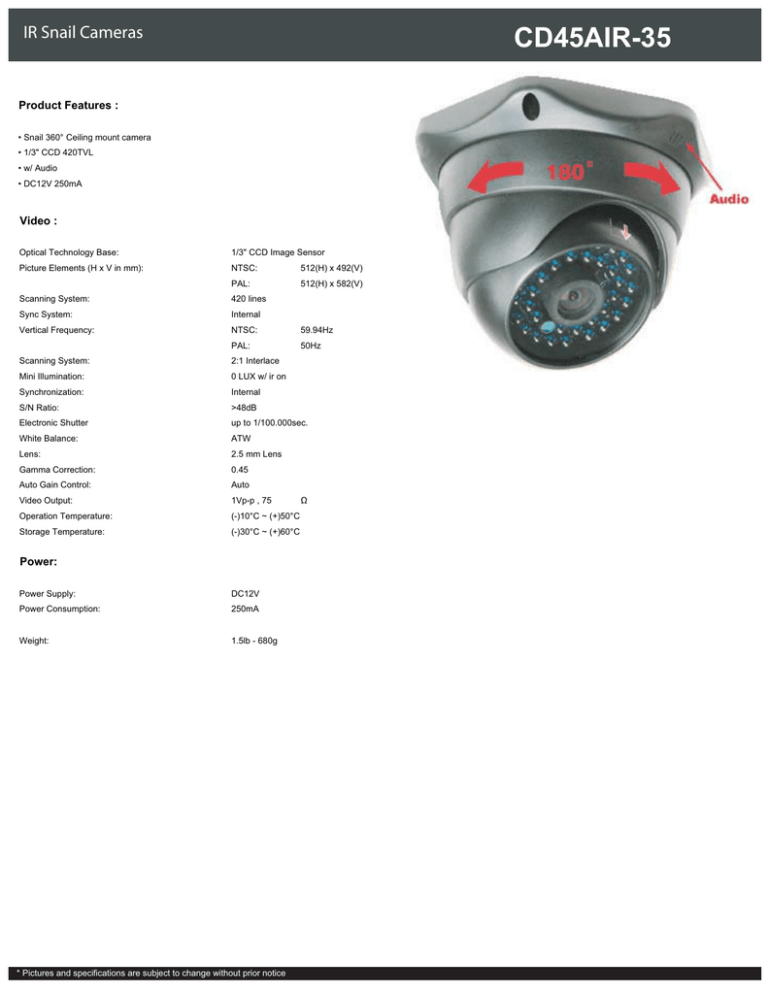

CD45AIR-35
Product Features :
• Snail 360° Ceiling mount camera
• 1/3" CCD 420TVL
• w/ Audio
• DC12V 250mA
Video :
Optical Technology Base:
1/3" CCD Image Sensor
Picture Elements (H x V in mm):
NTSC:
512(H) x 492(V)
PAL:
512(H) x 582(V)
Scanning System:
420 lines
Sync System:
Internal
Vertical Frequency:
NTSC:
59.94Hz
PAL:
50Hz
Scanning System:
2:1 Interlace
Mini Illumination:
0 LUX w/ ir on
Synchronization:
Internal
S/N Ratio:
>48dB
Electronic Shutter
up to 1/100.000sec.
White Balance:
ATW
Lens:
2.5 mm Lens
Gamma Correction:
0.45
Auto Gain Control:
Auto
Video Output:
1Vp-p , 75
Operation Temperature:
(-)10°C ~ (+)50°C
Storage Temperature:
(-)30°C ~ (+)60°C
Power:
Power Supply:
DC12V
Power Consumption:
250mA
Weight:
1.5lb - 680g
* Pictures and specifications are subject to change without prior notice
