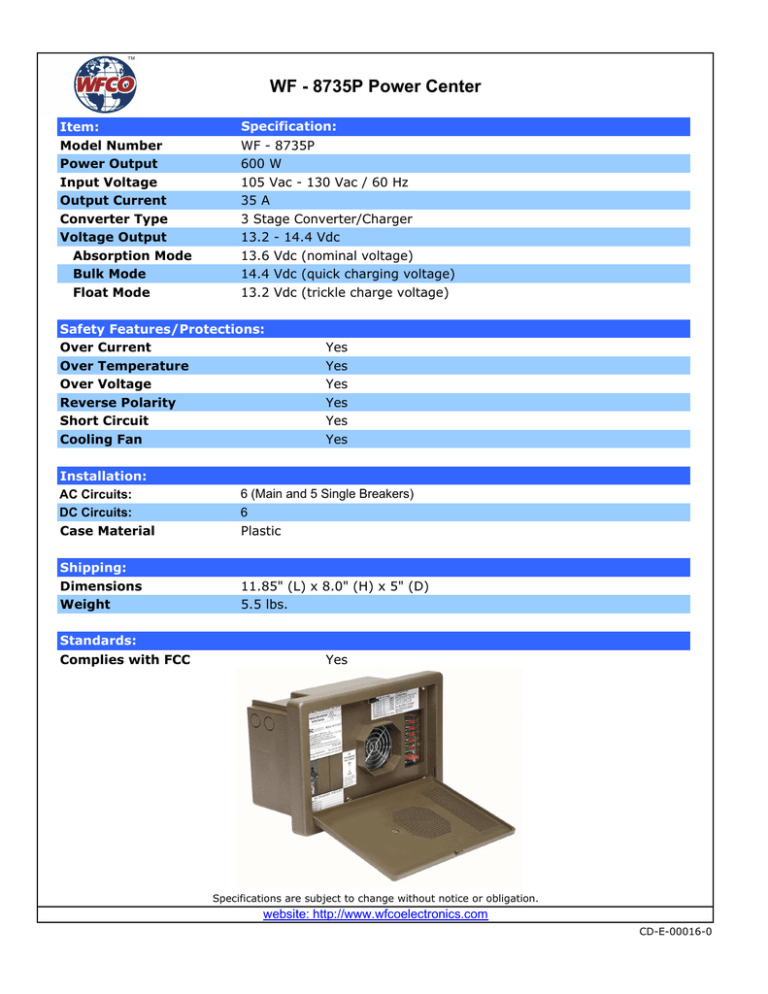

WF - 8735P Power Center
WF - 8735P Power Center
Item:
Model Number
Power Output
Input Voltage
Output Current
Converter Type
Voltage Output
Absorption Mode
Bulk Mode
Float Mode
Specification:
WF - 8735P
600 W
105 Vac - 130 Vac / 60 Hz
35 A
3 Stage Converter/Charger
13.2 - 14.4 Vdc
13.6 Vdc (nominal voltage)
14.4 Vdc (quick charging voltage)
13.2 Vdc (trickle charge voltage)
Safety Features/Protections:
Over Current
Over Temperature
Over Voltage
Reverse Polarity
Short Circuit
Cooling Fan
Installation:
AC Circuits:
DC Circuits:
Case Material
Shipping:
Dimensions
Weight
Yes
Yes
Yes
Yes
Yes
Yes
6 (Main and 5 Single Breakers)
6
Plastic
11.85" (L) x 8.0" (H) x 5" (D)
5.5 lbs.
Standards:
Complies with FCC
Yes
Specifications are subject to change without notice or obligation.
website: http://www.wfcoelectronics.com
CD-E-00016-0
