RJL5014DPK Datasheet

RJL5014DPK Datasheet
Preliminary Datasheet
RJL5014DPK
R07DS0436EJ0200
(Previous: REJ03G1798-0100)
Rev.2.00
Jun 14, 2011

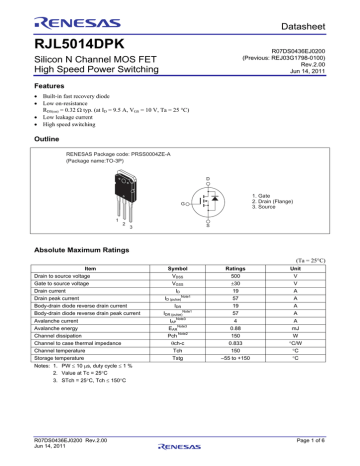

Silicon N Channel MOS FET
High Speed Power Switching
Features
 Built-in fast recovery diode
 Low on-resistance
RDS(on) = 0.32  typ. (at ID = 9.5 A, VGS = 10 V, Ta = 25 C)
 Low leakage current
 High speed switching
Outline
RENESAS Package code: PRSS0004ZE-A
(Package name:TO-3P)
D
1. Gate
2. Drain (Flange)
3. Source
G
1
2
S
3
Absolute Maximum Ratings
(Ta = 25°C)
Item
Drain to source voltage
Gate to source voltage
Drain current
Drain peak current
Body-drain diode reverse drain current
Body-drain diode reverse drain peak current
Avalanche current
Avalanche energy
Channel dissipation
Channel to case thermal impedance
Channel temperature
Storage temperature
Symbol
VDSS
VGSS
ID
ID (pulse)Note1
IDR
IDR (pulse)Note1
IAPNote3
Note3
EAR
Pch Note2
ch-c
Tch
Tstg
Ratings
500
30
19
57
19
57
4
Unit
V
V
A
A
A
A
A
0.88
150
0.833
150
–55 to +150
mJ
W
C/W
C
C
Notes: 1. PW  10 s, duty cycle  1 %
2. Value at Tc = 25C
3. STch = 25C, Tch  150C
R07DS0436EJ0200 Rev.2.00
Jun 14, 2011
Page 1 of 6
RJL5014DPK
Preliminary
Electrical Characteristics
(Ta = 25°C)
Item
Drain to source breakdown voltage
Zero gate voltage drain current
Gate to source leak current
Gate to source cutoff voltage
Static drain to source on state
resistance
Input capacitance
Output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
Turn-off delay time
Fall time
Total gate charge
Gate to source charge
Gate to drain charge
Body-drain diode forward voltage
Body-drain diode reverse recovery time
Symbol
V(BR)DSS
IDSS
IGSS
VGS(off)
RDS(on)
Min
500
—
—
2.0
—
Typ
—
—
—
—
0.32
Max
—
10
±0.1
4.0
0.40
Unit
V
A
A
V

Ciss
Coss
Crss
td(on)
tr
td(off)
tf
Qg
Qgs
Qgd
VDF
—
—
—
—
—
—
—
—
—
—
—
1700
190
23
32
27
95
20
43
8.2
21.8
1.00
—
—
—
—
—
—
—
—
—
—
1.65
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
trr
—
160
—
ns
Test conditions
ID = 10 mA, VGS = 0
VDS = 500 V, VGS = 0
VGS = 30 V, VDS = 0
VDS = 10 V, ID = 1 mA
ID = 9.5 A, VGS = 10 V Note4
VDS = 25 V
VGS = 0
f = 1 MHz
ID = 9.5 A
VGS = 10 V
RL = 26.3 
Rg = 10 
VDD = 400 V
VGS = 10 V
ID = 19 A
IF = 19 A, VGS = 0 Note4
IF = 19 A, VGS = 0
diF/dt = 100 A/s
Notes: 4. Pulse test
R07DS0436EJ0200 Rev.2.00
Jun 14, 2011
Page 2 of 6
RJL5014DPK
Preliminary
Main Characteristics
Typical Output Characteristics
Maximum Safe Operation Area
10
20
Drain Current ID (A)
=1
10
00
μs
1
Operation in this
area is limited by
RDS(on)
0.1
0.01
1
10
100
10 V
16
5.4 V
Ta = 25°C
Pulse Test
5.2 V
12
5.0 V
8
4.8 V
4
4.6 V
VGS = 4.4 V
0
1000
4
8
12
16
20
Drain to Source Voltage VDS (V)
Drain to Source Voltage VDS (V)
Typical Transfer Characteristics
Static Drain to Source on State Resistance
vs. Drain Current (Typical)
Drain to Source on State Resistance
RDS(on) (Ω)
100
VDS = 10 V
Pulse Test
10
Tc = 75°C
25°C
1
−25°C
0.1
0
2
4
6
8
10
VGS = 10 V
Ta = 25°C
Pulse Test
1
0.1
10
1
10
Gate to Source Voltage VGS (V)
Drain Current ID (A)
Static Drain to Source on State Resistance
vs. Temperature (Typical)
Body-Drain Diode Reverse
Recovery Time (Typical)
100
1000
1.0
VGS = 10 V
Pulse Test
0.8
ID = 19 A
0.6
9.5 A
0.4
3A
0.2
0
-25
Reverse Recovery Time trr (ns)
Drain Current ID (A)
5.6 V
5.8 V
Tc = 25°C
1 shot
0.001
0.1
Static Drain to Source on State Resistance
RDS(on) (Ω)
6V
8V
μs
PW
Drain Current ID (A)
100
100
di / dt = 100 A / μs
VGS = 0, Ta = 25°C
10
0
25
50
75
100 125 150
Case Temperature Tc (°C)
R07DS0436EJ0200 Rev.2.00
Jun 14, 2011
1
10
100
Reverse Drain Current IDR (A)
Page 3 of 6
RJL5014DPK
Preliminary
Typical Capacitance vs.
Drain to Source Voltage
1000
Coss
100
Crss
10
1
0
VGS = 0
f = 1 MHz Ta = 25°C
50
100
150
200
250
Reverse Drain Current IDR (A)
VDS
200
4
VDD = 400 V
250 V
100 V
0
20
40
60
80
Gate Charge Qg (nC)
Reverse Drain Current vs.
Source to Drain Voltage (Typical)
Gate to Source Cutoff Voltage
vs. Case Temperature (Typical)
VGS = 0
Ta = 25°C
Pulse Test
16
12
8
4
0.4
0.8
1.2
1.6
2.0
Source to Drain Voltage VSD (V)
R07DS0436EJ0200 Rev.2.00
Jun 14, 2011
12
8
Drain to Source Voltage VDS (V)
20
0
VDD = 100 V
250 V
400 V
600
400
16
VGS
ID = 19 A
Ta = 25°C
0
Gate to Source Cutoff Voltage VGS(off) (V)
Capacitance C (pF)
Ciss
800
5
Gate to Source Voltage VGS (V)
10000
Drain to Source Voltage VDS (V)
Dynamic Input Characteristics (Typical)
100
VDS = 10 V
4
ID = 10 mA
1 mA
3
0.1 mA
2
1
0
-25
0
25
50
75
Case Temperature
100 125 150
Tc (°C)
Page 4 of 6
RJL5014DPK
Preliminary
Normalized Transient Thermal Impedance γs (t)
Normalized Transient Thermal Impedance vs. Pulse Width
3
Tc = 25°C
1
D=1
0.5
0.3
0.2
0.1
θch – c (t) = γ s (t) • θch – c
θch – c = 0.833°C/W, Tc = 25°C
0.1
0.05
0.03
PDM
0.02
1
0.0
0.01
10 μ
t
ho
ls
pu
D=
e
PW
T
PW
T
1s
100 μ
1m
10 m
Pulse Width
100 m
1
10
PW (s)
Switching Time Test Circuit
Waveform
Vout
Monitor
Vin Monitor
90%
D.U.T.
RL
10 Ω
Vin
10 V
VDD
= 250 V
Vin
Vout
10%
10%
10%
90%
td(on)
R07DS0436EJ0200 Rev.2.00
Jun 14, 2011
tr
90%
td(off)
tf
Page 5 of 6
RJL5014DPK
Preliminary
Package Dimensions
JEITA Package Code
SC-65
Previous Code
TO-3P / TO-3PV
RENESAS Code
PRSS0004ZE-A
15.6 ± 0.3
MASS[Typ.]
5.0g
Unit: mm
4.8 ± 0.2
1.5
2.0
0.3
19.9 ± 0.2
14.9 ± 0.2
0.5
1.0
φ3.2 ± 0.2
5.0 ± 0.3
Package Name
TO-3P
1.6
2.0
1.4 Max
18.0 ± 0.5
2.8
1.0 ± 0.2
3.6
0.6 ± 0.2
0.9
1.0
5.45 ± 0.5
5.45 ± 0.5
Ordering Information
Orderable Part Number
RJL5014DPK-00-T0
R07DS0436EJ0200 Rev.2.00
Jun 14, 2011
Quantity
360 pcs
Shipping Container
Box (Tube)
Page 6 of 6
Notice
1.
All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas
Electronics products listed herein, please confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to additional and different information to
be disclosed by Renesas Electronics such as that disclosed through our website.
2.
Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or
technical information described in this document. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or
others.
3.
You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.
4.
Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for
the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the
use of these circuits, software, or information.
5.
When exporting the products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and
regulations. You should not use Renesas Electronics products or the technology described in this document for any purpose relating to military applications or use by the military, including but not limited to
the development of weapons of mass destruction. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is
prohibited under any applicable domestic or foreign laws or regulations.
6.
Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics
7.
Renesas Electronics products are classified according to the following three quality grades: "Standard", "High Quality", and "Specific". The recommended applications for each Renesas Electronics product
assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein.
depends on the product's quality grade, as indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas
Electronics product for any application categorized as "Specific" without the prior written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for
which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the
use of any Renesas Electronics product for an application categorized as "Specific" or for which the product is not intended where you have failed to obtain the prior written consent of Renesas Electronics.
The quality grade of each Renesas Electronics product is "Standard" unless otherwise expressly specified in a Renesas Electronics data sheets or data books, etc.
"Standard":
Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools;
personal electronic equipment; and industrial robots.
"High Quality": Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anti-crime systems; safety equipment; and medical equipment not specifically
designed for life support.
"Specific":
Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or systems for life support (e.g. artificial life support devices or systems), surgical
implantations, or healthcare intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life.
8.
You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage
range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the
use of Renesas Electronics products beyond such specified ranges.
9.
Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and
malfunctions under certain use conditions. Further, Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the
possibility of physical injury, and injury or damage caused by fire in the event of the failure of a Renesas Electronics product, such as safety design for hardware and software including but not limited to
redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult,
please evaluate the safety of the final products or system manufactured by you.
10. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics
products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. Renesas Electronics assumes
no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations.
11. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas Electronics.
12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries.
(Note 1)
"Renesas Electronics" as used in this document means Renesas Electronics Corporation and also includes its majority-owned subsidiaries.
(Note 2)
"Renesas Electronics product(s)" means any product developed or manufactured by or for Renesas Electronics.
http://www.renesas.com
SALES OFFICES
Refer to "http://www.renesas.com/" for the latest and detailed information.
Renesas Electronics America Inc.
2880 Scott Boulevard Santa Clara, CA 95050-2554, U.S.A.
Tel: +1-408-588-6000, Fax: +1-408-588-6130
Renesas Electronics Canada Limited
1101 Nicholson Road, Newmarket, Ontario L3Y 9C3, Canada
Tel: +1-905-898-5441, Fax: +1-905-898-3220
Renesas Electronics Europe Limited
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K
Tel: +44-1628-585-100, Fax: +44-1628-585-900
Renesas Electronics Europe GmbH
Arcadiastrasse 10, 40472 Düsseldorf, Germany
Tel: +49-211-65030, Fax: +49-211-6503-1327
Renesas Electronics (China) Co., Ltd.
7th Floor, Quantum Plaza, No.27 ZhiChunLu Haidian District, Beijing 100083, P.R.China
Tel: +86-10-8235-1155, Fax: +86-10-8235-7679
Renesas Electronics (Shanghai) Co., Ltd.
Unit 204, 205, AZIA Center, No.1233 Lujiazui Ring Rd., Pudong District, Shanghai 200120, China
Tel: +86-21-5877-1818, Fax: +86-21-6887-7858 / -7898
Renesas Electronics Hong Kong Limited
Unit 1601-1613, 16/F., Tower 2, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hong Kong
Tel: +852-2886-9318, Fax: +852 2886-9022/9044
Renesas Electronics Taiwan Co., Ltd.
13F, No. 363, Fu Shing North Road, Taipei, Taiwan
Tel: +886-2-8175-9600, Fax: +886 2-8175-9670
Renesas Electronics Singapore Pte. Ltd.
1 harbourFront Avenue, #06-10, keppel Bay Tower, Singapore 098632
Tel: +65-6213-0200, Fax: +65-6278-8001
Renesas Electronics Malaysia Sdn.Bhd.
Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No. 18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia
Tel: +60-3-7955-9390, Fax: +60-3-7955-9510
Renesas Electronics Korea Co., Ltd.
11F., Samik Lavied' or Bldg., 720-2 Yeoksam-Dong, Kangnam-Ku, Seoul 135-080, Korea
Tel: +82-2-558-3737, Fax: +82-2-558-5141
© 2011 Renesas Electronics Corporation. All rights reserved.
Colophon 1.1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
