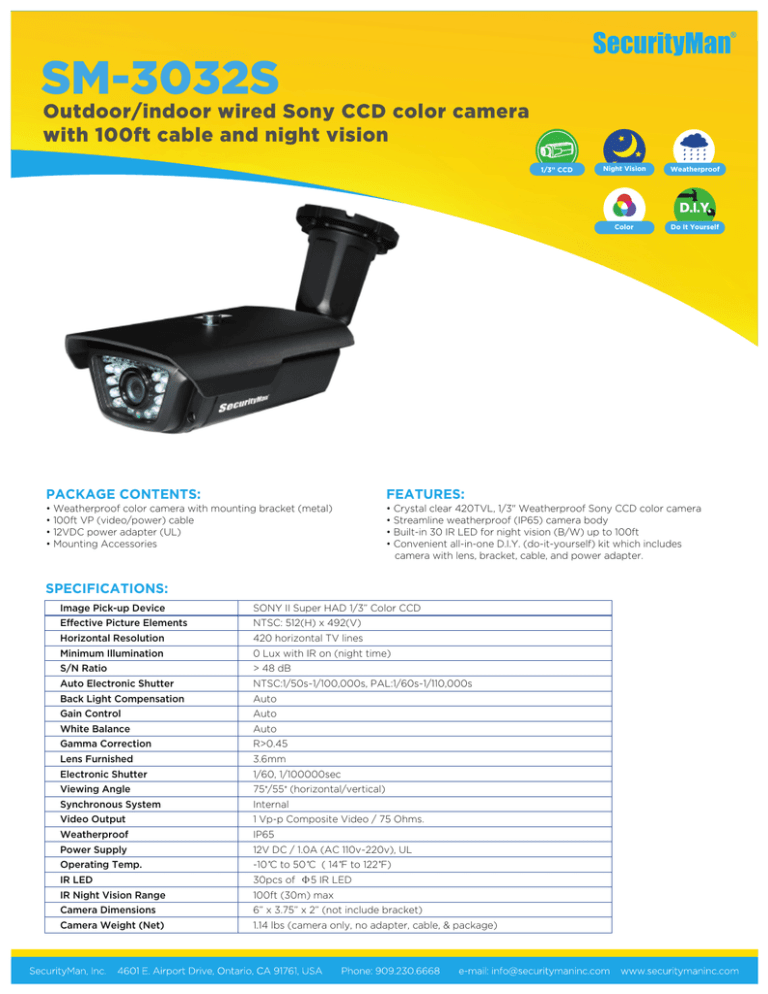

SM-3032S
SM-3032S
Outdoor/indoor wired Sony CCD color camera
with 100ft cable and night vision
1/3” CCD
Night Vision
Weatherproof
Color
Do It Yourself
PACKAGE CONTENTS:
FEATURES:
• Weatherproof color camera with mounting bracket (metal)
• 100ft VP (video/power) cable
• 12VDC power adapter (UL)
• Mounting Accessories
• Crystal clear 420TVL, 1/3" Weatherproof Sony CCD color camera
• Streamline weatherproof (IP65) camera body
• Built-in 30 IR LED for night vision (B/W) up to 100ft
• Convenient all-in-one D.I.Y. (do-it-yourself) kit which includes
camera with lens, bracket, cable, and power adapter.
SPECIFICATIONS:
Image Pick-up Device
SONY II Super HAD 1/3” Color CCD
Effective Picture Elements
NTSC: 512(H) x 492(V)
Horizontal Resolution
420 horizontal TV lines
Minimum Illumination
0 Lux with IR on (night time)
S/N Ratio
> 48 dB
Auto Electronic Shutter
NTSC:1/50s~1/100,000s, PAL:1/60s~1/110,000s
Back Light Compensation
Auto
Gain Control
Auto
White Balance
Auto
Gamma Correction
R>0.45
Lens Furnished
3.6mm
Electronic Shutter
1/60, 1/100000sec
Viewing Angle
75 /55 (horizontal/vertical)
Synchronous System
Internal
Video Output
1 Vp-p Composite Video / 75 Ohms.
Weatherproof
IP65
Power Supply
12V DC / 1.0A (AC 110v~220v), UL
Operating Temp.
-10 C to 50 C ( 14 F to 122 F)
IR LED
30pcs of Ф5 IR LED
IR Night Vision Range
100ft (30m) max
Camera Dimensions
6” x 3.75” x 2” (not include bracket)
Camera Weight (Net)
1.14 lbs (camera only, no adapter, cable, & package)
