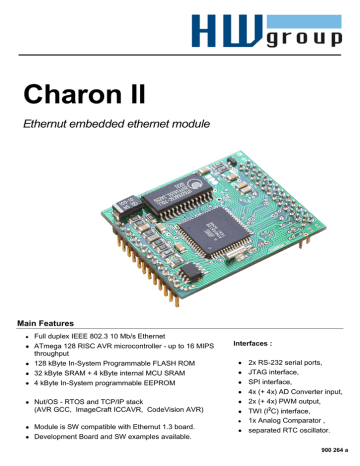

Charon II
Ethernut embedded ethernet module
Main Features
Full duplex IEEE 802.3 10 Mb/s Ethernet
ATmega 128 RISC AVR microcontroller - up to 16 MIPS
throughput
128 kByte In-System Programmable FLASH ROM
32 kByte SRAM + 4 kByte internal MCU SRAM
4 kByte In-System programmable EEPROM
Nut/OS - RTOS and TCP/IP stack
(AVR GCC, ImageCraft ICCAVR, CodeVision AVR)
Module is SW compatible with Ethernut 1.3 board.
Development Board and SW examples available.
Interfaces :
2x RS-232 serial ports,
JTAG interface,
SPI interface,
4x (+ 4x) AD Converter input,
2x (+ 4x) PWM output,
TWI (I2C) interface,
1x Analog Comparator ,
separated RTC oscillator.
900 264 a
Charon II – Embedded ethernet module
HW group
Charon II module - pinout
1
TPO+ Ethernet output
INT0/SCL PD0
13
25
PB3 SPI MISO
2
TPO- Ethernet output
INT1/SDA PD1
14
26
PB2 SPI MOSI
3
TPI-
Ethernet input
INT2/RxD1 serial 1 PD2
15
27
PB1 SPI SCK
4
TPI+
Ethernet input
INT3/TxD1 serial 1 PD3
16
28
PB0 SPI /SS
5
LINK Link LED
IC1 PD4
17
29
PF7 ADC7/ TDI
6
GND
Ground
XCK1 PD5
18
30
PF6 ADC6/ TD0
7
PE0
RxD0 serial 0
T1 PD6
19
31
PF5 ADC5/ TMS
8
PE1
TxD0 serial 0
T2 PD7
20
32
PF4 ADC4/ TCK
9
PE2
AIN+/XCKO
OC1B PB6
21
33
PF3 ADC3
10
PE3
AIN-/OC3A
OC1C PB7
22
34
PF2 ADC2
11
PE4
INT4/OC3B
MCU reset pin RST
23
35
PF1 ADC1
12
Vcc
+5V /max 80 mA
Ground GND 24
36
PF0 ADC0
page 2 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Charon II block scheme:
PE4, PD4..7
Charon II module
Xtal 14,745 MHz
Xtal 32,768 kHz
ATmega128
SRAM 32kB
256 B
EEPROM
RTL8019AS
4kB SRAM
128kB FLASH
5x
GPIO
2x
PWM
2x
TWI (I2C)
4x
SPI
2x
An. Comparator
4x
ADC
4x
JTAG
2x
USART0
2x
USART1
4kB EEPROM
RTC
WDT
Transformer
Ethernet
Hardware Description
Parameters
Charon II – standard version
Power supply
5V DC / typ. 60mA max 80 mA
MCU Xtal
14.745 MHz
Dimension
47 x 39 x 12 mm (L x W x H)
SRAM / EEPROM
4+28 kB /(4kB MCU internal)
Temperature
rozsahy
Ethernet
Operating: -5 .. +50 °C
RTL8019 EEPROM
256B (93C46) – optional
10BaseT – 802.3 (external signal
transformer required)
27 I/O pins
GPIO (7), ADC(4), JTAG (4)
2x RS-232 (4), SPI(4), I2C(2)
2xSerial port
TTL levels RxD,TxD
Power-on reset
YES – 10% tolerance
Programming
amming
SPI In-System Programming
WATCHDOG
MCU internal WD only
JTAG interface (std. IEEE 1149.1)
Real Time Clock
Separated timer 32.768 kHz
Charon II module is compatible with the original Ethernut board 1.3F from the Ethernut
project (www.Ethernut.de).
It„s a low cost embedded alternative without the HW accessible Address bus (it‟s accessible
on the original board).
You can start designing with this module using Charon II Development Kit.
It includes a simple programmer dongle SW compatible with AVR Studio and STK500, 2x16
LCD display, 1-Wire Thermometer sensor, Printed manual and a well-documented functional
example on using all peripherals.
page 3 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Module pin description
(1) TPO+, (2) TPO-, (3) TPI+, (4) TPI-,
10Base -T Differential outputs and inputs. You have to connect this to the signal transformer.
See the “Connecting to the Ethernet“ chapter for more details, or “Charon II module
application circuit” on the Appendix.
(5) LINK - Link LED output to Vcc
Link activity signalization output. It‟s lit when an Ethernet burst signal is detected on the
Ethernet input and the LED is pulsed during outgoing or incoming packets over Ethernet.
(6) GND - Ground
Internally connected with ground on pin 24.
(7) PE0 - RxD0 serial 0 [PDI/RXD0 (Programming Data Input or UART0 Receive Pin)]
PDI, SPI Serial Programming Data Input: During Serial Program Downloading, this pin is used
as data input line for the ATmega128.
RXD0, USART0 Receive Pin: Receive Data (Data input pin for the USART0). When the
USART0 receiver is enabled this pin is configured as an input regardless of the value of
DDRE0. When the USART0 forces this pin to be an input, a logical one in PORTE0 will turn on
the internal pull-up.
(8) PE1 - TxD0 serial 0 [PDO/TXD0 – Port E, Bit 1]
PDO, SPI Serial Programming Data Output: During Serial Program Downloading, this
pin is used as data output line for the ATmega128.
TXD0, UART0 Transmit pin.
(9) PE2 - AIN+/XCKO [AIN0/XCK0 – Port E, Bit 2] CTS handshake input for serial 0
AIN0 (AIN+) – Analog Comparator Positive input: This pin is directly connected to the positive
input of the Analog Comparator.
XCK0, USART0 External clock: The Data Direction Register (DDE2) controls whether the
clock is output (DDE2 set) or input (DDE2 cleared). The XCK0 pin is active only when the
USART0 operates in Synchronous mode.
(10) PE3 - AIN-/OC3A [AIN1/OC3A – Port E, Bit 3] RTS handshake output for serial 0
AIN1 (AIN-) – Analog Comparator Negative input: This pin is directly connected to the negative
input of the Analog Comparator.
OC3A, Output Compare Match A output: The PE3 pin can serve as an External output for the
Timer/Counter3 Output Compare A. The pin has to be configured as an output (DDE3 set
“one”) to serve this function. The OC3A pin is also the output pin for the PWM mode timer
function.
page 4 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
(11) PE4 - INT4/OC3B [Port E, Bit 4]
INT4, External Interrupt source 4: The PE4 pin can serve as an External Interrupt source.
OC3B, Output Compare Match B output: The PE4 pin can serve as an External output for the
Timer/Counter3 Output Compare B. The pin has to be configured as an output (DDE4 set
(one)) to serve this function. The OC3B pin is also the output pin for the PWM mode timer
function.
SJ1 on board jumper is placed on the module (check the Charon II module scheme). If you
need battery backup for the external SRAM only, you can cut off the PE4 pin from the MCU
and using SJ1, SRAM is powered through this pin only.
(12) Vcc +5V / max. 80 mA
Module only power consumption in the “Charon II Development Board”. It‟s measured using
the Demo application, no sleep mode or power saving mode used.
– during active RESET
– PING reply only
– during WEB activity
I = 40 mA
I = 60 mA
I = 65 mA
(13) PD0 - INT0/SCL [External Interrupt 0 Input or TWI (I2C) Serial CLock]
INT0, External Interrupt source 0: The PD0 pin can serve as an external interrupt source to the
MCU.
SCL, Two-wire Serial Interface Clock: When the TWEN bit in TWCR is set (one) to enable the
Two-wire Serial Interface, pin PD0 is disconnected from the port and becomes the Serial Clock
I/O pin for the Two-wire Serial Interface. In this mode, there is a spike filter on the pin to
suppress spikes shorter than 50 ns on the input signal, and the pin is driven by an open drain
driver with slew-rate limitation.
(14) PD1 - INT1/SDA [External Interrupt1 Input or TWI (I2C) Serial DAta]
INT1, External Interrupt source 1: The PD1 pin can serve as an external interrupt source to the
MCU.
SDA, Two-wire Serial Interface Data: When the TWEN bit in TWCR is set (one) to enable the
Two-wire Serial Interface, pin PD1 is disconnected from the port and becomes the Serial Data
I/O pin for the Two-wire Serial Interface. In this mode, there is a spike filter on the pin to
suppress spikes shorter than 50 ns on the input signal, and the pin is driven by an open drain
driver with slew-rate limitation.
(15) PD2 - INT2/RxD1 serial 1 [External Interrupt2 Input or UART1 Receive Pin]
INT2, External Interrupt source 2: The PD2 pin can serve as an External Interrupt source to
the MCU.
RXD1, Receive Data (Data input pin for the USART1): When the USART1 receiver is enabled
this pin is configured as an input regardless of the value of DDD2. When the USART forces
this pin to be an input, the pull-up can still be controlled by the PORTD2 bit.
page 5 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
(16) PD3 - INT3/TxD1 serial 1 [External Interrupt3 Input or UART1 Transmit Pin]
INT3, External Interrupt source 3: This pin can serve as external interrupt source to the MCU.
TXD1, Transmit Data (Data output pin for the USART1): When the USART1 Transmitter is
enabled, this pin is configured as an output regardless of the value of DDD3.
(17) PD4 - IC1 [IC1 (Timer/Counter1 Input Capture Trigger)]
IC1 – Input Capture Pin1: The PD4 pin can act as an input capture pin for Timer/Counter1.
(18) PD5 - XCK1 [XCK1, USART1 External Clock Input/Output]
XCK1, USART1 External clock: The Data Direction Register (DDD4) controls whether the
clock is output (DDD4 set) or input (DDD4 cleared). The XCK1 pin is active only when the
USART1 operates in Synchronous mode.
(19) PD6 - T1 [Timer/Counter1 Clock Input]
T1, Timer/Counter1 counter source.
(20) PD7 - T2 [Timer/Counter2 Clock Input]
T2, Timer/Counter2 counter source.
(21) PB6 - OC1B [Output Compare and PWM Output B for Timer/Counter1]
OC1B, Output Compare Match B output: The PB6 pin can serve as an external output for the
Timer/Counter1 Output Compare B. The pin has to be configured as an output (DDB6 set
(one)) to serve this function. The OC1B pin is also the output pin for the PWM mode timer
function.
(22)PB7 - OC2/OC1C [Output Compare and PWM Output for Timer/Counter2 or
Output Compare and PWM Output C for Timer/Counter1]
OC2, Output Compare Match output: The PB7 pin can serve as an external output for the
Timer/Counter2 Output Compare. The pin has to be configured as an output (DDB7 set “one”)
to serve this function. The OC2 pin is also the output pin for the PWM mode timer function.
OC1C, Output Compare Match C output: The PB7 pin can serve as an external output for the
Timer/Counter1 Output Compare C. The pin has to be configured as an output (DDB7 set
(one)) to serve this function. The OC1C pin is also the output pin for the PWM mode timer
function.
(23) RST - CPU reset pin [MCU External Reset input] L = MCU in Reset
An External Reset for the MCU is generated by a low level on the RST pin. Reset pulses
longer than the minimum pulse width (50ns) will generate a reset, even if the clock is not
running. Shorter pulses are not guaranteed to generate a reset.
During the supply power-up the module is reset with an external and internal voltage
supervisor.
The RST pin on the module is bidirectional. It can reset external circuitry upon a reset
caused by MCU software or the voltage supervisor, connected through the R6 - 3k3 resistor.
page 6 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
(24) GND - Ground
Internally connected with ground on pin 6.
(25) PB3 - SPI MISO [SPI Bus Master Input/Slave Output]
MISO: Master Data input, Slave Data output pin for SPI channel. When the SPI is enabled as
a master, this pin is configured as an input regardless of the setting of DDB3. When the SPI is
enabled as a slave, the data direction of this pin is controlled by DDB3. When the pin is forced
to be an input, the pull-up can still be controlled by the PORTB3 bit.
(26) PB2 - SPI MOSI [SPI Bus Master Output/Slave Input]
MOSI: SPI Master Data output, Slave Data input for SPI channel. When the SPI is enabled as
a slave, this pin is configured as an input regardless of the setting of DDB2.
When the SPI is enabled as a master, the data direction of this pin is controlled by DDB2.
When the pin is forced to be an input, the pull-up can still be controlled by the PORTB2 bit.
(27) PB1 - SPI SCK [SPI Bus Serial Clock]
SCK: Master Clock output, Slave Clock input pin for SPI channel. When the SPI is enabled as
a slave, this pin is configured as an input regardless of the setting of DDB1.
When the SPI is enabled as a master, the data direction of this pin is controlled by DDB1.
When the pin is forced to be an input, the pull-up can still be controlled by the PORTB1 bit.
(28) PB0 - SPI /SS [SPI Slave Select input]
SS: Slave Port Select input. When the SPI is enabled as a slave, this pin is configured as an
input regardless of the setting of DDB0. As a slave, the SPI is activated when this pin is driven
low. When the SPI is enabled as a master, the data direction of this pin is controlled by DDB0.
When the pin is forced to be an input, the pull-up can still be controlled by the PORTB0 bit.
(29) PF7 - ADC7/ TDI [ADC input channel 7 or JTAG Test Data Input]
ADC7: Analog to Digital Converter, Channel 7.
TDI, JTAG Test Data In: Serial input data to be shifted in to the Instruction Register or Data
Register (scan chains). When the JTAG interface is enabled, this pin can not be used as an
I/O pin.
(30) PF6 - ADC6/ TD0 [ADC input channel 6 or JTAG Test Data Output]
ADC6: Analog to Digital Converter, Channel 6.
TDO, JTAG Test Data Out: Serial output data from Instruction Register or Data Register.
When the JTAG interface is enabled, this pin can not be used as an I/O pin.
The TDO pin is tri-stated unless TAP states that shift out data are entered.
page 7 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
(31) PF5 - ADC5/ TMS [ADC input channel 5 or JTAG Test Mode Select]
ADC5: Analog to Digital Converter, Channel 5.
TMS, JTAG Test Mode Select: This pin is used for navigating through the TAP-controller state
machine. When the JTAG interface is enabled, this pin can not be used as an I/O pin.
(32) PF4 - ADC4/ TCK [ADC input channel 4 or JTAG Test ClocK]
ADC4: Analog to Digital Converter, Channel 4.
TCK, JTAG Test Clock: JTAG operation is synchronous to TCK. When the JTAG interface
is enabled, this pin can not be used as an I/O pin.
(33) PF3 - ADC3 [ADC input channel 3]
Analog to Digital Converter, Channel 3
(34) PF2 - ADC2 [ADC input channel 2]
Analog to Digital Converter, Channel 2
(35) PF1 - ADC1 [ADC input channel 1]
Analog to Digital Converter, Channel 1
(36) PF0 - ADC0 [ADC input channel 0]
Analog to Digital Converter, Channel 0
Other ATmega pins
PE5 - INTernal on module used only
INT5, External Interrupt source 5: The PE5 is used as an Interrupt request from the RTL8019AS
Ethernet controller.
page 8 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Module programming
In-System Programming (ISP)
Charon II module can be programmed using an In-System Programming interface. This
programming requires the following pins:
ISP MOSI
– Pin (7) PE0 RxD0 serial 0 (Alternated with USART 0 serial data input)
ISP MISO
– Pin (8) PE1 TxD0 serial 0 (Alternated with USART 0 serial data output)
ISP SCK
– Pin (27) PB1 (Alternated with SPI SCK (SPI Bus Serial Clock))
RST
– Pin (23) RST MPU reset pin
GND
– Pins (6,24) Ground
+5V
– Pin (12) Power supply
This programming mode requires special hardware called a programming adapter, also called a
programming dongle. Just three pins are used in this mode, an input line, an output line and a clock
line. In addition, the RESET line of the chip must be held low during programming. Because serial
programming is done while the chip is already soldered onto the target board, it is also called InSystem Programming.
On the ATmega128 the ISP input and output lines are shared with the transmit and receive lines of
the first on-chip USART. This adds a minor problem. As long as the adapter is connected, the output
line of the adapter shares the same MCU input line as the RS-232 receiver output, which is included
on almost any ATmega128 board. To overcome this, Atmel used an additional line called
programming enable or programming LED. The programming software on the PC will set this line low
before starting the programming cycle. This line can be used to switch the pins on the ATmega from
the RS-232 driver to the ISP connector.
On Ethernut version 1.3 or Charon I&II Development Board this is done by a multiplexer chip and the line
will also light the red programming LED. But not all programming adapters provide this signal, so there is
a jumper on the Charon II Development Board (15 – ISP LED & STK500 programming jumper) or the
Ethernut 1.3 board. With this jumper the signal can manually pull the line low = enable ISP programming.
HW STK 500 dongle – ISP Programmer
HW STK500 dongle contained in the Charon II Development Kit is a
copy of the original SISP from the original Ethernut Project. There are
some non-compatibility issues with the original STK500 adapter. We are
working on this, but it‟s only a tool for Charon II module programming.
For more details about this, please check Ethernut project article:
ISP Adapter (http://www.ethernut.de/en/isp/)
JTAG Programming
JTAG is completely different from ISP. It can not only program the target device, but adds additional
hardware and software debugging support. And it requires a more advanced programming adapter
which costs much more than a simple ISP adapter.
Atmel's "low cost" JTAG adapter, called AT JTAGICE, comes with an adapter cable, it can be used
directly with the Charon I&II Development Board.
Due to the high price of JTAG adaptors compared to ISP adapters, JTAG adapters are mainly used
for application debugging.
page 9 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
MCU Programming with using Network Loader
There are several methods to upload your software to a target device like an Ethernut Board or
Charon II module is. One of the most advanced is using an Ethernet bootloader
(http://www.ethernut.de/en/eboot/) based on the DHCP, BOOTP and TFTP protocols.
Default ATmega128 MCU Fuses & Lock bits settings
All modules are tested and shipped with following Lock bits setting. The ATmega128 MCU has three fuse
bytes, this listing of the Charon II default settings is organised under AVR Studio - STK500 - Fuses tab.
Note that the fuses are read as logical zero :
Fuse
M103C
WDTON
OCDEN
*JTAGEN
SPIEN
EESAVE
BOOTSZ1
BOOTSZ0
BOOTRST
BODLEVEL
BODEN
CKOPT
SUT1
SUT0
CKSEL3
CKSEL2
CKSEL1
CKSEL0
Value
1
1
1
0
0
1
X
X
1
1
0
0
1
1
1
1
1
1
“1” means un-programmed
“0“ means programmed
“X“ means any value
Description
ATmega103 compatibility mode
Watchdog Timer always on
Enable OCD
Enable JTAG
(PF4 – PF7 use for JTAG only)
Enable Serial Program and Data Downloading
EEPROM memory is preserved through the Chip Erase
Select Boot Size
Select Boot Size
Select Reset Vector
Brown out detector trigger level
(BODLEVEL=2.7V)
Brown out detector enable
Oscillator options
(Ext. Crystal/Resonator High Freq.)
Select start-up time
Select start-up time
(Start-up time + 64 ms)
Select Clock source
Select Clock source
Select Clock source
Select Clock source
(Start-up time = 16K CK)
* JTAG pins – The PB0, PB1, PB2, PB3 pins are used for JTAG programming, because of this,
you can’t use it free while the JTAG interface is enabled (default state).
Lock Bits
LB mode
1
LB2
1
LB1
1
Protection Type
No memory lock features enabled.
Application Protection Mode
BLB0 mode
BLB02 BLB01
1
1
1
Protection Type
No restrictions for SPM or (E)LPM accessing the
Boot Loader section.
Boot Loader protection
BLB1 mode
1
BLB12 BLB11
1
1
Protection Type
No restrictions for SPM or (E)LPM accessing the
Application section.
page 10 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Connecting to Ethernet
There is no placed Ethernet transformer, on the module. You have to place it to your application
board. It‟s a simple scheme and you can order this transformer from us with the module. We
recommend connecting the Ethernet outputs according to the following recommended diagram.
You can choose separated transformer as “DIL14” size component (YCL 20F001N or Bothhand
FS2022). If you need save PCB space, you can use transformer together with the RJ45 connector in
one component (LF1S022).
IN EVERY CASE, PLEASE PAY ATTENTION TO THE SEPARATION OF THE ETHERNET AND
APPLICATION GROUNDS! - It can cause very strange troubles.
YCL 20F001N – Transformer + RJ 45 connector
Separated transformer is a little better
suited for industrial applications due to
increased insulation strength, thanks to
the standard packaging of the magnetic.
You can find some transformer
datasheets on the CD to the Charon II
Development Kit.
You can see separated GND and GNDA
on this scheme.
The termination resistor 100 on the TPI
pair, known from the Charon I module is
already placed on the Charon II module.
LF1S022 – Transformer integrated with the RJ45 connector
page 11 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Address space – Ethernut ver. 1.3F compared to Charon II
Internal and external RAM address spaces are wired identically on the Ethernut 1.3F board and Charon II
module. But the ethernet controller driver Realtek 8019AS is mapped in the I/O devices address space
(0x8000 – 0xFFFE) many times (8000h, 8100h, 8200h, 8300h, …. FE00h, FF00h), according to original
Ethernut 1.3F board where the RTL8019AS is mapped on the on 8300h-831F address only and space
8320h-FFFF is free to other I/O devices.
ATmega128 MCU SRAM space
0x0000 – 0x10FF …internal Atmega128 CPU RAM space
0x1100 – 0x7FFF …external 32 kB SRAM address space
0x8000 – 0xFFFF…I/O devices address space
On the Charon II module it isn‟t possible to map devices to the address space (address and data bus isn‟t
available on the connectors), finally it‟s 100% SW compatible with the original Ethernut board software.
0000
MCU internal
4kb SRAM
10FF
1100
External
32 kb SRAM
128x RTL 8019AS
7FFF
8000
801F
8100
811F
8200
821F
8300
831F
FF00
FF1F
FFFF
page 12 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Related & Development tools
Charon II Development Kit
The Charon II module is available in the Development Kit with the programmer, application board,
SW examples and others:
The Charon II module with MAC address and serial number on the label.
The Charon I&II Development Board (Shortly Development Board only).
An HW STK-500 compatible
programming adapter for serial RS232 port.
A LapLink serial communication
cable with a DB-9 female socket on
both ends.
The DS1822 1-Wire thermometer
sensor
A LCD display 2x16
CD with all necessary software in the
/Charon2/ directory
Printed Module and Development
Kit datasheets.
Development Kit contains full documented example on using all peripherals contained on
Development Board (Digital Inputs/Outputs, 1-Wire thermometer, Serial port, LCD display, ..) using a
simple WWW demo page.
Check the Charon II Development Kit manual
Hyperion box
This is HW group‟s baseboard & metal enclosure for
the Charon II module. If you are interested we can
send you board scheme and the enclosures
mechanical dimension for use in your designs.
The following peripherals are used on the base
board:
9..15V linear power supply
or 6..35V switched power supply
Backup Battery 3.6 V
1x full RS-232 serial port (75176 driver]
1x RS-232 / 485 serial port
SPI serial FLASH
10 Mbit Ethernet with using RJ45
4x DIP switch
4x screw terminal strip (RS-485 + power)
Contact us for more details..
page 13 / 16
January 2004
www.HW-group.com
Charon II – Embedded ethernet module
HW group
Recommended literature
www.Ethernut.de
Original site for the Ethernut project with all source code in actual version
Charon II Development Kit
Getting Started guide + example description (www.HW-group.com)
Charon II Development Board
Scheme of our DK board shows how to connect peripherals to the Charon II module.
www.HW-group.com
Authors of the Charon II module and related products..
ATmega128, RTL8019AS Datasheets
All Datasheets for used components included on Development Kit CD.
Acknowledgement
We want to thank to Mr. H. Kipp from the Egnite company – authors of the Ethernut project for his big
work on this project, opening project to other developers and their support…
page 14 / 16
January 2004
www.HW-group.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
