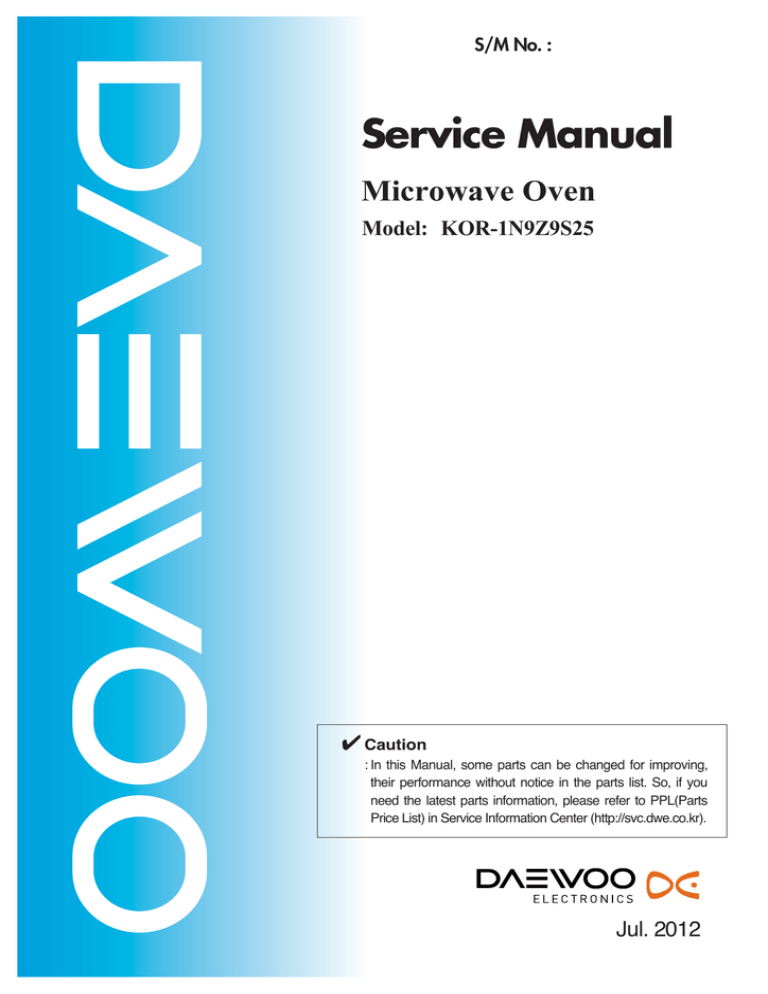

S/M No. :
Service Manual
Microwave Oven
Model: KOR-1N9Z9S25
✔ Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
Jul. 2012
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
(a) Do not operate or allow the oven to be operated with the door open.
(b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: (1) Interlock operation, (2) Proper door closing, (3) Seal and
sealing surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches, (5)
Evidence of dropping or abuse.
(c) Before turning on microwave power for any service test or inspection within the microwave generating
compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,
integrity, and connections.
(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation
and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual
before the oven is released to the owner.
(e) A microwave leakage check to verify compliance with the Federal performance standard should be
performed on each oven prior to release to the owner.
TABLE OF CONTENTS
PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ......................................................................................................1
SAFETY AND PRECAUTIONS ...........................................................................................................................................2
FOR SAFE OPERATION ......................................................................................................................................2
FOR SAFE SERVICE PROCEDURES .................................................................................................................2
SPECIFICATIONS ...............................................................................................................................................................3
EXTERNAL VIEW................................................................................................................................................................3
OUTER DIMENSION.............................................................................................................................................3
FEATURES DIAGRAM..........................................................................................................................................4
CONTROL PANEL ................................................................................................................................................5
INSTALLATION ...................................................................................................................................................................6
OPERATIONS AND FUNCTIONS.......................................................................................................................................7
DISASSEMBLY AND ASSEMBLY......................................................................................................................................8
INTERLOCK MECHANISM AND ADJUSTMENT.............................................................................................................15
TROUBLESHOOTING GUIDE ..........................................................................................................................................16
MEASUREMENT AND TEST ............................................................................................................................................20
MEASUREMENT OF THE MICROWAVE POWER OUTPUT ............................................................................20
MICROWAVE RADIATION TEST .......................................................................................................................21
COMPONENT TEST PROCEDURE ...................................................................................................................22
WIRING DIAGRAM............................................................................................................................................................23
PRINTED CIRCUIT BOARD..............................................................................................................................................24
CIRCUIT CHECK PROCEDURE ........................................................................................................................24
PCB CIRCUIT DIAGRAM....................................................................................................................................27
PCB LOCATION NO ...........................................................................................................................................28
EXPLODED VIEW AND PARTS LIST...............................................................................................................................29
1
SAFETY AND PRECAUTIONS
CAUTION
This device is to be Serviced only by Properly Qualified Service Personel. Consult the Service Manual for Proper
Service Procedures to Assure Continued Safety Operation and for Precautions to be Taken to Avoid Possible
Exposure to Excessive Microwave Energy.
1. FOR SAFE OPERATION
Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may
cause serious bodily injury to the operator.
IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE.
(Only a trained service personnel should make repairs.)
(1) A broken door hinge.
(2) A broken door viewing screen.
(3) A broken front panel, oven cavity.
(4) A loosened door lock.
(5) A broken door lock.
The door gasket plate and oven cavity surface should be kept clean.
No grease, soil or spatter should be allowed to build up on these surfaces or inside the oven.
DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITH THE DOOR OPEN.
The microwave oven has concealed switches to make sure the power is turned off when the door is opened.
Do not attempt to defeat them.
DO NOT ATTEMPT TO SERVICE THIS APPLIANCE UNTIL YOU HAVE READ THIS SERVICE MANUAL.
2. FOR SAFE SERVICE PROCEDURES
1. If the oven is operative prior to servicing, a microwave emission check should be performed prior to servicing the
oven.
2. If any certified oven unit is found to servicing, a microwave emission check should be performed prior to servicing the
oven.
(a) inform the manufacturer, importer or assembler,
(b) repair the unit at no cost to the owner,
(c) attempt to ascertain the cause of the excessive leakage,
(d) tell the owner of the unit not to use the unit until the oven has been brought into compliance.
3. If the oven operates with the door open, the service person should tell the user not to operate the oven and contact
the manufacturer and CDRH immediately.
CAUTION
MICROWAVE RADIATION
PERSONNEL SHOULD NOT BE EXPOSED TO THE MICROWAVE ENERGY WHICH MAY RADIATE FROM
THE MAGNETRON OR OTHER MICROWAVE GENERATING DEVICE IF IT IS IMPROPERLY USED OR
CONNECTED. ALL INPUT AND OUTPUT MICROWAVE CONNECTIONS. WAVEGUIDE FLANGES AND
PASKETS MUST BE SECURE. NEVER OPERATE THE DEVICE WITHOUT A MICROWAVE ENERGY
ABSORBING LOAD ATTACHED. NEVER LOOK INTO AN OPEN SAVEGUIDE OR ANTENNA WHILE THE
DEVICE IS ENERGIZED.
2
SPECIFICATIONS
POWER SUPPLY
MICROWAVE
230V AC, 50Hz SINGLE PHASE WITH EARTHING
INPUT POWER
1400 W
ENERGY OUTPUT
1000 W
FREQUENCY
2,450 MHz
OUTSIDE DIMENSIONS (W x H x D)
515 x 304 x 376 mm
CAVITY DIMENSIONS (W x H x D)
356 x 249 x 359 mm
CAVITY VOLUME
31 L
NET WEIGHT
APPROX. 13.6 Kg
TIMER
59 min. 90 sec.
POWER SELECTIONS
10 Levels
* Specifications are subject to change without notice.
EXTERNAL VIEW
1. OUTER DIMENSION
515
304
376
3
2. FEATURES DIAGRAM
1
2
3
67
8
9
w
0 4 q
1 Door latch - When the door is closed, it will
automatically shut off. If the door is opened while the
oven is operating, the magnetron will automatically shut
off.
5
7 Safety interlock system
8 Control panel
9 Door open button - To open the door push the door
open button.
2 Door seal - The door seal surfaces prevent microwaves
escaping from the oven cavity.
0 Glass cooking tray - Made of special heat resistant
glass. The tray must always be in proper position before
operating. Do not cook food directly on the tray.
3 Oven cavity
4 Coupler - This fits over the shaft in the center of the
oven cavity floor.
This is to remain in the oven for all cooking.
q Roller guide - This must always be used for cooking
together with the glass cooking tray.
5 Waveguide cover - Protects the microwave outlet from
splashes of cooking foods.
w Viewing screen - Allows viewing of food.
The screen is designed so that light can pass through,
but not the microwave.
6 Oven lamp - Automatically turns on during oven
operating.
4
3. CONTROL PANEL
e
1
2
4
3
3
5
0
6
9
7
w
8
q
1 Display - Cooking time, power level, indicators and
are displayed.
9 Kitchen Timer - Used as a minute timer, delay
cooking, hold setting after cooking.
2 Auto cook - Used to cook or reheat.
0 Time set pad - Used to set the cooking time and
defrost time.
3 One touch - Used to cook or reheat specific
quantities of food.
q Stop/Clear - Used to stop the oven operation or to
delete the cooking data.
4 More - Used to add time to cooking.
5 Less - Used to remove time from cooking.
w Start /+30 Sec.- Used to start the oven and also used
to set a reheat time.
6 Auto Defrost - Used to defrost foods. (for weight)
e Zero on - Used to turn the AC power on the oven.
7 Power - Used to set power level.
8 Defrost - Used to defrost foods. (for time)
5
INSTALLATION
1. Steady, flat location
This microwave oven should be set on a steady, flat surface.
This microwave oven is designed for counter top use only.
2. Leave space behind and side
All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually,
cause failure.
3. Away from radio, and TV sets
Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna, or feeder
and so on. Position the oven as far from them as possible.
4. Away from heating appliances and water taps
Keep the oven away from hot air, steam and splash when choosing a place to position it, or the insulation might be
adversely affected and breakdowns occur.
5. Power supply
• Check your local power source.
This microwave oven requires a current of approximately 6.5 amperes, 230 Volts, 50 Hz.
• Power supply cord is about 0.8 meters long.
• Used the voltage must be the same as specified on this oven. Using a higher voltage may result in a fire or other
accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage
resulting from use of this oven with a voltage of ampere fuse other than those specified.
• This appliance is supplied with cable of special type, which, if damaged, must be repaired with cable of same type.
Such a cable can be purchased from DAEWOO and must be installed by a qualified person.
6. Examine the oven after unpacking for any damage such as:
A misaligned door, broken door or a dent in cavity.
If any of the above are visible, DO NOT INSTALL, and notify dealer immediately.
7. Do not operate the oven if it is colder than room temperature
(This may occur during delivery in cold weather.) Allow the oven to become room temperature before operating.
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of the electric shock
by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing plug. The
plug must be plugged into an outlet that is properly installed and earthed.
WARNING
Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified electrician or service-man if
the earthing instructions are not completely understood, or if doubt exists as to whether the appliance is properly
earthed, and either : If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
earthing plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension
cord should be equal to or greater than the electrical rating of the appliance, or DO NOT USE an extension cord.
6
OPERATIONS AND FUNCTIONS
1. Connect the main lead to an electrical outlet.
2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray must always
be in place during cooking.
3. Close the door securely.
4. When the oven door is opened, the light turns off.
5. The oven door can be opened at any time during operation.
The oven will automatically shut off. To restart the oven, close the door and then touch START.
6. Each time a button is touched, a BEEP will sound to acknowledge the touch.
7. The display will show : 0 when press and hold ZERO ON button until display is turned on and beep sounds.
8. When the STOP/CLEAR button is touched during the oven operatiion, the oven stops cooking and all information
retained.
To erase all information, touch the STOP/CLEAR button once more. If the oven door is opened during the oven
operation, all information is retained.
9. If the START button is touched and the oven does not operate, check the area between the door and door is closed
securely. The oven will not start cooking under the door is completely closed or the program has been reset.
Make sure the oven is properly installed and plugged into the electrical.
Wattage output chart
The power level is set by pressing the POWER button. The chart shows the display, the power level and the
percentage of power.
Touch POWER button
Power level(Display)
Approximate Percentage of Power
once
P-HI
100%
twice
P-90
90%
3 times
P-80
80%
4 times
P-70
70%
5 times
P-60
60%
6 times
P-50
50%
7 times
P-40
40%
8 times
P-30
30%
9 times
P-20
20%
10 times
P-10
10%
11 times
P-00
0%
7
DISASSEMBLY AND ASSEMBLY
Cautions to be observed when troubleshooting.
Unlike many other appliances, the microwave oven is high-voltage, high-current equipment.
It is completely safe during normal operation.
However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit.
You are asked to observe the following precautions carefully.
1. Always remove the power plug from the outlet before servicing.
2. Use an insulated screwdriver and ware rubber gloves when servicing the high voltage side.
3. Discharge the high voltage capacitor before touching any oven components or wiring.
(1) Check the grounding.
Do not operate on a two-wire extension cord.
The microwave oven is designed to be used while earthed.
It is imperative, therefore, to make sure it is earthed
properly before beginning repair work.
(2) Warning about the electric charge in the high voltage capacitor.
For about 30 seconds after the operation stopped and electric
charge remains in the high voltage capacitor.
When replacing or checking parts, short between oven chassis and
the negative high terminal of the high voltage capacitor by using a
properly insulated screwdriver to discharge.
4. When the 10A fuse is blown out due to the operation of the monitor
switch; replace primary interlock switch, secondary interlock switch and
interlock monitor switch.
5. After repair or replacement of parts, make sure that the screws are
properly tightened, and all electrical connections are tightened.
6. Do not operate without cabinet.
SHORT
CAUTION : Service personnel should remove their watches whenever working close to or replacing the magnetron.
WARNING : When servicing the appliance, need a care of touching or replacing high potential parts because of
electrical shock or exposing microwave. These parts are as follows - HV Transformer, Magnetron,
HV Capacitor, HV Diode, HV fuse.
8
1. To remove cabinet
1) Remove three screws on cabinet back.
2) Pull the cabinet backward.
2. To remove door assembly
1) Remove two screws which secure the stopper hinge
top.
2) Remove the door assembly from top plate of cavity.
3) Reverse the above for reassembly.
NOTE : After replacing the door assembly, perform a check of correct alignment with the hinge and cavity front plate.
9
3. To remove door parts.
A06
A05
A04
A03
A02
A01
A07
A08
REF NO.
PART CODE
PART NAME
DESCRIPTION
A00
3511731450
DOOR AS
KOR-1N9M9P25
1
A01
3517012010
BARRIER-SCREEN *O
TEMP GLASS T3.2 PATTERN
1
A02
3512212300
FRAME DOOR
ABS SG-0760D,SG-175
1
A03
3515204120
STOPPER HINGE *T AS
KOR-6L0B1A
1
A04
3511727500
DOOR PAINTING AS
KOR-1N0A9A
1
A05
3517006000
BARRIER-SCREEN *I
PE T0.1
1
A06
3512301330
GASKET DOOR
PP
1
A07
3513100700
HOOK
POM
1
A08
3515101900
SPRING HOOK
PW-1
1
(1) Remove the gasket door from the door painting as.
(2) Remove the barrier screen inner from the door painting as.
(3) Remove the door frame from the door painting as.
(4) Remove the stopper hinge top from the door painting as.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from the door frame.
(7) Reverse the above steps for reassembly.
10
Q’TY
REMARK
4. Method to reduce the gap between the door seal and the oven front surface.
(1) To reduce gap located on part ‘A’
• Loosen two screws on the stopper hinge top, and then
push the door to contact the door seal to the oven front
surface.
• Tighten two screws.
(2) To reduce gap located on part ‘B’
• Loosen two screws on the stopper hinge under, and then
push the door to contact the door seal to the oven front
surface.
• Tighten two screws.
(3) To reduce gap located on part ‘C’
• Loosen the screw on the interlock switch assembly located
the top of the oven body.
• Draw the interlock switch assembly inward as possible to
engage with the hook on the door bottom.
• Tighten a screw.
(4) To reduce gap located on part ‘D’
• Loosen the screw on the interlock switch assembly located
the bottom of the oven body.
NOTE :A small gap may be acceptable if the microwave leakage does not exceed 4mW/cm2.
11
5. To remove control panel parts.
B08
B10
B07
B06
B05
B04
B03
B02
B01
B09
B11
B12
B13
REF NO.
PART CODE
B00
B01
B02
B03
B04
B05
B06
B07
B08
B09
B10
B11
B12
B13
PKCPSWYS60
3511633320
3518573580
3516743600
3516922800
5S732G30X0
3513006300
7121300611
3512785410
PKMPMSZZ14
7122401211
3513702700
441G430171
3516922900
PART NAME
DESCRIPTION
CONTROL-PANEL AS
DECORATOR RING
SWITCH MEMBRANE
CONTROL-PANEL
BUTTON STANDBY
SW MICRO
HOLDER STANDBY SW
SCREW TAPPING
HARNESS SWITCH MICRO
PCB MAIN MANUAL AS
SCREW TAPPING
LEVER DOOR OPEN
SPRING BUTTON
BUTTON DOOR OPEN
KOR-1N9Z9S25
ABS SG-0760D SG-175 COATING
KOR-1N9Z9S
ABS SG-0760D,SG-175
SG-0760D,SG-175
MS2-T0T200 250/125V 5A T85
PP
T2S PAN 3X6 MFZN
KOR-1N9M9V
KOR-1N9Z9S25
T2S TRS 4*12 MFZN
PP
SWP DIA. 0.7
ABS SG-0760D,SG-175
Q’TY
REMARK
1
1
1
1
1
1
1
1
1
1
3
1
1
1
(1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
(2) Remove three screws which secure the PCB assembly to the control panel.
(3) Disconnect membrane tail from the connector of the PCB assembly.
(4) Remove the PCB from the control panel.
(5) Remove the membrane, lever door open, spring button and button door open from the control panel.
(6) Reverse the above steps for reassembly.
12
6. To remove high voltage capacitor.
1) Remove the screw which secure the grounding ring
terminal of the H.V. diode and the capacitor holder.
2) Remove the H.V. diode from the capacitor holder.
3) Reverse the above steps for reassembly.
◆ High voltage circuit wiring
7. To remove magnetron.
1) Remove the screw which secure the magnetron.
2) Remove the magnetron.
3) Reverse the above steps for reassembly.
NOTE : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to
prevent microwave leakage. Whenever repair work is carried out on magnetron, check the microwave leakage. It
shall not exceed 4mW/cm2 for a fully assembled oven with door normally closed.
Metallic
gasket
plate
Cooling fin
Wave guide Magnetron antenna
Magnetron
antenna
Filament
terminal
Metallic gasket plate
<MAGNETRON>
13
8. To remove wind guide assembly.
1) Remove the screw for earthing.
2) Remove the noise filter from the wind guide.
3) Remove the screw which secure the wind guide assembly.
4) Draw forward the wind guide assembly.
5) Pull the fan from the motor shaft.
6) Remove two screws which secure the motor shaded pole.
7) Remove the motor shaded pole.
8) Reverse the above steps for reassembly.
9. To remove H.V.transformer.
1) Remove four screws holding the H.V.transformer.
2) Remove the H.V.transformer.
3) Reverse the above steps for reassembly.
14
INTERLOCK MECHANISM AND ADJUSTMENT
The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when
the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave.
Primary
interlock switch
RD
GY
Hook
RD
RD
BK
RD
WH
Button
Monitor interlock switch
Lock lever
Secondary interlock
switch
BL
BL
BK:BLACK
RD:RED
BL:BLUE
GY:GRAY
WH:WHITE
Mounting screw
(1) Primary interlock switch
When the door is closed, the hook locks the oven door. If the door is not closed properly, the oven will not operate.
When the door is closed, the hook pushes the button of the microswitch. Then the button of the primary interlock switch
bring it under “ON” condition.
(2) Secondary interlock switch and interlock monitor switch
When the door is closed, the hook pushes the lock lever downward. The lock lever presses the button of the interlock
monitor switch to bring it under “OFF” condition and presses the button of the Secondary interlock switch to bring it under
“ON” condition.
ADJUSTMENT :
Interlock monitor switch
When the door is closed, the interlock monitor switch should be “OFF” condition before other switches are closed.
When the door is opened, the interlock monitor switch should be “ON” condition after other switches are opened.
(3) Adjustment steps
a) Loosen the mounting screw.
b) Adjust interlock switch assembly position.
Actuation distance of primary and secondary interlock switch shall be adjusted almost 0.7mm.
c) Make sure that lock lever moves smoothly after adjustment is completed.
d) Tighten completely a mounting screw.
NOTE :
Microwave emission test should be performed after adjusting interlock mechanism. If the microwave emission exceed
4mW/cm2, readjust interlock mechanism.
15
TROUBLESHOOTING GUIDE
Following the procedure below to check if the oven is defective or not.
1. Check grounding before trouble checking.
2. Be careful of the high voltage circuit.
3. Discharge the high voltage capacitor.
4. When checking the continuity of the switches, fuse or high voltage transformer, disconnect one lead wire from these parts
and check continuity with the AC plug removed. To do otherwise may result in a false reading or damage to your meter.
NOTE : When electric parts are checked, be sure the power cord is not inserted the wall outlet.
Check wire harness, wiring and connected of the terminals and power cord before check the parts listed
below.
(TROUBLE 1) Oven does not operate at all ; any inputs can not be accepted.
CONDITION
CHECK
RESULT
Check continuity of interlock
monitor switch with door closed
Continuity
Fuse blows.
CAUSE
Malfunction of
interlock
monitor switch
REMEDY
Replace
(NOTE 1)
No Continuity
Replace fuse
Check continuity of of primary
interlock switch contact with door
partially open until interlock
monitor switch contact close
Continuity
Shorted
contacts of
primary
interlock switch.
Replace
(NOTE 1)
No Continuity
Check continuity of primary
winding of low voltage
transformer
0Ω or infinite
Approx.
0.9~1.28kΩ
(normal)
Normal
Disconnect one side of the lead
wire connected form high
voltage transformer to the high
voltage capacitor and operate
the unit
Fuse again
blows
16
Defective low
voltage
transformer
Defective high
voltage capacitor
Defective high
voltage
transformer
Replace
Replace
Replace
CONDITION
Outlet has
proper
voltage Fuse
does not
blow.
CHECK
RESULT
CAUSE
REMEDY
No
Continuity
Defective
magnetron
Replace
Check continuity of magnetron
Check continuity of
power supply cord
No
Continuity
Open power
supply cord
Replace
Normal
Defective touch
control circuit
Replace
Malfunction of
secondary
interlock switch
Replace
Display do not shown
countdown
NOTE 1
All these switches must be replaced at the same time, please refer to “Interlock Mechanism And Adjustment”.
(TROUBLE 2) Display shows all figures selected, but oven does not start cooking, even though desired program and
time are set and the START pad is touched.
CONDITION
CHECK
RESULT
CAUSE
REMEDY
Turn table
motor and
oven lamp
do not turn
on
Check continuity of primary
interlock switch
No
Continuity
Malfunction of
primary interlock
switch
Adjust or
replace
Check continuity of secondary
interlock and D.O.M switch
No
Continuity
Malfunction of
secondary
interlock
switch
Adjust or
replace
Check D.C. voltage being
supplied to RELAY (RY2) coil
0V
Defective touch
control circuit
Replace
Approx.
15 VDC
Faulty contacts of
RELAY (RY2) or
open relay coil
17
Replace
(TROUBLE 3)
CONDITION
No
microwave
oscillation
No microwave oscillation even though fan motor rotates.
CHECK
RESULT
CAUSE
REMEDY
Check continuity of high
voltage capacitor terminals
with wires removed
Continuity
Defective high
voltage
transformer
Replace
Check continuity of high voltage
rectifier in forward and backward
direction with DC megger
Continuity in
backward
direction
Defective high
voltage rectifier
Replace
Connect megger leads to
magnetron terminal and
magnetron body
Continuity
Defective
magnetron
Replace
Check resistance of primary and
secondary coil of high voltage
transformer
0 Ω or ∞
Defective high
voltage
transformer
Replace
No
Continuity
Check continuity of magnetron
with wires removed
No
Continuity
Check continuity of filament
terminal of high voltage
transformer
Defective
magnetron
Defective high
voltage
transformer
0V
Check D.C. voltage being
supplied to RELAY (RY1) coil
Defective touch
control circuit
Approx
15 VDC
18
Faulty
contacts or
RELAY (RY1)
or open
relay coil
Replace
Replace
Replace
Replace
(TROUBLE 4)
The following visual conditions indicate a probable defective touch control circuit
1. Incomplete segments
(1) Segments missing
(2) Partical segments missing
(3) Digit flickering other than normal display slight flickering
(4) “ :0” does not display when press and hold ZERO ON button until
display is turned on and beep sounds.
2. A distinct change in the display is not on when it should be.
3. One or more digits in the display are not on when they should be.
4. Display indicates a number different from one touched.
5. Specific numbers (for example 2 or 3) will not display when the panel is touched.
6. Display does not count down or up with time cooking.
7. Oven is programmable and cooks normally but no display shows.
8. Display obviously jumps in time while counting down.
9. Display counts down noticeably too fast while cooking.
10. Oven lamp and turntable motor do not stop although cooking is finished. Check if the RELAY 2 contacts close.
If they close, replace P.C.B assembly.
CONDITION
CHECK
RESULT
CAUSE
REMEDY
Display does
not show
programming
at all, even if
keyboard is
pressed
Check each pad for continuity of
the membrane keyboard for the
following keyboard check
procedure
Normal
Malfunction of the
control circuit
board
Replace the
control circuit
board
Abnormal
Malfunction of the
membrane
keyboard
Replace the
membrane
keyboard
NOTE
Before following the particular steps listed above in the trouble shooting guide for the membrane keyboard’s,
failure, please check for the continuity of each wire-harness between the membrane keyboard and P.C.B.
assembly.
19
MEASUREMENT AND TEST
1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT
Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water
exposed to the microwave as directed below.
PROCEDURE
1. A cylindrical container of borosilicate glass is used for the test. It has a maximum thickness of 3mm, an external
diameter of approximately 190mm and a height of approximately 90mm.
The mass of the container is determined.
2. At the start of the test, the oven and the empty container are at ambient temperature. Water having an initial
temperature of 10˚C ± 1˚C is used for the test. The water temperature is measured immediately before it is poured
into the container.
3. A quantity of 1000g ± 5g of water is added to the container and its actual mass obtained.
The container is then immediately placed in the centre of the oven shelf, which is in its lowest normal position.
The oven is operated and the time for the water
temperature to attain 20˚C ± 2˚C is measured. The oven
is then switched off and the final water temperature is
measured within 60s.
NOTE 1 - The water stirred is before its temperature is
measured.
NOTE 2 - Stirring and measuring devices are to have a
low heat capacity.
4. The microwave power output is calculated from the
formula
P = 4,187 •
T2 - T1)/t + 0.55 • mc T2 - T0)/t
where
P is the microwave power output, in watts ;
mw is the mass of the water, in grams ;
mc is the mass of the container, in grams ;
T0 is ambient temperature, in degrees Celsius ;
T1 is the initial temperature of the water, in degree Celsius ;
T2 is the final temperature of the water, in degrees Celsius ;
t
is the heating time, in seconds, excluding the magnetron filament heating-up time.
✻ The microwave power output is stated in watts, rounded off to the nearest 50W
CAUTION
1. Water load should be measured exactly to 1 liter.
2. Input power voltage should be exactly specified voltage (Refer to 2. SPECIFICATIONS).
3. Ambient temperature should be 20 ± 2°C (68 ± 3.6°F)
✻ Heating time for power output: (T2 = T0)
A (second)
70
64
60
56
52
49
47
44
42
40
38
B (W)
600
650
700
750
800
850
900
950
1000
1050
1100
20
2. MICROWAVE RADIATION TEST
CAUTION :
1. Make sure to check the microwave leakage before and after repair of adjustment.
2. Always start measuring of an unknown field to assure safety for operating personnel from microwave energy.
3. Do not place your hands into any suspected microwave radiation field unless the safe density level is known.
4. Care should be taken not to place the eyes in direct line with the source of microwave energy.
5. Slowly approach the unit under test until the radiometer reads an appreciable microwave leakage from the unit
under the test.
PROCEDURES
1. Prepare Microwave Energy Survey Meter, 600cc glass
beaker, and glass thermometer 100˚C(212˚F).
2. Pour 275cc±15cc of tap water initially at 20±5˚C(68±9˚F) in
the 600cc glass beaker with an inside diameter of approx.
95mm(3.5in.).
3. Place it at the center of the tray and set it in a cavity.
4. Close the door and operate the oven.
5. Measure the leakage by using Microwave Energy Survey
Meter with dual ranges, set to 2450MHz.
1) Measured radiation leakage must not exceed the value
prescribed below. Leakage for a fully assembled oven with
door normally closed must be less than 4mW/cm2.
2) When measuring the leakage, always use the 5cm(2in.)
space cone with probe. Hold the probe perpendicular to
the cabinet and door. Place the space cone of the probe
on the door, cabinet, door seem, door viewing screen, the
exhaust air vents and the suction air vents.
3) Measuring should be in a counter-clockwise direction at a
rate of 1 in./sec. If the leakage of the cabinet door seem is
unknown, move the probe more slowly.
4) When measuring near a corner of the door, keep the probe
perpendicular to the areas making sure the probe end at the base of the cone does not get closer than 2 in. from any
metal. If it does not, erroneous reading may result.
21
3. COMPONENT TEST PROCEDURE
• High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle.
• It is neither necessary nor advisable to attempt measurement of the high voltage.
• Before touching any oven components or wiring, always unplug the oven from its power source and discharge the
capacitor.
1. High voltage transformer
(1) Remove connections from the transformer terminals and check continuity.
(2) Normal readings should be as follows:
Secondary winding ...................Approx. 140Ω±10%
Filament winding....................................Approx. 0Ω
Primary winding .....................................Approx. 2Ω
2. High voltage capacitor
(1) Check continuity of capacitor with meter on the highest OHM scale.
(2) A normal capacitor will show continuity for a short time, and then indicate 10MΩ once the capacitor is charged.
(3) A shorted capacitor will show continuous continuity.
(4) An open capacitor will show constant 10MΩ.
(5) Resistance between each terminal and chassis should be infinite.
3. High voltage diode
(1) Isolate the diode from the circuit by disconnecting the leads.
(2) With the ohmmeter set on the highest resistance scale measure the resistance across the diode terminals.
Reverse the meter leads and again observe the resistance reading.
Meter with 6V, 9V or higher voltage batteries should be used to check the front-back resistance of the diode,
otherwise an infinite resistance may be read in both directions.
A normal diode’s resistance will be infinite in one direction and several hundred KΩ in the other direction.
4. Magnetron
For complete magnetron diagnosis, refer to “Measurement of the Microwave Power Output”.
Continuity checks can only indicate and open filament or a shorted magnetron.
To diagnose for an open filament or a shorted magnetron.
(1) Isolate magnetron from the circuit by disconnecting the leads.
(2) A continuity check across magnetron filament terminals should indicate 0.1Ω or less.
(3) A continuity check between each filament terminal and magnetron case should read open.
5. Fuse
If the fuse in the primary and monitor switch circuit is blown when the door is opened, check the primary and monitor
switch before replacing the blown fuse.
In case the fuse is blown by an improper switch operation, replace the defective switch and fuse at the same time.
Replace just the fuse if the switches operate normally.
22
N
L
GE
BL
FUSE
FILTER ASS'Y
N
BR L
POWER SUPPLY :
SINGLE PHASE
ONLY
GN
N
L
RD
THERMOSTAT
WH
23
POWER
SWITCH
RD
BK
NOTE : RD : RED
WH : WHITE
BK : BLACK
GN : GREEN
BR : BROWN
RD
3
1
WH
GY
GY
OR : ORANGE
BL : BLUE
GY : GRAY
GE : GREEN/YELLOW
BL
BL
DOM SWITCH
RELAY-1
RELAY-2
RELAY-3
CONTROL P.W.B. ASS'Y
PRIMARY INTERLOCK
SWITCH(UPPER)
GY
5
FM
OL : OVEN LAMP
FM : FAN(BLOWER) MOTOR
GM : GEARED MOTOR
7
RD
GY
GY
BK
[ CONDITION ]
DOOR : CLOSED
COOK : OFF
SECONDARY INTERLOCK
SWITCH
GY
OL GM
GY
INTERLOCK
MONITOR
SWITCH
RD
WH
HIGH VOLTAGE
TRANSFORMER
H.V.
FUSE
H.V. DIODE
H.V.
CAPACITOR
WIRING DIAGRAM
MAGNETRON
PRINTED CIRCUIT BOARD
1. CIRCUIT CHECK PROCEDURE
1. Low Voltage Transformer check
• The low voltage transformer is located on the P.C.B.
• Measuring condition: input voltage : 230V / Frequency : 50Hz
Terminal Voltage
LOAD
NO LOAD
(4,5)-6 or (7,8)-6
AC 25.3 V
AC 30.8 V
NOTE :
1. Refer to Circuit Diagram (point 4).
2. Secondary side voltage of the low voltage transformer changes in proportion to fluctuation of power source voltage.
3. The allowable tolerance of the secondary voltage is within ± 5% of nominal voltage.
2. Voltage check
• Key check point
NO
CHECK POINT
1
IC 1 PIN 5
2
IC 1 PIN 8
REMARK
5 VDC
5V
0V
3
T: 20ms (50Hz)
T
IC 1 PIN 35 OR PIN 36
5V
T: 250ns (4MHz)
0V
T
• Check method
NO
MEASURE POINT
1
MP1
2
MP2
WAVE FORM
REMEDY
REMARK
DC 5V ±0.25V
Replace VL1, EC1
NO LOAD
DC 15V ±2.0V
Replace EC2, D11, D13, D14
NO LOAD
NOTE :
Each measure point must be measured with GND points.
24
MP1
MP2
GND
Measure Point
25
3. When there is no microwave oscillation
1) When touching Start/+30sec. pad, oven lamp does not turn on.
Fan motor do not rotate, but cook indicator in display comes on.
B
A
RY2
42
D10
(TRAY
LAMP)
Q10
RY2
- Check method
POINT
A
B
RELAY 2 ON
5VDC
GND
RELAY 2 OFF
GND
15VDC
STATE
2) When touching Start/+30sec. pad, oven lamp turns on.
Fan motor and turntable rotate and cook indicator in display comes on.
B
A
RY1
41
D8
(M/W)
Q9
RY1
- Check method
POINT
A
B
RELAY 1 ON
5VDC
GND
RELAY 1 OFF
GND
15VDC
STATE
4. When the door is opened during operation, the count down timer does not stop.
A
B
R1
CN1
1
2
-Check method
27
R9
D.O.M SW
C2
+5V
POINT
A
B
1) DOOR OPEN
OPEN
5VDC
2) DOOR CLOSED
CLOSE
GND
STATE
CHECK NO
1
C1
R10
METHOD
REMEDY
Check the stage (ON, OFF) of the door open monitor switch by
resistance measurement.
Replace door open monitor
switch.
5. When the digital clock does not operate properly.
→ refer to Circuit Diagram
POINT
IC 1 PIN 8
WAVE FORM
5V
0V
T: 20ms (50Hz)
T
* If clock does not keep exact time, you must check resistor R20 and zener diode ZD2.
26
27
NOTE
SJ4
SJ1
30min H.V.Trans
:INSERT
SJ6
0~9 (KEY)
10,1,10(KEY)
SJ2
:REMOVAL
SJ5
g
Lb
SJ3
CN3
YW396-07AV
1
2
3
4
POWER SAVE PART
LVT1
DMR-631P/
DMR-631FS
7
6
4,5
D13
R10
1K
R22
1K
KN4004A
D14
D9
1N4148
EC2
1000uF
25V
R21
51 1/4W
D10
1N4148
51 1/4W
D6
1N4148
R24
D8
1N4148
+
-
R20
10K
D11
1N4148
V2
C1
104Z
V1
V1
+ EC1
10uF
- 50V
R1
1K
V
R15
R16
G
R18
1K
R17
1K
R14
1M
C3
102K
R13
1K
V1
C6
104Z
C5
C4
102K 104Z
V1
Q10
KRC106M
Q7
KRC106M
CR1
4.0M
R
V1
R9
100K
Q8
KRC106M
C2
104Z
Q9
KRC106M
ZD2
5.1V
IC2
1K1A7033AP
R19
10K
VL1
MC7805C
V2
R23
4.7K
C7
104Z
V1
V2
D12
1N4148
Q12
KTC3198GR
D7
1N4148
D.O.M SW
1
2
KN4004A
SJ7
59MIN MAX
99MIN MAX
86'S 1000W Data
1A'S 1000W Data
16'S 1000W Data
16'S 1100W Data
18'S 1200W Data
1B'S 1100W Data
6N'S 600W Data
6N'S 700W Data
6N'S 800W Data
1N'S 1000W Data
86'S/9G3A7A'S 900W Data
63'S 900W Data
63'S 700W/800W Data
Model Select
63'S 600W Data
1
3
RY2
OJ-SS-112LM
(TRAY,FAN,LAMP)
RY3
OJ-SS-112LM
(POWER SAVE)
RY1
G5G-1A-DT 12VDC
(MAGNETRON)
RY4
BROWNER PART G5G-1A-DT 12VDC
(BROWNER)
CN1
YW396-02V
BZ1
BM-20K
(PHASE)
2 AN5
(POPCORN)
1 AN4
36 XOUT
35 XIN
37 RESET
26 RC7
4 AN7
3 AN6
8 INT0
38 GND
5 VDD
42 RA3
39 RA0
41 RA2
40 RA1
27 RD0
7 BUZ
RC6 25
RD7 34
RD6 33
RD5 32
RD4 31
RD3 30
RD2 29
RD1 28
RB0 6
RB3 9
RB4 10
RB5 11
RB6 12
RB7 13
RE4 14
RE3 15
RE2 16
RE1 17
RE0 18
RC0 19
RC1 20
RC2 21
RC3 22
RC4 23
RC5 24
CA1
CN6XB-102M
RA1
RGLD7X104J
V1
SJ7
SJ6
SJ5
SJ4
SJ3
SJ2
SJ1
11
10
9
8
7
6
Q2
KRA106M
RA2
RGLD6X104J
Q1
KRA106M
9
4
STOP/
CLEAR
MEAT
PASTA
5
8
3
*SPEEDY COOK
(+30sec.)
START/
POULTRY
FROZEN
PIZZA
4
Q4
KRA106M
D5
1N4148
Q5
KRA106M
Q3
KRA106M
330
330
R7
330
330
R6
R8
330
R5
R2
330
330
R4
R3
3
AUTO
COOK
MORE(+)
D3
1N4148
4
12
2
POWER
KITCHEN
TIMER
LESS(-)
D1
1N4148
G1
G5
7
V1:+5V
V2:+12V
6
5
2/10SEC 1/ 1MIN 0/ 10MIN
DEFROST
FISH
DISH
WARMER
BEVERAGE
D4
1N4148
V1
G3
G2
e
d
c
b
g
f
a
11 G4
9
1
2
3
5
10
7
6
8
G5
G4
1
CN2
FCZ 254-11
D2
1N4148
DP1
TOF-4461BG-B10
G2
G1
e
a
a
IC1
HMS81C1716B-HN095
d
c g e
b f
d
c g e
b f
d
c g e
b f
d
c g e
b f
f
a
a
g
d
c
b
a
Q11
KRC106M
2. PCB CIRCUIT DIAGRAM
G3
3. PCB LOCATION NO.
NO
NAME
SYMBOL
SPECIFICATION
PART CODE
Q'TY
1
BUZZER
BZ1
BM-20K
3515600100
1
2
C ARRAY
CA1
7P(6) 1000PF M 50V
CN6XB-102M
1
3
CAPACITOR ELEC
EC1
50V RS 10uF
CEXE1H100A
1
4
CAPACITOR ELEC
EC2
25V RSS 1000MF
CEXF1E102V
1
5
CONNECTOR WAFER
CN1
YW396-02V
3519150520
1
6
CONNECTOR WAFER
CN2
FCZ 254-11
441M367160
1
7
CONNECTOR WAFER
CN3
YW396-07AV(YEONHO)
3519150540
1
8
DIODE SWITCHING
D1~6,D8~D12
1N4148
DZN4148—-
11
9
DIODE RECTIFIER
D13,14
KN4004A
DZN4004A—
2
10
DIODE ZENER
ZD2
UZ- 5.1BSB 1/2W
DZUZ5R1BSB
1
11
LED DISPLAY
DP1
TOF-4461BG-B10
DT0F4461BG
1
12
PCB MAIN
M360
81.5X139.9
3514332120
1
13
R ARRAY
RA1
8P(7) 1/8 100K OHM J
RA-88X104J
1
14
R ARRAY
RA2
7P(6) 1/8 100K OHM J
RA-87X104J
1
15
RESISTOR
R2~8
1/6W 330 5%
RD-AZ331J-
7
16
RESISTOR
R1,10,13,17,22
1/6W 1K 5%
RD-AZ102J-
5
18
RESISTOR
R9
1/6W 100K 5%
RD-AZ104J-
1
19
RESISTOR
R19,20
1/6W 10K 5%
RD-AZ103J-
2
20
RESISTOR
R18
1/6W 1K 5%
RD-AZ102J-
1
21
RESISTOR
R14
1/6W 1M 5%
RD-AZ105J-
1
22
RESISTOR
R21,R24
1/4W 51 5%
RD-4Z510J-
2
23
RESONATOR CERA
CR1
CRT 4.00MS
5P4R00MTS-
1
24
IC REGULATOR
VL1
MC7805C
1CPMC7805C
1
25
TRANSISTOR
Q1~5
KRA106M
TZRA106M—
5
26
TRANSISTOR
Q7,9~11
KRC106M
TZRC106M—
4
27
IC RESET
IC2
KIA7033AP
1K1A7033AP
1
28
CAPACITOR CERA
C3,C5
102 50V Z AXIAL
CCZB1H102K
2
29
CAPACITOR CERA
C1,2,4,6,7
104 50V Z AXIAL
CCZF1H104Z
5
30
TRANS POWER
LVT1
DMR-631FS
5EPV035303
1
31
WIRE COPPER
J1~J6
1/0.52 TIN COATING
85801052GY
6
32
WIRE COPPER
SJ1,3,4,6
1/0.52 TIN COATING
85801052GY
4
33
WIRE COPPER
J7,J8
1/0.52 TIN COATING
85801052GY
2
34
SW RELAY
RY1
G5G-1A-DT 1C 1P DC12V
5SC0101123
1
35
SW RELAY
RY2,RY3
CS11-12SH 1C 1P
5SC0101128
2
36
IC MICOM
IC1
HMS81C1716B-HN095
150SR1N9Z-
1
28
REMARK
KOR-1N9Z9S25
EXPLODED VIEW AND PARTS LIST
1. DOOR ASSEMBLY
Refer to Disassembly and assembly.
2. CONTROL PANEL ASSEMBLY
Refer to Disassembly and assembly.
3. TOTAL ASSEMBLY
F01
F02
F03
F04
F05
F06
F09
F10
F07
F08
F44
F11
F43
F12
F42
F41
F40
F13
F39
F14
F15
F16
F17
A00
F18
F19
F20
B00
F21
F22
F23
F24
F38
F37
F36 F35 F34
F33 F32 F31
29
F30
F29
F28
F27
F26
F25
REF NO. PART CODE
A00
B00
F01
F02
F03
F04
F05
F06
F07
F08
F09
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21
F22
F23
F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F41
F42
F43
F44
3511731450
PKCPSWYS60
3510802120
3516004100
3516119600
7122401211
7122401211
7S312X40A1
35113AAQM5
7S312X40A1
7121300611
3518902600
3518606200
7121402511
3963514400
3512517000
3511800300
3518003700
3516004000
7S432X4081
3513003200
3518303401
3518400800
3518701900
3518124360
3516003700
3510317510
7S312X40A1
3512101400
7272400811
3515201101
3512785610
4415A17352
4415A66600
3518571000
3513702600
3513811700
3513601600
7121400611
3966821230
7272400811
3511406220
3517400600
3512517300
3514701501
3517203500
PART NAME
DOOR AS
CONTROL-PANEL AS
CABINET
SPECIAL SCREW
CAVITY AS
SCREW TAPPING
SCREW TAPPING
SCREW SPECIAL
CORD POWER AS
SCREW SPECIAL
SCREW TAPPING
THERMOSTAT
NOISE-FILTER
SCREW TAPPING
MOTOR SHADED POLE
GUIDE WIND
FAN
MAGNETRON
SPECIAL SCREW
SPECIAL SCREW
HOLDER HV CAPACITOR
CAPACITOR HV
DIODE HV AS
FUSE HV
TRANS HV
SPECIAL SCREW
BASE
SCREW SPECIAL
FOOT
SCREW TAPTITE
STOPPER HINGE *U
HARNESS MAIN
SW MICRO
SW MICRO
SWITCH PUSH
LEVER LOCK
LOCK
LAMP
SCREW TAPPING
MOTOR SYNCRO
SCREW TAPTITE
COVER WAVE GUIDE
COUPLER
GUIDE ROLLER
ROLLER
TRAY GLASS
DESCRIPTION
KOR-1N9M9P25
KOR-1N9Z9S25
CR T0.5
T1 TRS LR4 POLE 4X10 MFZN
KOR-1N0A9A
T2S TRS 4*12 MFZN
T2S TRS 4*12 MFZN
T1 TRS 4X10 SE MFZN
3X1.0 60X60 120-RTML
T1 TRS 4X10 SE MFZN
T2S PAN 3X6 MFZN
OFF:90 ON:60 H #187
DWLF-M12
T2S PAN 4X25 MFZN
230V 50HZ OEM-10DWC2-A07 (A)
PP
PP+30%GLASS
2M218JFL 6CF
T2 BOLT FLANGE 5X12 DACRO
TT3 TRS 4X8 SE MFZN
SECC T0.5
2100VAC 1.05UF #187
ESJC13-12BX (CL01-12)
5KV 0.8A T.H.V.060T
S1S5AC DA00
TT3 HEX 4X8 FLG MFZN
SBHG T0.5
T1 TRS 4X10 SE MFZN
DASF-310
TT3 TRS 4X8 MFZN
SCP-1 T2.5
KOR-1N9Z9S25
SZM-V16-FA-63
SZM-V16-FA-62
V0303A2 / MP101C
POM
POM BLACK
BL 240V 25W T25 C7A H187
T2S PAN 4X6 MFZN
49TYZ-A2 5/6RMIN 4W
TT3 TRS 4X8 MFZN
PP J640A WHITE
XAREC
PP 5113MF6 A353B
TEFLON D:14.5
GLASS
30
Q'TY
1
1
1
3
1
1
1
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
4
1
6
2
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
DAEWOO ELECTRONICS CORP.
1-2, Jeo-dong 1(il)-ga, Jung-gu, Seoul, Korea
C.P.O. BOX 8003 SEOUL, KOREA
TELEX: DWELEC K28177-8
CABLE: “DAEWOOELEC”
S/M NO. :
PRINTED DATE: Jul. 2012
ABOUT THIS MANUAL
[email protected]@incN
Է‫΂ܞ ړ‬ĸ ࣃ‫ۉ‬ʷ
VѨ‫ێ ݖ‬Οӂ˱ Tࠚ
ɽ
ʁ
Ň‫ې‬Ձ ɮ
[email protected]@[email protected]@l
[email protected]
‫܂‬
RPQRNPSNRY
ր
[email protected]@߭ SS
QRNPWNQPM‫֭ߘ۾‬Ŕ SS
QRNPWNQQMRX[email protected]@ր‫֭@܄‬Ŕ R
QRNPWNQRMY[email protected][email protected][email protected][email protected]@ր‫֭@܄‬Ŕ U
QRNPWNQXMQ[email protected][email protected]Hच‫ ݖێ‬Ԕ‫܆‬[email protected]@ր‫֭@܄‬Ŕ T
ِ͊ߏ
vision ɽ ʁ
і О ր
telZ [email protected] WSPMSWXX
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
