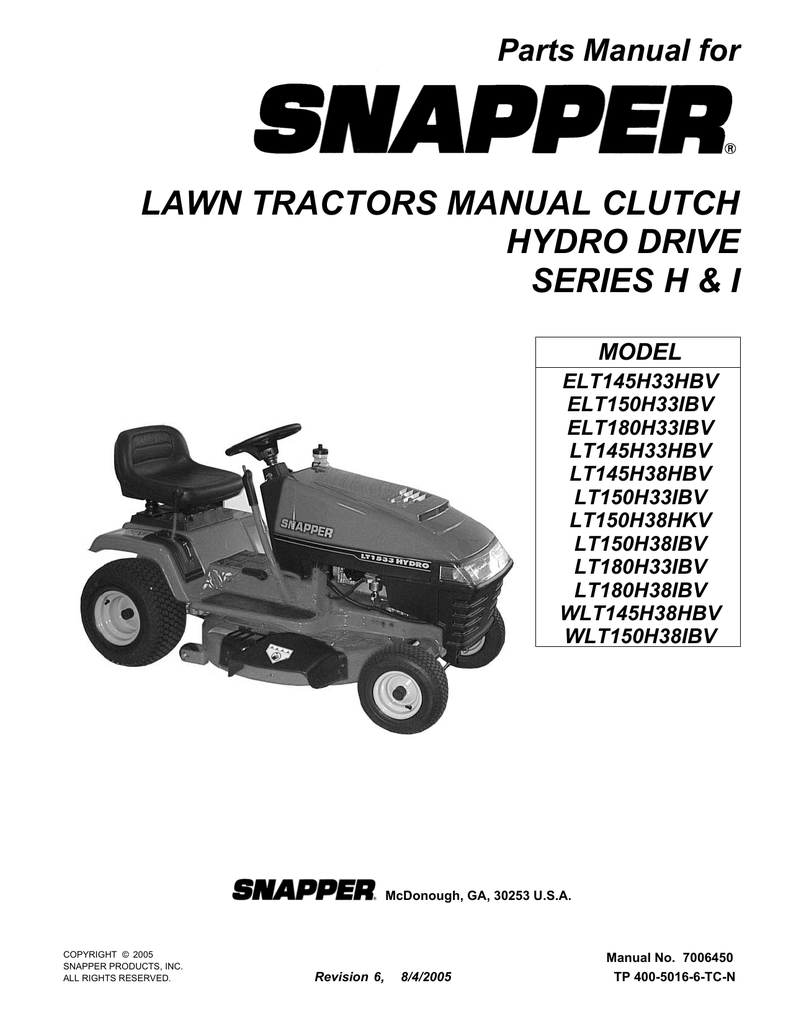

Parts Manual for

LAWN TRACTORS MANUAL CLUTCH

HYDRO DRIVE

SERIES H & I

MODEL

ELT145H33HBV

ELT150H33IBV

ELT180H33IBV

LT145H33HBV

LT145H38HBV

LT150H33IBV

LT150H38HKV

LT150H38IBV

LT180H33IBV

LT180H38IBV

WLT145H38HBV

WLT150H38IBV

COPYRIGHT © 2005

SNAPPER PRODUCTS, INC.

ALL RIGHTS RESERVED.

McDonough, GA, 30253 U.S.A.

Revision 6, 8/4/2005

Manual No. 7006450

TP 400-5016-6-TC-N

64

66

68

70

72

56

58

60

62

40

44

50

52

32

34

38

22

28

30

4

6

10

14

18

PAGE GROUP

WHEELS, FRONT & REAR

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

STEERING WHEEL, CONSOLE, FUEL TANK

SEAT, REAR FENDER & COMPONENTS

FRONT AXLE

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

TRANSMISSION GROUP (Hydro Drive)

HYDRO RESERVOIR ASSEMBLY

BELT GUIDE ASSEMBLY

BLADE ENGAGEMENT & TRANSMISSION CONTROLS

IMPLEMENT LIFT PARTS

ENGINE COMPONENTS

33" CUTTING DECK, BELTS, BRAKES

38" CUTTING DECK, BELTS, BRAKES PT.1

38" CUTTING DECK, BELTS, BRAKES PT.2

SPINDLE- 33" CUTTING DECK

SPINDLE- 38" CUTTING DECK

DECALS PT. 1

DECALS PT. 2

DECALS PT. 3

ELECTRICAL COMPONENTS

ELECTRICAL SCHEMATIC (Series H)

ELECTRICAL SCHEMATIC (15 H.P. Series I)

ELECTRICAL SCHEMATIC (18 H.P. Series I)

Table Of Contents

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

3

Manual No. 7006450

TP 400-5016-6-TC-N

WHEELS, FRONT & REAR

Manual No. 7006450

TP 400-5016-6-TC-N

4

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

WHEELS, FRONT & REAR

Item

1

Part No

7058515

Qty

2

Description

ASSEMBLY, Front Tire & Rim (Incl. items 2, 3, 4, 5 & 6)

-7058517

2 7072702

2A 7072704

3 7022772

4 7014483

5

6

7012234

7076998

7 7010935

8

9

7029618

7029617

10 7011022

11 7091516

12 7010746

13 7058518

14 7024454

15 7072705

16 7031038

2 ASSEMBLY, Front Tire & Rim (Incl. items 2A, 3, 4, 5 & 6)

1

1

2

1

1

1

1

1

2

1

1

1

1

2

1

1

TIRE, 13 x 5.00 K500- Tread Kenda

TIRE, 15 x 6.00-6 K500 Tread Kenda

RIM, 6.00 x 3.50, Grey

BEARING, Wheel PM

VALVE STEM, Air (Snap-In)

FITTING, Lube 1/4-28 Tapered Thread

WASHER, 5/32 x 25/32” I.D. x 1-1/2” O.D. Flat

WASHER, Hub-Cap Retaining

WASHER, 3/4 x 1-5/16 x 1/16”

HUB CAP

PIN, 5/32 x 1” Cotter

RING, 3/4” External Retaining

ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)

RIM, 8 x 7.00 Keyed Hub, Grey

TIRE, 18 x 8.50-8 K500 Tread, Kenda

DUST CAP

Note

used on LT145H33HBV,

ELT145H33HBV, LT150H33IBV

& ELT150H33IBV used on LT145H38HBV,

LT150H38HBV, LT150H38IBV &

WLT150H38IBV per front tire assembly per front tire assembly per front tire assembly per front tire assembly per front & rear tire assemblies

Was 13876, per front tire assembly per front tire assembly per front & rear tire assemblies per front & rear tire assemblies per front & rear tire assemblies per front tire assembly

Was 29738, per rear tire assembly per rear tire assembly per rear tire assembly per front tire assembly

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

5

Manual No. 7006450

TP 400-5016-6-TC-N

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

6

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

Item

1

Part No

7063298

Qty

1

Description

HOOD

-7024471

-7063298

1

1

HOOD, Mozart

HOOD, Mozart-Scoop-Red

1

1

1

1

1

1

1

1

1

1

4

1

1

1

1

2

6

2

1

1

5

1

1

1

1

1

8

1

1

1

1

1

1

4

4

5

6

2

3

7016766

7024718

7090999

7076978

7073905

7

8

9

7090803

7029572

7029571

10 7029076

-7029075

-7073847

-7073846

-7073294

-7073295

-7074998

-7074999

-7075000

-7075001

-7075096

-7075095

-7075284

-7075285

11 7091095

12 7017175

-7017174

13 7091106

14 7029570

15 7026482

16 7026377

17 7029602

18 7026180

19 7026179

20 7029620

21 7090858

ROD, Hood Support

CLIP, Spring-Latch

SCREW, 1/4-20 x 5/8 Pan Head Self-Tap (Torx)

NUT, 1/4-20 Hex Nyloc

DECAL, Snapper- Hood- 3D Silver Letters

BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 5

PANEL, Hood, Left Hand, Black

PANEL, Hood, Right Hand, Black

DECAL, Hood “LE1433H”, Right Hand

DECAL, Hood “LE1433H”, Left Hand

DECAL, Hood “LE14538H”, Right Hand

DECAL, Hood “LE14538H”, Left Hand

DECAL, Hood “LE1538H”, Right Hand

DECAL, Hood “LE1538H”, Left Hand

DECAL, Hood “LT1533H”, Right Hand

DECAL, Hood “LT1533H”, Left Hand

DECAL, Hood “LT1538H”, Right Hand

DECAL, Hood “LT1538H”, Left Hand

DECAL, Hood “LT1833H”, Right Hand

DECAL, Hood “LT1833H”, Left Hand

DECAL, Hood “LT1838H”, Right Hand

DECAL, Hood “LT1838H”, Left Hand

POP RIVET, 1/8 x 3/8”

DECAL, Clear Lens, Left Hand

DECAL, Clear Lens, Right Hand

SCREW, M4.8 x 1.59 x 16mm HXCRHD Sems Special

GRILL, Sloped, Black

CLIP, “J” Open Type .4 Bundle Dia., .281 Dia. Hole

DECAL, Molded Medallion

LENS, Rippled, Sloped

DECAL, Lens/Reflector-LH Sloped Grill

DECAL, Lens/Reflector-RH Sloped Grill

BUMPER, Front Hood Support

SCREW, 5/16-18 x 1/2” Hex Washer Self-Tap

Note

Was 24605 (all Series “H” except ELT145H33HBV) used on ELT145H33HBV Model

Was 26406 or 61383, used on

All Series “I” Models used on ELT145H33HBV Model used on ELT145H33HBV Model

See foot note #1

See foot note #1

See foot note #2

See foot note #2 used on LT150H38HKV Model used on LT150H38HKV Model

See foot note #3

See foot note #3

See foot note #4

See foot note #4 used on LT & ELT180H33IBV used on LT & ELT180H33IBV used on LT180H38IBV used on LT180H38IBV

See foot note #5

See foot note #5

See foot note #6

Was 71544 (used on Series “H”

Models)

See foot note #6

See foot note #6

Footnotes:

1. Used on LT145H33HBV & ELT145H33HBV 5. Used on all Series “H” Models except ELT145H33HBV

2. Used on LT145H38HBV & WLT145H38HBV 6. Used on ELT145H33HBV and all Series "I"

3. Used on LT150H33IBV & ELT150H33IBV

4. Used on LT150H38IBV & WLT150H38IBV

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

7

Manual No. 7006450

TP 400-5016-6-TC-N

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

8

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

Item Part No

22 7024061

23 7034324

24 7011791

25 7026172

26 7024709

27 7026171

28 7024893

29 7075068

30 7092098

Qty

1

1

1

1

2

1

4

2

2

Description

SHOULDER BOLT, 3/8-16 x 1-1/4” Hex Socket

BRACE. Hood Support/Stop

RETAINER, 5/16” Bolt

LAMP 1141, Headlight

SOCKET, Headlight Snap-In

HARNESS, Headlight M&G Sockets

LENS, Clear (Models with Headlights)

LANYARD, Hood, 14-3/4” long

SCREW, 1/4-20 x 1-1/4” Hex Head Cap w/Locking Patch

Note

Footnotes:

1. Used on LT145H33HBV & ELT145H33HBV 5. Used on all Series “H” Models except ELT145H33HBV

2. Used on LT145H38HBV & WLT145H38HBV 6. Used on ELT145H33HBV and all Series "I"

3. Used on LT150H33IBV & ELT150H33IBV

4. Used on LT150H38IBV & WLT150H38IBV

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

9

Manual No. 7006450

TP 400-5016-6-TC-N

STEERING WHEEL, CONSOLE, FUEL TANK

Manual No. 7006450

TP 400-5016-6-TC-N

10

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

Qty

1

1

1

1

1

1

1

1

2

1

2

1

4

1

1

1

1

4

2

2

1

2

1

1

1

1

1

1

1

1

1

1

1

1

STEERING WHEEL, CONSOLE, FUEL TANK

Item Part No

1

2

3

4

5

7053746

7028565

7011791

7091495

7053398

6

7

8

7076978

7026196

7091575

9 7022368

10 7022369

11 7024641

12 7052907

13 7012515

14 7091290

15 7026343

16 7090951

17 7033883

18 7022380

19 7012765

20 7035496

21 7029595

22 7028561

-7073579

23 7011138

24 7091001

25 7023187

26 7029714

27 7012685

28 7023506

29 7091188

30 7091018

31 7023655

32 7024642

-7024530

Description

ASSEMBLY, Console (Includes items 2 thru 7)

CONSOLE, OPPLT-Electric Clutch

RETAINER, 5/16” Bolt

SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5

ASSEMBLY, Strap-Clinch Stud

NUT, 1/4-20 Hex Nyloc

ASSEMBLY, BEARING, Flange .75 I.D. PM

NUT, 5/16-18 Hex Center Lock, GR 5 or B

GEAR, Pinion, Steering Shaft

PIN, Dowel, 1/4 x 1-1/4”

WIRE TIE, 1.29 long Black

ASSEMBLY, Fuel Tank/Cap 8-QT (Incl. item 13)

CAP, Fuel Tank

NUT, #10-24 Hex Nyloc

SWITCH, Ignition-Afterfire Solenoid (Incl. item 27)

NUT, 5/16-18 Hex Large Flange Center Lock

BRACKET, Hood Latch Catch

SHAFT, Steering

PIN, .26 x 2-1/4” Spiral

BEARING, .750 I.D.

STEERING WHEEL, Kelch Vector

DECAL, Console

DECAL, Console Basic

KEY, Pair

SCREW, 5/16-18 x 5/8” Truss Head (Torx)

LIGHT SWITCH, Rocker SPST

SPACER, .65 x .88 x .10

NUT, 5/8-32 Hex

BEZEL

SCREW, #10-24 x 5/8” Flat Head Cross Countersunk Machine

NUT, #8-32 Hex, GR 2 or B

LEVER, Throttle Control

* CONTROL, Throttle (conduit length: 44.60”)

CONTROL, Throttle (conduit length: 47.60”)

Note

was 52891

Was 14363

Was 91599

(Hydro Drive Models- with lights) used on All Series “I” Models

Was 29721

LT180H33IBV, ELT180H33IBV

& LT180H38IBV

33 7091017

34 7074560

35 7074561

1

1

1

SCREW, #8-32 x 3/8” Cross-Recessed, Fillester Head, GR 2

HOLDER, BOTTLE (wire)

BOTTLE, Water

Footnotes:

*NOTE: Snapper Part Number is stamped on throttle control conduit.

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

11

Manual No. 7006450

TP 400-5016-6-TC-N

STEERING WHEEL, CONSOLE, FUEL TANK

Manual No. 7006450

TP 400-5016-6-TC-N

12

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

STEERING WHEEL, CONSOLE, FUEL TANK

Item Part No

36 7091075

37 7091552

38 7091290

Qty

2

2

2

Description

SCREW, #10-24 x 5/8” Hex Washer Self-Tap

WASHER, .219 x .500 x .049 Flat

NUT, #10-24 Hex Nyloc

Note

Was 90363

Footnotes:

*NOTE: Snapper Part Number is stamped on throttle control conduit.

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

13

Manual No. 7006450

TP 400-5016-6-TC-N

SEAT, REAR FENDER & COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

14

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

SEAT, REAR FENDER & COMPONENTS

Item

1

Part No

7059215

Qty

1

Description

ASSEMBLY, Seat Support

-7059215

2 7074204

1

1

ASS'Y, Seat Support (Incl. items 2A, 3, 4 & 5)

SUPPORT, Seat

1

1

1

1

1

1

1

1

1

3

3

1

1

2

1

4

1

1

1

1

1

1

2

2

2

4

4

1

2

2

1

2

1

1

2A 7074204

3 7023354

4

5

6

7073266

7028580

7019109

7

8

9

7017875

7091001

7091819

10 7073346

11 7091761

12 7073905

13 7026415

14 7073344

15 7091523

16 7091524

17 7091105

18 7073347

19 7073408

20 7073424

-7073424

21 7091681

22 7033318

23 7074452

24 7091503

25 7028621

-7075063

26 7058851

27 7073306

28 7015761

29 7090953

30 7091298

31 7073223

32 7090913

33 7074632

SUPPORT, Seat- Electric Clutch

SWITCH, Seat, Gray (NC)

SPRING, Cushion Holder

HOLDER, Seat Cushion Electric Clutch

SPRING COVER, Rubber

KNOB, 3 Prong 5/16-18 x 2” Stud

SCREW, 5/16-18 x 5/8” Truss Head (Torx)

SCREW, 1/4-20 x 5/8” Hex Washer Self-Tap

SEAT PAN, Tractor- “No Mow in Reverse” Fender

RIV-NUT, 5/16-18 Round

DECAL, Snapper- Hood- 3D, Silver Letters

DECAL, Caution-Battery Installation, Fender

SUPPORT, Fender, Electric Clutch-K 46

SCREW, 5/16-18 x 5/8” Hex Washer Head

SCREW, 5/16-18 x 1-1/4” Swage

SCREW, #10-16 x 1/2 HXWA

QUADRANT- Shift- No Mow in Reverse

COVER, Shift (Black)

DECAL, Shift Cover, 5-Speed

DECAL, Shift Cove, 5-Speed

BOLT, 5/16-18 x 1” Hex Flange Lock

SUPPORT, Seat, Upper

ROD, Seat Hinge

HAIR PIN, 3/32 x 1.5”

SEAT, Operator (V1400)

SEAT, Operator (Milsco XB110)

ASSEMBLY, Stop Latch- Lock Out

LATCH, Overide-No Mow in Reverse

SHOULDER BOLT, 5/16-18

SHIM-WASHER

NUT, 5/16-18-3B Hex Nyloc

SPRING, Extension- Manual No Mow

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

CAP - Vinyl

Footnotes:

Note

Was 53761 (Includes 2, 3, 4 &

5)(“H” Models) used on Series “I” Models

Was 28579 used on Series “H”

Models used on Series “I” Models

Was 90362 replaces 22971

(Swage Form)

(Hydro Drive Models)

Was 16576, used on Series “H”

Hydro Models used on Series “I” Hydro Models used on Series “H” Models used on Series “I” Models

Was 90307

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

15

Manual No. 7006450

TP 400-5016-6-TC-N

SEAT, REAR FENDER & COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

16

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

SEAT, REAR FENDER & COMPONENTS

Item Part No

34 7043841

Qty

1

Description

SPRING, Extension, Latch Return

Note

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

17

Manual No. 7006450

TP 400-5016-6-TC-N

FRONT AXLE

Manual No. 7006450

TP 400-5016-6-TC-N

18

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

FRONT AXLE

Item Part No

18 7074424

19 7074600

20 7091299

21 7090122

22 7091575

23 7090250

24 7091557

25 7090831

26 7090842

27 7027174

28 7091121

29 7091821

30 7011791

31 7091264

32 7028326

33 7091302

34 7091497

1

2

3

4

5

7010746

7010935

7014669

7019034

7019467

6

7

8

7028689

7031036

7033383

9 7035372

10 7041245

-7041251

11 7041246

-7041250

12A 7074423

12B 7075080

13 7073851

14 7073852

15 7073853

16 7073855

17 7074182

Qty

1

4

1

1

2

3

2

2

1

2

2

2

5

2

1

2

2

1

2

2

1

2

1

1

1

1

1

1

2

2

2

1

1

3

3

1

1

Description

RING, 3/4” External Retaining

WASHER, 3/4” x 1-1/8” Flat

LUBE FITTING 57352

ARM, Steering

BEARING, Spindle

SPACER, .5 x .75 x 1.78

THRUST WASHER

BRACKET, Deck Hanger-Front Axle.

SPACER, Steering Stop, Cast Axle

WELDMENT, Right Hand Spindle Wheel

WELDMENT, Right Hand Spindle Wheel

WELDMENT, Left Hand Spindle Wheel

WELDMENT, Left Hand Spindle Wheel

BRACKET, Cast Axle Front

BRACKET, Cast Axle, Front

AXLE, Steel- Tractor

SPACER, Spindle Bearing- Steel Axle

SPACER, Axle- Steel

SPACER, Hex

BEARING, 3/4” I.D. DX

BRACKET, Cast Axle, Rear

SPACER, .39 x .5 x 1.72

NUT, 3/8-16 Hex Nyloc

WASHER, 3/8” Flat SAE

NUT, 5/16-18 Hex Center Lock

WASHER, 1/2” Flat

SCREW, 3/8-16 x 2-3/4” Hex Head Cap, GR2

SCREW, 5/16-18 x 2-3/4” Hex Head Cap, GR5

ROLL PIN, 1/4 x 1-1/4”

SCREW, 5/16-18 x 2” Hex Head Cap, GR5

NUT, 1/2-13 Hex Nyloc

SCREW, 1/2-13 x 3” Hex Head Cap, GR5

RETAINER, 5/16” Bolt

BOLT, 5/16-18 x 1-3/4” Hex Flange Lock, GR5

TIE ROD, Reduced Radius

NUT, 3/8-16 Hex , GR5 or B

SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR5

Note

used on 33” Deck Models used on 38” Deck Models used on 33” Deck Models used on 38” Deck Models used on Series “H” Models used on Series “I” Models

Was 76979

Was 90184

Was 90795

Was 90930

Was 91694

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

19

Manual No. 7006450

TP 400-5016-6-TC-N

FRONT AXLE

Manual No. 7006450

TP 400-5016-6-TC-N

20

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

FRONT AXLE

Item Part No

35 7091320

Qty

2

Description

WASHER,3/8” Split Lock

Note

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

21

Manual No. 7006450

TP 400-5016-6-TC-N

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

22

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

Item Part No

5

6

7

8

9

3

4

1 7073345

-7075079

2 7014451

7027936

7090482

7090163

7028420

7024180

7091619

7053568

10 7012706

11 7031036

12 7091584

13 7022381

14 7090975

15 7072636

16 7012080

17 7091601

18 7022743

19 7012661

20 7091299

21 7090122

22 7024381

23 7028037

24 7091593

25 7091575

26 7092031

27 7090517

28 7058339

29 -

30 7072369

31 7090188

32 7046782

33 7032070

34 7073607

35 7092058

36 7072626

1

1

1

5

4

1

1

1

2

1

1

1

1

1

4

1

6

2

2

1

2

1

1

1

1

1

1

Qty

2

1

2

1

1

1

1

1

2

2

Description Note

FRAME, Tractor (I piece)

FRAME, Tractor (I piece)

CABLE TIE, 3.19

ROD END, Pump Control Linkage, 3/8-24 thread

NUT, 3/8-24 Hex Jam

SCREW, 3/8-24 x 1-1/4” Square Neck Carriage

DRAGLINK

SPACER, Tie Rod

NUT, 3/8-16 Hex Flange Lock

ASSEMBLY, Steering Sector (Includes 41267, Weldment & item

10)

BEARING, Sleeve, .875 0.D. x .75

THRUST WASHER

NUT, 1/4-20 Hex Flange Lock

SHOULDER BOLT, 1/2-13 thread

NUT, 1/2-13 Hex Center Lock, GR A

BRACE, Sector Gear

CABLE TIE, 7”

NUT, 5/16-18 Hex Flange Lock, GR5

PEDAL, Clutch/Brake

PEDAL PAD

NUT, 3/8-16-3B Hex Nyloc

WASHER, 3/8” Flat SAE

SPRING, Brake

SWIVEL, Inline Brake Arm

COTTER PIN, 3/8 x 1-7/32” Self Lock

NUT, 5/16-18 Hex Center Lock, GR5 or B

NUT, 5/16-24 Hex Jam

WASHER, .44” I.D. Flat

WELDMENT, Brake Bellcrank

ARM, Speed Control (Component of Transaxle, see

Transmission Page)

ROD, Brake- K46

WASHER, 5/16 x .11/16 x .08 Flat

SPRING, Rectangular Wire Die, Blue

WASHER, 13/32 x 3/4” Flat

SWIVEL, Shift Linkage- PM

NUT, 5/16-24 Hex Nyloc

CABLE, Clutch/Brake- K46

used on Series “H” Models used on Series “I” Models

Was 90613

Was 90583

Was 90585

Was 91300

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

23

Manual No. 7006450

TP 400-5016-6-TC-N

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

24

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

Qty

2

1

1

1

2

1

1

1

1

1

2

1

1

2

1

1

1

2

5

3

1

2

1

6

2

2

2

3

1

1

1

1

3

1

1

1

1

2

Item Part No

57 7091302

58 7033557

59 7090376

60 7023355

61 7024383

62 7034410

63 7034347

-7034850

64 7034384

65 7033520

66 7041249

-7042597

67 7091000

68 7034377

69 7034326

70 7091501

71 7023954

72 7033556

37 7052431

38 7013864

39 7090509

40 7090619

41 7027344

42 7023645

43 7022742

44 7041236

45 7041244

46 7090361

47 7090803

48 7091240

49 7011016

50 7091587

51 7014341

52 7091001

53 7090122

54 7072298

55 7023649

56 7072403

Description

ASSEMBLY, Pivot-Foot Shaft (Includes item 38)

LUBE FITTING, Straight (press-fit for .187 dia. Hole)

WASHER, 1/2” Internal Tooth Lock

NUT, 1/2-13 Hex Flange Lock

WASHER, .64 x .99 x .05 Flat

PIN, 3/16 x 1-1/2” Clevis

BEARING, Flange

ASSEMBLY, Clutch/Brake Arm

WELDMENT, Parking Brake, OPPLT

SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR2

SCREW, #10-32 x 5/8” Hex Washer Head Machine, GR5

BUSHING, 1/2” Nylon

WASHER, .531 x 1.062 x .121 Flat SAE

RING, 1/2” External Retaining

SCREW, 5/16-18 x 5/8” Truss Head (Torx)

WASHER, 3/8" Flat

BRACKET, Pivot Mounting

WASHER, 5/16 Nylon

KNOB, Brake/Clutch- 5/16-18 thread

NUT, 3/8-16 Hex , GR5 or B

ARM, Idler-Traction Drive

NUT, #10-32 Hex Nyloc

SWITCH- DPDT NC/NO

SPRING, Traction Drive

BRACKET, Rear Lift/PTO Lever, Extruded

LINK, Lift (33” Deck)

LINK, Lift (38” Deck)

SPACER, .515 x .688 x .403

BRACKET, Deck Hang Pivot

WELDMENT, Rear Lift Arm, 33” Deck

WELDMENT, Rear Lift, 38” Deck

SCREW, 5/16-18 x 7/8” Truss Head (Torx)

SECTOR, Lift Plate

EXTENSION, Idler Arm

SCREW, 3/8-16 x 2-1/2” Hex Head Cap, GR5

PULLEY, 3.47 O.D. Flat Idler

BELT GUIDE, 3-1/2” Dia.

Note

Was 15992

Was 91514

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

25

Manual No. 7006450

TP 400-5016-6-TC-N

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

26

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

Item Part No

73 7091320

74 7047072

75 7090731

76 7091541

77 7091593

78 7072598

79 7090316

80 7091497

81 7024344

82 7091585

83 7027139

84 7073608

85 7091540

86 7029973

87 7091575

88 7024604

Qty

1

2

1

1

1

1

1

2

2

1

1

1

1

1

1

1

Description

WASHER,3/8” Split Lock

BRACKET, Frame Brace

BOLT, 5/16-18 x 1/2” Short Neck Carriage, GR5

SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

PIN, 3/8 Self Lock Cotter

BRACKET, Mounting Brace

BOLT, 5/16-18 x 3/4” Square Neck Carriage GR5

SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR5

PULLEY, Idler V, 3.30 HA

NUT, 3/8-16 Hex Center Lock, GR5 or B

ROD END, Pump Control Linkage, 5/16-24 thread

ROD, Shift Linkage

SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR5

SPACER, .38 I.D. x .56 O.D. x .75 thick

NUT, 5/16-18 Hex Center Lock, GR5 or B

SHOULDER BOLT, 1/2-13 thread x 3”

Note

Was 90368

Was 24159

Was 91097

Was 91066

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

27

Manual No. 7006450

TP 400-5016-6-TC-N

TRANSMISSION GROUP (Hydro Drive)

Manual No. 7006450

TP 400-5016-6-TC-N

28

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

TRANSMISSION GROUP (Hydro Drive)

Item Part No

1

2

3

4

5

7074398

7072387

7091708

7091294

7091597

6

7

8

7072601

7027174

7090188

9 7091298

10 7091830

11 7091675

12 7073613

13 7091601

14 7072884

15 7031036

16 7072385

17 7073757

18 7073753

19 7073800

19A 7073748

20 7073754

21 7073747

22 7072657

Qty

2

2

1

1

1

1

1

1

4

4

4

2

2

1

1

2

1

4

1

1

1

2

1

Description

ASSEMBLY, Transaxle-Tuff Torq, hand control K46 Hydro

ROD, Roll Release- K46

PIN, 1/4 x 5/8” Clevis

WASHER, 1/4 x 5/8 x 1/16” Flat

PIN, 3/32 x 1/2” Cotter

BRACKET, Torque/Spool- TTK46

SCREW, 5/16-18 x 2” Hex Head Cap, GR5

WASHER, 5/16 x 11/16 x 1/16” Flat, GR5

NUT, 5/16-18-3B Hex Nyloc

SCREW, 5/16-18 x 3” Hex Head Cap, GR5

WASHER, .34 x 1.0 x .09 Flat

SPACER, Hydro Axle- Steel- K46

NUT, 5/16-18 Hex Flange Lock, GR5

WASHER, Axle- TT K46 Hydro

THRUST WASHER

SPACER, Axle- K46

SNAP RING, Special (Kanzaki # 192154-89090) 1

FAN (Vendor # 1A640-83050)

PULLEY, 4” Diameter (Vendor # 1A6460-25333)

PULLEY, C (Kanzaki P/N 1A6460-25333)

WASHER, Wave (Vendor # 1A6460-83060)

SPACER (Vendor # 1A6460-25300)

BELT, Traction Drive (HA Section, 97.881” Effective Length)

-7073834 1 BELT, Traction Drive (HA Section, 96.60” Effective Length)

Note

Was 90055

Was 90555

Was 91296 used on ELT150H33IBV used on Series “H” &

ELT150H33IBV used on LT150H33IBV,

LT150H38IBV and

WLT150H38IBV Models

23 7072386

24 7072607

25 7034399

26 7029600

27 7023182

28 7091601

29 7090361

30 7090391

2

1

1

1

1

1

2

1

KEY, 3/16” Square x 2-3/16” long

BRACKET, Spool

GUIDE, Cable

ROD, Spool Pivot

SPOOL

NUT, 5/16-18 Hex Flange Lock, GR5

SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

WASHER, 5/16” Internal Tooth Lock

Was 90585

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

29

Manual No. 7006450

TP 400-5016-6-TC-N

HYDRO RESERVOIR ASSEMBLY

Manual No. 7006450

TP 400-5016-6-TC-N

30

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

HYDRO RESERVOIR ASSEMBLY

Item

6

7

4

5

1

2

3

Part No

7072739

7072736

7016130

7072901

7091431

7090858

7072914

Qty

2

1

1

1

1

1

2

Description

BRACKET, Reservoir Mounting

RESERVOIR, Expansion- TTK46 Hydro

CLAMP 13/16”

HOSE, Hydraulic-(4-1/2” long) TTK46 Hydro

VALVE, Vent

SCREW, 5/16-18 x 1/2” Hex Washer Self-Tap

CABLE TIE - 10 x 1/4 x .083 thick

Note

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

31

Manual No. 7006450

TP 400-5016-6-TC-N

BELT GUIDE ASSEMBLY

Manual No. 7006450

TP 400-5016-6-TC-N

32

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

BELT GUIDE ASSEMBLY

Item

4

5

6

1

2

3

Part No

7035963

7091575

7028303

7035528

7072924

7028304

Qty Description

1

4

BRACKET, Belt Guide

NUT, 5/16-18 Hex Center Lock, GR5 or B

2 or 4 STUD, Belt Guide

2

1

2

STUD, Belt Guide 38” Dual Brake Deck

STUD, Belt Guide

STUD, Belt Guide 33” Deck

Note

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

33

Manual No. 7006450

TP 400-5016-6-TC-N

BLADE ENGAGEMENT & TRANSMISSION CONTROLS

Manual No. 7006450

TP 400-5016-6-TC-N

34

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

BLADE ENGAGEMENT & TRANSMISSION CONTROLS

Qty

1

1

1

1

1

2

1

4

1

1

1

3

1

2

1

2

8

1

1

2

1

1

1

1

2

2

1

1

1

1

1

1

1

1

2

1

1

Item Part No

20 7090122

21 7024344

22 7033556

23 7091524

24 7035524

25 7091585

26 7040598

27 7091524

28 7023914

29 7033825

30 7091198

31 7072756

-7072754

32 7073611

33 7046900

34 7046899

35 7091588

5

6

7

8

9

3

4

1 7073345

-7075709

2 7024616

7033488

7028630

7091598

7014296

7091573

7052562

7091584

10 7022368

11 7058874

12 7091508

13 7023656

14 7019245

15 7031036

16 7010754

17 7091601

18 7091597

19 7091497

Description

FRAME, Tractor (I piece)

FRAME, Tractor (I piece)

BUSHING, Flange

BRACKET, Hood Pivot

WIRE CLIP, .28 x .41

PIN, 1/8 x 3/4” Cotter

SHIM WASHER, .50 x .75 x .03

BOLT, 1/4-20 x 5/8” Short Neck Carriage, GR 5

ASSEMBLY, Steering Adjuster

NUT, 1/4-20 Hex Flange Lock

GEAR, Pinion, Steering

WELDMENT, Shift Handle- TTK46

BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5

LEVER Shift Handle

BUSHING, 3/4 - 1.62 Flange

THRUST WASHER

SPRING, Shift Detent

NUT, 5/16-18 Hex Flange Lock, GR 5

PIN, 3/32 x 3/4” Cotter

SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5

WASHER, 3/8” Flat

PULLEY, Idler V, 3.30 HA

BELT GUIDE, 3-1/2” Dia.

SCREW, 5/16-18 x 1-1/4” Swage

SUPPORT, PTO Lever

NUT, 3/8-16 Hex Center Lock, GR 5 or B

WELDMENT, Arm

SCREW, 5/16-18 x 1-1/4” Hex Head Self-Tap

PIN, 1/4 x 1-5/8” Clevis

ANCHOR, Blade Brake

SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap

DECAL, Instruction Frame Top

DECAL, Instruction Frame Top (Euro)

FOOT PAD, Textured (Black)

BELT GUIDE

BRACE, Frame

BOLT, 3/8-16 x 3/4” Hex Flange Lock

Note

used on Series “H” Models used on Series “I” Models

Was 90037

Was 91514

Was 91151 see decal page see decal page was 28203

Was 90612

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

35

Manual No. 7006450

TP 400-5016-6-TC-N

BLADE ENGAGEMENT & TRANSMISSION CONTROLS

Manual No. 7006450

TP 400-5016-6-TC-N

36

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

BLADE ENGAGEMENT & TRANSMISSION CONTROLS

Item Part No

36 7024518

37 7041238

38 7031036

39 7090509

40 7041237

41 7042598

42 7029152

Qty

1

1

2

1

1

1

1

Description

BOLT, 1/2-13 Shoulder

WELDMENT, Bellcrank PTO

THRUST WASHER

WASHER, 1/2” Internal Tooth Lock

WELDMENT, PTO Link

WELDMENT, PTO Lever

CABLE, 33 Blade

-7075325

-7046896

43 7090500

44 7091593

45 7090619

46 7091619

47 7019246

48 7023355

49 7091240

50 7058749

51 7075366

52 7058876

53 7073835

1

1

2

1

1

1

1

2

1

3

3

1

8

CABLE, 33 Blade

CABLE, PTO

WASHER, 7/16” Flat SAE

PIN, 3/8 Self Lock Cotter

NUT, 1/2-13 Hex Flange Lock

NUT, 3/8-16 Hex Flange Lock

BUSHING, 3/4 - I” Flange (nylon)

SWITCH- DPDT NC/NO

SCREW, #10-32 x 5/8” Hex Washer Head Machine, GR 5

WELDMENT, Bracket

ASSEMBLY, Cable (part no. stamped on cable)

WELDMENT, Pivot Plate

HEAT SHIELD (Foot Rest)

Note

used on 33” Deck, Series “H” and earlier used on 33” Deck, Series “I”

Models used on 38” Deck Models

Was 24159

Was 90613 replaces 73222

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

37

Manual No. 7006450

TP 400-5016-6-TC-N

IMPLEMENT LIFT PARTS

Manual No. 7006450

TP 400-5016-6-TC-N

38

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

IMPLEMENT LIFT PARTS

Item Part No

5

6

7

8

9

3

4

1 7041655

-7041015

2 7022565

7019363

7014361

7033449

7091001

7091000

7091604

7034559

10 7091584

11 7091601

12 7022567

13A 7041254

13B 7041255

14 7022566

15 7091596

16 7022895

17 7022568

18 7090999

19 7024742

Qty

1

1

1

1

2

1

2

2

1

1

1

1

1

2

2

1

1

1

1

1

1

Description

WELDMENT, Implement Lift Lever-33/42

WELDMENT, Implement Lift Lever-30/38

ROD, Lift Lever

KNOB, Lift Handle

CAP, Lift Lever Rod

QUADRANT, Lift Lever

SCREW, 5/16-18 x 5/8” Truss Head (Torx)

SCREW, 5/16-18 x 7/8” Truss Head (Torx)

BOLT, 1/4-20 x 1/2” Short Neck Carriage, GR5

DETENT, High Cut Lockout

NUT, 1/4-20 Hex Flange Lock

NUT, 5/16-18 Hex Flange Lock, GR5

PIVOT, Lift Lever

WELDMENT, Bellcrank, Lift Lever, 33

WELDMENT, Bellcrank, Lift Lever, 30/38/42

SPRING, Latch Detent

COTTER HAIR PIN, 2-5/8”

PIN, Dowel, 1/4 x 1-1/8”

DETENT, Lift Lever

SCREW, 1/4-20 x 5/8” Pan Head Self-Tap (Torx)

PIVOT, Latch Detent

Note

used on 33” Deck Models used on 38” Deck Models

Was 90005 used on European Models Only

Was 90583

Was 90585 used on 33” Deck Models used on 38” Deck Models

Was 13844

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

39

Manual No. 7006450

TP 400-5016-6-TC-N

ENGINE COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

40

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

ENGINE COMPONENTS

Item

1 --

Part No Qty

1

Description

ENGINE, B&S, 14.5 HP

---

---

1

1

ENGINE, Kohler, 15 HP

ENGINE, B&S, 15 HP

---

---

---

2 7090391

3 7072905

-7073803

5

6

-7073804

4 7091301

7091579

7091531

7

8

9

7090669

7027972

7091581

10 7041537

11A 7041269

11B 7075065

12 7026482

13 7029900

14 7029982

-7032956

-7075472

15 7091511

16 7091315

17 7090188

18 7015861

19 7091075

20A 7041677

20B 7041340

20C 7041639

21 7073231

22 7075171

23 7075070

24 7015352

25 7071756

1

1

1

5

2

4

1

4

4

1

1

1

1

1

1

2

1

1

1

1

1

1

2

1

3

1

1

3

1

1

1

1

1

1

ENGINE, B&S, 15 HP

ENGINE, B&S, 18 HP

ENGINE, B&S, 18 HP

WASHER, 5/16” Internal Tooth Lock

ASSEMBLY, Engine Pulley

ASSEMBLY, Engine Pulley

ASSEMBLY, Engine Pulley

WASHER, 7/16” Split Lock

SCREW, 1/4-20 x 1/2” Hex Flange Lock

SCREW, 7/16-20 x 1” Socket Head Cap

SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR 5

ASSEMBLY, Oil Valve

SCREW, #8-18 x 1/2” Hex Head Sheet Metal

WELDMENT, Muffler Deflector

HEAT SHIELD, Muffler (weldment)

HEAT SHIELD, Muffler

CLIP, “J” Open Type .4 Bundle Dia., .281 Dia. Hole

CLAMP, .490 x .31

FUEL LINE, 14” long

FUEL LINE, 10” long

FUEL LINE, 29” long

NUT, 5/16-18 Hex, GR 5 or B

WASHER, 5/16” Split Lock

WASHER, 5/16” Flat

HARNESS CLIP, Cushioned

SCREW, #10-24 x 5/8” Hex Washer Self-Tap, GR 5

HEAT SHIELD, Muffler

HEAT SHIELD, Muffler

HEAT SHIELD, Muffler

DECAL, Warning-Speed Setting 14, 16, & 18 HP ENGINES

TRIM-Heat Shield 3” long

PLATE, Engine- Briggs Engine

GASKET, Exhaust (1.25” I.D.; 1.875” hole centers)

ADAPTER, Muffler

Footnotes:

Purchase engine & engine parts other than those listed, from engine service outlets.

Note

Model 287707, Type 1250, Trim

E1

Model CV15S, Type PS-41603

Model 281H07, Type 0111, Trim

E1

Model 281H07, Type 0112, Trim

E1

Model 31H777, Type 0117, Trim

E1

Model 31H777, Type 0120, Trim

E1 used on 33” Deck Euro Models used on 33” Deck Domestic

Models used on 38” Deck Models used on Series “H” Models used on Series “I” Models used on Series “H” Models used on some Series “I” Models used on some Series “I” Models

Was 91296 used on European Models used on Domestic Models used on 33” Deck Euro Models

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

41

Manual No. 7006450

TP 400-5016-6-TC-N

ENGINE COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

42

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

ENGINE COMPONENTS

Item Part No

26 7074826

27 7091628

28 7024161

29 7090324

30 7091315

31 7024566

32 7090606

33 7091601

Qty

1

3

2

2

2

1

1

1

Description

MUFFLER, 14.5HP Briggs Engine

WASHER, .64 x .99 x .05 Flat

SHOULDER BOLT, 5/16-18 thread x 4”

SCREW, 3/8-16 x 1” Hex Washer Self-Tap

WASHER, 5/16” Split Lock

SCREW LOCK

BOLT, 5/16-18 x 5/8” Hex Flange Lock, GR 5

NUT, 5/16-18 Hex Flange Lock, GR 5

Note

used on Series “I” Models

Was 91510

Footnotes:

Purchase engine & engine parts other than those listed, from engine service outlets.

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

43

Manual No. 7006450

TP 400-5016-6-TC-N

33" CUTTING DECK, BELTS, BRAKES

Manual No. 7006450

TP 400-5016-6-TC-N

44

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

33" CUTTING DECK, BELTS, BRAKES

Item Part No

19 7029694

20 7012431

21 7026677

22 7014343

23 7091576

24 7026639

25 7033938

26 7013460

27 7027471

28 7091596

29 7043232

30 7032028

31 7015272

32 7019190

33 7090289

34 7090731

35 7091601

5

6

7

8

9

3

4

1 7061956

-7061956

2 7026558

7074467

7014304

7052886

7032169

7024192

7010740

7038018

10 7091541

11 7091585

12 7012264

13 7075346

-7075346

14 7091597

15 7091294

16 7075707

17 7090122

18 7091553

Qty

1

2

1

4

3

1

1

1

1

2

1

1

1

3

3

6

9

2

1

1

3

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

Description

ASSEMBLY, 33” Deck (Includes items 46A & 81)

ASSEMBLY, 33” Deck

PULLEY, Spindle, 7” O.D.

NUT, 3/4-16 Hex Flange Jam, GR8

PIN, 1/4 x 1-1/4” Clevis

ASSEMBLY, Brake Band

DRUM, Brake

ROD, Link, Clutch/Brake

RING, 2” External Retaining

BRACE, Spindle

SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

NUT, 3/8-16 Hex Center Lock, GR 5 or B

SPRING, Clutch & Brake

GUIDE, Belt (Series “H”)

GUIDE, Belt (Series “I”)

PIN, 3/32 x 3/4” Cotter

WASHER, 1/4” I.D. x 5/8” O.D. Flat

IDLER, Flat (4.00 O.D.)

WASHER, 3/8” Flat SAE

SCREW, 3/8-16 x 1-3/4” Hex Head Cap, GR 5

SWIVEL, Brake

PIN, 1/4 x 1-1/8” Hair

BOLT, 1/4-20 Eye

NUT, 1/4-20 Tee

NUT, 1/4-20 Hex, GR 5

ROD, Front Lift

BRACKET, Front Lift Hanger

PIN, 3/8 x 1-1/2” Clevis

PIN, Deck Hanger Improved

HAIRPIN, .148 x 2.62

WELDMENT, Front Lift Arm

WASHER, 3/4” I.D. Flat

SPACER

WHEEL, Gage

NUT, 3/8-24 Hex Center Lock, GR 5

BOLT, 5/16-18 x 1/2” Short Neck Carriage, GR 5

NUT, 5/16-18 Hex Flange Lock, GR 5

Note

Was 53690

Was 53693 (Includes 46B & 81)

Was 90368

Was 41487

Was 90037 was 27717 or 24607

Was 90063 was 41613 was 91600

Was 90004

Was 90585

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

45

Manual No. 7006450

TP 400-5016-6-TC-N

33" CUTTING DECK, BELTS, BRAKES

Manual No. 7006450

TP 400-5016-6-TC-N

46

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

33" CUTTING DECK, BELTS, BRAKES

Item Part No

51 7090584

52 7091547

53 7032432

54 7015012

55 7091304

56 7090721

57 7038453

58 7033952

59 7052917

60 7024687

61 7010817

62 7052294

63 7012491

64 7013313

65 7014407

66 7037751

67 7091939

68 7090509

36 7091532

-7052555

-7052555

37 7026483

38 7026234

39 7091588

40 7033780

41 7026233

42 7013010

43 7075705

-7075706

44 7091508

45 7091619

46A 7014852

46B 7022841

47 7090188

48 7091537

-7091511

49 7091302

50 7090118

Qty

1

1

1

1

2

4

2

1

1

1

1

1

1

2

2

1

4

2

2

1

1

2

2

1

1

18

1

1

15

1

1

1

1

3

1

1

1

1

Description

SCREW, 3/8-24 x 3-3/4” Hex Head Cap, GR 5

ASSEMBLY, Deflector (Includes items 37, 38, 40, 41, 42 & 96)

ASSEMBLY, Deflector- Euro

PALNUT, 1/4” Hex

PIN, Hinge

BOLT, 3/8-16 x 3/4” Hex Flange Lock

HINGE, Deflector

DEFLECTOR, Discharge

DECAL, Danger, Cut Finger

BELT, HA Section, 56.25” effective length

BELT, HA Section, 56.95” effective length

BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5

NUT, 3/8-16 Hex Flange Lock

DECAL, Caution, Deflector

DECAL, Caution, Deflector

WASHER, 5/16” Flat

NUT, 5/16-18 Wing

NUT, 5/16-18 Hex, GR 5 or B

NUT, 3/8-16 Hex

WASHER, 3/8” Split Lock

BOLT, 1/4-20 x 1/2” Hex Flange Lock, GR 5

BOLT, 3/8-16 x 3/4” Short Neck Carriage, GR 5

ADJUSTMENT & LINK

ADJUSTMENT RING

SCREW, 3/8-16 x 1” Hex Head Cap, GR 5

BOLT, 5/16-18 x 1/2” Flange Lock, GR 5

RAIL, Side

ANCHOR, Brake

ASSEMBLY, Spindle (Includes items 60 thru 70)

SPINDLE, 4” Shoulder

LUBE FITTING, Straight (press-fit for .187 dia. Hole)

WELDMENT, Spindle Housing (Includes item 61)

RING, 1-3/4” Retaining

BALL BEARING, 3/4” I.D.

WASHER, Spindle

HOLDER, Blade

NUT, 1/2-20 Hex Jam

WASHER, 1/2” Internal Tooth Lock

Note

Was 58765

Was 90612 replaces 26831 used on LT33 used on ELT33

Was 90613 see decal page see decal page

Was 91296

Was 90492

Was 90130

Was 90850

Was 90563 or 47962

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

47

Manual No. 7006450

TP 400-5016-6-TC-N

33" CUTTING DECK, BELTS, BRAKES

Manual No. 7006450

TP 400-5016-6-TC-N

48

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

33" CUTTING DECK, BELTS, BRAKES

Item Part No

69 7090491

70 7090356

71 7019523

72 7019523

-7034168

73 7037723

-7034468

74 7090228

75 7090391

76 7091297

77 7033571

78 7042608

79 7042578

80 7022991

81 7014852

82 7024183

83 7033578

84 7033926

85 7090361

86 7015761

87 7091584

88 7012670

89 7033586

90 7033570

91 7041311

92 7090122

93 7091503

94 7091587

95 7091588

96 7016341

97 7029152

Qty

1

1

1

2

1

2

1

1

1

1

2

2

6

6

6

4

1

1

1

1

3

1

1

2

2

2

1

1

1

1

1

Description

SCREW, 1/2-20 x 1-1/4” Hex Head Cap, GR 5

NUT, 5/8-18 Hex Center Lock Jam, GR 5 or B

ASSEMBLY, Blade & Air Lift

BLADE, 33” Cutting Deck (Euro)

BLADE, 33” Cutting Deck

AIR-LIFT

AIR-LIFT

SCREW, 5/16-24 x 11/16” Machine

WASHER, 5/16” Internal Tooth Lock

NUT, 5/16-24 Hex, GR 5

BRACKET, Gage Wheel (Rear)

BRACKET, Rear Deck Lift, Left Side

WELDMENT, Bracket, Sector Lift - RR

DECAL, 33” Hi-Vac

DECAL, Caution (Rotating Blades)

ARM, Pivot

BRACKET, Pivot Arm

GUIDE, Belt

SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

SHOULDER BOLT, 5/16-18

NUT, 1/4-20 Hex Flange Lock

RING, Tolerance

BRACKET, Link, Clutch/Brake

BRACKET, Gage Wheel (Front)

WELDMENT, Brake Arm

WASHER, 3/8” Flat SAE

HAIR PIN, 3/32 x 1.5”

WASHER, .531 x 1.062 x .121 Flat SAE

BOLT, 3/8-16 x 3/4” Hex Flange Lock, GR 5

SPRING, Hinge

CABLE, 33” Blade Hydro (attaches to item 82)

Note

Was 57482 (Includes 72 thru 76) not shown used with item 1A above used with item 1B above

Was 90223 was 41252 or 90583

Was 90612 or 91588 not shown

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

49

Manual No. 7006450

TP 400-5016-6-TC-N

38" CUTTING DECK, BELTS, BRAKES PT.1

Manual No. 7006450

TP 400-5016-6-TC-N

50

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

Qty

2

2

2

1

19

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

6

14

6

4

2

38" CUTTING DECK, BELTS, BRAKES PT.1

Item Part No

1

2

3

4

5

7061960

7028365

7033756

7033891

7034875

6

7

8

7035494

7035505

7035506

9 7035577

10 7042578

11 7042606

12 7012063

13 7035603

14 7042602

15 7091575

16 7091169

17 7063198

18 7027792

19 7042998

20 7091601

21 7091619

22 7090799

23 7090815

24 7091547

25 7091006

26 7036563

27 7091169

28 7091575

29 7091541

30 7072440

Description

DECK, 38” Cutting

BRACKET, Front Linkage

BRACKET, L.H. Front Gage Wheel

BRACKET, L.H. Rear Wheel

ANGLE, Front

BRACKET, R.H. Front Gage Wheel

CRADLE, Spring

GUIDE, Belt Dual Spindle Brake

BRACKET, Front Lift Arm- LS

BRACKET, Sector Lift R.H. Rear

BRACKET, Sector Lift L.H. Rear

WASHER, Cone, 13/32 x 1-13/32” Diameter

FRONT LIFT ARM, 38” Deck

WELDMENT, Front Lift Arm

NUT, 5/16-18 Hex Center Lock

BOLT, 5/16-18 x 1-1/8” Short Neck Carriage, GR5

ASSEMBLY, 38” Spindle

PULLEY, 5-1/2” Dia. A/B V (Spindle)

BLADE, 38” Cutting Deck

NUT, 5/16-18 Hex Flange Lock, GR5

NUT, 3/8-16 Hex Flange Lock

BOLT, 5/16-18 x 5/8” Short Neck Carriage, GR5

BOLT, 3/8-16 x 3/4” Hex Washer Self-Tap

BOLT, 3/8-16 x 3/4” Short Neck Carriage, GR5

NUT, 5/8-18 Hex Nyloc

GUIDE, Belt Side Rail

BOLT, 5/16-18 x 1-1/8” Short Neck Carriage, GR5

NUT, 5/16-18 Hex Center Lock, GR5 or B

SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

SPACER, Pulley, 38” Deck

Note

Was 90184

Was 59377 or 58357 per spindle assembly

Was 90585

Was 90613

Was 90850

Was 90368

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

51

Manual No. 7006450

TP 400-5016-6-TC-N

38" CUTTING DECK, BELTS, BRAKES PT.2

Manual No. 7006450

TP 400-5016-6-TC-N

52

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

38" CUTTING DECK, BELTS, BRAKES PT.2

Item Part No

1

2

3

4

5

7013847

7018574

7024604

7024607

7026122

6

7

8

7013010

7027168

7029425

9 7029617

10 7035500

Qty

1

3

1

1

1

1

1

1

1

3

Description

RETAINER, 3/8” Bolt

IDLER, 4-1/8” Flat

SHOULDER BOLT, 1/2-13 thread x 3”

SWIVEL, Brake Link

WHEEL, Gage (38 Deck)

DECAL, Danger, Cut Finger

SCREW, 5/16-18 x 1” Hex Head Cap, GR5

CHUTE, Side Discharge

WASHER, 3/4 x 1-5/16 x 1/16”

BELT, HA Section, 85.4” effective length

11 7035502

12 7035503

13 7035507

14 7035510

15 7035518

16 7035529

17 7036586

18 7042595

19 7026154

20 7042596

21 7035496

22 7090289

23 7091830

24 7090975

25 7091810

26 7091294

27 7091302

28 7091331

29 7091508

30 7090122

31 7091526

32 7091541

33 7091575

34 7091587

35 7091310

36 7091597

37 7091601

1

4

1

1

1

1

2

3

2

1

1

1

1

2

1

2

2

1

1

3

3

2

3

3

2

4

4

ROD, Pivot, Side Discharge

ROD, Mounting, Side Discharge

PIVOT, Dual Brake

BRAKE LINK, Dual Spindle Brake

LEVER, Engagement

GUARD, Belt, 38” Dual Spindle Brake

J-BOLT, 3/8-16 x 6-1/4”

ARM, Brake

DECAL, 38 Inch

ARM, Idler, Dual Brake

BEARING, 3/4” I.D. DX

NUT, 3/8-24 Hex Center Lock, GR5

SCREW, 5/16-1/8 x 3” Hex Head Cap, GR5

NUT, 1/2-13 Hex Center Lock, GR A

BOLT, 3/8-16 x 1-3/4” Short Neck Carriage, GR5

WASHER, .28 x .63 x .06 GR5

NUT, 3/8-16 Hex , GR5 or B

WASHER, 13/32” I.D. Flat

BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR5

WASHER, 3/8” SAE Flat

BOLT, 5/8” Dia. Shoulder, 3/8-24 Thread

SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

NUT, 5/16-18 Hex Center Lock, GR5 or B

WASHER, .531 x 1.062 x .121 Flat SAE

HAIR PIN, #13

PIN, 3/32 x 3/4” Cotter

NUT, 5/16-18 Hex Flange Lock, GR5

Note

Was 26831 used on 38” Deck Dual Spindle

Brake

Was 90553

Was 91158

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

53

Manual No. 7006450

TP 400-5016-6-TC-N

38" CUTTING DECK, BELTS, BRAKES PT.2

Manual No. 7006450

TP 400-5016-6-TC-N

54

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

38" CUTTING DECK, BELTS, BRAKES PT.2

Item Part No

38 7091675

39 7091775

40 7091619

41 7012264

42 7029025

43 7091732

44 7091576

45 7091545

46 7091596

47 7027471

48 7035813

Qty

1

1

1

1

1

1

4

1

1

1

1

Description

WASHER, .34 x 1.0 x .09 Flat

WASHER, 1/2” I.D. x 2-1/2” O.D. Special “D”

NUT, 3/8-16 Hex Flange Lock

SPRING

SPRING, Extension

SCREW, 1/4-20 x 2-3/4” Hex Head Cap, GR5

NUT, 1/4-20 Hex, GR5

NUT, 1/4-20 Hex Flange Lock, GR5

HAIRPIN, .148 x 2.62

PIN, Deck Hanger Improved

SPRING, Side Discharge

Note

Was 90613

Was 90971

Was 90063

Was 90477

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

55

Manual No. 7006450

TP 400-5016-6-TC-N

SPINDLE- 33" CUTTING DECK

Manual No. 7006450

TP 400-5016-6-TC-N

56

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

SPINDLE- 33" CUTTING DECK

Item

1

Part No

7052917

5

6

7

8

9

2

3

4

7012491

7013313

7052294

7010817

7090491

7091939

7090356

7037751

10 7014407

11 7024687

12 7012670

Qty

1

1

2

2

1

1

1

1

1

2

2

1

Description

ASSEMBLY, Spindle Housing, 33” Cutting Deck (Incl. items 2 thru 11)

RING, 1-3/4” Retaining

BALL BEARING, 3/4” I.D.

WELDMENT, Spindle Housing (Includes Item 5)

LUBE FITTING, Straight (press-fit for .187 dia. Hole)

SCREW, 1/2-20 x 1-1/4” Hex Head Cap, GR5

NUT, 1/2-20 Hex Jam

NUT, 5/8-18 Hex Center Lock Jam, GR5 or B

HOLDER, Blade

WASHER, Spindle

SPINDLE, 4” Shoulder

RING, 2” Tolerance

Note

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

57

Manual No. 7006450

TP 400-5016-6-TC-N

SPINDLE- 38" CUTTING DECK

Manual No. 7006450

TP 400-5016-6-TC-N

58

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

SPINDLE- 38" CUTTING DECK

Item Part No

-7063198

5

6

7

8

9

1

2

3

4

7010817

7012491

7013313

7063199

7072537

7072109

7024467

7091633

7042998

Qty

2

1

1

2

1

1

1

2

2

1

Description Note

ASSEMBLY, Spindle Housing, 38” Cutting Deck (Includes items

2 thru 9)

LUBE FITTING, Straight (press-fit for .187 dia. Hole)

RING, 1-3/4” Retaining

BALL BEARING, 3/4” I.D.

WELDMENT, Spindle Housing

SHAFT, Spindle

WASHER, Spindle

WASHER, Belleville, 19/32” I.D. x 1-3/4” O.D.

NUT, 9/16-18 Hex Jam, GR B

BLADE, 19”

Was 59377 per spindle assembly per spindle assembly per spindle assembly

Was 58356, per spindle assembly per spindle assembly per spindle assembly per spindle assembly per spindle assembly per spindle assembly

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

59

Manual No. 7006450

TP 400-5016-6-TC-N

DECALS PT. 1

Manual No. 7006450

TP 400-5016-6-TC-N

60

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

DECALS PT. 1

Item Part No

1

2

3

4

5

7026154

7022991

7014852

7014852

7026415

8

9

6

7

7029784

7013010

-7013010

7022841

7072756

-7072754

-7072757

-7072758

-7072759

-7073207

-7073208

Qty

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Description

DECAL, 38 Inch

DECAL, 33 Inch Hi-Vac

DECAL, Caution, Rotating Blades

DECAL, Caution, Rotating Blades

DECAL, Caution-Battery Installation Fender

DECAL, Deck/Chute International Warning

DECAL, Danger, Cut Finger

DECAL, Danger, Cut Finger (heavy duty adhesive)

DECAL, Danger, Cut Finger (European version)

DECAL, Instructions, Frame Top

DECAL, Instructions, Frame (Euro)

DECAL, Instructions (Dutch version of above)

DECAL, Instructions (German version of above)

DECAL, Instructions (French version of above)

DECAL, Instructions (Spanish version of above)

DECAL, Instructions (Italian version of above)

Note

Was 16973

Was 26831, not shown not shown not shown not shown not shown not shown not shown not shown not shown

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

61

Manual No. 7006450

TP 400-5016-6-TC-N

DECALS PT. 2

Manual No. 7006450

TP 400-5016-6-TC-N

62

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

DECALS PT. 2

Item Part No

10 7075378

-7029490

11 7028561

-7073579

12 7023009

13 7026377

14 7029776

15 7073424

15A 7073424

16 7044767

17 7046720

18 7072749

19 7073231

-7073255

-7073256

-7073257

-7073258

-7073259

20 7073335

-7078022

21 7016134

Qty

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Description

DECAL, 2003 Year of Manufacture

DECAL, 2004 Year of Manufacture

DECAL, Console, Basic

DECAL, Console (2001 Model Year)

DECAL, Noise Control, Euro

DECAL, Medallion

DECAL, European Community

DECAL, Shift Cover

DECAL, Shift Cover (Euro)

DECAL, Hydro Reservoir

DECAL, Chute/Deflector

DECAL, Roll Release

DECAL, Warning-Speed Setting 14, 16, & 18 HP ENGINES

DECAL, Warning-Speed Setting (German Version of above)

DECAL, Warning-Speed Setting (Dutch Version of above)

DECAL, Warning-Speed Setting (Spanish Version of above)

DECAL, Warning-Speed Setting (Italian Version of above)

DECAL, Warning-Speed Setting (French Version of above)

DECAL, OPEI Ride-On

DECAL, OPEI Ride-On

TAG, Caution

Note

similar to above; not shown

Was 71544

Was 16576 used on European Models similar to above; not shown used on Series “H” Models Only

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

63

Manual No. 7006450

TP 400-5016-6-TC-N

DECALS PT. 3

Manual No. 7006450

TP 400-5016-6-TC-N

64

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

DECALS PT. 3

Item Part No

22 7073905

23 7074135

24 7044767

25 7074479

26 7074478

27 7075631

28 7075632

Qty

1

1

1

1

1

1

1

Description

DECAL, Snapper- Hood- 3D, Silver Letters

DECAL, Noise Control (Euro)

DECAL, Hydro Reservoir

DECAL, No Mow in Reverse

DECAL, No Mow in Reverse (Euro)

DECAL, Service Parts, Tractor, Domestic

DECAL, Service Parts, Tractor, Euro

Note

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

65

Manual No. 7006450

TP 400-5016-6-TC-N

ELECTRICAL COMPONENTS

Manual No. 7006450

TP 400-5016-6-TC-N

66

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

ELECTRICAL COMPONENTS

Item Part No

1A 7075912

1B 7075913

Qty

1

1

Description

BATTERY, 12v 195 cca 7 Plates/Cell, Wet

BATTERY, 12v 300 cca 9 Plates/Cell, Wet

1C 7019044

2 7076978

3

4

5

6

7

7017853

7012485

7026414

7075622

7091122

8

9

7090977

7090053

10 7014476

11 7090072

12 7012444

13 7023187

14 7023355

15 7026343

2

2

1

2

1

1

1

1

1

2

1

1

6

1

2

BATTERY, 12v 165 cca 7 Plates/Cell, Dry

NUT, 1/4-20 Hex Nyloc

TRAY, Battery

RETAINER, 1/4” Bolt

WIRE, Ground, Black, 6” long

SOLENOID- Super Trombetta- 2 Terminal

SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap

NUT, 1/4-20 Hex Jam

WASHER, 1/4” Internal Tooth Lock

WIRE, Positive, Red, 11” long (solenoid to battery)

SCREW, 1/4-20 x 5/8” Hex Head Cap, GR5

COVER, Battery Cable

LIGHT SWITCH, Rocker, SPST

SWITCH- DPDT NC/NO

SWITCH, Ignition-Afterfire Solenoid

Note

used on Series “H” & “I” LT replaces 74018; used on Series “

H” & “I” WLT used on Euro Models replaces 18604

Was 90539

Was 91314

Was 27172

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

67

Manual No. 7006450

TP 400-5016-6-TC-N

ELECTRICAL SCHEMATIC (Series H)

Manual No. 7006450

TP 400-5016-6-TC-N

68

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

ELECTRICAL SCHEMATIC (Series H)

Item Part No

-7026616

Qty

1

Description

HARNESS, Main B&S 14HP OHV

Note

used on Series “H” Models

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

69

Manual No. 7006450

TP 400-5016-6-TC-N

ELECTRICAL SCHEMATIC (15 H.P. Series I)

Manual No. 7006450

TP 400-5016-6-TC-N

70

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

ELECTRICAL SCHEMATIC (15 H.P. Series I)

Item Part No

-7075211

Qty

1

Description

HARNESS, Main B&S 15HP OHV

Note

used on 15 H.P. Series “I”

Models

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

71

Manual No. 7006450

TP 400-5016-6-TC-N

ELECTRICAL SCHEMATIC (18 H.P. Series I)

Manual No. 7006450

TP 400-5016-6-TC-N

72

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

ELECTRICAL SCHEMATIC (18 H.P. Series I)

Item Part No

-7028404

Qty

1

Description

HARNESS, Main B&S 18HP OHV

Note

used on 18 H.P. Series “I”

Models

Footnotes:

LAWN TRACTORS MANUAL CLUTCH

SERIES H & I

73

Manual No. 7006450

TP 400-5016-6-TC-N

Parts Manual for

LAWN TRACTORS MANUAL CLUTCH

HYDRO DRIVE

SERIES H & I

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

COPYRIGHT © 2005

SNAPPER PRODUCTS, INC.

ALL RIGHTS RESERVED.

McDonough, GA, 30253 U.S.A.

Revision 6, 8/4/2005

Manual No. 7006450

TP 400-5016-6-TC-N
