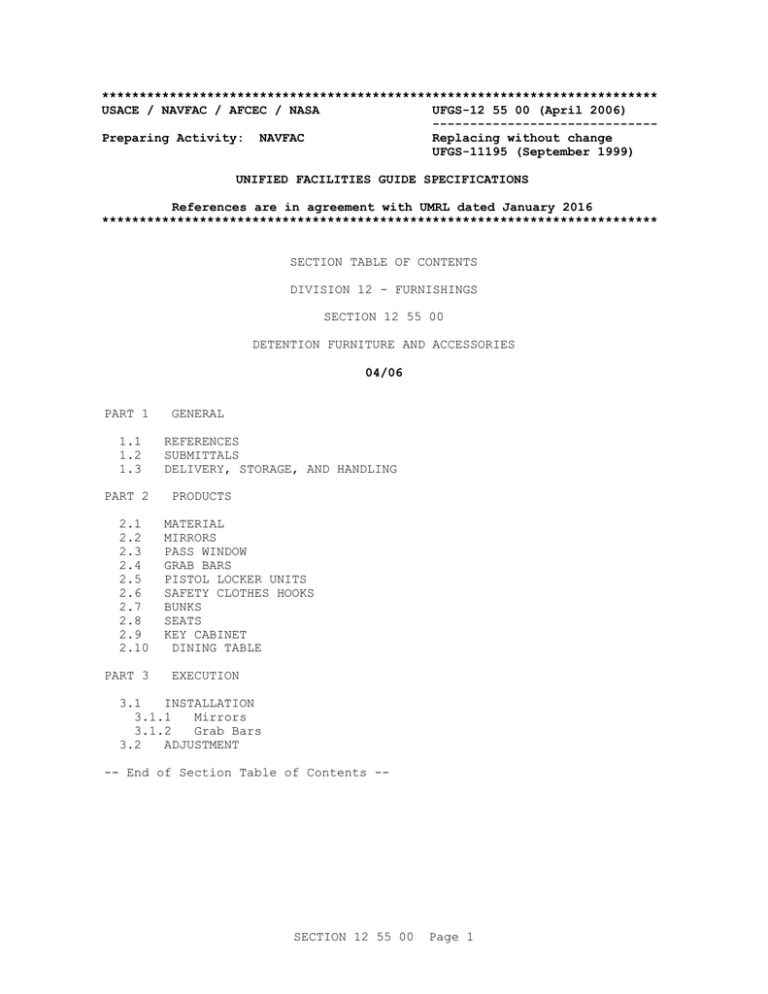

SECTION TABLE OF CONTENTS
DIVISION 12 - FURNISHINGS
SECTION 12 55 00
DETENTION FURNITURE AND ACCESSORIES
04/06
PART 1
1.1
1.2
1.3
PART 2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
PART 3
GENERAL
REFERENCES
SUBMITTALS
DELIVERY, STORAGE, AND HANDLING
PRODUCTS
MATERIAL
MIRRORS
PASS WINDOW
GRAB BARS
PISTOL LOCKER UNITS
SAFETY CLOTHES HOOKS
BUNKS
SEATS
KEY CABINET
DINING TABLE
EXECUTION
3.1
INSTALLATION
3.1.1
Mirrors
3.1.2
Grab Bars
3.2
ADJUSTMENT
-- End of Section Table of Contents --
SECTION 12 55 00
Page 1
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-12 55 00 (April 2006)
-----------------------------Preparing Activity: NAVFAC
Replacing without change
UFGS-11195 (September 1999)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION 12 55 00
DETENTION FURNITURE AND ACCESSORIES
04/06
**************************************************************************
NOTE: This guide specification covers the
requirements for detention furniture, and
accessories for use in brigs and detention facilities.
Adhere to UFC 1-300-02 Unified Facilities Guide
Specifications (UFGS) Format Standard when editing
this guide specification or preparing new project
specification sections. Edit this guide
specification for project specific requirements by
adding, deleting, or revising text. For bracketed
items, choose applicable items(s) or insert
appropriate information.
Remove information and requirements not required in
respective project, whether or not brackets are
present.
Comments, suggestions and recommended changes for
this guide specification are welcome and should be
submitted as a Criteria Change Request (CCR).
**************************************************************************
**************************************************************************
NOTE: The following information shall be shown on
the project drawings:
1. Show details on drawings and coordinate with
specification.
2. Locations of each piece of furniture and
accessory.
**************************************************************************
PART 1
1.1
GENERAL
REFERENCES
**************************************************************************
NOTE: This paragraph is used to list the
publications cited in the text of the guide
specification. The publications are referred to in
SECTION 12 55 00
Page 2
the text by basic designation only and listed in
this paragraph by organization, designation, date,
and title.
Use the Reference Wizard's Check Reference feature
when you add a RID outside of the Section's
Reference Article to automatically place the
reference in the Reference Article. Also use the
Reference Wizard's Check Reference feature to update
the issue dates.
References not used in the text will automatically
be deleted from this section of the project
specification when you choose to reconcile
references in the publish print process.
**************************************************************************
The publications listed below form a part of this specification to the
extent referenced. The publications are referred to within the text by the
basic designation only.
ASTM INTERNATIONAL (ASTM)
ASTM A36/A36M
1.2
(2014) Standard Specification for Carbon
Structural Steel
SUBMITTALS
**************************************************************************
NOTE: Review Submittal Description (SD) definitions
in Section 01 33 00 SUBMITTAL PROCEDURES and edit
the following list to reflect only the submittals
required for the project.
The Guide Specification technical editors have
designated those items that require Government
approval, due to their complexity or criticality,
with a "G". Generally, other submittal items can be
reviewed by the Contractor's Quality Control
System.
Only add a ā€œGā€ to an item, if the
submittal is sufficiently important or complex in
context of the project.
For submittals requiring Government approval on Army
projects, a code of up to three characters within
the submittal tags may be used following the "G"
designation to indicate the approving authority.
Codes for Army projects using the Resident
Management System (RMS) are: "AE" for
Architect-Engineer; "DO" for District Office
(Engineering Division or other organization in the
District Office); "AO" for Area Office; "RO" for
Resident Office; and "PO" for Project Office. Codes
following the "G" typically are not used for Navy,
Air Force, and NASA projects.
An "S" following a submittal item indicates that the
submittal is required for the Sustainability
Notebook to fulfill federally mandated sustainable
SECTION 12 55 00
Page 3
requirements in accordance with Section 01 33 29
SUSTAINABILITY REPORTING.
Choose the first bracketed item for Navy, Air Force
and NASA projects, or choose the second bracketed
item for Army projects.
**************************************************************************
Government approval is required for submittals with a "G" designation;
submittals not having a "G" designation are [for Contractor Quality Control
approval.][for information only. When used, a designation following the
"G" designation identifies the office that will review the submittal for
the Government.] Submittals with an "S" are for inclusion in the
Sustainability Notebook, in conformance to Section 01 33 29 SUSTAINABILITY
REPORTING. Submit the following in accordance with Section 01 33 00
SUBMITTAL PROCEDURES:
SD-02 Shop Drawings
Mirrors
Pass window
Grab bars
Pistol locker
Safety clothes hooks
Key cabinet
Bunks
Dining table
Seats
Include details of frames, conditions of openings, details of
construction, location and installation requirements of hardware
and reinforcements, and details of joints and connections showing
sizes and locations of welds. Indicate fabrication, erection,
anchorage, and accessories.
1.3
DELIVERY, STORAGE, AND HANDLING
Deliver furniture and accessories in packaging to provide protection during
transit and job storage. Leave in unopened original containers, clearly
labeled for location of installation.
PART 2
2.1
PRODUCTS
MATERIAL
Steel plate, ASTM A36/A36M.
2.2
a.
MIRRORS
Mirror shall be 0.8 mm 0.031 inches thick sheet steel, highly polished
and bright chrome plated.
SECTION 12 55 00
Page 4
b.
Frame shall be 16 gage cold-finished steel with 8 mm 5/16 inch inner
and outer flanges.
c.
Mirror size shall be approximately 200 by 250 mm 8 by 10 inches with
overall size of approximately 250 by 290 mm 10 by 11 1/2 inches.
d.
Provide one framed mirror over lavatory in each prisoner housing area.
2.3
PASS WINDOW
Window shall consist of a pass drawer below a speaker panel with a security
glazing panel above. The glazing panel shall be the same type as the
adjacent glazing. The pass drawer shall be 100 mm 4 inches deep, 400 mm 16
inches wide, and 300 mm 12 inches long and roll horizontally with an
interlocking hinged cover on both sides. The speaker panel shall be
constructed of perforated metal (T-304 stainless steel), 16 gage, 5 mm 3/16
inch perforated holes, rectangular in shape the full width of the panel,
with 14 gage baffles to prevent direct line of sight from one side to the
other. This unit shall be integrated into the hollow metal of the adjacent
unit.
2.4
GRAB BARS
Provide as specified in Section 10 28 13 TOILET ACCESSORIES, and in lengths
and configurations indicated.
2.5
PISTOL LOCKER UNITS
Outer shell and compartment doors shall be 5 mm 3/16 inch steel with
continuous hinges. Hinged tilt-out compartments shall be approximately 350
mm wide by 90 mm deep by 150 mm 14 inches wide by 3 1/2 inches deep by 6
inches high lined with moth-proofed felt and locked with an individually
keyed snaplock. Entire unit shall be coated with one shop coat of primer.
Unit shall be designed for recessed installation in masonry. Units shall
have nine compartments. Locate units as indicated.
2.6
SAFETY CLOTHES HOOKS
Provide 6 mm 1/4 inch steel hook and a 10 gage steel bracket safety clothes
hook designed to collapse under a heavy load. Provide an adjustable
friction device that permits variation of factory setting with use of a
simple spanner tool. Finish shall be cadmium plate. Provide 6 mm, 5 by 25
mm 1/4 inch, 20 by 1 inch flat head spanner machine screws to fit widely
spaced holes designed to resist abuse.
2.7
BUNKS
Cell bunks shall consist of a bed frame measuring 1980 mm long by 750 mm 78
inches long by 30 inches wide with front and back composed of an angle
measuring 50 by 50 by 6 mm 2 by 2 inches by 1/4 inch and ends of frame
formed by wall brackets made of 20 gage steel sheet flanged 50 mm 2 inches
at wall and lower edge. Back angle shall be kept 50 mm 2 inches from
wall. Bottom of bunk shall be made of not lighter than 16 gage steel sheet
with round or square holes with rounded corners, spaced as standard with
the manufacturer. Join the entire assembly by electrical welding; welds
shall be of deep penetration, continuous, and ground smooth. Prime bunks
with one shop coat of primer. Bunks shall be wall and floor mounted.
SECTION 12 55 00
Page 5
2.8
SEATS
Seats shall be designed for wall mounting to masonry walls with 6 mm 1/4
inch diameter by 500 mm 20 inch long spanner head screws in lead anchor.
Seat size shall be approximately 300 mm 12 incheswide by 450 mm 18 inches
deep; made of 5 mm 3/16 inch steel with 40 mm 1 1/2 inch flange for wall
mounting. Seat shall have one shop coat of primer paint. Provide in
locations and quantity indicated.
2.9
KEY CABINET
**************************************************************************
NOTE: Verify location of duplicate cabinet with the
Chief of Naval Personnel, PERS-84.
**************************************************************************
Provide for detention lock keys with a capacity of 1.75 times the number of
door locks and a complete dual-tag system. Cabinet shall have
concealed-type hinges and rounded sides and panels with individual hook and
label pockets formed as an integral part of the panel. Provide tags of two
types, one set for permanent holding of at least four keys. Provide
indexing to record information concerning locks and keys, alphabetically;
hook, numerically; and master key. Furnish permanent loan registry to
protect identity of key borrowers. Furnish receipt tabs to protect
identity of key borrowers and supply receipt tabs for temporary loan.
Provide one cabinet in the main control center, and one duplicate cabinet
in the Station Security Office and one duplicate cabinet in the Commanding
Officer Office.
2.10
DINING TABLE
Provide table designed for institutional use that permits seating in groups
of four. Table top shall be formed of not lighter than 10 gage stainless
steel, reinforced with steel plate. Corners shall be cut at a 45 degree
angle. Top, seat, and leg supports shall be heavy wall square steel
tubing. Seats shall be 300 mm 12 inch diameter made of high strength not
lighter than 16 gage stainless steel. Table with seats shall be one piece,
welded assembly, with welds neatly finished. Assembly framing shall be
painted, except for stainless steel, with one shop coat of primer. Table
top shall be not less than 900 mm 36 inches in the least dimension.
Provide in locations and quantity indicated.
PART 3
3.1
3.1.1
EXECUTION
INSTALLATION
Mirrors
Mount 1600 mm 64 inches up to center line, and anchor with 6 mm 1/4 inch
flat head spanner screw in lead masonry anchors.
3.1.2
Grab Bars
Install with 6 mm, 50 mm 1/4 inch, 2 inch long flat head screws in masonry
anchors. Provide a minimum of three fasteners per flange.
3.2
ADJUSTMENT
Adjust items and components of items specified in this section to ensure
SECTION 12 55 00
Page 6
proper operation.
-- End of Section --
SECTION 12 55 00
Page 7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
