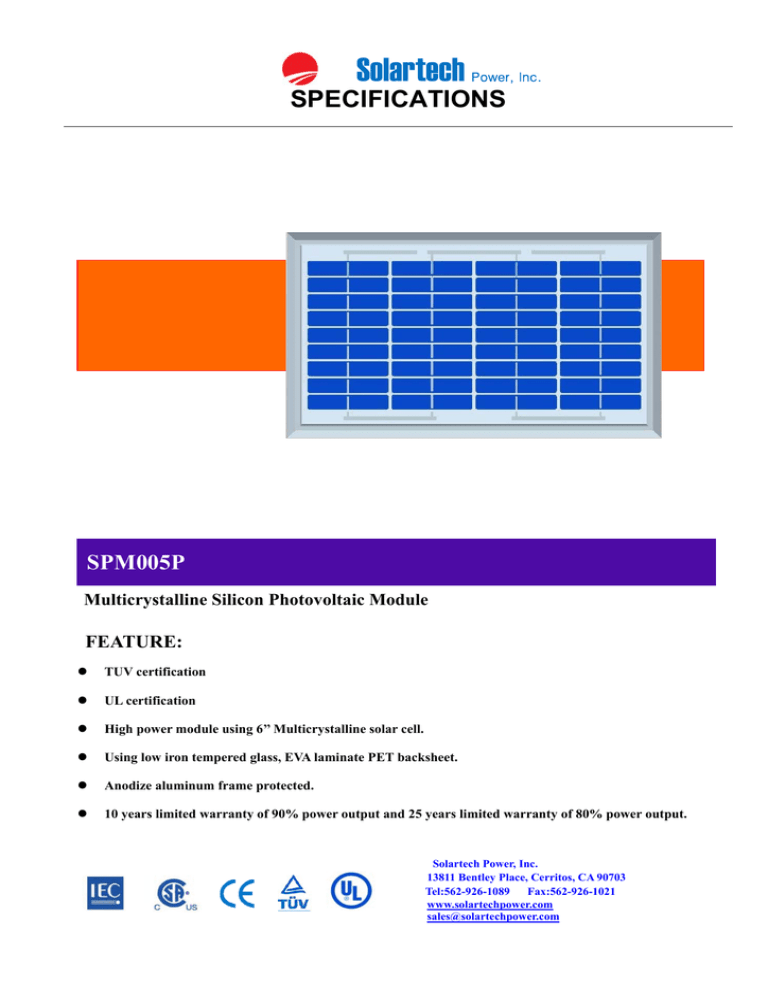

Solartech SPM005P

Solartech SPM005P
.
Solartech
Power, Inc.
SPECIFICATIONS
SPM005P
Multicrystalline Silicon Photovoltaic Module
FEATURE:
z
TUV certification
z
UL certification
z
High power module using 6’’ Multicrystalline solar cell.
z
Using low iron tempered glass, EVA laminate PET backsheet.
z
Anodize aluminum frame protected.
z
10 years limited warranty of 90% power output and 25 years limited warranty of 80% power output.
Solartech Power, Inc.
13811 Bentley Place, Cerritos, CA 90703
Tel:562-926-1089
Fax:562-926-1021
www.solartechpower.com
[email protected]
Solartech
.
Power, Inc.
SPECIFICATIONS
ELECTRICAL CHARACTERISITICS
SPM006P
SPM005P
SPM004P
6W
5W
4W
Maximum power voltage(Vpm)
17.3V
17.1V
16.2V
Maximum power current(Ipm)
0.35A
0.29A
0.24A
Open circuit voltage(Voc)
21.8V
21.7V
21.4V
Short circuit current(Isc)
0.38A
0.31A
0.28
Tolerance
±5%
±5%
±5%
Module efficiency
7.7%
6.5%
5.1%
Power at STC(Pm)
1000V DC
Maximum system voltage
Temperature 25℃, Irradiance 1000W/㎡, AM=1.5
Standard test conditions
Isc:0.05%/K
Temperature coefficient
Specifications
Voc:-0.36%/K
Pmax:-0.46%/K
OUTLINE DIMENSIONS
Multicrystalline silicon solar
Cell
cell, (78mmx15.6mm)
No. of cell and connection
36(4x9)
Dimension
360mm(14.2in)x216mm(8.5in)x18mm(0.7in)
Weight
1.2KG
AMBIENT CONDITIONS
Operating Temperature
-40℃ to +85℃
Storage Humidity
<90%
OUT PUT
Type of output terminal
Junction box
Cable
Length 3000mm
IV CURVES
1000W/M
800W/M
2
600W/M
2
400W/M
2
200W/M
2
Solartech Power, Inc.
13811 Bentley Place, Cerritos, CA 90703
Tel:562-926-1089
Fax:562-926-1021
www.solartechpower.com
[email protected]
GLASS
EVA
SOLAR CELL
EVA
PET
×
Solartech Power,Inc
SPM005PAA6G0D
Product picture
Back
Front
Anodized aluminium
Cable
Junction
