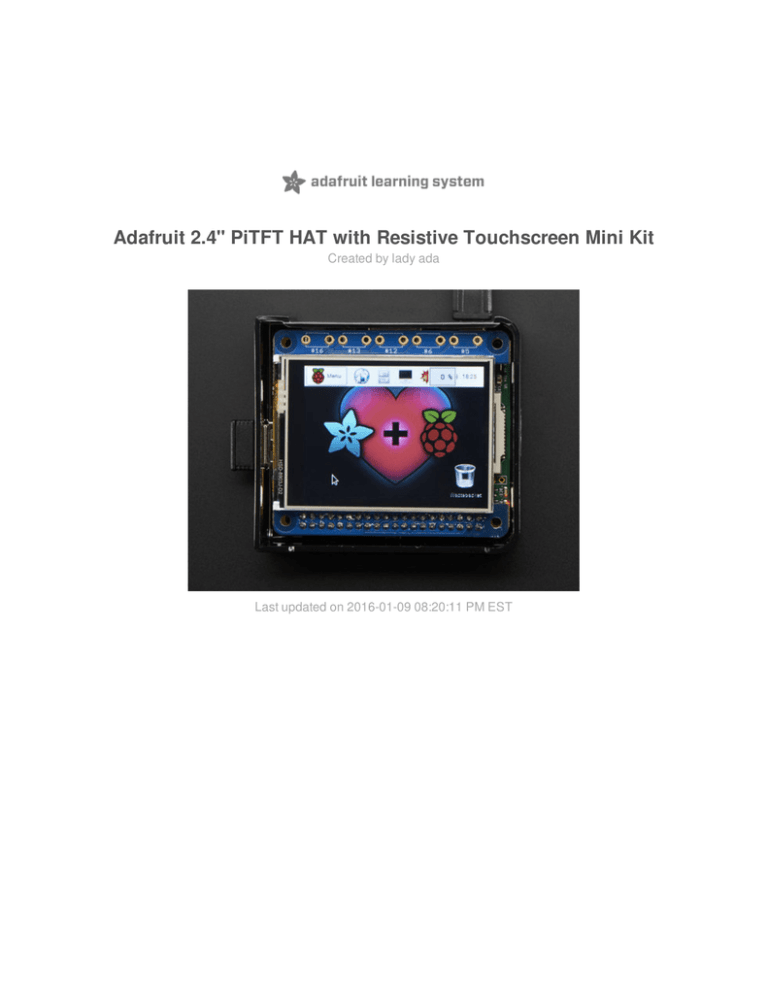

User manual | Adafruit 2.4" PiTFT HAT with Resistive Touchscreen Mini Kit

Is this not the cutest little display for the Raspberry Pi? It features a 2.4" display with 320x240 16-bit color pixels and a resistive touch overlay. The HAT uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!

It's designed to fit nicely onto the Pi Model A+, B+ or Pi 2.

Page 4 of 80

This design uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and

#24. All other GPIO are unused. Since we had a tiny bit of space, there's 5 spots for optional slim tactile switches wired to five GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button.

Page 5 of 80

We have a right-angle 26-pin connector off to the side. You can connect a classic 26-pin Raspberry

Pi GPIO cable in order to access the rest of the GPIO through a Cobbler, etc.

Page 6 of 80

To make it super easy for use: we've created a custom kernel package based of off Notro's awesome framebuffer work, so you can install it over your existing Raspbian (or derivative) images in just a few commands.

Each order ships with an assembled HAT with 2.4" TFT display with resistive touchscreen and a

2x20 female socket header. Some light soldering is required to attach the header but it is easy work for anyone with a soldering iron & solder. Alternatively, you can use a stacking type header instead if you'd like to plug a 2x20 GPIO cable on top (http://adafru.it/2223)

Raspberry Pi, Pi enclosure, 26-pin GPIO cable, tactile switches are not included!

This tutorial series shows you how to install the software, as well as calibrate the touchscreen, splay videos, display images such as from your PiCam and more!

Page 7 of 80

Assembly

Before you start check that you have the parts you need: an assembled PiTFT 2.4" HAT with the

2.4" screen and 2 x 20 female header. Note that it is normal for the screen to be 'loose' - this is so its easier for you to solder the connector on!

Check also on the back that the TFT is attached and that the flex connector is seated into the onboard FPC socket.

The easiest way to attach the header is if you have a Raspberry Pi as a 'stand' - make sure its powered off & unplugged!

Page 8 of 80

Plug the extra tall female header into the GPIO port on the Pi as shown. Make sure its seated nice and flat

Place the PiTFT HAT on top so all the pins stick through the connector on the side. Gently flip the

TFT so its off to the side and wont be in your way while you solder

Heat up your soldering iron, and grab some solder.

https://learn.adafruit.com/adafruit-2-4-pitft-hat-with-resistivetouchscreen-mini-kit

Page 9 of 80

Start by tack-soldering one of the corners. Then you can re-heat that solder point and adjust the circuit board to make it sit flat.

Do the same for the other end, to stabilize the header mechanically

Page 10 of 80

Once you have those two pins done you can continue to solder each of the pins. Do one row first

Page 11 of 80

Then do the other row!

Page 12 of 80

Page 13 of 80

Before attaching the display, check that all the pins are soldered nicely and there's no bridging, cold solder, shorts, or unsoldered pins.

Now we can attach the screen. Remove the two thin tape cover strips.

You may find that some extra double-sided tape will keep the screen in place better than the two little tape strips! Put a piece or two on the back.

https://learn.adafruit.com/adafruit-2-4-pitft-hat-with-resistivetouchscreen-mini-kit

Page 14 of 80

Line up the TFT screen so it matches the white outline and press it down to stick it to the circuit board

Page 15 of 80

Turn the board over and press gently on the back to get the TFT stuck-on well!

Page 16 of 80

Easy Install

The PiTFT requires kernel support and a couple other things to make it a nice stand-alone display.

We have a detailed step-by-step setup for hackers who want to tweak, customize or understand the

PiTFT setup. If you just want to get going, check out the following for easy-install instructions!

Ready to go image

If you want to start with a fresh image, we have two for Raspbian. Jessie is the most recent stable release - it should work fine, but hasn't been tested quite as much. Wheezy is the previous stable release and has been tested extensively. Click below to download and install into a new SD card.

Unzip and follow the classic SD card burning tutorials (http://adafru.it/aMW)

Download Jessie-based PiTFT 2.4" and 2.8" Resistive Image for Pi 1 and

Pi 2 (September 24, 2015)

http://adafru.it/iDA

Download Wheezy-based PiTFT 2.4" and 2.8" Resistive Image for Pi 1 and

Pi 2 (September 9, 2015)

http://adafru.it/idJ

This image is customized for the RESISTIVE touch 2.8" TFT, also known as PID #1601, or the

Resistive 2.4" HAT, a.k.a PID #2455 Not for PID #1983

Previous images:

Raspbian 2014/06/20-based image (http://adafru.it/dSM)

Raspbian 2014/09/09-based image (http://adafru.it/e12)

DIY Installer script

If you don't want to download an image, you can run our installation package helper from inside your existing Raspbian install. It will download the kernel add-ons, and configure your Pi for PiTFT joy

The helper is available for perusal here (http://adafru.it/eIn) if you are interested in how it works

To download and run it, simply run the following commands:

Page 17 of 80

curl SLs https: //apt.adafruit.com/add-pin | sudo bash sudo aptget install raspberrypi-bootloader sudo aptget install adafruit-pitft-helper

The first command adds apt.adafruit.com to your repository list, so you can grab code directly from adafruit's servers

The next two do the actual download and installation, it'll take a while because there's a lot of software to replace for PiTFT support.

Page 18 of 80

It's normal for the Pi to pause and/or take a while at this step for many minutes, theres a lot of kernel software to replace

Page 19 of 80

OK now the kernel and helper are installed, all you have to do is run the helper which will configure the kernel device tree overlays and add the few configurations to make the console show up, etc.

sudo adafruit-pitft-helper -t 28r

This will install the "2.8 Resistive" type of PiTFT into the current install. This is the same as the 2.4"

Resistive screen too (same resolution, pinout, etc.)

At the end you will be prompted on whether you want the text console to appear on the PiTFT.

Answer Y or N depending on your personal desires!

Page 20 of 80

You will also be prompted on whether you want one of the tactile buttons to act as an 'on off' switch.

Answer Y or N depending on your personal desires!

Thats it!

Run sudo reboot to try out your fancy new PiTFT :)

Page 21 of 80

Detailed Installation

If you've grabbed our Easy Install image, or use the script, this step is not required, it's already done! This is just for advanced users who are curious on how to configure and customize the kernel install

In the next few steps we'll cover the

detailed installation procedure. Chances are, you should grab the Easy Install image or script. If you have some interest in the details of how we install the PiTFT setup, read on!

In order to add support for the 2.4" or 2.8" TFT and touchscreen, we'll need to install a new Linux

Kernel. Lucky for you, we created a kernel package that you can simply install over your current

Raspbian (or Raspbian-derived) install instead of needing a whole new image. This makes it easier to keep your install up-to-date.

To use our kernel .deb files you must be using Raspbian or a derivative. This wont work with Arch or other Linux flavors. As Raspbian is the official OS for the Pi, that's the only Linux we will support!

Page 22 of 80

Others can recompile their own kernel using our patchfile (http://adafru.it/cY2) , but we have no tutorial or support or plans for such.

Before you start

You'll need a working install of Raspbian with network access. If you need help getting that far, check out our collection of Pi tutorials (http://adafru.it/aWq) .

We'll be doing this from a console cable connection, but you can just as easily do it from the direct

HDMI/TV console or by SSH'ing in. Whatever gets you to a shell will work!

Also, run

sudo apt-get update !

To run these all the setup and config commands you'll need to be logged into a proper

Terminal - use ssh, a console cable, or the main text console (on a TV). The WebIDE console may not work.

Download & Install Kernel

The only way we're distributing the PiTFT kernel packages right now is thru apt.adafruit.com so you'll still need to run: curl SLs https: //apt.adafruit.com/add-pin | sudo bash

To add apt.adafruit.com to your list of software sources

Page 23 of 80

Then install the kernel with sudo aptget install raspberrypi-bootloader

This will take a up to 20 minutes so go make a sandwich or coffee. It takes longer than it used to because there's now 2 kernels (v6 and v7 arm) and 2 kernel module directories.

Don't use rpi-update!

Page 24 of 80

OK since you're not going to run the helper, lets add the device tree overlay manually. Edit

/boot/config.txt with

sudo nano /boot/config.txt

Page 25 of 80

and add the following lines at the end:

[pi1] device_tree=bcm2708-rpi-b-plus.dtb

[pi2] device_tree=bcm2709-rpi2 -b.dtb

[all] dtparam=spi=on dtparam=i2c1=on dtparam=i2c_arm=on dtoverlay=pitft28r,rotate= 90 ,speed= 32000000 ,fps= 20

The rotate= variable tells the driver to rotate the screen 0 90 180 or 270 degrees.

0 is portrait, with the bottom near theUSB jacks

90 is landscape, with the bottom of the screen near the headphone jack

180 is portrait, with the top near the USB jacks

270 is landscape, with the top of the screen near the headphone jack.

You can change this file with

nano and reboot to make the change stick.

The speed= variable tells the driver how to fast to drive the display. 32MHz (32000000) is a good place to start but if your screen is acting funny, try taking it down to 16MHz (

16000000) especially if

Page 26 of 80

you're doing something like using a GPIO extender to put the screen away from the Pi.

Save the file. Now we'll just reboot to let it all sink in.

sudo shutdown -h now (if you don't have the TFT installed, shutdown, place the TFT on the Pi and re-power) or

sudo reboot (if you have the TFT plate installed already)

When the Pi restarts, the attached PiTFT should start out all white and then turn black. That means the kernel found the display and cleared the screen. If the screen did not turn black, that means that likely there's something up with your connection or kernel install. Solder anything that needs resoldering!

Now that you're rebooted, log back in on the console/TV/SSH. There's nothing displayed on the screen yet, we'll do a test to make sure everything is perfect first!

Run the following commands to startx on the

/dev/fb1 framebuffer, a.k.a PiTFT screen: sudo mv /usr/share/X11/xorg.conf.d/ 99 -fbturbo.conf ~ export FRAMEBUFFER= /dev/ fb1 startx

Page 27 of 80

You should see the Pi desktop show up on the TFT! Congrats, you've completed the first test perfectly.

Hit Control-C in the console to quit the X server so we can continue configuration

Next up we'll add support for the touch screen automatically on boot. Edit the module list with

sudo nano /etc/modules

and add

stmpe-ts on a line at the end

Page 28 of 80

Save the file and reboot the Pi with

sudo reboot and look at the console output (or run dmesg in the console window after logging in) you will see the modules install. Look in particular for the

STMPE610 detection and the ILI9340 screen frequency as highlighted here

We can set up the touchscreen for rotate=90 configuration by doing the following (for more delicate calibration or for other rotate=XX values, see the next section)

Create the directory and new calibration configuration file:

sudo mkdir /etc/X11/xorg.conf.d

Page 29 of 80

sudo nano /etc/X11/xorg.conf.d/99-calibration.conf

and enter in the following lines, then save.

Section "InputClass"

Identifier "calibration"

MatchProduct "stmpe-ts"

Option "Calibration" "3800 200 200 3800"

Option "SwapAxes" "1"

EndSection

You can now try to run X again with

FRAMEBUFFER=/dev/fb1 startx

Type Control-C to quit

If you don't ever want to have to type FRAMEBUFFER=/dev/fb1 before startx, you can make it a default state by editing your profile file: sudo nano ~/.profile and adding

export FRAMEBUFFER=/dev/fb1

Page 30 of 80

near the top and saving the file. Then reboot to reload the profile file. It will now always assume you want to use /dev/fb1

Page 31 of 80

Touchscreen Install & Calibrate

Setting up the Touchscreen

Now that the screen is working nicely, we'll take care of the touchscreen. There's just a bit of calibration to do, but it isn't hard at all.

Before we start, we'll make a udev rule for the touchscreen. That's because the eventX name of the device will change a lot and its annoying to figure out what its called depending on whether you have a keyboard or other mouse installed.

Run

Page 32 of 80

sudo nano /etc/udev/rules.d/95-stmpe.rules

to create a new udev file and copy & paste the following line in:

SUBSYSTEM== "input" , ATTRS{name}== "stmpe-ts" , ENV{DEVNAME}== "*event*" , SYMLINK+= "input/touchscreen"

Remove and re-install the touchscreen with

sudo rmmod stmpe_ts; sudo modprobe stmpe_ts

Then type

ls -l /dev/input/touchscreen

It should point to

eventX where X is some number, that number will be different on different setups since other keyboards/mice/USB devices will take up an event slot

Page 33 of 80

There are some tools we can use to calibrate & debug the touchscreen. Install the "event test" and

"touchscreen library" packages with

sudo apt-get install evtest tslib libts-bin

Running evtest

Now you can use some tools such as

sudo evtest /dev/input/touchscreen which will let you see touchscreen events in real time, press on the touchscreen to see the reports.

Page 34 of 80

AutoMagic Calibration Script

Page 35 of 80

If you rotate the display you need to recalibrate the touchscreen to work with the new screen orientation. You can manually run the calibration processes in the next section, or you can run a small Python script which will automatically set a default touchscreen calibration based on the screen orientation.

This helper is automatically installed for you but if you'd like you can check it out here on github (http://adafru.it/eIu)

Run it at the command line with

sudo adafruit-pitft-touch-cal

it will try to figure out what display you have installed and the rotation it's set up for

By default the script will attempt to read the screen orientation by examining the PiTFT module configuration with modprobe. If the script can read the orientation it will print out the current orientation, the current touchscreen calibration values, and the new touchscreen calibration values baesd on the current orientation. Before updating the calibration the script will ask you to confirm that you'd like to make the change. Press y and enter to confirm.

Page 36 of 80

Try using this default calibration script to easily calibrate your touchscreen display. Note that the calibration values might not be exactly right for your display, but they should be close enough for most needs. If you need the most accurate touchscreen calibration, follow the steps in the next section to manually calibrate the touchscreen.

Manual Calibration

If the "automagic" calibration technique isn't working for you, or you have some other setup where you need to carefully calibrate you can do it 'manually'

You will want to calibrate the screen once but shouldn't have to do it more than that. We'll begin by calibrating on the command line by running

sudo TSLIB_FBDEVICE=/dev/fb1 TSLIB_TSDEVICE=/dev/input/touchscreen ts_calibrate

follow the directions on the screen, touching each point. Using a stylus is suggested so you get a precise touch. Don't use something metal, plastic only!

Page 37 of 80

You should see five crosshair targets. If you see less than that, the touchscreen probably generated multiple signals for a single touch, and you should try calibrating again.

Next you can run

sudo TSLIB_FBDEVICE=/dev/fb1 TSLIB_TSDEVICE=/dev/input/touchscreen

ts_test which will let you draw-test the touch screen. Go back and re-calibrate if you feel the screen isn't precise enough!

Page 38 of 80

X Calibration

You can also calibrate the X input system but you have to use a different program called

xinput_calibrator

You can do this if the calibration on the screen isnt to your liking or any time you change the

rotate=XX module settings for the screen. Since the screen and touch driver are completely separated, the touchscreen doesn't auto-rotate

Normally you'd have to compile it but we have a ready to go package for you so run: sudo aptget install -y xinput-calibrator

Page 39 of 80

Before you start the xinput_calibrator you will need to delete the old calibration data so run

sudo rm /etc/X11/xorg.conf.d/99-calibration.conf

Before running startx and the calibrator - otherwise it gets really confused!

Now you'll have to run the xcalibrator while also running X. You can do this by startx and then opening up the terminal program and running the xinput_calibrator command (which is challenging to do on such a small screen) OR you can do what we do which is run startx in a

SSH/Terminal shell and then run the xinput_calibrator from the same shell, which requires the following command order:

FRAMEBUFFER=/dev/fb1 startx &

DISPLAY=:0.0 xinput_calibrator

Follow the directions on screen

Once complete you'll get something like:

Page 40 of 80

Run sudo nano /etc/X11/xorg.conf.d/99-calibration.conf and copy the

Section "InputClass"

Identifier "calibration"

MatchProduct "stmpe-ts"

Option "Calibration" "172 3763 3769 164"

Option "SwapAxes" "1"

EndSection or whatever you got, into there. You can quit X if you want by typing

fg to bring that command into the foreground, and then Control-C to quit.

Depending on the 'rotation' of the screen, when you do this calibration, you may need to

comment out the SwapAxes part with a # and/or swap the numbers around so looks like:

Option "Calibration" "119 3736 3850 174"

Option "Calibration" "3736 119 174 3850"

Your touchscreen is now super calibrated, hurrah!

Page 41 of 80

Page 42 of 80

Using the Console

One fun thing you can do with the display is have it as your main console instead of the HDMI/TV output. Even though it is small, with a good font you can get 20 x 40 of text. For more details, check out https://github.com/notro/fbtft/wiki/Boot-console (http://adafru.it/cXQ)

First up, we'll update the boot configuration file to use the TFT framebuffer /dev/fb1 instead of the

HDMI/TV framebuffer /dev/fb0

sudo nano /boot/cmdline.txt

you can also edit it by putting the SD card into a computer and opening the same file.

Page 43 of 80

At the end of the line, find the text that says rootwait and right after that, enter in:

fbcon=map:10 fbcon=font:VGA8x8 then save the file.

On the next boot, it will bring up the console.

Note that the kernel has to load up the display driver module before it can display anything on it so you won't get the rainbow screen, a NooBs prompt, or a big chunk of the kernel details since the module is loaded fairly late in the boot process.

I think the VGA8x8 font is a bit chunky, you probably want 12x6 which is what is shown in the photo above. To change the font, run

sudo dpkg-reconfigure console-setup and go thru to select

Terminus 6x12

Page 44 of 80

Page 45 of 80

Turn off Console Blanking

You may notice the console goes black after 30 minutes, this is a sort of 'power saving' or

'screensaver' feature. You can disable this by editing

/etc/kbd/config and setting the blank time to

0 (which turns it off)

BLANK_TIME=30

Page 46 of 80

Page 47 of 80

Backlight Control

Controlling the backlight with STMPE

There's a 4-LED backlight on the TFT and it draws ~75mA at all times. There might be times you'd like to save some power and turn off the backlight. The screen and touchplate will still work, you just can't see anything. We designed the board with the STMPE610 touchscreen controller which has 2 extra GPIO and tied one of them to the transistor that controls the backlight. You can use the command line to control the backlight.

Start by getting access to the GPIO by making a device link sudo sh -c "echo 508 > /sys/class/gpio/export" ls -l /sys/class/gpio

Once you verify that you see GPIO #508, then you can set it to an output, this will turn off the display since it will output 0 by default

sudo sh -c "echo 'out' > /sys/class/gpio/gpio508/direction"

Then turn the display back on with

sudo sh -c "echo '1' > /sys/class/gpio/gpio508/value"

or back off

sudo sh -c "echo '0' > /sys/class/gpio/gpio508/value"

Page 48 of 80

PWM Backlight Control with GPIO 18

If you want more precise control, you can use the PWM output on GPIO 18. There's python code for controlling the PWM but you can also just use the kernel module and shell commands.

If you did the above commands, you'll need to turn off the STMPE GPIO which overrides the PWM output. You only have to run this if you set GPIO508 to an output in the previous option

sudo sh -c "echo 'in' > /sys/class/gpio/gpio508/direction"

OK now you can set the GPIO #18 pin to PWM mode using WiringPi's gpio command

With these basic shell commands, you can set the GPIO #18 pin to PWM mode with 1000 Hz frequency, set the output to 100 (out of 1023, so dim!), set the output to 1023 (out of 1023, nearly all the way on) and 0 (off) gpio -g mode 18 pwm gpio pwmc 1000 gpio -g pwm 18 100 gpio -g pwm 18 1023 gpio -g pwm 18 0

Try other numbers, from 0 (off) to 1023 (all the way on)!

If you'd like to not have #18 control the backlight, simply cut the solder jumper, the tiny trace

Page 49 of 80

between the two large gold pads marked

Lite #18

Page 50 of 80

Playing Videos

How To Play Videos

You can play many types of videos on the screen, using mplayer you don't even need to run X and you can script the movies to play using Python. We'll show you how to just play one video for now.

To demo, we'll use an mp4 of Big Buck Bunny for 320 pixel wide screens. Below we show you how to create/resize videos, but to make it easy, just download our version with:

wget http://adafruitdownload.s3.amazonaws.com/bigbuckbunny320p.mp4

(http://adafru.it/cXR)

The video is 30MB which is a lot if you haven't expanded your SD card yet. Before you do this, run sudo raspi-config to expand the SD card so you don't run out of space!

If you don't have

mplayer yet, run

Page 51 of 80

sudo apt-get update sudo apt-get install mplayer

to install it. It may take a few minutes to complete

OK now you just have to run:

sudo SDL_VIDEODRIVER=fbcon SDL_FBDEV=/dev/fb1 mplayer -vo sdl -framedrop bigbuckbunny320p.mp4

if your video is not sized for 320 wide, you may need to add a -zoom after -framedrop so that it will resize - note that this is quite taxing for the Pi, so it may result in a choppy or mis-synced video!

Page 52 of 80

Converting/Resizing Videos

It's possible to play full length videos on the TFT plate, but since the screen is small and the Pi cant use hardware accelleration to play the videos its best to scale them down to 320x240 pixels. This will be easier for the Pi to play and also save you tons of storage space. For this demo, we'll be using the famous Big Buck Bunny (http://adafru.it/cXS) video, which is creative commons and also very funny!

You can download it from the link above, we'll be using the 720p AVI version.

Page 53 of 80

To do the conversion itself, we suggest HandBrake (http://adafru.it/cXT) which works great and is open source so it runs on all operating systems! Download and install from the link. Then run the installed application and open up the AVI file from before. The app will pre-fill a bunch of information about it.

Page 54 of 80

Under

Destination click Browse... to select a new MP4 file to save. Then under Picture change the

Width to 320 (the height will be auto-calculated)

Click START to begin the conversion, it will take a minute or two.

Page 55 of 80

That's it! You now have a smaller file. Don't forget to play it on your computer to make sure it plays right before copying it to your Pi

Page 56 of 80

Displaying Images

You can display every day images such as GIFs, JPGs, BMPs, etc on the screen. To do this we'll install fbi which is the frame buffer image viewer (not to be confused with the FBI agency!)

sudo apt-get install fbi will install it

Grab our lovely wallpaper with

wget http://adafruitdownload.s3.amazonaws.com/adapiluv320x240.jpg

(http://adafru.it/cXU)

Page 57 of 80

and view it with

sudo fbi -T 2 -d /dev/fb1 -noverbose -a adapiluv320x240.jpg

That's it!

Page 58 of 80

Extras!

Tactile switch as power button

Its a good idea to safely turn off your Pi with a good sudo shutdown -h now but that often means pulling out a keyboard or connecting to the console. With our kernel we added a cool module that will let you turn any GPIO into a power button. Since there's a couple of tactile switches right there on the front, lets turn one into a power button. Press once to properly turn off the pi, press again to start it up. Isn't that nice?

We'll be using GPIO #23, the left-most button on a PiTFT 2.8", on the 2.4" HAT, #16 is a good choice since its on a tactile button. But, you can use any GPIO you want, really!

You will have to grab a pack of slim tactile switches (http://adafru.it/1489) or otherwise solder in a button

Add rpi_power_switch to /etc/modules and save

Now create a new conf file or edit our existing one with

sudo nano /etc/modprobe.d/adafruit.conf

and enter in the line

options rpi_power_switch gpio_pin=23 mode=0

Of course, change the

gpio_pin setting to some other # if you wish. mode=0 means its a pushbutton not a switch. If you happen to install an on/off switch, use

mode=1

Page 59 of 80

To make it active immediately run

sudo modprobe rpi_power_switch

Making it easier to click icons in X

If you want to double-click on icons to launch something in X you may find it annoying to get it to work right. In LXDE you can simply set it up so that you only need to single click instead of double.

From LXDE launch the file manager (sorry these pix are grayscale, still figuring out how to screenshot the framebuffer!)

Then under the Edit menu, select Preferences

Page 60 of 80

Then select Open files with single click and close the window (you'll need to drag it over to get to the X button

Boot to X Windows on PiTFT

To enable booting straight to X windows on the PiTFT follow the steps below. First make sure a display configuration which would conflict is not present by executing in a terminal on the Pi: sudo mv /usr/share/X11/xorg.conf.d/ 99 -fbturbo.conf ~

Don't worry if the command fails with an error that the file doesn't exist. This failure is normal and should happen on a good PiTFT install. You can ignore it and move on.

Next run the command below to open the nano text editor as root and create the file /usr/share/X11/xorg.conf.d/99-pitft.conf:

Page 61 of 80

sudo nano /usr/share/X11/xorg.conf.d/ 99 -pitft.conf

When the editor loads to a blank file, copy in the text below:

Section "Device"

Identifier "Adafruit PiTFT"

Driver "fbdev"

Option "fbdev" "/dev/fb1"

EndSection

Then save the file by pressing

Ctrl-O and then enter, and finally exit by pressing Ctrl-X.

The step above will create a configuration file which tells X windows that it should use the PiTFT framebuffer (located at /dev/fb1) by default when it runs.

At this point you can use the raspi-config tool to enable booting to desktop just like normal on the Pi.

Run the following command: sudo raspi-config

Then pick the Enable Boot to Desktop/Scratch option and choose if you want to boot to the console, desktop, or scratch environment. After exiting the tool and rebooting you should see the Pi load X windows on the PiTFT after (be patient it can take around 30 seconds to load).

If you want to disable booting to X, just use the raspi-config command again to choose the console boot option.

Right-click on a touchscreen

Obviously if you have a touchscreen, it cannot tell what finger you are pressing with. This means that all 'clicks' are left clicks. But if you want a right-click, you can do it.

Just add the following lines into your InputClass of /etc/X11/xorg.conf.d/99-calibration.conf after the calibration section

Option "EmulateThirdButton" "1"

Option "EmulateThirdButtonTimeout" "750"

Option "EmulateThirdButtonMoveThreshold" "30"

So for example your file will look like:

Page 62 of 80

Section "InputClass"

Identifier "calibration"

MatchProduct "stmpe-ts"

Option "Calibration" "3800 120 200 3900"

Option "SwapAxes" "1"

Option "EmulateThirdButton" "1"

Option "EmulateThirdButtonTimeout" "750"

Option "EmulateThirdButtonMoveThreshold" "30"

EndSection

This makes a right mouse click emulated when holding down the stylus for 750 ms.

( Thx adamaddin!

(http://adafru.it/fH3) )

Page 63 of 80

Gesture Input

With the PiTFT touchscreen and xstroke (http://adafru.it/dD0) you can enter text in applications by drawing simple character gestures on the screen! Check out the video below for a short demonstration and overview of gesture input with xstroke:

Installation

Unfortunately xstroke hasn't been actively maintained for a few years so there isn't a binary package you can directly install. However compiling the tool is straightforward and easy with the steps below. Credit for these installation steps goes to mwilliams03 at ozzmaker.com

(http://adafru.it/dD1) .

First install a few dependencies by opening a command window on the Pi and executing: sudo aptget -y install build-essential libxft-dev libxpm-dev libxtst-dev

Now download, compile, and install xstroke by executing: cd ~ wget http: //mirror.egtvedt.no/avr32linux.org/twiki/pub/Main/XStroke/xstroke-0.6.tar.gz

tar xfv xstroke0.6

.tar.gz

cd xstroke0.6

./configure sed -i '/^X_LIBS = / s/$/ -lXrender -lX11 -lXext -ldl/' Makefile make sudo make install

If the commands above execute successfully xstroke should be installed. If you see an error message, carefully check the dependencies above were installed and try again.

Once xstroke is installed you will want to add a couple menu shortcuts to start and stop xstroke.

Execute the following commands to install these shortcuts: wget https: //github.com/adafruit/PiTFT_Extras/raw/master/xstroke.desktop

wget https: //github.com/adafruit/PiTFT_Extras/raw/master/xstrokekill.desktop

sudo cp xstroke*.desktop /usr/share/applications/

Usage

To use xstroke I highly recommend using a plastic stylus instead of your finger. Also calibrate the touchscreen for X-Windows (http://adafru.it/dD2) so you have the best control over the cursor

Page 64 of 80

possible.

Don't use a ballpoint pen or sharp metal stylus as it could scratch or damage the touchscreen!

Start X-Windows on the PiTFT and open the LXDE menu by clicking the icon in the lower left corner.

Scroll up to the

Accessories menu at the top and notice the new XStroke and XStroke Kill commands.

Click the XStroke menu option to start xstroke. You should see a small pencil icon appear on the bottom right side of the screen. The pencil icon means xstroke is running, however by default it's not yet looking for gesture input.

Open an application that takes text input, such as LXTerminal. To enable gesture input click the xstroke pencil icon. You should see the pencil turn green and the text 'abc' written over top of the icon. You might need to click the icon a few times to get the click to register in the right spot.

When xstroke is looking for gesture input you can drag the mouse cursor in a gesture anywhere on the screen to send specific key strokes. Here's a picture of the possible gestures you can send:

Page 65 of 80

(credit to Carl Worth for the image above)

To draw a gesture from the above image, press anywhere on the screen, start from the circle in the gesture, and follow the gesture pattern towards the arrow. As you draw a gesture you should see a blue line displayed that shows what you've drawn. Lift up the stylus when you get to the end of the gesture at the arrow. If xstroke recognizes the gesture it will send the appropriate key press to the active window. Try drawing a few characters from the image above to get the hang of writing gestures.

A few very useful gestures are backspace (which deletes a character), return/enter, and space. To draw a backspace gesture just draw a line going from the right side of the screen to the left side.

The gesture for return/enter is a diagonal line from the top right to bottom left. Finally a space is a straight line from the left to the right.

Note that when xstroke is looking for gestures you might not be able to click or control the cursor as you normally would expect. To stop xstroke's gesture recognition carefully press the xstroke pencil icon again until the 'abc' text disappears. I've found this process can be a little finicky as the icon is

Page 66 of 80

very small and any movement will be interpreted as a gesture. Use a light touch and try a few times to click the icon.

If you get stuck completely and can't disable xstroke by clicking the icon, connect to the Raspberry

Pi in a terminal/SSH connection and run 'killall xstroke' (without quotes) to force xstroke to quit. The normal way to stop xstroke is to navigate to the Accessories -> XStroke Kill command, but you might not be able to do that if xstroke is listening for gesture input.

Have fun using xstroke to control your Pi by writing gestures on the PiTFT screen!

Page 67 of 80

PiTFT Pygame Tips

Since the PiTFT screen is fairly small, you may need to write custom UI programs. Pygame is the easiest way by far to do this.

Jeremy Blythe has an excellent tutorial here on getting started.

(http://adafru.it/kD2)

However, before you follow that link you'll want to set up pygame for the best compatibility:

Install pip & pygame

Install Pip:

sudo apt-get install python-pip

Install Pygame:

sudo apt-get install python-pygame

(this will take a while)

Page 68 of 80

Ensure you are running SDL 1.2

SDL 2.x has some serious incompatibilities with touchscreen. You can force SDL 1.2 by running a script. ( Thanks to heine in the forums!

(http://adafru.it/fH3) )

Edit a new file with

sudo nano installsdl.sh

and paste in the following text:

Page 69 of 80

#!/bin/bash

#enable wheezy package sources echo "deb http://archive.raspbian.org/raspbian wheezy main

" > /etc/ apt/sources.list.d/wheezy.list

#set stable as default package source (currently jessie) echo "APT::Default-release \"stable\";

" > /etc/ apt/apt.conf.d/ 10defaultRelease

#set the priority for libsdl from wheezy higher then the jessie package echo "Package: libsdl1.2debian

Pin: release n=jessie

Pin-Priority: -10

Package: libsdl1.2debian

Pin: release n=wheezy

Pin-Priority: 900

" > /etc/ apt/preferences.d/libsdl

#install aptget update aptget -y --force-yes install libsdl1.

2debian /wheezy run

sudo chmod +x installsdl.sh

sudo ./installsdl.sh

Page 70 of 80

it will force install SDL 1.2

Page 71 of 80

now you can continue with pygame

Page 72 of 80

FAQ

My PiTFT used to work, now it doesn't!

Did you do an apt-get upgrade or

rpi-update

? This command will blow away our PiTFT kernel which means that you will no longer have PiTFT support, you will have to redo the

easy-install

steps to reinstall the kernel.

If you had already made a working PiTFT setup, you may be able to reinstall the Adafruit kernel like so: sudo apt-get install raspberrypi-bootloader=1.20150528-1

If it tells you that the latest version is already installed, try this instead: sudo apt-get install --reinstall raspberrypi-bootloader=1.20150528-1

...you can check here (http://adafru.it/eUK) and substitute the most recent version you see in the

=1.20150528-1

part.

My PiTFT works for a bit and then I get a black screen with a short line of white pixels in one corner

Sounds like you tried to configure your Pi to 'boot straight to X', that is, start up the graphics interface on boot. This doesn't work by default because the Pi operating system is not expecting a PiTFT so it boots to the HDMI output. See below for how to set up your Pi to boot to X on the

PiTFT

To 'fix' this, you can either connect an HDMI monitor, then in a terminal window run

sudo raspi-

config and configure the Pi to boot to the command line not X! If you do not have an HDMI monitor, you can also try a console cable

How can I force the Pi to bring up X on the HDMI/TV monitor?

Use the fb0 framebuffer when you want to display stuff on the HDMI/TV display, for example:

FRAMEBUFFER=/dev/fb0 startx

will use the HDMI/TV framebuffer for X windows instead of the PiTFT

That doesn't work! I can't get X on HDMI!

If both

FRAMEBUFFER=/dev/fb0 startx &

and

FRAMEBUFFER=/dev/fb1 startx &

wind up showing the GUI on your PiTFT, enter the following instruction from the command line: sudo mv /usr/share/X11/xorg.conf.d/ 99 -fbturbo.conf ~

Page 73 of 80

I'm tring to run startx and I get FATAL: Module g2d_23 not found.

don't forget you have to remove the turbo file!

sudo mv /usr/share/X11/xorg.conf.d/99-fbturbo.conf ~

Why doesn't the tactile button on GPIO #21 work?

On some older PiTFTs we had one of the buttons labeled #21 - that's the original RasPi name for that pin. If you're using a V2 (chance is, you are!) that is now called #27.

All the PiTFT's we ship now have the button labeled #21 and #27

I want better performance and faster updates!

You can change the SPI frequency (overclock the display) by editing /boot/config.txt and changing the dtoverlay options line to:

dtoverlay=pitft28r,rotate=90,speed=62000000,fps=25

Or whatever you like for speed, rotation, and frames-per-second. BUT, here's the thing, the Pi only supports a fixed number of SPI frequencies. So tweaking the number a little won't do anything. The kernel will round the number to the closest value. You will always get frequencies that are 250MHz divided by an even number. Here's the only SPI frequencies this kernel supports

15,625,000 (a.k.a 16000000 = 16 MHz)

17,857,142 (a.k.a. 18000000 = 18 MHz)

20,833,333 (a.k.a 21000000 = 21 MHz)

25,000,000 (= 25 MHz)

31,250,000 (a.k.a 32000000 = 32MHz)

41,666,666 (a.k.a 42000000 = 42MHz)

62,500,000 (a.k.a 62000000 = 62MHz)

So if you put in 48000000 for the speed, you won't actually get 48MHz, you'll actually only get about 42MHz because it gets rounded down. We tested this display nicely with 32MHz and we suggest that. But you can put in 42MHz or even try 62MHz and it will update faster

You can tweak fps (frames per second) from 20 to 60 and frequency up to 62MHz for tradeoffs in performance and speed. Reboot after each edit to make sure the settings are loaded properly.

There's a trade off that if you ask for higher FPS you're going to load the kernel more because it's trying to keep the display updated.

How can I take screenshots of the little screen?

We took the screenshots for this tutorial with

(http://adafru.it/diV)

fbgra (http://adafru.it/diV) b (http://adafru.it/diV)

wget http://fbgrab.monells.se/fbgrab-1.2.tar.gz

(http://adafru.it/diW)

Page 74 of 80

tar -zxvf fbgrab*gz cd fbgrab/ make

./fbgrab screenshot.png

How do I automatically boot to X windows on the PiTFT?

Once you have a PiTFT installation setup you can add a custom X windows configuration to use the PiTFT by default. Then you can use the normal raspi-config boot to console/desktop options to control if the Pi boots to a console or desktop. See the detailed instructions on this page of the guide (http://adafru.it/ird) for more information.

My screen isn't working/works erratically/looks funny

Check to make syre that the flat flex cable is fully seated in the connetor and the 'ears' are pushed in to secure it. See the picture for what it should look like:

Page 75 of 80

On my first run of startx I get a window saying "GDBus Error.org.Freedesktop Policy Kit1 Error:

Failed Cannot determine user of subject"

This happens on the Raspberry Pi the first time you run startx, no matter what display. You can just re-start X and it wont appear again.

Can I get a right-click from the touch-screen?

Yes! Please see this post: https://forums.adafruit.com/viewtopic.php?

f=47&t=77528&p=393280#p393322 (http://adafru.it/fH3)

My screen blanks after 10 minutes

Please see this post https://forums.adafruit.com/viewtopic.php?f=50&t=86760

Page 76 of 80

Page 77 of 80
