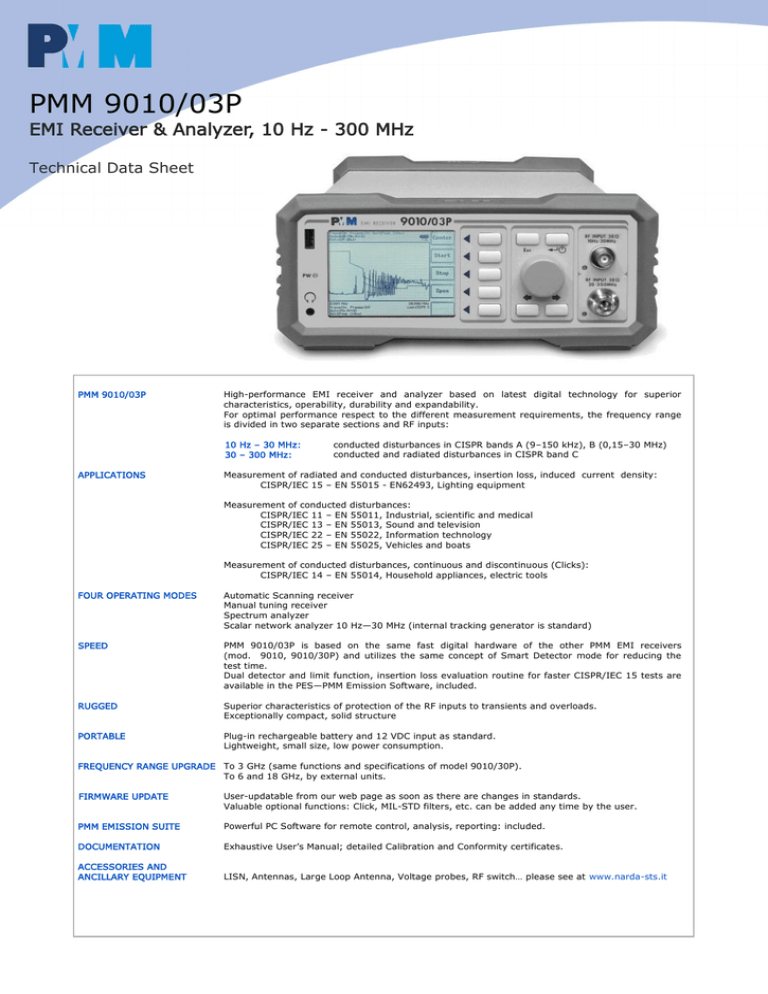

9010 03P
PMM 9010/03P
EMI Receiver & Analyzer, 10 Hz - 300 MHz
Technical Data Sheet
PMM 9010/03P
High-performance EMI receiver and analyzer based on latest digital technology for superior
characteristics, operability, durability and expandability.
For optimal performance respect to the different measurement requirements, the frequency range
is divided in two separate sections and RF inputs:
10 Hz – 30 MHz:
30 – 300 MHz:
APPLICATIONS
conducted disturbances in CISPR bands A (9–150 kHz), B (0,15–30 MHz)
conducted and radiated disturbances in CISPR band C
Measurement of radiated and conducted disturbances, insertion loss, induced current density:
CISPR/IEC 15 – EN 55015 - EN62493, Lighting equipment
Measurement of conducted disturbances:
CISPR/IEC 11 – EN 55011, Industrial, scientific and medical
CISPR/IEC 13 – EN 55013, Sound and television
CISPR/IEC 22 – EN 55022, Information technology
CISPR/IEC 25 – EN 55025, Vehicles and boats
Measurement of conducted disturbances, continuous and discontinuous (Clicks):
CISPR/IEC 14 – EN 55014, Household appliances, electric tools
FOUR OPERATING MODES
Automatic Scanning receiver
Manual tuning receiver
Spectrum analyzer
Scalar network analyzer 10 Hz—30 MHz (internal tracking generator is standard)
SPEED
PMM 9010/03P is based on the same fast digital hardware of the other PMM EMI receivers
(mod. 9010, 9010/30P) and utilizes the same concept of Smart Detector mode for reducing the
test time.
Dual detector and limit function, insertion loss evaluation routine for faster CISPR/IEC 15 tests are
available in the PES—PMM Emission Software, included.
RUGGED
Superior characteristics of protection of the RF inputs to transients and overloads.
Exceptionally compact, solid structure
PORTABLE
Plug-in rechargeable battery and 12 VDC input as standard.
Lightweight, small size, low power consumption.
FREQUENCY RANGE UPGRADE To 3 GHz (same functions and specifications of model 9010/30P).
To 6 and 18 GHz, by external units.
FIRMWARE UPDATE
User-updatable from our web page as soon as there are changes in standards.
Valuable optional functions: Click, MIL-STD filters, etc. can be added any time by the user.
PMM EMISSION SUITE
Powerful PC Software for remote control, analysis, reporting: included.
DOCUMENTATION
Exhaustive User’s Manual; detailed Calibration and Conformity certificates.
ACCESSORIES AND
ANCILLARY EQUIPMENT
LISN, Antennas, Large Loop Antenna, Voltage probes, RF switch… please see at www.narda-sts.it
Technical specifications
Spurious response
Detectors (CISPR 16-1-1)
(simultaneous on PMM Emission
Suite)
Hold time
Stand-alone display &
measure functions
Pulse response (CISPR 16-1-1)
Measuring units
Stand-alone
PMM Emission Suite
Displayed dynamic
Measurement accuracy
Autocalibration (1)
Demodulation
I/O Interface
RF output, rear panel
Frequency range
Level
Level accuracy (10 Hz to 30 MHz)
Operating temperature
Power supply
Battery operation time (typical)
Dimensions
Weight (including battery option)
(1)
(2)
10 Hz – 30 MHz RF Input
10 Hz to 30 MHz
0,1 Hz; <1 ppm
50 ? , BNC female
<1,2 (10 dB RF att.)
0 to 35 dB, 5 dB step
Built-in, selectable
20 dB
30 – 300 MHz RF Input
30 to 300 MHz
100 Hz; <2 ppm
50 ? , N-F
<1,2 ; <2 over 1 GHz
0 to 50 dB, 2 dB step
n.a.
n.a.
137 dBµV – 1 W / 97 dBµV/MHz
1 x LP; 6 x BP filters
n.a.
(3 dB BW) 3, 10, 30, 100, 300 kHz
200 Hz; 9 kHz
10, 100 Hz; 1, 10 kHz
(Preamplifier ON)
9 – 150 kHz
RBW 200 Hz, QP
<-8 dBµV
RBW 200 Hz, Avg <-15 dBµV
(6 dB BW) 3, 10, 30, 100, 300 kHz, 1 MHz
9 kHz, 120 kHz, 1 MHz
100 kHz, 1 MHz
30 – 300 MHz
RBW 120 kHz, QP
RBW 120 kHz, Avg
<8 dBµV
0,15 – 30 MHz
<4 dBµV
RBW 9 kHz, QP
<-4 dBµV
RBW 9 kHz, Avg
<-10 dBµV
<0 dBµV; < 10 dBµV over 150 kHz
< 15 dBµV
Peak, Quasi-Peak
C-Average, Average
RMS-Average (*), RMS
APD (Amplitude Probability Distribution)
1 ms to 30 s
Marker; marker peak; marker to center; highest peaks
Move peak to Analyzer & Manual modes
Store & Load:
- up to 11 traces (sweep mode)
- two panels
- 4 presettable conversion factors and limits
Click functions (option required)
Down to 1 Hz
Down to 10 Hz
Single pulse
S/N > 20 dB
10 Hz to 9 kHz ±1,0 dB
9 kHz to 30 MHz ±1,0 dB
Internal reference source
dBm, dBμV
dBμA, dBpW, dBμV/m, dBμA/m
80, 100, 120 dB selectable
S/N > 20 dB
30 to 300 MHz ±1,0 dB
n.a.
AM with variable volume
USB; RS-232
High Speed Optical User Port (drives PMM LISNs/accessories)
Bluetooth (optional)
50 Ω, BNC fem.
CW: 10 Hz to 50 MHz; Tracking mode: 10 Hz – 30 MHz
60 to 90 dBμV (0.1 dB step)
± 0,5 dB
0° to 40°C
AC universal adapter/charger
External 10 - 15 Vdc, 2.5A
Li-Ion rechargeable plug-in battery (Option)
3 h (2)
235x105x335 mm
4,1 kg
Used for RF front-end only: digital RBW filters and detectors don’t require any re-calibration, any time.
Minimum value; may be longer in relation with selected operating mode.
Ordering information
9010-03P
EMI receiver, 10 Hz—30 MHz; 30—300 MHz
Including:
- internal tracking generator 10 Hz – 30 MHz
- RS232/USB adapter (for FW upgrades)
- AC adapter (mod. 9010/AC)
- N-BNC adapter
- PC software PMM Emission Suite
- Control cables (USB, RS-232), BNC-BNC cable
- Standard Calibration Certificate
Optional accessories and functions: see Brochure PMM 9010/30P
Narda Safety Test Solutions Srl
Via Leonardo da Vinci, 21/23
20090 Segrate (Milano) - ITALY
Phone.: +39 02 269987-1
Fax: +39 02 269987-00
E-Mail: [email protected]
Internet: www.narda-sts.it
09/11 - Specifications subject to change withourt prior notice. (*) Optional. Rms-average detector manufactured under license of Rohde & Schwarz GmbH & Co.KG
Frequency range
Resolution & Accuracy
RF input
VSWR
Attenuator
Pulse limiter
Preamplifier
Max input level without damage
Sinewave AC / Pulse spectral
density
Preselector
IF RBW
Normal
CISPR-16-1-1
MIL-STD-461 (option)
Noise level
