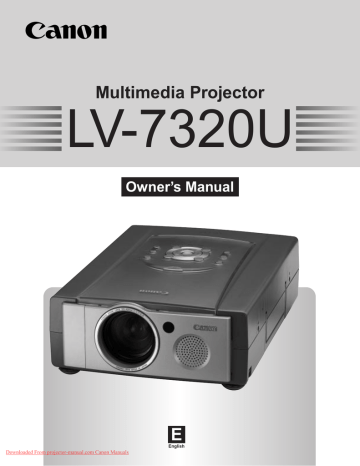

Multimedia Projector

LV-7320U

Owner’s Manual

Downloaded From projector-manual.com Canon Manuals

E

English

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

TO THE OWNER

As the owner of a new Multimedia Projector, you are probably eager to try out your new projector. Before you do, we suggest that your spend a little time reading this manual to familiarize yourself with the operating procedures so that you will receive maximum satisfaction from the many features included in your new projector.

This owner's manual will acquaint you with your projector's features. Reading it will help us too. Through the years, we have found that many service requests were not caused by problems with our projectors. They were caused by problems that could have been prevented, if the owner had followed the instructions in the manual.

You can often correct operating problems yourself. If your projector fails to work properly, see

"TROUBLESHOOTING" section on pages 35 ~ 36 and try the solution marked for each problem.

SAFETY PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

This Projector has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature.

This projector produces intense light from the projection lens. Do not stare directly into the lens as possible eye damage could result. Be especially careful that children do not stare directly into the beam.

The Remote Control Unit, supplied to this projector, emits the laser beam as the Laser Pointer function from the Laser Light Window while pressing the LASER button (for 1 minute). Do not look into the Laser

Light Window or shine the laser beam on yourself or other people. Eye damage may result.

This projector should be set in the way indicated. If not, It may result in fire hazard.

If the projector will not be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE CONSTITUTING

A RISK OF ELECTRIC SHOCK IS

PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT

.

IMPORTANT SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.

The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the projector.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

20cm d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

GROUND

This projector is equipped with a grounding type AC line plug.

Should you be unable to insert the plug into the outlet, contact your electrician. Do not defeat the safety purpose of this grounding type plug.

Follow all warnings and instructions marked on the projectors.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained.

Do not cover the ventilation slot on the projector.

Heat build-up can reduce the service life of your projector, and can also be dangerous.

PROJECTOR

(FRONT)

PROJECTOR

(SIDE)

WALL

50cm 50cm 50cm

Downloaded From projector-manual.com Canon Manuals

3

TABLE OF CONTENTS

FEATURES AND DESIGN 5

PREPARATION 6

NAME OF EACH PART OF THE PROJECTOR 6

SETTING-UP THE PROJECTOR

POSITIONING THE PROJECTOR

7

7

ADJUSTABLE FEET

CONNECTING THE AC POWER CORD

VENTILATION

MOUNTING LENS COVER

MOVING THE PROJECTOR

8

9

7

8

9

COMPUTER MODE

SELECTING COMPUTER MODE

SELECTING COMPUTER SYSTEM

AUTOMATIC MULTISCANNING SYSTEM

COMPATIBLE COMPUTER SPECIFICATIONS

PC ADJUSTMENT

PICTURE IMAGE ADJUSTMENT

ADJUST PICTURE IMAGE MANUALLY

NORMAL FUNCTION

AUTO IMAGE FUNCTION

PICTURE POSITION ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

CONNECTING THE PROJECTOR 10

TERMINALS OF THE PROJECTOR 10

CONNECTING TO THE VIDEO EQUIPMENT 11

CONNECTING TO THE COMPUTER 12

VIDEO MODE

SELECTING VIDEO MODE

SELECTING COLOR SYSTEM

PICTURE SCREEN ADJUSTMENT

PICTURE IMAGE ADJUSTMENT

ADJUSTING THE PICTURE IMAGE MANUALLY

NORMAL FUNCTION

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

LASER POINTER FUNCTION

REMOTE CONTROL BATTERY INSTALLATION

TOP CONTROLS AND INDICATORS

OPERATING ON-SCREEN MENU

HOW TO OPERATE THE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU

MENU BAR

14

14

14

15

16

17

17

17

18

SETTING

SETTING MENU

SETTING LANGUAGE

BASIC OPERATION

TURNING ON / OFF THE PROJECTOR

ADJUSTING THE IMAGE

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

KEY STONE ADJUSTMENT

BRIGHT SWITCH

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

SOUND ADJUSTMENT

SOUND VOLUME ADJUSTMENT

SOUND MUTE ADJUSTMENT

19

19

20

20

20

20

21

21

21

21

21

21

APPENDIX

OPERATING WIRELESS MOUSE

MAINTENANCE

TEMPERATURE WARNING INDICATOR

AIR FILTER CARE AND CLEANING

CLEANING THE PROJECTION LENS

LAMP REPLACEMENT

LAMP REPLACEMENT MONITOR TIMER

TROUBLESHOOTING

TECHNICAL SPECIFICATIONS

22

24

26

26

26

27

22

22

22

23

27

28

29

29

29

29

30

30

30

31

31

31

32

32

33

33

33

33

34

34

35

37

TRADEMARKS

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

Windows and PowerPoint are registered trademarks of Microsoft Corporation.

Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compatibility

This projector is compatible with many different types of personal computers and video devices, including;

IBM-compatible computers, including laptops, up to 1280 x 1024 resolution.

Apple Macintosh and PowerBook computers up to 1280 x 1024 resolution.

Various video equipment using any of the world wide video standards, including

NTSC, NTSC4.43, SECAM, PAL, PAL-M and PAL-N.

Turbo Bright System

Brightness of 1250 ANSI lumens, the highest available in ultra portable models, is achieved.

(1000 ANSI lumens in the standard mode.)

Portability

This projector is quite compact in size and weight. Having a sophisticated shape like an attaché case with a retractable carrying handle, the projector will help you make powerful presentations wherever you go.

Image Resolution

Picture Image of the computer is projected in the resolution of 1024 x 768 and it is provided just as it appears on your computer's monitor.

Screen resolutions between 1024 x 768 and

1280 x 1024 are compressed to 1024 x 768, and this projector cannot display screen resolutions above 1280 x 1024. If your computer's screen resolution is higher than

1280 x 1024, reset it to a lower resolution before you connect the projector.

Laser Pointer Function

The Remote Control Unit of this projector includes the Laser Pointer function providing the ability to point and highlight during presentations.

Other Features

This projector has Motor Zoom/Focus, No

Show, Picture Freeze, Keystone, and Mute functions.

Automatic Multiscanning System

This projector automatically tunes to most personal computers currently distributed by simply connecting. It is free from complicated adjustments to project picture images from most Personal Computers.

Multilanguage Menu Display

Operation menu is displayed in; English,

Deutsch, Français, Italiano, Español, or

Japanese.

Accessories

This projector comes with the parts listed below. Check to make sure all are included. If any parts are missing, contact to a sales dealer.

Owner's Manual.

AC Power Cord.

Wireless Remote Control Unit.

Batteries for Remote Control Unit.

VGA Cable.

Control Cable for PS/2 Port.

Lens Cover and Strap for Lens Cover.

Dust Cover.

Downloaded From projector-manual.com Canon Manuals

5

PREPARATION

NAME OF EACH PART OF THE PROJECTOR

FRONT OF THE CABINET

PROJECTION LENS

LENS COVER

INFRARED REMOTE RECEIVER

BACK OF THE CABINET

EXHAUST VENT

HOT AIR EXHAUSTED !

Air blown from the exhaust vent is hot.

When using or installing the projector, the following attention should be taken.

Do not put a flammable object near this vent.

Keep heat-sensitive objects away from the exhaust vent.

Do not touch this area especially screws and metallic parts. This area will become hot while the projector is used.

POWER CORD CONNECTOR

BOTTOM OF THE CABINET

AIR INTAKE VENTS

These Air Intake Vents should not be blocked.

LAMP COVER

SPEAKER (Monaural)

CARRY HANDLE

BRIGHT SWITCH

INFRARED

REMOTE RECEIVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

PREPARATION

SETTING-UP THE PROJECTOR

POSITIONING THE PROJECTOR

This projector is designed to project on a flat projection surface.

The projector can be focused from 4.6’(1.4m) ~ 35.4’(10.8m).

Refer to the figure below to adjust the screen size.

4.6’ (1.4m)

40”

11.8’ (3.6m)

100”

77”

18.0’ (5.5m)

24.0’ (7.3m)

200”

150”

115”

154”

30”

35.4’ (10.8m)

300”

231”

H1

H2

Screen Size

(W x H) mm

Height (H1)

Height (H2)

30”

610 x 457

17.1”(435mm)

0.9”(22mm)

60”

1219 x 914

34.3”(870mm)

1.7”(44mm)

100”

2032 x 1524

57.1”(1451mm)

2.9”(73mm)

150”

3048 x 2286

200”

4064 x 3048

300”

6096 x 4572

85.7”(2177mm) 114.3”(2903mm) 171.4”(4354mm)

4.3”(109mm) 5.7”(145mm) 8.6”(218mm)

ROOM LIGHT

The level of brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide the best image.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating the ADJUSTABLE FEET. Projection angle can be adjusted to 10 degrees.

1

2

Lift the front of the projector and pull the FEET LOCK

LATCHES on both sides of the projector.

Release the FEET LOCK LATCHES to lock the

ADJUSTABLE FEET and rotate the ADJUSTABLE

FEET TO fine tune the position and the tilt.

3

To shorten the ADJUSTABLE FEET, lift the front of the projector and pull and undo the FEET LOCK LATCHES.

The position and the keystone distortion of the image can also be adjusted with the Menu Operation. (Refer to pages 20, 28 and 29.)

ADJUSTABLE FEET

Downloaded From projector-manual.com Canon Manuals

FEET LOCK

LATCHES

7

PREPARATION

CONNECTING THE AC POWER CORD

This projector uses nominal input voltages of 100-120 V

AC. The projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor.

To reduce the risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if your are not sure of the type of power supply in use.

Connect the projector with the peripheral equipment before turning the projector on. (Refer to pages 10 ~ 13 for connection.)

CAUTION

For safety, unplug the AC Power Cord when the appliance is not in use.

When this projector is connected to the outlet with the AC Power Cord, the appliance is in Stand-by

Mode and consumes some electric power.

Connect the AC power supply cord (supplied) to the projector.

The socket-outlet must be near this equipment and must be easily accessible.

Projector side (Female)

AC outlet side (Male)

VENTILATION

This projector is equipped with cooling fans for protection from overheating. Pay attention to the following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

Do not cover the vent slot.

Keep the rear grill at least 3 feet (1m) away from any object.

Keep sides clear of any obstructions. Obstructions may block cooling air.

EXHAUST VENT

(REAR SIDE)

AIR INTAKE VENTS

(BOTH SIDES)

PREPARATION

MOUNTING LENS COVER

When moving this projector, or when it is not used for an extended period, replace the lens cover.

1

2

3

Secure the Strap for Lens Cover through the hole of the

Lens Cover.

Turn the power off, and disconnect the AC power cord from the AC outlet.

Turn the projector upside down. Secure the Strap for

Lens Cover to the hole on the bottom of the projector with the screw.

LENS COVER

MOVING THE PROJECTOR

Use the Carry Handle when moving the Projector.

When moving the projector, replace the lens cover and retract the feet to prevent damage to the lens and the cabinet.

When this projector is not in use for an extended period, replace the Lens Cover, retract the Adjustable

Feet and cover the unit with the Dust Cover supplied with this projector.

STRAP FOR LENS COVER

(Secure to the hole with the screw.)

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

Do not drop or bump the projector, otherwise damages or malfunctions may result.

When transporting the projector, use a carrying case recommended by Canon.

Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, use a case recommended by Canon.

For carrying or transportation cases, contact a Canon authorized dealer.

Downloaded From projector-manual.com Canon Manuals

9

CONNECTING THE PROJECTOR

TERMINALS OF THE PROJECTOR

S-VIDEO INPUT JACK

Connect the S-VIDEO output from the video equipment to this terminal.

(Refer to P11.)

AUDIO INPUT JACKS

Connect the audio outputs from the video equipment to these terminals.

(Refer to P11.)

When the audio output is monaural, connect it to the L

(mono) jack.

COMPUTER INPUT TERMINAL

Connect the computer output to this terminal.

(Refer to P12, 13.)

MONITOR OUTPUT TERMINAL

This terminal outputs the signal from the COMPUTER IN terminal. Connect to a monitor using this terminal.

(Refer to P12, 13.)

S-VIDEO

R-AUDIO-L

(MONO)

COMPUTER IN

VIDEO

AUDIO

IN

OUT

MONITOR OUT

CONTROL PORT

VIDEO INPUT JACK

Connect the video output from the video equipment to this terminal.

(Refer to P11.)

COMPUTER AUDIO INPUT JACK

Connect the audio output from the computer to this terminal.

(Refer to P12, 13.)

AUDIO OUTPUT JACK (STEREO)

Connect the audio amplifier to this terminal.

(Refer to P12, 13.)

CONTROL PORT CONNECTOR

When controlling the computer with the Remote Control of this projector, connect the mouse port of your personal computer to this terminal.

(Refer to P12, 13.)

COMPUTER INPUT / MONITOR OUTPUT TERMINAL

Terminal : HDB15-PIN

Connect the display output terminal of the computer to COMPUTER INPUT with the VGA Cable (supplied). And connect the monitor to MONITOR OUTPUT with the monitor cable (not supplied). When connecting the Macintosh computer, the

MAC Adapter (not supplied) is required.

Pin Configuration

5 4

10

15 14

9

3

13

8

2

12

7

1

11

6

6

7

8

4

5

1

2

3

Red Input

Green Input

Blue Input

Sense 2

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

12

13

14

15

9

10

11

Non Connect

Ground (Vert.sync.)

Sense 0

Sense 1

Horiz. sync.

Vert. sync.

Reserved

CONTROL PORT CONNECTOR

Terminal : Mini DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this terminal with the Control Cable (the Control

Cable for PS/2 port is supplied).

Pin Configuration

5

8 7 6

4 3

2

1

7

8

5

6

1

2

3

4

PS/2

-----

CLK

DATA

GND

-----

-----

GND

-----

Serial

R X D

-----

-----

GND

RTS

T X D

GND

GND

ADB

-----

ADB

-----

GND

-----

-----

-----

GND

CONNECTING THE PROJECTOR

CONNECTING TO THE VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder Video Disc Player

Video / Audio Output S-VIDEO Output

Cables used for connection

• VIDEO CABLE

• S-VIDEO CABLE ✽

• AUDIO CABLE (stereo) ✽

✽ These cables are not supplied with this projector.

Video Audio Cable

S-VIDEO Cable

Use either the VIDEO jack or the S-VIDEO jack.

When the both jacks are connected, the S-VIDEO jack has priority over the

VIDEO jack.

S-VIDEO

R-AUDIO-L

(MONO)

VIDEO

AUDIO

IN

OUT

COMPUTER IN

MONITOR OUT

CONTROL PORT

Terminals of the Projector

Audio Cable (Stereo)

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

Audio Input

External Audio Equipment

Audio Speaker

(stereo)

Audio Amplifier

Downloaded From projector-manual.com Canon Manuals

11

CONNECTING THE PROJECTOR

CONNECTING TO THE COMPUTER

To connect to the computer, refer to the figure below.

Cables used for connection

• VGA CABLE

• CONTROL CABLE FOR PS/2 PORT

• CONTROL CABLE FOR SERIAL PORT,or ADB PORT ✽

• MAC ADAPTER ✽

• MONITOR CABLE

• PC AUDIO CABLE (stereo) ✽

These cables are not supplied with this projector.

IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA)

Desktop type

Laptop type

Monitor

Audio Speaker

(stereo)

Audio Amplifier

To the Monitor

To each terminal of your computer

Monitor Output

ON DIP

1 2 3 4 5 6

MAC Adapter ✽

Set the slide switches following the chart on the next page.

Serial port PS/2 port

Terminal Terminal

ADB port Audio Output

Terminal

Audio Input

Audio Cable (stereo)

Control Cable for ADB Port

Control Cable for PS/2 Port

Control Cable for Serial Port

VGA Cable

Monitor Cable

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

CONNECTING THE PROJECTOR

S-VIDEO

R-AUDIO-L

(MONO)

VIDEO

AUDIO

IN

OUT

COMPUTER IN

MONITOR OUT

CONTROL PORT

COMPUTER

IN

MONITOR

OUT

CONTROL

PORT

AUDIO

IN

AUDIO

OUT

Use one of these Control

Cables corresponding with the terminal of your computer.

Downloaded From projector-manual.com Canon Manuals

MAC ADAPTER (Not supplied)

Set the switches as shown in the table below depending on the RESOLUTION

MODE that you want to use before your turn on the projector and computer.

ON

OFF

ON DIP

1 2 3 4 5 6

13" MODE (640 x 480)

16" MODE (832 x 624)

19" MODE (1024 x 768)

21" MODE (1152 x 870)

1 2

ON ON

OFF ON

OFF

ON

3

OFF

OFF

ON ON

ON ON

4 5 6

OFF OFF OFF

ON OFF OFF

OFF OFF OFF

ON OFF OFF

13

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

Left Side

VIDEO BUTTON

Used to select VIDEO source. (P29)

COMPUTER VIDEO

POWER

ZOOM FOCUS VOLUME

POWER ON-OFF BUTTON

Used to turn the projector on or off. (P19)

ON

ALL OFF

COMPUTER BUTTON

Used to select COMPUTER output source. (P22)

MENU BUTTON

Used to select MENU operation. (P17, 18)

MUTE

D.ZOOM

MENU

ALL-OFF SWITCH

When using the Remote Control

Unit, turn this switch to “ON” and turn it “ALL OFF” when it is not used.

SELECT BUTTON

Used to execute the item selected or to expand the image in DIGITAL ZOOM mode. (P28)

It is also used as a PC mouse in Wireless Mouse Operation.

(P32)

LASER BUTTON

Used to operate the laser pointer function. The laser beam is emitted while pressing this button within 1 minute. When using the laser pointer for more than 1 minute, release the button and press it again.

LASER

NO SHOW

KEY STONE

FREEZE

AUTO IMAGE NORMAL

POINT BUTTON

Used to move the pointer on the MENU, to adjust the item, or to pan the image in DIGITAL

ZOOM mode. (P28)

It is also used as a PC mouse in Wireless Mouse Operation.

(P32)

When pressing the center of this button, it works as the SELECT button.

RIGHT CLICK BUTTON

Used to compress the image in DIGITAL ZOOM mode.

(P28)

It is also used as a PC mouse in Wireless Mouse Operation.

(P32)

LASER POINTER FUNCTION

This remote control emits a laser beam as the Laser Pointer from the Laser Light Window. When the LASER button is pressed, the laser light goes on. And when the button is pressed more than 1 minute or the button is released, light goes off.

Laser light is emitted with the RED light which tells the laser beam being emitted.

The laser emitted is a class II laser; therefore, do not look into the Laser Light Window or shine the laser beam on yourself or other people. The three marks below are the caution labels for the laser beam.

CAUTION : Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

These caution labels are put on the remote control.

Laser Light Window

BEFORE OPERATION

ZOOM BUTTON

Used to adjust zoom.

(P20)

COMPUTER VIDEO

POWER

ZOOM FOCUS VOLUME

FOCUS BUTTON

Used to adjust focus.

(P20)

MUTE

D.ZOOM

MENU

MUTE BUTTON

Used to mute sound.(P21)

VOLUME BUTTON

Used to adjust volume.

(P21)

Operating Range

Point the remote control toward the projector (Receiver Window) when pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5m) and 60° front and rear of the projector

D.ZOOM BUTTON

Used to turn the projector into DIGITAL ZOOM mode and resize the image. (P28)

60°

16.4’

(5 m)

NO SHOW BUTTON

Used to turn the picture into a black image. (P21)

AUTO IMAGE BUTTON

Use to operate AUTO

IMAGE function. (P27)

LASER

NO SHOW

KEY STONE

FREEZE

AUTO IMAGE NORMAL

FREEZE BUTTON

Used to freeze the picture.

(P21)

NORMAL BUTTON

Used to reset to normal picture adjustments preset by the factory. (P26, 30)

KEYSTONE BUTTON

Used to correct the keystone distortion.

(P20, 28, 29)

60°

16.4’

(5 m)

REMOTE CONTROL BATTERY INSTALLATION

1

Remove the battery compartment lid.

Press the lid downward and slide it.

2

Slide the batteries into the compartment.

Two AA size batteries

For correct polarity (+ and –), be sure the battery terminals are in contact with the pins in the compartment.

3

Replace the compartment lid.

To insure safe operation, please observe the following precautions :

Use (2) AA type alkaline batteries.

Replace two batteries at the same time.

Do not use a new battery with a used battery.

Avoid contact with water or liquid.

Do not expose the Remote Control Unit to moisture, or heat.

Do not drop the remote control unit.

If batteries have leaked on the remote control, carefully wipe the case clean and install new batteries.

Downloaded From projector-manual.com Canon Manuals

15

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

MENU BUTTON

Used to open or close the

MENU operation.

(P17, 18)

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory. (P26, 30)

SELECT BUTTON

Used to execute the item selected. It is also used to expand the image in

DIGITAL ZOOM mode.

(P28)

ZOOM BUTTONS

Used to select zoom adjust.

(P20)

VOLUME BUTTON

Used to adjust volume.

(P21)

BRIGHT SWITCH INDICATOR

This indicator lights when the BRIGHT SWITCH is set to BRIGHTER. (P21)

POWER

POWER ON–OFF BUTTON

Used to turn the projector on or off. (P19)

MODE BUTTON

Used to select input source among Computer, or Video.

(P22, 29)

NORMAL

ZOOM

WIDE

TELE

MENU

SELECT

MODE AUTO IMAGE

AUTO IMAGE BUTTON

Used to operate AUTO

IMAGE function. (P27)

VOLUME

BRIGHT

KEYSTONE

LAMP

REPLACE

WARNING

TEMP.

READY

LAMP

FOCUS

POINT BUTTONS

Used to select an item and adjust the value on the

MENU. It is also used to pan the image in DIGITAL

ZOOM mode. (P28)

FOCUS BUTTONS

Used to select focus adjust.

(P21)

KEY STONE BUTTON

Used to correct the keystone distortion.

(P20, 28, 29)

LAMP REPLACE INDICATOR

This indicator turns to yellow when the life of the projection lamp draws to an end. (P34)

WARNING TEMP. INDICATOR

This indicator flashes red when internal projector temperature is too high.

(P33)

READY INDICATOR

This indicator is lit in green when the projector is ready to be turned on.

LAMP INDICATOR

This indicator is dim when the projector is turned on.

And bright when the projector is in stand-by mode.

BEFORE OPERATION

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through the

ON-SCREEN MENU. Refer to the following pages to operate each adjustment on the ON-SCREEN MENU.

WIRELESS REMOTE CONTROL

POINT BUTTON

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

1 MOVING THE POINTER

Move the pointer (see the NOTE below) by pressing POINT button(s) on the TOP CONTROL or the REMOTE CONTROL.

SELECT BUTTON

Used to select the item.

2 SELECT THE ITEM

Select the item by pressing SELECT button.

NOTE : Pointer is the icon on the ON-SCREEN Menu to select the item. See the figures on the section

"FLOW OF ON-SCREEN MENU" below.

TOP CONTROL

SELECT BUTTON

Used to select the item.

SELECT

POINT BUTTONS

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

FLOW OF ON-SCREEN MENU

MENU BAR

1

Display ON-SCREEN MENU

Press MENU button to display the ON-SCREEN MENU

(MENU BAR). The red frame is the POINTER.

POINTER

(red frame)

Select the Item

2

Move the POINTER (red frame) to the ITEM ICON that you want to select by pressing POINT RIGHT/ LEFT buttons.

3

Select the ITEM by pressing SELECT button. The dialog box of the ITEM appears.

4

Control and adjust through ON-SCREEN MENU

Move the POINTER downward by pressing POINT

DOWN button. (The shape of the POINTER becomes an arrow.)

5

Move the POINTER to the ITEM that you want to adjust and adjust the ITEM by pressing SELECT button.

Refer to the following pages for details of respective adjustments.

SELECT

BUTTON

POINT

DOWN

BUTTON

ITEM ICON

POINTER

(red frame)

MENU

POINTER

Downloaded From projector-manual.com Canon Manuals

17

BEFORE OPERATION

MENU BAR

MENU BAR IN COMPUTER MODE

Press MENU BUTTON while in Computer mode.

MODE MENU

Used to select the Computer input mode.

(Refer to P22)

SYSTEM MENU

Used to select a computer system.

(Refer to P22)

POSITION MENU

Used to adjust the position of the image.

(Refer to P27)

PC ADJUST MENU

Used to adjust the parameters to match with the input signal format.

(Refer to P24, 25)

SETTING MENU

Used to set the Display

Menu and to reset

Lamp Replacement

Monitor Timer.

(Refer to P31)

AUTO IMAGE MENU

Used to adjust Fine sync., Total dots, and Picture Position automatically.

(Refer to P27)

IMAGE MENU

Used to adjust the computer image. [Fine sync. / Total dots /

White Balance /

Contrast / Brightness]

(Refer to P26)

SCREEN MENU

Used to adjust the size of the image or to correct the

Keystone distortion.

(Refer to P28)

LANGUAGE MENU

Used to select the language used in the

Menu.

(Refer to P31)

MENU BAR IN VIDEO MODE

Press MENU BUTTON while in Video mode.

MODE MENU

Used to select the Video input.

(Refer to P29)

IMAGE MENU

Used to adjust the picture image. [

Color /

Tint / White Balance /

Contrast / Brightness/

Sharpness

]

(Refer to P30)

These icons have the same function as the Computer Mode.

SYSTEM MENU

Used to select a color system among

[ PAL, SECAM, NTSC,

NTSC 4.43, PAL-M and

PAL-N ].

(Refer to P29)

SCREEN MENU

Used to set the size of the image either

Regular or Wide, or to correct the

Keystone distortion.

(Refer to P29)

BASIC OPERATIONS

TURNING ON / OFF THE PROJECTOR

TURNING ON THE PROJECTOR

1

Complete the peripheral connections (with Computer, VCR, etc.) before turning on the projector. (Refer to "CONNECTING

TO THE PROJECTOR" on pages 10~13 for connecting that equipment.

2

Connect the projector's AC power cord into a wall outlet. The

LAMP indicator lights RED, and the READY indicator lights

GREEN.

3

Press the power ON-OFF button on the Remote Control Unit or on the Top Control to ON. The LAMP POWER indicator dims, and the Cooling Fans start to operate. The Preparation Display appears on the screen and the count-down starts. The signal from the source appears after 30 seconds.

30

The Preparation Display disappears after 30 seconds.

1

2

3

TURNING OFF THE PROJECTOR

Press the power ON-OFF button on the Remote Control Unit or on the Top Control, and the message "Power off?" appears on the screen.

Press the power ON-OFF button again to turn off the projector.

The LAMP indicator lights bright and the READY indicator turns off. The Cooling Fans operate for 90 seconds after the projector is turned off. (During this "Cooling Down" period, this appliance cannot be turned on.)

When cooling the projector has finished, the READY indicator turns to green again and you can turn the projector on. After cooling down completely, disconnect the AC power cord.

Power off?

The message disappears after 4 seconds.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN IT ON, WAIT AT LEAST 5

MINUTES BEFORE TURNING IT OFF.

When the TEMPERATURE WARNING indicator flashes red, the projector is automatically turned off. Wait at least 5 minutes before turning the projector on again.

If the TEMPERATURE WARNING indicator continues to flash, follow procedures below:

1. Disconnect the AC power cord from the AC outlet.

2. Check the air filters for dust accumulation.

3. Clean the Air Filter. (See "AIR FILTER CARE AND CLEANING" section on page 33.)

4. Press the power ON-OFF button to ON.

If the TEMPERATURE WARNING indicator still continues to flash, call your authorized dealer or service station.

NOTE: The Cooling Fan may work for cooling while the projector is turned off. When the Cooling

Fan is working, TEMPERATURE WARNING INDICATOR flashes red.

Downloaded From projector-manual.com Canon Manuals

19

BASIC OPERATION

ADJUSTING THE IMAGE

ZOOM ADJUSTMENT

1

Press the ZOOM WIDE/TELE button(s) on the Top Control or the ZOOM

/

▼ button on the Remote Control Unit to turn into the ZOOM mode.

2

Press the ZOOM WIDE button or the ZOOM

▲ button to make the image larger, and press the ZOOM TELE button or the

ZOOM

▼ button to make the image smaller.

In the Computer mode, the image can be expanded, compressed, and panned with the Digital Zoom function. Refer to page 28 for the

Digital Zoom operation.

Zoom

The message disappears after 4 seconds.

1

FOCUS ADJUSTMENT

Press the FOCUS

/

▼ button(s) on the Top Control or on the

Remote Control Unit to turn into the FOCUS mode.

2

Adjust the focus of the image by pressing the FOCUS

/

▼ button(s).

Focus

The message disappears after 4 seconds.

KEYSTONE ADJUSTMENT

If the picture has keystone distortion, correct image with KEYSTONE adjustment.

1

Press the KEYSTONE button on the Top Control or the

KEYSTONE

/

▼ button on the Remote Control Unit or select the Keystone on the SCREEN menu. (Refer to page 28, 29.)

The message “Keystone” is displayed.

2

Correct the Keystone distortion by pressing the KEYSTONE

/

▼ button or the POINT UP/DOWN button(s). Press the

KEYSTONE

▲ button or the POINT UP button to reduce the upper part or the image, and press the KEYSTONE

▼ button or the POINT DOWN button to reduce the lower part.

Reduce the upper width with the KEY STONE

▲ button or the POINT UP button.

Keystone

The message disappears after 4 seconds.

Reduce the lower width with the KEY STONE

▼ button or the POINT DOWN button.

BASIC OPERATION

BRIGHT SWITCH

Slide the BRIGHT SWITCH to the BRIGHTER position to enhance the picture brightness. When the BRIGHT SWITCH is set to the

BRIGHTER position, the BRIGHT SWITCH INDICATOR lights on.

(Refer to page 16) To return the original image, slide the switch to the STANDARD position.

When the BRIGHT SWITCH is set to the BRIGHTER position, the color of image may change slightly.

BRIGHTER

ST

AND

ARD

BRIGHT SWITCH

(on the side)

Set the switch firmly.

NO SHOW FUNCTION

Press the NO SHOW button on the Remote Control Unit to black out the image. This function is cancelled when the NO SHOW button is pressed again or any other function button is pressed.

No show

The message disappears after 4 seconds.

PICTURE FREEZE FUNCTION

Press the FREEZE button on the Remote Control Unit to freeze the picture on screen. This function is cancelled when the FREEZE button is pressed again or any other function button is pressed.

SOUND ADJUSTMENT

SOUND VOLUME ADJUSTMENT

Press the VOLUME button on the Top Control or the VOLUME (+/–) button on the Remote Control Unit to adjust the volume. The Volume dialog box appears on the screen for a few seconds.

The POINT UP or VOLUME (+) button increase the volume, and the

POINT DOWN or the VOLUME (–) button decrease the volume.

SOUND MUTE ADJUSTMENT

Press the MUTE button on the Remote Control Unit to mute the sound. To restore the sound to its previous level, press the MUTE button again or press Volume button(s).

It indicates the level of the volume.

Press the MUTE button to turn the Mute function On or Off.

The display disappears after 4 seconds.

Downloaded From projector-manual.com Canon Manuals

21

COMPUTER MODE

SELECTING COMPUTER MODE

DIRECT OPERATION

Select COMPUTER mode by pressing the MODE button on the Top

Control or the COMPUTER button on the Remote Control Unit.

MODE button

COMPUTER

VIDEO

MENU OPERATION

Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select Computer press the SELECT button. and

CURRENT MODE DISPLAY

When selecting the Computer Mode, the Current Mode display appears. It shows the information of the computer of the mode selected.

Providing the information of the computer detected by the projector.

SELECTING COMPUTER SYSTEM

AUTOMATIC MULTISCANNING SYSTEM

This projector automatically tunes to most different types of computer based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE

COMPUTER SPECIFICATION” on page 23). When selecting

Computer, this projector automatically tunes to the incoming signal and projects the proper image without any special setting. (Setting of the Computer System may be required when connecting some computers.)

Note : The projector may provide the messages below.

Go to PC adj.

The projector cannot discriminate or detect the input signal from the computer. Adjust and set the computer system manually. (Refer to page 24.)

No signal

There is no signal input from the computer. Make sure the connection of the computer and the projector is set correctly. (Refer to

TROUBLESHOOTING on page 35.)

SYSTEM BOX

It displays the SYSTEM being selected.

SELECT COMPUTER SYSTEM MANUALLY

To set the Computer system manually, select the mode on the ON-

SCREEN MENU.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SYSTEM and press the SELECT button. Another dialog box

COMPUTER MODE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the system that you want to set, and then press SELECT button.

The system being selected.

The systems on this dialog box can be selected.

Close the SYSTEM

Menu.

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency mentioned below and less than

140 MHz of Dot Clock.

ON-SCREEN

DISPLAY

RESOLUTION

VGA 1 640 x 480

VGA 2 720 x 400

VGA 3

VGA 4

VGA 5

VGA 6

VGA 7

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

MAC LC13 640 x 480

MAC 13 640 x 480

––––––––

RGB

RGB ––––––––

SVGA 1

SVGA 2

SVGA 3

SVGA 4

SVGA 5

SVGA 6

SVGA 7

SVGA 8

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

SVGA 9 800 x 600

SVGA 10 800 x 600

SVGA 11 800 x 600

SVGA 12 800 x 600

MAC1 6

XGA 1

832 x 624

1024 x 768

XGA 2

XGA 3

XGA 4

XGA 5

XGA 6

XGA 7

XGA 8

XGA 9

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

(Interlace)

H-Freq.

(kHz)

31.47

31.47

31.47

37.86

37.86

37.50

43.269

34.97

35.00

15.734

15.625

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

47.90

32.70

38.00

49.72

48.36

68.677

60.023

56.47

60.31

48.50

44.00

63.48

36.00

V-Freq.

(Hz)

59.88

70.09

70.09

74.38

72.81

75.00

85.00

66.60

66.67

30

25

56.25

60.32

75.00

85.06

72.19

61.03

55.38

60.51

60.31

71.92

51.09

60.51

74.55

60.00

84.997

75.03

70.07

74.92

60.02

54.58

79.35

43.59

ON-SCREEN

DISPLAY

RESOLUTION

XGA 10 1024 x 768

XGA 11

XGA 12

XGA 13

XGA 14

XGA15

MAC 19 1024 x 768

MAC21 1152 x 870

SXGA 1 1152 x 864

SXGA 2 1280 x 1024

SXGA 3 1280 x 1024

SXGA 4 1280 x 1024

SXGA 5 1280 x 1024

SXGA 6 1280 x 1024

SXGA 7 1280 x 1024

SXGA 8 1280 x 1024

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

SXGA 11 1152 x 900

SXGA 12 1152 x 900

SXGA 13

SXGA 14

1280 x 1024

(Interlace)

1280 x 1024

(Interlace)

SXGA 15 1280 x 1024

SXGA 16 1280 x 1024

SXGA 17 1152 x 900

SXGA 18

1280 x 1024

(Interlace)

SXGA 19 1280 x 1024

MAC

HDTV720p

HDTV1035i

HDTV1080i

NOTE : Specifications are subject to change without notice.

MAC

1024 x 768

1024 x 768

(Interlace)

1024 x 768

1024 x 768

1024 x 768

1280 x 960

1280 x 1024

––––––––

––––––––

––––––––

43.35

60.18

75.08

75.08

60.00

60.00

60.00

60.02

75.025

60.00

65.20

75.60

43.00

47.00

60.01

72.00

66.00

75.06

70.40

58.60

60.00

59.98

60.01

67.19

76.107

V-Freq.

(Hz)

77.07

75.70

43.48

58.20

58.30

72.0

75.08

46.43

63.79

75.00

80.00

45.00

33.75

33.75

63.98

79.976

60.00

61.20

71.40

50.00

50.00

63.37

76.97

61.85

68.68

64.20

62.50

63.90

63.34

63.74

71.69

81.13

H-Freq.

(kHz)

62.04

61.00

35.522

46.90

47.00

58.03

60.24

Downloaded From projector-manual.com Canon Manuals

23

COMPUTER MODE

PC ADJUSTMENT

This Projector can automatically tune to the display signals from most personal computers currently distributed.

However, some computers employ the special signal formats which are different from the standard ones and may not be tuned by Multiscanning of this projector. If this happens, the projector cannot reproduce a proper image and the image is recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has PC ADJUSTMENT function, to enable you to precisely adjust several parameters to match with those exceptional signal formats and the projector has five independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUSTMENT function cannot be operated when “RGB,” “HDTV1035i” or “HDTV1080i” is selected on the

SYSTEM MENU (P22 and 23).

1

2

3

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT RIGHT/LEFT buttons to select PC

ADJUST and press the SELECT button. Another dialog box “Where to reserve” Menu will appear.

In this dialog box, you can store the parameter into the area from “Mode 1” to “Mode 5.” When memorizing the new computer parameter, select the Mode with the message of

“Free” by pressing the POINT UP/DOWN buttons and the

SELECT button. To change the parameters of the Mode previously set, select the Mode with “Stored.”

When the Mode is selected, Parameter adjustment dialog box appears. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN buttons, and adjust each item to match your computer. To change the value, press either the POINT RIGHT button or the POINT LEFT button.

Refer to the next page for adjusting each item.

This Mode has parameters being stored.

The Vacant Mode.

Manual set Computer

Mode (1 to 5).

Close the PC

ADJUSTMENT Menu.

4

5

Move the arrow to “Stored” and press the SELECT button. The parameter is memorized in the selected Mode.

To activate the Mode manually adjusted in this PC

ADJUSTMENT Menu, select the Mode at the SYSTEM

SELECT Menu. (Refer to page 22.)

Press the POINT

RIGHT/LEFT button(s) to adjust the value.

Press the

SELECT button to set Full screen function on/off.

Total lines

The number of the total vertical lines. Adjust the number to match the image of your personal computer.

Total dots

The number of the total dots in one horizontal period. Adjust the number to match the image of your personal computer.

Horizontal / Vertical

Adjustment of the horizontal or vertical picture position. When the image is not centered on the screen, adjust each of those items.

Clamp

Adjustment of the clamp level. When the image has a dark bar(s), try this adjustment.

Display area

Adjustment of the area displayed with this projector. Select the resolution at the Display area dialog box, or adjust the number at the column of “H” or “V” to match the resolution of the image.

Full Screen

Set “On” to resize the image with 4 x 3 aspect ratio to fit the screen.

Each of the keys operates as follow.

Reset

Recalls the parameter data that was previously adjusted.

Mode free

Stored

Quit

Clears the parameter data previously set .

Stores the parameters in the memory.

Closes the PC ADJUST Menu.

Press the

SELECT button to select the typical resolution of the image.

COMPUTER MODE

Downloaded From projector-manual.com Canon Manuals

25

COMPUTER MODE

PICTURE IMAGE ADJUSTMENT

ADJUST PICTURE IMAGE MANUALLY

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

IMAGE and press the SELECT button. Another dialog box

PICTURE IMAGE ADJUSTMENT Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN buttons. To change the value, press either the POINT RIGHT button or the POINT LEFT button.

Fine sync.

Adjust the picture as necessary to eliminate flicker from the display.

(From 0 to 255.)

Total dots

The number of the total dots in one horizontal period. Adjust the number to match your PC image.

White balance (Red / Green / Blue)

Move the arrow to the color that you want to adjust. Press POINT

LEFT button to lighten the color and press POINT RIGHT button to deepen the color. (From 0 to 63.)

Contrast

Press POINT LEFT button to decrease contrast, and press POINT

RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to darken the image, and press POINT

RIGHT button to brighten the image. (From 0 to 63.)

Each of the keys operates as follow.

Reset

Stored

Quit

Recalls the data previously adjusted.

Stores the adjusted data in the memory.

Closes the PICTURE IMAGE ADJUSTMENT Menu.

NOTE : The Fine sync. and the Total dots cannot be fully adjusted when “RGB,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P22 and 23).

NORMAL FUNCTION

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The “Normal” display will be displayed on the screen for a few seconds.

Normal

It indicates the level of the item.

Move the arrow to the item and press

POINT RIGHT /

LEFT button.

Close the PICTURE

IMAGE ADJUSTMENT

Menu.

COMPUTER MODE

AUTO IMAGE FUNCTION

The Auto Image function is provided to automatically adjust Fine sync., Total dots, and Picture Position for most computers.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

AUTO IMAGE and press the SELECT button.

Another dialog box AUTO IMAGE Menu will appear.

Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN button. Change the setting On or Off by pressing the SELECT button.

Fine sync.

Adjust the picture as necessary to eliminate flicker from the display.

This item can be adjusted manually. (Refer to page 26.)

Total dots

The number of the total dots in one horizontal period. This item can be adjusted manually. (Refer to page 26.)

Position

Adjustment of the position of the image. This item can be adjusted manually. (Refer to page 27.)

Starts the adjustment on the item set to "On".

Close the PICTURE IMAGE

ADJUSTMENT Menu.

Move the arrow to the item and then press the SELECT button.

3

Move the arrow to “Go!” and press the SELECT button to start the Auto Image function.

This adjustment can be executed by pressing AUTO IMAGE button on the Top Control and the Remote Control Unit.

Stored

Go!

Stores the On/Off setting of each item.

Starts the Auto Image Adjustment.

Quit

Closes the AUTO IMAGE ADJUSTMENT Menu.

NOTE : The Fine sync. and the Total dots cannot be fully adjusted when “RGB,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P22 and 23).

The Fine sync., Total dots, and Picture Position of some computers may not be fully adjusted with the Auto Image

Function. In that case, manual adjustment is required to make fine image. (Refer to page 26 to adjust "Fine sync." or "Total dots" and page 27 to adjust Picture Position.)

PICTURE POSITION ADJUSTMENT

The position of the image can be adjusted vertically and horizontally through PICTURE POSITION

ADJUSTMENT.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

POSITION and press the SELECT button. The PICTURE

POSITION dialog box will appear.

Move the image by pressing the POINT UP / DOWN / RIGHT /

LEFT buttons.

To cancel POSITION mode, press any buttons except SELECT,

RIGHT CLICK, POINT or LASER button. To recall the position previously adjusted, press NORMAL button.

PICTURE POSITION dialog box

Press the POINT UP /

DOWN / RIGHT / LEFT buttons to move the image

Downloaded From projector-manual.com Canon Manuals

27

COMPUTER MODE

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the image in desirable size.

1

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN Menu will appear.

2

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT button.

True

To make the image into its original size select True in the dialog box. When the original image size is larger than the screen size

(1024 x 768), this projector enters Digital Zoom mode automatically.

Move the arrow to the function and press the

SELECT button.

Keystone

When the image is distorted vertically, select Keystone in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears and the message “Keystone” is displayed. Correct the

Keystone distortion by pressing the KEYSTONE

/

▼ button or the

POINT UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page 20.

Digital Zoom

To adjust the image size or pan the image, select Digital zoom in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears and the message “D. Zoom” is displayed.

This projector also enters Digital Zoom mode by pressing the

D.ZOOM

/

▼ button on the Remote Control Unit.

Refer to the following for operation.

Expand function

To expand the image size, press the D.ZOOM

▲ button or the SELECT button. The image is magnified by degrees.

Compress function

To compress the image size, press the D.ZOOM

▼ button or the RIGHT CLICK button. The image is reduced by degrees.

Panning function

To pan the image, press the POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size.

To cancel Digital Zoom mode, press any button except D.ZOOM

/

, SELECT, RIGHT CLICK, POINT, or LASER button. To adjust the image to the screen size (1024 x 768), press NORMAL button.

This projector cannot display in any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution lower before connecting the projector.

The image data in other than XGA (1024 x 768) is modified to fit the screen size in the initial mode.

The normal "Panning Operation" may not function properly if the computer system prepared with the "PC Adjust" is used.

NOTE : The True and the Digital Zoom cannot be operated when “RGB,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P22 and 23).

VIDEO MODE

SELECTING VIDEO MODE

DIRECT OPERATION

Select VIDEO mode by pressing the MODE button on the Top

Control or the VIDEO button on the Remote Control Unit.

MODE button

COMPUTER

VIDEO

MENU OPERATION

Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select Video press the SELECT button. and

SELECTING COLOR SYSTEM

1

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SYSTEM and press the SELECT button. Another dialog box

VIDEO SYSTEM Menu will appear.

2

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to "Auto", and then press the SELECT button.

Auto

The projector automatically detects the incoming Video system, and adjusts itself to optimize its performance.

When the Video System is PAL-M or PAL-N, select the system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If the projector cannot reproduce the proper video image, it is required to select a specific broadcast signal format among PAL,

SECAM, NTSC, NTSC 4.43, PAL-M, or PAL-N.

This box indicates the system being selected.

Move the arrow to the Mode and press the SELECT button.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the image in desirable size.

1

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN ADJUSTMENT DISPLAY will appear.

2

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the screen size that you want to set, and then press the SELECT button.

Regular

Normal Video Image size with 4 x 3 aspect ratio.

Wide

Resizes the image for wide screen size with 16 x 9 aspect ratio.

Keystone

When the image is distorted vertically, select Keystone in the dialog box. Correct the Keystone distortion by pressing KEYSTONE

/

▼ button or POINT UP/DOWN button(s). Refer to KEYSTONE

ADJUSTMENT on page 20.

Move the pointer to the function and press the SELECT button.

Downloaded From projector-manual.com Canon Manuals

29

VIDEO MODE

PICTURE IMAGE ADJUSTMENT

1

2

ADJUSTING THE PICTURE IMAGE

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

IMAGE and press the SELECT button. Another dialog box

PICTURE IMAGE ADJUSTMENT Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to adjust by pressing the POINT UP/DOWN buttons. To change the value, press either the POINT RIGHT button or the POINT LEFT button.

Color

Press POINT LEFT button to lighten the image, and press POINT

RIGHT button to deepen the image. (From 0 to 63.)

Tint

Press POINT LEFT button to increase purple, and press POINT

RIGHT button to increase green. (From 0 to 63.)

White balance (Red / Green / Blue)

Move the arrow to the color that you want to adjust. Press POINT

LEFT button to lighten the color, and press POINT RIGHT button to deepen the color. (From 0 to 63.)

Contrast

Press POINT LEFT button to decrease contrast, and press POINT

RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to darken the image, and press POINT

RIGHT button to brighten the image. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften the image, and press POINT

RIGHT button to sharpen the image. (From 0 to 63.)

Each of the keys operates as follow.

Reset

Recalls the data previously adjusted.

Stored

Stores the data in the memory.

Quit

Closes the PICTURE IMAGE ADJUSTMENT Menu.

NORMAL FUNCTION

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The "Normal" display will be displayed on the screen for a few seconds.

Normal

It indicates the level of the item.

Move the arrow to the item and press

POINT RIGHT /

LEFT button.

Close the PICTURE

IMAGE ADJUSTMENT

Menu.

SETTING

SETTING MENU

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SETTING and press the SELECT button. Another dialog box SETTING Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to set, and then press the SELECT button to set it "On" or "Off".

Blue back

When this function is in the "On" position, this projector will produce a blue image instead of the video noise on the screen when all input sources are unplugged or turned off.

Display

When this function is in the "On" position, the On-

Screen Display always appears when adjustments are made. (The following displays disappear by switching this function "Off.")

Preparation Display

(The Number-counting-down Display)

Mode Display

Volume/Mute Display

Zoom Display

Focus Display

Normal Display

No show Display

Keystone Display

D.Zoom Display

Ceiling

Rear

Split wipe

Lamp age

When this function is in the “On” position, the top / bottom and the left / right reversed picture is provided to project the image from a ceiling mounted projector.

When this function is in the “On” position, the left / right reversed picture is provided to project the image to a rear projection screen.

Turn this function “On” position in the SETTING menu.

The picture will change into the next one by sliding black image side ways like drawing the black curtains when the input source is turned into another one.

The Lamp age function is designed to reset the lamp replacement monitor timer. When replacing the lamp, reset the lamp replacement monitor timer by using this function. (Refer to page 34.)

Ceiling function

Rear function

Set the Pointer to the item, and then press the SELECT button.

SELECTING LANGUAGE

The language used in the ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish and Japanese.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select

LANGUAGE and press the SELECT button. Another dialog box LANGUAGE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the language that you want to set, and then press the SELECT button.

Move the Pointer to the language that you want to set, and then press the SELECT button.

Downloaded From projector-manual.com Canon Manuals

31

APPENDIX

OPERATING WIRELESS MOUSE

The Wireless Remote Control Unit is not only able to operate the projector but also can be used as a wireless mouse for most Personal Computers. The POINT buttons and the two CLICK buttons are used for the wireless mouse operation.

The wireless mouse is available only when PC mouse pointer is displayed on the screen. When the menu or the indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used.

INSTALLATION

To use the Wireless Remote Control Unit as the Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse port of the computer connected to Control Port is activated.

1

2

Connect the mouse port of your computer to the Control Port of the projector with the Control Cable. (Refer to page 10 to 13 for connection.)

Turn the projector on first, and then turn on your computer.

When the computer is switched on first, the Wireless Mouse may not work properly.

Note : When the computer has no mouse port, connect the Serial

Port of the computer to Control

Port of the projector with the

Control Cable for Serial Port.

OPERATING WIRELESS MOUSE

When controlling the pointer of the computer, operate the Wireless Mouse with POINT button, SELECT button, and RIGHT CLICK button on the Wireless Remote Control Unit.

POINT button

Used to move the pointer. The pointer is moved corresponding with the direction you are pressing.

POINT button (Move the pointer)

SELECT (LEFT CLICK) button

This button has the same function as the left button in a PC mouse.

RIGHT CLICK button

This button has the same function as the right button in a PC mouse.

Pressing this button does not affect any operation when in Menu mode.

SELECT button

(left button of the mouse)

RIGHT CLICK button

(right button of the mouse)

APPENDIX

MAINTENANCE

TEMPERATURE WARNING INDICATOR

1

2

3

The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops flashing when the temperature of the projector becomes normal.

When the TEMPERATURE WARNING Indicator continues to flash, check the item listed below.

The Ventilation slots of the projector may be blocked. In such an event, reposition the appliance so that the ventilation slots are not obstructed.

Air filters are clogged with dust particles. Clean the air filters by following AIR FILTER CARE AND CLEANING below.

If the TEMPERATURE WARNING Indicator remains on after performing the above checks, the Cooling Fans or the

Internal Circuits may be malfunctioning. Request service from an authorized dealer or service station.

AIR FILTER CARE AND CLEANING

The Removable Air Filters prevent dust from accumulating on the surface of the Projection Lens and the

Projection Mirror. Should the Air Filters become clogged with dust particles, it will reduce the Cooling Fans' effectiveness and may result in internal heat build up and adversely affect the life of the projector.

Clean the Air Filters following the steps below:

1

2

3

Turn the power off, and disconnect the AC power cord from the

AC outlet.

Turn the projector upside down and remove 2 Air Filters by pulling the latches upward.

Clean the Air Filters with brush or wash out the dust and particles.

AIR FILTERS

4

Replace the Air Filter. Make sure that the Air Filters are fully inserted.

CAUTION

Do not operate the projector with the Air Filter removed.

Dust may become stuck on the LCD Panel and the Mirror degrading picture quality.

Do not put small parts into the Air Intake Vents. It may result in malfunctions of the projector.

The Air Filter is small. Ensure that children don’t eat or swallow it.

Replacement Air Filter

Type No. : DY4-5798-000

RECOMMENDATION

We recommend to avoid dusty/smoky place for operating the projector. Using in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on the liquid crystal panel and lens inside, and may resultantly be projected onto the screen together with the picture.

When the above symptoms are noticed, contact your authorized dealer or service station for the cleaning.

CLEANING THE PROJECTION LENS

2

3

Follow these steps to clean the projection lens:

1

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.

Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

Lightly wipe the cleaning cloth over the lens.

When you are not using the projector, replace the lens cover.

Downloaded From projector-manual.com Canon Manuals

33

APPENDIX

LAMP REPLACEMENT INDICATOR

When the life of the Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights red.

When the image becomes dark or the color of the image becomes unnatural, replacement of the Lamp is required.

LAMP REPLACEMENT

CAUTION

For continued safety, replace with a lamp assembly of the same type.

Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot.

Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury.

Follow these steps to replace the lamp assembly.

1

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

2

3

4

Remove a screw with a screwdriver and remove the Lamp

Cover.

Remove 2 screws with a screwdriver and pull out the Lamp

Assembly by grasping the handle.

Replace the Lamp Assembly with new one and tighten 2 screws. Make sure that the Lamp Assembly is set properly.

And replace the Lamp Cover and tighten a screw.

LAMP COVER

HANDLE

5

6

Connect the AC Power Cord to the projector and turn the projector on.

Reset the Lamp Replacement Monitor Timer (refer to the section “Lamp Replacement Monitor Timer” below).

NOTE : Do not reset the LAMP REPLACEMENT MONITOR

TIMER, when the lamp is not replaced.

LAMP

ASSEMBLY

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering the Lamp, give the following information to the dealer.

Model No. of your projector : LV-7320U

Replacement Lamp Type No. : LV-LP05

(Service Parts No. 610 280 6939)

LAMP REPLACEMENT MONITOR TIMER

Be sure to reset the Lamp Replacement Monitor Timer when the Lamp Assembly is replaced. When the

Lamp Replacement Monitor Timer is reset, the LAMP REPLACEMENT indicator stops lighting.

1

2

Turn the projector on, and press the MENU button and the ON-SCREEN MENU will appear. Press the POINT

LEFT/RIGHT buttons to select SETTING dialog box SETTING MENU will appear. and press the SELECT button (refer to the page 31). Another

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to Lamp age, and then press the

SELECT button. The message "Lamp replace monitor Reset?" is displayed.

3

Select [Yes] to reset the Timer.

Do not reset the Lamp Replacement Monitor Timer, except after the lamp is replaced.

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service station for assistance, check the matters below once again.

1. Make sure you have connected the projector to your equipment as described in the section "CONNECTING

THE PROJECTOR" on pages 10 ~ 13.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If the projector still does not produce the image, re-start the computer.

5. If the image sill does not appear, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before your power up the projector.

Power the equipment back in order of : Projector and computer.)

6. If the problem still exists, check the following chart.

Problem:

No power.

Image is out of focus.

Try these Solution

Plug the projector into the AC outlet.

Be sure READY Indicator light is On.

Wait 90 seconds after the projector is turned OFF before turning the projector back on.

NOTE : After pressing the power ON-OFF switch to OFF, make sure the projector works as follow.

1. The LAMP indicator will light and the READY indicator will turn off.

2. After 90 seconds, the READY indicator will light green again and the projector may be turned on by pressing the power ON-OFF button.

Check the TEMPERATURE WARNING indicator. If the indicator flashes red, the projector cannot be turned on.

(See "TURNING ON/OFF THE PROJECTOR" section on page 20.)

Check the Projection Lamp. (Refer to page 34.)

Adjust the focus

Make sure the projection screen is at least 4.6’ (1.4m) from the projector.

Check the projection lens to see if it needs cleaning.

NOTE : Moving the projector from a cool temperature location to a warm temperature location may result in moisture condensation on the lens. In such an event, leave the projector OFF an d wait until condensation disappears.

Check Ceiling / Rear feature. (See “SETTING” section on page 31.)

Picture is Left/Right reversed.

Picture is

Top/Bottom reversed.

Some displays are not seen during the

Operation.

No image.

No sound.

Check Ceiling feature. (See “SETTING” section on page 31.)

Check Display feature.(See “SETTING” section on page 31..)

Check the connection between the computer or video equipment and the projector.

When turning the projector on, it takes about 30 seconds to display the image.

Check the system that you select corresponds with the computer or the video equipment.

Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

Check audio cable connection from audio input source.

Adjust the audio source.

Press VOLUME (+) button.

Press MUTE button.

Downloaded From projector-manual.com Canon Manuals

35

APPENDIX

Problem:

Remote Control Unit does not work.

Wireless Mouse function does not work.

Try these Solution

Check the batteries.

Check the ALL-OFF switch on the Remote Control Unit is set to “ON.”.

Make sure nothing is between the Remote Receiver and the Remote Control Unit.

Make sure you are not too far from the projector when using the Remote Control Unit.

Maximum operating range is 16.4’ (5m).

Check the cable connection between the projector and the computer.

Check the mouse setting on your computer.

Turn the projector on before you turn on the computer.

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

APPENDIX

TECHNICAL SPECIFICATIONS

Projector Type

Dimensions

(W x H x D)

Net Weight

LCD Panel System

Panel Resolution

Number of Pixels

Color System

Scanning Frequency

Projection Image size

(Diagonal)

Horizontal Resolution

Projection Lens

Throw Distance

Brightness

Projection Lamp

AV Input Jacks

Computer Input Jacks

Control Port Jack

Monitor Output Jack

Computer Audio Input Jack

Audio Output Jack

Internal Audio Amp

Built-in Speaker

Feet Adjustment

Voltage

Power Consumption

Operating Temperature

Storage Temperature

Remote Control Transmitter

Accessories

Multi-media Projector

9.45" x 3.66" x 13.23" (240mm x 93mm x 336mm) (not including Adjustable Feet)

9.26 lbs (4.2 kg)

0.9" TFT Active Matrix type, 3 panels

1024 x 768 dots

2,359,296 (1024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 30” to 300”

800 TV lines

F 1.7 ~ 2.0 lens with f 33.2mm ~ 43.1mm Motor zoom and focus

4.6’ ~ 35.4’ (1.4 m ~ 10.8 m)

1250 ANSI lumen (Brighter mode)

1000 ANSI lumen (Standard mode)

150 W UHP

RCA Type x 1 (Video, Audio R and L) and Mini DIN 4 pin (S-Video) x 1

(VGA) HDB 15 Terminal x 1

Mini DIN 8 pin x 1

(VGA) HDB 15 Terminal x 1

Mini Jack (stereo)

Mini Jack (stereo)

1W RMS (Monaural)

1 speaker, 1.57" x 1.18" (40mm x 30mm)

0˚ to 10˚

AC 100 ~ 120 V, 50 / 60 Hz

2.5 A (Max. Ampere)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Power Source : AA Type x 2

Operating Range : 16.4’ (5m) / ±30˚

Dimensions : 2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)

Net Weight

Laser Pointer

: 0.35 lbs (160 g) (including batteries)

: Class II Laser

(Max. Output : 1mW / Wave length : 650±20nm)

Owner’s Manual

AC Power Cord

Remote Control Transmitter and Batteries

VGA Cable

Control Cable for PS/2 port

Dust Cover

Lens Cover, Strap for Lens Cover and Screw

The specifications are subject to change without notice.

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Downloaded From projector-manual.com Canon Manuals

37

APPENDIX

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give the name and the Type No. of it to the sales dealer.

Control Cable for Serial Port

Control Cable for ADB Port

Type No. : LV - CA26

Type No. : LV - CA27

MAC Adapter

Canon Digitizer

Type No. : LV - AD02

Type No. : LV - DP10

Downloaded From projector-manual.com Canon Manuals

CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC. NEW YORK OFFICE

One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.

phone : 516-328-5960

CANON U.S.A., INC. LOS ANGELES OFFICE

15955 Alton Parkway, irvine, CA 92718-3616, U.S.A.

phone : 949-753-4320

CANON CANADA, INC.

6390 Dixie Road Mississauga, Ontario L5T 1P7 Canada phone : 905-795-1111

1AA6P1P2169-- (MB6P)

Downloaded From projector-manual.com Canon Manuals

©CANON INC. 2000

YT1-1312-000

PRINTED IN JAPAN

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
