Niles CM750Si stereo input 2 way in-ceiling loudspeaker brochure (2.35MB jpg).

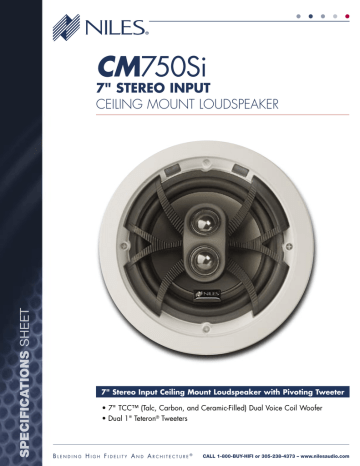

CM750Si SPECIFICATIONS SHEET 7" STEREO INPUT CEILING MOUNT LOUDSPEAKER 7" Stereo Input Ceiling Mount Loudspeaker with Pivoting Tweeter • 7" TCC™ (Talc, Carbon, and Ceramic-Filled) Dual Voice Coil Woofer • Dual 1" Teteron® Tweeters BLENDING HIGH FIDELITY AND ARCHITECTURE® CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com 7 INCH STEREO INPUT CEILING MOUNT LOUDSPEAKER 7" Stereo Input Loudspeaker with Pivoting Tweeter Features CM750Si ■ Injection-molded TCC™ (Talc, Carbon, and Ceramic-filled) dual voice coil woofer reproduces left and right channel inputs from a single speaker Stock Number ■ Butyl rubber cone surround damps resonance and provides exceptional durability FG01305 ■ Dual 1" pivoting fluid-cooled Teteron® dome tweeters offer ultra-wide dispersion and silkysmooth high-frequency response ■ Integrated woofer/baffle design delivers greater low frequency response by employing a 7" woofer where competitive models of the same outer size employ 6 1/2" woofers ■ Bridge-mounted stereo imaging (Si) tweeter array directs the high-frequency sounds from both the left and right channels at opposing angles to preserve stereo separation ■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look ■ Weather resistant construction reduces installation limitations and provides unique solutions in showers or outdoors under eaves Specifications ■ Frequency Response: 55Hz to 21kHz +/-3dB ■ Impedance: 8 ohm nominal; 6 ohm minimum ■ Recommended Amplifier Power: 10 to 125 Watts ■ Frame Dimensions: 9 1/4 inches ■ Hole cutout dimensions: 8 inches ■ Depth behind ceiling: 4 3/8 inches Warranty: Lifetime limited P RODUCT CONSTRUCTION AND ACCESSORIES 4-3/8" Depth SPECIFICATIONS SHEET 8" Hole Cutout 8" Hole Cutout 9-1/4" Frame Outer Diameter 4-11/16" Depth Loudspeaker Model Model Stock Number CM750Si FG01305 Works With Previous Bracket New Bracket Metal Enclosure Hole Cover CM6 Series Bracket Kit CM700 BKT CM700 CE CM700 Hole Cover FG01308 FG01396 FG01309 FG00655 NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com ©2007 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation. CS0056B
