H-Series Quickstart Guide
Guide_Card.fm Page 1 Tuesday, February 22, 2011 12:42 PM

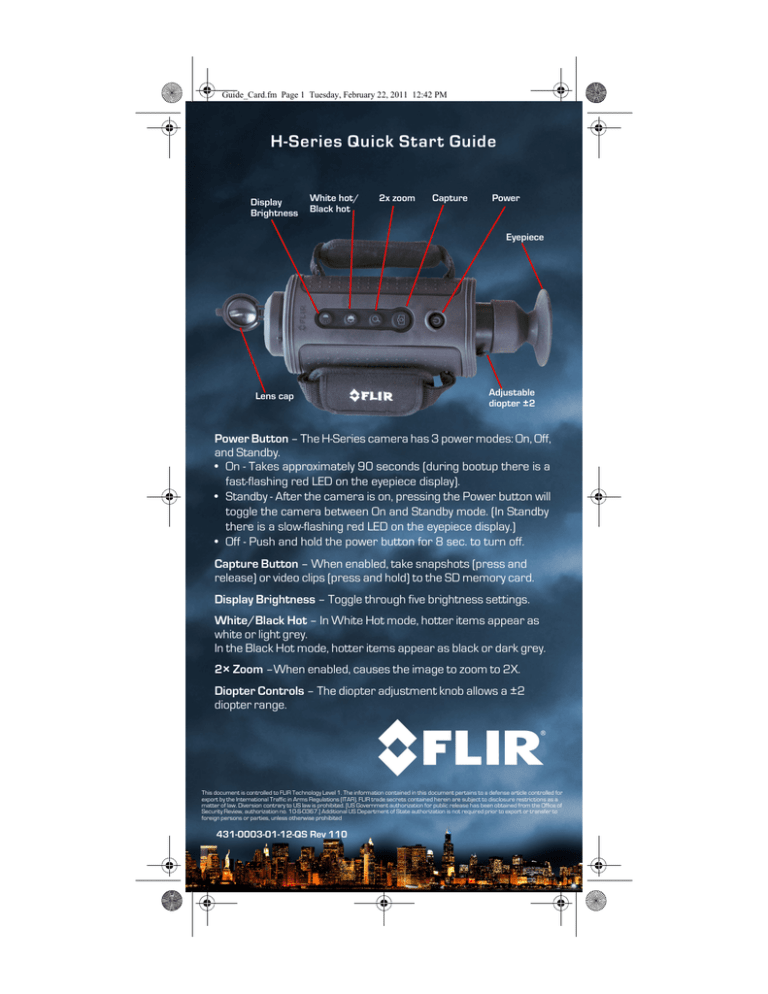

H-Series Quick Start Guide
Display
Brightness
White hot/
Black hot
2x zoom
Capture
Power
Eyepiece
Lens cap
Adjustable
diopter ±2
Power Button – The H-Series camera has 3 power modes: On, Off,
and Standby.
• On - Takes approximately 90 seconds (during bootup there is a
fast-flashing red LED on the eyepiece display).
• Standby - After the camera is on, pressing the Power button will
toggle the camera between On and Standby mode. (In Standby
there is a slow-flashing red LED on the eyepiece display.)
• Off - Push and hold the power button for 8 sec. to turn off.
Capture Button – When enabled, take snapshots (press and
release) or video clips (press and hold) to the SD memory card.
Display Brightness – Toggle through five brightness settings.
White/Black Hot – In White Hot mode, hotter items appear as
white or light grey.
In the Black Hot mode, hotter items appear as black or dark grey.
2× Zoom –When enabled, causes the image to zoom to 2X.
Diopter Controls – The diopter adjustment knob allows a ±2
diopter range.
This document is controlled to FLIR Technology Level 1. The information contained in this document pertains to a defense article controlled for
export by the International Traffic in Arms Regulations (ITAR). FLIR trade secrets contained herein are subject to disclosure restrictions as a
matter of law. Diversion contrary to US law is prohibited. [US Government authorization for public release has been obtained from the Office of
Security Review, authorization no. 10-S-0367.] Additional US Department of State authorization is not required prior to export or transfer to
foreign persons or parties, unless otherwise prohibited
431-0003-01-12-QS Rev 110
Guide_Card.fm Page 2 Tuesday, February 22, 2011 12:42 PM
Installing the Batteries and SD Card
The batteries must be installed and charged before using your
camera. Install your SD card.
1. Remove the small SD card
cover.
No tools are required.
2. Install the SD card.
Battery
cover
Grasp SD card
cover edges
and pull
–
+
+
–
–
+
+
–
3. Loosen the four captive screws
securing the battery cover.
4. Pry off the battery cover by
grasping the front edge where the
SD card cover was removed.
5. Install the batteries as shown.
6. Snap the SD card cover back
into place and re-install the battery
cover—it only fits one way.
Charging the Camera
The batteries in the camera must be charged prior to their first
use.
1. Connect the Hot Shoe to your
camera.
Plug from power adapter
Charging
2. Ensure that the plug is fully
indicator
seated in the Hot Shoe.
When charging correctly, the
charging indicator will be lit
yellow and will blink green for one
second within about 35 seconds.
The charging indicator will
continue to blink at decreasing
Solid
green
intervals until the batteries are
fully charged.
When fully charged, the charging
indicator will be lit solid green.
The initial charge time is approximately 4 hours.
www.flir.com
